KORG PANDORA PX5D User Manual

E F G J 1

Bedienungsanleitung Manuel d’utilisation Owner’s manual

Precautions

Location

Using the unit in the following locations can result in a malfunction.

•In direct sunlight

•Locations of extreme temperature or humidity

•Excessively dusty or dirty locations

•Locations of excessive vibration

•Close to magnetic fields

Power supply

Please connect the designated AC adapter to an AC outlet of the correct voltage. Do not connect it to an AC outlet of voltage other than that for which your unit is intended.

Interference with other electrical devices

Radios and televisions placed nearby may experience reception interference. Operate this unit at a suitable distance from radios and televisions.

Handling

To avoid breakage, do not apply excessive force to the switches or controls.

Care

If the exterior becomes dirty, wipe it with a clean, dry cloth. Do not use liquid cleaners such as benzene or thinner, or cleaning compounds or flammable polishes.

Keep this manual

After reading this manual, please keep it for later reference.

Keeping foreign matter out of your equipment

Never set any container with liquid in it near this equipment. If liquid gets into the equipment, it could cause a breakdown, fire, or electrical shock.

Be careful not to let metal objects get into the equipment. If something does slip into the equipment, unplug the AC adapter from the wall outlet. Then contact your nearest Korg dealer or the store where the equipment was purchased.

2

THE FCC REGULATION WARNING (for USA)

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules.These limits are designed to provide reasonable protection against harmful interference in a residential installation.This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

•Reorient or relocate the receiving antenna.

•Increase the separation between the equipment and receiver.

•Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

•Consult the dealer or an experienced radio/TV technician for help.

Unauthorized changes or modification to this system can void the user’s authority to operate this equipment.

Notice regarding disposal (for EU)

If this “crossed-out trash can” symbol is shown on the product or in the operating manual, you must dispose of the product in an appropriate way. Do not dispose of this product along with your household trash. By disposing of this product correctly, you can avoid environmental harm or health risk. The correct method of disposal will depend on your locality, so please contact the appropriate local authorities for details.

*Company names, product names, and names of formats etc. are the trademarks or registered trademarks of their respective owners.

3

Table of Contents
Precautions ...............................................	2
Introduction ..............................................	6
Main features ...........................................	6
Turning on the power ................................	7
Controls and connectors ............................	8
LCD screen ................................................................	10
Making connections ................................	11
Connecting to your Computer ..............................	13
Using the editor software ...............................................	13
Transferring audio data ..................................................	13
Initial Settings .........................................	15
Quick Edit .................................................................	15

Play mode ..............................................	16
Selecting a program ................................................	16
PROGRAM MEMORY [A], [B], [C], [D] buttons .........	16
Using foot switches to select programs .........................	16
Master level ...............................................................	16
Bypass/Mute .............................................................	17
Tuner ...........................................................................	17
Specifying the function of the Value encoder ..	18
Key Lock function ...................................................	18
Rhythm & Bass mode ..............................	19
PTN (Pattern play) ...................................................	19
CHAIN (Chain play) ...............................................	21
SONG (Song play) ...................................................	23
Phrase Trainer mode ...............................	25
Select the recording mode .....................................	25
Recording ..................................................................	26
Playback .....................................................................	27
Pause ...........................................................................	27
Saving .........................................................................	27

4

Edit mode ...............................................	28
Select the effect that you wish to edit .................	28
Editing each effect ...................................................	28
DYNA: Dynamics & Pickup Modeling .........................	28
AMP: Amp Modeling ......................................................	29
CAB: Cabinet Modeling ..................................................	29
MOD: Modulation & Filter Effect Modeling ................	30
DLY: Delay Modeling ......................................................	30
DLY: Delay Time ..............................................................	30
REV: Reverb Modeling ....................................................	30
NR: Noise reduction ........................................................	31
RENAME ..........................................................................	31
WRITE ...............................................................................	31
Utility mode ............................................	32
Select a utility function ..........................................	32
Change settings for each utility function ..........	32
BACKLIGHT: LCD backlight on/off ............................	32
KEY-TRN: Key transpose ................................................	32
KTR+BC: Key transpose + bass cancel ..........................	33
AMP/LIN: Amp/line select ...........................................	33
FOOTSW: Foot switch pedal settings ............................	34
USBSEND: USB Send ......................................................	35
USB RCV: USB Receive ...................................................	35
AUX>USB: USB audio interface ....................................	35

MIDDRUM: MIDI Drum/Bass ......................................	36
Loading the factory-set data ...................	36
Effect Parameter List ...............................	37
DYNA: Dynamics & Pickup modeling ...............	37
AMP: Amp Modeling .............................................	39
CAB: Cabinet modeling .........................................	43
MOD: Modulation & Filter Effect Modeling ....	45
DLY: Delay Modeling .............................................	49
REV: Reverb Modeling ...........................................	50
Preset Program Names ...........................	51
Rhythm Pattern List .................................	52
Troubleshooting ......................................	53
Specifications ..........................................	55

5

Introduction

Thank you for purchasing the KORG PANDORA PX5D personal multi-effect processor. In order to enjoy your

PANDORA PX5D, please read this owner’s manual carefully and retain it for future reference.

Main features

The PX5D is a versatile multi-effect unit that packs an incredible range of guitar amps, bass amps and effects into a compact unit which utilizes Korg’s proprietary “” modeling technology to create detailed and powerful modeling sounds.

180 types of effect variations with a maximum of seven effects that can be used simultaneously.

IPE (Integrated Parameter Edit) allows effects to be quickly edited.

100 user and 100 preset programs

Control dials

The PX5D includes 18 types of guitar amp models, 10 types of bass amp models, and 6 type of synths, each of which can be edited quickly and easily.

Backlit LCD

The large LCD screen can be easily viewed even in dark locations.

Auto Tuner function

This feature makes tuning fast and easy. You can also tune without being heard (i.e., while muted).

Rhythm and Bass function

128 types of rhythm and bass patterns or a metronome can be used. 16 multiple patterns can also be connected for successive playback.

Phrase Trainer function

You can use Rhythm & Bass mode to specify a rhythm pattern, play along with this rhythm pattern from an audio source connected to the AUX jack or USB connector or on your guitar (or bass) connected to the INPUT jack while you record the result, and then play back the recording as a loop (maximum of approximately 80 seconds). The playback speed can also be slowed down without affecting the pitch of the audio. The rhythm selected in Rhythm & Bass mode and the effect output can also be recorded simultaneously.

AUX pitch function

This lets you modify the pitch of audio from the AUX jack or USB connector (Key Transpose function) or cancel the low-frequency region (Bass Cancel function).

TAP/BYPASS button

You can easily set the Delay Time or the tempo of the Rhythm & Bass function to match the tempo of the song.

6

Value encoder

This lets you rapidly select programs or edit the effects.

USB-MIDI, USB audio interface function

If you use the included USB cable to connect the PX5D to your computer, you’ll be able to use the editor software* to edit the PX5D or transfer audio data between the PX5D and your computer.

*: You can download the editor software from the Korg website (http://www.korg.com/). Expected to become available in October, 2007.

What is

?

(Resonant structure and Electronic circuit Modeling System) is KORG’s proprietary sound modeling technology which precisely reproduces the complex character and nature of both acoustic and electric instruments as well as electronic circuits in real world environments. emulates a wide variety of sound generation characteristics including instrument bodies, speakers & cabinets, acoustic fields, microphones, vacuum tubes, transistors, etc.

Turning on the power

Remove the battery cover located on the bottom of the PX5D by sliding it in the direction of the arrow. Insert two AA alkaline batteries as shown in the illustration. Be sure to insert the batteries observing the correct polarity.

Battery Low display

When the battery begins to run low, the Low Battery icon will light. When this icon lights, replace the batteries as soon as possible. Programs and other data (except

for the data being edited) will not be lost even if the battery is removed and changed.

Batteries that have run down must be removed from the PX5D. If you leave dead batteries in the unit, malfunctions (battery leakage, etc.) may occur. You should also remove the batteries when you do not expect to use the PX5D for an extended period of time.

An AC adapter is not included with this product. It must be purchased separately.

7

	Controls and connectors		5. Power switch
	7 6 5 4 3 2 1		This switch turns the power on/off.
			STANDBY: The power is off.
			ON: The power is on.
	8		USB: The power is on. When the PX5D is connected to
			your computer via the USB cable, your computer will
	9	19
			supply power via the USB bus.
	10	18	Some computers may not be able to supply power via USB
			bus power. In this case, use a self-powered USB hub (that
	11	17	obtains power from an external supply), use two batter-
			ies, or use the AC adaptor.

12	14	15	16	6. FOOT SW jack
13				You can use the included cable for FOOT SW jack to con-
				nect two foot switches.

1. INPUT jack

Connect your guitar or bass to this jack.

2. AUX jack (stereo)

Connect this jack to a CD player or other audio source.

7. OUTPUT jack

Connect this jack to your guitar amp, bass amp, or headphones etc.

8. LCD (Liquid Crystal Display)

3. INPUT switch

Use this to adjust the input level depending on the output level of your guitar or bass ( p.15).

4. Control dials

These dials control the gain, tone, and volume of the amp models and synth parameters.

( p.10 “LCD screen”)

9. CURSOR

Use these buttons to select programs or the parameter that you wish to edit. These will also operate the Phrase Trainer function.

8

10. DC4.5V

The separately sold AC adapter (DC4.5V) is connected here.

11. RHYTHM button

Use this button to enter Rhythm & Bass mode ( p.19).

12. PHRASE TRAINER button

Use this button to enter Phrase Trainer mode ( p.25).

13. UTILITY button

Use this button to enter Utility mode ( p.32).

14. PROGRAM MEMORY [A] [B] [C] [D] buttons

You can assign your favorite programs to these four buttons (A–D) ( p.16).

15. ENTER/REC button

This button is used to switch an effect on/off, to edit patterns in Rhythm & Bass mode, or to start recording in Phrase Trainer mode.

16. EXIT button

Returns to Play mode or to the preceding screen.

17. TAP/BYPASS button

In Edit mode this button lets you specify the delay time for delay effects ( p.15), or the rhythm tempo for rhythm & bass mode ( p.19). In Play mode, this button will Bypass or Mute the PX5D, and activate the Tuner ( p.17).

18. USB connector

Use the included USB cable to connect this to your computer. You’ll be able to use the editor software to edit the PX5D or transfer audio data between the PX5D and your computer.

19. Value encoder

Use this to adjust the master level, edit effects, and select programs.

9

LCD screen

9

1

28

3

4

5

6

7

1. Effect chain

This area indicates the on/off status of the DYNA, AMP, CAB, MOD, DLY, and REV effects.

2. Program name/Effect type display

This area shows the program name or effect type. When the PX5D is bypassed or muted, this will function as the tuner.

3. USB icon

This is shown if the PX5D is connected to your computer via the USB port.

4. Low Battery icon

This icon will light when the batteries run low.

5. Mode icons

These are shown when you enter the corresponding mode.

6. Program number/value display

This displays the program number. When you change the Master Level, its value will be displayed here for several seconds. During editing, this displays the parameter values.

7. ORIG (Original) icon

If the parameter or value being edited matches the value that is written in the program, the ORIG icon will light.

8. Bar graph

In Play mode or Edit mode, this graph indicates the master level or the value of a parameter. In Rhythm mode, this indication will change according to the rhythm pattern that’s playing.

9. Variation icons (VARI1, VARI2)

This shows the variation of the rhythm pattern or rhythm & bass pattern you’re using in Rhythm mode ( p.20).

10

Making connections

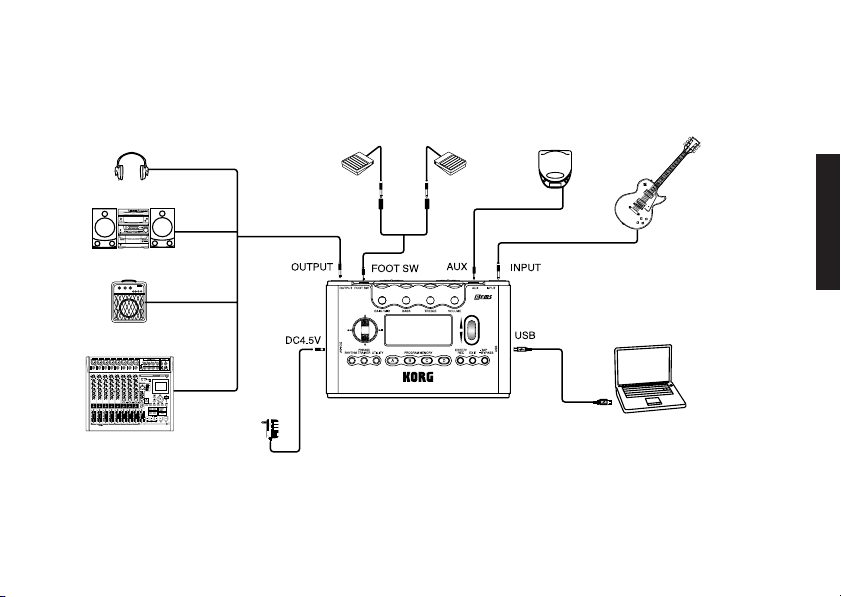

When connecting an external device (ie-guitar amp, bass amp, CD player, AC adapter, etc.) be sure to turn the unit off.

	Foot switch *5	CD player etc.*2
headphone*4		guitar or bass
mini-component /
stereo etc.	*3
guitar amp /bass amp/		*6
powered monitor
		*7
		Computer
Digital recorder
	AC adapter *1

11

*1 Be sure to use only the specified AC adapter (DC4.5V ).

*2 If a CD player or other audio source is connected to the AUX jack, you can play along with your guitar or bass. However the volume must be adjusted from the connected device.

Connecting cables are sold separately.

*3 The PX5D’s output jack is stereo. If you use a mono cable to connect it to a guitar or bass amp etc., only the L (left) output will be heard.

*4 The PX5D’s output level and sound quality will vary depending on which headphones are used. We recommend using good quality low impedance headphones, 32 Ohms or less with a sensitivity rating near 100dB/mW or above. Many headphones sold for use with portable CD or cassette players will work fine.

*5 Use the included cable for FOOT SW jack to connect two foot switches to the PX5D. You can connect two foot switches such as the Korg PS-1 (sold separately). In Utility mode you can specify the function of the pedal switches; for example you can use them to switch programs, or to start/stop recording and playback in Phrase Trainer mode ( p.16 “Using foot switches to select programs,” p.34 “FOOTSW”).

*6 Use the included USB cable if you want to connect the PX5D to your computer. For details on connections to your computer, refer to “Connecting to your computer.”

*7 If needed, you can attach the included rubber feet to the bottom of the PX5D.

12

Connecting to your Computer

If you use the included USB cable to connect the PX5D to your computer, you’ll be able to use the editor software to edit the PX5D, and transfer audio data between the PX5D and your DAW software.

Using the editor software

The editor software lets you edit programs, manage data libraries, and create chains for Rhythm & Bass mode.

You can download the editor software from the Korg website (http://www.korg.com/). For details on installing and using the editor software, refer to the owner’s manual.

In order to use the editor software, you’ll need to install the KORG USB-MIDI driver into your computer. (“Installing the software” in the included CD-ROM).

Transferring audio data

If you use a USB cable to connect the PX5D to your computer, the PX5D’s effect output, the rhythm sounds of Rhythm & Bass mode, and phrases you recorded in Phrase Trainer mode can be recorded directly into audio tracks of your DAW software. The playback of your DAW software can also be monitored through the PX5D.

If you’re computer is running Windows XP, we recommend that you install the KORG USB-ASIO driver (in the included CD-ROM) into your computer if you want to transfer audio using the USB connector. For details on installing the KORG USB-ASIO driver, refer to “Installing the software” on the included CD-ROM.

The following illustration shows the signal flow when the PX5D is connected to your computer.

OUTPUT

PX5D

Rhythem&Bass

Effect

INPUT

Phrase Trainer

USB

The PX5D’s effect will not apply to the audio input via the USB connector.

13

Adjust the master level setting to change the volume of the audio signal that’s sent from the PX5D’s OUTPUT jack ( p.16 “Master level”).

Adjust the Utility mode “USBSEND” setting to change the volume of the audio signal that’s sent from the PX5D’s USB connector to the computer ( p.35 “USBSEND”).

Adjust the Utility mode “USB RCV” setting to change the volume of the audio signal that’s input from the computer to the PX5D ( p.35 “USB RCV”).

Normally, the signal that’s being input from the AUX jack is not sent to the USB connector. If you want the input signal from the AUX jack to be sent to your computer, access the Utility mode “AUX > USB” screen ( p.35 “AUX>USB”).

If you’re recording the PX5D’s effect output onto an audio track of your DAW software, turn off the “audio in thru” function of your software to prevent echo-back.

For details on using your DAW software, refer to the operation manual included with your software.

14

Initial Settings

1 When you finish making connections, set the power switch to the “ON” position. (This setting is referred to as Play mode.)

Use the π/† CURSOR to select a program.

2 Set the input level switch depending on the output level of your guitar or bass.

HI: High-output pickups (e.g., humbucking or pickups with a preamp)

LO: Low-output pickups (e.g., single-coil type pickups)

3 Set the volume control of your guitar or bass to its usual position. Use the Value encoder to adjust the master level.

Quick Edit

In each mode (except when Mute/Bypass or Key Lock are active), you can use the Control dials to adjust the gain, tone, or volume of amp modeling. When you move a control dial, the parameter name and value will appear for several seconds in the value display. If the setting matches the original setting, the ORIG icon will light.

The Delay Time can also be set by pressing the TAP/BYPASS button twice at the desired interval (except when in Rhythm & Bass mode).

When you set the delay time, the value display will indicate the delay time for several seconds.

Amp gain, tone, and volume

Input level switch

Program	Master level
name	adjustment
Program	Set the
selection	delay time
	Program
	number

Settings that you make using Quick Edit will return to the original saved settings if you change programs or turn off the power before Writing ( p.31 “WRITE”).

15

Play mode

Play mode is the mode in which you will normally use the PX5D.

Selecting a program

Use the π/† CURSOR to select a program. The program/effect type display will show the program name, and the value display will show the program number.

You can select from one hundred user programs (U00– U99) and one hundred preset programs (P00–P99). You can select programs even if you’re in Rhythm & Bass mode, Phrase Trainer mode (except while recording), or Utility mode (except while in certain screens).

PROGRAM MEMORY [A], [B], [C], [D] buttons

You can assign four of your favorite programs to the PROGRAM MEMORY [A]–[D] buttons. While you perform, simply press the corresponding PROGRAM MEMORY [A]–[D] button and the selected program will be recalled instantly.

Here’s how to assign a program to a button. In this example, we’ll assign the selected program to button [A].

1 Use the π/† CURSOR to select the program you want to assign to button [A].

2 Press and hold the PROGRAM MEMORY [A] button for approximately one second. The LCD will indicate “PGM>A,” and the selected program will be assigned to button [A].

You can use a foot switch connected to the FOOT SW jack to switch between the four programs assigned to PROGRAM MEMORY [A]–[D] ( p.34 “FOOTSW”).

Using foot switches to select programs

If you connect foot switches to the PX5D’s FOOT SW jack and use Utility mode to assign the Pedal Switch function, you’ll be able to use the foot switches to select programs.

Use the included cable for FOOT SW jack to connect your foot switches. The red jack on one end of the cable will be Program Up, and the other white jack will be Program Down ( p.11 “Making connections,” p.34 “ FOOTSW”).

Master level

When you turn the Value encoder to adjust the master level, the master level value will be shown in the program number/value display for several seconds. The bar graph will also change to indicate the level. The master level is remembered even when the power is turned off.

Bar gragh

Program number display

Master level value

16

You can also adjust the settings so that the π/† CURSOR will adjust the master level ( p.18 “Specifying the function of the Value encoder”).

Bypass/Mute

When you press the TAP/BYPASS button for approximately one second, the PX5D will be bypassed, and the original sound will be dry (no effects). The effect chain will blink, and the display will indicate “BYPASS” for approximately one second.

If you press and hold the TAP/BYPASS button for approximately two seconds, the output signal will be muted. The effect chain will blink rapidly, and the display will indicate “MUTE” for approximately one second.

Bypass/mute will be turned off when you press the TAP/ BYPASS button once again. You can also return to Play mode by pressing the EXIT button. Bypass or Mute can also be entered from modes other than Play mode.

You can also activate Bypass or Mute using two foot switches connected to the PX5D ( p.34 “ FOOTSW”).

Tuner

The tuner will operate when you bypass or mute.

meter

sharp

note name calibration

center mark

1 Play a single string on your guitar or bass.

The LCD will show the note name and the calibration. If the pitch is more than a semitone higher than the note name, a sharp symbol will appear at the upper right of the note name.

2 The display area will act as a meter to show the pitch. Tune each string of your guitar or bass so that the indicator above the center mark is lit.

3 When you press either the TAP/BYPASS button, the tuner (bypass/mute) will be turned off. You can also return to Play mode by pressing the EXIT button.

Calibration (Standard pitch A = 440)

You can use the Value encoder to adjust the calibration in the range of A = 438 Hz–445 Hz. The calibration setting you make will remain until the power is turned off. Once the power is turned off, calibration will be reset to

A = 440 Hz.

17

Specifying the function of the Value encoder

You can specify the function that the Value encoder will perform in Play mode. While in Play mode, hold down the EXIT button and press either the √ CURSOR or the ® CURSOR to assign the following functions.

●Hold down the EXIT button and press the √ CURSOR. The LCD will indicate “MASTER” for approximately one second. The Value encoder will adjust the master level, and the π/† CURSOR will select programs. You can use the Value encoder to quickly adjust the master level. Each time the power is turned on, this setting will be in recalled.

	Select	Adjust the
	a program
		master level

●Hold down the EXIT button and press the ® CURSOR. The LCD will indicate “PROGRAM” for approximately one second. The Value encoder will select programs, and the π/† CURSOR will adjust the master level. You can use the Value encoder to quickly select programs.

	Adjust the	Select a
	master level
		program

Key Lock function

By activating the Key Lock function, you can disable all operations except for selecting programs. This is a convenient way to prevent accidental operation during a live performance.

●Hold down the EXIT button and press the TAP/BYPASS button. The LCD will indicate “KEYLOCK” for approximately one second. The value encoder, buttons, and knobs other than the π/† CURSOR, PROGRAM MEMORY [A]–[D] buttons, and the foot switches will not function.

Only program selection is possible

The Key Lock function will be cancelled when the power is turned off. You can also cancel the Key Lock function by performing “Specifying the function of the Value encoder.”

18

Rhythm & Bass mode

The PX5D provides 128 different rhythm & bass patterns. You can also connect up to 16 patterns for consecutive playback.

From Play mode (except when Mute, Bypass, or Key Lock are active), AUX Pitch mode, or Phrase Trainer mode, press the RHYTHM button to enter Rhythm & Bass mode. The pattern will start according to the play type you’ve selected. The bar graph will change according to the rhythm pattern that’s playing. Press the EXIT button to return to Play mode.

Rhythm & Bass mode provides three types of play.

PTN: Pattern play

You can select one rhythm pattern and play it. The LCD shows the PTN icon.

CHAIN: Chain play

You can connect up to 16 patterns for consecutive playback. Playback will start after a pre-count.

SONG: Song play

This lets you play the demo songs. Playback will start after a pre-count.

Each time you press the RHYTHM button, you’ll cycle through the choices of PTN→CHAIN→SONG→PT- N→CHAIN→SONG ..., and the LCD will show the icon for the currently selected type of play.

When you enter Rhythm & Bass mode, the selected type of play will be the type that had been selected when you last exited Rhythm & Bass mode.

If you set the Phrase Trainer recording mode to “JAM,” you’ll be able to record your guitar or bass phrase along with the rhythm & bass pattern that’s selected in Rhythm & Bass mode.

PTN (Pattern play)

This play type lets you select and play one rhythm & bass pattern. Use the √/® CURSOR to select each parameter, and use the value encoder and the ENTER/REC button to specify its value. The π/† CURSOR will switch programs.

Rhythm pattern/variation

Tempo

Reverb levelLevel Bass key

The settings you select here are remembered even when the power is turned off.

19

Rhythm Pattern/Variation

Use the Value encoder to select the rhythm pattern ( p.52 “Rhythm pattern list”). Use the ENTER/REC button to select the rhythm pattern variation.

BASIC: Basic rhythm pattern.

VARI1: Variation 1. The variation 1 icon will light. VARI2: Variation 2. The variation 2 icon will light.

Rhythm pattern	variation
	icon

Tempo

Use the Value encoder to set the tempo in the range of 40–240 bpm. You can also set the tempo by pressing the TAP/BYPASS button twice at the desired rhythm.

Tempo

Bass Key

Use the ENTER/REC button to select a bass pattern variation. Depending on the rhythm pattern that you have selected, some bass lines will include a chord progression. OFF: Bass pattern off.

BASIC: Basic bass pattern.

VARI1: Variation 1. This is a major chord bass pattern. The LCD shows the variation 1 icon.

VARI2: Variation 2. This is a minor chord bass pattern. The LCD shows the variation 2 icon.

Use the Value encoder to set the key in a range of C, C#...A#, B allowing you to practice your guitar or bass in a scale that matches that key.

Root note

If the bass pattern is variation 2 (VARI2), an “m” is shown beside the root note.

If “MTRONM0”–“MTRONM9”(metronome) is selected as the rhythm pattern, there will be no bass notes, and this screen will not appear.

20

Level

Use the Value encoder to set the level of Rhythm & Bass sound.

Level

Reverb

Use the Value encoder to set the amount of Reverb for the Rhythm & Bass.

Reverb level

This uses the same reverb as the program effect. This parameter has no effect if you have selected a program that does not use reverb modeling, or if the reverb effect level is “0.”

CHAIN (Chain play)

Two or more rhythm & bass patterns connected in a sequence are collectively called a “chain.” CHAIN (Chain Play) lets you edit a chain and play it. One chain can connect up to sixteen patterns. The PX5D contains twenty chains. When you select CHAIN (Chain play), there will be a pre-count and then playback will begin automatically.

CHAIN (Chain Play) lets you select a chain, and specify its tempo, volume level, and reverb level. Use the √/® CURSOR to select each parameter, and use the Value encoder and the ENTER/REC button to specify the value of that parameter.

In the Chain Select screen, you can press the ENTER/ REC button to enter the Chain Edit screen. Here you can specify the rhythm & bass pattern used by each step of the chain ( p.22 “Chain edit”). Press the EXIT button to return to the chain select screen.

To Chain edit

ENTER/REC EXIT

Chain select Tempo

Write Reverb levelLevel

21

Chain select (CHAIN 01–20)

Here you can select one of the twenty chains.

In this screen, you can press the ENTER/REC button to enter the Chain Edit screen ( p.22 “Chain edit”).

The edited settings will return to the settings of the original program if you switch chains or turn off the power without Writing.

Tempo

Use the Value encoder or TAP/BYPASS button to set the tempo ( p.20 “Tempo”).

Level

Use the Value encoder to set the level of Rhythm & Bass sound ( p.21 “Level”).

Reverb

Use the Value encoder to set the amount of Reverb for the Rhythm & Bass ( p.21 “Reverb”).

Write

This saves the chain. Use the Value encoder to select the save-destination (chain number) and press the ENTER/REC button. The PX5D can store twenty chains.

Chain number

Chain edit

Here you can specify the pattern that will be used for each step. In the chain select (CHAIN01–20) screen, press the ENTER/REC button to enter the Chain Edit screen. Use the √/® CURSOR to select each step, use the π/† CURSOR to select a parameter, and use the value encoder and ENTER/REC button to specify the value. After you’ve specified the pattern for each step of the chain, press the EXIT button to return to the Chain Select screen.

Repeat			Repeat					Repeat
Bass key			Bass key					Bass key
Rhythm pattern			Rhythm pattern					Rhythm pattern
Step01			Step02					Step16

The edited settings will return to the settings of the original program if you switch chains or turn off the power without Writing.

22

Rhythm Pattern

Use the Value encoder to select a rhythm pattern.

Use the ENTER/REC button to select the rhythm pattern variation ( p.20 “Rhythm Pattern/Variation”).

Rhythem pattern

Bass key

Step number

When you turn the value encoder with the √/® CURSOR held down to move the step, the pattern before the movement is copied to the pattern following the movement. This is a convenient way to place multiple copies of the same pattern.

Bass Key

Use the ENTER/REC button to select a bass pattern variation. Use the Value encoder to set the key ( p.20 “Bass Key”).

Bass key

Step number

Repeat

Use the Value encoder to specify the number of times that the pattern selected for each step will be repeated. The pattern will be played repeatedly for the number of times you specify, and then the pattern specified by the next step will be played.

repeat

Step number

SONG (Song play)

Here’s how to play the demo songs that are built into the PX5D. When you select SONG (Song play), there will be a pre-count and then playback will begin automatically. To pause during playback, you can press the ENTER/REC button. Press the button once again to resume playback.

If you press and hold the ENTER/REC button for one second or longer, you’ll return to the beginning of the demo song and begin playback.

While playing or stopped, you can use the π/† CURSOR to change programs.

23

Use the √/® CURSOR to select a parameter, and use the Value encoder to specify the value.

Song select Tempo Transpose

Loop Reverb Level Level

Song Select

Use the Value encoder to select the demo song you want to hear. The PX5D contains three demo songs.

Song number

Tempo

Use the Value encoder to specify the playback tempo. If you select the “FIL” setting, the demo song will play at the tempo specified by the song itself ( p.20 “Tempo”).

Transpose

Use the Value encoder to specify the transposition. You can transpose the playback pitch in semitone steps.

Level

Use the Value encoder to set the level of Rhythm & Bass sound ( p.21 “Level”).

Reverb

Use the Value encoder to set the amount of Reverb for the Rhythm & Bass ( p.21 “Reverb”).

Loop

Use the Value encoder to change the loop setting. This specifies how playback will be repeated.

On (ON): The demo song will play repeatedly. OF (OFF): The demo song will play only once.

24

Phrase Trainer mode

An audio source from the AUX jack and USB Connector, a phrase you play on your guitar or bass, or the rhythm you specified in Rhythm & Bass mode can be recorded, and played back repeatedly as a loop. This provides a convenient way to practice by playing along with the repeating phrase. You can slow down the playback speed without affecting the pitch, which can help you to learn difficult phrases. You can save the recorded phrase in the PX5D’s memory.

If your computer is running Windows XP, and you want to transfer audio data via the USB connector, we recommend that you install the KORG USB-ASIO driver (provided on the included CD-ROM). For details on how to install the KORG USB-ASIO driver, refer to “Installing the software” on the included CD-ROM.

Select the recording mode

In Play mode (except during bypass/mute or key lock), Rhythm & Bass mode, or Utility mode, press the PHRASE TRAINER button to enter Phrase Trainer mode. When you enter this mode, the recording mode and time select screen will appear, and the Phrase Trainer icon will blink. In this screen, the PX5D will be ready to record. Press the EXIT button to return to Play mode.

Recording

mode

Recording

time Phrase Trainer icon

Use the PHRASE TRAINER button to specify the recording mode. The recording mode will change each time you press the PHRASE TRAINER button.

AUX: Record the audio input from the AUX jack or USB connector.

GTR/BAS: Record your connected guitar or bass. AUX+G/B: Record both the audio input from the AUX jack or USB connector and your guitar or bass.

JAM: Record both the rhythm pattern you last selected for playback in Rhythm & Bass mode and the sound of your guitar (bass).

If you’re using both the USB connector and AUX jack, the audio input from both jacks will be recorded. Use the volume control of your connected device to adjust the volume balance.

If Song Play was last selected in Rhythm & Bass mode, you won’t be able to select “JAM” as the recording mode.

Use the value dial to select the recording time (for “JAM,” the number of measures).

25

20: Approximately 20 seconds. 40: Approximately 40 seconds. 80: Approximately 80 seconds. 1, 2, 3…: Number of measures.

If the recording mode is “JAM,” the recording quality will be set automatically, based on the tempo and the specified number of measures.

If you select a long recording time (40 or 80), the audio quality of the recording will be lower.

If the recording mode is “JAM” and the tempo of the rhythm is extremely slow, it will not be possible to record a large number of measures. Please adjust the tempo in Rhythm & Bass mode (maximum length is approximately 80 seconds)

If you want to use Chain in Rhythm & Bass mode to record a one-measure rhythm pattern etc. in “JAM“ mode using multiple patterns, specify the number of recording measures to be the number of patterns you're using. For example if you want to use two patterns of a 2/4 time signature to record a one-measure pattern of a 4/4 time signature, specify 2 measures as the number of recording measures.

Start playback on your CD or other audio source, and at the point where you wish to begin recording, press the ENTER/REC button. Recording will begin.

You can use a foot switch connected to the FOOTSW jack to start/stop recording ( p.34 “FOOTSW”).

If the recording mode is “JAM,” recording will begin after precount.

If, after recording, you want to change the recording mode or recording time, press the PHRASE TRAINER button while playback is paused.

Recording

When you begin recording, the recording time will be indicated as a numerical value.

Recording time

When you want to stop recording, press the ENTER/REC button, the ® CURSOR, or PHRASE TRAINER button. Recording will stop, and loop playback will begin automatically. If you do not stop recording, recording will continue until the selected recording time or number of measures has elapsed, and loop playback will begin automatically.

The phrase will be recorded and played back in mono.

26

Playback

The recorded phrase will playback as a loop. During playback or while paused, you can use the π/† CURSOR to select programs.

playback time

playback speed(%)

Rotating the Value encoder toward the left will slow down the playback speed without affecting the pitch. You can choose from six levels of playback speed: 100%, 90%, 80%,

75%, 66%, and 50%.

During playback, you can hold down the √ CURSOR to rewind, or hold down the ® CURSOR to fast-forward. By pressing the PHRASE TRAINER button, you can hold the sound that was being played at the moment you pressed the button (the Hold function). This is convenient when you need to hear individual notes in a phrase.

Pause

When you press the ® CURSOR, the playback will pause. Press the ® CURSOR once again, and playback will resume. Pressing the √ CURSOR while playback is paused will return you to the beginning of the recorded phrase.

If you wish to re-record the phrase, press the ® CURSOR to pause playback.

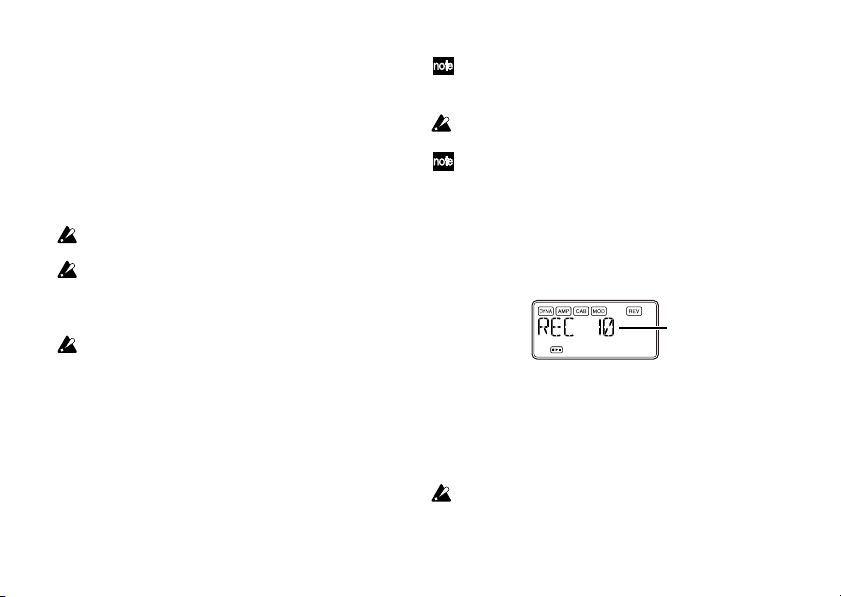

Start the CD or other audio source, and press the ENTER/ REC button at the beginning of the desired phrase. If you want to change the recording mode or time, press the

PHRASE TRAINER button while paused.

Saving

If you want to save the phrase you recorded, press the PHRASE TRAINER button several times while paused until the LCD indicates “SAVE?”. Then press the ENTER/ REC button once again to save the phrase.

The “SAVE?” screen will be available from the recording mode screen if you’ve just recorded a phrase.

If you turn off the power without saving, the recorded phrase will be erased.

Only one phrase can be saved. When you save, the previ- ously-saved phrase will be over-written and erased.

27

Edit mode

In this mode you can turn each effect on/off, and edit the effect type, parameter values, and program name. In Play mode, press the ® CURSOR to access the DYNA effect edit screen. Renaming the program and writing the program are also performed here.

Select the effect that you wish to edit

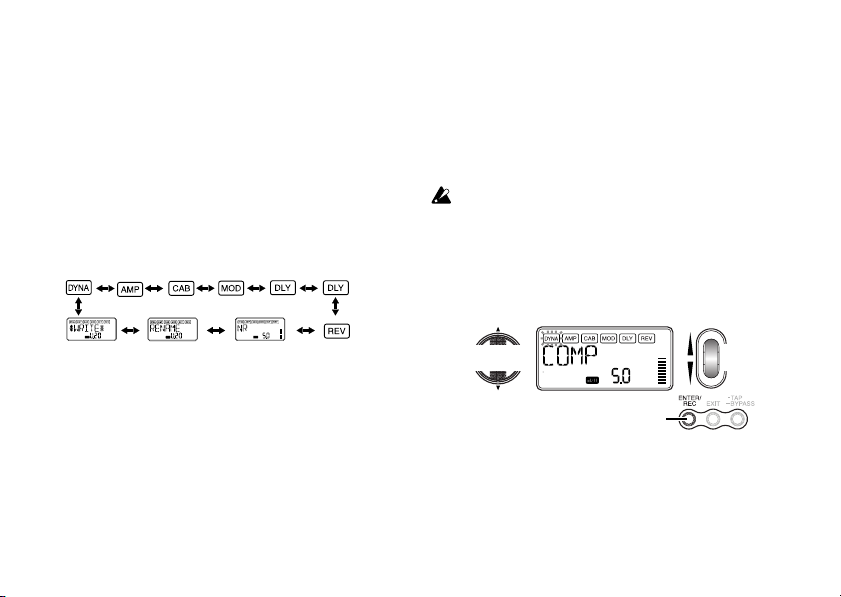

Each time you press the √/® CURSOR, you will cycle through the effects in the order shown below. When an effect is selected, its icon will blink.

(Delay time)

In any screen of Edit mode, you can use the Control dials to edit the Amp models, or use the TAP/BYPASS button to set the delay time.

For details on the effect types and parameters, refer to the Effect Parameters list ( p.37).

Press the EXIT button to return to Play mode.

The edited settings will return to the settings of the original program if you switch programs or turn off the power without Writing ( p.31 “WRITE”).

DYNA: Dynamics & Pickup Modeling

These are dynamics-type effects such as compressor, auto-wah, and pickup modeling effects.

Editing each effect

For each effect, you can select the effect type and change its parameter values.

Effects that are turned “OFF” will automatically be turned on if you press the ENTER/REC button or use the π/† CURSOR to select the effect type. If a program was not written after it was edited, the decimal point of the program number will light.

▲/▼: Type selection

On, Off

Parameter value

28

AMP: Amp Modeling

BTQ CLN–OCTFUZZ (15 types) are guitar amps, and VALVE1–UKMAJOR (10 types) are bass amps.

GSYNTH1–GSYNTH3 are guitar synths, and BSYNTH1– BSYNTH3 are bass synths. The value display will indicate “Gt” for approximately one second if you’ve selected a guitar model, or “bA” if you’ve selected a bass model.

	Amount of distortion* Low range*	High range*
		Volume*
	▲/▼: Type selection	Mid
		range*
		On, Off

*Operation will be different if VALVE1–JAZZ (bass amps), GSYNTH1–3, or BSYNTH1–3 is selected as the type.

The VOLUME dial can be used to adjust the volume even when the amp modeling effect is “OFF.”

CAB: Cabinet Modeling

This simulates the acoustical characteristics of the amp’s cabinet. This is especially effective when you are not using an amp (e.g., when using headphones, or when connecting to a mixer, hard-disk recorder, or other audio device). 1X8TWD–4X12VIN (11 types) are guitar amp cabinets, and LA 4X10–COMBI (12 types) are bass amp cabinets. The value display will indicate “Gt” for approximately one second if you’ve selected a guitar amp cabinet, or “bA” if you’ve selected a bass amp cabinet.

▲/▼: Type selection

Presence

On, Off

You can also use a guitar amp with a bass cabinet, or a bass amp with a guitar cabinet.

29

MOD: Modulation & Filter Effect Modeling

These are modulation and filter-type effects such as chorus, flanger, phaser, and pitch shifter.

	▲/▼: Type selection	Parameter
		value

On, Off

DLY: Delay Modeling

These are delay-type effects for which you can set the delay time by pressing the TAP/BYPASS button at a desired interval.

	▲/▼: Type selection	Effect
		level
		On, Off
		Delay time

DLY: Delay Time

The screen shows the delay time of the delay modeling effect. In this screen, you can use the Value encoder to specify the delay time. You can also use the TAP/BYPASS button to specify the delay time in this screen.

Delay time

On, Off

REV: Reverb Modeling

These are reverb-type effects that add spaciousness to the sound.

	▲/▼: Type selection	Effect
		level

On, Off

30
