Kenwood DMX957XR, DMX9707S, DDX9707S, DDX9907XR, DMX907S User Manual

MONITOR WITH DVD RECEIVER

DDX9907XR DDX9707S

MONITOR WITH RECEIVER

DMX957XR DMX907S DMX9707S

INSTRUCTION MANUAL

• Updated information (the latest Instruction Manual, system updates, new functions, etc.) is available from <https://www.kenwood.com/cs/ce/>.

• The Instruction manual is subject to change for modification of specifications and so forth. Be sure to download the latest edition of the Instruction manual for reference. <http://manual.kenwood.com/edition/im404/>

Take the time to read through this instruction manual. Familiarity with installation and operation procedures will help you obtain the best performance from your new receiver.

For your records

Record the serial number, found on the top of the unit, in the spaces designated on the warranty card, and in the space provided below. Refer to the model and serial numbers whenever you call upon your KENWOOD dealer for information or service on the product. Model DDX9907XR / DDX9707S / DMX957XR / DMX907S / DMX9707S Serial number

US Residence Only

Important Notice on Software

Ñ Software License on This

Product

The software embedded in this product comprises a number of independent software components, each of which is copyrighted by JVCKENWOOD Corporation or by a third party.

This product uses software components that are based on an End-User License Agreement (hereinafter called “EULA”) stipulated by JVCKENWOOD Corporation and by third parties.

The EULA dictates the availability of the source codes of free-software components as a prerequisite to distributing them in executable form under the terms of the GNU General Public License or the Lesser General Public License (hereinafter called “GPL/LGPL”). To get information about the software components that are subject to the terms of the GPL/LGPL, please visit the following Website:

Website URL https://www2.jvckenwood.com/gpl/

Queries concerning the contents of the source code or the like will not be accepted.

Please note that software components based on a EULA that is not subject to the terms of the GPL/LGPL or those that have been developed or created by JVCKENWOOD Corporation will be excluded from the scope of source code disclosure.

Because licenses to use software components distributed under the GPL/LGPL are offered to the customers for free of charge, no warranty is granted to the customers, whether explicitly or implicitly, to the extent of the applicable laws.

Unless otherwise stipulated by the applicable laws or agreed upon in writing, the copyright holders or those who are entitled to modify and redistribute the software components are not held responsible for any and all damages resulting from their use or from inability to use them. For more information about the terms of use of the software components, required items of compliance and so on, please refer to the GPL/LGPL.

Customers wishing themselves to use a software component that is subject to the GPL/LGPL embedded in this product are encouraged to read the terms of the corresponding license before use. Because each individual license is prescribed by a third party other than

JVCKENWOOD Corporation, the original (English) of the license is presented.

EULA

Ñ Software License Agreement

JVCKENWOOD Corporation (hereinafter called “Licensor”) holds either the copyright to the embedded software or the right to sublicense it. This agreement establishes the conditions under which the customer uses this “Licensed Software.”

The customer shall agree to the terms of this license agreement before proceeding to use Licensed Software.

This agreement is deemed to have taken effect when the customer (hereinafter called “User”) has used a product implementation of Licensed Software.

The Licensed Software may contain software Licensor has been licensed to use by third parties directly or indirectly. Some third parties may have terms of use prescribed for their customers, apart from this Software License Agreement. This agreement does not apply to such software. Be sure to consult “Important Notice on Software” as presented separately.

Article 1 (General)

Licensor grants to User a non-exclusive, nonassignable right of use Licensed Software within the country where the User purchases the Product (hereinafter the "Country") (except for the exception provided for in Paragraph 1, Article 3).

Article 2 (Right of Use)

The rise of use granted under this agreement

is the right to use Licensed Software in this product.

User may not duplicate, copy, modify, add to,

translate or otherwise alter, or loan licensed Software and the associated literature in whole or in part.

Use of Licensed Software is limited to a private

extent , and Licensed Software may not be distributed, licensed or sublicensed for any purposes whatsoever, including commercial use.

User shall use Licensed Software as per the

instruction manual or instructions given in the help file and may not use or duplicate data in violations of the regulations of the Copyright Law or other governing laws by using Licensed Software in whole or in part.

Article 3 (Terms of License)

In assigning this product, User may not retain

the original copy of the embedded Licensed Software (including associated literature, updates and upgrades) and any duplicates and associated literature with regard to the license to use Licensed Software. User may transfer Licensed Software only to the condition of binding the assignee to abide by the terms of this Software License Agreement.

User may not reverse-engineer, disassemble,

decompile or otherwise analyze the source code of Licensed Software.

Article 4 (Rights to Licensed Software)

All rights to Licensed Software and the associated literature, including copyrights, shall reside with Licensor or the original right holder who has granted the Right of Use and right to sublicense to Licensor (hereinafter referred to as “Original Right Holder”), and User does not have any rights other than Right of Use granted hereunder with regard to Licensed Software and the associated literature.

Article 5 (Exemption Granted to Licensor)

Licensor and Original Right Holder do not

assume any responsibility for damages caused to User or third parties resulting from the exercise by User of the license granted hereunder, unless otherwise provided by any law to the contrary.

Licensor does not warrant Licensed Software

to be merchantable, compatible and fit for specific purposes.

Article 6 (Responsibility for Third Parties)

If disputes over the infringement of third parties’ intellectual property rights, such as copyrights and patent rights, arise out of the use of Licensed Software by User, User shall resolve these disputes at User’s own expenses while keep Licensor and Original Right Holder harmless.

Article 7 (Secrecy Obligation)

User shall keep confidential Licensed Software provided hereunder, information contained in the associated literature or the like and those provisions of this agreement not yet in public knowledge and may not disclose or leak these to third parties without prior written consent from Licensor.

Article 8 (Cancellation of the Agreement)

Licensor reserves the right to cancel this agreement forthwith and claim compensation from User for the damages caused by such cancellation when User:

(1)

Breaches any of the provisions of this

agreement, or

(2)

Has received a petition for seizure, provisional

seizure, provisional disposition or any other kind of compulsory execution.

Article 9 (Destruction of Licensed Software)

If this agreement is terminated under the provision of the foregoing paragraph, User shall destroy Licensed Software, along with all associated literature and its duplicates, within two (2) weeks from the date of termination.

Article 10 (Copyright Protection)

Copyrights and all other intellectual property

rights relating to Licensed Software shall reside with Licensor and Original Right Holder and in no circumstances with User.

User shall abide by the laws relating to

copyrights and intellectual property rights in using Licensed Software.

Article 11 (Export Control)

Licensed Software and the associated

literature or the like may not be exported to places outside the Country (including transmission outside the Country over the Internet or the like).

User agrees that Licensed Software is subject

to export controls imposed by the Country and the United States of America.

User agrees to comply with all the

international and domestic laws that apply to this software (U.S. Export Administration Regulations and regulations established by the U.S., the Country and their governmental agencies regarding usage by end users and export destinations).

Article 12 (Miscellaneous)

Even if this agreement is invalidated in part by

law, all other provisions shall remain in effect.

Licensor and User shall consult each other in

good faith to resolve any matters not provided for in this agreement or questions arising from the interpretation of this agreement.

Licensor and User agree that this agreement

is governed by the law of Japan and that all disputes involving claims and obligations that may arise out of this agreement will be settled by arbitration at the Tokyo District Court as the court of first instance.

Contents

Before Use 6

Precautions ................................................................... 6

How to read this manual ......................................... 7

Basic Operations 8

Functions of the Buttons on the Front Panel ... 8

Turning on the Unit .................................................10

Initial Settings ............................................................10

Adjusting the volume .............................................12

Display Adjustment .................................................12

Viewing Angle ...........................................................13

Touch screen operations .......................................13

HOME screen descriptions ....................................14

Popup menu ..............................................................14

Source selection screen description ..................15

Source control screen descriptions ...................17

List screen ...................................................................18

Widget 19

Widget ..........................................................................19

Multi Widget ...............................................................19

Photo Frame Widget ...............................................21

Widget SETUP ............................................................21

Disc 23

Playing a disc .............................................................23

DVD/VCD Basic Operation ....................................23

Music CD/Disc media Basic Operation .............25

File search Operation ..............................................26

DVD Disc Menu Operation ....................................27

DVD SETUP .................................................................28

APPS 29

Wireless Mirroring Operation ...............................29

USB Mirroring Operation .......................................29

Apple CarPlay Operation .......................................31

Android Auto™ Operation .....................................34

USB 37

Connecting a USB device ......................................37

USB Basic Operation ................................................37

Search Operation ......................................................39

iPod/iPhone 40

Preparation .................................................................40

iPod/iPhone Basic Operation ...............................40

Search Operation ......................................................41

Radio 43

Radio Basic Operation ............................................43

Memory Operation ..................................................44

Selecting Operation ................................................45

Traffic Information ...................................................45

HD Radio™ Tuner 46

HD Radio Tuner Basic Operation .........................46

Receive Mode ............................................................48

Memory Operation ..................................................48

Selecting Operation ................................................48

Bookmark ....................................................................50

Alert Message ............................................................51

SiriusXM® 52

SiriusXM® Basic Operation ....................................52

Storing Channels in Preset Memory ..................54

Preset select ...............................................................54

Direct search ..............................................................54

Category/Channel search ......................................55

Replay ...........................................................................55

TuneMix™ ....................................................................56

SmartFavorites, TuneStart™ ..................................56

TuneScan™ ..................................................................56

Traffic & Weather Now™ .........................................57

Content Alerts............................................................57

SportsFlash™ ..............................................................58

SiriusXM SETUP .........................................................58

Bluetooth Control 64

Information for using Bluetooth® devices .......64

Bluetooth Setup ........................................................66

Playing the Bluetooth Audio Device .................68

Using the Hands-Free Unit ....................................70

Hands-Free Setup .....................................................75

Controlling Audio 87

3-way speaker system setup ................................87

Speaker / X’over setup ............................................88

Controlling General Audio ....................................90

Equalizer Control ......................................................90

Volume Offset ............................................................91

Zone Control ..............................................................92

Sound Effect ...............................................................93

Listening Position / DTA ......................................... 94

Audio Setup memory .............................................95

Remote control 96

Battery Installation ...................................................96

Functions of the Remote control Buttons .......96

Connection/Installation 99

Before Installation ....................................................99

Installing the unit .................................................. 101

Troubleshooting 109

Problems and Solutions ...................................... 109

Error Messages ....................................................... 110

Other External Components 76

View Camera ..............................................................76

Use Dashboard Camera..........................................78

External audio/video players (AV-IN).................79

OEM Features Operation .......................................79

Setup 81

Monitor Screen Setup .............................................81

System Setup .............................................................81

User Interface Setup ................................................82

Special Setup .............................................................83

Display Setup .............................................................84

AV Setup ......................................................................86

Appendix 112

Playable Media and Files.....................................112

Region Codes in the World ................................114

DVD Language Codes .......................................... 115

Specifications .......................................................... 116

About this Unit ....................................................... 119

5English

Before Use

Precautions

# WARNINGS

Ñ To prevent injury or fire, take

the following precautions:

• To prevent a short circuit, never put or leave any metallic objects (such as coins or metallic tools) inside the unit.

• Do not watch or fix your eyes on the unit’s display when you are driving for any extended period.

• If you experience problems during installation, consult your KENWOOD dealer.

Ñ Precautions on using this unit

• When you purchase optional accessories, check with your KENWOOD dealer to make sure that they work with your model and in your area.

• You can select a language to display menus, audio file tags, etc. See User Interface Setup (P. 82).

• The Radio Data System or Radio Broadcast Data System feature won’t work in areas where the service is not supported by any broadcasting station.

Ñ Protecting the monitor

• To protect the monitor from damage, do not operate the monitor using a ball point pen or similar tool with a sharp tip.

Ñ Lens fogging

When you turn on the car heater in cold weather, dew may form on the lens in the disc player of the unit due to condensation. This condensation on the lens (also called lens fogging) may not allow discs to play. In such a situation, remove the disc and wait for the dew to evaporate. If the unit still does not operate normally after a while, consult your KENWOOD dealer.

Ñ Precautions on handling discs

• Do not touch the recording surface of the disc.

• Do not stick tape etc. on the disc, or use a disc with tape stuck on it.

• Do not use disc type accessories.

• Clean the disc from the center toward the outside rim.

• When removing a disc from this unit, pull it out horizontally.

• If the disc center hole or outside rim has burrs, use the disc only after removing the burrs with a ballpoint pen etc.

• Discs that are not round cannot be used.

• 8-cm (3 inch) discs cannot be used.

• Discs with coloring on the recording surface or discs that are dirty cannot be used.

• This unit can only play the following types of CDs.

Ñ Cleaning the unit

• If the faceplate of this unit is stained, wipe it with a dry soft cloth such as a silicon cloth. If the faceplate is stained badly, wipe it with a cloth moistened with neutral cleaner, then wipe it again with a clean soft dry cloth.

NOTE

• Applying spray cleaner directly to the unit may damage its mechanical parts. Wiping the faceplate with a hard cloth or using a volatile liquid such as thinner or alcohol may scratch the surface or erase the screened print.

• This unit may not correctly play discs which do not have the mark.

• You cannot play a disc that has not been finalized. (For the finalization process, see your writing software and your recorder's instruction manual.)

Before Use

Ñ Acquiring GPS signal

The first time you turn on this unit, you must wait while the system acquires satellite signals for the first time. This process could take up to several minutes. Make sure your vehicle is outdoors in an open area away from tall buildings and trees for fastest acquisition.

After the system acquires satellites for the first time, it will acquire satellites quickly each time thereafter.

Ñ About GLONASS

This unit uses Global Navigation Satellite System (GLONASS) in addition to GPS.

Combining GPS and GLONASS can refine positioning accuracy than using GPS only.

Ñ Caution for Smartphone Users

Simultaneously running multiple applications on your smartphone while screen sharing places heavy demand on the microprocessor of the phone, potentially affecting communication and performance.

For best results while pairing with your Kenwood receiver, please be sure to close any unused applications.

How to read this manual

• The screens and panels shown in this manual are examples used to provide a clear explanation of operations. For this reason, they may be different from the actual screens or panels, or some display patterns may be different from the actual ones.

• Display language: English is used for the purpose of explanation. You can select a display language from the [SETUP] menu. See User Interface Setup (P. 82).

7English

Basic Operations

Functions of the Buttons on the Front Panel

DDX9907XR / DDX9707S

1 2 3 4 5 6 7

DMX957XR / DMX907S / DMX9707S

1 2 8 4 5 6 3

Basic Operations

NOTE

• The panels shown in this manual are examples used to provide a clear explanation of operations. For this reason, they may be different from the actual panels.

Number Name Motion

Remote

Sensor

S, R

(Volume)

CAM • Switches view camera display on/off.

HOME • Displays the HOME screen (P.14).

MENU • Displays the popup menu screen.

AT T • Switches attenuation of the volume on/off.

Disc insert

slot

• Receives the remote control signal.

• Adjusts the volume.

The volume will go up to 15 when you keep pressing R. (P. 12)

The camera whose view is displayed first changes according to the "Camera Setup" setting and the shift lever position in the shift gate. The camera whose view was displayed last is kept and the same camera view will be displayed the next time. If its assignment setting is changed, the rear camera view is displayed.

• Pressing and holding turns the screen off. (DDX9907XR / DDX9707S)

• Pressing and holding displays the Angle Adjust screen. (DMX957XR only)

• Pressing for 1 second turns the power off.

• When the power is off, turns the power on.

• Pressing for 1 second switches attenuation of the volume on/off. (DDX9907XR / DDX9707S)

• Pressing for 1 second turns the screen off. (DMX957XR / DMX907S / DMX9707S)

• Displays the APP (Apple CarPlay/Android Auto/Wireless Mirroring) screen.

• Pressing and holding displays the Voice Recognition screen (P.72).

• When neither Apple CarPlay, Android Auto, nor a Bluetooth Hands-Free phone is connected, pressing and holding displays Bluetooth pairing waiting dialog. (P. 65)

• Displays the Angle Adjust screen.

– [DISC E JECT]: Ejects the disc.

• When the panel is opened, closes the panel.

• To forcibly eject the disc, press it for 2 seconds and then touch [DISC EJECT] after the message is displayed.

• A slot to insert a disc media.

(DDX9907XR / DDX9707S only)

9English

Basic Operations

Turning on the Unit

The method of turning on is different depending on the model.

Press the [HOME] button.

DDX9907XR / DDX9707S

DMX957XR / DMX907S / DMX9707S

 The unit is turned on.

● To turn off the unit:

Press the [HOME] button for 1 second.

NOTE

• If it is your first time to turn the unit on after installation, it will be necessary to perform Initial SETUP ( P.10).

Initial Settings

Initial SETUP

Perform this setup when you use this unit first time.

Set each item as follows.

■ [Language]

Select the language used for the control screen and setting items. Default is “American English(en)”.

1 Touch [Language]. 2 Touch [Language Select]. 3 Select the desired language. 4 Touch [

For details, see User Interface Setup (P. 82).

■ [Clock]

Sets the synchronization of the clock and adjusts it.

For details, see Calendar/clock settings (P. 11).

■ [Display]

Set the key illumination color. If it is hard to see the image on the screen

even, adjust the viewing angle.

1 Touch [Display]. 2 Touch [Key Color]. 3 Select the desired color. 4 Touch [

Basic Operations

(DDX9907XR / DDX9707S / DMX957XR only)

5 Touch [Display Adjustment]. 6 Adjust a viewing angle and a tilt position. 7 Touch [

For details, see Display Adjustment (P. 12).

(DMX907S / DMX9707S only)

5 Touch [Viewing Angle]. 6 Select a viewing angle. 7 Touch [

For details, see Viewing Angle (P.13).

For details, see Display Setup (P.84).

■ [Camera]

Set the parameters for the camera.

1 Touch [Camera]. 2 Set each item and touch [

For details, see Camera Setup (P.76).

■ [OEM SETUP]

This function requires a commercial adaptor. Consult your KENWOOD dealer for details.

■ [DEMO]

Set the demonstration mode. Default is “ON”.

Touch [Finish].

Calendar/clock settings

Press the [MENU] button.

 Popup menu appears.

Touch [SETUP].

 SETUP Menu screen appears.

Touch [User Interface].

 User Interface screen appears.

Set each item as follows.

Scroll the page to show hidden items.

NOTE

• These settings can be made from the SETUP menu. See Setup (P.81).

■ [Time Format]

Select the time display format.

[12-Hour ](Default)/24-Hour]

■ [Clock]

[GPS-SYNC ](Default): Synchronizes the clock

time with the GPS.

[Manual]: Set the clock manually.

■ [Time Zone]

Select the time zone.

■ [Clock Adjust]

If you select [Manual] for Clock, adjust the date and time manually. (P. 83)

11English

Basic Operations

NOTE

• Please set the date and time. If they are not set, some functions may not work.

Adjusting the volume

You can adjust the volume (0 to 40). Press [R] to increase, and press [S] to decrease. Holding [R] increases the volume continuously

to level 15.

DDX9907XR / DDX9707S

DMX957XR / DMX907S / DMX9707S

Display Adjustment (DDX9907XR / DDX9707S / DMX957XR)

DDX9907XR / DDX9707S

Press the [G] button.

 Display Adjustment screen appears.

DMX957XR

Press and hold the [CAM] button.

 Display Adjustment screen appears.

DDX9907XR / DDX9707S

1 2

DMX957XR

1 2

Viewing Angle

You can adjust the viewing angle when the image on the screen is difficult to see evenly.

The smaller the (negative) value, the more whitish the image on the screen looks.

"0" (Default)/"-1"/"-2"/"-3"

Angle Adjustment

Select a tilt position you want to set up. Default is "0".

Basic Operations

Off Position

You can store the current monitor angle as the angle during power off. Touch [Memory] when the desired angle is selected.

Viewing Angle (DMX907S / DMX9707S)

You can adjust the viewing angle when the image on the screen is difficult to see evenly. The smaller the (negative) value, the more whitish the image on the screen looks.

Press the [MENU] button.

 Popup menu appears.

Touch [SETUP].

Touch [Display].

 Display screen appears.

Touch screen operations

To perform operations on the screen, you need to touch, touch and hold, flick or swipe to select an item, display a setting menu screen or change pages.

● Touch

Touch the screen gently to select an item on the screen.

● Touch and hold

Touch the screen and keep your finger in place until the display changes or a message is displayed.

● Flick

Slide your finger quickly to the left or right on the screen to change the page.

You can scroll a list screen by flicking up/down on the screen.

● Swipe

Slide your finger up or down on the screen to scroll the screen.

Touch [Viewing Angle].

Select an angle you want to set up.

Default is "0". ( P.84)

13English

Basic Operations

HOME screen descriptions

Most functions can be performed from the HOME screen.

• Widget (P.19)

– You can change the widget by flicking left

or right on the widget area.

– Touch the widget to display the detailed

screen.

• Displays the source selection screen. (P.15)

• Short-cut playback source icons (P. 16)

Display the HOME screen

Press the [HOME] button.

DDX9907XR / DDX9707S

Popup menu

Press the [MENU] button.

 Popup menu appears.

Touch to display the popup menu.

The contents of the menu are as follows.

• Displays the Screen Adjustment screen.

(P. 81)

• Turns the display off. (P. 15)

• Displays the view camera screen.

(P. 76)

• Displays the SETUP Menu screen.

(P. 81)

• Displays the Audio screen. (P. 87)

• Displays the control screen of current source. Icon feature differs depending on the source. This icon is for USB source.

• Close the popup menu.

DMX957XR / DMX907S / DMX9707S

 HOME screen appears.

• Displays the Android Auto device list. This icon appears only when Android Auto is connected and two or more devices can be used as Android Auto source.

• Short-cut source icons: The source

changes to the one you have set with a short-cut. For the short-cut setting, refer to Customize Short-cut source icons on

HOME screen (P.16).

Basic Operations

Turn off the screen

Select [Display OFF] on the popup menu.

NOTE

• Touch the display to turn on the screen.

• To display the clock while the screen is off, it is necessary to set "OSD Clock" to "ON". (P.84)

Source selection screen description

You can display icons of all playback sources and options on the source selection screen.

Select the playback source

Press the [HOME] button.

 HOME screen appears.

Touch [ ].

From the screen, you can select the following sources and functions.

• Switches to the Apple CarPlay screen from the connected iPhone. (P. 31)

• Switches to the Android Auto screen from the connected Android smartphone. ( P.34)

• Displays the Hands Free screen. (P. 70) When neither Apple CarPlay, Android Auto, nor a Bluetooth Hands-Free phone is connected, displays Bluetooth pairing waiting dialog.*1 (P. 65)

• Switches to the Radio broadcast.*2

321

(P. 43)

• Switches to the HD Radio broadcast.*

(P. 46)

• Switches to the SiriusXM® satellite radio broadcast. (P. 52)

• Plays a Bluetooth audio player. (P. 68)

• Plays a disc.*4 (P. 23)

4 5

• Changes playback sources.

For playback sources, see Select the playback source (P.15).

• Page indication

• Changes pages. (Touch [ ]/[ ].) You can also change pages by flicking left or right on the screen.

• Returns to the previous screen.

• Displays the SETUP Menu screen. (P. 81)

• Plays an iPod/iPhone. (P. 40)

• Plays files on a USB device. ( P.37)

• Switches to an external component connected to the AV-IN input terminal.*5

(P. 79)

• Switches to the Wireless Mirroring screen from the connected Android smartphone. ( P.29)

• Switches to the USB Mirroring screen from the connected iPhone/Android smartphone. ( P.29)

• Displays the Audio screen. (P. 87)

• Puts the unit in standby. (P. 16)

15English

Basic Operations

• For sources and information displayed when an ADS adapter is connected, see OEM Features Operation (P. 79).

*1 When connecting as Apple CarPlay or Android Auto,

it works as a phone provided in Apple CarPlay or Android Auto. If Apple CarPlay or Android Auto are connected during talking by the Bluetooth device or

iDataLink phone, the current call will be continued. *2 DDX9707S / DMX9707S only *3 DDX9907XR / DMX957XR / DMX907S only *4 DDX9907XR / DDX9707S only *5 CA-C3AV (optional accessory) is connected to the

AV-IN input terminal for visual. (P.105)

To select the playback source on the HOME screen

The 4 items displayed on the source selection screen with large icons are shown on the HOME screen.

You can change the items displayed on this area by customizing the source selection screen. (P. 16)

To select the playback source on the source control screen

Put the unit in standby

Press the [HOME] button.

 HOME screen appears.

Touch [

Touch [STANDBY].

Customize Short-cut source icons on HOME screen

You can arrange the positions of the source icons as you like.

Press the [HOME] button.

 HOME screen appears.

Touch [ ].

Touch and hold the icon which you want

to move in the customizing mode.

Drag the icon to the desired position.

Display source selection icons by touching [ ]/[ ] or flicking left or right on the source control screen, then select a playback source.

Changes the page

Basic Operations

Source control screen descriptions

There are some functions which can be performed from most screens.

Indicators

1 2

Short-cut source icons

All sources icon

Displays the source selection screen. (P. 15)

Secondary screen

• [

]/[ ] : The Secondary screen changes to

another one every time you touch it. You can also change the Secondary screen by flicking left or right on the screen.

• Indicators: Displays the current source condition and so on.

– [AT T]: The attenuator is active. – [DUAL]: The dual zone function is active. – [MUTE]: The mute function is active. – [LOUD]: The loudness control function is active.

• Short-cut source icons: The source changes to the one you have set with a short-cut. For the short-cut setting, refer to Customize Short- cut source icons on HOME screen (P.16).

Content list

Displays the track/file/station/channel list.

• Connected Bluetooth device information.

Artwork & information

You can select whether to display an artwork and song information or only song information in more detail.

Touching the artwork area switches to the VU meter. (The Disc, USB, iPod, Bluetooth audio sources only)

Change the text size of song information smaller when the "Small Audio Text" is set to "ON" in the User Interface screen ( P.82).

Function panel

Touch the left side of the screen to display the function panel. Touch again to close the panel.

Operation keys

You can operate the current source with these operation keys. The available functions are different depending on the source type.

17English

Basic Operations

List screen

There are some common function keys in the list screens of most sources. See (P.26, 39, 41, 70).

Display the list screen

For Disc media/USB/iPod:

Touch [1] or the item listed on the

information area in the source control screen.

 The list screen appears.

For Bluetooth audio:

Touch [1].

 The list screen appears.

You can use following operation keys from this screen.

[ ]/[ ]/[ ]/[ ] Page scroll

You can change pages to display more items by touching [

• [

Return

Returns to the previous screen.

NOTE

• Depending on the current source or mode, some function key may not appear.

]/[ ].

]/[ ] : Displays the top or bottom page.

61 2

3 4 5

Displays the list type selection window.

Displays a music/movie file list.

Text scroll

Scrolls the displayed text.

etc.

Keys with various functions are displayed here.

•

: Plays all tracks in the folder containing

the current track.

•

: Jumps to the letter you entered

(alphabetical search).

•

: Moves to the upper hierarchy

level.

Widget

Press the [HOME] button.

You can change the widget by flicking left

or right on the widget area.

Widget list

• Multi Widget *

• Clock Widget

• Tire Pressure Widget *

• Rader Widget *

• Climate Widget *

• Photo Frame Widget

*1 Up to 3 pages can be set to the multi widget screen. *2 This can be selected when a compatible ADS adapter

is connected.

Multi Widget

You can place a widget on each of the following areas. Up to 4 widgets can be placed per a multi widget screen.

Press the [HOME] button.

Flick the widget area to the left/right to

display the multi widget.

Widget (L)

Widget (M)

Widget (S1)

Widget (S2)

Ñ Replace the widget

● To move the widget

Touch and hold the widget.

 Widget customize mode is activated.

Drag the widget to the desired position.

● To delete the widget

Touch and hold the widget.

 Widget customize mode is activated.

Touch [×] on the right top corner of the

widget.

 The selected widget is deleted.

19English

Widget

● To replace the widget

Touch [ ] on the multi widget screen.

 Widget list popup appears.

Widget icon

The widgets which can be placed to the multi widget screen are listed.

Flick the widget list popup to the left/

right to select the widget to replace.

Touch and hold the new widget.

 Widget customize mode is activated.

Drag the widget from the widget list

popup to the desired widget area.

You can set up following items.

• Clock Widget

• Compass Widget

• Current source information *

• Visualizer Widget

• Mirroring Widget *

• Photo Frame Widget

• Climate Widget *

• Radar Widget *

• Tire Pressure Widget *

*1 You cannot display the screen of Wireless Mirroring/

USB Mirroring on this widget. To display the screen of the source, select the Mirroring Widget.

*2 This can be selected when using Wireless Mirroring/

USB Mirroring.

*3 You cannot play the video file on the USB/Disc media

when using Wireless Mirroring/USB Mirroring.

*4 This can be selected when a compatible ADS adapter

is connected.

NOTE

• and the widget list popup disappear when no operation is done for 5 seconds.

• When the screen is switched from another widget to multi widget screen, [

2 *3

] appears again.

Ñ Add a new multi widget

You can add pages to the multi widget screen.

Touch [ ] on the multi widget screen.

 Widget list popup appears.

■ [ ]

Displays confirmation message to delete the current page from the multi widget screen. For details, see To delete the multi widget (P. 20).

■ [

]

Adds a page to the multi widget screen.

Touch [ ] on the widget list popup.

 A new page is added.

NOTE

• You can add up to 2 pages to the multi widget screen. If you have already added 2 pages, you

cannot select [

• The widget list popup is displayed on the new page until you place a widget to.

To delete the multi widget

Touch [ ] on the widget list popup.

 Confirmation message appears.

Touch [YES].

 Current page is deleted.

NOTE

• You cannot delete the first page of the multi widget screen.

Widget

Photo Frame Widget

You can display a slideshow of the image files stored in the USB memory on the Home screen.

Ñ Preparation

• Select “ON” for Photo Frame Widget. See

Widget SETUP (P.21).

● Acceptable Picture files

Max. Picture size

JPEG (.jpg, .jpeg) *15,000 × 5,000

PNG (.png) 1,000 × 1,000

BMP (.bmp) 1,000 × 1,000

• This unit can only play back files which are less than 50 MB.

• The maximum number of files per device is

500.

• Picture files may not be played depending on their condition.

*1 A progressive format is not supported.

Ñ Photo Frame

Press the [HOME] button.

Flick the widget area to the left/right to

display the photo frame widget.

Widget SETUP

Set up the widgets on the Home screen.

Press the [MENU] button.

 Popup menu appears.

Touch [SETUP].

 SETUP screen appears.

Touch [User Interface].

 User Interface screen appears.

Touch [Widget SETUP] in the User

Interface screen.

Set each item as follows.

■ [Photo Frame Widget]

Determine whether to use the photo frame widget.

"ON" (Default)/"OFF"

■ [Photo Frame SETUP]

Make settings related to display of the photo frame widget.

Touch [ ].

• Scroll the screen to display the hidden part.

21English

Widget

To Photo Frame Setup

Make settings related to display of the photo frame widget.

Touch [Photo Frame SETUP] on the

Widget SETUP screen.

Set each item as follows.

■ [Sort Order]

Specify a file sorting criterion. "By Name(Ascending)"/

"By Name(Descending)"/ "By Date(Newest First)"(Default)/ "By Date(Oldest First)"

■ [Slide Show Interval]

Specify the slideshow interval. "5" to "30" seconds. Default is "5" seconds.

■ [Photo Frame is • • • • •]

Display help topics about the photo frame.

Touch [ ].

Disc

(DDX9907XR / DDX9707S)

Playing a disc

Ñ Insert a disc

Press the [G] button.

Touch [DISC EJECT].

 The panel opens.

Insert the disc into the slot.

 The panel closes automatically.

The unit loads the disc and playback starts.

DVD/VCD Basic Operation

Most functions can be controlled from the source control screen and playback screen.

NOTE

• Set the remote control mode switch to DVD mode before starting operation for DVD and VCD, see Switch the operation mode (P.96).

• The screen shot below is for DVD. It may be different from the one for VCD.

When the operation keys are not

displayed on the screen, touch 7 area.

Control screen

DVD VCD

4 5

Ñ Eject a disc

Press the [G] button.

Touch [DISC EJECT].

When removing a disc, pull it horizontally.

Press the [G] button.

 The panel closes.

NOTE

• To forcibly eject the disc, press and hold the

[G] button for 2 seconds and then touch [DISC EJECT] after the message is displayed.

Video screen

Information display area

Displays the following information.

• Title #, Chapter #: DVD title and chapter number

23English

Disc

• Track #/Scene #: VCD track or scene number. Scene # is displayed only when Playback control (PBC) is on.

• Linear PCM, etc.: Audio format

• OFF/Zoom2 – 4 (DVD)/Zoom2 (VCD): Displays the zoom ratio. This function can be used from the remote control. (P. 96)

• [Hide]: Hides the control screen.

• [

] : Repeats the current content. Each time you touch the key, repeat modes are switched in the following sequence; DVD: Title repeat ( ), Chapter repeat ( ), Repeat off ( )

VCD (PBC On): Does not repeat VCD (PBC Off ): Track repeat ( ), Repeat off

( )

Function panel

Touch the left side of the screen to display the function panel. Touch again to close the panel.

• I]: Stops playback. Touching twice will play

the disc from the beginning when you play it next time.

• [

] [ ]: Fast-forwards or fast-backward the disc. Each time you touch the key, the speed changes. 2 times, 10 times.

• [

] [ ] (DVD only): Plays in slow motion forward or backward.

• [SETUP] (DVD only): Touch to display the DVD SETUP screen. See DVD SETUP (P.28).

• [MENU CTRL] (DVD only): Touch to display the DVD-VIDEO disc menu control screen. See DVD Disc Menu Operation (P.27).

• [PBC] ( VCD only): Touch to turn Playback control (PBC) on or off.

• [Audio] (VCD only): Touch to change audio output channels.

• [Direct Number] ( VCD only): Touch to display the Direct Number dialog only when Playback control (PBC) is on. You can directly enter the track number to play when scene is selected.

• [

] (VCD only): Returns to the previous scene

only when Playback control (PBC) is on.

Play mode indicator/Playing time

• D, B, I, etc.: Current play mode indicator Meanings of the icons are as follows: D (play),

B (fast forward), A (fast backward), I (stop),

(resume stop), H (pause), (slow

playback), (slow reverse playback).

• For confirmation of current playing position. You can drag the circle left or right to change the playing position.

Operation keys

• [E] [F] : Searches for the previous/next content. Touch and hold to fast-forward or fastbackward the disc. (It will be cancelled automatically after about 50 seconds.)

• [DH] : Plays or pauses.

• [

] : Displays the Graphic Equalizer screen.

(P. 90)

Indicator Items

• [IN]: Disc insertion status.

White: A Disc is inside the unit. Orange: Disc player failure.

VCD

• [1chLL/2chLL]: Identifies the left audio output of channel 1 or 2.

• [1chLR/2chLR]: Identifies the monaural audio output of channel 1 or 2.

• [1chRR/2chRR]: Identifies the right audio output of channel 1 or 2.

• [1chST/2chST]: Identifies the stereo audio output of channel 1 or 2.

• [LL]: Identifies the left audio output.

• [LR]: Identifies the monaural audio output.

• [RR]: Identifies the right audio output.

• [ST]: Identifies the stereo audio output.

• [PBC]: The PBC function is on.

• [VER1]: The VCD version is 1.

• [VER2]: The VCD version is 2.

Searching area

Touch to search for the next/previous content.

Key display area

Touch to display the control screen.

[MENU CTRL] (DVD only)

Touch to display the DVD-VIDEO disc menu control screen. See DVD Disc Menu Operation (P. 27).

NOTE

• The control screen disappears when no operation

is done for 5 seconds.

• If you use a remote control, you can jump directly

to the desired image by entering the chapter number, scene number, etc. (P. 96).

Disc

Music CD/Disc media Basic Operation

Most functions can be controlled from the source control screen and playback screen.

NOTE

• Set the remote controller mode switch to AUD mode before starting operation for Music CD and audio files, see Switch the operation mode (P. 96).

• In this manual, “Music CD” means a general CD which includes music tracks. “Disc media” means a CD/DVD disc which includes audio or video files.

• The screen shot below is for disc media. It may be different from the one for CD.

Control screen

3 4

Open the drawer

• [ ] : Repeats the current track/folder. Each time you touch the key, repeat mode switches in the following sequence; Track/File repeat ( ), Folder repeat ( ) (Disc media only), Repeat all (

• [

] : Randomly plays all tracks in current folder/disc. Each time you touch the key, random mode switches in the following sequence; Track random ( ) (Music CD only), Folder random ( ) (Disc media only), Random off ( )

Track information

• Displays the information of the current track/file. Only a file name and a folder name are displayed if there is no tag information. (Disc media only)

• Change the text size of the information smaller when the "Small Audio Text" is set to "ON" in

the User Interface screen ( P.82).

Play mode indicator/Playing time

• D, B, etc.: Current play mode indicator Meanings of the icons are as follows: D (play),

B (fast forward), A (fast backward), H (pause).

• For confirmation of current playing position. You can drag the circle left or right to change the playing position. (Video file only)

)

Close the drawer

CODEC/[ ]/[ ]

• When a high-resolution source is played, its format information is displayed. (Disc media only)

Operation keys

• [1] (Disc media only) : Searches files. For

details on search operation, see File search Operation (P.26).

• [E] [F] : Searches for the previous/next

content. Touch and hold to fast-forward or fastbackward the disc. (It will be cancelled automatically after about 50 seconds.)

• [DH] : Plays or pauses.

• [

] : Displays the Graphic Equalizer screen.

(P. 90)

Content list

• Touch the right side of the screen to display the Content list. Touch again to close the list.

• Displays the playing list. When you touch a track/file name on the list, playback will start.

25English

Disc

Artwork/VU meter

• Displays/hides artwork area.

• The jacket of the currently playing file is displayed. (Disc media only)

• Touch to switch between the artwork and VU meter.

Function panel (Disc media only)

Touch the left side of the screen to display the function panel. Touch again to close the panel.

• [

] [ ] : Searches for the previous/next

folder.

Indicator Items

• [IN]: Disc insertion status.

White: A Disc is inside the unit. Orange: Disc player failure.

• [VIDEO]: Identifies the video file.

• [MUSIC]: Identifies the music file.

Video screen

File search area (Video file only)

Touch to search for the next/previous file.

Key display area (Video file only)

Touch to display the control screen.

File search Operation (Disc media only)

You can search for a file according to hierarchy.

NOTE

• For operations in the list screen, see List screen (P. 18).

Touch [1].

 Folder List screen appears.

Touch the desired folder.

 When you touch a folder its contents are

displayed.

Touch the desired item in the content list.

 Playback starts.

Disc

DVD Disc Menu Operation

You can set up some functions using the DVDVIDEO disc menu.

Touch the framed area during playback.

 Menu Control screen appears.

Perform your desired operation as

follows.

■ To display the top menu

Touch [TOP].*

■ To display the menu

Touch [MENU].*

■ To display the previous menu

Touch [Return].*

■ To enter selected item

Touch [Enter].

■ To enable direct operation

Touch [Highlight] to enter the highlight control mode (P. 27).

■ To move the cursor

Touch [R], [S], [C], [D].

■ To switch among subtitle languages

Touch [Subtitle]. Each time you touch this key, subtitle languages are switched.

■ To switch among audio languages

Touch [Audio]. Each time you touch this key, audio languages are switched.

■ To switch among picture angles

Touch [Angle]. Each time you touch this key, picture angles are switched.

* These keys may not function depending on

the disc.

Ñ Highlight control

Highlight control lets you control the DVD menu by touching the menu key directly on the screen.

Touch [Highlight] on the Menu Control

screen.

Touch your desired item on the screen.

NOTE

• The highlight control function is cancelled automatically if you do not operate for a predetermined period of time.

27English

Disc

DVD SETUP

You can set up the DVD playback functions.

Touch the framed area during playback.

Touch [ ] on the left side of the screen.

Touch [SETUP].

 DVD SETUP screen appears.

Set each function as follows.

■ [Screen Ratio]

Sets the screen display mode.

[16:9 ](Default): Displays wide pictures. [4:3 LB]: Displays wide pictures in the Letter

Box format (having black stripes at the top and bottom of screen).

[4:3 PS]: Displays wide pictures in the Pan &

Scan format (showing pictures cut at the right and left ends).

Ñ Language setup

This setting is for the languages used for the menu, subtitle, and voice.

Touch the desired item;

[Menu Language], [Subtitle Language], [Audio Language].

 Language Set screen appears.

Select a language.

■ [

Menu Language/Subtitle Language/

Audio Language]

See Language setup (P.28).

■ [Dynamic Range Control]

Sets the dynamic range.

[Wide]: The dynamic range is wide. [Normal]: The dynamic range is normal. [Dialog] (Default): Makes the total sound

volume larger than the volumes in other modes. This is effective only when the Dolby Digital software is in use.

For language codes, refer to DVD Language Codes (P.115).

Touch Close to set the entered language and return to the DVD SETUP screen.

NOTE

• To set the DVD’s original language as the audio language, touch [Original].

APPS

Wireless Mirroring Operation

You can display the same screen of the Android smartphone on the monitor of the unit using the Wireless Mirroring function of the Android smartphone.

Preparation

• You can use the Wireless Mirroring function with Android smartphones compatible with this function.

• This function may be called Wireless Display, Screen Mirroring, AllShare Cast, etc., depending on the manufacturer.

• The settings on the Android smartphone differ depending on the device type. For details, refer to the instruction manual supplied with your Android smartphone.

• If your Android smartphone is locked, Mirroring screen may not appear.

• If the Android smartphone is not ready for UIBC, you cannot perform touch operation.

Press the [HOME] button.

Touch [ ].

Touch [Wireless Mirroring]. ( P.15)

 The App screen is displayed.

Operate your Android smartphone to

activate the Wireless Mirroring function, then connect to this unit.

Select (”DDX****”/”DMX****”) as the

network to use.

 When the connection is established,

then the same screen displayed on the Android smartphone is displayed.

NOTE

• Apps is discontinued when the power is turned ON/OFF or you leave the vehicle. To restart Apps, operate the Android smartphone.

• When the Apps source is displayed, you cannot register or reconnect a Bluetooth device. Switch the Apps source to another source, and then operate the Bluetooth device.

USB Mirroring Operation

With Mirroring for KENWOOD application installed on your smartphone, you can display the screen of your smartphone on the screen of this unit and listen to either the audio of your smartphone or current source of this unit. You may access your smartphone from this unit.

You can use the USB Mirroring function with your smartphone compatible with this function.

Compatible devices

• Android smartphone – Bluetooth support – Android version 5.0 or later – Linux Kernel version 3.5 or later

• iPhone – Bluetooth support – iOS version 11 or later

Preparation

• Install the latest version of the Mirroring

for KENWOOD application and activate the application on your smartphone. [Android smartphone]: Search for “Mirroring for KENWOOD” in Google Play to find and install the most recent version. [iPhone]: Search for “Mirroring for KENWOOD” in Apple App Store to find and install the most recent version. Mirroring for KENWOOD application is a free application. You can check “how to” tutorial in Mirroring for KENWOOD application.

Ñ Connect the device

Screen is mirrored through USB (Black) terminal connection while audio is shared via Bluetooth connection between this unit and your smartphone.

29English

APPS

For Android smartphones:

Pair your Android smartphone with

this unit via Bluetooth. See Register the Bluetooth device (P.65).

Select A2DP/SPP [Audio/App].

Press the [HOME] button.

Touch [ ].

Touch [USB Mirroring]. (P.15)

Connect your Android smartphone via

the USB (Black) terminal. (P. 107)

When you use Mirroring for KENWOOD application for the first time, the terms of service are displayed. It is necessary to agree to the terms of service to use this function.

For iPhone:

Pair your iphone with this unit via

Bluetooth. See Register the Bluetooth device (P.65).

Select A2DP/SPP [Audio/App].

Touch “Mirroring for KENWOOD” and start

broadcast.

Press the [HOME] button.

Touch [ ].

Touch [USB Mirroring]. (P.15)

Connect your iPhone using KCA-iP103 via

the USB (Black) terminal. (P. 107)

Operate your iPhone to complete

followings.

• Launch “Settings”, then touch “Control Center” and then “Customize Controls”.

• Touch “Screen Recording” and add to “INCLUDE” list.

• Launch “Control Center” of your iPhone, then touch and hold Screen Recording icon.

NOTE

• USB (Gray) terminal does not support USB Mirroring.

• You cannot use the Bluetooth and iPod sources at the same time with Mirroring for KENWOOD application.

• OSD clock is not shown on the mirroring screen of this unit regardless of the setting made for [OSD Clock] ( P.84).

• Depending on the connected Android smartphone, you may need to enable virtual keyboard setting on your smartphone to display software keyboard on the screen of this unit and on your smartphone.

• Mirroring for KENWOOD application is discontinued by the following operations if you use the application with an iPhone:

– Receiving an incoming call – iPhone's screen recording function is stopped

– iPhone screen is turned off To resume the mirroring operation, disconnect the iPhone from the USB Audio cable, and try connecting it again.

• The audio may be of poor quality, interrupted or skipped, depending on several conditions such as network condition, the application and etc.

• If you perform pairing with another device during mirroring, mirroring (audio and/or video) will be disturbed or paused.

• Some applications may not support audio sharing.

• Some operations may not work depending on the compatibility between this unit, Mirroring for KENWOOD application and your smartphone.

Ñ Operation keys on the

mirroring screen

On the USB mirroring screen, the following virtual hard keys are available. The keys are hidden when no operation is done for about 5 seconds. You can display back them anytime by touching the screen.

• [

]/[ ]: Changes the virtual hard keys position

shown on the screen of this unit.

• [󲄅]: Returns to home page.

• [×]: Closes the virtual hard keys.

• [

]: Shows the recent applications (Android

only).

• [

]: Returns to the previous page (Android

only).

APPS

NOTE

• These keys differ depending on the connected device and may differ from the function operated from the device.

• These keys can be displayed even if there is no hard key on the connected device.

Ñ Disconnect mirroring

You can disconnect mirroring by disconnecting your smartphone from the USB (Black) terminal from the rear panel.

NOTE

• Once you disconnect from mirroring operations, stop broadcast on iPhone's screen recording function. Otherwise “iPod” source and “Bluetooth” source may not work correctly.

Apple CarPlay Operation

Apple CarPlay is a smarter, safer way to use your iPhone in the car. Apple CarPlay takes the things you want to do with iPhone while driving and displays them on the screen of the product. You can get directions, make calls, send and receive messages, and listen to the music from iPhone while driving. You can also use Siri voice control to make it easier to operate iPhone.

For details about Apple CarPlay, visit https://

www.apple.com/ios/carplay/.

Compatible iPhone devices

You can use Apple CarPlay with the following iPhone models.

• iPhone XS Max

• iPhone XS

• iPhone XR

• iPhone X

• iPhone 8 Plus

• iPhone 8

• iPhone 7 Plus

• iPhone 7

• iPhone SE

• iPhone 6s Plus

• iPhone 6s

Ñ Connecting an iPhone

Preparation

• To register an iPhone by the connection via the USB (Black) terminal

– Connect an iPhone via the USB (Black) terminal

and operate the iPhone according to the confirmation messages displayed on the iPhone. The iPhone is registered in [Apple CarPlay Device List]. Removing the iPhone from the USB (Black) terminal and selecting the registered iPhone from [Apple CarPlay Device List], the iPhone will be connected wirelessly.

• To register an iPhone by the connection via Bluetooth

– Touching [

Device List] screen (P. 32), displays Bluetooth pairing waiting dialog. Referring to Register the Bluetooth device (P.65) and registering the iPhone, the iPhone will be connected wirelessly.

] on the [Apple CarPlay

31English

APPS

Wired connection

Connect your iPhone using KCA-iP103 via

the USB (Black) terminal. (P. 107)

When an iPhone compatible with Apple CarPlay is connected to the USB (Black) terminal, the Bluetooth Hands-Free phone currently connected is disconnected. If the Bluetooth Hands-Free phone is being used, disconnection will occur after ending the call.

Unlock your iPhone.

Wireless connection

You can select the iPhone registered as the Bluetooth device from [Apple CarPlay Device List] and use it as the Apple CarPlay device.

Press the [HOME] button.

Touch [ ].

Touch [Apple CarPlay]. (P. 15)

NOTE

• Turn on the Bluetooth function and Wi-Fi function of an iPhone.

• If two or more iPhones have been registered, select the iPhone to be used as the [Apple CarPlay] source. (P. 32)

• You can also select the iPhone registered in [Apple CarPlay Device List] (P. 32) even when the [Apple CarPlay] icon is not activated on the source selection screen.

• It is necessary to connect the GPS antenna and the speed pulse input in order to use a wireless Apple CarPlay.

• When the Wi-Fi connection becomes unavailable, the HOME screen is displayed.

• You cannot use Apple CarPlay if the iPhone's screen recording function is enabled.

To switch the Current Screen to the Apple CarPlay Screen When Connecting Your iPhone

• Touch [Apple CarPlay] icon on the source selection screen. (P. 15)

• Touch the following connection message if the message appears.

NOTE

• The connection message appears when;

– The iPhone you used previously is connected

again.

– The screen other than HOME and the source

selection screen is displayed.

• The connection message is displayed for about

5 seconds.

Ñ Select an Apple CarPlay device

If two or more iPhones compatible with Apple CarPlay have been registered, select the iPhone to be used as the Apple CarPlay source.

Press the [MENU] button.

 Popup menu appears.

Touch [SETUP].

 SETUP screen appears.

Touch [AV].

Touch [Apple CarPlay Device List].

Select a device.

The Apple CarPlay device connected via the USB and the registered Apple CarPlay devices ready for wireless connection are displayed.

APPS

• [ ] : Displays a Bluetooth pairing waiting dialog. For details, see Register the Bluetooth device (P.65).

• [

] : Displays confirmation message to

disconnect the device.

• [

] : Displays Device Remove screen.

(P. 33)

To delete the registered Apple CarPlay device

Touch [ ].

Touch the device name to check.

■ [þ [ALL]

Selects all Apple CarPlay devices.

■ [¨ [ALL]

Clears all check marks.

Touch [Delete].

 Confirmation message appears.

Touch [Yes ].

 All the selected device(s) is deleted.

NOTE

• This operation also deletes the same device(s) from the Bluetooth device list screen. (P. 67)

Ñ Operation keys and available

Apps on the home screen of Apple CarPlay

You can use the Apps of the connected iPhone. The items displayed and the language used

on the screen differ among the connected devices.

To enter the Apple CarPlay mode, touch [Apple CarPlay] icon on the source selection screen. (P. 15)

[ ]

• Displays the home screen of Apple CarPlay.

• Touch and hold to activate Siri.

Application keys

Starts the application.

[HOME]

Exits the Apple CarPlay screen and displays the Home screen.

* The icon design may change depending on

the iOS version.

To exit the Apple CarPlay screen

Press the [HOME] button.

33English

APPS

Ñ Use Siri

You can activate Siri.

Press the [ ] button for 1 second.

DDX9907XR / DDX9707S

Press for 1 second

DMX957XR / DMX907S / DMX9707S

Press for 1 second

Talk to Siri.

To deactivate

Press the [ ] button.

Ñ Switch to the Apple CarPlay

screen while listening to another source

Press the [ ] button.

DDX9907XR / DDX9707S

DMX957XR / DMX907S / DMX9707S

Android Auto™ Operation

Android Auto enables you to use the functions of your Android smartphone convenient for driving. You can easily access route guidance, make calls, listen to music, and access convenient functions on the Android smartphone while driving.

For details about Android Auto, visit https://

www.android.com/auto/ and https://support. google.com/androidauto.

Compatible Android devices

You can use Android Auto with Android devices of Android version 5.0 or later.

For Wi-Fi connection, Android 8.0 or later.

NOTE

• Android Auto may not be available on all devices and may not be available in all countries or regions.

● About the placement of smartphone

Install the smartphone connected as Android Auto device in the place where it can receive the GPS signals.

When using Google Assistant, install the smartphone in the place where the smartphone easily catch a voice by the microphone.

NOTE

• Do not put the smartphone in a spot exposed to direct sunlight or near an air blowing out port of an air conditioner. The placement of the smartphone in such places can lead to malfunction or damage of your smartphone.

• Do not leave the smartphone in the vehicle.

NOTE

• When listening to another source with the Apple CarPlay screen displayed, playing music in the Apple CarPlay mode will switch the current source to the Apple CarPlay source.

APPS

Ñ Connect Android smartphone

Wired connection

Connect an Android smartphone via the

USB terminal. (P. 107)

To use the hands-free function, connect the Android smartphone via Bluetooth.

When an Android smartphone compatible with Android Auto is connected to the USB terminal, the device is connected via Bluetooth automatically, and the Bluetooth Hands-Free phone currently connected is disconnected.

Unlock your Android smartphone.

Press the [HOME] button.

Touch [ ].

Touch [Android Auto]. (P. 15)

Wireless connection

When the Android smartphone is ready for wireless connection, connecting it via the USB registers Bluetooth and Wi-Fi automatically. Thus, the registered Android smartphone will be able to be connected wirelessly to be used as an Android Auto source.

Press the [HOME] button.

Touch [ ].

Touch [Android Auto]. (P. 15)

NOTE

• Turn on the Bluetooth function and Wi-Fi function of Android smartphone.

• If two or more Android smartphones have been registered, select the Android smartphone to be used as the Android Auto source. (P. 35)

• To change the password for wireless connection manually, refer to [Reset Android Auto Wireless Connection] (P. 86).

• When the Wi-Fi connection becomes unavailable, the HOME screen is displayed.

Ñ Select an Android smartphone

If two or more Android smartphones have been registered, select the Android smartphone to be used as the Android Auto source.

Press the [HOME] button.

Touch [ ].

Touch [Android Auto]. (P. 15)

Press the [MENU] button.

Touch [ ].

Select an Android smartphone.

The registered Android smartphones ready for wireless connection and the Android smartphone connected via the USB are displayed.

35English

APPS

Ñ Operation keys and available

Apps on the Android Auto screen

You can perform the operations of the Apps of the connected Android smartphone.

The items displayed on the screen differ among the connected Android devices.

To enter the Android Auto mode, touch the [Android Auto] icon on the source selection screen. (P. 15)

Application/information keys

Starts the application or displays information.

To exit the Android Auto screen

Press the [HOME] button.

Ñ Using voice control

Press the [ ] button for 1 second.

DDX9907XR / DDX9707S

Press for 1 second

Ñ Switch to the Android Auto

screen while listening to another source

Press the [ ] button.

DDX9907XR / DDX9707S

DMX957XR / DMX907S / DMX9707S

NOTE

• When listening to another source with the Android Auto screen displayed, playing music in the Android Auto mode will switch the current source to the Android Auto source.

DMX957XR / DMX907S / DMX9707S

Press for 1 second

To cancel

Press the [ ] button.

USB

Connecting a USB device

Connect the USB device with the USB

cable. (P. 106)

Press the [HOME] button.

Touch [ ].

Touch [USB]. (P.15)

Ñ Disconnect the USB device

Press the [HOME] button.

Touch a source other than [USB].

Detach the USB device.

Ñ Usable USB device

You can use a mass-storage-class USB device with this unit.

The word “USB device” appearing in this manual indicates a flash memory device.

● About the file system

The file system should be the one of the following.

• FAT16 • FAT32 • exFAT • NTFS

USB Basic Operation

Most functions can be controlled from the source control screen and playback screen.

NOTE

• Set the remote controller mode switch to AUD mode before starting operation, see Switch the operation mode (P.96).

Control screen

3 4

Open the drawer

Close the drawer

NOTE

• Install the USB device in the place where it will not affect safe driving.

• You cannot connect a USB device via a USB hub and Multi Card Reader.

• Take backups of the audio files used with this unit. The files can be erased depending on the operating conditions of the USB device. We shall have no compensation for any damage arising from any erased data.

[CODEC/[ ]/[ ]

• When a high-resolution source is played, its format information is displayed.

• [

] : Repeats the current track/folder. Each time you touch the key, repeat modes are switched in the following sequence: File repeat ( ), Folder repeat ( ), Repeat all ( )

37English

USB

• [ ] : Randomly plays all tracks in the current folder. Each time you touch the key, random modes are switched in the following sequence: File random ( ), Random off ( )

Track information

• Displays the information on the current file. Only a file name and a folder name are displayed if there is no tag information.

• Change the text size of the information smaller when the "Small Audio Text" is set to "ON" in the User Interface screen ( P.82).

Play mode indicator/Playing time

• D, B, etc.: Current play mode indicator Meanings of individual icons are as follows: D (play), B (fast forward), A (fast backward), H (pause).

• For confirmation of current playing position. You can drag the circle left or right to change the playing position. (Video file only)

Operation keys

• 1] : Searches track/file. For details on search operation, see Search Operation (P.39).

• E] [F] : Searches the previous/next track/ file. Touch and hold to fast forward or fast backward. (It will be cancelled automatically after about 50 seconds.)

• [DH] : Plays or pauses.

• [

] : Displays the Graphic Equalizer screen.

(P. 90)

Content list

• Touch the right side of the screen to display the Content list. Touch again to close the list.

• Displays the playing list. When you touch a track/file name on the list, playback will start.

Artwork/VU meter

• Displays/hides artwork area.

• The jacket of the currently playing file is displayed.

• Touch to switch between the artwork and VU meter.

Function panel

Touch the left side of the screen to display the function panel. Touch again to close the panel.

• [

] [ ] : Searches for the previous/next

folder.

• [USB DEVICE CHANGE] : Switches to another USB device when two USB devices are connected.

Indicator Items

• [VIDEO]: Identifies the video file.

• [MUSIC]: Identifies the music file.

Video screen

File search area (Video file only)

Touch to search for the next/previous file.

Key display area (Video file only)

Touch to display the control screen.

USB

Search Operation

You can search music or video files by the following operations.

Touch [1].

Touch [S].

Select a list type.

NOTE

• For operations on the list screen, see List screen (P. 18).

Ñ Category search

You can search for a file by selecting a category.

Touch [Category List].

Select whether you search audio files

or video files

Touch the desired category.

Ñ Link search

You can search for a file of the same artist/ album/genre as that in the current track.

Touch [Link Search].

Touch the desired tag type. You can select

from artists, albums and genres.

 The list corresponding to your selection

appears.

Touch the desired item in the content list.

Ñ Folder search

You can search for a file according to hierarchy.

Touch [Folder List].

Touch the desired folder.

 The list corresponding to your selection

appears.

Touch to select the desired item in the

list. Repeat this step until you find the desired file.

When you touch a folder its contents are displayed.

Touch to select your desired item in the

list. Repeat this step until you find the desired file.

39English

iPod/iPhone

Preparation

Ñ Connectable iPod/iPhone

The following models can be connected to this unit.

Made for

• iPhone XS Max

• iPhone XS

• iPhone XR

• iPhone X

• iPhone 8 Plus

• iPhone 8

NOTE

• Latest compatible list of iPod/iPhone. For details, see www.kenwood.com/cs/ce/ipod/.

• By connecting your iPod/iPhone to this unit with the iPod connection cable KCA-iP103 (optional accessory), you can supply power to your iPod/ iPhone as well as charge it while playing music. Note that the power of this unit must be held on.

• If you restart playback after connecting the iPod, the music that has been played by the iPod is played first.

• iPhone 7 Plus

• iPhone 7

• iPhone SE

• iPhone 6s Plus

• iPhone 6s

• iPod touch (6th generation)

Connect the iPod/iPhone using the KCA-

iP103. (P. 107)

Press the [HOME] button.

Touch [ ].

Touch [iPod]. (P. 15)

● To disconnect the iPod/iPhone connected with the cable:

Detach the iPod/iPhone.

Bluetooth connection

Pair the iPhone through Bluetooth.

Preparation

• To connect an iPhone via Bluetooth, register it

as a Bluetooth device and do the profile setting for the connection beforehand. See Register the

Bluetooth device (P.65) and Connect the Bluetooth device (P.66).

• Connect an iPhone via Bluetooth while Apple

CarPlay and an iPod/iPhone are not connected via USB.

• With an Apple CarPlay-capable iPhone, turn

off Apple CarPlay by operating the iPhone at functional setup before connecting iPhone. For details of the setup method, contact the manufacturer of the terminal.

Ñ Connect iPod/iPhone

Wired connection

Preparation

• Connect an iPod/iPhone with the KCA-iP103 (optional accessory) while Apple CarPlay is not connected.

• With an Apple CarPlay-capable iPhone, turn off Apple CarPlay by operating the iPhone at functional setup before connecting iPhone. For details of the setup method, contact the manufacturer of the terminal.

• Plug the iPod/iPhone into the gray USB terminal with the KCA-iP103 (optional accessory).

• Only one iPod/iPhone can be connected.

iPod/iPhone Basic Operation

NOTE

• Set the remote controller mode switch to AUD mode before starting operation, see Switch the operation mode (P.96).

Control screen

3 4

iPod/iPhone

Open the drawer

Close the drawer

Track information

• Displays the information on the current file.

• Touch to display the category list screen. See Category search (P.42).

• Change the text size of the information smaller when the "Small Audio Text" is set to "ON" in the User Interface screen ( P.82).

Artwork/VU meter

• Displays/hides artwork area.

• The jacket of the currently being played file is displayed.

• Touch to switch between the artwork and VU meter.

Play mode indicator/Playing time

• D, B, etc.: Current play mode indicator Meanings of individual icons are as follows: D (play), B (fast forward), A (fast backward), H (pause).

Operation keys

• 1] : Searches for a track/file. For details on search operation, see Search Operation (P. 41).

• E] [F] : Searches for the previous/next track/file. Touch and hold to fast forward or fast backward. (It will be cancelled automatically after about 50 seconds.)

• [DH] : Plays or pauses.

• [

] : Displays the Graphic Equalizer screen.

(P. 90)

Content list

• Touch the right side of the screen to display the Content list. Touch again to close the list.

• Displays the playing list. When you touch a track/file name on the list, playback will start.

[ ]/[ ]

• [

] : Repeats the current track/album. Each

time you touch the key, repeat modes are switched in the following sequence: Song repeat ( ), All songs repeat ( ), Repeat off ( )

• [

] : Randomly plays all tracks in the current album. Each time you touch the key, random modes are switched in the following sequence: Song random (

Indicator Items

• [MUSIC]: Identifies the music file.

), Random off ( )

Search Operation

You can search music files by the following operations.

Touch [1].

Touch [S].

Select a list type.

NOTE

• For operations on the list screen, see List screen

(P. 18).

41English

iPod/iPhone

Ñ Category search

You can search for a file by selecting a category.

Touch [Category List].

Touch the desired category.

 The list corresponding to your selection

appears.

Touch to select the desired item in the

list. Repeat this step until you find the desired file.

Ñ Link search

You can search for a file of the same artist/ album/genre/composer as that in the current track.

Touch [Link Search].

Touch the desired tag type. You can

select from artists, albums, genres and composers.

 The list corresponding to your selection

appears.

Touch the desired item in the content list.

Radio (DDX9707S / DMX9707S)

Radio Basic Operation

Most functions can be controlled from the source control screen.

To listen to the Radio source, touch [Radio] icon on the source selection screen. (P. 15)

NOTE

• Set the remote control mode switch to AUD mode before starting operation, see Switch the operation mode (P.96).

Control screen

1 2

6 5

Open the drawer

Close the drawer

Radio

Information display

• Displays the information on the current station: Frequency Touching [ Content A and Content B. Content A: PS name, Radio Text, Title & Artist Content B: PTY Genre, Radio Text plus Preset#: Preset number

• Change the text size of the information smaller when the "Small Audio Text" is set to "ON" in the User Interface screen ( P.82).

Seek mode

Touch to switch seek mode in the following sequence: [AUTO1], [AUTO2], [MANUAL].

• [AUTO1]: Tunes in a station with good reception automatically.

• [AUTO2]: Tunes in the memorized stations one

after another.

• [MANUAL]: Switches to the next frequency manually.

Operation keys

• [E] [F] : Tunes in a station. The method of switching frequencies can be changed (see Seek mode).

• [

(P. 90)

Preset list

• Touching [ display size.

• Recalls the memorized station.

• When touched for 2 seconds, stores the currently being received station in the memory.

Band keys

Switches bands (between FM and AM).

Function panel

Touch the left side of the screen to display the function panel. Touch again to close the panel.

• [TI] (FM only) : Selects the traffic information mode. For details, see Traffic Information (P. 45).

• [AME] : Presets stations automatically. For details, see Auto memory (P.44).

] allows you to switch between

] : Displays the Graphic Equalizer screen.

]/[ ] allows you to change the

43English

Radio

• [PTY] (FM only) : Searches for a program by program type. For details, see Search by program type (P.45).

• [MONO] (FM only) : Selects the Monaural reception mode.

Indicator Items

• [ST]: A stereo broadcast is being received.

• [MONO]: The forced monaural function is active.

• [TI]: Indicates the reception state of traffic information.

White: TP is being received. Orange: TP is not being received.

Memory Operation

Ñ Auto memory

You can store stations with good reception in the memory automatically.

Touch desired band key.

Touch [ ] on the left side of the screen.

Touch [AME].

Touch [Yes ].

 Auto memory starts.

Ñ Manual memory

You can store the currently being received station in the memory.

Select the station you wish to store in the

memory.

Touch [FM#] (#:1-15) or [AM#] (#:1-5) in

which you want to store the station for 2 seconds until a beep sounds.

Radio

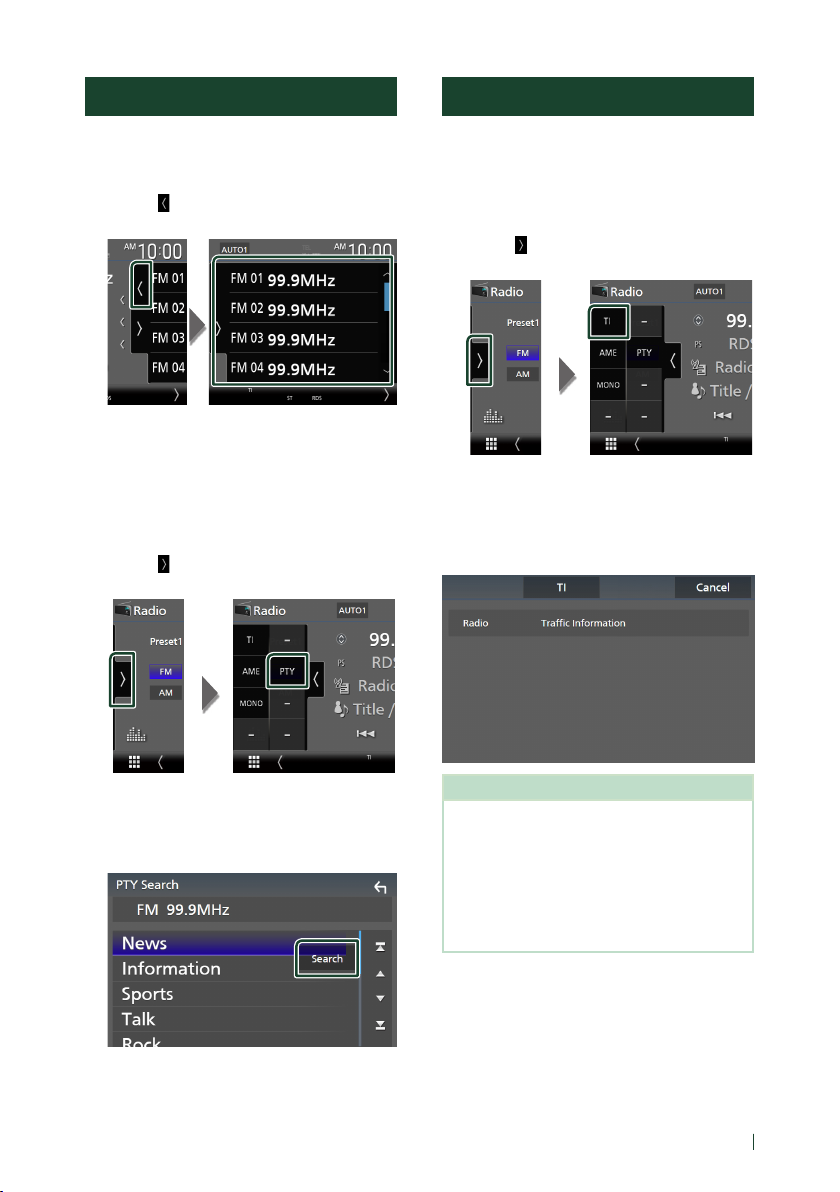

Selecting Operation

Ñ Preset select

You can list and select memorized stations.

Touch [ ] on the right side of the screen.

Select a station from the list.

Ñ Search by program type

(FM only)

You can tune in the station broadcasting the specified type of program when listening to FM.

Touch [ ] on the left side of the screen.

Touch [PTY].

Traffic Information (FM only)

You can listen to and watch traffic information automatically when a traffic bulletin starts. However, this feature requires a Radio Broadcast Data System that includes TI information.

Touch [ ] on the left side of the screen.

Touch [TI].

 Traffic information mode is set.

Ñ When the traffic bulletin starts

The Traffic Information screen appears automatically.

 TUNER PTY Mode screen appears.

Select a program type from the list.

Touch [Search].

You can search for the station broadcasting the selected type of program.

NOTE

• It is necessary to turn on the Traffic Information function in order to allow the Traffic Information screen to appear automatically.

• The volume setting made during reception of traffic information is automatically memorized. When the traffic information is received next time, this unit recalls the volume setting automatically.

• To cancel Traffic Information: Touch [Cancel].

45English

HD Radio™ Tuner

HD Radio™ Tuner (DDX9907XR / DMX957XR / DMX907S)

HD Radio Tuner Basic Operation

Most functions can be controlled from the source control screen.

To listen to the HD Radio source, touch [HD Radio] icon on the source selection screen.

(P. 15)

NOTE

• Set the remote control mode switch to AUD mode before starting operation, see Switch the operation mode (P.96).

• HD Radio broadcasting is for North American sales area only.

• The screen shot below is for tuner. It may be different from the one for HD Radio broadcasting.

Control screen

1 2

Open the drawer

Close the drawer

Information display

• Displays the information on the current station: Frequency and Channel Touching [ Content A, Content B and Content C. Content A: Station name, Song Title, Artist Name Content B: Station Message, Radio Text Content C: PTY Genre, Album Name

• Change the text size of the information smaller when the "Small Audio Text" is set to "ON" in the User Interface screen ( P.82).

Seek mode

Touch to switch seek mode in the following sequence: [AUTO1], [AUTO2], [MANUAL].

• [AUTO1]: Tunes in a station with good reception automatically.

• [AUTO2]: Tunes in the memorized stations one after another.

• [MANUAL]: Switches to the next frequency manually.


• Displays/hides picture area.

• The picture data or station Logo data is displayed if available from current content.

Function panel

Touch the left side of the screen to display the function panel. Touch again to close the panel.

• [10key Direct]: Display the direct station/ channel search screen. For details, see Direct search (P.49).

• [AME]: Presets stations automatically. For details, see Auto memory (P.48).

• [RCV]: Change the HD Radio reception mode. For details, see Receive Mode (P.48).

• [PTY] (FM only): Searches for a program by program type. For details, see Search by program type (P.49).

• [

] : Stores the information about the song

being received. See Bookmark (P.50).

• [Emergency Alerts] : Turn on or off the alert message. See Alert Message (P.51).

• [Alert Message Log] : Displays the alert message received. See Alert Message (P. 51).

] allows you to switch between

Operation keys

• [E] [F] : Tunes in a station. The method of

switching frequencies can be changed (see Seek mode).

• [CHS] [CHR] : Selects a channel.

• [1] : Display the Channel List screen. See

Channel search (P.49).

• [ ] : Display a list of registered bookmarks. See Bookmark list (P.50).

• [

] : Displays the Graphic Equalizer screen.

(P. 90)

Preset list

• Touching [

]/[ ] allows you to change the

display size.

• Recalls the memorized station or channel.

• When touched for 2 seconds, stores the currently being received station or channel in the memory.

Indicator display

While receiving an HD Radio station, it lights with orange when the audio is digital and lights with gray when it is analog. While receiving an analog station, it is off.

Band keys

Switches bands (between FM and AM).

Indicator Items

• [MC]: A multicast digital broadcast is being received.

• [ANALOG]: An analog broadcast is being received.

• [DIGITAL]: A digital broadcast is being received.

• [ST]: A stereo broadcast is being received.

• [EA]:

White: Emergency Alert is on. No light: Emergency Alert is off. Orange: Interrupting or in snooze/ignore

state.

HD Radio™ Tuner

• Adjacent to traditional main stations are HD2/HD3 Channels, providing new original programming on the FM dial

• A music & product discovery feature that enables users to store information about content on the radio, and can deliver interactive information via QR codes

• Crystal clear, CD-like digital audio quality to consumers; eliminates background noise

• Provides song name, artist, station ID, and other relevant data to enrich the listening experience

• Visual images, such as album art of over-the-air broadcasts from HD Radio stations

• Delivers critical and life-saving messages to the public during emergency situations

47English

HD Radio™ Tuner

Receive Mode

You can set the radio broadcasts receive mode.

Touch [ ] on the left side of the screen.

Touch [RCV].

Select a receive mode.

■ [Auto]

Switch between digital and analog audio automatically.

■ [Digital]

Select this to tune to digital audio only.

■ [Analog]

Select this to tune to analog audio only.

Memory Operation

Ñ Auto memory

You can store stations with good reception in the memory automatically.

Touch desired band key.

Touch [ ] on the left side of the screen.

Touch [AME].

Touch [Yes ].

 Auto memory starts.

Ñ Manual memory

You can store the currently being received station or channel in the memory.

Select the station or channel you wish to

store in the memory.

Touch [FM#] (#:1-15) or [AM#] (#:1-5)

in which you want to store the station or channel for 2 seconds until a beep sounds.

Selecting Operation

Ñ Preset select

You can list and select memorized stations or channels.

Touch [ ] on the right side of the screen.

Select a station or channel from the list.

Ñ Direct search

You can tune in by entering the desired frequency or channel number.

Touch [ ] on the left side of the screen.

Touch [10key Direct].

Select the search method.

HD Radio™ Tuner

Select the desired content from the list.

NOTE

• Touch [Info Change] in the channel list. Select

the sequence of the list (Song title, artist name, album name).

Ñ Search by program type

(FM only)

You can tune in the station broadcasting the specified type of program when listening to FM.

Touch [ ] on the left side of the screen.

Touch [PTY].

Enter the frequency or channel number.

Touch [Enter].

NOTE

• To clear the number you entered, touch [BS].

Ñ Channel search

You can specify the desired channel.

Touch [1].

 TUNER PTY Mode screen appears.

Select a program type from the list.

Touch [Search].

You can search for the station broadcasting the selected type of program.

49English

HD Radio™ Tuner

Bookmark

Stores tag information (title, artist, album, URL, and description) about the song you are listening to now.

Detailed information and QR codes can be displayed according to the stored tag information.

Ñ Bookmark registration

Touch [ ] on the left side of the screen.

Touch [

NOTE

• Up to 100 bookmarks can be registered to this unit.

 Registers a bookmark.

Ñ Bookmark list

Displaying a list of registered bookmarks and detailed information and QR code of the song.

Touch [ ].

Select the desired bookmark from the list.

■ [ Delete]

Deletes the bookmarks being displayed.

Bookmark delete

Deleting a bookmark.

Touch [Delete].

Select the bookmark to delete from the

list.

■ [þ All]

Select all bookmarks.

■ [¨ All]

Erases all check marks.

Touch [Delete].

 Confirmation message appears.

Touch [Yes ].

 All the selected bookmark(s) is deleted.

 The bookmark information appears.

HD Radio™ Tuner

Alert Message

This function is to receive alert messages. First, you need to turn on the “Emergency Alerts”.

(P. 46)

Ñ When an Alert Message comes

[Snooze]

The alert message is erased. Same alert message cannot be displayed for next 10 minutes.

[Ignore]

The alert message is erased. Same alert message cannot be displayed for next 12 hours.

[Allow Alert]

Touch to tune to that channel of HD Radio source.

Ñ Display of the received Alert

Message

You can read the received alert message afterward.

Touch [ ] on the left side of the screen.

Touch [Alert Message Log].

Select the desired Alert Message from

the list.

 The Alert Message appears.

Touch [Close].

51English

SiriusXM®

SiriusXM® Basic Operation

Only SiriusXM® brings you more of what you love to listen to, all in one place. Get over 140 channels, including commercial-free music plus the best sports, news, talk, comedy and entertainment. Welcome to the world of satellite radio. A SiriusXM Vehicle Tuner and Subscription are required. For more information, visit www.siriusxm.com.

To listen to the SiriusXM source, touch the [SiriusXM] icon on the source selection screen.

(P. 15)

Activating subscription

• Check your Radio ID. The SiriusXM Satellite Radio ID is required for activation and can be found by tuning in Channel 0 as well as on the label found on the SiriusXM Connect tuner and its package. The Radio ID does not include the letters I, O, S or F.

• Activate the SiriusXM Connect Vehicle Tuner using either one of the two methods below:

– For users in U.S.A.

Online: Visit www.siriusxm.com/activatenow Phone: Call SiriusXM Listener Care at 1-866635-2349

– For users in Canada:

Online: Visit https://www.siriusxm.ca/help/ activation-help/ Phone: Call XM customer Care at 1-877-4389677

NOTE

• Set the remote control mode switch to AUD mode before starting operation, see Switch the operation mode (P.96).

• To use SiriusXM® Satellite Radio, the optional accessory is necessary.

Control screen

1 2

Open the drawer

Close the drawer

Information display

• Displays the information on the current channel: Channel Name

P#: Preset number #CH: Channel number Logo: Channel logo

Touching [ Content A, Content B and Content C. Content A: Artist Name, Song Title Content B: Content Info, Category Name Content C: Channel Description, Similar Channels [ ] : Touch for 2 seconds to register the artist of the current song as a Content Alert. [ ] : Touch for 2 seconds to register the current song as a Content Alert. For details, see Content Alerts (P.57).

] allows you to switch between

SiriusXM®

• Change the text size of the information smaller when the "Small Audio Text" is set to "ON" in the User Interface screen ( P.82).

NOTE

• While getting contents, "Waiting" is showing on the display.

Band key

Switches among bands. (SXM1/SXM2/SXM3/ SXM4)

Artwork

• Displays/hides artwork area.

• Displays the album artwork for most SiriusXM music channels

Operation keys

• [1] : Display the Category search screen. For details on search operation, see Category/ Channel search (P.55).

• DH] : Plays or pauses. See Replay (P.55).

• [CHS] [CHR] : Selects a channel.

• [

] : Displays the Graphic Equalizer screen.

(P. 90)

Preset list

• Touching [

]/[ ] allows you to change the

display size.

• Recalls the memorized channel.

• When touched for 2 seconds, stores the currently being received channel in the memory.

Indicator display

Displays the “M ix” (TuneMix™), “Scan” (TuneScan™),

(Traffic&Weather), or

(SportsFlash™) indicator and the received

signal strength of the SiriusXM tuner.

Function panel

Touch the left side of the screen to display the function panel. Touch again to close the panel.

• [Direct Channel]: Touch and enter the desired number. For details, see Direct search (P. 54).

• [SETUP]: Touch to display the SiriusXM SETUP screen. For details, see SiriusXM SETUP (P. 58).

• [Replay/Live]: Touch to turn on or off the replay mode. See Replay (P.55).

• [Traffic & Weather]

For SXV300 *

Traffic & Weather Now™ allows you to access the latest report whenever you want to hear it. Select your city from the set up menu (see Select a City for Traffic & Weather (P. 63)) and touch [Traffic & Weather] to check the latest report. It will start from the beginning.

•

(White) : Played already.

•

(Green) : New information arrived.

•

(Purple) : Playing.

•

(Gray) : No information.

For SXV200 or SXV100 *

Turns the Traffic & Weather Jump function on or off.

•

(White) : Function on.

•

(Purple) : Playing.

•

(Gray) : Function off.

• [TuneScan]*

: Allows you to hear a few seconds of songs from each of the SmartFavorite music channels on the current preset band. See TuneScan™ (P.56).

• [TuneMix]*

: When turned ON, shuffles the preset channels on P1-P6 to play a blend of songs from your favorite channels. See TuneMix™ (P.56).

• [SportsFlash]*

: Displays during SportsFlash™. Touch to cancel the SportsFlash™ function and return to the previous channel. See

SportsFlash™ (P.58) and SportsFlash™ setup (P.62).

Compatible with SXV300 or later tuner

models. It may take a few minutes after power on to get the first full report on your city. Traffic channels are not available in Canada.

When SXV200 or SXV100 is connected with

this unit.

Compatible with SXV200 or later tuner models.

Compatible with SXV300 or later tuner models.

53English

SiriusXM®

Storing Channels in Preset Memory

You can store the current channel in memory.

Tune in the channel you wish to store in

the memory.

Touch [ ] on the right side of the screen.

Touch [SXM(1-4) P(1-6)] in which you

want to store the channel for 2 seconds until a beep sounds.

Preset select

You can list and select memorized channels.

To select from the preset list

Touch [ ] on the right side of the screen.

Select a channel from the list.

Direct search

You can tune in a channel directly.

Touch [ ] on the left side of the screen.

Touch [Direct Channel].

Enter the channel number and touch

[Enter].

NOTE

• To clear the number you entered, touch [BS].

SiriusXM®

Category/Channel search

You can specify the desired category and select a channel.

Touch [1].

Select a category.

 Channel list appears.

Select the desired content from the list.

NOTE

• All channels in the selected category appear.

• Touching [All-Channels] displays all channels.

• Touch [Info Change] in the channel list. Select a desired item: content info, channel name, artist name, song title, category name.

• Categories which have the prefix “Featured - “ are Featured Favorites.

• Featured Favorites are groups of channels that are created by the SiriusXM Programming department allowing you to discover new channels. Featured Favorite channels are dynamic and can change often, allowing you to discover new channels.

– You can set whether to be notified when the

featured seasonal theme is updated. (P. 63)

Replay

You can replay the last 60 minutes of the program from the current channel.

Touch [L] or [Replay] on the function

panel.

■ [E] [F]

Press to skip to the previous/next track. Press and hold to rewind or fast forward. (It

will be cancelled automatically after about 50 seconds.)

■ [DH]

Plays or pauses.

■ Replay time bar/Play mode indicator

Displays the recorded data capacity and playback position.

D, B, etc.: Current play mode indicator

■ [1]

Displays a list of recorded data on a program basis.

Touch [1] to display an Instant Replay List

screen.

■ Instant Replay List

Touching this plays back the displayed program.

[Live]: Touch to return to the live music/ content.

■ [Info Change]

Touch [Info Change]. Select a desired item:

content info, channel name, artist name, song

title, category name.

55English

SiriusXM®

To return to live music/content

Touch the left side of the screen.

Touch [Live].

TuneMix™

TuneMix™ plays a unique blend of songs from your Preset music channels of the current SiriusXM Preset Band, allowing you to build a custom channel from as few as two to as many as 6 music channels. You can even skip songs you don’t want to hear.

Touch [ ] on the left side of the screen.

Touch [TuneMix] to set ON or OFF.

NOTE

• Compatible with SXV300 or later tuner models.

TuneScan™

TuneScan™ is a feature that plays samples from the starts of multiple buffered songs from each of the SmartFavorites channels that predominantly play music selections.

You have easy access to a large sampling of music content and can enjoy hearing a full song by stopping the scan on a song of interest.

Touch [ ] on the left side of the screen.

Touch [TuneScan] to begin scanning your

SmartFavorites channels.

You will hear a few seconds of the songs from each of the SmartFavorite channels.

While your favorite song is being played,

touch [TuneScan] again to start listening to that song.

SmartFavorites, TuneStart™

Preset channels 1 through 6 of the current band are SmartFavorites channels.

The SiriusXM Vehicle Tuner automatically buffers the broadcast audio content of the SmartFavorites channels in the background.

You can rewind and replay up to 30 minutes of any of the missed news, talk, sports or music content on SmartFavorites channels. (See Replay (P.55).)

When tuning in a SmartFavorites channel, songs will be played from the beginning of each track (TuneStart™). You can enable/ disable TuneStart. (See TuneStart™ (P.63).)

NOTE

• Compatible with SXV200 or later tuner models.

 Scan finishes and the song is played

continuously.

NOTE

• To cancel TuneScan™, touch the left side of the screen. Touch [TuneScan].

• Touch and hold [TuneScan] to cancel TuneScan, and the music/content which was present on the channel before starting TuneScan will be played.

• Compatible with SXV200 or later tuner models.

SiriusXM®

Traffic & Weather Now™

Traffic & Weather Now™ allows you to access the latest report whenever you want to hear it. First select your city in the set up menu. See Select a City for Traffic & Weather (P.63).

Touch [ ] on the left side of the screen.

Touch [Traffic & Weather].

The report starts from the beginning. To stop and return to the previous channel, touch it again.

Indicator display

•

(White) : Played already.

•

(Green) : New information arrived.

•

(Purple) : Playing.

•

(Gray) : No information.

NOTE

• Compatible with SXV300 or later tuner models.

Content Alerts

When a broadcast program related to the registered artist, song or team starts, an Alert Content List screen appears to allow you to switch the current channel to the relevant channel.

When the broadcast of the registered

content starts, an Alert Content List screen appears.

Select a content from the list.

NOTE

• Touch [Ty pe]. Select a desired item. Artist Alert, Song Alert, GameAlert™

• To learn how to register artists and songs for the Content Alert function, see in SiriusXM® Basic Operation (P.52).

• To learn how to set up the Content Alerts function and select Teams for alerts, see Content Alerts setup (P.60).

Information display

57English

SiriusXM®

SportsFlash™

SportsFlash™ will notify you when a big play happens during a game with one of your favorite sports teams. Choose to tune in and hear the play unfold like it was live. Continue listening to the game or return to your previous channel.

When a big play happens during one of

the games, an Alert screen appears.

■ [Listen]

Touch to tune in that channel and play back the big play.

■ [Ignore]

Touch to cancel this specific SportsFlash alert. Touching [Ignore] will ignore this specific alert but will allow future alerts for this game.

■ [Cancel]

Touch to cancel SportsFlash alert. No alerts for this game will be displayed afterward.

SiriusXM SETUP

Touch [ ] on the left side of the screen.

Touch [SETUP].

 SiriusXM SETUP screen appears.

See the following sections for each setting.

• Set up the parental code (P. 59)

• Set up the Parental Control (P. 59)

• Set up the skip channel select ( P.60)

• Set up the Content Alerts (P.60)

• Set up the teams for SportsFlash™

(P. 62)

• Select the city for Traffic & Weather Jump or Traffic & Weather Now™ (P.63)

• Select the Featured Bands Update Messages (P.63)

• Set up the TuneStart™ (P. 63)

• Reset to the default settings (P.63)

NOTE

• Compatible with SXV300 or later tuner models.

• To learn how to set up the SportsFlash alert function, see SportsFlash™ setup (P.62).

SiriusXM®

Ñ Parental code

You can set a SiriusXM parental code for Parental Control.

Touch [Parental Code] on the SiriusXM

SETUP screen.

 Parental Pass Check screen appears.

NOTE

• The code number is set to “0000” as default.

Enter the current code number and touch

[Enter].

 Parental Pass 1st screen appears.

Enter the new code number and touch

[Enter].

Ñ Parental Control

Parental Control is a feature that provides the user with the ability to prevent unauthorized access to mature content and user selected channels.

Touch [Parental Control] on the SiriusXM

SETUP screen.

Touch [User], [Mature] or [OFF].

■ [User]

Locks only the selected channels.

■ [Mature]

Locks channels classified as “mature” only.

■ [OFF]

Deactivates the parental mature and user locks.

Enter the parental code you originally

input in as stated in Parental code (P. 59) and touch [Enter].

When selecting [User]

This allows you to limit access to any SiriusXM channel (Parental Lock Channel).

Touch [Parental Lock Channel Selection]

on the SiriusXM SETUP screen.

 Parental Pass Check screen appears.

 Parental Pass 2nd screen appears.

Enter the same code number as that you

entered in step 3 and touch [Enter].

 The code number is confirmed and the

SiriusXM parental code is now set.

NOTE

• You need to set up a parental code beforehand as stated in Parental code (P. 59).

Enter the parental code you originally

input as stated in Parental code (P.59) and touch [Enter].

 Parental Lock Category Select screen

appears.

Touch the desired category in the list.

 Displays all channels in the selected

category.

59English

SiriusXM®

NOTE

• Touch [All-Channels] to display all channels.

• To delete the parental lock channel setting, touch [Disable All] and then touch [YES] on the confirmation screen.

Touch each channel on the list and set to

ON or OFF.

[ON]: Locks the channel. [OFF]: Unlocks the channel.

NOTE

• Touch [Info Change]. Select a desired item: content info, channel name, artist name, song title, category name.

Ñ Skip channel select

You can set the undesired channels to skip.

Touch [Skip Channel Select].

 Skip Category Select screen appears.

Touch the desired category from the list.

Touch each channel in the list and set to

ON or OFF.

NOTE

• To delete the skip channel setting, touch [Disable All] and then touch [YES] on the confirmation screen.

• Touch [Info Change]. Select a desired item: content info, channel name, artist name, song title, category name.

• Direct Channel and Preset Memory functions allow you to select channels.

Ñ Content Alerts setup

Activating content alert

Touch [Content Alerts] on the SiriusXM

SETUP screen.

 Content Alerts is turned on or off.

Default is “ON”.

Selecting the content for Content Alerts

Touch [Content Alerts Contents Set] on

the SiriusXM SETUP screen.

Select the content you want to set up.

 Displays all channels in the selected

category.

NOTE

• To cancel all alert contents, touch [Clear] and then touch [YES] on the confirmation screen.

• Select [OFF] for the content you want to deactivate the content alert for.

Touch each content list item you want to

check or uncheck.

SiriusXM®

To select a Team

Get alerted when your favorite sports team is playing on another SiriusXM channel with GameAlert™

Touch [My Games].

NOTE

• You can select (þ) up to 60 artists or songs.

● To delete the Artist and Song

Touch [Delete].

Touch the content(s) in the list you want

to select.

■ [þ All]

Selects all contents.

■ [¨ All]

Clears all check marks.

Touch [Delete] and then touch [YES] on the

confirmation screen.

Touch the desired league in the list.

Touch the team(s) in the list you want to

select.

NOTE

• You can select (þ) up to 30 teams.

61English

SiriusXM®

Ñ SportsFlash™ setup

Activating SportsFlash

Touch [SportsFlash] on the SiriusXM

SETUP screen.

 SportsFlash is turned on or off.

Default is “ON”.

Selecting SportsFlash Beep

Touch [SportsFlash Beep] on the SiriusXM

SETUP screen.

 SportsFlash Beep is turned on or off.

Default is “ON”.

Selecting the teams for SportsFlash

Touch [SportsFlash Team S et] on the

SiriusXM SETUP screen.

 Team Set screen appears.

Touch [Edit].

Touch the desired league in the list.

Touch [ ] twice.

■ [Edit]

Sets and removes teams.

■ [Priority]

Sets the priority of a team.

■ [Clear]

Removes all teams that have been set. Touch [Clear]. When the confirmation screen appears, touch [YES].

NOTE

• SportsFlash™ is available on SXV300 or later tuner models.

• Up to 50 teams can be added.

Set the SportsFlash™ Team Priority

Touch [Priority].

Touch each team(s) in the list you want

to select.

Set the priority of a team.

Each time you touch a Team, the priority is set of reset.

Touch [Done].

NOTE

• Priority can be set on up to 5 teams.

• When priority has already been set for 5 teams, it cannot be set for any other team. Delete an unnecessary team.

Ñ Select a City for Traffic &

Weather

You can select a city for which you wish to receive SiriusXM Traffic & Weather broadcasts and hear them from the beginning.

Touch [Traffic & Weather City Select] on

the SiriusXM SETUP screen.

Touch [T] and [U] to select a city.

SiriusXM®

Ñ TuneStart™

Touch [Tune Start] on the SiriusXM SETUP

screen.

The TuneStart is turned on or off. Default is “ON”.

Ñ Reset

Touch [SiriusXM Reset] on the SiriusXM

SETUP screen.

 Confirmation screen appears.

Touch [YES].

 All SiriusXM settings are reset to defaults.

Ñ Selecting Featured Bands

Update Messages

You can set whether to be notified when the featured seasonal theme is updated.

Touch [Featured Bands Update

Messages] on the SiriusXM SETUP screen.

Featured Bands Update Messages is turned on or off.

63English

Bluetooth Control

Using the Bluetooth function allows you to use various functions such as listening to the audio file and making/receiving a call.

Information for using Bluetooth® devices

Bluetooth is a short-range wireless radio communication technology for mobile devices such as cell-phones, portable PCs, and other devices.

Bluetooth devices can be connected without cables and communication with each other.

NOTE

• While driving, do not perform complicated operations such as dialing numbers, using the phonebook, etc. When you perform these operations, stop your car in a safe place.

• Some Bluetooth devices may not be connected to this unit depending on the Bluetooth version of the device.

• This unit may not work for some Bluetooth devices.

• Connecting conditions may vary depending on your environment.

• Some Bluetooth devices are disconnected when this unit is turned off.

• The Bluetooth devices cannot be used while using Apple CarPlay.

• The Bluetooth currently connected with other device is disconnected when an iPhone compatible with Apple CarPlay is connected.

Ñ About the cell-phone and

Bluetooth audio player

This unit conforms to the following Bluetooth specifications:

Version

Bluetooth Ver. 5.0

Profiles

Cell-phone:

HFP (V1.7) (Hands Free Profile) SPP (Serial Port Profile) PBAP (Phonebook Access Profile)

Audio player:

A2DP (Advanced Audio Distribution Profile) AVRCP (V1.6) (Audio/Video Remote Control Profile)

Sound codec

LDAC (DDX9907XR / DMX957XR), SBC, AAC

NOTE

• The units supporting the Bluetooth function have been certified for conformity with the Bluetooth Standard according to the procedure prescribed by Bluetooth SIG.

• However, it may be impossible for such units to communicate with your cell-phone depending on its type.

Register the Bluetooth device

It is necessary to register the Bluetooth audio player or cell-phone in this unit before using the Bluetooth function.

You can register up to 10 Bluetooth devices.

NOTE

• Up to 10 Bluetooth devices can be registered. If an attempt is made to register the 11th Bluetooth device, the Bluetooth device connected on the earliest date will be deleted to register the 11th one.

• This unit is compatible with the Apple Easy Pairing function. When an iPod touch or iPhone connected via USB terminal previously is connected again, an authentication dialog appears. Performing operation for authentication on this unit or iOS smartphone registers the smartphone as a Bluetooth device.

Press the [MENU] button.

 Popup menu appears.

Touch [SETUP].

 SETUP Menu screen appears.

Touch [Bluetooth].

Bluetooth Control

Touch [Select Device] on the Bluetooth

Setup screen.

Touch [ ] on the Select Device screen.

 Bluetooth pairing waiting dialog

appears.

NOTE

• You can also register an iPhone on the Apple CarPlay Device List screen. (P. 32)

• When neither Apple CarPlay, Android Auto, nor a Bluetooth Hands-Free phone is connected, pressing and holding the [ Bluetooth pairing waiting dialog.

] button displays

 Bluetooth Setup screen appears.

Search for the unit

(”DDX****”/”DMX****”) from your smartphone/cell-phone.

Complete steps 6 to 9 within 30 seconds.

Operate your smartphone/cell-phone

according to the displayed messages.

● Confirm the request both on the smartphone/cell-phone.

65English

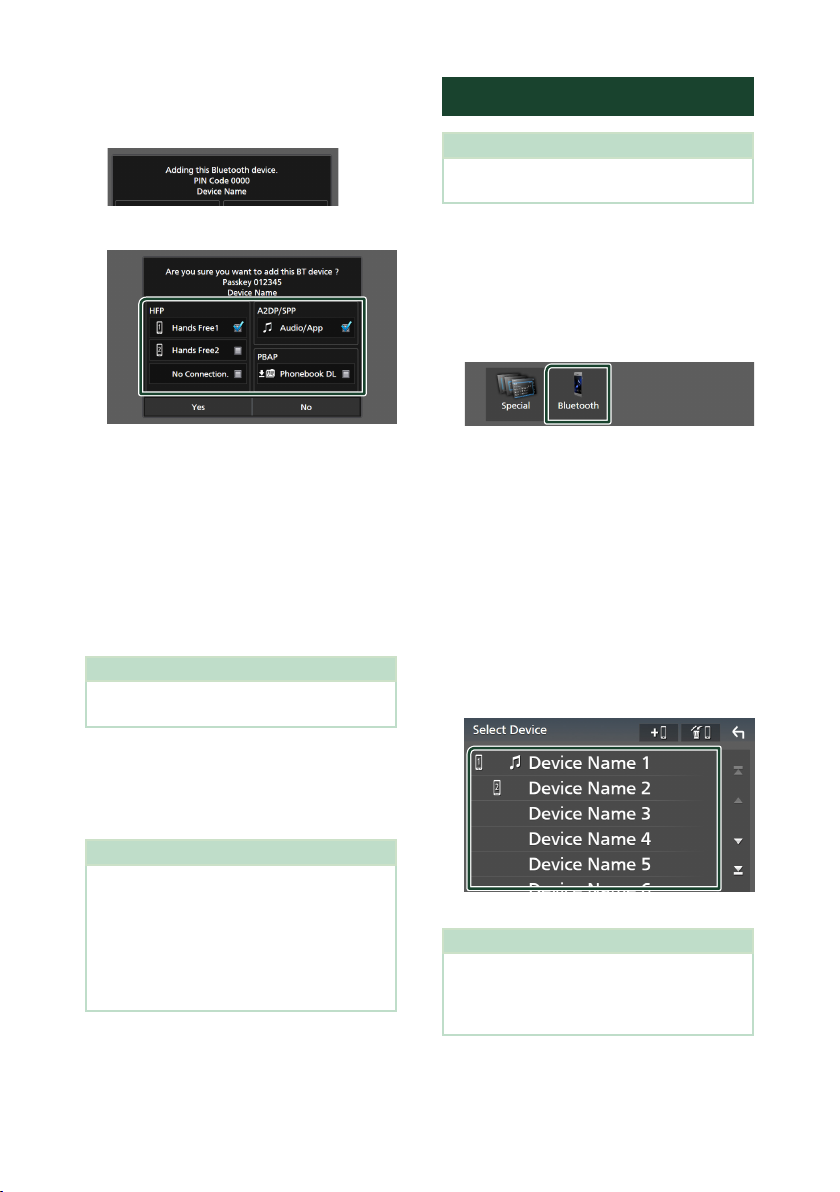

Bluetooth Control

● Input the PIN Code in your smartphone/cell-phone.

PIN Code is set to “0000” as the default.

Select the function you want to use.

■ HFP [Hands Free1/Hands Free2/No

Connection.]

Select the hands-free number to connect.

■ A2DP/SPP [Audio/App]

Select if you want to use the audio player app in your smartphone over A2DP, and the other apps in your smartphone over SPP.

■ PBAP [Phonebook DL]

Select if you want to transfer your phonebook data.

NOTE

• To select [Phonebook DL], first select [Hands Free1] or [Hands Free2] for HFP.

Bluetooth Setup

NOTE

• The Bluetooth Setup is disabled while using Apple CarPlay.

Press the [MENU] button.

 Popup menu appears.

Touch [SETUP].

 SETUP Menu screen appears.

Touch [Bluetooth].

 Bluetooth Setup screen appears.

See the following section for each setting.

• Connect the Bluetooth device (P. 66)

• Change the PIN Code (P. 68)

• Change the device name (P. 67)

Ñ Connect the Bluetooth device

Touch [Select Device] on the Bluetooth

Setup screen.

Touch the name of the device you want

to connect.

Touch [Yes ].

When data transmission and connection have completed, the Bluetooth connection icon appears on the screen.

NOTE

• When registering the iPhone that is available for Apple CarPlay wirelessly, a confirmation message appears.

– [Ye s ]: Displays the Apple CarPlay screen for

wireless connection.

– [No]: Apple CarPlay is not connected. When

using Apple CarPlay, see Select an Apple CarPlay device (P.32).

 Profile select screen appears.

NOTE

• If the icon is lighted, it means that the unit will use that device.

• You cannot select an Android smartphone connected as an Android Auto device.

Set each profile as follows.

Bluetooth Control

NOTE

• You cannot select an Android smartphone connected as an Android Auto device.

Touch [Delete].

 Confirmation message appears.

Touch [Yes ].

 All the selected device(s) is deleted.

■ [TEL (HFP) 1], [TEL (HFP) 2]

Select when the device is connected with the unit as hands-free phone 1 or 2.

■ [Audio (A2DP)/App (SPP)]

Select to interwork with an application installed in a smartphone or to use as an audio player.

Touch [Close].

To delete the registered Bluetooth device

Touch [ ] on the Select Device screen.

Touch the device name to check.

NOTE

• If the device compatible with wireless Apple CarPlay is deleted, the same device is deleted from the Apple CarPlay device list screen.

Ñ Change the device name

Touch [Device Name] on the Bluetooth

Setup screen.

 Change Device Name screen appears.

Touch and hold [ ].

Input the device name.

Touch [Enter].

■ [þ All]

Selects all Bluetooth devices.

■ [¨ All]

Clears all check marks.

67English

Bluetooth Control

Ñ Change the PIN Code

Touch [PIN Code] on the Bluetooth Setup

screen.

 Change PIN Code screen appears.

Touch and hold [ ].

Input the PIN Code.

Touch [SET].

Playing the Bluetooth Audio Device

Most function can be controlled from the source control screen.

To select Bluetooth source, touch [Bluetooth] icon on the source selection screen. (P. 15)

NOTE

• The Bluetooth audio source is disabled while using Apple CarPlay.

• The Bluetooth audio source is disabled when the device set as Audio(A2DP)/App(SPP) is using Android Auto.

Ñ Bluetooth basic operation

Control screen

2 3

Artwork/VU meter

• Displays/hides artwork area.

• Touch to switch between the artwork and VU meter.

Play mode indicator/Playing time

D, H: Current play mode indicator Meanings of individual icons are as follows:

D (play), B (fast forward), A (fast backward), H (pause), I (stop).

LDAC (DDX9907XR / DMX957XR): Indicates that an LDAC-compatible device is connected.

Operation keys *

• [1]: Searches for a file. See File search (P. 70).

• [E] [F]: Searches for the previous/next content. Touch and hold to fast forward or fast backward. (It will be cancelled automatically after about 50 seconds.)

• [D]: Plays.

• [H]: Pauses.

Bluetooth Control

• [ ]: Displays the Bluetooth Setup screen.

(P. 66)

] : Displays the Graphic Equalizer screen.

• [

(P. 90)

KENWOOD Music Mix

Bluetooth audio devices can be switched easily to play music. See KENWOOD Music Mix (P. 69).

[ ]/[ ] *

• [

] : Repeats the current track/folder. Each

time you touch the key, repeat modes are switched in the following sequence: File repeat ( ), Folder repeat ( ), All songs repeat ( ), Repeat off ( )

• [

] : Randomly plays all tracks in the current folder. Each time you touch the key, random modes are switched in the following sequence: Folder random ( Random off ( )

Information display *

• Displays the name of track information.

• Connected device name.

• Change the text size of the information smaller when the "Small Audio Text" is set to "ON" in the User Interface screen ( P.82).

* These items appear only when the audio player

which supports AVRCP profile is connected.

NOTE

• The operation keys, indications and information displayed on the screen differ depending on the connected device.

• If the operation keys do not appear, operate from the player.

• Depending on your cell-phone or audio player, sound may be heard and controlled but text information may not appear.

• If the volume is too low, raise it on your cellphone or audio player.

• It is recommended that you change the playback quality from "priority on sound quality" to "priority on stable connection" in the settings of your LDAC-compatible device so that the intermittent sound problem is less likely to occur. (DDX9907XR / DMX957XR)

), All random ( ),

Ñ KENWOOD Music Mix

Up to 5 Bluetooth audio device can be connected and switched easily to play music.

Touch [ ].

 A list of registered devices is displayed.

Touch [ ] of device name you want to

connect.

• Touching [ device connection setup screen. (P. 66)

• Touching [ connected device ([ ]) disconnects this device.

• : Device used normally.

•

: Device used for KENWOOD MusicMix

Touch [ ] (white) on the left of the name

of the device to be played.

[

] (white) changes to [ ] (purple) and

starts playback.

• (Gray) : Not connected.

•

(White) : Connected.

•

(Purple) : During playback.

Touch [ ].

] displays the Bluetooth

] on the left of the

69English

Bluetooth Control

NOTE

• If a connected Bluetooth audio device is operated to play music, connections are switched.

• When a Bluetooth source is switched to another one, its settings are deleted and the connection is restored to the connection before source switching.

• You cannot select an Android smartphone connected as an Android Auto device.

Ñ File search

Touch [1].

Touch the desired file or folder.

When you touch a folder its contents are displayed.

Touch the desired item in the content list.

 Playback starts.

Using the Hands-Free Unit

You can use the telephone function by connecting the Bluetooth telephone to this unit.

NOTE

• If you use the hands-free function frequently, move the TEL short-cut key (icon) to the Home screen. (P. 16)

• While Apple CarPlay or Android Auto is connected, the Bluetooth Hands-Free function and two Bluetooth devices connections cannot be used. Only the Apple CarPlay or Android Auto Hands-Free function can be used.

Ñ Make a call

Press the [HOME] button.

Touch [ ].

Touch [TEL].

NOTE

• For operations in the list screen, see List screen (P. 18).

 Hands Free screen appears.

NOTE

• If your cell-phone supports PBAP, you can display the phonebook and call lists onto the touch panel screen when the cell-phone is connected.

– Phonebook: up to 1000 entries – Up to 50 entries including dialed calls, received

calls, and missed calls

Select a dialing method.

• [ ]: Call using call records

• [

]: Call using the phonebook

• [

]: Call using the preset number

• [

]: Call by entering a phone number

● Select the cell-phone to use

When you connect two cell-phones

1) Touch [ you want to use.

● Bluetooth Setup

1) Touch [ Bluetooth Setup screen appears.

● Voice Recognition

1) Touch [

NOTE

• Status icons such as battery and antenna icons

• Setting the cell-phone in the private mode can

]. (P. 72)

may differ from those displayed on the cellphone.

disable the hands-free function.

] to select the phone

Bluetooth Control

Call using call records

Touch [ ].

Select the phone number from the list.

Call using the phonebook

Touch [ ].

Select the initial.

• Characters with no corresponding name will not appear.

• A first character with an accent character such as “ü” can be searched for with a non-accent character “u” . A character with an accent character in a sentence cannot be searched for.

Select the person you want to call from

the list.

71English

Bluetooth Control

Select the phone number from the list.

NOTE

• You can sort the phone numbers in the list by last name or first name. For details, see Hands-Free

Setup (P.75).

Call using the preset number

Touch [ ].

Touch the name or phone number.

Ñ Voice Recognition

You can access the voice recognition function of the cell-phone connected to this unit. You can search the cell-phone phonebook by voice. (The functionality depends on the cell-phone.)

Press the [ ] button for 1 second.

DDX9907XR / DDX9707S

Press for 1 second

DMX957XR / DMX907S / DMX9707S

Press for 1 second

 Voice Recognition screen appears.

Start speaking.

NOTE

• You can use the voice recognition function by touching [

• You can use the voice recognition function for the connected cell-phone if you selected [Hands

Free1] or [Hands Free2] for HFP when registered.

] on the Hands Free screen.

Call by entering a phone number

Touch [ ].

Enter a phone number with number keys.

Touch [ ].

Bluetooth Control

Ñ Receive a call

Touch [ ] to answer a phone call or

[

] to reject an incoming call.

NOTE

• When shifting the gear to the reverse (R) position and monitoring the picture from the rear view camera, this screen does not appear even if a call comes in.

To end call

While talking, touch [ ].

Ñ Operations during a call

● Adjust the volume of your voice

1) Touch [Speech Quality].

2) Touch [T] or [U] for [Microphone Level].

DDX9907XR / DDX9707S

DMX957XR / DMX907S / DMX9707S

● Mute your voice

Touch [

Touch [DTMF] to display the tone input screen. You can send tones by touching desired keys

on the screen.

Touching [ speaking voice output destinations between the cell-phone and the speaker.

When you receive a new call while talking on the phone, you can answer the newly received call by touching [ hold.

Each time you touch [ to the other one.

When you touch [ to be switched to the call waiting on hold.

Touch [×] to close the Hands-Free popup screen.

] to mute or not to mute your voice.

● Output the dial tone

● Switching between speaking voice output destinations

]/[ ] each time switches

● Call-waiting

]. The current call is put on

], the caller will change

], the current call will end

● To close the Hands-Free popup screen

To display it again

1 Press the [HOME] button.

2 Touch [ 3 Touch [TEL].

● Adjust the receiver volume

Press the [S] or [R] button.

73English

Bluetooth Control

Ñ Phone number preset

You can register frequently used phone numbers in this unit.

Touch [ ].

Touch [Edit].

Select where to preset.

■ [Delete all]

To delete all preset numbers, touch [Delete all] and then touch [Ye s] on the confirmation

screen.

Select how to preset.

■ [Delete]

To delete a preset number, touch [Delete] and then touch [OK] on the confirmation screen.

Ñ Phonebook transfer

You can transfer phonebook data from your Bluetooth smartphone using PBAP.

Touch [ ].

 Phonebook data transfer starts.

NOTE

• If the Phonebook contains more than 1000

entries, Phonebook data cannot be transferred.

• If no Phonebook has been downloaded, touching

[Download Phonebook Now] will start downloading the Phonebook.

Phonebook deletion

Touch [ ].

Touch the name to check.

■ [Add number from phonebook]

Select the number to preset from the phonebook. See Call using the phonebook (P. 71).

■ [Add number direct]

Enter the telephone number directly and touch [SET]. See Call by entering a phone number (P.72).

■ [þ All]

Checks all boxes.

■ [¨ All]

Clears all check marks.

Touch [Delete].

 Confirmation message appears.

Touch [Yes ].

Bluetooth Control

Hands-Free Setup

You can make various settings for the HandsFree function.

Press the [MENU] button.

 Popup menu appears.

Touch [SETUP].

 SETUP Menu screen appears.

Touch [Bluetooth].

 Bluetooth Setup screen appears.

Touch [TEL SETUP].

 TEL SETUP screen appears.

Set each function as follows.

■ [Auto Response]*

Set the automatic response time to pick-up an incoming call.

[OFF ](Default): Turns off the Automatic

response function.

[1/5/10/15/20/25/30]: Sets the ringing time

(second).

■ [Auto Pairing]

When set to “ON”, the Apple Auto Pairing function is turned on to automatically register the iPod touch or iPhone connected to this unit.

[ON ](Default): Turns on the Apple Auto

Pairing function.

[OFF]: Turns off the Apple Auto Pairing

function.

■ [Sort Order]

Set how to sort the data in the cell-phone phonebook.

[First]: Sorts data by the first name. [Last ](Default): Sorts data by the last name.

* Either the auto response time set on this

unit or the time set on the cell-phone, whichever is shorter takes effect.

Touch [OK].

■ [Bluetooth HF/Audio]

Select the speakers to output the sound from the cell-phone (such as phone call voice and ringing tone) and Bluetooth audio player.

[Front]: Outputs sound from the front

speakers.

[All ](Default): Outputs sound from all

speakers.



75English

Other External Components

View Camera

NOTE

• To connect a camera, see Connec ting the camera (P.108).

• To use a rear view camera, a REVERSE lead connection is required. (P. 104)

• If [Rear Camera Interruption] is active the camera screen is displayed when you shift the gear to the reverse (R) position.

• The camera whose view was displayed last is kept and the same camera view will be displayed the next time. If its assignment setting is changed, the rear camera view is displayed.

• Rear/front camera interruption screen is not kept as the camera screen which will be displayed the next time.

Ñ Display the camera screen

Press the [MENU] button.

 Popup menu appears.

Touch [Camera].

*1 When two or more cameras of rear, front,

*2 Only when the rear camera screen is

Camera off

Touch to exit the camera screen.

Switching the Guideline *

Touching each time turns on or off the guideline.

Switching the Angle *

Touching each time changes camera angles.

dashboard, left, right, and 3rd are connected with this unit.

displayed and CMOS-3xx series is connected with this unit as the rear camera.

Ñ Camera Setup

Press the [MENU] button.

 Popup menu appears.

Touch [SETUP].

 SETUP Menu screen appears.

Touch [Camera].

 View camera screen appears.

Adjust each item as follows.

3 4

Camera Switching Keys *

Touch to switch the view camera. It is necessary to set “Camera Assignment

Settings” beforehand except “Rear”. See To

set up the camera assignment settings (P. 77).

 Camera screen appears.

Set each item as follows.

■ Camera Assignment Settings

Set up the camera assignment. See To set up the camera assignment settings (P.77).

■ [Rear Camera Interruption]

[ON]: Displays the picture from the rear view

camera when you shift the gear to the reverse (R) position.

[OFF ](Default): Select this when no camera is

connected.

■ [Rear Camera Message *]

[Always display] (Default): Always displays

the caution message on the rear camera interruption screen.

[Clear after 5 seconds]: Displays the

caution message for about 5 seconds on the rear camera interruption screen.

Other External Components

■ [Rear Camera Settings *]

Adjusts the CMOS-3xx series with ID 1 ("Rear Camera") set. For details, see the instruction manual of your camera.

■ [Parking Guidelines]

You can display parking guidelines to enable easier parking when you shift the gear to the reverse (R) position.

Default is “ON”.

■ [Guidelines SETUP]

If you select [ON] for [Parking Guidelines], you can adjust the parking guidelines. See To adjust the parking guidelines (P.78).

■ [Front Camera Settings *]

Adjusts the CMOS-3xx series with ID 2 ("Front Camera") set. For details, see the instruction manual of your camera.

■ [Front Camera Interruption *]

[10 sec]/[15 sec] (Default)/[20 sec]: The front camera screen is displayed when return the gear from the reverse (R) position.

[OFF]: Cancel.

*1 To use the function, it is necessary to set [Rear

Camera Interruption] to [ON].

*2 When CMOS-3xx series is connected with

this unit.

*3 To use the function, it is necessary to connect

CMOS-3xx series and to set [Camera Assignment Settings] to [Front]. ( P.77)

*4 To use the function, it is necessary to set [Rear

Camera Interruption] to [ON] and to set [Camera Assignment Settings] to [Front].

(P. 77)

Ñ To set up the camera

assignment settings

Touch [Camera Assignment Settings] on

the Camera screen. (P. 76)

Select the item to set up.

■ [REAR VIEW CAMERA] (DDX9907XR /

DMX957XR)

Change the HD camera picture quality setting when an HD camera is connected.

■ [FRONT VIEW CAMERA / DASH CAM]

Set the camera assignment from view camera connected to Front view camera/ Dashboard camera input terminal.

Change the HD camera picture quality setting when an HD camera is connected. (DDX9907XR / DMX957XR only)

■ [3rd VIEW CAMERA]

Set the camera assignment from view camera connected to 3rd view camera input terminal.

■ [AV-IN]

Set the camera assignment from view camera connected to AV-IN input terminal.

Select the view camera to set up.

2 5

63 41 7

Picture quality settings

(DDX9907XR / DMX957XR) *

Switch the picture quality setting when an HD camera for the rear/front view camera.

"ON"/"OFF" (Default)

[Picture from view camera]

Displays the picture from the view camera connected to the input terminal to be set.

(P. 108)

[Front] *

Assign front position to the view camera connected to the selected input terminal.

[Dashboard Camera] *

Assign dashboard camera position to the view camera connected to the selected input terminal.

[Right] *

Assign right position to the view camera connected to the selected input terminal.

[Left] *

Assign left position to the view camera connected to the selected input terminal.

77English

Other External Components

Assign no position to the view camera connected to the selected input terminal.

*1 The [REAR VIEW CAMER A] and [FRONT

*2 Except the [REAR VIEW CAMERA] setting

Touch [Enter].

NOTE

• The screen shot above is for the [FRONT VIEW CAMERA / DASH CAM] setting screen. It may be different from the ones for [REAR VIEW CAMERA], [3rd VIEW CAMERA] and [AV-IN].

• The Dashboard Camera can be selected when it is connected. (P. 108)

[None] *

VIEW CAMERA / DASH CAM] setting screens only.

screen.

Ñ To adjust the parking

guidelines

Adjusting the position of the selected

mark.

Make sure that lines A and B are horizontally parallel, and that lines C and D are of the same length.

NOTE

• Touch [Initialize] and then touch [Ye s ] to set all

marks to their initial default position.

the

Use Dashboard Camera

NOTE

• Install the rear view camera in the appropriate position according to the instruction manual supplied with the rear view camera.

• When adjusting the parking guidelines, make sure to apply the parking brake to prevent the car from moving.

Touch [Parking Guidelines] in the Camera

screen and set to [ON]. (P. 76)

Touch [Guidelines SETUP] on the Camera

screen.

Adjust the parking guidelines by

selecting the

mark.

A Dashboard Camera, DRV-N520 (optional accessory), connected to this unit lets you play video-recorded data and so on.

For details, see the instruction manual of the Dashboard Camera DRV-N520 (optional accessory).

NOTE

• To connect a dashboard camera, see Connecting the camera (P.108).

• To use the dashboard camera function, it is necessary to set “Camera Assignment Settings” to “Dashboard Camera”. ( P.77)

Ñ Display the dashboard camera

screen

Press the [MENU] button.

 Popup menu appears.

Touch [Camera].

Other External Components

External audio/video players (AV-IN)

Connect an external component to the

AV-IN input terminal. (P.105)

Select [AV-IN] as the source. (P. 15)

Turn on the connected component and

start playing the source.

NOTE

• To select the AV-IN source, it is necessary to set "AV-IN" to "None" in [Camera Assignment Settings]. (P. 77)

Camera Switching Keys

Touch to switch the view camera. It is necessary to set “Camera Assignment Settings” beforehand except “Rear”. See To

set up the camera assignment settings (P. 77).

Camera off

Touch to exit the camera screen.

Key display

Touch to display the dashboard camera control keys.

OEM Features Operation

By connecting this unit to the bus system of the vehicle using an iDataLink (commercially available), this unit can access the satellite radio source provided for the vehicle and can display vehicle information on this unit.

Press the [HOME] button.

 HOME screen appears.

Touch [ ] on the HOME screen.

79English

Other External Components

Touch icon.

• Displays the control screen of the Bluetooth Hands Free function provided for the vehicle.

• Displays information about the tire pressures of the vehicle. *

• Displays the control screen of the satellite radio source provided for the vehicle.

• Displays the control screen of the media player source provided for the vehicle.

• Displays the control screen of the Bluetooth streaming source provided for the vehicle.

• Displays information about the Radar Detector. *

• Displays information about the instruments such as a speedometer.

• Displays information about the air conditioner of the vehicle. *

• Displays information about the Parking Distance Sensor of the vehicle.

* These ADS adapter features are displayed as the

widget on the Home screen. (P. 14) You can display the relevant screens by touching the widget.

NOTE

• Displayable screens, key names, and screen names vary depending on the type of the connected iDataLink and the model of the vehicle. For more details, access the following URL:

www.idatalink.com/

Setup

Monitor Screen Setup

You can adjust the image quality of video, menu screen, etc.

Press the [MENU] button.

 Popup menu appears.

Touch [Screen Adjustment].

 Screen Adjustment screen appears.

Adjust each setting as follows.

■ [Backlight/Contrast/Black/

Brightness/Color/Tint]

Adjust each setting.

■ [Aspect]

Select a screen mode. [Full]: Changes the aspect ratio of video and

displays video fully on the screen.

[Normal]: Displays video at the ratio of 4:3. [Auto]:

DVD, VCD and disc media: 16:9 video is displayed in the Full mode and 4:3 video is displayed in the Regular mode. USB device: Displays video fully (vertically or horizontally) with no ratio change.

System Setup

Press the [MENU] button.

 Popup menu appears.

Touch [SETUP].

See the following section for each setting.

• Set up AV (P. 86)

• Set up display (P.84)

• Set up the user interface ( P.82)

• Set up camera (P.76)

• Set up special (P.83)

• Set up Bluetooth (P.66)

NOTE

• Settings to adjust vary depending on the current source.

81English

Setup

User Interface Setup

You can setup user interface parameters.

Press the [MENU] button.

 Popup menu appears.

Touch [SETUP].

 SETUP screen appears.

Touch [User Interface].

 User Interface screen appears.

Set each parameter as follows.

■ [Small Audio Text]

Change the text size for the source control screen.

[ON] : Change the text size smaller. [OFF] (Default): Cancel.

■ [Beep]

Turn the key touch tone on or off. Default is “ON”.

■ [Widget SETUP]

Set up the widget displayed on the Home screen. (P. 21)

■ [Parking Assist Display]

When an ADS adapter is connected, you can display information about obstacles around the car.

[ON]: Always displays information. [Dyn.] (Default): Displays information when

the sensor detects obstacles.

[OFF]: Cancels this function.

This can be set when the iDataLink (commercially available) is connected.

■ [Parking Assist Position]

Select where to display information about obstacles on the screen (left or right).

“Left”/“Right” (Default) This can be set when the iDataLink

(commercially available) is connected.

■ [Language Select]

Select a language.

■ [Touch Panel Adjust]

(DDX9707S / DMX9707S)

Adjust the sensing position of the touch panel. (P. 82)

■ [Time Format]

Select the time display format. "12-Hour" (Default)/"24-Hour"

■ [Clock]

[GPS-SYNC ](Default): Synchronizes the clock

time with the GPS.

[Manual]: Set the clock manually.

■ [Time Zone]

Select the time zone.

■ [Clock Adjust]

If you select [Manual] for Clock, adjust the date and time manually. (P. 83)

Ñ Touch panel adjustment

Touch [Touch Panel Adjust] on the User

Interface screen.

 Touch Panel Adjust screen appears.

Follow the instruction on the screen and

long touch the center of each [ ].

NOTE

• To cancel the touch panel adjustment, touch [Cancel].

• To reset it to the default, touch [Reset].

Setup

Ñ Adjust the date and time

manually

Touch [Clock] on the User Interface screen.

Select [Manual].

Touch [Time Zone] on the User Interface

screen.

Select the time zone.

Touch [Clock Adjust] on the User Interface

screen.

Adjust the date, then adjust the time.

Touch [Set].

Special Setup

You can setup special parameters.

Press the [MENU] button.

 Popup menu appears.

Touch [SETUP].

 SETUP screen appears.

Touch [Special].

 Special screen appears.

Set each parameter as follows.

■ [DEMO]

Select the demonstration mode. Default is “ON”.

■ [Software Information]

Confirm the software version of this unit.

(P. 83)

■ [Open Source Licenses]

Display the open source licenses.

■ [Initialize]

Touch [Initialize] and then touch [Yes ] to set all the settings to the initial default settings.

• Audio SETUP Memory is not initialized.

Ñ Software Information

You can confirm the software version of this unit.

Touch [Software Information] in the

Special screen.

Confirm the software version.

83English

Setup

NOTE

• For how to update the software, see the relevant update procedure manual which comes with the software.

Display Setup

Press the [MENU] button.

 Popup menu appears.

Touch [SETUP].

 SETUP screen appears.

Touch [Display].

 Display screen appears.

Set each parameter as follows.

■ [Dimmer]

Select the dimmer mode.

[OFF]: Does not dim the display and keys. [ON]: Dims the display and keys. [SYNC ](Default): Turns the dimmer function

on or off when the vehicle light control switch is turned on or off.

■ [OSD Clock]

Select if you want to display the clock while the screen is off, or while watching DVD video and video files (USB, Disc media), etc.

■ [Key Color]

You can set the key illumination color.

(P. 84)

■ [Wallpaper Customize]

You can change the wallpaper image or color. (P. 85)

■ [Viewing Angle]

(DMX907S / DMX9707S)

If it is hard to see the image on the screen evenly, adjust the viewing angle. The smaller the (negative) value, the more whitish the image on the screen looks.

"0" (Default)/"-1"/"-2"/"-3"

■ [Screen transition effect]

Select whether to use the screen transition effect when the source control screen is switched to the Home screen.

"ON" (Default)/"OFF"

Ñ Customizing the key color

You can set the key illumination color.

Touch [Key Color] on the Display screen.

Touch the desired color.

■ [User]

The color you have set in the process of [Adjust] is registered.

■ [Scan]

You can set the key color to continuously scan through the color spectrum.

■ [Car Color]

This can be selected when a compatible ADS adapter is connected.

Touch [ ].

To register an original color

You can register your original color.

Touch [User] on the Key Color screen.

Touch [Adjust].

Use [−] and [+] to adjust each color value.

Touch [ ].

Setup

Ñ Change the wallpaper image or

color

Touch [Wallpaper Customize] on the

Display screen.

Select an image.

The album art currently being displayed is used as a wallpaper.

Select a wallpaper color in advance.

Select an original image in advance.

To select wallpaper color

Touch [Wallpaper Color] on the

Background screen.

Select a wallpaper color.

To register an original image

You can load an image from the connected USB device and set it as the wallpaper image.

Before starting this procedure, it is necessary to connect the device which has the image to load.

Touch [User1 Select] or [User2 Select] on

the Wallpaper Customize screen.

Select the image to load.

Touch [Enter].

The color you have selected at [Key Color] is added on the image. If you select “Scan” at [Key Color], you cannot select this image.

Touch [ ].

 The selected image is loaded and

the display returns to the Wallpaper Customize screen.

NOTE

• Touching [ ] rotates the image counterclockwise.

• Touching [

• Picture files: JPEG (.jpg, .jpeg), PNG (.png), BMP (.bmp)

] rotates the image clockwise.

85English

Setup

AV Setup

You can set AV parameters.

Press the [MENU] button.

 Popup menu appears.

Touch [SETUP].

 SETUP screen appears.

Touch [AV].

 AV screen appears.

Set each parameter as follows.

■ [Android Auto Device Select]

Select the device to be used in the Android Auto mode. (P.35)

■ [Apple CarPlay Device List]

Select the device to be used in the Apple CarPlay mode. (P. 32)

■ [Speech Quality Adjust]

Adjust the speech quality. [Microphone Level] : Adjust the level of

microphone gain. Default is “0”. [Echo Cancel Level] : Adjust the level of

echo cancellation. Default is “0”. [Noise Reduction Level] : Reduce the noise

generated in the surrounding environment without changing the microphone volume. Use this function when the voice of caller is not clear. Default is “0”.

■ [AV-OUT]

You can select an AV source to be output from the AV OUTPUT port.

OFF, AV-IN, DISC (DDX9907XR / DDX9707S only), USB or iPod

• You cannot select AV-IN if the AV-IN input terminal is used for camera.

• You cannot select iPod if it is connected via Bluetooth.

• If you select USB, iPod, DISC (Music CD/Disc media), Bluetooth audio, Radio or HD Radio as the main source, you cannot select USB, iPod or DISC (Music CD/Disc media) as the AV output source.

• If you select Wireless Mirroring, Apple CarPlay or Android Auto as the main source, you cannot select DISC (Music CD/ Disc media), USB or iPod as the AV output source.

■ [Driving Position]

Select the driving position (left or right). “Left” (Default)/“Right”

■ [Wi-Fi SETUP]

You can change the device name and display the device address, password. See Change the device name (P.86).

■ [OEM SETUP]

Confirm the information about or change the settings for using the ADS adapter.

■ [Reset Android Auto Wireless

Connection]

You can change the password for wireless Android Auto.

The system of the unit is rebooted after selecting [YES].

Ñ Change the device name

Touch [Wi-Fi SETUP] on the AV screen.

Touch [Device Name].

 Change Device Name screen appears.

Touch and hold [ ].

Input the device name.

Touch [Enter].

Controlling Audio

You can adjust various settings such as audio balance or subwoofer level.

Press the [MENU] button.

 Popup menu appears.

Touch [Audio].

See the following section for each setting.

• Set up Speaker / X’over (P.88)

• Controlling EQ / SW Level (P. 90)

• Set Position / DTA ( P.94)

• Controlling Fader / Balance (P.90)

• Set Volume Offset ( P.91)

• Performing Zone Control (P. 92)

• Set Sound Effect (P.93)

• Use Audio Memory (P.95)

3-way speaker system setup (DDX9907XR / DMX957XR / DMX907S)

Select the appropriate crossover network mode for the speaker system used (2-way or 3-way speaker system).

Press the [HOME] button.

 HOME screen appears.

Touch [STANDBY].

Press the button 1 followed by the

button 2 for 1 second at the same time.

DDX9907XR

2 1

DMX957XR / DMX907S

1 2

 Speaker system select screen appears.

Select the crossover network mode.

 A confirmation screen appears.

Touch [Yes ].

NOTE

• When the 3-way speaker system is selected, the following functions are disabled.

– Front focus of Listening Position / DTA – Fader for Controlling General Audio – Zone Control – Selection of the speakers to output sound from

the cell-phone of Bluetooth HF/Audio

– Beep for User Interface Setup

• Connecting 3-way speakers with the 2-way mode selected can break the speakers.

• When the dual zone is selected and audio source other than "OFF" is selected as Rear Source, the speaker system cannot be switched.

Touch [ ].

 Source selection screen appears.

87English

Controlling Audio

Speaker / X’over setup

Press the [MENU] button.

 Popup menu appears.

Touch [Audio].

 Audio screen appears.

Touch [Speaker / Xʼover].

Select a car type.

You can select the car type and speaker network, etc.

When you select your car type, the Delay Time Alignment is activated automatically (for timing adjustment of sound output for each channel) to have the highest surround effects.

Touch the speaker (1) you wish to adjust

and set each parameter (2) as follows.

■ [Tweeter] (Only for Front)

You can set up the tweeter when you are selecting front speakers.

None, Small, Medium, Large

■ [Xʼover]

Display the speaker crossover setup screen. You can adjust the crossover frequency that

was set automatically when you selected the speaker type.

For details, see Crossover network setup

(P. 88)

When Speaker network is set to 3-way:

NOTE

• For how to switch to the 3-way speaker system, see 3-way speaker system setup (P.87). Connecting 3-way speakers with the 2-way mode selected can break the speakers.

• Select “None” if you have no speakers.

■ [Speaker]

You can select a speaker type and its size to get the best sound effects.

When the speaker type and size are selected, the speaker crossover network is set automatically.

■ [Location] (Only for Front, Rear)

Select the speaker position you have installed.

Ñ Crossover network setup

You can set the crossover frequency of speakers.

Touch [Xʼover].

Touch the speaker to set up.

Set each parameter as follows.

Controlling Audio

When Speaker network is set to 3-way:

■ [HPF FREQ]

High Pass Filter adjustment. (When Front or Rear is selected on the Speaker Select screen)

■ [LPF FREQ]

Low Pass Filter adjustment. (When Subwoofer is selected on the Speaker Select screen)

■ [Slope]*

Set a crossover slope.

■ [Gain]

Adjust the gain of the front speaker, rear speaker, or subwoofer.

■ [TW Gain] *

Adjust the tweeter level. (When Front is selected on the Speaker Select screen)

■ [Phase Inversion]*

Set the phase of subwoofer output. Check [Phase Inversion] to shift the phase

180 degrees. (When Subwoofer is selected on the Speaker Select screen)

Only when “LPF FREQ”/“HPF FREQ” is set to

a mode other than “Through” in [Xʼover].

Only when “ Tweeter” is set to “Small”,

“Medium”, “Large” in [Speaker Setup].

Only when “Subwoofer” is set to a mode

other than “None” in [Speaker Setup].

■ [FREQ] (High Pass)

High Pass Filter adjustment.

■ [HPF FREQ], [LPF FREQ] (Band Pass)

Band Pass Filter adjustment. (When Mid Range Speaker is selected on the Speaker Select screen)

■ [FREQ] (Low Pass)

Low Pass Filter adjustment. (When Woofer is selected on the Speaker Select screen)

1 *2

■ [Slope]*

Set a crossover slope.

■ [Gain]

Set the gain of each speaker.

■ [Phase Inversion]

Set the phase of tweeter, mid range, and woofer output.

Check [Phase Inversion] to shift the phase 180 degrees.

Only when “LPF FREQ”/“HPF FREQ” (Band

Pass) is set to a mode other than “ Through” in [Xʼover].

Only when “FREQ” (Low Pass) is set to a

mode other than “Through” in [Xʼover].

NOTE

• For how to switch to the 3-way speaker system, see 3-way speaker system setup (P.87). Connecting 3-way speakers with the 2-way mode selected can break the speakers.

89English

Controlling Audio

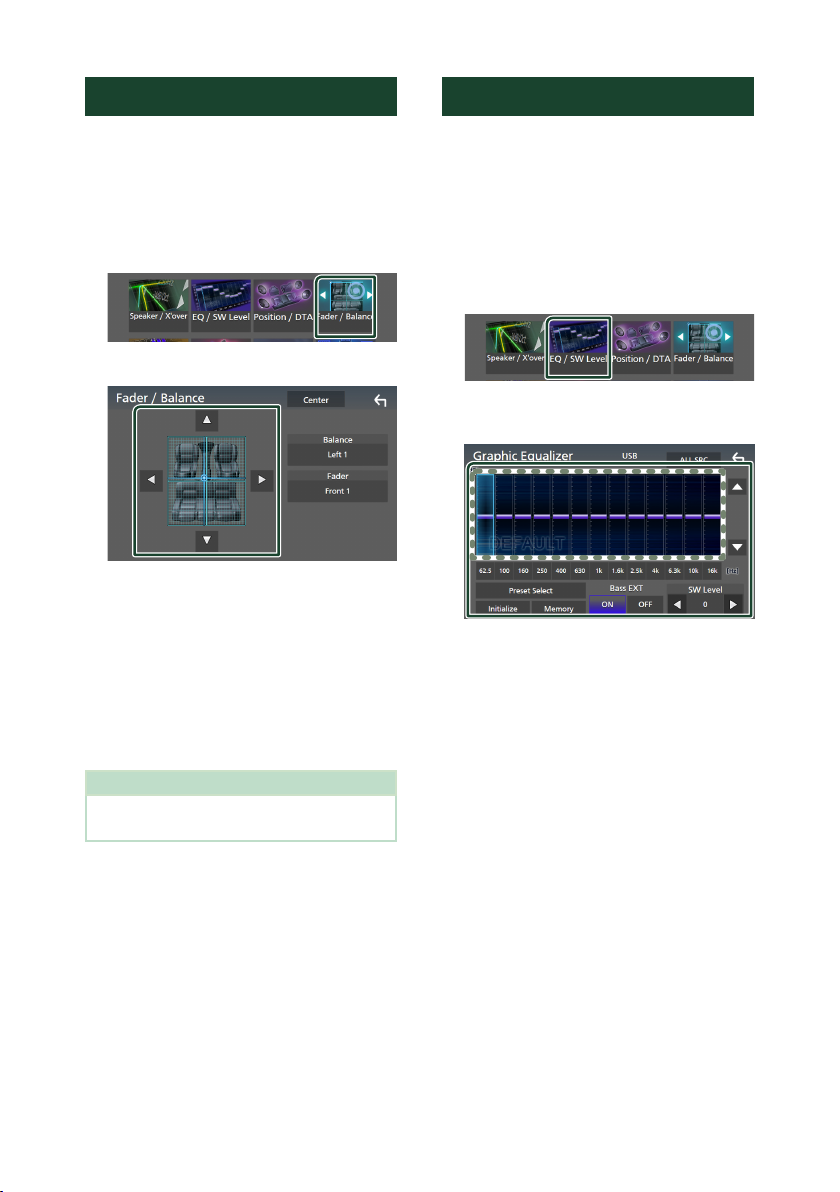

Controlling General Audio

Press the [MENU] button.

 Popup menu appears.

Touch [Audio].

 Audio screen appears.

Touch [Fader / Balance].

Set each parameter as follows.

■ [Fader / Balance]

Adjust the volume balance around the touched area.

[C] and [D] adjust the right and left volume balance.

[R] and [S] adjust the front and rear volume balance.

■ [Center]

Clear the adjustment.

NOTE

• When the 3-way speaker system is selected, "Fader" adjustment is disabled.

Equalizer Control

You can adjust equalizer by selecting the optimized setting for each category.

Press the [MENU] button.

 Popup menu appears.

Touch [Audio].

 Audio screen appears.

Touch [EQ / SW Level].

Touch the screen and set the Graphic

Equalizer as desired.

■ Gain level (area in dotted frame)

Adjust the gain level by touching each frequency bar.

You can select a frequency bar and adjust its level by [R], [S].

■ [Preset Select]

Display the screen for selecting the preset equalizer curve. (P.91)

■ [Memory]

Saves the adjusted equalizer curve as “User1” to “User4”. (P.91)

■ [Initialize]

Initialize (flatten) the current EQ curve.

■ [ALL SRC]

Apply the adjusted equalizer curve to all sources. Touch [ALL SRC] and then touch [OK] on the confirmation screen.

■ [Bass EXT] (Bass Extend Settings)

When turned on, the frequencies lower than

62.5 Hz is set to the same gain level (62.5 Hz).

Controlling Audio

■ [SW Level]

Adjust the subwoofer volume. This setting is not available when Subwoofer is set to “None”. See Speaker / X’over setup (P.88).

Ñ Recall the EQ curve

Touch [Preset Select].

Select an EQ curve.

NOTE

• [iPod] is available for the iPod and Apple CarPlay sources and it is connected via USB.

• [iPod] is also available for the Apple CarPlay source that is connected wirelessly.

Ñ Save the EQ curve

Adjust the EQ curve.

Touch [Memory].

Select where to save.

Volume Offset

Finely adjust the volume of the current source to minimize the difference in volume between different sources.

Press the [MENU] button.

 Popup menu appears.

Touch [Audio].

 Audio screen appears.

Touch [Volume Offset].

Touch [+] or [-] to adjust the level.

■ [Initialize]

Returns to the initial settings.

NOTE

• If you have increased the volume first, then reduce the volume using “Volume Offset”. Switching the current source to another source suddenly may output extremely loud sound.

91English

Controlling Audio

Zone Control

You can select different sources for front and rear positions in the vehicle.

Press the [MENU] button.

 Popup menu appears.

Touch [Audio].

 Audio screen appears.

Touch [Zone Control].

 Zone Control screen appears.

Touch [Zone Select].

Touch [Dual Zone].

■ [Zone Select]

Touch [Single Zone] to turn off the dual zone function.

■ [Front Source], [Rear Source]

Select an audio source for each. Rear Source;

“AV-IN”/“DISC”/“iPod”/“USB”/“OFF”

■ [Rear VOL.]

Adjust the rear source volume.

NOTE

• When the rear speaker sound is switched, the audio source that is output at the AV OUTPUT terminal is also switched to the same source.

• When the dual zone function is set to on, the following functions are not available.

– Output from the subwoofer – Subwoofer Level/Bass Boost ( P.93) – Equalizer Control/Sound Effect/Listening

Position (P. 90, 93, 94) – Speaker Setup (P. 88) – High-resolution Sound Source File Playback

• You cannot select AV-IN if the AV-IN input terminal is used for camera.

• You cannot select iPod if it is connected via Bluetooth.

• If you select USB, iPod, DISC (Music CD/Disc media), Bluetooth audio, Radio or HD Radio as the Front Source, you cannot select USB, iPod or DISC (Music CD/Disc media) as the Rear Source.

• If you select Wireless Mirroring, Apple CarPlay or Android Auto as the Front Source, you cannot select DISC (Music CD/Disc media), USB or iPod as the Rear Source.

• When the dual zone is selected and audio source other than "OFF" is selected as Rear Source, the speaker system cannot be switched.

Set each source as follows.

Controlling Audio

Sound Effect

You can set sound effects.

Press the [MENU] button.

 Popup menu appears.

Touch [Audio].

 Audio screen appears.

Touch [Sound Effect].

Set each parameter as follows.

■ [Bass Boost]

Set the amount of bass boost “OFF”/ “1”/ “2”/ “3”.

■ [Loudness]

Set the amount of boost of low and high tones.

“OFF”, “Low”, “High”

■ [Drive Equalizer]

Reduces the driving noise by raising the bandwidth.

“OFF”, “ON”

■ [Space Enhancer]

Select the feeling of sound space enhancement.

“OFF”/ “Small”/ “Medium”/ “Large”. This setting is not available for the HD Radio

tuner source.

■ [Supreme]

Turn ON/OFF the Supreme function. Technology to extrapolate and supplement

with proprietary algorithm, the highfrequency range that is cut off when encoding.

■ [Realizer]

Virtually make the sound more realistic using the Digital Signal Processor (DSP) system.

Select the level from “OFF”/ “1”/ “2”/ “3”.

■ [Stage EQ]

You can adjust the height of speakers virtually to suit your listening position.

“OFF”/ “Low”/ “Middle”/ “High”.

93English

Controlling Audio

Listening Position / DTA

Listening Position / DTA allows you to improve the sound field depending on the position of the seat you sit.

Listening Position / DTA allows you to set “Listening Position” and “Front Focus”. You cannot set both at the same time.

Press the [MENU] button.

 Popup menu appears.

Touch [Audio].

 Audio screen appears.

Touch [Position / DTA].

• Set up Listening Position (P. 94)

• Set up Front Focus (P. 94)

Ñ Listening Position

Adjust the sound delay time so that the sounds from different speakers arrive at the listener sitting on the selected seat at the same time.

Touch [Listening Position] on the Position

/ DTA screen.

Select a listening position from [Front R]

(Right front), [Front L] (Left front), [Front All] (All front), and [All].

Touch [T] or [U] to adjust the delay time of

the selected speaker.

Touch [Level].

Touch [T] or [U] to adjust the sound level

of the selected speaker.

NOTE

• To initialize the Delay and Level settings, touch [Initialize] and [YES] on the confirmation screen.

Ñ Front Focus

You can focus the imaginary sound image on the front of the selected seat.

Touch [Front Focus] in the Position / DTA

screen.

Select a front focus position.

For [Front All] and [All], select Priority L or R depending on which side you want to put the imaginary sound image.

Position DTA control

You can fine-adjust your listening position.

Touch [Adjust].

Touch [Delay].

Controlling Audio

NOTE

• When the 3-way speaker system is selected, front focus feature is disabled.

Ñ Front Focus fine adjustment

Touch [Adjust].

Touch [Delay].

Set each parameter as follows.

■ [Sound Image LR (Front)]

Focus the sound image on the front of front seats.

■ [Sound Image LR (Rear)]

Focus the sound image on the front of rear seats.

■ [Size of the Virtual Sound Field]

Adjust the size of sound image to meet your taste. If the sound image is shifted from the front, move it back by [Sound Image LR (Front)] or [Sound Image LR (Rear)].

■ [Subwoofer Delay]

Adjust the delay time of subwoofer sound.

Touch [Level].

Touch [T] or [U] to adjust the sound level

of the selected speaker.

Audio Setup memory

Audio Control settings can be memorized. The memorized settings can be recalled at any time.

Press the [MENU] button.

 Popup menu appears.

Touch [Audio].

 Audio screen appears.

Touch [Audio Memory].

■ [SETUP Memory]

Lock or unlock the Audio SETUP Memory/ Recall/Clear.

■ [Audio SETUP Memory]

Memorize the current audio settings.

• Fader / Balance, Speaker / X’over, Equalizer (User Preset, SW Level), Position / DTA, Sound Effect (P.87)

■ [Audio SETUP Recall]

Recall the memorized audio setting.

■ [Audio SETUP Clear]

Clear the Audio SETUP Memory and the currently memorized audio settings.

NOTE

• To initialize the Delay and Level settings, touch [Initialize] and [YES] on the confirmation screen.

95English

Remote control

This unit can be operated using the remote control KNA-RCDV331 (optional accessory).

# CAUTION

• Put the remote control in a place where it will not move during braking or other operations. A dangerous situation could result, if the remote control falls down and gets wedged under the pedals while driving.

• Do not leave the battery near fire or under direct sunlight. A fire, explosion or excessive heat generation may result.

• Do not recharge, short, break up or heat the battery or place it in an open fire. Such actions may cause the battery to leak fluid. If spilled fluid comes in contact with your eyes or on clothing, immediately rinse with water and consult a physician.

• Place the battery out of reach of children. In the unlikely event that a child swallows the battery, immediately consult a physician.

Battery Installation

If the remote control operates only over shorter distances or does not operate at all, it is possible that the batteries are depleted.

In such instances, replace the both batteries with new ones.

Insert two “AAA”/“R03”-size batteries

with the and poles aligned properly, following the illustration inside the case.

Functions of the Remote control Buttons

Ñ Switch the operation mode

The functions operated from the remote control differ depending on the position of the mode switch.

AUD

•

DVD

•

T V

•

NAV

■ AUD mode

Switch to this mode when controlling a selected source or tuner source, etc.

■ DVD mode

Switch to this mode when playing a disc media including DVD, VCD, and CD.

■ TV mode/NAV mode

Not used.

NOTE

• When controlling a player that is not integrated in the unit, select “AUD” mode.

Ñ Direct search mode

Using the remote control, you can jump directly to the desired file, track, chapter, etc. by entering the number corresponding to the content.

NOTE

• This operation cannot be performed for the USB device and iPod.

Press the [#BS] button several times until

the desired content appears.

The available contents are different depending on the source type.

Remote control

■ DVD

Title number/Chapter number

■ VCD 1.X and 2.X (PBC OFF)

Track number

■ VCD 2.X (PBC ON)

Scene number/Track number

■ Music CD

Track number

■ Radio

(DDX9707S / DMX9707S)

Frequency value

■ HD Radio tuner

(DDX9907XR / DMX957XR / DMX907S)

Frequency value/Channel number

■ SiriusXM

Channel number

Enter the number of the content you want

to play using the numeric keypad.

For DVD, VCD or music CD, press the

[ENTER] button. For radio, press the [C] or [D]/[E] or [F]

button.

 The content corresponding to the

number you entered is played.

Key Name Mode

SRC AUD, DVD Switches to the source to be played.

NAV − Displays the APP (Apple CarPlay/Android Auto/Wireless Mirroring) screen.

MENU DVD Stops playing and memorizes the last point where the disc stopped. The last

OUT, IN − Not used.

POSITION AUD, DVD Pauses the track or file, and resumes playing by pressing twice.

Cursor Key DVD Moves the cursor in the DVD menu.

ENTER − Performs the selected function.

ROUTE M AUD Screen mode changes each time you press this key during video playback.

VOICE AUD Displays the control screen of current source. (USB, iPod, DISC)

VIEW AUD, DVD Switches the AV source to be output.

MAP DIR AUD, DVD Switches the display angle each time it is pressed. (DDX9907XR / DDX9707S /

switch

In hands-free mode, hangs up the phone.

point is deleted by pressing twice.

For the Radio (DDX9707S / DMX9707S only) and HD Radio (DDX9907XR / DMX957XR / DMX907S only) sources in AUD mode, switches the seek mode.

DVD Returns to the DVD top menu.

DVD Displays the DVD menu.

Turns the playback control on or off while playing VCD.

DMX957XR only)

Ñ Basic Operation

Function

97English

Remote control

Key Name Mode

Function

switch

R/S

C/D

Numeric

Keypad

* + DVD Deletes a character while in direct search mode.

# BS AUD, DVD Switches to the direct search mode.

AUDIO DVD Switches the voice language each time you press this key.

CANCEL DVD Cancels the direct search mode and returns to the previous screen.

SUBTITLE DVD Switches the subtitle language.

19 20

ANGLE DVD Switches the picture angle each time you press this key.

VOL RS

ZOOM DVD Switches the zoom ratio (2, 3, 4, Off ) each time you press this key.

2 ZONE AUD, DVD Switches the Dual Zone function on and off.

R.VOL − Adjusts volume at rear when the Dual Zone function is on.

AUD, DVD Selects the folder to be played.

For the Radio (DDX9707S / DMX9707S only) and HD Radio (DDX9907XR / DMX957XR / DMX907S only) sources in AUD mode, selects FM/AM band to be received. For the SiriusXM source in AUD mode, selects the band to be received. For the DVD source in DVD mode, selects the title to be played.

AUD, DVD Selects the track or file to be played.

For the Radio (DDX9707S / DMX9707S only) and HD Radio (DDX9907XR / DMX957XR / DMX907S only), and SiriusXM sources in AUD mode, switches to broadcast stations received by the unit. For the DVD/VCD source in DVD mode, selects the chapter/scene/track to be played.

AUD Allows you to enter the number to search in the direct search mode.

For details on the direct search mode, see Direct search mode (P.96). For the Radio (DDX9707S / DMX9707S only) and HD Radio (DDX9907XR / DMX957XR / DMX907S only), and SiriusXM sources, allows you to enter the preset number.

• If the preset number is one digit, press the number.

• If the preset number is two digits, press continuously the numbers within 3 seconds.

• Pressing [C][D] within 3 seconds allows you to determine the preset number of one digit.

For the VCD source, allows you to enter the track number when Playback control (PBC) is on and the menu is displayed.

• If the track number is one digit, press the number.

• If the track number is two digits, switch to the direct search mode to enter the numbers.

DVD For the DVD source in DVD mode, allows you to enter the number to search in

the direct search mode. For details on the direct search mode, see Direct search mode (P.96). For the DVD source in DVD mode, change the play mode as follows:

• Press [1] [2] to fast forward/backward.

• Press [4] [5] to slow forward/backward. Switches the slow playback speed each time you press this key.

For details on the direct search mode, see Direct search mode (P.96).

For the VCD source in DVD mode, returns to the previous scene.* *Only when Playback control (PBC) is on.

− When a call comes in, answers the call.

− Adjusts the volume.

AT T − Lowers the volume when pressed once.

Restores the previous volume when pressed twice.

Connection/Installation

This section is for the professional installer. For safety’s sake, leave wiring and mounting to

professionals. Consult the car audio dealer.

Before Installation

Before installation of this unit, please note the following precautions.

# WARNINGS

• If you connect the ignition wire (red) and the battery wire (yellow) to the car chassis (ground), you may cause a short circuit, that in turn may start a fire. Always connect those wires to the power source running through the fuse box.

• Do not cut out the fuse from the ignition wire (red) and the battery wire (yellow). The power supply must be connected to the wires via the fuse.

# CAUTION

• Install this unit in the console of your vehicle. Do not touch the metal part of this unit during and shortly after the use of the unit. Metal part such as the heat sink and enclosure become hot.

NOTE

• Mounting and wiring this product requires skills and experience. For best safety, leave the mounting and wiring work to professionals.

• Make sure to ground the unit to a negative 12V DC power supply.

• Do not install the unit in a spot exposed to direct sunlight or excessive heat or humidity. Also avoid places with too much dust or the possibility of water splashing.

• Do not use your own screws. Use only the screws provided. If you use the wrong screws, you could damage the unit.

• If the power is not turned ON (“ There is an error in the speaker wiring. Please check the connections.” is displayed), the speaker wire may have a short-circuit or touched the chassis of the vehicle and the protection function may

have been activated. Therefore, the speaker wire should be checked.

• If your car’s ignition does not have an ACC position, connect the ignition wires to a power source that can be turned on and off with the ignition key. If you connect the ignition wire to a power source with a constant voltage supply, such as with battery wires, the battery may be drained.

• If the console has a lid, make sure to install the unit so that the front panel will not hit the lid when closing and opening.

• If the fuse blows, first make sure the wires aren’t touching to cause a short circuit, then replace the old fuse with one with the same rating.

• Insulate unconnected wires with vinyl tape or other similar material. To prevent a short circuit, do not remove the caps on the ends of the unconnected wires or the terminals.

• Connect the speaker wires correctly to the terminals to which they correspond. The unit may be damaged or fail to work if you share the ¤ wires or ground them to any metal part in the car.

• When only two speakers are being connected to the system, connect the connectors either to both the front output terminals or to both the rear output terminals (do not mix front and rear). For example, if you connect the ¢ connector of the left speaker to a front output terminal, do not connect the ¤ connector to a rear output terminal.

• After the unit is installed, check whether the brake lamps, blinkers, wipers, etc. on the car are working properly.

• Mount the unit so that the mounting angle is 30° or less.

• This unit has the cooling fan to decrease the internal temperature. Do not mount the unit in a place where the cooling fan of the unit is blocked. Blocking these openings will inhibit the cooling of the internal temperature and result in malfunction.

99English

Connection/Installation

In case of DDX9907XR

Cooling fan

• Do not press hard on the panel surface when installing the unit to the vehicle. Otherwise scars, damage, or failure may result.

• Reception may drop if there are metal objects near the Bluetooth antenna.

Bluetooth antenna unit

Ñ Supplied accessories for

installation

(Black 1 m)

(Gray 1 m)

(3 m)

(M5 x 8 mm)

(3.5 m)

[1]

DDX9907XR / DMX907S / DMX957XR only

Ñ Installation procedure

1) To prevent a short circuit, remove the key

from the ignition and disconnect the ¤ terminal of the battery.

2) Make the proper input and output wire connections for each unit.

3) Connect the speaker wires of the wiring harness.

4) Connect the wiring harness wires in the following order; ground, battery, ignition.

5) Connect the wiring harness connector to the unit.

6) Install the unit in your car.

7) Reconnect the ¤ terminal of the battery.

8) Perform the Initial Setup. See Initial SETUP (P.10).
