Installation Guide
31010
Kargo Master
Rancho Cordova, CA 95742
800-343-7486
CustomerService@Safari.com
DATE: ______________
For Technical Support Call: 800-343-7486 Monday-Friday 7AM - 4 PM (PST) Page 1
Install Instructions – 31010

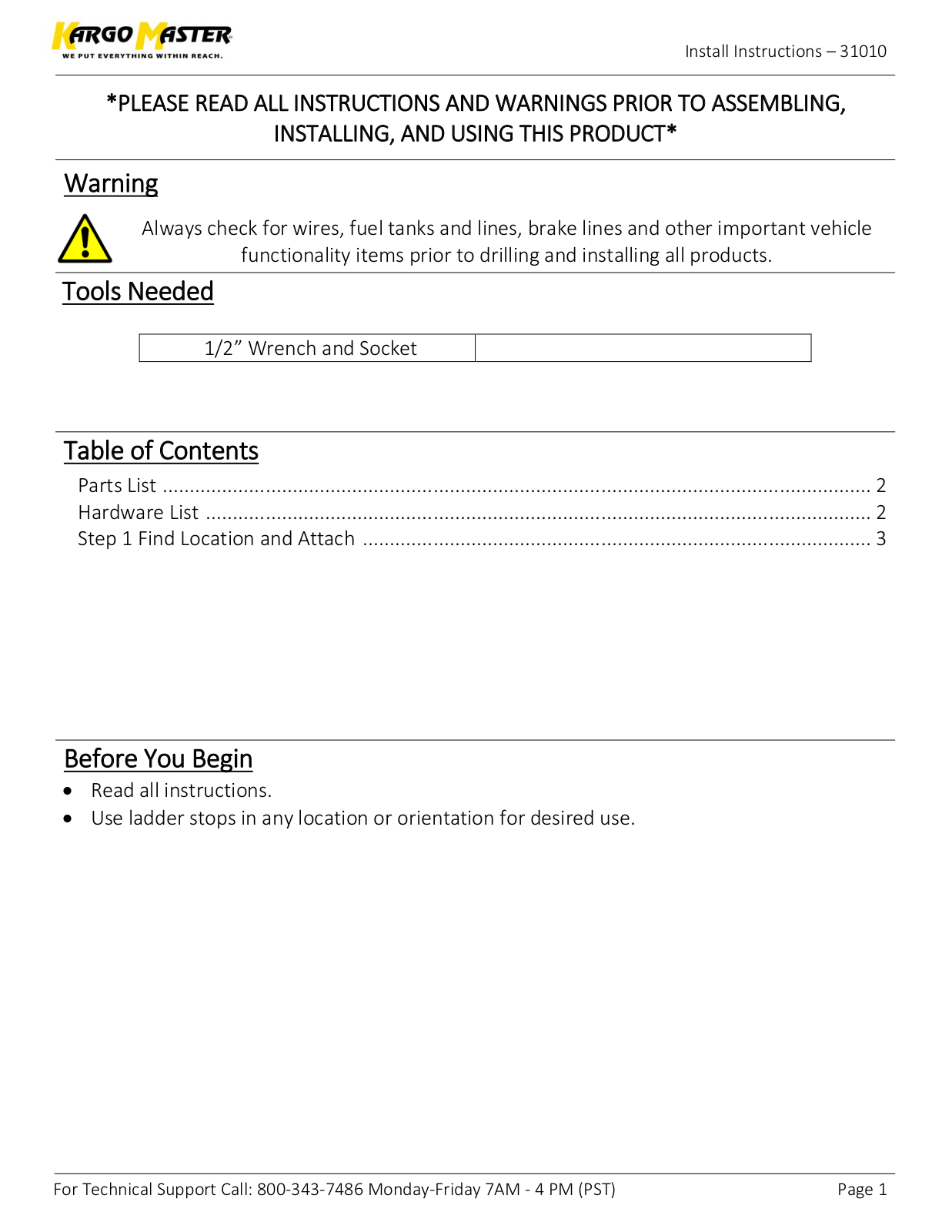

*PLEASE READ ALL INSTRUCTIONS AND WARNINGS PRIOR TO ASSEMBLING,
INSTALLING, AND USING THIS PRODUCT*
Warning
Always check for wires, fuel tanks and lines, brake lines and other important vehicle
functionality items prior to drilling and installing all products.
Tools Needed
1/2” Wrench and Socket
Table of Contents
Parts List ................................................................................................................................... 2
Hardware List ........................................................................................................................... 2
Step 1 Find Location and Attach .............................................................................................. 3
Before You Begin
• Read all instructions.
• Use ladder stops in any location or orientation for desired use.
For Technical Support Call: 800-343-7486 Monday-Friday 7AM - 4 PM (PST) Page 2
Install Instructions – 31010

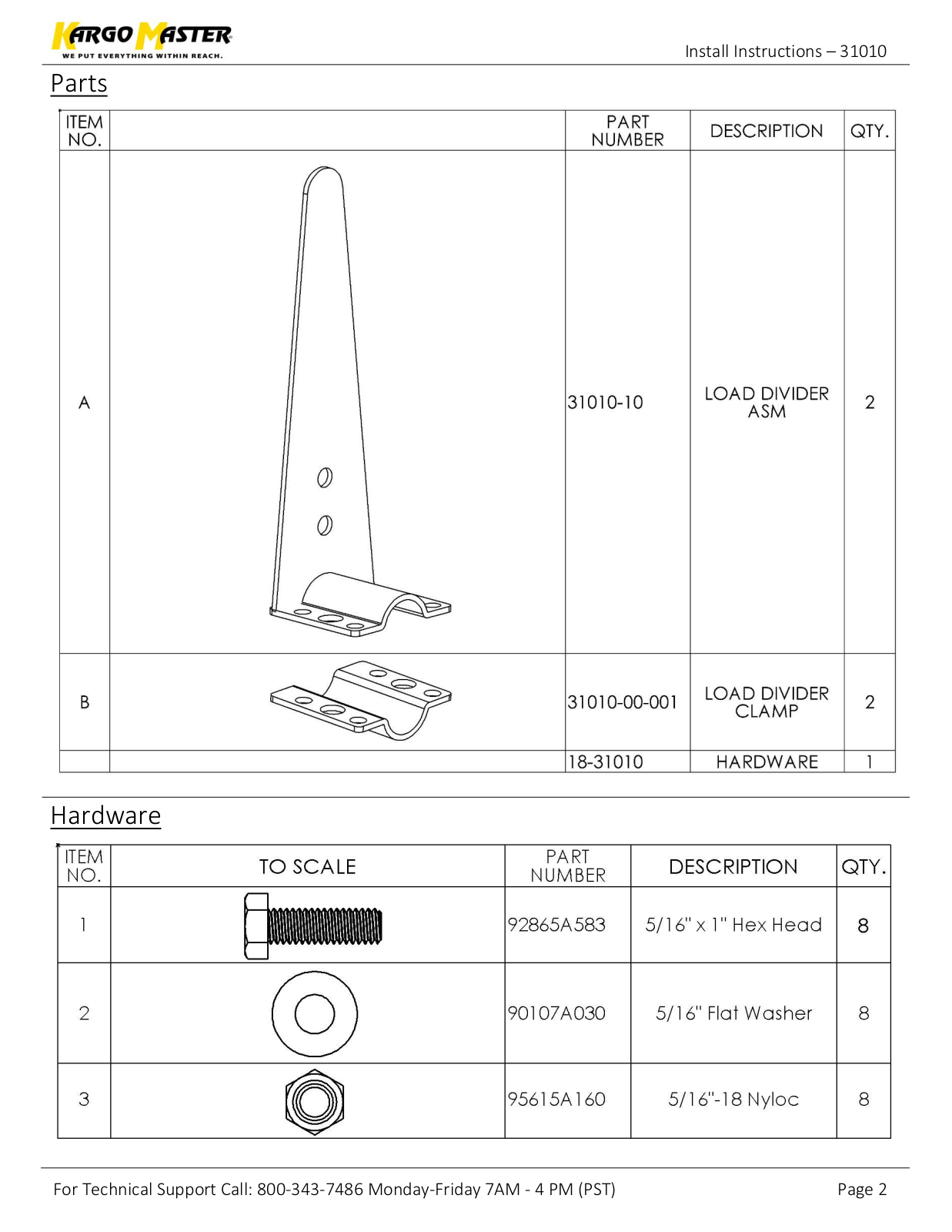

Parts
Hardware
For Technical Support Call: 800-343-7486 Monday-Friday 7AM - 4 PM (PST) Page 3
Install Instructions – 31010

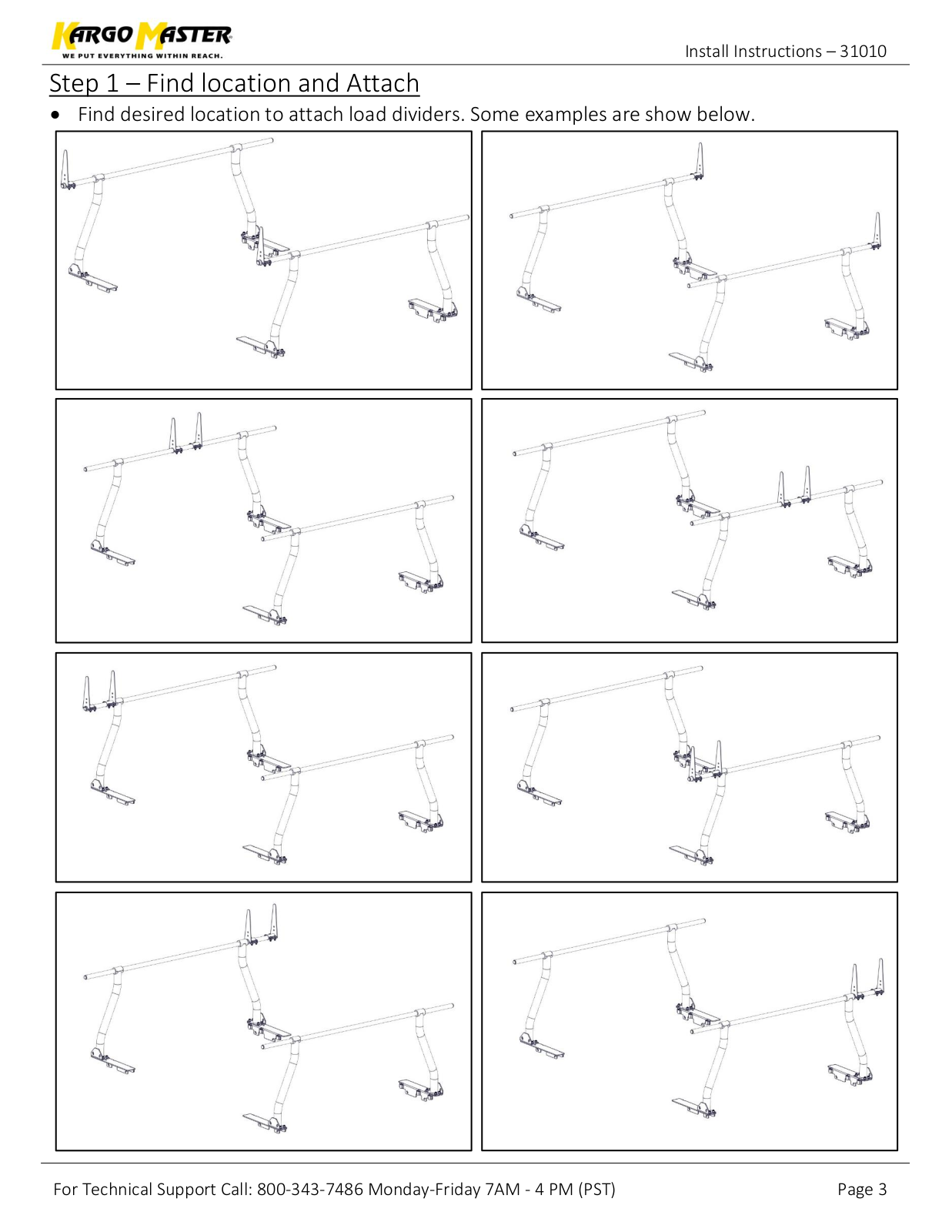

Step 1 – Find location and Attach
• Find desired location to attach load dividers. Some examples are show below.
For Technical Support Call: 800-343-7486 Monday-Friday 7AM - 4 PM (PST) Page 4
Install Instructions – 31010

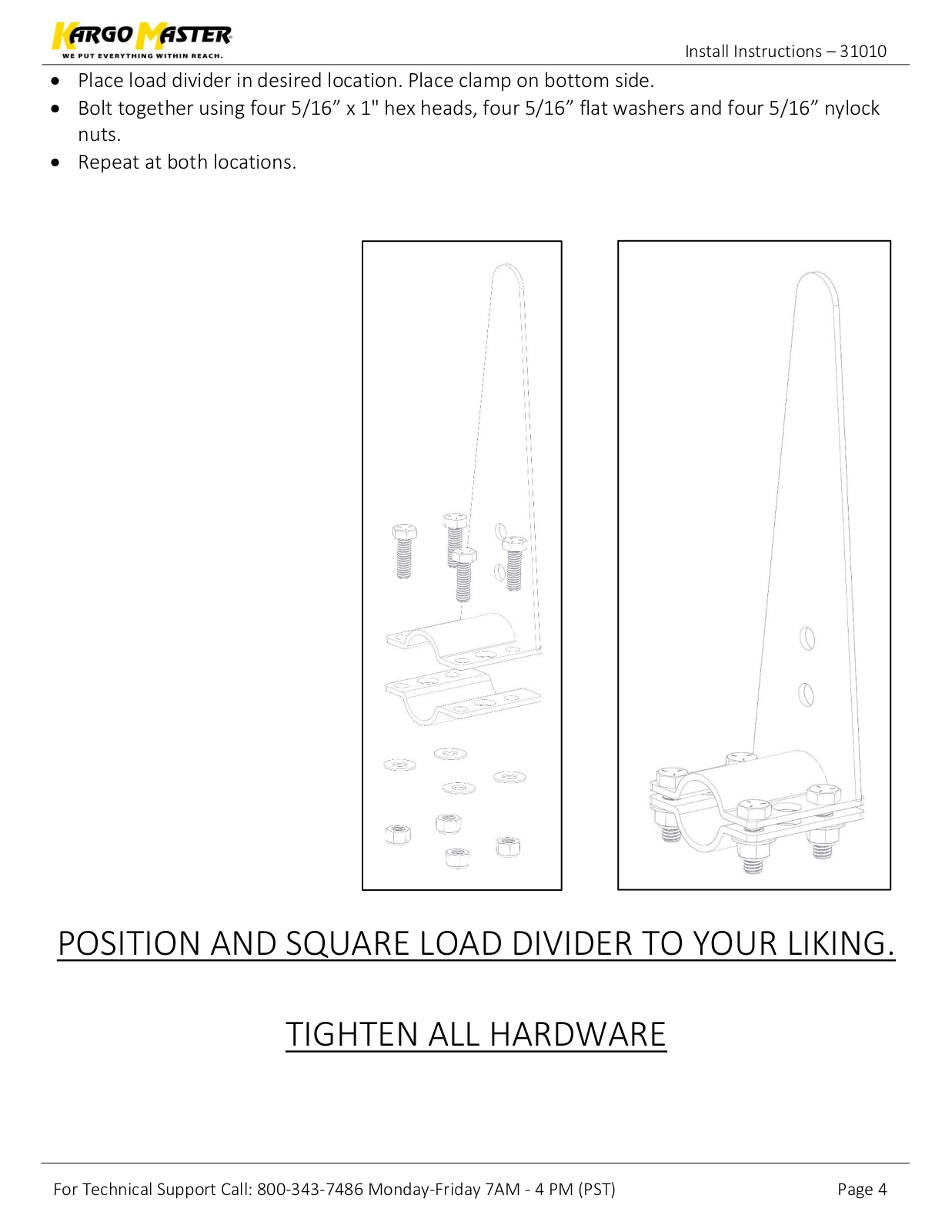

• Place load divider in desired location. Place clamp on bottom side.
• Bolt together using four 5/16” x 1" hex heads, four 5/16” flat washers and four 5/16” nylock
nuts.
• Repeat at both locations.
POSITION AND SQUARE LOAD DIVIDER TO YOUR LIKING.
TIGHTEN ALL HARDWARE
