Page 1
406TM

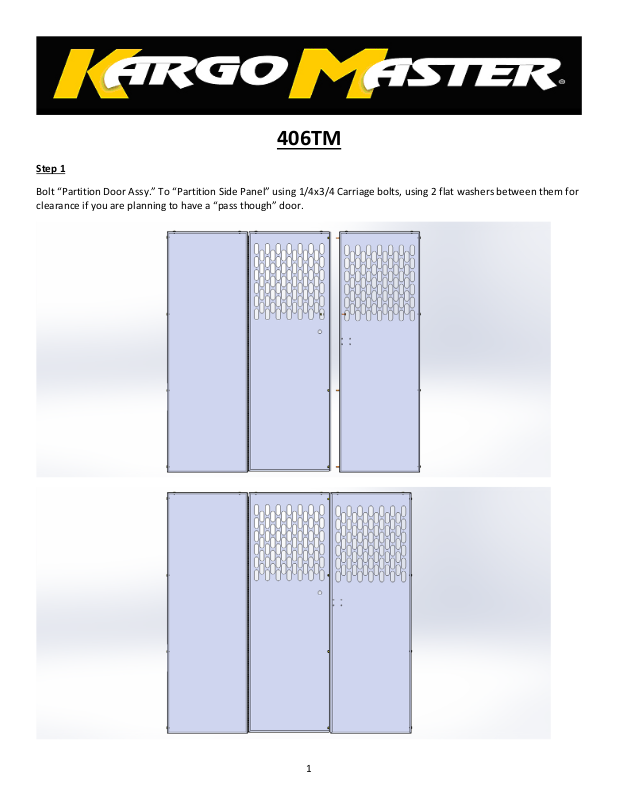

Step 1
Bolt “Partition Door Assy.” To “Partition Side Panel” using 1/4x3/4 Carriage bolts, using 2 flat washers between them for
clearance if you are planning to have a “pass though” door.
1
Page 2
Step 2
Bolt “Wing Panels” to the “Partition Door Assy.” Using 1/4x1/2 Carriage bolts with flat washers and nyloc nuts as shown.
Be sure to use flat washers as spacers on the door panel between the “Top Wing Panel” and the door so it will open
properly.
2
Page 3
Step 3

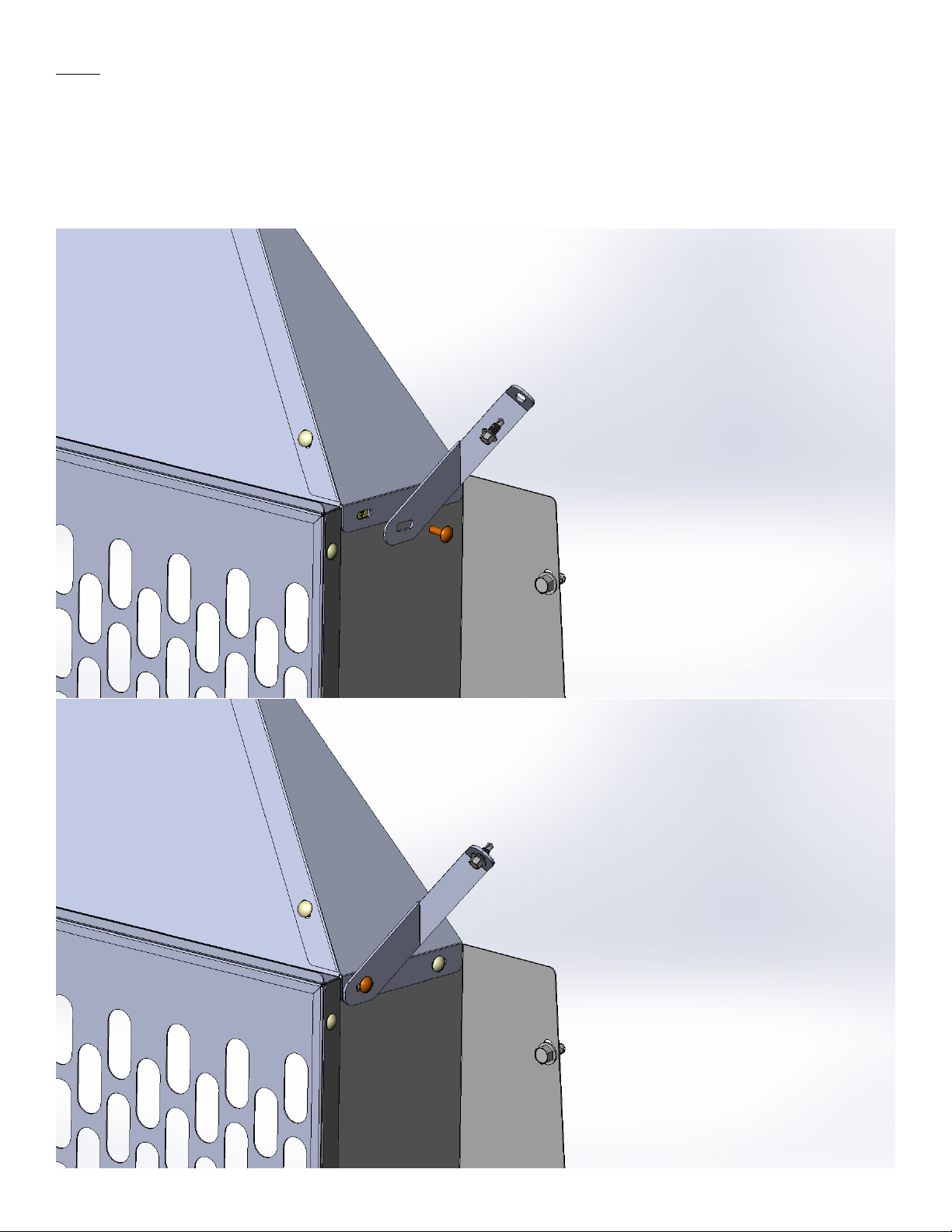

Next place the Assembly in the van and use the 3/8”x3/4” self tapping screws on the drivers side wing panel, and use the
M6x25 bolt on the passenger side wing panel. Now you can bolt the upper bracket in place using the 5/16”x1” self
tapping screws and ¼”x3/4” Carriage bolts. Put a straight edge along the bottom to keep it straight and use the 5/16”x1
¼” self tapping screws into the floor.
3

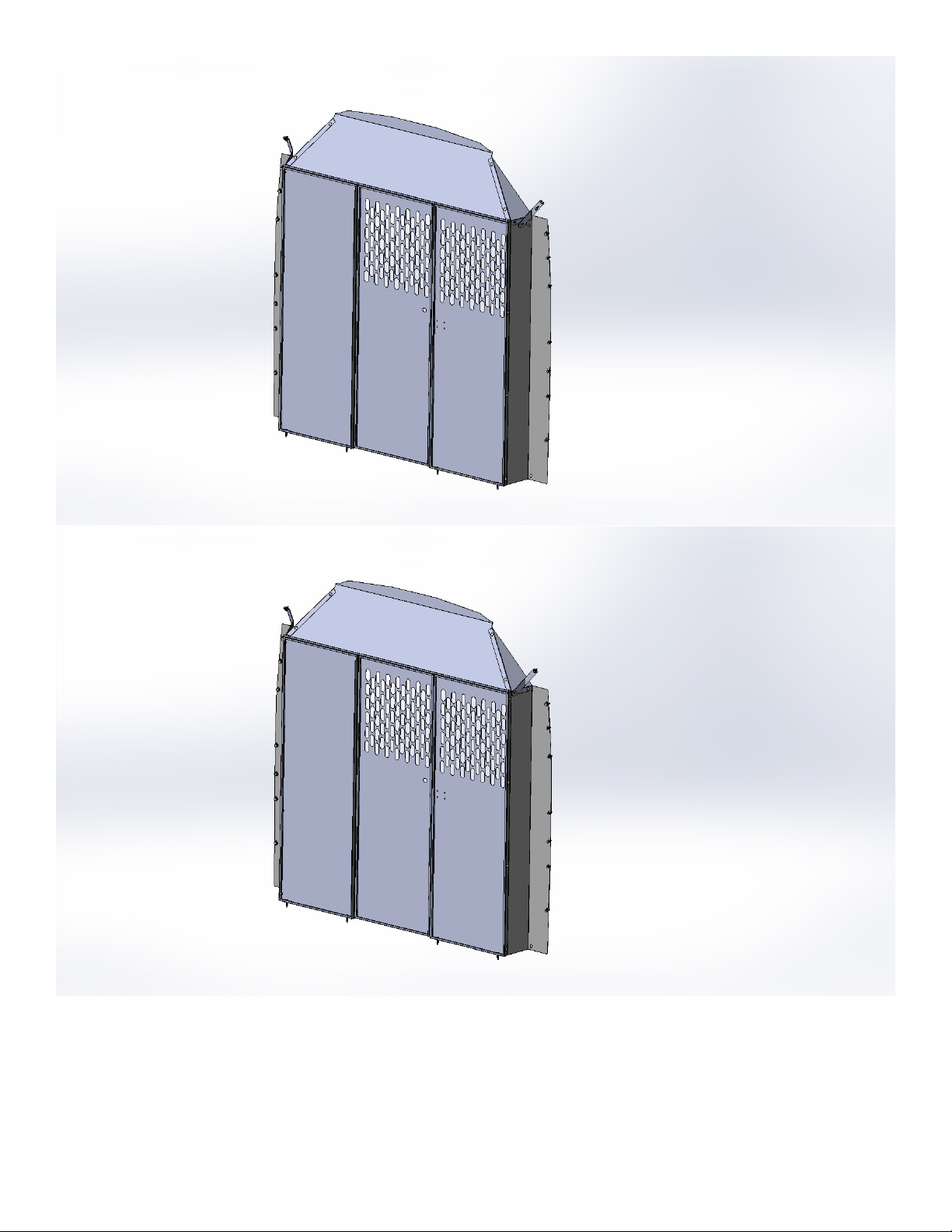

Page 4
4
Page 5

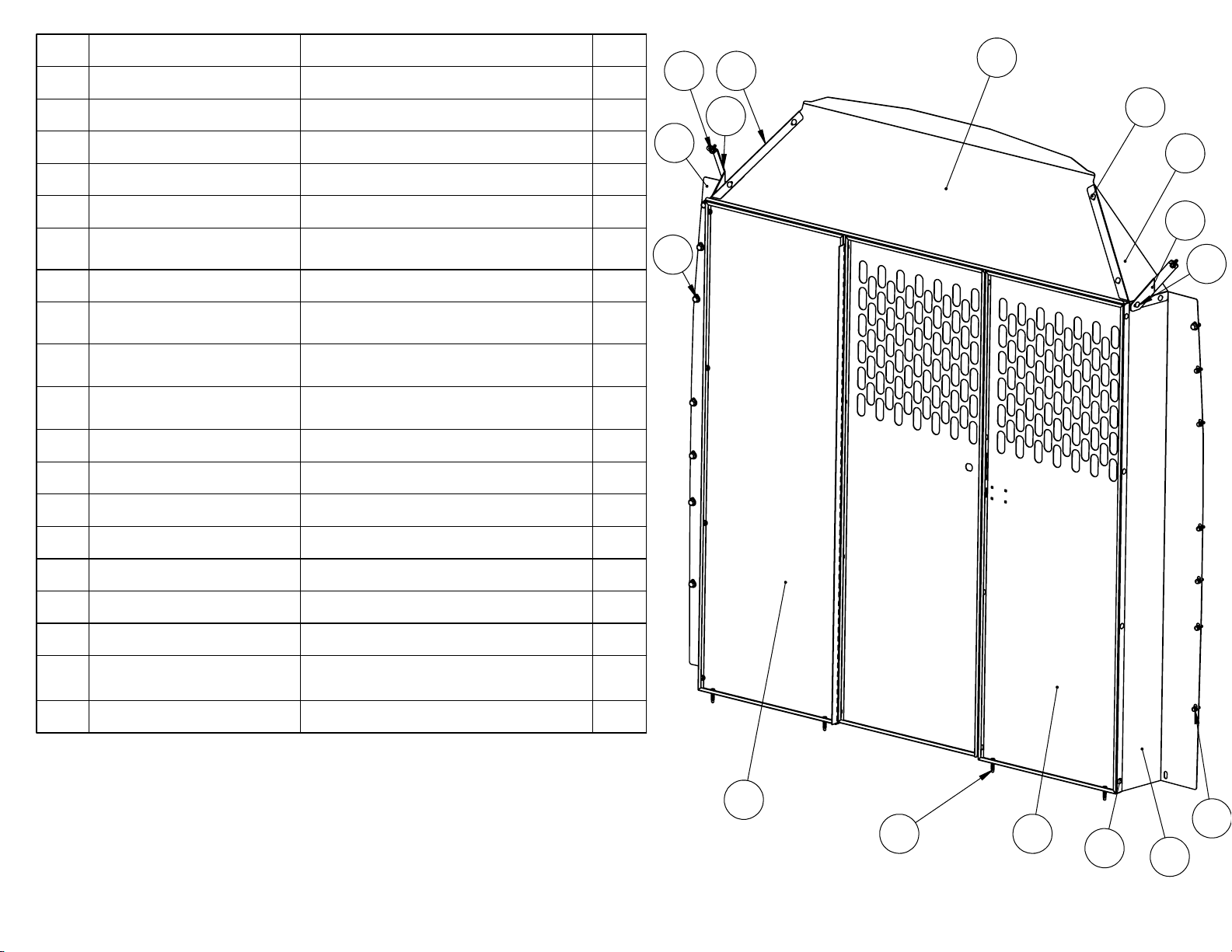

ITEM
1
2
PART NUMBER
40651-10
40651-10-003
DESCRIPTION
Partition Door Assy.
Partition Side Panel
Qty.
1
1
17
16
8
5
9
3
406TM-10-001
4
406TM-10-001-MIRROR
5
406TM-10-002
6
406TM-10-003
7
406TM-10-004
8
406TM-10-003-MIRROR
.25 X .50 CARRIAGE
9
BOLT
.25 X .75 CARRIAGE
10
BOLT
11
.25 flat washer
12
97135A210
13
.25 Lock Washer
14
.312x1.25 Self Tapping
15
M6x25 Hex Bolt
Transit Mid-Roof PS Wing
Transit Mid-Roof DS Wing
Transit Mid-Roof Top Panel
Transit Mid-Roof Corner Panel
PS
Transit Mid-Roof Bracket PS
Transit Mid-Roof Corner Panel
PS
1/4-20 X 1/2 CARRIAGE BOLT
1/4 X 3/4 CARRIAGE BOLT
1/4-20 NYLOC NUT
1/4 Lock Washer
90064A709
91280A332
1
1
1
1
1
1
20
6
32
26
6
4
6
4
18
6
7
10
16
406TM-10-004-MIRROR
17
.312x.75 Self Tapping
.375-16x.75 Self
18
Tapping
19 56x15.125x4.75 Box
Transit Mid-Roof Bracket DS
5/16x1 Self Tapping
90096A622
AC142439 DST BTM
1
2
8
1
1
14
2
9
15
3
