JVC KD-R811E User Manual [fr]

Having TROUBLE with operation?

Please reset your unit

Refer to page of How to reset your unit

Vous avez des PROBLÈMES de fonctionnement?

Réinitialisez votre appareil

Référez-vous à la page intitulée Comment réinitialiser votre appareil

ENGLISH

FRANÇAIS

KD-R811

CD RECEIVER / RÉCEPTEUR CD

Dear Customer, This apparatus is in conformance with the valid European directives and standards regarding electromagnetic compatibility and electrical safety.

European representative of Victor Company of Japan, Limited is: JVC Technical Services Europe GmbH Postfach 10 05 04 61145 Friedberg Germany

EN, FR

Cher(e) client(e), Cet appareil est conforme aux directives et normes européennes en vigueur concernant la compatibilité électromagnétique et à la sécurité électrique.

Représentant européen de la société Victor Company of Japan, Limited: JVC Technical Services Europe GmbH Postfach 10 05 04 61145 Friedberg Allemagne

For canceling the display demonstration, see page 4. / Pour annuler la démonstration des affichages, référez-vous à la page 4.

For installation and connections, refer to the separate manual. / Pour l’installation et les raccordements, se référer au manuel séparé.

INSTRUCTIONS

MANUEL D’INSTRUCTIONS

GET0653-003A

[E]

Thank you for purchasing a JVC product.

Please read all instructions carefully before operation, to ensure your complete understanding and

to obtain the best possible performance from the unit.

IMPORTANT FOR LASER PRODUCTS

1. CLASS 1 LASER PRODUCT

2. CAUTION: Do not open the top cover. There are no user serviceable parts inside the unit; leave all servicing to qualified service personnel.

3. CAUTION: Visible and/or invisible class 1M laser radiation when open. Do not view directly with optical instruments.

4. REPRODUCTION OF LABEL: CAUTION LABEL, PLACED OUTSIDE THE UNIT.

Warning:

If you need to operate the unit while driving, be sure to look around carefully or you may be

Battery

Products

Information for Users on Disposal of Old Equipment and Batteries

[European Union only]

These symbols indicate that the product and the battery with this symbol should not be disposed as general household waste at its end-of-life. If you wish to dispose of this product and the battery, please do so in accordance with applicable national legislation or other rules in your country and municipality. By disposing of this product correctly, you will help to conserve natural resources and will help prevent potential negative effects on the environment and human health.

involved in a traffic accident.

For safety...

• Do not raise the volume level too much, as this will block outside sounds, making driving dangerous.

• Stop the car before performing any complicated operations.

Temperature inside the car...

If you have parked the car for a long time in hot or cold weather, wait until the temperature in the car becomes normal before operating the unit.

Notice:

The sign Pb below the symbol for batteries indicates that this battery contains lead.

2 ENGLISH

How to read this manual

The following icons/symbols are used to indicate:

Press and hold the button(s)

[Hold]

until the desired operation begins.

Turn the control dial.

Turn the control dial to make a selection, then press to confirm.

( <XXXX> Menu setting item

Reference page number

XX)

Continued on the next page

How to attach/detach the control panel

How to reset your unit

Your preset adjustments will also be erased (except the registered Bluetooth device). ( 15 )

CONTENTS

3 How to read this manual 3 How to attach/detach the control

panel

3 How to reset your unit 3 How to forcibly eject a disc

Canceling the display demonstration

4 Setting the clock 5 Preparing the remote controller

(RM-RK50)

6 Basic operations 8 Listening to the radio 11 Listening to a disc 12 Listening to the USB device 14 Using the Bluetooth ® device

16 Using a Bluetooth mobile phone 19 Using a Bluetooth audio player 20 Changing the Bluetooth settings

22 Listening to the iPod/iPhone 25 Listening to the other external

components

26 Selecting a preset sound mode 27 Menu operations 34 More about this unit 39 Maintenance 40 Troubleshooting 44 Specifications

How to forcibly eject a disc

[Hold]

• You can forcibly eject the loaded disc even if the disc is locked. To lock/unlock the disc,

11.

• Be careful not to drop the disc when it ejects.

• If this does not work, reset your unit.

3ENGLISH

Canceling the display demonstration

1 Turn on the power.

[Hold]

SET UP

DEMO Clock PRO EQ

(Initial setting)

3 Select <DEMO>.

DEMO

Off On

Setting the clock

1 Turn on the power.

3 Select <Clock>.

SET UP

4 Select <Set Clock>.

Clock

5 Adjust the hour.

Set Clock

6 Adjust the minute.

[Hold]

DEMO Clock PRO EQ

Set Clock 24H/12H Clock Adjust

SET UP

(Initial setting)

0 : 00 AM

Set Clock

DEMO Clock PRO EQ

0: 00 AM

4 Select <Off>.

DEMO

Off On

5 Finish the procedure.

7 Select <24H/12H>.

Clock

Set Clock 24H/12H Clock Adjust

8 Select <24Hours> or <12Hours>.

24H/12H

24Hours 12Hours

9 Finish the procedure.

4 ENGLISH

Clock

Set Clock 24H/12H Clock Adjust

Preparing the remote controller (RM-RK50)

When you use the remote controller for the first time, pull out the insulation sheet.

Insulation sheet

If the effectiveness of the remote controller decreases, replace the battery.

Replacing the lithium coin battery

CR2025

Caution:

• Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type.

• Battery shall not be exposed to excessive heat such as sunshine, fire, or the like.

Warning (to prevent accidents and damage):

• Do not install any battery other than CR2025 or its equivalent.

• Do not leave the remote controller in a place (such as dashboards) exposed to direct sunlight for a long time.

• Store the battery in a place where children cannot reach.

• Do not recharge, short, disassemble, heat the battery, or dispose of it in a fire.

• Do not leave the battery with other metallic materials.

• Do not poke the battery with tweezers or similar tools.

• Wrap the battery with tape and insulate when throwing away or saving it.

This unit is equipped with the steering wheel remote control function. Before operating, connect a JVC's OE remote adapter (not supplied) which matches your car to the steering wheel remote input terminal on the rear of the unit.

• For details, refer also to the instructions supplied with the remote adapter.

5ENGLISH

Basic operations

Ejects the disc Loading slot USB (Universal Serial Bus) input terminalDisplay window

Detaches the panel

Control dial

When you press or hold the following button(s)...

Main unit

Remote

controller

Turns on.

• When the power is on, pressing /I/ATT on the remote controller also mutes the sound or pauses. Press /I/ATT again to cancel muting or resume playback.

Turns off if pressed and held.

Selects the available sources (if the power is turned on).

• If the source is ready, playback also starts.

Adjusts the volume level.

— Selects items.

• Mutes the sound while listening to a source. If the source is “CD,”

—

“USB FRONT/USB REAR” or “iPod FRONT/iPod REAR,” playback pauses. Press the control dial again to cancel muting or resume playback.

• Confirms selection.

Auxiliary input jack

Remote sensor

• DO NOT expose to bright sunlight.

General operation

6 ENGLISH

Main unit

Remote

controller

—

Selects the sound mode.

• Enters tone level adjustment directly ( 26 ) if pressed and held EQ/BASS-TRE on the main unit.

• Enters “Call Menu” screen * or answers incoming call when the unit rings.

• Ends a call if pressed and held after a phone call conversation.

• Switches the connected mobile phone to the last connected mobile phone if pressed and held. (

* If there is no call list, the unit beeps.

• Activates/deactivates TA Standby Reception.

• Enters PTY Searching mode if pressed and held.

• Returns to the previous menu.

• Switches the controlling terminal for iPod playback if pressed and held. (

22, 31 )

Power off : Checks the current clock time. Power on : Changes the display information and pattern.

General operation

Changing the display information and pattern

Ex.: When tuner is selected as the source

Source operation display Audio level meter display

19 )

(<Level Meter>,

29)

Caution:

If the temperature inside the car is below 0°C, the movement of animation and text scroll will be halted on the display to prevent the display from being blurred. appears on the display. When the temperature increases, and the operating temperature is resumed, these functions will start working again.

Caution on volume setting:

Digital devices (CD/USB) produce very little noise compared with other sources. Lower the volume before playing these digital sources to avoid damaging the speakers by sudden increase of the output level.

7ENGLISH

Listening to the radio

]

“FM” or “AM”

Manual search

[Hold]

“M” appears, then press the button repeatedly.

with sufficient signal strength.

When an FM stereo broadcast is hard to receive

[Hold]

]

<Tuner> ] <Stereo/Mono> ] <Mono> Reception improves, but stereo effect will be lost.

To restore the stereo effect, repeat the same procedure to select <Stereo>.

lights up when receiving an FM stereo broadcast

Automatic presetting (FM)—

SSM (Strong-station Sequential Memory)

You can preset up to 18 stations for FM.

While listening to a station...

[Hold]

]

<Tuner> ] <SSM> ] <SSM 01 – 06 / SSM 07 – 12 / SSM 13 – 18> “SSM” appears and local stations with the strongest signals are searched and stored automatically.

To preset another 6 stations, repeat the above procedure by selecting one of the other 6 SSM setting ranges.

8 ENGLISH

Manual presetting (FM/AM)

You can preset up to 18 stations for FM and 6 stations for AM.

Ex.: Storing FM station of 92.50 MHz into preset number “4.”

]

“92.50MHz”

]

[Hold]

Shows the “Preset Mode” screen.

]

Selects preset number “4.”

“04” flashes.

Selecting a preset station

Using the remote controller

5 U

/ D ∞: Changes the preset

stations

2 R

/ F 3: Searches for stations

The following features are available only for FM Radio Data System stations.

Searching for your favourite FM Radio Data System programme—

You can tune in to a station broadcasting your favourite programme by searching for a PTY code.

The last selected PTY code appears.

PTY Search

[Hold]

]

Select one of your favourite

programme types or a PTY code, and start searching.

If there is a station broadcasting a programme of the same PTY code as you have selected, that station is tuned in.

PTY codes: News, Affairs, Info, Sport, Educate, Drama, Culture, Science, Varied, Pop M (music), Rock M (music), Easy M (music), Light M (music), Classics, Other M (music), Weather, Finance, Children, Social, Religion, Phone In, Travel, Leisure, Jazz, Country, Nation M (music), Oldies, Folk M (music), Document

9ENGLISH

Standby receptions

TA Standby Reception

TA Standby Reception allows the unit to switch temporarily to Traffic Announcement (TA) from any source other than AM.

• The volume changes to the preset TA volume level if the current level is lower than the preset level. (<TA Volume>,

To activate TA Standby Reception

If the TP indicator lights up, TA Standby Reception is activated. If the TP indicator flashes, TA Standby Reception is not yet activated.

• To activate the reception, tune in to another station providing Radio Data System signals required for TA Standby Reception.

• To deactivate the reception, press again.

30)

T/P BACK

Tracing the same programme—

Network-Tracking Reception

When driving in an area where FM reception is not sufficient enough, this unit automatically tunes in to another FM Radio Data System station of the same network, possibly broadcasting the same programme with stronger signals.

Programme A broadcasting on different frequency areas (01 – 05)

To change the Network-Tracking Reception setting, see <AF Regional> ( 30).

PTY Standby Reception

PTY Standby Reception allows the unit to switch temporarily to your favourite PTY programme from any source other than AM.

To activate and select your favourite PTY code for PTY Standby Reception, see

<PTY-Standby> ( If the PTY indicator lights up, PTY Standby Reception is activated. If the PTY indicator flashes, PTY Standby Reception is not yet activated.

• To activate the reception, tune in to another station providing these signals.

• To deactivate the reception, select <Off> ( 30) for the PTY code. The PTY indicator goes off.

• The unit will not switch to Traffic Announcement or PTY programme when a call connection is established through “BT FRONT/BT REAR.”

10 ENGLISH

30).

Automatic station selection—

Programme Search

Usually when you select a preset number, the station preset in that number is tuned in. If the signals from the FM Radio Data System preset station are not sufficient for good reception, this unit, using the AF data, tunes in to another frequency possibly broadcasting the same programme as the original preset station is broadcasting. (<P-Search>,

30)

Listening to a disc

]

Turn on the power.

All tracks will be played repeatedly until you change the source or eject the disc.

Stopping playback and ejecting the disc

“No Disc” appears. Remove the disc, then press

SOURCE

to listen to another

playback source.

Prohibiting disc ejection

[Hold]

To cancel the prohibition, repeat the same procedure.

Selects folder of the MP3/WMA

Selects track

Fast-forwards or

[Hold]

reverses the track

Selecting a folder/track on the list

While listening to a disc....

]

Enter the list menu.

]

Select your desired item. MP3/WMA: Select your desired folder, then the desired track by repeating this step.

• If the MP3/WMA disc contains many tracks, you can fast search (±10, ±100, ±1000) through the disc by turning the control dial quickly.

• To return to the previous menu, press

T/P BACK

For MP3/WMA disc, you can also use the search menu (A to Z, 0 to 9, and OTHERS) to scroll through the list menu.

• “OTHERS” appears if the 1st character is not A to Z or 0 to 9, such as #, —, !, and etc.

While in list menu....

Press 5/∞ to show the search menu.

• The first character of the current folder/file

name appears.

11ENGLISH

Press 5/∞ to select your desired character.

Then press the control dial to confirm.

• The track list with the selected character appears.

Turn the control dial to select your desired

track. Then press the control dial to confirm.

• Only the existing characters will be shown on

the search menu.

• Press and hold

the character of the search menu.

• If your disc contains many tracks, searching

take some time.

5/∞

to continuously change

Selecting the playback modes

You can use only one of the following playback modes at a time.

[Hold]

]

“Repeat” j “Random”

Using the remote controller

5 U

/ D ∞: Selects folder of the

MP3/WMA

2 R

/ F 3: Selects track

2 R

/ F

: Fast-forwards or

[Hold]

reverses the track

Repeat Track : Repeats current track Folder : Repeats current folder

Random Folder : Randomly plays all tracks of

current folder, then tracks of next folders

All : Randomly plays all tracks

To cancel repeat play or random play, select “Off.”

Listening to the USB device

This unit is equipped with two USB input terminals (on the control panel and USB cable from the rear of the unit). You can use these two terminals at the same time.

• You can also connect a USB Bluetooth Adapter, KS-UBT1 (supplied), ( 14) and/or an Apple iPod/iPhone ( 22) to the USB input terminal(s).

This unit can play MP3/WMA/WAV tracks stored in a USB mass storage class device (such as a USB memory, Digital Audio Player, etc.).

12 ENGLISH

]

Turn on the power.

If you have turned off the power (without detaching the USB device)...

Pressing playback starts from where it has been stopped previously.

• If a different USB device is currently attached, playback starts from the beginning.

Stopping playback and detaching the USB device

Straightly pull it out from the unit. “No USB” appears. Press another playback source.

You can operate the USB device in the same way you operate the files on a disc. ( 11, 12)

• You can listen to WAV files by following the MP3/WMA file operations. ( 11, 12)

Cautions:

• Avoid using the USB device if it might hinder your safety driving.

• While “Reading” is shown on the display:

– Do not pull out and attach the USB device

– Do not pull out or attach another USB

USB input terminal

USB memory

All tracks will be played repeatedly until you change the source or detach the USB device.

• Do not start the car engine if a USB device is

/ SOURCE

repeatedly.

device.

turns on the power and

/ SOURCE

to listen to

connected.

• This unit may not be able to play the files depending on the type of USB device.

• Operation and power supply may not work as intended for some USB devices.

• You cannot connect a computer to the USB input terminal of the unit.

• Make sure all important data has been backed up to avoid losing the data.

• Electrostatic shock at connecting a USB device may cause abnormal playback of the device. In this case, disconnect the USB device then reset this unit and the USB device.

• Do not leave a USB device in the car, expose to direct sunlight, or high temperature to avoid deformation or cause damages to the device.

• Some USB devices may not work immediately after you turn on the power.

• The detect time and response time may be very long for some USB devices (such as Digital Audio Player, etc.).

• For more details about USB operations,

36.

USB cable from the rear of the unit

and / or

13ENGLISH

Using the Bluetooth ® device

Bluetooth is a short-range wireless radio communication technology for the mobile device such as mobile phones, portable PCs, and other devices. The Bluetooth devices can be connected without cables and communicate with each other.

• Refer to pages i and ii at the end of the manual to check the countries where you may use the Bluetooth® function.

Bluetooth profile

This unit supports the following Bluetooth profiles; HFP (Hands-Free Profile) 1.5 OPP (Object Push Profile) 1.1 PBAP (Phonebook Access Profile) 1.0 A2DP (Advanced Audio Distribution Profile) 1.2 AVRCP (Audio/Video Remote Control Profile) 1.3

Refer also to the instructions supplied with the Bluetooth device.

Preparation:

• Connect the supplied USB Bluetooth Adapter (KS-UBT1) to one of the USB input terminals of the unit.

• Operate the device to turn on its Bluetooth function.

]

Turn on the power.

Only one USB Bluetooth Adapter can be detected at a time.

14 ENGLISH

USB input terminal

USB cable from the rear of the unit

KS-UBT1

Pairing a device

When you connect a Bluetooth device to the unit for the first time, make pairing between the unit and the device.

• Once the connection is established, it is registered in the unit even if you reset the unit. Up to five devices can be registered in total.

• Only one device for Bluetooth phone and one for Bluetooth audio can be connected at a time.

[Hold]

] <Bluetooth> ] <New Pairing>

]

Enter a PIN (Personal Identification Number) code in to the unit. You can enter any number you like (1-digit to 16-digit number). [Initial: 0000]

• Some devices have their own PIN

code. Enter the specified PIN code in to the unit.

Repeat step 3 until you have finished

entering the PIN code.

Use the Bluetooth device to search.

On the device to be connected, enter the same PIN code you have just entered for this unit. “Pairing OK“ appears for a while, then “Connect Now Using Phone” appears.

Phone icon appears when Bluetooth connection is established.

Use the Bluetooth device to connect *.

• Refer to the table below for connectivity results shown on the display.

* Operations may be different according

to the connected device.

Display result

Connect OK [Device Name]

Handsfree OK [Device Name]

Audio Stream OK [Device Name]

Connect Fail Try Reconnect

The device remains registered even after you disconnect the device. Use <Connect Phone> or <Connect Audio> (or activate <Auto Connect>, device from next time on.

Hands-

Free Call

‡‡

‡

—

——

21) to connect the same

Audio

Streaming

—

‡

]

Confirm the entry.

“Search Now Using Phone” appears.

15ENGLISH

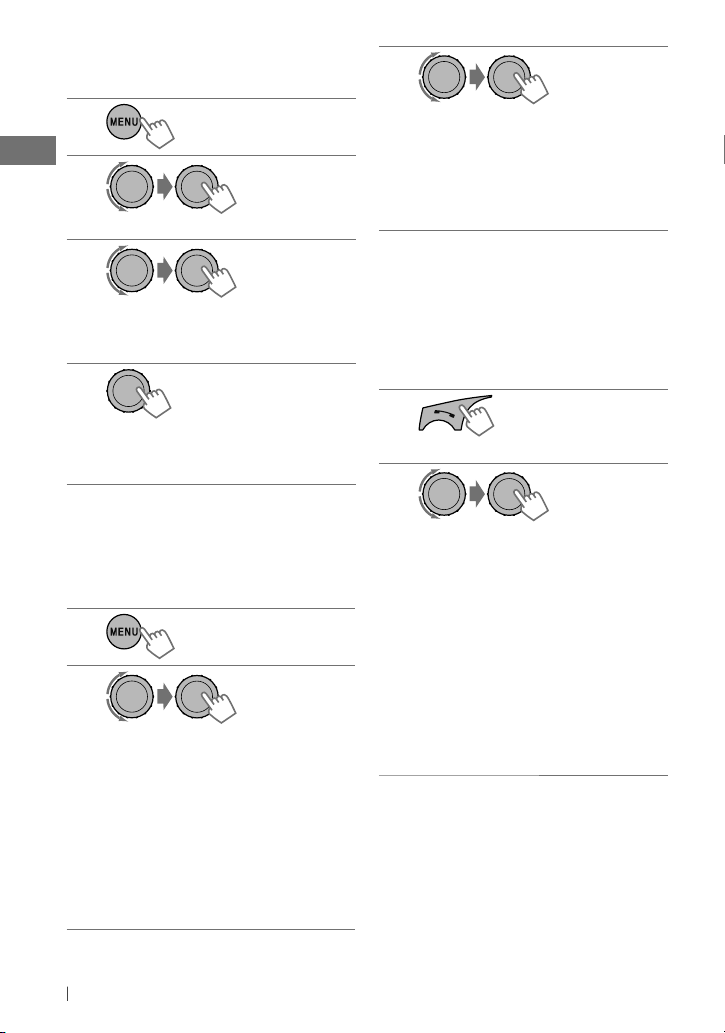

Deleting a registered device

[Hold]

] <Bluetooth> ] <Delete Pairing>

]

Select a device you want to delete.

“Delete OK?” appears on the display.

]

Delete the selection. “OK” appears when the device is deleted.

• To return to the previous menu, press

T/P BACK

Connecting/disconnecting a registered device

[Hold]

] <Bluetooth> ] <Connect Phone / Connect Audio> or <Disconnect Phone / Disconnect Audio>

• For connecting a device, go to step 3.

• For disconnecting a device,

“Disconnecting” appears, then “Disconnected [Device Name]” appears on the display when the device is disconnected.

]

Select a device you want to connect.

• “Connecting...” appears, then “Connected [Device Name]” appears on the display when the device is connected.

Using a Bluetooth mobile phone

Making a call

] Enter “Call Menu” screen.

] Select the method to make a call.

• Dialed Calls *1: Shows the list of the phone numbers you have dialed. Go to the following step.

• Received Calls *1: Shows the list of the received calls. Go to the following step.

• Missed Calls *1: Shows the list of the missed calls. Go to the following step.

*1 “No History Found” appears and the

unit beeps if there is no history stored.

16 ENGLISH

• Phonebook *2: Shows the name/ phone number of the phonebook registered in the unit or from the connected phone *3. Go to the following step.

– To copy the phonebook memory,

<Phonebook Trans>, 21.

– If the phonebook contains many

numbers, you can fast search (±10, ±100, ±1000 numbers) through the phonebook by turning the control dial quickly.

– To search through the phonebook,

right column.

• Dial Number: Shows the “Dial Number” screen. ( right column)

• Voice Dial (only accessible when the connected mobile phone has the voice recognition system): Speak the name (registered words) you want to call when “Say Name Clearly”

4, *5

appears *

*2 “No Entries Found” or “Send

Phonebook Manually” appears depending on the <Phonebook Select> settings, 21.

*3 Depends on the <Phonebook Select>

settings, 21.

*4 Operations may be different according

to the connected device.

*5 “Not Support” appears if the

connected phone does not support this feature.

How to enter phone number

Turn the control dial to select a number.

Press 4 /¢ to move the entry

position.

Repeat steps 1 and 2 until you finish

entering the phone number.

Press the control dial to confirm the entry.

How to delete name/phone number

Only when <In Unit> is selected for <Phonebook Select>, 21.

Press to enter “Call Menu” screen.

Display the list of name/phone numbers

using one of the dialing method (see step 2 of “Making a call,” 16).

Turn the control dial to select the name/

phone number you want to delete.

Press and hold

Entries” screen.

Turn the control dial to select “Delete” or

“Delete All.”

• If “Delete” is selected, the selected name/ phone number in step

• If “Delete All” is selected, the listed numbers in step 2 selection are deleted.

Press the control dial to confirm.

T/P BACK

to enter the “Delete

is deleted.

Selecting a contact from the phonebook

] Enter “Call Menu” screen.

]

Select the name/phone number you

want to call.

• When the sound is stopped or interrupted during the use of a Bluetooth device, turn off, then turn on the unit.

– If the sound is not yet restored,

connect the device again using <Connect Phone>.

]

17ENGLISH

]

Show the search menu (A to Z, 0 to 9, and OTHERS). The first character of the first contact on the phonebook appears.

• “OTHERS” appears if the 1st character

is not A to Z or 0 to 9, such as #, —, !, and etc.

]

Select your desired character. The name list of the selected character appears.

]

Select your desired contact.

• To return to the previous menu, press

T/P BACK

• Only the existing characters will be shown on the search menu.

• Press and hold 5/∞ to continuously change the character of the search menu.

• If your phonebook contains many contacts, searching take some time.

Receiving/ending a phone call

When a call comes in, the source is automatically changed to “BT FRONT/BT REAR.” “Receiving... [Phone number/name]” appears on the display.

• The display will flash in blue. (<Ring Color>,

28)

When <Auto Answer> is activated....

The unit answers the incoming calls automatically,

• Press or the control dial to answer the incoming call when <Auto Answer> is deactivated.

• Press 5/∞ to adjust the microphone volume (1 – 3) during a phone call conversation.

To preset the microphone volume, 21.

• Press 4 /¢ to turn on/off the Noise Reduction and Echo Cancelation mode. To preset, 21.

To end a call or reject an incoming call, press and hold or the control dial.

Switching conversation media (the unit/ mobile phone)

Press the control dial during a phone call conversation, then continue your conversation using the other media.

• Operations may be different according to the connected Bluetooth device.

21.

18 ENGLISH

Switching the connected mobile phone

You can switch the current connected mobile phone to the last connected mobile phone.

[Hold]

Phone icon appears and “Connecting” flashes on the display. When the last connected phone is being reconnected again, “Connected [Device Name]” appears on the display. Now you can use the last connected mobile phone with the unit.

Using a Bluetooth audio player

Operations and display indications differ depending on their availability on the connected device.

] Select “BT FRONT” or “BT REAR.”

• If playback does not start operate the Bluetooth audio player to start playback.

automatically,

Arriving of a text message

When a text message comes in, the unit rings if your mobile phone is compatible with text message and <Message Notice> is set to <On>. ( 21)

• “Received Message” appears on the display and the display illuminate in blue. (<Ring Color>, 28)

• You cannot read, edit, or send a message through the unit.

Using the remote controller

5 U

/ D ∞ / 2 R / F 3 /

SOURCE

5 U

/ D ∞ / 2 R / F 3 /

SOURCE

[Hold]

: Switches the conversation media

(between the unit and mobile phone) during a phone call conversation

: Answers calls

: Rejects calls

Starts or resumes playback

Mutes the sound

Selects group/folder

Forward skips or reverse skips

Fast-forwards or

[Hold]

reverses the track

Using the remote controller

2 R

/ F 3: Reverse skips/

Forward skips

2 R

/ F

: Fast-forwards or

[Hold]

reverses the track

19ENGLISH

Selecting the playback modes

• For Bluetooth devices that support AVRCP 1.3.

[Hold]

]

“Repeat” j “Random”

Repeat Track

: Repeats current track

All

: Repeats all tracks

Group

: Repeats all track of current

group

Random All

: Randomly plays all tracks

Group

: Randomly plays all track of

current group

To cancel repeat play or random play, select “Off.”

• To return to the previous menu, press

T/P BACK

Warning messages

Connection Error

The device is registered but the connection

has failed. Use <Connect Phone / Connect Audio> to connect the device again. ( 16)

Error

Try the operation again. If “Error” appears

again, check if the device supports the function you have tried.

Please Wait...

The unit is preparing to use the Bluetooth

function. If the message does not disappear, turn off and turn on the unit, then connect the device again (or reset the unit).

Please Reset...

Reset the unit and try the operation again.

If “Please Reset...” appears again, consult your nearest JVC IN-CAR ENTERTAINMENT dealers.

Changing the Bluetooth settings

[Hold]

Bluetooth Information: If you wish to receive more information about Bluetooth, visit the following JVC web site: <http://www.jvc.co.jp/english/car/> (English website only)

20 ENGLISH

] <Bluetooth> ] <Setting>

]

Select a setting item, then repeat the procedure to change the setting accordingly.

• To return to the previous menu, press

T/P BACK

• To exit from the menu, press

DISP

Setting item Selectable setting, [ Initial: Underlined ]

Auto Connect • Last

• Off

Auto Answer

• On

• Off

Message

• On

Notice

• Off

MIC Setting —

NR/EC Mode

• On

• Off

Ringing Tone

• In Unit

• In Phone

Phonebook

— : You can copy the phonebook memory of a mobile phone into

Trans

Phonebook

Select *

Initialize

• In Phone

• In Unit

• Yes

• No

Information • My BT Name

• My Address

• BT Software Ver

• Connected Phone *

• Connected Audio *

Selectable only when the connected phone supports PBAP.

*2 Displayed only when a Bluetooth phone/audio player is connected.

: The connection is established automatically with the last

connected Bluetooth device when you turn on the unit.

: The unit does not connect the Bluetooth device automatically.

Connect the device manually. ( 16)

: The unit answers the incoming calls automatically. : The unit does not answer the calls automatically. Answer the

calls manually. (

18)

: The unit informs you of the arrival of a message by ringing and

displaying “Received Message.”

: The unit does not inform you of the arrival of a message. : Adjust the volume of the microphone connected to the unit.

[ Level 01/02/03 ]

: The unit adjusts the Noise Reduction and Echo Cancelation of

the microphone connected to the unit for clearer sound.

: Cancels. : The unit rings to alert you when a call/Text Message comes in.

Call: Select your preferred ring tone when a call comes

in. [ Tone 1/2/3 ]

Message: Select your preferred ring tone when a Text

Message comes in. [ Tone 1/2/3 ]

: The unit rings (using the connected phones’ ring tone) to

alert you when a call/Text Message comes in. (The connected mobile phone rings if it does not support this feature.)

the unit (via OPP).

Enter the PIN code to the unit to transfer the phonebook into

the unit. You can transfer a maximum of 400 numbers.

: The unit browses the phonebook of the connected phone. : The unit browses the phonebook registered in the unit.

: Initialize all the Bluetooth settings (including stored pairing,

phonebook, and etc.).

: Cancels.

: Shows the unit name. : Shows address of USB Bluetooth Adapter. : Shows the software version.

: Shows connected phone name.

: Shows connected audio device name.

21ENGLISH

Listening to the iPod/iPhone

You can connect the iPod/iPhone using the USB 2.0 cable (accessory of the iPod/iPhone) to the USB input terminal on the control panel or USB cable from the rear of the unit.

There are three control terminals:

• <Headunit Mode> Control by this unit;

• <iPod Mode> Control by the connected iPod/iPhone;

• <External Mode> The sound of any functions (musics, games, applications, etc.) running on the connected iPod/iPhone is emitted through the speakers connected to this unit.

Preparation:

Select the controlling terminal, <Headunit Mode>, <iPod Mode>, or <External Mode> for iPod playback:

• Press and hold

• Make the selection from <iPod Switch> setting, 31.

The operations explained below are under <Headunit Mode>.

T/P BACK

button.

]

Turn on the power.

USB input terminal

USB cable from the rear of the unit

Playback starts automatically.

USB 2.0 cable (accessory of the iPod/iPhone)

iPod/iPhone

and/or

iPod/iPhone

Caution:

• Some of the applications in the connected iPod/iPhone may not work correctly with this unit.

• Avoid using the iPod/iPhone if it might hinder your safety while driving.

• Make sure all important data has been backed up to avoid losing the data.

22 ENGLISH

Stopping playback

and

detaching the iPod/iPhone

Straightly pull the USB 2.0 cable out from the unit. “No USB” appears. Press another playback source.

• For details, refer also to the instructions supplied with your iPod/iPhone.

The following is not applicable in <

External

Mode>.

Starts playback or pauses/ resumes playback

• While in <External Mode>, the sound mutes.

[Hold]

/ SOURCE

to listen to

Selects track or chapter

Fast-forwards or reverses the track

Selecting a track from the menu

The following is not applicable in <iPod Mode> and <External Mode>.

• If the selected menu contains many tracks, you can fast search (±10, ±100, ±1000) through the menu by turning the control dial quickly.

• To return to the previous menu, press

T/P BACK

You can also use the search menu (A to Z and 0 to 9) to scroll through the desired menu.

After you have selected your desired menu (in

step 2)....

Press 5/∞ to show the search menu.

• The first character of the current file name

appears.

Press 5/∞ to select your desired character.

Then press the control dial to confirm.

• The track list with the selected character

appears.

Turn the control dial to select your desired

track. Then press the control dial to confirm.

• Only the existing characters will be shown on the search menu.

• Press and hold 5/∞ to continuously change the character of the search menu.

• If your iPod/iPhone contains many tracks, searching take some time.

• Searching may not work on some of the layers of the selected menu.

]

Select the desired menu.

Playlists j Artists j Albums j Songs j Podcasts j Genres j Composers j Audiobooks j (back

to the beginning)

]

Select your desired track. Repeat this procedure until the desired track is selected.

23ENGLISH

Selecting the playback modes

The following is not applicable in <iPod Mode> and <External Mode>.

[Hold]

]

“Repeat” j “Random”

Repeat One : Functions the same as

“Repeat One” of the iPod

All : Functions the same as

“Repeat All” of the iPod

Random Song :

Functions the same as “Shuffle Songs” of the iPod

Album : Functions the same as

“Shuffle Albums” of the iPod

• To cancel repeat play or random play, select “Off.”

• “Random Album” is not available for some iPod/iPhone.

• To return to the previous menu, press

T/P BACK

Using the remote controller

The following is not applicable in <External

Mode>.

2 R

/ F 3: Selects track or chapter

2 R

/ F

: Fast-forwards or

[Hold]

reverses the track

Notice: When operating an iPod, some operations may not be performed correctly or as intended. In this case, visit the following JVC web site: <http://www.jvc.co.jp/english/car/> (English website only).

24 ENGLISH

Listening to the other external components

You can connect an external component to the AUX (auxiliary) input jack on the control panel.

• For details, refer also to the instructions supplied with the external components.

Preparation: Make sure <Show> is selected for the <Source Select>

( 31)

]

“AUX IN”

Turn on the connected

component and start playing the source.

Connecting an external component to the AUX input jack

3.5 mm stereo mini plug (not supplied)

]

Adjust the volume.

Adjust the sound as you want.

⁄

( 26)

Portable audio player,

<Aux Source> setting.

etc.

25ENGLISH

Selecting a preset sound mode

You can select a preset sound mode suitable for the music genre.

FLAT = NATURAL = DYNAMIC = VOCAL

BASS = USER = (back to the beginning)

While listening, you can adjust the tone level of the selected sound mode.

[Hold]

]

Select the tone (Bass / Middle /

Treble).

]

Adjust the level (–6 to +6) of the selected tone. The sound mode is automatically stored and changed to “USER.”

Tone Sound element

Bass Frequency: 50 Hz, 100 Hz, 200 Hz

Level: –6 to +6 Q: Q0.7, Q1.0, Q1.4, Q2.0

Middle Frequency: 0.5 kHz, 1.0 kHz, 2.0 kHz

Level: –6 to +6 Q: Q0.7, Q1.0, Q1.4, Q2.0

Treble Frequency: 5.0 kHz, 10.0 kHz, 15.0 kHz

Level: –6 to +6 Q: Q0.7, Q1.0, Q1.4, Q2.0

Storing your own sound mode

You can store your own adjustments in memory.

[Hold]

]

<PRO EQ> ] <Bass / Middle /

Treble> Adjust the sound elements of the

selected tone. ( table on the left)

Press 4 /¢ to adjust the

frequency.

Press 5 / ∞ to adjust the level.

Turn the control dial to adjust the

Q-slope.

Press the control dial to store the

adjustment.

Repeat steps 2 and 3 to adjust other

tones.

]

Exit from the menu. The adjustments made will be stored automatically in “USER.”

The current sound mode changes to “USER” automatically.

26 ENGLISH

Menu operations

1 2 3
