SeedStar™2
F
G
RelativeFlow™ Blockage
Quick Reference Guide
Tower Designation:
Circles represent towers. A standalone circle
in the lower left represents a primary only
system. A circle surrounded by numbered
indicators represents an all-run system.
The number in the middle of the circle
indicates the specic tower that is selected
from the top row of tower indicators.
The bar graph displays the ow rates of
each sensor on the selected tower.
Selected tower.
The bar indicates the
flow for the sensor
with the lowest reading
on the tower.
Black triangle = Auto-Scan
selected tower.
White triangle = Manually
selected tower.
Product flow at each sensor
for selected tower.
Extra or missing sensor
detected.
Sensor Indicators:
Gray indicates a missing or extra sensor
detected by the blockage software.
Green indicates product ow and
active sensor.
White indicates inactive sensor.
Red indicates blocked hose.
##
indicates disabled sensor.
Gold indicates unexpected ow.
Outer bar shows product flow
relative to other primaries on
the same shoot. A blocked tower.
Blockage Setup
Blockage – Main
Select for main blockage run page.
123
Blockage – Setup
Select to dene tool and blockage
conguration.
Central color indicates
overall status of tower.
H
Blockage – Reset
Select to clear blockage
detections.
Information
Select for more details about
items on screen.
Diagnostics
Select to enter diagnostic
information.
Tower with
flowing product.
All sensors on the
tower are disabled by
the operator.
There is unexpected flow
on this inactive tower.
An inactive tower
commanded off by the
operator or the mapping
software.
Flow detected on an extra
sensor.
Unexpected flow detected
on an inactive sensor.
Selected tower appears
in lower left corner.
Press the central circle to
disable or enable all the
sensors on this tower.
Inactive sensor with
no product flowing.
Active sensor with
product flowing.
Product flow unexpectedly
detected on an inactive
sensor.
A blocked or restricted
secondary hose on that
secondary.
Disabled sensor. Press an
individual sensor to disable or
enable that sensor.
SeedStar™2
RelativeFlow™ Blockage
Quick Reference Guide

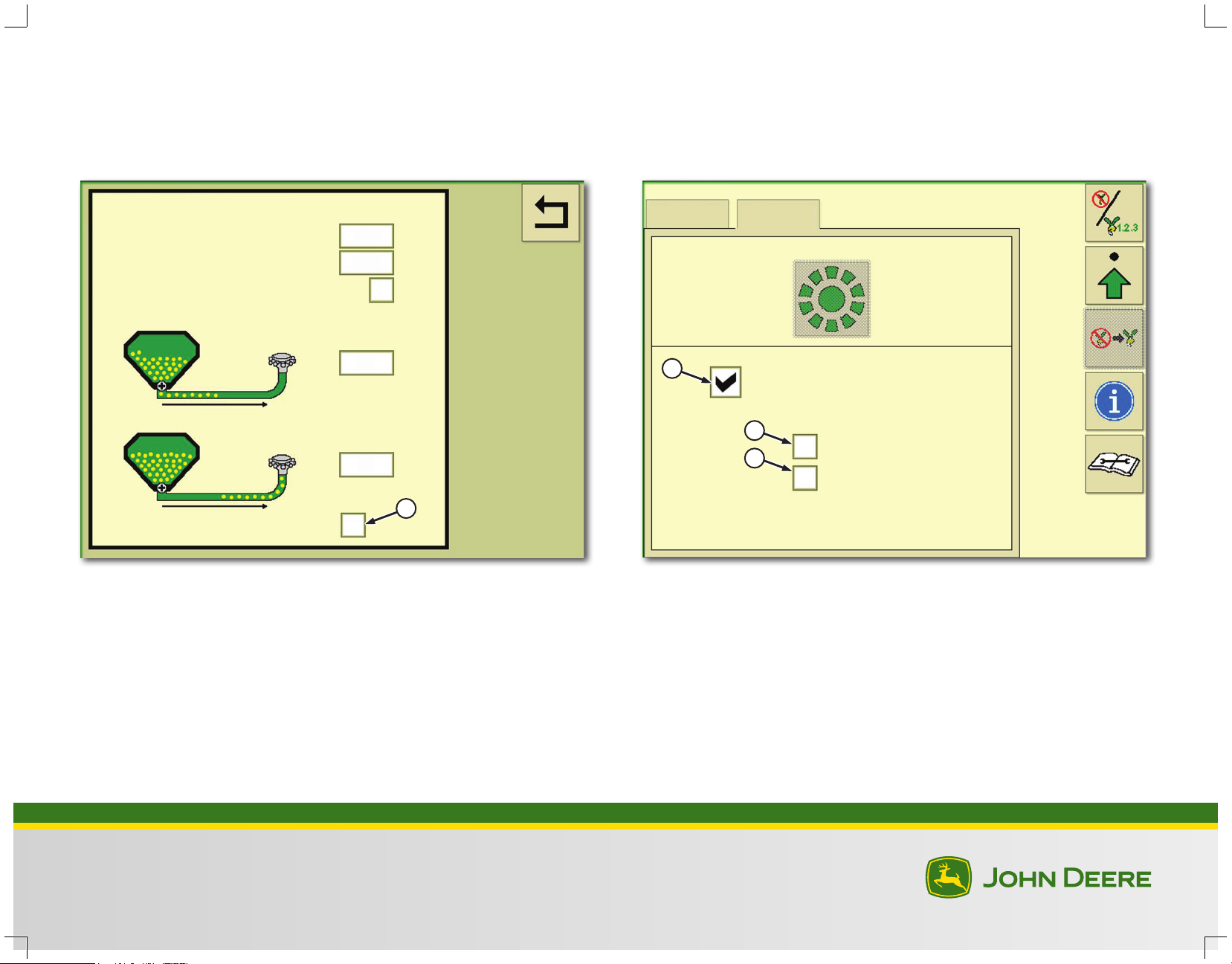

Blockage Setup
Main
Top
Shoot
Bottom
Shoot
Run Page
Alarm Behavior
Advanced Settings
Manual Tower
Configuration
Select primary Menu button >> Blockage button >> Setup softkey >>
Main tab.
Plus and Minus buttons change the sensitivity level of the blockage
sensors.
Set the initial sensitivity at a high level. To change the degree of alarm
response, adjust the sensitivity.
Select the Manual Tower Configuration (A) button.
The Manual Tower Configuration button is used for setting up the
configuration without an Air Cart present.
Sensors
Blockage Warning Sensitivity
Alarm on Block
B
A
5:16 am
Blockage Setup Advanced
Blockage Delay
Blockage Alarm Reminder
Delay Alarms until nex t Reminder
Meter ON Delay
Meter OFF Delay
Enable Dual Row Spacing Setup
Select primary Menu button >> Blockage button>> Setup softkey >>
Main tab >> Advanced Settings (B) button.
Enter the time value (seconds) for each feature.
Blockage Delay (C): How long a blockage is sensed before an
•
alarm sounds.
Blockage Alarm Reminder (D): How long the alarm remains silenced
•
by the operator.
Meter On Delay (E): The amount of time that the software waits to detect
•
product at the tower after meter activation. Note: This setting needs to be
greater than the mechanical delay (On/Off Time) to prevent false alarms.
Meter Off Delay (F): The amount of time that the software waits for
•
detected product to clear after meters are deactivated.
Selecting check box (G) delays any new blockage alarms for the duration of
•
the blockage alarm reminder after a blockage warning has been accepted.
Note: This box is default off from the factory.
C
10
D
G
E
F
30
7
7
(s)
(s)
(s)
(s)
