Thank you for choosing a Jensen product. We hope you will find the instructions in this owner’s
manual clear and easy to follow. If you take a few minutes to look through it, you’ll learn how to
use all the features of your new Jensen VM9020TS Mobile Multimedia DVD/MP3/WMA
Receiver for maximum enjoyment.
Congratulations on your purchase of the Jensen VM9020TS
Mobile Multimedia AM/FM/DVD Receiver.
It’s a good idea to read all of the instructions before beginning
the installation. We recommend having your Jensen
VM9020TS installed by a reputable installation shop.
•Full, Wide, Normal and Off (Standby) screen modes
•Motorized TFT panel has 16 precise angle adjustments
via remote control or infinitely variable manual
adjustment from the front panel
•Auto-activated rear view camera input - Reverse gear
over rides the TFT screen to display video from a rear
mounted camera
•Over current motor protection for obstructed TFT panel
•Compatible optical / SD Card formats: DVD-R/RW,
DVD+R/RW, CD-R/RW, CD-DA, MP3, WMA, HDCD,
SVCD, VCD, MPEG (MPEG 1), MPEG 4, JPEG, MP3/
WMA files burned onto a DVD+R/RW or DVD-R/RW
and Kodak Picture CD
•SD Card slot
•Multi-language, multi-subtitle and multi-angle playback
options
•Last position memory for optical disc.
•Parental Lock - Uses a password and disc rating set-up
to prevent unauthorized user access from display
content
•Audio Mute
•5-Way joystick navigation
•Two remote controls - a full function front remote control
and a limited function Kid-Zone remote control for back
seat operation
•Over and under voltage protection to insure the unit
operates within designed parameters
•Damped DVD mechanism with 16Mbit flash memory
ESP (Electronic Shock Protection) provide smooth disc
playback under the severest road conditions
Tools and Supplies
You will need these tools and supplies to install your
VM9020TS:
•Torx type, flat-head and Philips screwdrivers
•Wire cutters and strippers
•Tools to remove existing radio (screwdriver, socket
wrench set or other tools)
•Electrical tape
•Crimping tool
•Volt meter/test light
•Crimp connections
•18 gauge wire for power connections
•16 – 18 gauge speaker wire
WARNING! Only connect the unit to a12-volt power
supply with proper grounding.
WARNING! Never install this unit where operation and
viewing could interfere with safe driving conditions.
WARNING! T o reduce the risk of a traffic accident (except
when using for rear view video camera) never use the
video display function while driving the vehicle. This is a
violation of federal law.
WARNING! Never disassemble or adjust the unit without
the assistance of a professional. For details, please
consult your local car stereo specialty shop.
WARNING! To prevent injury from shock or fire, never
expose this unit to moisture or water.
WARNING! Never use irregular discs.
WARNING! To prevent damage to the mechanism inside
this unit, avoid impact to the TFT monitor.
WARNING! To prevent damage to the touch screen
display, do not use metal, plastic or any other object to
attempt to operate the touch screen functions. The touch
screen function was designed for hand/finger operation
only.
WARNING! The monitor employs an automatic motorized
mechanism. To prevent damage to the core mechanism,
please do not push, pull or swivel the monitor manually.
Disconnecting the Battery
To prevent a short circuit, be sure to turn off the ignition and
remove the negative (-) battery cable prior to installation.
NOTE: If the VM9020TS is to be installed in a car
equipped with an on-board drive or navigation computer,
do not disconnect the battery cable. If the cable is
disconnected, the computer memory may be lost. Under
these conditions, use extra caution during installation to
avoid causing a short circuit.
1
INSTALLATION
This unit is designed to fit into a 2.0 DIN dashboard opening,
found in many imported cars. The unit has threaded holes in
the chassis side panels which may be used with the original
factory mounting brackets of some Toyota, Nissan,
Mitsubishi, Isuzu, Hyundai and Honda vehicles to mount the
radio to the dashboard. Please consult with your local car
stereo specialty shop for assistance on this type of
installation.
1.Remove the existing factory radio from the dashboard or
center console mounting. Save all hardware and brackets as they will be used to mount the new radio.
2.Remove the factory mounting brackets and hardware
from the existing radio and attach them to the new radio.
ISO INSTALLATION
NOTE: It is the end-users responsibility to install and
operate this unit in a manner in accordance with local,
state and federal laws. The PARKING BRAKE wire MUST
BE CONNECTED as directed in the manual.
CAUTION: Do not block the cooling fan exit. If bloc ked,
the unit may overheat and become damaged.
Using the iAUX3 External AV Connector
The iAUX3 allows you to connect a variety of external
devices, including a VCR, DVD player, portable MP3 player,
etc., to your VM9020TS without removing the radio.
To install the iAUX3, connect it to the AUX-IN cables on the
back of the VM9020TS (see “Wiring” on page 3), and then
install the iAUX3 in a location convenient for plugging in
auxiliary devices.
Using the Cosmetic Trim Ri ng
A trim ring is packaged with the VM9020TS for installation
flexibility. The VM9020TS will fit into most import dashes with
little or no modification to the dash board/cavity. Some US
domestic vehicle dashes will accept a Double-DIN chassis,
but there is usually a small gap between the radio and dash
piece after installation is complete. In this case, use the trim
ring to conceal any gaps that may be present.
VM9020TS
CAUTION: Do not exceed M5 X 6 MM screw size. Longer
screws may touch and damage components inside the
chassis.
3.Place the radio in front of the dashboard opening so the
wiring can be brought through the mounting sleeve.
Follow the wiring diagram carefully and make certain all
connections are secure and insulated with wire nuts or
electrical tape. After completing the wiring connections,
plug the ISO connectors into the mating sockets on the
rear of the chassis. Turn the unit on to confirm operation
(vehicle ignition switch must be “on”). If the unit does not
operate, re-check all wiring until the problem is
corrected.
4.Mount the new radio assembly to the dashboard or
center console using the reverse procedure in step 1.
CAUTION: For proper operation of the CD player, the
chassis must be mounted within 30° of horizontal. Make
sure the unit is mounted within this limitation.
Replacing the Fuse
When replacing the fuse, use a new 10A replacement fuse.
Using a fuse with an improper rating could damage the unit
and cause a fire.
2
HEADPHONE
MULTIZONE
VOUT
,'(2
MILTIZONE
VIDEO
)5217/
)52175
5($5
/
SURROUND
5($5
5
SURROUND
68%:
&(17(5
$8;,19,'(2
$8;,15
$8;,1/
5($55
)52175
)5217/
5($5/
$&&
087(
%$77
*1'
&$0(5$
&(17(5
35.6:
5(9(56(
3&217
$17&217
Additional
Rear Monitor
Multizone
Video
*5((1
*5((1%/$&.
:+,7(
:+,7(%/$&.
*5(<
*5(<%/$&.
3853/(
3853/(%/$&.
%$77(5<
,*1,7,216:,7&+
5('
<(//2:
%/$&.
<(//2:
BROWN
BROWN%/$&.
%52:1 (-)
),/7(5)86($
PINK (-)
GREEN/WHITE (+)
%/8(
*HDUER[6ZLWFK
5HDU9LHZ9LGHR
&DPHUD
5DGLR$XWR$QWHQQD
79$QWHQQD
79$QWHQQD
&DU3KRQH
%/8(
*5((1
<(//2:
:LUHOHVV
+HDGSKRQH
79$QWHQQD1
HEADPHONE
MULTIZONE
([WHUQDO$96\VWHP
VM9020TS
WIRING
&(17(5
*5(<
%52:1
([WHUQDO3RZHU$PSOLILHU
Additional
Rear Monitor
Multizone
Video
68%:
5('
:LUHOHVV
+HDGSKRQH
/
5
5($5
5($5
SURROUND
SURROUND
5('
:+,7(
:+,7(
<(//2:
:+,7(
<(//2:
)52175
%/8(:+,7(
5('
)5217/
$8;,15
5('
:,+7(
3
AUDIO VIDEO INPUT
3.5mm
3.5mm
iAUX 3
([WHUQDO$96\VWHP
3&217
<(//2:
HEADPHONE
MULTIZONE
HEADPHONE
MULTIZONE
MILTIZONE
VIDEO
$8;,1/
VOUT
,'(2
*HDUER[6ZLWFK
5DGLR$XWR$QWHQQD
%/8(
%/8(
35.6:
PINK (-)
$17&217
GREEN/WHITE (+)
79$QWHQQD1
79$QWHQQD
79$QWHQQD
79$QWHQQD
5(9(56(
&DU3KRQH
$8;,19,'(2
087(
%52:1 (-)
*5(<%/$&.
3853/(%/$&.
5($55
3853/(
3
$&&
,*1,7,216:,7&+
5('
<(//2:
%/$&.
),/7(5)86($
%$77
%$77(5<
*1'
<(//2:
5HDU9LHZ9LGHR
&DPHUD
)5217/
:+,7(
:+,7(%/$&.
*5((1
)52175
*5(<
NOTE: The white multipin connector will not be used in every installation. In this case, it
can be cut-off and discarded. This will not void any warranty that the unit may have.
5($5/
*5((1%/$&.
*5((1
<(//2:
&$0(5$
&(17(5
BROWN
BROWN%/$&.
CONTROLS AND INDICATORS
1. POWER/MUTE
Press the POWER/MUTE button (1) once to turn the unit on.
Press again to mute the volume. Press and hold to turn the
unit off.
2. AUDIO/LOC
Press the AUDIO/LOC button (2) to access the audio menu
and change and/or confirm audio settings. Press and hold to
activate or deactivate the Local (LOC) setting.
3. VOL +
Press to increase the volume.
4. VOL -
Press to decrease the volume.
5. Joystick/ENTER
Press in on the joystick to perform the “enter” function during
various applications. Push the key up, down, left or right to
perform the following tasks:
6. Joystick/
•DVD Mode: Press once for fast forward/fast reverse.
•TUNER Mode: Press to go up one frequency step.
•MENU Mode: Press once to move the cursor up.
•TV Mode: Press once to select a stored TV channel.
7. Joystick/
•DVD Mode: Press once for slow forward/slow reverse.
•TUNER Mode: Press to go down one frequency step.
•MENU Mode: Press once to move the cursor down.
•TV Mode: Press once to select a stored TV channel.
8. Joystick/
•DVD Mode: Press once to play back previous chapter/
track.
•TUNER Mode: Press once to auto search for the
previous available radio station. Press and hold to
increase the tuner frequency step-by-step.
•MENU Mode: Press once to move the cursor to the left.
•TV Mode: Press to go down one frequency step.
9. Joystick/
•DVD Mode: Press once to enter the next chapter or
track.
•TUNER Mode: Press once to auto-search the next
available radio station. Press and hold to decrease the
tuner frequency step-by-step.
•MENU Mode: Press once to move the cursor to the
right.
•TV Mode: Press to go up one frequency step.
10. TUNER
Press to access the radio tuner source and then to change
between AM and FM bands.
11. MENU/SRC
Press to access the playing source menu.
12. OPEN
Press the OPEN button (12) to activate the automatic
mechanical system and move the TFT down, exposing the
disc and SD card slots. Press again to close the TFT.

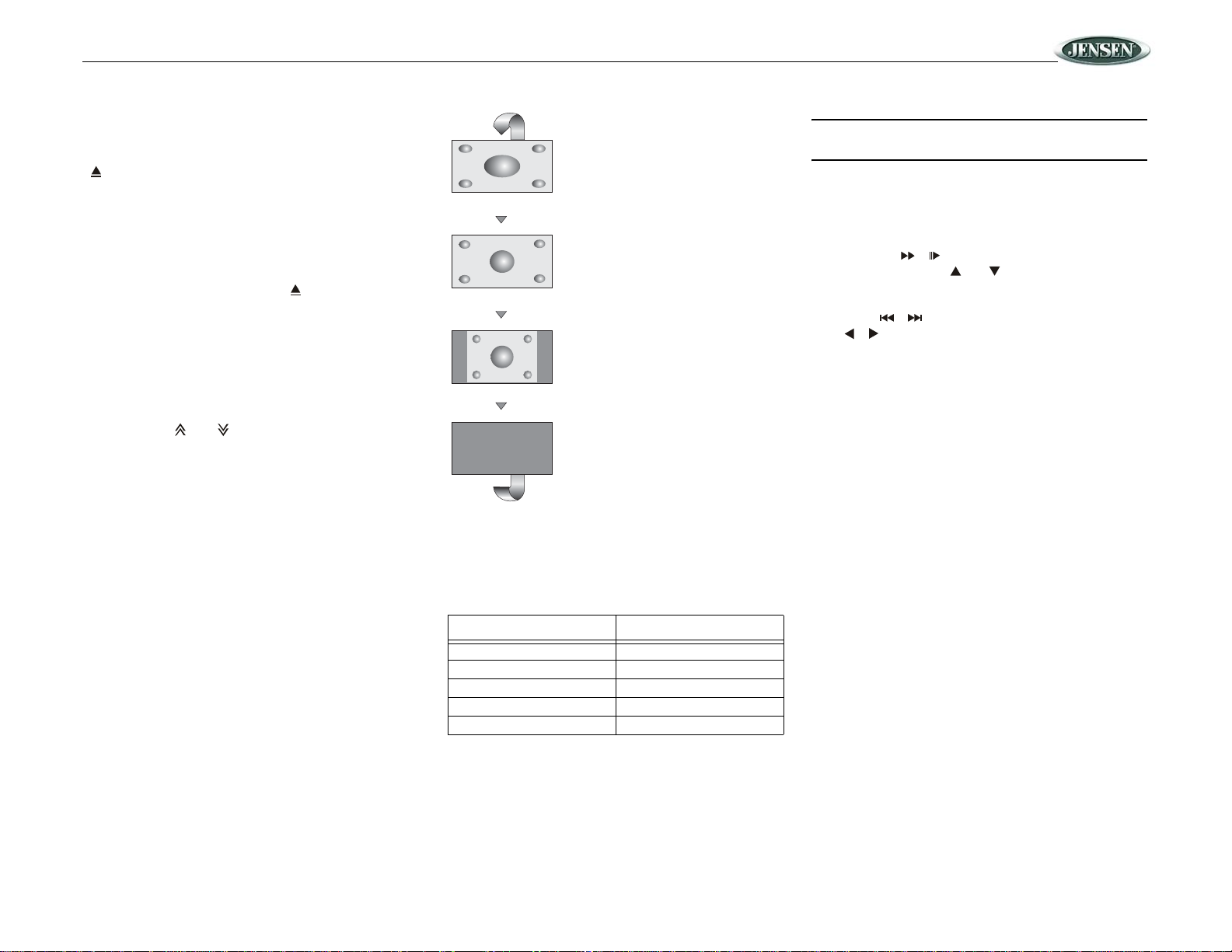

13. DISP/PIC
Press the DISP/PIC button (13) to adjust the display aspect
of the picture to one of three settings: Wide, Full or Normal.
Press and hold to access picture settings.
14. CH+
•Press and hold the CH+ button (14) to adjust the
•Press to play the next preset AM/FM station.
•Press to play the next stored TV channel.
VM9020TS
15. CH-
•Press and hold the CH- button (15) to adjust the monitor
position outward.
•Press to play the previous preset AM/FM station.
•Press to play the previous stored TV channel.
16. TV
Press to access the TV tuner source.
17. TFT Display
18. DVD
Press the access the DVD player source.

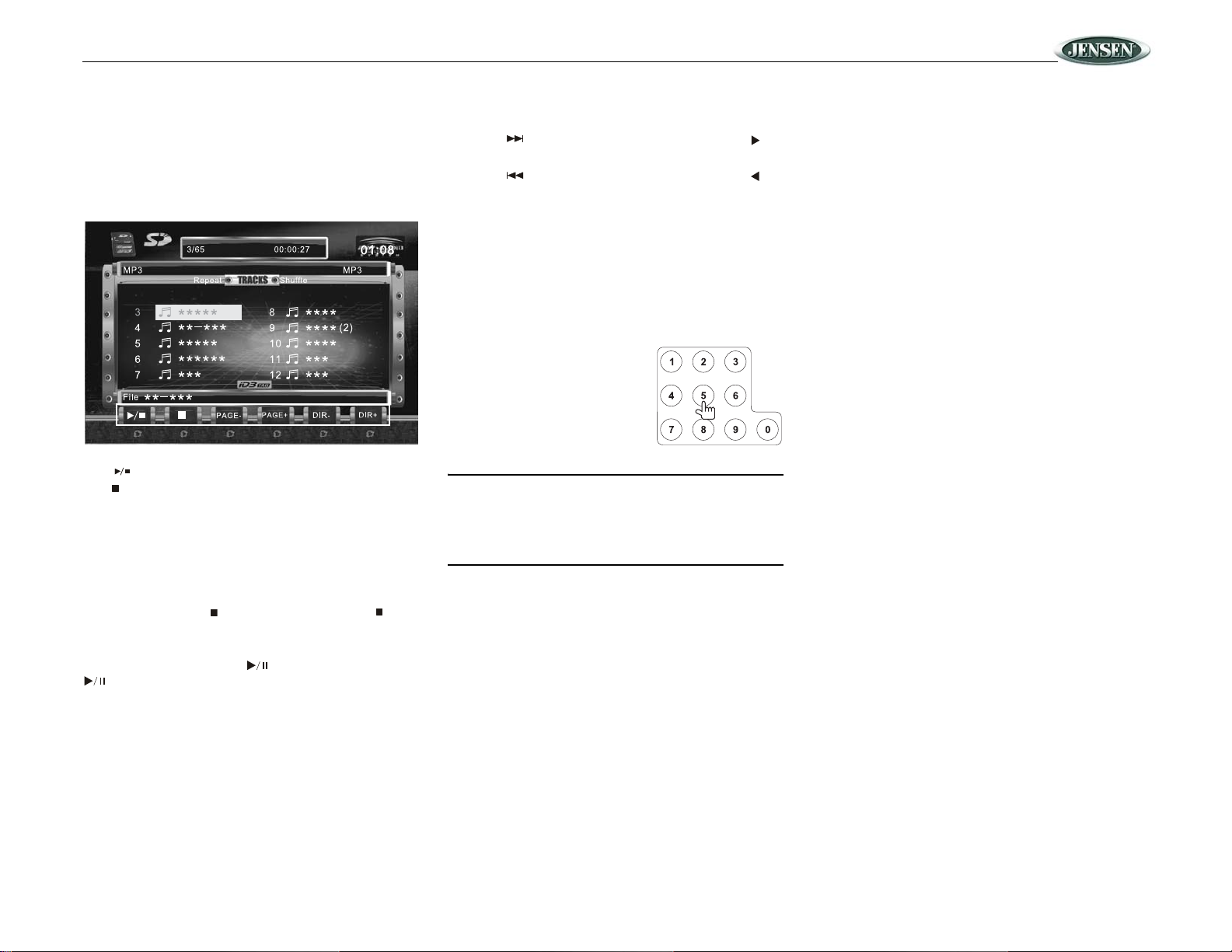

19. SD
•Press to access the SD card source.
20. IR Remote Control Receiver
monitor position upright.
4
VM9020TS
CONTROLS AND INDICATORS
21. Disc Slot
22. Eject Button
•Press once to eject the disc.
•Press and hold to reset the mechanism.
23. Disc Indicator
24. SD Card Slot
25. Reset Button (see page 4).
5
FRONT ZONE REMOTE CONTROL
Table 1: Front Zone Remote Control Functions
ButtonFunction
NameRef #DVDVCDTUNERCD/MP3
MENU1Enters the main menu of the
TITLE2Enters the title menu of the
MUTE/
AUDIO5Changes the audio language
REPT A-B6Setup to repeat playback
REPT7Repeats playback of current
SRC8Selects front zone playback
SUBTITLE9Language selection for subti-
disc
disc
4Turns the power on.
Toggles on/off audio output.
Press and hold to turn the
power off.
for disc playback
from time frame A to time
frame B
chapter
source
tle
DISP10Displays playing informationDisplays playing informationDisplays playing informationDisplay playing information
ANGLE
