VM9413

Operation Manual

Manual de Operación

Instructions d'opération

DISP

Multimedia Receiver

ANGLE / TILT PICTURE

BAND

Press Audio

VM9413

MUTE INT RPT

NAV

Enter

160

Watts P eak Watts e n Crê te Vati os el M áxim o

40W x 4

CONTENTS

Thank you for choosing a Jensen product. We hope you will find the instructions in this owner’s manual clear and easy to follow. If you take a few minutes to look through it, you’ll learn how to use all the features of your new Jensen VM9413 Mobile Multimedia Receiver for maximum enjoyment.

Introduction ........................................................................................................................... 1

Anti-Theft Feature................................................................................................................. 2

Controls and Indicators......................................................................................................... 3

Remote Control..................................................................................................................... 5

Using the TFT Monitor .......................................................................................................... 7

Operating Instructions........................................................................................................... 9

Setup Menu......................................................................................................................... 11

Tuner Operation.................................................................................................................. 14

Satellite Radio Operation.................................................................................................... 17

DVD/VCD Video Operation................................ ................................................................. 19

DVD/CD Audio Operation ................................................................................................... 22

Playing MP3/WMA Files...................................................................................................... 23

iPod Operation.................................................................................................................... 26

Bluetooth Operation............................................................................................................ 28

Troubleshooting .................................................................................................................. 31

Specifications...................................................................................................................... 34

CONTENIDO

Gracias por elegir los productos Jensen. Esperamos que encuentre en este manual instrucciones claras y fáciles de seguir. Si se toma unos pocos minutos para leerlo, aprenderá cómo utilizar todas las funciones de su nuevo radio Jensen VM9413 para su máximo entretenimiento.

Preparación......................................................................................................................... 35

Dispositivo anti-robo............................................................................................................ 37

Controles e Indicadores...................................................................................................... 38

Control Remoto................................................................................................................... 40

Cómo Usar el Monitor TFT.................................................................................................. 43

Instrucciones de Funcionamiento ....................................................................................... 45

Menú de Configuración....................................................................................................... 47

Operación de Sintonizador.................................................................................................. 50

Operación de Radio Satelital .............................................................................................. 53

Operación de Video de DVD/VCD ...................................................................................... 55

Operación de Audio de DVD/CD......................................................................................... 58

CÓmo reproducir archivos MP3/WMA................................................................................ 60

Operación de iPod .............................................................................................................. 63

Operación de Bluetooth ...................................................................................................... 65

Resolución de Problemas ................................................................................................... 68

Especificaciones ................................................................................................................. 71

TABLE DES MATIÈRES

Merci d'avoir choisi un produit Jensen. Nous espérons que vous allez trouver les instructions dans ce guide de propriétaire claires et faciles à suivre. Prenez quelques minutes à le consulter, vous apprendrez à utiliser toutes les fonctions de votre nouvelle radio Jensen VM9413 pour en tirer une jouissance maximum.

Preparation......................................................................................................................... 73

Fonctions anti-vol............................................................................................................... 75

Commandes et indicateurs................................................................................................. 76

Telecommande................................................................................................................... 78

Utilisation du moniteur TFT................................................................................................ 81

Instructions d’operation...................................................................................................... 83

Menu configuration (Setup)................................................................................................ 85

Operation Tuner................................................................................................................. 88

Operation radio Satellite..................................................................................................... 91

Operation video DVD/VCD................................................................................................. 93

Operation audio DVD/CD................................................................................................... 96

Jouer des fichiers MP3/WMA............................................................................................. 98

Operation iPod ................................................................................................................. 101

Operation Bluetooth ......................................................................................................... 103

Depannage....................................................................................................................... 106

Specifications................................................................................................................... 110

INTRODUCTION

Congratulations on your purchase of the Jensen VM9413 Mobile Multimedia Receiver.

It’s a good idea to read all of the instructions before beginning the installation. We recommend having your head unit installed by a reputable installation shop.

Features

DVD

• Aspect Ratio - Cinema, Normal and OFF (Standby)

• Fast Forward, Fast Reverse - 2X, 4X, 6X and 8X

• Slow Forward, Slow Reverse - 2X, 4X and 8X

• Play, Pause, Stop, Next Chapter and Previous Chapter

• ESP - 2MB Buffer

CD / MP3 / WMA

• ID3 Tag Compatible

• Directory Search (MP3 / WMA Only)

• Direct Track Access via Remote control

• Burn Up To 1500 MP3 and WMA Files onto a DVD+R / RW

• Audible Forward / Reverse Track Search

• Random, Repeat and Intro

• Play, Pause, Stop, Next Track and Previous Track

• ESP - 2MB Buffer

Tuner

• HDRM-2 HD Radio Module*

• USA / Europe Frequency Spacing

• 24 Station Presets (18 FM / 6 AM)

• Auto Stereo / Mono

• Auto Store

Sat Radio Ready

• Requires XM CNP2000UC and CNPJEN1 (Both Sold Separately)

• Satellite Channel Name, Artist, Song and Categories Displayed on TFT Screen

iPod

• High Speed Direct Connect Interface to Access iPod Playlists, Artists, Albums and Songs. Play music and view video files from your iPod.

• Power Management Charges iPod while Connected

• Requires jLink

• iTunes

MediaLink

• Under Dash Interface Allows Portable Media Devices to be Connected

• MediaLink

iPod Interface Cable (included)

Tagging

Includes the Following Connectivity:

• USB - Supports Hard Drives and Flash Memory Drives

• jLinkDirect for iPod

• RCA Audio /Video Input

Chassis

• 1.0 DIN (Import/ISO-DIN Mountable)

• 7" Motorized Swivel Flip-Out/Flip-UpTFT Active Matrix LCD with Anti-Glare Coating

• Screen Tilt/Angle Adjustment

• Heat Management System - Forced-Air Cooling to Keep the Chip Sets Operating at Nominal Temperatures

General

• Bluetooth ready with hands-free profile for safety / convenience and A2DP profile for streaming music from a PDA / PMP

• Navigation Ready (NAV102 Only)

• Infrared Remote Control

• Two Composite Video Outputs for Additional Screens

• Compatible with MZ7TFT Rear Seat Monitors with Touch Screen Interface

• Two Audio /Video Auxiliary Inputs

• 200-Ohm Preamp Line Output - All Audio Channels

• 4VRMS Line Output - All Channels

• Rotary Encoder Audio Control

• Seven-Band EQ with Eight Preset EQ Curves

• Spectrum Analyzer

• Front, Rear, and Subwoofer Line Output

• Subwoofer Crossover and Phase Control

• Programmable Volume Control

• Rear Camera Input (Normal and Mirror Image View)

• Auto TFT Dimmer

• 5-Way Joystick

• SWC Interface – Compatible with PAC adapter SWI-PS Steering Wheel Control Interface, sold separately

Optional Equipment

• NAV102 The head unit is "navigation ready." Before accessing any navigation features, you must purchase and install the NAV102 module. All installation and operating instructions will be included with the NAV102 navigation module. Once the NAV102 is connected and operating properly, the NAV source mode will become active. While the NAV102 is not installed, the NAV option appears gray, indicating the function is not available.

VM9413

• Rear Camera The head unit is "camera ready." Before accessing any camera features, you must purchase and install a rear video camera. Once the rear camera is connected and operating properly, the CAMERA source mode will become active. While the camera is not installed, the CAMERA option appears gray, indicating the function is not available.

• Satellite Radio Tuner See “Satellite Radio Operation” on page 17.

• iPod See “Playing MP3/WMA Files” on page 23.

• Bluetooth Phone See “Bluetooth Operation” on page 28.

WARNING! To reduce the risk of a traffic accident (except when using for rear view video camera) never use the video display function while driving the vehicle. This is a violation of federal law.

WARNING! Never disassemble or adjust the unit.

WARNING! To prevent injury from shock or fire, never expose this unit to moisture or water.

WARNING! Never use irregular discs.

WARNING! To prevent damage to the mechanism inside this unit, avoid impact to the TFT monitor.

WARNING! Using an improper fuse may cause damage to the unit and result in a fire.

WARNING! The monitor employs an automatic motorized mechanism. To prevent damage to the core mechanism, please do not push, pull or swivel the monitor manually, other than in the manner explained in “Monitor Left/Right Angle Adjustment” on page 7.

*HD Radio™ Technology Manufactured Under License From iBiquity Digital Corporation. U.S. and Foreign Patents. HD Radio™ and the HD and HD Radio logos are proprietary trademarks of iBiquity Digital Corporation.

VM9413

RADIO

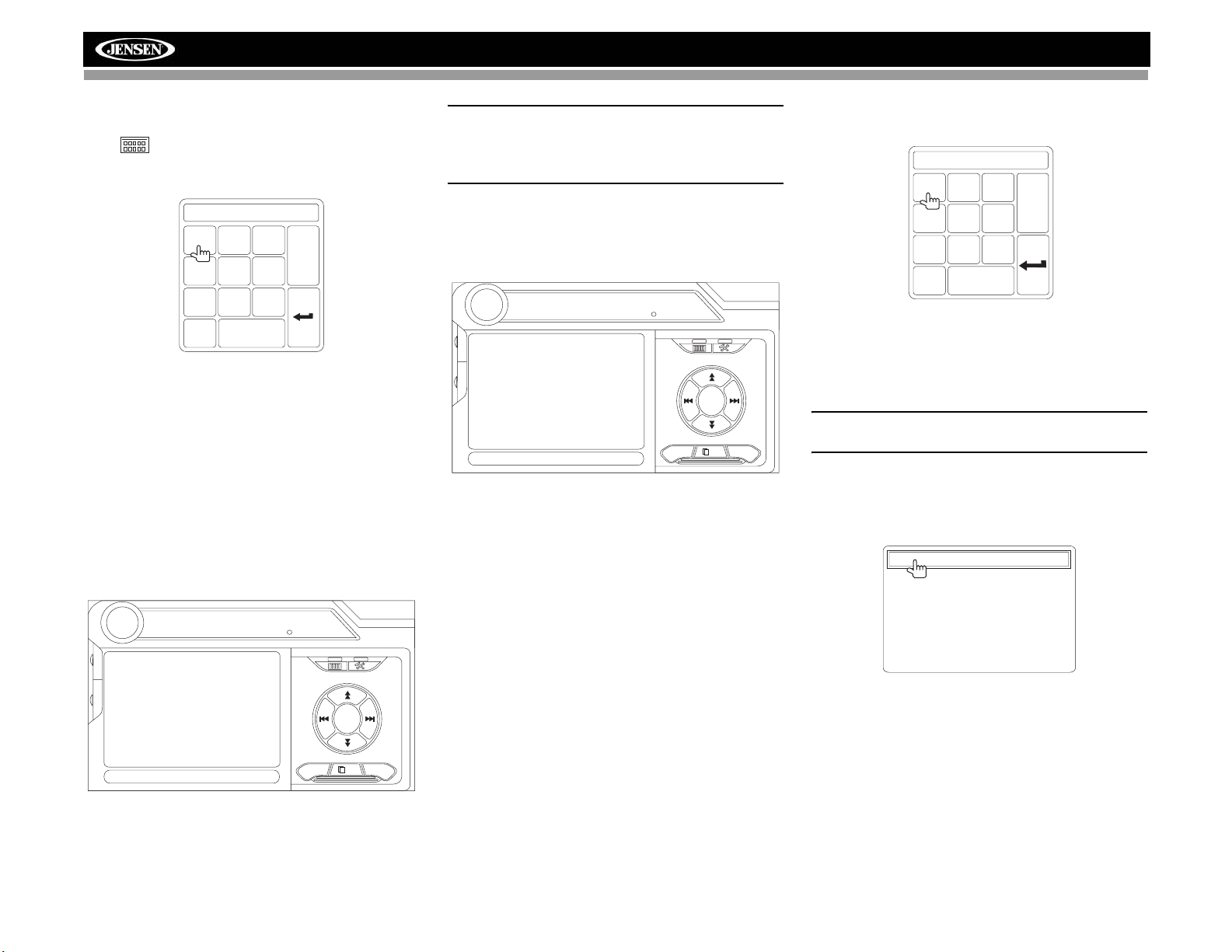

ANTI-THEFT FEATURE

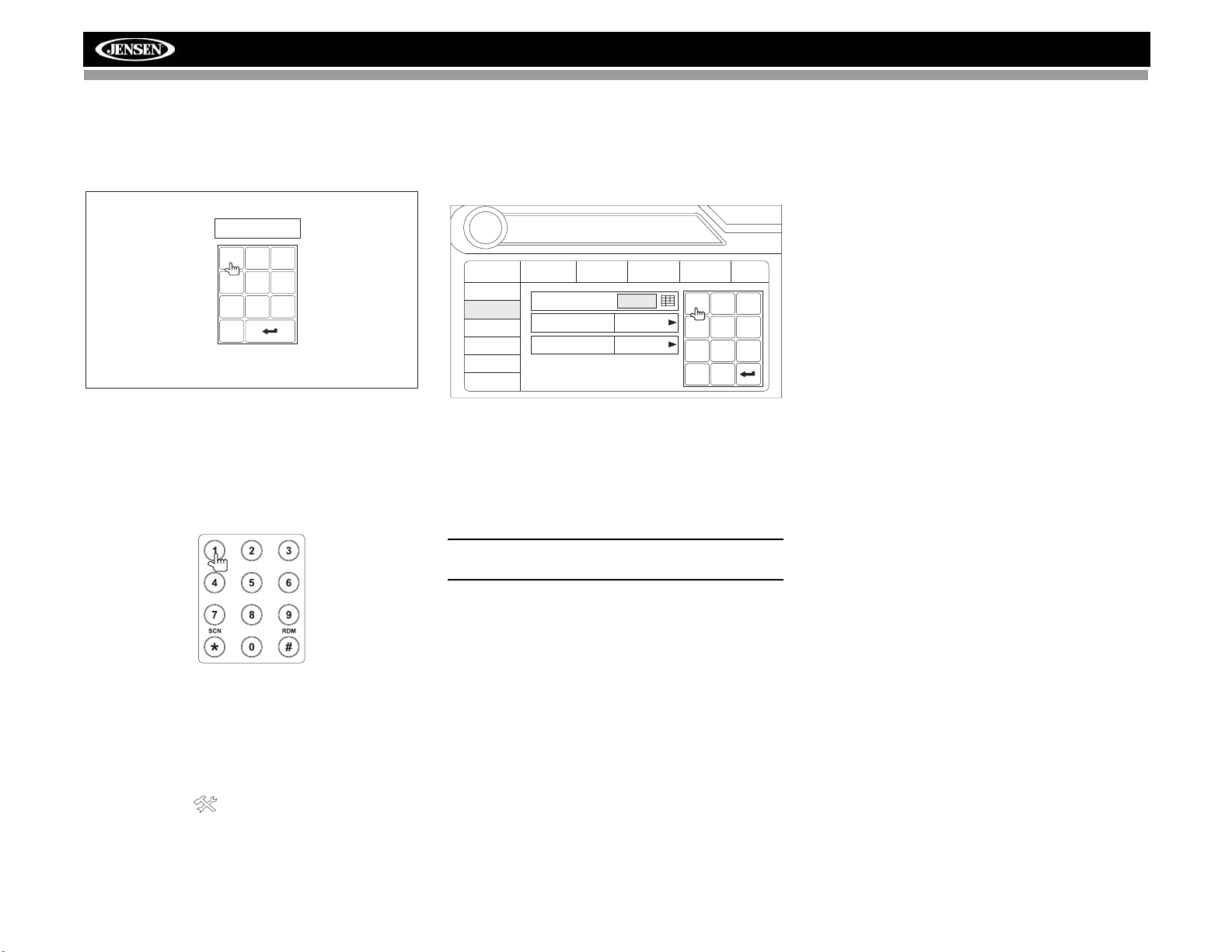

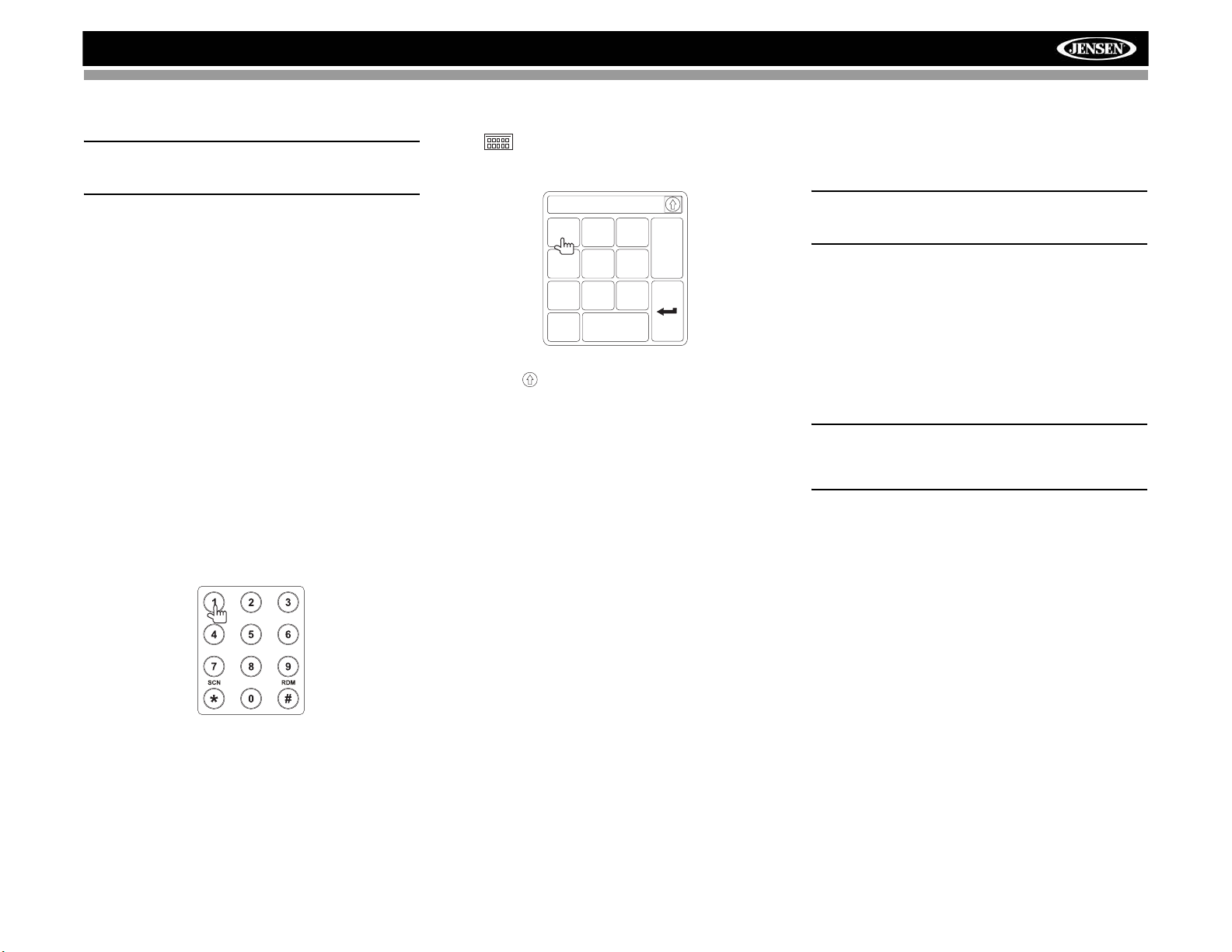

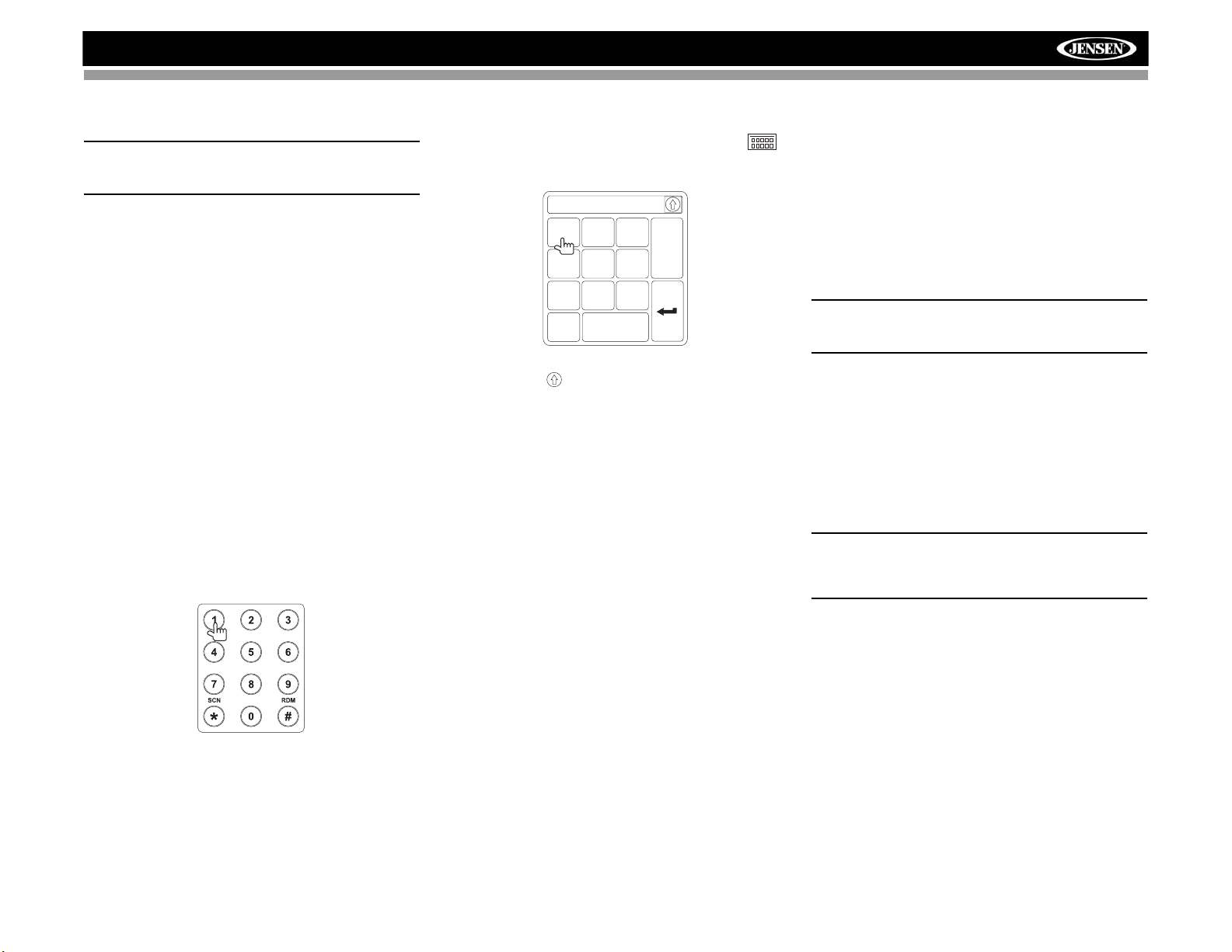

The VM9413 is equipped with an anti-theft feature requiring the user to enter a password upon initial power on.

Enter Password:

3. Touch the keypad icon next to the blue box in the “Password” field to open the on-screen keypad.

02:40

SETUP

3 6

7 0

Entering the Default Password

The default user password is 012345 (6 digits). Enter the password using the on-screen keypad and then press the Enter (arrow) button. You can also use the remote control keypad to enter the password.

Press the joystick Enter button (18) on the remote control to confirm.

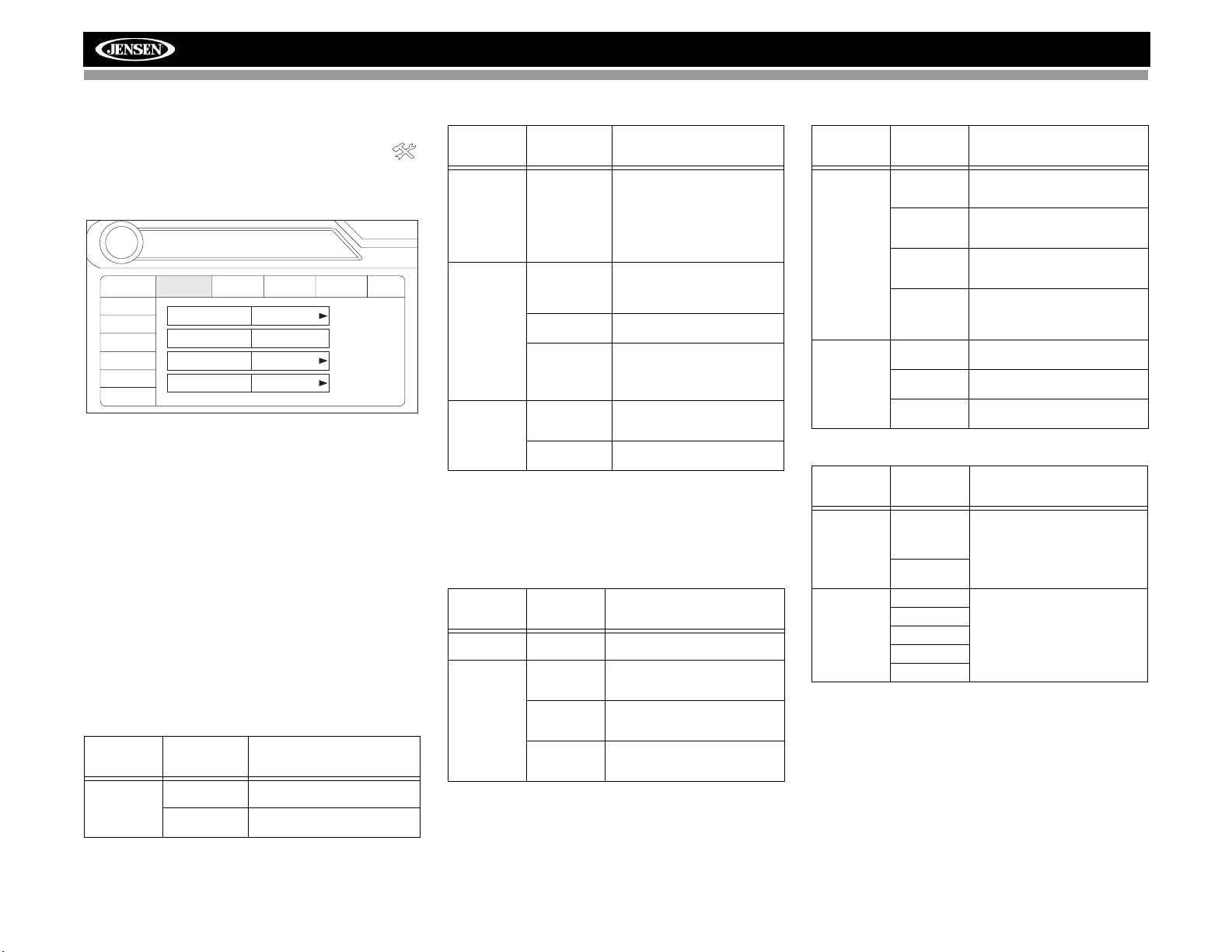

Changing the Password

To change the anti-theft and RATINGS protection password, perform the following steps:

1. Press the SETUP button (31) on the remote control or

General

RDS

Rating

Demo

Hardware

P.VOL

TS Cal

Language

Password Rating 8. Adult Load Factory Reset

Audio

Speaker

Bluetooth

Back

3 6

Clear

4. Enter a new 6-digit password and press the Enter (arrow) button.

The "lock" icon will now appear closed and the new antitheft password will be set, as well as the password for RATING protection (see “Rating Sub-menu Features” on page 12).

NOTE: If you forget your password, contact Customer Service at 1-800-323-4815 for assistance.

touch the button on the screen to enter the “SETUP” menu.

2. Touch RATING to view the “RATING” sub-menu. An open lock icon to the right of the “Password” field indicates that a user password had not yet been entered.

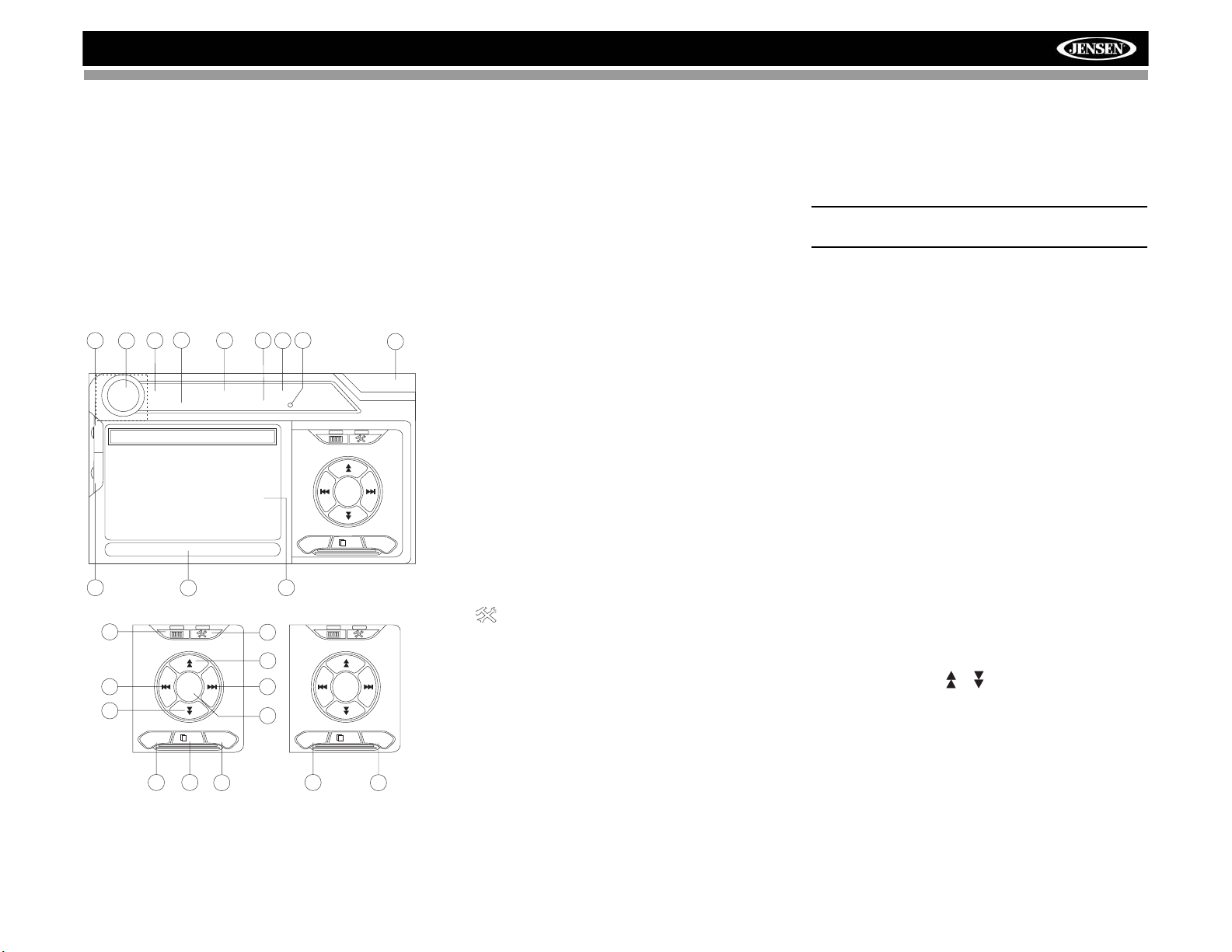

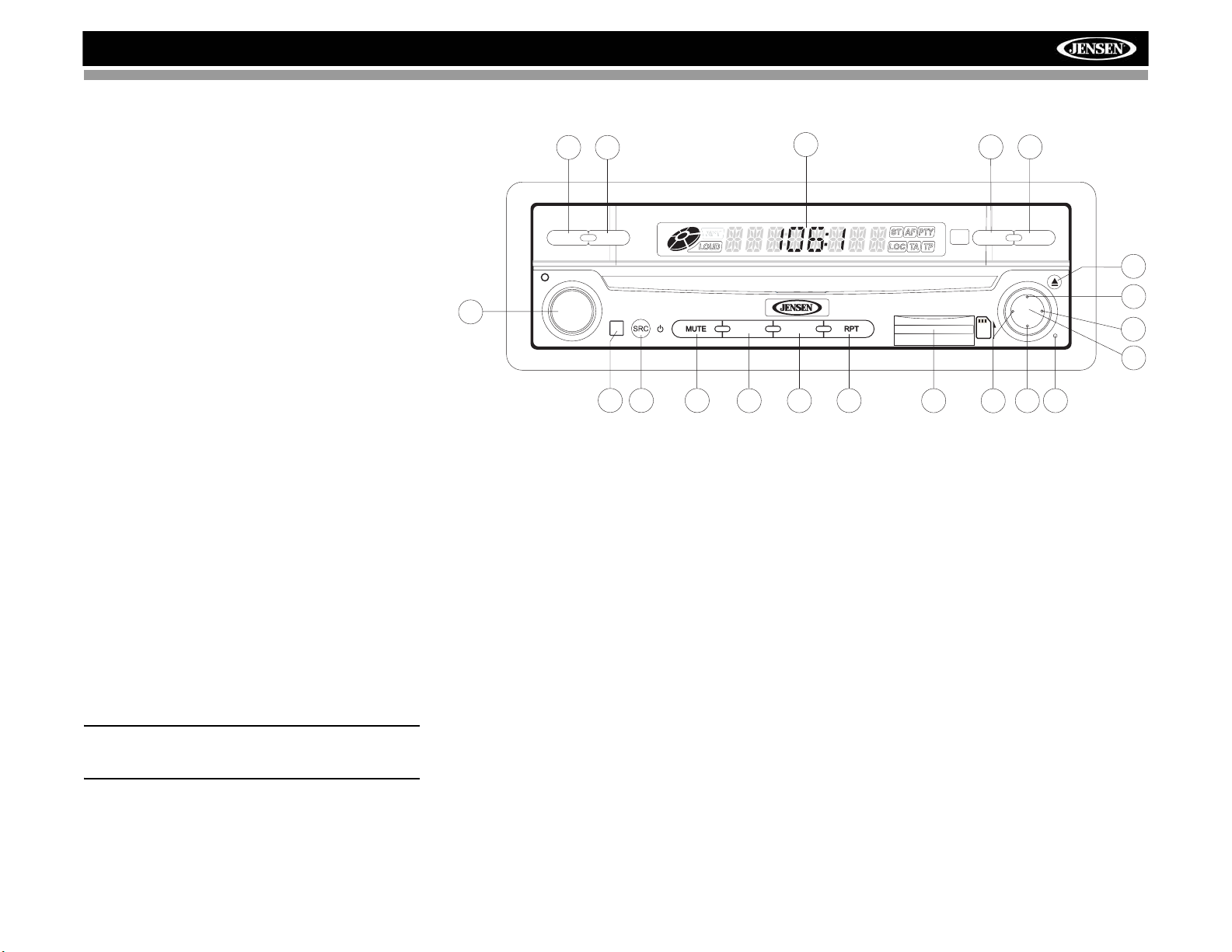

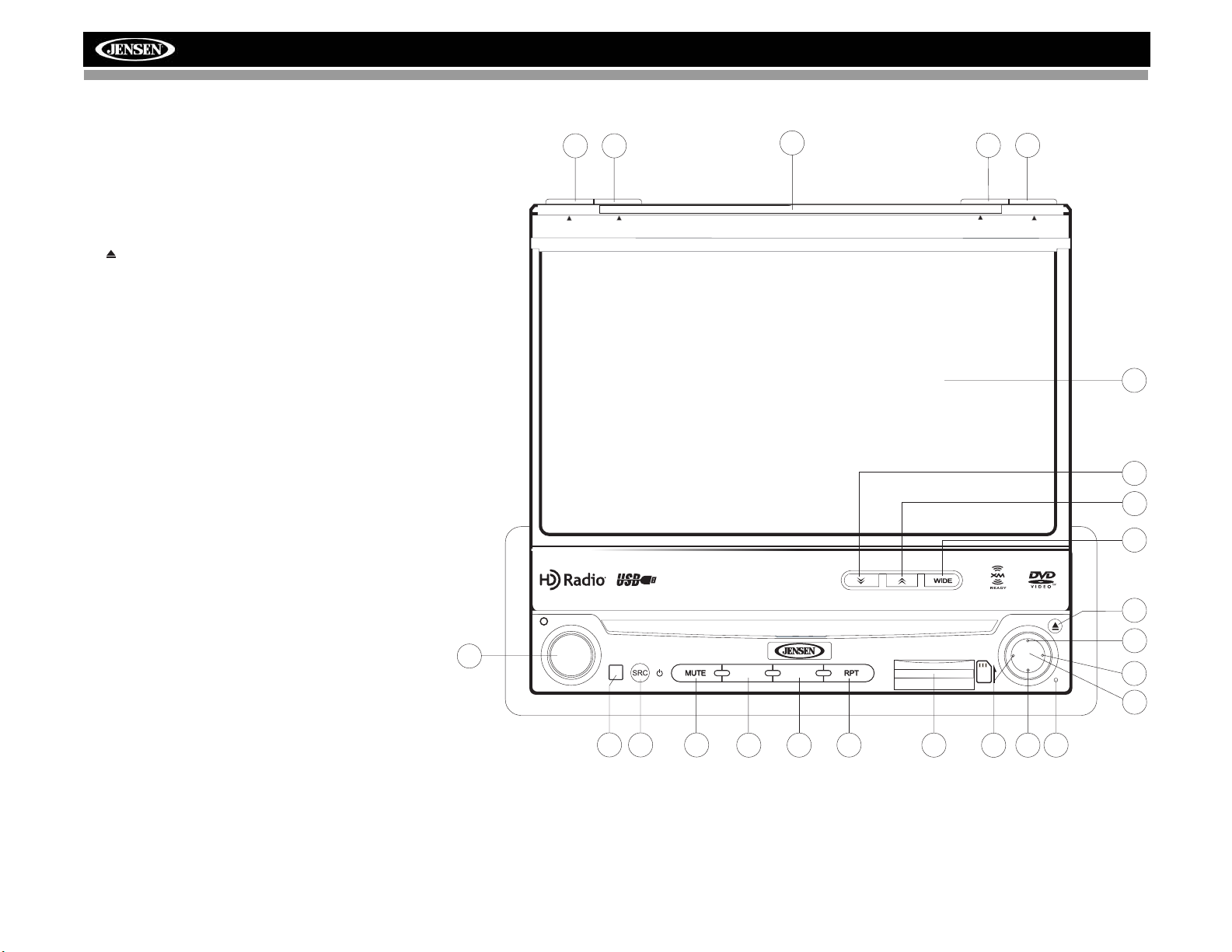

CONTROLS AND INDICATORS

Button Operation

1. OPEN/CLOSE

Press to activate the automatic mechanical system and move the TFT monitor into viewing position. Press again to close the TFT.

2. DISP

With the TFT monitor open, press to cycle through information available on the TFT screen.

With the TFT monitor closed, press and hold to view the clock.

In DVD Mode, press to view the top and bottom information bars. Press again to turn “Display Off”.

3. AS

Press to automatically store the first six strong stations in preset memory. Applies to current band only.

4. BAND

Press the BAND button to change the AM, FM or SAT band.

5. AUDIO

Rotate to adjust the volume. Press to access audio EQ menu.

6. SRC

Press to select playing mode. When you change the source during navigation, the voice

prompts will still be heard, although the navigation map cannot be seen. (The selected source audio will be muted until the navigation voice prompt command is completed, after which the source audio will resume.)

7. LCD Display

8. MUTE

Press to silence the receiver. Press again to resume previous volume level.

VM9413

INT

OPEN DISP

s Audio

Pres

VM9413

NAV

BAND

Enter

NOTE: This head unit features Softmute, which will allow the volume to increase gradually when the MUTE function is deactivated.

9. IR Remote Control Receiver

10. (left joystick)

DVD/Disc Mode: Press once to play back the previous chapter/track.

TUNER Mode: Press once to auto-search for the previous available radio station.

MENU Mode: Press once to move the cursor to the left.

VM9413

CONTROLS AND INDICATORS

11. (down joystick)

DVD/Disc Mode: Press once for slow forward/slow reverse. TUNER Mode: Press to go down one frequency step. MENU Mode: Press once to move the cursor down.

12. Reset

Press to reset system settings to factory default (except the password and parental lock setting).

13. Pause/Play/Enter

Press to pause or resume playback or to confirm current selection.

14. (right joystick)

DVD/Disc Mode: Press once to enter the next chapter or track.

TUNER Mode: Press once to auto-search the next available radio station.

MENU Mode: Press once to move the cursor to the right.

15. (up joystick)

DVD/Disc Mode: Press once for fast forward/fast reverse. TUNER Mode: Press to go up one frequency step. MENU Mode: Press once to move the cursor up.

16.

Press once for disc insertion/ejection. Press and hold to reset core mechanism position.

17. TFT Display

18. NAV

When the NAV102 is connected to the head unit, press to display the navigation user interface. The TFT screen must be open for this function to operate.

19. RPT

Press to control repeat playback function.

20. INT

Press to control intro playback function.

21. SD Card Slot

Insert SD card for playback of audio/video files.

22. WIDE/PICTURE

Press to adjust the display aspect of the picture to one of two settings: CINEMA, NORMAL or Standby (screen off). NOTE:

Only CINEMA and Standby are available for non-video sources.

Press and hold to adjust Brightness and Contrast.

23/24. ANGLE/TILT

Press to activate the tilt function. Press once to adjust the downward tilt angle of the screen one step at a time or press and hold to adjust the angle in a continuous motion up or down.

Multimedia Receiver

BAND

ASDISP

ANGLE / TILT

s Audio

Pres

VM9413

NAV INT


Enter

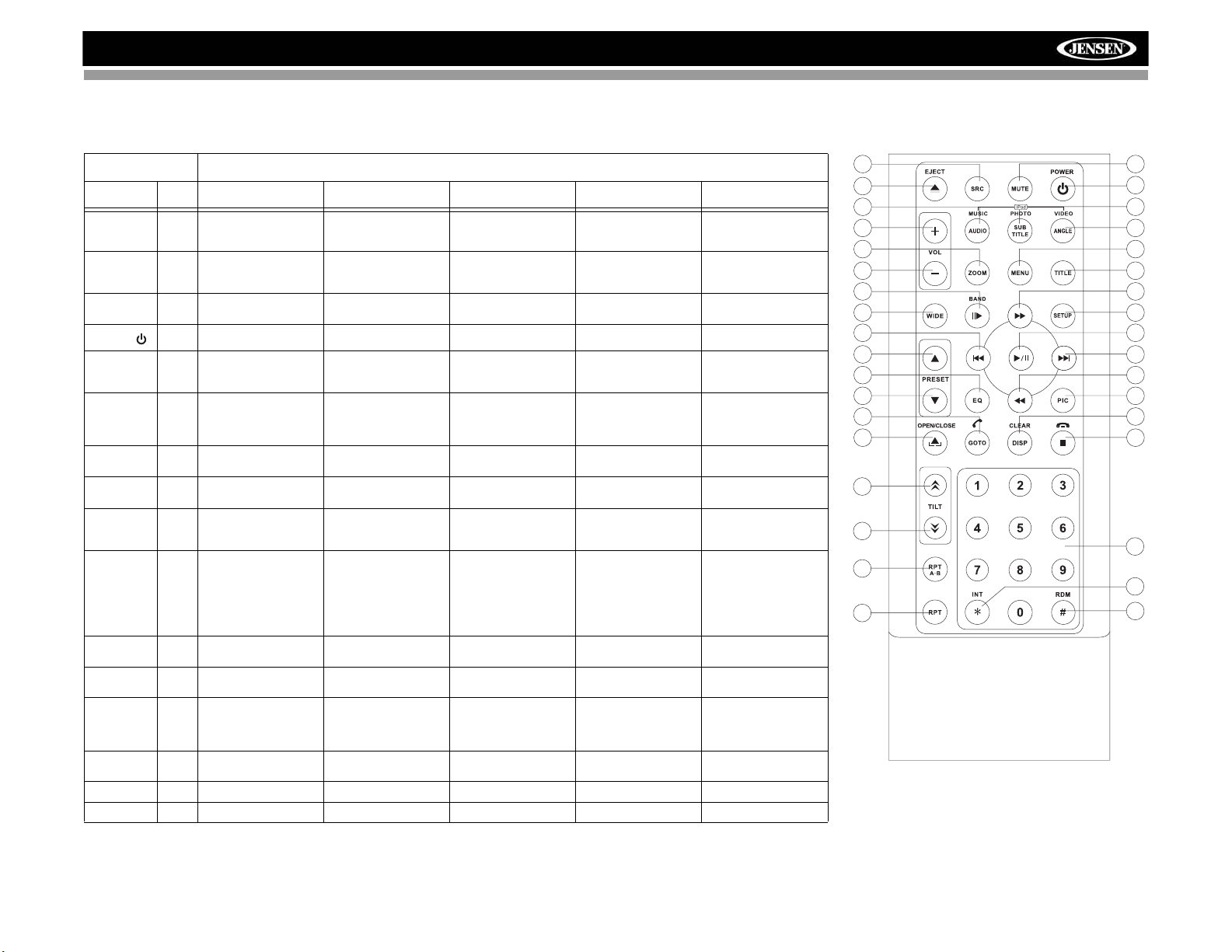

REMOTE CONTROL

VM9413

Table 1: Remote Control Functions

Button Function

Name Ref# DVD VCD TUNER CD/MP3/USB/SD SATELLITE

MENU 1 Enter the main menu of

TITLE 2 Enter the title menu of

MUTE 3 To ggle on/off audio out-

POWER/ AUDIO 5 Change the audio lan-

REPT A-B 6 Setup to repeat play-

REPT 7 Repeat playback of

the disc

put

4 Turn the power on/off Turn the power on/off Turn the power on/off Turn the power on/off Turns the power on/off

guage for disc playback

back from time frame A to time frame B

current chapter SRC 8 Select playing mode Select playing mode Select playing mode Select playing mode Selects playing source SUBTITLE 9 Language selection for

DISP/ CLEAR

subtitle

10 Display playback infor-

mation

Delete entry or move

backwards to correct

error in Direct Access

mode PRESET /\ 11 Navigate the preset

PRESET \/ 12 Navigate the preset

ANGLE 13 Play back disc in differ-

>> 14 Fast forward the disc

ent angle for a scene

content VOL - 15 Decrease volume Decrease volume Decrease volume Decrease volume Decreases volume VOL + 16 Increase volume Increase volume Increase volume Increase volume Increases volume |<< 17 Select the previous

>/|| 18 Pause playback/start

chapter for playback

playback

Turn on/off PBC when playing VCD

Play first ten seconds of each chapter/title

Toggle on/off audio output

Setup to repeat playback from time frame A to time frame B

Repeat playback of current chapter

Display playback information

Delete entry or move backwards to correct error in Direct Access mode

Play back Picture CD with different angle of picture displayed

Fast forward the disc content

Select the previous chapter for playback

Pause playback/start playback

TAG HD Radio stations for transfer to an iPod

Toggle on/off audio output

station list

Changes station up one increment

Search an available radio station by decreasing tuning frequency

Play first ten seconds of each file

Toggle on/off audio output

Repeat playback of current track

Fast forward the disc content

Select the previous track for playback

Pause playback/start playback

Displays diagnostics screen

Category list in CG mode

Toggles on/off audio output

Displays audio mode Delete entry or move

backwards to correct error in Direct Access mode

Navigates the preset station list

Switches MEM keypad off

Searches an available radio station by decreasing tuning frequency

ENTER, Toggles the on-screen menu between CAT/ CH mode

TAG

VM9413

Table 1: Remote Control Functions

Button Function

Name Ref# DVD VCD TUNER CD/MP3/USB/SD SATELLITE

>>| 19 Select the next chapter

GOTO/

<< 22 Slow playback/fast

ZOOM 23 Zoom in/out on an

PIC 24 Display set-up parame-

OPEN/ CLOSE

TILT

TILT WIDE 28 Select display mode:

1, 2, 3, 4, 5, 6, 7, 8, 9, 0 (Numeric Keypad)

/BAND

SETUP 31 Display Setup menu Display Setup menu Display Setup menu Display Setup menu Displays Setup menu EQ 32 Modify equalizer set-

RDM 33 Play all chapters in ran-

INT 34 Play the first ten sec-

EJECT 35 Eject disc Eject disc Eject disc Eject disc Ejects disc

for playback

20 Stop playback/end call Stop playback/end call End call Stop playback/end call 21 Go to specific time

frame and playback/

dial call

rewind playback


ters

25 Open/close the TFT

monitor

26 Decrease monitor tilt

angle

27 Increase monitor tilt

angle

FULL or NORMAL

29 Directly access chapter 1-6 selects preset for

30 Slow motion playback Slow motion playback Change AM/FM band Slow motion playback Selects SAT1, SAT2 or

tings

dom order

Select the next chapter for playback

Go to specific time frame and playback/ dial call

Slow playback/fast rewind playback

Zoom in/out on an image

Display set-up parameters

Open/close the TFT monitor

Decrease monitor tilt angle

Increase monitor tilt angle

Selects display mode: FULL or NORMAL

Modify equalizer settings

Search an available radio station by increasing tuning frequency

Dial call Dial call Enters Direct Access

Changes station down one increment

Open/close the TFT monitor

Decrease monitor tilt angle

Increase monitor tilt angle

current band

Modify equalizer settings

Select the next track for playback

Open/close the TFT monitor

Decrease monitor tilt angle

Increase monitor tilt angle

Directly access track 1-6 selects preset for

Modify equalizer settings

Play all tracks in random order

onds of each track

Searches an available radio station by increasing tuning frequency

mode

Displays Brightness/ Contrast Controls

Opens/closes the TFT monitor

Decreases monitor tilt angle

Increases monitor tilt angle

Selects display mode: CINEMA or Standby

current band

SAT3 band.

Preview scan

USING THE TFT MONITOR

Open/Close TFT Monitor

Open TFT Monitor

Press the OPEN/CLOSE button (1) on the front panel or press the ( ) button (25) on the remote control to activate

the mechanism that moves the display panel into the viewing position.

Close TFT Monitor

Press the OPEN/CLOSE button (1) on the front panel or press the ( ) button (25) on the remote control to load the

display panel back into the compartment

TFT Monitor Auto Open

If “TFT Auto Open” is “on” when the unit is turned on, the monitor automatically moves to the viewing position.

If “TFT Auto Open” is ”off” when the unit is turned on, press the OPEN button (1) or ( ) button (25) on the remote

control to move the monitor into the viewing position. If “TFT Auto Open” is set to ”Manual”, the TFT will not close

when the key is turned off.

Monitor Tilt Angle Adjustment

A known characteristic of LCD panels is the quality of the display in relationship to the viewing angle. The monitor angle can be adjusted for optimum viewing using one of the following methods.

Step by Step Angle Adjustment

Press the ( ) or ( ) button on the control panel (23, 24) or remote control (26, 27) to adjust the tilt angle of the screen one step at a time.

Continuous Angle Adjustment

Press and hold the ( ) or ( ) button on the control panel or remote control to adjust the tilt angle in a continuous motion.

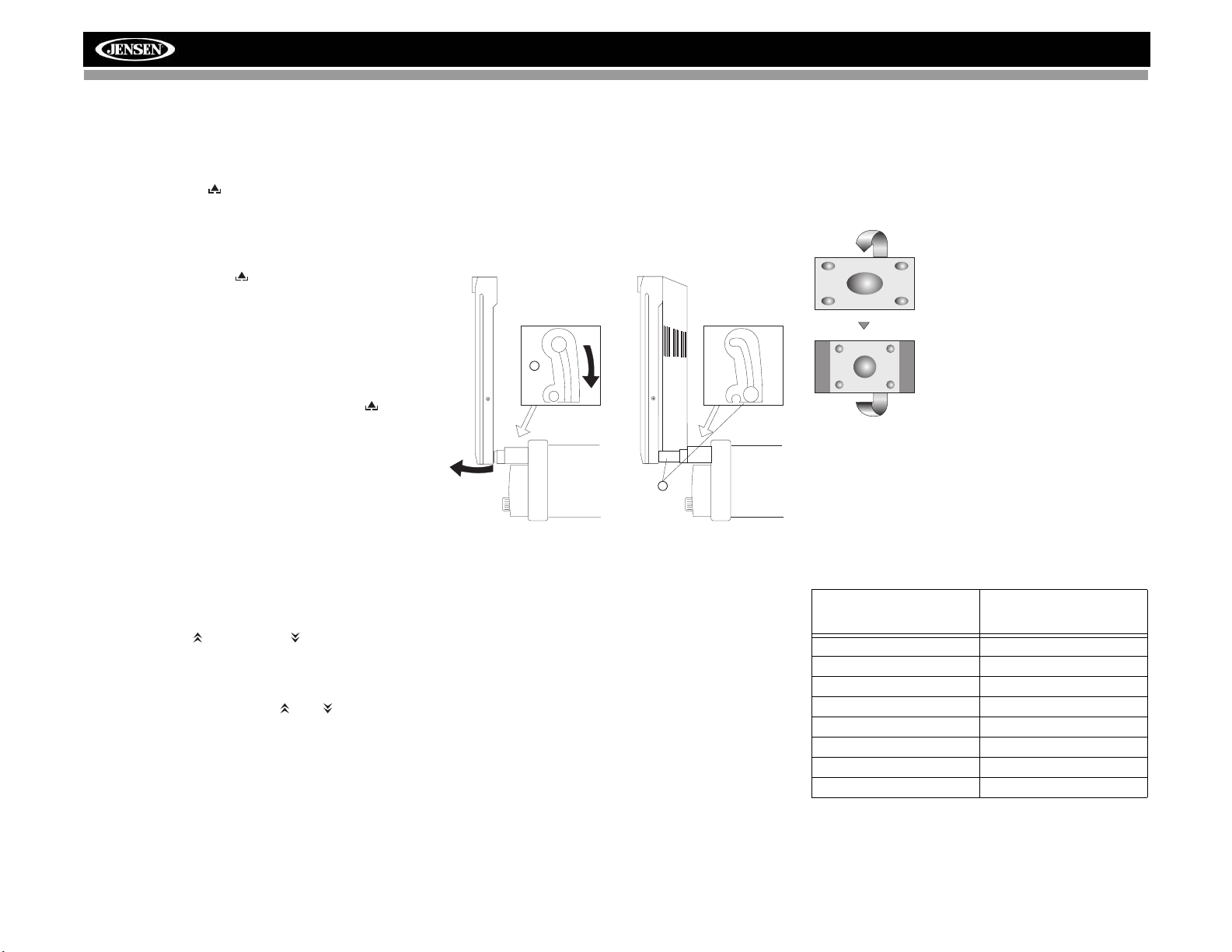

Monitor Left/Right Angle Adjustment

To manually adjust the left/right angle of the TFT screen, follow these steps:

1. Make sure the TFT screen in “Out”. Press the OPEN button (1), if necessary.

Extender Mechanism

- Closed

2. Locate the extender mechanism behind the screen.

3. Firmly grasp both sides of the screen near the bottom.

4. Gently pull on either the left or right side until the extender mechanism becomes fully extended.

Reverse Driving Use

If the rear-view video camera is connected, the unit is on, and the monitor is stationed inside the main compartment of the unit, the monitor automatically moves into the viewing position and switches to CAMERA mode upon reverse driving. When the reverse driving stops, the monitor returns to the main storage compartment.

If the monitor is in display mode, the monitor automatically switches to CAMERA mode upon reverse driving. When the reverse driving stops, the monitor returns to its original input mode.

Extender Mechanism

- Fully Extended

VM9413

Aspect Ratio

Press the WIDE button (28) on the remote control or WIDE button (22) on the monitor to adjust the aspect ratio as follows (only active with video source):

CINEMA The entire screen is extended horizontally to the aspect ratio of 16 to

9. The extension ratio is the same at any point.

NORMAL The conventional display image has a 4 to 3 ratio of horizontal to vertical, leaving a blank area on the right and left sides of the display.

STANDBY Screen becomes black. Touch screen to resume.

Image Setting

Table 2 shows the video output mode for each playing source.

Table 2: Video Output Modes

Playing Source Video Output Modes

RADIO RGB Mode SAT RGB Mode DISC RGB Mode BT RGB Mode AUX 1 CVBS Mode AUX 2 CVBS Mode NAV RGB Mode CAMERA CVBS Mode

*CVBS – Composite Video Baseband Signal

VM9413

Parameter Adjustment Procedure

1. Enter Picture Quality Setting Mode: Press the PIC button on the remote control or press and hold the WIDE/PICTURE button (22) on the monitor.

2. Select Item to Set: Use the up/down joystick buttons to select “BRIGHT” or “CONTRAST”.

3. Set Parameters: Use the left/right joystick buttons to modify the settings.

4. Exit Picture Quality Setting Mode: Press the PIC button on the remote control or the WIDE/ PICTURE button on the monitor.

Parking Brake Inhibit

When the pink "Parking" wire is connected to the vehicle Parking Brake circuit, the front TFT monitor will display video when the Parking Brake is engaged. (When the pink wire is grounded via the Parking Brake circuit, video will be displayed.)

Monitor Movement Mechanism

If an obstruction occurs in the monitor path, the following protective measurements can be executed to prevent damage to the mechanism or monitor:

Table 3: Monitor Protective Measures

Obstruction

Monitor loading out horizontally

Monitor loading in horizontally

Monitor loading out vertically

Monitor loading in vertically

Self

Protection

Unit stops at obstruction point

OPEN Button

Pressed

Monitor fully extended horizontally

Monitor swivels back to the unit

Power

Reconnected

Monitor is automatically loaded into unit

Monitor swivels back to the unit

After the protective procedure is executed, normal operation is resumed by pressing the OPEN button (1) or disconnecting and reconnecting the power.

AUX1

OPERATING INSTRUCTIONS

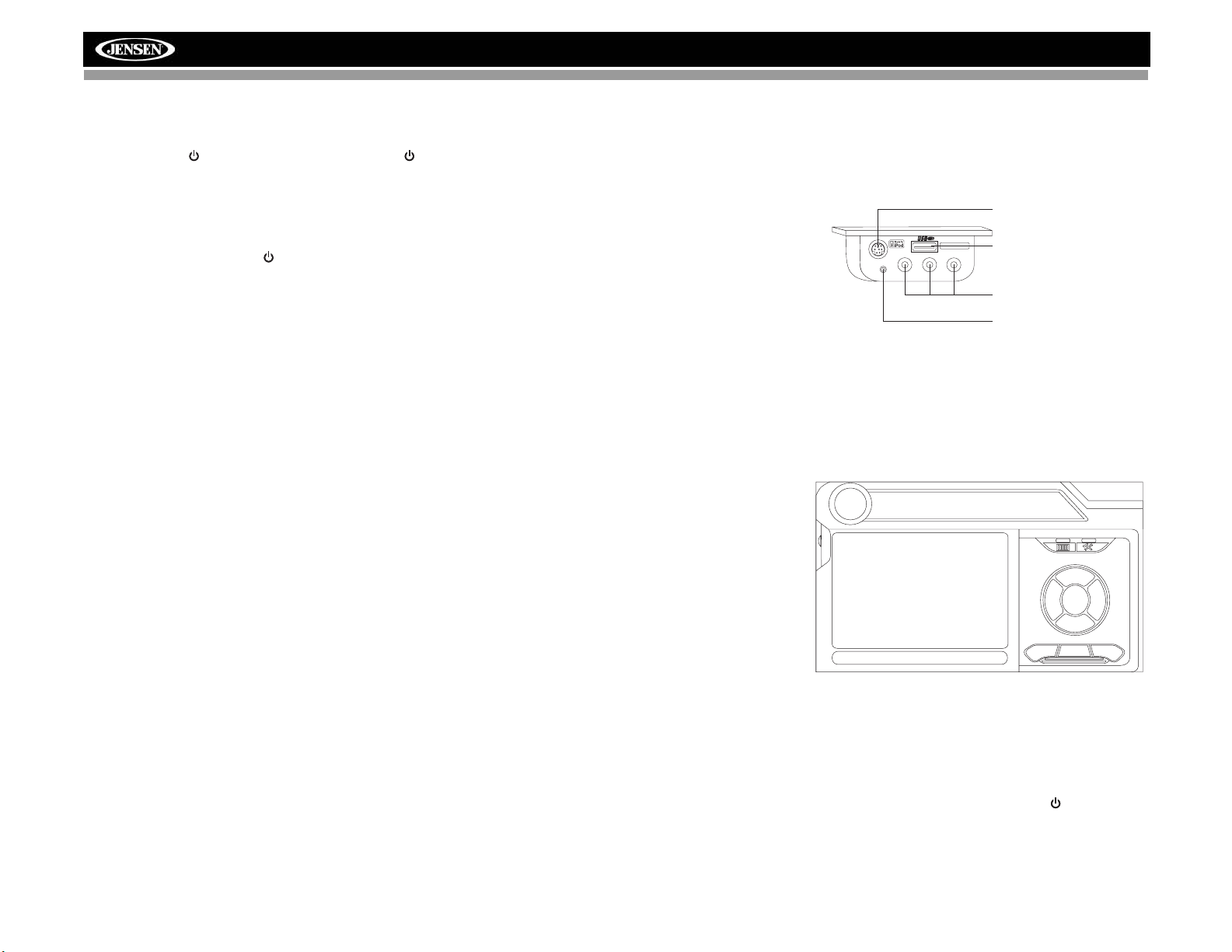

Power On / Off

Press the /SRC button (6) on the unit (or the /POWER button (4) on the remote control) to turn the unit on. The buttons on the front of the unit light up and the current mode status appears in the LCD (7). You can also turn on the unit by pressing the OPEN button (1) and opening the TFT screen.

Press and hold the button to power off the unit. The monitor is drawn back into the main compartment.

Audible Beep Confirmation

An audible beep tone confirms each function selection. The Beep tone can be disabled through the Setup menu.

Volume Adjustment

To increase or decrease the volume level, turn the AUDIO control (5) on the front panel or press the VOL+/ VOL- buttons (15, 16) on the remote control. When the volume level reaches “0” or “40”, a beep sounds, indicating that the adjustment limit has been reached. The volume ranges from “0” to “40”. The LCD or TFT screen displays the volume level for 3 seconds.

Programmable Turn-On Volume

This feature allows the user to select a turn-on volume setting regardless of the volume setting prior to turning the unit off. To program a specific turn-on volume level, turn the AUDIO control (2) to adjust the volume to the desired turn-on volume. Push and hold the AUDIO button while the yellow speaker icon and level indication is displayed on the screen. The unit will beep two times to confirm your turn-on volume setting.

Mute

Press the MUTE button on the front panel (8) or remote control (3) to mute the volume from the unit. Press the MUTE button again to restore the volume. “MUTE” is displayed on the LCD. Adjusting the volume or using any of the audio setup features cancels the mute function.

Line Mute

If the “MUTE” wire is connected, audio output mutes when a telephone call is received by the cell phone.

Steering Wheel Control (SWC)

This head unit is compatible with the P AC (Pacific Accessory Corporation) steering wheel control adapter SWI-PS. A

3.5mm female connector (labeled “SWC Interface”) on the

back of the head unit allows connectivity to the PAC adapter. Please refer to the instructions included with the P AC adapter for detailed installation information.

SWC Functions

The following controls are available for most vehicles:

1. Vol Down

2. Vol Up

3. Mute

4. Seek Down / Previous Track / ** Preset Down

5. Seek Up / Next Track / ** Preset Up

6. SRC (Source)

7. ** Select

8. ** Select

9. Band ** If additional steering wheel control buttons are available on

the vehicle, function 7 / 8 may be assigned the "Select" feature. This feature / function may not be available on some vehicles.

Select Operation

If "Select" (function 7 or 8) is held down and function 4 is pressed momentarily, Preset Up will be selected. If "Select" (function 7 or 8) is held down and function 5 is pressed momentarily, Preset Down will be selected.

Playing Source Selection

Press the SRC button on the front panel (6) or remote control (8) to change between available playing sources in the following order: RADIO, SAT, DISC, NAV , BT, iPod, SD, USB, AUX1, AUX2 and CAMERA. The playing mode is displayed on the TFT and LCD screens.

Auxiliary Devices

External peripheral devices can be connected to this unit via RCA output (AUX IN 2) or the MediaLink

MediaLink

3.5mm -Audio

VIDEO LEFT RIGHT

iPod Connector

USB Connector (TypeA)

RCA Inputs (AUX 1)

3.5mm Left & Right Stereo Inputs (AUX 1)

VM9413

Select “AUX 1” to play an auxiliary device connected via the MediaLink

music files from a portable music player, video from a video camera and even view photos stored on a digital camera.

Select “AUX 2” mode to access and control auxiliary devices connected to the “AUX IN 2” inputs on the back of the radio.

Selecting a Source while Navigating

While navigating, other sources may be selected and listened to such as AM-FM Tuner, CD, etc. To select a source, press

the /SRC button (6) and then select a source from the Front Source Menu. Navigation voice prompts will be heard automatically, although the navigation map cannot be seen. (The selected source audio will be muted until the navigation voice prompt command is completed, after which the source audio will resume.)

RCA or 3.5mm inputs. For example, you can play

No Video Signal

E Q

01:53 PM

VM9413

DISC

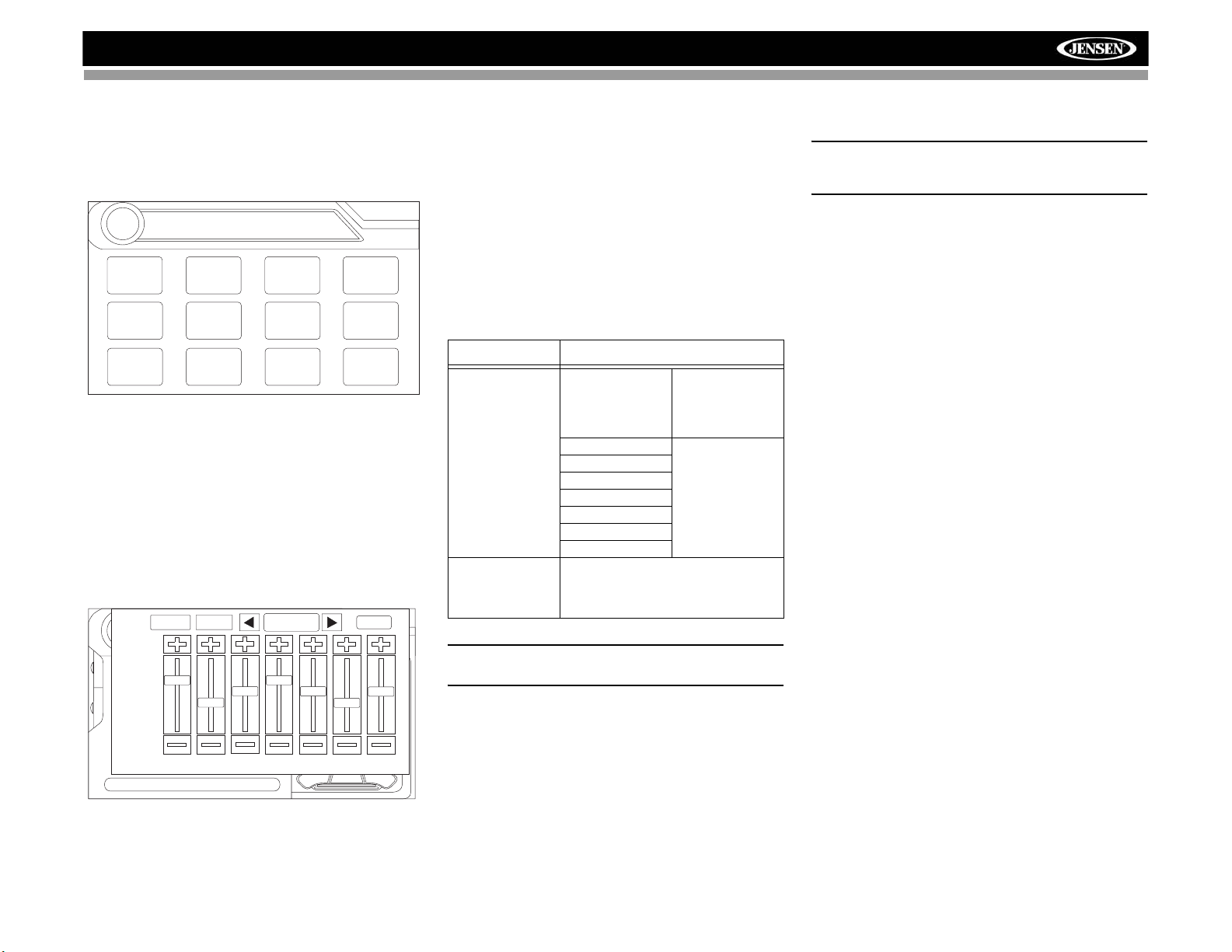

Source Menu

To access the SOURCE MENU, touch the TFT screen in the top left corner of the screen.

SOURCE MENU

DISC

RADIO

AUX 1

SAT

AUX 2

USB

iPod

CAMERA

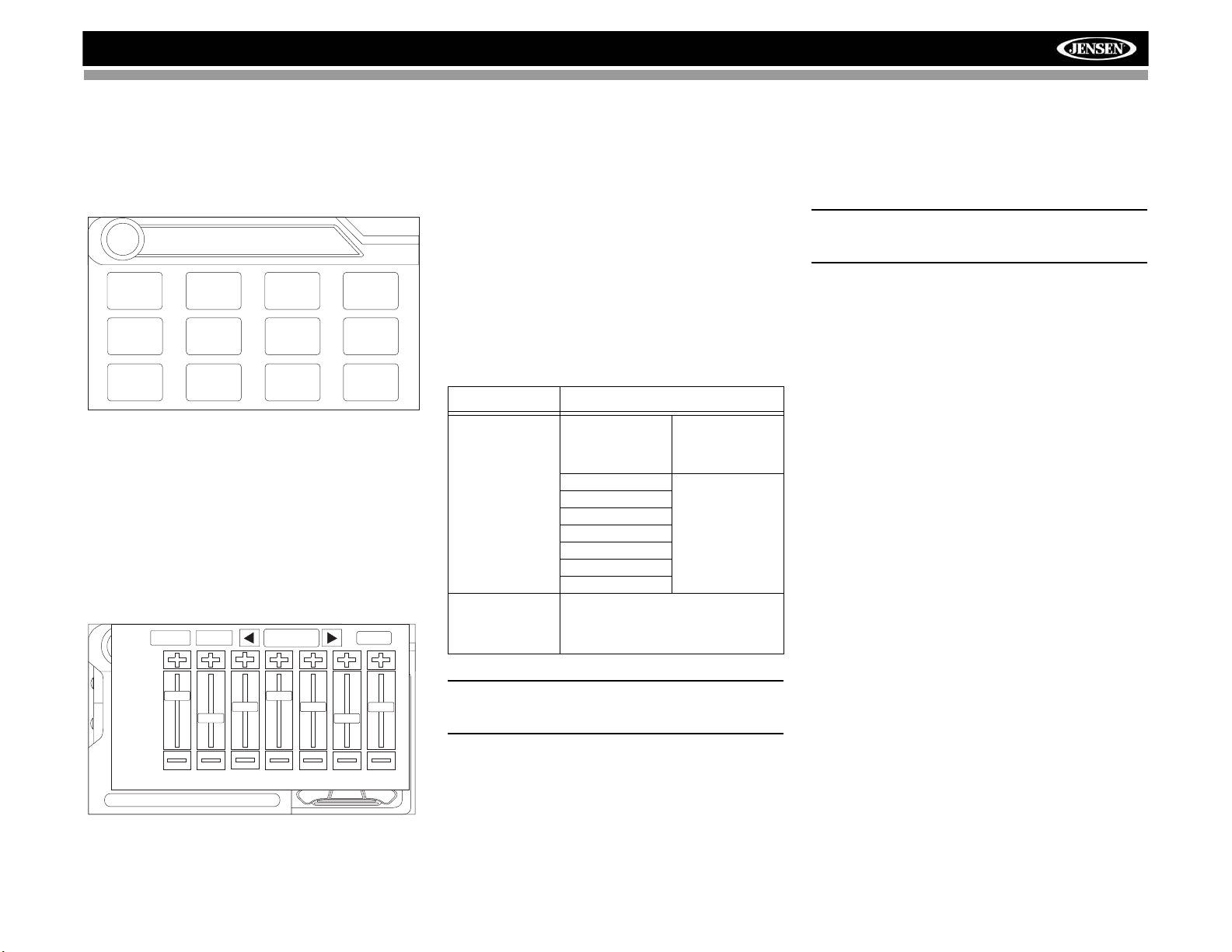

7-Band Graphic Equalizer

The VM9413 features a 7-band graphic equalizer that allows you to easily adjust your audio system to meet the acoustical characteristics of your vehicle, which vary depending on the type of vehicle and its measurements. Proper setting of the Fader and Balance boosts the effects of the cabin equalizer.

Press the AUDIO button (5) on the front panel or press the the onscreen EQ button twice to display the following audio menu.

E Q

T A G

FAD-BAL EQ

+12 —

0—

–12 —

80 250 600 1k 4k 10k 16k

EQ: User

USER

NAV

BACK

To adjust an audio feature:

1. Use the left/right joystick buttons to highlight the audio feature to be adjusted.

2. Press the joystick ENTER button on the control panel (13) or remote control (18) to select the highlighted option.

3. Use the joystick to adjust the selected feature to the desired setting.

Table 4: Audio Adjustments

Function Adjustment Options

EQ User In user mode, you

Acoustic Use the on-screen Urban Rave Latin Dance Hip Hop Rock

FAD-BAL Use this screen to adjust the output level for

NOTE: The EQ mode will automatically change to “USER” when individual EQ bands are adjusted.

each speaker in your surround system from 0 to -24dB. You can also adjust the master volume from this screen.

Proper setting of the Fader and Balance complement the effects of the cabin equalizer.

The Audio menu will automatically exit after a few seconds of inactivity. To exit quickly, touch the top left corner of the screen or press and hold the AUDIO button (5).

can manually adjust each of the seven frequency bands.

arrows to select a predefined equalization curve.

System Reset

To correct a system halt or other illegal operation, use the tip of a pen to press the reset button (12) located on the front bottom-right corner of the unit. After a system reset, the unit restores all factory default settings.

• Touch the FAD-BAL button to access a second screen with the Balance/Fader settings.

• Touch the EQ button to return to the Equalizer settings screen.

• Use the arrows on either side of the box where "User" is selected, to choose a preset equalizer level.

NOTE: If the unit is reset while a DVD is playing, the DVD resumes play once the reset is complete.

RADIO

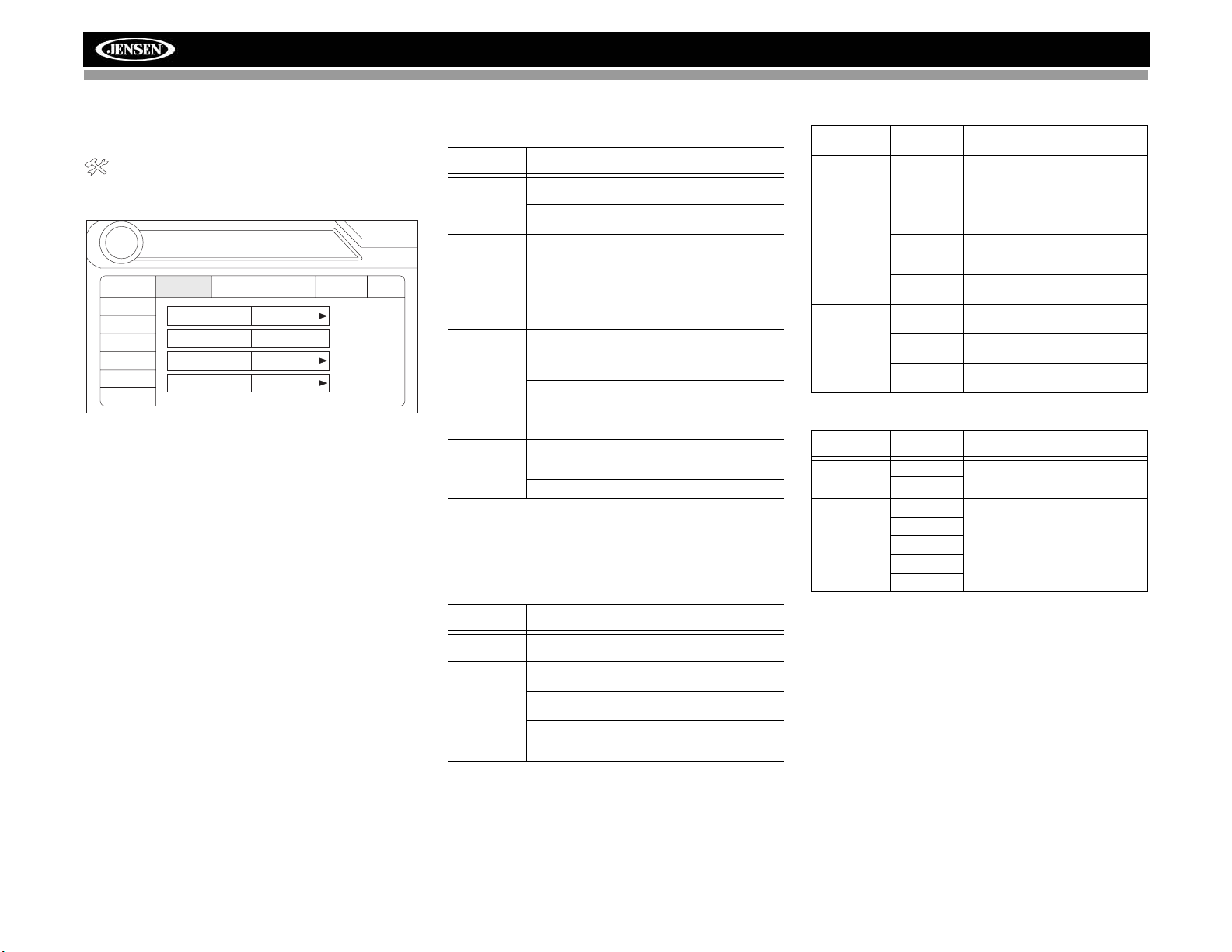

SETUP MENU

To access system settings, press the SETUP button (31) on the remote control or touch the button on the screen to

enter the “SETUP” menu. The “GENERAL” sub-menu appears highlighted in blue.

02:40

RADIO

General

RDS

Rating

Demo

Hardware

P.VOL

TS Cal

SETUP

Language

Clock Adjust 04 : 31 AM

Beep On

Audio

Clock Mode 12 Hour

Video Input AUTO

Speaker

Bluetooth

Accessing Menu Items

Touch the sub-menu name or use the joystick to select a submenu (Language, Audio, RDS, etc.).

The features available for adjustment under the highlighted sub-menu option will appear in the center of the screen.

Adjusting a Feature

1. Use the touchscreen or press the /\ or V buttons on the joystick to select the feature to be adjusted.

2. Enter the option field for the feature you want to adjust by using the touchscreen or pressing the ENTER (joystick) button. A submenu appears in a second row with the selected option highlighted in blue.

3. Select a new value by using the touchscreen or pressing the /\ or V buttons on the joystick.

4. Use the touchscreen or press the ENTER (joystick) button to confirm setup.

General Sub-menu Features

Setting Options Function

Clock Mode 12 Hour Clock displays 12 hour time using

24 Hour Clock displays 24 hour time up to

AM and PM.

23:59.

Back

Setting Options Function

Clock Adjust (HH:MM) The clock appears in the top right

Video Input (Input circuitry autodetects the video signal from the Aux In source).

Beep On When turned on, an audible beep

Auto The color signal output is switched

NTSC The color signals are output in the

PAL The color signals are output in the

Off No beep sounds.

Language Sub-menu Features

If a DVD supports more than 1 Subtitle or Audio language, all the languages are available for selection during playback. If the selected language is not supported by the DVD, then the default language is used.

corner of the screen and on the LCD screen during certain operations. NOTE: The AM/PM indication will change as you continue to adjust the hour past 12.

automatically based on the current video input signal - NTSC or PAL.

standard NTSC format.

standard PAL format.

tone confirms each function selection.

Setting Options Function

OSD English On Screen Display appears in

DVD Audio English DVD Audio is heard in English

Spanish DVD Audio is heard in Spanish

French DVD Audio is heard in French when

DVD Subtitle English DVD subtitles automatically appear

Spanish DVD subtitles automatically appear

French DVD subtitles automatically appear

Off DVD subtitles do not appear auto-

Disc Menu English DVD menu (if applicable) is dis-

Spanish DVD menu (if applicable) is dis-

French DVD menu (if applicable) is dis-

English.

when the option is available.

the option is available.

in English when available.

in Spanish when available.

in French when available.

matically.

played in English.

played in Spanish.

played in French.

VM9413

Audio Sub-menu Features

Setting Options Function

DRC Off Employ the Dynamic Range Control

Sub. W Filter 50Hz Selecting a crossover frequency

80Hz 100Hz 120Hz 150Hz

Speaker Sub-menu Features

• Choose 4 CH or 4.1 CH depending on the speaker configuration in your vehicle.

• Use the Test Tone feature to verify speaker settings. Make changes using the EQ/FAD-BAL menu, accessed by pressing and holding the AUDIO button (volume control).

• Subwoofer Phase Adjustment: Touch the subw icon to access the subwoofer polarity controls and reverse the subwoofer signal polarity from 0° to 180°. Reversing polarity can improve bass response related to speaker configuration.

for better playback for low volumes.

sets a cut-off frequency of the subwoofer's LPF (low-pass filter).

VM9413

Bluetooth Sub-menu Features

Setting Options Function

Bluetooth O n Enable Bluetooth function.

Off Disable Bluetooth function.

Auto Answer On The unit automatically answers all

Off Manually answer calls by touching

Connect Manual Connect the last active mobile

Auto Automatically conne ct when your

Pairing Code The default code is “1234”. Touch

incoming calls.

the “call” button.

phone by touching the CONNECT icon when disconnected.

paired phone is in range.

the keypad icon to open the keypad and enter the pairing code or pass key required for Bluetooth connection to your mobile phone. Not all phones/devices require a pairing code. The default code is “0000” for many models.

RDS Sub-menu Features

Setting Options Function

Tuner Region

USA

USA Canada Mexico South America

Europe

UK Europe Africa

FM Band: 87.9MHz -

107.9MHz, channel separation @ 200kHz

AM Band: 530kHz - 1710kHz, channel separation @ 10kHz

FM Band: 87.6MHz -

107.9MHz, channel separation @ 100kHz

AM Band: 531kHz - 1602kHz, channel separation @ 9kHz

Rating Sub-menu Features

The DVD system has a built-in parental lock feature to prevent unauthorized persons from viewing restricted disc content. By default, the rating system is set at the highest setting (with no restrictions). The parental lock is released only by entering the correct password. Once the password is entered, rating is available for setup.

Setting Options Function

Password _ _ _ _ _ _ Enter the default six-digit password

Rating 1. Kid Safe Select the appropriate rating level

2. G

3. PG

4. PG-13

5. PG-R

6. R

7. NC-17

8. Adult

Load Factory Reset Select “Reset” to restore the factory

T o reset the p assword, access the “RATING” menu and enter the current password. Once the correct password is entered, you can access the “Password” field and enter a new one.

NOTE: Record the password and keep it in a safe place for future reference. The rating for each disc is marked on the disc, disc packing, or documentation. If the rating is not available on the disc, the parental lock feature is unavailable. Some discs restrict only portions of the disc and the appropriate content will play. For details, please refer to the disc description.

Demo Sub-Menu Features

You can stop/run demonstration mode or turn Demo Auto Run on/off by choosing the “Demo” option from the SETUP MENU.

When "Demo Auto Run" is Off, you can select "Demo Mode > Run" to start Demo Mode. Demo Mode scrolls through the various source screens, simulating activity on the display. “Demo Mode” is discreetly displayed in yellow text (below the clock), to indicate the unit is in Demo Mode. To stop Demo Mode, press the upper-left quadrant of the TFT (Source select).

When “Demo Auto Run” is On, the unit will automatically display Demo Mode when powered on.

(012345).

for the intended audience. You may override higher ratings by

using your password.

default settings for the Rating sys-

tem only.

Hardware Sub-menu Features

If the rear-view video camera is connected, the unit is on, and the TFT monitor is retracted inside the unit, the TFT monitor automatically moves into the viewing position and Camera mode is selected upon shifting into REVERSE gear. When shifting into DRIVE gear, the TFT monitor is retracted back inside unit after ten seconds.

Setting Options Function

Camera In Normal

Mirror Reverse the camera image as if

TFT Set Open

TFT Set Back Off TFT screen remains fully extended.

Auto Dimmer Off TFT screen brightness remains

Auto The TFT panel automatically opens

Manual When the ignition is turned OFF, the

Off You must press the OPEN button

On TFT screen moves back slightly

On TFT screen will automatically dim

If the monitor is in display mode, the monitor automatically switches to CAMERA mode upon reverse driving. When the reverse driving stops, the monitor returns to its original input mode.

looking through a rear-view mirror.

when the unit is turned on.

TFT panel DOES NOT retract if it was previously out

(1) to open the TFT panel.

after opening.

constant unless manually adjusted.

when less light is available.

P.VOL Sub-menu Features

Setting Options Function

Source DISC

RADIO SD SAT AUX 1 USB BT AUX 2 iPod NAV

TS Cal (Screen Calibration)

To access the “Screen Calibration” function from the SETUP menu, select the “TS CAL” option.

After entering calibration mode, a crosshair appears in a corner quadrant of the screen. To begin calibration, press and hold the crosshair for one second until it moves to the next quadrant. Continue for each quadrant until the calibration is completed.

To exit without performing calibration, touch the BACK button.

Choose a source for which you would like to increase the relative volume (LEVEL).

Use the +/- buttons to increase or decrease relative volume for specified source up to 6 decibels.

Exiting the System Setup Menu

To exit setup mode and resume normal playback, press the SETUP button (31) on the remote control or touch the BACK button on the screen.

VM9413

RADIO

VM9413

TUNER OPERATION

About HD Radio™ Technology

HD Radio technology allows CD-quality digital broadcasting of your local AM and FM radio stations. HD Radio broadcasts can include multiple channels on the same frequency, which is called multicasting. With multicasting, you can receive up to eight additional multicast channels: HD1~HD8. With your VM9413 radio, you will receive HD Radio digital broadcasts automatically when tuned to a station that offers HD Radio technology.

Tuner TFT Display

E Q

T A G

FM 101.9 MHz HD-1

WJHM-FM

P1 87.5 MHz

P2 90.1 MHz

P3 98.1 MHz

P4 106.1 MHz

P5 107.9 MHz

P6 102.9 MHz

Info: Sheryl Crow

MEM MEM

BAND

1/2

1. Current radio band indicator

2. Radio frequency indicator

3. Clock

4. Radio station name (call letters)

Auto HD

PROG

BAND

MEM

1/2

2/2

01:02 PM

A/D

5. Tuning mode indicator

6. Preset radio stations: Touch to recall preset stations

7. Program Information: Title, Artist, Type

NOTE: The amount of information displayed when receiving an HD Radio signal is dependent upon what is being broadcast. Some stations broadcast their call letters (name), the artist's name, song title, and category of music.

8. Touch for quick access to Equalizer level settings

9. Touch to access the direct entry screen

10. HD Radio band indicator

11. |<<: Touch to seek backward

12. >>|: Touch to seek forward

13. <<: Touch to tune backward one step, including multicast channels

14. >>: Touch to tune forward one step, including multicast channels

15. BAND: Touch to change between AM/FM bands

16. Touch to view the SOURCE MENU and select a new playback source

17. MEM: View screen used to enter current channel into preset memory

18. 1/2 or 2/2: Touch this page button to view a second page of on-screen buttons.

NOTE: In AM mode, there is only one page of on-screen button options. The PROG button is not visible since Multicast channels are not available for AM stations.

19. : Touch to view the SETUP menu

20. PROG: Touch to view the HD Radio Multicast channel display

21. A/D: Touch to select Auto, Analog or Digital tuning mode.

22. HD Radio station indicator

23. Auto memory scan

24. TAG: Touch to perform iTunes Tagging for current song

Switching to HD Radio Reception

• Touch the top left corner of the screen (the circle) to view the SOURCE MENU. Touch “Radio”.

• Press the SRC button (6) on the front panel or remote control (8) to switch to the AM/FM or RADIO source.

Selecting the AM/FM Band

Touch the BAND button (15) on the screen, or press the BAND button on the unit (4) or remote control (20) to select

the AM or FM band.

Selecting a Tuning Mode

Touch the A/D button (21) to choose from the following modes:

• Auto: Search for both digital and analog stations.

• Analog: Search and broadcast only analog channels.

• Digital: Search and broadcast only digital stations.

Tuning

Not all FM or AM stations offer HD Radio (digital) broadcasting. You can receive both analog and digital stations with the VM9413.

Seek Tuning

To seek the next station:

• Touch the >>| button on screen (13).

• Press the >>| button (19) on remote control.

• Press the > button on the joystick (14). To seek the previous station:

• Touch the |<< button on screen (12).

• Press the |<< button (17) on the remote control.

• Press the < button on the joystick (10).

Manual Tuning

To increase or decrease the tuning frequency one step:

• Touch the or buttons on screen (14, 15).

• Press the >> or << buttons (14, 22) on the remote control.

• Press the /\ or V buttons (11, 15) on the joystick.

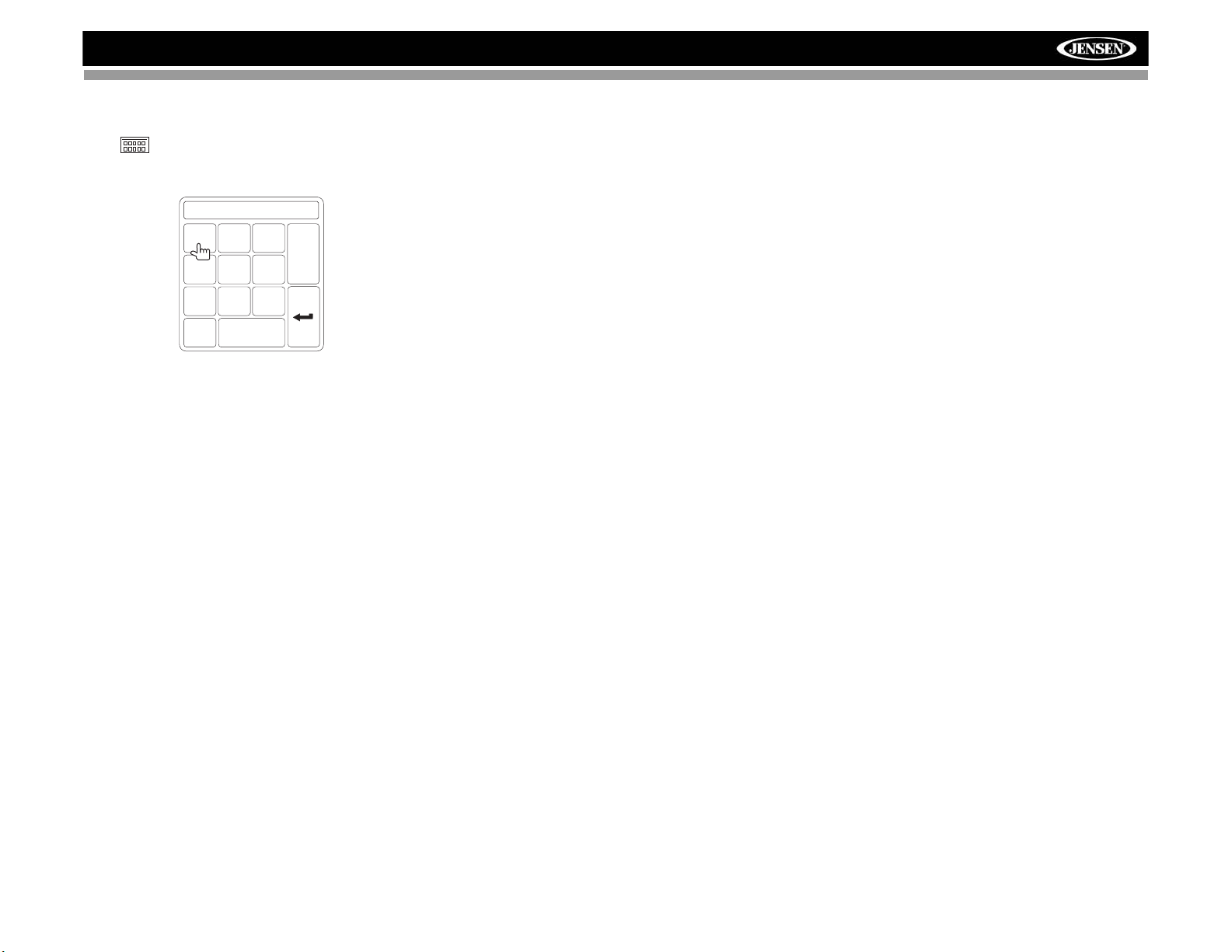

Direct Tuning

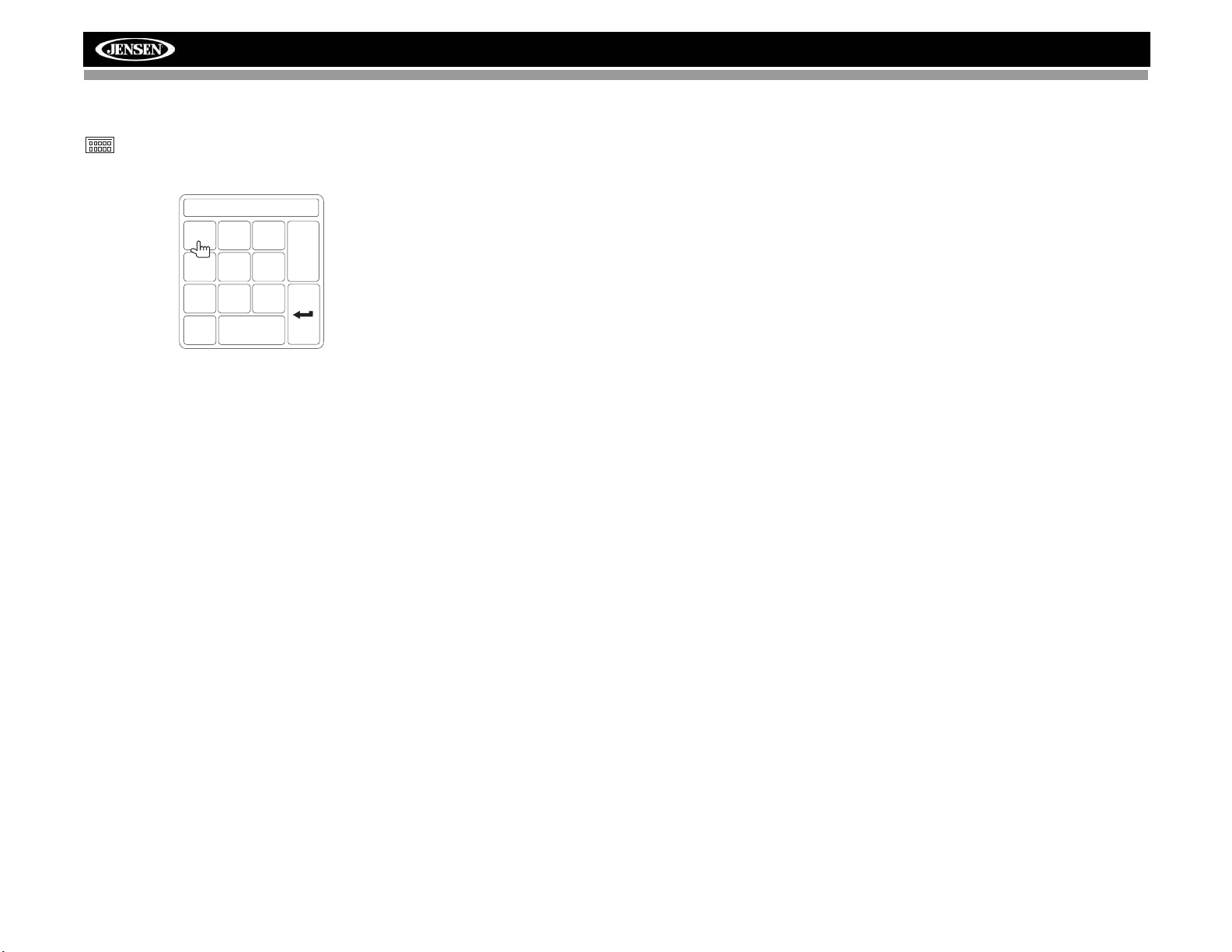

To enter a radio station directly, touch the button or press the GOTO button (21) on the remote control to display the direct entry menu.

FM:___._MHz

Exit

7 0

Clear

VM9413

RADIO

Enter the desired radio station using the on-screen number pad. Press Enter to tune to the selected station. To exit the screen without changing the station, touch Exit. T o clear your entry and start over, touch Clear.

HD Radio Multicast Channels

To tune to an HD Radio multicast channel, tune to the main signal and then press the PROG button (20) on page 2/2 . If a Multicast channel is being broadcast for the current station, the corresponding multicasting number appears on the left side of the screen. To view the title and artist, if available, select HD-1, HD-2, HD3, etc.

MEM

2/2

02:27 AM

A/D

FM 106.7 MHz HD-2

WXXL-FM

E Q

HD-1

HD-2

T A

HD-3

Title: Lil Love

Auto HD

PROG

PTY Search

After tuning to an HD Radio channel, the Program Type categories are listed, allowing listeners to find similar programming by genre.

MEM

2/2

02:07 AM

A/D

FM 106.7 MHz HD-1

WXXL-FM

E Q

01 Non-specific

02 News

T A

03 Information

04 Sports

05 Talk

06 Rock

Title: DAWSON McALLIST

Auto HD

PROG

If the PTY menu is not displayed, press the PROG button (20) on page 2/2 to toggle between HD Radio multicast channels and PTY categories.

When a PTY category is selected from the touch screen menu, the radio will start scanning for stations broadcasting in the selected category.

Using Preset Stations

You can store up to 18 presets for FM and 6 presets for AM. Stored stations appear on the left side of the screen.

Storing a Station

1. Select a band (if needed), then select a station.

2. Touch the on-screen MEM button (17) to open the preset screen.

close the menu). The preset number and station appears highlighted on the left side of the screen.

NOTE: Multicast stations can be stored as preset stations.

Recalling a Station

1. Select a band (if needed).

2. Touch an on-screen preset button (6) to select the corresponding stored station.

P1 87.5 MHz P2 90.1 MHz P3 98.1 MHz P4 106.1 MHz P5 107.9 MHz P6 102.9 MHz

Auto Store (AS)

To select six strong stations and store them in the current band:

1. Select a band (if needed).

2. Touch the on-screen AS button or press the AS button (3) on the control panel to activate the Auto Store function.

The new stations replace stations already stored in that band.

Preset: _ _

Exit

7 0

Clear

3. Enter the preset number for which you would like to store the current station (or press EXIT to cancel and

VM9413

iTunes® Tagging

The VM9413 offers iTunes® Tagging, which allows the user to "Tag" songs playing on HD Radio™ stations for purchase later through iTunes. When the onscreen TAG button (24) is touched, the unit stores the title and artist song information that can then be transferred to your iPod when connected to

the MediaLink allowing you the option to purchase your tagged songs.

iPod Compatibility

Models supported, but not limited to, include the following

• iPod nano 4G

• iPod Classic

• iPod Touch

• iPod 5G

• iPod nano 3G

Tagging Music

To begin tagging music, tune to an HD Radio station. The HD icon at the top of the display must be illuminated, indicating a digital station is being received. Touch the onscreen TAG button or press the MENU/TAG button on the remote control. “Adding Tag...” will appear in the display. The song information is saved to the VM9413 memory until an iPod is connected. When the first tag is successful, the bottom of the screen displays “Tag Stored 1 of 64”. You can tag up to 64 songs before the tags must be transferred to an iPod or deleted. When the Tag memory reaches capacity (64 tags) the bottom of the screen displays “Memory Full, Connect iPod”.

. A list titled "Tagged" will appear in iTunes,

NOTE: Tags saved to your iPod can be managed using the iTunes software, available at www.apple.com/itunes.

Downloading Tags to your iPod

To download tags to your iPod, plug an iPod into the iPod

and then into the MediaLink4 iPod connector. All

jLink existing tags are automatically transferred to the iPod and deleted from the head unit's memory. If an iPod is connected when a song is tagged, the Tag will be immediately transferred to the iPod.

NOTE: When transferring Tags to an iPod, the VM9413 must remain in Radio mode until the “## Tag(s) Sent” message is displayed. To purchase tagged songs, you must sync your iPod to iTunes and then click the "Tagged" list on the left side of the iTunes software screen. Click the "view" button for purchasing information.

Table 5: TAG Messages

Tag Message Reason

Storing Tag… TAG button is pressed Tag Stored ## of 64 Successful Storage of Tag ## Tag(s) Sent Tags have been transferred

Memory full, Connect iPod Tag storage is full Insufficient Tag Data Tag data is not available Tag transfer failed Tag transfer failed iPod full, Tag cannot be stored iPod memory is full Tagging not supported Unsupported iPod is con-

successfully

nected

SAT

SATELLITE RADIO OPERATION

18. Touch this area to view the SOURCE MENU and select

Listeners can subscribe to XM® Radio on the Web by visiting www.xmradio.com, or by calling (800) 967-2346. Customers should have their Radio ID ready (see “Displaying the Identification (ID) Code”). Customers can receive a limited number of free-to-air channels without activation.

Accessing Satellite Radio Mode

Press the SRC button (6) on the front panel or remote control (8) to switch to the SAT source.

P1 XM Preview

P2 XM Preview

P3 XM Preview

P4 XM Preview

P5 XM Preview

P6 XM Preview

Title: Fridays XM144!

3 21

SAT1 CH001

XM Preview Preview

1. SAT channel name

2. SAT channel number

3. SAT band

4. Time

5. Song title

6. Artist name

7. Song category

8. Signal strength indicator

9. Current preset channels/on-screen preset buttons

10. CH -: Select the previous channel

11. CH +: Select the next channel

12. CAT +: Select next channel in current category only

13. CAT -: Select previous channel in current category only

14. Touch to enter channel directly using keypad on screen

15. CG: Access Channel/Category Guide mode

16. BAND: Change between SAT1, SAT2 and SAT3 bands

17. Touch to view the SETUP menu

01:02

CAT

CHCH

CAT

BAND

MEM

DIAG

19. MEM: View screen used to enter current channel into

20. DIAG: This feature is reserved for use by service

Displaying the Identification (ID) Code

Before you listen to satellite radio, you must subscribe to the service using your radio’s identification number. To display the radio ID, press the left/right buttons (16, 17) on the joystick or the CH - or CH + buttons on the touch screen repeatedly to tune to channel “000”. The screen displays the radio ID where the channel name is usually displayed.

Selecting a Station

Use the left/right joystick buttons or the CH - or CH + buttons

on the touch screen to change to another station.

Preset Mode

To enter preset mode, touch the BAND button on the screen, or press the BAND button on the unit (4) or remote control

(20) to change between the following bands: SAT1, SAT2, or

SAT3 (indicated in the top left corner of the TFT screen). Six numbered preset buttons store and recall stations for

each band. All six stored stations (P1-P6) for the current band appear on the TFT screen.

Storing a Station

1. Select a band (if needed), then select a station.

2. Touch the on-screen MEM button (18) to open the

3. Touch the preset number in which you would like to

a new playback source

preset memory

professionals for troubleshooting.

preset screen.

Mem:

Exit

store the current station (or press EXIT to cancel and close the menu). The preset number and station appears highlighted.

VM9413

Recalling a Station

1. Select a band (if needed).

2. Touch an on-screen preset button to select the corresponding stored station.

Direct Tuning

To enter a radio station directly, touch the button or press the GOTO button (21) on the remote control to display the direct entry menu.

CHNO:___/255

Exit

Clear

Enter the desired radio station using the on-screen number pad. Touch the Enter button to tune to the selected station. T o exit the screen without changing the station, touch Exit. To clear your entry and start over, touch Clear.

Channel/Category Guide Mode

There are two search modes to help navigate through channels and or categories. T o access the Channel/Category Guide mode, press the ENTER button (18) on the remote control or the CG button on the touch screen.

Channel Guide is the default search mode. To access Category Guide, press the TITLE button (2) on the remote control or touch CAT on the touch screen. To return to Channel Guide, touch CH on the screen or press the SUBTITLE button (9) on the remote control.

Channel Guide Mode

When Channel Guide mode is selected, the first six satellite channels are displayed in the boxes in the bottom left of the TFT screen and the on-screen menu changes to facilitate search mode.

VM9413

SAT

CAT

MEM

01:02

DIAG

SAT1 CH001

XM Preview Preview

########

001 XM Preview

004 The 40s

005 The 50s

006 The 60s

007 The 70s

Title: www.xmradio.com

SCN

• While in Search Mode, to switch between Channel and Category search modes, press the CH or CAT buttons on the touch screen.

• Use the scroll bar and arrows on the touch screen to view the next/previous page of stations. Each page contains six channels to select from.

• Press the on-screen SCN button to preview each of the 6 channels displayed for 10 seconds.

• Press the CG button to return to the Preset Mode screen.

• T o select a channel while in Channel Guide mode, touch the channel name on the screen. The channel will begin playing and the unit will return to the Preset Mode.

Category Guide Mode

When Category Mode is selected, folder icons appear on the screen next to category choices.

• While in Search Mode, to switch between Channel and Category search modes, press the CH or CAT buttons on the touch screen.

• Use the scroll bar and arrows on the touch screen to view the next/previous page of categories. Each page contains six categories to select from.

• To select a category, touch the corresponding category name or folder icon. The channels in that category will be displayed on the screen.

• Use the scroll bar and arrows on the touch screen to view the next/previous six stations in the selected category.

• Touch the on-screen SCN button to preview each channel in the selected category for 10 seconds.

• Touch the channel name to play that channel.

• Touch the on-screen CG button to return to the Preset Mode screen.

DVD/VCD VIDEO OPERATION

NOTE: When properly installed, DVD video cannot be displayed on the main TFT screen unless the parking brake is applied. If you attempt to play a DVD while the vehicle is moving, the TFT screen displays “PARKING” with a blue background. Rear video screens, if applicable, will operate normally.

Opening/Closing the TFT Video Screen

Opening the TFT Screen

To open the TFT video screen, press the OPEN/CLOSE button (1). The unit beeps and then opens.

Closing the TFT Screen

Press the OPEN/CLOSE button (1) again to close the TFT screen. If the screen is in the “IN” position, it moves out before closing.

Insert/Eject Disc

Upon inserting a DVD disc, DVD mode is entered and disc play begins.

NOTE: If Parental Lock (Rating) is activated and the disc inserted is not authorized, the 6-digit code must be entered and/or the disc must be authorized (see “General Sub-menu Features” on page 11).

Y ou cannot insert a disc if there is already a disc in the unit or if the power is off.

NOTE: DVD-R and DVD-RW will not play unless the recording session is finalized and the DVD is closed.

Ejecting a Disc

Press the button (16) on the unit or remote control (35) to eject the disc. The unit automatically reverts to Tuner mode. You may eject a disc with the unit powered off. The unit will remain off after the disc is ejected.

Reset the Loading Mechanism

If the disc loads abnormally or an abnormal core mechanism operation occurs, press and hold the button (16) on the

unit or remote control (35) to reset the loading mechanism. Normal operation resumes.

Accessing DVD Mode

To switch to DVD mode when a disc is already inserted, press the SRC button (6) on the front panel or remote control (8) until “DISC” appears at the bottom of the screen.

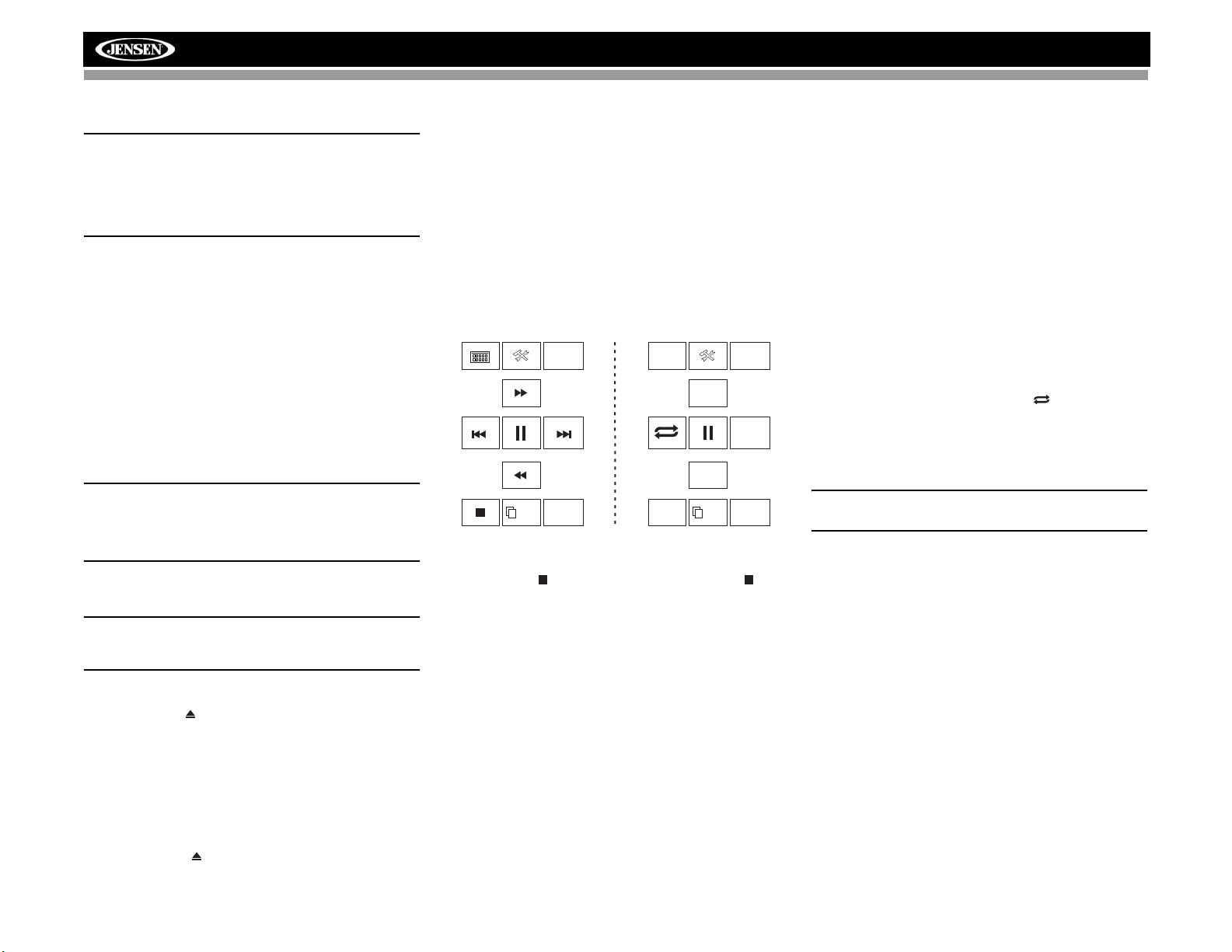

Controlling Playback

To access the on-screen controls, touch the screen. Touch the 1/2 button to view a second page of controls

Stopping Playback

Touch the stop button ( ) on the screen or press the / BAND button (20) on the remote control to stop DVD play.

Pausing Playback

Touch the pause button ( || ) on the screen (or press the button on the remote control) to suspend disc playback. Press the > button on the screen to resume disc playback.

Fast Forward Playback

Press the /\ button on the joystick or the >> button on the screen to fast forward. Keep pressing and releasing the button to increase the rate from “2X” to “4X”, “6X”, and “8X”.

Press the joystick enter button (18) on the remote control or touch the play button (>) to resume normal playback.

Fast Reverse Playback

Press the \/ joystick button or touch the << button on the screen to play the current title in fast reverse. Keep pressing and releasing the button to increase the rate from “2X” to “4X”, “6X”, and “8X”.

Press the joystick ENTER button (13) on the unit or touch the play button (>) to resume normal playback.

1/2

TITLE

AUDIO

SUBTITLE

2/2

BACKBACK

A-B

DISP

>/||

VM9413

Slow Forward/Slow Reverse Playback

Press the ||>/BAND button on the remote control to slow forward/slow reverse. Keep pressing and releasing the button to increase the slow forward rate from “2X” to “4X” and “8X” and then begin slow reverse.

Repeat Playback

Press the RPT button (19) on the control panel, the RPT button (7) on the remote control, or the button on screen

to alter repeat mode according to the following:

• DVD: Repeat Chapter, Repeat Title, Repeat Off

• VCD (PBC Off): Repeat Single, Repeat Off

NOTE: For VCD play, the repeat function is not available if PBC is on.

Sectional Repeat Function (A-B)

Use the A-B function to define a specific area of a disc to repeat.

• Press the RPT A-B button (6) on the remote control (or the A-B button on screen) to set the start point (A) of the repeated section.

• Press the RPT A-B button again once you reach the desired end point (B) of the repeated section. The selected portion of the DVD will now repeat continuously.

• Press the RPT A-B button again to cancel the A-B section setting and stop repeat play.

Random Playback

With a DVD, VCD, or CD playing, press the RDM button on the remote control (33) to activate random playback and play all chapters/tracks in random order. “On” appears on the screen.

Press the > button on the joystick to play the next random track.

Press the RDM button again to turn random play off.

NOTE: When a VCD is playing with PBC turned “On”, activating random playback automatically turns PBC off.

Accessing the DVD Menu

Press the MENU button (1) on the remote control to recall the main DVD menu. Use the joystick to select a title from the menu or touch the title on screen.

VM9413

Press the TITLE button (2) on the remote control or on screen to select a different title for playback.

Press the ENTER (joystick) button to confirm your selection and begin playback. You can also select a title using the touch screen.

Moving Through Chapters

Press the > button on the joystick or the >>| button on screen to advance to the next chapter on the DVD.

Press the < button on the joystick or the |<< button on screen to move to the previous chapter.

Direct Chapter / Track Selection

Remote Control Direct Entry

During DVD, VCD and CD playback, you can use the numeric keypad on the remote control (29) to access a track directly.

Touch Screen Direct Entry

To select a title, chapter/track, or specific playback time directly, touch the button on screen control to display

the direct entry menu.

• Time: _ _:_ _:_ _ Enter the desired title, chapter/track, or time using the on-

screen number pad and then press the Enter button. To exit the screen without making a selection, touch Exit. To clear your entry and start over, touch Clear.

Viewing an Alternate Picture Angle (DVD Only)

Some DVDs contain scenes that have been shot simultaneously from different angles. For discs recorded with multiple angles, press the ANGLE button (13) on the remote control to toggle available angles of the on-screen image.

Zooming

Press the PRESET /\ and \/ buttons (11, 12) on the remote control to enlarge and pan through the video image using the following options: “ZOOM 1.5”, “ZOOM 2”, “ZOOM 3”, and “OFF”.

Multi-Language Discs (DVD Only)

Changing Audio Language

If you are watching a disc recorded in multiple languages, press the AUDIO button (5) on the remote control to choose a language.

Changing Subtitle Language

If you are watching a disc recorded in multiple languages with subtitles, press the SUBTITLE button (9) on the remote control to choose the language in which you would like the subtitles to appear.

NOTE: During VCD playback, press the AUDIO button (5) on the remote control to choose between Left Channel, Right Channel, and Stereo.

Playback Information

During DVD and VCD playback, press the DISP button on the control panel (2) or remote control (10) to display playback information on the screen, including the media playing and current playback time.

DVD Playback Information

The following information is displayed at the top of the screen during DVD playback:

• Title: 05/08 – “05/08" indicates the fifth of 8 titles on the DVD is currently playing.

• Chapter: 012/016 – “002/016" indicates that the second of 16 titles on the DVD is currently playing.

• 00:41:28 – “00:41:28” indicates the playback time of the current title.

The following information is displayed at the bottom of the screen:

• Front: Source

• Rear: Source

•CLOCK

VCD Playback Information

The following information is displayed at the top of the screen during VCD playback:

• VCD 2.0 – Format of current disc.

• Title: 06/18 – “06/18” indicates the sixth of 18 tracks on the VCD is currently playing.

• 00:02:18 – “00:02:18” indicates the playback time of the current track.

Chapter: _ _

Exit

Clear

Use the button to select Title, Chapter, or Time entry.

• Title: _/#

• Chapter: _ _/##

PBC (Play Back Control - VCD Only)

For VCDs with play back functionality, play back control (PBC) provides additional controls for VCD playback.

Press the MENU button (1) on the remote control to toggle the PBC function “On”/”Off”. Once PBC is on, playback starts from track 1 of the play list.

NOTE: When PBC is activated, fast forward, slow playback, and previous/next track are available. Repeat and direct track selection are not available.

When PBC is activated, selecting random, scan, or search playback automatically deactivates PBC.

General Disc Information

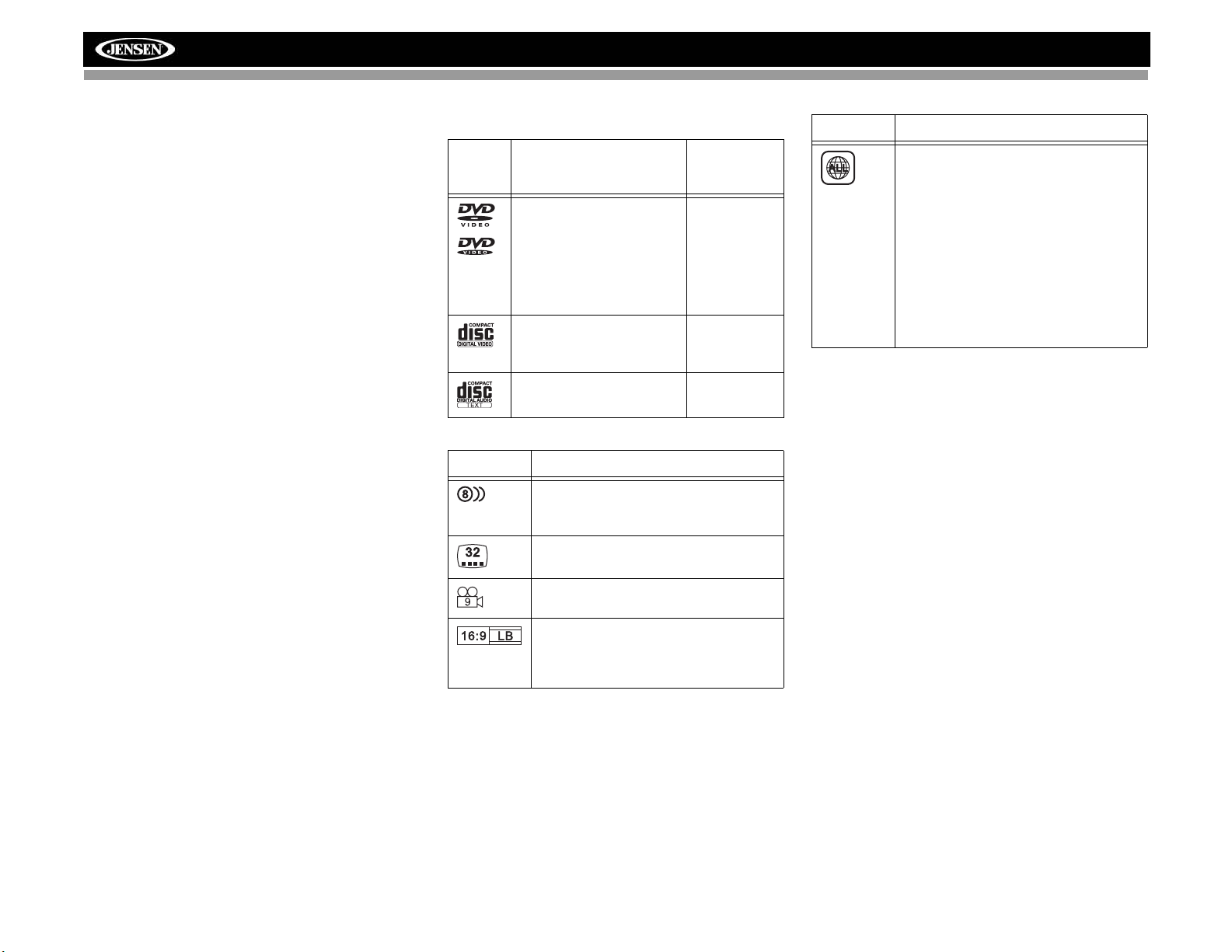

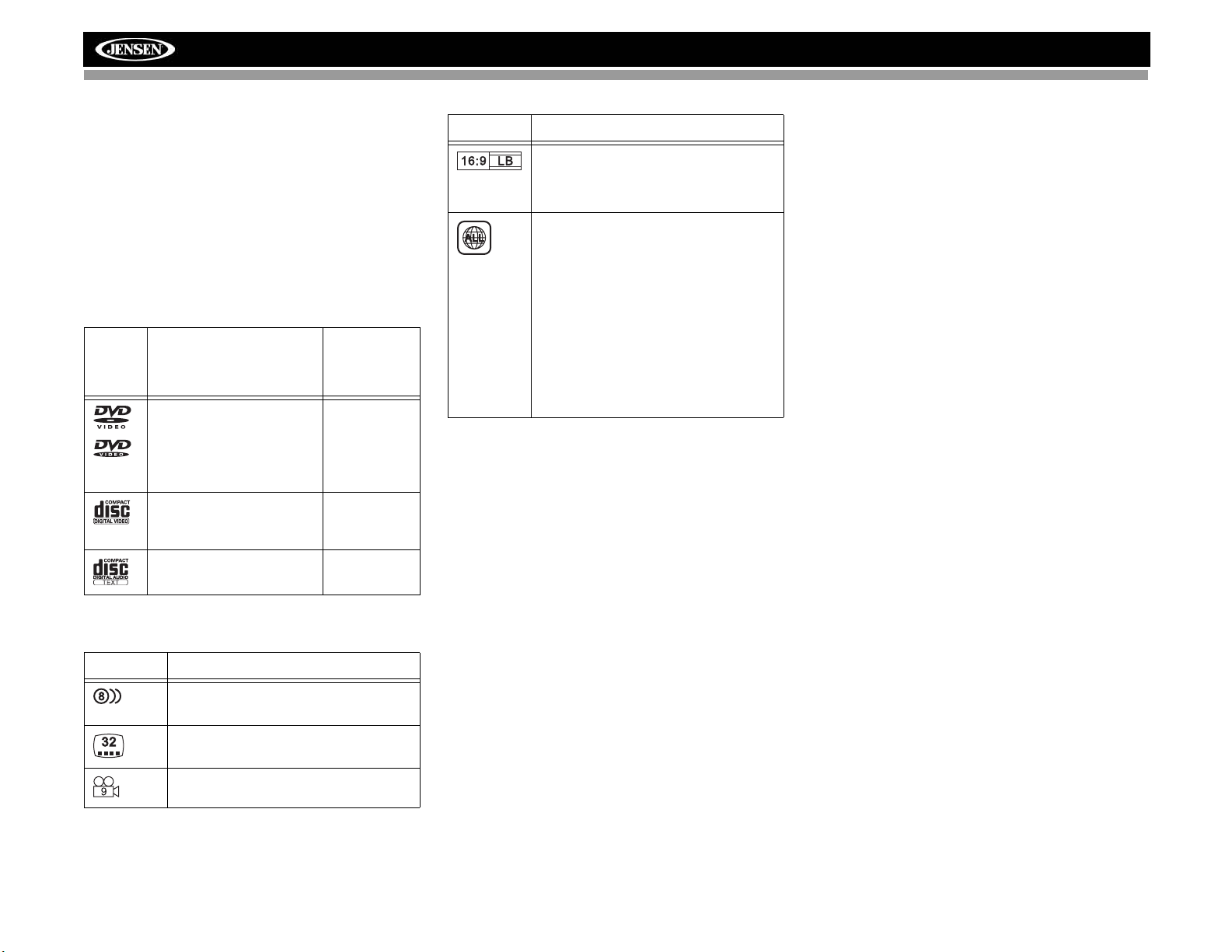

Table 6: Disc Properties

Symbol 12cm Disc Properties

Single side single layer (DVD-5) Single side double layer (DVD-9) Double side single layer (DVD-10) Double side double layer (DVD-18)

Single side single layer (VCD)

Single side single layer 74 minutes

Table 7: Disc Symbols

Symbol Meaning

Number of voice languages recorded. The number inside the icon indicates the number languages on the disc (maximum of 8).

Number of subtitle languages available on the disc (maximum of 32).

Max Play

Time

(MPEG 2

Method) 133 minutes 242 minutes 266 minutes 484 minutes

(MPEG 1

Method)

74 minutes

VM9413

Number of angles provided (maximum of

9). Aspect ratios available. “LB” stands for Let-

ter Box and “PS” stands for Pan/Scan. In the example on the left, the 16:9 video can be converted to Letter Box video.

Indicates the region code where the disc can be played.

• Region 1: USA, Canada, East Pacific Ocean Islands

• Region 2: Japan, Western Europe, Northern Europe, Egypt, South Africa, Middle East

• Region 3: Taiwan, Hong Kong, South Korea, Thailand, Indonesia, South-East Asia

• Region 4: Australia, New Zealand, Middle and South America, South Pacific Ocean Islands/ Oceania

• Region 5: Russia, Mongolia, India, Middle Asia, Eastern Europe, North Korea, North Africa, North-West Asia

• Region 6: Mainland China

• ALL: All regions

DISC

VM9413

DVD/CD AUDIO OPERATION

Instructions for TFT control and Insert/Eject are the same for DVD and CD operation. Please see the DVD/Disc Video Operation section for information about these topics.

The VM9413 will play music or other audio files from the following disc media/formats:

• CD-DA

• CD-R/RW

•DVD

•DVD+R/RW

•DVD-R/RW Upon inserting a disc with the TFT screen open, the disc and

track title (if available), along with the track number and playing time appear on the screen.

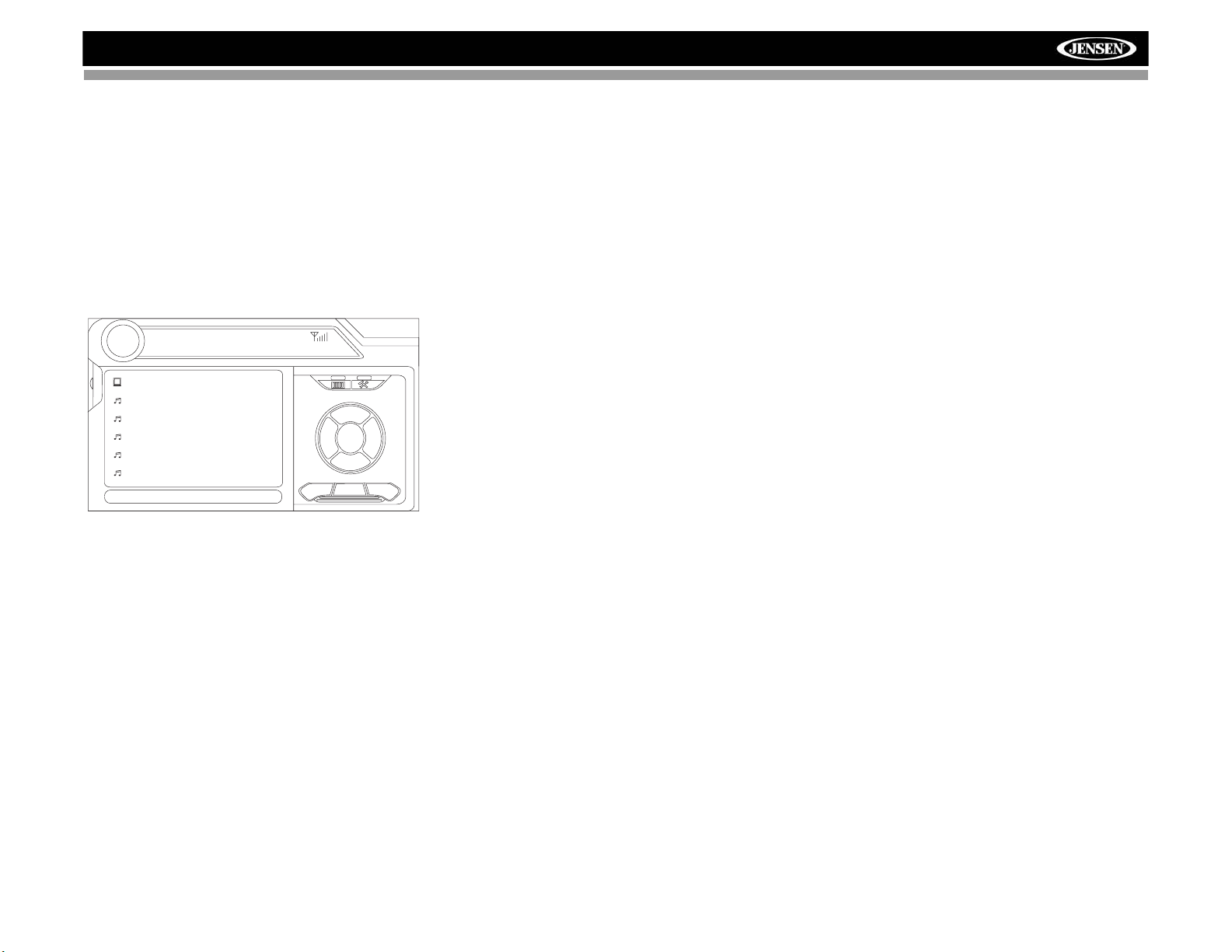

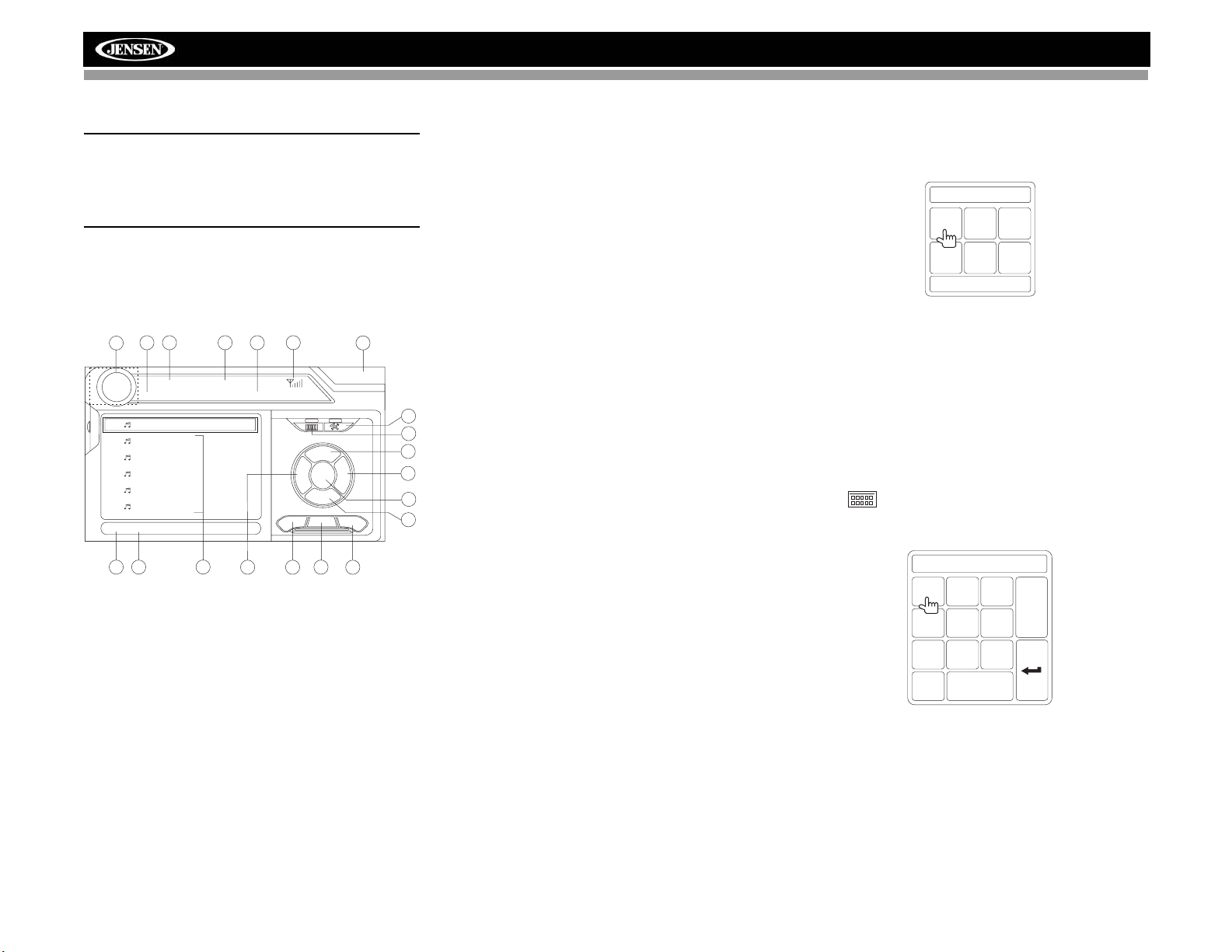

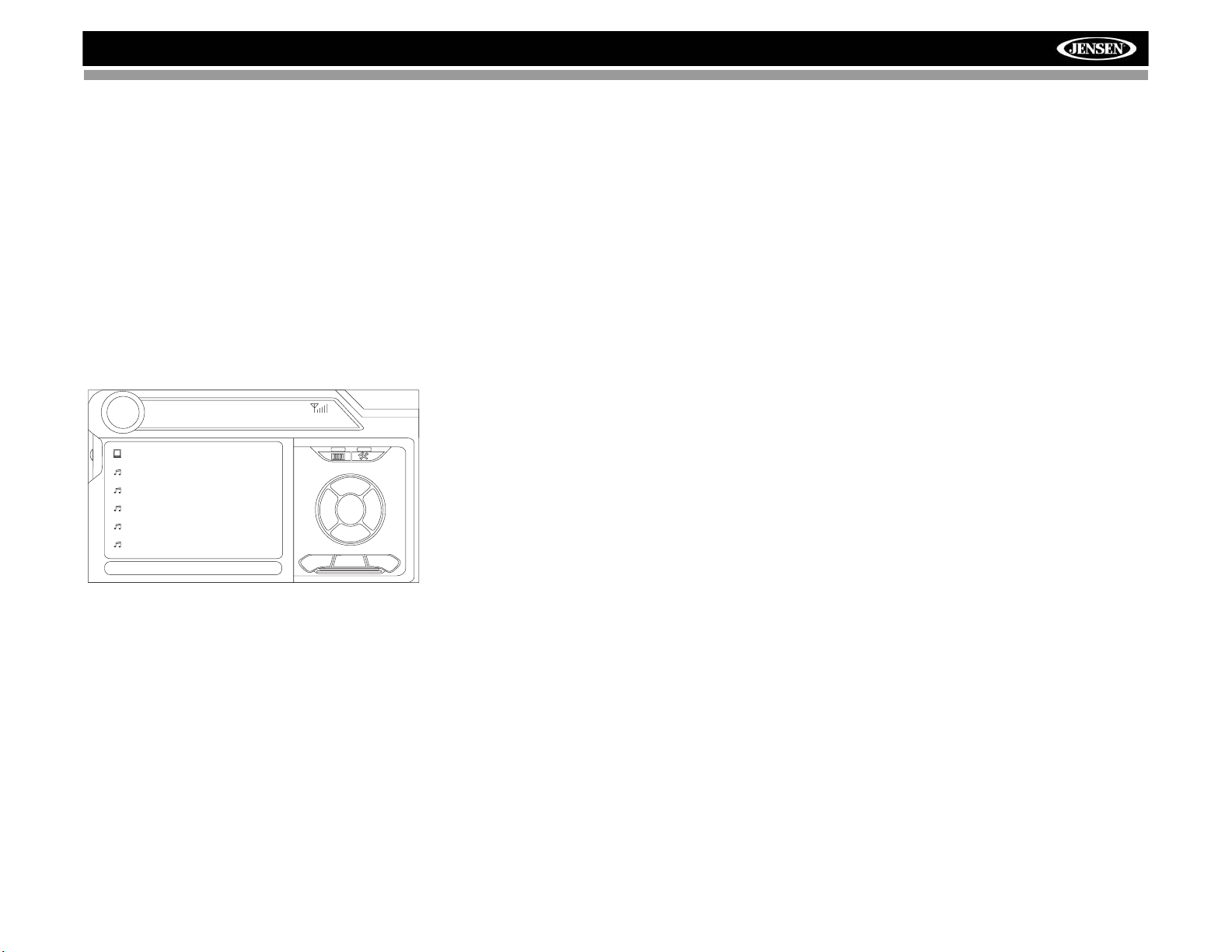

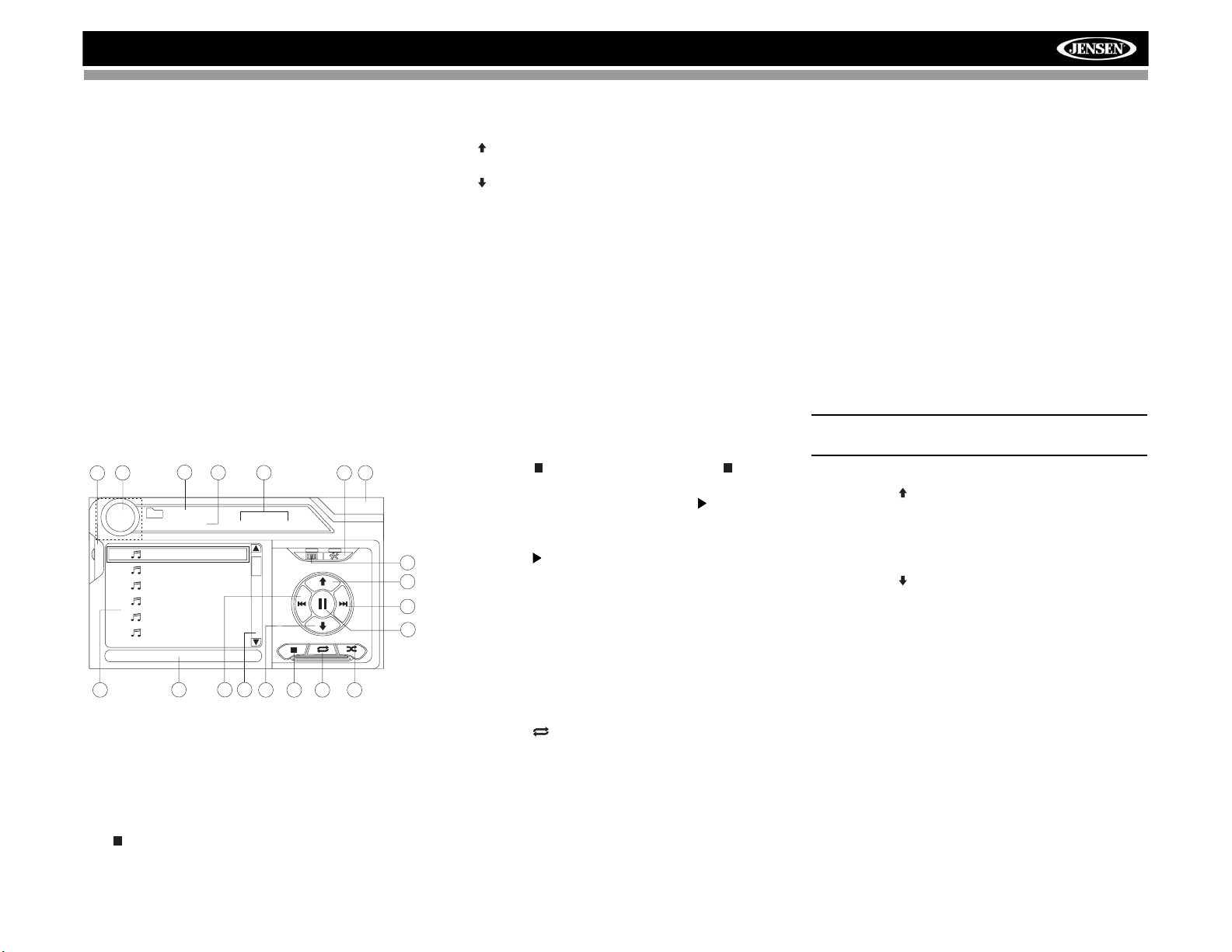

CD Player User Interface

The on-screen indicators and touch key areas for CD playback are outlined below.

1 Track 01

E Q

2 Track 02

3 Track 03

4 Track 04

5 Track 05

6 Track 06

Audio CD

CD 1/10 01:23 04:31

1. Current track and total number of tracks on disc

2. Elapsed playing time/length of track

3. Disc title

4. Available track titles

5. ID3 information

6. ||: Touch to pause/play disc playback

7. : Touch to stop disc playback

8. >>|: Touch to move to next track

9. |<<: Touch to move to previous track

10. />>: Touch to navigate playlist/touch to fast forward

01:02

11. /<<: Touch to navigate playlist/touch to fast rewind or reverse

12. Touch to activate/deactivate Random play mode

13. Touch to activate/deactivate Repeat play mode

14. Touch to access the direct entry screen

15. Touch to view the SETUP menu

16. Touch to view Spectrum Analyzer > Equalizer

17. Touch to view the SOURCE MENU and select a new playback source

18. Touch the scroll bar and arrows to view the previous/ next page of songs

19. Current time

Controlling Playback

Stopping Playback

Touch the button on screen or press the button (20) on the remote control to stop disc playback.

To resume playback, touch the button on screen or press the joystick button.

Pausing Playback

Touch the button on screen or press the joystick button to suspend or resume disc playback.

Moving Through Tracks

Press the >>| button (19) on the remote control or on screen or use the > button on the joystick to advance to the next track on the disc.

Press the |<< button (17) on the remote control or on screen or use the < button on the joystick to move to the previous track.

Repeat Playback

Touch the button on screen, press the RPT button on the remote control (7) or control panel (19) to alter repeat mode according to the following:

• DVD: Repeat Chapter, Repeat Title, Repeat Off

• CD-DA: Repeat One, Repeat All, Repeat Off

• CD-R/RW: Repeat One, Repeat All, Repeat Off

• DVD-R/RW: Repeat One, Repeat All, Repeat Off

Track Scan Select (CD-DA discs only)

During disc play, press the SCN button on the remote control (34) or the INT button (20) on the control panel to play the first 10 seconds of each track. When a desired track is reached, press the SCN button again to cancel the function and play the selected track.

Random Play Select

While disc play is stopped, press the RDM button on the remote control (33) to play the tracks on the disc in a random, shuffled order. Touch the RDM button again to cancel Random Play mode.

NOTE: CD-R and CD-RW will not play unless the recording session is finalized.

Fast Forward

Touch the button on screen or press the /\ button on the joystick to fast forward. Keep pressing and releasing the button to increase the rate from “2X” to “4X”, “6X”, and “8X”.

Fast Reverse

Touch the button on screen or press the /\ button on the joystick to fast reverse. Keep pressing and releasing the button to increase the rate from “2X” to “4X”, “6X”, and “8X”.

Direct Track Entry

To select a track directly, touch the button on screen to display the direct entry menu.

TRACK:__/##

Exit

Clear

Enter the desired track number using the on-screen number pad, and then press the Enter button. To exit the screen without making a selection, touch Exit. To clear your entry and start over, touch Clear.

PLAYING MP3/WMA FILES

Instructions for TFT control and Insert/Eject are the same for DVD and MP3 operation. Please see the DVD/Disc Video Operation section for information about these topics.

NOTE: When burning MP3 / WMA files onto a DVD disc, use the 2X or 4X burning option, if available. This slower burning speed will help eliminate buffer errors and increase disc reading reliability. Also, use folders when burning large numbers of songs / files to a disc for easy music navigation. Select the "Disc at Once" option and close your disc.

MP3/WMA Media and File Requirements

This player allows you to play back MP3 and WMA files recorded onto CD-R/RWs, DVD+R/RWs, and DVD-R/RWs. For CD-RW discs, please make sure it is formatted using the full method and not the quick method to prevent illegal disc operation.

Up to 1500 songs/files can be burned onto a disc for a MEGA DVD music mix. Do not exceed this number of songs/files or disc readability problems may occur.

MP3 Format Compatibility

The file naming formats listed below are compatible with this unit:

• ISO 9660 – file name: 12 characters, file extension: 3 characters

• ISO 9660 – file name: 31 characters, file extension: 3 characters

• Joliet – 64 characters

If the file or folder name does not conform to ISO 9660 file system standards, it may not be displayed or played back correctly. Use the following settings when compressing audio data for your MP3 disc:

• Transfer Bit Rate: 128kbps

• Sampling Frequency: 48kHz

NOTE: When recording MP3 up to the maximum disc capacity , disable additional writing. For recording on an empty disc up to maximum disc capacity, use the "Disc at once" setting.

MP3 Playing Order

When selected for play, files and folders (Folder Search, File Search or Folder Select) are accessed in the order they were written by the CD writer. As a result, the order in which they are expected to be played may not match the order in which they are actually played. You may be able to set the order in which MP3/WMA files are to be played by writing them onto a medium such as a CD-R with their file names beginning with play sequence numbers such as "01" to "99".

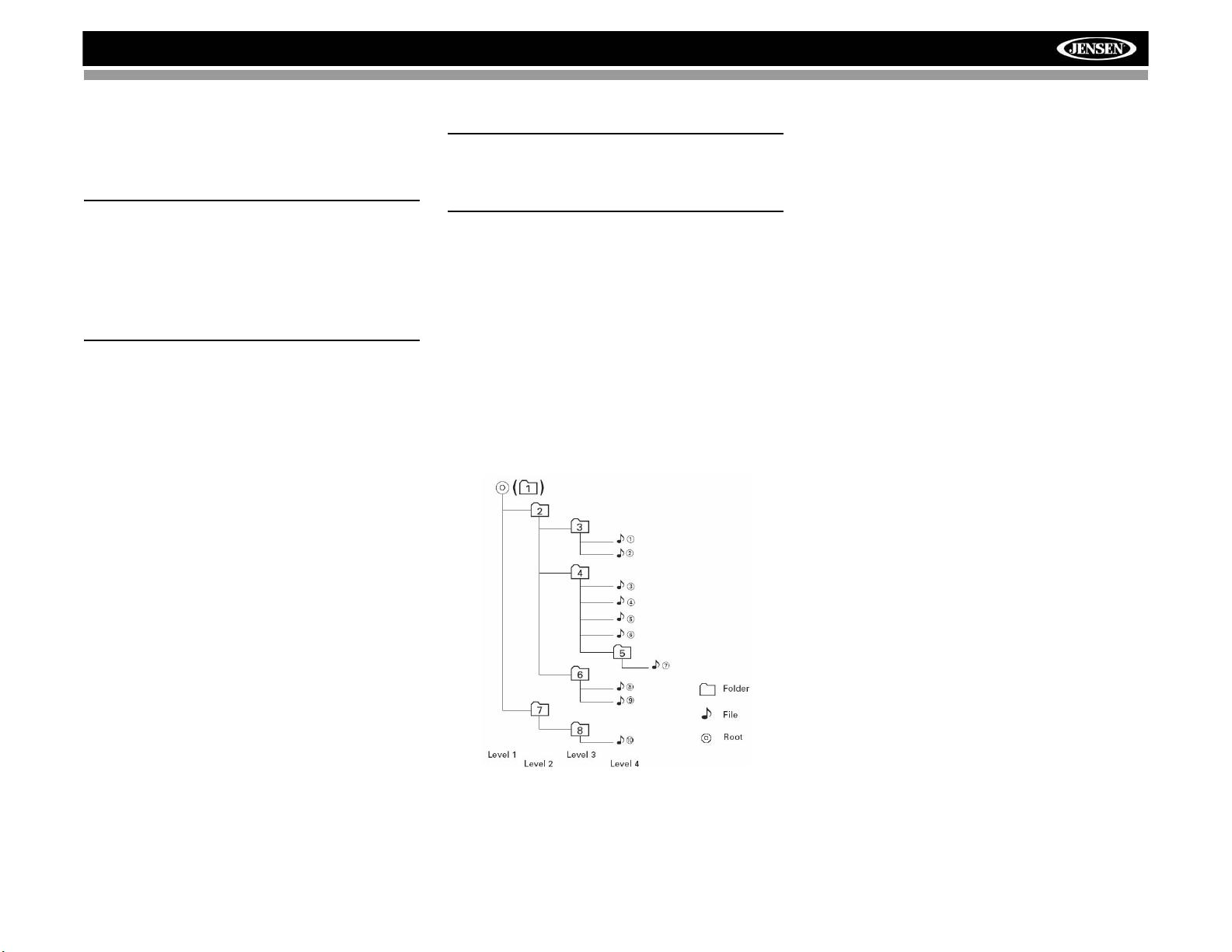

For example, a medium with the following folder/file hierarchy is subject to Folder Search, File Search or Folder Select, as shown below.

The VM9413 player will only recognize three folder levels and does not display folders containing only other folders. In the example above, the unit will display folders 3, 4, 6, and 8, but not 2 and 7 since they do not contain any tracks directly. Folder 5 is not recognized at all since it is at the fourth level.

VM9413

Loading an SD Card

NOTE: The VM9413 will support up to 8GB SD Cards. SD Cards larger than this (SDHC Cards) will not be recognized.

Insert the SD card into the SD slot (21) on the front of the radio. The unit will read the media files on the card automatically.

BAND AS

Pre

s s Au

d io

DISP

OPEN

E n te

T o remove the card, first press the SRC button (6) to switch to another mode and stop SD playback. Pull the SD card out to remove it.

BAND AS

Pre

s s Au

d io

DISP

OPEN

E n

te r

VM9413

DISC

Loading a USB Device

NOTE: The USB port will recognize most USB flash memory devices, as well as portable hard drives with audio / video files. The hard drive must be formatted to FAT32. The head unit operating system does not support NTFS file structure.

MediaLink

1. Locate the USB jack on the MediaLink

3.5mm - Audio

VIDEO LEFT RIGHT

Type A USB Connector

2. Insert the USB device into the USB connector. The unit will read the audio/video media files on the USB device automatically.

To remove the USB device, press the SRC button (6) to switch to another mode and then remove the USB device from the USB connector.

MP3 User Interface

The on-screen indicators and touch key areas for MP3 playback are outlined below.

(Root)

MP3 4/84 01:56 00:00:23

1 Cherry Poppin Da

2 Chris Isaak - Baby 3 Crazy Town - Butt 4 Phish - Birds Of A 5 Phish - Bouncin' R 6 Phish - Freebird (L

DIR -

ALL

2/2

DIR +

1. Current track and total number of tracks on root of disc

2. Elapsed playing time, track length

3. Current time

4. Track titles

5. ID3 information

6. || : Touch to play/pause disc playback

7. : Touch to stop disc playback

8. >>|: Touch to move to next track

9. |<<: Touch to move to previous track

10. />>: Touch to navigate playlist/touch to fast forward

11. /<<: Touch to navigate playlist/touch to fast rewind or reverse

12. DIR -: Touch to view the previous folder

13. DIR +: Touch to view the next folder

14. Touch to access the direct entry screen

15. Touch to view the SETUP menu

01:02 AM

1/2

19 20

16. Touch to view Spectrum Analyzer > Equalizer

17. Touch to view the SOURCE MENU and select a new playback source

18. Folder name

19. 1/2 or 2/2: Touch this page button to view a second page of on-screen buttons

20. Touch the scroll bar and arrows to view the previous/ next page of songs

21. Touch to activate/deactivate Repeat play mode

22. Touch to access the Music menu

23. Touch to access the Video menu

24. Touch to access the Photo menu

25. Browse all files

Controlling MP3/WMA Disc Playback

Playing MP3/WMA Files

After inserting a MP3/WMA disc, files will play in the sequence of the “Root’ directory.

NOTE: When burning MP3 / WMA files onto a DVD disc, use the 2X or 4X burning option, if av ailable. This slower burning speed will help eliminate buffer errors and increase disc reading reliability. Also, use folders when burning large numbers of songs / files to a disc for easy music navigation. Select the "Disc at Once" option and close your disc.

Stopping Playback

Touch the button on screen or press the /BAND button (20) on the remote control to stop disc playback.

To resume playback, touch the button on screen, press the joystick button (13) on the front panel, or press the >/|| button (18) on the remote control.

Pausing Playback

Touch the button on screen, press the joystick button (13) on the front panel, or press the /|| button (18) on the remote control to suspend or resume disc playback.

Moving Through Tracks

Press the >>| button (19) on the remote control or on screen or use the > button on the joystick (14) to advance to the next track on the disc.

Press the |<< button (17) on the remote control or on screen or use the < button on the joystick (10) to move to the previous track.

Repeat Playback

Touch the button on screen, press the RPT button (19) on the control panel or press the RPT button (7) on the remote control to alter repeat mode according to the following: Repeat Single, Folder Repeat, Repeat Off.

Random Play Select

Press the RDM button (33) on the remote control to play the files on the disc in a random, shuffled order. Press RDM again to cancel Random Play mode.

NOTE: CD-R and CD-RW will not play unless the recording session is finalized.

VM9413

iPod

VM9413

iPod OPERATION

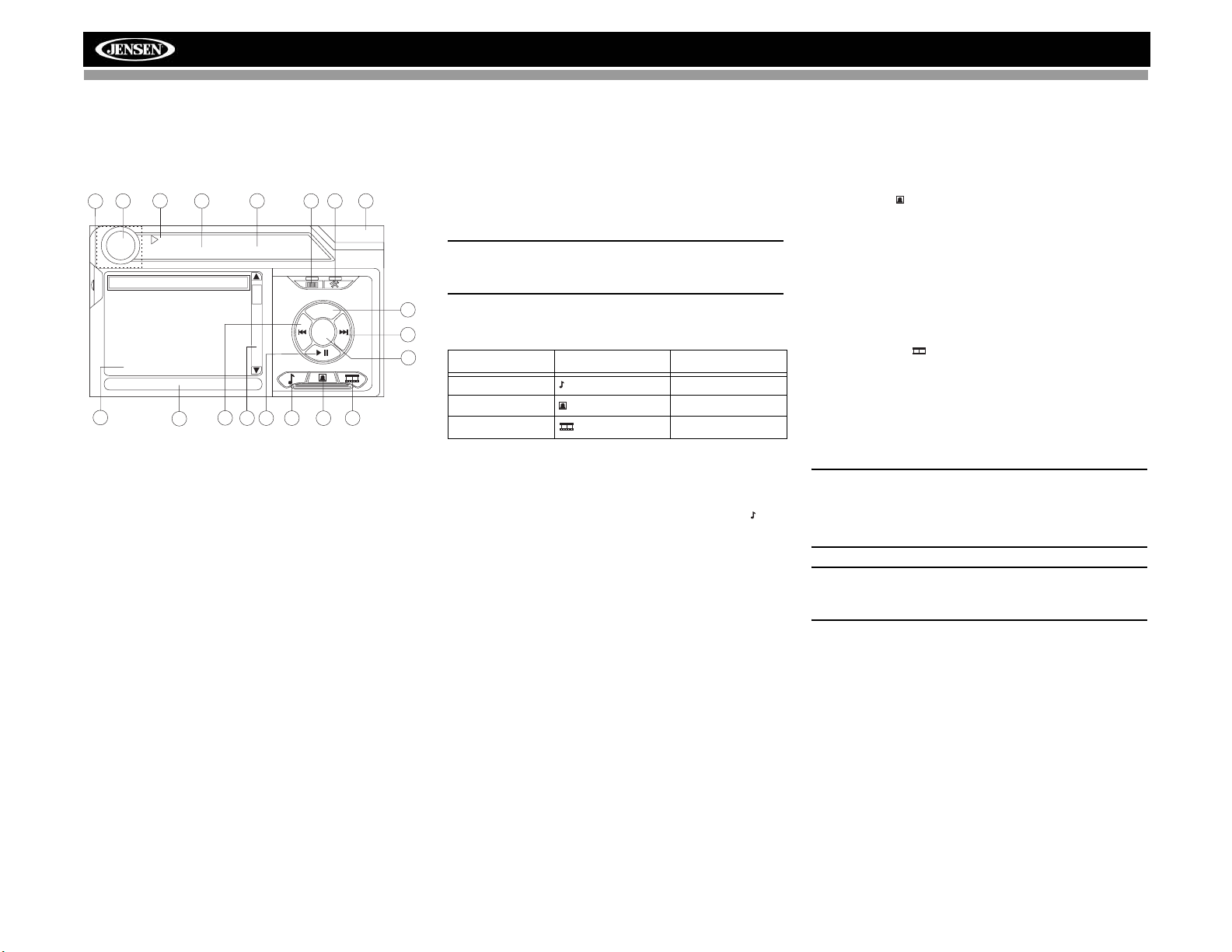

iPod User Interface

The on-screen indicators and touch key areas for iPod playback are outlined below.

A Rush of Blood to the Head

1:08 2/124

0001 A Rush Of Blood to

0002 40 0003 4th of July 0004 A Little Less Conver 0005 A Message 0006 A Sort of Homecomi

Artist: Coldplay

1. Elapsed playing time

2. Current track and total number of files

3. Current time

4. Media titles/menu information

5. ID3 information

6. Enter

7. Touch to access photos

8. >>|: Touch to move to next track

9. |<<: Touch to move to previous track

10. Touch to access the iPod menu

11. >|| : Touch to play/pause disc playback

12. Touch to access music files

13. Touch to access video files

14. Touch to access the SETUP screen

15. Touch to view Spectrum Analyzer > Equalizer

16. Touch to view the SOURCE MENU and select a new playback source

17. Song title

18. Touch to view the direct entry menu

19. Touch the scroll bar and arrows to view the previous/ next page of songs

01:02 AM

Enter

Controlling Your iPod

The unit will automatically switch to iPod mode when an iPod is plugged into the MediaLink

from any other source menu, press the SRC button (6) on the front panel or remote control (8) until the iPod menu appears on the screen.

NOTE: Be sure your iPod has the latest Apple firmware installed to avoid connectivity issues.

The following touch screen icons and remote control buttons

are used to access the iPod menus:

Menu Touch Screen Remote Control

Music AUDIO Photos SUB-TITLE Videos ANGLE

Use the touchscreen, the joystick, or the directional keys on the remote control to navigate the iPod menus.

iPod Music Playback

To access iPod music files, touch the button on screen or press the AUDIO button (5) on the remote control.

• Touch the > || button on screen to play/pause.

• Touch >>| on screen, press the >>| button (19) on the remote control, or press the > button on the joystick (17) to move to the next item on the menu.

• Touch |<< on screen, press the |<< button (17) on the remote control, or press the < button on the joystick (16) to move to the previous item on the menu.

• Use the touch screen or press the >/|| button (18) on the remote control or the joystick ENTER button (20) on the control panel to select the highlighted menu option.

• Press the >> button (14) on the remote control or the /\ button (18) on the joystick, or touch the MENU button on screen to return to the previous menu.

Fast Forward/Fast Reverse

Press and hold the |<< or >>| buttons on screen or on the remote control (17, 19) for 1 second and continue to hold for fast forward or fast reverse. Release to resume normal playback.

. To return to the iPod menu

Photo Playback

While iPod photos can be viewed on the VM9413 screen, you must use the iPod to control photo playback options.

Touch the icon on screen or press the SUB-TITLE button (9) on the remote control to access the iPod PHOTO mode. The VM9413 will release control back to the iPod so you can select video media to be displayed on the TFT monitor. To exit PHOTO mode, touch the screen.

Video Playback

While iPod video can be viewed on the VM9413 screen, you must use the iPod to control video playback options.

Touch the

button on screen or press the ANGLE button

(13) on the remote control to access iPod VIDEO mode. The VM9413 will release control back to the iPod so you can select video media to be displayed on the TFT monitor. To exit VIDEO mode, touch the screen, press the >> button (14) on the remote control, or press the MENU button on the iPod.

NOTE: To transmit the video from your iPod to the VM9413 screen, you must set the following options through the iPod video settings menu: TV Out = On, TV Signal = NTSC, and Widescreen = On.

NOTE: After disconnecting your iPod, the VM9413 will always return to the last mode accessed when the iPod is plugged back into the unit.

Direct Track/File Entry

To select a track/file directly, touch the button on screen control to display the direct entry menu.

TRACK:__/##

Exit

Clear

+ 88 hidden pages
