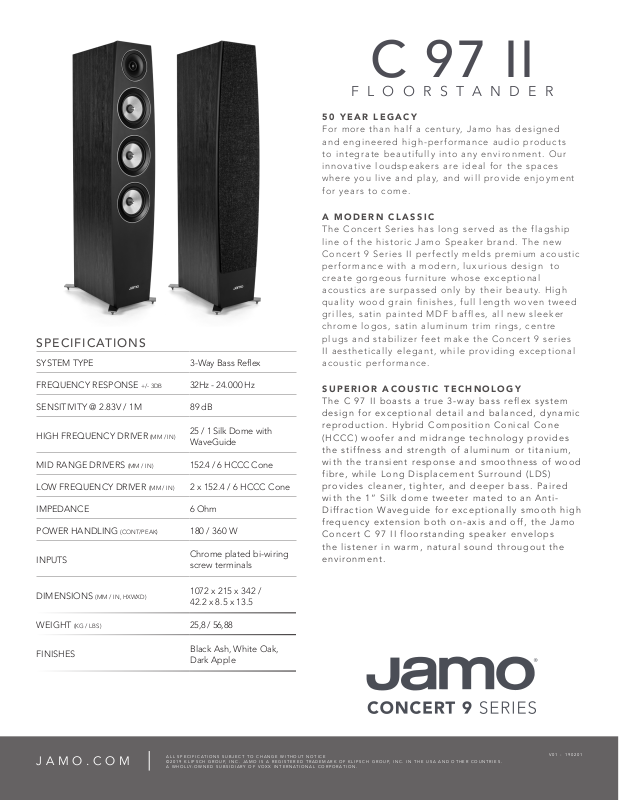

Jamo C 97 II User Manual

SPECIFICATIONS

	SYSTEM TYPE	3-Way Bass Reflex
	FREQUENCY RESPONSE +/- 3DB	32Hz - 24.000 Hz
	SENSITIVITY @ 2.83V / 1M	89 dB
	HIGH FREQUENCY DRIVER (MM / IN)	25 / 1 Silk Dome with
		WaveGuide
	MID RANGE DRIVERS (MM / IN)	152.4 / 6 HCCC Cone
	LOW FREQUENCY DRIVER (MM / IN)	2 x 152.4 / 6 HCCC Cone
	IMPEDANCE	6 Ohm
	POWER HANDLING (CONT/PEAK)	180 / 360 W
	INPUTS	Chrome plated bi-wiring
		screw terminals
	DIMENSIONS (MM / IN, HXWXD)	1072 x 215 x 342 /
		42.2 x 8.5 x 13.5
	WEIGHT (KG / LBS)	25,8 / 56,88
	FINISHES	Black Ash, White Oak,
		Dark Apple

C 97 II

F L O O R S T A N D E R

50 YEAR LEGACY

For more than half a century, Jamo has designed and engineered high-performance audio products to integrate beautifully into any environment. Our innovative loudspeakers are ideal for the spaces where you live and play, and will provide enjoyment for years to come.

A MODERN CLASSIC

The Concert Series has long served as the flagship line of the historic Jamo Speaker brand. The new Concert 9 Series II perfectly melds premium acoustic performance with a modern, luxurious design to create gorgeous furniture whose exceptional acoustics are surpassed only by their beauty. High quality wood grain finishes, full length woven tweed grilles, satin painted MDF baffles, all new sleeker chrome logos, satin aluminum trim rings, centre plugs and stabilizer feet make the Concert 9 series II aesthetically elegant, while providing exceptional acoustic performance.

SUPERIOR ACOUSTIC TECHNOLOGY

The C 97 II boasts a true 3-way bass reflex system design for exceptional detail and balanced, dynamic reproduction. Hybrid Composition Conical Cone (HCCC) woofer and midrange technology provides the stiffness and strength of aluminum or titanium, with the transient response and smoothness of wood fibre, while Long Displacement Surround (LDS) provides cleaner, tighter, and deeper bass. Paired with the 1” Silk dome tweeter mated to an AntiDiffraction Waveguide for exceptionally smooth high frequency extension both on-axis and off, the Jamo Concert C 97 II floorstanding speaker envelops

the listener in warm, natural sound througout the environment.
