INTEL D845GVAD2 Product Guide

Download

Intel® Desktop Board D845GVAD2 Product Guide

Order Number: C14171-001

Revision History

Revision Revision History Date

-001 First release of the Intel® Desktop Board D845GVAD2 Product Guide. August

If an FCC declaration of conformity marking is present on the board, the following statement applies:

FCC Declaration of Conformity

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

For questions related to the EMC performance of this product, contact:

Intel Corporation 5200 N.E. Elam Young Parkway Hillsboro, OR 97124 1-800-628-8686

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and the receiver.

• Connect the equipment to an outlet on a circuit other than the one to which the receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help.

Canadian Department of Communications Compliance Statement

This digital apparatus does not exceed the Class B limits for radio noise emissions from digital apparatus set out in the Radio Interference Regulations of the Canadian Department of Communications.

Le présent appareil numerique német pas de bruits radioélectriques dépassant les limites applicables aux appareils numériques de la classe B prescrites dans le Réglement sur le broullage radioélectrique édicté par le ministére des Communications du Canada.

Disclaimer

Information in this document is provided in connection with Intel® products. No license, express or implied, by estoppel or otherwise, to any intellectual property rights is granted by this document. Except as provided in Intel’s Terms and Conditions of Sale for such products, Intel assumes no liability whatsoever, and Intel disclaims any express or implied warranty, relating to sale and/or use of Intel products including liability or warranties relating to fitness for a particular purpose, merchantability, or infringement of any patent, copyright or other intellectual property right. Intel products are not intended for use in medical, life saving, or life sustaining applications. Intel may make changes to specifications and product descriptions at any time, without notice.

Desktop Board D845GVAD2 may contain design defects or errors known as errata which may cause the product to deviate from published specifications. Current characterized errata are available on request.

Contact your local Intel sales office or your distributor to obtain the latest specifications and before placing your product order.

Copies of documents which have an ordering number and are referenced in this document, or other Intel literature, may be obtained from Intel Corporation by going to the World Wide Web site at: http://www.intel.com/ or by calling 1-800-548-4725.

Intel, Celeron and Pentium are registered trademarks of Intel Corporation or its subsidiaries in the United States and other countries.

†

Other names and brands may be claimed as the property of others.

2002

1 Desktop Board Features

Desktop Board Components ................................................................................................ 9

Processor............................................................................................................................10

Main Memory ......................................................................................................................11

Intel® 845GV Chipset ..........................................................................................................11

Intel® 82845GV Graphics and Memory Controller Hub (GMCH).................................12

Intel® 82801DB I/O Controller Hub (ICH4)..................................................................12

Firmware Hub (FWH) .................................................................................................12

Input/Output (I/O) Controller................................................................................................12

Integrated Graphics.............................................................................................................13

LAN Subsystem (Optional)..................................................................................................13

LAN Subsystem Software...........................................................................................13

RJ-45 LAN Connector LEDs.......................................................................................14

Hi-Speed USB 2.0 Support..................................................................................................14

Enhanced IDE Interface ......................................................................................................14

Expansion Slots...................................................................................................................15

BIOS ...................................................................................................................................15

PCI Auto Configuration...............................................................................................15

IDE Auto Configuration...............................................................................................15

Security Passwords ....................................................................................................15

Power Management Features .............................................................................................16

ACPI...........................................................................................................................16

Suspend to RAM (Instantly Available PC Technology) ...............................................16

Hardware Management.......................................................................................................17

Power Connectors......................................................................................................17

Fan Connectors..........................................................................................................17

Resume on Ring.........................................................................................................17

Wake from USB..........................................................................................................17

Wake from PS/2 Keyboard/Mouse..............................................................................18

PME# Wakeup Support ..............................................................................................18

Speaker...............................................................................................................................18

Battery.................................................................................................................................18

Real-Time Clock..................................................................................................................18

2 Installing and Replacing Desktop Board Components

Before You Begin ................................................................................................................19

Installing the I/O Shield .......................................................................................................20

Installing and Removing the Desktop Board........................................................................21

Installing and Removing a Processor ..................................................................................22

Installing a Processor .................................................................................................22

Installing the Processor Fan Heat Sink.......................................................................22

Connecting the Processor Fan Heat Sink Cable.........................................................23

Removing a Processor ...............................................................................................23

iii

Intel Desktop Board D845GVAD2 Product Guide

Installing and Removing Memory ........................................................................................24

Installing DIMMs.........................................................................................................24

Removing DIMMs.......................................................................................................25

Connecting the IDE Cable...................................................................................................25

Connecting the Front Panel Header ....................................................................................27

Installing a Front Panel Audio Solution (Optional) ...............................................................27

Installing a Front Panel USB Solution..................................................................................27

Setting the BIOS Configuration Jumper Block.....................................................................28

Clearing Passwords ............................................................................................................29

Replacing the Battery..........................................................................................................29

3 Updating the BIOS

Updating the BIOS with the Intel® Express BIOS Update Utility ..........................................33

Updating the BIOS with the Intel® Flash Memory Update Utility ..........................................33

Obtaining the BIOS Update File..................................................................................33

Updating the BIOS......................................................................................................34

Recovering the BIOS..................................................................................................34

4 Using the BIOS Setup Program

Maintenance Menu..............................................................................................................38

Main Menu ..........................................................................................................................39

Advanced Menu ..................................................................................................................40

PCI Configuration Submenu.......................................................................................41

Boot Configuration Submenu......................................................................................42

Peripheral Configuration Submenu.............................................................................43

IDE Configuration Submenu.......................................................................................45

Primary/Secondary IDE Master/Slave Submenus.......................................................46

Diskette Configuration Submenu ................................................................................48

Event Log Configuration Submenu.............................................................................49

Video Configuration Submenu....................................................................................50

USB Configuration Submenu......................................................................................51

Chipset Configuration Submenu.................................................................................52

Security Menu .....................................................................................................................53

Power Menu........................................................................................................................54

ACPI Submenu...........................................................................................................54

Boot Menu...........................................................................................................................55

Boot Device Priority Submenu....................................................................................56

Hard Disk Drives Submenu ........................................................................................56

Removable Devices Submenu....................................................................................57

ATAPI CD-ROM Drives ..............................................................................................57

Exit Menu ............................................................................................................................58

5 Technical Reference

Board Connectors ...............................................................................................................59

Back Panel Connectors ..............................................................................................60

Midboard Connectors .................................................................................................61

Audio Connectors ..............................................................................................61

Power and Hardware Connectors ......................................................................62

Add-In Card and Peripheral Interface Connectors..............................................63

Front Panel Headers ..................................................................................................64

Desktop Board Resources...................................................................................................66

Memory Map ..............................................................................................................66

DMA Channels ...........................................................................................................66

Interrupts ....................................................................................................................67

A Error Messages and Indicators

BIOS Beep Codes...............................................................................................................69

BIOS Error Messages .........................................................................................................70

B Regulatory Compliance

Safety Regulations ..............................................................................................................73

EMC Regulations ................................................................................................................73

Product Certification Markings.............................................................................................74

Installation Instructions........................................................................................................75

Ensure Electromagnetic Compatibility (EMC) Compliance .........................................75

Chassis and Component Certifications.......................................................................76

Prevent Power Supply Overload.................................................................................76

Place Battery Marking ................................................................................................76

Use Only for Intended Applications.............................................................................76

Contents

Figures

1. Desktop Board Components.......................................................................................... 9

2. Location of the Standby Power Indicator.......................................................................16

3. Installing the I/O Shield.................................................................................................20

4. Desktop Board Mounting Holes ....................................................................................21

5. Installing a Processor....................................................................................................22

6. Connecting the Processor Fan Heat Sink Cable to the Processor Fan Connector........23

7. Installing a Memory Module ..........................................................................................24

8. Connecting the IDE Cable.............................................................................................26

9. Location of the BIOS Configuration Jumper Block ........................................................28

10. Removing the Battery from the Desktop Board.............................................................31

11. Back Panel Connectors ................................................................................................60

12. Audio Connectors .........................................................................................................61

13. Power and Hardware Control Connectors.....................................................................62

14. Add-in Card and Peripheral Interface Connectors.........................................................63

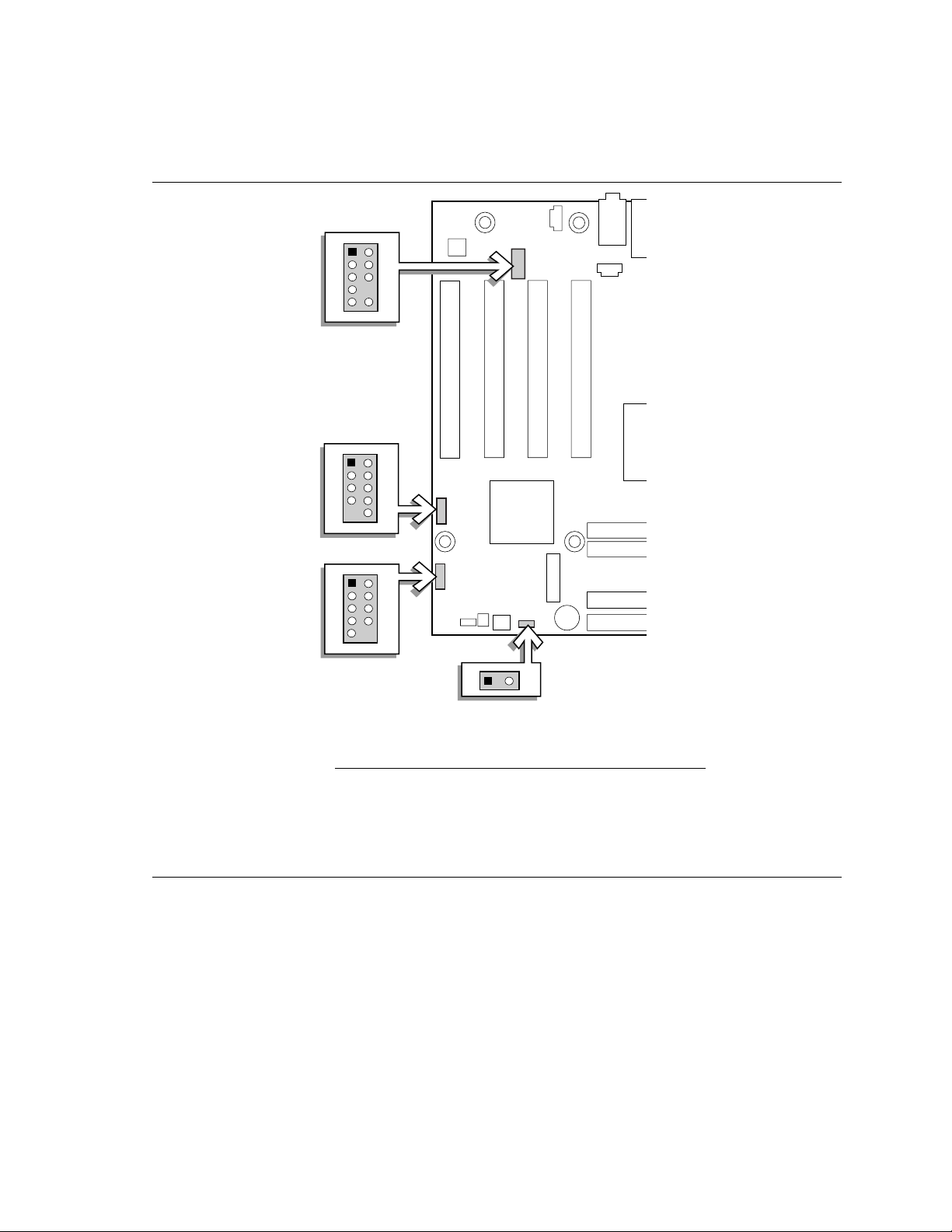

15. Front Panel Headers.....................................................................................................64

Intel Desktop Board D845GVAD2 Product Guide

Tables

1. Feature Summary.......................................................................................................... 7

2. Processors Supported by the Desktop Board ...............................................................10

3. RJ-45 LAN Connector LEDs .........................................................................................14

4. Jumper Settings for the BIOS Setup Program Modes (J9H2) .......................................28

5. BIOS Setup Program Menu Bar....................................................................................37

6. BIOS Setup Program Function Keys.............................................................................38

7. Maintenance Menu .......................................................................................................38

8. Main Menu....................................................................................................................39

9. Advanced Menu............................................................................................................40

10. PCI Configuration Submenu .........................................................................................41

11. Boot Configuration Submenu........................................................................................42

12. Peripheral Configuration Submenu ...............................................................................43

13. IDE Configuration Submenu .........................................................................................45

14. Primary/Secondary IDE Master/Slave Submenus.........................................................46

15. Diskette Configuration Submenu ..................................................................................48

16. Event Log Configuration Submenu ...............................................................................49

17. Video Configuration Submenu ......................................................................................50

18. USB Configuration Submenu........................................................................................51

19. Chipset Configuration Submenu ...................................................................................52

20. Security Menu...............................................................................................................53

21. Power Menu..................................................................................................................54

22. ACPI Submenu.............................................................................................................54

23. Boot Menu ....................................................................................................................55

24. Boot Device Priority Submenu ......................................................................................56

25. Hard Disk Drives Submenu...........................................................................................56

26. Removable Devices Submenu......................................................................................57

27. ATAPI CD-ROM Drives Submenu.................................................................................57

28. Exit Menu......................................................................................................................58

29. Front Panel Audio Header Signal Names (J8A1) ..........................................................61

30. Front Panel USB 2.0 Header (J9F2) .............................................................................65

31. Front Panel Header (J9G1)...........................................................................................65

32. System Memory Map....................................................................................................66

33. DMA Channels..............................................................................................................66

34. Interrupts ......................................................................................................................67

35. Beep Codes ..................................................................................................................69

36. BIOS Error Messages...................................................................................................70

37. Safety Regulations........................................................................................................73

38. EMC Regulations..........................................................................................................73

1 Desktop Board Features

Table 1 describes the major features of Intel

Table 1. Feature Summary

Form Factor Processor

Memory

Chipset

I/O Control LAN (optional)

Graphics

Audio

Expansion Capabilities

• microATX at 9.2 inches by 8.2 inches

Support for:

• 533 MHz or 400 MHz front side bus (FSB) Intel

mPGA_478 socket

• 400 MHz FSB Intel

• Up to two 184-pin, 2.5 V, Dual Inline Memory Module (DIMM) sockets

• DDR266/200 Double Data Rate (DDR) SDRAM interface

• Designed to support up to 2 GB of system memory

NOTE: Desktop Board D845GVAD2 has been designed to support DIMMs based on 512 Mbit

technology up to 2 GB, but this technology has not been validated on this Intel For more information about the latest list of tested memory, refer to the Intel World Wide Web site at:

http://support.intel.com/support/motherboards/desktop/

Intel

845GV chipset, consisting of:

• Intel

• 4 Mbit Firmware Hub (FWH)

• SMSC LPC47M102S-MC low pin count (LPC) interface I/O controller

• Intel

• Intel 845GV chipset

• Integrated Intel

• Intel 845GV chipset (AC ’97)

• Sigmatel audio codec

Four PCI slots

82845GV Graphics and Memory Controller Hub (GMCH) with Accelerated Hub

Architecture (AHA) bus

82801DB I/O Controller Hub (ICH4) with AHA bus with support up to four

Hi-Speed Universal Serial Bus 2.0 (USB 2.0) ports

82562ET 10/100 Mbit/sec Platform LAN Connect (PLC) device and

RJ-45 connector

Celeron® processor in an mPGA-478 socket

Extreme Graphics

Desktop Board D845GVAD2.

Pentium® 4 processor in an

desktop board.

continued

Intel Desktop Board D845GVAD2 Product Guide

Table 1. Feature Summary (continued)

Peripheral Interfaces

BIOS

Power Management

• Up to four USB 2.0 ports

— Two ports routed to the back panel

— Two ports routed to the USB front panel header

• Two IDE interfaces with Ultra DMA-33 and ATA-66/100 support

• One diskette drive interface

• One parallel port

• Two serial ports (one via a board header)

†

• PS/2

• Intel/AMI BIOS

• Intel

• SMBIOS support

• Support for Advanced Configuration and Power Interface (ACPI)

• Support for Suspend to RAM (Instantly Available PC)

• Wake on USB, PCI, RS-232, LAN, and front panel

keyboard and mouse ports

Rapid BIOS Boot

Express BIOS Update

NOTE

✏

For information about Intel desktop boards, including the Technical Product Specification (TPS), BIOS updates, and device drivers, go to the Intel World Wide Web site at:

http://support.intel.com/support/motherboards/desktop/

Desktop Board Components

Figure 1 shows the location of the major components on Desktop Board D845GVAD2.

Desktop Board Features

G H

A Audio codec N Diskette drive connector

B Front panel audio header (optional) O Secondary IDE connector

C Auxiliary line-in connector (ATAPI) P Primary IDE connector

D CD-ROM connector (ATAPI) Q Speaker

E Back panel connectors R Battery

F 12 V processor core voltage connector S Alternate power/sleep LED connector

G Rear chassis fan connector T Front chassis fan connector

H Intel 82845GV (GMCH) U Chassis intrusion connector

I Processor socket V BIOS configuration jumper

J Processor fan connector W Front panel header

K DIMM sockets X Intel 82801DB (ICH4)

L Serial port B connector (optional) Y Front panel USB 2.0 header

M Main power connector Z PCI bus add-in card connectors

NOP

OM14568

Figure 1. Desktop Board Components

Intel Desktop Board D845GVAD2 Product Guide

Processor

CAUTION

Failure to use an ATX12V or SFX-12V power supply, or not connecting the additional power supply lead to Desktop Board D845GVAD2 may result in damage to the desktop board and/or power supply.

Desktop Board D845GVAD2 supports a single Intel Pentium 4 processor or Intel Celeron processor. Processors are not included with the desktop board and must be purchased separately.

The processor connects to the desktop board through the mPGA-478-pin socket. The Intel Pentium 4 processor or Intel Celeron processor may be removed and replaced to accommodate supported higher speed processors.

Desktop Board D845GVAD2 supports the processors listed in Table 2.

Table 2. Processors Supported by the Desktop Board

Type Designation FSB Frequency L2 Cache

2.8, 2.66, 2.53, 2.4B, and 2.26 GHz 533 MHz 512 KB Intel® Pentium® 4 processor on .13 micron process in an mPGA478 package

Intel Pentium 4 processor on .18 micron process in an mPGA478 package

Celeron

Intel an mPGA478 package

processor in

For the latest information on processor support for Desktop Board D845GVAD2, refer to the Intel World Wide Web site at:

2.6, 2.5, 2.40, 2.20, 2A, 1.80A, and

1.60A GHz

2, 1.90, 1.80, 1.70, 1.60, 1.50, and

1.4 GHz

1.8 and 1.7 GHz 400 MHz 128 KB

400 MHz 512 KB

400 MHz 256 KB

http://support.intel.com/support/motherboards/desktop/

For instructions on installing or upgrading the processor, see Chapter 2 on page 19.

Desktop Board D845GVAD2 requires an ATX12V or SFX-12V compliant power supply to function according to Intel desktop board specifications. The desktop board has two 12 V compliant power supply connectors that are needed to provide extra power to the Intel 845GV chipset and Intel Pentium 4 processor.

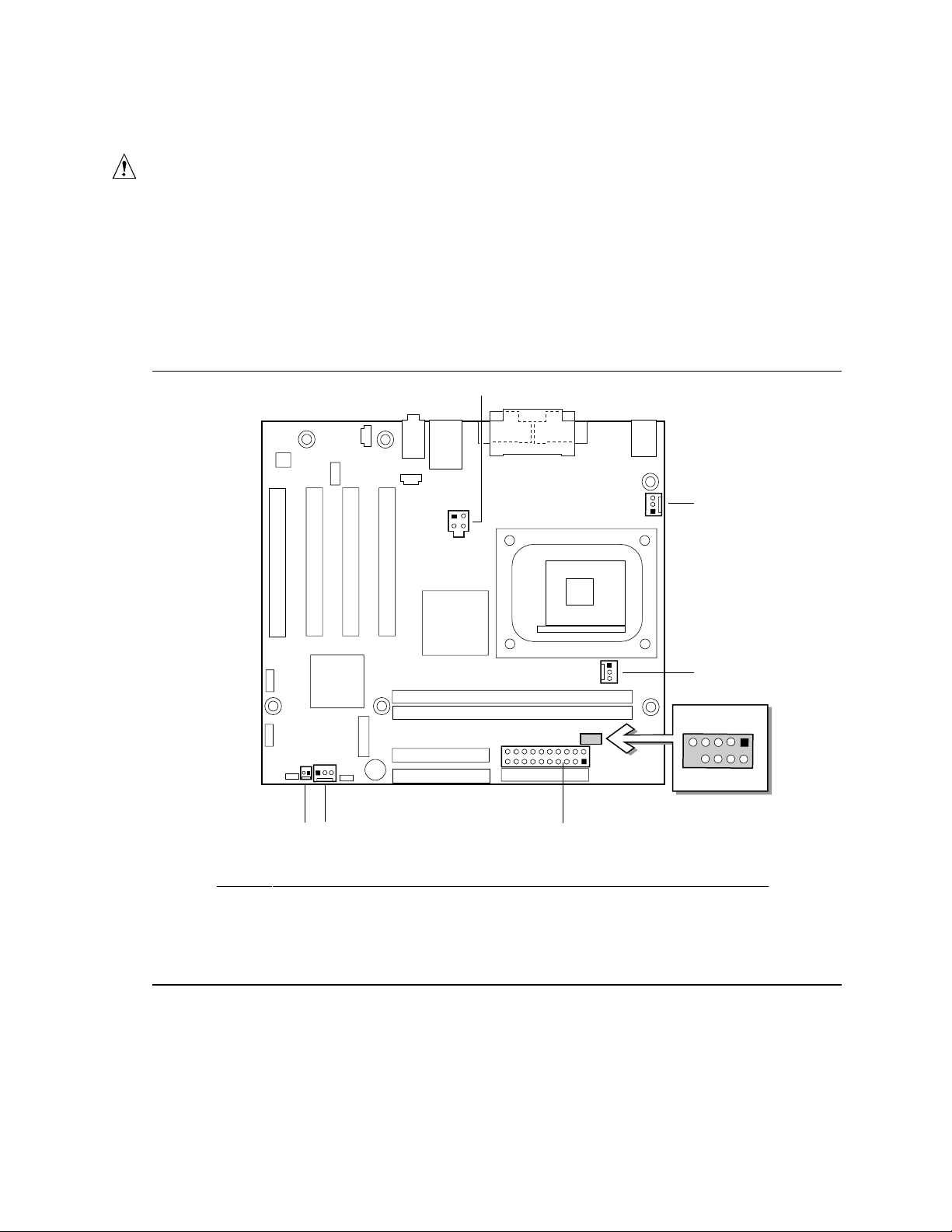

Items A and E in Figure 13 on page 62 show the two power connector locations.

Desktop Board Features

Main Memory

NOTE

✏

To be fully compliant with all applicable Intel® SDRAM memory specifications, the Intel desktop board should be populated with DIMMs that support the Serial Presence Detect (SPD) data structure. If your memory modules do not support SPD, you will see a notification to this effect on the screen at power up. The BIOS will attempt to configure the memory controller for normal operation.

NOTE

✏

All memory components and DIMMs used with the desktop board must comply with the PC SDRAM specifications. These include the PC SDRAM Specification (memory component specific), the PC Unbuffered DIMM Specification. To view or download these specifications, refer to this Intel World Wide Web site:

http://www.intel.com/technology/memory/pcsdram/spec/

Desktop Board D845GVAD2 supports system memory as defined below:

• Two 184-pin DIMMs

• 2.5 V, 266 MHz or 200 MHz DDR SDRAM interface

• Memory configurations up to 2 GB using 512 Mbit technology

• Serial Presence Detect (SPD)

• Suspend to RAM (STR)

• Non-ECC RAM (registered memory is not supported)

• Unbuffered and non registered single or double-sided DIMMs

NOTE

✏

Desktop Board D845GVAD2 has been designed to support DIMMs based on 512 Mbit technology up to 2 GB, but this technology has not been validated on this board. For more information about the latest list of tested memory, refer to the Intel World Wide Web site at:

http://support.intel.com/support/motherboards/desktop/

Intel® 845GV Chipset

The Intel 845GV chipset consists of the following:

• Intel 82845GV Graphics and Memory Controller Hub (GMCH) with AHA bus

• Intel 82801DB I/O Controller Hub (ICH4) with AHA bus

• Firmware Hub (FWH)

Intel Desktop Board D845GVAD2 Product Guide

Intel® 82845GV Graphics and Memory Controller Hub (GMCH)

The GMCH provides the processor, system memory, and hub interfaces in the Intel 845GV chipset platform. Features on Desktop Board D845GVAD2 include:

• Single processor support with 533 MHz/400 MHz data transfer rate

• Support for up to 2 GB DDR SDRAM at 266/200 MHz operation

NOTE

✏

512 Mbit technology has not been validated on this desktop board.

Intel® 82801DB I/O Controller Hub (ICH4)

The ICH4 integrates many I/O functions and provides the I/O subsystem with access to the rest of the platform. ICH4 features on Desktop Board D845GVAD2 include:

• Integrated IDE controller supports two Ultra DMA-33 and ATA-66/100 channels and

PIO modes

• SMBus interface

• FWH interface

• Low pin count (LPC) interface

• AC ’97 2.1 compliant link for audio and telephony codecs

• Integrated Intel 82562ET 10/100 Mbit/sec Platform LAN Connect (PLC) device for interfacing

the ICH4 LAN connect interface to LAN connect component

• Three UHCI and one ECHI compliant host controllers supporting up to four USB ports

Firmware Hub (FWH)

The 4 Mbit Firmware Hub has these features:

• System BIOS

• System security and management logic

Input/Output (I/O) Controller

The SMSC LPC47M102S-MC ultra I/O controller features the following:

• Low pin count (LPC) interface

• 3.3 V operation

• Two serial ports (one via a board header)

• One parallel port with Extended Capabilities Port (ECP) and Enhanced Parallel Port

(EPP) support

• Serial IRQ interface compatible with serialized IRQ support for PCI systems

• PS/2-style mouse and keyboard interfaces

• Interface for one 1.2 MB, 1.44 MB, or 2.88 MB diskette drive

• Intelligent power management, including a programmable wake up event interface

• PCI power management support

Desktop Board Features

Integrated Graphics

The integrated graphics on Desktop Board D845GVAD2 feature:

• Intel 845GV chipset

• Intel Extreme Graphics

Audio Subsystem

The audio subsystem features the following:

• Intel 845GV chipset (AC ’97)

†

• Sigmatel

NOTE

✏

The line out connector, located on the back panel, is designed to power either headphones or amplified speakers only. Poor audio quality may occur if passive (non-amplified) speakers are connected to this output.

Audio drivers and utilities are available from Intel’s World Wide Web site:

STAC9750 audio codec

http://support.intel.com/support/motherboards/desktop/

LAN Subsystem (Optional)

The optional Intel 82562ET (with the Intel 82801DB ICH4) provides a Fast PCI LAN subsystem providing both 10Base-T and 100Base-TX connectivity. The Intel 82562ET provides the following functions:

• Basic 10/100 Ethernet LAN connectivity

• Supports RJ-45 connector with status indicator LEDs

• Programmable transit threshold

• Configurable EEPROM that contains the MAC address

LAN Subsystem Software

For LAN software and drivers, refer to the D845GVAD2 link on Intel’s World Wide Web site at:

http://support.intel.com/support/motherboards/desktop

Intel Desktop Board D845GVAD2 Product Guide

RJ-45 LAN Connector LEDs

Two LEDs are built into the RJ-45 LAN connector. Table 3 describes the LED states when the Intel desktop board is powered up and the LAN subsystem is operating.

Table 3. RJ-45 LAN Connector LEDs

LED Color LED State Indicates

Off 10 Mbit/sec data rate is selected. Green

On 100 Mbit/sec data rate is selected.

Yellow

Off LAN link is not established.

On (steady state) LAN link is established.

On (brighter and pulsing) The computer is communicating with another computer on

the LAN.

Hi-Speed USB 2.0 Support

NOTE

✏

Computer systems that have an unshielded cable attached to a USB port might not meet FCC Class B requirements, even if no device or a low-speed USB device is attached to the cable. Use a shielded cable that meets the requirements for a full-speed USB device.

This desktop board supports up to four USB 2.0 ports via ICH4; two ports routed to the back panel and two routed to a USB front panel header. USB 2.0 ports are backward compatible with USB 1.1 devices. USB 1.1 devices will function normally at USB 1.1 speeds.

USB 2.0 support requires both an operating system and drivers that fully support USB 2.0 transfer rates. Disabling Hi-Speed USB in BIOS reverts all USB 2.0 ports to USB 1.1 operation. This may be required to accommodate operating systems that do not support USB 2.0.

NOTE

✏

USB devices are limited to USB 1.1 transfer rates prior to operating system and driver initialization.

Enhanced IDE Interface

The ICH4’s IDE interface handles the exchange of information between the processor and

†

peripheral devices like hard disks, CD-ROM drives, and Iomega Zip The interface supports:

• Up to four IDE devices (such as hard drives)

• ATAPI devices (such as CD-ROM drives)

• Older PIO Mode devices

• Ultra DMA-33 and ATA-66/100 protocols

• Laser servo (LS-120) drives

drives inside the computer.

Desktop Board Features

Expansion Slots

Desktop Board D845GVAD2 has four PCI bus add-in card connectors.

BIOS

The BIOS provides the Power-On Self-Test (POST), the BIOS Setup program, the PCI and IDE auto-configuration utilities, and the video BIOS. The BIOS is stored in the Firmware Hub.

The BIOS can be updated by following the instructions in Chapter 3 on page 33.

PCI Auto Configuration

If you install a PCI add-in card in your computer, the PCI auto-configuration utility in the BIOS automatically detects and configures the resources (IRQs, DMA channels, and I/O space) for that add-in card. You do not need to run the BIOS Setup program after you install a PCI add-in card.

IDE Auto Configuration

If you install an IDE device (such as a hard drive) in your computer, the IDE auto-configuration utility in the BIOS automatically detects and configures the device for your computer. You do not need to run the BIOS Setup program after installing an IDE device. You can override the auto-configuration options by specifying manual configuration in the BIOS Setup program.

To use ATA-66/100 features, the following items are required:

• An ATA-66/100 peripheral device

• An ATA-66/100 compatible cable

• ATA-66/100 operating system device drivers

Security Passwords

The BIOS includes security features that restrict whether the BIOS Setup program can be accessed and who can boot the computer. A supervisor password and a user password can be set for the Setup and for booting the computer, with the following restrictions:

• The supervisor password gives unrestricted access to view and change all Setup options. If

only the supervisor password is set, pressing <Enter> at the password prompt of Setup gives the user restricted access to Setup.

• If both the supervisor and user passwords are set, you must enter either the supervisor

password or the user password to access Setup. Setup options are then available for viewing and changing depending on whether the supervisor or user password was entered.

• Setting a user password restricts who can boot the computer. The password prompt is

displayed before the computer is booted. If only the supervisor password is set, the computer boots without asking for a password. If both passwords are set, you can enter either password to boot the computer.

Intel Desktop Board D845GVAD2 Product Guide

Power Management Features

• Advanced Configuration and Power Interface (ACPI)

• Suspend to RAM (Instantly Available PC technology)

ACPI

ACPI gives the operating system direct control over the power management and Plug & Play functions of a computer. The use of ACPI with Desktop Board D845GVAD2 requires an operating system that provides full ACPI support.

Suspend to RAM (Instantly Available PC Technology)

CAUTION

For Instantly Available PC technology, the 5 V standby line for the power supply must be capable of delivering adequate +5 V standby current. Failure to provide adequate standby current when using this feature can damage the power supply and/or effect ACPI S3 sleep state functionality.

Instantly Available PC technology enables the board to enter the ACPI S3 (Suspend-to-RAM) sleep state. While in the S3 sleep state, the computer will appear to be off. When signaled by a wake-up device or event, the system quickly returns to its last known awake state.

The desktop board’s standby power indicator, shown in Figure 2, is lit when there is standby power to the system. This includes the memory modules and PCI bus connectors, even when the computer appears to be off.

If the system has a dual-colored power LED on the front panel, the sleep state is indicated by the LED turning amber.

OM14569

Figure 2. Location of the Standby Power Indicator

Desktop Board Features

CAUTION

Power supplies used with this board must be able to provide enough standby current to support the standard Instantly Available (ACPI S3 sleep state) configuration. If the standby current necessary to support multiple wake events from the PCI and/or USB buses exceeds power supply capacity, the Intel desktop board may lose register settings stored in memory.

For more information on standby current requirements for this desktop board, refer to the TPS by selecting the Technical Documentation link at:

http://developer.intel.com/design/motherbd/

Hardware Management

• Power connectors

• Fan connectors

• Resume on Ring

• Wake from USB

• Wake from PS/2 keyboard/mouse

• PME# wake up support

Power Connectors

Desktop Board D845GVAD2 has two power connectors. See Figure 13 on page 62 for the location of the power connectors.

Fan Connectors

Desktop Board D845GVAD2 has two chassis fan connectors and one processor fan connector. See Figure 13 on page 62 for the location of the fan connectors.

Resume on Ring

The operation of Resume on Ring can be summarized as follows:

• Resumes operation from either ACPI S1 or ACPI S3 state

• Requires only one call to access the computer

• Detects incoming call similarly for external and internal modems

• Requires modem interrupt be unmasked for correct operation

Wake from USB

USB bus activity wakes the computer from an ACPI S1 or S3 state.

NOTE

✏

Wake from USB requires the use of a USB peripheral that supports Wake from USB.

Intel Desktop Board D845GVAD2 Product Guide

Wake from PS/2 Keyboard/Mouse

PS/2 keyboard/mouse activity wakes the computer from an ACPI S1 or S3 state.

PME# Wakeup Support

When the PME# signal on the PCI bus is asserted, the computer wakes from an ACPI S1, S3, or S5 state.

Speaker

A speaker is mounted on the desktop board. The speaker provides audible error code (beep code) information during the Power-On Self-Test (POST).

Battery

A battery on the board keeps the values in CMOS RAM and the clock current when the computer is turned off. See Chapter 2 starting on page 19 for instructions on how to replace the battery.

Real-Time Clock

Desktop Board D845GVAD2 has a time-of-day clock and 100-year calendar. A battery on the Intel desktop board keeps the clock current when the computer is turned off.

2 Installing and Replacing Desktop Board

Components

This chapter tells you how to:

• Install the I/O shield

• Install and remove the desktop board

• Install and remove a processor

• Install and remove memory

• Connect the IDE cable

• Connect the front panel header (not included)

• Install the front panel audio solution (not included)

• Install the front panel USB solution (not included)

• Set the BIOS configuration jumper block

• Clear passwords

• Replace the battery

Before You Begin

WARNINGS

The procedures in this chapter assume familiarity with the general terminology associated with personal computers and with the safety practices and regulatory compliance required for using and modifying electronic equipment.

Disconnect the computer from its power source and from any telecommunications links, networks, or modems before performing any of the procedures described in this chapter. Failure to disconnect power, telecommunications links, networks, or modems before you open the computer or perform any procedures can result in personal injury or equipment damage. Some circuitry on the board can continue to operate even though the front panel power button is off.

CAUTION

Before you install this board in a chassis, see Appendix B for regulatory requirements and precautions.

• Always follow the steps in each procedure in the correct order.

• Set up a log to record information about your computer, such as model, serial numbers,

installed options, and configuration information.

• Electrostatic discharge (ESD) can damage components. Perform the procedures described in

this chapter only at an ESD workstation using an antistatic wrist strap and a conductive foam pad. If such a station is not available, you can provide some ESD protection by wearing an antistatic wrist strap and attaching it to a metal part of the computer chassis.

Intel Desktop Board D845GVAD2 Product Guide

Installing the I/O Shield

The Intel desktop board comes with an I/O shield. When installed in the chassis, the shield blocks radio frequency transmissions, protects internal components from dust and foreign objects, and promotes correct airflow within the chassis.

Install the I/O shield before installing the desktop board in the chassis. Place the shield inside the chassis as shown in Figure 3. Press the shield into place so that it fits tightly and securely. If the shield doesn’t fit, obtain a properly-sized shield from the chassis supplier.

Figure 3. Installing the I/O Shield

OM13621

Installing and Replacing Desktop Board Components

Installing and Removing the Desktop Board

Refer to your chassis manual for instructions on installing and removing the desktop board.

WARNING

Only qualified technical personnel should do this procedure. Disconnect the computer from its power source before performing the procedures described here. Failure to disconnect the power before you open the computer can result in personal injury or equipment damage.

NOTES

✏

You will need a Phillips† (#2 bit) screwdriver.

Refer to Appendix B for regulatory requirements and installation instructions and precautions.

Figure 4 shows the location of the six mounting holes for the desktop board.

OM14570

Figure 4. Desktop Board Mounting Holes

Intel Desktop Board D845GVAD2 Product Guide

Installing and Removing a Processor

Instructions on how to install the processor to the desktop board are given below.

Installing a Processor

CAUTION

Before installing or removing the processor, make sure that AC power has been removed by unplugging the power cord from the computer; the standby power LED should not be lit (see Figure 2 on page 16). Failure to do so could damage the processor and the Intel desktop board.

To install a processor, follow these instructions:

1. Observe the precautions in “Before You Begin” on page 19.

2. Locate the processor socket and raise the socket lever completely.

3. Install the processor so that the corner with the triangle marking (A) is aligned with the corner where the lever is attached to the socket (see Figure 5).

4. Lower the lever to its original position.

mPGA478B

OM12078

Figure 5. Installing a Processor

Installing the Processor Fan Heat Sink

Desktop Board D845GVAD2 has an integrated processor fan heat sink retention mechanism (RM). For instructions on how to install the processor fan heat sink to the integrated processor fan heat sink RM, refer to the boxed processor manual or the Intel World Wide Web site at:

http://support.intel.com/support/processors/pentium4/intnotes478.htm

Installing and Replacing Desktop Board Components

Connecting the Processor Fan Heat Sink Cable

Connect the processor fan heat sink cable to the processor fan connector (see Figure 6).

OM13684

Figure 6. Connecting the Processor Fan Heat Sink Cable to the Processor Fan Connector

Removing a Processor

For instruction on how to remove the processor fan heat sink, refer to the processor installation manual or the Intel World Wide Web site at:

http://support.intel.com/support/processors/pentium4/intnotes478.htm

Intel Desktop Board D845GVAD2 Product Guide

Installing and Removing Memory

CAUTION

To be fully compliant with all applicable Intel SDRAM memory specifications, the board requires DIMMs that support the Serial Presence Detect (SPD) data structure.

You can access the PC Serial Presence Detect Specification at:

http://www.intel.com/technology/memory/pcsdram/spec/

NOTE

✏

Remove the PCI bus connector 1 card before installing or upgrading memory to avoid interference with the memory retention mechanism.

Desktop Board D845GVAD2 has two DIMM sockets arranged as DIMM 0 and DIMM 1, as shown in Figure 7. If installing a single DIMM, install it in DIMM 0.

Refer to the Main Memory heading on page 11 for memory requirements.

Installing DIMMs

To install DIMMs, follow these steps:

1. Observe the precautions in “Before You Begin” on page 19.

2. Turn off all peripheral devices connected to the computer. Turn off the computer and disconnect the AC power cord.

3. Remove the computer’s cover and locate the DIMM sockets (see Figure 7).

Figure 7. Installing a Memory Module

OM13685

Installing and Replacing Desktop Board Components

4. Make sure the clips at either end of the DIMM socket(s) are pushed outward to the open position.

5. Position the DIMM above the socket. Align the two small notches in the bottom edge of the DIMM with the keys in the socket (see inset in Figure 7).

6. Insert the bottom edge of the DIMM into the socket.

7. When the DIMM is inserted, push down on the top edge of the DIMM until the retaining clips snap into place. Make sure the clips are firmly in place.

8. Replace the computer’s cover and reconnect the AC power cord.

Removing DIMMs

To remove a memory module, follow these steps:

1. Observe the precautions in "Before You Begin" on page 19.

2. Turn off all peripheral devices connected to the computer. Turn off the computer.

3. Remove the AC power cord from the computer.

4. Remove the computer’s cover.

5. Gently spread the retaining clips at each end of the DIMM socket. The DIMM pops out of the socket.

6. Hold the DIMM by the edges, lift it away from the socket, and store it in an anti-static package.

7. Reinstall and reconnect any parts you removed or disconnected to reach the DIMM sockets.

8. Replace the computer’s cover and reconnect the AC power cord.

Connecting the IDE Cable

The Intel® boxed desktop board package includes an IDE cable. The cable connects two drives to the desktop board. The cable supports ATA-66 and ATA-100 transfer protocols and is backward compatible with drives using slower IDE transfer protocols. Figure 8 shows the correct installation of the cable.

NOTE

✏

ATA-66/100 compatible cables are backward compatible with drives using slower IDE transfer protocols. If an ATA-66/100 disk drive and a disk drive using any other IDE transfer protocol are attached to the same cable, the maximum transfer rate between the drives may be reduced to that of the slowest drive.

NOTE

✏

Do not connect an ATA device as a slave on the same IDE cable as an ATAPI master device. For example, do not connect an ATA hard drive as a slave to an ATAPI CD-ROM drive.

Intel Desktop Board D845GVAD2 Product Guide

For correct function of the cable:

• Attach the cable end with the single connector to the Intel desktop board (see Figure 8, A).

• Attach the cable end with the two closely spaced connectors to the drives (see Figure 8, B).

OM14571

Figure 8. Connecting the IDE Cable

Installing and Replacing Desktop Board Components

Connecting the Front Panel Header

Before connecting the front panel header, observe the precautions in “Before You Begin” on page 19. Refer to Table 31 on page 65 for pin assignments.

Installing a Front Panel Audio Solution (Optional)

To install the cable that connects the front panel audio solution to the front panel audio header, follow these steps:

1. Observe the precautions in “Before You Begin” on page 19.

2. Turn off all peripheral devices connected to the computer. Turn off the computer and disconnect the AC power cord.

3. Remove the cover. Locate the front panel audio header (J8A1), see Figure 12 on page 61.

4. Remove the two jumpers from the header (this disables the back panel audio connectors).

5. Install a correctly keyed and shielded front panel audio cable.

6. Connect the audio cable to the front panel audio solution.

7. Replace the cover.

To restore back panel operations, follow these steps:

1. Observe the precautions in “Before You Begin” on page 19.

2. Turn off all peripheral devices connected to the computer. Turn off the computer and disconnect the AC power cord.

3. Remove the cover. Remove the front panel audio cable.

4. Install a jumper on pins 5-6 (rear R channel).

5. Install a jumper on pins 9-10 (rear L channel).

6. Replace the cover.

Installing a Front Panel USB Solution

Before installing a front panel USB 2.0 solution, observe the precautions in “Before You Begin” on page 19. Refer to Table 30 on page 65 for pin assignments.

Intel Desktop Board D845GVAD2 Product Guide

Setting the BIOS Configuration Jumper Block

Figure 9 shows the location of the BIOS configuration jumper block (J9H2).

J9H2

OM14572

Figure 9. Location of the BIOS Configuration Jumper Block

The three-pin BIOS jumper block enables all board configurations to be done in BIOS Setup. Table 4 shows the jumper settings for the Setup program modes.

Table 4. Jumper Settings for the BIOS Setup Program Modes (J9H2)

Jumper Setting Mode Description

Normal (default) (1-2)

Configure (2-3)

Recovery (None)

The BIOS uses the current configuration and passwords for booting.

After the Power-On Self-Test (POST) runs, the BIOS displays the Maintenance Menu. Use this menu to clear passwords.

Recovers BIOS from a diskette in the event of a failed BIOS update.

Installing and Replacing Desktop Board Components

Clearing Passwords

This procedure assumes that the board is installed in the computer and the configuration jumper block is set to normal mode.

1. Observe the precautions in “Before You Begin” on page 19.

2. Turn off all peripheral devices connected to the computer. Turn off the computer. Disconnect the computer’s power cord from the AC power source (wall outlet or power adapter).

3. Remove the computer cover.

4. Find the configuration jumper block (see Figure 9).

5. Place the jumper on pins 2-3 as shown below.

6. Replace the cover, plug in the computer, turn on the computer, and allow it to boot.

7. The computer starts the Setup program. Setup displays the maintenance menu.

8. Use the arrow keys to select Clear Passwords. Press <Enter> and Setup displays a pop-up screen requesting that you confirm clearing the password. Select Yes and press <Enter>. Setup displays the maintenance menu again.

9. Press <F10> to save the current values and exit Setup.

10. Turn off the computer. Disconnect the computer’s power cord from the AC power source.

11. Remove the computer cover.

12. To restore normal operation, place the jumper on pins 1-2 as shown below.

13. Replace the cover, plug in the computer, and turn on the computer.

Replacing the Battery

A coin-cell battery (CR2032) powers the real-time clock and CMOS memory. When the computer is not plugged into a wall socket, the battery has an estimated life of three years. When the computer is plugged in, the standby current from the power supply extends the life of the battery. The clock is accurate to ± 13 minutes/year at 25 ºC with 3.3 VSB applied.

When the voltage drops below a certain level, the BIOS Setup program settings stored in CMOS RAM (for example, the date and time) might not be accurate. Replace the battery with an equivalent one. Figure 10 on page 31 shows the location of the battery.

CAUTION

Risk of explosion if the battery is replaced with an incorrect type. Batteries should be recycled where possible. Disposal of used batteries must be in accordance with local environmental regulations.

PRECAUTION

Risque d'explosion si la pile usagée est remplacée par une pile de type incorrect. Les piles usagées doivent être recyclées dans la mesure du possible. La mise au rebut des piles usagées doit respecter les réglementations locales en vigueur en matière de protection de l'environnement.

(French)

Intel Desktop Board D845GVAD2 Product Guide

FORHOLDSREGEL

Eksplosionsfare, hvis batteriet erstattes med et batteri af en forkert type. Batterier bør om muligt genbruges. Bortskaffelse af brugte batterier bør foregå i overensstemmelse med gældende miljølovgivning.

(Danish)

OBS!

Det kan oppstå eksplosjonsfare hvis batteriet skiftes ut med feil type. Brukte batterier bør kastes i henhold til gjeldende miljølovgivning.

(Norwegian)

VIKTIGT!

Risk för explosion om batteriet ersätts med felaktig batterityp. Batterier ska kasseras enligt de lokala miljövårdsbestämmelserna.

(Swedish)

VARO

Räjähdysvaara, jos pariston tyyppi on väärä. Paristot on kierrätettävä, jos se on mahdollista. Käytetyt paristot on hävitettävä paikallisten ympäristömääräysten mukaisesti.

(Finnish)

VORSICHT

Bei falschem Einsetzen einer neuen Batterie besteht Explosionsgefahr. Die Batterie darf nur durch denselben oder einen entsprechenden, vom Hersteller empfohlenen Batterietyp ersetzt werden. Entsorgen Sie verbrauchte Batterien den Anweisungen des Herstellers entsprechend.

(German)

AVVERTIMENTO

Esiste il pericolo di un esplosione se la pila non viene sostituita in modo corretto. Utilizzare solo pile uguali o di tipo equivalente a quelle consigliate dal produttore. Per disfarsi delle pile usate, seguire le istruzioni del produttore.

(Italian)

PRECAUCIÓN

Existe peligro de explosión si la pila no se cambia de forma adecuada. Utilice solamente pilas iguales o del mismo tipo que las recomendadas por el fabricante del equipo. Para deshacerse de las pilas usadas, siga igualmente las instrucciones del fabricante.

(Spanish)

WAARSCHUWING

Er bestaat ontploffingsgevaar als de batterij wordt vervangen door een onjuist type batterij. Batterijen moeten zoveel mogelijk worden gerecycled. Houd u bij het weggooien van gebruikte batterijen aan de plaatselijke milieuwetgeving.

(Dutch)

Installing and Replacing Desktop Board Components

ATENÇÃO

Haverá risco de explosão se a bateria for substituída por um tipo de bateria incorreto. As baterias devem ser recicladas nos locais apropriados. A eliminação de baterias usadas deve ser feita de acordo com as regulamentações ambientais da região. (Brazilian Portuguese)

To replace the battery, follow these steps:

1. Observe the precautions in “Before You Begin” (see page 19).

2. Turn off all peripheral devices connected to the computer. Disconnect the computer’s power cord from the AC power source (wall outlet or power adapter).

3. Remove the computer cover.

4. Locate the battery on the board (see Figure 10).

5. Note the orientation of the “+” and “-” on the battery.

6. Install the new battery in the connector, orienting the “+” and “-” correctly.

7. Replace the computer cover.

OM13688

Figure 10. Removing the Battery from the Desktop Board

Intel Desktop Board D845GVAD2 Product Guide

3 Updating the BIOS

This chapter tells you how to update the BIOS by either using the Intel Express BIOS Update

utility or the Intel

Updating the BIOS with the Intel® Express BIOS Update Utility

With the Intel Express BIOS Update utility you can update the system BIOS while in the

†

Windows the functionality of the Intel Flash Memory Update Utility and the ease-of use of Windows-based installation wizards.

To update the BIOS with the Intel Express BIOS Update utility:

1. Go to the Intel World Wide Web site:

2. Navigate to the D845GVAD2 page and click the Express BIOS Update utility file for the

3. Download the file to your hard drive. (You can also save this file to a diskette. This is useful

4. Close all other applications. This step is required. Your system will be rebooted at the last

5. Double-click the executable file from the location on your hard drive where it was saved. This

6. Follow the instructions provided in the dialog boxes to complete the BIOS update.

environment. The BIOS file is included in an automated update utility that combines

http://support.intel.com/support/motherboards/desktop/

D845GVAD2 board’s BIOS.

if you are updating the BIOS for multiple identical systems.)

Express BIOS Update window.

runs the update program.

Flash Memory Update Utility, and how to recover the BIOS if an update fails.

Updating the BIOS with the Intel® Flash Memory Update Utility

With the Intel Flash Memory Update Utility you can update the system BIOS from a floppy disk or other bootable media. The utility available from the Web provides a simple method for creating a bootable flash memory update floppy that will automatically update your BIOS.

Obtaining the BIOS Update File

You can update to a new version of the BIOS by using the BIOS update file. The BIOS update file is a compressed self-extracting archive that contains all the files you need to update the BIOS. The BIOS update file contains:

• New BIOS files

• BIOS recovery files

• Intel Flash Memory Update Utility

You can obtain the BIOS update file through your computer supplier or by navigating to the D845GVAD2 page on the Intel World Wide Web site:

http://support.intel.com/support/motherboards/desktop

Intel Desktop Board D845GVAD2 Product Guide

NOTE

✏

Review the instructions distributed with the update utility before attempting a BIOS update.

The Intel Flash Memory Update Utility allows you to:

• Update the BIOS in flash memory

• Update the language section of the BIOS

Updating the BIOS

CAUTION

The AUTOEXEC.BAT file provided with the update files updates the BIOS. Do not interrupt the process or the system may not function.

1. Boot the computer with the BIOS update diskette in drive A. During system boot, the

AUTOEXEC.BAT file provided with the update files will automatically run the BIOS update

process.

2. When the update process is complete, the monitor will display a message telling you to remove the diskette and to reboot the system.

3. As the computer boots, check the BIOS identifier (version number) to make sure the update was successful. If a logo appears, press

<Esc> to view the POST messages.

Recovering the BIOS

It is unlikely that anything will interrupt the BIOS update, however, if an interruption occurs, the BIOS could be damaged. The following steps explain how to recover the BIOS if an update fails. The following procedure uses recovery mode for the Setup program. See page 28 for more information on Setup modes.

NOTE

✏

Because of the small amount of code available in the boot block area, there is no video support. You will not see anything on the screen during this procedure. Monitor the procedure by listening to the speaker and looking at the diskette drive LED.

1. Turn off the computer, disconnect the computer’s power cord, and disconnect all external peripherals.

2. Remove the computer cover and locate the configuration jumper block (see Figure 9).

3. Remove the jumper from all pins as shown below to set recovery mode for Setup.

4. Insert the bootable BIOS update diskette into diskette drive A.

5. Replace the computer cover, connect the power cord, turn on the computer, and allow it to boot. The recovery process will take a few minutes.

Updating the BIOS

6. Listen to the speaker:

• Upon applying power, drive A will begin to show activity. In about a minute, two beeps

are heard and drive A activity ceases (temporarily) indicating the successful recovery of the BIOS core. Drive A activity will begin again followed by two more beeps indicating the successful recovery of the boot block. This sequence of events indicates a successful BIOS recovery.

• A series of continuous beeps indicates a failed BIOS recovery.

7. If recovery fails, return to step 1 and repeat the recovery process.

8. If recovery is successful, turn off the computer, and disconnect its power cord.

9. Remove the computer cover and continue with the following steps.

10. On the jumper block, reinstall the jumper back on pins 1-2 as shown below to set normal mode for Setup.

11. Leave the update diskette in drive A, replace the computer cover, and connect the computer’s power cord.

12. Turn on the computer and continue with the BIOS update (see page 34).

Intel Desktop Board D845GVAD2 Product Guide

4 Using the BIOS Setup Program

The BIOS Setup program can be used to view and change the BIOS settings for the computer. The BIOS Setup program is accessed by pressing the <F2> key after the Power-On Self-Test (POST) memory test begins and before the operating system boot begins.

NOTE

✏

The BIOS Setup menus described in this section may not show the latest settings. For the latest BIOS settings, refer to the Intel Desktop Board D845GVAD2 Technical Product Specification or the Intel World Wide Web site:

http://support.intel.com/support/motherboards/desktop

NOTE

✏

For reference purposes, you should write down the current Setup settings. When you make changes to the settings, update this record.

NOTE

✏

The Setup menus described in this section apply to the desktop board with BIOS identifier LY84510A.86A. Desktop boards with other BIOS identifiers might have differences in some of the Setup menu screens.

The Setup screen menu bar is shown below.

Maintenance Main Advanced Security Power Boot Exit

Table 5 shows the BIOS Setup program menu bar.

Table 5. BIOS Setup Program Menu Bar

Maintenance Main Advanced Security Power Boot Exit

Clears passwords and Boot Integrity Service (BIS)* credentials, and configures extended configuration memory settings

* For information about the BIS, refer to the Intel Web site at:

http://developer.intel.com/design/security/index1.htm

Allocates resources for hardware components

Configures advanced features available through the chipset

Sets passwords and security features

Configures power management features

Selects boot options and power supply controls

Saves or discards changes to set program options

Intel Desktop Board D845GVAD2 Product Guide

Table 6 shows the function keys available for menu screens.

Table 6. BIOS Setup Program Function Keys

BIOS Setup Program Function Key Description

<←> or <→> Selects a different menu screen <↑> or <↓> Moves cursor up or down

<Tab> Moves cursor to the next field

<Enter> Executes command or selects the submenu

<F9> Load the default configuration values for the current menu

<F10> Save the current values and exits the BIOS Setup program

<Esc> Exits the menu

Maintenance Menu

Maintenance Main Advanced Security Power Boot Exit

The menu shown in Table 7 is used to clear the Setup passwords. Setup only displays this menu in configure mode. See page 28 for information about setting configure mode.

Table 7. Maintenance Menu

Feature Options Description

Clear All Passwords • Ok

• Cancel

Clear BIS Credentials • Ok

• Cancel

CPU Stepping Signature No options Displays processor’s Stepping Signature.

CPU Microcode Update Revision

* For information about the BIS, refer to the Intel Web site at:

http://developer.intel.com/design/security/index1.htm

No options Displays processor’s Microcode Update Revision.

Clears both the user and supervisor passwords.

Clears the Wired for Management Boot Integrity Service (BIS) credentials.

Using the BIOS Setup Program

Main Menu

Maintenance Main Advanced Security Power Boot Exit

Table 8 describes the Main Menu. This menu reports processor and memory information and is used to configure the system date and system time.

Table 8. Main Menu

Feature Options Description

BIOS Version No options Displays the version of the BIOS.

Processor Type No options Displays processor type.

Processor Speed No options Displays processor speed.

System Bus Speed No options Displays the system bus speed.

System Memory Speed No options Dislays the system memory speed.

Cache RAM No options Displays the size of second-level cache and whether it is

ECC-capable.

Total Memory No options Displays the total amount of RAM.

Memory Bank 0 Memory Bank 1 Language • English (default)

System Time Hour, minute, and

System Date Day of week

No options Displays the amount and type of RAM in the

memory banks.

Selects the current default language used by the BIOS.

• Espanol

Specifies the current time.

second

Specifies the current date.

Month/day/year

Intel Desktop Board D845GVAD2 Product Guide

Advanced Menu

Maintenance Main Advanced Security Power Boot Exit

PCI Configuration

Boot Configuration Peripheral Configuration IDE Configuration Diskette Configuration Event Log Configuration Video Configuration USB Configuration Chipset Configuration

Table 9 describes the Advanced Menu. This menu is used to set advanced features that are available through the chipset.

Table 9. Advanced Menu

Feature Options Description

PCI Configuration [Enter] Configures individual PCI slot’s IRQ priority. When selected,

displays the PCI Configuration submenu.

Boot Configuration [Enter] Configures Plug & Play and the Numlock key, and resets

configuration data. When selected, displays the Boot Configuration submenu.

Peripheral Configuration [Enter] Configures peripheral ports and devices. When selected,

displays the Peripheral Configuration submenu.

IDE Configuration [Enter] Specifies type of connected IDE device.

Diskette Configuration [Enter] Configures the floppy drive(s). When selected, displays the

Diskette Configuration submenu.

Event Log Configuration [Enter] Configures event logging. When selected, displays the Event

Log Configuration submenu.

Video Configuration [Enter] Configures video features. When selected, displays the Video

Configuration submenu.

USB Configuration [Enter] Configures USB features. When selected, displays the USB

Configuration submenu.

Chipset Configuration [Enter] Configures chipset features. When selected, displays the

Chipset Configuration submenu.

Using the BIOS Setup Program

PCI Configuration Submenu

Maintenance Main Advanced Security Power Boot Exit

PCI Configuration

Boot Configuration Peripheral Configuration IDE Configuration Diskette Configuration Event Log Configuration Video Configuration USB Configuration Chipset Configuration

The submenu shown in Table 10 is used to configure the IRQ priority of PCI slots individually.

Table 10. PCI Configuration Submenu

Feature Options Description

PCI Slot 1 IRQ Priority • Auto (default)

• 5

• 9

• 10

• 11

PCI Slot 2 IRQ Priority • Auto (default)

• 5

• 9

• 10

• 11

PCI Slot 3 IRQ Priority • Auto (default)

• 5

• 9

• 10

• 11

PCI Slot 4 IRQ Priority • Auto (default)

• 5

• 9

• 10

• 11

Allows selection of IRQ priority.

Allows selection of IRQ priority and S5 wake.

Allows selection of IRQ priority.

Intel Desktop Board D845GVAD2 Product Guide

Boot Configuration Submenu

Maintenance Main Advanced Security Power Boot Exit

PCI Configuration Boot Configuration Peripheral Configuration IDE Configuration Diskette Configuration Event Log Configuration Video Configuration USB Configuration Chipset Configuration

The submenu shown in Table 11 is used to set the Plug & Play options and the power-on state of the Numlock key.

Table 11. Boot Configuration Submenu

Feature Options Description

Plug & Play O/S • No (default)

• Yes

Numlock • Off

• On (default)

Specifies if manual configuration is desired. No lets the BIOS configure all devices in the system. This setting is appropriate when using a Plug and Play operating system. Yes lets the operating system configure Plug & Play (PnP) devices not required for boot if your system has a Plug & Play operating system. This option is available for use during lab testing.

Specifies the power-on state of the Numlock feature on the numeric keypad of the keyboard.

Peripheral Configuration Submenu

Maintenance Main Advanced Security Power Boot Exit

PCI Configuration

Boot Configuration

IDE Configuration Diskette Configuration Event Log Configuration Video Configuration USB Configuration Chipset Configuration

This submenu shown in Table 12 is used for configuring computer peripherals.

Table 12. Peripheral Configuration Submenu

Feature Options Description

Serial Port A • Disabled

• Enabled

• Auto (default)

Base I/O Address (This feature is present only when Serial Port A is set to Enabled)

Interrupt (This feature is present only when Serial Port A is set to Enabled)

Serial Port B • Disabled

Base I/O Address (This feature is present only when Serial Port B is set to Enabled)

Interrupt (This feature is present only when Serial Port B is set to Enabled)

• 3F8 (default)

• 2F8

• 3E8

• 2E8

• IRQ 3

• IRQ 4 (default)

• Enabled

• Auto (default)

• 3F8

• 2F8 (default)

• 3E8

• 2E8

• IRQ 3 (default)

• IRQ 4

Peripheral Configuration

Configures serial port A.

Auto assigns the first free COM port, normally COM1, the address 3F8h, and the interrupt IRQ4.

An * (asterisk) displayed next to an address indicates a conflict with another device.

Specifies the base I/O address for serial port A, if serial port A is Enabled.

Specifies the interrupt for serial port A, if serial port A is Enabled.

Configures serial port B.

Auto assigns the first free COM port, normally COM1, the address 3F8h, and the interrupt IRQ4.

An * (asterisk) displayed next to an address indicates a conflict with another device.

Specifies the base I/O address for serial port B, if serial port B is Enabled.

Specifies the interrupt for serial port B, if serial port B is Enabled.

Using the BIOS Setup Program

continued

Intel Desktop Board D845GVAD2 Product Guide

Table 12. Peripheral Configuration Submenu (continued)

Feature Options Description

Parallel Port • Disabled

• Enabled

• Auto (default)

Mode • Output only

• Bi-directional

(default)

• EPP

• ECP

Base I/O Address (This feature is present

• 378 (default)

• 278

only when Parallel Port is set to Enabled)

Interrupt (This feature is present

• IRQ 5

• IRQ 7 (default)

only when Parallel Port is set to Enabled)

DMA (This feature is present

• 1

• 3 (default)

only when ECP mode is selected)

Audio • Disabled

• Enabled (default)

LAN Device (This feature is present

• Disabled

• Enabled (default)

only when there is onboard LAN)

Configures the parallel port.

Auto assigns LPT1 the address 378h and the interrupt IRQ7.

An * (asterisk) displayed next to an address indicates a conflict with another device.

Selects the mode for the parallel port. Not available if the parallel port is disabled.

Output Only operates in AT Bi-directional operates in PS/2-compatible mode.

EPP is Extended Parallel Port mode, a high-speed

bi-directional mode.

ECP is Enhanced Capabilities Port mode, a high-speed bi-directional mode.

Specifies the base I/O address for the parallel port, if Parallel Port is Enabled.

Specifies the interrupt for the parallel port, if Parallel Port is Enabled.

When mode is set to ECP, specifies the DMA channel.

Enables or disables the onboard audio subsystem.

Enables or disables the LAN device.

†

-compatible mode.

IDE Configuration Submenu

Maintenance Main Advanced Security Power Boot Exit

PCI Configuration

Boot Configuration Peripheral Configuration

Diskette Configuration Event Log Configuration Video Configuration USB Configuration Chipset Configuration

This submenu shown in Table 13 is used to configure IDE device options.

Table 13. IDE Configuration Submenu

Feature Options Description

IDE Controller • Disabled

• Primary

• Secondary

• Both (default)

PCI IDE Bus Master

Hard Disk Pre-Delay • Disabled (default)

Primary IDE Master [Enter] Reports type of connected IDE device. When selected,

Primary IDE Slave [Enter] Reports type of connected IDE device. When selected,

Secondary IDE Master [Enter] Reports type of connected IDE device. When selected,

Secondary IDE Slave [Enter] Reports type of connected IDE device. When selected,

• Disabled

• Enabled (default)

• 3 Seconds

• 6 Seconds

• 9 Seconds

• 12 Seconds

• 15 Seconds

• 21 Seconds

• 30 Seconds

IDE Configuration

Specifies the integrated IDE controller.

Disabled disables the integrated IDE controller. Primary enables only the primary IDE controller. Secondary enables only the secondary IDE controller. Both enables both IDE controllers.

Allows for a PCI device to initiate a transaction as a master.

Specifies the hard disk drive pre-delay. Causes the BIOS to insert a delay before attempting to detect IDE drives in the system.

displays the Primary IDE Master submenu.

displays the Primary IDE Slave submenu.

displays the Secondary IDE Master submenu.

displays the Secondary IDE Slave submenu.

Using the BIOS Setup Program

Intel Desktop Board D845GVAD2 Product Guide

Primary/Secondary IDE Master/Slave Submenus

Maintenance Main Advanced Security Power Boot Exit

PCI Configuration Boot Configuration Peripheral Configuration

Diskette Configuration Event Log Configuration Video Configuration USB Configuration Chipset Configuration

IDE Configuration

There are four IDE submenus: Primary master, primary slave, secondary master, and secondary slave. Table 14 shows the format of these IDE submenus. For brevity, only one example is shown.

Table 14. Primary/Secondary IDE Master/Slave Submenus

Feature Options Description

Drive Installed None Displays the type of drive installed. Type • Auto (default)

• User

Maximum Capacity None Displays the capacity of the drive.

LBA Mode (This feature appears only if

an IDE device is installed)

Block Mode

• Auto (default)

• Disabled

• 2 Sectors

• 4 Sectors

• 8 Sectors

• 16 Sectors

• Disabled

Specifies the IDE configuration mode for IDE devices.

Auto fills-in capabilities from ATA/ATAPI device.

User allows capabilities to be changed.

Specifies LBA mode control.

When the Type feature is set to Auto, specifies number of sectors per block for transfers from the hard disk drive to memory

Check the hard disk drive’s specifications for optimum setting.

When the Type feature is set to User, these options are displayed.

Disabled: the Data transfer from and to the device occurs one sector at a time.

Auto: the Data gransfer from and to the device occurs multiple sectors at a time if the device supports it.

Primary IDE Master

➜

Primary IDE Slave Secondary IDE Master Secondary IDE Slave

continued

Using the BIOS Setup Program

Table 14. Primary/Secondary IDE Master/Slave Submenus (continued)

Feature Options Description

PIO Mode (This feature appears only if

an IDE device is installed)

DMA Mode

Cable Detected (This option appears only if

an IDE device is installed)

ARMD Emulation Type (This option appears only if a

Zip drive is installed)

• Auto (default)

• 0

• 1

• 2

• 3

• 4

• Auto (default)

• SWDMA 0

• SWDMA 1

• SWDMA 2

• MWDMA 0

• MWDMA 1

• MWDMA 2

• UDMA 0

• UDMA 1

• UDMA 2

• UDMA 3

• UDMA 4

• UDMA 5

None Displays the type of cable connected to the IDE

• Floppy (default)

• Hard Disk

Specifies the PIO mode.

Specifies Single Word, Multi Word, or Ultra DMA mode for the drive.

interface: 40-conductor or 80-conductor (for ATA-66/100 devices).

Specified ARMD emulation type.

Intel Desktop Board D845GVAD2 Product Guide

Diskette Configuration Submenu

Maintenance Main Advanced Security Power Boot Exit

PCI Configuration

Boot Configuration Peripheral Configuration IDE Configuration

Event Log Configuration Video Configuration USB Configuration Chipset Configuration

This submenu shown in Table 15 is used to configure the diskette drive.

Table 15. Diskette Configuration Submenu

Feature Options Description

Diskette Controller • Disabled

Diskette A • Disabled

Diskette Write Protect • Disabled (default)

Diskette Configuration

Configures the integrated diskette controller.

• Enabled (default)

Selects the diskette drive type.

• 360 KB 5¼”

• 1.2 MB 5¼”

• 720 KB 3½”

• 1.44 MB 3½” (default)

• 2.88 MB 3½”

Disables or enables diskette drive write protection.

• Enabled

Event Log Configuration Submenu

Maintenance Main Advanced Security Power Boot Exit

PCI Configuration

Boot Configuration Peripheral Configuration IDE Configuration Floppy Configuration

Video Configuration USB Configuration Chipset Configuration

The submenu shown in Table 16 is used to configure the event logging features.

Table 16. Event Log Configuration Submenu

Feature Options Description

Event Log No options Indicates if there is space available in the event log.

View Event Log [Enter] Views the contents of the DMI event log.

Clear Event Log [Enter] Discards all events in the event log. Event Logging • Disabled

Mark Events As Read [Enter] Marks all DMI events in the event log as read.

Event Log Configuration

Enabled allows logging of DMI events.

• Enabled (default)

Using the BIOS Setup Program

Intel Desktop Board D845GVAD2 Product Guide

Video Configuration Submenu

Maintenance Main Advanced Security Power Boot Exit

PCI Configuration

Boot Configuration Peripheral Configuration IDE Configuration Diskette Configuration Event Log Configuration

USB Configuration Chipset Configuration

The submenu shown in Table 17 is used to configure video features.

Table 17. Video Configuration Submenu

Feature Options Description

Graphics Aperture Size • 4 MB

Primary Video Adapter • Integrated (default)

Frame Buffer Size • 512 KB

Video Configuration

• 8 MB

• 16 MB

• 32 MB

• 64 MB (default)

• 128 MB

• 256 MB

• PCI

• 1 MB (default)

• 8 MB

Amount of system memory available for direct access by the graphics device.

Allows selecting a PCI video controller as the display device that will be active when the system boots.

Controls how much system RAM is reserved for use by the internal graphics device.

USB Configuration Submenu

Maintenance Main Advanced Security Power Boot Exit

PCI Configuration Boot Configuration Peripheral Configuration IDE Configuration Diskette Configuration Event Log Configuration Video Configuration

Chipset Configuration

The menu shown in Table 18 is used to configure USB features.

Table 18. USB Configuration Submenu

Feature Options Description

High Speed USB • Disabled

Legacy USB Support • Disabled

USB Configuration

• Enabled (default)

Using the BIOS Setup Program

Disable this option when a USB 2.0 driver is not available.

Enables support for legacy USB.

Intel Desktop Board D845GVAD2 Product Guide

Chipset Configuration Submenu

Maintenance Main Advanced Security Power Boot Exit

PCI Configuration Boot Configuration Peripheral Configuration IDE Configuration Diskette Configuration Event Log Configuration Video Configuration USB Configuration

The menu shown in Table 19 is used to configure advanced chipset features.

Table 19. Chipset Configuration Submenu

Feature Options Description

ISA Enable Bit • Enabled (default)

PCI Latency Timer • 32 (default)

Extended Configuration • Default (default)

SDRAM Frequency • Auto (default)

SDRAM Timing Control • Auto (default)

Chipset Configuration

• Disabled

• 64

• 96

• 128

• 160

• 192

• 224

• 248

• User Defined

• 200 MHz

• 266 MHz

• Manual – Aggressive

• Manual – User Defined

Some older expansion devices require this to be enabled.

Set PCI latency time.

Chooses the default or user defined settings for the extended configuration options.

Allows override of detected memory frequency value.

Auto allows timings to be programmed according to the memory detected.

Manual – Aggressive selects the most aggressive user defiend timings.

Manual – User Defined allows manual override of detected SDRAM settings.

continued

Table 19. Chipset Configuration Submenu (continued)

Feature Options Description

SDRAM RAS Act. To Pre. • 7

• 6 (default)

• 5

SDRAM CAS# Latency • 3.0 (default)

• 2.0

SDRAM RAS# to CAS# delay

SDRAM RAS# Precharge • 3 (default)

• 3 (default)

• 2

Selects length of time from read to pre-change.

Selects the number of clock cycles required to address a column in memory.

Selects the number of clock cycles between addressing a row and addressing a column.

Selects the length of time required before accessing a new row.

Security Menu

Maintenance Main Advanced Security Power Boot Exit

The menu shown in Table 20 is used to set passwords and security features.

Using the BIOS Setup Program

Table 20. Security Menu

If no password entered previously: Feature Options Description

Supervisor Password Is No options Reports if there is a supervisor password set.

User Password Is No options Reports if there is a user password set.

Set Supervisor Password Password can be up to seven

alphanumeric characters.

User access Level

(Note 2)

Set User Password Password can be up to seven

Clear User Password

(Note 1)

Chassis Intrusion • Disabled (default)

Note 1: This feature appears only if a user password has been set.

Note 2: This feature appears only if both a user password and a supervisor password have been set.

• Limited

• No access

• View Only

• Full (default)

alphanumeric characters.

[Enter] Clears the user password.

• Log

• Log, notify once

• Log, notify till cleared

Specifies the supervisor password.

Sets BIOS Setup Utility access rights for user level.

Specifies the user password.

Specifies chassis intrusion alert options.

Intel Desktop Board D845GVAD2 Product Guide

Power Menu

Maintenance Main Advanced Security Power Boot Exit

The menu shown in Table 21 is used to set power management features.

Table 21. Power Menu

Feature Options Description

ACPI [Enter] When selected, displays the ACPI submenu. After Power Failure • Stay Off

• Last State (default)

• Power On

Wake on PCI PME • Stay Off (default)

• Power-On

Wake on Modem Ring • Stay Off (default)

• Power-On

Determines the mode of operation if a power loss occurs.

Stay Off keeps the power off until the power button is pressed.

Last State restores the previous power state before power loss occurred.

Power On restores power to the computer.

Determines how the system responds to a PCI-PME wake up event.

Specifies how the computer responds to a Modem Ring wake up event on an installed modem.

ACPI Submenu

Maintenance Main Advanced Security Power Boot Exit

ACPI

The submenu represented in Table 22 is for setting the ACPI features.

Table 22. ACPI Submenu

Feature Options Description

Suspend Mode • S1 State (default)

• S3 State

Wake on LAN from S5 • Stay Off (default)

• Power On

Specifies the ACPI sleep state.

In ACPI soft-off mode only, determines how the system responds to a LAN wake up event when the system is in the ACPI soft-off mode.

Using the BIOS Setup Program

Boot Menu

Maintenance Main Advanced Security Power Boot Exit

The menu shown in Table 23 is used to set the boot features and the boot sequence.

Table 23. Boot Menu

Feature Options Description

Silent Boot • Disabled

• Enabled (default)

Disabled displays normal POST messages.

Enabled displays OEM logo instead of POST messages.

Intel Rapid BIOS Boot • Disabled

• Enabled (default)

Scan User Flash Area • Disabled

• Enabled (default)

PXE Boot to LAN • Disabled (default)

• Enabled

USB Boot • Disabled

• Enabled (default)

Boot Device Priority [Enter] Specifies the boot sequence from the available types of

Hard Disk Drives [Enter] Specifies the boot sequence from the available hard

Removable Devices [Enter] Specifies the boot sequence from the available removable

ATAPI CD-ROM Drives [Enter] Specifies the boot sequence from the available ATAPI

Allows BIOS to skip certain tests while booting.

Enables the BIOS to scan the flash ROM for user binary files that are executed at boot time.

Disables or enables PXE boot to LAN.

Disables or enables booting to USB boot devices.

boot devices.

disk drives.

devices.

CD-ROM drives.

Intel Desktop Board D845GVAD2 Product Guide

Boot Device Priority Submenu

Maintenance Main Advanced Security Power Boot Exit

Boot Device Priority

Hard Disk Drives

Removable Devices

ATAPI CD-ROM Drives

The submenu represented in Table 24 is for setting boot devices priority.

Table 24. Boot Device Priority Submenu

Feature

1st Boot Device

Boot Device

• SCSI

Options Description

• Removable Device

• Hard Drive

• ATAPI CD-ROM

• Disabled

• PXE

Specifies the boot sequence from the available devices. To specify boot sequence:

1. Select the boot device with <↑> or <↓>.

2. Press <Enter> to set the selection as the intended boot device.

The operating system assigns a drive letter to each boot device in the order listed. Changing the order of the devices changes the drive lettering. The default settings for the first through final boot devices are, respectively listed below. The BIOS supports up to sixteen total boot devices in any combination of the boot device types below, with respect to these maximums per type.

• Removable Device (maximum of four)

• Hard Drive (maximum of 12)

• ATAPI CD-ROM (maximum of four)

Will appear as options if either of these devices are available.

Hard Disk Drives Submenu

Maintenance Main Advanced Security Power Boot Exit

Boot Device Priority Hard Disk Drives

Removable Devices

ATAPI CD-ROM Drives

The submenu shown in Table 25 is for setting hard disk drives.

Table 25. Hard Disk Drives Submenu

Feature Options Description

1st Hard Disk Drive

(Note)

Note: This boot device submenu appears only if at least one boot device of this type is installed. This list will

display up to twelve hard disk drives, the maximum number of hard disk drives supported by the BIOS.

Dependent on installed hard drives

Specifies the boot sequence from the available hard disk drives. To specify boot sequence:

1. Select the boot device with <↑> or <↓>.

2. Press <Enter> to set the selection as the intended boot device.

Using the BIOS Setup Program

Removable Devices Submenu

Maintenance Main Advanced Security Power Boot Exit

Boot Device Priority

Hard Disk Drives Removable Devices

ATAPI CD-ROM Drives

The submenu in shown Table 26 is for setting removable devices.

Table 26. Removable Devices Submenu

Feature Options Description

1st Removable Device

(Note)

Note: This boot device submenu appears only if at least one boot device of this type is installed. This list will

display up to four removable devices, the maximum number of removable devices supported by the BIOS.

Dependent on installed removable devices

Specifies the boot sequence from the available removable devices. To specify boot sequence:

1. Select the boot device with <↑> or <↓>.

2. Press <Enter> to set the selection as the intended boot device.

ATAPI CD-ROM Drives

Maintenance Main Advanced Security Power Boot Exit

Boot Device Priority

Hard Disk Drives

Removable Devices ATAPI CD-ROM Drives

The submenu shown in Table 27 is for setting ATAPI CD-ROM drives.

Table 27. ATAPI CD-ROM Drives Submenu

Feature Options Description

1st ATAPI CD-ROM Drive

(Note)

Note: This boot device submenu appears only if at least one boot device of this type is installed. This list will display up to

four ATAPI CD-ROM drives, the maximum number of ATAPI CD-ROM drives supported by the BIOS.

Dependent on installed ATAPI CD-ROM drives

Specifies the boot sequence from the available ATAPI CD-ROM drives. To specify boot sequence:

1. Select the boot device with <↑> or <↓>.

2. Press <Enter> to set the selection as the intended boot device.

Intel Desktop Board D845GVAD2 Product Guide

Exit Menu

Maintenance Main Advanced Security Power Boot Exit

The menu shown in Table 28 is used to exit the BIOS Setup program, saving changes, and loading and saving defaults.

Table 28. Exit Menu

Feature Description

Exit Saving Changes Exits and saves the changes in CMOS SRAM.

Exit Discarding Changes Exits without saving any changes made in the BIOS Setup program.

Load Optimal Defaults Loads optimal defaults.

Load Custom Defaults Loads the custom defaults for Setup options.

Save Custom Defaults Saves the current values as custom defaults. Normally, the BIOS reads the

Setup values from flash memory. If this memory is corrupted, the BIOS reads the custom defaults. If no custom defaults are set, the BIOS reads the factory defaults.

Discard Changes Discards changes without exiting Setup. The option values present when the

computer was turned on are used.

5 Technical Reference

Board Connectors

The board connectors can be divided into three groups:

• Back panel connectors

• Midboard connectors

— Audio connectors — Power and hardware connectors — Add-in board and peripheral interface connectors

• Front panel headers

CAUTION

Many of the midboard and front panel connectors provide operating voltage (+5 V dc and +12 V dc, for example) to devices inside the computer chassis, such as fans and internal peripherals. These connectors are not overcurrent protected. Do not use these connectors for powering devices external to the computer chassis. A fault in the load presented by the external devices could cause damage to the computer, the interconnecting cable, and the external devices themselves.

Intel Desktop Board D845GVAD2 Product Guide

Back Panel Connectors

Figure 11 shows the back panel connectors.

Item Description Color

A PS/2 mouse port Green

B PS/2 keyboard port Purple

C Parallel port Burgundy

D Serial port A Teal

E VGA port Blue

F RJ-45 (optional) Black

G USB 2.0 port Black

H USB 2.0 port Black

I Mic in Pink

J Audio line out Lime green

K Audio line in Light blue

Figure 11. Back Panel Connectors

OM13689

NOTE

✏

Midboard Connectors

Audio Connectors

Figure 12 shows the location of the audio connectors.

Technical Reference

Item Description Color

A Front panel audio (optional) Black

B Auxiliary line in (ATAPI) Light grey

C CD-ROM (ATAPI) Black

OM14573

Figure 12. Audio Connectors

Table 29 shows the pin assignments for the optional front panel audio header.

Table 29. Front Panel Audio Header Signal Names (J8A1)

Pin Signal Name Pin Signal Name

1 AUD-MIC 2 AUD-GND

3 AUD-MIC-BIAS 4 AUD-VCC

5 AUD-FPOUT-R 6 AUD-RET-R

7 HP-ON 8 KEY

9 AUD-FPOUT-L 10 AUD-RET-L

Intel Desktop Board D845GVAD2 Product Guide

Power and Hardware Connectors

CAUTION

Failure to use an ATX12V or SFX-12V power supply, or not connecting the additional power supply lead to Desktop Board D845GVAD2 may result in damage to the desktop board.

Desktop Board D845GVAD2 requires an ATX12V or SFX-12V compliant power supply to function according to desktop board specifications. The desktop board has two ATX12V or SFX_12V compliant power supply connectors that are needed to provide extra power to the Intel 845GV chipset and Pentium 4 processor.

Figure 13 shows the power and hardware connectors.

OM14574

20 10

11 1

Item Description Item Description

A ATX12V or SFX-12V power E Main power

B Rear chassis fan F Front chassis fan

C Processor fan G Chassis intrusion

D Serial port B header

Figure 13. Power and Hardware Control Connectors

Add-In Card and Peripheral Interface Connectors

Figure 14 shows the add-in card and peripheral interface connectors.

C D

Technical Reference

2 1

40 39

34 33

Item Description Item Description

A PCI bus connector 4 E Floppy drive B PCI bus connector 3 F Primary IDE C PCI bus connector 2 (SMBus routed) G Secondary IDE D PCI bus connector 1

Figure 14. Add-in Card and Peripheral Interface Connectors

OM14575

Intel Desktop Board D845GVAD2 Product Guide

Front Panel Headers

Figure 15 shows the location of the front panel headers.

5 7 9

5 7

OM14576

Item Description

A Front panel audio (optional)

(see Table 29 on page 61 for pin assignments)

B Front panel USB

C Front panel

D Alternate power/sleep LED

Figure 15. Front Panel Headers

See the next page for the tables showing the pin assignments for both the front panel USB 2.0 header and front panel header.

Technical Reference

Table 30 shows the pin assignments for the front panel USB 2.0 header.

Table 30. Front Panel USB 2.0 Header (J9F2)

Pin Signal name Pin Signal name

1 VREG_FP_WSBPWR0 2 VREG_FP_USBPWR0

3 USB_FPP0- 4 USB_FPP1-

5 USB_FPP0+ 6 USB_FPP1+

7 Ground 8 Ground

9 Key 10 USB_FP_OC0

Note: USB ports may be assigned as needed.

Table 31 shows the pin assignments for the front panel header.

Table 31. Front Panel Header (J9G1)

Pin Signal In/Out Description Pin Signal In/Out Description

Hard Drive Activity LED Power LED

1 HD_PWR Out Hard disk LED

pull-up (330 Ω) to +5 V

3 HDA# Out Hard disk active LED 4 HDR_BLNK_YEL Out Front panel yellow

Reset Switch On/Off Switch

5 Ground Ground 6 SWITCH_ON# In Power switch

7 FP_RESET# In Reset switch 8 Ground Ground

9 +5 V Out Power 10 N/C Not connected

2 HDR_BLNK_GRN Out Front panel green

LED

Intel Desktop Board D845GVAD2 Product Guide

Desktop Board Resources

Memory Map

Table 32. System Memory Map

Address Range (decimal) Address Range (hex) Size Description

1024 K - 2097152 K 100000 - 7FFFFFF 2047 MB Extended Memory

960 K - 1024 K F0000 - FFFFF 64 KB Runtime BIOS

896 K - 960 K E0000 - EFFFF 64 KB Reserved

800 K - 896 K C8000 - DFFFF 96 KB Available high DOS memory (open

640 K - 800 K A0000 - C7FFF 160 KB Video memory and BIOS

639 K - 640 K 9FC00 - 9FFFF 1 KB Extended BIOS data (movable by

512 K - 639 K 80000 - 9FBFF 127 KB Extended conventional memory

0 K - 512 K 00000 - 7FFFF 512 KB Conventional memory

to the PCI bus)

memory manager software)

DMA Channels

Table 33. DMA Channels

DMA Channel Number Data Width System Resource

0 8 or 16 bits

1 8 or 16 bits Parallel port

2 8 or 16 bits Diskette drive

3 8 or 16 bits Parallel port (for ECP or EPP)

4 8 or 16 bits DMA controller

5 16 bits Open

6 16 bits Open

7 16 bits Open

Interrupts

Table 34. Interrupts

IRQ System Resource

NMI I/O channel check

0 Reserved, interval timer

1 Reserved, keyboard buffer full

2 Reserved, cascade interrupt from slave PIC

3 COM2*

4 COM1*

5 LPT2 (Plug & Play option) / **

6 Diskette drive controller

7 LPT1*

8 Real time clock

9 **

10 **

11 **

12 Onboard mouse port (if present, else user available)

13 Reserved, math coprocessor

14 Primary IDE (if present, else user available)

15 Secondary IDE (if present, else user available)

* Default, but can be changed to another IRQ.

** Dynamically allocated for all PCI/AGP devices and slots.

Technical Reference

Intel Desktop Board D845GVAD2 Product Guide

A Error Messages and Indicators

Desktop Board D845GVAD2 reports POST errors in two ways:

• By sounding a beep code

• By displaying an error message on the monitor

BIOS Beep Codes

The BIOS beep codes are listed in Table 35. The BIOS also issues a beep code (one long tone followed by two short tones) during POST if the video configuration fails (a faulty video card or no card installed) or if an external ROM module does not properly checksum to zero.

Table 35. Beep Codes

Number of Beeps Description

1 Refresh failure

2 Parity cannot be reset

3 First 64 K memory failure

4 Timer not operational

5 Processor failure (Reserved; not used)

6 8042 GateA20 cannot be toggled (memory failure or not present)

7 Exception interrupt error

8 Display memory R/W error

9 (Reserved; not used)

10 CMOS Shutdown register test error

11 Invalid BIOS (such as, POST module not found)

Intel Desktop Board D845GVAD2 Product Guide

BIOS Error Messages

When a recoverable error occurs during the POST, the BIOS displays an error message describing the problem.

Table 36. BIOS Error Messages

Error Message Explanation

GA20 Error An error occurred with Gate-A20 when switching to protected

mode during the memory test.

Pri Master HDD Error Pri Slave HDD Error Sec Master HDD Error Sec Slave HDD Error

Pri Master Drive - ATAPI Incompatible Pri Slave Drive - ATAPI Incompatible Sec Master Drive - ATAPI Incompatible Sec Slave Drive - ATAPI Incompatible

A: Drive Error B: Drive Error

CMOS Battery Low The battery may be losing power. Replace the battery soon.

CMOS Display Type Wrong The display type is different than what has been stored in CMOS.

CMOS Checksum Bad The CMOS checksum is incorrect. CMOS memory may have been

CMOS Settings Wrong CMOS values are not the same as the last boot. These values

CMOS Date/Time Not Set The time and/or date values stored in CMOS are invalid. Run

DMA Error Error during read/write test of DMA controller.

FDC Failure Error occurred trying to access diskette drive controller.

HDC Failure Error occurred trying to access hard disk controller.

Checking NVRAM..... NVRAM is being checked to see if it is valid.

Update OK! NVRAM was invalid and has been updated.

Updated Failed NVRAM was invalid but was unable to be updated.

Keyboard Is Locked The system keyboard lock is engaged. The system must be

Keyboard Error Error in the keyboard connection. Make sure keyboard is

KB/Interface Error Keyboard interface test failed.

Could not read sector from corresponding drive.

Corresponding drive is not an ATAPI device. Run Setup to make sure device is selected correctly.

No response from the diskette drive.

Check Setup to make sure type is correct.

corrupted. Run Setup to reset values.

have either been corrupted or the battery has failed.

Setup to set correct values.

unlocked to continue to boot.

connected properly.

continued

Error Messages and Indicators

Table 36. BIOS Error Messages (continued)

Error Message Explanation

Memory Size Decreased Memory size has decreased since the last boot. If no memory

was removed, then memory may be bad.

Memory Size Increased Memory size has increased since the last boot. If no memory was

added, there may be a problem with the system.

Memory Size Changed Memory size has changed since the last boot. If no memory was

added or removed, then memory may be bad.

No Boot Device Available System did not find a device to boot.

Off Board Parity Error A parity error occurred on an offboard card. This error is followed

by an address.

On Board Parity Error A parity error occurred in onboard memory. This error is followed

by an address.

Parity Error A parity error occurred in onboard memory at an unknown

address.

NVRAM / CMOS / PASSWORD cleared by Jumper

<CTRL_N> Pressed CMOS is ignored and NVRAM is cleared. User must enter Setup.

NVRAM, CMOS, and passwords have been cleared. The system should be powered down and the jumper removed.

Intel Desktop Board D845GVAD2 Product Guide

B Regulatory Compliance

This appendix contains:

• Safety standards, electromagnetic compatibility (EMC) regulations, and product certification

markings for Desktop Board D845GVAD2.

• Instructions and precautions for integrators who are installing the Intel desktop board in a

chassis.

Safety Regulations

Desktop Board D845GVAD2 complies with the safety regulations stated in Table 37 when correctly installed in a compatible host system.

Table 37. Safety Regulations

Regulation Title

CSA C22.2 No. 60950/ UL 60950, 3

EN 60950, 2nd Edition, 1992 (with Amendments 1, 2, 3, and 4)

IEC 60950, 2nd edition, 1991 (with Amendments 1, 2, 3, and 4)

EMKO-TSE (74-SEC) 207/94 Summary of Nordic deviations to EN 60950. (Norway, Sweden,

Edition, 2000

Bi-National Standard for Safety of Information Technology Equipment including Electrical Business Equipment. (USA and Canada)

The Standard for Safety of Information Technology Equipment including Electrical Business Equipment. (European Union)

The Standard for Safety of Information Technology Equipment including Electrical Business Equipment. (International)

Denmark, and Finland)

EMC Regulations

Desktop Board D845GVAD2 complies with the EMC regulations stated in Table 38 when correctly installed in a compatible host system.

Table 38. EMC Regulations

Regulation Title

FCC Class B Title 47 of the Code of Federal Regulations, Parts 2 and 15, Subpart B, Radio

Frequency Devices. (USA)

ICES-003 (Class B) Interference-Causing Equipment Standard, Digital Apparatus. (Canada)

EN55022: 1998 (Class B) Limits and methods of measurement of Radio Interference Characteristics of

Information Technology Equipment. (European Union)

EN55024: 1998 Information Technology Equipment – Immunity Characteristics Limits and

methods of measurement. (European Union)

AS/NZS 3548 (Class B) Australian Communications Authority, Standard for Electromagnetic

Compatibility. (Australia and New Zealand)

CISPR 22, 3rd Edition, (Class B)

CISPR 24: 1997 Information Technology Equipment – Immunity Characteristics – Limits and

Limits and methods of measurement of Radio Disturbance Characteristics of Information Technology Equipment. (International)

Methods of Measurement. (International)

Intel Desktop Board D845GVAD2 Product Guide

Product Certification Markings

Desktop Board D845GVAD2 has the following product certification markings:

• UL joint US/Canada Recognized Component mark: consists of small c followed by a stylized

backward UR and followed by a small US. Includes adjacent UL file number for Intel desktop boards: E210882 (component side).

• FCC Declaration of Conformity logo mark for Class B equipment; includes Intel name and

model designation (solder side).

• CE mark: declaring compliance to European Union (EU) EMC directive (89/336/EEC) and

Low Voltage directive (73/23/EEC) (component side).

• Australian Communications Authority (ACA) C-Tick mark: consists of a stylized C overlaid

with a check (tick) mark (component side), followed by Intel supplier code number, N-232.

• Printed wiring board manufacturer’s recognition mark: consists of a unique UL recognized

manufacturer’s logo, along with a flammability rating (94 V-0) (solder side).

• Battery “+ Side Up” marking: located on the component side of the board in close proximity

to the battery holder.

• Korean MIC logo mark: denotes Korean EMC certification (component side). Additional

certification information is provided below:

1. Product Name (model)

2. Certificate ID

3. Applicant: Intel Korea Ltd.

4. Date of manufacture as separate marking on product

5. Manufacturer (country of origin)

Korean MIC logo mark for Desktop Board D845GVAD2

Regulatory Compliance

Installation Precautions

When you install and test the desktop board, observe all warnings and cautions in the installation instructions.

To avoid injury, be careful of:

• Sharp pins on connectors

• Sharp pins on printed circuit assemblies

• Rough edges and sharp corners on the chassis

• Hot components (like processors, voltage regulators, and heat sinks)

• Damage to wires that could cause a short circuit

Observe all warnings and cautions that instruct you to refer computer servicing to qualified technical personnel.

Installation Instructions

CAUTION

Follow these guidelines to meet safety and regulatory requirements when installing this board assembly.

Read and adhere to all of these instructions and the instructions supplied with the chassis and associated modules. If the instructions for the chassis are inconsistent with these instructions or the instructions for associated modules, contact the supplier’s technical support to find out how you can ensure that your computer meets safety and regulatory requirements. If you do not follow these instructions and the instructions provided by chassis and module suppliers, you increase safety risk and the possibility of noncompliance with regional laws and regulations.

Ensure Electromagnetic Compatibility (EMC) Compliance

Before computer integration, make sure that the power supply and other modules or peripherals, as applicable, have passed Class B EMC testing and are marked accordingly.

In the installation instructions for the host chassis, power supply, and other modules pay close attention to the following:

• Product certifications or lack of certifications

• External I/O cable shielding and filtering

• Mounting, grounding, and bonding requirements

• Keying connectors when mating the wrong connectors could be hazardous

If the power supply and other modules or peripherals, as applicable, are not Class B EMC compliant before integration, then EMC testing is required on a representative sample of the newly completed computer.

Intel Desktop Board D845GVAD2 Product Guide

Chassis and Component Certifications

Ensure that the chassis and certain components; such as the power supply, peripheral drives, wiring, and cables; are components certified for the country or market where used. Agency certification marks on the product are proof of certification. Typical product certifications include:

In Europe The CE marking signifies compliance with all applicable European requirements. If the chassis and other components are not properly CE marked, a supplier’s Declaration of Conformity statement to the European EMC directive and Low Voltage directive (as applicable), should be obtained. Additionally, other directives, such as the Radio and Telecommunications Terminal Equipment (R&TTE) directive may also apply depending on product features.

In the United States A certification mark by a Nationally Recognized Testing Laboratory (NRTL) such as UL, CSA, or ETL signifies compliance with safety requirements. Wiring and cables must also be UL listed or recognized and suitable for the intended use. The FCC Class B logo for home or office use signifies compliance with electromagnetic interference (EMI) requirements.

In Canada A nationally recognized certification mark such as CSA or cUL signifies compliance with safety requirements. The Industry Canada statement at the front of this product guide demonstrates compliance with Canadian EMC regulations. Industry Canada recognizes and accepts FCC certification as denoting compliance with national electromagnetic interference (emissions) requirements.

Prevent Power Supply Overload

Do not overload the power supply output. To avoid overloading the power supply, make sure that the calculated total current loads of all the modules within the computer is less than the output current rating of each of the power supplies output circuits.

Place Battery Marking

There is insufficient space on this desktop board to provide instructions for replacing and disposing of the Lithium ion coin cell battery. For system safety certification, the following statement or equivalent statement is required to be permanently and legibly marked on the chassis near the battery.

CAUTION

Risk of explosion if battery is incorrectly replaced.

Replace with only the same or equivalent type recommended by the manufacturer. Dispose of used batteries according to the manufacturer’s instructions.

Use Only for Intended Applications

All Intel desktop processor boards are evaluated as Information Technology Equipment (I.T.E.) for use in personal computers for installation in homes, offices, schools, computer rooms, and similar locations. The suitability of this product for other applications or environments, such as medical, industrial, alarm systems, test equipment, etc. may require further evaluation.
