IP-4GVI63

Series

(Industrial Board)

INSTALLATION GUIDE

Installation Guide Revision A2

6007002463A20

COPYRIGHT©

All rights reserved. The information contained in this guide has been validated and reviewed for accuracy. No patent liability is assumed with respect to the use of the information contained herein. While every precaution has been taken in the preparation of this guide, the Manufacturer assumes no responsibility for errors or omissions.

No part of this publication may be reproduced, stored in a retrieval system, or transmitted in any form or by any means, electronic, mechanical, photocopying, recording, or otherwise, without the prior written permission of Manufacturer.

TRADEMARK™

Intel®, Pentium® and Celeron® are registered trademarks of Intel® Corporation.

Microsoft® and Windows® are registered trademarks of Microsoft Corporation.

All products and company names are trademarks or registered trademarks of their respective holders.

These specifications are subject to change without notice.

Installation Guide Revision A2

December 2004

i

CONTENTS

SECTION 1

INTRODUCTION

1

1.1

Unpacking IP-4GVI63 Series

1

1.2

Description

3

1.3

Features

3



1.3.1

Graphic & Ethernet

3



1.3.2

Ultra ATA/66/100

4



1.3.3

Hardware Monitoring

4



1.3.4

I/O Shield Connector

4



1.3.5

Power-On/Off

5



1.3.6

IP-4GVI63 Series Overview

5



1.3.7

System Block Diagram

6

1.4

Specifications

7

SECTION 2

INSTALLATIONS

9

2.1

System Installation

9



2.1.1

CPU Installation

9



2.1.2

Heat Sink Installation

10



2.1.3

Memory Module Installation

11



2.1.4

Setting Jumpers

13

2.2

Board Layout

14

2.3

Jumper Setting

15

2.4

Connector’s Description

18

ii

CONTENTS

SECTION 3 AWARD BIOS SETUP

36

3.1

BIOS Instructions

36

3.2

Main Menu

37

3.3

Standard CMOS Features

39

3.4

IDE Adapters

41

3.5

Advanced BIOS Features

43

3.6

Advanced Chipset Features

47

3.7

Integrated Peripherals

50

3.8

Power Management Setup

55

3.9

PnP/PCI Configurations

59

3.10

PC Health Status

60

3.11

Frequency/Voltage Control

62

3.12

Load Fail-Safe Default

64

3.13

Load Optimized Defaults

64

3.14

Supervisor/User Password Setting

65

3.15

Exit Selecting

66

iii

iv

SECTION 1

INTRODUCTION

1.1Unpacking IP-4GVI63 Series

1.Take out the IP-4GVI63 series unit from the carton box, check if the unit is properly secure in the plastic bag.

2.Check the contents of the carton box:

¡ Industrial Board

¡ Installation Guide

¡ Floppy ribbon cable

¡ ATA-66/100 HDD ribbon cable

¡ Driver Utility

¡ COM2 ribbon cable (1 Set)



(for RS-232)

1

Introduction



¡ COM3 ribbon cable (1 Set)

¡ I/O Shield

(for RS-232/422/485)



3. Optional Cable



¡ USB2.0 cable (optional)

¡ COM4 ribbon cable (optional)



(for RS-232/422/485)

2

Introduction

1.2Description

The IP-4GVI63 Series combines the high performance and exceptional value of Intel® 845GV chipset with a full-featured, new generation, industrial board. The Intel® advanced 845GV chipset support regular socket 478-pins Intel® Pentium® 4 / Celeron® processors of 1.3GHz and up to 3.06GHz, Furthermore, user can set the jumper to select the mobile CPU, that memory base on the FSB 400/533MHz operation supports DDR SDRAM interface. In the meantime, the 845GV chipset integrated the VGA function and an external graphics device on AGP (845GV support ADD card only). The IP-4GVI63 system memory size can be up to 2GB DDR memory, onboard Intel® 82562ET Ethernet controller (support 10/100 Base-TX Ethernet), Audio and with 4 COM ports, besides the IP-4GVI63 add one slim Floppy connector to special application.

The 82801DB I/O Controller Hub (ICH4) employs the Intel® Accelerated Hub Architecture to make a direct connection from the graphics and memory to the integrated Ethernet controller, the IDE controllers (ATA/33 or ATA/66 or ATA/100), six USB ports that are supported USB 1.1/2.0 standard meets the performance, stability and reliability requirements.

The industrial board - IP-4GVI63 is suitable and valuable for all the industry applications, which also well support with the Windows® 98/SE/ME/2000 and Windows® XP operation system.

1.3Features

1.3.1Graphic & Ethernet

The IP-4GVI63 is base on the Intel® 845GV chipset, offers users the integration graphic, Ethernet, Audio function. The features of chipset are as below:

¡Enhanced integrated graphics & system performance:

-400/533 FSB support

¡Memory:

-SDRAM PC133, DDR 266/333

-2.0GB Max. Memory

-2 DIMM, Non-ECC

3

Introduction

¡IO Connectivity - ICH4:

-6 Hi-Speed USB2.0 ports

-10/100 Base-TX Ethernet

1.3.2Ultra ATA/66/100

The ICH4 provides two channel Ultra ATA/66/100 Bus Master IDE controller, that support Ultra ATA/66/100 protocols, perfect for such demanding applications as real-time video, multimedia, and high performance operating system. A new IDE cable is required for Ultra ATA/66/100. This cable is an 80-conductor cable; however the connectors are, of course, backwards compatible with ATA/33.

1.3.3Hardware Monitoring

Hardware monitoring allows you to monitor various aspects of your systems operations and status. The features include CPU temperature, voltage and RPM of fan.

1.3.4I/O Shield Connector

The board is equipped with an I/O back panel. Please use the appropriate I/O shield (figure 1).



56.05



87.71







16.80







25.00

25.4221.75





29.50

6.50







11.96



6.22

5.00





38.10

35.97

26.13

21.64





143.76



Figure 1: I/O back panel layout

4

Introduction

1.3.5Power-On/Off (Remote)

The board has a single 20-pins connector for ATX power supplies. For ATX power supplies that support the Remote On/Off feature, this should be connected to the systems front panel for system Power On/Off button. The systems power On/Off button should be a momentary button that is normally open.

The board has been designed with “Soft Off" functions. You can turn Off the system from one of two sources: The first is the front panel Power On/Off the button, and the other is the "Soft Off" function (coming from the M/B onboard circuit controller) that can be controlled by the operating

system such as Windows® 98/SE/ME/2000 or Windows® XP.

1.3.6IP-4GVI63 Series Overview

Function / Model

IP-4GVI63

¡ Chipset

Intel® 845GV

¡ LCD Function

/

¡ VGA Function



¡ SCSI Function

/

¡ Ethernet Function



¡ Audio Function



¡ Two EIDE Interface



¡ One Floppy Interface



¡ One Parallel



¡ PCI Slots

6

¡ AGP Slot

1 (For ADD card only)

¡ Serial Port

4

¡ USB 2.0 Port

6 (Two for Optional USB Cable)

¡ Fan Connector

4

¡ Slim Floppy Connector



5

Introduction

1.3.7System Block Diagram









P4 Socket 478-pins









VRM













Clock

















































ADDR CTRL DATA

CRT

AGP4X

GMCH (845GV)





DDR266/333 X2



760 FC-BGA

Device















































IDE Primary





ATA100





















Intel 82562









































10/100





IDE Secondary































Base-TX













ICH4







AC97























Audio





















421 BGA

















USB Port 1/2





USB















Codec

















PCI BUS





















USB Port 3/4















































































































USB Port 5/6





























































































































Super I/O









Super I/O



















W83627HF







W83627HF





FWH

































































































































































Keyboard



COM 3/4 Port







Mouse

COM 1/2 Port

LPT Port

Floppy

Figure 2: System Block Diagram

PCI SLOTS

6

Introduction

1.4Specifications

¡Processor:

-Intel® Pentium® 4/Celeronprocessor with socket 478-pins package, Processor operating at 1.3GHz and up to 3.06GHz

-Intel® Pentium® 4 Mobileprocessor with socket 478-pins package, Processor operating at 1.2GHz and up to 2.4GHz

-System bus frequency at 400/533 MHz FSB

¡Chipset:

-Intel® 82845GV + ICH4 AGPset

¡DRAM Module:

-Two 184-pins Socket

-For DDR 266/333 SDRAM memory

-Support DDR SDRAM up to 2GB (Max.)

¡VGA Function:

-Intel® 845GV Chipset integrated graphic controller

-Onboard one 15-pins VGA connector

¡LAN Function:

-Intel® 82562ET Ethernet controller

-For 10/100Base-TX Ethernet

-Onboard one RJ-45 Ethernet connector

-

¡Audio Function:

-AC97 audio controller

¡External Connector:

-One slim floppy connector

¡Expansion Slot:

-1 x AGP slot (for ADD card only)

-6 x PCI slots

¡Onboard I/O:

-On-Chip I/O integrated with K/B, Mouse, FDD, Parallel and Serial, Fast IR and Power-ON controllers

7

Introduction

¡Onboard PCI / IDE:

-Intel® 82801DB (ICH4) controller

-PCI rev2.2 Compliant

-ACPI Compliant Power Management

-PCI bus IDE port with PIO /Ultra DMA-100 x 2 (up to 4 devices)

¡Rear I/O Connectors:

-PS/2 mouse and PS/2 style keyboard

-D-Sub 25-pins printer port connector

D-Sub 9-pins COM1 serial port connector for RS-232 D-Sub 15-pins VGA connector

-2 x USB2.0 connectors

-RJ-45 Ethernet and 2 x USB2.0 connectors

-Audio for Line-In, Line-Out, MIC phone jack

¡Internal I/O Connectors (pin-header):

-3 x serial ports, COM2 for RS-232 and COM3/4 for RS-232/422/485 (serial cable with bracket by optional)

-2 x USB2.0 connectors (USB cable with bracket by optional)

¡BIOS:

-Award Plug & Play BIOS

¡Form Factor:

-12” x 8.7” (305 x 220mm) ATX Size

¡Weight:

-1.44lb (650g) --- IP-4GVI63 series

8

SECTION 2

INSTALLATIONS

2.1System Installation

2.1.1CPU Installation

Carefully follow the steps below in order to install the CPU:

1.Check and confirm that you are going to install correctly CPU type and pin numbers (figure 3).

2.Lift the releasing lever of the Socket 478.

3.Align the pin of the CPU against the pinholes of the Socket 478. Be sure to pay attention to the orientation of the CPU.

Figure 3: CPU Socket

4.Push down the CPU into the Socket 478.

5.Push down the release lever and lock it against the key hook.

6.Hook the hole in ZIF clip for the CPU cooling fan onto the notch on the socket 478.

7.Place the CPU cooling fan atop the CPU surface.

8.Push down the opposite side of the ZIF clip and hook it.

9.Slide the head of the clip to left and lock it.

10.Connect the cooling fan cable to the socket. Be careful not to place the cable on the CPU cooling fan.

9

Installations

Removing a CPU:

1.Before removing the CPU, turn off the IP-4GVI63 Series power; then wait for about 20 minutes until the heat radiation plate of the cooling fan and the CPU cools down.

2.To remove the CPU, lift the releasing lever of the Socket 478.

Note: The CPU and the heat radiation plate are hot. They may cause burns.

To remove the CPU, reverse the installation steps.

2.1.2Heat Sink & Retention Module Installation

Make sure that good contact is made between the processors and the heat sinks & fan. Insufficient contact, incorrect types of heat sinks, fans, or thermal compound used or improper amount of thermal compound applied on the CPU die can cause the processors to overheat, which may crash the system.

Heat Sink & Fan

Retention Module

Installation

(For P4 processor only)

(For P4 Heat Sink & Fan)



Figure 4: Heat Sink & Retention Module Installation

10

Installations

2.1.3Memory Module Installation

Figure 5 display the notch marks and what they should look like on your DIMM memory module.

DIMMs have184-pins and two notches, that will match with the onboard DIMM socket. DIMM modules are installed by placing the chip firmly into the socket at a 90-degree angle and pressing straight down (figure 6) until it fits tightly into the DIMM socket.

Figure 5: DIMM Memory and 184-pins Socket

Figure 6: Memory Installation

11

Installations

Carefully follow the steps below in order to install the DIMMs:

1.To avoid generating static electricity and damaging the DIMM, ground yourself by touching a grounded metal surface or using a ground scrap before you touch the DIMM.

2.Do not touch the connector of the DIMM. Dirt residue may cause a malfunction.

3.Hold the DIMM with its notch to the front side of the IP-4GVI63 Series and insert it completely into the socket. A DIMM should be inserted into the inner socket first. Guiding the hole at each end of the DIMM over the retaining post at each end of the DIMM socket.

4.If you install two DIMMs, install the second DIMM using the same procedure as above.

5.If DIMM does not go in smoothly, do not force it. Pull it all the way out and try again.

6.Make sure the DIMM is properly installed and locked by the tabs on both sides of the socket.

Removing a DIMM:

To remove the DIMM, use your fingers or a small screwdriver to carefully push away the plastic tabs that secure the DIMM at each end. Lift it out of the socket.

Make sure you store the DIMM in an anti-static bag and must be populated the same size and manufactory of memory modules.

12

Installations

2.1.4Setting Jumpers

There are jumpers on the system board of the IP-4GVI63 Series. You can set the jumpers to make the necessary operations.

Figure 7: Jumper Connector

For any three-pins jumpers (figure 7), the jumper setting is 1-2 when the jumper connects pin 1 and 2. The setting is 2-3 when pin 2 and 3 are connected and so on. You could see one of the lines surrounding jumpers is thick, which indicates pin NO.1.

To move a jumper from one position to another, use needle-nose pliers or tweezers to pull the pin cap off the pins and move it to the desired position.

13

Installations

2.2Board Layout

Jumper & Connector Location

KBMS1

FAN2

COM1 CPU FAN

LPT1

VGA1

USB1

USB2

LAN

CN1

AUX IN1

CD IN1

COM2

REV:1.0

JCN1

JP1

ATX1

PCI1

AGP1

ADD ONLY





WOL1

PCI2

PCI3

PCI4

PCI5

PCI6

JPB1

JCN2

JPB2

POWER FAN

FAN1

DIMM1

DIMM2

ATX2

IP-4GVI63

J1

BAT1

JP3

JBAT1

IDE1 IDE2





FAN

J2



CHASSIS





FDD1



FAN3





J3

USB3

FAN4

14

Installations

2.3Jumper Setting

Table for Jumper Location Description:

Use the information in the following table to change the jumpers.

Jumpers

Functions

JP1

CPU type select

JP3

Watchdog Timer setting select

JBAT1

Clear CMOS setting select

JPB1

COM3 port setting select

JPB2

COM4 port setting select

15

Installations

In order to set up the correct configuration, here is the description about how to set the jumpers to enable/disable or change functions. All jumpers’ location please refer to jumper location diagram.

CPU type select: JP1

Function

JP1

Regular P4 CPU (Default)

1-2 On

P4 Mobile CPU

1-2 Off

y Location:

Watchdog Timer setting select: JP3

Function

JP3

NMI (Default)

1-2

Reset System

2-3

y Location:

Clear CMOS setting select: JBAT1

Function

JBAT1

Normal (Default)

1-2

Clear CMOS

2-3

y Location:

16















Installations

COM3 port setting select: JPB1













Function







JPB1







1-2

3-4

5-6



7-8

9-10



11-12







RS-232 (Default)

Off

Off

Off



Off

Off



On

RS-422

On (Term.)

On (Term.)

Off



On

On



Off

RS-485

On (Term.)

On (Term.)

On



Off

On



Off

y Location:

















COM4 port setting select: JPB2

Function







JPB2





1-2

3-4

5-6



7-8

9-10

11-12





RS-232 (Default)

Off

Off

Off



Off

Off

On

RS-422

On (Term.)

On (Term.)

Off



On

On

Off

RS-485

On (Term.)

On (Term.)

On



Off

On

Off

y Location:















17

Installations

2.4Connector’s Description

Connector Location

KBMS1

FAN2

COM1 CPU FAN

LPT1

VGA1

USB1

USB2

LAN

CN1

AUX IN1

CD IN1

COM2

REV:1.0

JCN1

JP1

ATX1

AGP1

PCI1

WOL1

PCI2

PCI3

PCI4

PCI5

PCI6

JPB1

ADD ONLY

JCN2 JPB2

POWER FAN

FAN1

DIMM1

DIMM2

ATX2

IP-4GVI63

J1

BAT1

JP3

JBAT1

IDE1 IDE2





FAN

J2



CHASSIS





FDD1



FAN3





J3

USB3

FAN4

18

Installations

Table for Connector’s Location Description:

Use the information in the following table to change the connector.

Connectors

Functions

IDE1

Primary IDE connector

IDE2

Secondary IDE connector

FDD1

Floppy disk connector

KBMS1

PS/2 keyboard & mouse connectors

COM1

COM1 RS-232 serial port connector

LPT1

Parallel port connector

VGA1

CRT VGA port connector

USB1

USB 1/2 connectors

USB2

USB 3/4 connectors

LAN

Ethernet RJ-45 connector

CN1

Audio port connector

CDIN1

CD_IN connector

AUXIN1

AUX_IN connector

WOL1

Wake On LAN connector

COM2

COM2 RS-232 serial port connector

JCN1

COM3 RS-232/422/485 serial port connector

JCN2

COM4 RS-232/422/485 serial port connector

USB3

USB 5/6 pin-header

FAN1/2/3/4

Power fan/CPU fan/Chassis fan/fan power connectors

ATX1

ATX 12V power connector

ATX2

ATX power connector

J1/J2

System panel indicate connectors

J3

Slim floppy disk connector

19

Installations

Primary IDE connector (40-pins 2.54mm pitch pin-header with housing): IDE1

Pin #



Assignment

Pin #

Assignment

1



Reset IDE

2

Ground

3



Host Data 7

4

Host Data 8

5



Host Data 6

6

Host Data 9

7



Host Data 5

8

Host Data 10

9



Host Data 4

10

Host Data 11

11



Host Data 3

12

Host Data 12

13



Host Data 2

14

Host Data 13

15



Host Data 1

16

Host Data 14

17



Host Data 0

18

Host Data 15

19



Ground

20

---

21



DRQ 0

22

Ground

23



Host IOW

24

Ground

25



Host IOR

26

Ground

27



IOCHRDY

28

Host ALE

29



DACK 0

30

Ground

31



IRQ 14

32

No Connect

33



Address 1

34

Ground

35



Address 0

36

Address 2

37



Chip Select 0

38

Chip Select 1

39



Activity

40

Ground

y Figure:













40

39

2 1

20

Installations

Secondary IDE connector (40-pins 2.54mm pitch pin-header with housing): IDE2

Pin #



Assignment

Pin #

Assignment

1



Reset IDE

2

Ground

3



Host Data 7

4

Host Data 8

5



Host Data 6

6

Host Data 9

7



Host Data 5

8

Host Data 10

9



Host Data 4

10

Host Data 11

11



Host Data 3

12

Host Data 12

13



Host Data 2

14

Host Data 13

15



Host Data 1

16

Host Data 14

17



Host Data 0

18

Host Data 15

19



Ground

20

---

21



DRQ 1

22

Ground

23



Host IOW

24

Ground

25



Host IOR

26

Ground

27



IOCHRDY

28

Host ALE

29



DACK 1

30

Ground

31



IRQ 15

32

No Connect

33



Address 1

34

Ground

35



Address 0

36

Address 2

37



Chip Select 0

38

Chip Select 1

39



Activity

40

Ground

y Figure:













40

39

2 1

21

Installations

Floppy disk connector (34-pins 2.54mm pitch pin-header with housing): FDD1

Pin #

Assignment

Pin #

Assignment

1

Ground

2

Drive Density Selection

3

Ground

4

NC

5

Ground

6

Drive Density Selection

7

Ground

8

Index

9

Ground

10

Motor Enable 0

11

Ground

12

Drive Select 1

13

Ground

14

Drive Select 0

15

Ground

16

Motor Enable 1

17

Ground

18

Direction

19

Ground

20

Step

21

Ground

22

Write Data

23

Ground

24

Write Gate

25

Ground

26

Track 00

27

Ground

28

Write Protect

29

NC

30

Read Data

31

Ground

32

Side 1 Select

33

NC

34

Diskette Change

y Figure:









2



34



1



33

22

Installations

PS/2 keyboard connector (6-pins purple Mini Din): KBMS1

Pin #

Assignment

Pin #



1

Keyboard data

2

NC

3

Ground

4

+5V

5

Keyboard clock

6

NC

y Figure:

6

5

4

3

2

1

PS/2 mouse connector (6-pins green Mini Din): KBMS1

Pin #

Assignment

Pin #



1

Mouse data

2

NC

3

Ground

4

+5V

5

Mouse clock

6

NC

y Figure:

6

5

4

3

2

1

23

Installations

COM1 RS-232 serial port connector (D-Sub 9-pins male): COM1

Pin #

Assignment

Pin #

Assignment

1

DCD (Data Carrier Detect)

6

DSR (Data Set Ready)

2

RXD (Receive Data)

7

RTS (Request to Send)

3

TXD (Transmit Data)

8

CTS (Clear to Send)

4

DTR (Data Terminal Ready)

9

RI (Ring Indicator)

5

Ground





y Figure:









1

5





6

9

Parallel port connector (D-Sub 25-pins female): LPT1

Pin #

Assignment

Pin #

Assignment

1

Line Printer Strobe

14

Auto Feed

2

PD 0, Parallel Data 0

15

Error

3

PD 1, Parallel Data 1

16

Initialize

4

PD 2, Parallel Data 2

17

Select

5

PD 3, Parallel Data 3

18

Ground

6

PD 4, Parallel Data 4

19

Ground

7

PD 5, Parallel Data 5

20

Ground

8

PD 6, Parallel Data 6

21

Ground

9

PD 7, Parallel Data 7

22

Ground

10

ACK, Acknowledge

23

Ground

11

Busy

24

Ground

12

Paper Empty

25

Ground

13

Select

26

---

y Figure:











13

1





25

14

24







Installations

CRT VGA port connector (D-SUB 15-pins female): VGA1

Pin #

Assignment

Pin #

Assignment

1

Red

2

Green

3

Blue

4

NC

5

Ground

6

Ground

7

Ground

8

Ground

9

VCC

10

Ground

11

NC

12

DDData

13

HSync

14

VSync

15

DDClk





y Figure:











5

1





15

11

USB 1/2 connectors (4-pins female): USB1

Pin #



Assignment

Pin #

Assignment

1a



VCC

1b

VCC

2a



USB1 -

2b

USB2 -

3a



USB1 +

3b

USB2 +

4a



Signal ground

4b

Signal ground

y Figure:







1 4

1 4

25

Installations

USB 3/4 connectors (4-pins female): USB2

Pin #



Assignment

Pin #

Assignment

1a



VCC

1b

VCC

2a



USB3 -

2b

USB4 -

3a



USB3 +

3b

USB4 +

4a



Signal ground

4b

Signal ground

y Figure:







1 4

1 4

Ethernet (82562ET) RJ-45 connector (RJ-45 phone–jack): LAN

Pin #



Assignment

Pin #









Assignment

1



Transmit output (+)

5

























NC

2



Transmit output (-)

6

























Receive input (-)

3



Receive input (+)

7

























NC

4



NC

8

























NC

y Figure:



























































































































































































26

Installations

Pin #

Assignment

Blue

Line-In

Green

Line-Out

Red

Mic-In

Audio port connector: CN1

Blue

Green

Red

y Figure:



CD_IN connector: CDIN1



Pin #

Assignment

1

CD_IN_Left

2

CD_Ground

3

CD_Ground

4

CD_IN_Right

y Figure:



4

4

1

1

27

Installations

AUX_IN connector: AUXIN1

Pin #

Assignment

1

Left Line_IN

2

Ground

3

Ground

4

Right Line_IN_

y Figure:



4

4

1

1

Wake On LAN connector: WOL1

Pin #

Assignment

1

5VSB

2

Ground

3

Data

y Figure:

1 3

28







Installations

COM2 RS-232 serial port connector (10-pins pin-header): COM2

Pin #

Assignment

Pin #

Assignment

1

DCD (Data Carrier Detect)

2

DSR (Data Set Ready)

3

RXD (Receive Data)

4

RTS (Request to Send)

5

TXD (Transmit Data)

6

CTS (Clear to Send)

7

DTR (Data Terminal Ready)

8

RI (Ring Indicator)

9

Ground

10

Ground

y Figure:









2

10





1

9

COM3 RS-232/422/485 serial port connector (14-pins pin-header): JCN1

Pin #

Assignment

Pin #

Assignment

1

DCD (Data Carrier Detect)

2

DSR (Data Set Ready)

3

RXD (Receive Data)

4

RTS (Request to Send)

5

TXD (Transmit Data)

6

CTS (Clear to Send)

7

DTR (Data Terminal Ready)

8

RI (Ring Indicator)

9

Ground

10

Ground

11

TXD+ (Transmit Data+)

12

TXD- (Transmit Data-)

13

RXD+ (Receive Data+)

14

RXD- (Receive Data-)

y COM3 Figure:









2

14





1

13

29

Installations

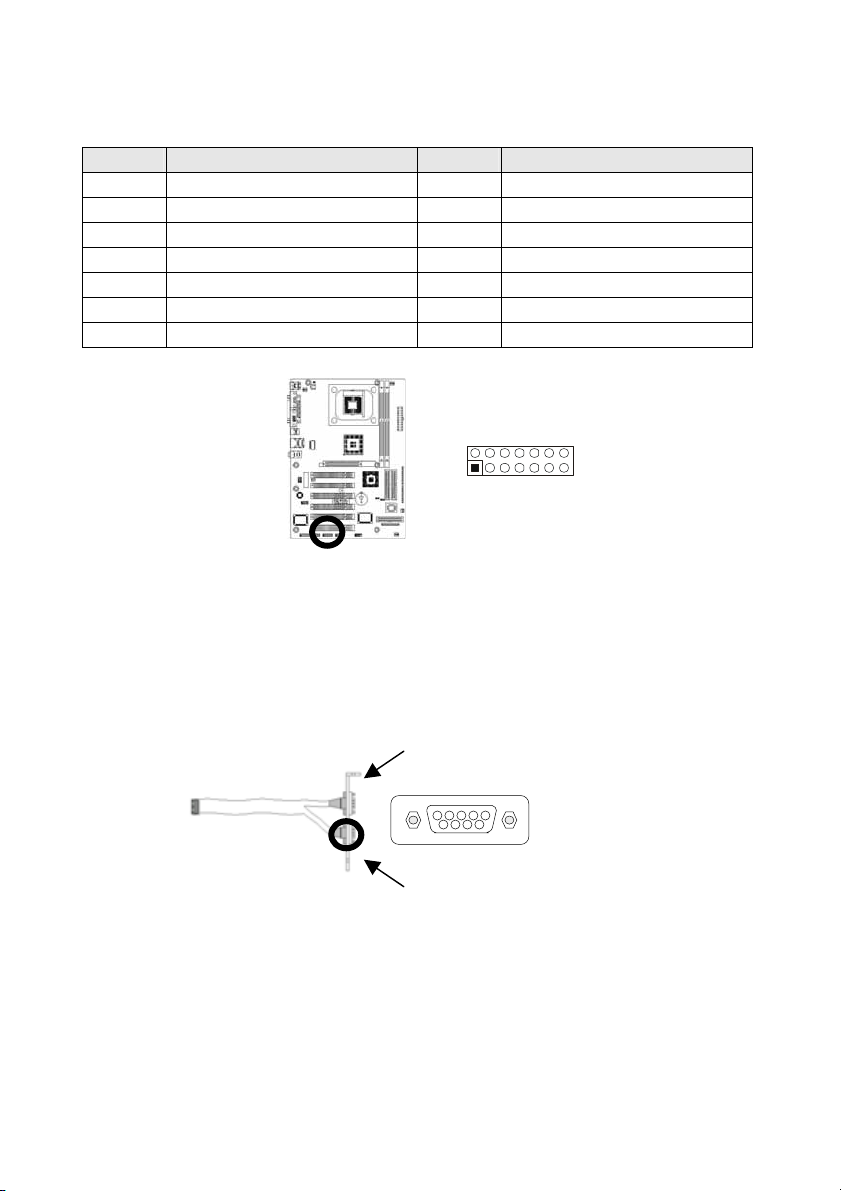

COM4 RS-232/422/485 serial port connector (14-pins pin-header): JCN2

Pin #

Assignment

Pin #

Assignment

1

DCD (Data Carrier Detect)

2

DSR (Data Set Ready)

3

RXD (Receive Data)

4

RTS (Request to Send)

5

TXD (Transmit Data)

6

CTS (Clear to Send)

7

DTR (Data Terminal Ready)

8

RI (Ring Indicator)

9

Ground

10

Ground

11

TXD+ (Transmit Data+)

12

TXD- (Transmit Data-)

13

RXD+ (Receive Data+)

14

RXD- (Receive Data-)

y COM4 Figure:









2

14





1

13

Note: How to connect RS485 device with COM port ribbon cable?

Our Industrial Board encloses a COM port ribbon cable for internal connection. RS422/485 device must connect to downside D-Sub with 5-pins cable and signal indication as below.

For RS-232 connector



1

5

RS-422/485:





1: TXD-





2: TXD+

6

9

3: RXD-

4: RXD+

5: GND

For RS-422/485 connector

30







Installations

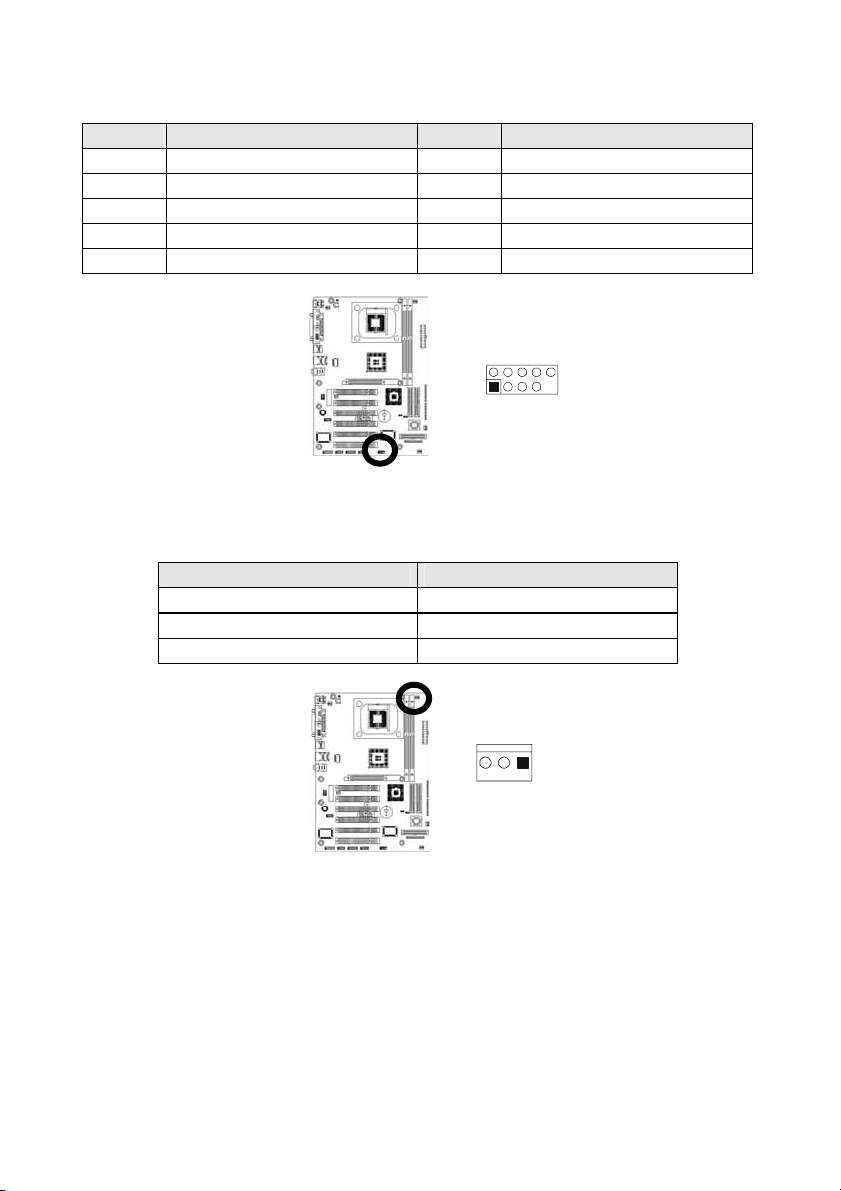

USB 5/6 pin-header (9-pins pin-header): USB3



Pin #

Assignment

Pin #

Assignment

1

VCC

2

VCC

3

USB5 -

4

USB6 -

5

USB5 +

6

USB6 +

7

Ground

8

Ground

9

---

10

NC

y Figure:











2

10





1

9

Power fan power connector: FAN1

Pin #

Assignment

1

Ground

2

+12V

3

Sense

y Figure:

3 1

31

Installations

CPU fan power connector: FAN2

Pin #

Assignment

1

Ground

2

+12V

3

Sense

y Figure:

Chassis fan power connector: FAN3

y Figure:



1

3

Pin #

Assignment

1



Ground

2



+12V

3



Sense





3

1

Fan power connector: FAN4

Pin #

Assignment

1

Ground

2

+12V

3

Sense

y Figure:

3 1

32

Installations

ATX 12V power connector: ATX1





Pin #

Assignment

Pin #



1

Ground

2

Ground

3

+12V

4

+12V

y Figure:







3 1

4 2

ATX power connector: ATX2





Pin #

Assignment

Pin #



1

+3.3V

11

+3.3V

2

+3.3V

12

-12V

3

Ground

13

Ground

4

+5V

14

PS-ON

5

Ground

15

Ground

6

+5V

16

Ground

7

Ground

17

Ground

8

PW-OK

18

-5V

9

5VSB

19

+5V

10

+12V

20

+5V

y Figure:











10

20

















1 11

33

Installations

System panel indicate connector: J1 & J2

Pin #

J1 Assignment

Pin #

J2 Assignment



PWR ON



KEYLOCK

1

PWRBT-

1

Ground

2

5VSB

2

KBLOCK



TB LED



PWR LED

4

GND

3

PWLED-

5

+5V

4

NC



HDD LED

5

PWLED+

6

HDLED-



SPEAKER

7

+5V

7

+5V



IR

8

Ground

9

IRTX

9

NC

10

Ground

10

BEEP

11

IRRX



RESET

12

CIRRX

12

Ground

13

+5V

13

RESET+

y Figure:

J1

J2

34











Installations

Slim floppy disk connector (26-pins FPC connector): J3

Pin #



Assignment



Pin #

Assignment

1



+5V



14

Step

2



Index



15

Ground

3



+5V



16

Write_Data

4



Drive_Select



17

Ground

5



+5V



18

Write_Gate

6



Disk_Change



19

Ground

7



NC



20

Track

8



Ready



21

Ground

9



HD_Out



22

Write_Protect

10



Motor_On



23

Ground

11



Reserve



24

Read_Data

12



Direction



25

Ground

13



NC



26

Side_One

y Figure:















1



26

35

SECTION 3

AWARD BIOS SETUP

3.1 BIOS Instructions

Award’s ROM BIOS provides a built-in Setup program, which allows user to modify the basic system configuration and hardware parameters. The modified data will be stored in a battery-backed CMOS, so that data will be retained even when the power is turned off. In general, the information saved in the CMOS RAM will stay unchanged unless there is a configuration change in the system, such as hard drive replacement or a device is added.

It is possible for the CMOS battery to fail, this will cause data loss in the CMOS only. If this does happen you will need to reconfigure your BIOS settings.

36

Award BIOS Setup

3.2 Main Menu

Once you enter the AwardBIOS™ CMOS Setup Utility, the Main Menu will appear on the screen. The Main Menu allows you to select from several setup functions and two exit choices. Use the arrow keys to select among the items and press <Enter> to accept and enter the sub-menu.

Phoenix - AwardBIOS CMOS Setup Utility

Standard CMOS Feature



Frequency/Voltage Control

Advanced BIOS Feature



Load Fail-Safe Defaults

Advanced Chipset Feature



Load Optimized Defaults

Integrated Peripherals



Set Supervisor Password

Power Management Setup



Set User Password

PnP/PCI Configurations



Save & Exit Setup

PC Health Status



Exit Without Saving







Esc: Quit



↑ ↓ ← →: Select Item

F10: Save & Exit Setup







Time, Date, Hard Disk Type….

Note: that a brief description of each highlighted selection appears at the bottom of the screen.

Setup Items:

The main menu includes the following main setup categories. Recall that some systems may not include all entries.

Standard CMOS Features:

Use this menu for basic system configuration. See Section 2 for the details.

Advanced BIOS Features:

Use this menu to set the Advanced Features available on your system. See Section 3 for the details.

Advanced Chipset Features:

Use this menu to change the values in the chipset registers and optimize your system's performance. See section 4 for the details.

37

Award BIOS Setup

Integrated Peripherals:

Use this menu to specify your settings for integrated peripherals. See section 4 for the details.

Power Management Setup:

Use this menu to specify your settings for power management. See section 5 for the details.

PnP / PCI Configuration:

This entry appears if your system supports PnP / PCI. See section 6 for the details.

PC Health Status:

Use this menu to show your system temperature, speed and voltage status.

Frequency/Voltage Control:

Use this menu to specify your settings for frequency/voltage control. See section 7 for the details.

Load Fail-Safe Defaults:

Use this menu to load the BIOS default values for the minimal/stable performance for your system to operate. See section 8 for the details.

Load Optimized Defaults:

Use this menu to load the BIOS default values that are factory settings for optimal performance system operations. While Award has designed the custom BIOS to maximize performance, the factory has the right to change these defaults to meet their needs. See section 8 for the details.

Set Supervisor / User Password:

Use this menu to set User and Supervisor Passwords. See section 9 for the details.

Save & Exit Setup:

Save CMOS value changes to CMOS and exit setup. See section 10 for the details.

Exit Without Save:

Abandon all CMOS value changes and exit setup. See section 10 for the details.

38

Award BIOS Setup

3.3 Standard CMOS Features

The items in Standard CMOS Setup Menu are divided into 10 categories. Each category includes no, one or more than one setup items. Use the arrow keys to highlight the item and then use the <PgUp> or <PgDn> keys to select the value you want in each item.

Phoenix - AwardBIOS CMOS Setup Utility

Standard CMOS Features















Date: (mm:dd:yy)

Wed,

Aug

5 2003



Item Help

Time: (hh:mm:ss)

16:19:20





___________________________

¾ IDE Primary Master

2557 MB



_









¾ IDE Primary Slave

None



Menu Level

¾

¾ IDE Secondary Master

None







¾ IDE Secondary Slave

None



Change the day, month, year and

Drive A

1.44M, 3.5 in.

century







Drive B

None







Video

EGA/VGA







Halt On

All, But Keyboard





Based Memory

640K







Extended Memory

130048K







Total Memory

131072K















↑↓←→Move Enter: Select

+/-/PU/PD: Value

F10: Save ESC: Exit F1: General Help

F5: Previous Values F6: Fail-safe defaults

F7: Optimized Defaults

Date: Options Month/DD/YYYY

Set the system date. Note that the ‘Day’ automatically changes when you set the date.

Time: Options HH : MM : SS

Set the system time.

IDE Primary Master: Options are in its sub menu (described in 3.4) Press <Enter> to enter the sub menu of detailed options.

IDE Primary Slave: Options are in its sub menu (described in 3.4) Press <Enter> to enter the sub menu of detailed options.

39

Award BIOS Setup

IDE Secondary Master: Options are in its sub menu (described in 3.4) Press <Enter> to enter the sub menu of detailed options.

IDE Secondary Master: Options are in its sub menu (described in 3.4) Press <Enter> to enter the sub menu of detailed options.

Drive A/ Drive B: Options None 360K, 5.25 in/1.2M, 5.25 in/720K, 3.5 in/ 1.44M, 3.5 in/2.88M, 3.5 in

Select the type of floppy disk drive installed in your system.

Video: Options EGA/VGA/CGA 40/CGA 80/MONO

Select the default video device.

Halt On: Options All Errors/No Errors/All, but Keyboard/All, but Diskette/All, but Disk/Key

Select the situation in which you want the BIOS to stop the POST process and notify you.

Base Memory: Option N/A

Displays the amount of conventional memory detected during boot up.

Extended Memory: Option N/A

Displays the amount of extended memory detected during boot up

Total Memory: Option N/A

Displays the total memory available in the system

40

Award BIOS Setup

3.4 IDE Adapters

The IDE adapters control the hard disk drive. Use a separate sub menu to configure each hard disk drive.

Phoenix - AwardBIOS CMOS Setup Utility

IDE Primary Master















IDE HDD Auto-Detection



Press Enter







Item Help

IDE Primary Master



Auto 2557 MB



____________________________





Menu Level ¾¾

Access Mode



Auto





To auto-detect the HDD’s size,

Cylinder

4956













head... on this channel

Head

16









Precomp

0









Landing Zone

4955









Sector

63

















↑↓←→Move Enter: Select

+/-/PU/PD: Value

F10: Save ESC: Exit F1: General Help

F5: Previous Values F6: Fail-safe defaults



F7: Optimized Defaults

IDE HDD Auto-detection: Options Press Enter

Press Enter to auto-detect the HDD on this channel. If detection is successful, it fills the remaining fields on this menu.

IDE Primary Master: Options None, Auto and Manual

Selecting “Manual” lets you set the remaining fields on this screen. Selects the type of fixed disk. "User Type" will let you select the number of cylinders, heads, etc. Note: PRECOMP=65535 means NONE !

Access Mode: Options CHS, LBA, Large and Auto

Choose the access mode for this hard disk

41

Award BIOS Setup

The following options are selectable only if the ‘IDE Primary Master’ item is set to “Manual”

Cylinder: Options Min = 0, Max = 65535

Set the number of cylinders for this hard disk.

Head: Options Min = 0, Max = 255

Set the number of read/write heads

Precomp: Options Min = 0, Max = 65535

**** Warning: Setting a value of 65535 means no hard disk

Landing zone: Options Min = 0, Max = 65535

****

Sector: Options Min = 0, Max = 255

Number of sectors per track

42

Award BIOS Setup

3.5 Advanced BIOS Features

This section allows you to configure your system for basic operation. You have the opportunity to select the system’s default speed, boot-up sequence, keyboard operation, shadowing and security.

Phoenix - AwardBIOS CMOS Setup Utility

Advanced BIOS Features



















Virus Warning



Disabled









Item Help



CPU L1 & L2 Cache



Enabled





____________________________

Quick Power On Self Test



Enabled











APIC Mode



Disabled



Menu Level

¾



HDD S.M.A.R.T. Capability



Disabled











¾ Boot Seq. & Floppy Setup



Press Enter



Allow you to choose the VIRUS

Boot Up NumLock Status



On



warning feature for IDE Hard Disk

Gate A20 Option



Fast



boot

sector

protection.

If this

Typematic Rate Setting



Disabled



function is enabled and someone

X Typematic Rate (Chars/Sec)

6





attempt to write data into this area,

X Typematic Delay (Msec)

250





BIOS will show a warning message

Security Option



Setup



on screen and alarm beep



OS Select For DRAM > 64MB Non-OS2





















↑↓←→Move Enter: Select

+/-/PU/PD: Value

F10: Save

ESC: Exit F1: General Help

F5: Previous Values F6: Fail-safe defaults

F7: Optimized Defaults



Virus Warning:

Allow you to choose the VIRUS Warning feature for IDE Hard Disk boot sector protection. If this function is enabled and someone attempt to write data into this area, BIOS will show a warning message on screen and alarm beep.

Enabled---Activates automatically when the system boots up causing a warning message to appear when anything attempts to access the boot sector or hard disk partition table.

Disabled---No warning message will appear when anything attempts to access the boot sector or hard disk partition table.

CPU L1 & L2 Cache:

These two categories speed up memory access. However, it depends on CPU/chipset design.

Enabled---Enable cache Disabled---Disable cache

43

Award BIOS Setup

Quick Power On Self Test:

This category speeds up Power On Self Test (POST) after you power up the computer. If it is set to Enable, BIOS will shorten or skip some check items during POST.

Enabled---Enable quick POST Disabled--- Normal POST

APIC Mode:

This item allows you to enable/disable APIC Mode.

The choice: Enabled, Disabled.

HDD S.M.A.R.T Capability:

Enabled SMART hard driver functions for compatible. The default is disabled.

The choice: Enabled, Disabled.

Boot Seq. & Floppy Setup:

Phoenix - AwardBIOS CMOS Setup Utility

Boot Seq. & Floppy Setup













First Boot Device



Floppy





Item Help

Second Boot Device



HDD-0





____________________________

Third Boot Device



SCSI





Boot Other Device



Enabled



Menu Level ¾

Swap Floppy Drive



Disabled





Boot Up Floppy Seek



Enabled



Select your Boot Device Priority

Report NO FDD For Win 95



No













↑↓←→Move Enter: Select

+/-/PU/PD: Value

F10: Save ESC: Exit F1: General Help

F5: Previous Values F6: Fail-safe defaults

F7: Optimized Defaults

First/Second/Third Boot Device:

The BIOS attempts to load the operating system from the devices in the sequence selected in these items.

The Choice: Floppy, LS/ZIP, HDD, SCSI, CDROM, LAN and Disabled.

Boot Other Device:

When enabled, the system searches all other possible locations for an operating system if it fails to find one in the devices specified under the first, second, and third boot devices.

The Choice: Enabled, Disabled

44

Award BIOS Setup

Swap Floppy Drive:

If the system has two floppy drives, you can swap the logical drive name assignments.

The choice: Enabled, Disabled.

Boot Up Floppy Seek:

Seeks disk drives during boot up. Disabling speeds boot up. The choice: Enabled, Disabled.

Report No FDD For Win 95:

Whether report no FDD for Win 95 or not.

The choice: Yes, No.

Boot Up NumLock Status:

Select power on state for NumLock.

The choice: Off, On

Gate A20 Option:

Select if chipset or keyboard controller should control GateA20. Normal---A pin in the keyboard controller controls GateA20 Fast---Lets chipset control GateA20

Typematic Rate Setting:

Keystrokes repeat at a rate determined by the keyboard controller. When enabled, the typematic rate and typematic delay can be selected.

The choice: Enabled/Disabled.

Typematic Rate (Chars/Sec):

Sets the number of times a second to repeat a keystroke when you hold the key down.

The choice: 6, 8, 10, 12, 15, 20, 24 and 30.

Typematic Delay (Msec):

Sets the delay time after the key is held down before it begins to repeat the keystroke.

The choice: 250, 500, 750 and 1000.

45

Award BIOS Setup

Security Option:

Select whether the password is required every time the system boots or only when you enter setup.

System---The system will not boot and access to Setup will be denied if the correct password is not entered at the prompt.

Setup---The system will boot, but access to Setup will be denied if the correct password is not entered at the prompt.

Note: To disable security, select PASSWORD SETTING at Main Menu and then you will be asked to enter password. Do not type anything and just press <Enter>, it will disable security. Once the security is disabled, the system will boot and you can enter Setup freely.

OS Select For DRAM > 64MB:

Select the operating system that is running with greater than 64MB of RAM on the system.

The choice: Non-OS2, OS2.

46

Award BIOS Setup

3.6 Advanced Chipset Features

This section allows you to configure the system based on the specific features of the installed chipset. This chipset manages bus speeds and access to system memory resources, such as DRAM and the external cache. It also coordinates communications between the conventional ISA bus and the PCI bus. It must be stated that these items should never need to be altered. The default settings have been chosen because they provide the best operating conditions for your system. The only time you might consider making any changes would be if you discovered that data was being lost while using your system.

Phoenix - AwardBIOS CMOS Setup Utility

Advanced Chipset Features











DRAM Timing Selectable

By SPD





Item Help

X CAS Latency Time

2.5





____________________________

X Active To Precharge Delay

6







X DRAM RAS# To CAS# Delay

3





Menu Level ¾

X DRAM RAS# Precharge

3







System BIOS Cacheable

Enabled





Video BIOS Cacheable

Disabled





Delayed Transaction

Enabled





Command Per Clock

Auto





Fast CS#

Auto





Delay Prior To Thermal

16Min.





AGP Aperture Size (MB)

64







** On-Chip VGA Setting **

Enabled





On-Chip VGA





On-Chip Frame Buffer Size

8MB





Boot Display

Auto





TV Format

Auto











↑↓←→Move Enter: Select +/-/PU/PD: Value

F10: Save ESC: Exit F1: General Help

F5: Previous Values F6: Fail-safe defaults

F7: Optimized Defaults

DRAM Timing Selectable:

Select the operating system that is selecting DRAM timing, so select SPD for setting SDRAM timing by SPD.

The choice: Manual, SPD, Turbo.

47

Award BIOS Setup

CAS Latency Time:

When synchronous DRAM is installed, the number of clock cycles of CAS latency depends on the DRAM timing.

The choice: 1.5, 2, and 2.5.

Active To Precharge Delay:

Select the operating system that is active to precharge delay. The choice: 5, 6, 7.

DRAM RAS# To CAS# Delay:

This field let’s you insert a timing delay between the CAS and RAS strobe signals, used when DRAM is written to, read from, or refreshed. Fast gives faster performance; and Slow gives more stable performance. This field applies only when synchronous DRAM is installed in the system.

The choice: 2, 3.

DRAM RAS# Precharge:

If an insufficient number of cycles are allowed for the RAS to accumulate its charge before DRAM refresh, the refresh may be incomplete and the DRAM may fail to retain data. Fast gives faster performance; and Slow gives more stable performance. This field applies only when synchronous DRAM is installed in the system.

The choice: 2, 3.

System BIOS Cacheable:

Selecting “Enabled” allows caching of the system BIOS ROM at F0000h-FFFFFh, resulting in better system performance. However, if any program writes to this memory area, a system error may result.

The choice: Enabled, Disabled.

Video BIOS Cacheable:

Select “Enabled” allows caching of the video BIOS, resulting in better system performance. However, if any program writes to this memory area, a system error may result.

The choice: Enabled, Disabled.

48

Award BIOS Setup

Delayed Transaction:

The chipset has an embedded 32-bit posted write buffer to support delay transactions cycles. Select “Enabled” to support compliance with PCI specification version 2.1.

The choice: Enabled, Disabled.

Command Per Clock:

Select this item allows the command per clock for system. The choice: Auto, Enabled, Disabled.

Fast CS#:

Select this item allows the Fast CS# function.

The choice: Auto, Enabled, Disabled.

Delay Prior To Thermal:

Select this item allows the delay prior to thermal time.

The choice: 4, 8, 16, 32 Min.

AGP Aperture Size (MB):

This field determines the effective size of the Graphic Aperture used for a particular GMCH configuration. It can be updated by the GMCH-specific BIOS configuration sequence before the PCI standard bus enumeration sequence takes place. If it is not updated then a default value will select an aperture of maximum size.

The choice: 4, 8, 16, 32, 64, 128 and 256

On-Chip VGA

Select this item allows you to control the on-chip VGA.

The choice: Enabled, Disabled.

On-Chip Frame Buffer Size:

Select this item allows you to control the on-chip frame buffer size. The choice: 1MB, 8MB.

Boot Display:

Select this item allows you to set the boot display device. The choice: Auto, CRT, TV, EFP.

TV Format:

Select this item allows you to set the TV format.

49

Award BIOS Setup

3.7 Integrated Peripherals

Phoenix - AwardBIOS CMOS Setup Utility

Integrated Peripherals















¾ Onboard IDE Device Setup



Press Enter







Item Help

¾ Onboard PCI Device Setup



Press Enter







____________________________

¾ Onboard I/O Chip Setup



Press Enter







Init Display First



Onboard AGP



Menu Level ¾

Onboard Serial Port 3



3E8







Serial Port 3 Use IRQ



IRQ10







Onboard Serial Port 4



2E8







Serial Port 4 Use IRQ



IRQ11







Intel LAN Boot ROM



Disabled















↑↓←→Move Enter: Select

+/-/PU/PD: Value

F10: Save ESC: Exit F1: General Help

F5: Previous Values F6: Fail-safe defaults



F7: Optimized Defaults

Onboard IDE Device Setup:

Phoenix - AwardBIOS CMOS Setup Utility

Onboard IDE Device Setup













On-Chip Primary PCI IDE



Enabled





Item Help

IDE Primary Master PIO



Auto





____________________________

IDE Primary Slave PIO



Auto





IDE Primary Master UDMA



Auto



Menu Level ¾

IDE Primary Slave UDMA



Auto





On-Chip Secondary PCI IDE



Enabled





IDE Secondary Master PIO



Auto





IDE Secondary Slave PIO



Auto





IDE Secondary Master UDMA



Auto





IDE Secondary Slave UDMA



Auto





IDE HDD Block Mode



Enabled













↑↓←→Move Enter: Select

+/-/PU/PD: Value

F10: Save ESC: Exit F1: General Help

F5: Previous Values F6: Fail-safe defaults

F7: Optimized Defaults

On-Chip Primary/Secondary PCI IDE:

The integrated peripheral controller contains an IDE interface with support for two IDE channels. Select “Enabled” to activate each channel separately.

The choice: Enabled, Disabled.

50

Award BIOS Setup

IDE Primary/Secondary Master/Slave PIO:

The four IDE PIO (Programmed Input/Output) fields let you set a PIO mode (0-4) for each of the four IDE devices that the onboard IDE interface supports. Modes 0 through 4 provide successively increased performance. In Auto mode, the system automatically determines the best mode for each device.

The choice: Auto, Mode 0, Mode 1, Mode 2, Mode 3 and Mode 4.

IDE Primary/Secondary Master/Slave UDMA:

Ultra DMA/33 implementation is possible only if your IDE hard drive supports it and the operating environment includes a DMA driver (Windows 95 OSR2 or a third-party IDE bus master driver). If your hard drive and your system software both support Ultra DMA/33, select “Auto” to enable BIOS support.

The choice: Auto, Disabled.

IDE HDD Block Mode:

Block mode is also called block transfer, multiple commands, or multiple sector read/write. If your IDE hard drive supports block mode (most new drives do), select Enabled for automatic detection of the optimal number of block read/writes per sector the drive can support.

The choice: Enabled, Disabled

Onboard PCI Device Setup:

Phoenix - AwardBIOS CMOS Setup Utility

Onboard PCI Device Setup













USB Controller



Enabled





Item Help

USB 2.0 Controller



Enabled





____________________________

USB Keyboard Support



Auto





USB Mouse Support



Disabled



Menu Level ¾

AC97 Audio



Auto





Onboard LAN Controller



Enabled













↑↓←→Move Enter: Select

+/-/PU/PD: Value

F10: Save ESC: Exit F1: General Help

F5: Previous Values F6: Fail-safe defaults

F7: Optimized Defaults

USB/USB 2.0 Controller:

Select “Enabled” if your system contains a USB/USB2.0 controller and you have USB peripherals.

The choice: Enabled, Disabled.

51

Award BIOS Setup

USB Keyboard Support:

Select “Enabled” if your system contains a Universal Serial Bus (USB) controller and you have a USB keyboard.

The choice: Enabled, Disabled.

USB Mouse Support:

Select “Enabled” if your system contains a Universal Serial Bus (USB) controller and you have a USB mouse.

The choice: Enabled, Disabled.

AC97 Audio:

This item allows you to auto or disable to support AC97 Audio. The choice: Auto, Disabled.

Onboard LAN Controller:

Select “Enabled” to Enables the onboard LAN feature.

The choice: Enabled, Disabled.

Onboard I/O Chip Setup:

Phoenix - AwardBIOS CMOS Setup Utility

Onboard I/O Chip Setup













Power ON Function



Hot Key





Item Help

Hot Key Power ON



Ctrl-F1





____________________________

Onboard FDC Controller



Enabled





Onboard Serial Port 1



3F8/IRQ4



Menu Level ¾

Onboard Serial Port 2



2F8/IRQ3



If your IDE hard drive supports block

UART Mode Select



Normal



mode select Enabled for automatic

X RxD, TxD Active



Hi, Lo



detection of the optimal number of

X IR Transmission Delay



Enabled



block read/write per sector the drive

X UR2 Duplex Mode



Half



can support

X Use IR Pins



IR-Rx2Tx2





Onboard Parallel Port



378/IRQ7





Parallel Port Mode



SPP





X EPP Mode Select



EPP1.7





X ECP Mode Use DMA

3







PWRON After PWR-Fail



Off













↑↓←→Move Enter: Select

+/-/PU/PD: Value

F10: Save ESC: Exit F1: General Help

F5: Previous Values F6: Fail-safe defaults

F7: Optimized Defaults

Power On Function:

You can use this item to select operating Power On the system. The choice: Button Only, Hot Key

52

Award BIOS Setup

Hot Key Power ON:

You can use this item to select operating Hot Key to Power On system. The choice: Ctrl-F1

Onboard FDC Controller:

Select “Enabled” if your system has a floppy disk controller (FDC) installed on the system board and you wish to use it. If you install and-in FDC or the system has no floppy drive, select Disabled in this field.

The choice: Enabled, Disabled.

Onboard Serial Port 1/Port 2:

Select an address and corresponding interrupt for the first and second serial ports.

The choice: 3F8/IRQ4, 2E8/IRQ3, 3E8/IRQ4, 2F8/IRQ3, Disabled and Auto.

UART Mode Select:

This item allows you to select UART mode.

The choice: IrDA, ASKIR and Normal.

RxD, TxD Active:

This item allows you to determine the active of RxD, TxD. The Choice: “Hi, Hi”, “Lo, Lo”, “Lo, Hi” and “Hi, Lo”.

IR Transmission Delay:

This item allows you to enable/disable IR transmission delay. The choice: Enabled, Disabled.

UR2 Duplex Mode:

This item allows you to select the IR half/full duplex function. The choice: Half, Full.

Use IR Pins:

This item allows you to select IR transmission routes, one is RxD2m, TxD2 (COM Port) and the other is IR-Rx2Tx2.

The choice: IR-Rx2Tx2, RxD2 and TxD2.

Onboard Parallel Port:

This item allows you to determine access onboard parallel port controller with which I/O address.

The choice: 3BC/IRQ7, 378/IRQ7, 278/IRQ5 and Disabled.

53

Award BIOS Setup

Parallel Port Mode:

Select an operating mode for the onboard parallel (printer) port. Select Normal, Compatible, or SPP unless you are certain your hardware and software both support one of the other available modes.

The choice: SPP, EPP, ECP and ECP+EPP.

EPP Mode Select:

Select EPP port type 1.7 or 1.9.

The choice: EPP1.7, 1.9.

ECP Mode Use DMA:

Select a DMA channel for the parallel port for use during ECP mode. The choice: 3, 1.

PWRON After PWR-Fail:

This item allows you to select if you want to power on the system after power failure.

The choice: Off, On and Former-Sts.

Init Display First:

This item allows you to decide to active whether PCI Slot or on-chip VGA first.

The choice: PCI Slot, Onboard.

Onboard Serial Port 3/Port4:

Select an address for the third and forth serial ports.

Serial Port 3/Port 4 Use IRQ:

Select an IRQ for the third and forth serial ports.

Intel Lan Boot ROM:

This item allows you to decide whether to invoke the boot ROM of the onboard LAN chip.

The choice: Enabled, Disabled.

54

Award BIOS Setup

3.8 Power Management Setup

The Power Management Setup allows you to configure you system to most effectively save energy while operating in a manner consistent with your own style of computer use.

Phoenix - AwardBIOS CMOS Setup Utility

Power Management Setup













Power Management



User Define





Item Help

Video Off Method



DPMS





____________________________

Video Off In Suspend



Yes





Suspend Type



Stop Grant



Menu Level ¾

MODEM Use IRQ

3







Suspend Mode



Disabled





HDD Power Down



Disabled





Soft-Off by PWR-BTTN



Instant-Off





CPU THER-Throttling

50.0%







Wake-Up by PCI card



Disabled





Power On By Ring or WOL



Enabled





Resume by Alarm



Disabled





X Date (of Month) Alarm

0







X Time (hh:mm:ss) Alarm

0 : 0 : 0







** Reload Global Timer Events **





Primary IDE 0



Disabled





Primary IDE 1



Disabled





Secondary IDE 0



Disabled





Secondary IDE 1



Disabled





FDD, COM, LPT Port



Disabled





PCI PIRQ [A-D]#



Disabled













↑↓←→Move Enter: Select

+/-/PU/PD: Value

F10: Save ESC: Exit F1: General Help

F5: Previous Values F6: Fail-safe defaults

F7: Optimized Defaults

Power Management:

This category allows you to select the type (or degree) of power saving and is directly related to the following modes:

1.HDD Power Down

2.Doze Mode

3.Suspend Mode

55

Award BIOS Setup

Min. Power Saving:

Minimum power management. Doze Mode = 1 hr. Standby Mode = 1 hr., Suspend Mode = 1 hr., and HDD Power Down = 15 min.

Max. Power Saving:

Maximum power management -- ONLY AVAILABLE FOR SL CPU’s. Doze Mode = 1 min., Standby Mode = 1 min., Suspend Mode = 1 min., and HDD Power Down = 1 min.

User Defined:

Allow you to set each mode individually. When not disabled, each of the ranges is from 1 min. to 1 hr. except for HDD Power Down, which ranges from 1 min. to 15 min. and disable.

Video Off Method:

This determines the manner in which the monitor is blanked.

V/H SYNC+Blank:

This selection will cause the system to turn off the vertical and horizontal synchronization ports and write blanks to the video buffer.

Blank Screen:

This option only writes blanks to the video buffer.

DPMS:

Initial display power management signaling.

Video Off In Suspend:

This determines the manner in which the monitor is blanked. The choice: Yes, No.

Suspend Type:

Select the Suspend Type.

The choice: PWRON Suspend, Stop Grant.

MODEM Use IRQ:

This determines the IRQ in which the MODEM can use.

The choice: 3, 4, 5, 7, 9, 10, 11 and NA.

56

Award BIOS Setup

Suspend Mode:

When “Enabled” and after the set time of system inactivity. All devices except the CPU will be shut off.

The choice: Enabled, Disabled.

HDD Power Down:

When “Enabled” and after the set time of system inactivity, the hard disk drive will be powered down while all other devices remain active.

The choice: Enabled, Disabled.

Soft-Off by PWR-BTTN:

Pressing the power button for more than 4 seconds forces the system to enter the Soft-Off state when the system has “hung.”

The choice: Delay 4 Sec, Instant-Off.

CPU THER-Throttling:

Select the CPU THRM-Throttling rate.

The choice: 12.5%, 25.0%, 37.5%, 50.0%, 62.5%, 75.0% and 87.5%.

Wake-Up by PCI Card:

An input signal from PME on the PCI card awakens the system from a soft off state.

The choice: Enabled, Disabled.

Power On by Ring or WOL:

An input signal on the serial Ring Indicator (RI) line (in other words, an incoming call on the modem) awakens the system from a soft off state.

The choice: Enabled, Disabled.

Resume by Alarm:

When “Enabled”, your can set the date and time at which the RTC (real-time clock) alarm awakens the system from Suspend mode.

The choice: Enabled, Disabled.

57

Award BIOS Setup

Reload Global Timer Events:

The events are I/O events whose occurrence can prevent the system from entering a power saving mode or can awaken the system from such a mode. In effect, the system remains alert for anything, which occurs to a device, which is configured as Enabled, even when the system is in a power down mode.

Primary IDE 0

Primary IDE 1

Secondary IDE 0

Secondary IDE 1

FDD, COM, LPT Port

PCI PIRQ [A-D] #

58

Award BIOS Setup

3.9 PnP/PCI Configurations

This section describes configuring the PCI bus system. PCI, or Personal Computer Interconnect, is a system, which allows I/O devices to operate at speeds nearing the speed the CPU itself uses when communicating with its own special components. This section covers some very technical items and it is strongly recommended that only experienced users should make any changes to the default settings.

Phoenix - AwardBIOS CMOS Setup Utility

PnP/PCI Configurations















Reset Configuration Data



Disabled





Item Help

Resources Controlled By



Auto (ESCD)

_________________________







X IRQ Resources



Press Enter



Menu Level

¾

PCI/VGA Palette Snoop



Disabled

















↑↓←→Move Enter: Select

+/-/PU/PD: Value

F10: Save ESC: Exit

F1: General Help

F5: Previous Values F6: Fail-safe defaults

F7: Optimized Defaults

Reset Configuration Data:

Normally, you leave this field Disabled. Select Enabled to reset Extended System Configuration Data (ESCD) when you exit Setup if you have installed a new add-on and the system reconfiguration has caused such a serious conflict that the operating system cannot boot.

The choice: Enabled, Disabled.

Resource controlled by:

The Award Plug and Play BIOS has the capacity to automatically configure all of the boot and Plug and Play compatible devices. However, this capability means absolutely nothing unless you are using a Plug and Play operating system such as Windows®95. If you set this field to “Manual” choose specific resources by going into each of the sub menu that follows this field (a sub menu is preceded by a “¾”).

The choice: Auto (ESCD), Manual.

IRQ Resources:

When resources are controlled manually, assign each system interrupt a type, depending on the type of device using the interrupt.

PCI/VGA Palette Snoop:

Leave this field at “Disabled”.

The choice: Enabled, Disabled.

59

Award BIOS Setup

3.10 PC Health Status

Phoenix - AwardBIOS CMOS Setup Utility

PC Health Status













CPU Warning Temperature



Disabled





Item Help

Current CPU Temp.



40°C / 104°F



____________________________

Current System Temp.



24°C / 75°F





Current Chassis Fan Speed



3283RPM



Menu Level ¾

Current CPU Fan Speed



5152RPM





Current Power Fan Speed



4182RPM





Current CPUFan4 Speed

0







Vagp (V)



1.52V





Vcore (V)



1.71V





Vdimm (V)



2.48V





+ 5 V



4.81V





+12 V



11.73V





Shutdown Temperature



Disabled













↑↓←→Move Enter: Select

+/-/PU/PD: Value

F10: Save ESC: Exit F1: General Help

F5: Previous Values F6: Fail-safe defaults

F7: Optimized Defaults

CPU Warning Temperature:

This item will prevent CPU from overheating.

The choice: 30-120, Disabled.

Current CPU Temp:

Show you the current CPU temperature.

Current System Temp:

Show you the current system temperature.

Current Chassis Fan Speed:

Show you the current CPU fan operating speed.

Current CPU Fan Speed:

Show you the current CPU fan operating speed.

Current Power Fan Speed:

Show you the current Power fan operating speed.

Current CPUFan4 Speed:

Show you the current Fan4 operating speed.

60

Award BIOS Setup

Vagp (V)

The voltage level of Power supplied to AGP card.

Vcore (V)

The voltage level of CPU (Vcore).

Vdimm (V)

The voltage level of the DRAM.

+5V/+12V:

Show you the voltage of +5V/+12V.

Shutdown Temperature:

This item allows you to set up the CPU shutdown Temperature. This item is only effective under Windows® 98 ACPI mode.

The choice: Disabled, 60°C / 140°F, 65°C / 149°F, 70°C / 159°F and 75°C / 167°F.

61

Award BIOS Setup

3.11 Frequency/Voltage Control

Phoenix - AwardBIOS CMOS Setup Utility

Frequency/Voltage Control

CPU Clock Ratio Watch Dog Function CPU FSB / SPEED Memory Frequency Next boot AGP/PCI is AGP / PCI Clock AGP/PCI subtle tuning

Clock Generation for EMI







22X



Item Help

Enabled

____________________________

100MHz/2.40GHz



Auto=>DDR266

Menu Level ¾

66/33MHz



Auto



66MHz



Press Enter









↑↓←→Move Enter: Select +/-/PU/PD: Value F10: Save ESC: Exit F1: General Help

F5: Previous Values F6: Fail-safe defaults

F7: Optimized Defaults

CPU Clock Ratio:

This item allows you to set up the CPU clock ratio, but this function depends on different CPU performance. It is only effective for those clock ratio haven’t been locked.

Watching Dog Function

If you select enabled and overclock fail before POST code 26h, the system will reset automatically by default configuration.

The choice: Enabled, Disabled.

CPU FSB / SPEED:

This item allows you to enabled or disabled the CPU FSB speed. The choice: 90MHz~ 200MHz.

Memory Frequency:

Enables you to select a ratio of the Double Data Rate Synchronous DRAM to match the installed DRAM frequency 200/266/333MHz.

AGP/PCI Clock:

Enables you to select host clock to work concurrently with the PCI bus or the AGP bus.

AGP/PCI subtle tuning:

Enables you to select AGP/PCI frequency.

62













Award BIOS Setup

Clock Generation for EMI:











Clock Generation for EMI



Auto Detect PCI Clk









Item Help





Enabled



Spread Spectrum Modulated

Disabled





____________________________















Menu Level ¾

















↑↓←→Move Enter: Select

+/-/PU/PD: Value

F10: Save ESC: Exit F1: General Help





F5: Previous Values F6: Fail-safe defaults

F7: Optimized Defaults



Auto Detect PCI Clk:

When enabled the mainboard automatically disables the clock source for a PCI slot which does not have a module in it, reducing EMI (ElectroMagnetic Interference).

Spread Spectrum Modulated:

If you enable spread spectrum, it can significantly reduce the EMI (ElectroMagnetic Interference) generated by the system.

63

Award BIOS Setup

3.12 Load Fail-Safe Defaults

When you press <Enter> on this item you get a confirmation dialog box with a message similar to:

Load Fail-Safe Defaults (Y/N)? N

Pressing ‘Y’ loads the BIOS default values for the most stable, minimal-performance system operations.

3.13 Load Optimized Defaults

When you press <Enter> on this item you get a confirmation dialog box with a message similar to:

Load Optimized Defaults (Y/N)? N

Pressing ‘Y’ loads the default values that are factory settings for optimal performance system operations.

64

Award BIOS Setup

3.14 Supervisor/User Password Setting

You can set either supervisor or user password, or both of then. The differences between are:

Set Supervisor Password: can enter and change the options of the setup menus.

Set User Password: just can only enter but do not have the right to change the options of the setup menus. When you select this function, the following message will appear at the center of the screen to assist you in creating a password.

ENTER PASSWORD:

Type the password, up to eight characters in length, and press <Enter>. The password typed now will clear any previously entered password from CMOS memory. You will be asked to confirm the password. Type the password again and press <Enter>. You may also press <Esc> to abort the selection and not enter a password.

To disable a password, just press <Enter> when you are prompted to enter the password. A message will confirm the password will be disabled. Once the password is disabled, the system will boot and you can enter Setup freely.

PASSWORD DISABLED.

When a password has been enabled, you will be prompted to enter it every time you try to enter Setup. This prevents an unauthorized person from changing any part of your system configuration.

Additionally, when a password is enabled, you can also require the BIOS to request a password every time your system is rebooted. This would prevent unauthorized use of your computer.

You determine when the password is required within the BIOS Features Setup Menu and its Security option (see Section 3). If the Security option is set to “System”, the password will be required both at boot and at entry to Setup. If set to “Setup”, prompting only occurs when trying to enter Setup.

65

Award BIOS Setup

3.15 Exit Selecting

Save & Exit Setup

Pressing <Enter> on this item asks for confirmation:

Save to CMOS and EXIT (Y/N)? Y

Pressing “Y” stores the selections made in the menus in CMOS – a special section of memory that stays on after you turn your system off. The next time you boot your computer, the BIOS configures your system according to the Setup selections stored in CMOS. After saving the values the system is restarted again.

Exit Without Saving

Pressing <Enter> on this item asks for confirmation:

Quit without saving (Y/N)? Y

This allows you to exit Setup without storing in CMOS any change. The previous selections remain in effect. This exits the Setup utility and restarts your computer.

66
