Intel Express

550F Routing Switch

Quick Start Guide

Copyright © 1998, Intel Corporation. All rights reserved.

Intel Corporation, 5200 NE Elam Young Parkway, Hillsboro OR 97124-6497

Intel Corporation assumes no responsibility for errors or omissions in this manual. Nor does Intel make any commitment to update the information contained herein.

*Other product and corporate names may be trademarks of other companies and are used only for explanation and to the owners’ benefit, without intent to infringe.

Copyright © 1998, Intel Corporation. Tous droits réservés.

Intel Corporation, 5200 NE Elam Young Parkway, Hillsboro OR 97124-6497 États-Unis d’Amérique

Intel Corporation décline toute responsabilité en cas d’erreur ou d’omission dans ce manuel. Intel ne s’engage nullement à mettre à jour les informations comprises dans ce document.

*Les autres noms de produit et de société cités peuvent constituer des marques commerciales appartenant à d’autres sociétés ; ils sont cités à des fins explicatives et au bénéfice de leurs détenteurs respectifs, sans aucune intention de contrefaçon.

Copyright © 1998, Intel Corporation. Tutti i diritti riservati.

Intel Corporation, 5200 NE Elam Young Parkway, Hillsboro OR 97124-6497 USA

La Intel Corporation non si assume responsabilità per errori od omissioni in questo manuale. La Intel non si impegna neanche ad aggiornare le informazioni ivi contenute.

*Altri prodotti e nomi di corporazioni potrebbero essere marchi di fabbrica di altre compagnie, e sono usati unicamente a scopo esemplificativo, a unico beneficio del proprietario, senza intenzione alcuna di infrazione.

Copyright © 1998, Intel Corporation. Alle Rechte vorbehalten.

Intel Corporation, 5200 NE Elam Young Parkway, Hillsboro OR 97124-6497, USA

Intel Corporation übernimmt keine Verantwortung für Fehler oder Auslassungen in diesem Handbuch. Intel verpflichtet sich außerd em nicht dazu, die hierin enthaltenen Informationen zu aktualisieren.

*Andere Produktoder Firmennamen sind u.U. Warenzeichen anderer Firmen und werden nur zur Erklärung und zum Vorteil des Inhabers verwendet, ohne die Absicht einer Rechtsverletzung.

Copyright © 1998, Intel Corporation. Todos los derechos reservados.

Intel Corporation, 5200 NE Elam Young Parkway, Hillsboro OR 97124-6497, EE.UU.

Intel Corporation no se responsabiliza de posibles errores u omisiones contenidos en este manual. Asimismo, Intel no se hace responsable de la actualización de la información aquí contenida.

*Los nombres de otros productos y compañías pueden ser las marcas comerciales de otras compañías y su uso es meramente explicativo y a beneficio de su propietario, sin que conlleve infringimiento alguno.

First edition

March 1998

696936-001

Quick Start

Install the Express

1 550F Switch

Place the switch in a rack or on a shelf or table, plug the cord in, and turn the power on.







Slot A













Slot B











Intel Express





































































550F Routing

































Por t Status

Switch





































































Status

Power

































Temperature

Reset

































RPS



1



2



3



4



5

6





7



8



Console

TX

RX

TX

RX

TX

RX

TX

RX

TX

RX

TX

RX

TX

RX

TX

RX



9600-8-N-1

1660

Rubber feet for shelf or table placement.

Brackets and screws for standard 19-inch equipment rack placement.

Connect devices 2 to the Switch

For 62.5/125 mm fiber, the length of a fullduplex link cannot exceed 2,000 meters (approximately 6,500 feet).

Slot A

Slot B

LEDs

Green

Orange

Intel Express







Solid

100 Mbps

Full duplex







Off

10 Mbps

Half duplex















550F Routing









Por t Status

Switch

























Status

Power





LEDs

Green

Orange

Temperature







Solid

Link

Disabled

Reset





Blink

Activity

Collision

RPS



1



2



3



4



5



6



7



8

Console

TX

RX

TX

RX

TX

RX

TX

RX

TX

RX

TX

RX

TX

RX

TX

RX

9600-8-N-1

1662

3 Check port LEDs

Verify that the Power LED is green.

The Port LEDs reflect the state of each port:

Green

Orange

Meaning

Off

Off

Port enabled, no link.







Blinking randomly

Off

Port enabled, Rx/Tx traffic, link pulse active.







Solid

Off

Port enabled, link pulse active.







Blinking randomly

Blinking randomly

Collision detected. Port enabled, link pulse active.







Off

Solid

Port disabled by hardware failure or management.







Solid

Solid

Port disabled by a fault, or no hardware connected.







1

(Optional) Configuration with Windows* 95 or Windows NT*

4 Install Intel Device View

Intel Device View for Windows remotely configures and monitors the switch from a Windows 95 or Windows NT (version 3.51 or later) PC. To configure the switch for the first time using Intel Device View:

1Place the Intel Device View for Windows CD-ROM in the CD-ROM drive. The disk is delivered with the switch.

2Click the IDV button.

3Click the New button in the toolbar. Or click File>New.

4Follow the instructions given in the Intel Device Installation Wizard.

Managing a switch that already has an IP address

To manage a switch that already has an IP address: Select File>Open, type the IP address of the switch, then click the checkbox in the File>Open window.

Adding new switches

To add new switches (which have not been assigned an IP address) to Intel Device View: Click the Install Wizard button (or select File>New). The Install Wizard will guide you through the installation.

5 Save the configuration to Flash Memory

If you do not save the changes after configuring the switch, all the changes are lost when the switch is powered off. To save the configuration to Flash Memory, click Configuration>Save to flash memory in the menu bar of the Switch Manager.

2

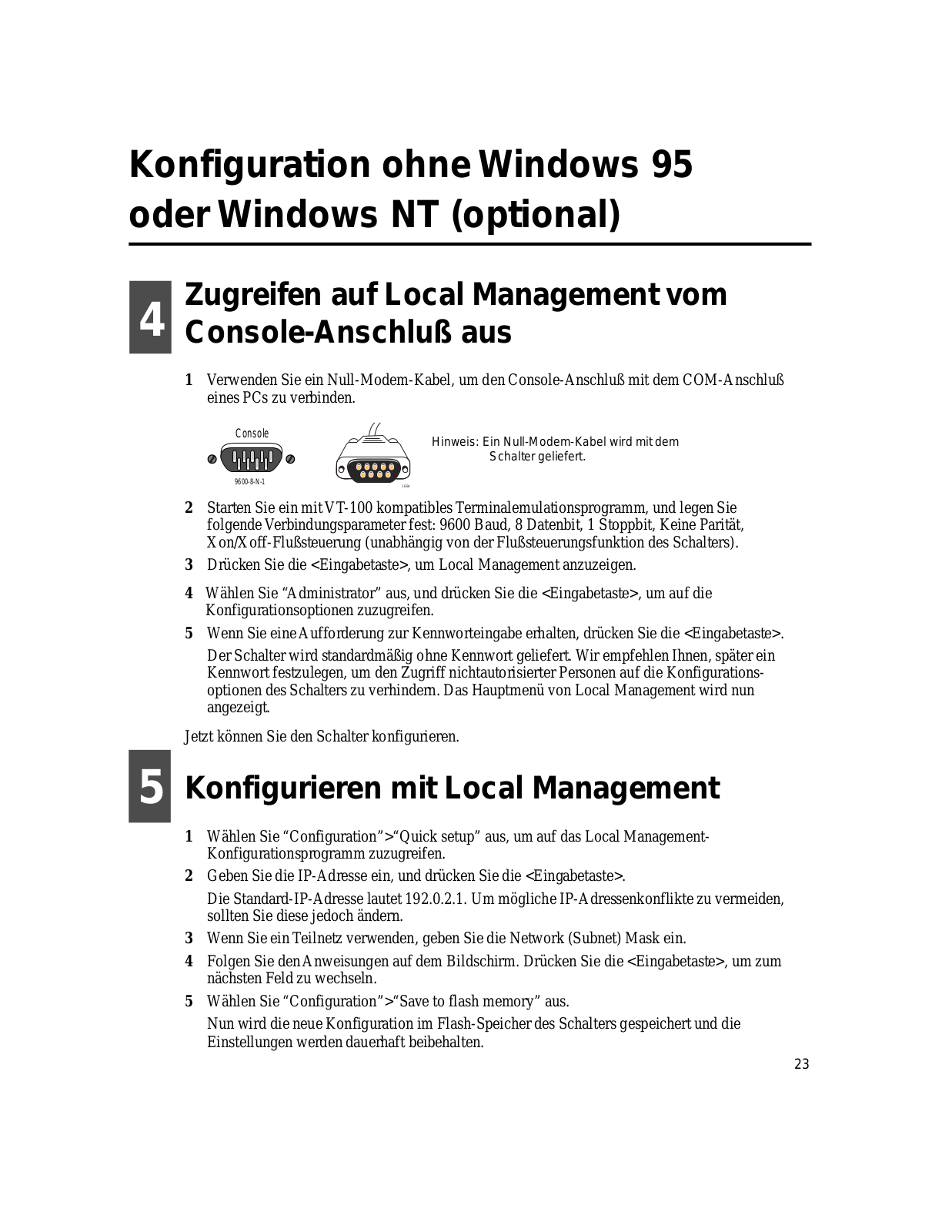

(Optional) Configuration without Windows 95 or Windows NT

Access Local Management from the 4 Console port

1 Use a null-modem cable to connect the Console port to a COM port on a PC.

Console

Note: a null-modem cable is provided with the Switch.

9600-8-N-1

1664

2Open a VT-100 compatible terminal emulation program and set the communication parameters: 9600 baud, 8 data bits,1 stop bit, No parity, Xon/Xoff flow control (unrelated to the switch’s flow control feature).

3Press <Enter> to display Local Management.

4Select Administrator, and press <Enter> to access the configuration options.

5When prompted for a password, press <Enter>.

The switch is delivered with no password as default. We advise you to later define a password to prevent unauthorized access to the switch’s configuration options. The Local Management main menu screen is now displayed.

You are now ready to configure the switch.

5 Configure using Local Management

1Select Configuration>Quick setup to access the Local Management configuration program.

2Type the IP address, press <Enter>.

The default IP address is 192.0.2.1, which you should change to avoid possible IP address conflicts.

3If using subnetting, type the network (subnet) mask.

4Follow the instructions given on the screen. Press <Enter> to move to the next field.

5Select Configuration>Save to flash memory.

This saves the new configuration in the switch’s Flash Memory and makes the settings permanent.

3

Express 1 550F

& ' & *

&







Slot A













Slot B











Intel Express





































































550F Routing

































Por t Status

Switch





































































Status

Power

































Temperature

Reset

































RPS



1



2



3



4



5

6





7



8



Console

TX

RX

TX

RX

TX

RX

TX

RX

TX

RX

TX

RX

TX

RX

TX

RX



9600-8-N-1

1660

&' *

19 &' *

2

62.5/125 &' *

2,000 6,500

Slot A

Slot B

LEDs

Green

Orange

Intel Express







Solid

100 Mbps

Full duplex







Off

10 Mbps

Half duplex















550F Routing









Por t Status

Switch

























Status

Power





LEDs

Green

Orange

Temperature







Solid

Link

Disabled

Reset





Blink

Activity

Collision

RPS









1



2



3



4



5



6



7



8

Console

TX

RX

TX

RX

TX

RX

TX

RX

TX

RX

TX

RX

TX

RX

TX

RX

9600-8-N-1

1662

3 &

&' *

&' *

















&











Rx/Tx &'











&'











&' *











&' *











&' *







5

( ) Windows* 95Windows NT*

4 Intel Device View

Intel Device View for Windows Windows 95 Windows NT 3.51PC &' * Intel Device View &'

1Intel Device View for Windows CD-ROM CD-ROM

2IDV

3File&'New

4Intel Device Installation Wizard&' *

IP

IP File&'Open&' IP

&'File Open&' *

Intel Device View IP &Install WizardFile New& ' *

5 &'Flash Memory

&' * * *

Switch Manager&' *ConfigurationSave to flash memory&'

6

( ) Windows 95Windows NT

4 Local Management

1 null-modem &' PC COM

Console

&' *

9600-8-N-1

1664

2VT-100 &' *9600 8 1Xon/Xoff & ' *

3<Enter> Local Management

4Administrator& <Enter>

5&' <Enter>

&' * !"#&'

& Local Management

&'

5 Local Management

1Configuration&Quick setup&' Local Management

2IP <Enter>

IP 192.0.2.1&' * IP

3&' network (subnet) mask

4&' * <Enter> &'

5Configuration&Save to flash memory&'

&' * ' &

7
