AV Receiver

DTR-10.5

Instruction Manual

Page 2

WARNING:

TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPARATUS TO RAIN OR MOISTURE.

CAUTION:

TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

Important Safety Instructions

1. Read these instructions.

2. Keep these instructions.

3. Heed all warnings.

4. Follow all instructions.

5. Do not use this apparatus near water.

6. Clean only with dry cloth.

7. Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions.

8. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including ampliﬁers) that produce heat.

9. Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not ﬁt into your outlet, consult an electrician for replacement of the obsolete outlet.

10. Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.

11. Only use attachments/accessories speciﬁed by the manufacturer.

12.

Use only with the cart, stand,

PORTABLE CART WARNING

tripod, bracket, or table speciﬁed by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/ apparatus combination to avoid injury from tip-over.

S3125A

13. Unplug this apparatus during lightning storms or when unused for long periods of time.

14. Refer all servicing to qualiﬁed service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

15. Damage Requiring Service Unplug the apparatus from the wall outlet and refer servicing to qualiﬁed service personnel under the following conditions: A. When the power-supply cord or plug is dam-

B. If liquid has been spilled, or objects have fallen

C. If the apparatus has been exposed to rain or

D. If the apparatus does not operate normally by

E. If the apparatus has been dropped or damaged in

F. When the apparatus exhibits a distinct change in

16. Object and Liquid Entry Never push objects of any kind into the apparatus through openings as they may touch dangerous voltage points or short-out parts that could result in a ﬁre or electric shock. The apparatus shall not be exposed to dripping or splashing and no objects ﬁlled with liquids, such as vases shall be placed on the apparatus. Don’t put candles or other burning objects on top of this unit.

17. Batteries Always consider the environmental issues and follow local regulations when disposing of batteries.

18. If you install the apparatus in a built-in installation, such as a bookcase or rack, ensure that there is adequate ventilation. Leave 20 cm (8") of free space at the top and sides and 10 cm (4") at the rear. The rear edge of the shelf or board above the apparatus shall be set 10 cm (4") away from the rear panel or wall, creating a ﬂue-like gap for warm air to escape.

WARNING

RISK OF ELECTRIC SHOCK

DO NOT OPEN

The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to

persons.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.

AVIS

RISQUE DE CHOC ELECTRIQUE

NE PAS

OUVRIR

aged,

into the apparatus,

water,

following the operating instructions. Adjust only those controls that are covered by the operating instructions as an improper adjustment of other controls may result in damage and will often require extensive work by a qualiﬁed technician to restore the apparatus to its normal operation,

any way, and

performance this indicates a need for service.

Page 3

Thank you for purchasing an Integra AV Receiver. Please read this manual thoroughly before making connections and plugging in the unit. Following the instructions in this manual will enable you to obtain optimum performance and listening enjoyment from your new AV Receiver. Please retain this manual for future reference.

Precautions

1. Recording Copyright

Unless it’s for personal use only, recording copyrighted material is illegal without permission of the copyright holder.

2. AC Fuse

The AC fuse inside the DTR-10.5 is not user-serviceable. If you cannot turn on the DTR-10.5, contact your Integra dealer.

3. Care

Occasionally you should dust the DTR-10.5 all over with a soft cloth. For stubborn stains, use a soft cloth dampened with a weak solution of mild detergent and water. Dry the DTR-10.5 immediately afterwards with a clean cloth. Don’t use abrasive cloths, thinners, alcohol, or other chemical solvents, because they may damage the ﬁnish or remove the panel lettering.

4. Power

WARNING

BEFORE PLUGGING IN THE UNIT FOR THE FIRST TIME, READ THE FOLLOWING SECTION CAREFULLY. AC outlet voltages vary from country to country. Make sure that the voltage in your area meets the voltage requirements printed on the DTR-10.5’s rear panel (e.g., AC 230 V, 50 Hz or AC 120 V, 60 Hz). Setting the [Standby/On] switch to Standby does not fully shutdown the DTR-10.5. If you do not intend to use the DTR-10.5 for an extended period, remove the power cord from the AC outlet.

For U.S. Models

Note to CATV system installer:

This reminder is provided to call the CATV system installer’s attention to Section 820-40 of the NEC which provides guidelines for proper grounding and, in particular, speciﬁes that the cable ground shall be connected to the grounding system of the building, as close to the point of cable entry as practical.

FCC Information for User

CAUTION:

The user changes or modiﬁcations not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.

NOTE:

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help.

For Canadian Models

NOTE:

THIS CLASS B DIGITAL APPARATUS COMPLIES WITH CANADIAN ICES-003. RSS 210, Low Power Licence-Exempt Radiocommunications Devices (All FrequencyBands). For models having a power cord with a polarized plug:

CAUTION:

TO PREVENT ELECTRIC SHOCK, MATCH WIDE BLADE OF PLUG TO WIDE SLOT, FULLY INSERT.

Modèle Canadien

REMARQUE:

CET APPAREIL NUMÉRIQUE DE LA CLASSE B EST CONFORME À LA NORME NMB-003 DU CANADA. CNR-210, Dispositifs de radiocommunications de faible puissance, exempts de licence (pour toutes les bandes de fréquences). Sur les modèles dont la ﬁche est polarisée:

ATTENTION:

POUR ÉVITER LES CHOCS ÉLECTRIQUES, INTRODUIRE LA LAME LA PLUS LARGE DE LA FICHE DANS LA BORNE CORRESPONDANTE DE LA PRISE ET POUSSER JUSQU’AU FOND.

Getting Started

Page 4

Table of Contents

Getting Started

Important Safety Instructions ..........................2

Precautions........................................................3

Features .............................................................6

Supplied Accessories .......................................8

Connecting the Supplied Power Cord ............ 8

Before Using the DTR-10.5 ...............................9

Installing the Batteries .................................... 9

Using the Remote Controller .......................... 9

Types of the DTR-10.5 Option Boards ......... 10

Installing the Option Boards

(USA and Australian Models Only) ............ 11

Index Parts and Facilities ...............................12

Front Panel ................................................... 12

Front Panel Display ...................................... 15

Rear Panel.................................................... 16

Remote Controller (Amp Mode).................... 18

Installation and Connections

Speaker Placement .........................................20

Basic Speaker Placements for Home Theater

and the Function of Respective Speakers ... 20

Placing the Speakers.................................... 21

Speaker Placement Suitable for THX Audio ... 22 Speaker Placement Suitable for a Music

Source such as DVD-Audio ....................... 22

Available Speaker Placements According to

the Number of Speakers ............................ 23

Connection Examples................................... 24

Connecting Speakers......................................27

Connecting to the Speaker Terminals .......... 27

Connecting a Subwoofer .............................. 28

Connecting Auxiliary Power Amplifier

(For Speaker System [A] only) ................... 28

Using the BTL Connection............................ 29

Using Bi-amp Connection............................. 29

Connecting Antennas .....................................30

Connecting the Indoor FM Antenna.............. 30

Connecting the AM Loop Antenna................ 31

Connecting an Outdoor FM Antenna............ 31

Connecting an Outdoor AM Antenna............ 31

Connecting AV Components..........................32

Types of Connection Cables and Terminals ... 32 Connecting Monitors such as TV or

Projector..................................................... 34

Connecting a DVD Player............................. 35

Connecting a DVD Recorder or Digital VCR

(VIDEO 1)................................................... 36

Connecting a VCR (VIDEO 2, VIDEO 3) ...... 37

Connecting a DBS Tuner, DBS TV, or BS/CS

Tuner.......................................................... 39

Connecting a Portable DVD Player or Video

Camcorder ................................................. 40

Connecting a CD Player, Turntable or

Tuner.......................................................... 40

Connecting a Recording Device such as MD

Recorder, DAT Deck, CD Recorder or

Cassette Deck............................................ 41

Connection Using the i.LINK (AUDIO)

Terminal ( )............................................. 42

Connection Using HDMI Terminals............... 45

Connecting -compatible AV

Components ................................................ 47

Connections for Remote Control ( ).......... 47

Connecting Components not Reached by the

Remote Controller Signals (IR IN) .............48

If Remote Controller Signal Does not Reach

the DTR-10.5 Remote Sensor .................... 48

Using an External Device with 12V Trigger

Terminal ....................................................... 49

Operations

Basic Operation of Remote Controller

Buttons ........................................................ 50

To Operate the DTR-10.5 (AMP Mode) ........ 50

To Select an Input Source............................. 50

To Operate a Connected Component (Mode

Switching) ................................................... 51

To Select a Source in Zone 2 or Zone 3 ....... 51

To Perform a Macro Operation .....................51

Customizing Your Remote Controller............ 51

Connecting the Power/Basic Operations .....52

Turning on the Power.................................... 52

Operating on the DTR-10.5........................... 52

Turning on the Power from the Remote

Controller .................................................... 53

Operating with Remote Controller................. 53

Using the Listening Modes ............................ 58

Selecting the Listening Mode........................ 61

Listening to Radio Broadcasts...................... 62

Using the Tuner............................................. 62

Tuning into a Radio Station........................... 62

Enjoying Multichannel Playback ................... 64

How to Connect............................................. 64

How to Set Up............................................... 64

Playing Back in Multichannel Sound............. 65

Adjusting the Volume Level of Speakers for

Multichannel Playback................................ 65

Enjoying Movies and Music in the Remote

Zone (Zone 2/3) ........................................... 66

Connecting and Setup................................... 66

Enjoying Movies and Music in a Remote

Zone ...........................................................67

Recording a Source........................................ 69

Recording Audio/Video While Playing........... 70

Recording Audio/Video on a Component

While Playing Another ................................ 70

Recording the Video from One Source and

the Audio from Another Source .................. 71

Enjoying Net Audio......................................... 72

About Net-Tune............................................. 72

Networking Your DTR-10.5........................... 73

Using the Remote Controller......................... 74

Enjoying Internet Radio................................. 76

Playing a Music File Saved on the Network

Audio Server............................................... 78

Configuring the Music Server........................ 80

Page 5

Table of Contents —Continued

Setup Menu

Setup Menu...................................................... 82

OSD Map (MAIN A)....................................... 82

OSD Map (MAIN B)....................................... 84

OSD Map (ZONE 2) ...................................... 85

Navigating the Setup Menu...........................86

Hardware Setup............................................... 87

Remote Control Setup Sub-menu ................. 87

TV Format Sub-menu.................................... 87

AM Frequency Setup Sub-menu

(Australian Models Only) ............................87

Speaker/Output Setup ....................................88

Speaker Configuration Sub-menu.................88

Speaker Impedance Sub-menu ....................89

Speaker Crossover Sub-menu......................89

Speaker Distance Sub-menu ........................89

Notch Filter Sub-menu ..................................90

Level Calibration Sub-menu..........................90

THX Audio Setup Sub-menu.........................91

Audio Output Assign Sub-menu....................91

Video Output Assign Sub-menu....................92

Input Setup ......................................................93

Audio Assign Sub-menu (when input is

other than NET AUDIO).............................. 94

Music Server Sub-menu (when input is NET

AUDIO) ....................................................... 95

Video Assign Sub-menu................................ 95

Listening Mode Preset Sub-menu.................96

Character Edit Sub-menu.............................. 97

IntelliVolume Sub-menu ................................ 98

Delay Sub-menu ...........................................98

12V Trigger Assign Sub-menu ...................... 98

Listening Mode Setup..................................... 99

Mono Setup Sub-menu .................................99

Multiplex Setup Sub-menu ............................ 99

Stereo Setup Sub-menu.............................. 100

Direct, Pure Audio Setup Sub-menu ........... 101

Multichannel Input Setup Sub-menu ........... 102

i.LINK(IEEE1394):DVD-Audio Input Setup

Sub-menu ................................................. 103

i.LINK(IEEE1394):SACD Input Setup

Sub-menu ................................................. 105

Dolby Digital Setup Sub-menu .................... 106

DTS Setup Sub-menu ................................. 108

AAC Setup Sub-menu.................................109

Dolby Pro Logic IIx/DTS NEO:6

(2ch Input only) Setup Sub-menu.............110

THX Setup Sub-menu ................................. 112

Mono Movie Setup/Enhance Setup/Orchestra

Setup/Unplugged Setup/Studio-Mix Setup/

TV Logic Setup Sub-menu .......................114

All Ch Stereo Setup/Full Mono Setup

Sub-menu ................................................. 115

Dolby Virtual Speaker Setup Sub-menu .....116

Dolby Headphone Setup Sub-menu ...........117

Audio Adjust.................................................. 118

Tone Control Sub-menu..............................118

Preferences ...................................................119

Volume Setup Sub-menu ............................ 119

Headphone Level Setup Sub-menu ............ 119

OSD Setup Sub-menu ................................119

OSD Position Sub-menu ............................. 119

i.LINK Setup ...................................................120

Wakeup Setup ............................................ 120

OSD for DVD .............................................. 120

OSD for DVD (Zone 2) ............................... 120

DVD Output Synchro .................................. 120

Network Setup ...............................................121

IP Address Sub-menu ............................... 121

Proxy Sub-menu........................................ 121

MAC Address Sub-menu............................ 121

Client Sub-menu......................................... 122

Lock/Version Setup.......................................123

Lock Setup Sub-menu ................................ 123

Firmware Version Sub-menu...................... 123

Using the Remote Controller

Operating Integra/Onkyo Products Using the

Remote Controller .....................................124

Operating Integra/Onkyo Products Using

the Connection .................................. 124

DVD Mode .................................................. 124

CD Mode .................................................... 126

MiniDisc Mode ............................................ 127

Tape Mode ................................................. 128

Using the Remote Controller with Other

Components...............................................129

Entering a Remote Control Code ............... 129

Learning Commands from Another Remote

Controller.................................................. 136

Using Macros.............................................. 137

Other Settings for the Remote Controller ...139

Editing Remote Controller Modes............... 139

Resetting the Remote Controller ................ 141

Using the Remote Controller with Radio

Frequency ................................................ 141

Changing the Remote Controller’s

Control ID................................................. 142

Miscellaneous

Relationship Between Input Source and

Listening Mode ..........................................143

Troubleshooting ............................................146

Power ......................................................... 146

Audio .......................................................... 146

Video .......................................................... 147

Tuner .......................................................... 147

Remote Controller ...................................... 147

Recording ................................................... 148

Zone 2/Zone 3 ............................................ 148

Net-Tune..................................................... 148

Others......................................................... 148

Error Messages .......................................... 149

Specifications ................................................150

Page 6

•

Features

Ampliﬁer Features

192 kHz/24-Bit DAC for All Channels

• Color-Coded Heavy Duty Dual Banana Plug Compatible Transparent Speaker Posts Color-Coded 7.1 Multi-Channel Inputs and Pre Outs (Australian model) (USA and Canadian model: option)

• Powered Zone 2 and Zone 3

• 5 12V DC Trigger Outputs and 3 IR Inputs/ Outputs

•

Massive, Shielded Toroidal Transformer,

you ﬁnd only in the best high end audio equipment, to provide copious amounts of pure current

•

Huge Custom Designed Audio Tuned Reference Capacitors

frequencies, and provide tremendous continuous power reserves during the most dynamic sound effects and music demands

•

Powerful Transistors.

quality transistors are ready to amplify your electrical signals for the highest performance possible

•

High Grade Dual Aluminum Extruded Heatsinks

and auto-switched cooling fan to keep things cool when the action gets hot

• WRAT (Wide Range Ampliﬁer Technology)

• Optimum Gain Volume Circuitry

Audio/Video Features

• THX Ultra2 Certiﬁed

• THX Surround EX, DTS-ES Discrete/Matrix 6.1, DTS NEO:6, DTS 96/24, Dolby Digital EX, Dolby Pro Logic II/IIx, Dolby Headphone, Dolby Virtual Surround

• 4 Wideband Component Video Inputs and 2 Outputs

•

Dual Monitor Outputs

route the onscreen signal to a small monitor and make adjustments without distracting the audience

•

13 Digital Inputs (1 Optical on Front)

Coaxial/12 Assignable) to connect any variety of digital sources to the DTR-10.5’s powerful digital processor

•

4 Digital Outputs

to make direct digital dubs to other digital devices

•

Wolfson 192 kHz/24-Bit

channels

•

Dual 32-Bit DSP Chips

multizone decoding

• Non-Scaling Conﬁguration

Next Generation User Interface

• Bi-Directional RS-232 Port to download new programs and provide easy interface with touchscreen controllers from other manufacturers

• Speaker A and B Mode for 7.1 Channels

• BTL and Bi-Wiring Connectable for FL/FR with SBR/SBL

to deliver greater power at low

These high power, high

(S Video/Composite) to

(2 Optical/2 Coaxial/4 Assignable)

D/A Converters for all

for high grade main and

the kind

(7 Optical/6

• Dual 32-Bit DSP Chips for high grade main and multizone decoding

•

5 12V DC Trigger Outputs and 3 IR Inputs

multizone operation of multiple components

• Individual Crossover Adjustment

FM/AM Tuner Features

• 40 FM/AM Presets

• FM/AM Auto Tuning

Other Performance Features

• VLSC (Vector Linear Shaping Circuitry) Solid Aluminum Volume Knob for quality you can

feel—ergonomically pleasing and convenient for those quick in-the-dark level changes

•

Separate PC Boards

completely separate

•

Rec Out Selector (On Front)

while watching or listening to another

•

Gold-Plated RCA Jacks

provide distortion-free signal transmission

•

2 Sets of Color-Coded Heavy Duty, Transparent, Dual-Banana-Plug Speaker Terminals

channels to provide distortion-free signal transfer and accommodate heavy gauge speaker cable

•

Impeccable Quality Materials

reinforced steel chassis, rigid aluminum panels and brazen stabilizers to enhance overall chassis stability

•

Large Multi-Emitter Output Transistors

faster switching speed, which translates into a wider dynamic range

•

Zone 2 Multiroom/Multisource

set up additional rooms

•

Detachable Heavy Duty IEC Power Cord

minimize interference from external sources and increase power stability—detachable for ease of installation

• Audiophile Grade Parts

• IntelliVolume

• Pure Audio Mode

• Digital Upsampling

• Absolute Ground Plate

• Large, Fluorescent, 35 Dot Matrix Display With 4 Mode Dimmer

• For Ultimate Control—The Last Remote You’ll Ever Need

• A-Form Listening Mode Memory

In catalogs and on packaging, the letter added to the end of the product name indicates the color of the DTR-10.5. Speciﬁcations and operation are the same regardless of color.

DTR-10.5 provides option boards for advanced capability. For details on option boards, see pages 10, 11.

to keep audio and video signals

to tape one program

to resist corrosion and

—a heavy gauge,

(audio and video) to

for

for all

to provide

Page 7

Features —Continued

• THX is a trademark or registered trademark of THX Ltd.

• HDMI, the HDMI logo and High Deﬁnition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing, LLC.

• Manufactured under license from Dolby Laboratories. “Dolby,” “Pro Logic,” “Surround EX,” and the double-D symbol are trademarks of Dolby Laboratories.

• “DTS,” “DTS 96/24,” “DTS-ES,” and “NEO:6” are trademarks of Digital Theater Systems, Inc.

• The i.LINK logo is a trademark of Sony Corporation, registered

in the U.S. and other countries.

• Re-Equalization and the “Re-EQ” logo are trademarks of THX Ltd.

• “Net-Tune” is a trademark of Onkyo Corporation.

• Windows Media and the Windows logo are trandemarks, or

registered trademarks of Microsoft Corporation in the United States and/or other countries.

• Intel and Pentium are registered trademarks of Intel Corporation.

• MPEG Layer-3 audio coding technology licensed from Fraunhofer IIS and THOMSON multimedia.

• “XiVA” is a registered trademark of Imerge Limited.

• Xantech is a registered trademark of Xantech Corporation.

• Niles is a registered trademark of Niles Audio Corporation.

“This product incorporates copyright protection technology that is protected by U.S. patents and other intellectual property rights. Use of this copyright protection technology must be authorized by Macrovision Corporation, and is intended for home and other limited consumer uses only unless otherwise authorized by Macrovision. Reverse engineering or disassembly is prohibited.”

THX Ultra2

Before any home theater component can be THX Ultra2 certiﬁed, it must pass a rigorous series of quality and performance tests. Only then can a product feature the THX Ultra2 logo, which is your guarantee that the Home Theater products you purchase will give you superb performance for many years to come. THX Ultra2 requirements deﬁne hundreds of parameters, including power ampliﬁer performance, and pre-ampliﬁer performance and operation for both digital and analog domains. THX Ultra2 receivers also feature proprietary THX technologies (e.g., THX Mode) which accurately translate ﬁlm soundtracks for home theater playback.

Getting Started

Page 8

Supplied Accessories

Make sure you have the following accessories:

Remote Controller & Three Batteries (AA/R6)

AM Loop Antenna

Indoor FM antenna

(connector type varies from country to country)

Left

Front

Right

Zone 2

Surround

SP-B

Zone 2

Front

Left

Front

Right

SP-B

Left

SP-B

Right

Surround

Front

Left

Front

Right

SP-B

Left

SP-B

Right

Speaker Cable

Left

Right

Surround

Right

Left

Surround

Right

Surround

Left

Right

Center

Zone 2

Surround Back

Zone 2

Right

Zone 2

Left

Center

Zone 2

Right

Zone 2

Left

Surround Back

Right

Surround Back

Left

Center

Surround Back

Right

Surround Back

Left

Connecting the Supplied Power Cord

Plug the supplied power cord into this AC INLET.

• Do not use a power cord other than the one supplied with the DTR-10.5. The power cord supplied is designed for use with the DTR-10.5 and should not be used with any other device.

• Never have the power cord disconnected from the DTR-10.5 while the other end is plugged into the wall outlet. Doing so may cause an electric shock. Always connect by plugging into the wall outlet last and disconnect by unplugging from the wall outlet ﬁrst.

Power Cord

AC INLET

DO NOT connect the power cord at this time.

(supplied)

Speaker Labels

Terminal Wrench

A wrench to screw/unscrew the speaker terminal cap.

Power Cord ( The shape of the plug varies depending on

the region where the model is intended.)

Page 9

Before Using the DTR-10.5

Installing the Batteries

To open the battery compartment, press

the small hollow and slide off the cover.

Insert the three supplied batteries (AA/R6)

in accordance with the polarity diagram inside the battery compartment.

Put the cover onto the remote controller

and slide it shut.

Notes:

• The supplied batteries should last for about six months, although this will vary with usage.

• If the remote controller doesn’t work reliably, try replacing the batteries.

• Don’t mix new and old batteries, or different types of batteries.

• If you intend not to use the remote controller for a long time, remove the batteries to prevent possible leakage and corrosion.

• Expired batteries should be removed as soon as possible to prevent damage from leakage or corrosion.

Using the Remote Controller

To use the remote controller, point it at the DTR-10.5’s remote control sensor, as shown below. The DTR-10.5’s [Standby] indicator ﬂashes while a signal is being received from the remote controller.

Remote control sensor

Standby indicator

30˚

Notes:

• The remote controller may not work reliably if the DTR-10.5 is subjected to bright light, such as direct sunlight or inverter-type ﬂuorescent lights. Keep this in mind when installing the DTR-10.5.

• If another remote controller of the same type is used in the same room, or the DTR-10.5 is installed close to equipment that uses infrared rays, the remote controller may not work reliably.

• Don’t put anything, such as a book, on the remote controller, because the buttons may be pressed inadvertently, thereby draining the batteries.

• The remote controller may not work reliably if the DTR-10.5 is installed in a rack behind colored glass doors. Keep this in mind when installing the DTR-10.5.

• The remote controller will not work if there’s an obstacle between it and the DTR-10.5’s remote control sensor.

• You can set the transmission signal format to infrared (IR), or radio frequency (RF) for use with the optional RF Receiver. This is useful when, for example, the DTR-10.5 is installed in a rack or is not in line of sight of the remote controller.

• To select AMP mode, press the scroll wheel. “AMP” appears on the display.

DTR-10.5

Approx. 16 ft. (5 m)

Getting Started

Page 10

Before Using the DTR-10.5 —Continued

Types of the DTR-10.5 Option Boards

The following option boards are available for the DTR-10.5 as of October 2004.

PRE OUT A

FRONT SURR SURR

“Net-Tune” is a trademark of Onkyo Corporation.

ETHERNET

(

Net-Tune

BACK

DIGITAL IN DIGITAL IN

OPTICAL COAXIAL

)

SURR

OUT

SURR BACK R (ASSIGNABLE

SUB C

SR SL

SBR SBL

FR FL

SUB C

SR SL

SBR SBL

)

MULTI

- CH

IN 1

MULTI

- CH

IN 2

AUDIO IN

GND

OUT

CENTERFRONT

R L

S VIDEO VIDEO

IN IN

FRONT

OUT

OUT OUT

SURR BACK L (ASSIGNABLE

(

)

SINGLE

COMPONENT

VIDEO

IN 2

(

HD/BNC

S VIDEOS VIDEO VIDEOVIDEO

)

COMPONENT VIDEO

)

OUT

SURR L

ANTENNA

FM 75

HDMI

232

12 V TRIGGER OUT

IR IN

V DC PWR SUPPLY

20mA MAX.

GND

MAIN

ZONE

200mA MAX.

100mA MAX.

GND

100mA MAX.

TOTAL

AC INLET

12 V TRIGGER OUT

100mA MAX.

OUT

C-LINK

“Net-Tune” is a trademark of Onkyo Corporation.

ETHERNET

(

Net-Tune

C-NET-A

MULTI

IN 1

SUB C

)

SR SL

SBR SBL

FR FL

SUB C

SR SL

SBR SBL

MULTI

IN 2

SUB C

SR SL

SBR SBL

DIGITAL IN

(

BALANCED

AES/EBU

MULTI

IN 1

)

C-MULTI C-AES

Distributed regions (as of October 2004)

(the United States)

(Australia)

Product number: C-LINK

Provides i.LINK (AUDIO) terminals. Two input terminals are available. This option board will be inserted into slot A on the DTR-10.5.

These connectors are for connecting to an i.LINK (AUDIO)-ready device using a 4-pin (S400) i.LINK (AUDIO) cable. The DTR-10.5 complies with the standards on audio only transimissions.

Product number: C-NET-A

Provides one Ethernet port for the Net-Audio connection. Connecting the network server to the port allows you to enjoy music stored on your PC or delivered from an Internet radio broadcast.

This option board will be inserted into slot B on the DTR-10.5.

COMPONENT VIDEO

(

)

HD/BNC

OUT

COMPONENT VIDEO

OUT

C-CPNT-BNC C-CPNT-RCA

IN 4

HDMI

OUT

C-HDMI

The multichannel connector is for connecting components with a multichannel output. The DIGITAL IN (BALANCED) AES/EBU terminal is for connecting the DVD player and other devices equipped with the XLR (balanced) type digital audio output terminal. This option board will be inserted into slot E on the DTR-10.5.

Product number: C-CPNT-BNC

Provides BNC-type component video terminals. One input terminal set and one output terminal set are available. This option board will be inserted into slot J on the DTR-10.5.

Product number: C-CPNT-RCA

Provides RCA-type component video terminals. One input terminal set and one output terminal set are available. This option board will be inserted into slot J on the DTR-10.5.

Product number: C-MULTI

Provides two analog multichannel input terminal sets. This option board will be inserted into slot E on the

DTR-10.5.

Product number: C-AES

Provides one analog multichannel input terminal set and one AES/EBU digital audio input jack.

Product number: C-HDMI

Provides HDMI terminals. Two input terminals and one output terminal are available. This option board will be inserted into slot L on the DTR-10.5. This interface can transfer digital audio and video signals simultaneously. The terminal can be connected to the HDMI terminal on components such as DVD player, set top box (B tuner), projector, and digital TV.

Page 11

Before Using the DTR-10.5 —Continued

Installing the Option Boards

The option boards should be installed in their individual designated slots. Installing the option board a different slot may cause failure.

Turn off the power and unplug the power

cord both from the DTR-10.5 and electrical outlet.

Be sure to turn off the power of the DTR-10.5. Inserting or removing an option board with the DTR-10.5 turned on may cause failure.

Take the option board out from the pack-

age carefully.

The option board incorporates many components, terminals and connectors along with solderings on its surface. Touching the board with your ﬁngers may cause failure or damage from static electricity, incorrect contact and so on. When handling the board, be sure to hold the outer part or panel section of the board without touching the board surface.

Board surface

“Net

Onkyo

tradem

Tune

Corporation.

”

ark

ETHERNET

(

Net

Tune

)

Check the alphabet letter on the option

board.

The alphabet letter is printed at the top left corner of the panel section.

e”

Tun

“N

ark

tradem

ration.

orpo

kyo

)

une

(

Remove the sub-panel with the same

alphabet letter as your option board from the back of the DTR-10.5.

Use the supplied Allen wrench to loosen the screw gradually, while holding the sub-panel so that the panel will not drop down.

The sub-panels are ﬁxed to the DTR-10.5 with two screws at the top and bottom, while the panel that covers slots [H] and [I] is ﬁxed with four screws at the top and bottom. Keep the removed screws for ﬁxing the option board.

AUDIO

is o g

i.L

, r

tio

e o p

n a .

. s

ie tr n

u o

)

(

N O R

Insert the option board along the rail

softly. When the board comes to the posi-

CENTER

)

E L B

(

DIGITAL IN

IG S

(

B U S

)

L B A

C A

tion where it stops but does not cover the slot completely, push the board forward a little bit more strongly.

DIGITAL IN

AUDIO

i.L

k r a

m e

, r

io t a

r o p

. .S U

e h t

s e i

tr n

O R F

Fix the option board ﬁrmly to the DTR-10.5

using the removed screws.

”

“

tio

p r o

k n O

)

(

IN S

B R R

)

E L

N IG S

(

ETHERNET

)

t e

(

)

y n o

S f

r e t

s i

r e

h t

CENTER

B U S

R E F

Be sure to tighten the screws ﬁrmly to the DTR-10.5. If the screws are loose, contact failures for ground or signal wires may occur at the section between the DTR-10.5’s slot terminal and the option board, which may cause the DTR-10.5 or board to fail.

DIGITAL IN

t e

“

AUDIO

i.L

is d a

, r

n io t

ie r t

u o c

CENTER

B U S

O W

C o y

ETHERNET

(

”

tio a r

)

e n

(

K C

E L

B A N

IG S

(

)

R E F

)

E L

(

Getting Started

Page 12

Index Parts and Facilities

Here is an explanation of the controls and displays on the front panel of the DTR-10.5. The speciﬁcations for your model may differ due to regional requirements.

Front Panel

Standby/On

Master Volume

Inner panel

Standby

Rec/ Zone 3 Red

Main

Zone 2

Pure Audio

Display

(

)

(

Blue

)

(

Green

DVD

Tape 1 Tape 2 Tuner Phono C D Net Audio

Video 1 Video 2 Video 3 Video 4 Video 5 Video 6 Video 7

Open

Phones

Listening

Audio

Selector

Mode

Tone Zone 2

Tuning Mode

Clear

Select/

Push To Enter

Preset

Tuning

Control

Setup

Push To Enter

Rec/ Zone 3

LevelExitLevelDimmerMemory

Input

Video 7

Digital S Video Video AudioLR

Page 13

Index Parts and Facilities —Continued

For further operational instructions, see the pages indicated in brackets [ ].

Standby indicator [9, 52]

Lights when the DTR-10.5 is in the standby state and when a signal is received from the remote controller.

Standby/On button [52]

Press this button, the DTR-10.5 turns on and the display lights up. If pressed again, the DTR-10.5 returns to the standby state. In the standby state, the display is turned off and the DTR-10.5 cannot be operated.

Remote control sensor [9]

3 4

Display button [56]

Press to display information about the current input source signal. Each time you press the [Display] button, the screen changes to show you different information concerning the input signal.

Front display

5 6

Input source buttons and indicators (DVD, Video 1-7, Tape 1-2, Tuner, Phono, CD, and Net Audio) [52]

Press these buttons to select the input source for the main zone. After selecting the input source, the corresponding indicator turns blue. If you select Zone 2, the indicator turns green. If you select Zone 3 or Rec, the indicator turns red.

Master Volume dial [52]

Use to control the volume in the main zone. The volume for the remote zone (Zone 2 and Zone 3) is independent.

Open button

Press this button to open the front panel door.

Pure Audio indicator

Lights during pure audio playback.

Inner panel

Listening Mode button [61]

Press this button to enter the setup mode for the listening mode. Turning the [Select/Preset] allows you to select the listening mode. To conﬁrm your selection and exit the setup mode, press the [Select/ Preset].

Audio Selector button [57]

Press this button to enter the audio selector mode. Turning the [Select/Preset] allows you to select the audio mode.

Tone button [54]

Press this button to enter the tone adjustment mode. Turning the [Select/Preset] allows you to select the channel to adjust the tone. To adjust the tone level, turn the [Control/Tuning].

Zone 2 button [68]

Press this button to enter the Zone 2 conﬁguration mode. Turning the [Select/Preset] allows you to select the input source for Zone 2. Also, if you want to conﬁgure other Zone 2 settings such as standby/ on setting, listening mode, volume adjustment, audio selector mode, and display settings, press this button ﬁrst.

Rec/Zone 3 button [68, 70]

Press this button to enter the Rec/Zone 3 mode. Turning the [Control/Tuning] allows you to select the input source for the Rec mode or Zone 3. Also, if you want to conﬁgure the setting for Zone 3 including standby/on setting or volume adjustment, press this button ﬁrst.

Note:

Recording and Zone 3 operations uses the same circuit and therefore cannot be used at the same time.

Video 7 Input terminals [40]

For connecting a video camera or game device.

Zone 3 Level button [68]

Press this button to enter the volume adjustment mode for Zone 3. Turning the [Select/Preset] allows you to adjust the volume.

Control/Tuning dial

When the input source is FM or AM, turning this jog dial allows you to select the frequency to receive. When used with other buttons, this [Control/ Tuning] dial is used to select the mode settings or values. Also the dial is pressed to conﬁrm the settings or values you select.

Setup button [86]

Press this button to enter the setup mode. First, select the parameter to change by turning the [Select/Preset] and press the [Select/Preset] to conﬁrm the parameter. Then, change the parameter value by turning the [Control/Tuning] and press the [Control/Tuning] to conﬁrm the value.

Getting Started

Page 14

Index Parts and Facilities —Continued

Exit button [86]

Press this button to return to the last menu. To exit from the setup mode, press the [Setup] button again.

Select/Preset dial

When the input source is FM or AM, turning this jog dial allows you to switch between your preset stations. When used with other buttons, the [Select/ Preset] dial is used to select the mode settings or parameters. Also the dial is pressed to conﬁrm the settings or parameters you select.

Zone 2 Level button [68]

Pressing this button enters the volume adjustment mode for Zone 2. To adjust volume, turn the [Select/ Preset].

Dimmer button [54]

Press to set the brightness of the front display. There are four settings available: normal, dark, very dark, and volume only.

Memory button [63]

Press to assign the radio station, to which you are currently tuned, as a preset channel or press to delete a previously preset station.

Tuning Mode button [62, 63]

This button is used to select the Auto or Manual Tuning Mode.

Phones jack [54]

This is a standard stereo jack for connecting stereo headphones.

Page 15

Index Parts and Facilities —Continued

Front Panel Display

Getting Started

Listening mode or input format indicators

One of these indicators lights to show the format of the current input source. In addition, one of the listening mode indicators lights to indicate the current listening mode.

Multifunction display

During normal operation, shows the current input source. When the FM or AM input is selected, shows the frequency and preset number. When the [Display] button is pressed, shows the listening mode and input source format.

Audio input signal path indicators

Shows from which terminal the audio input signal is coming.

MAIN A/B indicators

Indicates which room is currently in use.

SLEEP indicator

Lights when the sleep timer is turned on.

Tuning indicators

AUTO indicator

Lights when receiving FM broadcasts in the stereo mode. Turns off when placed into the monaural mode.

TUNED indicator

Lights when a radio station is being received.

MEMORY indicator

Lights when the [Memory] button is pressed to preset a radio station.

FM STEREO indicator

Lights when an FM broadcast station is being received in stereo. Turns off when placed into the monaural mode.

Program format display

When the input source is DVD video, Super Audio CD, or compressed digital audio signal such as Dolby Digital and DTS, the channels corresponding to the input source light.

Volume display

Shows the volume level.

Video input signal path indicators

Shows from which terminal the video input signal is coming.

Page 16

Index Parts and Facilities —Continued

Rear Panel

USA and Canadian models

“Net-Tune” is a trademark of Onkyo Corporation.

ETHERNET

(

)

Net-Tune

PRE OUT A

FRONT SURR SURR

SURR

BACK

SUB

CENTER

WOOFER

PRE OUT B

Australian model

“Net-Tune” is a trademark of Onkyo Corporation.

ETHERNET

(

)

Net-Tune

SUB WOOFER

BACK

PRE OUT B

SURR

PRE OUT A

FRONT SURR SURR

SUB

CENTER

WOOFER

DIGITAL IN DIGITAL IN

OPTICAL COAXIAL

OUT

SURR BACK R (ASSIGNABLE

FRONT R (BTL

DIGITAL IN DIGITAL IN

OPTICAL COAXIAL

OUT

SURR BACK R (ASSIGNABLE

FRONT R (BTL

SUB C

SBR SBL

FR FL

SUB C

SBR SBL

SUB C

SBR SBL

FR FL

SUB C

SBR SBL

SR SL

)

SR SL

)

MULTI

- CH

IN 2

GND

OUT

CENTERFRONT

AUDIO IN

- CH

IN 1

R L

S VIDEO VIDEO

IN IN

FRONT

OUT OUT

FRONT L (BTL

MULTI

IN 2

GND

OUT

CENTERFRONT

AUDIO IN

IN 1

R L

S VIDEO VIDEO

IN IN

FRONT

OUT OUT

FRONT L (BTL

COMPONENT

VIDEO

IN 2

OUT

S VIDEOS VIDEO VIDEOVIDEO

SURR BACK L (ASSIGNABLE

(

)

SINGLE

)

COMPONENT

VIDEO

IN 2

OUT

S VIDEOS VIDEO VIDEOVIDEO

SURR BACK L (ASSIGNABLE

(

)

SINGLE

)

COMPONENT VIDEO

(

)

HD/BNC

OUT

SURR L

UDD

COMPONENT VIDEO

(

)

HD/BNC

OUT

SURR L

UPA

ANTENNA

AC OUTLET

AC 230-240V 50Hz SWITCHED 100W MAX.

AC OUTLET

AC 120V 60Hz

SWITCHED

120W 1A MAX.

MODEL NO.

HDMI

OUT

HDMI

OUT

FM 75

SPEAKERS A

SPEAKERS B

FM 75

SPEAKERS A

SPEAKERS B

DTR-10.5

MODEL NO.

AC INLET

12 V

TRIGGER

OUT

12 V

TRIGGER

OUT

12 V TRIGGER OUT

INLET

DTR-10.5

12 V TRIGGER OUT

232

IR IN

GND

MAIN

ZONE

200mA MAX.

100mA MAX.

GND

100mA MAX.

TOTAL

100mA MAX.

232

IR IN

GND

MAIN

ZONE

200mA MAX.

100mA MAX.

GND

100mA MAX.

TOTAL

100mA MAX.

V DC PWR SUPPLY

20mA MAX.

V DC PWR SUPPLY

20mA MAX.

Page 17

Index Parts and Facilities —Continued

DIGITAL OPTICAL IN/OUT

The input/output terminals for digital sound signal. The sound quality equals the signal passed through the COAXIAL terminals.

DIGITAL COAXIAL IN/OUT

The input/output terminals for digital sound signal. The sound quality equals the signal passed through the OPTICAL terminals.

MULTI-CH IN 1/2 (Australian model)

This connector is for connecting components with a multichannel output. Two sets of multichannel input terminals are available on the DTR-10.5.

AUDIO IN/OUT

These connectors are for connecting to the audio input and output jacks on audio/video components. To connect a turntable, connect to the PH jacks. In addition to the PH jacks, the DTR-10.5 offers nine input and ﬁve output jacks.

VIDEO/S VIDEO IN/OUT

These connectors are for connecting to the video input and output jacks on video components. Six input and 4 output jacks are available for each of VIDEO and S VIDEO connection.

COMPONENT VIDEO IN/OUT

These connectors are for connecting to the component video outputs/inputs of video components that have them. All models for USA, Canada and Australia are equipped with three inputs and one output for the RCA type COMPONENT connection. In addition to these, the Australian model has one input and one output for the BNC type COMPONENT connection. For USA and Canadian models, you can select either BNC or RCA type board at the user’s option. Check the type of terminals or jacks on the device to be connected before making connections.

ANTENNA (FM/AM)

These jacks are for connecting the FM indoor antenna and the AM loop antenna that are supplied with the DTR-10.5.

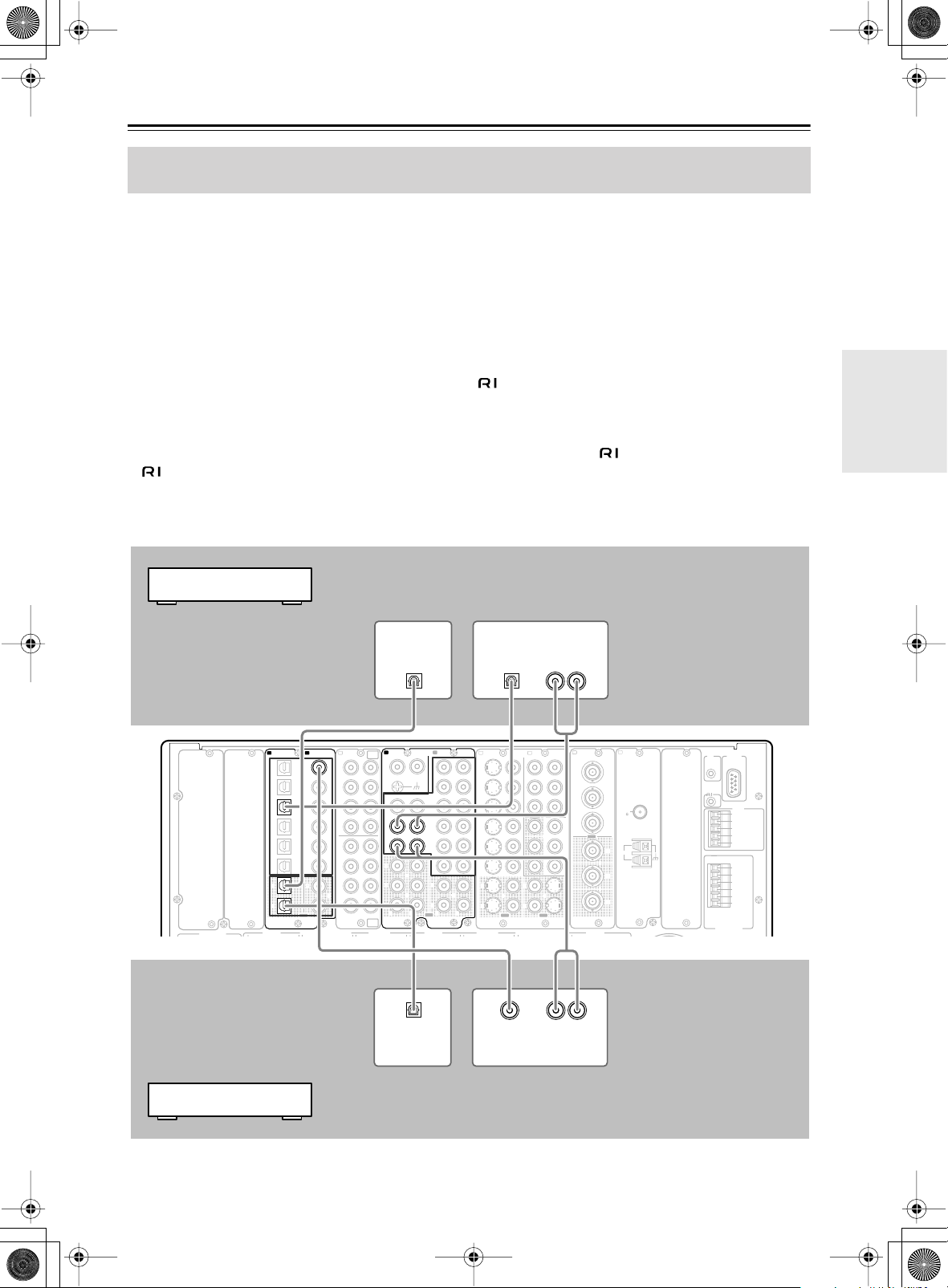

This jack is for connecting other Integra components equipped with the same terminal. The audio

connection cables must also be connected.

12V TRIGGER OUT

These connectors are used to connect to the 12V TRIGGER IN terminal of a component. Available connectors are one with maximum current capacity of 200 mA and four with 100 mA.

RS 232

This port is for connecting the DTR-10.5 to home automation and external controllers.

PRE OUT A/B

To use the DTR-10.5 as a preampliﬁer, connect a power ampliﬁer to this jack.

SPEAKERS A/B

These terminals are for connecting the speakers. Two sets of home theater connections are available (simultaneous playback of different sources in each of two home theaters is not supported). Depending on your system, various speaker connections will be available. For example, you can use the surround back speakers for playback in a different room.

AC OUTLET

The DTR-10.5 is equipped with AC mains outlet for connecting the power cords from other devices so that their power is supplied through the DTR-10.5. By doing this, you can leave the connected device turned on and have the [Standby/On] button on the DTR-10.5 turn on and off the device together with the DTR-10.5.

The shape and total capacity of the AC outlets may differ depending on the area of purchase.

Caution:

Make sure that the total capacity of the components connected to the DTR-10.5 does not exceed the capacity that is printed on the rear panel (e.g., AC 120V - 60Hz SWITCHED 120W 1A MAX.).

AC INLET

This connector is for connecting the supplied power cord.

IR IN

These connectors are for connecting the remote sensor of a multiroom kit (sold separately). The connectors are provided for main room, Zone 2, and Zone 3.

Getting Started

Page 18

Index Parts and Facilities —Continued

Remote Controller (Amp Mode)

The DTR-10.5’s remote controller is a multipurpose device that can be used to control not just the DTR-10.5 but your other AV components as well. This section explains how its various operating modes can be used to control the DTR-10.5. When you use the Net-Tune mode, see page 74 for details. See page 124-135 for information on using the remote controller to control

Integra components connected via and TVs, VCRs, and AV components made by other manufacturers.

Scroll wheel

On Standby

123

@.-'/

ABC DEF

456

GHI JKL MNO

789

PQRS TUV WXYZ

10 0

--/---

Custom

Macro

Dimmer

T V Input

Prev CH

Display

Disc

Main A Main B

Rec

Surround

THXAll CH ST

Pure A

Direct

Repeat Video Music Photo

Test Tone

CH SEL

Album Ar tist GenrePlaylist

Audio SEL

Caps Delete

Clear

Direct Tuning

Enter

AngleSubtitleAudio

DSP DSP

Level

L Night

Language Loca t ion

Input

V CH

V VOL

Zone 3

Zone

InputMode

Sleep

VOL

Muting

Random

Last Memory

Stereo

MemorySearchA-BRepeat

Level

Re-EQ

Amp mode is used to control the DTR-10.5. To select

Amp mode, press the scroll wheel. “AMP” appears on the display.

Note:

While neither the [Input] button nor the [Mode] button is illuminated, rolling the scroll wheel changes the input source and remote controller mode simultaneously.

On button

This button is used to turn on the DTR-10.5.

Standby button

This button is used to set the DTR-10.5 to Standby.

Number/letter buttons

These buttons are used to enter numbers and letters.

Custom button

This button is used to access various settings that you can use to customize the operation of the remote controller.

Macro button

This button is used with the Macro function.

Mode button

This button is used with the scroll wheel to select the remote controller modes.

Dimmer button

This button is used to adjust the display brightness.

Up/Down/Left/Right [ ]/[ ]/[ ]/[ ] &

Enter buttons

These buttons are used to select items on the onscreen setup menus (OSD). The [Enter] button is also used to enter names and to conﬁrm settings.

CH +/– button

This button is used to select radio presets.

Return button

This button is used to return to the previously displayed onscreen setup menu (OSD).

Display button

This button is used to display various information about the currently selected input source.

Main A button

For the speakers used in main room A, every press of this button toggles the status between enabled and disabled.

THX button

This button is used to select the THX listening modes.

Surround button

This button is used to select the Dolby and DTS listening modes.

RC-556M

Page 19

Index Parts and Facilities —Continued

Direct button

This button is used to select the Direct listening mode.

Pure A button

This button is used to select the Pure Audio listening mode.

Test Tone, CH SEL, Level– & Level+ buttons

These buttons are used to adjust the level of each speaker individually. These functions can be set only with the remote controller. The [Level–] and [Level+] buttons are also used to adjust the volume in Zone 2 or Zone 3.

Audio SEL button

This button is used to select the audio input signal format (e.g., analog, digital, etc.).

LIGHT button

This button is used to turn on or off the remote controller’s illuminated buttons.

Direct Tuning button

This button is used with the number buttons to select a radio station by entering its frequency. Press this button ﬁrst, and then use the number buttons to enter the frequency.

Display

The top line of this LCD display shows the name of the currently selected input source. The bottom line shows the currently selected remote controller mode.

Zone 3 button

This button is used when you want to set the volume and input source for Zone 3.

Zone 2 button

This button is used when you want to set the volume and input source for Zone 2.

Input button

This button is used to select the input source. Press this button ﬁrst, and then roll the scroll wheel until the name of the input source appears on the display.

Sleep button

This button is used to set the Sleep function. This function can be set only with the remote controller.

VOL button

This button is used to set the volume of the DTR-10.5.

Setup button

This button is used to access the onscreen setup menus (OSD) that appear on the TV.

Muting button

This button is used to mute the DTR-10.5. This function can be set only with the remote controller.

Main B button

For the speakers used in main room B, every press of this button toggles the status between enabled and disabled.

All CH ST button

This button is used to select the All Ch Stereo listening mode.

Stereo button

This button is used to select the Stereo listening mode.

DSP/DSP buttons

These buttons are used to select the listening modes.

Re-EQ button

This button is used to turn on and off the Re-EQ function.

L Night button

This button is used to set the Late Night function.

Getting Started

Page 20

Speaker Placement

Basic Speaker Placements for Home Theater and the Function of Respective Speakers

The DTR-10.5 has many excellent features to recreate a clear three-dimensional sound image and lively sound movement. This enables you to enjoy, at home, the rich sound effects of a live theater or concert hall performance.

When playing a DVD, you can enjoy sound effects provided by DTS or Dolby Digital, depending on the recording format. In addition, you can enjoy THX sound and Integra’s proprietary DSP surround playback for TV or digital satellite broadcasts.

Front left and right speakers

Outputs overall sound. They play the most important role in a home theater system, by creating basic sound images and ﬁelds.

Center speaker

Complements the sound effects from front left and right speakers to enrich and clear the sound image and movement. In movies, an actor’s speech comes mainly from the center speaker.

Surround back speakers

Enhances the sound space representation with surround channel signals. Recreating sound movement effects and sound ﬁelds behind the listener gives a more realistic experience.

Subwoofer

Outputs only bass sounds to enhance and complement bass sound effects.

Surround left and right speakers

Enhances the sensation of being at a live performance by giving three-dimensional sound movement to the sound effects.

• For optimum surround playback, set the distance between the listener and the speakers so that the time it takes the sound to reach the listener is same. Also, you need to set each speaker volume level individually in order to balance the volume level between speakers (See pages 88 and 90).

Page 21

Front

Left

Front Right

Center

Speaker Placement —Continued

Placing the Speakers

To fully enjoy surround sound, the conﬁguration and placement of the speakers used are important. Be sure to read through the descriptions in the previous page and shown below.

This section provides examples and descriptions that assume a typical situation.

Front Left and Right Speakers, and Center Speaker

• Place the front left and right speakers symmetrically and so that the distance from the listening position is the same.

Front

Left

TV or screen

Center

Front

Right

• When placing speakers, direct the speakers toward the position of the listener’s ears where the listener sits to enjoy music or movies.

• Place the three speakers so that the heights of the three speakers are aligned. The ideal height for the speakers is the height of the listener’s ears. When placing the center speaker above or below the TV, tilt it toward the listener’s ears.

• Place the center speaker as close to the screen or monitor as possible and in the center between the left and right front speakers. When placing the center speaker near the TV, use a shielded speaker.

• If no center speaker is used, place the left and right front speakers closer to each other.

Left and Right Surround Speakers

• Place these speakers on each side of, or angled behind, the listener.

• Place the surround speakers symmetrically from the listener position and so that the distance from the listener is equal between left and right surround speakers.

• When enjoying mainly movies, placing the surround speakers about 3 feet (1 m) higher than the height of the listener’s ears, results in more of a surround effect.

• When enjoying mainly music, placing the surround speakers at the height of the front speakers may provide a

Surround Back

better surround effect.

• When using surround back speakers in addition to the surround speakers, placing the surround speakers slightly forward from their current position will make the sound movement smoother.

Surround Back Speakers

• Place the speakers about 3 feet (1 m) or higher than the height of the listener’s ears.

• When using one surround back speaker, place it behind the listener.

• When using two surround back speakers, place them behind the listener so that the angles between the lines from each surround back speaker to the listener and a line straight back from the listener are about 30 degrees, forming an equilateral triangle of the listener and the two surround back speakers.

* When using a THX-certiﬁed speaker system, also refer to

“Speaker Placement Suitable for THX Audio” on the next page.

Installation and Connections

Page 22

As close as possible

Speaker Placement —Continued

Subwoofer

Using a subwoofer greatly improves the volume level and sound quality of bass sounds. The subwoofer effect depends not only on the listening position but also on the shape of the listening room.

• In general, place the subwoofer in a corner of the room or at a point 1/3 the width of the room.

• Play a movie or music that contains high quality bass sounds to determine the subwoofer placement. Change the subwoofer’s position and check the effect, then select the position where the bass sounds are best heard.

• You can place two subwoofers for more powerful and richer heavy bass sounds.

Speaker Placement Suitable for THX Audio

To enjoy sources using THX Cinema or THX Surround EX technology, we recommend using a THX speaker system from THX Ltd. A speaker system supporting the THX Ultra2 standard is best suited for THX Ultra2 Cinema or THX Music Mode.

The layout example on the right represents a case using the dipole speakers. A dipole speaker is a two-way directivity speaker that outputs the same sound in two directions such as forward and backward.

Most dipole speakers are marked with an arrow indicating how they should be oriented in the room in order to match their phases*. Dipole surround speakers should be placed so that their arrows point forward toward the screen, and dipole surround back speakers should be placed so that their arrows point toward each other.

*Phase: The word represents the waveform position in one cycle (0 to 360 degrees) of a sine wave. If

the phase does not match between multiple waveforms due to the distance between multiple speakers, the speaker orientation, or the miswiring of positive and negative poles, the sound image or space may be obscured or the sound may be less easy to listen to.

When playing the source in the THX Ultra2 Cinema or THX Music Mode format using two surround back speakers supporting the THX Ultra2 standard, place them as close together as possible. After placing the surround back speakers, perform the settings described in the “THX Audio Setup” (page 91).

1/3 room length

Layout with dipole speakers

8 9

Corner

1 TV or screen 2 Subwoofer 3 Front left speaker 4 Center speaker 5 Front right speaker 6 Surround left speaker 7 Surround right

speaker

8 Surround back left

speaker

9 Surround back right

speaker

10 Listening position

Speaker Placement Suitable for a Music Source such as DVD-Audio

This placement is based on the ITU-R* recommendation. In this placement, ﬁve speakers with the same performance capabilities are used for front left and right, center, and left and right surround speakers, and they are placed so that the distances between every speaker and the listening position are equal to each other and the heights of the speaker and the listener’s ears are the same. A mixing studio used for making multichannel DVD-Audio source material adopts this placement.

*ITU-R: International Telecommunication Union Radiocommunication Sector

Front

Left

Center

Front Right

woofer

Sub-

Page 23

Speaker Placement —Continued

Available Speaker Placements According to the Number of Speakers

The following speaker placements will be available according to the number of speakers connected to the DTR-10.5. For the number of speaker channel, _.1 ch represents a subwoofer.

Key to abbreviations: FL : Front left speaker, FR : Front right speaker, C : Center

speaker, SL : Surround left speaker, SR : Surround right speaker, SBL : Surround back left speaker, SBR : Surround back right speaker, SW : Subwoofer

2 ch/2.1 ch

This placement is used with

through the left and right channels accordingly.

3 ch/3.1 ch

FL C

4 ch/4.1 ch

two speakers (front left and right speakers). It is optimum for 2 ch sources including analog 2 ch, 2 ch linear PCM, Dolby Digital, DTS, DTS96/24, and AAC format sources. When the number of channels in the source is 3.1 or greater, the signals will be distributed

This placement is used with

three speakers (front left, front right, and center speakers). When the number of channels in the source is

4.1 or greater, the signal for surround and surround back channels will be output through the front left and right speakers.

In this placement, when the

number of channels in the source is 5.1 or greater, the center channel signal will be output through the front left and right speakers, and the

surround back channels will be output through the surround speakers.

5 ch/5.1 ch

This placement is suitable for

FL C

playing 5.1 ch sources including analog multichannel, Dolby Digital, DTS, and AAC format sources. When the source is 2 ch or mono, the

signal will be decoded with Dolby Pro Logic II or DTS NEO:6 format and played as

5.1 ch sources. When the number of channels in the source is 6.1 or greater, the surround back signal will be distributed through the surround left and right speakers accordingly.

6 ch/6.1 ch/7 ch/7.1 ch (with center speaker)

This placement is suitable for

FL C

playing 6.1 ch sources including DTS-ES Matrix/ Discrete and Dolby Surround EX format signals.

When you use two surround back speakers, the same signal will be output from them because the surround back channel is mono. When the

source is 2 ch or mono, it will be decoded with the Dolby

FL C

Pro Logic IIx/DTS NEO:6 format and played as 6.1/7.1 ch sources.

SBL SBR

6 ch/6.1 ch/5 ch/5.1 ch (without center speaker)

This placement is suitable for

playing 5.1 or 6.1 ch sources when the surround back sound is much more preferred than the center

sound with less speaker units than the normal conﬁguration. The center

SBL SBR

channel signal will be output through the front left and

right speakers.

Installation and Connections

Page 24

Speaker Placement —Continued

Connection Examples

The DTR-10.5 has two speaker terminal blocks for speaker system [A] and [B]. This allows you to build two 7.1 ch home theater systems, and various speaker placements and connections are also available. For example, some channels of either speaker system can be used for another room (Zone 2), or you can select one of two speaker systems for playback according to the source. When you use two speaker systems, you have to associate the speakers with the zone (e.g., Main A, Main B, etc.). After making the association, for example, pressing the “MAIN A” button on the remote controller will output the source from the speakers conﬁgured as “Main A.” Here are some examples of speaker placement and zone association. These examples can be your reference when you build your own home theater system. The illustration on the right represents the actual settings displayed corresponding to each example. For details on conﬁguring speaker placement and zone association, see page 88.

*In the following illustrations, white speakers denote speaker system [A] and gray ones denote speaker system [B]. * Key to abbreviations:

FL : Front left speaker; FR : Front right speaker; C : Center speaker; SL : Surround left speaker; SR : Surround right speaker; SBL : Surround back left speaker; SBR : Surround back right speaker; SW : Subwoofer

When you wish to conﬁgure 7.1 ch speaker system in the main room A only, the initial setting can be used without any modiﬁcation.

Main room A: 7.1 ch speaker system; Main room B: 7.1ch speaker system

FL C

Main room A Main room B

SBL SBR

FL C

SBL SBR

• Set all the zone parameters for speaker system [A] to “Main A.”

1-1.Speaker Config =====================

Speaker A a.Front L/R :Main A b.Center :Main A c.Surr L/R :Main A d.Surr Back :Main A 2ch e.Subwoofer :Main A Speaker B f.Front L/R :Main B g.Center :Main B h.Surr L/R :Main B i.Surr Back :Main B 2ch j.Subwoofer :Main B

• Set all the zone parameters for speaker system [B] to “Main B.”

• Pressing the [Main A] or [Main B] button causes the sound to be output from the speaker system associated with the zone button. Both speaker systems cannot be selected simultaneously.

*If you set all the zone parameters for speaker system [B] to “Main A” and play a single source, the same audio signal will be output from both speaker systems [A] and [B].

Main room A: 7.1 ch speaker system; Main room B: 5.1 ch speaker system; Sub room (Zone 2): 2 ch speakers

1-1.Speaker Config =====================

Main B

FL C

Main room A

SBL SBR

FL C

Zone 2

Main room B

Powered Zone 2

• Set all the zone parameters for speaker system [A] to “Main A.” Set the zone parameters for speaker system [B] to “Main B” and “Zone 2” accordingly.

• Both main room A and B cannot be used simultaneously. However, while either of the main rooms is used, you can enjoy a different source in Zone 2.

• Note that when you use Zone 2, the surround back speakers for main room A cannot be used since Zone 2 uses the surround back speaker circuit for main room A.

Page 25

3-3.Stereo =====================

a. Re-EQ/Academy :Off

b.Front Speaker: B

c.Subwoofer: A

3-3.Stereo =====================

a. Re-EQ/Academy :Off

b.Front Speaker: B

c.Subwoofer: A

Speaker Placement —Continued

Main room A: 7.1 ch speaker systems and the two additional front speakers

(When you want to use speaker system [A] for movies and enjoy 7.1 surround sound and the two additional front speakers for classic music.)

FL FL C

Main room A

FRFR

SBL SBR

1-1.Speaker Config =====================

Speaker A a.Front L/R :Main A b.Center :Main A c.Surr L/R :Main A d.Surr Back :Main A 2ch e.Subwoofer :Main A Speaker B f.Front L/R :Main A g.Center :Not Used h.Surr L/R :Not Used i.Surr Back :Not Used j.Subwoofer :Not Used

Here is an example of the stereo listening mode.

• Set all the zone parameters for speaker system [A] to “Main A.”

• Set the front speaker parameters for speaker system [B] to “Main A.”

• If you want to use the front speakers of speaker system [B] for speciﬁc sources, select the source and set the front speaker setting parameters to “B” in the listening mode setup menu. When you want to output to both speaker systems simultaneously, you can choose the “A+B” setting unless any of the speakers has an impedance of 8 ohm or lower.

• To output the sound, press the [Main A] button on the remote controller.

Main room A: 7.1 ch speaker system and the two additional front speakers connected through the BTL or bi-amp connection (when you want to use either the 7.1 ch speakers or the additional front speakers according to the source)

Main room A

SBL SBR

1-1.Speaker Config =====================

Here is an example of the stereo listening mode.

Installation and Connections

• Set all the zone parameters for speaker system [A] to “Main A.”

• For speaker system [B], set the front speaker parameters to “Main A” and the surround back speaker parameters to “BTL for Front ” or “Bi-Amp for Front” (For details on connections, see page 29).

• When you want to use the front speakers of speaker system [B] for speciﬁc sources, select the source and set the front speaker parameters to “B” in the listening mode setup menu.

*When using the BTL or bi-amp connections, the two speaker systems cannot be used to output simultaneously due to the speaker impedance limitation.

Page 26

1-1.Speaker Config =====================

Speaker A a.Front L/R :Main A b.Center :Main A c.Surr L/R :Main A d.Surr Back :BTL for Front e.Subwoofer :Main A Speaker B f.Front L/R :Not Used g.Center :Not Used h.Surr L/R :Not Used i.Surr Back :Not Used j.Subwoofer :Not Used

3-5.Multichannel Input =====================

b.Re-EQ :Off

e.Surr L/R Sp :A+B

g.Subwoofer :A+B

Speaker Placement —Continued

Main room A: 5.1 ch speaker system including the front speakers connected through the BTL or biamp connections

Main room A

• For speaker system [A], set the surround back speaker parameters to “BTL for Front ” or “Bi-Amp for Front” and all the other speaker parameters to “Main A” (For details on speaker connections, see page 29).

• For speaker system [B], set the speaker parameters to “Not Used.”

*When using the BTL or bi-amp connections, you cannot use Zone 2 since the surround back channel is used for the front speakers of main room A.

Main room A: 7.1 ch from speaker system [A] and additional subwoofer and surround speakers from speaker system [B] (suitable for enjoying more powerful and lively surround sound in main room A); Main room B: two front speakers from speaker system [B] using the BTL or bi-amp connections

FL C

Main room A

SBL SBR

FL FR

Main room B

1-1.Speaker Config =====================

Speaker A a.Front L/R :Main A b.Center :Main A c.Surr L/R :Main A d.Surr Back :Main A 2ch e.Subwoofer :Main A Speaker B f.Front L/R :Main B g.Center :Not Used h.Surr L/R :Main A i.Surr Back :BTL for Front j.Subwoofer :Main A

• For speaker system [A], set all the speaker parameters to “Main A.”

• For speaker system [B], set the surround speaker and subwoofer parameters to “Main A,” the front speaker

• When you want to use the surround speakers and subwoofer of speaker system [B] for speciﬁc sources, select the

Here is an example of the multichannel listening mode.

parameters to “Main B,” and the surround back speaker parameters to “BTL for Front” or “Bi-Amp for Front” (For details on speaker connection, see page 29).

source and set the parameters for these speakers to “B” or “A+B” in the listening mode setup menu. When you set the parameter to “B,” the audio signal comes out from the surround speakers and subwoofer of speaker system [B]. When you set the parameter to “A+B,” the signal comes out from the surround speakers and subwoofer of both speaker systems [A] and [B].

Page 27

Connecting Speakers

Connecting to the Speaker Terminals

After determining the layout of your speaker system, it is now necessary to connect the speakers correctly to your DTR-10.5.

For the USA and Canadian models, you can also use banana plugs/connectors.

You can connect speakers with an impedance of between 4 and 16 ohms. If the impedance of any of the connected speakers is 4 ohms or more, but less than 6 ohms, be sure to set the Speaker Impedance to “4 ohms” (see page 89). If you use speakers with a lower impedance, and use the ampliﬁer at high volume levels for a long period of time, the built-in protection circuit may be activated.

Notes:

• Even if you are using only one speaker or listening to monaural (mono) sound, never connect a single speaker in parallel to both the right and left channel terminals.

• To prevent circuitry damage, never short-circuit the positive (+) and negative (–) speaker wire.

• Be sure to connect the positive and negative cables for the speakers properly. If they are mixed up, the left and right signals will be reversed and the audio will sound unnatural.

• Do not connect more than one speaker cable to one speaker terminal. Doing so may damage the DTR-10.5.

NO!

Attaching the Speaker Labels

The positive speaker terminals on the DTR-10.5 are color coded for easy identiﬁcation. Attach the supplied speaker labels to the speaker cables, and then match the colors on the speaker cables to the corresponding terminals.

Speaker label

The speaker channels are colored as follows:

Front left speaker (+): White Front right speaker (+): Red Center speaker (+): Green Surround left speaker (+): Blue Surround right speaker (+): Grey Surround back left speaker (+): Brown Surround back right speaker (+): Tan

Front right speaker

Center speaker

CENTERFRONT

FRONT

Front left speaker

SPEAKERS A

Installation and Connections

Connecting the Speaker Cable

1. Strip away approx. 5/8 inch (15 mm) of the wire

insulation.

2. Twist the wire ends tightly together.

3. Unscrew the speaker terminal cap.

4. Insert the exposed wire end.

5. Tighten speaker terminal cap.

5/8"

(15 mm)

534

Tip:

The terminal wrench that comes with this unit is a useful tool for tightening/ loosening the speaker terminal cap.

DTR-10.5

SURR BACK R (ASSIGNABLE

SURR

SPEAKERS A SPEAKERS A

Surround right speaker

Surround back right speaker

)

SURR BACK L (ASSIGNABLE)SURR L

(

Surround back left speaker

SINGLE

)

Surround left speaker

Page 28

Connecting Speakers —Continued

Connecting a Subwoofer

Use the SUBWOOFER PRE OUT A/B jack to connect a subwoofer with a built-in power ampliﬁer. If your subwoofer does not have a built-in ampliﬁer, connect an ampliﬁer to the SUBWOOFER PRE OUT A/B jack and the subwoofer to the ampliﬁer. You can connect two subwoofers for different speaker systems. You have to assign a subwoofer to the room in which it will be used (See page 88).

MULTI

LINE INPUT

FRONT SURR SURR

CENTER

PRE OUT A

SUB WOOFER

PRE OUT A

DIGITAL IN DIGITAL IN

OPTICAL COAXIAL

“Net-Tune”

is a trademark of Onkyo Corporation.

ETHERNET

(

)

Net-Tune

SURR

BACK

SUB WOOFER

PRE OUT B

SUB WOOFER

PRE OUT B

OUT

SURR BACK R (ASSIGNABLE

FRONT R (BTL

AUDIO IN

SUB C

SR SL

SBR SBL

FR FL

SUB C

SR SL

SBR SBL

)

S VIDEO

- CH

IN 1

MULTI

- CH

IN 2

GND

R L

OUT

S VIDEO

FRONT LCENTERFRONT

FRONT L

Connecting Auxiliary Power Ampliﬁer (For Speaker System [A] only)

These jacks are for connecting an auxiliary power ampliﬁer. The PRE OUT terminals on the DTR-10.5 use the mode settings for speaker system [A].

You can use an auxiliary power ampliﬁer to listen at louder volumes than you can with the DTR-10.5 alone. When using a power ampliﬁer, connect each speaker to the power ampliﬁer.

DTR-10.5

to White

to Red

to Green

Front Surround back

PRE OUT A

FRONT SURR SURR

CENTER

to Blue

SurroundCenter

BACK

to Gray

to Brown

to Tan

INPUT

Power ampliﬁer

1. Front left speaker

2. Front right speaker

3. Center speaker

4. Surround left speaker

5. Surround right speaker

INPUT

INPUTINPUT

7654321

6. Surround back left speaker

7. Surround back right speaker

Page 29

Connecting Speakers —Continued

FRONT

SURR BACK R (ASSIGNABLE

)

SURR BACK L (ASSIGNABLE

)

(

SINGLE

)

FRONT

SURR BACK R (ASSIGNABLE

)

SURR BACK L (ASSIGNABLE

)

(

SINGLE

)

Using the BTL Connection

To get more powerful sound output, you can make the BTL (Bridged Transless) connection using the front and surround back speaker terminals on the DTR-10.5. In this connection, two speaker outputs of the stereo ampliﬁer will be used as mono output by combining the individual stereo channel outputs, allowing you to get about twice the output.

Note:

When using the BTL connection, make sure that the speaker impedance is 8 ohm or higher. For the settings on the BTL connection, see page 88.

Right speaker Left speaker

FRONT

SURR BACK R (ASSIGNABLE

PRE OUT A

FRONT SURR SURR

BACK

SUB

CENTER

WOOFER

PRE OUT B

)

SURR

FRONT

OUT

SURR BACK R (ASSIGNABLE

FRONT R (BTL

SBR SBL

MULTI

IN 2

)

LR R L

FRONT

OUT

OUT OUT

S VIDEOS VIDEO VIDEOVIDEO

)

FRONT LCENTERFRONT

SURR BACK L (ASSIGNABLE

(

)

SINGLE

)

FRONT L (BTL

UDD

In the BTL connection, the (–) L/R speaker terminals on the DTR-10.5 will not be used.

1. Connect the (+) terminal on the right speaker to the FRONT R SPEAKERS (+) terminal on the DTR-10.5 and the (–) terminal on the right speaker to the SURR BACK R SPEAKERS (+) terminal on the DTR-10.5.

2. Connect the (+) terminal on the left speaker to the FRONT L SPEAKERS (+) terminal on the DTR-10.5 and the (–) terminal on the left speaker to the SURR BACK L SPEAKERS (+) terminal on the DTR-10.5.

Using Bi-amp Connection

When you use bi-wiring-enabled speakers for the front speakers, you can make the bi-amp connection. In this connection, the front and surround back speaker terminals will be used for tweeter and woofer, respectively. This connection allows you to obtain high quality sound as well as maximum treble and bass performance from the tweeter and woofer, enriching your sound experience.

SURR BACK L (ASSIGNABLE

(

SINGLE

OUT

SURR L

SPEAKERS A

AC OUTLET

AC 120V 60Hz

SWITCHED 120W 1A MAX.

SPEAKERS B

MODEL NO.

DTR-10.5

Caution:

• When making the bi-amp connection, make sure to remove the shorting bars connecting the high range (Tweeter) and low range (Woofer) terminals.

• When using the bi-amp connection, make sure that the speaker impedance is 8 ohm or higher.

For the settings on the bi-amp connection, see pages 88,

89.

Bi-wiring-enabled speakers

Right speaker Left speaker

High range (Tweeter)

Low range (Woofer)

FRONT

S VIDEOS VIDEO VIDEOVIDEO

)

(

)

SINGLE

SURR BACK L (ASSIGNABLE

(

SINGLE

OUT

SURR L

SPEAKERS A

AC OUTLET

AC 120V 60Hz

SWITCHED

120W 1A MAX.

SPEAKERS B

UDD

MODEL NO.

DTR-10.5

)

FRONT

SURR

OUT

SURR BACK R (ASSIGNABLE

FRONT R (BTL

SBR SBL

)

LR R L

MULTI

- CH

IN 2

OUT

OUT OUT

FRONT LCENTERFRONT

SURR BACK L (ASSIGNABLE

)

FRONT L (BTL

SURR BACK R (ASSIGNABLE

)

PRE OUT A

FRONT SURR SURR

BACK

SUB

CENTER

WOOFER

PRE

100mA MAX.

TOTAL

100mA MAX.

12 V TRIGGER OUT

AC INLET

1. Connect the (+) tweeter terminal of the right

OUT B

speaker to the FRONT R SPEAKERS (+) terminal on the DTR-10.5 and the (+) woofer terminal of

)

100mA MAX.

TOTAL

100mA MAX.

12 V TRIGGER OUT

AC INLET

Installation and Connections

the right speaker to the SURR BACK R SPEAKERS (+) terminal on the DTR-10.5.

2. Connect the (–) tweeter terminal of the right

speaker to the FRONT R SPEAKERS (–) terminal on the DTR-10.5 and the (–) woofer terminal of the right speaker to the SURR BACK R SPEAKERS (–) terminal on the DTR-10.5.

3. Connect the (+) tweeter terminal of the left speaker

to the FRONT L SPEAKERS (+) terminal on the DTR-10.5 and the (+) woofer terminal of the left speaker to the SURR BACK L SPEAKERS (+) terminal on the DTR-10.5.

4. Connect the (–) tweeter terminal of the left speaker

to the FRONT L SPEAKERS (–) terminal on the DTR-10.5 and the (–) woofer terminal of the left speaker to the SURR BACK L SPEAKERS (–) terminal on the DTR-10.5.

Page 30

Connecting Antennas

■

This chapter explains how to connect the supplied indoor FM antenna and AM loop antenna, and how to connect commercially available outdoor FM and AM antennas.

FM antenna connector

AM antenna push terminals

MULTI

FRONT R (BTL

AUDIO IN

- CH

IN 1

SUB C

GND

SR SL

SBR SBL

FR FL

SUB C

SR SL

SBR SBL

R L

OUT

MULTI

- CH

IN 2

)

CENTERFRONT

)

PRE OUT A

FRONT SURR SURR

CENTER

DIGITAL IN DIGITAL IN

OPTICAL COAXIAL

“Net-Tune”

is a trademark of Onkyo Corporation.

ETHERNET

(

)

Net-Tune

OUT

SURR

SURR BACK R (ASSIGNABLE

BACK

SUB

WOOFER

PRE OUT B

S VIDEO VIDEO

IN IN

214

FRONT

FRONT L (BTL

OUT OUT

OUT

SURR BACK L (ASSIGNABLE

(

)

SINGLE

)

COMPONENT

VIDEO

IN 2

S VIDEOS VIDEO VIDEOVIDEO

)

232

COMPONENT VIDEO

(

)

HD/BNC

OUT

SURR L

UDD

12 V

ANTENNA

HDMI

TRIGGER OUT

SPEAKERS A

SPEAKERS B

AC 120V 60Hz

MODEL NO.

IR IN

V DC PWR SUPPLY

20mA MAX.

GND

MAIN

ZONE

200mA MAX.

100mA MAX.

GND

100mA MAX.

TOTAL

100mA MAX.

OUT

12 V TRIGGER OUT

AC INLET

AC OUTLET

SWITCHED

120W 1A MAX.

DTR-10.5

Connecting the Indoor FM Antenna

The supplied indoor FM antenna is for indoor use ony.

Attach the FM antenna, as shown.

USA and Canadian Models

Insert the plug fully into the socket.

Australian Model

Insert the plug fully into the socket

Once your DTR-10.5 is ready for use, you’ll need to tune into an FM radio station and adjust the position of the FM antenna to achieve the best possible reception.

Use thumbtacks or something similar to ﬁx the FM antenna into position.

Thumbtacks, etc.

Caution: Be careful that you don’t injure

yourself when using thumbtacks.

If you cannot achieve good reception with the supplied indoor FM antenna, try using a commercially available outdoor FM antenna instead.

Page 31

Connecting Antennas —Continued

Connecting the AM Loop Antenna

The supplied indoor AM loop antenna is for indoor use only.

Assemble the AM loop antenna, inserting

the tabs into the base, as shown.

Connect both wires of the AM loop

antenna to the AM push terminals, as shown.

(The antenna’s wires are not polarity sensitive, so they can be connected in either terminal) Make sure that the wires are attached securely and that the push terminals are gripping the bare wires, not the insulation.

Push Insert wire Release

Connecting an Outdoor FM Antenna

If you cannot achieve good reception with the supplied indoor FM antenna, try using a commercially available outdoor FM antenna instead.

Notes:

• Outdoor FM antennas work best outside, but acceptable results can sometimes be obtained when installed in an attic or loft.

• For best results, install the outdoor FM antenna well away from tall buildings, preferably with a clear line of sight to your local FM transmitter.

• Outdoor antennas should be located away from possible noise sources, such as neon signs, busy roads, etc.

• For safety reasons, outdoor antennas should be situated well away from power lines and other high voltage equipment.

• Outdoor antennas must be grounded in accordance with local regulations to prevent electric shock hazards.

Using a TV/FM Antenna Splitter

It’s best not to use the same antenna for both FM and TV reception, as this can cause interference problems. If circumstances demand it, use a TV/FM antenna splitter, as shown.

Installation and Connections

Once your DTR-10.5 is ready for use, you’ll need to tune into an AM radio station and adjust the position of the AM antenna to achieve the best possible reception. Keep the antenna as far away as possible from your DTR-10.5, TV, speaker cables, and power cords.

If you cannot achieve good reception with the supplied indoor AM loop antenna, try using a commercially available outdoor AM antenna.

TV/FM antenna splitter

To TV (or VCR)To AV receiver

Connecting an Outdoor AM Antenna

If good reception cannot be achieved using the supplied AM loop antenna, an outdoor AM antenna can be used in addition to the loop antenna, as shown.

Outdoor antenna (aerial)

Insulated antenna cable

AM loop antenna

Outdoor AM antennas work best when installed outside horizontally, but good results can sometimes be obtained indoors by mounting it horizontally above a window. Note that the AM loop antenna should be left connected. Outdoor antennas must be grounded in accordance with local regulations to prevent electric shock hazards.

Page 32

Connecting AV Components

Types of Connection Cables and Terminals

In addition to the conventional terminals, the DTR-10.5 has various terminals that are capable of next-generation digital transmission.

Before connecting AV components to the DTR-10.5, make sure that your cable type matches the terminal shape and the signal type and that the cable length is appropriate for the placement of your connected components.

Audio cables

Cable names Cable forms Terminals shapes Description

Optical cable

The connection using these cable types transmits digital audio signals. There is no sound quality difference among these cable types.

Note:

Some optical cables have their own covers. Before making a connection, remove the covers. When plugging in a cable, be sure to match

Coaxial cable

the connector shape with the terminal shape. Each optical terminal on the DTR-10.5 has its own shutter-type cover. For the DTR-10.5, plug in the optical cables so that the optical cable connector pushes the terminal cover down.

Audio connection cable

Multichannel connection cable

i.LINK connection cable (4-pin (S400) type)

Ethernet cable (CAT-5 Straight type)

SUB C

SR SL

SBR SBL

ETHERNET

(

Net-Tune

MULTI

IN 1

)

This connection transmits an analog audio signal. Plug the red connector (R) into the right channel terminal and the white connector (L) into the left channel connector.

For USA and Canadian models, this terminal board is optional. The terminals for this cable type are for DVD players that are compatible with the DVD-Audio format. This connection transmits multichannel analog audio signals.

This terminal board is optional. This connection can be used for connecting i.LINK (AUDIO)enabled devices and to transmit digital audio signals. Also, multichannel analog audio signals from DVD-Audio or Super Audio CD format sources will be transmitted digitally. The DTR-10.5 handles only audio signals through i.LINK connection.

This terminal board is optional. The Ethernet cable is used for connecting multiple PCs or network-ready audio components that constitute a local area network (LAN). A LAN is a smaller network composed within a house or building. The connecting terminals for the Ethernet cables are often called “LAN port” or “broadband port.”

*The audio input signal from the ETHERNET (Net-Tune) or MULTI-CH IN terminal will not be output to the HDMI OUT terminal. Also, the DVD audio or SACD audio input signal from the i.LINK (AUDIO) terminal will not be output to the HDMI OUT terminal.

When you play a source in the remote zone (Zone 2 or Zone 3), the following restrictions are applied.

• When you play the audio signal from Super Audio CD or DVD-Audio format sources through the i.LINK (AUDIO) interface, the audio input signal from these sources will not be output to Zone 2 or Zone 3. With this connection, you cannot record from these sources.

• When you play the audio signal from the i.LINK (AUDIO) interface in Zone 3, only the PCM signal will be output as an analog source to the AUDIO OUT terminals. Similarly, with this connection, you can record only the PCM signal as an analog source through the AUDIO OUT terminals.

• The audio input signal from the LAN port will be output only to the AUDIO OUT terminals as an analog source.

• When you play the audio signal from the PH or AUDIO IN terminals in Zone 3, the input source will be output only to the AUDIO OUT terminals as an analog source. Similarly, in this connection, you can record only the audio signal as an analog source through the AUDIO OUT terminals.

Page 33

Connecting AV Components —Continued

• When you play the audio signal from the DIGITAL IN terminals in Zone 2, the source will be downmixed into 2channel analog audio signal and output to the AUDIO OUT terminals.

• When you play the audio signal from the DIGITAL IN terminals in Zone 3, only the PCM signal will be output as an analog source to the AUDIO OUT terminals. Similarly, with this connection, you can record only the PCM signal as an analog source through the AUDIO OUT terminals.

• The audio input signal from the HDMI IN terminal can be output to the HDMI OUT terminal.

• The audio input signal from the MULTI-CH IN terminals in Zone 2 will be downmixed into a 2-channel source for output. You cannot play the source from the MULTI-CH IN terminals in Zone 3 and record it.

Video cables

Cable names Cable forms Terminals shapes Description

Component video connection cable (RCA type)

Component video connection cable (BNC type)

In this connection, the video signal is decomposed into three color difference signals (Y, Pb/ Cb, and Pr/Cr) and carried through three cables, which provides better video quality than the S Video connection. The terminal shape for the component video connection cable can be BNC-type or RCAtype. For the DTR-10.5, the USA and Canadian models are equipped only with RCA-type terminals, and the Australian model is equipped with both RCA-type and BNC-type terminals. You can also install an optional BNC type terminal board for USA and Canadian models. This connection cannot transmit information for controlling video devices (e.g., aspect ratio).

S Video connection cable

Video connection cable

HDMI connection cable

The video quality is better than with the composite signal. In this connection, the DTR-10.5 cannot transmit the information for controlling video devices (e.g., aspect ratio).

This connection transmits the standard video signal and is widely used for various video devices such as TV and video recorder.

This terminal board is optional. This connection carries the video signals digitally. (Note that no audio signal is carried with this unit.)

Note:

When you play the source in the remote zone (Zone 2 or Zone 3), connect the TV or monitor to the VIDEO 1, VIDEO 2, or VIDEO 3 terminal.

• Always refer to the instructions that came with the component that you are connecting.

• Do not plug in the power cord until all connections have been properly made.

• Insert all plugs and connectors securely. Improper connections can result in noise, poor performance, or damage to the equipment.

Example: Audio connection cable

Wrong!

Right!

• Do not bind audio/video connection cables with power cords and speaker cables. Doing so may adversely affect the picture and sound quality.

Installation and Connections

Page 34

Connecting AV Components —Continued

Connecting Monitors such as TV or Projector

• This section describes the connections for displaying the video source or the operating information of the DTR-10.5 on a monitor device such as a TV or projector. Before making a connection, check the terminal types on the monitor device and acquire the necessary cables by referring to page 33.

• When your TV or monitor has various types of input terminals, use the connection with which you can get the best video quality. On TV screen or projector which is connected via COMPONENT terminal, you can view the images from devices connected via VIDEO, S VIDEO or COMPONENT terminal, because the DTR-10.5 has a built-in video-up converter. However, you cannot view the images from devices connected via COMPONENT terminal on TV or projector which is connected via VIDEO or S VIDEO terminal (In this case of connection, images will be available if you use an HDMI terminal board).

• The VIDEO OUT 4 and S VIDEO OUT 4 terminals can be used only for Main room A.

• When you enjoy the video source in the remote zone (Zone 2 or Zone 3), the TV or monitor should be connected to the VIDEO 1, VIDEO 2, or VIDEO 3 terminal.

*For more information on the HDMI interface, see page 45.

Make a connection using any of the terminals below.

*1 When connecting to the other S VIDEO OUT terminal, conﬁgure the video output

settings accordingly using the Video Output Assign sub-menu (See page 92).

*2 When connecting to the other VIDEO OUT terminal, conﬁgure the video output

settings accordingly using the Video Output Assign sub-menu (See page 92).

*3 Australian model only.

Monitor device such as TV and projector for Main room A

VIDEO

Monitor device such as TV for Main room B

VIDEO

S VIDEO

S VIDEO VIDEO

IN IN

OUT

OUT OUT

VIDEO

IN 2

COMPONENT VIDEO

(

HD/BNC

S VIDEOS VIDEO VIDEOVIDEO

COMPONENT

Monitor device such as TV for Zone 2

COMPONENT VIDEO (RCA)

)

OUT

COMPONENT VIDEO (BNC)

ANTENNA

HDMI

FM 75

OUT

232

12 V TRIGGER OUT

IR IN

V DC PWR SUPPLY

GND

MAIN

ZONE

200mA MAX.

100mA MAX.

GND

100mA MAX.

TOTAL

100mA MAX.

12 V

20mA MAX.

HDMI

(Option)

VIDEO

Monitor device such as TV for Zone 3

Page 35

5En10.530-46AV.fm 35 ページ２００４年１０月２５日月曜日午後１時４８分

Connecting AV Components —Continued

Connecting a DVD Player

• When connecting a DVD player to the DTR-10.5, make connections for video and audio signals using digital and analog terminals. Before making connections, refer to pages 32 and 33 for correct connections.

• When you want to perform analog recording of the audio signal from a DVD player or operate your -compatible Integra products via connections with the DTR-10.5, you have to make analog audio signal connections. Con-

nect the audio output terminals on the DVD player to the AUDIO IN terminals on the DTR-10.5 using analog audio cables (RCA/phono).

• This section shows the connection example when you use the default settings of the DTR-10.5. However, you can connect a DVD player to other terminals within the same terminal section on the DTR-10.5. In such case, remember to conﬁgure the audio input assignment in the Audio Assign sub-menu (See page 94) and the video input assignment in the Video Assign sub-menu (See page 95).

• For a model without a HDMI terminal, when you connect a DVD player to the COMPONENT terminals, be sure to use the COMPONENT terminal to connect a TV or projector.

*For more information on the HDMI interface, see page 45. *For more information on the i.LINK (AUDIO) interface, see page 42.

DVD player

When connecting to other audio terminals within the same terminal section, conﬁgure the audio input settings accordingly using the Audio Assign sub-menu. (See page 94.)

Audio Output Video Output

AUDIO OUT

DIGITAL

OPTICAL

PRE OUT A

FRONT SURR

DIGITAL IN DIGITAL IN

1 1

“Net-Tune”

is a trademark of Onkyo Corporation.

ETHERNET

(

)

Net-Tune

SURR

OPTICAL COAXIAL

OUT

SURR BACK R (ASSIGNABLE

CENTER

SUB

WOOFER

SUB C

SR SL

SBR SBL

FR FL

SUB C

SR SL

SBR SBL

)

MULTI

IN 1

MULTI

IN 2

SURR BACK

AUDIO OUTMULTICH OUT

ANALOG

AUDIO IN

GND

OUT

CENTERFRONT

R L

S VIDEO VIDEO

IN IN

FRONT

When connecting to other video terminals within the same terminal section, conﬁgure the video input settings accordingly using the Video Assign sub-menu. (See page 95.)

S VIDEO

OUT

COMPONENT

VIDEO

IN 2

COMPONENT VIDEO

(

)

HD/BNC

OUT

OUT OUT

S VIDEOS VIDEO VIDEOVIDEO

SURR BACK L (ASSIGNABLE

)

SURR L

VIDEO

OUT

COMPONENT

OUT (RCA)

HDMI

OUT

Installation and Connections

ANTENNA

FM 75

HDMI

OUT

232

12 V TRIGGER OUT

IR IN

V DC PWR SUPPLY

20mA MAX.

GND

MAIN

ZONE

200mA MAX.

100mA MAX.

GND

100mA MAX.

TOTAL

100mA MAX.

12 V TRIGGER OUT

(Optional for USA and Canadian models)

(Option)

Page 36

Connecting AV Components —Continued

Connecting a DVD Recorder or Digital VCR (VIDEO 1)

• When connecting a DVD recorder or digital VCR to the DTR-10.5, make connections for video and audio signals using digital and analog terminals. Before making connections, refer to pages 32 and 33 for correct connections.

• This section shows the connection example when you use the VIDEO 1 as an input. In this case, you do not need additional conﬁgurations. When connecting to other terminals within the same terminal section on the DTR-10.5, conﬁgure the audio input assignment in the Audio Assign sub-menu (See page 94), the video input assignment in the Video Assign sub-menu (See page 95), the audio output assignment in the Audio Output Assign sub-menu (See page

91), and the video output assignment in the Video Output Assign sub-menu (See page 92).

• You can change the display name for the input source to represent the actual connected device (See page 97).

• When you want to perform analog recording of the audio signal from the digital device, you have to make analog audio signal connections. Connect the audio output terminals on the digital device to the AUDIO IN terminals on the DTR-10.5 using analog audio cables (RCA/phono).

• For a model without a HDMI terminal, when you connect a DVD recorder or digital VCR to the COMPONENT terminals, be sure to use the COMPONENT terminals to connect a TV or projector.

*For more information on the HDMI interface, see page 45. *For more information on the i.LINK (AUDIO) interface, see page 42.

Example for connecting with the VIDEO 1 as input

Digital video recorder (DVD recorder, digital VCR)

When connecting to other audio terminals within same terminal section, conﬁgure the audio input settings accordingly using the Audio Assign sub-menu (See page

94).

“Net-Tune” is a trademark of Onkyo Corporation.

ETHERNET

(

Net-Tune

DIGITAL IN DIGITAL IN

OPTICAL COAXIAL

2 2

)

When connecting to other audio terminals within the same terminal section, conﬁgure the audio output settings accordingly using the Audio Output Assign submenu (See page 91).

Audio Output Video Output

FR FL

SUB C

SR SL

SBR SBL

SUB C

SR SL

SBR SBL

AUDIO IN

DIGITAL

COAXIAL

MULTI

IN 1

MULTI

IN 2

AUDIO OUT

ANALOG

AUDIO IN

GND

R L

OUT

AUDIO IN ANALOG

S VIDEO

OUT

S VIDEO VIDEO

OUT

AUDIO OUT

DIGITAL

COAXIAL

Audio Input Video Input

VIDEO

IN IN

OUT OUT

OUT

S VIDEO

S VIDEOS VIDEO VIDEOVIDEO

COMPONENT

OUT (RCA)

COMPONENT

VIDEO

IN 2

COMPONENT VIDEO

(

)

HD/BNC

VIDEO

When connecting to other video terminals within the same termi-

nal section, conﬁgure the video

input settings accordingly using the Video Assign sub-menu (See page 95).

ANTENNA

FM 75

OUT

When connecting to other video terminals within the same terminal section, conﬁgure the video output settings accordingly using the Video Output Assign submenu (See page 92).

232

12 V

HDMI

TRIGGER OUT

IR IN

V DC PWR SUPPLY

20mA MAX.

GND

MAIN

ZONE

200mA MAX.

100mA MAX.

GND

100mA MAX.

TOTAL

12 V TRIGGER OUT

100mA MAX.

OUT

Page 37

Connecting AV Components —Continued

Connecting a VCR (VIDEO 2, VIDEO 3)

• When connecting a VCR to the DTR-10.5, make connections for video and audio signals. Before making connections, refer to pages 32 and 33 for correct connections.

• This section shows the connection example when you use VIDEO 2 or VIDEO 3 as an input. In this case, you do not need additional conﬁgurations. When connecting to other terminals within the same terminal section on the DTR-10.5, conﬁgure the audio input assignment in the Audio Assign sub-menu (See page 94), the video input assignment in the Video Assign sub-menu (See page 95), the audio output assignment in the Audio Output Assign menu (See page 91), and the video output assignment in the Video Output Assign menu (See page 92).

• You can change the display name for the input source to represent the actual connected device (See page 97).

• For a model without a HDMI terminal, when you connect a VCR to the COMPONENT terminals, be sure to use the COMPONENT terminals to connect a TV or projector.

*For more information on the HDMI interface, see page 45. *For more information on the i.LINK (AUDIO) interface, see page 42.

Example for connecting with the VIDEO 2 as input

VCR

When connecting to other audio terminals within the same terminal section, conﬁg-

Audio Output Video Output

AUDIO OUT AUDIO OUT

AUDIO OUT

DIGITAL

COAXIAL

ure the audio input settings accordingly using the Audio Assign sub-menu (See page

94).

For digital VCR

“Net-Tune” is a trademark of Onkyo Corporation.

ETHERNET

(

Net-Tune

DIGITAL IN DIGITAL IN

OPTICAL COAXIAL

3 3

)

OUT

When connecting to other audio terminals within the same terminal section, conﬁgure the audio output settings accordingly using the Audio Output Assign sub-menu (See page 91).

SUB C

SBR SBL

FR FL

SUB C

SBR SBL

SR SL

MULTI

IN 1

MULTI

IN 2

AUDIO OUT

ANALOG

Audio Input

AUDIO IN

GND

R L

OUT

AUDIO IN

ANALOG

S VIDEO

OUT

S VIDEO VIDEO

IN IN

VIDEO

OUT

OUT OUT

S VIDEO

Video Input

When connecting to other

COMPONENT

VIDEO (RCA)

video terminals within the same terminal section, conﬁg-

ure the video input settings accordingly using the Video Assign sub-menu (See page

95).

COMPONENT VIDEO

IN 2

S VIDEOS VIDEO VIDEOVIDEO

COMPONENT VIDEO

(

)

HD/BNC

OUT

ANTENNA

HDMI

OUT

When connecting to other video terminals within the same terminal section, conﬁgure the video output settings accordingly using the Video Output Assign sub-menu (See page

92).

232

12 V TRIGGER OUT

IR IN

V DC PWR SUPPLY

20mA MAX.

GND

MAIN

ZONE

200mA MAX.

100mA MAX.

GND

100mA MAX.

TOTAL

100mA MAX.

12 V TRIGGER OUT

Installation and Connections

Page 38

Connecting AV Components —Continued

Example for connecting with the VIDEO 3 as input

VCR

When connecting to other audio terminals within the same terminal section, conﬁgure the audio input settings accordingly using the Audio Assign sub-menu (See page

94).

For digital VCR

“Net-Tune” is a trademark of Onkyo Corporation.

ETHERNET

(

Net-Tune

DIGITAL IN DIGITAL IN

OPTICAL COAXIAL

4 4

)

Audio Outpuit Video Output

FR FL

SUB C

SR SL

SBR SBL

SUB C

SR SL

SBR SBL

MULTI

IN 1

MULTI

IN 2

AUDIO OUT

ANALOG

GND

AUDIO IN

OUT

R L

S VIDEO

S VIDEO VIDEO

IN IN

OUT

AUDIO OUT

DIGITAL

OPTICAL

OUT

OUT OUT

VIDEO

OUT

COMPONENT VIDEO

IN 2

S VIDEOS VIDEO VIDEOVIDEO

COMPONENT

OUT (BNC)

COMPONENT VIDEO

(

)

HD/BNC

OUT

When connecting to other video terminals within the same terminal section, con-

ﬁgure the video input set-

tings accordingly using the Video Assign sub-menu (See page 95).

* For USA and Canadian mod-

els, you can select either BNC or RCA type board at the user’s option.

ANTENNA

FM 75

HDMI

OUT

232

12 V TRIGGER OUT

IR IN

V DC PWR SUPPLY

20mA MAX.

GND

MAIN

ZONE

200mA MAX.

100mA MAX.

GND

100mA MAX.

TOTAL

100mA MAX.

12 V TRIGGER OUT

When connecting to other audio terminals within the same terminal section, conﬁgure the audio output settings accordingly using the Audio Output Assign sub-menu (See page 91).

AUDIO IN ANALOG

S VIDEO

Audio Input Video Input

When connecting to other video terminals within the same terminal section, conﬁgure the video output settings accordingly using the Video Output Assign sub-menu (See page

92).

Page 39

Connecting AV Components —Continued

Connecting a DBS Tuner, DBS TV, or BS/CS Tuner

• When connecting a DBS tuner, DBS TV, or BS/CS tuner to the DTR-10.5, make connections for video and audio signals using digital and analog terminals. Before making connections, refer to pages 32 and 33 for correct connections.

• This section shows the connection example when you use the VIDEO 4 or VIDEO 5 as an input. In this case, you do not need additional conﬁgurations. When connecting to other terminals within the same terminal section on the DTR-10.5, remember to conﬁgure the audio input assignment in the Audio Assign sub-menu (See page 94) and the video input assignment in the Video Assign sub-menu (See page 95). When you use the S VIDEO terminal for connection, you should conﬁgure the Video Assign sub-menu.

• You can change the display name for the input source to represent the actual connected device (See page 97).

• For a model without a slot for the HDMI terminal, when you connect a BS/CS tuner or LD player to the COMPONENT terminals, be sure to use the COMPONENT terminals to connect a TV or projector.

*For more information on the HDMI interface, see page 45. *For more information on the i.LINK (AUDIO) interface, see page 42.

Example for connecting with the VIDEO 4 as input

When connecting to other audio terminals within the same terminal section, conﬁgure the audio input settings accordingly using the Audio Assign sub-menu (See page 94).

DIGITAL

COAXIAL

“Net-Tune” is a trademark of Onkyo Corporation.

ETHERNET

(

Net-Tune

AUDIO OUTAUDIO OUT

DIGITAL IN DIGITAL IN

OPTICAL COAXIAL

4 4

5 5

)

OUT

SUB C

SBR SBL

FR FL

SUB C

SBR SBL

SR SL

AUDIO OUT

DIGITAL

OPTICAL

MULTI

IN 1

MULTI

IN 2

VIDEO

OUT

AUDIO OUT

ANALOG

AUDIO IN

GND

R L

OUT

S VIDEO VIDEO

IN IN

VIDEO

OUT

OUT OUT

OUT

When connecting to other video terminals within the same terminal section, conﬁgure the video input settings accordingly using the Video Assign sub-menu (See page 95).

COMPONENT VIDEO

IN 2

S VIDEOS VIDEO VIDEOVIDEO

COMPONENT VIDEO

(

)

HD/BNC

OUT

ANTENNA

FM 75

HDMI

OUT

232

12 V TRIGGER OUT

IR IN

V DC PWR SUPPLY

20mA MAX.

GND

MAIN

ZONE

200mA MAX.

100mA MAX.

GND

100mA MAX.

TOTAL

100mA MAX.

12 V TRIGGER OUT

Installation and Connections

When connecting to other audio terminals within the same terminal section, conﬁgure the audio input settings accordingly using the Audio Assign sub-menu (See page 94).

When connecting to other video terminals within the same terminal section, conﬁgure the video input settings accordingly using the Video Assign sub-menu (See page 95).

Example for connecting with the VIDEO 5 as input

Page 40

GND

“Net-Tune” is a trademark of Onkyo Corporation.

2 2

OPTICAL COAXIAL

AUDIO IN

S VIDEO VIDEO

IN IN

IN 2

COMPONENT VIDEO

ANTENNA

DIGITAL IN DIGITAL IN

OUT

SBR SBL

SR SL

SUB C

MULTI

IN 1

COMPONENT VIDEO

(

HD/BNC

)

Connecting AV Components —Continued

Connecting a Portable DVD Player or Video Camcorder

• When connecting a portable DVD player or video camcorder to the DTR-10.5, use the Video 7 Input terminals on the front panel.

• You can change the display name for the input source to represent the actual connected device (See page

97).

Game, Portable DVD, Video Camcorder

Input

Video 7

Digital S Video Video AudioLR

AUDIO OUT

DIGITAL

OPTICAL

AUDIO OUT

ANALOG

VIDEO

OUT

S VIDEO

OUT

Connecting a CD Player, Turntable or Tuner

• When connecting a CD player to the DTR-10.5, make connections using digital or analog terminals. Before making connections, refer to page 32 for correct connections. This section shows the connection example when you use the default audio input assignment settings. However, when you use coaxial cables for digital audio signals, connect the CD player to any terminal between the AUDIO IN DIGITAL COAXIAL 1 and 6, and remember to conﬁgure the audio input assignment settings in the Audio Assign sub-menu (See page 94).

• When connecting a turntable, use the PH terminal. The PH terminal on the DTR-10.5 is designed for turntables that use a moving magnet (MM) cartridge. When you want to use a turntable with a moving coil (MC) cartridge, connect the turntable through a step-up transformer or head ampliﬁer.

• If you assign other terminals to the PHONO input source, you need to conﬁgure the audio input assignment settings in the Audio Assign sub-menu (See page 94).

• When a turntable is equipped with a ground wire, connect the wire to the GND terminal on the DTR-10.5. However, some turntables may produce noise when the ground wire is connected to the DTR-10.5. In such a case, you do not have to connect the ground wire.

• When you want to perform analog recording of the audio signal or operate your -compatible Integra products via

connections with the DTR-10.5, you have to make analog audio signal connections. Connect the audio output terminals on the source device to the AUDIO IN terminals on the DTR-10.5 using analog audio cables (RCA/ phono).

CD Player

When connecting to other audio terminals within the same terminal section, conﬁgure the audio input set-

AUDIO OUT AUDIO OUT

DIGITAL

OPTICAL

ANALOG

Turntable

tings accordingly using the Audio Assign sub-menu (See page 94).

GNDGND

Page 41

Connecting AV Components —Continued

Connecting a Recording Device such as MD Recorder, DAT Deck, CD Recorder or Cassette Deck

• When connecting a MD recorder, DAT deck or CD recorder to the DTR-10.5, make connections using digital or analog terminals. Before making connections, refer to page 32 for correct connections.

• Connect a cassette or DAT tape deck to TAPE1, and an MD or CD recorder to TAPE 2.

• When you connect a cassette deck to the DTR-10.5, be sure to use only analog audio terminals. In the initial settings, no terminal of this unit is assigned to a REC terminal of the cassette deck. To achieve the assignment, connect the REC terminal of the cassette deck to any of the AUDIO OUT 1 to 5 terminals and set the terminal to “Tape 1 Rec Out” in the Audio Output Assign sub-menu (See page 91). In addition, you can switch the input source “TAPE2” to MD or CDR. Press the [Tape 2] button on the front panel to display “TAPE 2,” then press the [Tape 2] button again and hold it for 3 seconds. This changes the display to “MD.” If you wish to change it to “CDR,” release the button once, and press and hold it again for 3 seconds. This operation enables you to operate Onkyo’s MD or CD recorders

with the remote controller of this unit (Please note that the connection is required).

• When connecting to other terminals, remember to conﬁgure the audio input assignment in the Audio Assign submenu (See page 94) and the audio output assignment in the Audio Output Assign sub-menu (See page 91).

• You can change the display name for the input source to represent the actual connected device (See page 97).

• When you want to perform analog recording of an audio signal or operate your -compatible Integra products via

Example for connecting with the TAPE 1 as input

Cassette deck or DAT deck

When connecting to other digital audio terminals or to other analog audio output terminals, conﬁgure the audio output settings accordingly using the Audio Output Assign sub-menu (See page 91).

PRE OUT A

“Net-Tune” is a trademark of Onkyo Corporation.

ETHERNET

(

Net-Tune

DIGITAL IN DIGITAL IN

OPTICAL COAXIAL

1 1

3 3

)

2 2

SURR

OUT

SURR BACK R (ASSIGNABLE

SUB C

SBR SBL

FR FL

SUB C

SBR SBL

SR SL

)

When connecting to other digital audio terminals or to other analog audio output terminals, conﬁgure the audio output settings accordingly using the Audio Output Assign submenu (See page 91).

AUDIO IN

DIGITAL

OPTICAL

AUDIO OUT

DIGITAL

OPTICAL

AUDIO OUT

ANALOG

terminals within the same terminal section, conﬁgure the audio input settings accordingly using the Audio Assign sub-menu (See page

When connecting to other audio

94).

MULTI

IN 1

MULTI

IN 2

AUDIO IN

GND

OUT

CENTERFRONT

R L

S VIDEO VIDEO

IN IN

FRONT

OUT OUT

COMPONENT

VIDEO

IN 2

OUT

S VIDEOS VIDEO VIDEOVIDEO

SURR BACK L (ASSIGNABLE

)

COMPONENT VIDEO

(

)

HD/BNC

OUT

SURR L

ANTENNA

FM 75

HDMI

OUT

232

12 V TRIGGER OUT

IR IN

V DC PWR SUPPLY

20mA MAX.

GND

MAIN

ZONE

200mA MAX.

100mA MAX.

GND

100mA MAX.

TOTAL

100mA MAX.

12 V TRIGGER OUT

Installation and Connections

When connecting to other audio terminals within the same terminal

AUDIO IN

DIGITAL

OPTICAL

AUDIO OUT

DIGITAL

COAXIAL

AUDIO OUT

ANALOG

settings accordingly using the Audio Assign sub-menu (See page

section, conﬁgure the audio input

94).

MD recorder or CD recorder

Example for connecting to the TAPE 2 as input

Page 42

Connecting AV Components —Continued

Connection Using the i.LINK (AUDIO) Terminal ( )

The i.LINK (AUDIO) terminal is available when the i.LINK terminal board [A] is installed.

What is i.LINK

i.LINK is an appellation of IEEE1394, which is the digital interface standard deﬁned by the Institute of Electrical and Electronics Engineers (IEEE). Connecting i.LINK linked devices, and their control.

What is i.LINK (AUDIO)

The DTR-10.5 supports “i.LINK (AUDIO)” of the i.LINK transfer format. Accordingly, “i.LINK (AUDIO)” must also be supported for other devices that you want to connect to the DTR-10.5. The DTR-10.5 does not support other i.LINK transfer formats such as “MPEG-2 TS” used for BS digital broadcasts or “DV” used for DVD recorders, digital video, etc. The DTR-10.5 connected to other i.LINK(AUDIO)-supported devices via i.LINK cable enables you to transfer multichannel digital sound such as DVD-Audio and SACD (video signal is not supported).

Even when multiple devices are connected to each other, you can perform data transfer and control of target devices via another device.

The IEEE interfaces on the DTR-10.5 are designed conforming to the standards below.

1. IEEE Std 1394a-2000, Standard for a High Performance Serial Bus

2. IEC60958 bitstream, DVD-Audio, and SACD in the AM824 Sequence adaptation layers of Audio and Music Data Transmission Protocol 2.0

(AUDIO)-supported devices allows high speed transfer of data such as digital sound between the

The DTR-10.5 supports the DTCP (Digital Transmission Contents Protection) system. The DTCP system uses technologies for data encryption and authentication during the data transfer between the i.LINK-connected digital devices in order to protect the copyright of the content against illegal duplication. To enjoy replaying DVD-Audio, etc., the DTCP must also be supported by other devices connected to the DTR-10.5.

How to Make a Connection through the i.LINK (AUDIO) Interface

Use the S400 4-pin i.LINK cable to connect the i.LINK (AUDIO) terminal on the DTR-10.5 to the i.LINK (AUDIO) terminal on the i.LINK (AUDIO)-enabled device.

• When using the i.LINK connection, you need to conﬁgure the audio input assignment settings in the “i.LINK” section of the Audio Assign sub-menu (Some i.LINK-connected devices may require audio output settings).

• The DTR-10.5 supports only audio signal transmission through the i.LINK (AUDIO) interface. When connecting video devices, you need to make a connection using other terminals for video signal.

Note:

If any other Integra product is connected to the DTR-10.5 via i.LINK, system operation can be achieved via i.LINK cable. In that case, disconnect the connection as it may introduce errors.

VIDEO OUT

In addition to the i.LINK audio connection, make sure to connect the terminals for images such as VIDEO and/or S VIDEO terminals.

MULTI

“Net-Tune” is a trademark of Onkyo Corporation.

ETHERNET

(

Net-Tune

DIGITAL IN DIGITAL IN

OPTICAL COAXIAL

)

FR FL

SUB C

SR SL

SBR SBL

SUB C

SR SL

IN 1

AUDIO IN

GND

S VIDEO VIDEO

IN IN

COMPONENT

VIDEO

IN 2

OUT

COMPONENT VIDEO

(

)

HD/BNC

OUT

ANTENNA

FM 75

Page 43

B r

Connecting AV Components —Continued

Interconnection of i.LINK (AUDIO)-supported Devices

The i.LINK connection allows for data transfer, even if the DTR-10.5 is connected to other devices via another i.LINK (AUDIO)-supported device. You can connect up to 17 devices in a daisy chain (in-line) connection arrangement using the i.LINK connection.

Example:

DTR-10.5

i.LINK ready DVD player i.LINK-ready BS tuner

... up to 17 devices

For devices in a branched connection arrangement, you can connect up to 63, as long as they have three or more i.LINK (AUDIO) terminals.

Example:

DTR-10.5

i.LINK-ready DVD player

i.LINK-ready BS tuner

i.LINK-ready MD recorder

... up to 63 devices

e sure to avoid the looped connection arrangement of devices as shown below. The output signals should not be

eturned to the original signal output device, which may cause device failure.

i.LINK (AUDIO)-ready device

i.LINK (AUDIO)ready device

i.LINK (AUDIO)-ready device

Installation and Connections

Notes:

• Do not connect any devices that do not support i.LINK (AUDIO), such as “MPEG-2 TS” ready devices used for BS digital broadcasts and “DV” ready devices used for digital video, etc.

• Do not connect/disconnect i.LINK cable to or from other devices, connect additional devices, or turn them on/off while any i.LINK (AUDIO)-ready device is playing. Otherwise, the audio sound may be interrupted.

• Some i.LINK (AUDIO)-ready devices cannot transfer data when the power mode is set to standby or off. Refer to the individual User Manual of the i.LINK (AUDIO)-ready device you want to connect.

• i.LINK (AUDIO)-ready devices have their own maximum data transfer rate: either S100 (100 Mbps*), S200 (200 Mbps*) or S400 (400 Mbps*). The rate label is located near the i.LINK (AUDIO) terminals. The DTR-10.5 has a maximum data transfer rate of 400 Mbps. However, this may decrease depending on the speciﬁcations or the maximum data transfer rate of devices connected to the DTR-10.5. It is recommended to connect devices with the same maximum data transfer rate.

*“Mbps” stands for “mega bits per second” which indicates the maximum data size transferred per second. For example, 400 Mbps indicates that 400 mega bits of data can be transferred every second.

• The i.LINK feature does not assure successful connectivity between all i.LINK (AUDIO)-ready devices. Successful data transfer and control signal communications depend on the individual features of each device.

Page 44

Connecting AV Components —Continued

How to Conﬁgure i.LINK Connections

Selecting a Device

When the i.LINK connection is ready, you can use the setup menu to select any device which is connected via i.LINK. Once you have conﬁgured the i.LINK setting, the next time you select the input source, it will be selected as the playing source.

Using Remote Control

1. Press the [Input] button, and then turn the scroll wheel to select any source for setting.

2. Press the scroll wheel, and then press the [Setup] button.

3. Use the [ ]/[ ] buttons to select “Input Setup,” and then press the [Enter] button.

4. Use the [ ]/[ ] buttons to select “Audio Assign,” and then press the [Enter] button.

5. Use the [ ]/[ ] buttons to select “g. i.LINK.”

6. Use the [ ]/[ ] buttons to select any device. If you do not want to hear audio sound regardless if the i.LINK connection is ready, select “No.”

Using Control Buttons on DTR-10.5

1. Select any input source, and then press the [Setup] button.

2. Turn the [Select/Preset] dial to select “Input Setup,” and then press the dial.

3. Turn the [Select/Preset] dial to select “Audio Assign,” and then press the dial.

4. Turn the [Select/Preset] dial to select “g. i.LINK,” and then press the dial.

5. Turn the [Control/Tuning] dial to select any device. If you do not want to hear audio sound regardless if the i.LINK connection is ready, select “No.”

Using Useful Functions While the i.LINK Connection is Ready

If any other Integra product is connected to the DTR-10.5 via i.LINK and assigned as a input source (Audio Assign), you can use the following functions. The connection must be disconnected to use them.

i.LINK Selector Change

When the i.LINK-connected device starts playing, the input source will automatically be changed to the one assigned to the device even if another input source has been selected. See page 120 for detailed operations.

Note:

You cannot hear audio sound of i.LINK-connected devices in Zone 2.

Control of DVD Player

You can control a DVD player by emitting signals from the remote controller to the DTR-10.5.

Auto Start (Wakeup Setup)

While the DTR-10.5 is in standby mode, you can conﬁgure the setting of any i.LINK-connected device. See page 120 for detailed operations.

OSD for DVD

If DVD player is connected to the DTR-10.5 via i.LINK, you can output the OSD of the DTR-10.5 on a TV, even if a DVD player is directly connected to the TV. You can conﬁgure the setting to specify the display area on the TV, for example, right or left side of the screen. When multiple devices are connected, you can select any speciﬁc device through which the output is sent. This function is also available in Zone 2. See page 120 for detailed operations.

Note:

While the Intelligent Monitor is used, do not change mode to standby, nor turn on/off the player.

DVD Output Synchronization

You can select on/off of the i.LINK (AUDIO) output of a DVD player from the DTR-10.5. See page 120 for detailed operations.

Notes on “DTCP ERROR XXXX” Message

“DTCP ERROR XXXX” message (where “XXXX” is a device name) indicates that the connected device does not support DTCP (Digital Transmission Contents Protection). In this case follow the procedure described below.

1. From the Setup Menu, select “6. i.LINK Setup” → “6-1. Wakeup Setup” to set “a. Wakeup on i.LINK (IEEE1394)” to “Disable.”

2. Disconnect the device from the main unit by removing the i.LINK cable from the rear panel.

3. Press the [Standby/On] button so that the main unit enters the Standby mode.

Page 45

Connecting AV Components —Continued

Connection Using HDMI Terminals

The HDMI terminals are available when the HDMI terminal board [L] is installed.

About the HDMI (High Deﬁnition Multimedia Interface)

The High Deﬁnition Multimedia Interface (HDMI) is an interface standard for next-generation TV, designed to connect between STB (Set Top Box) and display digitally in the home, responding to technological changes such as digitalization of TV broadcasting.

In addition to the existing features provided by the Digital Visual Interface (DVI) of both audio and control signals. Moreover, multiple cables are required for video, audio, and control signals in conventional connections, but the HDMI interface allows you to make a connection through a single HDMI cable, thus enabling transfer of digital video and sound data between HDMI-supported devices.

In principle, the HDMI video stream (video signals) is compatible with the DVI. You can use the HDMI-DVI conversion cables to connect with TVs or monitors that are outﬁtted with DVI terminals, though video images may not be visible depending on the combination of devices. The DTR-10.5 uses HDCP; you can enjoy pictures on HDCP ready monitors.

The HDMI interfaces on the DTR-10.5 are designed to conform to the standards below. High-Deﬁnition Multimedia Interface Speciﬁcation Informational Version 1.0

The DTR-10.5 supports High-bandwidth Digital Contents Protection (HDCP) digital video signals against illegal duplication. HDCP must also be supported on the devices connected to the DTR-10.5. Use the HDMI cable supplied with the product or those from the marketplace to connect the HDMI OUT

terminal on the DTR-10.5 with the HDMI input terminals on TVs or monitors.

*1 DVI (Digital Visual Interface): The digital display interface standard set by DDWG *2 HDCP (High-bandwidth Digital Contents Protection): The video data encryption technology for DVI developed by

Intel. This technology is designed to protect the video content and a HDCP-compliant DVI receiver is required to play the encrypted video content.

*3 DDWG (Digital Display Working Group): The standardization group for digital interface for display, operated

mainly by Intel, Silicon Image, FUJITSU, and Hewlett-Packard (Compaq Computer).

How to Make a Connection through the HDMI Interface

Use the HDMI cable to connect the HDMI terminals on the DTR-10.5 and on an HDMI-enabled device such as a DVD player, TV, or projector. Set HDMI to 1 or 2 in the Video Assign sub-menu according to the connected device you wish to use. In the initial settings, 1 is assigned to DVD, and 2 to Video 1. Basically, the HDMI can transmit audio signals. However in order to playback the audio signal with the DTR-10.5, make a separate digital connection with a DVD player or other devices, since the DTR-10.5 cannot playback any audio signals supplied from its HDMI IN 1/2 terminals.

• When other input source than 1 or 2 is selected, analog/digital audio signals and analog video signals will be converted into the HDMI format and output through the HDMI OUT terminal (In the initial settings, no audio signal is output. Appropriate setting should be made in the Audio Output Assign sub-menu).

• Analog audio signals will be output in the PCM format. Digital audio signals will be output through the HDMI OUT terminal only if the connected TV or projector can playback the digital audio signals. A TV or projector that supports PCM audio signals only, for example, cannot playback audio signals in the Dolby Digital format supplied as an input source to the DTR-10.5. In order to properly playback the audio signals in this case, the player should be conﬁgured to output the PCM signals. When an analog audio connection is made on the DTR-10.5, analog audio signal is output in the PCM format.

standard, HDMI allows transmission

, technology to protect copyright of

in 1999.

Installation and Connections

Page 46

Connecting AV Components —Continued

Connection example when the source selection is performed on the DTR-10.5

DVD Player with HDMI OUTPUT

HDMI

OUT

Set Top Box with HDMI OUTPUT

HDMI

OUT

E)SURR L

COMPONENT VIDEO

(

)

HD/BNC

OUT

UPA

ANTENNA

FM 75

SPEAKERS A

SPEAKERS B

AC OUTLET

AC 230-240V 50Hz SWITCHED 100W MAX.

DTR-10.5

HDMI

OUT

232

12 V TRIGGER OUT

IR IN

V DC PWR SUPPLY

20mA MAX.

GND

MAIN

ZONE

200mA MAX.

100mA MAX.

GND

100mA MAX.

TOTAL

100mA MAX.

12 V TRIGGER OUT

AC INLET

TV or Projector

HDMI

Tips:

To enable HDMI audio output of the

MODEL NO.

DTR-10.5

DTR-10.5 from the TV speakers, enable HDMI Out according to “HDMI Out” on page 92.

Connection example for higher video quality

When connecting an AV component equipped with the HDMI input terminal, you can use the connecting layout shown below. Before making a connection, read the instruction manual of the connected device thoroughly.

NENT VIDEO

OUT

SURR L

ANTENNA

SPEAKERS A

HDMI

OUT

232

12 V TRIGGER OUT

DVD Player with HDMI

TV or Projector

INPUT and OUTPUT

IR IN

V DC PWR SUPPLY

20mA MAX.

GND

MAIN

ZONE

200mA MAX.

100mA MAX.

GND

100mA MAX.

TOTAL

AC INLET

12 V TRIGGER OUT

100mA MAX.

HDMI

SPEAKERS B

AC OUTLET

AC 230-240V 50Hz SWITCHED 100W MAX.

DTR-10.5

MODEL NO.

DTR-10.5

HDMI

OUT

Before making a connection, read the DVD instruction manual thoroughly.

Page 47

Connecting -compatible AV Components

The

terminal on the DTR-10.5 is for connecting other Integra/Onkyo components equipped with the same

terminal. When a component is connected to

the

terminal, it can be operated by the remote controller supplied with the DTR-10.5. In addition, when you connect a component to the

terminal, you

can also perform the system operations given below.

Power on/ready function

When the DTR-10.5 is in the standby state, if an

connected component is turned on, the DTR-10.5 also turns on and the input source selected at the DTR-10.5 automatically switches to that component.

Be aware that this function will not work if the power cord for the

-connected component is connected to the AC OUTLET on the DTR-10.5, or if the DTR-10.5 has already been turned on.

Direct change function

When the play button is pressed on an

-connected component, the input source selected at the DTR-10.5 automatically changes to that component.

Power off function

When the DTR-10.5 is placed in the standby state, all

-connected components are also automatically put

into the standby state. Also, if you press the [On] button on the DTR-10.5

remote controller while the DTR-10.5 is turned on, all

-connected components (DVD players, CD players,

MD recorders, tuners, etc.) are also turned on.

REMOTE

Integra DVD player

ANALOG OUTPUT

CONTROL

Remote control cable

Connections for Remote Control ( )

To connect components using the connect a remote control cable from this the

terminal of the other component. An control cable with a 1/8 inch (3.5 mm) miniature twoconductor plug comes with every cassette tape deck, compact disc player, MD recorder, and DVD player that has an

terminal.

• When performing operations with

components using the remote zone (Zone 2/Zone3).

• For remote control operation, the audio connection

cables must also be connected.

• If a component has two

either one to connect to the DTR-10.5. The other one can be used to daisy chain with another component.

• With Integra DVD players, you can enter the pre-

program code so that you can operate the DVD player directly with the remote controller without connecting the

terminals (See page 129).

system, do not use the

terminals, you can use

connector

Ex: Integra/Onkyo CD player

connector

Ex: Onkyo cassette tape deck

Remote control cable

terminal, simply

terminal to

remote

-connected

DTR-10.5

Installation and Connections

DIGITAL IN DIGITAL IN

OPTICAL COAXIAL

OUT

URR

SURR BACK R (ASSIGNABLE

FRONT R (BTL

AUDIO IN

MULTI

AUDIO IN

- CH

IN 1

SUB C

GND

SR SL

SBR SBL

FR FL

SUB C

SR SL

SBR SBL

R L

OUT

MULTI

- CH

IN 2

)

CENTERFRONT

)

S VIDEO VIDEO

IN IN

214

FRONT

FRONT L (BTL

OUT OUT

SURR BACK L (ASSIGNABLE

(

SINGLE

)

COMPONENT

VIDEO

IN 2

COMPONENT VIDEO

(

)

HD/BNC

OUT

S VIDEOS VIDEO VIDEOVIDEO

)

SURR L

)

UDD

FM 75

SPEAKERS A

SPEAKERS B

REMOTE CONTROL

232

12 V

ANTENNA

HDMI

TRIGGER OUT

IR IN

V DC PWR SUPPLY

20mA MAX.

GND

MAIN

ZONE

200mA MAX.

100mA MAX.

GND

100mA MAX.

TOTAL

100mA MAX.

OUT

12 V TRIGGER OUT

AC INLET

AC OUTLET

AC 120V 60Hz

SWITCHED

120W 1A MAX.

MODEL NO.

DTR-10.5

Page 48

Connecting Components not Reached by the Remote Controller Signals (IR IN)

In order to use the remote controller to control the DTR-10.5 from a remote location, you will need to prepare a multiroom kit (sold separately) such as one listed below:

• Multiroom kits such as those made by Niles Xantech

RF Receivers can also be used with the remote controller to control the DTR-10.5 from a remote location. To use RF Receivers, set the Transmission Signal Format setting to “RF” (See page 141 for details).

If Remote Controller Signal Does not Reach the DTR-10.5 Remote Sensor

Effective Sensor Layout

Example for the main room

If the DTR-10.5 is located inside a cabinet or other enclosure where the infrared rays from the remote controller cannot enter, then operation with the remote controller will not be possible. In such a case, it will be necessary to install a remote sensor at a location outside of the cabinet so that the infrared rays from the controller can be sensed.

IR Receiver

IR IN

DTR-10.5

Connecting block

Remote controller

and

Effective Sensor Connections

When connecting a multiroom kit, use the IR connection Phoenix (Pluggable connector) terminal (smaller one) supplied with the DTR-10.5.

Connect the ribbon cable from the connecting block to the IR connection Phoenix terminal.

1. Loosen the screws using a ﬂatblade screwdriver to open the shutters.

2. Connect the white wire to the MAIN, ZONE 2 or ZONE 3 terminal according to the room where the multiroom kit is used, and then close the shutter.

3. Connect the red wire to the +12V terminal, and then close the shutter. If you use more than one multiroom kit in different rooms such as MAIN and ZONE 2, connect all the red wires to the +12V terminal together.

4. Connect the black wire to the GND terminal, and then close the shutter. If you use more than one multiroom kit in different rooms, connect all the black wires to the GND terminal together.

Ribbon cable

Red Black

White

+12V

GND

Flatblade screwdriver

In the cabinet

Main room

: Signal ﬂow

Example for the remote zone (Zone 2/Zone 3)

The IR IN input allows you to control the DTR-10.5 from the remote zone (Zone 2/Zone 3) with the remote controller even though the remote zone may be on the other side of the building from the main zone. The diagram below shows how to make the proper connections for the remote zone.

To IR IN

IR Receiver

DTR-10.5

Connecting block

Remote controller

Main room Zone 2/Zone 3 room

: Signal ﬂow

When the multiroom kits are used for all the rooms

From Main room

ZONE 2

ZONE 3

Red

White Red

White

+12V GND MAIN ZONE 2 ZONE 3

5. As shown in the illustration below, connect the Phoenix terminal ﬁrmly to the IR IN socket on the DTR-10.5.

COMPONENT

MULTI

AUDIO IN

DIGITAL IN DIGITAL IN

- CH

OPTICAL COAXIAL

IN 1

SUB C

GND

SR SL

“Net-Tune”

is a trademark of Onkyo Corporation.

SBR SBL

FR FL

ETHERNET

(

)

Net-Tune

SUB C

SR SL

SBR SBL

OUT

MULTI

- CH

IN 2

)

SURR

SURR BACK R (ASSIGNABLE

PRE OUT A

FRONT SURR SURR

BACK

SUB

CENTER

)

FRONT R (BTL

WOOFER

PRE OUT B

S VIDEO VIDEO

VIDEO

IN IN

OUT

214

R L

OUT

OUT OUT

FRONT LCENTERFRONT RSURR BACK L (ASSIGNABLE

(

)

SINGLE

)

FRONT L (BTL

232

12 V

IN 2

COMPONENT VIDEO

ANTENNA

HDMI

TRIGGER

(

)

HD/BNC

OUT

IR IN

FM 75

V DC PWR SUPPLY

20mA MAX.

GND

MAIN

ZONE

OUT

ZONE

200mA MAX.

100mA MAX.

GND

100mA MAX.

TOTAL

100mA MAX.

OUT

S VIDEOS VIDEO VIDEOVIDEO

12 V TRIGGER OUT

)

SURR L

AC INLET

SPEAKERS A

AC OUTLET

AC 120V 60Hz

SWITCHED

120W 1A MAX.

SPEAKERS B

UDD

MODEL NO.

DTR-10.5

Push the connector into the socket until it clicks.

Page 49

232

IR IN

V DC PWR SUPPLY

MAIN

GND

ZONE

20mA MAX.

12 V TRIGGER OUT

Using an External Device with 12V Trigger Terminal

You can turn on the AV devices connected to the DTR-10.5 automatically using the output signal from the 12V TRIGGER OUT terminal on the DTR-10.5.

Making a Connection

You can connect up to ﬁve devices to the 12V TRIGGER Phoenix (Pluggable Connector) terminal (larger one) and one device to the 12V TRIGGER OUT E terminal (mini-jack).

You can connect any external devices to the DTR-10.5 whether the connected device is located in the main, Zone 2 or Zone 3 room.

There are ﬁve terminals for connecting external devices and their maximum current allowed to be connected are as follows: A: Up to 200 mA.

B, C and D: Up to 100 mA each. E: Up to 100 mA for the total current value of both the

Phoenix and mini-jack terminals.

Before connecting an external device, check that the current value for the 12V TRIGGER terminal of the connected device does not exceed the target terminal’s maximum current above.

When using the 12V TRIGGER Phoenix (Pluggable Connector) terminal:

1. Loosen the screws using a ﬂatblade screwdriver to open the shutters.

2. Connect the GND wire (black) to the GND terminal, and close the shutter.

3. Connect the remaining wire to any of the terminals between A and E, and close the shutter.

5. Connect the Phoenix terminal ﬁrmly to the 12V TRIGGER OUT socket on the DTR-10.5.

COMPONENT

MULTI

AUDIO IN

C D

DIGITAL IN DIGITAL IN

A B

LRRL

OPTICAL COAXIAL

IN 1

SUB C

GND

SR SL

“Net-Tune”

is a trademark of Onkyo Corporation.

SBR SBL

S400

FR FL

ETHERNET

(

)

Net-Tune

SUB C

AUDIO

The i.LINK logo is a

SR SL trademarks of Sony Corporation, registered in the U.S. and other

countries.

SBR SBL

OUT

MULTI

IN 2

)

(ASSIGNABLE

LRL

(

)

SINGLE

CENTER

FRONT

SUB

SURR

SURR BACK

SURR BACK R

SURR R FRONT R CENTER FRONT L

SUBWOOFER

WOOFER

)

(ASSIGNABLE

PRE OUT A

S VIDEO VIDEO

VIDEO

IN IN

OUT

214

R L

OUT

OUT OUT

SURR L

232

12 V

IN 2

ANTENNA

COMPONENT VIDEO

HDMI

TRIGGER

IN 4

OUT

HDMI, the HDMI logo

is a trademark

IR IN

or registered

trademarks of HDMI

V DC PWR SUPPLY

20mA MAX.

Licensing LLC.

GND

MAIN

ZONE

OUT

ZONE

12 V TRIGGER OUT

200mA MAX.

100mA MAX.

GND

100mA MAX.

TOTAL 100mA MAX.

UDD

OUT

S VIDEOS VIDEO VIDEOVIDEO

(

)

AC INLET

(ASSIGNABLE

SINGLE

LRL

CENTER

SUB

SURRFRONT

SURR BACK

WOOFER

SURR BACK L

)

MODEL NO.

RDC

7.1

(SINGLE

(ASSIGNABLE

PRE OUT B

Push the connector into the socket until it clicks.

6. After making connections, you have to conﬁgure the association between the room where the device is used and the device to be turned on. For performing this setting, refer to “12V Trigger Assign” of “Input Setup” section on page 98.

When using the mini-jack 12V TRIGGER OUT E terminal:

When you want to connect two devices to both the Phoenix terminal E and mini-jack terminal simultaneously, you can connect them as long as the total current value of their 12V TRIGGER terminals will not exceed 100 mA

COMPONENT

CENTER

FRONT SURR SURR

PRE OUT A

SUB WOOFER

“Net-Tune” is a trademark of Onkyo Corporation.

ETHERNET

(

)

Net-Tune

SURR

BACK

SUB WOOFER

PRE OUT B

DIGITAL IN DIGITAL IN

OPTICAL COAXIAL

SUB C

SR SL

SBR SBL

FR FL

SUB C

SR SL

SBR SBL

OUT

)

SURR BACK R (ASSIGNABLE

FRONT R (BTL)FRONT L (BTL

MULTI

AUDIO IN

- CH

IN 1

GND

OUT

MULTI

- CH

IN 2

S VIDEO VIDEO

VIDEO

IN IN

OUT

214

R L

OUT OUT

FRONT LCENTERFRONT

SURR BACK L (ASSIGNABLE

(

SINGLE

)

232

12 V

IN 2

COMPONENT VIDEO

ANTENNA

HDMI

TRIGGER

(

)

HD/BNC

OUT

IR IN

FM 75

)

V DC PWR SUPPLY

20mA MAX.

GND

MAIN

ZONE

OUT

ZONE

200mA MAX.

100mA MAX.

GND

100mA MAX.

TOTAL

100mA MAX.

OUT

S VIDEOS VIDEO VIDEOVIDEO

12 V TRIGGER OUT

)

SURR L

AC INLET

SPEAKERS A

AC OUTLET

AC 120V 60Hz

SWITCHED 120W 1A MAX.

SPEAKERS B

UDD

MODEL NO.

DTR-10.5

Installation and Connections

12V TRIGGER

Wire

A B C

Flatblade screwdriver

Device

GND D E

4. When you connect more than one external device, you can connect all the GND wires to the GND terminal together.

200mA MAX

100mA MAX

C GND

100mA MAX

TOTAL 100mA MAX

Page 50

/ //

Basic Operation of Remote Controller Buttons

The remote controller supplied with the DTR-10.5 is a multifunctional remote controller, so you can operate not only the DTR-10.5 but also AV components connected to the apparatus and components placed in another room. The basic operations are explained here. It is recommended that you read and understand this page before starting actual operations. This explanation focuses on remote controller operations.

To Operate the DTR-10.5 (AMP Mode)

Press the scroll wheel.

On,

Standby

Scroll wheel

Dimmer

Display

Setup/ Enter/ Return/ Cursor

Surround, THX, All CH ST, Stereo, Pure A, Direct, DSP

Audio SEL

On Standby

@.-'/

GHI JKL MNO

PQRS TUV WXYZ

--/---

Custom

Macro

Dimmer

T V Input

Disc

Prev CH

Display

Rec

Surround

Pure A

Repeat Video Music Photo

Test Tone

Caps Delete

123

ABC DEF

456

789

Clear

10 0

Direct Tuning

Enter

Main A Main B

AngleSubtitleAudio

THXAll CH ST

Direct

DSP DSP

CH SEL

Level

Album Ar tist GenrePlaylist

L Night

Audio SEL

Language Loca t ion

RC-556M

Input

V CH

V VOL

Zone 3

Zone

InputMode

VOL

Muting

Random

Last Memory

Stereo

MemorySearchA-BRepeat

Level

Re-EQ

Sleep

VOL /

Muting

Main A/ Main B

Test Tone, CH SEL, Level –/+

L Night, Re-EQ

When the remote controller is in AMP

mode, the following functions are available:

On/Standby: Press to set power on/standby. Main A: Used when driving the speaker that has

been set to “Main A” in the Speaker Conﬁguration sub-menu.

Main B: Used when driving the speaker that has

been set to “Main B” in the Speaker Conﬁguration sub-menu.

Dimmer: Used when changing brightness of the

display window.

Setup/Return/Enter/Cursor / / / : Used

when operating the setup menu.

Display: Used when switching the display. THX/Surround/Pure A/Direct/All CH ST/ Stereo/DSP / : Used when switching the

listening mode.

Test Tone/CH SEL/Level–/+: Used for the test

tone, or when temporarily changing the sound volume level.

Audio SEL: Used when switching the sound

signal.

Sleep: Used when setting the sleep timer. VOL : Used when adjusting the sound

volume.

Muting: Used to temporarily turn off the sound

immediately.

L Night: Used when switching the dynamic range. Re-EQ: Used when applying the Re-EQ effect.

Indication on the lower line changes to AMP.

To Select an Input Source

Scroll wheel

T V Input

On Standby

123

ABC DEF

@.-'/

456

GHI JKL MNO

789

PQRS TUV WXYZ

10 0

--/---

Custom

Macro

Dimmer

Clear

Direct Tuning

Press the [Input] button.

Input

V CH

V VOL

Zone 3

Zone

InputMode

Input

Sleep

The [Input] button lights.

Roll the scroll wheel.

Indication on the upper line changes.

When you perform the procedures on the DTR-10.5, use the input source buttons on the front panel.

Page 51

Basic Operation of Remote Controller Buttons —Continued

To Operate a Connected Component (Mode Switching)

Press the [Mode] button.

The [Mode] button lights.

Roll the scroll wheel.

Indication on the lower line changes to indicate the selected component mode.

Before operating the connected component, follow the instructions on pages 124 through 133 to make appropriate settings using the remote controller.

Mode

On Standby

123

ABC DEF

@.-'/

456

GHI JKL MNO

789

PQRS TUV WXYZ

10 0

--/---

Custom

Macro

Dimmer

T V

Input

Direct Tuning

Input

V CH

V VOL

Clear

Zone 3

Zone

InputMode

Sleep

Scroll wheel

To Select a Source in Zone 2 or Zone 3

Scroll wheel

On Standby

123

@.-'/

456

GHI JKL MNO

789

PQRS TUV WXYZ

10 0

---

Custom

Macro

Dimmer

T V Input

Disc

ABC DEF

Enter

Clear

Direct Tuning

Input

V CH

V VOL

Zone 3

Zone

InputMode

VOL

Zone 3

Zone 2

Sleep

To Perform a Macro Operation

Macro

On Standby

123

@.-'/

456

GHI JKL MNO

789

PQRS TUV WXYZ

10 0

--/---

Custom

Macro

Dimmer

T V Input

ABC DEF

Clear

Direct Tuning

Input

V CH

V VOL

Zone 3

Zone

InputMode

Sleep

Scroll wheel

Press the [Zone 2] or [Zone 3] button.

The [Zone 2] or [Zone 3] button lights.

Roll the scroll wheel.

Indication on the upper line changes to indicate the selected input.

When you perform the procedures on the DTR-10.5, press the [Zone 2] (or [Rec/Zone 3]), and turn the [Select/Preset] (or [Control/Tuning]).

Before performing the following procedure, complete your macro settings (See page 137).

Press the [Macro] button.

The [Macro] button lights.

Roll the scroll wheel to select the macro’s

number, and then press the scroll wheel.

Operations

Customizing Your Remote Controller

Use the [Custom] button “to enter the remote controller code for another apparatus to this remote controller,” “to make this remote controller learn speciﬁed operations from the remote controller for another apparatus,” or “to make this remote controller learn a series of operations with macro functions” according to the conﬁguration you are using. For detailed information, see pages 136-142.

Page 52

Display Tape 1 Tape 2

Video 4 Video 5 Video 6 Video 7

DVD

Video 3

Video 2Video 1

D Net AudioPhonoTuner

Connecting the Power/Basic Operations

• Before you plug in the DTR-10.5, conﬁrm that all connections have been made properly.

• Turning on the power may cause a momentary power surge, which might interfere with other electrical equipment on the same circuit, such as computers. If this happens, use a wall outlet on a different circuit.

Standby/On

Input source buttons

Standby indicator

Standby/On

Standby

Phones

Display Tape 1 Tape 2 Tuner Phono C

(

)

Rec/ Zone 3 Red

)

(

Main

Blue

)

(

Zone 2

Green

DVD

Video 1 Video 2 Video 3 Video 4 Video 5 Video 6 Video 7

Pure Audio

Audio

Listening

Selector

Mode

Tone Zone 2

Tuning Mode

Clear

Turning on the Power

Standby/On

Standby

Turn off

Note:

Any components connected via will also be turned on when the remote controller’s [On] button is pressed.

Plug the power cord into an AC wall outlet.

The [Standby] indicator will light up.

Standby

Press the [Standby/On] button to turn on the DTR-10.5.

The display will light up and the [Standby] indicator will turn off. If you press the [Standby/On] button again, the DTR-10.5 returns to the standby state.

Master Volume

D Net Audio

Open

Select/

Control

Preset

Tuning

Setup

Rec/ Zone 3

Push To Enter

LevelExitLevelDimmerMemory

Push To Enter

Input

Video 7

Digital S Video Video AudioLR

To wall outlet

Operating on the DTR-10.5

Master Volume

Select an input source.

Press the input source button. *You cannot listen to a source in main room A, and to another source in main room B.

Start playing the device selected.

When playing a picture device such as a DVD player, you need to switch input to a monitor such as a TV set. Some picture-playing devices such as a DVD-type game machine may also require setting of sound output. Refer to the manual of the device connected.

Adjust the volume level with the [Master Volume] dial.

You can adjust the volume level in the range from –

∞

, –81.5 dB to 18.0 dB (Max) (when Relative is selected in the Volume Setup sub-menu).

Hint:

The DTR-10.5 is a product for users to enjoy home theater, so it is equipped with a wide range of volume levels. Please ﬁne tune the volume level according to your preferences.

Page 53

Connecting the Power/Basic Operations —Continued

Operating with Remote Controller

Standby

Scroll wheel

Mode

Main A

On Standby

123

@.-'/

456

GHI JKL MNO

789

PQRS TUV WXYZ

10 0

--/---

Custom

Macro

Dimmer

T V Input

Disc

Display

Main A Main B

Rec

Surround

Pure A

Repeat Video Music Photo

Test Tone

Caps Delete

ABC DEF

Direct Tuning

Enter

THXAll CH ST

Direct

CH SEL

Album Ar tist GenrePlaylist

Audio SEL

Language Loca t ion

Clear

AngleSubtitleAudio

DSP DSP

Level

L Night

V VOL

Random

Last Memory

Stereo

MemorySearchA-BRepeat

Level

Re-EQ

Input

V CH

Zone 3

Zone

InputMode

VOL

Muting

Sleep

Input

VOL

Main B

RC-556M

Turning on the Power from the Remote Controller

Before you can use the remote controller, you must perform steps 1 and 2 in the “Turning on the Power” section and place the DTR-10.5 in the standby state.

Press the scroll wheel.

“AMP” appears on the remote controller’s display. This is the mode for controlling the DTR-10.5.

Press the [On] button to turn on the DTR-10.5.

To set the DTR-10.5 to Standby, press the [Standby] button.

Main A Main B

VOL

Press the button for the room where you want to play your device.

Main A: Switches to operations in main

room A.

Main B: Switches to operations in main

room B. When Main A or Main B is selected, the indicator on the front display of the DTR-10.5 lights. If the mode is already effective, you do not need to press. If you press this button, the mode is made becomes ineffective. The speaker set in the Speaker/Output Setup menu sounds in the room selected.

Roll the scroll wheel to select a device to play.

Carry out this operation when neither the [Mode] button nor the [Input] button lights. If any button lights, press it to turn it off. Rolling the scroll wheel lights both buttons, and switches the input source and the mode at the same time.

Start playing the device selected.

When playing a picture device such as a DVD player, you need to switch the input to a monitor such as TV set. Some picture-playing devices such as a DVD-type game machine may also require setting of sound output. Refer to the manual of the device connected.

Adjust the volume level with the [VOL ] button.

You can adjust the volume level in the range from –

∞

, –81.5 dB to 18.0 dB (Max) (when Relative is selected in the Volume Setup sub-menu).

Hint:

The DTR-10.5 is a product for users to enjoy the home theater, so it is equipped with a wide range of volume levels. Please ﬁne-tune the volume level according to you preferences.

Operations

Page 54

Dimmer

DTR-10.5

Remote controller

Muting

Remote controller

Connecting the Power/Basic Operations —Continued

Tone

Input

Video 7

Digital S Video Video AudioLR

Master Volume

Open

Phones

Standby/On

Standby

Display Tape 1 Tape 2 Tuner Phono C

(

)

Rec/ Zone 3 Red

)

(

Main

Blue

)

(

Zone 2

Green

DVD

Pure Audio

Audio

Listening

Selector

Mode

Phones

Tuning Mode

Clear

Dimmer

Video 1 Video 2 Video 3 Video 4 Video 5 Video 6 Video 7

Select/

Control

Preset

Tone Zone 2

Tuning

Setup

Push To Enter

D Net Audio

Rec/ Zone 3

LevelExitLevelDimmerMemory

Control/Tuning

Select/Preset

Scroll wheel

Dimmer

On Standby

123

@.-'/

456

GHI JKL MNO

789

PQRS TUV WXYZ

10 0

--/---

Custom

Macro

Dimmer

T V Input

Disc

Prev CH

Display

ABC DEF

Enter

Direct Tuning

Input

V CH

V VOL

Clear

Zone 3

Zone

InputMode

Sleep

VOL

Muting

Listening with Headphones

To listen with headphones, plug a pair of headphones with a standard stereo plug into the Phones jack on the DTR-10.5 front panel.

Adjusting the Brightness of the Front Display

You can adjust the brightness of the front display of the DTR-10.5 using the [Dimmer] button on the remote controller or on the DTR-10.5 front panel.

Use the [Dimmer] button on the DTR-10.5 to select: normal, dark, very dark, and volume only.

On the remote controller, press the scroll wheel, and then press the [Dimmer] button.

Temporarily Turning Off the Sound (remote controller only)

Use the [Muting] button to temporarily turn off the sound immediately.

Press the scroll wheel, and then press the [Muting] button on the remote controller.

When pressed, “Muting” is displayed on the DTR-10.5. Press the [Muting] button again to turn the sound back on.

• When you connect headphones, no sound will be heard from the speakers.

• While the Dolby Headphone feature is active, appears on the front display. Refer to pages 60, 61, and 119.

Note:

The signal to the remote zone (Zone 2/3) will not be affected whether or not headphones are connected.

Audio

Listening

Selector

Mode

Phones

Tone

Tuning Mode

DimmerMemory

Clear

Adjust the Tone

You can adjust bass, mid, and treble notes for each speaker set. You can also adjust the tone using the setup menu (see page 118).

DTR-10.5

Tone

Select/ Preset

Press the [Tone] button.

Turn the [Select/Preset] dial to select the channel and tone you want to adjust.

Control / Tuning

Turn the [Control/Tuning] dial to adjust the tone.

Page 55

Connecting the Power/Basic Operations —Continued

Enter

THXAll CH ST

Direct

CH SEL

Album Ar tist GenrePlaylist

Audio SEL

Zone 2

InputMode

Random

AngleSubtitleAudio

Last Memory

Stereo

MemorySearchA-BRepeat

DSP DSP

Level

Re-EQ

L Night

Language Loca t ion

VOL

Sleep

Muting

Sleep

Level –

Level +

Scroll wheel

CH SEL

Macro

Dimmer

T V Input

Disc

Prev CH

Display

Main A Main B

Rec

Surround

Pure A

Repeat Video Music Photo

Test Tone

Caps Delete

RC-556M

Using the Sleep Timer (remote controller only)

With the sleep timer you can set the DTR-10.5 so that it automatically turns off after a set period.

Remote controller

Press the scroll wheel, and then press the [Sleep] button repeatedly to select the required sleep time.

You can set the sleep time from 90 to 10 minutes in 10 minute increments.

Sleep

The [SLEEP] indicator appears on the display when the sleep timer has been set, as shown. The speciﬁed sleep time appears on the display for about ﬁve seconds, then the previous display reappears.

Note:

If you are using the remote zone (Zone 2 or 3), it will turn off at the same time as the main zone.

Temporarily Changing the Speaker Output Levels (remote controller only)

To change the individual speaker volumes temporarily, follow the procedure given below. Each channel can be set between –12 and +12 decibels (between –15 and +12 decibels for the subwoofer). Note that the speaker volumes will return to the original settings when the DTR-10.5 is put in the standby state.

Level

CH SEL

Press the scroll wheel to enter the AMP mode.

Press the [CH SEL] button and select the desired speaker.

Press the [Level –] or [Level +] button to adjust the volume level.

Level

Note:

You cannot select a speaker if it is set to “Not Used” in the Speaker Conﬁguration Sub-menu of the Speaker/ Output Setup Menu.

Operations

To cancel the sleep timer, press the

[Sleep] button repeatedly until the [SLEEP] indicator disappears.

To check the remaining sleep time,

press the [Sleep] button. Note that if you press the [Sleep] button while the sleep time is being displayed, you’ll shorten the sleep time by 10 minutes.

Page 56

Connecting the Power/Basic Operations —Continued

Input

Video 7

Digital S Video Video AudioLR

Input

Re-EQ

L Night

Master Volume

Open

Standby/On

Standby

Phones

Scroll wheel

Display

Audio SEL

Display Tape 1 Tape 2 Tuner Phono C

(

)

Rec/ Zone 3 Red

)

(

Main

Blue

)

(

Green

Zone 2

Video 1 Video 2 Video 3 Video 4 Video 5 Video 6 Video 7

DVD

Pure Audio

Audio

Listening

Selector

Mode

Tone Zone 2

On Standby

Tuning Mode

Clear

123

@.-'/

Display

456

GHI JKL MNO

789

PQRS TUV WXYZ

10 0

--/---

Custom

Macro

Dimmer

T V Input

Disc

Prev CH

Display

Rec

Surround

Pure A

Repeat Video Music Photo

Test Tone

Caps Delete

Select/

Preset

Setup

Push To Enter

ABC DEF

Direct Tuning

Enter

Main A Main B

AngleSubtitleAudio

THXAll CH ST

Direct

CH SEL

Album Ar tist GenrePlaylist

L Night

Audio SEL

Language Loca t ion

Tuning

Control

Push To Enter

Clear

DSP DSP

Random

Last Memory

MemorySearchA-BRepeat

Rec/ Zone 3

V VOL

Stereo

Level

Re-EQ

LevelExitLevelDimmerMemory

Input

V CH

Zone 3

Zone

InputMode

VOL

Muting

D Net Audio

Sleep

+Level

RC-556M

Switching the Display

While listening to or watching an input source, you can display information regarding the type of source and signal being input.

DTR-10.5

DISPLAY

Remote controller

Press the [Display] button on the DTR-10.5.

On the remote controller, press the scroll wheel, and then press the [Display] button.

When an input source other than FM or AM is selected:

Input

Program format*

Custom name

Listening mode

* When the input signal is digital audio other than

PCM

The program format is displayed. For example, the display “Dolby D: 3/2.1” shows that the format is Dolby Digital with 5.1 discrete channels consisting of three front channels (front left, front right, and center), two surround channels (surround left and surround right), and the low frequency effect (LFE) channel. When the front channel number is 2, they are the front left and front right; when it is 1, it is monaural. When the surround channel number is 1, it is monaural; when it is 0, there is no surround channel. When no LFE number is given, there is no LFE channel. Also, if there is no program format for the input signal, nothing will be displayed.

When the input signal is linear PCM

The sampling frequency is displayed. For example, the display “PCM fs: 44.1k” shows that the signal is PCM and that the sampling frequency is 44.1 kHz.

Dialog norm

Dialogue Normalization (Dialog Norm) is a feature of Dolby Digital. When playing back software that has been encoded in Dolby Digital, sometimes you may see a brief message in the front panel display that reads Dialog Norm xdB (“x” being a numeric value). Dialogue Normalization serves to let you know if the source material has been recorded at a higher or lower level than usual. For example, if you see the message “Dialog Norm: +4” in the front panel display, to keep the overall output level constant the output volume has been automatically decreased by 4 dB. In other words, the source material that you are listening to has been recorded 4 dB louder than usual.

When FM or AM is selected as the input source:

Custom name

Listening mode

Preset no.

Display

FM/AM + Frequency

Listening mode

Preset no.

Page 57

Connecting the Power/Basic Operations —Continued

Changing the Audio Mode

The DTR-10.5 accepts analog, digital, i.LINK (AUDIO), and multichannel signals for audio input. You can choose the kind of signal to be played for a speciﬁc device. For Zone 2, the DTR-10.5 accepts only analog and digital signals for audio input.

• “i.LINK” setting can be selected when the i.LINK terminal board [A] is installed.

• For USA and Canadian models, “Multich” setting can be selected when the multichannel board [E] is installed.

Input

Audio SEL

Auto (XXX) (automatic detection): With this setting,

the DTR-10.5 automatically detects whether the input signal is digital or analog. When a digital signal is not input, then the analog signal is played. This setting only appears if a digital input is selected for the Digital Input setting at Setup Menu Assign Sub-menu (XXX) displays the name of the assigned terminal.

Multich (Multichannel): Select this setting to play

back the input from the component connected to the MULTI-CH IN 1/2 port. This setting only appears if “1” or “2” is selected for the Multichannel setting at Setup Menu

→

Analog: Select this setting to playback the input from a

source component connected to analog audio input jacks. With this setting, even if a digital signal is input from the same component, only the analog signal will be output.

i.LINK: Select this setting to play back the input from a

source component connected to the i.LINK (AUDIO) terminal. With this setting, only the i.LINK signal will be output. This settings is available when any device is selected at Input Setup menu menu

→

Press the [Input] button, and then roll the scroll wheel to select the input source you want to set.

Press the scroll wheel and then press the [Audio SEL] button.

Each time the button is pressed, the mode changes from “Auto” “Analog” back to “Auto.” The “Auto” audio mode is recommended for normal circumstances.

Note:

This procedure can also be performed by using the DTR-10.5. Press the [Audio Selector] button then use the [Select/ Preset] dial to select the mode you want to set.

Input Setup Menu

Multichannel (See page 94).

i.LINK.

→

“Multich”

→

Input Setup Menu

→

Digital Audio (See page 95).

→

Audio Assign Sub-

→

Audio Assign Sub-

→

“i.LINK” and

→

Audio

Using the Re-EQ Function

This function corrects soundtracks with a strong treble level to the home theater level. This correction should be made when the treble sounds from the front speakers are too strong.

Hint:

This can also be set on the menu with OSD. The listening mode which the Re-EQ effect can be applied to has a Re-EQ option in the Listening Mode Setup menu.

Re-EQ

Using the Late Night Function (only in Dolby Digital)

The difference between loud and quiet sounds is very large in pictures produced for movie theaters, so you have to raise the volume level to catch environmental sounds and human conversations. Since the Late Night Function is able to reduce the difference between loud and quiet sounds, you can hear quiet sounds without raising the entire volume level. This function is helpful when you enjoy movies late at night by turning down sounds. This function is released when putting the DTR-10.5 into the standby status.

Hint:

This function can also be set on the menu with OSD (See page 106).

L Night

Press the scroll wheel, and then press the [Re-EQ] button (repeatedly).

Press the scroll wheel, and then press the [L Night] button (repeatedly).

Off: Turns off the Late Night function. Low: Reduces the difference between

loud and quiet sounds.

High: Further reduces the difference

between loud and quiet sounds. The previous display comes back after a while.

Notes:

• The Late Night function is effective

only for Dolby Digital sources.

• The Late Night function may be less

effective or have no effect depending

on the Dolby Digital source.

Operations

Page 58

Using the Listening Modes

Types of Listening Modes

Listening modes on the DTR-10.5 enable you to enjoy movie theater or concert hall quality sounds in your room. The DTR-10.5 provides the following listening modes. Before playing a source in optimal sound, be sure to complete the Speaker/Output Setup (See pages 88 - 91).

Direct

This mode allows you to enjoy pure sounds straight from an original source. Every channel of the audio input source will be output “as is” to respective channels.

Pure Audio

In addition to the Direct mode, playback of music more faithful to the original sounds is enabled because the display window is turned off to minimize noise sources (the power supply to the video circuitry is also turned off, so nothing is displayed on the screen).

Stereo

Sounds are output from the right and left front speakers, and the subwoofer.

Mono

This mode is suitable for playing old movies recorded in monaural sound, or for playing the right and left channels separately on bilingual sources. This mode also allows you to listen to multiplexed soundtracks on DVDs and other sources.

Dolby Pro Logic II

This mode enables 5.1-channel playback of music and movies recorded in 2 channels. You can select the Movie mode, best designed for playing movies, the Music mode, best designed for listening to music, and the Game mode, best suited for enjoying games.

• PLII Movie

This mode can be used with VHS and DVD videos with the mark, and certain television programs.

• PLII Music

This mode can be used with stereo music CDs and DVD recordings of live concerts.

• PLII Game

This mode can be used with game discs.

Dolby Pro Logic IIx

This mode reproduces in 5.1-7.1 channels music CDs and movies recorded in 2 channels. Together with clearer sounds, you will hear more natural and smoother surround effects than ever before. In addition to CDs and movies, game sources are played with a dramatic spatial presentation and with sound localization. And this mode enables 7.1 channel playback of music and movies recorded in 5.1 channels. You can select the PLIIx Movie and PLIIx Music mode.

• PLIIx Movie

This is the best mode for viewing movies.

• PLIIx Music

This is the best mode for playing music.

• PLIIx Game

This is the best mode for enjoying games, providing the best sense of signal movement.

Dolby Digital

This is a surround mode that will make you feel as if you are sitting in a seat inside a theater or concert hall. This mode can be used with DVDs and LDs with the

mark.

Dolby VS (Dolby Virtual Speaker)

The dynamic surround sound effects speciﬁc to 5.1 channel speakers are reproduced through 2 speakers. When combined with “Dolby Pro Logic II”/“DTS NEO:6,” this mode provides 5.1 channel surround music recorded in 2 channels on CD or MP3 through only 2 speakers. This mode can also be applied to a system equipped with more than 2 speakers. If you are able to use only 2 speakers in a separate room (Zone 2 or Zone 3) or main room B, this mode will let you experience truly powerful sounds of a movie, CD or game through the virtual surround effects. When you use this mode with three or more speakers, the speakers used for output will depend on the input source and decoding mode.

Dolby Digital EX/Dolby EX

This mode enables 6.1 channel playback of music or movies recorded in 5.1 channels. Adding a surround channel to the backside of 5.1 channel speakers to make them 6.1 channel speakers will enhance space expressions that should give you a real feel of moving sounds such as 360-degree rotation or overhead ﬂying. Since sounds on the surround back channel are divided into the surround left and right channels, this mode also enables conventional 5.1 channel playback. When playing DVDs and LDs recorded in 5.1 channels with the

mark, Dolby Digital EX mode turns on, and when

playing other sources, Dolby EX turns on.

DTS

Sound data that would be of tremendous size if completely divided into 5.1 channels are compressed into digital data with a status as close as possible to the original sounds. Playing in this mode requires a DVD player able to output DTS. This mode can be used with CDs,

DVDs and LDs with the mark.

DTS 96/24

This is a listening mode available with DTS 96/24. This mode allows you to enjoy delicate sounds.

DTS-ES Discrete

This is a 6.1 channel surround system based on DTS with a surround back channel added. Since all 6.1 channels including the added surround back channel are recorded as completely independent digital data, a 3-D feeling and a sense of moving sounds are reproduced more clearly. This mode can be used with CDs, DVDs,

and LDs with the mark.

Page 59

Using the Listening Modes —Continued

DTS-ES Matrix

This mode plays in 6.1 channels the music and movies recorded in DTS-ES. Sources recorded in DTS-ES include data for the surround back channel, and each channel is reproduced in 6.1 channels. This mode can

be used with CDs, DVDs, and LDs with the mark.

DTS NEO:6

This mode enables 6.1 channel playback of music and movies recorded in 2 channels. A broad frequency band is allocated to each channel, and every channel is kept very independent. This mode can be set to the Cinema mode, best designed for playing movies, and the Music mode, best designed for listening to music. The sources recorded in 5.1 channels are played in NEO:6.

• NEO:6 Cinema

Surround effects full of moving sound feelings are reproduced. This mode is suitable for 2 channel recorded VHS videos, DVD videos, and television programs.

• NEO:6 Music

Since it uses a surround channel, this mode creates a natural sound ﬁeld, which cannot be expected from ordinary 2 channel output. This mode is suitable for playing CDs recorded in 2 channels.

AAC

Digital data compressed through the MPEG-2 AAC system reproduces surround sounds of 5.1 channels at maximum. This mode can be used for playing AAC sources such as a BS-digital-broadcasted program.

Multiplex

This mode is used for listening to multiplex broadcasts.

THX

This mode produces the maximum effects on a THXcompliant speaker system.

• THX Cinema

This is a 5.1 channel THX mode, designed for viewing theatrical ﬁlms recorded and edited on the assumption that they will be played in a sizable place like a movie theater. The audio output for the surround back channels depends on the input source and decoding mode.

• THX Ultra2 Cinema

This is the THX Ultra 2 mode. This mode enables 7.1 channel playback of music and movies recorded in

5.1 channels. It analyzes surround factors to be reproduced, and distributes the factors to the surround back to optimize the atmosphere and the sense of orientation. This function reinforces the horizontal and backward extension, and the sound location.

• THX Music Mode

This is the THX Ultra 2 mode designed for playing music sources. It enables 7.1 channel playback of 5.1 channel recorded sources.

• THX Games Mode

This is the THX Ultra 2 mode designed for playing game sources.

• THX Surround EX

“THX Surround EX” - Dolby Digital Surround EX is a joint development of Dolby Laboratories and the THX Ltd. In a movie theater, ﬁlm soundtracks that have been encoded with Dolby Digital Surround EX technology are able to reproduce an extra surround back channel which has been added during the mixing of the program. A list of Surround EX encoded movies can be found on www.Dolby.com.

• Multichannel

This is a listening mode available with analog multichannel connection.

• i.LINK: DVD-Audio

This is a listening mode used for playing DVD-Audio format sources during i.LINK (AUDIO) connection.

• i.LINK: SACD

This is a listening mode used for playing Super Audio CD format sources during i.LINK (AUDIO) connection.

Integra’s Proprietary Listening Mode (DSP)

All Ch Stereo

This mode is useful for playing music as BGM. Stereo sounds are provided by all speakers, so you can enjoy a powerful sound ﬁeld.

Full Mono

Monaural sounds are provided by all speakers. You can listen to the same tone of music wherever you are.

Mono Movie

This mode is suitable for playing old movies recoreded in with monaural sound. The center channel outputs straight sounds, while other speakers provide center sounds with adequate echo effects. Despite monaural sound, you can enjoy the feeling of being in a movie theater.

Enhance

This mode is suitable for playing music, and watching sports programs on television. Environmental sounds are move naturally to the surround and surround back speakers, so more dynamic sounds are reproduced.

Orchestra

This mode is suitable for playing classical music and operas. The surround effects are reinforced to extend the sound image throughout the listening room. You can enjoy the natural touch of music as if you are sitting in a large concert hall.

Unplugged

This mode is suitable for listening to acoustic sounds, vocals and jazz music. Because it focuses on the front sound image, this mode creates an image of the sound ﬁeld that makes you feel as if you are listening to music in front of a stage.

Operations

Page 60

Using the Listening Modes —Continued

Studio-Mix

This mode is suitable for rock‘n’ roll and popular music. The image of powerful sounds is reproduced as sounds that make you feel as if you are sitting in a live house.

TV Logic

This mode is suitable for television programs broadcast from studios. You may feel as if you are sitting in a television studio. All of the surround sounds are enhanced, and conversations are output clearly.

Listening Modes for Listeners Using Headphones

Dolby Headphone

This mode makes headphones reproduce dynamic surround sound effects like 5.1 channel speakers. The listening mode used before putting on headphones is applied to the headphones. However, the following listening modes will be decoded as follows:

• The Dolby VS or Stereo mode sources will be decoded in the Dolby Headphone mode.

• The source decoded in the 7.1ch surround format will be decoded in the 5.1ch surround format.

• The DTS 96/24 mode source will be decoded in the DTS format.

Listening modes when the Dolby Headphone is set to “Off”:

Direct

When the listening mode was Direct before putting on headphones, this mode is applied. Effects are the same as the Direct mode indicated previously.

Pure Audio

When the listening mode was Pure Audio before putting on headphones, this mode is applied. Effects are the same as the Pure Audio indicated previously.

Mono

When the listening mode was Mono, Mono Movie or Full Mono before putting on headphones, this mode is applied. Effects are the same as the Mono mode indicated previously. This mode is also applied when you listen to the monaural source in the Dolby VS listening mode before putting on headphones.

Stereo

When the listening mode was other than Direct, Pure Audio, Mono, Mono Movie or Full Mono before putting on headphones, this mode is applied. Effects are the same as the Stereo mode indicated previously.

Multiplex

When the listening mode was Multiplex before putting on headphones, this mode is applied.

Page 61

Using the Listening Modes —Continued

Selecting the Listening Mode

The DTR-10.5 provides various listening modes.

Note:

The available modes depend on the input signal you selected.

Input source buttons

Standby/On

Standby

Display Tape 1 Tape 2 Tuner Phono C

(

)

Rec/ Zone 3 Red

) ( Blue

Main

)

(

Zone 2

Green

Pure Audio

Audio

Listening

Selector

Mode

Phones

Tuning

Mode

Clear

DVD

Video 1 Video 2 Video 3 Video 4 Video 5 Video 6 Video 7

Select/

Control

Preset

Tone Zone 2

Setup

Push To Enter

D Net Audio

Tuning

Rec/ Zone 3

LevelExitLevelDimmerMemory

Select/PresetListening Mode

On Standby

Input

123

ABC DEF

@.-'/

V CH

456

GHI JKL MNO

789

PQRS TUV WXYZ

V VOL

Clear

10 0

--/--Direct Tuning

Custom

Scroll wheel

Mode

THX

Surround

Direct

Pure A

Dimmer

T V Input

Prev CH

Display

Macro

Enter

Disc

Main A Main B

Rec

AngleSubtitleAudio

Surround

THXAll CH ST

Direct

DSP DSP

Pure A

Repeat Video Music Photo

Test Tone

CH SEL

Album Ar tist GenrePlaylist

L Night

Audio SEL

Language Loca t ion

Caps Delete

Random

Last Memory

MemorySearchA-BRepeat

Zone 3

Zone

InputMode

Sleep

VOL

Muting

Stereo

Level

+Level

Re-EQ

RC-556M

Operating on the DTR-10.5

Press the input source button.

Start playback on the device you selected

for input.

Press the [Listening Mode] button, and

then turn the [Select/Preset] to select a listening mode.

Operating with the Remote Controller

Master Volume

Input

Video 7

Digital S Video Video AudioLR

Input

ALL CH ST Stereo

DSP

Open

Start playback on the device you selected

for input.

Press the scroll wheel, and then press the

listening mode button you want to select.

Pure A button: To switch the listening mode to

“Pure Audio.” When you select “Pure Audio,” the video signal is interrupted (resulting in a blacked-out screen), and the [Pure Audio] indicator lights up.

Direct button: To switch the listening mode to

“Direct.”

Stereo button: To switch the listening mode to

“Stereo.”

Surround button: To switch the listening mode

to the surround mode.

• When 5 channel signals are input, every time you press the button, the listening mode

changes “DolbyEX” (Default)”

“Off”

→

“DolbyEX,” and so on.

→

“PLIIx Movie

“PLIIx Music”

→

“NEO:6”

• When 2 channel signals are input, every time you press the button, the listening mode changes “PLIIx Movie (Default)” Music”

→

“PLIIx Game”

“NEO:6 Music”

→

“NEO:6 Cinema”

“PLIIx Movie

(Default),” and so on.

THX button: To switch the listening mode to

“THX.”

• When Dolby Digital multichannel (*/2) signals are input, you can switch to any of the following decode modes. Every time you press the button, the listening mode changes “THX Cinema” “SurroundEX” “MusicMode”

→

“Ultra2 Cinema (Default)”

→

“Games Mode”

→

ema,” and so on (See page 112).

DSP/DSP buttons: Every time you press

the buttons, you can switch to any of the listening modes according to the input signals.

ALL CH ST button: To switch the listening

mode to “All Ch Stereo.”

[ ]/[ ] cursor buttons:

• When AAC’s multiplex sound signals are input, the main-sound and sub-sound are switched. Every time you press the [ ]/[ ]

buttons, the mode changes “Main”

→

“Main + Sub”

→

“Main,” and so on.

• When using the headphones, you can use the [ ]/[ ] buttons to switch on/off the Dolby Headphone listening mode.

→

“PLIIx

“THX Cin-

→

“Sub”

→

Operations

Roll the scroll wheel to select a device for

playback.

Perform this operation when neither the [Mode] button nor the [Input] button lights. If any button lights, press it to turn it off. Rolling the scroll wheel lights both buttons, and switches the input source and the mode at the same time.

Tip:

A table listed later in this manual shows which listening mode can be used with which input signal format. See page 143.

Page 62

Tuner

Memory

Tuning

Mode

Control / Tuning

Listening to Radio Broadcasts

Using the Tuner

One of the features of the DTR-10.5 that is most frequently used is its ability to play FM and AM broadcast radio stations. The DTR-10.5 provides a number of listening modes perfect for listening to the radio and getting the most out of your audio system. Also, by presetting radio stations that you listen to frequently, you can select them easily by pressing the [CH/Disc +/–] button on the remote controller.

Setting the AM Tuning Interval

For the Australian model, you have to adjust the “AM Frequency Step” setting according to your area.

Use the Setup menu to adjust the “AM Frequency Step” setting.

To perform this setting, go to “Hardware Setup” Frequency Setup”

→

“Frequency Step,” and select “9 kHz”

→

“AM

or “10 kHz.” For details on this setting, see page 87.

Tuning into a Radio Station

Tuner

Input

Video 7

Digital S Video Video AudioLR

Master Volume

Open

Standby/On

Standby

Tuning Mode

(

)

Rec/ Zone 3 Red

)

(

Main

Blue

)

(

Green

Zone 2

Pure Audio

Audio

Listening

Selector

Mode

Phones

Tuning Mode

Clear

Display Tape 1 Tape 2 Tuner Phono C

DVD

Video 1 Video 2 Video 3 Video 4 Video 5 Video 6 Video 7

Select/

Control

Preset

Tone Zone 2

Tuning

Setup

Push To Enter

Select/Preset

D Net Audio

Rec/ Zone 3

LevelExitLevelDimmerMemory

Tuning into a Radio Station Automatically (automatic tuning)

Tuner

Press the [Tuner] input source button.

Each time you press the [Tuner] button, the input source changes between AM and FM.

Tuning

Mode

Control / Tuning

Press the [Tuning Mode] button to

Memory

turn on the “AUTO” indication.

Turn the [Control/Tuning] dial either clockwise or counterclockwise. This starts tuning automatically.

The tuner stops automatically where it tunes into a station.

When you tune into a radio station,

TUNED

indicator appears in the display. If you tune into an FM station in stereo, then “FM STEREO” appears.

When the FM stereo broadcast contains much noise:

Press the [Tuning Mode] button to switch to the manual tuning mode. The “AUTO” indication disappears and the tuner turns into the monaural mode. In the monaural mode, the noise will be reduced and the broadcast be easier to hear.

Tuning into a Radio Station Manually (manual tuning)

• The tuner frequency changes in 200 kHz (50 kHz) increments for FM and 10 kHz (or 9 kHz) increments for AM.

• When you tune into an FM station manually, the tuner turns into monaural mode. If you want to listen to the FM station in stereo, press the [Tuning Mode] button.

Specifying Radio Stations by Frequency

Remote controller

Direct Tuning

123

@.-'/

456

GHI JKL MNO

789

PQRS TUV WXYZ

10 0

--/---

Band

Frequency

Press the [Tuner] input source button.

Each time you press the [Tuner] button, the input source changes between AM and FM.

Press the [Tuning Mode] button to turn off the “AUTO” indication.

Turn the [Control/Tuning] dial either clockwise or counterclockwise to tune your station.

Turning counterclockwise decreases the frequency, and turning clockwise increases the frequency.

To select a radio station by

Clear

entering its frequency, press the remote controller’s [Direct Tuning] button, and then use the number buttons to enter the frequency.

ABC DEF

Page 63

Listening to Radio Broadcasts —Continued

Selecting a Preset Radio Station

Input

Video 7

Digital S Video Video AudioLR

Master Volume

Open

When using the DTR-10.5:

When using the remote controller:

Standby/On

Standby

Tuning Mode

Display Tape 1 Tape 2 Tuner Phono C

(

)

Rec/ Zone 3 Red

)

(

Main

Blue

)

(

Zone 2

Green

DVD

Pure Audio

Audio

Listening

Selector

Mode

Phones

Tuning Mode

Clear

Memory

Video 1 Video 2 Video 3 Video 4 Video 5 Video 6 Video 7

Control

Select/

Preset

Tuning

Tone Zone 2

Setup

Push To Enter

Tuner

D Net Audio

Rec/ Zone 3

LevelExitLevelDimmerMemory

Select/Preset

Presetting a Radio Station

Up to 40 stations can be stored in memory as preset radio stations.

Tune into the radio station you desire (See “Tuning Into a Radio Station”).

Tuner

Press [Tuner] input source button on the DTR-10.5.

Select/ Preset

Using the [Select/Preset] dial, select the number of the desired preset station.

Press the [Input] button, and then use the scroll wheel to select

Input

TUNER.

To switch to FM or AM, press the scroll wheel.

Operations

Tuning

Mode

Tuning

Mode

Memory

Select/ Preset

Memory

Press the [Memory] button on the front panel.

Flashes

Using the [Select/Preset] dial, select a preset number (from 1 to

40) to assign the station.

The “MEMORY” indicator blinks for 5 seconds. Complete the procedure while the “MEMORY” indicator blinks. If the “MEMORY” indicator disappears before completing the procedure, go back to step 2 and repeat the procedure again.

Press the [Memory] button to ﬁnal- ize the procedure.

Lights

You can enter text names for any of the preset radio stations (See page 97).

Disc

Use the [CH/Disc +/–] button to select the presets.

Selecting Presets by Number

To select a preset by number, use the remote controller’s number buttons. For example, to select preset #7, press [7]. To select preset #12, press [1] then [2].

Erasing a Preset Radio Station

Tuner

Press the [Tuner] input source button and use the [Select/Preset] dial to select the preset radio station that you want to erase (See above).

Select/ Preset

Tuning

Mode

Press and hold the [Memory] button and then press the [Tuning

Memory

Mode] button.

The selected preset station is erased.

Page 64

GHI JKL MNO

Enjoying Multichannel Playback

For USA and Canadian models, multichannel playback is available when the multichannel terminal board [E] is installed.

To the DTR-10.5, you can be connected up to two devices, such as a DVD player, that deal with multichannel sounds (5.1-7.1 channels). To use multichannel connections, you need to specify settings on the Input Setup menu. In addition, you can set listening modes as you prefer. Enjoy multichannel playback in the main room.

How to Connect

Use three or four audio connection cables or a multichannel connection cable to connect the multichannel output jack on the connected device to the MULTI-CH IN 1/2 jack on the DTR-10.5.

MULTI

OUT

SURR BACK R (ASSIGNABLE

FRONT R (BTL

AUDIO IN

SUB C

SR SL

SBR SBL

FR FL

SUB C

SR SL

SBR SBL

)

S VIDE

IN 1

MULTI

IN 2

GND

R L

OUT

S VIDE

FRONT LCENTERFRONT

FRON

SUB C

SR SL

SBR SBL

MULTI

IN 1

FRONT SURR SURR

CENTER

DIGITAL IN DIGITAL IN

OPTICAL COAXIAL

“Net-Tune”

is a trademark of Onkyo Corporation.

ETHERNET

(

)

Net-Tune

SURR

PRE OUT A

BACK

SUB

WOOFER

PRE OUT B

How to Set Up

Specify the input source type. At default, DVD is “1,” CD is “2,” and others are “No.”

789

PQRS TUV WXYZ

10 0

--/---

Custom

Macro

Scroll wheel

Enter

///

Press the [Input] button, and then roll the

scroll wheel to select the input source to

Dimmer

T V Input

Prev CH

Display

Disc

Rec

be set.

Press the scroll wheel, and then press the

[Setup] button to display the Main menu.

Direct Tuning

Enter

Main A Main B

T V VOL

Clear

Zone 3

Zone

InputMode

Sleep

VOL

Muting

Random

Input

Setup

FRONT

SUB

SURR

SURR BACK

Press the [ ]/[ ] buttons to select “Input

Setup,” and then press the [Enter] button.

Press the [ /[ ] buttons to select “Audio

CENTER

Assign,” and then press the [Enter] but- ton.

Press the [ ]/[ ] buttons to select

“Multichannel,” and then select a setting with the [ ]/[ ] buttons. Select “1” when connected to MULTI-CH

IN 1, or “2” when connected to MULTI-CH IN 2.

Press the [Setup] button.

Setting is completed, and the menu screen disappears.

Page 65

Enjoying Multichannel Playback —Continued

Playing Back in Multichannel Sound

789

PQRS TUV WXYZ

10 0

--/---

Custom

Macro

Scroll wheel

Dimmer

T V Input

Disc

Prev CH

Display

Rec

Surround

Pure A

Repeat Video Music Photo

Test Tone

Audio SEL

Caps Delete

RC-556M

Press the [Input] button, and then roll the

scroll wheel to select the input source to be set.

Press the scroll wheel, and then press

(repeatedly) the [Audio SEL] button to select “Multich.”

Start playing.

Adjust the volume level with the [VOL ]

buttons.

You can adjust the volume level in the range from –

∞

, –81.5 dB to 18.0 dB (when Relative is set for

Volume Setup).

Hint:

You can also adjust the volume level with the input source button, the [Audio Selector] button, and the [Master Volume] dial on the DTR-10.5.

Direct Tuning

Enter

Main A Main B

AngleSubtitleAudio

THXAll CH ST

Direct

CH SEL

Level

Album Ar tist GenrePlaylist

L Night

Audio SEL

Language Loca t ion

Clear

DSP DSP

T V VOL

Zone 3

Zone

InputMode

VOL

Muting

Random

Last Memory

Stereo

MemorySearchA-BRepeat

Level

Re-EQ

Sleep

Input

VOL /

Adjusting the Volume Level of Speakers for Multichannel Playback

Disc

Prev CH

Display

Rec

Surround

Pure A

Repeat Video Music Photo

CH SEL

Test Tone

Caps Delete

RC-556M

Press the scroll wheel, and then press the

[CH SEL] button to select a speaker whose volume level you want to adjust.

Speakers set by the Speaker Conﬁguration submenu on the Speaker/Output Setup menu are displayed on a one-by-one basis.

Press the [Level –/+] button to adjust the

volume level.

You can adjust in the range from –12 dB to +12 dB. The subwoofer can be adjusted in the range from –15 dB to +12 dB.

Hint:

The volume level of each speaker for multichannel sounds is different from the calibration level to be set with the test sound described on page 90. Adjustment made here is not reﬂected in playing other than the multichannel playback.

Enter

Main A Main B

AngleSubtitleAudio

THXAll CH ST

Direct

CH SEL

Level

Album Ar tist GenrePlaylist

L Night

Audio SEL

Language Loca t ion

Last Memory

DSP DSP

Random

Stereo

MemorySearchA-BRepeat

Level

Re-EQ

VOL

Muting

Level –/+

Operations

You can also set the listening mode in advance for multichannel playback (Listening Mode Preset). To do so, select “Input Setup”

→

“Listening Mode Preset”

→

“Multichannel” on the Setup menu to choose the preferred mode. This defaults to “Multichannel.” See page 59 for details of the listening mode, and page 97 for the listening mode preset.

To conﬁgure the listening mode settings including audio effect and playback options:

You can specify detailed settings for the decode mode and the speaker environment for multichannel playback (Listening Mode Setup). See page 102 for details.

Page 66

Enjoying Movies and Music in the Remote Zone (Zone 2/3)

You can connect speakers and ampliﬁers for the remote zone, and enjoy different sources in a remote zone (Zone 2 or Zone 3). There are three ways to enjoy in a remote zone:

Connecting and Setup

When Connecting Only Speakers (Zone 2)

• You can enjoy a different source in a remote zone while a 5.1 channel source is being played in the main room.

• Adjust the volume level on the DTR-10.5.

Main Room

DTR-10.5

SURR BACK R (ASSIGNABLE)SURR BACK L (ASSIGNABLE

Zone 2

Connect the speakers for Zone 2 to SURR

BACK L/R SPEAKERS B terminals.

Connect the video component for Zone 2

to any of the composite VIDEO OUT 1-4 terminals.

Set the Setup menu.

1. On the Setup menu (See page 88), select “Speaker/Output Setup” ﬁguration,” and set “Speaker B Surr Bk” to “Powered Zone 2.”

2. Similarly, select “Speaker/Output Setup” “Video Output Assign,” and set the terminal connected to the component to “Zone 2 Out.”

3. Press the [Setup] button to close the menu.

)

SPEAKERS BSPEAKERS B

→

“Speaker Con-

→

When Connecting the Pre-main Ampliﬁer or Receiver (Zone 2 or Zone 3)

• You can enjoy a different source in a remote zone while a 7.1 channel source is being played in the main room.

• Adjust the volume level on the pre-main ampliﬁer or receiver in the remote zone.

Main Room

DTR-10.5

OUT

VIDEO

Zone 2/Zone 3

Connect the pre-main ampliﬁer or

receiver for Zone 2 or Zone 3 to the DTR-10.5.

Connect to any of the following terminals:

• AUDIO OUT 1-5 Default: Analog 4 (AUDIO OUT 4): Zone 2 Out Analog 5 (AUDIO OUT 5): Zone 3 Out

• DIGITAL OUT OPTICAL 1-2

• DIGITAL OUT COAXIAL 1-2

Connect the speakers for Zone 2 or Zone

3 to the pre-main ampliﬁer or receiver.

Connect the video component for Zone 2

or Zone 3 to any of the composite VIDEO OUT 1-4 terminals.

Set the Setup menu.

1. On the Setup menu (See page 91), select

“Speaker/Output Setup” Assign,” and set the terminal to which the component is connected to “Zone 2 Out” or “Zone 3 Out.”

2. Then, set “Zone 2 Out” or “Zone 3 Out” in

the Audio Output Assign sub-menu to “Line Out (ﬁxed).”

3. Similarly, select “Speaker/Output Setup”

“Video Output Assign,” and set the terminal to which the component is connected to “Zone 2 Out” or “Zone 3 Out.”

4. Press the [Setup] button to close the menu.

Receiver/

Pre-main ampliﬁer

→

“Audio Output

→

Page 67

Enjoying Movies and Music in the Remote Zone (Zone 2/3) —Continued

When Connecting the Power Ampliﬁer (Zone 2 or Zone 3)

• You can enjoy a different source in a remote zone while a 7.1 channel source is being played in the main room.

• Adjust the volume level on the DTR-10.5 (not on the power ampliﬁer).

Main Room

DTR-10.5

OUT

VIDEO

Zone 2/Zone 3

Connect the power ampliﬁer for Zone 2 or

Zone 3 to the DTR-10.5.

Power amp

Connect to any of the following terminals:

• AUDIO OUT 1-5

• DIGITAL OUT OPTICAL 1-2

• DIGITAL OUT COAXIAL 1-2

Connect the speakers for Zone 2 or Zone

3 to the power ampliﬁer.

Connect the video component for Zone 2

or Zone 3 to any of the composite VIDEO OUT 1-4 terminals.

Set the Setup menu.

1. On the Setup menu (See page 91), select “Speaker/Output Setup”

→

“Audio Output Assign,” and set the terminal to which the component is connected to “Zone 2 Out” or “Zone 3 Out.”

2. Then, set “Zone 2 Out” or “Zone 3 Out” in the Audio Output Assign sub-menu to “Pre Out (variable).”

3. Similarly, select “Speaker/Output Setup”

→

“Video Output Assign,” and set the terminal to which the component is connected to “Zone 2 Out” or “Zone 3 Out.”

4. Press the [Setup] button to close the menu.

Enjoying Movies and Music in a Remote Zone

• The sleep timer in the main room also works in Zone 2 and Zone 3. To make the sleep timer effective only in Zone 2 or Zone 3, set the sleep timer on the DTR-10.5 in the main room, and then put it into the standby status.

• When “Speaker B Surr Back” is set to “Powered Zone 2” on the Speaker Conﬁguration sub-menu of the Speaker/Output Setup menu, 7.1 channel playback is disabled in the main room.

• Sounds and pictures that can be output to Zone 2 and Zone 3 are as follows:

From Input Terminal

i.LINK

(AUDIO)

(Option)

ETHERNET

(Option), PH,

AUDIO IN 1-9

Audio Input

DIGITAL IN

OPTICAL 1-6,

DIGITAL IN

COAXIAL 1-6

VIDEO IN 1-6, S VIDEO IN 1-

6, COMPO-

NENT VIDEO

IN 1-6

Video Input

*1 Only PCM output *2 Super Audio CD and DVD-Audio are not output. *3 Possible for 2 channel downmix signal. *4 In the case of COMPONENT VIDEO IN, possible if

the HDMI slot is inserved.

Columns covered by “ \ ” indicate that no setting related to the column is speciﬁed for Zone 2 Out or Zone 3 Out in “Audio Output Assign” or “Video Output Assign.”

REC/

ZONE

ZONE3To Output Terminal

✔

✔✔ AUDIO OUT 1-5

✔

✔✔ DIGITAL OUT OPTICAL 1-2

✔✔ DIGITAL OUT COAXIAL 1-2

✔

AUDIO OUT 1-5

✔

DIGITAL OUT OPTICAL 1-2

✔

DIGITAL OUT COAXIAL 1-2

✔

DIGITAL OUT OPTICAL 1-2

DIGITAL OUT COAXIAL 1-2

AUDIO OUT 1-5

✔

VIDEO OUT 1-4

✔

S VIDEO OUT 1-4

COMPONENT VIDEO OUT

Operations

Page 68

Enjoying Movies and Music in the Remote Zone (Zone 2/3) —Continued

Operating with the Remote Controller

When operating with the remote controller, how to operate depends on the location of Zone 2 or Zone 3, or the distance from the DTR-10.5.

• Point the remote controller at the infrared receiver on the DTR-10.5, and then operate the controller.

• Install a remote controller sensor in Zone 2 or Zone 3 through an IR connection (See page 48).

• Switch the Transmission Signal Format to RF (Radio Frequency) (depending on the destination) (See page

141).

On Standby

Input

On, Standby

CH Disc +/–

Power on the devices in Zone 2 or Zone 3.

123

@.-'/

ABC DEF

456

GHI JKL MNO

789

PQRS TUV WXYZ

10 0

--/--Direct Tuning

Custom

Macro

Dimmer

T V

Input

Enter

Disc

Display

Main A Main B

Rec

Surround

THXAll CH ST

Pure A

Direct

Repeat Video Music Photo

Test Tone

CH SEL

Album Ar tist GenrePlaylist

Audio SEL

Caps Delete

Language Loca t ion

RC-556M

V CH

V VOL

Clear

Zone 3

Zone

InputMode

VOL

Muting

Random

AngleSubtitleAudio

Last Memory

Stereo

MemorySearchA-BRepeat

DSP DSP

Level

Re-EQ

L Night

Zone 3

Zone 2

Sleep

Level –/+

+Level

Press the [Zone 2] or [Zone 3] button, and then the [On] button.

Select a source.

Rotate the scroll wheel to select a source while the [Zone 2] or [Zone 3] button is lighted (if the button is not lighted, press the [Zone2] or [Zone 3] button to light it).

• When you have selected the tuner, you can choose a preset channel with the [CH Disc +/–] button.

Adjust the volume level.

Press the [Zone 2] (or [Zone 3]) button, and within 5 seconds, press the [Level –/+] button to adjust the volume level.

Notes:

• When the pre-main ampliﬁer or receiver is connected, the volume level should be adjusted at the connected component side.

• When not using Zone 2 or Zone 3, press the [Zone 2] (or [Zone 3]) button, and then press the [Standby] button.

Operating on the DTR-10.5

Standby/On

Standby

(

)

Rec/ Zone 3 Red

)

(

Blue

Main

)

(

Green

Zone 2

Pure Audio

Audio

Listening

Selector

Mode

Phones

Tuning Mode

Clear

Display Tape 1 Tape 2 Tuner Phono C

DVD

Video 1 Video 2 Video 3 Video 4 Video 5 Video 6 Video 7

Select/

Preset

Tuning

Tone Zone 2

Control

Setup

Push To Enter

D Net Audio

Rec/ Zone 3

LevelExitLevelDimmerMemory

Video 7

Digital S Video Video AudioLR

Rec/Zone 3Zone 2

Control/TuningSelect/Preset

Turn on the power supply to the DTR-10.5,

and then select a source for Zone 2 or Zone 3.

For Zone 2, press the [Zone 2] button, and then select the source with the [Select/Preset] dial. For Zone 3, press the [Rec/Zone 3] button, and then, select the source with the [Control/Tuning] dial. When you press the [Zone 2] or [Rec/Zone 3] button, the [Standby] indicator on the DTR-10.5 blinks for ﬁve seconds, so perform operations while it is blinking. The source button for Zone 2 lights in green and the source buttton for Zone 3 lights in red.

To switch the source for Zone 2 (or Zone 3) and the main room simultaneously:

Repeatedly press the [Zone 2] (or [Rec/Zone 3]) button to display “Z2Sel:SOURCE,” and then select the source.

Adjust the volume level.

For Zone 2, press the [Level] button under the [Zone 2] button, and then adjust with the [Select/ Preset] dial. For Zone 3, press the [Level] button under the [Rec/Zone 3] button, and then adjust with the [Control/Tuning] dial.

Notes:

• When a pre-main ampliﬁer or receiver is connected to the DTR-10.5, the volume level should be adjusted at the connected component side.

Master Volume

Open

Input

Page 69

Enjoying Movies and Music in the Remote Zone (Zone 2/3) —

Continued

• When not using Zone 2 or Zone 3, press the [Zone 2] (or [Rec/Zone 3]) button, and then press the [Standby/On] button. Or press the [Zone 2] (or [Rec/Zone 3]) button, and then turn the [Select/Preset] dial to select “Off.” In the case of Zone 2, the green indicator on the input source button is turned off, and in the case of Zone 3, the red indicator is turned off.

• When operating in the main room, be sure to conﬁrm that the [Standby] indicator is not blinking, and then start operations. When not using in the main room, press the [Standby/ On] button. If the DTR-10.5 is in the standby status, the power supply to Zone 2 and Zone 3 is not switched off.

Recording a Source

The DTR-10.5 can not only record the playing source but can also record a source while playing another source. You can also combine a video and audio to create a new source. Signals that can be output to a video/audio recording device vary with the type of jack connected. Check the following conditions before starting recording:

Audio

• Signals (analog) from the ETHERNET, PH, or AUDIO IN jacks are output only to the AUDIO OUT jacks. Music signals of MP3, WMA, and WAVE to be played with Net-Audio are also output only to analog audio output jacks.

• No signal is output from the MULTI-CH IN jacks.

• No signal is output from the HDMI IN jacks. Recording via the HDMI OUT jack is also disabled because Rec Out is not available in Audio Output Assign.

• Signals from the DIGITAL IN OPTICAL or COAXIAL jacks are output to the DIGITAL OUT OPTICAL or COAXIAL jacks. PCM signals are converted into analog signals, and also output to the AUDIO OUT jacks.

• Only PCM signals are output from the i.LINK (AUDIO) terminals to the AUDIO OUT jacks. Digital signals are output from the i.LINK (AUDIO) terminals to the DIGITAL OUT OPTICAL or COAXIAL jacks, but signals on Super Audio CD and DVDAudio are not output.

Video

• Video signals from the VIDEO IN, S VIDEO IN, or COMPONENT VIDEO IN jack are output only to the VIDEO OUT jacks.

Operations

Page 70

Recording a Source —Continued

Some steps can also be operated on the remote controller, but described here are operations on the DTR-10.5.

Notes:

• No surround effects can be recorded.

• No DVD or any sources whose copyright is protected can be recorded.

• There are some restrictions on recording of digital audio/video signals. Refer to the manual of your recording component.

• If recorded as analog signals, DTS signals are recorded as noise, so never record signals from a DTS-compatible CD or LD.

Input source buttons

Video 7

Input

Digital S Video Video AudioLR

Rec/Zone 3Setup

Master Volume

Open

Standby/On

Standby

Phones

Standby indicator

Display Tape 1 Tape 2 Tuner Phono C

(

)

Rec/ Zone 3 Red

) ( Blue

Main

)

(

Zone 2

Green

DVD

Video 1 Video 2 Video 3 Video 4 Video 5 Video 6 Video 7

Pure Audio

Audio

Listening

Selector

Mode

Tone Zone 2

Tuning Mode

Clear

D Net Audio

Control

Select/

Preset

Tuning

Setup

Rec/ Zone 3

Push To Enter

LevelExitLevelDimmerMemory

Push To Enter

Control/Tuning

Select/Preset

Recording Audio/Video While Playing

Recording music or a movie you are currently playing. Operate on the DTR-10.5 in the main room.

Turn on the power supply to DTR-10.5.

Press the input source button to select

the component for audio/video recording (player side).

Press the [Rec/Zone 3] button, and press

it again within 3 seconds.

The “Rec Sel:SOURCE” is indicated in the display window, and the button for the source selected lights in red. Audio/video recording is enabled on the component for which “Rec Out” was speciﬁed in step 3.

Prepare the component for audio/video

recording (recorder side).

• Put the component for audio/video recording into the recording standby status.

• You should adjust the recording level on the recording component.

• For how to record, refer to the manual of the recording component.

Start audio/video recording.

Play the component selected in step 4.

• Switching the source during audio/video recording will record the source newly selected.

• If you select FM (or AM) with the [Tuner] input source button when the recording source is set to AM (or FM), the output for the recording source also changes to AM (or FM).

Check the connection to your recording

component.

An audio recorder should be connected to the AUDIO OUT or DIGITAL OUT jacks, and a video recorder to the VIDEO OUT jacks.

Check settings for a recorder connected.

1. On the Setup menu (See page 91), select “Speaker/Output Setup”

→

“Audio Output Assign,” and specify “Rec Out” as the setting for the jack to which your audio recording component is connected.

2. Similarly, select “Speaker/Output Setup” “Video Output Assign,” and specify “Video XX Rec Out” as the setting for the jack to which your video recording component is connected.

3. Press the [Setup] button to close the menu.

Hint:

Since Zone 3 Out and Rec Out use the same circuitry, audio recording is disabled if Zone 3 Out is speciﬁed. Audio/video recording is also disabled on the same component as that for playing.

→

Recording Audio/Video on a Component While Playing Another

You can record an audio source or a video on a component while playing another source on another component. For example, you can record a CD while watching a DVD. Operate this function on the DTR-10.5 in the main room.

Turn on the power supply to DTR-10.5 in

Main A or Main B mode.

Proceeding to the next step in the Standby status makes the Zone 3 mode effective, so be sure to turn on the power source.

Check connections and settings to the

recording component.

Refer to steps 2 and 3 in “Recording Audio/ Video While Playing” in the previous section.

Page 71

Recording a Source —Continued

Press the [Rec/Zone 3] button, and within

3 seconds, select the source to be recorded with the [Control/Tuning] dial.

Pressing the [Rec/Zone 3] button makes the [Standby] indicator blink for 3 seconds. Select the target sources while the indicator is blinking. The name of the source to be recorded is indicated in the display window. Audio/video recording is enabled on the component for which “Rec Out” was speciﬁed in step 2.

Prepare the component for audio/video

recording (recorder side).

Start audio/video recording.

You cannot listen to a broadcast from one station while recording a broadcast from another station.

Recording the Video from One Source and the Audio from Another Source

You can add audio signals from a source to a video of another source to make your own custom video recordings. Below is an example of recording audio signals from a CD player connected to the DIGITAL IN OPTICAL 2 jack and the video from a video camera connected to VIDEO IN 3 onto a video cassette tape on a VCR connected to VIDEO OUT 2. Operate this function in the main room.

Turn the [Select/Preset] dial to select

“Composite Video,” and set it to “3” with the [Control/Tuning] dial.

After setting to “3,” press the [Setup] button.

Insert a CD in the CD player and insert a

tape in the video camera connected to the VIDEO IN 3 jacks.

Insert a tape in the VCR connected to the

VIDEO OUT 2 jacks.

Press the [Rec/Zone 3] button, and within

3 seconds, select “Rec Sel:CD” with the [Control/Tuning] dial.

Now, the CD player has been selected as the audio input source, and VIDEO 3 as the video input source.

Start recording on the VCR, and start play-

ing on the CD player and the video camera.

Playback starts on the component selected in steps 3-6.

Note:

Switching the source during audio/video recording will record the source newly selected.

Operations

Turn on the power supply to the DTR-10.5

in Main A or Main B mode.

Check connections and settings to the

recording component.

Refer to steps 2 and 3 in “Recording Audio/Video While Playing” on page 70.

Press the [CD] input source button.

Press the [Setup] button to display Main

menu, and turn the [Select/Preset] dial to select “Input Setup.”

After selecting “Input Setup,” press the [Enter] button. To carry out steps 3-6 on the remote controller, follow the procedures described on page 86.

Turn the [Select/Preset] dial to select

“Video Assign,” and press the [Enter] but- ton.

Page 72

Enjoying Net Audio

■

You can enjoy Net Audio when the ETHERNET terminal board [B] (for Net Audio) is inserted.

About Net-Tune

The DTR-10.5 can be used as a Net-Tune client on a standard Ethernet network, allowing you to play music (MP3, WAV) stored on your Network Audio server through the DTR-10.5. If your network is connected to the Internet, you can also tune into Internet radio stations.

Internet Radio

With Internet radio you can:

• Listen to stations that use MP3 format streaming.

• Select stations by genre, location, or language.

• Preset up to 30 Internet radio stations.

Net-Tune

For audio delivery over Ethernet, Integra developed NTSP (Net-Tune System Protocol). Since it’s based on the industry standard TCP/IP protocol, it’s efﬁcient and very responsive. The Network Audio server supports the MP3 and WAV formats.

• AWAV: high-quality, uncompressed, linear PCM.

• MP3: high-quality, compressed, small ﬁle size. For more information about Net-Tune, see the following Integra Web sites.

• http://www.integrahometheater.com/

Network Requirements

Ethernet Network

The DTR-10.5’s Ethernet port supports 10Base-T. For best results, a 100Base-T switched Ethernet network is recommended. Although it’s theoretically possible to use a wireless network, due to unpredictable performance, it may not provide satisfactory results, so a wired network is recommended.

Ethernet Router

A router manages the network, routing data and supplying IP addresses. Your router must support the following:

• NAT NAT (Network Address Translation). NAT allows several networked computers to access the Internet simultaneously via a single Internet connection. The DTR-10.5 needs Internet access for Internet radio.

• DHCP (Dynamic Host Conﬁguration Protocol). DHCP supplies IP address information to network devices, allowing them to conﬁgure themselves automatically.

• A router with a 100Base-TX switch built-in is recommended.

Some routers have a modem built-in, and some ISPs require you to use speciﬁc routers. Please consult your ISP or computer dealer if you’re unsure.

CAT5 Ethernet cable

Use a standard CAT5 Ethernet cable (straight-type).

Internet Access (for Internet radio)

To use Internet radio, your Ethernet network must have Internet access. A narrowband Internet connection (e.g., 56K modem, ISDN) will not provide satisfactory results, so a broadband connection is strongly recommended (e.g., cable modem, xDSL modem, etc). Please consult your ISP or computer dealer if you’re unsure.

Page 73

Enjoying Net Audio —Continued

Notes:

• To use Internet radio with the DTR-10.5, your broadband Internet connection needs to be up and running and able to access the Web. Please consult your ISP if you have any problems with your Internet connection.

• The DTR-10.5 uses DHCP and AutoIP to conﬁgure

• The DTR-10.5 does not support PPPoE settings, so if you have a PPPoE-type Internet connection, you must use a PPPoE-compatible router.

• Depending on your ISP, you may need to specify a proxy server to use Internet radio. If your PC is conﬁgured to use a proxy server, use the same settings (see page 121).

its network settings automatically. If you want to conﬁgure these settings manually, see page 121.

Networking Your DTR-10.5

To connect the DTR-10.5 to your Ethernet network, plug one end of a CAT5 Ethernet cable into the ETHERNET (NetTune) port, and plug the other end into a LAN port on your router or switch.

The following diagram shows how you can connect the DTR-10.5 to your Ethernet network. Here it’s connected to a LAN port on the router, which has a 4-port 100Base-TX switch built-in.

You can connect any number of DTR-10.5s to the network, and the Network Audio server can serve up to three clients simultaneously, so you can enjoy Net-Tune in three separate rooms simultaneously. The following diagram shows a NetTune network with two DTR-10.5s.

DTR-10.5

PRE OUT A

FRONT SURR SURR

SUB

CENTER

WOOFER

Internet radio

COMPONENT

OUT OUT

)

OUT

SURR BACK L (ASSIGNABLE

(

)

SINGLE

VIDEO

IN 2

COMPONENT VIDEO

(

)

HD/BNC

OUT

S VIDEOS VIDEO VIDEOVIDEO

)

SURR L

UDD

232

12 V

ANTENNA

HDMI

TRIGGER OUT

IR IN

V DC PWR SUPPLY

20mA MAX.

GND

MAIN

ZONE

200mA MAX.

100mA MAX.

GND

100mA MAX.

TOTAL

100mA MAX.

OUT

12 V TRIGGER OUT

AC INLET

SPEAKERS A

AC OUTLET

AC 120V 60Hz

SWITCHED

120W 1A MAX.

SPEAKERS B

MODEL NO.

DTR-10.5

MULTI

OUT

SURR BACK R (ASSIGNABLE

AUDIO IN

SUB C

SR SL

SBR SBL

FR FL

SUB C

SR SL

SBR SBL

)

FRONT R (BTL

S VIDEO VIDEO

IN 1

MULTI

IN 2

IN IN

GND

214

R L

OUT

FRONT LCENTERFRONT

FRONT L (BTL

ETHERNET

(

)

Net-Tune

DIGITAL IN DIGITAL IN

OPTICAL COAXIAL

“Net-Tune”

is a trademark of Onkyo Corporation.

ETHERNET

(

)

Net-Tune

SURR

BACK

SUB WOOFER

PRE OUT B

Network Audio server

LAN/ Ethernet port/

Internet radio

Operations

Modem

Router

Network Audio server

WAN port

LAN port

LAN/ Ethernet port/

Modem

WAN port

Router

Room 1

LAN port

Room 2

Page 74

Enjoying Net Audio —Continued

Using the Remote Controller

To select Net-Tune mode, press the [Mode] button, and then roll the scroll wheel until “NET-T” appears on the display.

Note:

While neither the [Input] button nor [Mode] button is illuminated, the scroll wheel changes the input source and remote controller mode simultaneously (when you enter the Net-Tune mode, be sure that the LCD display shows “MSRV” or “IRD” in the top line and “NET-T” in the bottom line).

Scroll wheel

On Standby

123

@.-'/

ABC DEF

456

GHI JKL MNO

789

PQRS TUV WXYZ

10 0

--/---

Custom

Macro

Dimmer

T V Input

Prev CH

Display

Disc

Enter

Clear

Direct Tuning

Input

V CH

V VOL

Zone 3

Zone

InputMode

Sleep

VOL

Muting

Main A Main B

Rec

Surround

THXAll CH ST

Direct

Pure A

Repeat Video Music Photo

Test Tone

CH SEL

Album Ar tist GenrePlaylist

Audio SEL

Caps Delete

Random

AngleSubtitleAudio

Last Memory

Stereo

MemorySearchA-BRepeat

DSP DSP

Level

Re-EQ

L Night

Language Loca t ion

RC-556M

Page 75

Enjoying Net Audio —Continued

Number/letter buttons

These buttons are used to enter numbers and letters when searching for music in your Network Audio server.

Mode button

This button is used with the scroll wheel to select the remote controller modes. Press this button ﬁrst, and then roll the scroll wheel until “NET-T” appears on the display.

Up/Down/Left/Right /// & Enter buttons

These buttons are used to navigate Internet radio and Net-Tune server menus. The [Enter] button is used to conﬁrm items and to start playback of the Network Audio server.

CH/Disc +/– button

This button is used to select Internet radio presets.

Play button

This button is used to start playback of the Network Audio server.

Previous/Next / buttons

The Previous button is used to select the previous track. During playback it selects the beginning of the current track. The Next button is used to select the next track.

Pause button

This button is used to pause playback.

Repeat button

This button is used for repeat playback.

Album button

This button is used to search the Network Audio server’s music library by album.

Playlist button

This button is used to search the Network Audio server’s library by playlist.

Caps button

This button is used to select lowercase letters, uppercase letters, and numbers when searching for the Network Audio server’s music by album, artist, or playlist.

Delete button

This button is used to delete characters entered with the number/letter buttons.

Input button

This button is used to select the input source. Press this button ﬁrst, and then roll the scroll wheel until “MSRV” (Music Server) or “IRD” (Internet Radio) appears on the display.

FR/FF / buttons

The FR button is used to start fast reverse. The FF button is used to start fast forward.

Stop button

This button is used to stop playback.

Random button

This button is used for random playback.

Artist button

This button is used to search the Network Audio server’s music library by artist.

Genre button

This button is used to search the Network Audio server’s music library by genre, and to search for Internet radio stations by genre.

I Location button

This button is used to search for Internet radio stations by country.

J Language button

This button is used to search for Internet radio stations by language.

Operations

Page 76

Enjoying Net Audio —Continued

Enter

Net Audio

Standby/On

Standby

(

)

Rec/ Zone 3 Red

)

(

Main

Blue

)

(

Zone 2

Green

Pure Audio

Listening

Selector

Mode

Phones

Tuning Mode

Clear

Mode

CH/Disc +/–

Display

Display Tape 1 Tape 2 Tuner Phono C

Video 1 Video 2 Video 3 Video 4 Video 5 Video 6 Video 7

DVD

Audio

Preset

Select/

Tone Zone 2

Setup

Push To Enter

On Standby

123

@.-'/

ABC DEF

456

GHI JKL MNO

789

PQRS TUV WXYZ

Clear

10 0

--/--Direct Tuning

Custom

Macro

Dimmer

T V

Input

Enter

Disc

Display

Main A Main B

Rec

AngleSubtitleAudio

Surround

THXAll CH ST

Direct

Pure A

Repeat Video Music Photo

Test Tone

CH SEL

Album Ar tist GenrePlaylist

L Night

Audio SEL

Caps Delete

Language Loca t ion

RC-556M

Control

Push To Enter

DSP DSP

D Net Audio

Tuning

Rec/ Zone 3

LevelExitLevelDimmerMemory

Input

V CH

V VOL

Zone 3

Zone

InputMode

Sleep

VOL

Muting

Random

Last Memory

Stereo

MemorySearchA-BRepeat

Level

+Level

Re-EQ

Master Volume

Video 7

Input

Digital S Video Video AudioLR

Scroll wheel

Input

Enter,

///

Open

Enjoying Internet Radio

To listen to Internet radio, the connection/conﬁguration requirements listed on pages 72-73 must be satisﬁed.

While neither the [Input] button nor [Mode] button is illuminated, roll the scroll wheel to select IRD (Internet Radio).

“NET-T” appears in the bottom line. On the DTR-10.5, press the [Net Audio] button. This button switches between two alternative settings: Server and Internet Radio.

Press the [Enter] button.

Wait while your requested data is download from the XiVA Internet Radio Service.

* What is the XiVA Internet Radio

Service?

The XiVA Internet Radio Service provides tuning information, allowing you to select from a large number of stations. You can ﬁnd Internet Radio Stations based on your interests, musical taste, language, and location.

When Genre is selected:

Allow a few moments until the Genre menu appears. When the main list of genres appears, use the [ ]/[ ] buttons to select the genre desired. Pressing the [Enter] button brings up the sub-list of the genre you selected, which prompts you to further select one of the items using the [ ]/[ ] buttons.

When Location is selected:

The list containing names of countries appears. Use the [ ]/[ ] buttons to select the desired item.

When Language is selected:

The list of languages appears. Use the [ ]/[ ] buttons to select your desired item.

If no list is found, “No List” appears. You can return from this screen to the previous selection screen by pressing the [ ] button.

Press the [Enter] button.

You are presented with a list of radio station names.

Display

Press the [Display] button on the remote controller.

If the main menu has been already displayed, go to the next step.

Use the [ ]/[ ] buttons to select one of the radio stations.

You can return to the previous step by pressing the [ ] button.

Use the [ ]/[ ] buttons to select one of the main menus: Genre, Location, or Language.

Enter

To cancel, press the [ ] button.

Page 77

Enjoying Net Audio —Continued

Enter

Presetting Internet Radio Stations

You can preset up to 30 Internet radio stations.

Enter

Press the [Enter] button.

Buffering starts with the following message displayed.

When the buffering is complete, the DTR-10.5 starts playback of the broadcast.

Note:

If you’re using a narrowband Internet connection (e.g., 56K modem, ISDN), depending on the station, Internet radio may not work satisfactorily. For best results use a broadband connection (e.g., cable modem, xDSL modem, etc). You can switch the displayed content using the [ ]/[ ] buttons. After the switch operation, the display mode appears for 3 seconds, and then the appropriate information scrolls. If there is no information on title or artist, “No Info” appears. When using the OSD screen, all the information is displayed on one screen without scrolling.

OSD

iNet Radio Station XXX

Title:

Program:

Artist:

Data:

Display

Receive your desired station.

Press the [ ] button.

The DTR-10.5 enters into preset mode; the currently selected preset number blinks for 5 seconds.

7ch

Station XXX Live

RealXXXNet.com

WMA 20kbps

Tuned

Preset number

Choosing a Preset Internet Radio Station

Disc

Erasing a preset Internet radio station

Enter

While neither the [Input] button nor [Mode] button is illuminated, roll the scroll wheel to select IRD (Internet Radio).

Use the remote controller’s [CH Disc +/– ] button to select the preset.

When you choose a preset station, the station name is displayed for 5 seconds, and then the progress of buffering is displayed instead.

When the progress of buffering reaches 100%, you will be presented with the playing screen.

Select the station to erase, following the instructions described above.

Press the [ ] button.

The DTR-10.5 enters into preset erase mode.

Press the [Enter] button.

Your selected station is erased.

Operations

Press the [Enter] button.

The preset is now complete.

Enter

Page 78

Enjoying Net Audio —Continued

Remote controller

On Standby

Input

123

ABC DEF

@.-'/

V CH

Number/letter buttons

Mode

Enter,

Display

Repeat

Album

Playlist Genre

4 56

GHI JKL MNO

789

PQRS TUV WXYZ

V VOL

Clear

10 0

--/--Direct Tuning

Custom

Zone 3

Scroll wheel

Macro

Zone

InputMode

AngleSubtitleAudio

L Night

DSP DSP

Input

Sleep

VOL

Muting

Random

Last Memory

Stereo

MemorySearchA-BRepeat

Level

Re-EQ

+Level

, , , , , ,

Random Artist

Dimmer

T V

Input

Enter

Disc

///

Display

Main A Main B

Rec

Surround

THXAll CH ST

Pure A

Direct

Repeat Video Music Photo

Test Tone

CH SEL

Album Ar tist GenrePlaylist

Audio SEL

Caps Delete

Language Loca t ion

RC-556M

Playing a Music File Saved on the Network Audio Server

To play music ﬁles saved on your PC, the requirements listed on page 72 must be satisﬁed.

Turn on the Network Audio server.

Wait until the Network Audio server starts up. It may take a few second.

Turn on the DTR-10.5.

When you connect the DTR-10.5 to the network the ﬁrst time, it will be connected to the ﬁrst server found.

While neither the [Input] button nor [Mode] button is illuminated,

roll the scroll wheel to select MSRV (Music Server).

“NET-T” appears in the bottom line. On the DTR-10.5, press the [Net Audio] button. This button switches between two alternative settings: Server and Internet Radio. Until the DTR-10.5 connects to the network, ﬁnds the server, and completes the connection, “Network Starting...” and “Connecting...” appears. After completing the connection to the Network Audio server, the display changes to the normal indication. If the following messages appear, check the message meaning and perform the appropriate procedures.

“No Track”

The Network Audio server could not retrieve any track information. Register tracks with the Network Audio server. If you have already registered tracks, use the [Display], [Artist], [Album], [Genre], and [Playlist] buttons to display information.

“Disconnected”

The Network Audio server may not start or the server connected to previously may not be found. Conﬁrm the connections between router, the Network Audio server, and the DTR-10.5. Start the Network Audio server or select another server referring to “Select Server” on “Music Server Sub-menu” (See page 95).

Press the [ ] button to play the music ﬁle.

The DTR-10.5 provides ﬁve normal display modes; you can use the [ ]/[ ] button to switch among them.

OSD

Music Server Play

Track: 1/12 1m20s> My sweet candy Album: My Best 100 Artist:

Happy PanPot Data: MP3 160kbps

Display

• To stop playback:

Press the [ ] button on the remote controller.

• To pause playback:

Press the [ ] button on the remote controller.

• To select a track:

Press the [ ]/[ ] button on the remote controller. Press the [ ] button to move to the next track. Press the [ ] button to move to the beginning of the current track; hold down the [ ] button to move to the previous track. You can also use the number/letter buttons to select a track.

Examples:

To select number 3, press 3. To select number 10, press --/---, 1 and 0. To select number 37, press --/---, 3 and 7. To select number 123, press --/--- twice, and then press 1, 2 and 3. To select number 2568, press --/--- third, and then press 2, 5, 6, and 8.

• To fast forward/reverse the music:

Press and hold the [ ] button on the remote controller to fast forward the music; press and hold the [ ] button to fast reverse the music. When the music track is back at its beginning, normal playing starts.

• To switch to the track list:

While playing the music, you can press the [ ] button to display a list of currently open tracks.

Page 79

Enjoying Net Audio —Continued

Selecting a Track List

You can use the music ﬁle data saved on the Network Audio server to select which tracks to play. For example, you can:

• Select a track list based on the album name

• Select a track list based on the artist name

• Select a track list based on the genre name

• Select a play list

Test Tone

CH SEL Level

Album Ar tist GenrePlaylist

Press either the [Album], [Artist], [Genre], or [Playlist] button on the

+Level

remote controller.

Search the tracks stored on the Network Audio server with your selected mode to display it in the display. In the artist and album modes, the tracks are displayed in alphabetical order. You can also use the procedure below.

1. Press the [Display] button.

2. You can press the [ ]/[ ] buttons to cyclically switch among the four modes: Albums

↔

Playlists.

↔

Artists

↔

Genres

3. Press the [Enter] button.

Use the [ ]/[ ] buttons to select one from the menu.

At this time, pressing [ ] button brings

Enter

you one step back where you can change the selection you made. Also, pressing [ ] button in the genre or artist selection mode will display a list of albums with the genre or artist you selected. In the album, artist, or playlist selection mode, using the number/letter buttons will accelerate your selection operation (See below).

Upper case (A)

→

... When your desired input type is selected, then

→

Lower case (a)

→

Numeric value (2)

press the number/letter button. Let us take the [2ABC] button as an example to see the operation.

When the upper case is selected:

Pressing the button once will perform a search by the letter “A.” Pressing twice will do a search by “B,” pressing three times by “C.”

When the lower case is selected:

Pressing the button once will perform a search by the letter “a.” Pressing twice will do a search by “b,” pressing three times by “c.”

When the numeric value is selected:

Pressing the button once will perform a search by the numeric value “2.”

To cancel the operation:

Press the [ ] button to return to the previous step. You can cancel the whole operation by pressing the [ ] button in step 1.

Notes:

• Press the [Delete] button to delete the entered letter or number.

• Pressing the [Display] button on the main unit will display the current listening mode.

Playing a Music File At Random

Random

Press the [Random] button on the remote controller when in stop mode.

This button displays the current random settings and switches between two alternative settings: On and Off.

On: Randomly plays the tracks in the

currently selected mode.

Off: Random mode is disabled.

After the necessary settings are complete, press the [ ] button.

Operations

Press the [Enter] button.

The title of your selected track appears. You can choose another track by pressing

Enter

the [ ]/[ ] buttons. Press the [ ] button to return to the pre-

vious step. You can also select the list number using

the number/letter buttons.

Using the number/letter buttons

Press the [Enter] button.

Enter

The playback begins.

Test Tone

Caps

Caps Delete

CH SEL

Album Ar tist GenrePlaylist

Audio SEL

L Night

Language Loca t ion

Level

+Level

Re-EQ

The number/letter buttons allow you to input one of the letters or numbers printed on their key tops. Pressing the [Caps] button cyclically switches the types of input:

Playing a Music File Repeatedly

Press the [Repeat] button on the remote controller.

Pure A

Repeat

This button displays the current repeat settings and cyclically switches among three alternative settings: Repeat 1 All

→

Off.

Repeat 1: Repeats the current track only. Repeat All: Repeats the tracks in the

currently selected mode.

Repeat Off: Repeat mode is disabled.

You can operate the DTR-10.5 when playing and when stopped.

→

Page 80

Enjoying Net Audio —Continued

Enter

Conﬁguring the Music Server

The music server settings can be made while you select the music server as an input source.

Enter,

Input

Enter

On Standby

123

@.-'/

456

GHI JKL MNO

789

PQRS TUV WXYZ

10 0

--/---

Custom

Macro

Dimmer

T V Input

Prev CH

Display

Disc

///

Press the [Input] button, and then roll the scroll wheel to select MSRV.

Make sure that the “MSRV” is displayed when you conﬁgure the music server.

Press the scroll wheel, and then press the [Setup] button to display

the Main Menu.

Use the [ ]/[ ] buttons to select “Input Setup,” then press the [Enter] button.

ABC DEF

Enter

Clear

Direct Tuning

Input

V CH

V VOL

Zone 3

Scroll wheel

Zone

InputMode

Input

Sleep

VOL

Setup

Muting

Use the [ ]/[ ] buttons to select the “Music Server” sub-menu, then press the [Enter] button.

The setup screen for the sub-menu appears.

Use the [ ] and [ ] cursor buttons to select “Select Server” and then use the [ ] and [ ] cursor buttons to select the desired server.

Select a network server that exists on the network. * mark appears next to the servers detected on the network. If there is a server that does not have a * mark, make sure that the server is running. “Not Found” message indicates that no server is currently available for selection. If the message appears, make sure that the server is connected and running.

Press the [Setup] button.

This completes the conﬁguration procedure and the menu disappears.

Tips:

When choosing settings on the DTR-10.5, after selecting the input source using the input source buttons, press the [Setup] button. Next, select the menu you want to conﬁgure by turning the [Select/Preset] dial and press the dial to conﬁrm the selection. Then, after selecting the submenu you want to conﬁgure by turning the [Select/Preset] dial, select your value by turning the [Control/Tuning] dial, and press the dial to conﬁrm the value. If you want to go back to the previous operation, press the [Exit] button.

Enter

Page 81

Enjoying Net Audio —Continued

Music Server Memo

Internet Radio Memo

Operations

Page 82

Setup Menu

When making the various settings required to conﬁgure your DTR-10.5 for optimum performance, you can use either the OSD Menu that appears on your television monitor or you can use the display on the front of the DTR-10.5. The OSD Menu is a settings menu that is displayed on your TV monitor.

The DTR-10.5 is equipped with an independent Setup Menu not only for Main room A but also for Main room B and Zone 2 room, which allows you to specify settings for each room. The Setup Menu includes various menus. These menus are then divided into various sub-menus, and these contain settings for you to optimize your home theater as you wish.

The display shown below is an example. The actual contents of your display may differ depending on the model for your region, the option borads installed, and the selected input source.

For more information on operating instructions, see page 86-123.

OSD Map (MAIN A)

Main menu

Main A Setup =====================

0.Hardware Setup

1.Speaker/Output Setup

2.Input Setup

3.Listening Mode Setup

4.Audio Adjust

5.Preference

6.i.LINK Setup

7.Network Setup

8.Lock/Version

0.Hardware Setup =====================

1.Remote Control Setup

2.TV Format Setup

3.AM Frequency Setup

1.Speaker/Output Setup =====================

1.Speaker Configuration

2.Speaker Impedance

3.Speaker Crossover

4.Speaker Distance

5.Notch Filter

6.Level Calibration

7.THX Audio Setup

8.Audio Output Assign

9.Video Output Assign

Reference

pages

*The text appearing with your unit may differ slightly than those printed here, however there is no difference in items to be displayed or their meanings.

2.Input Setup ==Input:XXXXXX=======

1.Audio Assign

2.Video Assign

3.Listening Mode Preset

4.Character Edit

5.IntelliVolume

6.Delay

7.12V Trigger Assign

3.Listening Mode Setup =====================

1.Mono Setup

2.Multiplex Setup

3.Stereo Setup

4.Direct, Pure Audio Setup

5.Multichannel Input Setup

6.i.LINK(IEEE1394) :DVD-Audio Input Setup

7.i.LINK(IEEE1394) :SACD Input Setup

8.Dolby Digital Setup

9.DTS Setup

10.AAC Setup

11.Dolby Pro Logic DTS NEO:6 Setup

12.THX Setup

13.Mono Movie Setup

14.Enhance Setup

15.Orchestra Setup

16.Unplugged Setup

17.Studio-Mix Setup

18.TV Logic Setup

19.All Ch Stereo Setup

20.Full Mono Setup

21.Dolby Virtual Speaker Setup

22.Dolby Headphone Setup

IIx/

99 100 101

102

103

105

106 108 109

110

112 114

115 116

117

Page 83

Setup Menu —Continued

Main A Setup =====================

0.Hardware Setup

1.Speaker/Output Setup

2.Input Setup

3.Listening Mode Setup

4.Audio Adjust

5.Preference

6.i.LINK Setup

7.Network Setup

8.Lock/Version

4.Audio Adjust =====================

1.Tone Control

5.Preference =====================

1.Volume Setup

2.Headphone Level Setup

3.OSD Setup

4.OSD Position

Reference

pages

118

119

6.i.LINK Setup =====================

1.Wakeup Setup

2.OSD for DVD

3.OSD for DVD (Zone 2)

4.DVD Output Synchro

7.Network Setup =====================

1.IP Address

2.Proxy

3.MAC Address

4.Client

8.Lock/Version =====================

1.Lock Setup

2.Firmware Version

→

Save Settings

120

Setup Menu

121

122

123

Page 84

Setup Menu —Continued

OSD Map (MAIN B)

Main menu

Main B Setup =====================

0.Hardware Setup

1.Speaker Setup

2.Input Setup

3.Audio Adjust

4.Preference

0.Hardware Setup =====================

1.TV Format Setup

1.Speaker Setup =====================

1.Speaker Impedance

2.Speaker Crossover

3.Speaker Distance

4.Level Calibration

5.THX Audio Setup

2.Input Setup ==Input:XXXXXXXXX====

1.Listening Mode Preset

2.Delay

Reference

pages

3.Audio Adjust =====================

1.Tone Control

4.Preference =====================

1.Volume Setup

2.OSD Setup

3.OSD Position

118

119

Page 85

Setup Menu —Continued

OSD Map (ZONE 2)

The Zone 2 settings shown on this page can be made when you perform either of the following settings in the “MAIN A” setup menu.

• Under the “Speaker/Output Setup → Speaker Conﬁguration” menu, when you select the surround back setting to “Powered Zone 2.” (The main menu 1 below)

• Under the “Speaker/Output Setup → Audio (Video) Output Assign” menu, when you select the output terminal setting to “Zone 2 Out.” (The main menu 2 below)

(Main menu 1)

Zone 2 Setup =====================

0.Hardware Setup

1.Speaker Setup

2.Input Setup

3.Listening Mode Setup

4.Audio Adjust

5.Preference

(Main menu 2)

Zone 2 Setup =====================

0.Hardware Setup

2.Input Setup

3.Listening Mode Setup

4.Audio Adjust

5.Preference

0.Hardware Setup =====================

1.TV Format Setup

1.Speaker Setup =====================

1.Speaker Impedance

2.Input Setup ==Input:XXXXXXXXX====

1.Listening Mode Preset

2.Delay

3.Listening Mode Setup =====================

1.Mono Setup

2.Multiplex Setup

3.Stereo Setup

4.Dolby Digital Setup

5.DTS Setup

6.AAC Setup

7.Dolby Virtual Speaker Setup

Reference

pages

Setup Menu

100

106

108 109

4.Audio Adjust =====================

1.Tone Control

5.Preference =====================

1.Volume Setup

2.OSD Setup

3.OSD Position

116

118

119

Page 86

Setup Menu —Continued

Navigating the Setup Menu

You can change Setup Menu settings using the buttons on the front panel and on the remote controller. The illustrations here represent the remote controller.

OSD

Front panel display

Scroll wheel

Setup/ Enter/ Return/ Cursor

/ //

Press the scroll wheel when using the

remote controller.

Press the button of the room where you

want to perform operations. Press [Main A], [Main B], or [Zone 2].

If the room where you want to perform operations has already been activated, you do not have to press the button here. Pressing the button while the corresponding room is activated deactivates the room for setup.

Main A Setup =====================

0.Hardware Setup

1.Speaker/Output Setup

2.Input Setup

3.Listening Mode Setup

4.Audio Adjust

5.Preference

6.i.LINK Setup

7.Network Setup

8.Lock/Version

Main menu

On Standby

123

@.-'/

456

GHI JKL MNO

789

PQRS TUV WXYZ

10 0

--/---

Custom

Macro

Dimmer

T V Input

Disc

Prev CH

Display

Rec

Surround

Pure A

Repeat Video Music Photo

Test Tone

Caps Delete

ABC DEF

Clear

Direct Tuning

Enter

Main A Main B

AngleSubtitleAudio

THXAll CH ST

Direct

CH SEL

Level

Album Ar tist GenrePlaylist

L Night

Audio SEL

Language Loca t ion

DSP DSP

Random

Last Memory

MemorySearchA-BRepeat

Input

V CH

V VOL

Zone 3

Zone

InputMode

Sleep

VOL

Muting

Stereo

Level

Re-EQ

RC-556M

Zone 2

Main A, Main B

1.Speaker/Output Setup =====================

1.Speaker Configuration

2.Speaker Impedance

3.Speaker Crossover

4.Speaker Distance

5.Notch Filter

6.Level Calibration

7.THX Audio Setup

8.Audio Output Assign

9.Video Output Assign

1-1.Speaker Config =====================

Speaker A a.Front L/R :Main A b.Center :Main A c.Surr L/R :Main A d.Surr Back :Main A 2ch e.Subwoofer :Main A

Sub-menu

Press the [Setup] button.

The main menu appears on your television monitor.

Using the [ ] and [ ] cursor buttons,

select the menu that you want to enter.

Press the [Enter] button to enter the

selected menu.

The screen for that menu appears.

Use the [ ] and [ ] cursor buttons to

select the sub-menu that you want to enter and press the [Enter] button.

Each sub-menu has different settings that can be changed as desired, and they are all explained in the pages that follow. To change a setting, ﬁrst select it using the [ ] and [ ] cursor buttons, and then change the setting using the [ ] and [ ] cursor buttons.

Press the [Setup] button to exit the Setup

Menu.

Press the [Return] button to set the new settings and return to the previous menu.

When you perform settings using the buttons on the front panel, press the [Setup] button ﬁrst. Use the [Select/Preset] dial instead of the [ ]/[ ] buttons to select menus or parameters and press the dial to conﬁrm your selection. Then use the [Control/Tuning] dial instead of the [ ]/[ ] buttons to select your setting or parameter values and press the dial to conﬁrm your selection. In addition, the [Exit] button is used instead of the [Return] button.

Page 87

Hardware Setup

In this section, you will perform the initial settings for the following scenarios.

• When you want to change the DTR-10.5’s remote control ID.

• When you want to ﬁx the TV Format setting to PAL or NTSC.

• When you want to ﬁx the AM Frequency Step setting to 9 kHz or 10 kHz.

Remote Control Setup Sub-menu

Remote ID

This section explains how to change the DTR-10.5’s remote control ID. You may need to change this if the DTR-10.5’s remote controller interferes with other Integra/Onkyo components located in the same room. You can select 1, 2, or 3 for remote control ID. If you change the DTR-10.5’s remote control ID, be sure to select the same ID on the remote controller (See page 142). The default ID for both the DTR-10.5 and remote controller is 1.

Note:

It is recommended that you perform setup using the [Setup]/[Select/Preset]/[Control/Tuning]/[Exit] buttons of the DTR-10.5’s front panel. If the remote controller is used for setup, signals from the remote controller will not be received just after the remote control ID settings have been changed (See “Changing the Remote Controller’s Control ID” on page 142 to change the remote control ID on the remote controller).

TV Format Sub-menu

TV Format (Australian model only)

The settings in the TV Format sub-menu can be conﬁgured for Main B and Zone 2 as well as for Main A. When you want to reconﬁgure the settings to conform to the television format used in the area where you use the DTR-10.5, use this sub-menu so that no time is wasted on detection.

Auto: This is the default setting. When you leave this

setting unchanged, the television format is detected and automatically set by the DTR-10.5.

PAL: Use this setting when you know the television

format is PAL.

NTSC: Use this setting when you know the television

format is NTSC.

AM Frequency Setup Sub-menu (Australian Models Only)

Frequency Step

The setting in this sub-menu determines the incremental or decremental amount when adjusting the AM tuner frequency. The initial setting is 9 kHz, and this only needs to be changed if you are using the DTR-10.5 in a 10 kHz region.

9 kHz: Select if 9 kHz increments are used in your area. 10 kHz: Select if 10 kHz increments are used in your

area.

Setup Menu

Page 88

Speaker/Output Setup

The DTR-10.5 provides a wide range of variations in speaker connections and speaker settings, so you have to specify speaker settings according to conditions of each variation. For proper selection of an AV device connected at switching of the input type, you also need to allocate “audio output” and “video output” to each input type. If this allocation is incorrect, the desired component will not play a selected input source.

Please setup correctly by referring to the information you wrote down in the Your System Settings booklet.

Speaker Conﬁguration Sub-menu

Specify the rooms where you want to use speakers connected to the SPEAKERS A terminal and the SPEAKERS B terminal. Specify according to settings for main room A.

Note:

Basically, a speaker set with the maximum number of speakers should be connected to the SPEAKERS A terminals and conﬁgured for main room A (Main A). When either the center, surround, or surround back speakers are not connected to the SPEAKERS A terminals, or any of these speakers is set to “Not Used” in the Speaker A settings, you cannot perform the settings for the corresponding speakers connected to the SPEAKERS B terminals and those speakers connected to the SPEAKERS B terminals cannot be used.

(Speaker A) Front L/R

The setting of the front speakers is initially ﬁxed to Main A. Always install speakers connected to FRONT L/R of SPEAKERS A in main room A.

(Speaker A) Center, Surr L/R

Main A (default): Select this when using the center

speaker and/or surround speakers in main room A.

Not Used: Select this when not using a center speaker

or surround speakers.

(Speaker A) Surr Back

Main A 2ch (default): If Surr L/R is set to “Main A,”

you can select this item. Select this when connecting and using two surround back speakers in main room A.

Main A 1ch (SBL): If Surr L/R is set to “Main A,” you

can select this item. Select this when connecting and using a surround back speaker in main room A.

BTL for Front: Select this when using the front

speaker in main room A by connecting the surround back channel to the speaker via BTL (See page 29).

Bi-Amp for Front: Select this when using the front

speaker in main room A by connecting the front channel and the surround back channel to the speaker via BiAmp (See page 29).

Not Used: Select this when not using surround back

speakers.

Note:

If “Not Used” is selected for Surr L/R, this item defaults to “Not Used.”

(Speaker A) Subwoofer

Main A (default): Select this when using a subwoofer

in the main room A.

Not Used: Select this when not using a subwoofer in

the main room A.

(Speaker B) Front L/R

Main A: Select this when using in main room A. Main B: Select this when using in main room B. Not Used (default): Select this when not using.

(Speaker B) Center

Main A: Select this when using in main room A. Main B: Select this when using in main room B. This

setting can only be made when you set the “(Speaker B) Front L/R” setting to “Main B.”

Not Used (default): Select this when not using.

(Speaker B) Surr L/R

Main A: Select this when using in main room A. Main B: Select this when using in main room B. This

setting can only be made when you set the “(Speaker B) Front L/R” setting to “Main B.”

Not Used (default): Select this when not using.

(Speaker B) Surr Back

Main A 2ch: Select this when connecting and using two

surround back speakers in main room A.

Main A 1ch (SBL): Select this when connecting and

using a surround back speaker in main room A.

Main B 2ch: If (Speaker B) Front L/R and Surr L/R are

both set to “Main B,” you can select this item. Select this when connecting and using two surround back speakers in main room B.

Main B 1ch (SBL): If (Speaker B) Front L/R and Surr

L/R are both set to “Main B,” you can select this item. Select this when connecting and using a surround back speaker in main room B.

Powered Zone 2: Select this when using in Zone 2.

• If (Speaker A) Surr Back is set to “BTL for Front” or “Bi-Amp for Front,” this item is not displayed (Because, if “Powered Zone 2” is set, BTL connection and/or Bi-Amp connection are disabled).

BTL for Front: This setting can be made only when

you set the “(Speaker B) Front L/R” setting to “Main A” or “Main B.” Select this when using the front speaker in main room B by connecting the surround back channel to the speaker via BTL (See page 29).

Page 89

Speaker/Output Setup —Continued

Bi-Amp for Front: This setting can be made only when

you set the “(Speaker B) Front L/R” setting to “Main A” or “Main B.” Select this when using the front speaker in main room B by connecting the front channel and the surround back channel to the speaker via Bi-Amp (See page 29).

Not Used (default): Select this when not using

surround back speakers.

Note:

If (Speaker A) Surr Back is set to “Main A 1ch,” you cannot select “Main A 2ch” and “Main B 2ch” here.

(Speaker B) Subwoofer

This setting can be made only when you set the “(Speaker B) Front L/R” setting to “Main A” or “Main B.”

Main A: Select this when using a subwoofer in main

room A.

Main B: Select this when using a subwoofer in main

room B. This setting can only be made when you set the “(Speaker B) Front L/R” setting to “Main B.”

Not Used (default): Select this when not using a

subwoofer.

When the settings for Speaker Conﬁguration are completed, the subsequent settings should be speciﬁed separately in main room A, main room B, and Zone 2.

Speaker Impedance Sub-menu

Use this sub-menu to set the impedance level of the DTR-10.5 to match the speciﬁcations of the speakers you are using. The settings in the Speaker Impedance sub-menu can be conﬁgured for Main B and Zone 2 as well as for Main A. The selectable parameters are common to all items.

Note:

Before you change this setting, be sure to ﬁrst lower the volume at the DTR-10.5 to the minimum level.

8 ohms (default): Select this when the impedance of

the connected speaker is 8 ohms or more.

6 ohms: Select this when the impedance of the

connected speaker is no lower than 6 ohms and no higher than 8 ohms.

4 ohms: Select this when the impedance of the

connected speaker is no lower than 4 ohms and no higher than 6 ohms.

• When “BTL for Front” is selected for “Surr Back” from the Speaker Conﬁguration sub-menu, the corresponding “Front L/R” is automatically ﬁxed to “8 ohms,” and the impedance settings for the surround back speakers are also removed. Please verify that the impedance of a connected speaker is 8 ohms or more.

• For any speaker that is not available or set to “Not Used” in the Speaker Conﬁguration sub-menu, no associated setting item is displayed.

Speaker Crossover Sub-menu

The settings in the Speaker Crossover sub-menu can be conﬁgured for both “Main A” and “Main B.”

Front L/R, Center, Surr L/R, Surr Back

Specify a threshold frequency in Hz for bass sounds from each speaker to be output from the subwoofer. When no subwoofer is used, (Speaker A) Front L/R is automatically set to “Full Band,” and bass sounds from each speaker are output from the front speakers. You can also set other speakers to “Full Band.” You can specify the frequency at 10 Hz increments between 40-150 Hz. When using a THX-Select-certiﬁed speaker system, specify the setting of 80 Hz (THX) (default).

• If you specify the frequency of the front speakers between 40-150 Hz, you cannot select “Full Band” for the other speakers.

• For any speaker that is not available or set to “Not Used” in the Speaker Conﬁguration sub-menu, no associated setting item is displayed.

• If “Surr Back” is set to “BTL for Front” or “Bi-Amp for Front” on the Speaker Conﬁguration sub-menu, no item for surround back speakers is displayed.

LPF of LFE (setting of the low-pass ﬁlter for LFE)

Specify the low-pass ﬁlter for LFE (Low Frequency Effect). The low-pass ﬁlter passes through only the signal components below the speciﬁed frequency, eliminating the unwanted noise. You can specify the frequency at 10 Hz increments between 40-150 Hz.

SW Mode (Subwoofer Mode)

This item is displayed when a subwoofer is used (any item other than “Not Used” is selected for Subwoofer on the Speaker Conﬁguration sub-menu), and Front L/R is set to “Full Band” on the Speaker Crossover submenu. Set the sound from the subwoofer to any of the following:

LFE only: The subwoofer outputs only LFE (Low

Frequency Effect) information.

D. Bass: The subwoofer outputs not only LFE (Low

Frequency Effect) factors but also bass sounds from the front speakers.

Speaker Distance Sub-menu

Measure the distance between the listening position and each speaker. Specifying the distance will synchronize the speakers in terms of the time that sounds from each speaker reach the listening position. This is an important speciﬁcation for you to enjoy realistic home theater. The settings in the Speaker Distance sub-menu can be conﬁgured for both “Main A” and “Main B.”

Setup Menu

Page 90

Speaker/Output Setup —Continued

Perform the setup procedure below following the operating instructions described on page 86.

1. Select the unit of distance from “Unit.”

You can select either “feet” or “meters.” The default varies depending on the region.

2. Set the distance you measured. Enter all the values for every speaker you connected.

• For any speaker that is not available or set to “Not Used” in the Speaker Conﬁguration sub-menu, no associated setting item is displayed.

• If “Surr Back” is set to “BTL for Front” or “Bi-Amp for Front” on the Speaker Conﬁguration sub-menu, no item for surround back speakers is displayed.

When “feet” is selected:

Front L, Center, Front R, and Subwoofer can be set at

0.1 foot intervals in a range from 1.0 foot to 30.0 feet.

The default is 12.0 feet. Surr R, Surr Back (or Surr Bk R and Surr Bk L), and Surr L can be set at 0.1 foot intervals in a range from 1.0 foot to 30.0 feet. The default is 7.0 feet.

When “meters” is selected:

Front L, Center, Front R, and Subwoofer can be set at

0.03 meter intervals in a range from 0.30 meters to 9.00

meters. The default is 3.60 meters. Surr R, Surr Back (or Surr Bk R and Surr Bk L), and Surr L can be set at 0.03 meter intervals in a range from

0.30 meters to 9.00 meters. The default is 2.10 meters.

Notch Filter Sub-menu

To conﬁgure the settings under the Notch Filter submenu, a special measuring device is required. Usually, leave these settings to their defaults, “Off.” A notch ﬁlter cuts the signal of certain frequency ranges and passes the rest of the signal through. Some characteristics due to a room's environmental elements, including walls and smallness of the room, cause a signal peak in certain low frequencies to occur at the resonance frequency, resulting in a boomy sound. The ﬁlter reduces the signal at these frequencies causing the boomy sound. To know which frequency the peak occurs at, use a low frequency sine wave generator and SPL (Sound Pressure Level) meter to check the frequency and the notch value.

Notch Filter

Off (Default): Select this setting when not applying the

notch ﬁlter.

On: Select this setting when applying the notch ﬁlter.

Frequency

When setting “Notch Filter” above to “On,” the notch ﬁler becomes effective at the frequency you specify here. With your measuring device, the frequency value can be set at 1 Hz intervals in a range from 20 Hz to 300 Hz. The default is 100 Hz.

Depth

When setting “Notch Filter” above to “On,” the notch ﬁlter becomes effective at the value you specify. You can specify intervals of 0.5 dB in a range from –15 dB to 0 dB. The default is –10 dB.

Width

The available setting values are calculated based on the values speciﬁed in the “Frequency” and “Depth” settings above. You can choose any values according to your favorite sound.

Level Calibration Sub-menu

Use this sub-menu to set the volume for each speaker so that each volume is heard by the listener at the same level. This is especially important for speaker layouts where the left and right speakers are at different distances or in asymmetrical positions due to room designs and conﬁgurations. These settings and the distance settings performed in the Speaker Distance sub-menu are vital for creating proper sound space and dynamics. The settings in the Level Calibration sub-menu can be conﬁgured for both “Main A” and “Main B.”

• These settings cannot be made when the sound is muted, when you connect the headphones, and when you use multichannel playback.

• You cannot use the [Master Volume] dial while you perform the Level Calibration settings. These settings are intended to bring sound levels between speakers into balance so as to obtain the proper sound space.

• This unit supports the THX format and the test

tone is output at a standard 0 dB (the Absolute Volume value is 82). If you usually enjoy listening at a lower level than the test tone, be careful of the test tone’s sudden loud sound. Note that the test

tone will be output immediately after pressing the [Enter] button in step 1 below.

1. When you display this setting screen, select “Level Calibration,” and press the [Enter] button, the display changes to the Level Calibration screen, and at the same time, a sound is emitted from the front left speaker.

2. Starting with the front speaker, press the [ ]/[ ] buttons to select a speaker, and press the [ ]/[ ] buttons to set the volume level. When you have set all connected speakers, the setup is complete.

You can adjust in the range from –12 dB to +12 dB in

0.5 dB step. The subwoofer can be adjusted in the range

from –15dB to +12 dB in 0.5 dB step.

• For any speaker that is not available or set to “Not Used” in the Speaker Conﬁguration sub-menu, no associated setting item is displayed.

• If “Surr Back is set to “BTL for Front” or “Bi-Amp for Front” on the Speaker Conﬁguration sub-menu, no item for surround back speakers is displayed.

Page 91

Speaker/Output Setup —Continued

AUDIO

THX Audio Setup Sub-menu

This is for setting up a home theater with a THX-Ultra2 compliant speaker system. These settings will be effective in the listening mode for the THX Ultra2 Cinema and THX Music Mode. The settings in the THX Audio Setup sub-menu can be conﬁgured for both “Main A” and “Main B.”

THX Ultra2 Subwoofer A/ THX Ultra2 Subwoofer B

This is for setting the connected subwoofer. Select “Yes” or “No” according to your subwoofer’s speciﬁcation.

Yes: Set “Yes” if your subwoofer conforms to the THX

Ultra2 standard or if the playback capability of its bass range extends down to 20 Hz. Otherwise, set “No.”

No (Default): Set “No” if you use any subwoofer that

does not ﬁt the conditions above.

• For any speaker that is not available or set to “Not Used” in the Speaker Conﬁguration sub-menu, no associated setting item is displayed.

Boundary Gain Compensation A/ Boundary Gain Compensation B

This is for setting the correction of boundary gains. This item can be set when “THX Ultra2 Subwoofer” is set to “Yes.” Room boundaries (walls) or other characteristics (such as construction materials) may increase the perceived acoustics levels at low frequencies. Depending on the listener’s and the subwoofer’s position, the listener may experience an excessive bass effect. The purpose of this feature is to compensate for excessive bass resulting from a boundary gain effect.

On: Boundary Gain Compensation is applied. Off (Default): Boundary Gain Compensation is not

applied.

Distance Between Surr Back A SP/ Distance Between Surr Back B SP

This setting is allowed only when “Main 2ch” is selected from the Speaker Conﬁguration sub-menu. Place two surround back speakers as close together as possible, measure the distance, and set the value (See the ﬁgure). The maximum effects will be realized by THX’s ASA* technology.

1-4 ft (0.3-1.2 m): This is the setting when the distance

between speakers is 1-4 feet (30 cm-1.2 m).

>4 ft (1.2 m): This is the setting when the distance

between speakers is 4 feet (1.2 m) or more. * ASA: Advanced Speaker Array

Audio Output Assign Sub-menu

This setting allocates audio output jacks on the DTR-10.5 to input (play) sources. The setting varies depending on the connection conditions. The DTR-10.5 is equipped with analog output jacks for ﬁve lines, and digital output jacks: optical jacks (OPT) for two lines, and coaxial jacks (COAX) for two lines. If setting the analog jacks to “Zone 2 Out” or “Zone 3 Out,” you can also specify whether output should be variable or ﬁxed. The default settings are as follows:

Terminals Default input settings

Analog 1 (AUDIO OUT 1) Video 1 Rec Out

Analog 2 (AUDIO OUT 2) Video 2 Rec Out

Analog 3 (AUDIO OUT 3) Video 3 Rec Out

Analog 4 (AUDIO OUT 4) Zone 2 Out

Analog 5 (AUDIO OUT 5) Zone 3 Out

Opt 1 Out (DIGITAL OUT OPTICAL 1) Tape 1 Rec Out

Opt 2 Out (DIGITAL OUT OPTICAL 2) Tape 2 Rec Out

Coax 1 Out (DIGITAL OUT COAXIAL 1) Video 1 Rec Out

Coax 2 Out (DIGITAL OUT COAXIAL 2) Zone 2 Out

Analog 1-5

Set the analog audio output jacks of “AUDIO OUT 1-5.” You can select from Tape 1 Rec Out, Tape 2 Rec Out, Video 1 Rec Out, Video 2 Rec Out, Video 3 Rec Out, Zone 2 Out, Zone 3 Out, and Not Used.

Example 1:

When input (REC) of an audio recording device (e.g., a cassette deck) with TAPE 1 as an input source is connected to AUDIO OUT 1, set “Analog 1” to “Tape 1 Rec Out.”

Example 2:

When sound input of a picture recording device (e.g., a VCR) with VIDEO 1 as an input source is connected to AUDIO OUT 2, set “Analog 2” to “Video 1 Rec Out.”

Example 3:

When the ampliﬁer for Zone 2 is connected to AUDIO OUT 5, set “Analog 5” to “Zone 2 Out.”

When nothing is connected: Select “Not Used.”

LR R L

OUT

Setup Menu

0-1 ft (0-0.3 m)(Default): This is the setting when the

distance between the speakers is 0-1 foot (0-30 cm).

Page 92

Speaker/Output Setup —Continued

Zone 2 Out, Zone 3 Out

This item is displayed when “Zone 2 Out” or “Zone 3 Out” is speciﬁed for Analog 1-5 above. The default setting for “Zone 2 Out” is “Pre Out (variable)” and for “Zone 3 Out” is “Line Out (ﬁxed).”

Pre Out (variable): Select this when you want to set

“variable” for output to a device connected to Zone 2 or Zone 3. You should operate the DTR-10.5 to adjust the sound volume from the device in Zone 2 or Zone 3.

Line Out (ﬁxed): Select this when you want to set

“ﬁxed” for output to a device connected to Zone 2 or Zone 3. You should operate the ampliﬁer connected to the terminal to adjust the sound volume from the device in Zone 2 or Zone 3.

Opt 1 Out, Opt 2 Out, Coax 1 Out, Coax 2 Out

Specify a setting for “DIGITAL OUT OPTICAL 1-2” and “DIGITAL OUT COAXIAL 1-2.” You can select from Tape 1 Rec Out, Tape 2 Rec Out, Video 1 Rec Out, Video 2 Rec Out, Video 3 Rec Out, Zone 2 Out, Zone 3 Out, and Not Used.

DIGITAL

OUT

Example 1:

When input (REC) of an audio recording device (e.g., an MD recorder) with TAPE 2 as an input source is connected to DIGITAL OUT OPTICAL 1, set “Opt 1 Out” to “Tape 2 Rec Out.”

Example 2:

When input (IN) of a picture recording device (e.g., a DVD recorder) with VIDEO 2 as an input source is connected to DIGITAL OUT OPTICAL 2, set “Opt 2 Out” to “Video 2 Rec Out.”

When nothing is connected: Select “Not Used.”

HDMI Out

This sub-menu appears when the HDMI terminal board [L] is inserted. This setting allows you to enable/disable audio output from the HDMI terminal. Use this setting when the HDMI terminal of a TV is connected to the HDMI terminal of the DTR-10.5 and you want to enable HDMI audio output of the DTR-10.5 from the TV speakers. Usually leave this setting to its default, “Disable.”

Disable (Default): Disables HDMI audio output. Enable: Enables HDMI audio output.

Video Output Assign Sub-menu

This setting allocates video output jacks on the DTR-10.5 to input (play) sources. The setting varies depending on the connection conditions.

The DTR-10.5 is equipped with composite video output jacks for four lines, and S video output jacks for four lines.

OUT OUT

S VIDEOS VIDEO VIDEOVIDEO

The default settings are as follows:

Terminals

Composite Video 1 (VIDEO OUT 1) Monitor Out B

Composite Video 2 (VIDEO OUT 2) Zone 2 Out

Composite Video 3 (VIDEO OUT 3) Zone 3 Out

Composite Video 4 (VIDEO OUT 4) Monitor Out A (ﬁxed)

S-Video 1 (S VIDEO OUT 1) Video 1 Rec Out

S-Video 2 (S VIDEO OUT 2) Video 2 Rec Out

S-Video 3 (S VIDEO OUT 3) Video 3 Rec Out

S-Video 4 (S VIDEO OUT 4) Monitor Out A (ﬁxed)

Default input

settings

Composite Video 1-3, S-Video 1-3

This is a setting for the composite video output jacks (VIDEO OUT 1-3) and S video output jacks (S VIDEO OUT 1-3). For Composite Video 1-3, you can select from Monitor Out A, Monitor Out B, Video 1 Rec Out, Video 2 Rec Out, Video 3 Rec Out, Zone 2 Out, Zone 3 Out, and Not Used.

• You can set “Zone 2 Out” or “Zone 3 Out” only when “Zone 2 Out” or “Zone 3 Out” is selected from the Audio Output Assign sub-menu.

For S Video 1-3, you can select from Monitor Out A, Monitor Out B, Video 1 Rec Out, Video 2 Rec Out, Video 3 Rec Out, and Not Used.

Example 1:

When the video port of a picture recording device (e.g., a VCR) with VIDEO 1 as an input source is connected to VIDEO OUT 2, you should set “Composite Video 2” to “Video 1 Rec Out.”

Example 2:

When you want to connect a TV set to VIDEO OUT 3 to watch it in main room A, set “Composite Video 3” to “Monitor Out A.”

When nothing is connected: Select “Not Used.”

Composite Video 4, S-Video 4

The composite video output jacks (VIDEO OUT 4), and S video output jacks (S VIDEO OUT 4) are ﬁxed to Monitor Out A, you cannot change this setting. You should connect a TV set and a projector used in main room A to VIDEO OUT 4 or S VIDEO OUT 4.

Page 93

Input Setup

Items described here are set when you press the input source buttons.

The DTR-10.5 is equipped with several types of jacks in addition to the standard audio and video jacks, and multiple jacks are provided for each type. You may freely assign input sources such as CD, PHONO, TUNER, TAPE 1, TAPE 2, and VIDEO 1-7 to these jacks.

Moreover, you can preset a listening mode, specify names for display, adjust audio delays, correct the difference in the volume level from other input sources, and set the 12V trigger.

In particular, please be careful when setting the input jacks. Please properly specify settings for correct selection of pictures and audio to be played by referring to the information you wrote down in the Your System Settings booklet.

In the case of NET AUDIO, you can specify settings for the server (See page 95). Settings defaults are as follows:

OSD Indication Audio Assign Video Assign

Name of Terminal to be Set

NET AUDIO

PHONO TUNER TAPE 1 TAPE 2 DVD VIDEO 1 VIDEO 2

Input Selector

VIDEO 3 VIDEO 4 VIDEO 5 VIDEO 6 VIDEO 7

Analog Audio Multichannel Digital Audio i.LINK Composite

AUDIO IN MULTI-CH INDIGITAL IN iLINK VIDEO IN S VIDEO IN

No No No No Last Last Last Last

1 2 Opt 2 No Last Last Last Last

Phono No No No Last Last Last Last

No No No No Last Last Last Last

2 No Opt 3 No Last Last Last Last 3 No Coax 1 No Last Last Last Last 4 1 Opt 1 No 1 1 RCA 1 HDMI 1 5 No Coax 2 No 2 2 RCA 2 HDMI 2 6 No Coax 3 No 3 3 RCA 3 Video 7 No Opt 4 No 4 4 RCA 4/BNC Video 8 No Opt 5 No 5 No No Video 9 No Coax 4 No 6 No No Video

No No Coax 5 No No 5 No Video

Front No Front Opt No Front Front No Video

Video

Note: Defaults may differ depending on your region or option board in use.

S-Video Component

Video

COMPONENT

VIDEO IN

HDMI IN

HDMI

Setup Menu

Page 94

Input Setup —Continued

Follow procedures below to change any setting:

Press the [Input] button, and then roll the

scroll wheel to select the input source that you want to set.

Press the scroll wheel, and then press the

[Setup] button.

The Main Menu appears onscreen.

Use the [ ]/[ ] buttons to select “Input

Setup,” and then press the [Enter] button.

The sub-menu is displayed.

2.Input Setup ==Input:XXXXXX=======

1.Audio Assign

2.Video Assign

3.Listening Mode Preset

4.Character Edit

5.IntelliVolume

6.Delay

7.Picture Setting

8.12V Trigger Assign

Use the [ ]/[ ] buttons to select an item

you want to set, and then use the [ ]/[ ] buttons to set the desired value.

Other items should be selected in the same way.

Press the [Return] button.

The display returns to the sub-menu.

Repeat procedures 4-5 to set desired

items sequentially.

When all of the items are set, go to procedure 7.

Press the [Setup] button.

Settings are completed and the menu screen disappears.

Hint:

When you perform the procedures on the DTR-10.5, after selecting the input source using the input source buttons, press the [Setup] button. Next, select the menu you want to conﬁgure by turning the [Select/Preset] dial and press the dial to conﬁrm the selection. Then, after selecting the sub-menu you want to conﬁgure by turning the [Select/Preset] dial, select your value by turning the [Control/Tuning] dial, and press the dial to conﬁrm the value. If you want to go back to the previous operation, press the [Exit] button.

Example 1

In assignment of a DVD recorder to input of VIDEO 1, when the analog audio input is connected to “VIDEO 1,” the digital audio to “COAXIAL 2,” and the video to “S VIDEO 2” and “COMPONENT 2.”

1. Press the [Input] button, and then roll the scroll wheel to select “VIDEO 1.”

2. Press the scroll wheel, and then press the [Setup] button to display the Main Menu.

3. Use the [ ]/[ ] buttons to select “Input Setup,” and then press the [Enter] button.

4. Use the [ ]/[ ] buttons to select “Audio Assign” from the sub-menu, and then press the [Enter] button.

5. Use the [ ]/[ ] buttons to select “Analog Audio,” and then use the [ ]/[ ] buttons to select “1.”

6. Use the [ ]/[ ] buttons to select “Digital Audio,” and then use the [ ]/[ ] buttons to select “Coax 2.”

7. Press the [Return] button to return to the sub-menu.

8. Use the [ ]/[ ] buttons to select “Video Assign,” and then press the [Enter] button.

9. Use the [ ]/[ ] buttons to select “S-Video,” and then use the [ ]/[ ] buttons to select “2.”

10. Use the [ ]/[ ] buttons to select “Component Video,” and then use the [ ]/[ ] buttons to select “RCA 2.”

11. Press the [Setup] button. Setting is completed and the menu screen disap-

pears.

Audio Assign Sub-menu (when input is other than NET AUDIO)

The following are settings for audio. When input is “NET AUDIO,” see the following page.

Analog Audio

The following are settings for analog audio output:

Phono: Select the device connected to “AUDIO IN PH.” 1-9: Select the device connected to the jack of “AUDIO

IN 1-9.”

Front: Select the device connected to the “Video 7

Input L-Audio-R” jack behind the front door of the DTR-10.5.

No: Select this when no device is connected.

Multichannel

This item appears when the multichannel terminal board [E] is inserted. When the multichannel terminal board contains a single set of multichannel terminals, available options are “1” and “No.”

Select the device connected to the jack of “MULTI-

CH IN 1.”

2: Select the device connected to the jack of “MULTI-

CH IN 2.” This item is available when a multichannel option board with two multichannel terminal sets is installed.

No (Default): Select this when no device is connected.

Surr Back Channel

This item appears when the multichannel terminal board [E] is inserted. The following are settings for “Multichannel 1” or “Multichannel 2” described above, and cannot be speciﬁed separately for each input source. For example, when the input source is CD and “Surround Back Channel” is set to “Not Used (5.1 ch)” for “Multichannel 1,” switching the input source to DVD and “Surround Back Channel” to “SBL/SBR (7.1ch)” will also change “Surround Back Channel” associated with CD to “SBL/SBR (7.1ch).”

Not Used (5.1 ch): Select this when not using the

surround back channel.

SBL/SBR (7.1 ch) (Default): Select this when using

the surround back channel.

Page 95

Input Setup —Continued

Subwoofer Sensitivity

This item appears when the multichannel terminal board [E] is inserted. The following are also settings for “Multichannel 1” or “Multichannel 2” (cannot be speciﬁed separately for each input source). Some DVD decks output the LFE channel at 15 dB lower than the other channels in the multichannel output. The level setting under the Level Calibration sub-menu is applied to the analog and digital inputs as well as the multichannel input. Therefore, in this setting, you can set the optimum LFE channel level applied only to the multichannel input. You can select from 0 (Default), +5, +10 and +15 dB.

Digital Audio

The following are settings for digital audio output.

Opt 1-Opt 6: Select the device connected to “DIGITAL

IN OPTICAL 1-6.”

Coax 1-Coax 6: Select the device connected to

“DIGITAL IN COAXIAL 1-6.”

Front: Select the device connected to the “Video 7 Input

Digital” jack behind the front door of the DTR-10.5.

AES/EBU: Select the device connected to “DIGITAL

IN (BALANCED) AES/EBU.” The “AES/EBU” is available when the board [E] equipped with AES/EBU terminal is inserted.

No: Select this when no device is connected.

Digital Format

For digital connections, you can set the digital signals to be detected preferentially. When “Digital Audio” is set to “No” on the Audio Assign Sub-menu above, this item is not displayed.

Auto : Automatically detects the format of input signals.

The signal format (Dolby Digital, DTS, PCM, AAC, etc.) used for the selected source is automatically detected, and necessary decoding is performed.

DTS: Select for DTS decoding. You should select this if

you feel it takes too long to detect the signals when you have selected “Auto,” or if you dislike noises caused by CDs fast forwarding or rewinding. If any sound other than DTS is input, there is no sound.

PCM: Select for PCM decoding. You should select this

if you dislike omission of the top of a subsequent tune when you have selected “Auto.” If any sound other than PCM is input, there is no sound.

Note:

When playing any DTS-type CD or LD, always select “Auto” and “DTS.” Selecting “PCM” will cause noises.

i.LINK

This item appears when the i.LINK (AUDIO) terminal board [A] is inserted. When you connect multiple devices using the i.LINK (AUDIO) interface, the device names in the i.LINK connection appear and you can choose the input device

from them using the cursor ([ ]/[ ]) buttons. The device selected here will be the preferred device among the connected i.LINK (AUDIO) devices.

No: Select this when connected i.LINK (AUDIO)

devices are not selected as input devices.

Music Server Sub-menu (when input is NET AUDIO)

This sub-menu appears when the ETHERNET terminal board [B] (for Net Audio) is inserted.

Select Server

When input Music Server is selected from NET AUDIO, you can specify a server to be connected (See page 78).

Video Assign Sub-menu

The following are settings for video.

Composite Video

1-6: Select the device connected to the “VIDEO IN 1-

6” jack.

Front: Select the device connected to the “Video 7 Input

L-Audio-R” jack behind the front door of the DTR-10.5.

Last: Select this when you want video signal from the

device you last selected to be output.

No: Select this when no device is connected.

S-Video

1-6: Select the device connected to the “S VIDEO IN 1-

6” jack.

Front: Select the device connected to the “Video 7 Input

L-Audio-R” jack behind the front door of the DTR-10.5.

Last: Select this when you want video signal from the

device you last selected to be output.

No: Select this when no device is connected.

Component Video

RCA 1-4: Select the device connected to the

“COMPONENT VIDEO IN 1-4” jack. The item “RCA 4” is available when an option board that has RCA-type component VIDEO terminals [J] is installed on the USA and Canadian models.

BNC (Only available with an option board [J] that has

BNC-type component terminals) : Select the device connected to the “COMPONENT VIDEO IN” BNC type jack.

Last: Select this when you want video signal from the

device you last selected to be output.

No: Select this when no device is connected.

HDMI

This item appears when the HDMI terminal board [L] is inserted.

Select the device connected to the “HDMI IN 1” jack. When selecting this, the video signal from the HDMI IN 1 terminal will also be output to the HDMI OUT terminal.

2: Select the device connected to the “HDMI IN 2”

jack. When selecting this, the video signal from the HDMI IN 2 terminal will also be output to the HDMI OUT terminal.

VIDEO: Select this when you want the video signal

such as Composite Video, S Video, and Component Video to be output from the HDMI OUT terminal.

Last: Select this when you want video signal from the

device you last selected to be output.

No: Select this when no device is connected.

Setup Menu

Page 96

Input Setup —Continued

Listening Mode Preset Sub-menu

You can specify a listening mode you frequently use for each input source. When a picture you like and frequently watch is a Dolby Digital source, for example, you may specify “Dolby Digital,” and if a CD of classical music you are fond of is a PCM source, you can specify “Pure Audio.” Selecting “Last” will set the same listening mode as the one you last speciﬁed for that source.

• If “Surr L/R” is set to “BTL for Front,” “Bi-Amp for Front,” or “Not Used” on the Speaker Conﬁguration sub-menu, the option “PL IIx” is set to “PL II.”

• If “Surr L/R” is set to “Not Used” on the Speaker Conﬁguration sub-menu, you cannot select THX, Mono Movie, Enhance, Orchestra, Unplugged, Studio-Mix, or TV Logic.

• If both of “Center” and “Surr L/R” are set to “Not Used” on the Speaker Conﬁguration sub-menu, you cannot select THX, Mono Movie, Enhance, Orchestra, Unplugged, Studio-Mix, TV Logic, All Ch Stereo, or Full Mono.

Analog/PCM

Here, you can specify the listening mode for playing PCM signals from CDs and analog signals from records and cassette tapes. This option can be set for Main B and Zone 2 as well as for Main A. You can select from the listening modes listed below:

(Main A/B)

Pure Audio, Direct, Stereo (Default), Mono, PL IIx/ NEO:6, THX, Mono Movie, Enhance, Orchestra, Unplugged, Studio-Mix, TV Logic, All Ch Stereo, Full Mono, Dolby VS, and Last.

(Zone 2)

Direct, Stereo, Mono, Dolby VS, and Last.

Dolby Digital

Here, you can specify the listening mode for playing Dolby Digital signals. This option can be set for Main B and Zone 2 as well as for Main A. You can select from the listening modes listed below:

(Main A/B)

Pure Audio, Direct, Stereo, Mono, Dolby Digital (Default), THX, Mono Movie, Enhance, Orchestra, Unplugged, Studio-Mix, TV Logic, All Ch Stereo, Full Mono, Dolby VS, and Last.

(Zone 2)

Direct, Stereo, Mono, Dolby VS, and Last.

DTS

Here, you can specify the listening mode for playing DTS signals. This option can be set for Main B and Zone 2 as well as for Main A. You can select from the listening modes listed below:

(Main A/B)

Pure Audio, Direct, Stereo, Mono, DTS (Default), THX, Mono Movie, Enhance, Orchestra, Unplugged, Studio-Mix, TV Logic, All Ch Stereo, Full Mono, Dolby VS, and Last.

(Zone 2)

Direct, Stereo, Mono, Dolby VS, and Last.

AAC

Here, you can specify the listening mode for playing AAC signals. This option can be set for Main B and Zone 2 as well as for Main A. You can select from the listening modes listed below:

(Main A/B)

Pure Audio, Direct, Stereo, Mono, AAC (Default), THX, Mono Movie, Enhance, Orchestra, Unplugged, Studio-Mix, TV Logic, All Ch Stereo, Full Mono, Dolby VS, and Last.

(Zone 2)

Direct, Stereo, Mono, Dolby VS, and Last.

i.LINK (IEEE1394):DVD-Audio

This item appears when the i.LINK (AUDIO) terminal board [A] is inserted. Here, you can specify the listening mode for playing DVD-Audio on a device connected to the i.LINK (AUDIO) terminal. You can select from the listening modes listed below:

(Main A/B)

Pure Audio, Direct, Stereo, Mono, DVD-Audio (Default), THX, Mono Movie, Enhance, Orchestra, Unplugged, Studio-Mix, TV Logic, All Ch Stereo, Full Mono, Dolby VS, and Last.

i.LINK (IEEE1394):SACD

This item appears when the i.LINK (AUDIO) terminal board [A] is inserted. Here, you can specify the listening mode for playing Super Audio CD on a device connected to the i.LINK (AUDIO) terminal. You can select from the listening modes listed below:

(Main A/B)

Pure Audio, Direct, Stereo, Mono, SACD (Default), THX, Mono Movie, Enhance, Orchestra, Unplugged, Studio-Mix, TV Logic, All Ch Stereo, Full Mono, Dolby VS, and Last.

D.F.2ch

Here, you can specify the listening mode for playing digital signals such as Dolby Digital recorded through two channels. This option can be set for Main B and Zone 2 as well as the Main A. You can select from the listening modes listed below:

(Main A/B)

Pure Audio, Direct, Stereo, Mono (Default) Unplugged, Studio-Mix, TV Logic, All Ch Stereo, Full Mono

(Zone 2)

Direct, Stereo, Mono, Dolby VS, and Last.

THX, Mono Movie, Enhance, Orchestra,

Dolby VS, and Last.

PLIIx/NEO:6

Page 97

Input Setup —Continued

D.F. Mono

Here, you can specify the listening mode for playing digital signals such as Dolby Digital and AAC recorded in monaural. This option can be set for Main B and Zone 2 as well as for Main A. You can select from the listening modes listed below:

(Main A/B)

Pure Audio, Direct, Stereo, Mono (Default), Mono Movie, Enhance, Orchestra, Unplugged, Studio-Mix, TV Logic, All Ch Stereo, Full Mono, Dolby VS, and Last.

(Zone 2)

Direct, Stereo, Mono, Dolby VS, and Last.

D.F. Multiplex

Here, you can specify the listening mode for AAC sound multiplex broadcasting (e.g., a bilingual broadcast). This option can be set for Main B and Zone 2 as well as for Main A. You can select from the listening modes listed below:

(Main A/B)

Pure Audio, Direct, Stereo, Mono, Multiplex (Default), Mono Movie, Enhance, Orchestra, Unplugged, StudioMix, TV Logic, All Ch Stereo, Full Mono, Dolby VS, and Last.

(Zone 2)

Direct, Stereo, Mono, Multiplex, Dolby VS, and Last.

Multichannel

This item appears when the multichannel terminal board [E] is inserted. Here, you can specify the listening mode for analog multichannel connection. You can select from the listening modes listed below:

(Main A/B)

Pure Audio, Direct, Stereo, Mono, Multichannel (Default), THX, Mono Movie, Enhance, Orchestra, Unplugged, Studio-Mix, TV Logic, All Ch Stereo, Full Mono, Dolby VS, and Last.

176.4/192 kHz

Here, you can specify the listening mode for playing audio output signals at 192 kHz and 176.4 kHz such as DVD-Audio. This option can be set for Main B and Zone 2 as well as for Main A. You can select from the listening modes listed below:

(Main A/B)

Pure Audio, Direct, Stereo, and Last.

(Zone 2)

Direct, Stereo, and Last.

Character Edit Sub-menu

Character Display

Specify whether or not the name given to an input source should be displayed.

: The name given is not displayed. Only the name of

the input source is displayed.

Yes (Default) : The name given is displayed when the

input source is replaced.

Character

When “Yes” is selected for “Character Display” above, you can name the input source. You are allowed to enter up to ten characters. Carry out the following operations on the Character Input screen:

123456789012345678901234

2-4.Character Input

Input:VIDEO3

b.Character

ABCDEFGHIJKLM

NOPQRSTUVWXYZ

abcdefghijklm

nopqrstuvwxyz

0123456789-.'

()+*/=,:;!?_

1 2

Press the [ ] button to select

“Character,” and then press the [ ] button to display the Character Input screen.

Press the [ ]/[ ]/[ ]/[ ] buttons to

select characters you want to enter, and then press the [Enter] button.

Repeat step 2 above to enter up to ten

characters.

If you have selected the wrong character:

Pressing [Return] moves the cursor back to the previous character.

To change a character:

1. Press the [Enter] button (repeatedly) to locate the cursor on the character to be corrected.

2. Press the [ ]/[ ] buttons to select the new character, and then press the [Enter] button.

If the name is shorter than ten characters, enter blanks to make the length of the name ten characters.

Press the [Setup] button.

Setup is complete, and the menu screen disappears.

To erase all the characters entered:

At step 1 above, press the [ ] button instead of the [ ] button.

Setup Menu

Page 98

Input Setup —Continued

IntelliVolume Sub-menu

When multiple devices are connected to the DTR-10.5, the volume may vary for a device even when volume settings on the DTR-10.5 are identical. Reducing the variance in the volume level will allow you to enjoy sounds at the same volume level without adjusting the volume control on the DTR-10.5.

IntelliVolume

Use the [ ] button when the volume is louder than other devices, and the [ ] button when the volume is

quieter. You can set at 0.5 dB intervals within a range from –12.0 dB to +12.0 dB. The default is 0.0 dB.

Delay Sub-menu

This section describes how to adjust the delay of sounds.

A/V Sync

When the picture is not synchronized with the sound, you can synchronize them using these settings. This option can be set for Main B and Zone 2 as well as for Main A. You can set at 0.1 ms intervals within a range from 0.0 ms to 300.0 ms.

Relative Delay - Center, Surr L/R, Surr Back

Our proprietary “Enhanced Special Positioning Algorithm” (an extended three-dimensional positioning algorithm) ﬁne tunes the sound ﬁeld. This algorithm is able to create a maximum delay of 10 ms in the output of each speaker. This delay is equivalent to a distance of about 3 meters between speakers. This option can be set for both Main A and Main B.

• When “Center” is set to “Not Used” on the Speaker Conﬁguration sub-menu, there is no setting for “Center.” Likewise, if “Surr L/R” is set to “Not Used,” or “Surr Back” is set to “BTL for Front,” “BiAmp for Front,” or “Not Used,” there is also no setting for corresponding speakers.

You can set at 0.1 ms intervals within a range from –10.0 ms to +10.0 ms. The default is 0.0 ms. Use this function to ﬁne tune your surround environment after setting the distance between speakers (See page 89) and the volume level (See page 90). Extending the distance between speakers (widening the delay in time) will expand the sound ﬁeld, while reducing the distance (narrowing the delay) will make the sound ﬁeld sharper.

12V Trigger Assign Sub-menu

When the 12V TRIGGER OUT jack on the DTR-10.5 is connected to the12V TRIGGER IN jack of a device, you can specify the room where you are going to trigger the device to turn on the power (for connection details, see page 49). The default settings are as follows:

Room setting Delay

Trigger A Main 0

Trigger B Zone 2 1

Trigger C Zone 3 2

Trigger D Off 0

Trigger E Main 2

Trigger A-E

The following are settings for the 12V trigger jacks AE:

Off: Select when not using. Main: Select when you want to power on a connected

device only used in the main room.

Zone 2: Select when you want to power on a connected

device only used in Zone 2.

Zone 3: Select when you want to power on a connected

device only used in Zone 3.

Main/Zone 2: Select when you want to power on a

connected device only used in the main room or Zone 2.

Main/Zone 3: Select when you want to power on a

connected device only used in the main room or Zone 3.

Zone 2/Zone 3: Select when you want to power on a

connected device only used in Zone 2 or Zone 3.

Main/Zone 2/Zone 3: Select when you want to power

on a connected device used in any area: main room, Zone 2, or Zone 3.

A delay-E delay

When a 12V trigger-connected device is powered on, a large amount of current may, depending on the device type, ﬂow instantaneously. To ease the effects of this problem, you can set time interval differences for output signals from the 12V Trigger. Setting time interval differences may prevent unnecessary noise (bubbling sounds).

0 sec: Select when not setting any difference. 1 sec: Select when setting output signals 1 second after

power on to the DTR-10.5.

2 sec: Select when setting output signals 2 seconds after

power on to the DTR-10.5.

3 sec: Select when setting output signals 3 seconds after

power on to the DTR-10.5.

Page 99

Listening Mode Setup

This menu allows you to conﬁgure the listening mode settings including audio effect and playback options.

Mono Setup Sub-menu

This sub-menu allows you to conﬁgure the audio effect and playback options when you play a source in the Mono listening mode.

a. Re-EQ/Academy

This option allows you to conﬁgure whether the Re-EQ or Academy effect is applied or not. Use these effects when you do not want to overemphasize the treble sound. This option can also be set for Zone 2.

Off (Default): The effects are not applied. Re-EQ On: Adjusts the soundtrack in which the treble

is overemphasized, so that the sound is optimized for home theater.

Academy On: Lowers the treble level and ﬁlters the

noise when the source contains emphasized treble sound and too much hiss, such as an old mono audio movie recorded onto videotape.

b. Input Channel

This option conﬁgures the output method when you play the stereo input source in the Mono listening mode. This option can also be set for Zone 2.

Auto L+R (Default) : The same audio signals are

output from the left and right speakers.

Left: When you play an input source with different

languages recorded on each channel, the left channel is output from the left and right speakers.

Right: When you play an input source where different

languages are recorded on each channel, the right channel is output from the left and right speakers.

c. Output Speaker

This option conﬁgures the speakers to use when playing the source in the Mono listening mode. Select the speaker terminals to which the speakers you want to use are connected.

Center A (Default) : Outputs the source only from the

speaker connected to the CENTER SPEAKERS A terminal.

Center B: Outputs the source only from the speaker

connected to the CENTER SPEAKERS B terminal.

Center A+B: Outputs the source from the speakers

connected to the CENTER SPEAKERS A and CENTER SPEAKERS B terminals.

Front L/R A: Outputs the source from the speakers

connected to the FRONT L/R SPEAKERS A terminals.

Front L/R B: Outputs the source from the speakers

connected to the FRONT L/R SPEAKERS B terminals.

Front L/R A+B: Outputs the source from the speakers

connected to the FRONT L/R SPEAKERS A and FRONT L/R SPEAKERS B terminals. Note that this option is not available when the front speakers are in Biamp or in BTL conﬁguration.

• When the “(Speaker B) Front L/R” is set to an option other than “Main A” in the Speaker Conﬁguration sub-menu, the available options will be “Center A,” “Center B,” “Center A+B,” and “Front L/R A.”

• When the “(Speaker A) Center” is set to “Not Used” in the Speaker Conﬁguration sub-menu, the available options will be “Front L/R A,” “Front L/R B,” and “Front L/R A+B.” In this case, the default setting is “Front L/R A.”

• When the “(Speaker B) Center” is set to an option other than “Main A” in the Speaker Conﬁguration sub-menu, the available options will be “Center A,” “Front L/R A,” “Front L/R B,” and “Front L/R A+B.”

• When the impedance setting for either “Front L/R A” or “Front L/R B” in the Speaker Impedance sub-menu is set to “6 ohms” or “4 ohms,” “Front L/R A+B” cannot be selected. Similarly, when the impedance setting for either “Center A” or “Center B” in the Speaker Impedance sub-menu is set to “6 ohms” or “4 ohms,” “Center A+B” cannot be selected.

• When the “(Speaker A) Center” is set to “Not Used” and the “(Speaker B) Front L/R” is set to an option other than “Main A” in the Speaker Conﬁguration sub-menu, this setting will not be displayed.

d. Subwoofer

This option conﬁgures the subwoofer to use when playing the source in the Mono listening mode. Select the terminal to which the subwoofer you want to use is connected. This setting can be made when the “(Speaker A) Subwoofer” is set to an option other than “Not Used” in the Speaker Conﬁguration sub-menu. However, when the “(Speaker B) Subwoofer” is set to an option other than “Main A” in the Speaker Conﬁguration sub-menu, the available options will be “A” or “Not Used.”

A (Default): Outputs the source only from the

subwoofer connected to the SUBWOOFER PRE OUT A terminal.

Outputs the source only from the subwoofer

connected to the SUBWOOFER PRE OUT B terminal.

A+B: Outputs the source from the subwoofers

connected to SUBWOOFER PRE OUT A and SUBWOOFER PRE OUT B terminals.

Not Used: No subwoofers are used for playback.

Multiplex Setup Sub-menu

This sub-menu allows you to conﬁgure the audio effect and playback options when you play a source in the D.F. Multiplex listening mode.

a. Re-EQ/Academy

Off (Default): The effects are not applied.

Setup Menu

Page 100

Listening Mode Setup —Continued

Re-EQ On: Adjusts the soundtrack in which the treble

is overemphasized, so that the sound is optimized for home theater.

Academy On: Lowers the treble level and ﬁlters the

noise when the source contains emphasized treble sound and too much hiss, such as an old mono audio movie recorded onto videotape.

b. Multiplex Input Channel

This option allows you to select the preferred audio channel when the input is the AAC/Dolby Digital sound multiplex signal. This option can also be set for Zone 2. The input channel setting made here will be applied to all the listening modes for the Dolby Digital and AAC input signal “1+1” sources.

Main (Default): The main channel is preferred for

output.

Sub: The sub-channel is preferred for output. Main+Sub: The main and sub-channel are output.

c. Output Speaker

This option conﬁgures the speakers to use when playing the source in the D.F. Multiplex listening mode. Select the speaker terminals to which the speakers you want to use are connected.

Center A: Outputs the source only from the speaker

connected to the CENTER SPEAKERS A terminal.

Center B: Outputs the source only from the speaker

connected to the CENTER SPEAKERS B terminal.

Center A+B: Outputs the source from the speakers

connected to the CENTER SPEAKERS A and CENTER SPEAKERS B terminals.

Front L/R A (Default): Outputs the source from the

speakers connected to the FRONT L/R SPEAKERS A terminals.

Front L/R B: Outputs the source from the speakers

connected to the FRONT L/R SPEAKERS B terminals.

Front L/R A+B: Outputs the source from the speakers

connected to the FRONT L/R SPEAKERS A and FRONT L/R SPEAKERS B terminals. Note that this option is not available when the front speakers are in Biamp or in BTL conﬁguration.

• When the impedance setting for either “Front L/R A” or “Front L/R B” in the Speaker Impedance sub-menu is set to “6 ohms” or “4 ohms,” “Front L/R A+B”

cannot be selected. Similarly, when the impedance setting for either “Center A” or “Center B” in the Speaker Impedance sub-menu is set to “6 ohms” or “4 ohms,” “Center A+B” cannot be selected.

d. Subwoofer

This option conﬁgures the subwoofer to use when playing the source in the D.F. Multiplex listening mode. Select the terminal to which the subwoofer you want to use is connected. This setting can be made when the “(Speaker A) Subwoofer” is set to an option other than “Not Used” in the Speaker Conﬁguration sub-menu. However, when the “(Speaker B) Subwoofer” is set to an option other than “Main A” in the Speaker Conﬁguration sub-menu, the available options will be “A” or “Not Used.”

A (Default): Outputs the source only from the

subwoofer connected to the SUBWOOFER PRE OUT A terminal.

Outputs the source only from the subwoofer

connected to the SUBWOOFER PRE OUT B terminal.

A+B: Outputs the source from the subwoofers

connected to the SUBWOOFER PRE OUT A and SUBWOOFER PRE OUT B terminals.

Not Used: No subwoofers are used for playback.

Stereo Setup Sub-menu

This sub-menu allows you to conﬁgure the audio effect and playback options when you play a source in the Stereo listening mode.

a. Re-EQ/Academy

This option allows you to conﬁgure whether the Re-EQ or Academy effect is applied or not in the Stereo listening mode. Use these effects when you do not want to overemphasize the treble sound. This option can also be set for Zone 2.

Off (Default): The effects are not applied. Re-EQ On: Adjusts the soundtrack in which the treble

is overemphasized, so that the sound is optimized for home theater.

Academy On: Lowers the treble level and ﬁlters the

noise when the source contains emphasized treble sound and too much hiss, such as an old mono audio movie recorded onto videotape.

b. Front Speaker

This option conﬁgures the speakers to use when playing the source in the Stereo listening mode. Select the speaker terminals to which the speakers you want to use are connected. This setting can be made when the “(Speaker B) Front L/R” is set to “Main A” in the Speaker Conﬁguration sub-menu.

100
