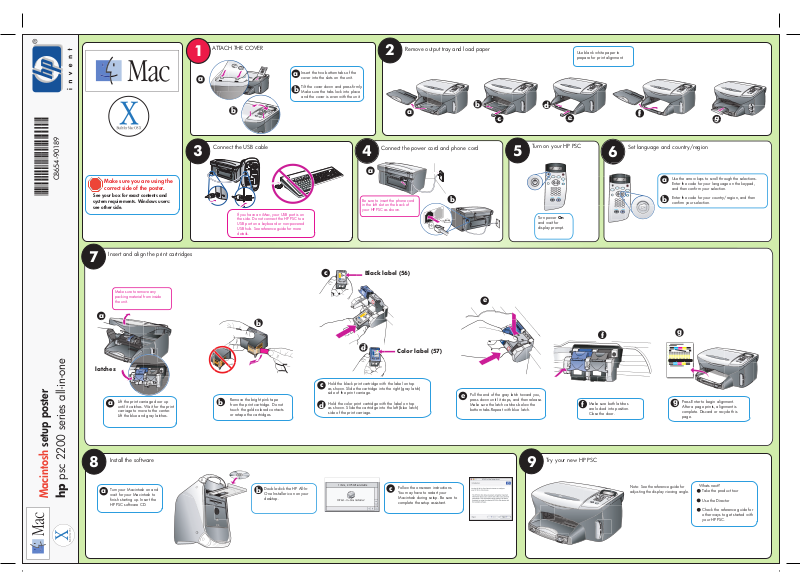

HP psc 2200 Macintosh setup poster

1

a

back o

Turn power

On

d

ATTACH THE COVER

Insert the two bottom tabs of the

a

cover into the slots on the unit.

Tilt the cover down and press firmly.

b

Make sure the tabs lock into place
and the cover is even with the unit.

2

Remove output tray and load paper

Use blank white paper to
prepare for print alignment.

a

C8654-90189

*C8654-90189*

*C8654-90189*

Make sure you are using the
correct side of the poster.

See your box for exact contents and
system requirements. Windows users:
see other side.

Insert and align the print cartridges

7

3

Connect the USB cable

If you have an iMac, your USB port is on
the side. Do not connect the HP PSC to a
USB port on a keyboard or non-powered
USB hub. See reference guide for more
details.

onnect the power cord and phone cor

4

Be sure to insert the phone cord
in the left slot on the
your HP PSC as shown.

f

b

5

Turn on your HP PSC

and wait for
display prompt.

6

Set language and country/region

Use the arrow keys to scroll through the selections.

a

Enter the code for your language on the keypad,
and then confirm your selection.

Enter the code for your country/region, and then
confirm your selection.

latches

a

Make sure to remove any
packing material from inside
the unit.

Lift the print carriage door up
until it catches. Wait for the print
carriage to move to the center.
Lift the blue and gray latches.

Remove the bright pink tape

b

from the print cartridge. Do not
touch the gold-colored contacts
or retape the cartridges.

c

Hold the black print cartridge with the label on top

c

as shown. Slide the cartridge into the right (gray latch)
side of the print carriage.

Hold the color print cartridge with the label on top

d

as shown. Slide the cartridge into the left (blue latch)
side of the print carriage.

Black label (56)

Color label (57)

e

Pull the end of the gray latch toward you,

e

press down until it stops, and then release.
Make sure the latch catches below the
bottom tabs.Repeat with blue latch.

Make sure both latches

f

are locked into position.
Close the door.

g

Press Enter to begin alignment.

g

After a page prints, alignment is
complete. Discard or recycle this
page.

8

psc 2200 series all-in-one

a

Macintosh setup poster

hp

Install the software

Turn your Macintosh on and
wait for your Macintosh to
finish starting up. Insert the
HP PSC software CD.

Double-click the HP All-In­One Installer icon on your
desktop.

Follow the onscreen instructions.

c

You may have to restart your
Macintosh during setup. Be sure to
complete the setup assistant.

9

Try your new HP PSC

Note: See the reference guide for
adjusting the display viewing angle.

Whats next?
Take the product tour

Use the Director

Check the reference guide for
other ways to get started with
your HP PSC.
