QuickSpecs

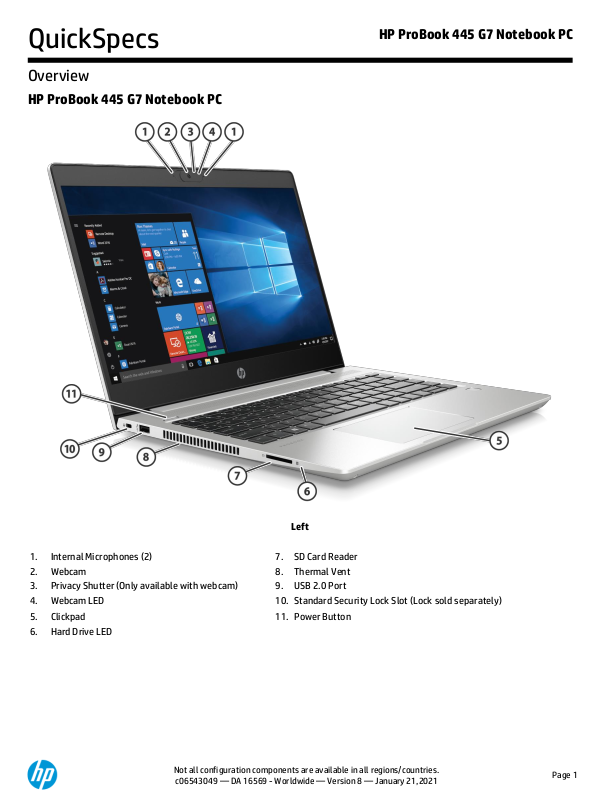

HP ProBook 445 G7 Notebook PC

Overview

Not all configuration components are available in all regions/countries.

c06543049 — DA 16569 - Worldwide — Version 8 — January 21,2021

Page 1

HP ProBook 445 G7 Notebook PC

Left

Internal Microphones (2)

SD Card Reader

Webcam

Thermal Vent

Privacy Shutter (Only available with webcam)

USB 2.0 Port

Webcam LED

10.

Standard Security Lock Slot (Lock sold separately)

Clickpad

11.

Power Button

Hard Drive LED

QuickSpecs

HP ProBook 445 G7 Notebook PC

Overview

Not all configuration components are available in all regions/countries.

c06543049 — DA 16569 - Worldwide — Version 8 — January 21,2021

Page 2

Right

Power Connector

USB 3.1 Gen 1 Port

USB Type-C® 3.1 Gen 2 (Alt Mode) Port

USB 3.1 Gen 1 Port

Ethernet Port (RJ-45)

Headphone / Microphone Combo Jack

HDMI Port (Cable not included)

HP Fingerprint Sensor (select models)

QuickSpecs

HP ProBook 445 G7 Notebook PC

Overview

Not all configuration components are available in all regions/countries.

c06543049 — DA 16569 - Worldwide — Version 8 — January 21,2021

Page 3

At a Glance

• Preinstalled Windows 10 or FreeDOS

• Choice of AMD Ryzen™ 4000 series mobile processors, R7, R5 and R3

• Display include your choice of 35.56 cm (14.0") diagonal HD, Ultra Wide Viewing Angle FHD, And Privacy Panel option

• Enhanced security features including TPM2.0, HP Sure Sense, HP Sure Start, HP BIOSphere, Hardware enforced Firmware

Protection, optional Fingerprint sensor (select models)4, optional IR camera, and optional Privacy Panel

• Designed to pass MIL-STD 810H testing

• Weight starting at 3.53 lb (1.6kg) (Weight will vary by configuration)

• HP Long-Life Rechargeable battery, with HP Fast Charge Technology recharges 50% in 30 minutes

• Up to 512 GB Solid State Drives and 1 TB Hard Drive

• Up to 32 GB total system memory

• 720p HD webcam, IR camera for face authentication with Windows Hello

• Spill-resistant and optional backlit Keyboard

, and Clickpad with multi-touch gestures enabled, taps enabled as default

1. MIL STD 810H testing is not intended to demonstrate fitness for U.S. Department of Defense contract requirements or

for military use. Test results are not a guarantee of future performance under these test conditions. Damage under the MIL STD test conditions or any accidental damage requires an optional HP Accidental Damage Protection Care Pack.

2. Recharges the battery up to 50% within 30 minutes when the system is off or in standby mode when used with the

power adapter provided with the notebook. After charging has reached 50% capacity, charging speed will return to normal. Charging time may vary +/-10% due to System tolerance.

3. Backlit keyboard is an optional feature that must be configured at purchase.

4. HP Fingerprint Sensor is an optional feature and requires configuration at purchase.

NOTE: See important legal disclosures for all listed specs in their respective features sections.

QuickSpecs

HP ProBook 445 G7 Notebook PC

Technical Specifications

Not all configuration components are available in all regions/countries.

c06543049 — DA 16569 - Worldwide — Version 8 — January 21,2021

Page 4

PRODUCT NAME

HP ProBook 445 G7 Notebook PC

OPERATING SYSTEMS

Preinstalled

Windows® 10 Pro 64

Windows® 10 Pro 64 (National Academic License)

Windows® 10 Home 64

Windows® 10 Home Single Language 64

Windows® 10 Enterprise 64 (Web Support)

FreeDOS

1. Not all features are available in all editions or versions of Window. Systems may require upgraded and/or separately purchased hardware, drivers, software or BIOS update to take full advantage of Windows functionality. Windows 10 is automatically updated, which is always enabled. ISP fees may apply and additional requirements may apply over time for updates. See http://www.windows.com/.

2. Some devices for academic use will automatically be updated to Windows 10 Pro Education with the Windows 10 Anniversary Update. Features vary; see https://aka.ms/ProEducation for Windows 10 Pro Education feature information.

NOTE: Your product does not support Windows 8 or Windows 7. In accordance with Microsoft’s support policy, HP does not support the Windows® 8 or Windows 7 operating system on products configured with Intel® and AMD® 7th generation and forward processors or provide any Windows® 8 or Windows 7 drivers on http://www.support.hp.com. A full list of HP products and the Windows 10 versions tested is available on the HP support website. https://support.hp.com/us-

en/document/c05195282

PROCESSORS

AMD Ryzen™ 3 4300U APU with AMD Radeon™ Graphics (2.7 GHz base clock, up to 3.7 GHz max boost clock, 4 MB L3 cache, four-cores)

3,4,5,6

AMD Ryzen™ 5 4500U APU with AMD Radeon™ Graphics (2.3 GHz base clock, up to 4.0 GHz max boost clock, 8 MB L3 cache, six-cores)

3,4,5,6

AMD Ryzen™ 7 4700U APU with AMD Radeon™ Graphics (2.0 GHz base clock, up to 4.1 GHz max boost clock, 8 MB L3 cache, eight-cores)

3,4,5,6

AMD Ryzen™ 5 PRO 4650U APU with Radeon™ Graphics (2.1 GHz base clock, up to 4 GHz max boost clock, 8 MB L3 cache, 6 cores)

3,4,5

AMD Ryzen™ 7 PRO 4750U APU with Radeon™ Graphics (1.7 GHz base clock, up to 4.1 GHz max boost clock, 8 MB L3 cache, 8 cores)

3,4,5

Processors Family

AMD Ryzen™ 4000 Series Mobile processors6

3. Processor speed denotes maximum performance mode; processors will run at lower speeds in battery optimization mode.

4. Multicore is designed to improve performance of certain software products. Not all customers or software applications will necessarily benefit from use of this technology. Performance and clock frequency will vary depending on application workload and your hardware and software configurations. AMD’s numbering is not a measurement of clock speed.

5. AMD Max Burst frequency performance varies depending on hardware, software and overall system configuration.

6. In accordance with Microsoft’s support policy, HP does not support the Windows 8 or Windows 7 operating system on

products configured with Intel and AMD 7th generation and forward processors or provide any Windows 8 or Windows 7 drivers on http://www.support.hp.com.

QuickSpecs

HP ProBook 445 G7 Notebook PC

Technical Specifications

Not all configuration components are available in all regions/countries.

c06543049 — DA 16569 - Worldwide — Version 8 — January 21,2021

Page 5

CHIPSET

Chipset is integrated with processor

GRAPHICS

Integrated

AMD Radeon™ Graphics

Note: View processor section for details.

Supports

Support HD decode, DX12, HDMI 1.4

7. HD content required to view HD images.

DISPLAYS

Internal Non-Touch

35.56 cm (14") diagonal HD SVA eDP anti-glare LED backlit slim, 220 cd/m², 45% NTSC (1366 x 768)

7,8

35.56 cm (14") diagonal HD SVA eDP anti-glare LED backlit slim, 220 cd/m², 45% NTSC for HD camera (1366 x 768)

7,8

35.56 cm (14") diagonal HD SVA eDP anti-glare LED backlit slim, 220 cd/m², 45% NTSC for HD + IR camera (1366 x 768)

7,8

35.56 cm (14") diagonal FHD IPS eDP anti-glare LED-backlit slim, 250 cd/m², 45% NTSC (1920 x 1080)

7,8

35.56 cm (14") diagonal FHD IPS eDP anti-glare LED-backlit slim, 250 cd/m², 45% NTSC for HD camera (1920 x 1080)

7,8

35.56 cm (14") diagonal FHD IPS eDP anti-glare LED-backlit slim, 250 cd/m², 45% NTSC for HD + IR camera (1920 x 1080)

7,8

35.56 cm (14") diagonal FHD eDP+PSR anti-glare LED-backlit flat, 1000 cd/m², 72% NTSC for HD Webcam Privacy (1920x1080)

7,8,9

Supports narrow bezel

HDMI

HDMI 1.4 up to 4K 30Hz

7. HD content required to view HD images.

8. Resolutions are dependent upon monitor capability, and resolution and color depth settings.

9. HP Sure View integrated privacy screen is an optional feature that must be configured at purchase and is designed to function in landscape orientation.

QuickSpecs

HP ProBook 445 G7 Notebook PC

Technical Specifications

Not all configuration components are available in all regions/countries.

c06543049 — DA 16569 - Worldwide — Version 8 — January 21,2021

Page 6

Docking station model

Total number of

supported

displays (incl. the

notebook display)

Max.

resolutions

supported

Dock

Connectors

Technical limitations

HP Thunderbolt Dock 120W

Dual 4k @60Hz

2xDP, 1xVGA,

1xTB,1xUSB-C

alt-mode

Dual 4k only with one display in to

DP and + TB port or USB-C alt

mode + TB port

HP USB-C Dock G4

Dual 2K @ 60Hz

Single 4K @

60Hz (3840 x

1440)

1xHDMI, 2xDP

HP USB-C Universal Dock

Dual 4K @ 60Hz

Single 5K @

60Hz

2xDP

HP USB-C Travel Dock

Single 2K @

60Hz

1xHDMI, 1xVGA

Single external display

Only HDMI or VGA at the time

HP USB-C Mini Dock

Single 4K @

30Hz

1xHDMI, 1xVGA

Single external display

Only HDMI or VGA at the time

HP USB-C/A Universal Dock G2

Dual 2.5K @

60Hz

2xDP, 1xHDMI

HP USB-C Dock G5

Dual 2.5K @

60Hz or

4K @ 60Hz +

FHD @ 60Hz

2xDP, 1xHDMI

QuickSpecs

HP ProBook 445 G7 Notebook PC

Technical Specifications

Not all configuration components are available in all regions/countries.

c06543049 — DA 16569 - Worldwide — Version 8 — January 21,2021

Page 7

STORAGE AND DRIVES

Primary Storage

500 GB 7200 rpm SATA10 1 TB 5400 rpm SATA10

Primary M.2 Storage

128 GB SATA TLC Solid State Drive10

256 GB PCIe® NVMe™ Value Solid State Drive10 512 GB PCIe® NVMe™ TLC Solid State Drive10 512 GB PCIe® NVMe™ Value Solid State Drive10

Note: PCIe SSD not available for Celeron

10. For storage drives, GB = 1 billion bytes. TB = 1 trillion bytes. Actual formatted capacity is less. Up to 30 GB (for Windows

10) is reserved for system recovery software.

MEMORY

Maximum Memory

32 GB DDR4-3200 SDRAM16

Memory

32 GB DDR4-3200 SDRAM (2 x 16 GB)

16 GB DDR4-3200 SDRAM (2 x 8 GB)11 16 GB DDR4-3200 SDRAM (1 x 16 GB)

12 GB DDR4-3200 SDRAM (1 x 4 GB and 1 x 8 GB)

8 GB DDR4-3200 SDRAM (1 x 8 GB)

8 GB DDR4-3200 SDRAM (2 x 4 GB)

4 GB DDR4-3200 SDRAM (1 x 4 GB)

Memory Slots

2 SODIMM Both slots are customer accessible / upgradeable by IT or self-maintainers only DDR4 PC4 SODIMMS, system runs at 3200 Supports Dual Channel Memory

11. Due to the non-industry standard nature of some third-party memory modules, we recommend HP branded memory to ensure compatibility. If you mix memory speeds, the system will perform at the lower memory speed.

NETWORKING/COMMUNICATIONS

WLAN

Realtek RTL8822CE 802.11 a/b/g/n/ac (2x2) Wi-Fi® + Bluetooth® 5 Combo

Intel® Dual Band Wi-Fi® 6 AX200 802.11ax (2x2) and Bluetooth® 5 Combo, non-vPro™

Intel® Dual Band Wireless-AC 9260 802.11 a/b/g/n/ac (2x2) Wi-Fi® and Bluetooth® 5 Combo, non-vPro™

Ethernet

Realtek RTL8111HSH 10/100/1000 NIC13

12. Wireless access point and Internet service required and sold separately. Availability of public wireless access points limited. Wi-Fi 6 is backwards compatible with prior 802.11 specs. The specifications for Wi-Fi 6 (802.11ax) are draft and are

QuickSpecs

HP ProBook 445 G7 Notebook PC

Technical Specifications

Not all configuration components are available in all regions/countries.

c06543049 — DA 16569 - Worldwide — Version 8 — January 21,2021

Page 8

not final. If the final specifications differ from the draft specifications, it may affect the ability of the notebook to communicate with other 802.11ax devices. Only available in countries where 802.11ax is supported.

13. The term "10/100/1000" or "Gigabit" Ethernet indicates compatibility with IEEE standard 802.3ab for Gigabit Ethernet, and does not connote actual operating speed of 1 Gb/s. For high-speed transmission, connection to a Gigabit Ethernet server and network infrastructure is required.

AUDIO/MULTIMEDIA

Audio

Integrated microphone (Mono or Dual Array) 2 Integrated stereo speakers

Camera 720p HD camera

720p HD + IR camera

7,14

7. HD content required to view HD images.

14. IR camera is an optional feature that must be configured at purchase.

KEYBOARDS/POINTING DEVICES/BUTTONS & FUNCTION KEYS

Keyboard

HP Premium Keyboard, spill-resistant with optional backlit15

Pointing Device Clickpad with multi-touch gesture support

Function Keys

F1 - Display Switching F2 - Blank or SureView On/Off F3 - Brightness Down F4 - Brightness Up F5 - Audio Mute F6 - Volume Down F7 - Volume Up F8 - Mic Mute F9 - Blank or Backlit Toggle F10 - numlk F11 - Wireless F12 - Sleep

Hidden Function Keys

Fn+R - Break Fn+S - Sys Rq Fn+C - Scroll Lock

15. Backlit keyboard is an optional feature that must be configured at purchase.

QuickSpecs

HP ProBook 445 G7 Notebook PC

Technical Specifications

Not all configuration components are available in all regions/countries.

c06543049 — DA 16569 - Worldwide — Version 8 — January 21,2021

Page 9

SOFTWARE AND SECURITY

BIOS

HP BIOSphere Gen5

HP Drive Lock & Automatic Drive Lock

BIOS Update via Network Master Boot Record Security Power On Authentication Secure Erase

Absolute Persistence Module

Pre-boot Authentication

Software

HP Connection Optimizer HP Image Assistant HP Hotkey Support HP JumpStarts HP Support Assistant

HP Noise Cancellation Software Buy Office (sold separately)

Manageability Features

HP Driver Packs

HP System Software Manager (SSM) HP BIOS Config Utility (BCU) HP Client Catalog HP Manageability Integration Kit Gen322

Client Security Software

HP Client Security Manager Gen5

HP Fingerprint Sensor

Windows Defender25

Security Management

Pre-boot Authentication TPM 2.0 Embedded Security Chip shipped with Windows 10 (Common Criteria EAL4+ Certified) (FIPS 140-2 Level 2 Certified) USB enable/disable (via BIOS) Power-on password (via BIOS) Setup password (via BIOS) HP Fingerprint Sensor

Support for chassis padlocks and cable lock devices HP Sure Click

HP Sure Sense

QuickSpecs

HP ProBook 445 G7 Notebook PC

Technical Specifications

Not all configuration components are available in all regions/countries.

c06543049 — DA 16569 - Worldwide — Version 8 — January 21,2021

Page 10

HP Sure Start Gen528

16. HP BIOSphere Gen5 is available on select HP Pro and Elite PCs. See product specifications for details. Features may vary depending on the platform and configurations.

17. HP Drive Lock & Automatic Drive Lock is not supported on NVMe drives

18. For the methods outlined in the National Institute of Standards and Technology Special Publication 80088 "Clear" sanitation method. HP Secure Erase does not support platforms with Intel® Optane™.

19. Absolute agent is shipped turned off, and will be activated when customers activate a purchased subscription. Subscriptions can be purchased for terms ranging multiple years. Service is limited, check with Absolute for availability outside the U.S. The Absolute Recovery Guarantee is a limited warranty. Certain conditions apply. For full details visit: http://www.absolute.com/company/legal/agreements/ computraceagreement. Data Delete is an optional service provided by Absolute Software. If utilized, the Recovery Guarantee is null and void. In order to use the Data Delete service, customers must first sign a PreAuthorization Agreement and either obtain a PIN or purchase one or more RSA SecurID tokens from Absolute Software.

20. HP Support Assistant requires Windows and Internet access.

21. HP Driver Packs not preinstalled, however available for download at

http://www.hp.com/go/clientmanagement.

22. HP Manageability Integration Kit can be downloaded from http://www.hp.com/go/clientmanagement.

23. HP Client Security Manager Gen5 requires Windows and is available on the select HP Pro and Elite PCs. See product specifications for details.

24. HP Fingerprint Sensor is an optional feature and requires configuration at purchase.

25. Windows Defender Opt in and internet connection required for updates.

26. HP Sure Click is available on select HP platforms and supports Microsoft® Internet Explorer, Google

Chrome, and Chromium™. Supported attachments include Microsoft Office (Word, Excel, PowerPoint) and PDF

files in read only mode. Check http://h20195.www2.hp.com/v2/GetDocument.aspx?docname=4AA7-

0922ENW for all compatible platforms as they become available.

27. HP Sure Sense requires Windows 10. See product specifications for availability.

28. HP Sure Start Gen5 is available on select HP PCs with Intel processors. See product specifications for availability.

QuickSpecs

HP ProBook 445 G7 Notebook PC

Technical Specifications

Not all configuration components are available in all regions/countries.

c06543049 — DA 16569 - Worldwide — Version 8 — January 21,2021

Page 11

POWER

Power Supply

HP Smart 65 W External AC power adapter29 HP Smart 65 W EM External AC power adapter29 HP Smart 65 W USB Type-C® adapter29 HP Smart 45 W External AC power adapter29 HP Smart 45 W USB Type-C® adapter29

Primary Battery

HP Long Life 3-cell, 45 Wh Li-ion polymer30

Power Cord

3-wire plug - 1.8 m29 3-wire plug - 1.0 m29 2-wire plug - 1.0 m29 Duckhead power cord - 1.0 m29 Duckhead power cord - 1.8 m29

Battery life

15 hours and 15 minutes

Battery Weight

0.22 kg

0.49 lb

29. Availability may vary by country.

30. Battery is internal and not replaceable by customer. Serviceable by warranty.

31. Windows 10 MM14 battery life will vary depending on various factors including product model, configuration, loaded applications, features, use, wireless functionality, and power management settings. The maximum capacity of the battery will naturally decrease with time and usage. See http://www.bapco.com for additional details.

WEIGHTS & DIMENSIONS

Product Weight

Starting at 3.53 lb

Starting at 1.6 kg32

Product Dimensions (w x d x h)

12.76 x 9.36 x 0.71 in

32.42 x 23.77 x 1.79 cm

32. Weight will vary by configuration. Does not include power adapter.

PORTS/SLOTS

1 USB 3.1 Type-C® Gen 2 (Power delivery, DisplayPort™ 1.2) 2 USB 3.1 Gen 1 1 USB 2.0 (powered port) 1 HDMI 1.4

1 RJ-45 1 AC power

QuickSpecs

HP ProBook 445 G7 Notebook PC

Technical Specifications

Not all configuration components are available in all regions/countries.

c06543049 — DA 16569 - Worldwide — Version 8 — January 21,2021

Page 12

1 stereo headphone/microphone combo jack

Expansion Slots

1 SD Supports SD, SDHC, SDXC

33. HDMI cable sold separately.

ENVIRONMENTAL & INDUSTRY

Eco-Label Certifications & declarations

This product has received or is in the process of being certified to the following approvals and may be labeled with one or more of these marks:

•IT ECO declaration

•US ENERGY STAR®

•EPEAT® 2019 Gold in U.S. Based on US EPEAT® registration according to IEEE 1680.1-2018

EPEAT®. EPEAT® status varies by country. Visit http://www.epeat.net for more information.

System Configuration

The configuration used for the Energy Consumption and Declared Noise Emissions data for the Notebook model is based on a “Typically Configured Notebook”.

Energy Consumption (in accordance with US ENERGY STAR® test method)

115VAC, 60Hz

230VAC, 50Hz

100VAC, 50Hz

Normal Operation (Short idle)

4.14 W

4.164 W

4.056 W

Normal Operation (Long idle)

2.112 W

2.184 W

2.076 W

Sleep

0.372 W

0.384 W

0.372 W

Off

0.192 W

0.228 W

0.192 W

Energy efficiency data listed is for an ENERGY STAR® compliant product if offered within the model family. HP computers marked with the ENERGY STAR® Logo are compliant with the applicable U.S. Environmental Protection Agency (EPA) ENERGY STAR® specifications for computers. If a model family does not offer ENERGY STAR® compliant configurations, then energy efficiency data listed is for a typically configured PC featuring a hard disk drive, a high efficiency power supply, and a Microsoft Windows® operating system. Heat Dissipation*

115VAC, 60Hz

230VAC, 50Hz

100VAC, 50Hz

Normal Operation (Short idle)

14 BTU/hr

Normal Operation (Long idle)

7 BTU/hr

Sleep

1 BTU/hr

Off

1 BTU/hr

Heat dissipation is calculated based on the measured watts, assuming the service level is attained for one hour.

Declared Noise Emissions (in accordance with ISO 7779 and ISO 9296)

Sound Power

WAd

, bels)

Sound Pressure

pAm

, decibels) Typically Configured – Idle

2.5

QuickSpecs

HP ProBook 445 G7 Notebook PC

Technical Specifications

Not all configuration components are available in all regions/countries.

c06543049 — DA 16569 - Worldwide — Version 8 — January 21,2021

Page 13

Fixed Disk – Random writes

2.5

Longevity and Upgrading

This product can be upgraded, possibly extending its useful life by several years. Upgradeable features and/or components contained in the product may include:

• 3 USB ports

• 1 PC card slot (type I/II)

• 1 ExpressCard/54 slot

• 1 IEEE 1394 Port

• 2 SODIMM memory slots

• Optional expansion base docking station

• 1 multi-bay II storage port

• Interchangeable HDD

Spare parts are available throughout the warranty period and or for up to “5” years after the end of

production.

Batteries

This battery(s) in this product comply with EU Directive 2006/66/EC

Batteries used in the product do not contain: Mercury greater the1ppm by weight Cadmium greater than 20ppm by weight

Battery size: Not Applicable Battery type: Not Applicable

Additional Information

• This product is in compliance with the Restrictions of Hazardous Substances (RoHS) directive 2011/65/EC.

• This HP product is designed to comply with the Waste Electrical and Electronic Equipment (WEEE) Directive – 2002/96/EC.

• This product is in compliance with California Proposition 65 (State of California; Safe Drinking Water

and Toxic Enforcement Act of 1986).

• This product is in compliance with the IEEE 1680.1 (EPEAT) standard at the <Gold> level, see

http://www.epeat.net

• Plastics parts weighing over 25 grams used in the product are marked per ISO11469 and ISO1043.

• This product contains 2.4% post-consumer recycled plastic (by wt.)

• This product is 96.2% recycle-able when properly disposed of at end of life.

Packaging Materials

External:

PAPER/Paper

51 g

PAPER/Corrugated

230 g

Internal:

PLASTIC/Polyethylene Expanded - EPE

31 g

PLASTIC/Polyethylene low density - LDPE

9 g

Material Usage

This product does not contain any of the following substances in excess of regulatory limits (refer to the HP General Specification for the Environment at http://www.hp.com/hpinfo/globalcitizenship/environment/pdf/gse.pdf):

• Asbestos

• Certain Azo Colorants

• Certain Brominated Flame Retardants – may not be used as flame retardants in plastics

• Cadmium

• Chlorinated Hydrocarbons

• Chlorinated Paraffins

• Formaldehyde

• Halogenated Diphenyl Methanes

• Lead carbonates and sulfates

QuickSpecs

HP ProBook 445 G7 Notebook PC

Technical Specifications

Not all configuration components are available in all regions/countries.

c06543049 — DA 16569 - Worldwide — Version 8 — January 21,2021

Page 14

• Lead and Lead compounds

• Mercuric Oxide Batteries

• Nickel – finishes must not be used on the external surface designed to be frequently handled or

carried by the user.

• Ozone Depleting Substances

• Polybrominated Biphenyls (PBBs)

• Polybrominated Biphenyl Ethers (PBBEs)

• Polybrominated Biphenyl Oxides (PBBOs)

• Polychlorinated Biphenyl (PCB)

• Polychlorinated Terphenyls (PCT)

• Polyvinyl Chloride (PVC) – except for wires and cables, and certain retail packaging has been

voluntarily removed from most applications.

• Radioactive Substances

• Tributyl Tin (TBT), Triphenyl Tin (TPT), Tributyl Tin Oxide (TBTO)

Packaging Usage

HP follows these guidelines to decrease the environmental impact of product packaging:

• Eliminate the use of heavy metals such as lead, chromium, mercury and cadmium in packaging

materials.

• Eliminate the use of ozone-depleting substances (ODS) in packaging materials.

• Design packaging materials for ease of disassembly.

• Maximize the use of post-consumer recycled content materials in packaging materials.

• Use readily recyclable packaging materials such as paper and corrugated materials.

• Reduce size and weight of packages to improve transportation fuel efficiency.

• Plastic packaging materials are marked according to ISO 11469 and DIN 6120 standards.

End-of-life Management and Recycling

HP Inc. offers end-of-life HP product return and recycling programs in many geographic areas. To recycle your product, please go to: http://www.hp.com/go/reuse-recycle or contact your nearest HP sales office. Products returned to HP will be recycled, recovered or disposed of in a responsible manner.

The EU WEEE directive (2002/95/EC) requires manufacturers to provide treatment information for each product type for use by treatment facilities. This information (product disassembly instructions) is posted on the Hewlett Packard web site at: http://www.hp.com/go/recyclers. These instructions may be used by recyclers and other WEEE treatment facilities as well as HP OEM customers who integrate and re-sell HP equipment.

HP Inc. Corporate Environmental Information

For more information about HP’s commitment to the environment: Global Citizenship Report

http://www.hp.com/hpinfo/globalcitizenship/gcreport/index.html

Eco-label certifications

http://www8.hp.com/us/en/hp-information/environment/ecolabels.html

ISO 14001 certificates:

http://www.hp.com/hpinfo/globalcitizenship/environment/pdf/PC_GBU_Product_Design_ISO_14K _Certificate.pdf

and

http://www.hp.com/hpinfo/globalcitizenship/environment/pdf/cert.pdf

QuickSpecs

HP ProBook 445 G7 Notebook PC

Technical Specifications

Not all configuration components are available in all regions/countries.

c06543049 — DA 16569 - Worldwide — Version 8 — January 21,2021

Page 15

SYSTEM UNIT

Stand-Alone Power Requirements (AC Power)

Nominal Operating Voltage

19V

Average Operating Power

7.52 W

Integrated graphics

Yes (AMD Radeon™ Graphics)

Max Operating Power

Discrete < 65W UMA < 45W

Temperature

Operating

32° to 95° F (0° to 35° C) (not writing optical)

Non-operating

41° to 95° F (5° to 35° C) (writing optical)

Relative Humidity

Operating

10% to 90%, non-condensing

Non-operating

5% to 95%, 101.6° F (38.7° C) maximum wet bulb temperature

Shock

Operating

40 G, 2 ms, half-sine

Non-operating

200 G, 2 ms, half-sine

Random Vibration

Operating

0.75 grms

Non-operating

1.50 grms

Altitude (unpressurized)

Operating

-50 to 10,000 ft (-15.24 to 3,048 m)

Non-operating

-50 to 40,000 ft (-15.24 to 12,192 m)

Planned Industry Standard Certifications

Yes

CSA

Yes

FCC Compliance

Yes

ENERGY STAR®

Selected models34

EPEAT® 2019

Yes, Gold in U.S.35

ICES

Yes

Australia

Yes

NZ A-Tick Compliance

Yes

CCC

Yes

Japan VCCI Compliance

Yes

BSMI

Yes

CE Marking Compliance

Yes

BNCI or BELUS

Yes

CIT

Yes

GOST

Yes

Saudi Arabian Compliance (ICCP)

Yes

QuickSpecs

HP ProBook 445 G7 Notebook PC

Technical Specifications

Not all configuration components are available in all regions/countries.

c06543049 — DA 16569 - Worldwide — Version 8 — January 21,2021

Page 16

SABS

Yes

34. Configurations of the HP ProBook 445 G7 that are ENERGY STAR® qualified are identified as HP ProBook 445 G7 ENERGY STAR on HP websites and on http://www.energystar.gov.

35. Based on US EPEAT® registration according to IEEE 1680.1-2018 EPEAT®. Status varies by country. Visit http://www.epeat.net for more information.

DISPLAYS

Note: All specifications represent the typical specifications provided by HP's component manufacturers; actual performance may vary either higher or lower.

Panel LCD 14 inch diagonal HD (1366 x 768) Anti-Glare WLED SVA 45% NTSC 220 nits eDP 1.2 w/o PSR slim NB non-touch

Outline Dimensions (W x H x D)

316.2 x 198.04 (max.)

Active Area

309.4 x 173.95

Weight

<280 g max.

Diagonal Size

14.0 (inch)

Thickness

3.0 mm max

Interface

eDP 1.2 (1 lane)

Surface Treatment

Anti-Glare

Touch Enabled

Contrast Ratio

300:1 (typ)

Refresh Rate

60 Hz

Brightness

220 nits typical (Panel Only)

Pixel Resolution

1366 x 768 (HD)

Format of LCD Pixel Arrangement

RGB

Backlight

LED

Color Gamut Coverage

45% of NTSC

Color Depth

6 bits + Hi FRC

Viewing Angle

SVA 40/40/15/30

Panel LCD 14 inch diagonal FHD (1920 x 1080) AntiGlare WLED UWVA 45% NTSC 250 nits eDP slim NB

Outline Dimensions (W x H x D)

316.17 x 197.98 mm (max)

Active Area

309.37 x 174.02 mm (typ.)

Weight

285 g (max)

Diagonal Size

14.0 inch

Thickness

3.0 mm (max)

Interface

eDP 1.2 (2 lane)

Surface Treatment

Anti-Glare

Touch Enabled

Contrast Ratio

600:1 (typ.)

Refresh Rate

60 Hz

Brightness

250 nits

Pixel Resolution

1920 x 1080 (FHD)

Format of LCD Pixel Arrangement

RGB

Backlight

LED

QuickSpecs

HP ProBook 445 G7 Notebook PC

Technical Specifications

Not all configuration components are available in all regions/countries.

c06543049 — DA 16569 - Worldwide — Version 8 — January 21,2021

Page 17

Color Gamut Coverage

45% of NTSC

Color Depth

6 bits

Viewing Angle

UWVA 85/85/85/85

Panel LCD 14 inch diagonal FHD (1920 x 1080) AntiGlare WLED UWVA 72% NTSC 1000 nits eDP

1.4+PSR2 flat Privacy

Outline Dimensions (W x H x D)

315.31 x 195.498 mm (max)

Active Area

309.312 x 173.988 mm (typ.)

Weight

265 g (max)

Diagonal Size

14 inch

Thickness

3.0 mm (max)

Interface

eDP 1.4 + PSR2 (4 lane)

Surface Treatment

Anti-Glare

Touch Enabled

Contrast Ratio

2000:1 (typ.)

Refresh Rate

60 Hz

Brightness

1000 nits

Pixel Resolution

1920 x 1080 (FHD)

Format of LCD Pixel Arrangement

RGB

Backlight

LED

Color Gamut Coverage

72% of NTSC

Color Depth

8 bit

STORAGE AND DRIVES

For storage drives, GB = 1 billion bytes. TB = 1 trillion bytes. Actual formatted capacity is less. Up to 30 GB (for Windows 10) is reserved for system recovery software

500 GB 7200 rpm SATA Hard Drive

Drive Weight

0.20 lbs (92 g) ~ 0.21 lbs (95 g)

Rotation Speed

7200 rpm

Cache Buffer

Up to 32 MB

Height

0.28 in (7 mm)

Width

2.75 in (69.85 mm)

Interface

ATA-8, SATA 3.0

Transfer Rate

600 MB/s

Seek Time

Single Track: 2 ~ 1.5 ms Average: 11 ~ 13 ms Maximum: 18 ~ 22 ms

Logical Blocks

976,773,168

Operating Temperature

32° to 140° F (0° to 60° C) [top cover temp]

Security Features

ATA Security

Features

S.M.A.R.T., NCQ, Ultra DMA

QuickSpecs

HP ProBook 445 G7 Notebook PC

Technical Specifications

Not all configuration components are available in all regions/countries.

c06543049 — DA 16569 - Worldwide — Version 8 — January 21,2021

Page 18

1 TB 5400 rpm SATA Hard Drive

Drive Weight

0.21 lbs (94 g)

Rotation Speed

5400 rpm

Cache Buffer

Up to 32 MB

Height

0.28 in (7.2 mm)

Width

2.75 in (69.85 mm)

Interface

ATA-8, SATA 3.0

Transfer Rate

600 MB/s

Seek Time

Single Track2 ms Average12 ~ 13 ms Maximum18 ~ 22 ms

Logical Blocks

1,953,525,168

Operating Temperature

32° to 140° F (0° to 60° C) [top cover temp]

Security Features

ATA Security

Features

S.M.A.R.T., NCQ, Ultra DMA

SSD 128 GB 2280 M2 SATA3 TLC

Form Factor

M.2 2280

Capacity

128 GB

NAND Type

TLC

Height

0.09 in (2.3 mm)

Width

0.87 in (22 mm)

Weight

0.02 lb (10 g)

Interface

ATA-8, SATA 3.0

Maximum Sequential Read

Up To 520 MB/s

Maximum Sequential Write

Up To 450 MB/s

Logical Blocks

250,069,680

Operating Temperature

32° to 158°F (0° to 70°C) [ambient temp]

Features

DIPM; TRIM; DEVSLP

256 GB 2280 PCIe NVMe Value Solid State Drive

Form Factor

M.2 2280

Capacity

256 GB

NAND Type

TLC

Height

0.09 in (2.3 mm)

Width

0.87 in (22 mm)

Interface

PCIe NVMe Gen3

Maximum Sequential Read

Up To 1700 MB/s

Maximum Sequential Write

Up To 1300 MB/s

Logical Blocks

500,118,192

Operating Temperature

32° to 158°F (0° to 70°C) [ambient temp]

Features

TRIM; L1.2

QuickSpecs

HP ProBook 445 G7 Notebook PC

Technical Specifications

Not all configuration components are available in all regions/countries.

c06543049 — DA 16569 - Worldwide — Version 8 — January 21,2021

Page 19

512 GB 2280 M2 PCIe NVMe TLC Solid State Drive

Form Factor

M.2 2280

Capacity

512 GB

NAND Type

TLC

Height

0.09 in (2.3 mm)

Width

0.87 in (22 mm)

Interface

PCIe NVMe Gen3X4

Maximum Sequential Read

Up To 2600 MB/s

Maximum Sequential Write

Up To 1400 MB/s

Logical Blocks

1,000,215,216

Operating Temperature

32° to 158°F (0° to 70°C) [ambient temp]

Features

TRIM; L1.2

512 GB 2280 PCIe NVMe Value Solid State Drive

Form Factor

M.2 2280

Capacity

512 GB

NAND Type

Value

Height

0.09 in (2.3 mm)

Width

0.87 in (22 mm)

Weight

0.02 lb (10 g)

Interface

PCIe NVMe Gen3X4

Maximum Sequential Read

Up To 1500 ~ 1700 MB/s

Maximum Sequential Write

Up To 860 ~ 1500 MB/s

Logical Blocks

1,000,215,216

Operating Temperature

32° to 158°F (0° to 70°C) [ambient temp]

Features

ATA Security, TRIM; L1.2

NETWORKING/COMMUNICATIONS WLAN

Intel® Wi-Fi 61 AX200 and Bluetooth® 5.0

802.11ax (2x2) nonvPro, supporting gigabit file transfer speeds) non-vPro

Wireless LAN Standards

IEEE 802.11a IEEE 802.11b IEEE 802.11g IEEE 802.11n IEEE 802.11ac IEEE 802.11ax IEEE 802.11d IEEE 802.11e IEEE 802.11h IEEE 802.11i IEEE 802.11k IEEE 802.11r IEEE 802.11v

Interoperability

Wi-Fi CERTIFIED™

Frequency Band

•802.11b/g/n/ax

2.402 – 2.482 GHz

QuickSpecs

HP ProBook 445 G7 Notebook PC

Technical Specifications

Not all configuration components are available in all regions/countries.

c06543049 — DA 16569 - Worldwide — Version 8 — January 21,2021

Page 20

•802.11a/n/ac/ax

4.9 – 4.95 GHz (Japan)

5.15 – 5.25 GHz

5.25 – 5.35 GHz

5.47 – 5.725 GHz

5.825 – 5.850 GHz

Data Rates

•802.11b: 1, 2, 5.5, 11 Mbps

•802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps

•802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps

•802.11n: MCS 0 ~ MCS 15, (20MHz, and 40MHz)

•802.11ac: MCS0 ~ MCS9, (1SS, and 2SS) (20MHz, 40MHz, ,80MHz &

160MHz)

• 802.11ax: MCS0 ~ MCS11, (1SS and 2SS) (20MHz, 40MHz, ,80MHz &

160MHz)

Modulation

Direct Sequence Spread Spectrum OFDM, BPSK, QPSK, CCK, 16-QAM, 64-QAM, 256-QAM, 1024QAM

Security

•IEEE compliant 64 / 128-bit WEP encryption for a/b/g mode only

•AES-CCMP: 128 bit in hardware

•802.1x authentication

•WPA, WPA2: 802.1x. WPA-PSK, WPA2-PSK, TKIP, and AES.

•WPA2 certification

•WPA3 certification

•IEEE 802.11i

•WAPI

Network Architecture Models

Ad-hoc (Peer to Peer) Infrastructure (Access Point Required)

Roaming

IEEE 802.11 compliant roaming between access points

Output Power2

• 802.11b: +18.5dBm minimum

• 802.11g: +17.5dBm minimum

• 802.11a: +18.5dBm minimum

• 802.11n HT20(2.4GHz): +15.5dBm minimum

• 802.11n HT40(2.4GHz): +14.5dBm minimum

• 802.11n HT20(5GHz): +15.5dBm minimum

• 802.11n HT40(5GHz): +14.5dBm minimum

• 802.11ac VHT80(5GHz): +11.5dBm minimum

• 802.11ac VHT160(5GHz): +11.5dBm minimum

• 802.11ax HT40(2.4GHz): +10dBm minimum

• 802.11ax VHT160(5GHz): +10dBm minimum

Power Consumption

•Transmit mode 2.0 W

•Receive mode 1.6 W

•Idle mode (PSP) 180 mW (WLAN Associated)

•Idle mode 50 mW (WLAN unassociated)

•Connected Standby 10mW

•Radio disabled 8 mW

Power Management

ACPI and PCI Express compliant power management

802.11 compliant power saving mode

Receiver Sensitivity4

• 802.11b, 1Mbps: -93.5dBm maximum

• 802.11b, 11Mbps: -84dBm maximum

• 802.11a/g, 6Mbps: -86dBm maximum

• 802.11a/g, 54Mbps: -72dBm maximum

• 802.11n, MCS07: -67dBm maximum

• 802.11n, MCS15: -64dBm maximum

• 802.11ac, MCS0: -84dBm maximum

• 802.11ac, MCS9: -59dBm maximum

QuickSpecs

HP ProBook 445 G7 Notebook PC

Technical Specifications

Not all configuration components are available in all regions/countries.

c06543049 — DA 16569 - Worldwide — Version 8 — January 21,2021

Page 21

• 802.11ax, MCS11(HT40): -59dBm maximum

• 802.11ax, MCS11(VHT160): -58.5dBm maximum

Antenna type

High efficiency antenna with spatial diversity, mounted in the display enclosure Two embedded dual band 2.4/5 GHz antennas are provided to the card to support WLAN MIMO communications and Bluetooth communications

Form Factor

PCI-Express M.2 MiniCard

Dimensions

Type 2230: 2.3 x 22.0 x 30.0 mm Type 1216: 1.67 x 12.0 x 16.0 mm

Weight

Type 2230: 2.8 g Type 126: 1.3 g

Operating Voltage

3.3v +/- 9%

Temperature

Operating: 14° to 158° F (–10° to 70° C) Non-operating: –40° to 176° F (–40° to 80° C)

Humidity

Operating: 10% to 90% (non-condensing) Non-operating: 5% to 95% (non-condensing)

Altitude

Operating: 0 to 10,000 ft (3,048 m) Non-operating: 0 to 50,000 ft (15,240 m)

LED Activity

LED Amber – Radio OFF LED OFF – Radio ON

HP Integrated Module with Bluetooth 4.0/4.1/4.2/5.0/5.1 Wireless Technology

Bluetooth Specification

4.0/4.1/4.2/5.0/5.1 Compliant

Frequency Band

2402 to 2480 MHz

Number of Available Channels

Legacy: 0~79 (1 MHz/CH) BLE: 0~39 (2 MHz/CH)

Signaling Data Rate

Legacy: 3 Mbps Signaling Data Rate 2.17 Mbps BLE: 1 Mbps Signaling Data Rate 0.2 Mbps

1. Actual throughput may vary.

Legacy: Synchronous Connection Oriented links up to 3, 64 kbps, voice channels Legacy: Asynchronous Connection Less links 2178.1 kbps/177.1 kbps asymmetric (3-DH5) or 864 kbps symmetric (3-EV5)

Transmit Power

The Bluetooth component shall operate as a Class II Bluetooth device with a maximum transmit power of + 9.5 dBm for BR and EDR.

Power Consumption

Peak (Tx) 330 mW Peak (Rx) 230 mW Selective Suspend 17 mW

Bluetooth Software Supported Link Topology

Microsoft Windows Bluetooth Software

Power Management

Microsoft Windows ACPI, and USB Bus Support

Certifications

FCC (47 CFR) Part 15C, Section 15.247 & 15.249

Power Management Certifications

ETS 300 328, ETS 300 826 Low Voltage Directive IEC950 UL, CSA, and CE Mark

Bluetooth Profiles Supported

BT4.1-ESR 5/6/7 Compliance LE Link Layer Ping LE Dual Mode

QuickSpecs

HP ProBook 445 G7 Notebook PC

Technical Specifications

Not all configuration components are available in all regions/countries.

c06543049 — DA 16569 - Worldwide — Version 8 — January 21,2021

Page 22

LE Link Layer LE Low Duty Cycle Directed Advertising LE L2CAP Connection Oriented Channels Train Nudging & Interlaced Scan BT4.2 ESR08 Compliance LE Secure Connection- Basic/Full LE Privacy 1.2 –Link Layer Privacy LE Privacy 1.2 –Extended Scanner Filter Policies LE Data Packet Length Extension FAX Profile (FAX) Basic Imaging Profile (BIP)2 Headset Profile (HSP) Hands Free Profile (HFP) Advanced Audio Distribution Profile (A2DP)

1. Wireless access point and internet service required and sold separately. Availability of public wireless access points limited. Wi-Fi 6 is backwards compatible with prior 802.11 specs. The specifications for Wi-Fi 6 (802.11ax) are draft and are not final. If the final specifications differ from the draft specifications, it may affect the ability of the notebook to communicate with other 802.11ax devices. Only available in countries where 802.11ax is supported.

2. The FCC has declared as of September 1, 2014 products that utilize passive scanning on channel 12/13 and are capable of transmitting must fully comply with requirements of 15.247 or otherwise disable those channels.

3. Check latest software/driver release for updates on supported security features.

4. Receiver sensitivity is measured at a packet error rate of 8% for 802.11b (CKK modulation) and a packet error rate of 10% for 802.11a/g (OFDM modulation).

Intel® 802.11a/b/g/n/ac (2x2) Wi-Fi® and Bluetooth® 5.0 Combo

Non-vPro

Wireless LAN Standards

IEEE 802.11a IEEE 802.11b IEEE 802.11g IEEE 802.11n IEEE 802.11ac IEEE 802.11d IEEE 802.11e IEEE 802.11h IEEE 802.11i IEEE 802.11k IEEE 802.11r IEEE 802.11v

Interoperability

Wi-Fi CERTIFIED™

Frequency Band

•802.11b/g/n

2.402 – 2.482 GHz

•802.11a/n/ac

4.9 – 4.95 GHz (Japan)

5.15 – 5.25 GHz

5.25 – 5.35 GHz

5.47 – 5.725 GHz

5.825 – 5.850 GHz

Data Rates

•802.11b: 1, 2, 5.5, 11 Mbps

•802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps

•802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps

•802.11n: MCS 0 ~ MCS 15, (20MHz, and 40MHz)

•802.11ac: MCS0 ~ MCS9, (1SS, and 2SS) (20MHz, 40MHz, 80MHz & 160MHz)

QuickSpecs

HP ProBook 445 G7 Notebook PC

Technical Specifications

Not all configuration components are available in all regions/countries.

c06543049 — DA 16569 - Worldwide — Version 8 — January 21,2021

Page 23

Modulation

Direct Sequence Spread Spectrum BPSK, QPSK, CCK, 16-QAM, 64-QAM, 256-QAM

Security

•IEEE compliant 64 / 128-bit WEP encryption for a/b/g mode only

•AES-CCMP: 128 bit in hardware

•802.1x authentication

•WPA, WPA2: 802.1x. WPA-PSK, WPA2-PSK, TKIP, and AES.

•WPA2 certification

•WPA3 certification

•IEEE 802.11i

•WAPI

Network Architecture Models

Ad-hoc (Peer to Peer) Infrastructure (Access Point Required)

Roaming

IEEE 802.11 compliant roaming between access points

Output Power2

• 802.11b: +18.5dBm minimum

• 802.11g: +17.5dBm minimum

• 802.11a: +18.5dBm minimum

• 802.11n HT20(2.4GHz): +15.5dBm minimum

• 802.11n HT40(2.4GHz): +14.5dBm minimum

• 802.11n HT20(5GHz): +15.5dBm minimum

• 802.11n HT40(5GHz): +14.5dBm minimum

• 802.11ac VHT80(5GHz): +11.5dBm minimum

• 802.11ac VHT160(5GHz): +11.5dBm minimum

Power Consumption

•Transmit mode 2.0 W

•Receive mode 1.6 W

•Idle mode (PSP) 180 mW (WLAN Associated)

•Idle mode 50 mW (WLAN unassociated)

•Connected Standby/Modern Standby: 10mW

•Radio disabled 8 mW

Power Management

ACPI and PCI Express compliant power management

802.11 compliant power saving mode

Receiver Sensitivity4

802.11b, 1Mbps: -93.5dBm maximum

802.11b, 11Mbps: -84dBm maximum

802.11a/g, 6Mbps: -86dBm maximum

802.11a/g, 54Mbps: -72dBm maximum

802.11n, MCS07: -67dBm maximum

802.11n, MCS15: -64dBm maximum

802.11ac, MCS0: -84dBm maximum

802.11ac, MCS9: -59dBm maximum

Antenna type

High efficiency antenna. One embedded dual band 2.4/5 GHz antenna is provided to the card to support WLAN communications and Bluetooth communications

Form Factor

PCI-Express M.2 MiniCard

Dimensions

Type 2230: 2.3 x 22.0 x 30.0 mm Type 1216: 1.67 x 12.0 x 16.0 mm

Weight

Type 2230: 2.8 g Type 126: 1.3 g

Operating Voltage

3.3v +/- 9%

Temperature

Operating: 14° to 158° F (–10° to 70° C) Non-operating: –40° to 176° F (–40° to 80° C)

Humidity

Operating: 10% to 90% (non-condensing) Non-operating: 5% to 95% (non-condensing)

Altitude

Operating: 0 to 10,000 ft (3,048 m)

QuickSpecs

HP ProBook 445 G7 Notebook PC

Technical Specifications

Not all configuration components are available in all regions/countries.

c06543049 — DA 16569 - Worldwide — Version 8 — January 21,2021

Page 24

Non-operating: 0 to 50,000 ft (15,240 m)

LED Activity

LED Amber – Radio OFF LED OFF – Radio ON

HP Integrated Module with Bluetooth 4.0/4.1/4.2/5.0 Wireless Technology

Bluetooth Specification

4.0/4.1/4.2/5.0 Compliant

Frequency Band

2402 to 2480 MHz

Number of Available Channels

Legacy: 0~79 (1 MHz/CH) BLE: 0~39 (2 MHz/CH)

Signaling Data Rate

Legacy: 3 Mbps Signaling Data Rate 2.17 Mbps BLE: 1 Mbps Signaling Data Rate 0.2 Mbps

1. Actual throughput may vary.

Legacy: Synchronous Connection Oriented links up to 3, 64 kbps, voice channels Legacy: Asynchronous Connection Less links 2178.1 kbps/177.1 kbps asymmetric (3-DH5) or 864 kbps symmetric (3-EV5)

Transmit Power

The Bluetooth component shall operate as a Class II Bluetooth device with a maximum transmit power of + 4 dBm for BR and EDR.

Power Consumption

Peak (Tx) 330 mW Peak (Rx) 230 mW Selective Suspend 17 mW

Electrical Interface

USB 2.0 compliant

Bluetooth Software Supported Link Topology

Microsoft Windows Bluetooth Software

Power Management

Microsoft Windows ACPI, and USB Bus Support

Certifications

FCC (47 CFR) Part 15C, Section 15.247 & 15.249

Power Management Certifications

ETS 300 328, ETS 300 826 Low Voltage Directive IEC950 UL, CSA, and CE Mark

Bluetooth Profiles Supported

BT4.1-ESR 5/6/7 Compliance LE Link Layer Ping LE Dual Mode LE Link Layer LE Low Duty Cycle Directed Advertising LE L2CAP Connection Oriented Channels Train Nudging & Interlaced Scan BT4.2 ESR08 Compliance LE Secure Connection- Basic/Full LE Privacy 1.2 –Link Layer Privacy LE Privacy 1.2 –Extended Scanner Filter Policies LE Data Packet Length Extension FAX Profile (FAX) Basic Imaging Profile (BIP)2 Headset Profile (HSP) Hands Free Profile (HFP) Advanced Audio Distribution Profile (A2DP)

1. Wireless access point and internet service required and sold separately. Availability of public wireless access points limited.

QuickSpecs

HP ProBook 445 G7 Notebook PC

Technical Specifications

Not all configuration components are available in all regions/countries.

c06543049 — DA 16569 - Worldwide — Version 8 — January 21,2021

Page 25

3. Check latest software/driver release for updates on supported security features.

4. Receiver sensitivity is measured at a packet error rate of 8% for 802.11b (CKK modulation) and a packet error rate of 10% for 802.11a/g (OFDM modulation).

Realtek RTL8822CE

802.11 a/b/g/n/ac (2x2) Wi-Fi® and Bluetooth®

5.0

Wireless LAN Standards

IEEE 802.11a IEEE 802.11b IEEE 802.11g IEEE 802.11n IEEE 802.11ac IEEE 802.11d IEEE 802.11e IEEE 802.11h IEEE 802.11i IEEE 802.11k IEEE 802.11r IEEE 802.11v

Interoperability

Wi-Fi CERTIFIED™

Frequency Band

•802.11b/g/n

2.402 – 2.482 GHz

•802.11a/n/ac

4.9 – 4.95 GHz (Japan)

5.15 – 5.25 GHz

5.25 – 5.35 GHz

5.47 – 5.725 GHz

5.825 – 5.850 GHz

Data Rates

•802.11b: 1, 2, 5.5, 11 Mbps

•802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps

•802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps

•802.11n: MCS 0 ~ MCS 15, (20MHz, and 40MHz)

•802.11ac: MCS0 ~ MCS9, (1SS, and 2SS) (20MHz, 40MHz & 80MHz)

Modulation

Direct Sequence Spread Spectrum BPSK, QPSK, CCK, 16-QAM, 64-QAM, 256-QAM

Security

•IEEE compliant 64 / 128-bit WEP encryption for a/b/g mode only

•AES-CCMP: 128 bit in hardware

•802.1x authentication

•WPA, WPA2: 802.1x. WPA-PSK, WPA2-PSK, TKIP, and AES.

•WPA2 certification

•WPA3 certification

•IEEE 802.11i

•WAPI

Network Architecture Models

Ad-hoc (Peer to Peer) Infrastructure (Access Point Required)

Roaming

IEEE 802.11 compliant roaming between access points

Output Power2

• 802.11b: +18.5dBm minimum

• 802.11g: +17.5dBm minimum

• 802.11a: +18.5dBm minimum

• 802.11n HT20(2.4GHz): +15.5dBm minimum

• 802.11n HT40(2.4GHz): +14.5dBm minimum

• 802.11n HT20(5GHz): +15.5dBm minimum

QuickSpecs

HP ProBook 445 G7 Notebook PC

Technical Specifications

Not all configuration components are available in all regions/countries.

c06543049 — DA 16569 - Worldwide — Version 8 — January 21,2021

Page 26

• 802.11n HT40(5GHz): +14.5dBm minimum

• 802.11ac VHT80(5GHz): +11.5dBm minimum

• 802.11ac VHT160(5GHz): +11.5dBm minimum

Power Consumption

•Transmit mode: 2.0 W

•Receive mode: 1.6 W

•Idle mode (PSP) 180 mW (WLAN Associated)

•Idle mode: 50 mW (WLAN unassociated)

•Connected Standby/Modern Standby: 10mW

•Radio disabled: 8 mW

Power Management

ACPI and PCI Express compliant power management

802.11 compliant power saving mode

Receiver Sensitivity4

802.11b, 1Mbps: -93.5dBm maximum

802.11b, 11Mbps: -84dBm maximum

802.11a/g, 6Mbps: -86dBm maximum

802.11a/g, 54Mbps: -72dBm maximum

802.11n, MCS07: -67dBm maximum

802.11n, MCS15: -64dBm maximum

802.11ac, MCS0: -84dBm maximum

802.11ac, MCS9: -59dBm maximum

Antenna type

Form Factor

PCI-Express M.2 MiniCard with CNVi Interface

Dimensions

Type 2230: 2.3 x 22.0 x 30.0 mm Type 1216: 1.67 x 12.0 x 16.0 mm

Weight

Type 2230: 2.8 g Type 126: 1.3 g

Operating Voltage

3.3v +/- 9%

Temperature

Operating: 14° to 158° F (–10° to 70° C) Non-operating: –40° to 176° F (–40° to 80° C)

Humidity

Operating: 10% to 90% (non-condensing) Non-operating: 5% to 95% (non-condensing)

Altitude

Operating: 0 to 10,000 ft (3,048 m) Non-operating: 0 to 50,000 ft (15,240 m)

LED Activity

LED Amber – Radio OFF LED OFF – Radio ON

HP Integrated Module with Bluetooth 4.0/4.1/4.2/5.0 Wireless Technology

Bluetooth Specification

4.0/4.1/4.2/5.0 Compliant

Frequency Band

2402 to 2480 MHz

Number of Available Channels

Legacy: 0~79 (1 MHz/CH) BLE: 0~39 (2 MHz/CH)

Signaling Data Rate

Legacy: 3 Mbps Signaling Data Rate 2.17 Mbps BLE: 1 Mbps Signaling Data Rate 0.2 Mbps

1. Actual throughput may vary.

Legacy: Synchronous Connection Oriented links up to 3, 64 kbps, voice channels Legacy: Asynchronous Connection Less links 2178.1 kbps/177.1 kbps asymmetric (3-DH5) or 864 kbps symmetric (3-EV5)

QuickSpecs

HP ProBook 445 G7 Notebook PC

Technical Specifications

Not all configuration components are available in all regions/countries.

c06543049 — DA 16569 - Worldwide — Version 8 — January 21,2021

Page 27

Transmit Power

The Bluetooth component shall operate as a Class II Bluetooth device with a maximum transmit power of + 4 dBm for BR and EDR.

Power Consumption

Peak (Tx) 330 mW Peak (Rx) 230 mW Selective Suspend 17 mW

Bluetooth Software Supported Link Topology

Microsoft Windows Bluetooth Software

Power Management

Microsoft Windows ACPI, and USB Bus Support

Certifications

FCC (47 CFR) Part 15C, Section 15.247 & 15.249

Power Management Certifications

ETS 300 328, ETS 300 826 Low Voltage Directive IEC950 UL, CSA, and CE Mark

Bluetooth Profiles Supported

1. Wireless access point and internet service required and sold separately. Availability of public wireless access points limited.

3. Check latest software/driver release for updates on supported security features.

4. Receiver sensitivity is measured at a packet error rate of 8% for 802.11b (CKK modulation) and a packet error rate of 10% for 802.11a/g (OFDM modulation).

Realtek RTL8111HSH 10/100/1000 Integrated NIC

Connector

RJ-45

System Interface

PCIe + SMBus

Ethernet Features

10 Mbit/s operation (10BASE-T; IEEE 802.3i; IEEE 802.3 clauses 13-14) 100 Mbit/s operation (100BASE-TX; IEEE 802.3u; IEEE 802.3 clauses 21-

30) 1000 Mbit/s operation (1000BASE-T; IEEE 802.3ab; IEEE 8023 clauses 40) Auto-Negotiation (Automatic Speed Selection) Full Duplex Operation at all Speeds, Half Duplex operation at 10 and 100 Mbit/s IEEE 802.1p QoS (Quality of Service) Support IEEE 802.1q VLAN support IEEE 802.3x Flow Control (IEEE 802.3 clauses 31-32; configurable)

QuickSpecs

HP ProBook 445 G7 Notebook PC

Technical Specifications

Not all configuration components are available in all regions/countries.

c06543049 — DA 16569 - Worldwide — Version 8 — January 21,2021

Page 28

IEEE 802.3az EEE (Energy Efficient Ethernet)

Power Management

ACPI compliant – multiple power modes Situation-sensitive features reduce power consumption Advanced link down power saving for reducing link down power consumption

Performance Features

TCP/IP/UDP Checksum Offload (configurable) Protocol Offload (ARP & NS) Large send offload and Giant send offload Receiving Side Scaling Jumbo Frame 9K

Manageability

Wake-on-LAN from standby and hibernation (Magic Packet and Microsoft Wake-Up Frame); Wake-on-LAN from off (Magic Packet only) PXE 2.1 Remote Boot Statistics Gathering (SNMP MIB II, Ethernet-like MIB, Ethernet MIB (802.3x, clause 30) Comprehensive diagnostic and configuration software suite Virtual Cable Doctor for Ethernet cable status

Management Interface

Auto MDI/MDIX Crossover cable detection

POWER

HP 45 W Smart AC Adapter

Dimensions (H x W x D)

3.74 x 1.57 x 1.04 in (9.5 x 4 x 2.65 cm)

Weight

0.386 lb (175 g) max

Not including power cord. Power cord varies by country

Input

90 to 265 VAC

Input Efficiency

87.74% at 115VAC and 88.4% at 230VAC

Input frequency range

47 to 63 Hz

Input AC current

1.4 A at 90 VAC

Output

Output power

45 W

DC output

19.5 V

Hold-up time

5 msec at 115 VAC input

Output current limit

<8.0 A

Connector

4.5mm Barrel Type, 3 pin/grounded, mates with interchangeable cords

Environmental Design

Operating temperature

32° to 95° F (0° to 35° C)

Non-operating (storage) temperature

-4° to 185° F (-20° to 85° C)

Altitude

0 to 16,400 ft (0 to 5,000 m)

Humidity

20% to 95%

Storage Humidity

10% to 95%

EMI and Safety Certifications

*CE Mark - full compliance with LVD and EMC directives * Worldwide safety standards - IEC60950, EN60950, UL60950, Class1, SELV; Agency approvals - C-UL-US, NORDICS, DENAN, EN55022 Class B, FCC Class B, CISPR22 Class B, CCC, NOM-1 NYCE. * MTBF - over 200,000 hours at 25°C ambient condition.

QuickSpecs

HP ProBook 445 G7 Notebook PC

Technical Specifications

Not all configuration components are available in all regions/countries.

c06543049 — DA 16569 - Worldwide — Version 8 — January 21,2021

Page 29

HP 65 W Smart AC adapter

Dimensions

90 x 51 x 28.5 mm

Weight

220 g +/- 10 g

Not including power cord. Power cord varies by country

Input

Input Efficiency

88.0 % at 115 VAC and 89.0 % at 230VAC

Input frequency range

47 ~ 63 Hz

Input AC current

1.7 A at 90 VAC

Output

Output power

65 W

DC output

19.5 V

Hold-up time

5 msec at 115 VAC input

Output current limit

<11.0 A

Connector

4.5mm Barrel Type, 3 pin/grounded, mates with interchangeable cords

Environmental Design

Operating temperature

32°F to 95°F (0° to 35°C)

Non-operating (storage) temperature

-4˚F to 185˚F (-20˚ to 85˚C)

Altitude

0 to 16,400 ft (0 to 5000m)

Humidity

20% to 95%

Storage Humidity

10% to 95%

EMI and Safety Certifications

HP 65W EM Smart AC adapter

Dimensions

102 x 55 x 30 mm

Weight

270 g +/- 10 g

Not including power cord. Power cord varies by country

Input

Input Efficiency

87% min at 115V/230V

Input frequency range

47 to 63 Hz

Input AC current

1.7 A at 90 VAC and maximum load

Output

DC output

65 W (19.5V/3.33A)

Hold-up time

5 msec at 115 V input

Output current limit

<11A, Over voltage protection- 29V max automatic shutdown

Connector

4.5mm Barrel Type, 3 pin/grounded, mates with interchangeable cords

Environmental Design

Operating temperature

32˚F to 95˚F (0˚ to 35˚C)

Non-operating (storage) temperature

-4˚F to 185˚F (-20˚ to 85˚C)

Altitude

0 to 5,000 m

Humidity

0% to 95%

Storage Humidity

0% to 95%

QuickSpecs

HP ProBook 445 G7 Notebook PC

Technical Specifications

Not all configuration components are available in all regions/countries.

c06543049 — DA 16569 - Worldwide — Version 8 — January 21,2021

Page 30

EMI and Safety Certifications

*CE Mark - EMC directives *Worldwide safety standards - IEC60950, EN60950, UL60950, Class1, SELV; Agency approvals - C-UL-US, NORDICS, DENAN, EN55022 Class B, FCC Class B, CISPR22 Class B, CCC, NOM-1 NYCE; Reliability - failure rate of less than 0.1% annually within the first three years of operation. *MTBF - over 200,000 hours at 25°C ambient condition.

AC Adapter 65 Watt nPFC USB Type-C®

Dimensions

74 x 74 x 28.5 mm

Weight

245 g +/- 10 g

Not including power cord. Power cord varies by country

Input

Input Efficiency

81.5% min at 115 Vac/ 230Vac @ 5V/3A

86.7% min at 115 Vac/ 230Vac @ 9V/3A 88% min at 115 Vac/ 230Vac @ 10V/5A 88% min at 115 Vac/ 230Vac @ 12V/5A 89% min at 115 Vac/ 230Vac @ 15V/4.33A 89% min at 115 Vac/ 230Vac @ 20V/3.25A

Input frequency range

47 ~ 63 Hz

Input AC current

1.7 A at 90 VAC and maximum load

Output

Output power

65 W

DC output

5V/9V/10V/12V/15V/20V

Hold-up time

5ms at 115 VAC input

Output current limit

<8.0 A

Connector

USB Type-C®

Environmental Design

Operating temperature

32° F to 95° F (0° to 35° C)

Non-operating (storage) temperature

-4° F to 185° F (-20° to 85° C)

Altitude

0 to 16,400 ft (0 to 5000m)

Humidity

5% to 95%

Storage Humidity

5% to 95%

EMI and Safety Certifications

AC Adapter 45 Watt nPFC USB type C®

Dimensions

94.0 mm x 40.0 mm x 26.5 mm

Weight

192.5 g +/-10 g

Not including power cord. Power cord varies by country

Input

Input Efficiency

Average Efficiency of 25%, 50%, 75%, 100% load condition with 115Vac/230Vac Spec: 5V: 81.5% 9V: 86.7% 12V: 87.41% 15V: 87.8%

QuickSpecs

HP ProBook 445 G7 Notebook PC

Technical Specifications

Not all configuration components are available in all regions/countries.

c06543049 — DA 16569 - Worldwide — Version 8 — January 21,2021

Page 31

Input frequency range

47 ~ 63 Hz

Input AC current

Max. 1.4 A at 90 VAC

Output

Output power

5V/15W 9V/27W 12V/36W 15V/45W

DC output

5V/9V/12V/15V

Hold-up time

5ms at 115 VAC input

Output current limit

<5.0 A

Connector

USB Type-C®

Environmental Design

Operating temperature

32°F to 95°F (0° to 35°C)

Non-operating (storage) temperature

-4°F to 185°F (-20° to 85°C)

Altitude

0 to 16,400 ft (0 to 5000m)

Humidity

20% to 95%

Storage Humidity

10% to 95%

EMI and Safety Certifications

*CE Mark - full compliance with LVD and EMC directives * Worldwide safety standards - IEC60950, EN60950, UL60950, Class1, SELV; Agency approvals - C-UL-US, NORDICS, DENAN, EN55022 Class B, FCC Class B, CISPR22 Class B, CCC, NOM-1 NYCE* MTBF - over 200,000 hours at 25°C ambient condition.

3 Cell WHr 45 Long Life Polymer HP Fast Charge Technology1

Dimensions (H x W x L)

6.0 x 184.7 x 88.9 mm

Weight

0.22 kg (0.48lb)

Cells/Type

3cell Lithium-Ion

Energy

Voltage

11.55 V

Amp-hour capacity

3.900 Ah

Watt-hour capacity

45 Wh

Temperature

Operating (Charging)

32˚ to 113˚ F (0˚ to 45˚ C)

Operating (Discharging)

14˚ to 122˚ F (-10˚ to 60˚ C)

Optional Travel Battery Available

1. Recharges the battery up to 50% within 30 minutes when the system is off or in standby mode when used with the power adapter provided with the notebook. After charging has reached 50% capacity, charging speed will return to normal. Charging time may vary +/-10% due to System tolerance.

QuickSpecs

HP ProBook 445 G7 Notebook PC

Technical Specifications

Not all configuration components are available in all regions/countries.

c06543049 — DA 16569 - Worldwide — Version 8 — January 21,2021

Page 32

Country of Origin

China

QuickSpecs

HP ProBook 445 G7 Notebook PC

Options and Accessories (sold separately and availability may vary by country)

Not all configuration components are available in all regions/countries.

c06543049 — DA 16569 - Worldwide — Version 8 — January 21,2021

Page 33

Type

Description

Part Number

Cases

HP Essential Top Load Case

H2W17AA

HP Essential Backpack (up to 15.6")

H1D24AA

HP 17.3 Business Backpack

2SC67AA

Docking

HP USB-C Mini Dock

1PM64AA

HP Thunderbolt Dock 120W G2

2UK37AA

HP TB Dock G2 w/ Combo Cable

3TR87AA

HP TB Dock 120W G2 w/Audio

3YE87AA

HP TB Dock 120W G2 Cable

3XB94AA

HP TB Dock G2 Combo Cable

3XB96AA

HP TB Dock G2 Audio Module

3AQ21AA

HP USB-C/A Universal Dock G2

5TW13AA

HP USB-C Dock G5

5TW10AA

Input / Output

HP USB Essential Keyboard and Mouse

H6L29AA

HP Bluetooth Travel Mouse

6SP30AA

HP Ultra Mobile Wireless Mouse

H6F25AA

HP Comfort Grip Wireless Mouse

H2L63AA

HP 3-Button USB Laser Mouse

H4B81AA

HP USB Travel Mouse

G1K28AA

HP HDMI to DVI Adapter

F5A28AA

HP Elite USB-C Hub

4WX89AA

HP USB-C Travel Hub G2

7PJ38AA

Power

HP 45W Smart AC Adapter 4.5mm

H6Y88AA

65W Smart Power Adapter (w/ 4.5mm to 7.5mm DC dongle)

H6Y89AA

HP 65W Slim AC Adapter

H6Y82AA

HP 65W USB-C Slim Power Adapter

3PN48AA

HP 65W USB-C Power Adapter

1HE08AA

HP 45W USB-C Power Adapter

1HE07AA

HP USB-C Power Bank

2NA10AA

Storage

HP External USB Optical Drive

F2B56AA

Security

HP Keyed Cable Lock 10mm

T1A62AA

HP Sure Key Cable Lock

6UW42AA

Displays

HP E223d Docking Monitor

5VT82A8/5VT82AA

HP E243d Docking Monitor

1TJ76AA

HP E273d Docking Monitor

5WN63A8/5WN63AA

HP EliteDisplay E244d Monitor

6PA50A8/6PA50AA

HP EliteDisplay E274d Monitor

6PA56A8/6PA56AA

QuickSpecs

HP ProBook 445 G7 Notebook PC

Summary of Changes

Not all configuration components are available in all regions/countries.

c06543049 — DA 16569 - Worldwide — Version 8 — January 21,2021

Page 34

Date of change:

Version History:

Description of change:

April 29, 2020

From V1 to V2

Updated

MIL-STD 810G to MIL-STD 810H

May 7, 2020

From V2 to V3

Updated

Ethernet Section

May 28, 2020

From V3 to V4

Updated

Ports and Memory Section

August 31, 2020

From v4 to V5

Updated

Processors Section

September 22, 2020

From V5 to V6

Updated

Display Section

December 17, 2020

From V6 to V7

Updated

Ethernet Port

January 21, 2021

From V7 to V8

Added

WPA3 certification in Security, Networking section

Copyright © 2021 HP Development Company, L.P. The only warranties for HP products are set forth in the express limited warranty statements accompanying such products. Nothing herein should be construed as constituting an additional warranty. HP shall not be liable for technical or editorial errors or omissions contained herein.

AMD, Ryzen and Radeon are trademarks of Advanced Micro Devices, Inc. Bluetooth is a trademark owned by its proprietor and used by HP Inc. under license. DisplayPort™ and the DisplayPort™ logo are trademarks owned by the Video Electronics Standards Association (VESA®) in the United States and other countries. USB Type-C® and USB-C® are trademarks of USB Implementers Forum. SD, SDHC and SDXC are registered trademarks of SD-3C in the United States, other countries or both. ENERGY STAR is a registered trademark of the U.S. Environmental Protection Agency. Microsoft and Windows are either registered trademarks or trademarks of Microsoft Corporation in the United States and/or other countries. Wi-Fi® and Wi-Fi CERTIFIED™ are trademarks or registered trademarks of Wi-Fi Alliance®.

HP ProBook 445 G7 QuickSpecs

Specifications and Main Features

Frequently Asked Questions

User Manual
