HP LaserJet M278, LaserJet M281 Getting Started Guide [id]

English.........................1

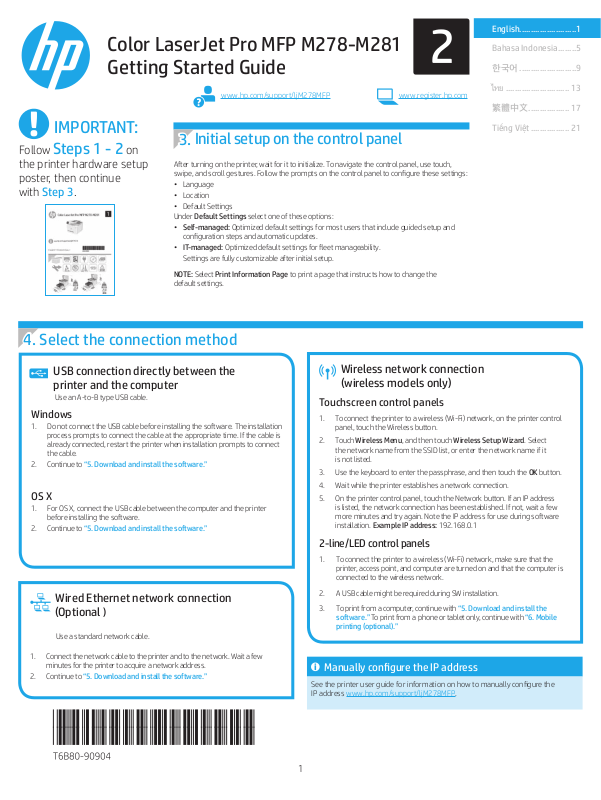

Color LaserJet Pro MFP M278-M281 Getting Started Guide

IMPORTANT:

Follow the printer hardware setup poster, then continue with Step 3.

Steps 1 - 2 on

www.hp.com/support/ljM278MFP www.register.hp.com

Initial setup on the control panel

After turning on the printer, wait for it to initialize. To navigate the control panel, use touch,

swipe, and scroll gestures. Follow the prompts on the control panel to congure these settings:

• Language

• Location

• Default Settings Under Default Settings select one of these options:

• Self-managed: Optimized default settings for most users that include guided setup and

conguration steps and automatic updates.

• IT-managed: Optimized default settings for eet manageability. Settings are fully customizable after initial setup.

NOTE: Select Print Information Page to print a page that instructs how to change the default settings.

Bahasa Indonesia ........5

한국어 .........................9

ไทย ............................ 13

繁體中文.................. 17

Tiếng Việt ................. 21

4. Select the connection method

USB connection directly between the

printer and the computer

Use an A-to-B type USB cable.

Windows

1. Do not connect the USB cable before installing the software. The installation process prompts to connect the cable at the appropriate time. If the cable is already connected, restart the printer when installation prompts to connect the cable.

2. Continue to “5. Download and install the software.”

OS X

1. For OS X, connect the USB cable between the computer and the printer before installing the software.

2. Continue to “5. Download and install the software.”

Wired Ethernet network connection

(Optional

Use a standard network cable.

)

Wireless network connection

(wireless models only)

Touchscreen control panels

1. To connect the printer to a wireless (Wi-Fi) network, on the printer control panel, touch the Wireless button.

2. Touch Wireless Menu, and then touch Wireless Setup Wizard. Select the network name from the SSID list, or enter the network name if it

isnotlisted.

3. Use the keyboard to enter the passphrase, and then touch the OK button.

4. Wait while the printer establishes a network connection.

5. On the printer control panel, touch the Network button. If an IP address is listed, the network connection has been established. If not, wait a few more minutes and try again. Note the IP address for use during software installation. Example IP address: 192.168.0.1

2-line/LED control panels

1. To connect the printer to a wireless (Wi-Fi) network, make sure that the

printer, access point, and computer are turned on and that the computer is connected to the wireless network.

2. A USB cable might be required during SW installation.

3. To print from a computer, continue with “5. Download and install the

software.” To print from a phone or tablet only, continue with “6. Mobile printing (optional).”

1. Connect the network cable to the printer and to the network. Wait a few minutes for the printer to acquire a network address.

2. Continue to “5. Download and install the software.”

Manually congure the IP address

See the printer user guide for information on how to manually congure the IPaddress www.hp.com/support/ljM278MFP.

Download and install the software

Method 1: Download HP Easy Start (Windows and OS X)

1. Go to 123.hp.com/laserjet, and click Download.

2. Follow the on-screen instructions and prompts to save the le to the computer.

3. Launch the software le from the folder where the le was saved.

Method 3: Install from the printer CD (Windows only)

1. Insert the printer CD into the computer.

2. Follow the on-screen instructions to install the software.

Method 2: Download from printer support website (Windows and OS X)

1. Go to www.hp.com/support/ljM278MFP.

2. Select Software and drivers.

3. Download the software for your printer model and operating system.

4. Launch the software le from the folder where the le was saved.

Install Notes

For more details about the software for the printer, see the install notes le on the

printer CD.

Readiris Pro for HP

Readiris Pro provides your HP product with advanced OCR and scanning features. Easily convert your paper documents into editable and searchable PDF les, ready to be stored and shared. To download the software from the Web, go to: www.hp.com/support/ljM278MFP.

Select Drivers, select the appropriate operating system, and click Next. Click Application - 3rd Party, and then click the Download button.

Mobile printing (optional)

Wi-Fi Direct (wireless models only)

6.2

Connect the device to the wireless network

6.1

To print from a phone or tablet, connect the device to the same wireless network as the printer.

Apple iOS devices (AirPrint): Open the item to print, and select the Action icon. Select Print, select the printer, and then select Print.

Android devices (4.4 or newer): Open the item to print, and select the Menubutton. Select Print, select the printer, and select Print.

Some devices require downloading the HP Print Service plugin app from the Google Play store.

Windows Phone: Download the HP AiO Remote app from the Windows Store.

Learn more about mobile printing

For further information on these and other operating systems (Chrome/Google Cloud Print) go to

www.hp.com/go/LaserJetMobilePrinting or scan the

QR code.

Wi-Fi Direct allows Wi-Fi capable devices, such as smart phones, tablets,

orcomputers, to make a wireless network connection directly to the printer

without using a wireless router or access point. Connect to the printer’s Wi-Fi Direct signal the same way Wi-Fi capable devices are connected to a new wireless network or hotspot.

Enable Wi-Fi Direct

To set up Wi-Fi Direct from the control panel, complete the following steps:

1. From the Home screen on the printer control panel, touch the

ConnectionInformation button, and open the following menus:

• Wi-Fi Direct

• Settings

• On/O

2. Touch the On menu item. The printer saves the setting and then returns the control panel to the Wi-Fi Direct Settings menu.

For more information on wireless printing and wireless setup, go to

www.hp.com/go/wirelessprinting.

Discover the printer

1. From the mobile device, turn on the Wi-Fi, and search for wireless networks.

2. Select the printer as shown on the printer control panel.

Example printer name: Direct-bb-HP M277 Laserjet

Use HP ePrint via email to print documents by sending them as an email attachment to the printer’s email address from any email enabled device, even from devices that are not on the same network.

To use HP ePrint via email, the printer must meet these requirements:

• The printer must be connected to a wired or wireless network and have Internet access.

• HP Web Services must be enabled on the printer, and the printer must be registered with HP Connected.

Enable HP Web Services

1. From the Home screen on the printer control panel, touch the Connection

Information button, and open the following menus:

• HP ePrint

• Settings

• Enable Web Services

Set up HP ePrint via email (optional)

2. Touch the OK menu item. The printer enables Web Services, and then prints an information page. The information page contains a printer code necessary to register the HP printer at HP Connected.

3. Go to www.hpconnected.com to create an HP ePrint account and complete the setup process.

8. Set up fax (fax models only - optional)

8.1

Connect the printer

The printer is an analog device. HP recommends using the printer on a dedicated analog telephone line.

NOTE: Some countries/regions might require an adapter for the

phone cord that came with the printer.

Connect the phone cord that came with the printer to the Fax port on the printer and to the telephone jack on the wall.

How do I connect an answering machine or

extension phone?

1. Remove the plug from the phone port .

2. Disconnect the answering machine phone cord from the phone jack, and then connect it to the phone port on the printer.

3. Connect the phone cord that came with the printer to the fax port on the printer and to the telephone jack on the wall.

8.2

Congure the printer

Conguring the fax time, date, and header settings is required to use the

fax feature.

HP Fax Setup Wizard (Windows)

1. Open the HP Printer Assistant.

• Windows 10: From the Start menu, click All Apps, click HP, and then select the printer name.

• Windows 8.1: Click the down arrow in lower left corner of the Start screen, and then select the printer name.

• Windows 8: Right-click an empty area on the Start screen, click All Apps on the app bar, and then select the printer name.

• Windows 7, Windows Vista, and Windows XP: From the computer desktop, click Start, select All Programs, click HP, click the folder for the printer, select the icon with the printer’s name, and then open HP Printer Assistant.

2. In the HP Printer Assistant, select Fax, and then select Fax Setup Wizard.

3. Follow the on-screen instructions to congure the fax settings.

Basic Setup menu

1. From the Home screen on the printer control panel, touch the Setup button.

2. Select Fax Setup, and then select Basic Setup.

3. Select Time/Date.

4. Select the 12-hour or 24-hour.

5. Use the keypad to enter the current time, and then touch the OK button.

6. Select the date format.

7. Use the keypad to enter the current date, and then touch the OK button.

8. Select Fax Header.

9. Use the keypad to enter the fax number, and then touch the

OK button.

NOTE: The maximum number of characters for the fax number is 20.

10. Use the keypad to enter your company name or header, and then touch the OK button. To enter special characters that are not on the standard keypad, touch the @#$ button to open a keypad that contains special characters.

NOTE: The maximum number of characters for the fax header is 40.

How do I set up HP printers in digital phone

environments?

HP printers are designed specically for use with traditional analog phone

services. For a digital phone environment (such as DSL/ADSL, PBX, ISDN, or

FoIP), digital-to-analog lters or converters might be necessary when setting

up the printer for fax. Note: Depending on the phone company, the pr inter might not

be compatible with all digital service lines or providers, in all digital environments, or with all digital-to-analog converters. Contact the phone company to determine which setup options are best.

Note: When setting up ring pattern detection in a PBX phone system that

has dierent ring patterns for internal and external calls, make sure to dial

the printer fax number using an external number for recording the ring pattern.

Learn more!

For more information about other ways to send faxes, such as scheduling a fax to be sent later or sending faxes from a computer,

see the user guide on the printer CD, or go to:

www.hp.com/support/ljM278MFP

Use the HP Scan software on your computer to start a scan job at the printer.

Use the scan feature

Windows

Open HP Printer Assistant, select Scan, and then select Scan a Document or Photo.

Troubleshooting

User guide

The user guide includes printer usage and troubleshooting information. It is available

on the printer CD and on the Web:

1. Go to www.hp.com/support/ljM278MFP

2. Select the printer if prompted to, and then click User Guides. For Windows, the user guide is copied to the computer during the recommended

software installation.

Check for rmware updates

1. Go to www.hp.com/support/ljM278MFP

2. Select the printer if prompted to, and then click Software and Drivers.

3. Select the operating system, and click the Next button.

4. Select Firmware, and click the Download button.

OS X

Go to the Applications folder and open HP Easy Scan.

Control panel help

Touch the Help button on the printer control panel to access help topics.

Additional support resources

For HP’s all-inclusive help for the printer, go to:

www.hp.com/support/ljM278MFP

• Solve problems

• Find advanced conguration instructions

• Download software updates

• Join support forums

• Find warranty and regulatory information

• Access mobile printing resources

Wired (Ethernet) network connection (optional)

• Verify that the printer is attached to the correct network port using a cable of the correct length.

• Verify the lights next to the network port are lit.

• Verify the print driver is installed on the computer.

• Test the network connection by pinging the network:

Windows

Click Start > Run. Type cmd, and press Enter. Type ping, type a space, type the printer IP address, and then press Enter. Example IP address: 192.168.0.1.

Tond the printer IP, see “Find the printer IP address.”

OS X Open the Network Utility, and type the IP address in the ping pane. Press Enter.

Example IP address: 192.168.0.1. To nd the printer IP, see “Find the printer

IPaddress.”

• If the window displays round-trip times, the network is working.

• If the ping does not work, try restarting the printer and recheck all of the connection steps.

Fax troubleshooting (fax models only)

Verify the physical connection

• Verify that the phone cord is connected to the fax

printer and to the wall jack.

• For an extension phone or other additional device, verify the phone cord is

connected to the telephone

• If outgoing phone calls fail because no dial tone is detected or the line is busy,

connect to a dierent phone line.

• For Fax over IP service, reduce the Fax Speed, and turn o Error Correction

Mode from the Fax Settings menu on the printer control panel.

port on the back of the printer and to the device.

port on the back of the

Wireless network connection (wireless models)

• Verify that the network cable is not connected. The printer cannot connect to

awireless network when a network cable is connected.

• Verify that the printer and wireless router are turned on and have power.

Alsomake sure the wireless switch is turned on.

• Verify that the printer is within the range of the wireless network. For most networks, the printer must be within 30 m (100 ft) of the wireless access point (wireless router).

• Verify the print driver is installed on the computer.

• Verify that the computer and printer connect to the same wireless network.

• For Mac, verify that the wireless router supports Bonjour.

• Restart the wireless router.

Verify the printer fax settings

• To use a voice-mail service from the phone company or service provider, make

sure that the printer Rings to Answer setting is set to be fewer rings than the telephone answering machine.

• If multiple phone numbers are assigned to the same physical phone line and

the line is shared by multiple devices, make sure that the printer is set to the correct distinctive ring setting. Use a setting in which the printer answers faxes and ignores other ring types.

• Conguring the Fax Speed setting to Medium (V.17) or Slow (V.29) can also

improve your ability to send a fax.

English.........................1

LaserJet Pro Color MFP M278-M281 Panduan Persiapan

PENTING:

Langkah 1-2 pada

Ikuti

poster kongurasi perangkat

keras printer, lalu lanjutkan dengan Langkah 3.

www.hp.com/support/ljM278MFP www.register.hp.com

Kongurasi awal pada panel kontrol

Setelah menghidupkan printer, tunggu proses inisialisasi. Untuk menelusuri panel kontrol, gunakan gerakan sentuh, geser, dan gulir. Ikuti perintah pada panel kontrol untuk

mengkongurasi pengaturan berikut:

• Bahasa

• Lokasi

• Pengaturan Default Dalam Default Settings (Pengaturan Default) pilih salah satu dari pilihan berikut:

• Dikelola sendiri: Pengaturan default yang dioptimalkan untuk sebagian besar pengguna

yang mencakup panduan langkah-langkah pengaturan dan kongurasi serta pembaruan

otomatis.

• Dikelola TI: Pengaturan default yang dioptimalkan untuk kemampuan pengelolaan cepat.

Pengaturan dapat disesuaikan sepenuhnya setelah kongurasi awal.

CATATA N: Pilih Print Information Page (Cetak Halaman Informasi) untuk mencetak halaman yang menunjukkan cara mengubah pengaturan default.

Bahasa Indonesia ........5

한국어 .........................9

ไทย ............................ 13

繁體中文.................. 17

Tiếng Việt ................. 21

4. Memilih metode sambungan

Sambungan USB secara langsung antara

printer dan komputer

Gunakan kabel USB jenis A-ke-B.

Windows

1. Jangan sambungkan kabel USB sebelum menginstal perangkat lunak. Proses penginstalan meminta untuk menyambungkan kabel pada waktu yang tepat. Jika kabel telah tersambung, hidupkan ulang printer saat penginstalan meminta untuk menyambungkan kabel.

2. Lanjutkan ke “5. Men-download dan menginstal perangkat lunak”.

OS X

1. Untuk OS X, sambungkan kabel USB antara komputer dan printer sebelum menginstal perangkat lunak.

2. Lanjutkan ke “5. Men-download dan menginstal perangkat lunak”.

Sambungan jaringan Ethernet berkabel

(Opsional

Gunakan kabel jaringan standar.

)

Sambungan jaringan nirkabel (hanya model

nirkabel)

Panel kontrol layar sentuh

1. Untuk menyambungkan printer ke jaringan nirkabel (Wi-Fi), pada panel kontrol printer, sentuh tombol Wireless (Nirkabel).

2. Sentuh Wireless Menu (Menu Nirkabel), lalu sentuh Wireless Setup Wizard (Wizard Pengaturan Nirkabel). Pilih nama jaringan dari daftar SSID, atau masukkan nama jaringan jika tidak tercantum dalam daftar.

3. Gunakan keyboard untuk memasukkan frasa akses, lalu sentuh tombol OK.

4. Tunggu sementara printer menetapkan sambungan jaringan.

5. Pada panel kontrol printer, sentuh tombol Network (Jaringan). Jika alamat IP tercantum dalam daftar, berarti koneksi jaringan telah ditetapkan. Jika tidak, tunggu beberapa menit, lalu coba lagi. Catat alamat IP untuk digunakan saat penginstalan perangkat lunak berlangsung. Contoh alamat IP: 192.168.0.1

Panel kontrol 2 baris/LED

1. Untuk menyambungkan printer ke jaringan nirkabel (Wi-Fi), pastikan

printer, jalur akses, dan komputer telah dihidupkan dan komputer tersambung ke jaringan nirkabel.

2. Kabel USB mungkin diperlukan saat penginstalan SW berlangsung.

3. Untuk mencetak dari komputer, lanjutkan dengan “5. Download dan

instal perangkat lunak.” Untuk mencetak hanya dari telepon atau

tablet, lanjutkan dengan "6. Pencetakan seluler (opsional)."

1. Sambungkan kabel jaringan ke printer dan jaringan. Tunggu beberapa menit agar printer mendapatkan alamat jaringan.

2. Lanjutkan ke “5. Men-download dan menginstal perangkat lunak”.

Mengkongurasi alamat IP secara manual

Lihat panduan pengguna printer untuk mendapatkan informasi tentang cara

mengkongurasi alamat IP secara manual www.hp.com/support/ljM278MFP.

Men-download dan menginstal perangkat lunak

3. Download perangkat lunak untuk model printer dan sistem operasi Anda.

Metode 1: Download HP Easy Start (Windows dan OS X)

1. Kunjungi 123.hp.com/laserjet, lalu klik Download.

2. Ikuti petunjuk pada layar dan konrmasi untuk menyimpan le di komputer.

3. Jalankan le perangkat lunak dari folder tempat menyimpan le.

Metode 2: Download dari situs web dukungan printer

4. Jalankan le perangkat lunak dari folder tempat menyimpan le.

Metode 3: Instal dari CD printer (hanya Windows)

1. Masukkan CD printer ke komputer.

2. Ikuti petunjuk pada layar untuk menginstal perangkat lunak.

(Windows dan OS X)

1. Kunjungi www.hp.com/support/ljM278MFP.

2. Pilih Software and drivers (Perangkat lunak dan driver).

Catatan Penginstalan

Untuk informasi lebih rinci tentang perangkat lunak printer, lihat le catatan

penginstalan pada CD printer.

Readiris Pro untuk HP

Readiris Pro melengkapi produk HP Anda dengan OCR dan tur pemindaian tingkat lanjut. Konversikan dokumen kertas Anda dengan mudah menjadi le PDF yang dapat diedit dan dicari, siap untuk disimpan dan dibagikan. Untuk men-download perangkat lunak dari web, kunjungi: www.hp.com/support/ljM278MFP.

Pilih Drivers (Driver), pilih sistem operasi yang tepat, lalu klik Next (Berikutnya). Klik Application - 3rd Party (Aplikasi Pihak Ketiga), lalu klik tombol Download.

Pencetakan seluler (opsional)

Menyambungkan perangkat ke jaringan nirkabel

6.1

Untuk mencetak dari telepon atau tablet, sambungkan perangkat ke jaringan nirkabel yang sama dengan printer.

Perangkat Apple iOS (AirPrint): Buka item untuk dicetak, lalu pilih ikon Action (Tindakan). Pilih Print (Cetak), pilih printer, lalu pilih Print (Cetak).

Perangkat Android (4.4 atau versi lebih baru): Buka item yang akan dicetak, lalu pilih tombol Menu. Pilih Print (Cetak), pilih printer, lalu pilih Print (Cetak).

Perangkat tertentu mengharuskan Anda men-download aplikasi plugin Layanan HP Print dari Google Play store.

Windows Phone: Download aplikasi HP AiO Remote dari Windows Store.

Selengkapnya tentang pencetakan seluler

Untuk informasi lebih lanjut tentang hal ini dan sistem operasi lainnya (Chrome/Google Cloud Print), kunjungi

www.hp.com/go/LaserJetMobilePrinting atau pindai

kode QR.

Mengkongurasi HP ePrint melalui email (opsional)

Wi-Fi Direct (hanya model nirkabel)

6.2

Wi-Fi Direct memungkinkan perangkat yang mendukung Wi-Fi, misalnya smartphone, tablet, atau komputer, membuat sambungan jaringan nirkabel langsung ke printer tanpa menggunakan router atau jalur akses nirkabel. Sambungkan ke sinyal Wi-Fi Direct printer menggunakan cara yang sama seperti menyambungkan perangkat yang mendukung Wi-Fi ke jaringan nirkabel atau hotspot baru.

Mengaktifkan Wi-Fi Direct

Untuk mengkongurasi Wi-Fi Direct dari panel kontrol, lakukan langkah berikut:

1. Dari layar Home (Beranda) pada panel kontrol printer, sentuh tombol Connection Information (Informasi Sambungan)

menuberikut:

• Wi-Fi Direct

• Settings (Pengaturan

• On/O (Aktif/Tidak Aktif)

2. Sentuh item menu On (Aktif). Printer akan menyimpan pengaturan, lalu mengembalikan panel kontrol ke menu Wi-Fi Direct Settings (Pengaturan Wi-Fi Direct).

Untuk informasi selengkapnya tentang pencetakan dan pengaturan

nirkabel, kunjungi www.hp.com/go/wirelessprinting.

Menemukan printer

1. Dari perangkat bergerak, aktifkan Wi-Fi, lalu cari jaringan nirkabel.

2. Pilih printer yang ditunjukkan pada panel kontrol printer. Contoh nama printer: Direct-bb-HP M277 Laserjet

, lalu buka

Gunakan HP ePrint via email untuk mencetak dokumen dengan mengirimnya sebagai lampiran email ke alamat email printer dari perangkat apa pun yang mendukung email, bahkan dari perangkat di jaringan yang berbeda.

Untuk menggunakan HP ePrint via email, printer harus memenuhi persyaratan berikut ini:

• Printer harus disambungkan ke jaringan berkabel atau nirkabel dan memiliki akses Internet.

• Layanan Web HP harus diaktifkan di printer, dan printer harus terdaftar di HP Connected.

Mengaktifkan Layanan Web HP

1. Dari layar Home (Beranda) pada panel kontrol printer, sentuh tombol Connection

Information (Informasi Sambungan) , lalu buka menu berikut:

• HP ePrint

• Settings (Pengaturan)

• Enable Web Services (Aktifkan Layanan Web)

2. Sentuh item menu OK. Printer mengaktifkan Web Services (Layanan Web), lalu mencetak halaman informasi. Halaman informasi berisi kode printer yang diperlukan untuk mendaftarkan printer HP di HP Connected.

3. Kunjungi www.hpconnected.com untuk membuat akun HP ePrint dan

menyelesaikan proses kongurasi.

Mengkongurasi faks (hanya model faks - opsional)

8.1

Menyambungkan printer

Printer ini adalah perangkat analog. HP menganjurkan penggunaan printer pada saluran telepon analog khusus.

C ATATAN: Adapter mungkin diperlukan di beberapa negara/

kawasan tertentu untuk menggunakan kabel telepon yang disertakan bersama printer.

Sambungkan kabel telepon yang disertakan bersama printer ke port Faks

pada printer dan ke soket telepon di dinding.

Bagaimana menyambungkan mesin penjawab

atau telepon ekstensi?

1. Lepas konektor dari port telepon .

2. Lepas sambungan kabel telepon mesin penjawab dari soket telepon, lalu sambungkan ke port telepon pada printer.

3. Sambungkan kabel telepon yang disertakan bersama printer ke port faks pada printer dan ke soket telepon di dinding.

8.2

Mengkongurasi printer

Mengkongurasi pengaturan waktu, tanggal, dan kepala faks diperlukan agar dapat menggunakan tur faks.

Wizard Pengaturan Faks HP (Windows)

1. Buka HP Printer Assistant.

• Windows 10: Dari Menu Start (Mulai), klik All Apps (Semua Aplikasi), klik HP, lalu pilih nama printer.

• Windows 8.1: Klik tombol panah di sudut kiri bawah dari layar Start (Mulai), lalu pilih nama printer.

• Windows 8: Klik kanan pada bidang kosong di layar Start (Mulai), klik All Apps (Semua Aplikasi) di panel aplikasi, lalu pilih nama printer.

• Windows 7, Windows Vista, dan Windows XP: Dari desktop komputer, klik Start (Mulai), pilih All Programs (Semua Program), klik HP, klik folder printer, pilih ikon dengan nama printer, lalu buka HP Printer Assistant.

2. Pada HP Printer Assistant, pilih Fax (Faks), lalu pilih Fax Setup Wizard (Wizard Pengaturan Faks).

3. Ikuti petunjuk di layar untuk mengkongurasi pengaturan faks.

Menu Pengaturan Dasar

1. Dari layar Home (Utama) pada panel kontrol printer, sentuh tombol Setup (Pengaturan) .

2. Pilih Fax Setup (Kongurasi Faks), lalu pilih Basic Setup

(KongurasiDasar).

3. Pilih Time/Date (Waktu/Tanggal).

4. Pilih format 12-hour (12 jam) atau 24-hour (24 jam).

5. Gunakan keypad untuk memasukkan waktu sekarang, lalu sentuh tombol OK.

6. Pilih format tanggal.

7. Gunakan keypad untuk memasukkan tanggal sekarang, lalu sentuh tombol OK.

8. Pilih Fax Header (Kepala Faks).

9. Gunakan keypad untuk memasukkan nomor faks, lalu sentuh tombol OK.

C ATATAN: Jumlah maksimal karakter untuk nomor faks adalah 20.

10. Gunakan keypad untuk memasukkan nama atau kop perusahaan, lalusentuh tombol OK. Untuk memasukkan karakter khusus yang tidak ada pada keypad standar, sentuh tombol @#$ untuk membuka keypad yang berisi karakter khusus.

CATATA N: Jumlah maksimal karakter untuk kepala faks adalah 40.

Bagaimana cara mengkongurasi printer

HP dalam lingkungan telepon digital?

Printer HP dirancang khusus untuk digunakan bersama layanan telepon analog biasa. Untuk lingkungan telepon digital (misalnya, DSL/ADSL,

PBX, ISDN, atau FoIP), lter atau konverter digital ke analog mungkin diperlukan bila mengkongurasi printer untuk faks.

Catatan: Berdasarkan perusahaan telepon, printer mungkin tidak kompatibel dengan semua saluran atau penyedia layanan digital, di semua lingkungan digital, atau dengan semua konverter digital ke analog. Hubungi perusahaan telepon untuk menentukan pilihan

kongurasi terbaik. Catatan: Saat mengkongurasi deteksi pola dering dalam sistem

telepon PBX yang memiliki pola dering yang berbeda untuk panggilan internal dan eksternal, pastikan Anda menekan nomor faks printer menggunakan nomor eksternal untuk merekam pola dering.

Selengkapnya!

Untuk informasi selengkapnya tentang cara lain mengirim faks, misalnya menjadwalkan faks untuk dikirim nanti atau mengirim faks

dari komputer, lihat Panduan Pengguna di CD printer atau kunjungi:

www.hp.com/support/ljM278MFP

Gunakan perangkat lunak HP Scan di komputer untuk memulai tugas pindai pada printer.

Menggunakan tur pindai

Windows

Buka HP Printer Assistant, pilih Scan (Pindai), lalu pilih Scan a Document or Photo (Pindai Dokumen atau Foto).

Mengatasi masalah

Panduan pengguna

Panduan pengguna mencakup informasi tentang penggunaan printer dan

mengatasi masalah. Panduan pengguna tersedia pada CD printer dan web:

1. Kunjungi www.hp.com/support/ljM278MFP

2. Pilih printer jika diminta, lalu klik User Guides (Panduan Pengguna). Untuk Windows, panduan pengguna akan disalin ke komputer saat penginstalan

perangkat lunak yang direkomendasikan berlangsung.

Memeriksa pembaruan rmware

1. Kunjungi www.hp.com/support/ljM278MFP

2. Pilih printer jika diminta, lalu klik Software and Drivers (Perangkat Lunak

danDriver).

3. Pilih sistem operasi, lalu klik tombol Next (Berikutnya).

4. Pilih Firmware, lalu klik tombol Download.

OS X

Buka folder Applications (Aplikasi) dan buka HP Easy Scan.

Bantuan panel kontrol

Sentuh tombol Help (Bantuan) pada panel kontrol printer untuk mengakses topik bantuan.

Sumber dukungan tambahan

Untuk bantuan secara menyeluruh dari HP terkait printer, kunjungi:

www.hp.com/support/ljM278MFP

• Mengatasi masalah

• Menemukan petunjuk kongurasi tingkat lanjut

• Men-download pembaruan perangkat lunak

• Bergabung dengan forum dukungan

• Mencari informasi jaminan dan peraturan

• Mengakses sumber pencetakan seluler

Sambungan jaringan berkabel (Ethernet) (opsional)

• Pastikan printer telah tersambung ke port jaringan yang benar menggunakan kabel dengan panjang yang benar.

• Pastikan lampu di sebelah port jaringan telah menyala.

• Pastikan driver cetak telah terinstal di komputer.

• Uji sambungan jaringan dengan melakukan ping jaringan:

Windows

Klik Start (Mulai) > Run (Jalankan). Ketik cmd, lalu tekan Enter. Ketik ping, ketik spasi, ketik alamat IP printer, lalu tekan Enter. Contoh alamat IP: 192.168.0.1. Untuk menemukan IP printer, lihat "Menemukan alamat IP printer".

OS X

Buka Network Utility (Utilitas Jaringan), lalu ketik alamat IP di jendela ping. Tekan Enter. Contoh alamat IP: 192.168.0.1. Untuk menemukan IP printer, lihat "Menemukan alamat IP printer".

• Jika jendela menampilkan waktu respons (round-trip time), berarti jaringan berfungsi.

• Jika ping tidak berjalan, coba hidupkan ulang printer, lalu periksa kembali semua langkah sambungan.

Cara mengatasi masalah faks (hanya model faks)

Memastikan sambungan sik

• Pastikan kabel telepon telah tersambung ke port faks

printer dan ke stopkontak.

• Untuk telepon ekstensi atau perangkat tambahan lain, pastikan kabel

telepon telah tersambung ke port telepon ke perangkat.

• Jika panggilan telepon keluar gagal karena nada panggil tidak terdeteksi

atau saluran sibuk, sambungkan ke saluran telepon lainnya.

• Untuk layanan Fax over IP (Faks melalui IP), kurangi Fax Speed (Kecepatan

Faks), lalu nonaktifkan Error Correction Mode (Mode Koreksi Kesalahan) darimenu Fax Settings (Pengaturan Faks) di panel kontrol printer.

di bagian belakang printer dan

di bagian belakang

Sambungan jaringan nirkabel (model nirkabel)

• Pastikan kabel jaringan tidak tersambung. Printer tidak dapat tersambung ke jaringan nirkabel jika kabel jaringan tersambung.

• Pastikan printer dan router nirkabel telah diaktifkan dan memiliki daya. Pastikan juga sakelar nirkabel telah diaktifkan.

• Pastikan printer telah berada dalam jangkauan jaringan nirkabel. Untuk sebagian besar jaringan, printer harus berada dalam jarak 30 m (100 kaki) dari jalur akses nirkabel (router nirkabel).

• Pastikan driver cetak telah terinstal di komputer.

• Pastikan komputer dan printer telah tersambung ke jaringan nirkabel yang sama.

• Untuk Mac, pastikan router nirkabel mendukung Bonjour.

• Hidupkan ulang router nirkabel.

Memastikan pengaturan faks printer

• Untuk menggunakan layanan pesan suara dari perusahaan atau penyedia

layanan telepon, pastikan pengaturan Rings to Answer (Dering ke Jawab) printer diatur ke lebih rendah daripada mesin penjawab telepon.

• Jika beberapa nomor telepon ditetapkan pada saluran telepon sik yang

sama dan saluran dibagi oleh beberapa perangkat, pastikan printer telah diatur ke pengaturan dering khusus yang benar. Gunakan pengaturan agar printer menjawab faks dan mengabaikan jenis dering lainnya.

• Mengkongurasikan pengaturan Fax Speed (Kecepatan Faks) ke

Medium(V.17) (Sedang(V.17)) atau Slow(V.29) (Lambat(V.29)) juga dapat meningkatkan kemampuan pengiriman faks.

English.........................1

Color LaserJet Pro MFP M278-M281

시작 설명서

중요:

프린터 하드웨어 설치 포스터의 수행한 다음 3단계를 진행하십시오.

4. 연결 방식 선택

1~2단계를

www.hp.com/support/ljM278MFP www.register.hp.com

제어판에서 초기 설정

프린터를 켠 후 초기화될 때까지 기다립니다. 제어판을 탐색하려면 터치, 스와이프, 스크롤 제스처를 사용합니다. 제어판에 표시되는 메시지에 따라 다음과 같은 설정을 구성합니다.

• 언어

• 위치

• 기본 설정 기본 설정에서 다음 옵션 중 하나를 선택합니다.

• 자체 관리: 대부분의 사용자에게 최적화된 기본 설정으로, 안내 설정, 구성 단계 및 자동 업데이트를 포함합니다.

• IT 관리: 장비 관리성에 최적화된 기본 설정입니다.

설정은 초기 설정 후 모두 사용자 요구에 맞게 설정할 수 있습니다.

참고: 기본 설정을 변경하는 방법을 지시하는 페이지를 인쇄하려면 인쇄 정보 페이지를 선택하십시오.

Bahasa Indonesia ........5

한국어 .........................9

ไทย ............................ 13

繁體中文.................. 17

Tiếng Việt ................. 21

프린터와 컴퓨터 간 직접 USB 연결

A-B형 USB 케이블을 사용합니다.

Windows

1. 소프트웨어를 설치하기 전에 USB 케이블을 연결하지 마십시오. 설치 과정 중에 케이블을 연결하라는 메시지가 표시됩니다. 케이블이 이미 연결된 경우, 설치 중 케이블을 연결하라는 메시지가 표시되면 프린터를 재시작합니다.

2. “5. 소프트웨어 다운로드 및 설치”로 진행합니다.

OS X

1. OS X의 경우, 소프트웨어를 설치하기 전에 USB 케이블을 컴퓨터와 프린터에 연결합니다.

2. “5. 소프트웨어 다운로드 및 설치”로 진행합니다.

유선 이더넷 네트워크 연결

(선택 사항

표준 네트워크 케이블을 사용합니다.

1. 네트워크 케이블을 프린터와 네트워크에 연결합니다. 프린터에서 네트워크 주소를 받을 때까지 몇 분 대기합니다.

2. “5. 소프트웨어 다운로드 및 설치”로 진행합니다.

)

무선 네트워크 연결(무선 모델만 해당)

터치스크린 제어판

1. 프린터를 무선 (Wi-Fi) 네트워크에 연결하려면 프린터 제어판에서 무선 버튼을 누릅니다.

2. 무선 메뉴를 누른 다음 무선 설정 마법사를 누릅니다. SSID 목록에서 네트워크 이름을 선택하거나 목록에 없는 경우 네트워크 이름을 입력합니다.

3. 키보드를 사용하여 암호를 입력한 후 확인 버튼을 누릅니다.

4. 프린터가 네트워크 연결을 설정하는 동안 기다립니다.

5. 프린터 제어판에서 네트워크 버튼을 누릅니다. IP 주소가 표시되면 네트워크 연결이 설정된 것입니다. 그렇지 않은 경우 몇 분 더 기다린 다음 다시 시도합니다. 소프트웨어 설치 중 사용할 IP 주소를 메모합니다. IP 주소 예: 192.168.0.1

2줄/LED 제어판

1. 프린터를 무선(Wi-Fi) 네트워크에 연결하려면 프린터, 액세스 지점

및 컴퓨터가 켜져 있어야 하며 컴퓨터가 무선 네트워크에 연결되어 있어야 합니다.

2. SW 설치 도중 USB 케이블이 필요할 수 있습니다.

3. 컴퓨터에서 인쇄하려면 “5. 소프트웨어 다운로드 및 설치”

로 이동하십시오. 휴대전화나 태블릿에서만 인쇄하려면

“6. 모바일 인쇄(선택 사항)”를 진행합니다.

IP 주소 수동으로 구성

수동으로 IP 주소를 구성하는 방법에 대한 자세한 내용은 프린터 사용 설명서 (www.hp.com/support/ljM278MFP)를 참조하십시오.

+ 19 hidden pages
