HP Engage One Pro All-In-One system QuickSpecs

QuickSpecs

HP Engage One Pro All-In-One system

Overview

c06986242 — DA – 16807 Worldwide — Version 2 — March 2, 2021

Page 1

HP Engage One Pro All-In-One system

FRONT VIEW

QuickSpecs

HP Engage One Pro All-In-One system

Overview

c06986242 — DA – 16807 Worldwide — Version 2 — March 2, 2021

Page 2

REAR VIEW

QuickSpecs

HP Engage One Pro All-In-One system

Overview

c06986242 — DA – 16807 Worldwide — Version 2 — March 2, 2021

Page 3

HP Engage One Pro Column hub

IMPORTANT: To avoid damage to the computer, DO NOT plug a telephone cable into the cash drawer jack.

®

QuickSpecs

HP Engage One Pro All-In-One system

Overview

c06986242 — DA – 16807 Worldwide — Version 2 — March 2, 2021

Page 4

HP Engage One Pro VESA hub

IMPORTANT: To avoid damage to the computer, DO NOT plug a telephone cable into the cash drawer jack.

®

QuickSpecs

HP Engage One Pro All-In-One system

Overview

c06986242 — DA – 16807 Worldwide — Version 2 — March 2, 2021

Page 5

HP Engage One Pro Advanced Fan-less Hub

IMPORTANT: To avoid damage to the computer, DO NOT plug a telephone cable into the cash drawer jack.

QuickSpecs

HP Engage One Pro All-In-One system

Overview

c06986242 — DA – 16807 Worldwide — Version 2 — March 2, 2021

Page 6

Component Breakdown

1.

Head unit: Choice of 3 screen sizes: 15.6”, 19.5”, 23.8”.

Landscape or portrait orientation

3.

Stability Base Plate & U-Shape Adapter

2.

Stand: Choice of 4: Performance stand, Pro stand, Vertical stand, Slim VESA wall mount

4.

Hub: 3 Options based on I/O requirements: Column Advance hub, VESA mount hub

Not shown: Head unit connects with hub through a 140W Cable with secure screwed to connectivity base

QuickSpecs

HP Engage One Pro All-In-One system

Overview

c06986242 — DA – 16807 Worldwide — Version 2 — March 2, 2021

Page 7

Component Breakdown

QuickSpecs

HP Engage One Pro All-In-One system

Overview

c06986242 — DA – 16807 Worldwide — Version 2 — March 2, 2021

Page 8

HP Engage One Pro Stand Features

1. Performance Stand-Height

adjustable 50mm, tilt 40

0

-1200

2. Engage One Pro stand- tilt 40

0

-

1200

3. Engage One Vertical stand- tilt

15

0

-400

QuickSpecs

HP Engage One Pro All-In-One system

Overview

c06986242 — DA – 16807 Worldwide — Version 2 — March 2, 2021

Page 9

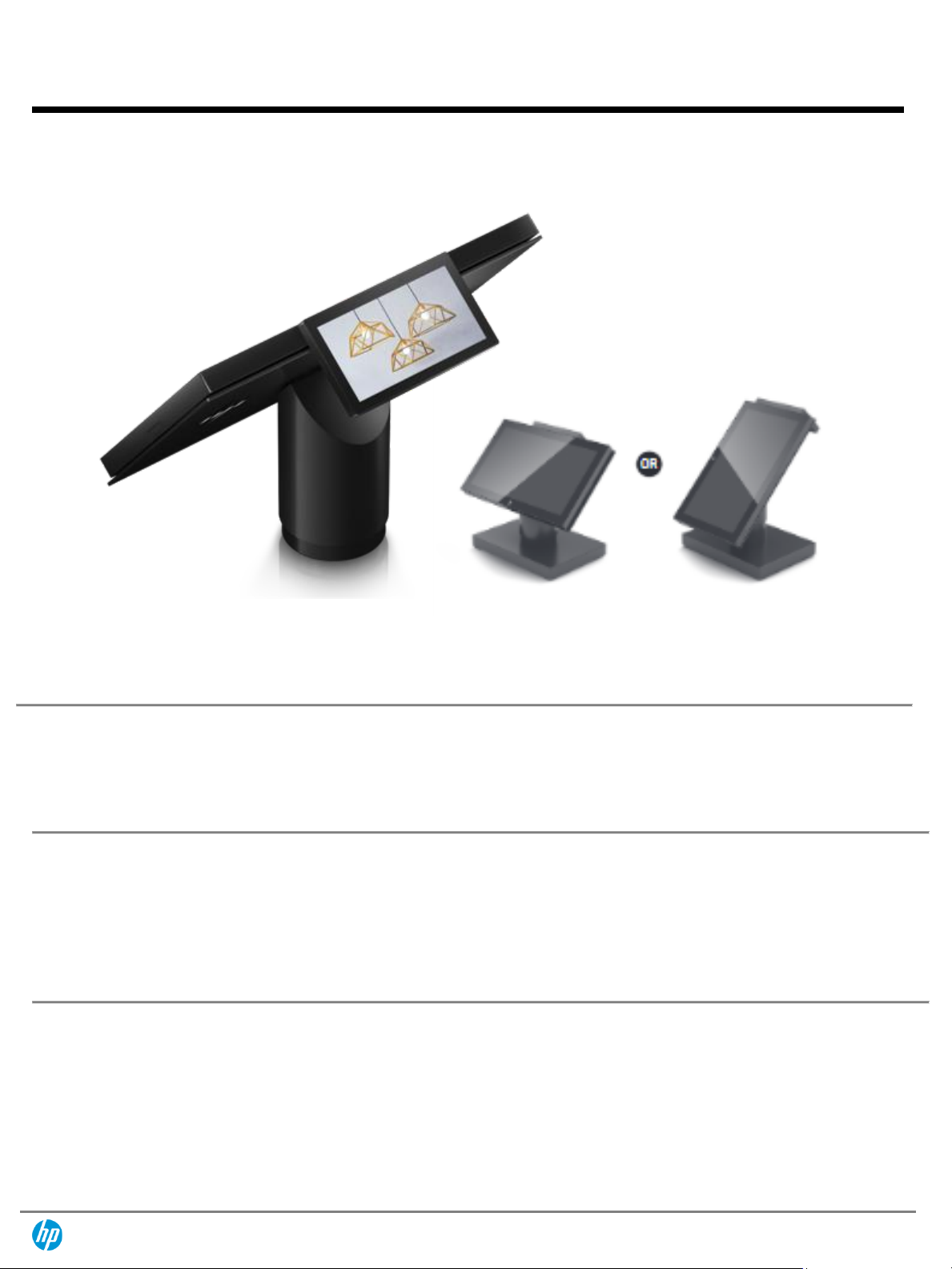

Stand Configurations

*NOTE: HP Engage One Pro & HP Engage One Pro Vertical stand can be configured in the same way as the Performance stand shown in these pictures

HP Engage One Pro AiO Slim VESA wall mount (100x100mm)

HP Engage One Pro AiO Performance* Stand Clean Counter Mount No stability plateincludes Counter Mounting Bracket

HP Engage One Pro AiO Performance* stand with Stability Base Plate

HP Engage One Pro AiO System Performance* stand with Stability Base Plate-Hub attached

QuickSpecs

HP Engage One Pro All-In-One system

Overview

c06986242 — DA – 16807 Worldwide — Version 2 — March 2, 2021

Page 10

At A Glance

• Choice of 2 colors: Ebony Black & Ceramic White*

*White only available in 15.6”

• Choice of 2 orientations: Landscape & portrait

• Landscape Choice of with or without Camera

• Choice of 3 Long lifecycle performance All-in-One (AiO) Retail System for retail and hospitality markets operator display:

o 15.6" diagonal, FHD (1920 x 1080), touch, IPS, UWVA, anti-glare, 400 nits, 45% NTSC o 19.5" diagonal, FHD (1920 x 1080), touch, VA, UWVA, anti-glare, 450 nits, 72% NTSC o 23.8" diagonal, FHD (1920 x 1080), touch, IPS, UWVA, anti-glare, 625 nits, 72% NTSC

Note: Actual brightness will be lower with touch screen

• Choice of 3 column stand:

o HP Engage One Pro Performance stand o HP Engage One Pro stand o HP Engage One Pro Vertical stand

• Choice of Mounting:

o Clean counter- Place the connectivity hub under the counter o All together- Place the hub directly under the stand o Slim VESA wall mount- Place the head unit on the wall o Pole mount- -Place the head unit on a single or back-to-back pole

• Intel® Q470E chipset, 65W Processors

• Processor choices:

o 10th Generation Intel® Core™ i9 processor o 10th Generation Intel® Core™ i7 processor o 10th Generation Intel® Core™ i5 processor o 10th Generation Intel® Core™ i3 processor o Intel® Pentium® processor o Intel® Celeron® processor o Integrated: Intel® UHD Graphics 610 on Celeron & Pentium; Intel® UHD Graphics 630 on i3 to i9 o 16GB Intel® Optane™ Memory H10 with Solid State Storage o Intel® Ethernet Connection I219LM GbE LOM integrated network connection o Intel® Wi-Fi 6 AX201 (2x2) and Bluetooth® 5 combo, non-vPro® Intel® Wi-Fi 6 AX201 (2x2) and Bluetooth® 5

combo, vPro® Intel® Wi-Fi 6 + BT5 (802.11AX 2x2)

• Operating System choices:

o Windows 10 Pro 64-bit Windows 10 IoT Enterprise 2019 LTSC 64 o FreeDOS 2.0 o SUSE Linux® Enterprise Desktop 12 (certification only)

• Connectivity Base Choices

o HP Engage One Column hub: o HP Engage One VESA hub o HP Engage One Advanced Fan-less hub

• Integrated peripheral options (can also be purchased and installed separately)

• HP Engage One Pro MSR

• HP Engage One Pro Bar Code Scanner (choose between 3 locations: left, right, bottom) of the head unit

• HP Engage One Pro Fingerprint Reader

• HP Engage One Pro 6x6 Customer facing display with 2x20 line display emulation **

**The 2x20 line display emulation can be used on 6.6” CFD and future CFDs for Engage One Pro Virtual Line Display will work with any display. It defaults to 2x20, it can also be used for any other size line display such as 3x16 or 3x20, 5x10

• Virtual Line Display will work with any display. It defaults to 2x20,, it can also be used for any other size line display

such as 3x16 or 3x20, 5x10

• Industry-standard 100mm VESA mounting pattern allows for flexible use without the optional stand (Mounting hardware

sold separately)

• (2) Two DDR4 Memory Slots (32 GB Maximum)

• Realtek RTL8153 AH Ethernet Connection

• Intel & Realtek WLAN Options

QuickSpecs

HP Engage One Pro All-In-One system

Overview

c06986242 — DA – 16807 Worldwide — Version 2 — March 2, 2021

Page 11

• Trusted Platform Module (TPM 2.0)

• HP BIOSphere with HP Sure Start technology

• Cable Management Features

• ENERGY STAR® certified configurations available, EU Compliant, RoHS2 Compliant, EPEAT® registered configurations

available

• Standard Warranty Options – 90/90/90, 1/1/1, 3/3/3; Plus Optional Care Packs

• 32 GB DDR4-2666 SDRAM Transfer rates up to 2666 MT/s.

• 2 SODIMM Memory slots

• 1 M.2 expansion slot

• 2xM.2 Storage slots

• 128 GB to up to 1 TB PCIe® NVMe™ SSD

• 256 GB to up to 512 GB PCIe® NVMe™ SS

• Integrated HD audio with Realtek ALC3247 codec with standards internal speakers and stereo headphone jack, 2W)

• HP Credential Guard; HP Device Guard; HP Support Assistant; HP BIOSphere with Sure Start Generation 6.0

• HP Sure Sense; HP Sure Click (Standard); HP Sure Admin; HP MIK (SCCM Integration); HP Image Assistant; HP BIOSphere

with SureStart Gen6; HP Client Security Manager Gen7; HP Sure Recover Gen3; HP Sure Run Gen3

• Intel® vPro® with AMT 11.0; TPM 2.0; HP System Software Manager; HP Image Assistant; HP Client Security Manager

• Display head Ports and Connectors: 1 audio-out; 2 SuperSpeed USB Type-A 5Gbps signaling rate; 2 SuperSpeed USB Type-

A 5Gbps signaling rate (HP Sleep and Charge); 1 RJ-45 USB NIC; 1 140W data port Side: 1 Security lock slot

• Choice of 3 connectivity hubs: o HP Engage One Pro Column hub:

• 3 SuperSpeed USB Type-A 5Gbps signaling rate

• 1 RJ-45 NIC

• 1 DC connector

• 2 USB 2.0 Type-A

• 1 SuperSpeed USB Type-C® 5Gbps signaling rate (27 W Power Delivery, Alt Mode DisplayPort™)

• 1x 140W data port

• 1x P-USB 12V

• 1x P-USB 24V

o HP Engage One Pro VESA hub:

• 3 SuperSpeed USB Type-A 5Gbps signaling rate

• 1 RJ-45 NIC

• 1 DC connector

• 2 USB 2.0 Type-A

• 1 SuperSpeed USB Type-C® 5Gbps signaling rate (27 W Power Delivery, Alt Mode DisplayPort™)

• 1 140W data port

• 1x P-USB 12V

• 1x P-USB 24V

o HP Engage One Pro Advance fan-less hub

• 1 cash drawer connector

• 3 USB Type-A; 2 power serials

• 4 SuperSpeed USB Type-A 10Gbps signaling rate, 1 RJ-45 NIC

• 1 DC connector

• 1 SuperSpeed USB Type-C® 5Gbps signaling rate (27 W Power Delivery, Alt Mode DisplayPort™)

• 1 x140W data port]

• 2x P-USB 12V

• 1x P-USB 24V

o Combination of Advance hub with Column hub; Combination of Advance hub with VESA hub.

NOTE: See important legal disclosures for all listed specs in their respective features sections.

QuickSpecs

HP Engage One Pro All-In-One system

Overview

c06986242 — DA – 16807 Worldwide — Version 2 — March 2, 2021

Page 12

SECURITY DISCLAIMERS:

HP Essential Security requires Windows 10, includes various HP Sure security features and is available on HP Elite and Workstation products. See product details for included security features.

HP Manageability Integration Kit can be downloaded from http://www8.hp.com/us/en/ads/clientmanagement/overview.html.

HP Sure Recover Gen3 is available on select HP PCs and requires an open network connection. Not available on platforms with multiple internal storage drives. You must back up important files, data, photos, videos, etc. before using HP Sure Recover to avoid loss of data. HP Sure Recover Gen3 requires an open network connection. You must back up important files, data, photos, videos, etc. before use to avoid loss of data.

HP Sure Start Gen6 is available on select HP PCs.

HP Sure Click is only supported on Intel Core i3, i5, i7 and i9 processors.

HP Sure Click, Sure Run, Sure Recover & Sure Sense is supported on Win 10 Pro & Win 10 IoT Enterprise 2019 LTSC; but not on Win 10 IoT Enterprise 2016 LTSB.

For the methods outlined in the National Institute of Standards and Technology Special Publication 800-88 "Clear" sanitation method. HP Secure Erase does not support platforms with Intel® Optane™.

HP BIOSphere Gen6 is available on select HP Pro and Elite PCs. See product specifications for details. Features may vary depending on the platform and configurations.

QuickSpecs

HP Engage One Pro All-In-One system

Features

c06986242 — DA – 16807 Worldwide — Version 2 — March 2, 2021

Page 13

OPERATING SYSTEM

Preinstalled

Windows 10 Pro 64-bit 1 Windows 10 IoT Enterprise 2019 LTSC 64 FreeDOS 3.0

Certified

SUSE Linux® Enterprise Desktop2

NOTE:

1. Not all features are available in all editions or versions of Windows. Systems may require upgraded and/or

separately purchased hardware, drivers, software or BIOS update to take full advantage of Windows functionality. Windows 10 is automatically updated, which is always enabled. ISP fees may apply and additional requirements may apply over time for updates. See http://www.windows.com

2. SUSE Enterprise Linux 15 SP2 YES Certification on a single platform configuration. More information about

SUSE

YES certification on https://http://www.suse.com/partners/ihv/yes/

The following features are not supported by SUSE Linux Enterprise Desktop:

• Power Management features

• Multi-touch capabilities

• Systems configured with Linux do not qualify for ENERGY STAR®

Adapters and Cables

• HP USB-C® to DisplayPort

• HP USB-C® to HDMI

• HP USB-C® to VGA

• USB to Serial Port Adapter

NETWORKING/COMMUNICATIONS

• Intel® I219-LM Gigabit Network Connection LOM (standard)

• Intel® Wi-Fi 6 AX201 + BT5 (802.11AX 2x2 vPro, supporting gigabitdata rate)*, **

• Intel® Wi-Fi 6 AX201 + BT5 (802.11AX 2x2 non-vPro, supporting gigabit data rate)*, **

• Realtek RTL8822CE 802.11ac 2x2 Wi-Fi® + BT5***

*Wireless access point and Internet service required and not included. Availability of public wireless access points limited. The specifications for the 802.11ax WLAN are draft specifications and are not final. If the final specifications differ from the draft specifications, it may affect the ability of the PC to communicate with 802.11ax WLAN devices. Wi-Fi 6 requires a wireless router, sold separately, that supports 802.11ax (Wi-Fi 6). Only available in countries where 802.11ax is supported. ** Wi-Fi 5 is designed to support gigabit data rate when transferring files between two devices connected to the same router. Requires a wireless router, sold separately, that supports 80MHz and higher channels. ***Wireless access point and internet service required and sold separately. Availability of public wireless access points limited. WiFi 5 (802.11 ac) is backwards compatible with prior 802.11 specs.

NEAR FIELD COMMUNICATION

WNC XRAV-1 NFC

PORTS

HP Engage One Pro Head unit I/O:

QuickSpecs

HP Engage One Pro All-In-One system

Features

c06986242 — DA – 16807 Worldwide — Version 2 — March 2, 2021

Page 14

• 1x 140W data port (PDO cable to Head Unit)

1

• 1x RJ45 vPro NIC

• 1x UAJ (Audio jack)

• 4x Integrated USB-A Gen1 Peripherals ports

• 2x USB3.2 G1 Type-A / 900mA

• 2x USB3.2 G1 Type-A / 2.2A

HP Engage One Pro Column hub I/O

• 3x USB3.2 G2 Type-A / 900mA

• 1x RJ45 (cable direct from Head unit)

• 1x DC connector

• 1x P-USB 12V

• 1x P-USB 24V

• 1x USB3.2 G1 Type-C® DP Alt Mode / 27W

• 1x 140W data port (PDO cable to Head Unit)

1

HP Engage One Pro VESA hub I/O

• 3x USB3.1 G1 Type-A / 900mA

• 1x RJ45 (cable direct from Head unit)

• 1x DC connector

• 1x P-USB 12V

• 1x P-USB 24V

• 1x USB3.2 G1 Type-C® DP Alt Mode / 27W

• 1x 140W data port (PDO cable to Head Unit)

1

HP Engage One Pro Advanced Fan-less hub I/O

• 1x RJ12 Cash Drawer

• 2x 12V P-USB

• 1x 24V P-USB

• 2x DB9 P-Serial

• 4x USB3.2 G1 Type A/900mA

• 1x RJ45 USB NIC

• 1x DC connector

• 1x USB3.1 G2 Type-C® DP Alt Mode / 27W

• 1x 140W data port (PDO cable to Head Unit)

1

NOTE 1: HP 140W port only compatible with the 140W cable included with the product. Cable required for the HP Engage One Pro to operate

USB SPECIFICATION

Speed

Terminology

Hi-Speed USB 480Mbps signaling rate

USB 2.0

SuperSpeed USB 5Gbps signaling rate

USB 3.2 Gen 1

SOFTWARE COMPONENTS AND APPLICATIONS

BIOS

• HP BIOSphere Gen6

o Protect and manage the foundation of your POS System

QuickSpecs

HP Engage One Pro All-In-One system

Features

c06986242 — DA – 16807 Worldwide — Version 2 — March 2, 2021

Page 15

o Building on over a decade of BIOS security leadership, HP BIOSphere Gen6 offers an ecosystem of protections to

help defend your system, including automated protections, customizable safeguards, and easy manageability

• HP Secure Erase

1

• Device Guard Enablement

Additional features of the HP BIOS Features

o Power-On password

Software

• HP Privacy Settings

• HP Setup Integrated OOBE

• HP Easy Clean

2

• HP Notifications

• myHP

Manageability Features

• HP Driver Packs

• HP Manageability Integration Kit

3

• HP Image Assistant

Notes:

1. For the methods outlined in the National Institute of Standards and Technology Special Publication 800-88 "Clear"

sanitation method. HP Secure Erase does not support platforms with Intel® Optane™.

2. HP Easy Clean requires Windows and will disable the keyboard, display and touchpad only. Ports are not disabled.

3. HP Manageability Integration Kit can be downloaded from http://www.hp.com/go/clientmanagement.

Security Management

• HP BIOSphere Gen 6

1

• HP Client Security Manager Gen7

6

• HP Multi-Factor Authenticate -

• HP SpareKey -

• HP Sure Start

6

• HP Sure Run

4

-

• HP Sure Recover

4

-Recover quickly and minimize downtime

o Driven by the HP Endpoint Security Controller, HP Sure Recover enables users to reimage their systems quickly

and securely using only a network connection – no IT intervention needed.

Other Security Features

• HP Engage One AiO System Biometric Fingerprint Reader (optional)

• Bolt to counter mechanism

• VESA mounting

• Keyed Cable Lock

• Trusted Platform Module TPM 2.0

• Drive lock

• USB enable/disable (via BIOS)

• Power-on password (via BIOS)

• Setup password (via BIOS)

• Tamper Resistant Screw affixed on stand of the system unit, used to secure display head to stand without Quick Released

• HP vPRO Support

Notes:

1. HP BIOSphere Gen6 features may vary depending on the platform and configuration.

QuickSpecs

HP Engage One Pro All-In-One system

Features

c06986242 — DA – 16807 Worldwide — Version 2 — March 2, 2021

Page 16

2. HP Secure Erase for the methods outlined in the National Institute of Standards and Technology Special Publication 800-

88 "Clear" sanitation

3. agent is shipped turned off, and will be activated when customers activate a purchased subscription. Subscriptions can be

purchased for terms ranging multiple years. Service is limited, check with Absolute for availability outside the U.S. The Absolute Recovery Guarantee is a limited warranty. Certain conditions apply. For full details visit:

http://www.absolute.com/company/legal/agreements/computrace- agreement. Data Delete is an optional service

provided by Absolute Software. If utilized, the Recovery Guarantee is null and void. In order to use the Data

4. HP Sure Click, Sure Run, Sure Recover & Sure Sense is supported on Win 10 Pro & Win 10 IoT Enterprise 2019 LTSC; but

not on Win 10 IoT Enterprise 2016 LTSB.

5. HP Client Security Manager Gen7 requires Windows

6. HP Sure Start Gen6 is available on select HP PCs.

PROCESSORS

• Intel® Celeron® G5900E with Intel® UHD Graphics 610 (3.2 GHz base frequency, 2 MB L3 cache, 2 cores)

• Intel® Pentium® Gold G6400E with Intel® UHD Graphics 610 (3.8 GHz base frequency, 4 MB L3 cache, 2 cores)

Intel® Core™ i3-10100E with Intel® UHD Graphics 630 (3.2 GHz base frequency, up to 3.8 GHz with Intel® Turbo Boost Technology, 6 MB L3 cache, 4 cores) 2

• Intel® Core™ i7-10700E with Intel® UHD Graphics 630 (2.9 GHz base frequency, up to 4.5 GHz with Intel® Turbo

Boost Technology, 16 MB L3 cache, 8 cores), supports Intel® vPro® Technology 3

• Intel® Core™ i9-10900E with Intel® UHD Graphics 630 (2.8 GHz base frequency, up to 4.7 GHz with Intel® Turbo

Boost Technology, 20 MB L3 cache, 10 cores), supports Intel® vPro® Technology 3

• Intel® Core™ i5-10500E with Intel® UHD Graphics 630 (3.1 GHz base frequency, up to 4.2 GHz with Intel® Turbo

Boost Technology, 12 MB L3 cache, 6 cores), supports Intel® vPro® Technology 3

PROCESSORS FAMILY

10th Gen 65W Intel Core™ processors

NOTES:

1. Multi-core is designed to improve performance of certain software products. Not all customers or software applications

will necessarily benefit from use of this technology. Performance and clock frequency will vary depending on application workload and your hardware and software configurations. Intel’s numbering, branding and/or naming is not a mea configuration surement of higher performance.

2. Intel® Turbo Boost technology requires a PC with a processor with Intel Turbo Boost capability. Intel Turbo Boost

performance varies

depending on hardware, software and overall system. See http://http://www.intel.com/technology/turboboost for more information.

3. For full Intel® vPro® functionality, Windows 10 Pro 64 bit, a vPro supported processor, vPro enabled chipset, vPro

enabled wired LAN and/or WLAN card and TPM 2.0 are required. Some functionality requires additional 3rd party software in order to run. See http://intel.com/vpro

QuickSpecs

HP Engage One Pro All-In-One system

Technical Specifications

c06986242 — DA – 16807 Worldwide — Version 2 — March 2, 2021

Page 17

INTEL® 10th GENERATION CORE™ vPRO ® PROCESSORS

Intel® Core™ i5-10500E with Intel® UHD Graphics 630 (3.1 GHz base frequency, up to 4.2 GHz with Intel® Turbo Boost Technology, 12 MB L3 cache, 6 cores), supports Intel® vPro® Technology

Intel® Core™ i7-10700E with Intel® UHD Graphics 630 (2.9 GHz base frequency, up to 4.5 GHz with Intel® Turbo Boost Technology, 16 MB L3 cache, 8 cores), supports Intel® vPro® Technology

Intel® Core™ i9-10900E with Intel® UHD Graphics 630 (2.8 GHz base frequency, up to 4.7 GHz with Intel® Turbo Boost Technology, 20 MB L3 cache, 10 cores), supports Intel® vPro® Technology 3

The HP Engage One Pro AiO System Retail System features this technology and includes processors that are part of the Intel® Stable Image. Platform Program (SIPP) designed to ensure the stability promise inherent in the value proposition of the HP Engage One Pro AiO System Retail System.

Intel® Advanced Management Technology (AMT) v11.6+

An advanced set of remote management features and functionality which provides network administrators the latest and most effective tools to remotely discover, heal, and protect networked client systems regardless of the system's health or power state.

• AMT 11.6+ includes the following advanced management function

• Power Management (on, off, reset

• Hardware Inventory (includes BIOS and firmware revisions

• Hardware Alerting

• Agent Presence

• System Defense Filters

• SOL/USBR

• Cisco NAC/SDN Support

• ME Wake-on-LAN • DASH 1.1 compliance

• IPv6 Support

• Fast Call for Help - a client inside or outside the firewall may initiate a call for help via BIOS screen, periodic connections,

or alert triggered connection

• Remote Scheduled Maintenance - pre-schedule when the PC connects to the IT or service provider console for

maintenance. Remote PCs can get required patches, be inventoried, etc. by connecting to their IT console or Service Provider when it's convenient

• Remote Alerts - automatically alert IT or service provider if issues arise

• Access Monitor - Provides oversight into Intel® AMT actions to support security requirements

• PC Alarm Clock

• Microsoft NAP Support

• Host-based set-up and configuration

• Management Engine (ME) firmware roll back

• Wireless AMT functionality on Desktop (WoDT)

• Enhanced KVM resolution

*Some functionality of this technology, such as Intel Active management technology and Intel Virtualization technology, requires

additional 3rd party software in order to run. Availability of future "virtual appliances" applications for Intel vPro™ technology is dependent on 3rd party software providers. Compatibility with future "virtual appliances” is yet to be determined.

** Intel® Active Management Technology requires an Intel® AMT-enabled chipset, network hardware and software, as well as connection with a power source and a corporate network connection. Setup requires configuration by the purchaser and may require scripting with the management console or further integration into existing security frameworks to enable certain functionality. It may also require modifications of implementation of new business processes.

QuickSpecs

HP Engage One Pro All-In-One system

Technical Specifications

c06986242 — DA – 16807 Worldwide — Version 2 — March 2, 2021

Page 18

OPERATOR DISPLAY*

15.6" Diagonal Wide Aspect, Projective Capacitive, Anti-glare, Anti-smudge, IPS Display

Touch Technology

Projected Capacitive Touchscreen

Resolution

1920 x 1080

Aspect Ratio

16:9

Max Color

16.2M

Brightness

Typical 400 Nits*

Contrast Ratio

Typical 800:1

Pixel Pitch

0.17925 x 0.17925mm

Viewing Angle

Horizontal 89⁰, Vertical 89⁰

Response rate

25ms (Typical On / Off)

Backlight

LED

Operating Temperature range

0 to 50⁰C (+ 50⁰C as panel surface temperature)

19.5" Diagonal Wide Aspect, Projective Capacitive, Anti-glare, Anti-smudge, UWVA, IPS Display

Touch Technology

Projected Capacitive Touchscreen

Resolution

1920 x 1080

Aspect Ratio

16:9

Max Color

16.7M

Brightness

Typical 450 Nits*

Contrast Ratio

Typical 2000:1

Pixel Pitch

0.2265 x 0.2210mm

Viewing Angle

Horizontal 85⁰, Vertical 85⁰

Response rate

25ms (Typical On / Off)

Backlight

LED

Operating Temperature range

0 to 50⁰C (+ 50⁰C as panel surface temperature)

23.8" Diagonal Wide Aspect, Projective Capacitive, Anti-glare, Anti-smudge, IPS Display

Touch Technology

Projected Capacitive Touchscreen

Resolution

1920 x 1080

Aspect Ratio

16:9

Max Color

16.7M

Brightness

Typical 625 Nits*

Contrast Ratio

1000:1

Pixel Pitch

274.5 um x 2274.5 um

Viewing Angle

Horizontal 89⁰, Vertical 89⁰

Response rate

14ms (Typical On / Off)

Backlight

LED

Operating Temperature range

0 to 50⁰C (+ 50⁰C as panel surface temperature)

*NOTE: Nits is the measure of the typical brightness of the panel as specified, prior to anti-glare coating *NOTES: Portrait Display.With a Portrait Head Unit, the pre-OS environment will be displayed 90° in Landscape. Once the Windows OS loads, then the display will show Portrait. *All specifications represent the typical specifications provided by HP's component manufacturers; actual performance may vary either higher or lower.

QuickSpecs

HP Engage One Pro All-In-One system

Technical Specifications-Graphics

c06986242 — DA – 16807 Worldwide — Version 2 — March 2, 2021

Page 19

Intel® HD Graphics (integrated) Integrated Graphics

Intel® UHD Graphics 630 (integrated on 10th gen Core i9/i7/i5/i3 Intel® UHD Graphics 610 (integrated on 10th gen Pentium® G6400E, Celeron® G5900E)

DisplayPort

DisplayPort over the optional USB-C® module

Memory

The actual amount of maximum graphics memory can be >4GB. System memory is allocated for graphics as needed using Intel's Dynamic Video Memory Technology (DVMT), to provide an optimal balance between graphics and system memory use.

Maximum Graphic Memory

Windows 10 >6 GB

Maximum Color Depth

64bits/pixel 10th Generation Intel® Core™ processors:

• Next Generation Intel® Clear Video Technology HD Support is a collection of video playback and

enhancement features that improve the end user's viewing experience

o Encode/transcode HD content o Playback of high-definition content including Blu-ray Disc o Superior image quality with sharper, more colorful images

Graphics/Video API Support

▪ DirectX Video Acceleration (DXVA) support for accelerating video processing o Full

AVC/VC1/MPEG2/HEVC HW Decode

▪ Advanced Scheduler 2.0, 1.0 ▪ Windows 10, Linux OS Support ▪ DirectX 12.1 ▪ OpenGL 4.4 ▪ Open CL 1.2 (Intel® HD Graphics 630) ▪ Open CL 1.2/2.0 (Intel® HD Graphics 610)

NOTE: the actual amount of maximum graphics memory can be less than the amounts listed above depending upon your

computer’s configuration.

Supported Display Resolutions and Refresh Rates

Note: Other resolutions may be available but are not recommended as they may not have been tested and qualified by HP

Resolution

Refresh Rate

640x480

60Hz640x48067Hz

640x480

72Hz

640x480

75Hz

720x400

70Hz

800x600

60Hz

800x600

75Hz

QuickSpecs

HP Engage One Pro All-In-One system

Technical Specifications-Graphics

c06986242 — DA – 16807 Worldwide — Version 2 — March 2, 2021

Page 20

1024x768

60Hz

1024x768

75Hz

1280x960

60Hz

1280x720

60Hz

1280x1024

60Hz

1280x1024

75Hz

1440x900

60Hz

1440x900

75Hz

1680x1050

60Hz

1920x1080

60Hz

3440x1440

60Hz 3440x144030Hz

2048x1536

60Hz

4096x2160

60Hz

4096x2160

60Hz

QuickSpecs

HP Engage One Pro All-In-One system

Technical Specifications-Memory

c06986242 — DA – 16807 Worldwide — Version 2 — March 2, 2021

Page 21

MEMORY

Type

DDR4-2666 SDRA Transfer rates up to 2666 MT/s Maximum

32 GB

# of Slots

2 SODIMM

Memory Upgrades

• 4GB (1x4GB) DDR4 2666 SODIMM Memory

• 8GB (1x8GB) DDR4 2666 SODIMM Memory

• 16GB (2x8GB) DDR4 2666 SODIMM Memory

• 16GB (1x16GB) DDR4 2666 SODIMM Memory

• 32GB (2x16GB) DDR4 2666 SODIMM Memory

NOTE: Memory speed 2666 and 2933 MT/s can be achieved via two SODIMMs per channel (2DPC) when populated with the same part number.

System Memory Support The HP Engage One Pro AiO System Retail System supports DDR4 protocols with two independent, 64-bit wide channels each accessing one or two SoDIMMs.

• Two channels of non-ECC DDR4 unbuffered small outline dual in-line memory modules (SO-DIMM) with a

maximum of one DIMMs per channel

• Single-channel and dual-channel memory organization modes • Data burst length of eight for all memory

organization modes

• Memory data transfer rates of up to 2400 MT/s; actual supported data transfer rate determined by the

configured processor.

• 64-bit wide channels

• DDR4 system memory I/O voltage of 1.2V

• Theoretical maximum memory bandwidth of:

• 21.3 GB/s in dual-channel mode assuming 1333 MT/s

• 25.6 GB/s in dual-channel mode assuming 1600 MT/s

• 34.0 GB/s in dual-channel mode assuming 2133 MT/s

• 38.4 GB/s in dual-channel mode assuming 2400 MT/s

Key Benefits of DDR4 Memory:

• Dual channel configuration – HP Engage One Pro AiO System features motherboards designed with two memory

channels instead of a single channel.

• Reduce system latencies and significantly improve your system performance with dual channel memory

configurations by utilizing the theoretical bandwidth of two memory modules instead of one.

• Expect fast start-up times with reduced delays during routine operations and system maintenance functions.

Meet everyday workloads head on and run more programs simultaneously. Easily toggle back and forth between several open applications with noticeable speed.

Notes For systems configured with more than 3 GB of memory and a 32-bit operating system, all memory may not be available

due to system resource requirements. Addressing memory above 4 GB requires a 64-bit operating system. Memory modules support data transfer rates up to 2400 MT/s; actual data rate is determined by the system's configured processor. See processor specifications for supported memory data rate. CAUTION: You must shut down the Retail System and disconnect the power cord before adding or removing memory modules. Regardless of the power-on state, voltage is always supplied to the memory modules as long as the Retail System is plugged in to an active AC outlet. Adding or removing memory modules while voltage is present may cause irreparable damage to the memory modules or system board.

QuickSpecs

HP Engage One Pro All-In-One system

Technical Specifications-Storage

c06986242 — DA – 16807 Worldwide — Version 2 — March 2, 2021

Page 22

SOLID STATE STORAGE

Drive Bays : (2) M.2 PCIe x4 2280/2230 Combo (for storage)

PCIe NMVe Solid State Drives (SSD)1

• 128GB 2280 PCIe-3x2 TLC Solid State Drive

• 256GB M.2 2280 PCIe NVMe SED OPAL2 TLC Solid State Drive

• 256GB M.2 2280 PCIe NVMe TLC Solid State Drive

• 256GB Intel Optane Memory H10 with Solid State Storage

2

• 512GB M.2 2280 PCIe NVMe TLC Solid State Drive

• 512GB Intel Optane Memory H10 with Solid State Storage

2

• 1TB 2280 PCIe-3x4 NVMe TLC Solid State Drive

Storage accelerator

• NVMe RAID 1

Notes:

1. Storage DriveLock does not work with Self-Encrypting or Optane based storage

2. Intel® Optane™ memory system acceleration does not replace or increase the DRAM in your system.

128 GB M.2 2280 PCIe NVMe Three Layer Cell SSD

Unformatted Capacity

128GB

Interface

PCIe Gen 3

Form Factor

M.2

Height

2.38mm

Width

22mm

Length

80mm

Weight

<10g

Maximum Sequential Read

Up to 2800MB/s

Maximum Sequential Write

Up to 600MB/s

Logical Blocks

250,069,680

Operating Temperature

0° to 70°C (32° to 158°F) [ambient temp]

Features

APST; ASPM L1.2; NVME spec 1.2

NOTE: For hard drives and solid state drives, GB = 1 billion bytes. TB = 1 trillion bytes. Actual formatted capacity is less. Up to 36 GB (for Windows 10) of system disk is reserved for the system recovery software.

256 GB M.2 2280 PCIe NVMe Three Layer Cell SSD

Unformatted Capacity

256GB

Interface

PCIe Gen 3

Form Factor

M.2

Height

2.38mm

Width

22mm

Length

80mm

Weight

<10g

Maximum Sequential Read

Up to 2700MB/s

Maximum Sequential Write

Up to1000MB/s

QuickSpecs

HP Engage One Pro All-In-One system

Technical Specifications-Storage

c06986242 — DA – 16807 Worldwide — Version 2 — March 2, 2021

Page 23

Logical Blocks

500,118,192

Operating Temperature

0° to 70°C (32° to 158°F) [ambient temp]

Features

APST; ASPM L1.2; NVME spec 1.2

NOTE: For hard drives and solid state drives, GB = 1 billion bytes. TB = 1 trillion bytes. Actual formatted capacity is less. Up to 36 GB (for Windows 10) of system disk is reserved for the system recovery software.

512 GB M.2 2280 PCIe NVMe Three Layer Cell SSD

Unformatted Capacity

512GB

Interface

PCIe Gen 3

Form Factor

M.2

Height

2.38mm

Width

22mm

Length

80mm

Weight

<10g

Maximum Sequential Read

Up to 2900MB/s

Maximum Sequential Write

Up to1100MB/s

Logical Blocks

1,000,215,216

Operating Temperature

0° to 70°C (32° to 158°F) [ambient temp]

Features

APST; ASPM L1.2; NVME spec 1.2

NOTE: For hard drives and solid state drives, GB = 1 billion bytes. TB = 1 trillion bytes. Actual formatted capacity is less. Up to 36 GB (for Windows 10) of system disk is reserved for the system recovery software.

1TB M.2 2280 PCIe NVMe Three Layer Cell SSD

Unformatted Capacity

1TB

Interface

PCIe Gen 3

Form Factor

M.2

Height

2.38mm

Width

22mm

Length

80mm

Weight

<10g

Maximum Sequential Read

Up to 3480MB/s

Maximum Sequential Write

Up to3037MB/s

Logical Blocks

2,000,409,264

Operating Temperature

0° to 70°C (32° to 158°F) [ambient temp]

Features

APST; ASPM L1.2; NVME spec 1.2

NOTE: For hard drives and solid state drives, GB = 1 billion bytes. TB = 1 trillion bytes. Actual formatted capacity is less. Up to 36 GB (for Windows 10) of system disk is reserved for the system recovery software.

1TB M.2 2280 PCIe NVMe Three Layer Cell SSD

QuickSpecs

HP Engage One Pro All-In-One system

Technical Specifications-Storage

c06986242 — DA – 16807 Worldwide — Version 2 — March 2, 2021

Page 24

Unformatted Capacity

1TB

Interface

PCIe Gen 3

Form Factor

M.2

Height

2.38mm

Width

22mm

Length

80mm

Weight

<10g

Maximum Sequential Read

Up to 3480MB/s

Maximum Sequential Write

Up to3037MB/s

Logical Blocks

2,000,409,264

Operating Temperature

0° to 70°C (32° to 158°F) [ambient temp]

Features

APST; ASPM L1.2; NVME spec 1.2

NOTE: For hard drives and solid state drives, GB = 1 billion bytes. TB = 1 trillion bytes. Actual formatted capacity is less. Up to 36 GB (for Windows 10) of system disk is reserved for the system recovery software.

256GB M.2 2280 PCIe NVMe Self Encrypted OPAL2 Three Layer Cell SSD

Unformatted Capacity

256GB

Interface

PCIe Gen 3

Form Factor

M.2

Height

2.38mm

Width

22mm

Length

80mm

Weight

<10g

Maximum Sequential Read

Up to 2700MB/s

Maximum Sequential Write

Up to 1000MB/s

Logical Blocks

500,118,192

Operating Temperature

0° to 70°C (32° to 158°F) [ambient temp]

Features

APST; ASPM L1.2; NVME spec 1.2

NOTE: For hard drives and solid state drives, GB = 1 billion bytes. TB = 1 trillion bytes. Actual formatted capacity is less. Up to 36 GB (for Windows 10) of system disk is reserved for the system recovery software.

256GB Intel® PCIe® NVMe™ QLC + 32GB Intel® Optane™

Unformatted Capacity

256GB

Interface

PCIe Gen 3

Form Factor

M.2

Height

2.38mm

Width

22mm

Length

80mm

Weight

<10g

QuickSpecs

HP Engage One Pro All-In-One system

Technical Specifications-Storage

c06986242 — DA – 16807 Worldwide — Version 2 — March 2, 2021

Page 25

Maximum Sequential Read

Up to 1450MB/s

Maximum Sequential Write

Up to 500MB/s

Logical Blocks

500,118,192

Operating Temperature

0° to 70°C (32° to 158°F) [ambient temp]

Features

TRIM; ASPM L1.2

NOTE: For hard drives and solid state drives, GB = 1 billion bytes. TB = 1 trillion bytes. Actual formatted capacity is less. Up to 36 GB (for Windows 10) of system disk is reserved for the system recovery software.

512GB Intel® PCIe® NVMe™ QLC + 32GB Intel® Optane™

Unformatted Capacity

512GB

Interface

PCIe Gen 3

Form Factor

M.2

Height

2.38mm

Width

22mm

Length

80mm

Weight

<10g

Maximum Sequential Read

Up to 2400MB/s

Maximum Sequential Write

Up to 1300MB/s

Logical Blocks

1,000,215,215

Operating Temperature

0° to 70°C (32° to 158°F) [ambient temp]

Features

TRIM; ASPM L1.2

NOTE: For hard drives and solid state drives, GB = 1 billion bytes. TB = 1 trillion bytes. Actual formatted capacity is less. Up to 36 GB (for Windows 10) of system disk is reserved for the system recovery software.

1TB 2280 PCIe-3x4 NVMe TLC Solid State Drive

Unformatted Capacity

1TB

Interface

PCIe Gen 3

Form Factor

M.2

Height

2.38mm

Width

22mm

Length

80mm

Weight

<10g

Maximum Sequential Read

Up to 3480MB/s

Maximum Sequential Write

Up to 3037MB/s

Logical Blocks

2,000,409,264

Operating Temperature

0° to 70°C (32° to 158°F) [ambient temp]

NOTE: For hard drives and solid state drives, GB = 1 billion bytes. TB = 1 trillion bytes. Actual formatted capacity is less. Up to 36 GB (for Windows 10) of system disk is reserved for the system recovery software.

QuickSpecs

HP Engage One Pro All-In-One system

Technical Specifications – Networking and Communications

c06986242 — DA – 16807 Worldwide — Version 2 — March 2, 2021

Page 26

Networking/Communications

Ethernet (RJ-45)

• Intel® I219-LM Gigabit Network Connection LOM (standard)

Wireless

• Intel® Wi-Fi 6 AX201 + BT5 (802.11AX 2x2 vPro, supporting gigabit data rate )*, **

• Intel® Wi-Fi 6 AX201 + BT5 (802.11AX 2x2 non-vPro, supporting gigabit data rate )*, **

• Realtek RTL8822CE 802.11ac 2x2 Wi-Fi® + BT5***

Notes:

NIC Fundamentals: By default, the HP BIOS set the HUB WOL setting to disabled state, which will not allow wake signal from the USB bus to initiate a wake event. On Engage One Plus, the Embedded Lan Controller is enabled by default and is what HP recommend using as the primary nic for WOL capability as seen in the BIOS F10 menu If customer has a reason to use the HUB NIC and wants to wake the system from that NIC. They must enable wake events for the HUB to get the functionality. *Wireless access point and Internet service required and not included. Availability of public wireless access points limited. The specifications for the 802.11ax WLAN are draft specifications and are not final. If the final specifications differ from the draft specifications, it may affect the ability of the PC to communicate with 802.11ax WLAN devices. Wi-Fi 6 requires a wireless router, sold separately, that supports 802.11ax (Wi-Fi 6). Only available in countries where 802.11ax is supported. ** Wi-Fi 5 is designed to support gigabit data rate when transferring files between two devices connected to the same router. Requires a wireless router, sold separately, that supports 80MHz and higher channels. ***Wireless access point and internet service required and sold separately. Availability of public wireless access points limited. Wi-Fi 5 (802.11 ac) is backwards compatible with prior 802.11 specs.

Intel® i219LM 10/100/1000 Integrated NIC

Connector

RJ-45

System Interface

PCI (Intel proprietary) + SMBus

Data rates supported

10 Mbit/s operation (10BASE-T; IEEE 802.3i; IEEE 802.3 clauses 13-14) 100 Mbit/s operation (100BASE-TX; IEEE 802.3u; IEEE 802.3 clauses 21-30) 1000 Mbit/s operation (1000BASE-T; IEEE 802.3ab; IEEE 8023 clauses 40) Auto-Negotiation (Automatic Speed Selection) Full Duplex Operation at all Speeds, Half Duplex operation at 10 and 100 Mbit/s

IEEE Compliance

IEEE 802.1p QoS (Quality of Service) Support IEEE 802.1q VLAN support IEEE 802.3x Flow Control (IEEE 802.3 clauses 31-32; configurable) IEEE 802.3az EEE (Energy Efficient Ethernet)

Performance

TCP/IP/UDP Checksum Offload (configurable) Protocol Offload (ARP & NS) Large send offload and Giant send offload Receiving Side Scaling Jumbo Frame 9K

QuickSpecs

HP Engage One Pro All-In-One system

Technical Specifications – Networking and Communications

c06986242 — DA – 16807 Worldwide — Version 2 — March 2, 2021

Page 27

Power consumption

Cable Disconnetion: 25mW 100Mbps Full Run: 450mW 1000bp Full Run: 1000mW WoL Enable(S3/S4/S5): 50mW WoL Disable(S3/S4/S5): 25mW

Power Management

ACPI compliant – multiple power modes Situation-sensitive features reduce power consumption Advanced link down power saving for reducing link down power consumption Management Interface

Auto MDI/MDIX Crossover cable detection

IT Manageability

Wake-on-LAN from standby and hibernation (Magic Packet and Microsoft Wake-Up Frame); Wake-on-LAN from off (Magic Packet only) PXE 2.1 Remote Boot Statistics Gathering (SNMP MIB II, Ethernet-like MIB, Ethernet MIB (802.3x, clause 30)) Comprehensive diagnostic and configuration software suite Virtual Cable Doctor for Ethernet cable status

Security & Manageability

Intel® vPro™ support with appropriate Intel® chipset components

Intel Wi-Fi 6 AX201 + BT5 (802.11ax 2x2, vPro, supporting gigabit file transfer speeds) vPro

Wireless LAN Standards

IEEE 802.11a IEEE 802.11b IEEE 802.11g IEEE 802.11n IEEE 802.11ac IEEE 802.11ax IEEE 802.11d IEEE 802.11e IEEE 802.11h IEEE 802.11i IEEE 802.11k IEEE 802.11r IEEE 802.11v

Interoperability

Features Wi-Fi 6 technology

Frequency Band

802.11b/g/n/ax

• 2.402 – 2.482 GHz

802.11a/n/ac/ax

• 4.9 – 4.95 GHz (Japan)

• 5.15 – 5.25 GHz

• 5.25 – 5.35 GHz

• 5.47 – 5.725 GHz

• 5.825 – 5.850 GHz

Data Rates

• 802.11b: 1, 2, 5.5, 11 Mbps

• 802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps

• 802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps

• 802.11n: MCS 0 ~ MCS 15, (20MHz, and 40MHz)

• 802.11ac : MCS0 ~ MCS9, (1SS, and 2SS) (20MHz, 40MHz, ,80MHz & 160MHz)

• 802.11ax : MCS0 ~ MCS11, (1SS and 2SS) (20MHz, 40MHz, ,80MHz & 160MHz)

QuickSpecs

HP Engage One Pro All-In-One system

Technical Specifications – Networking and Communications

c06986242 — DA – 16807 Worldwide — Version 2 — March 2, 2021

Page 28

Modulation

Direct Sequence Spread Spectrum OFDM, BPSK, QPSK, CCK, 16-QAM, 64-QAM, 256-QAM, 1024QAM

Security3

• IEEE compliant 64 / 128 bit WEP encryption for a/b/g mode only

• AES-CCMP: 128 bit in hardware

• 802.1x authentication

• WPA, WPA2: 802.1x. WPA-PSK, WPA2-PSK, TKIP, and AES.

• WPA2 certification

• IEEE 802.11i

• WAPI

Network Architecture Models

Ad-hoc (Peer to Peer) Infrastructure (Access Point Required)

Roaming

IEEE 802.11 compliant roaming between access points

Output Power2

• 802.11b : +18.5dBm minimum

• 802.11g : +17.5dBm minimum

802.11a : +18.5dBm minimum

• 802.11n HT20(2.4GHz) : +15.5dBm minimum

• 802.11n HT40(2.4GHz) : +14.5dBm minimum

• 802.11n HT20(5GHz) : +15.5dBm minimum

• 802.11n HT40(5GHz) : +14.5dBm minimum

• 802.11ac VHT80(5GHz) : +11.5dBm minimum

• 802.11ac VHT160(5GHz) : +11.5dBm minimum

• 802.11ax HT40(2.4GHz) : +10dBm minimum

• 802.11ax VHT160(5GHz) : +10dBm minimum

Power Consumption

• Transmit mode: 2.0 W

• Receive mode: 1.6 W

• Idle mode (PSP) 180 mW (WLAN Associated)

• Idle mode: 50 mW (WLAN unassociated)

• Connected Standby: 10mW

• Radio disabled: 8 mW

Power Management

ACPI and PCI Express compliant power management

802.11 compliant power saving mode

Receiver Sensitivity3

•802.11b, 1Mbps : -93.5dBm maximum

•802.11b, 11Mbps : -84dBm maximum

• 802.11a/g, 6Mbps : -86dBm maximum

• 802.11a/g, 54Mbps : -72dBm maximum

• 802.11n, MCS07 : -67dBm maximum

• 802.11n, MCS15 : -64dBm maximum

• 802.11ac, MCS0 : -84dBm maximum

• 802.11ac, MCS9 : -59dBm maximum

•802.11ax, MCS11(HT40): -59dBm maximum

•802.11ax, MCS11(VHT160): -58.5dBm maximum

Antenna type

High efficiency antenna with spatial diversity, mounted in the display enclosure Two embedded dual band 2.4/5 GHz antennas are provided to the card to support WLAN MIMO communications and Bluetooth communications

Form Factor

PCI-Express M.2 MiniCard with CNVi Interface

Dimensions

1. Type 2230 : 2.3 x 22.0 x 30.0 mm

2. Type 1216: 1.67 x 12.0 x 16.0 mm

Weight

1. Type 2230 : 2.8g

2. Type 126: 1.3g

Operating Voltage

3.3v +/- 9%

QuickSpecs

HP Engage One Pro All-In-One system

Technical Specifications – Networking and Communications

c06986242 — DA – 16807 Worldwide — Version 2 — March 2, 2021

Page 29

Temperature

Operating Non-operating

14° to 158° F (–10° to 70° C) –40° to 176° F (–40° to 80° C)

Humidity

Operating Non-operating

10% to 90% (non-condensing) 5% to 95% (non-condensing)

Altitude

Operating Non-operating

0 to 10,000 ft (3,048 m) 0 to 50,000 ft (15,240 m)

LED Activity

LED Amber – Radio OFF; LED White – Radio ON

HP Integrated Module with Bluetoothâ 4.0/4.1/4.2/5.0/5.1 Wireless Technology Bluetoothâ Specification

4.0/4.1/4.2/5.0/5.1 Compliant

Frequency Band

2402 to 2480 MHz

Number of Available Channels

Legacy : 0~79 (1 MHz/CH) BLE : 0~39 (2 MHz/CH)

Data Rates and Throughput

Legacy : 3 Mbps data rate; throughput up to 2.17 Mbps

BLE : 1 Mbps data rate; throughput up to 0.2 Mbps

Legacy : Synchronous Connection Oriented links up to 3, 64 kbps, voice channels.

Legacy : Asynchronous Connection Less links 2178.1 kbps/177.1 kbps asymmetric (3-DH5) or 864 kbps symmetric (3-EV5)

Transmit Power

The Bluetoothâ component shall operate as a Class II Bluetoothâ device with a maximum transmit power of +9.5 dBm for BR and EDR.

Power Consumption

Peak (Tx) 330 mW Peak (Rx) 230 mW Selective Suspend 17 mW

Bluetoothâ Software Supported Link Topology

Microsoft Windows Bluetoothâ Software Power Management

Microsoft Windows ACPI, and USB Bus Support

Certifications

FCC (47 CFR) Part 15C, Section 15.247 & 15.249

Power Management Certifications

ETS 300 328, ETS 300 826 Low Voltage Directive IEC950 UL, CSA, and CE Mark

Bluetooth Profiles Supported

BT4.1-ESR 5/6/7 Compliance LE Link Layer Ping LE Dual Mode LE Link Layer LE Low Duty Cycle Directed Advertising LE L2CAP Connection Oriented Channels Train Nudging & Interlaced Scan BT4.2 ESR08 Compliance LE Secure Connection- Basic/Full LE Privacy 1.2 –Link Layer Privacy LE Privacy 1.2 –Extended Scanner Filter Policies LE Data Packet Length Extension FAX Profile (FAX) Basic Imaging Profile (BIP)2 Headset Profile (HSP) Hands Free Profile (HFP) Advanced Audio Distribution Profile (A2DP)

Security & Manageability

Intel® vPro™ support with appropriate Intel® chipset components

QuickSpecs

HP Engage One Pro All-In-One system

Technical Specifications – Networking and Communications

c06986242 — DA – 16807 Worldwide — Version 2 — March 2, 2021

Page 30

Intel Wi-Fi 6 AX201 + BT5 (802.11ax 2x2, non-vPro, supporting gigabit file transfer speeds) non-vPro

Wireless LAN Standards

IEEE 802.11a IEEE 802.11b IEEE 802.11g IEEE 802.11n IEEE 802.11ac IEEE 802.11ax IEEE 802.11d IEEE 802.11e IEEE 802.11h IEEE 802.11i IEEE 802.11k IEEE 802.11r IEEE 802.11v

Interoperability

Features Wi-Fi 6 technology

Frequency Band

802.11b/g/n/ax

• 2.402 – 2.482 GHz

802.11a/n/ac/ax

• 4.9 – 4.95 GHz (Japan)

• 5.15 – 5.25 GHz

• 5.25 – 5.35 GHz

• 5.47 – 5.725 GHz

• 5.825 – 5.850 GHz

Data Rates

• 802.11b: 1, 2, 5.5, 11 Mbps

• 802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps

• 802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps

• 802.11n: MCS 0 ~ MCS 15, (20MHz, and 40MHz)

• 802.11ac : MCS0 ~ MCS9, (1SS, and 2SS) (20MHz, 40MHz, ,80MHz & 160MHz)

• 802.11ax : MCS0 ~ MCS11, (1SS and 2SS) (20MHz, 40MHz, ,80MHz & 160MHz)

Modulation

Direct Sequence Spread Spectrum OFDM, BPSK, QPSK, CCK, 16-QAM, 64-QAM, 256-QAM, 1024QAM

Security3

• IEEE compliant 64 / 128 bit WEP encryption for a/b/g mode only

• AES-CCMP: 128 bit in hardware

• 802.1x authentication

• WPA, WPA2: 802.1x. WPA-PSK, WPA2-PSK, TKIP, and AES.

• WPA2 certification

• IEEE 802.11i

• WAPI

Network Architecture Models

Ad-hoc (Peer to Peer) Infrastructure (Access Point Required)

Roaming

IEEE 802.11 compliant roaming between access points

Output Power2

• 802.11b : +18.5dBm minimum

• 802.11g : +17.5dBm minimum

• 802.11a : +18.5dBm minimum

• 802.11n HT20(2.4GHz) : +15.5dBm minimum

• 802.11n HT40(2.4GHz) : +14.5dBm minimum

• 802.11n HT20(5GHz) : +15.5dBm minimum

• 802.11n HT40(5GHz) : +14.5dBm minimum

• 802.11ac VHT80(5GHz) : +11.5dBm minimum

• 802.11ac VHT160(5GHz) : +11.5dBm minimum

QuickSpecs

HP Engage One Pro All-In-One system

Technical Specifications – Networking and Communications

c06986242 — DA – 16807 Worldwide — Version 2 — March 2, 2021

Page 31

• 802.11ax HT40(2.4GHz) : +10dBm minimum

• 802.11ax VHT160(5GHz) : +10dBm minimum

Power Consumption

• Transmit mode 2.0 W

• Receive mode 1.6 W

• Idle mode (PSP) 180 mW (WLAN Associated)

• Idle mode 50 mW (WLAN unassociated)

• Connected Standby 10mW

• Radio disabled 8 mW

Power Management

ACPI and PCI Express compliant power management

802.11 compliant power saving mode

Receiver Sensitivity3

•802.11b, 1Mbps : -93.5dBm maximum

•802.11b, 11Mbps : -84dBm maximum

• 802.11a/g, 6Mbps : -86dBm maximum

• 802.11a/g, 54Mbps : -72dBm maximum

• 802.11n, MCS07 : -67dBm maximum

• 802.11n, MCS15 : -64dBm maximum

• 802.11ac, MCS0 : -84dBm maximum

• 802.11ac, MCS9 : -59dBm maximum

•802.11ax, MCS11(HT40): -59dBm maximum

•802.11ax, MCS11(VHT160): -58.5dBm maximum

Antenna type

High efficiency antenna with spatial diversity, mounted in the display enclosure

Two embedded dual band 2.4/5 GHz antennas are provided to the card to support WLAN MIMO communications and Bluetooth communications

Form Factor

PCI-Express M.2 MiniCard with CNVi Interface

Dimensions

1. Type 2230 : 2.3 x 22.0 x 30.0 mm

2. Type 1216: 1.67 x 12.0 x 16.0 mm

Weight

1. Type 2230 : 2.8g

2. Type 126: 1.3g

Operating Voltage

3.3v +/- 9% Temperature

Operating Non-operating

14° to 158° F (–10° to 70° C) –40° to 176° F (–40° to 80° C)

Humidity

Operating Non-operating

10% to 90% (non-condensing) 5% to 95% (non-condensing)

Altitude

Operating Non-operating

0 to 10,000 ft (3,048 m) 0 to 50,000 ft (15,240 m)

LED Activity

LED Amber – Radio OFF; LED Off – Radio ON

HP Integrated Module with Bluetoothâ 4.0/4.1/4.2/5.0/5.1 Wireless Technology Bluetoothâ Specification

4.0/4.1/4.2/5.0/5.1 Compliant

Frequency Band

2402 to 2480 MHz

QuickSpecs

HP Engage One Pro All-In-One system

Technical Specifications – Networking and Communications

c06986242 — DA – 16807 Worldwide — Version 2 — March 2, 2021

Page 32

Number of Available Channels

Legacy : 0~79 (1 MHz/CH) BLE : 0~39 (2 MHz/CH)

Data Rates and Throughput

Legacy : 3 Mbps data rate; throughput up to 2.17 Mbps

BLE : 1 Mbps data rate; throughput up to 0.2 Mbps

Legacy : Synchronous Connection Oriented links up to 3, 64 kbps, voice channels. Legacy : Asynchronous Connection Less links 2178.1 kbps/177.1 kbps asymmetric (3-DH5) or 864 kbps symmetric (3-EV5)

Transmit Power

The Bluetoothâ component shall operate as a Class II Bluetoothâ device with a maximum transmit power of +9.5 dBm for BR and EDR.

Power Consumption

Peak (Tx) 330 mW Peak (Rx) 230 mW Selective Suspend 17 mW

Bluetoothâ Software Supported Link Topology

Microsoft Windows Bluetoothâ Software Power Management

Microsoft Windows ACPI, and USB Bus Support

Certifications

FCC (47 CFR) Part 15C, Section 15.247 & 15.249 ETS 300 328, ETS 300 826 Low Voltage Directive IEC60950 UL, CSA, and CE Mark

Bluetooth Profiles Supported

BT4.1-ESR 5/6/7 Compliance LE Link Layer Ping LE Dual Mode LE Link Layer LE Low Duty Cycle Directed Advertising LE L2CAP Connection Oriented Channels Train Nudging & Interlaced Scan BT4.2 ESR08 Compliance LE Secure Connection- Basic/Full LE Privacy 1.2 –Link Layer Privacy LE Privacy 1.2 –Extended Scanner Filter Policies LE Data Packet Length Extension FAX Profile (FAX) Basic Imaging Profile (BIP)2 Headset Profile (HSP) Hands Free Profile (HFP) Advanced Audio Distribution Profile (A2DP)

Realtek RTL8822CE 802.11ac 2x2 Wi-Fi + BT5

Wireless LAN Standards

IEEE 802.11a IEEE 802.11b IEEE 802.11g IEEE 802.11n IEEE 802.11ac IEEE 802.11d IEEE 802.11e IEEE 802.11h IEEE 802.11i IEEE 802.11k IEEE 802.11r IEEE 802.11v

Interoperability

Wi-Fi® certified

QuickSpecs

HP Engage One Pro All-In-One system

Technical Specifications – Networking and Communications

c06986242 — DA – 16807 Worldwide — Version 2 — March 2, 2021

Page 33

Frequency Band

802.11b/g/n

• 2.402 – 2.482 GHz

802.11a/n/ac

• 4.9 – 4.95 GHz (Japan)

• 5.15 – 5.25 GHz

• 5.25 – 5.35 GHz

• 5.47 – 5.725 GHz

• 5.825 – 5.850 GHz

Data Rates

• 802.11b: 1, 2, 5.5, 11 Mbps

• 802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps

• 802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps

• 802.11n: MCS 0 ~ MCS 15, (20MHz, and 40MHz)

• 802.11ac : MCS0 ~ MCS9, (1SS, and 2SS) (20MHz, 40MHz & 80MHz)

Modulation

Direct Sequence Spread Spectrum BPSK, QPSK, CCK, 16-QAM, 64-QAM, 256-QAM

Security3

• IEEE and WiFi compliant 64 / 128 bit WEP encryption for a/b/g mode only

• AES-CCMP: 128 bit in hardware

• 802.1x authentication

• WPA, WPA2: 802.1x. WPA-PSK, WPA2-PSK, TKIP, and AES.

• WPA2 certification

• IEEE 802.11i

• WAPI

Network Architecture Models

Ad-hoc (Peer to Peer) Infrastructure (Access Point Required)

Roaming

IEEE 802.11 compliant roaming between access points

Output Power2

• 802.11b : +18.5dBm minimum

• 802.11g : +17.5dBm minimum

• 802.11a : +18.5dBm minimum

• 802.11n HT20(2.4GHz) : +15.5dBm minimum

• 802.11n HT40(2.4GHz) : +14.5dBm minimum

• 802.11n HT20(5GHz) : +15.5dBm minimum

• 802.11n HT40(5GHz) : +14.5dBm minimum

• 802.11ac VHT80(5GHz) : +11.5dBm minimum

• 802.11ac VHT160(5GHz) : +11.5dBm minimum

Power Consumption

• Transmit mode :2.0 W

• Receive mode :1.6 W

• Idle mode (PSP) 180 mW (WLAN Associated)

• Idle mode :50 mW (WLAN unassociated)

• Connected Standby/Modern Standby: 10mW

• Radio disabled: 8 mW

Power Management

ACPI and PCI Express compliant power management

802.11 compliant power saving mode

Receiver Sensitivity3

802.11b, 1Mbps : -93.5dBm maximum 802.11b, 11Mbps : -84dBm maximum 802.11a/g, 6Mbps : -86dBm maximum 802.11a/g, 54Mbps : -72dBm maximum 802.11n, MCS07 : 67dBm maximum 802.11n, MCS15 : -64dBm maximum 802.11ac, MCS0 : -84dBm maximum

802.11ac, MCS9 : -59dBm maximum

Antenna type

High efficiency antenna with spatial diversity, mounted in the display enclosure Two embedded dual band 2.4/5 GHz antennas are provided to the card to support WLAN MIMO communications and Bluetooth communications

QuickSpecs

HP Engage One Pro All-In-One system

Technical Specifications – Networking and Communications

c06986242 — DA – 16807 Worldwide — Version 2 — March 2, 2021

Page 34

Form Factor

PCI-Express M.2 MiniCard with CNVi Interface

Dimensions

1. Type 2230 : 2.3 x 22.0 x 30.0 mm

2. Type 1216: 1.67 x 12.0 x 16.0 mm

Weight

1. Type 2230 : 2.8g

2. Type 126: 1.3g

Operating Voltage

3.3v +/- 9%

Temperature

Operating Non-operating

14° to 158° F (–10° to 70° C) –40° to 176° F (–40° to 80° C)

Humidity

Operating Non-operating

10% to 90% (non-condensing) 5% to 95% (non-condensing)

Altitude

Operating Non-operating

0 to 10,000 ft (3,048 m) 0 to 50,000 ft (15,240 m)

LED Activity

LED Amber – Radio OFF; LED OFF – Radio ON

HP Integrated Module with Bluetoothâ 4.0/4.1/4.2/5.0 Wireless Technology Bluetoothâ Specification

4.0/4.1/4.2/5.0 Compliant

Frequency Band

2402 to 2480 MHz

Number of Available Channels

Legacy : 0~79 (1 MHz/CH) BLE : 0~39 (2 MHz/CH)

Data Rates and Throughput

Legacy : 3 Mbps data rate; throughput up to 2.17 Mbps

BLE : 1 Mbps data rate; throughput up to 0.2 Mbps

Legacy : Synchronous Connection Oriented links up to 3, 64 kbps, voice channels Legacy : Asynchronous Connection Less links 2178.1 kbps/177.1 kbps asymmetric (3-DH5) or 864 kbps symmetric (3-EV5)

Transmit Power

The Bluetoothâ component shall operate as a Class II Bluetoothâ device with a maximum transmit power of +4 dBm for BR and EDR.

Power Consumption

Peak (Tx) 330 mW Peak (Rx) 230 mW Selective Suspend 17 mW

Bluetoothâ Software Supported Link Topology

Microsoft Windows Bluetoothâ Software Power Management

Microsoft Windows ACPI, and USB Bus Support

Certifications

FCC (47 CFR) Part 15C, Section 15.247 & 15.249 Power Management Certifications

ETS 300 328, ETS 300 826

Low Voltage Directive IEC950 UL, CSA, and CE Mark

QuickSpecs

HP Engage One Pro All-In-One system

Technical Specifications – Networking and Communications

c06986242 — DA – 16807 Worldwide — Version 2 — March 2, 2021

Page 35

Bluetooth Profiles Supported

BT4.1-ESR 5/6/7 Compliance LE Link Layer Ping LE Dual Mode LE Link Layer LE Low Duty Cycle Directed Advertising LE L2CAP Connection Oriented Channels Train Nudging & Interlaced Scan BT4.2 ESR08 Compliance LE Secure Connection- Basic/Full LE Privacy 1.2 –Link Layer Privacy LE Privacy 1.2 –Extended Scanner Filter Policies LE Data Packet Length Extension FAX Profile (FAX) Basic Imaging Profile (BIP)2 Headset Profile (HSP) Hands Free Profile (HFP) Advanced Audio Distribution Profile (A2DP)

QuickSpecs

HP Engage One Pro All-In-One system

Technical Specifications – Audio/Multimedia

c06986242 — DA – 16807 Worldwide — Version 2 — March 2, 2021

Page 36

High-Definition Audio

Engage One System Audio (Realtek ALC3247-CG)

Type

Integrated

HD Stereo Codec

High-Definition Audio codec

Internal Speaker Amplifier

4-channel DAC, 4-channel ADC,

and an integrated stereo Class-D Speaker Amplifier

Sampling

1kHz input sine wave; Sampling frequency=48kHz; 0dB=1Vrms

Analog Audio

Yes, independent analog sound inputs (multiple streaming)

# of Channels on line-out

2 watts per channel output power Stereo (Left & Right channels)

Internal speaker

Yes

Microphone

Yes, stereo digital microphone input with Realtek proprietary Acoustic Echo Cancellation (AEC), Beam Forming (BF), and Noise Suppression (NS) technology, significantly

improving voice quality for PC VoIP applications

Maximum Power Output

2W per channel at 5V power supply

Headphone

yes

QuickSpecs

HP Engage One Pro All-In-One system

Technical Specifications – Integrated Camera

c06986242 — DA – 16807 Worldwide — Version 2 — March 2, 2021

Page 37

Optional integrated high-speed USB 2.0 compliant webcam 5MP resolution CMOS image sensor. The module integrates a USB

2.0 controller, color-processing engine and high-quality image to provide up to 30fps at 5MP size in high-speed mode.

Technical Specifications – Power

c06986242 — DA – 16807 Worldwide — Version 2 — March 2, 2021

Page 38

POWER

Power Supply

280Watt Smart PFC Standard Barrel 7.4mm Straight 1.8m C14 SR-S; 89% efficiency (advance hub)

230Watt Smart PFC Slim Barrel 7.4mm Right Angle ; 89% efficiency (Column hub & VESA hub)

Operating Voltage Range

90V~265VAC

Rated Voltage Range

100V~240AC

Rated Line Frequency

50~60HZ

Operating Line Frequency Range

47~63HZ

Rated Input Current

<2.4A RMS/280W, <3.52A/230W

Power Supply Fan

N/A

ENERGY STAR® Compliant

ENERGY STAR® certified configurations available and EPEAT® registered *

Power Cord Length

1.8m

NOTE: Power supply meets ENERGY STAR® compliance in conjunction with a select range of processors and modules. *Energy Star in under testing & in process of certification at the time this document is written

WEIGHTS & DIMENSIONS

NOTE: Weight and dimensions below do not include MSR, Biometric Reader, Webcam, or CFD.

Head Unit-15.6"

Metric

US

Head Unit-15.6" Dimensions (Landscape)

Height [mm/in]

26.4

1.0

Width [mm/in]

397.6

15.7

Depth [mm/in]

241.0

9.5

Volume (Litters/cubic inches)

2.5

154.35

Head Unit-15.6" Dimensions (Portrait)

Height [mm/in]

26.4

1.0

Width [mm/in]

397.6

15.7

Depth [mm/in]

241.0

9.5

Volume (Litters/cubic inches)

2.5

154.35

Head Unit-15.6" Weight (Landscape)

[kg/lb.]

3.37

7.4

Head Unit-15.6" Weight (Portrait)

[kg/lb.]

3.35

7.4

Head Unit-19.5"

QuickSpecs

HP Engage One Pro All-In-One system

Technical Specifications – Power

c06986242 — DA – 16807 Worldwide — Version 2 — March 2, 2021

Page 39

Metric

US

Head Unit-19.5" Dimensions (Landscape)

Height [mm/in]

29.4

1.2

Width [mm/in]

494.8

19.5

Depth [mm/in]

292.6

11.5

Volume (Litters/cubic inches)

4.3

259.75

Head Unit-19.5" Dimensions (Portrait)

Height [mm/in]

29.4

1.2

Width [mm/in]

488.8

19.2

Depth [mm/in]

292.6

11.5

Volume (Litters/cubic inches)

4.2

256.60

Head Unit-19.5" Weight (Landscape)

[kg/lb.]

5.70

12.6

Head Unit-19.5" Weight (Portrait)

[kg/lb.]

5.69

12.5

Head Unit-23.8"

Metric

US

Head Unit-23.8" Dimensions (Landscape)

Height [mm/in]

29.4

1.2

Width [mm/in]

576.4

22.7

Depth [mm/in]

339.9

13.4

Volume (Litters/cubic inches)

5.8

351.50

Head Unit-23.8" Dimensions (Portrait)

Height [mm/in]

29.4

1.2

Width [mm/in]

570.4

22.5

Depth [mm/in]

339.9

13.4

Volume (Litters/cubic inches)

5.7

347.84

Head Unit-23.8" Weight (Landscape)

[kg/lb.]

6.80

15.0

Head Unit-23.8" Weight (Portrait)

[kg/lb.]

6.79

15.0

QuickSpecs

HP Engage One Pro All-In-One system

Technical Specifications – Power

c06986242 — DA – 16807 Worldwide — Version 2 — March 2, 2021

Page 40

HP Engage One Pro Advance Hub

Metric

US

Hub Dimensions (with U-shape)

Height [mm/in]

36.8

1.4

Width [mm/in]

305.0

12.0

Depth [mm/in]

220.0

8.7

Hub Dimensions (without U-shape)

Height [mm/in]

28.5

1.1

Width [mm/in]

275.0

10.8

Depth [mm/in]

100.0

3.9

Hub Weight with U-shape

Integrated Graphics [kg/lb.]

1.00

2.2

Discrete Graphics [kg/lb.]

1.00

2.2

Hub Weight (without U-shape)

Integrated Graphics [kg/lb.]

0.69

1.5

Discrete Graphics [kg/lb.]

0.69

1.5

HP Engage One Pro VESA hub

Metric

US

Dimensions

Height [mm/in]

150.0

5.9

Width [mm/in]

125.0

4.9

Depth [mm/in]

24.4

1.0

Weight(Without Adapter)

[kg/lb.]

547.40

1.20

QuickSpecs

HP Engage One Pro All-In-One system

Technical Specifications – Power

c06986242 — DA – 16807 Worldwide — Version 2 — March 2, 2021

Page 41

HP Engage One Pro Slim VESA Mount

Metric

US

Dimensions

Height [mm/in]

120.0

4.7

Width [mm/in]

120.0

4.7

Depth [mm/in]

10.5

0.4

Weight

[kg/lb.]

233.00

0.51

System Summary Dimension Matrix

Display Heads Only

Width

(Horizontal)

Height

(Vertical)

Thickness

15.6 Landscape

397.6

241.0

26.4

19.5 Landscape

494.8

292.6

29.4

23.8 Landscape

576.4

339.9

29.4

15.6 Portrait

241.0

391.6

26.4

19.5 Portrait

292.6

488.8

29.4

23.8 Portrait- Slim VESA only*

339.9

570.4

29.4

NOTE: *23.8” Portrait can only be support with SLIM VESA mount, not configurable with any Column stand, not configurable with

column hub

Width

Depth

Thickness

Stability Base Only

305.0

220.0

11.7

Stability Base With Advance Hub

305.0

220.0

38.7

QuickSpecs

HP Engage One Pro All-In-One system

Technical Specifications – Power

c06986242 — DA – 16807 Worldwide — Version 2 — March 2, 2021

Page 42

Delta Height with Advance hub (Note 1 - Add 27 mm to height dimensions when using with the Advance Hub)

305.0

220.0

27.0

Performance Stand

Low Position

With Stability Base

+40 Tilt Angle From Vertical

(Negative - Forward, Positive = Rear)

+120 Tilt Angle From Vertical

(Negative - Forward, Positive = Rear)

Dimensions

Height Top Edge of

Screen

(Note 1)

Height Bottom Edge of Screen

(Note 1)

Overall

Depth

Height Top Edge of

Screen

(Note 1)

Height Bottom edge of screen

(Note 1)

Overall

Depth

15.6L

313.5

112.1

220.0

289.8

146.6

220.0

19.5L

335.2

92.3

234.8

305.3

133.7

256.8

23.8L

353.3

74.2

250.0

317.1

121.8

251.6

15.6P

371.1

54.4

264.4

327.4

108.9

274.0

19.5P

410.3

17.1

297.9

354.3

84.6

437.9

23.8P VESA only

NA

NOTE: *23.8” Portrait can only be support with SLIM VESA mount, not configurable with any Column stand, not configurable with

column hub Add 27 mm to all height dimensions if unit has Advance hub attached to the Column Stand

Performance Stand

High Position

With Stability Base

+40 Tilt Angle From Vertical

Forward Travel Limit (Negative - Forward,

Positive = Rear)

+120 Tilt Angle From Vertical

(Negative - Forward, Positive = Rear)

Dimensions

Height Top Edge of

Screen

(Note 1)

Height Bottom Edge of Screen

(Note 1)

Overall

Depth

Height Top Edge of

Screen

(Note 1)

Height Bottom edge of screen

(Note 1)

Overall

Depth

15.6L

363.5

162.1

220.0

339.8

196.6

220.0

19.5L

385.2

142.3

234.8

355.3

183.7

256.8

23.8L

403.3

124.2

250.0

367.1

171.8

251.6

15.6P

421.1

104.4

264.4

377.4

158.9

274.0

19.5P

460.3

67.1

297.9

404.3

134.6

437.9

23.8P VESA only

NA

NOTE: *23.8” Portrait can only be support with SLIM VESA mount, not configurable with any Column stand, not configurable with column hub Add 27 mm to all height dimensions if unit has Advance hub attached to the Column Stand

QuickSpecs

HP Engage One Pro All-In-One system

Technical Specifications – Power

c06986242 — DA – 16807 Worldwide — Version 2 — March 2, 2021

Page 43

HP Engage Pro Stand

With Stability Base

+40 Tilt Angle From Vertical

(Negative - Forward, Positive = Rear)

+120 Tilt Angle From Vertical

(Negative - Forward, Positive = Rear)

Dimensions

Height Top Edge of

Screen

(Note 1)

Height Bottom Edge of Screen

(Note 1)

Overall

Depth

Height Top Edge of

Screen

(Note 1)

Height Bottom edge of screen

(Note 1)

Overall

Depth

15.6L

313.4

112.0

224.0

289.6

146.4

232.9

19.5L

335.0

92.2

234.8

305.1

135.5

267.9

23.8L

380.2

101.1

240.8

317.0

121.7

308.9

15.6P

371.0

54.3

271.1

327.3

108.8

352.1

19.5P

410.2

17.0

336.6

354.2

84.5

437.9

23.8P VESA only

NA

NOTE: *23.8” Portrait can only be support with SLIM VESA mount, not configurable with any Column stand, not configurable with

column hub Add 27 mm to all height dimensions if unit has Advance hub attached to the Column Stand

HP Engage Vertical Stand

With Stability Base

+15 Tilt Angle From Vertical

(Negative - Forward, Positive = Rear)

+40 Tilt Angle From Vertical

(Negative - Forward, Positive = Rear)

Dimensions

Height Top Edge of

Screen

(Note 1)

Height Bottom Edge of Screen

(Note 1)

Overall

Depth

Height Top Edge of

Screen

(Note 1)

Height Bottom edge of screen

(Note 1)

Overall

Depth

15.6L

339.9

100.4

220.0

316.9

115.5

220.0

19.5L

316.9

115.5

220.0

365.7

75.5

230.2

23.8L

388.5

52.6

220.0

356.8

77.7

245.4

15.6P

412.7

27.7

221.4

374.6

57.9

259.7

19.5P

NA

23.8P VESA only

NA

NOTE: *23.8” Portrait can only be support with SLIM VESA mount, not configurable with any Column stand, not configurable with

column hub Add 27 mm to all height dimensions if unit has Advance hub attached to the Column Stand

QuickSpecs

HP Engage One Pro All-In-One system

Technical Specifications - Miscellaneous Features

c06986242 — DA – 16807 Worldwide — Version 2 — March 2, 2021

Page 44

MISCELLANEOUS FEATURES

Management Features

• Advanced Configuration and Power Management Interface (ACPI). Allows the system to wake from a low power mode.

• Controls system power consumption, making it possible to place individual cards and peripherals in a low-power or

powered-off state without affecting other elements of the system.

• Intel® Wired for Management support; industry wide initiative to make Intel® architecture based PCs, servers and mobile

computers more inherently manageable out-of-the-box and over the network

• Dual State Power Button; acts as both an on/off button and a suspend-to-sleep button

HP Point of Sale Diagnostics UEFI:

• This utility enables hardware level testing outside the operating system on many components. The diagnostics can be

invoked by pressing F2 at POST, and is available as a download from HP Support

Serviceability Features:

• System/Emergency ROM

• Flash ROM

• Flash Recovery with Video Configuration Record Software

• Over-Temp Warning on Screen (Requires IM Agents)

• Clear Password Jumper

• Clear CMOS Button

• Color coordinated cables and connectors

• Front power switch

• System memory can be upgraded without removing the system board or any internal components

Interpreting System Validation Diagnostic Front Panel LEDs and Audible Codes

During the system validation phase that occurs at system startup, the BIOS validates the functionality of the following subsystems and conditions:

• AC adapter

• System board power

• Processor failure

• BIOS corruption

• Memory failure

• Graphics failure

• System board failure

• BIOS authentication failure

If an error is detected, specific patterns of long and short blinks, accompanied by long and short beeps (where applicable) are used to identify the error. These patterns will make up a two part code:

• Major – the category of the error

• Minor – the specific error within the category

Number of long beeps/blinks

Error category

1

Not used

2

BIOS

3

Hardware

NOTE: Single beep/blink codes are not used.

QuickSpecs

HP Engage One Pro All-In-One system

Technical Specifications - Miscellaneous Features

c06986242 — DA – 16807 Worldwide — Version 2 — March 2, 2021

Page 45

4

Thermal

5

System board

Patterns of blink/beep codes are determined by using the following parameters:

• 1 second pause occurs after the last major blink.

• 2 second pause occurs after the last minor blink.

• Beep error code sequences occur for the first 5 iterations of the pattern and then stop.

• Blink error code sequences continue until the computer is unplugged or the power button is pressed.

The red LED blinks to represent the major error category (long blinks). The white LED blinks to represent the minor error category (short blinks). For example, ‘3.5’ indicates 3 long red blinks and 5 short white blinks to communicate the processor is not detected.

Technical Specifications - Environmental

c06986242 — DA – 16807 Worldwide — Version 2 — March 2, 2021

Page 47

ENVIRONMENTAL & INDUSTRY

Environmental Data

Eco-Label Certifications & declarations

This product has received or is in the process of being certified to the following approvals and may be labeled with one or more of these marks:

• IT ECO declaration

• US ENERGY STAR® certified configurations available

• EPEAT® Silver registered configurations available in the United States. See

http://www.epeat.net for registration status in your country.

Sustainable Impact Specifications

• 54% post-consumer recycled plastic4

• 60% post-consumer recycled plastic4

• Low halogen

1

• Ocean-Bound Plastic in speaker enclosure

2

• 25% ITE-derived closed loop plastic

6

System Configuration

The configuration used for the Energy Consumption and Declared Noise Emissions data for the Engage One Pro model is based on a typically configured system featuring an SSD, a high efficiency power supply, and a Microsoft Windows® operating system.

HP Engage One Pro AiO System Model 15.6”

Energy Consumption (in accordance with US ENERGY STAR® test method)

115VAC, 60Hz

230VAC, 50Hz

100VAC, 60Hz

Normal Operation (Short idle)

12.58W

13.07W

12.65 W

Normal Operation (Long idle)

10.71 W

10.96W

10.79 W

Sleep

3.28 W

3.31W

3.26 W

Off

1.15W

1.18 W

1.15 W

Heat Dissipation*

115VAC, 60Hz

230VAC, 50Hz

100VAC, 60Hz

Normal Operation (Short idle)

42.89 BTU/hr

44.59 BTU/hr

43.02 BTU/hr

Normal Operation (Long idle)

36.54 BTU/hr

37.39 BTU/hr

36.74 BTU/hr

Sleep

11.15 BTU/hr

11.29 BTU/hr

11.12 BTU/hr

Off

3.92 BTU/hr

3.99 BTU/hr

3.92 BTU/hr

* Heat dissipation is calculated based on the measured watts, assuming the service level is attained for one hour

Declared Noise Emissions (in accordance with ISO 7779 and ISO 9296)

Typically Configured – Idle

Fixed Disk – Random writes

NOTE: Energy efficiency data listed is for an ENERGY STAR® compliant product if offered within the model family . HP computers marked with the ENERGY STAR® Logo are compliant with the applicable U.S. Environmental Protection Agency (EPA) ENERGY STAR® specifications for computers. If a model family does not offer ENERGY STAR® compliant configurations, then energy efficiency data listed is for a typically configured PC featuring a hard disk drive, a high efficiency power supply, and a Microsoft Windows® operating system.

HP Engage One Pro AiO System Model 19.5”

Energy Consumption (in accordance with US ENERGY STAR® test method)

115VAC, 60Hz

230VAC, 50Hz

100VAC, 60Hz

QuickSpecs

HP Engage One Pro All-In-One system

Technical Specifications - Environmental

c06986242 — DA – 16807 Worldwide — Version 2 — March 2, 2021

Page 48

Normal Operation (Short idle)

12.58W

13.07W

12.65 W

Normal Operation (Long idle)

10.71 W

10.96W

10.79 W

Sleep

3.28 W

3.31W

3.26W

Off

1.15W

1.18 W

1.15 W

Heat Dissipation*

115VAC, 60Hz

230VAC, 50Hz

100VAC, 60Hz

Normal Operation (Short idle)

42.89 BTU/hr

44.59 BTU/hr

43.02 BTU/hr

Normal Operation (Long idle)

36.54 BTU/hr

37.39 BTU/hr

36.74 BTU/hr

Sleep

11.15 BTU/hr

11.29 BTU/hr

11.12 BTU/hr

Off

3.92 BTU/hr

3.99 BTU/hr

3.92 BTU/hr

* Heat dissipation is calculated based on the measured watts, assuming the service level is attained for one hour

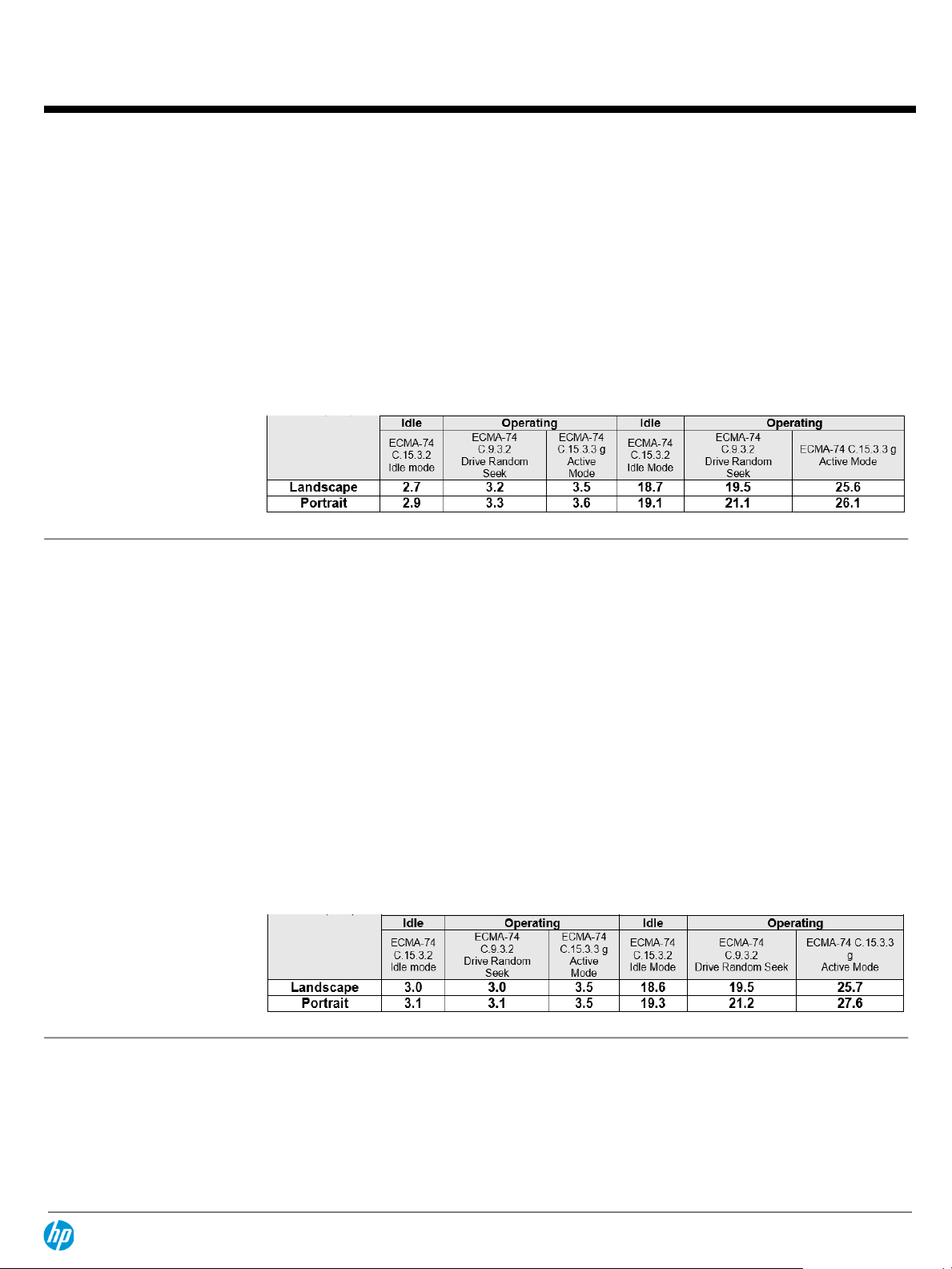

Declared Noise Emissions (in accordance with ISO 7779 and ISO 9296)

Typically Configured – Idle

Fixed Disk – Random writes

HP Engage One Pro AiO System Model 23.8”

Energy Consumption (in accordance with US ENERGY STAR® test method)

115VAC, 60Hz

230VAC, 50Hz

100VAC, 60Hz

Normal Operation (Short idle)

12.58W

13.07W

12.65 W

Normal Operation (Long idle)

10.71 W

10.96W

10.79 W

Sleep

3.28 W

3.31W

3.26W

Off

1.15W

1.18 W

1.15 W

Heat Dissipation*

115VAC, 60Hz

230VAC, 50Hz

100VAC, 60Hz

Normal Operation (Short idle)

42.89 BTU/hr

44.59 BTU/hr

43.02 BTU/hr

Normal Operation (Long idle)

36.54 BTU/hr

37.39 BTU/hr

36.74 BTU/hr

Sleep

11.15 BTU/hr

11.29 BTU/hr

11.12 BTU/hr

Off

3.92 BTU/hr

3.99 BTU/hr

3.92 BTU/hr

* Heat dissipation is calculated based on the measured watts, assuming the service level is attained for one hour

Declared Noise Emissions (in accordance with ISO 7779 and ISO 9296)

Typically Configured – Idle

Fixed Disk – Random writes

QuickSpecs

HP Engage One Pro All-In-One system

Technical Specifications - Environmental

c06986242 — DA – 16807 Worldwide — Version 2 — March 2, 2021

Page 49

Longevity and Upgrading

This product can be upgraded, possibly extending its useful life by several years. Upgradeable features and/or components contained in the product may include:

• 2 memory slots

• M.2 2230 slot for WLAN

• (1) M.2 2280 slot for SSD

Spare parts are available throughout the warranty period and or for up to “5” years after the end

of production.

Batteries

This battery(s) in this product comply with EU Directive 2006/66/EC

Batteries used in the product do not contain:

Mercury greater the1ppm by weight Cadmium greater than 20ppm by weight

Battery size: CR2032 (coin cell) Battery type: Lithium

Additional Information

• This product is in compliance with the Restrictions of Hazardous Substances (RoHS)

directive - 2011/65/EC.

• This HP product is designed to comply with the Waste Electrical and Electronic

Equipment (WEEE) Directive – 2002/96/EC.

• This product is in compliance with California Proposition 65 (State of California; Safe

Drinking Water and Toxic Enforcement Act of 1986).

• This product is in compliance with the IEEE 1680.1 (EPEAT) standard at the <Silver>

level, see www.epeat.net

• Plastics parts weighing over 25 grams used in the product are marked per ISO11469 and

ISO1043.

• This product contains 45.16% post-consumer recycled plastic (by wt.)

• This product is 96% recycle-able when properly disposed of at end of life.

Packaging Materials

External:

PAPER/Corrugated

TBD

Internal:

PLASTIC/Polyethylene Expanded - EPE

TBD

PLASTIC/Polyethylene low density – LDPE

TBD

The EPE foam packaging material is made from 100% recycled content.

The corrugated paper packaging materials contains at least 35% recycled content.

Material Usage

This product does not contain any of the following substances in excess of regulatory limits (refer to the HP General Specification for the Environment at

http://www.hp.com/hpinfo/globalcitizenship/environment/pdf/gse.pdf):

• Asbestos

• Certain Azo Colorants

• Certain Brominated Flame Retardants – may not be used as flame retardants in plastics

• Cadmium

• Chlorinated Hydrocarbons

• Chlorinated Paraffins

• Formaldehyde

• Halogenated Diphenyl Methanes

• Lead carbonates and sulfates

• Lead and Lead compounds

QuickSpecs

HP Engage One Pro All-In-One system

Technical Specifications - Environmental

c06986242 — DA – 16807 Worldwide — Version 2 — March 2, 2021

Page 50

• Mercuric Oxide Batteries

• Nickel – finishes must not be used on the external surface designed to be frequently

handled or carried by the user.

• Ozone Depleting Substances

• Polybrominated Biphenyls (PBBs)

• Polybrominated Biphenyl Ethers (PBBEs)

• Polybrominated Biphenyl Oxides (PBBOs)

• Polychlorinated Biphenyl (PCB)

• Polychlorinated Terphenyls (PCT)

• Polyvinyl Chloride (PVC) – except for wires and cables, and certain retail packaging has

been voluntarily removed from most applications.

• Radioactive Substances

• Tributyl Tin (TBT), Triphenyl Tin (TPT), Tributyl Tin Oxide (TBTO)

Notes: * EPE foam packaging material is considered “recycled” pre-Consumer. The scrap or waste EPE material from the manufacturing process of these EPE foam pieces are re-introduced into the manufacturing process.

Packaging Usage

HP follows these guidelines to decrease the environmental impact of product packaging:

• Eliminate the use of heavy metals such as lead, chromium, mercury and cadmium in

packaging materials.

• Eliminate the use of ozone-depleting substances (ODS) in packaging materials.

• Design packaging materials for ease of disassembly.

• Maximize the use of post-consumer recycled content materials in packaging materials.

• Use readily recyclable packaging materials such as paper and corrugated materials.

• Reduce size and weight of packages to improve transportation fuel efficiency.

• Plastic packaging materials are marked according to ISO 11469 and DIN 6120 standards.

End-of-life Management and Recycling

HP Inc. offers end-of-life HP product return and recycling programs in many geographic areas. To recycle your product, please go to: http://www.hp.com/go/reuse-recycle or contact your nearest HP sales office. Products returned to HP will be recycled, recovered or disposed of in a responsible manner.

The EU WEEE directive (2002/95/EC) requires manufacturers to provide treatment information for each product type for use by treatment facilities. This information (product disassembly instructions) is posted on the HP Inc. web site at: http://www.hp.com/go/recyclers. These instructions may be used by recyclers and other WEEE treatment facilities as well as HP OEM customers who integrate and re-sell HP equipment.

HP Inc. Corporate Environmental Information

For more information about HP’s commitment to the environment

Global Citizenship Report

http://www.hp.com/hpinfo/globalcitizenship/gcreport/index.html

Eco-label certifications

http://www8.hp.com/us/en/hp-information/environment/ecolabels.html

ISO 14001 certificates:

PC Product Design ISO 14001 certificate

and

HP Operations ISO 14001 certificate

QuickSpecs

HP Engage One Pro All-In-One system

Technical Specifications - Environmental

c06986242 — DA – 16807 Worldwide — Version 2 — March 2, 2021

Page 51

Footnotes

1

External power supplies, WWAN modules, power cords, cables and peripherals excluded.

Service parts obtained after purchase may not be Low Halogen.

2

Percentage of ocean-bound plastic contained in each component varies by product

4

Recycled plastic content percentage is based on the definition set in the IEEE 1680.1-2018

standard.

6

ITE Derived Closed Loop Plastic percentage is based on the definition set in the IEEE 1680.1-

2018 standard.

QuickSpecs

HP Engage One Pro All-In-One system

HP Engage One After Market Option Matrix

c06986242 — DA – 16807 Worldwide — Version 2 — March 2, 2021

Page 52

HP Engage One Pro Advance Hubs & cable AMOs

AMO Part No.

Description

9YH40AA#xxx

HP Engage One Pro Adv Fan-less Hub *

156N6AA#xxx

HP Engage One Pro Adv Fan-less Hub White *

*Included 280W PSU/1.8M cord, need one of the separate cable below

2Z8M9AA 2Z8N0AA 2Z8N1AA 2Z8N2AA

HP Engage One Pro 2m USB-C® cable black HP Engage One Pro 0.5m USB-C® cable black HP Engage One Pro 2m USB-C® cable gray HP Engage One Pro 0.5m USB-C® cable gray

Additional Cable available to connect the Column hub or the VESA hub to the Advance hub below

201A2AA 201A1AA

HP Engage One Pro Column/VESA hub to Advance hub 2m black HP Engage One Pro Column/VESA hub to Advance hub 0.5m black

316D6AA 316D7AA

HP Engage One Pro Column/VESA hub to Ad hub 2m gray HP Engage One Pro Column/VESA hub to Ad hub 0.5m gray

HP Engage One Pro VEA Hubs & cable AMOs

Description

QuickSpecs

HP Engage One Pro All-In-One system

HP Engage One After Market Option Matrix

c06986242 — DA – 16807 Worldwide — Version 2 — March 2, 2021

Page 53

9YH42AA#xxx 326R7AA#xxx

Engage One Pro VESA Hub** Engage One Pro White Slim VESA**

**Included 230W PSU/1.8M cord & cable

Additional Cable available to connect the Column hub or the VESA hub to the Advance hub below 201A2AA

201A1AA

HP Engage One Pro Column/VESA hub to Advance hub 2m black HP Engage One Pro Column/VESA hub to Advance hub 0.5m black

316D6AA 316D7AA

HP Engage One Pro Column/VESA hub to Ad hub 2m gray HP Engage One Pro Column/VESA hub to Ad hub 0.5m gray

HP Engage One Pro Mounting Option AMOs

AMO Part No.

Description

1A4E7AA

Engage One Pro Slim VESA

9YH43AA

Engage One Pro U-shaped Adapter

1A4E5AA

HP Engage One Pro AiO Stability Plate

QuickSpecs

HP Engage One Pro All-In-One system

HP Engage One After Market Option Matrix

c06986242 — DA – 16807 Worldwide — Version 2 — March 2, 2021

Page 54

9YH51AA

Engage One Pro Undercounter Mount

AMO Part No.

Description

326R7AA

Engage One Pro Slim VESA White

156N7AA

Engage One Pro U-shaped Adapter White

1A4E6AA

HP Engage One Pro AiO Stability Plate White

2W7M4AA

Engage One Pro Flexible Pole Single Mount

2W7M3AA

Engage One Pro Flexible Back-to-Back Bracket

HP Engage One Pro Mounting Option AMOs

AMO Part No.

Description

2W7M4AA

Engage One Pro Flexible Pole Single Mount

2W7M3AA

Engage One Pro Flexible Back-to-Back Bracket

QuickSpecs

HP Engage One Pro All-In-One system

HP Engage One After Market Option Matrix

c06986242 — DA – 16807 Worldwide — Version 2 — March 2, 2021

Page 55

HP Engage One Pro Customer Facing Displays (CFDs)

AMO#

Description

9YH48AA

HP Engage One Pro 6.6 inch Customer Facing Display

156N8AA

HP Engage One Pro 6.6 inch White Customer Facing Display

10P79AA

HP Engage 6.6 inch Pole Display

156N9AA

HP Engage 6.6 inch W Pole Display

1XD80AA#ABA, #ABT, #AC3

HP Engage One 10 Display

1XD81AA#ABA, #ABT, #AC3

HP Engage One 10t Display

3FH66AA#ABA, #ABT, #AC3

HP Engage One 10w Display

3FH67AA#ABA, #ABT, #AC3

HP Engage One 10tw Display

QuickSpecs

HP Engage One Pro All-In-One system

HP Engage One After Market Option Matrix

c06986242 — DA – 16807 Worldwide — Version 2 — March 2, 2021

Page 56

20C49AA#AB1, #AB2, #ABT, #AC3

HP Engage One 14 FHD Monitor

20C50AA#AB1, #AB2, #ABT, #AC3

HP Engage One 14 FHD No Stand Monitor

20C51AA#AB1, #AB2, #ABT, #AC3

HP Engage One 14t FHD Monitor

20C52AA#AB1, #AB2, #ABT, #AC3

HP Engage One 14t FHD No Stand Monitor

2D9V5AA#ABT, #AC3

HP Engage One 16t FHD Monitor

2D9X0AA#ABT, #AC3

HP Engage One 16t FHD No Stand Monitor

2D9Y5AA#ABT, #AC3

HP Engage One 16ts FHD Monitor

2D9Z4AA#ABT, #AC3

HP Engage One 16ts FHD No Stand Monitor

HP Engage One Pro Customer Facing Displays (CFDs) Stands

AMO#

Description

10P60AA

HP Engage 6 Clean Mount Arm Bracket

10P61AA

HP Engage 6 Stability Mount Arm Bracket

10P77AA

HP Engage 10 Clean Mount Stand

10P78AA

HP Engage 10 Stability Mount Stand

10P58AA

HP Engage 14 Clean Mount Stand

10P62AA

HP Engage 14 Stability Mount Stand

HP Integrated Peripherals AMOs

AMO#

Description

9YH50AA

HP Engage One Pro Fingerprint Reader

2U551AA

HP Engage One Pro Magnetic Stripe Reader

2V9G4AA

HP Engage One Pro White Magnetic Stripe Reader

9YH49AA#AB4, #ABA, #ABB

HP Engage One Pro Bar Code Scanner

HP Engage 6.6 inch Customer Facing Display

QuickSpecs

HP Engage One Pro All-In-One system

HP Engage One After Market Option Matrix

c06986242 — DA – 16807 Worldwide — Version 2 — March 2, 2021

Page 57

Model

HP Engage 6.6 inch Customer Facing Display

9YH48AA

HP Engage 6.6 inch Customer Facing Display White

156N8AA

Introduction

Give customers a clear view of their transactions and sharing engaging, colorful, dynamic content at the point of sale with LCD touch display.

Key Benefits

• 6.6 inch diagonal compact LCD display that integrates easily into your retail solution.

• Position as need with adjustable height and swiveling of the display head.

• Place the durable, dust resistant display in a range of high traffic areas.

• A USB connector powers the display and eliminated the need for additional cabling.

• The edge to edge, bezel free desing is easy to clean, helps protection from dust, and create a sleek, modem appearance.

QuickSpecs

HP Engage One Pro All-In-One system

Overview - After Market Options

c06986242 — DA – 16807 Worldwide — Version 2 — March 2, 2021

Page 58

Compatibility

The HP Engage 6.6 inch Customer Facing Display is compatible with HP Retail Point of Sale Systems.

Note: Not all Point of Sale system models are available in all regions.

Service and Support

Three (3) year limited warranty with advance exchange when purchased from HP.

QuickSpecs

HP Engage One Pro All-In-One system

Overview - After Market Options

c06986242 — DA – 16807 Worldwide — Version 2 — March 2, 2021

Page 59

General

Display Method

Backlit LED

Brightness

400 Nits

Resolution

1400 x 720

Pixel Pitch

0.105 x 0.105 mm

Active Area

75.6 (H) x 151.2 (V) mm

Contrast Ratio

1000:1 (max)

Response Rate

25 ms (rise+fall time)

Viewing Angle

Left: 85° Right: 85° Top: 85° Bottom: 85°

Color Gamut

70% (CIE 1931 Standard NTSC)

Mechanical

Display Dimensions (WxHxD)

171.4 x 76.2 x 56.35 mm

Display Weight

0.25 kg

Hinge Adjustability

Rotation Range 0°~90° (normal using) Folded to 90° for shipping

Color

HP Black / White

Connection

Interface

USB

Power

Operating Voltage

5V Full Load Current

6.5W (DC +5V, 1300mA)

Idle Current 0.64W

TBD

Temperature Range

Operating

0°C to 35°C [32 to 95°F] at 10% to 90% humidity (non-condensing)

Non-operating

-30°C to 65°C [-22 to 149°F] at 0% to 95% humidity (38.7°C maximum wet bulb temperature)

Webcam

30fps USB 2.0 webcam, 5MP (2560x1920) resolution

Operating System

Compatible with:

Windows 10 Professional 64-bit) Windows 10 IoT Enterprise 2019 LTSC (64-bit) Windows Server 2019 Standard FreeDos 3.0 Ubuntu Desktop 18.04 LTS CentOS 7

Kit Contents

HP Engage 6.6 inch Customer Facing Display, documentation, warranty card.

HP Engage One Pro Bar Code Scanner

QuickSpecs

HP Engage One Pro All-In-One system

Overview - After Market Options

c06986242 — DA – 16807 Worldwide — Version 2 — March 2, 2021

Page 60

Model

HP Engage One Pro Bar Code Scanner (Americas)

9YH49AA#ABA

HP Engage One Pro Bar Code Scanner (Europe)

9YH49AA#ABB

HP Engage One Pro Bar Code Scanner (Asia)

9YH49AA#AB4

Compatibility

The HP Engage One Pro Barcode Scanner is compatible with the HP Engage One Pro All-in-One system.

Service and Support

Three (3) year limited warranty with advance exchange when purchased from HP.

QuickSpecs

HP Engage One Pro All-In-One system

Overview - After Market Options

c06986242 — DA – 16807 Worldwide — Version 2 — March 2, 2021

Page 61

General

Image Sensor

1200 x 800 CMOS

Illumination Aimer

White LED Red LED 625± 10nm

Depth of Field

Typical Performance *

Narrow Width

Depth of Field

Code 39

5 mils:90 to 215mm

Data Matrix

10 mils: 65 to 180mm

EAN-13

13 mils: 70 to 190mm

PDF-417

6.7 mils: 70 to 190mm

QR Code

15 mils: 40 to 245mm

Symbol Contrast

25% minimum reflectance

Roll (tilt)

360°

Pitch

±60°

Skew

±60°

Field of View

Horizontal 42°, Vertical 28°

1D decode symbologies

Autodiscriminates all standard 1D codes including GS1 DataBar™ linear codes.

2D decode symbologies

Aztec Code Chinese Sensible Code Code One Data Matrix GM Code MaxiCode MicroPDF417 Micro QR Code PDF417 QR Code

Postal decode symbologies

Australian Post KIX Post Royal Mail USPS Planet USPS Postnet

OCR symbologies

Passport OCR

Mechanical

Dimensions ( W xD x H)

30.4 x 45.8 x 9.8 mm

Weight

15g

Color

Black

Interface/Connection

Interface

USB

Temperature

Operating

-20°C to 50°C (-4°F to 140°F)

Storage

-40°C to 70°F (-40°F to 158°F)

Humidity (noncondensing)

5% to 95%

Power

Operating Voltage

5VDC±5%

Current at 5VDC

Operating: 500~700mA (RMS typical), 800mA (RMS max.)

QuickSpecs

HP Engage One Pro All-In-One system

Overview - After Market Options

c06986242 — DA – 16807 Worldwide — Version 2 — March 2, 2021

Page 62

Idle: <70mA Sleep: <1mA

Rated Power Consumption

3W

Drivers

Windows USB HID-KB and OPOS & JPOS (via USB-COM mode drivers)

Ambient Light

0- 100,000 lux

Water Penetration Protection

IP54

Operating System

Compatible with:

Windows

Windows 10 Pro 64bit Windows 10 IoT Enterprise 2016 LTSB 64bit (RS1) Windows 10 IoT Enterprise 2019 LTSC 64bit (RS5)

Linux

Red Hat/CentOS 5.6.8and above (64 bit) Suse Linux Enterprise 11/12 SP3 and above (64 bit) Ubuntu 12.04/14.04 LTS and above (64 bit)

Android

Android 8-0 and above

Agency Certifications

FCC Part15, Class B, CE EMC Class B, IEC62471, RoHS, IEC 62368-1

Kit Contents

HP Engage One Pro Barcode Scanner, documentation, warranty card.

QuickSpecs

HP Engage One Pro All-In-One system

Overview - After Market Options

c06986242 — DA – 16807 Worldwide — Version 2 — March 2, 2021

Page 63

HP Engage One Magnetic Stripe Reader

Model

HP Engage One Pro Magnetic Stripe Reader

2U551AA

HP Engage One Pro White Magnetic Stripe Reader

2V9G4AA

Compatibility

The HP Engage One Pro Magnetic Stripe Reader is compatible with the HP Engage One Pro All-in-One System.

NOTE: Not all Point of Sale system models are available in all regions.

Service and Support

Three (3) year limited warranty with advance exchange when purchased from HP.

QuickSpecs

HP Engage One Pro All-In-One system

Overview - After Market Options

c06986242 — DA – 16807 Worldwide — Version 2 — March 2, 2021

Page 64

General

Magnetic stripe formats

ISO 7811, AAMVA

Card Thickness

0.38 to 1.14 mm (0.015 to 0.045 in)

Indicators

Bi-colored LED, beeper (requires system audio driver)

Card Speed

3 to 75 ips (7.6 to 190.5 cm/s)

Mechanical

Weight

5.67 g

Slot width

1.14 mm (0.045 in)

Color

HP Black HP White

Connection

Interface

Eight-pin male Molex 51021-0800

Cable Length

125 ± 6.4 mm

Power

Power Supply

3.0 to 3.6 VDC

I/O Voltage Range

2.7 to 3.6 VDC

Active Power Supply Current

5

mA Standby Power Supply Current

0.03 mA

Temperature Range

Operating

0°C to 55°C

Relative Humidity

-10% to 90% non-condensing

Reliability

Operating Life

1,000,000 card swipes minimum

Agency Certifications

FCC, CE, USB-IF

Operating Systems

Compatible with:

Windows 10 Professional (64-bit) Windows 10 IoT Enterprise 2019 LTSC (64-bit) Windows 10 IoT Enterprise 202x LTSC (64-bit) Windows Server 2016 Standard Windows Server 2019 Standard FreeDos 3.0 Ubuntu Desktop 18.04 LTS CentOS 7

Kit Contents

HP Engage One Pro Magnetic Stripe Reader, documentation, warranty card.

QuickSpecs

HP Engage One Pro All-In-One system

Overview - After Market Options

c06986242 — DA – 16807 Worldwide — Version 2 — March 2, 2021

Page 65

HP Engage One Pro Fingerprint Reader

Model

HP Engage One Pro Fingerprint Reader

9YH50AA

Compatibility

The HP Engage One Pro Fingerprint Reader is compatible with the HP Engage One Pro All-in-One System.

Service and Support

Three (3) year limited warranty with advance exchange when purchased from HP.

QuickSpecs

HP Engage One Pro All-In-One system

Overview - After Market Options

c06986242 — DA – 16807 Worldwide — Version 2 — March 2, 2021

Page 66

General

Sensor Type

Capacitive

Array Size

208 x 288 pixels

Image Resolution

508 DPI

Gray Scale

8-bit (256 levels)

Mechanical

Image Area

10.4 x 14.4 mm

Image/Coating

Steel Coat

Color

HP Black

Digital ID Reliability

NVM Storage

100 templates

Data Retention

20 years

Erase/Write

100,000 cycles

Interface/Connection

Interface

USB 2.0

Interface Connector

5 pin, 0.8mm pitch wire-type (gold-plated)

Temperature

Operating

-30° to +85°C

Storage

-40° to +85°C

Humidity (noncondensing)

5% to 85%

ESD Tolerance

IEC 61000-4-2 Level 4

Power

Consumption

Supply voltage: single supply voltage, 3.0V to 3.6V Imaging mode: 105 mA @ 3.3V Sleep mode: 1350 uA @ 3.3V

Wake-up Time

< 15 ms (Sleep to imaging)

Drivers

Windows USB HID-KB and OPOS & JPOS (via USB-COM mode drivers)

Operating Systems

Compatible with:

Windows 10 Professional (64-bit) Windows 10 IoT Enterprise 2019 LTSC (64-bit) Windows 10 IoT Enterprise 202x LTSC (64-bit) Windows Server 2016 Standard Windows Server 2019 Standard FreeDos 3.0 Ubuntu Desktop 18.04 LTS CentOS 7

Agency Certifications

FCC (47 CFR) Part 15C, Section 15.247 & 15.249

Kit Contents

HP Engage One Pro Fingerprint Reader, documentation, warranty card.

QuickSpecs

HP Engage One Pro All-In-One system

Overview - After Market Options

c06986242 — DA – 16807 Worldwide — Version 2 — March 2, 2021

Page 67

HP Engage One Serial USB Thermal Printer

Model

HP Engage One Serial USB Thermal Printer (Black)

1RL96AA

HP Engage One Serial USB Thermal Printer (White)

3GS19AA

Introduction

Redefine your perception of retail printing with the HP Engage One Serial USB Thermal Printer, an eye-catching, compact, cubist printer designed to dazzle alongside your HP Engage One AiO System at the point of sale.

Key Features and Benefits

• Print quickly with 114 mm per second print speed and 8 MB of integrated memory. Add your logo, special offers or

coupons to receipts with 203 DPI and fonts that include Unicode, Arabic, and Asian.

• Connect to your retail system with an optional USB, PUSB or Serial cable kit (sold separately), and drive up to two optional

cash drawers through connections on the printer.

• Place the ultra-compact printer where you need it with the assurance that the internal steel frame can withstand the

everyday wear and tear of retail environments.

QuickSpecs

HP Engage One Pro All-In-One system

Overview - After Market Options

c06986242 — DA – 16807 Worldwide — Version 2 — March 2, 2021

Page 68

Compatibility

The HP Engage One Serial USB Thermal Printer is compatible with the HP Engage One AiO Systems.

NOTE: Not all Point of Sale system models are available in all regions. Not all HP Cash Drawer models are available in all regions. This printer does not comply with fiscalization requirements that may be required in certain countries.

Service and Support

Three (3) year limited warranty with advance exchange when purchased from HP.

QuickSpecs

HP Engage One Pro All-In-One system

Overview - After Market Options

c06986242 — DA – 16807 Worldwide — Version 2 — March 2, 2021

Page 69

General

Supported Character Sets Resident Code Pages:

437 (US) 720(Arabic) 737(Greek) 775(Lithuanian) 850(Multilingual) 852 (Slavic) 857(Turkish) 858 (with Eurosymbol) 860(Portuguese) 862(Hebrew) 863(French Canadian) 864(Arabic) 865(Nordic) 866(Cyrillic) 874 (Thai) 932(Kanji) 936(Simplified Chinese) 949(Korean - Hangul) 950(Traditional Chinese) KZ_1048 (Kazakh) 1250(Latin) 1251(Cyrillic) 1252(Windows Latin I) 1254(Turkish) 1255(Hebrew) 1256(Arabic) 1257(Baltic) Katakana 28591 (ISO8859-1, Latin 1) 28592 (ISO8859-2, Latin 2) 28594 (ISO8859-4, Latin 4) 28596(ISO8859-6,Latin/Arabic) 28599 (ISO8859-5, Latin 5/Turkish) 28605 (ISO8859-15, Latin 9) Unicode UTF-8 encoding for listed code pages

Bar Codes

1D: UPC-A, UPC-E, EAN8, EAN13, Code 39, Code 93, Interleaved 2 of 5

Codabar, Code 128, Code 128,EAN 128, GS1 Databar

2D: Datamatrix, QR code, PDF 417

Print Method

Direct Thermal

Printing Speed

114 mm/sec (33.75 LPS)

Printer Sensor

Low: No Out: Yes

Resolution

203 DPI

Flash Memory

8 MB

RAM

8 MB

Knife

Full and Partial cuts supported

Receipt-Columns

44/56

Paper Type

Direct Thermal Monochrome POS Grade(s)

Paper Roll Size (W x D)

3.1 in. X 3.26 in. (80 mm X 83 mm)

Paper Thickness Range

2.3 – 3.2 mil

QuickSpecs

HP Engage One Pro All-In-One system

Overview - After Market Options

c06986242 — DA – 16807 Worldwide — Version 2 — March 2, 2021

Page 70

Cash Drawers

1 connector can drive 2 cash drawers with separately purchased splitter cable (default configuration is connection to 1 cash drawer)

Mechanical

Dimensions (WxDxH)

4.4 in. X 5.2 in. X 4.06 in. (111.8 mm X 131.6 mm X 103 mm)

Weight

1.75lbs. (.793 kg) (printer only)

Color

Ebony Black or Ceramic White

Interface/Connection

Interface

RS232 (9-Pin Female to 9-Pin Female NULL modem cable) or standard USB 2.0 cable. 24V Cash Drawers support with RJ 12 interface

Power

External Power Supply

48 w

Operating Voltage

24 V

Full Load Current

2 A w/active power management system

Idle Current

25mA

Idle Power

0.6 W

Temperature Range

Operating

41°F to 95°F (5°C to 35°C) at 5% to 90% humidity

95°F to 122°F (35°C to 50°C) at 5% to 40% humidity

Non-operating

Transit range: -40°F to 140°F (-40°C to 60°C) 5% to 95% humidity Storage range: 14°F to 122°F (35°C to 50°C) at 5% to 90% humidity

Drivers

Windows, OPOS, JPOS

Operating System

Compatible with:

Windows

• Windows 10 IoT Enterprise for Retail (64-bit)

• Windows 10 Pro (64-bit)

Linux

• Red Hat/CentOS 6 and 7 (32-bit and 64 bit)

• Suse Linux® Enterprise POS 11 and 12 (32-bit and 64-bit)

• Ubuntu 14.04 LTS (32-bit and 64-bit)

Reliability

MCBF Print Mechanism: 29-million lines MCBF Knife Cuts: 1-million Print Head Life: 100 km

Agency Certifications

Flammability:

UL 94V-0

Safety:

UL 60950-1 2nd edition 2014-10-14; UL 62382-1 CAN/CSA C22.2 No. 60950-1-07, 2nd Edition, 2014-10 EN 60950-1:2006 + A1:2010+ A2:2013 IEC/EN 62382-1 2ND Edition CB Report: IEC 60950-1:2005 + A1:2009 +A2:2013 GB4943.1-2011-China IS 13252-1 (2010)/A1:2013/A2:2015

Radiated Emissions:

FCC 47CFR, Part 15, Class B ICES-003: 2012, Issue 6, Class B EN 55032:2015 Class B CISPR22 Class B VCCI: V-3/2015.04 Class B AS/NZS 3548

QuickSpecs

HP Engage One Pro All-In-One system

Overview - After Market Options

c06986242 — DA – 16807 Worldwide — Version 2 — March 2, 2021

Page 71

Immunity:

EN55024: 2010 EN61000-4-2 Level 4 (8kV direct, 15kV air discharge) EN61000-4-3: Level 3 (10V/m) EN61000-4-6 Level 3 (10V rms) EN61000-4-4: Level 3 (2kV mains, 1kV data lines) RoHS, WEEE

Kit contents

HP Engage One Serial USB Thermal Printer, starter paper roll

NOTE: This printer does not comply with fiscalization requirements that may be required in certain countries.

Cable kits sold separately: 1RM02AA – HP Engage One USB + Pwr Adapter 1RM03AA – HP Engage One Serial + Pwr Adapter BM477AA – HP PUSB Y Cable 1RM05AA – HP Engage One PUSB Pw only 3WV53AA – HP Engage One W Printer USB + Pwr Adpter 3WV54AA – HP Engage One W Printer Serial + Pwr Adptr 3WV55AA – HP Engage One W Printer PUSB Y Cable 5FW23AA – HP Engage One W Printer Serial + PUSB Pw only

NOTE: For cable routing configuration information refer to HP Engage One AiO System quick specs.

Service and Support

Ninety-day (90-90-90), one-year (1-1-1), and three-year (3-3-3) limited warranty delivers (ninety days/one year/three years) of on-site, next business day

2

service for parts and labor and complimentary limited technical support.

3

Three-year onsite and labor

are not available in all countries. Service offers terms up to 5 years by choosing an optional HP Care Pack.

1

To choose the right

level of service for your HP product, visit HP Care Pack Central: http://http://www.hp.com/go/cpc

NOTES:

1. Terms and conditions may vary by country. Certain restrictions and exclusions apply. Other warranty variations may be

offered in your region.

2. On-site service may be provided pursuant to a service contract between HP and an authorized HP third-party provider,

and is not available in certain countries. Global service response times are based on commercially reasonable best effort and may vary by country.

3. Technical support applies only to HP-configured Compaq and third-party HP-qualified hardware and software. 24 x 7

support may not be available in some countries.

Date of change:

Version History:

Description of change:

March 2, 2021

From v1 to v2

Changed

At A Glance and ENVIRONMENTAL & INDUSTRY sections

QuickSpecs

HP Engage One Pro All-In-One system

c06986242 — DA – 16807 Worldwide — Version 2 — March 2, 2021

Page 72

All rights reserved. Microsoft, Windows, Windows 7, Windows 8, and Windows 10 are registered trademarks or trademarks of Microsoft Corporation in the U.S. and/or other countries. Intel®, Celeron®, Pentium® and CoreTM are registered trademarks or trademarks of Intel Corporation in the U.S. and/or other countries. Linux is the registered trademark of Linus Torvalds in the U.S. and other countries. Bluetooth® is a registered trademark of its proprietor and used by HP Inc. under license. ENERGY STAR® is a registered trademark owned by the U.S. Environmental Protection Agency.

The information contained herein is subject to change without notice. The only warranties for HP products are set forth in the express limited warranty statements accompanying such products. Nothing herein should be construed as constituting an additional warranty. HP shall not be liable for technical or editorial errors or omissions contained herein.

HP Engage One Pro All-In-One system QuickSpecs

Specifications and Main Features

Frequently Asked Questions

User Manual

Overview

Features

Technical Specifications

Technical Specifications-Graphics

Technical Specifications-Memory

Technical Specifications-Storage

Technical Specifications – Networking and Communications

Technical Specifications – Audio/Multimedia

Technical Specifications – Integrated Camera

Technical Specifications – Power

Technical Specifications - Miscellaneous Features

Technical Specifications - Environmental

HP Engage One After Market Option Matrix

Overview - After Market Options

HP Engage One Pro All-In-One system
