QuickSpecs
HP Engage One Prime
Overview
c06208782 —DA— 16390 Worldwide — Version 5 — March 24, 2020
Page 1
HP Engage One Prime
and
HP Engage One Prime Plus
FRONT VIEW (Retail Associate side)
QuickSpecs
HP Engage One Prime
Overview
c06208782 —DA— 16390 Worldwide — Version 5 — March 24, 2020
Page 2
SKU Configurations
REAR VIEWS OF DIFFERENT SKUs (Customer side)
Ebony
Black
Customer Facing Display
Snapdragon 2.2GHz, 4GB RAM, 32GB Storage
Snapdragon 1.8GHz, 2GB RAM,16GB Storage
HP Engage One Prime
Colors
Ceramic
Customer Facing Display
HP Engage One Prime Plus
QuickSpecs
HP Engage One Prime
Overview
c06208782 —DA— 16390 Worldwide — Version 5 — March 24, 2020
Page 3
FRONT SIDE Overview
FRONT SIDE (Components)
1.
Rear-facing camera (can also work as a barcode scanner*)
6.
Power light
2
Rear-facing camera light
7.
Microphone
3.
Magnetic stripe reader light
8.
14-inch diagonal display panel (wide-aspect ratio); FHD
1920 x 1080 resolution Projected Capacitive Touch Screen
4.
Front-facing camera
9.
Speaker
5.
Magnetic stripe reader
*Requires software support
QuickSpecs
HP Engage One Prime
Overview
c06208782 —DA— 16390 Worldwide — Version 5 — March 24, 2020
Page 4
REAR SIDE Overview
REAR VIEW Components)
10.
Security Cable Slot
12.
USB 2.0 ports (2)
11.
USB-C™ ports (2)
13.
Customer-facing Display (CFD) - optional
QuickSpecs
HP Engage One Prime
Overview
c06208782 —DA— 16390 Worldwide — Version 5 — March 24, 2020
Page 5
BOTTOM SIDE Overview
BOTTOM VIEW Components)
14
Ports / cables receptacle
.
15
.
Rear View camera (can use used as a barcode scanner)*
.
*Requires software support
QuickSpecs
HP Engage One Prime
Overview
c06208782 —DA— 16390 Worldwide — Version 5 — March 24, 2020
Page 6
Component Breakdown
NFC reader
NFC is in the center of the display for badge scanning
Magnetic Stripe Reader
MSR is behind the top section of the display (badge authentication only*)
*Authentication software required and sold separately.
QuickSpecs
HP Engage One Prime
Overview
c06208782 —DA— 16390 Worldwide — Version 5 — March 24, 2020
Page 7
Camera based barcode scanner
Camera based barcode scanner* is behind the top corner of the display
*Appropriate software drivers required
QuickSpecs
HP Engage One Prime
Overview
c06208782 —DA— 16390 Worldwide — Version 5 — March 24, 2020
Page 8
At A Glance
• 2 choices of performance CPU , memory, storage)
o Engage One Prime: Qualcomm® Snapdragon APQ8053, 64 bit ARM Cortex A53 octa core processor (1.8 Ghz);, 2GB
memory, 16GB storage*
o Engage One Prime Plus: Qualcomm® Snapdragon APQ8053, 64-bit ARM Cortex-A53 Octa-core, 4GB memory,
32GB storage*
• 2 choices of colors
o Ebony Black
o Ceramic White
• Display: 14” diagonal Wide Aspect ratio; Full HD 1920 x 1080 Resolution, Anti-glare
• Customer Facing Display (optional): 5.5” diagonal Wide Aspect Ratio; Full HD 1920 x 1080 Resolution
• Operating System: Android™ 8.1 “Oreo”
• Peripheral options (can be purchased and installed separately):
o HP Engage One Prime I/O Dock
o HP Engage One Prime Printer
o HP Engage One Prime Barcode Scanner
o HP Engage One Prime Fingerprint Reader
o HP Engage One Prime iButton Reader
o HP Engage One Prime Cash Drawer
• ENERGY STAR® certified, EU Compliant, RoHS2 Compliant, EPEAT® Sliver
• Main unit: 45W USB Type C™ PD power adaptor, 87.8% efficient at 15V, active PFC
• I/O Dock: 120W Barrel type power adaptor, 88% efficient, active PFC
• Standard Warranty Options –1/1/1,1/1/0; Plus Optional Care Packs
• Software: Android™ 8.1
*For storage drives, GB = 1 billion bytes. Actual formatted capacy is less. Up to 7GB of disk is not user available.
NOTE: See important legal disclosures for all listed specs in their respective features sections.
QuickSpecs
HP Engage One All-In-One system
Standard and Configurable Components
c06208782 —DA— 16390 Worldwide — Version 5 — March 24, 2020
Page 9
PROCESSORS
Qualcomm® Snapdragon APQ8053, 64-bit ARM Cortex-A53 Octa-core, 1.8Ghz1
Qualcomm® Snapdragon APQ8053, 64-bit ARM Cortex-A53 Octa-core, 2.2Ghz
1
NOTE 1: Multicore is designed to improve performance of certain software products. Not all customers or software applications
will necessarily benefit from use of this technology. Performance and clock frequency will vary depending on application
workload and your hardware and software configurations. Qualcomm’s numbering is not a measurement of clock speed.
Memory/Storage
2G(LPDDR3)/16GB (eMMC)
4G(LPDDR3)/32GB (eMMC)
Customer Facing Display
Integrated 5.5" diagonal CFD(1920x1080 AMOLED panel (optional)
Colors
Ebony Black
Ceramic White
QuickSpecs
HP Engage One Prime
Standard and Configurable Components
c06208782 —DA— 16390 Worldwide — Version 5 — March 24, 2020
Page 10
MAIN DISPLAY
*,**
14" diagonal Full HD, Ultra Wide Viewing Angle Main Display
Touch Technology:
Projected Capacitive Touchscreen
Resolution
1920(H) x 1080(V)
Aspect Ratio
16:9
Max Color
262K
Brightness
Typical 220 nits (LCM)*
Contrast Ratio
Typical 700:1*
Pixel Pitch
161 um x 161 um
Viewing Angle
Horizontal 850, Vertical 850
Response rate
30ms
Backlight
LED
Surface treatment
Operating Temperature range
Anti-Glare
0 to 50°C
* Nits is the measure of the typical brightness of the panel as specified, prior to anti-glare coating
** All specifications represent the typical specifications provided by HP's component manufacturers; actual
performance may vary either higher or lower.
CUSTOMER FACING DISPLAY (Optional)
5.5" diagonal Full HD, Wide Viewing Angle Customer Facing Display
Display Technology:
AMOLED
Resolution
1920(H) x 1080(V)
Aspect Ratio
16:9
Max Color
16.7M
Brightness
Typical 420 nits
Contrast Ratio
Minimum 100K:1
Pixel Pitch
63.25 um x 63.25 um
Viewing Angle
All view
Response rate
1ms
Operating Temperature range
0 to 50°C
WIRELESS FUNCTION
Wireless LAN Standards1
IEEE 802.11a
IEEE 802.11b
IEEE 802.11g
IEEE 802.11n
Frequency Band
2.4Ghz/5Ghz
Bluetooth® Specification
V4.2
Frequency Band
2.4Ghz
QuickSpecs
HP Engage One Prime
Standard and Configurable Components
c06208782 —DA— 16390 Worldwide — Version 5 — March 24, 2020
Page 11
NFC (Integrated)
Integrated NFC solution supporting P2P and R/W working modes for Type A, B,
and F signals with NFC forum standard tags of type 1, type 2, type 3, and type 4.
NOTE 1: Wireless access point and internet service required and sold separately. Availability of public wireless access points limited.
Magnetic Stripe Reader
MSR Reader1
Integrated MSR reader, triple-track head, ISO 7811/7812/7813 Compliant, encryption
capable
NOTE 1: Internet access and MSR authorization software reuqried and sold separately.
NOTE 2: MSR configuration utility is not available for module.
Front Camera
Front camera
Integrated front camera (5M, FF)
Barcode Reader
Back camera
Integrated back camera (5M, FF) with flash LED
Acoustic functions
1 microphone
Integrated
1 speaker
Integrated, 1W, Embedded codec.
I/O Ports
USB-C™ port x2
Support PD (power & data), once either of USB-C™ port become PD power sink (15V/3A),
another port can be PD source (5V/0.9A, 5V/3A, 9V/3A).
USB 2.0 port x2
USB2.0(5V/0.5A)
QuickSpecs
HP Engage One Prime
Technical Specifications
c06208782 —DA— 16390 Worldwide — Version 5 — March 24, 2020
Page 12
POWER
Power Supply
45W, 87.8% efficient at 15V, active PFC
Operating Voltage Range
90V~265VAC
Rated Voltage Range
100V~240AC
Rated Line Frequency
50~60HZ
Operating Line Frequency Range
47~63HZ
Rated Input Current
<2.2A/120W, 1.4A/45W
Power Cord Length
2 Options:
(1) 1m for 120W power adaptor for HP Engage One Prime I/O Hub when it is attached
(2) 1m for 45W power adaptor for HP Engage One Prime when HP Engage One Prime I/O Hub
is detached.
Current Leakage (45W)
The total combined leakage current when measure in accordance with IEC 60950-1, 2nd
Edition shall not exceed 40 microamperes when tested at 250 VAC, 50 Hz in a normal
operating condition.
WEIGHTS & DIMENSIONS
HP Engage One Prime
Product Dimensions
330.2mm(W) x 419.1mm(D) x 127mm(H), 13inch(W) x 16.5inch(D) x 5inch(H)
Weight
5kg/ 10.8lb
HP Engage One Prime unit (Base Unit)
Product Dimensions
334mm(W) x 260mm(L) x 127mm(H), 13.15inch(W) x 10.24inch(L) x 5inch(H)
Dimension Note
Scanner
Product Dimensions
101.6mm(W) x 196.85mm(D) x 101.6mm(H), 4inch(W) x 7.75inch(D) x 4inch(H)
Weight
0.5kg/ 1lb
Printer
Product Dimensions
158.75mm(W) x 222.25mm(D) x 177.8mm(H), 6.25inch(W) x 8.75inch(D) x
7inch(H)
Weight
0.9kg/ 2lb
Packaging Carton (Base Unit)
Packaging Dimensions
408mm (L) X 325mm (D) X 220mm (H), 16.02inch(W) x 12.80inch(L) x 8.66inch(H)
QuickSpecs
HP Engage One Prime
Technical Specifications
c06208782 —DA— 16390 Worldwide — Version 5 — March 24, 2020
Page 13
MISCELLANEOUS FEATURES
Power LED behavior:
1. System is on, the LED is constant on.
2. System is off, the LED is off.
3. System is in sleep,the LED is breathing (fade-in for 3s and fade-out for 3s)
TEMPERATURE, HUMIDITY, ALTITUDE Specifications
Temperature
Operating
32°F to 95° F (0 to 35° C)
Non-operating
-22° to 149° F (-30°to 65° C)
Relative humidity
Operating
10 to 90%
Altitude
(unpressurized)
Operating
0 to 10,000 ft (3,048 m)
Non-operating
0 to 30,000 ft (9,144 m)
QuickSpecs
HP Engage One Prime
Technical Specifications
c06208782 —DA— 16390 Worldwide — Version 5 — March 24, 2020
Page 14
ENVIRONMENTAL & INDUSTRY
Environmental Data
Eco-Label Certifications &
declarations
This product has received or is in the process of being certified to the following approvals and
may be labeled with one or more of these marks:
• US ENERGY STAR®
• EPEAT® Sliver registered in the United States. See http://www.epeat.net for registration
status in your country. Search keyword generator on HP’s 3rd party option store for
solar generator accessories at www.hp.com/go/options.
System Configuration
The configuration used for the Energy Consumption for the Engage One Prime model is based on
a typically configured system.
Energy Consumption
(in accordance with US ENERGY
STAR® test method)
115VAC, 60Hz
230VAC, 50Hz
100VAC, 50Hz
Normal Operation (Short idle)
9.91 W
9.88 W
9.77 W
Normal Operation (Long idle)
3.93 W
3.90 W
3.88 W
Sleep
3.93 W
3.90 W
3.88 W
Off
0.49 W
0.53 W
0.49 W
NOTE: Energy efficiency data listed is for an ENERGY STAR® compliant product if offered within
the model family . HP computers marked with the ENERGY STAR® Logo are compliant with the
applicable U.S. Environmental Protection Agency (EPA) ENERGY STAR® specifications for
computers.
Heat Dissipation*
115VAC, 60Hz
230VAC, 50Hz
100VAC, 60Hz
Normal Operation (Short idle)
34 BTU/hr
34 BTU/hr
33 BTU/hr
Normal Operation (Long idle)
13 BTU/hr
13 BTU/hr
13 BTU/hr
Sleep
13 BTU/hr
13 BTU/hr
13 BTU/hr
Off
2 BTU/hr
2 BTU/hr
2 BTU/hr
*NOTE: Heat dissipation is calculated based on the measured watts, assuming the service level
is attained for one hour.
Declared Noise Emissions (in
accordance with ISO 7779 and
ISO 9296)
Sound Power
(LWAd, bels)
Sound Pressure
(LpAm, decibels)
Typically Configured – Idle
0
0
Fixed Disk – Random writes
0
0
QuickSpecs
HP Engage One Prime
Technical Specifications
c06208782 —DA— 16390 Worldwide — Version 5 — March 24, 2020
Page 15
Additional Information
• This product is in compliance with the Restrictions of Hazardous Substances (RoHS)
directive - 2011/65/EC.
• This HP product is designed to comply with the Waste Electrical and Electronic
Equipment WEEE Directive
1,2
.
• This product is in compliance with California Proposition 65 (State of California; Safe
Drinking Water and Toxic Enforcement Act of 1986).
• This product is in compliance with the IEEE 1680 (EPEAT) standard at the <Sliver> level,
see www.epeat.net
• Plastics parts weighing over 25 grams used in the product are marked per ISO11469 and
ISO1043.
This product is 96% recycle-able when properly disposed of at end of life.
1
Directive 2012/19/EU of the European Parliament and of the Council of 4 July 2012 on
waste electrical and electronic equipment (WEEE) (recast)
2
Directive 2002/96/EC of the European Parliament and of the Council of 27 January
2003 on waste electrical and electronic equipment (WEEE)
Packaging Materials
External:
PAPER/Paper
796 g
Internal:
PLASTIC/Polyethylene Expanded - EPE
172 g
PLASTIC/Polyethylene low density – LDPE
15 g
The EPE/LDP foam packaging material is made from 0% recycled content.
The paper packaging materials contains at least 90% recycled content.
Material Usage
This product does not contain any of the following substances in excess of regulatory limits
(refer to the HP General Specification for the Environment at
http://www.hp.com/hpinfo/globalcitizenship/environment/pdf/gse.pdf):
• Asbestos
• Certain Azo Colorants
• Certain Brominated Flame Retardants – may not be used as flame retardants in plastics
• Cadmium
• Chlorinated Hydrocarbons
• Chlorinated Paraffins
• Formaldehyde
• Halogenated Diphenyl Methanes
• Lead carbonates and sulfates
• Lead and Lead compounds
• Nickel – finishes must not be used on the external surface designed to be frequently
handled or carried by the user.
• Ozone Depleting Substances
• Polybrominated Biphenyls (PBBs)
• Polybrominated Biphenyl Ethers (PBBEs)
• Polybrominated Biphenyl Oxides (PBBOs)
• Polychlorinated Biphenyl (PCB)
• Polychlorinated Terphenyls (PCT)
• Polyvinyl Chloride (PVC) – except for wires and cables, and certain retail packaging has
been voluntarily removed from most applications.
• Radioactive Substances
• Tributyl Tin (TBT), Triphenyl Tin (TPT), Tributyl Tin Oxide (TBTO)
QuickSpecs
HP Engage One Prime
Technical Specifications
c06208782 —DA— 16390 Worldwide — Version 5 — March 24, 2020
Page 16
Packaging Usage
HP follows these guidelines to decrease the environmental impact of product packaging:
• Eliminate the use of heavy metals such as lead, chromium, mercury and cadmium in
packaging materials.
• Eliminate the use of ozone-depleting substances (ODS) in packaging materials.
• Design packaging materials for ease of disassembly.
• Maximize the use of post-consumer recycled content materials in packaging materials.
• Use readily recyclable packaging materials such as paper and corrugated materials.
• Reduce size and weight of packages to improve transportation fuel efficiency.
• Plastic packaging materials are marked according to ISO 11469 standards.
End-of-life Management and
Recycling
HP Inc. offers end-of-life HP product return and recycling programs in many geographic areas.
To recycle your product, please go to: http://www.hp.com/go/reuse-recycle or contact your
nearest HP sales office. Products returned to HP will be recycled, recovered or disposed of in a
responsible manner.
The EU WEEE Directive 2012/19/EU requires manufacturers to provide treatment information for
each product type for use by treatment facilities. This information (product disassembly
instructions) is posted on the HP Inc. web site at: http://www.hp.com/go/recyclers. These
instructions may be used by recyclers and other WEEE treatment facilities as well as HP OEM
customers who integrate and re-sell HP equipment.
HP Inc. Corporate
Environmental Information
For more information about HP’s commitment to the environment
Global Citizenship Report
http://www.hp.com/hpinfo/globalcitizenship/gcreport/index.html
Eco-label certifications
http://www8.hp.com/us/en/hp-information/environment/ecolabels.html
ISO 14001 certificates:
PC Product Design ISO 14001 certificate
and
HP Operations ISO 14001 certificate
SERVICE AND SUPPORT
1/1/0 + Advanced Exchange limited warranty delivers on-site, next business day
1,2
service for parts and labor and complimentary
limited technical support.3 Service offers terms up to 3 years by choosing an optional HP Care Service .4 To choose the right level
of service for your HP product, visit HP Care Pack Central: http://www.hp.com/go/cpc
NOTES:
1. Terms and conditions may vary by country. Certain restrictions and exclusions apply. Other warranty variations may be
offered in your region.
2. On-site service may be provided pursuant to a service contract between HP and an authorized HP third-party provider,
and is not available in certain countries. Global service response times are based on commercially reasonable best effort
and may vary by country.
3. Technical support applies only to HP-configured Compaq and third-party HP-qualified hardware and software. 24 x 7
support may not be available in some countries.
4. HP Care Services are optional. Service levels and response times for HP Care Services may vary depending on your
geographic location. Service starts on date of hardware purchase. Restrictions and limitations apply. For details, visit
http://www.hp.com/go/cpc. HP services are governed by the applicable HP terms and conditions of service provided or
indicated to Customer at the time of purchase. Customer may have additional statutory rights according to applicable
QuickSpecs
HP Engage One Prime
Technical Specifications
c06208782 —DA— 16390 Worldwide — Version 5 — March 24, 2020
Page 17
local laws, and such rights are not in any way affected by the HP terms and conditions of service or the HP Limited
Warranty provided with your HP Product
QuickSpecs
HP Engage One Prime
HP Engage One Prime Peripherals
c06208782 —DA— 16390 Worldwide — Version 5 — March 24, 2020
Page 18
HP Engage One Prime Receipt Printer
Model
HP Engage One Prime Receipt Printer
4VW55AA/AT
HP Engage One Prime White Receipt Printer
4VW61AA/AT
Print Method Direct Thermal
Printing Speed 90 mm/sec (max.)
Resolution 8 dots/mm (203 DPI)
Flash Memory 8 MB
RAM 8 MB
Knife Full and Partial cuts supported
Paper Type Thermal continuous paper, Thermal marked paper
Paper Roll Width 58mm (2.25”)
Paper Roll Diameter 51mm (max) (2.01”)
Paper Thickness Range 0.06mm~0.10mm thermal paper
Sensor Thermal Printhead Detection
Cover Detection
Paper Engaged
Cash Drawers Two cash drawers (RJ12)
Dimensions 96mm (diameter) x 119.5mm (height)
Weight 620g
Color Black/White
Interface USB Type-C™
Power Input 9V 4A
Operating Temperature -10°C to 40°C
Operating Humidity 20% to 90%
QuickSpecs
HP Engage One Prime
HP Engage One Prime Peripherals
c06208782 —DA— 16390 Worldwide — Version 5 — March 24, 2020
Page 19
Reliability MTBF 300,000 hrs
Printhead life 50km
Cutter life 500,000 times
Software JPOS supporting Android 8.1
QuickSpecs
HP Engage One Prime
HP Engage One Prime Peripherals
c06208782 —DA— 16390 Worldwide — Version 5 — March 24, 2020
Page 20
HP Engage One Prime Barcode Scanner
Models
HP Engage One Prime Barcode Scanner
4VW58AA/AT
HP Engage One Prime White Barcode Scanner
4VW64AA/AT
Scanner Type 2D Linear Imager
Light source White LED
Resolution
≥4 mil
Depth of Field Typical Performance *
Narrow Width Depth of Field
EAN-13 60mm-215mm (2.4in-8.5in) (13 mil)
QR Code 40mm-105mm (1.6in-4.1in) (15 mil)
Symbol Contrast 25% minimum reflectance
Roll (tilt) 360°
Pitch
± 45°
Skew
± 40°
1D decode symbologies
EAN-8
EAN-13
UPC-E
UPC-A
Code 128
UCC/EAN 128 I2Of5
ITF14
ITF6
Matrix 25
CodaBar Code
39
Code 93
ISSN ISBN
QuickSpecs
HP Engage One Prime
HP Engage One Prime Peripherals
c06208782 —DA— 16390 Worldwide — Version 5 — March 24, 2020
Page 21
Industrial 25
Standard 25
2D decode symbologies Plessey Code 11
MSI Plessey UCC/EAN
Composite GS1
Databar
China Post 25
Code 49
Code 16K
PDF417
QR Code Micro
QR Data
Matrix Aztec
Maxicode
Chinese Sensible Code
GM Code MicroPDF417
Code One
Postal decode symbologies USPS Postnet
Royal Mail KIX Post
Austrailian Postal
Mechanical
Dimensions (L x W x H) 145 x 101 x 68 mm (5.7 x 3.97 x 2.7 in)
Weight
115 g (4.1 oz)
Cable length 1.8 m (6.5 ft)
Color
Black
Interface/Connection
Interface
USB
Temperature
Operating
-4 to 140 °F (-20 to 60 °C)
Storage/transport
-40 to 158 °F (-40 to 70 °C)
Humidity (non-condensing) 5 ~ 95%
Power
Standby Current
58.6mA
Operating
165.8mA (typical), 170.2mA (max)
Drivers
Windows UBB HID-KB and OPOS & JPOS (via USB-COM mode drivers)
Reliability
Water Penetration Protection IP42
Drop ESD
1.2 m (3.2 ft)
±8kV (direct discharge)
±15kV (air discharge)
QuickSpecs
HP Engage One Prime
HP Engage One Prime Peripherals
c06208782 —DA— 16390 Worldwide — Version 5 — March 24, 2020
Page 22
Operating System
Compatible with: Windows 10 (32-
bit) Windows 10
(64-bit)
Windows 10 IoT
(32-bit)
Windows 10 IoT
(64-bit)
Windows 8.1 Professional
(32-bit) Windows 8.1
Professional (64-bit)
Windows Embedded 8.1
Windows 7 Business (64-bit)
Windows Embedded POS Ready 7 (64-bit)
Windows Embedded POS Ready 2009
Agency Certifications
FCC Part15, Class B, CE EMC Class B, IEC62471, RoHS
Option Kit Contents
HP Engage One Prime Barcode Scanner, Scanner Stand, USB Cable.
QuickSpecs
HP Engage One Prime
HP Engage One Prime Peripherals
c06208782 —DA— 16390 Worldwide — Version 5 — March 24, 2020
Page 23
HP Engage One Prime Fingerprint Reader
Models
HP Engage One Prime FPR
4VW57AA/AT
HP Engage One Prime White FPR
4VW63AA/AT
General
Scan Data
8-bit grayscale (256 levels of gray)
Pixel resolution
508 DPI
Scan capture area
18mm x 1280mm
Mechanical
Standalone Dimensions(LxWxH)
162 x 30 x 20.7 (mm) (6.38 x 1.18 x .81 in)
Attached Dimensions (LxWxH)
162x30 x29.2 (mm) (6.38 x 1.18 x 1.15 in)
Standalone Weight
79g (2.79 oz)
Attached Weight
116g (4.09 oz)
Color
Ebony Black or Ceramic White
Interface/Connection
Interface
USB 2.0
Power
Supply Voltage
5.0V ±5% supplied by USB
Supply Current Imaging Mode
80 mA @ 3.3V
Supply Current Sleep Mode
1350 uA @ 3.3V
Environmental
Temperature
- 20 C to + 70 C
Humidity
5% to 93% RH w/o condensation
Drivers
Windows
Operating Systems
Compatibility
Windows
Windows 10 IoT Enterprise for Retail 64-bit*,***
QuickSpecs
HP Engage One Prime
HP Engage One Prime Peripherals
c06208782 —DA— 16390 Worldwide — Version 5 — March 24, 2020
Page 24
Windows 10 Professional 64-bit*,***
Windows 8.1 Professional 64-bit**
Windows Industry 8.1 Pro Retail 64-bit**
Windows 7 Professional 64-bit**
Windows 7 Professional 32-bit**
Windows Embedded POSReady 7 64-bit**
Windows Embedded POSReady 7 32-bit**
Linux
Ubuntu 12.04
Ubuntu 13.04
Ubuntu 14.04
Reliability
Surface Coating
Scratch Resistant
Withstands more than 4 million rubs
Readability
More than 100,000 read/write cycle
More than 20 yrs data retention
Works well with dry, moist, or rough fingerprints
Security
Counterfeit Finger Rejection
Latent Print Rejection
Encryption Fingerprint Data
QuickSpecs
HP Engage One Prime
HP Engage One Prime Peripherals
c06208782 —DA— 16390 Worldwide — Version 5 — March 24, 2020
Page 25
HP Engage One Prime iButton Reader
Models
HP Engage One Prime iButton Reader 4VW56AA/AT
HP Engage One Prime White iButton Reader 4VW62AA/AT
Standalone Dimensions (LxWxH)
162x30x20.7mm (6.38x1.18x0.81in)
Standalone Weight
80g (2.82 oz)
Color
Ebony Black or Ceramic White
Interface
USB 2.0
Supply Voltage
5.0V+/- 5% supplied by USB
Supply Current
80mA@3.3V
Operating Temperature
-20C to 50C
Operating Humidity
5% to 93% RH w/o condensation
Operating Systems
Windows and Android compatible
iButton support format
DS1990A serial number iButton
Status LED Indiacator
Yes (Activated, Error, Connected)
Agency
WW
QuickSpecs
HP Engage One Prime
HP Engage One Peripherals
c06208782 —DA— 16390 Worldwide — Version 5 — March 24, 2020
Page 26
HP Engage One Prime I/O Hub
Models
HP Engage One Prime I/O Hub
4VW60AA/AT
HP Engage One Prime White I/O Hub
4VW66AA/AT
General
Ports
1 USB-C™ PD port dedicated for host platform (PD power source
up to 15V/3A)
1 USB-C™ PD port dedicated for peripheral (PD power source:
9V/3A,5V/3A, 5V/0.9A)
4 USB-A ports (USB 2.0)
1 Powered USB port (12V) combined with 1 USB-A port (USB2.0)
2 Powered RS232 ports (0/5/12V can be set in HP Engage One
Prime OS setting menu)
1 RJ12 port (24V/1A) for cash drawer
1 RJ45 Ethernet port (10/100/1000)
LED Behavior
When host is connected
On/off with host is on/off; breathing with host is breathing
When host is removed
On for 15 seconds then breathing
Power on without host
On for 15 seconds then breathing
When error occurs
Blinking
Weight
1.08lb (490g)
Dimension
55mm(W) x 220mm(L) x 26.4mm(H) (2.17inch x 8.66inch x
1.04inch)
Power adaptor
requirement
Rated power
120W, 19.50V +/-5%, 6.15A(HP 4.5mm Barrel type)
Temperature
Operating
32~95 °F (0~35 °C)
Non-operating
-22~149 °F (-30~+65 °C)
Relative humidity
Operating
10%~90% RH,
Altitude
Operating
10000 ft. (3048 m)
Non-operating
30000 ft. (9144 m)
QuickSpecs
HP Engage One Prime
HP Engage One Peripherals
c06208782 —DA— 16390 Worldwide — Version 5 — March 24, 2020
Page 27
Network manageability
Wake On Lan (WoL) is not supported with HP Engage One Prime or HP Engage One Prime Plus
Power Delivery (PD)
Support HP proprietary dynamic PD configuration when connecting with HP Engage One Prime
or HP Engage One Prime Plus
Option Kit Contents
HP Engage One Prime I/O Hub, Documentation
QuickSpecs
HP Engage One Prime
HP Engage One Peripherals
c06208782 —DA— 16390 Worldwide — Version 5 — March 24, 2020
Page 28
HP Engage One Prime Cash Drawer
Models
HP Engage One Prime Cash Drawer 4VW59AA/AT
HP Engage One Prime White Cash Drawer 4VW65AA/AT
Construction Robust Steel
Key Lock Keyed alike (#435)
Media Storage 1 media posting slot
Till Insert 5 bill/8 coin or 4 bill/8 coin
Lock Options Electronic open, manual open, deadlocked
Dimensions (L x W x H) 336 x 336 x 101mm
13.22 x 13.22 x 3.97 inches
Weight 5.0 kg (11 lb)
Color Black/White
Connection Interface RJ12/24V
Cable Length 1803 mm +/- 25.4mm (71” +/- 1”)
Operating 40°F to 105°F (5°C to 40°C)
Storage/Transport -40°F to 158°F (-40°C to 70°C)
Humidity (non-condensing) 10% to 95% relative humidity
QuickSpecs
HP Engage One Prime
HP Engage One Peripherals
c06208782 —DA— 16390 Worldwide — Version 5 — March 24, 2020
Page 29
Operating voltage 24VDC
Agency CE, WEEE
QuickSpecs
HP Engage One Prime
Cable Routing Configurations
c06208782 —DA— 16390 Worldwide — Version 5 — March 24, 2020
Page 30

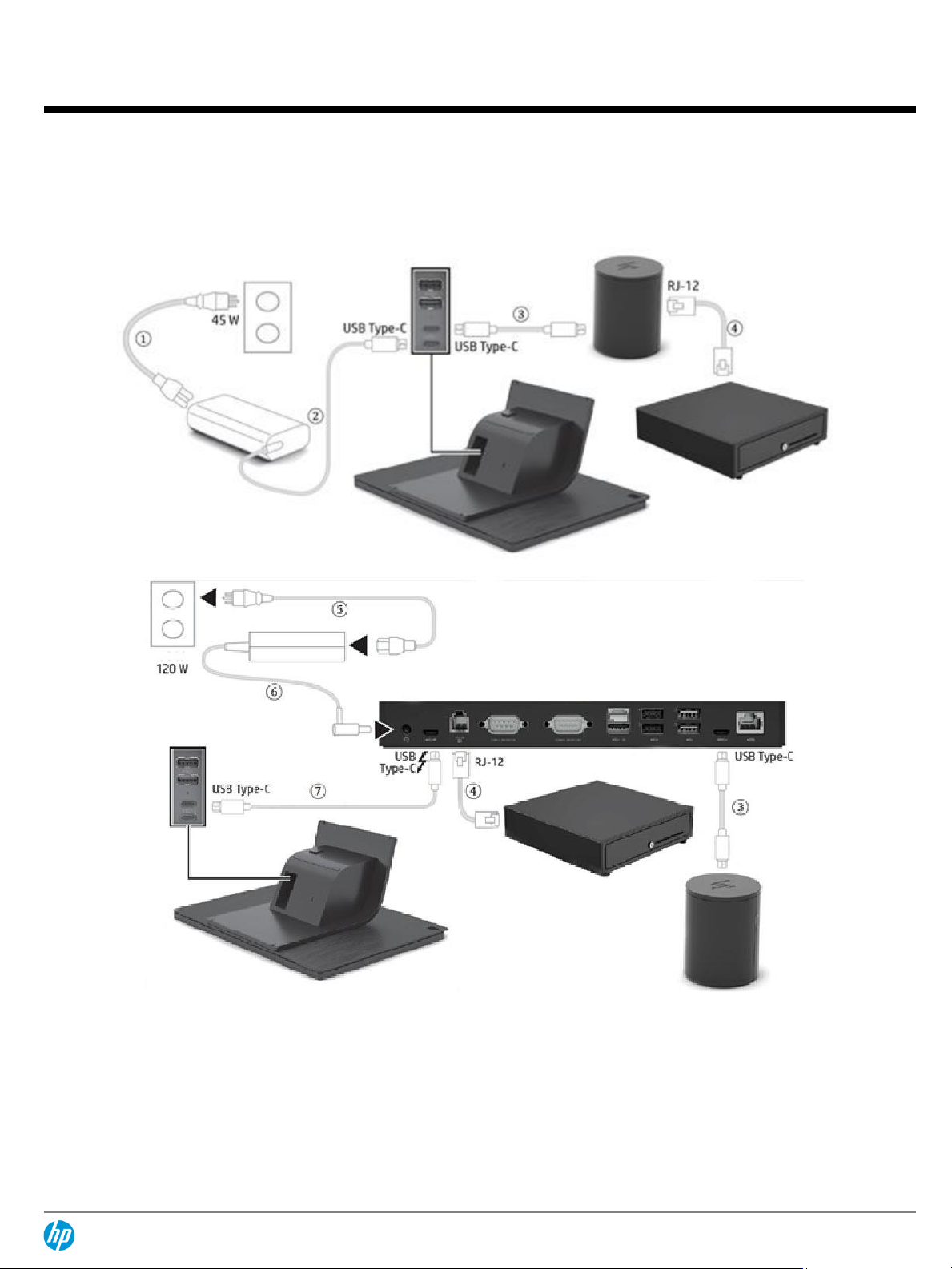

HP Engage One cable matrix
Cables
1.
45W USB-C™ power adapter cord
5.
120W barrel type power adaptor cord.
2.
45W USB-C™ power adaptor USB-C™ cable (captive
with the power adaptor)
6.
120W barrel type power adaptor power cable (4.5 mm
barrel)
3.
USB-C™ to USB-C™ thermal printer cable
7.
USB-C™ to USB-C™ cable for connecting HP Engage
One prime to HP Engage One Prime I/O Hub
QuickSpecs
HP Engage One Prime
Cable Routing Configurations
c06208782 —DA— 16390 Worldwide — Version 5 — March 24, 2020
Page 31
4.
RJ12 cash drawer cable ( for some HP cash drawer, it
might be captive with the cash drawer)
QuickSpecs
H HP Engage One Prime
HP Engage One Prime Peripherals Summary
c06208782 —DA— 16390 Worldwide — Version 5 — March 24, 2020
Page 32
AMO Kit
Black
4VW55AA/AT
HP Engage One Prime Receipt Printer
4VW56AA/AT
HP Engage One Prime iButton Reader
4VW57AA/AT
HP Engage One Prime FPR
AV only
HP Engage One Prime MSR
4VW58AA/AT
HP Engage One Essential Barcode Scanner
4VW59AA/AT
HP Engage One Prime Cash Drawer
4VW60AA/AT
HP Engage One Prime I/O Hub
White
4VW61AA/AT
HP Engage One Prime White Receipt Printer
4VW62AA/AT
HP Engage One Prime White iButton Reader
4VW63AA/AT
HP Engage One Prime White FPR
AV Only
HP Engage One Prime White MSR
4VW64AA/AT
HP Engage One Prime White Barcode Scanner
4VW65AA/AT
HP Engage One Prime White Cash Drawer
4VW66AA/AT
HP Engage One Prime White I/O Hub
QuickSpecs
HP Engage One Prime
Summary of Changes
c06208782 —DA— 16390 Worldwide — Version 5 — March 24, 2020
Page 33
Date of change:
Version History:
Description of change:
April 9, 2019
From v1 to v2
Changed
ENVIRONMENTAL & INDUSTRY section
September 13, 2019
From v2 to v3
Changed
WEIGHTS & DIMENSIONS section
February 10, 2020
From v3 to v4
Changed
Note 2 added in MSR section
MSR swapped into Magnetic Stripe Reader
Typo corrected in MSR section
March 24, 2020
From v4 to v5
Changed
Format page 6
QuickSpecs
HP Engage One Prime
c06208782 —DA— 16390 Worldwide — Version 5 — March 24, 2020
Page 34
Copyright © 2020 HP Development Company, L.P. The information contained herein is subject to change without notice. The only
warranties for HP products are set forth in the express limited warranty statements accompanying such products. Nothing herein
should be construed as constituting an additional warranty. HP shall not be liable for technical or editorial errors or omissions
contained herein.
Microsoft and Windowsare registered trademarks or trademarks of Microsoft Corporation in the U.S. and/or other countries. Linux
is the registered trademark of Linus Torvalds in the U.S. and other countries. Bluetooth® is a registered trademark of its proprietor
and used by HP Inc. under license. ENERGY STAR® is a registered trademark owned by the U.S. Environmental Protection Agency.
Google and Android are trademarks of Google LLC. USB Type-C™ and USB-C™ are trademarks of USB Implementers Forum.
Loading...
