HP DesignJet 500 User Manual 2

DesignJet 500 (42-inch)

HP Parts Reference Guide™

www.hp.com/go/hpparts

Carriage Drive Parts

Belt

C7770-60014 Carriage Belt - Drives the carriage assembly (42-inch)

Bracket/Guide

C7769-60170 Left cutter guide bracket and left encoder holder kit

Cable Kit

C7770-60274 Carriage assembly trailing cable kit - Includes installation instructions, trailing cables, mounting clips, and a ferrite -

Cables have 30-pin (M) edge connectors - 2.0m (6.5ft) long - For 42-inch models

Carriage

C7769-60272 Printhead carriage assembly - Includes carriage, bushings, pen latches, carriage position sensor, and line sensor

Motor

C7769-60146 Carriage (scan-axis) motor assembly - Includes cable

Strip

C7770-60013 Encoder strip (42-inch) - Connects from Left to Right Side of Printer

Tensioner

C7769-60176 Belt tensioner kit - Keeps carriage belt tight - Includes pulley and pulley mount bracket

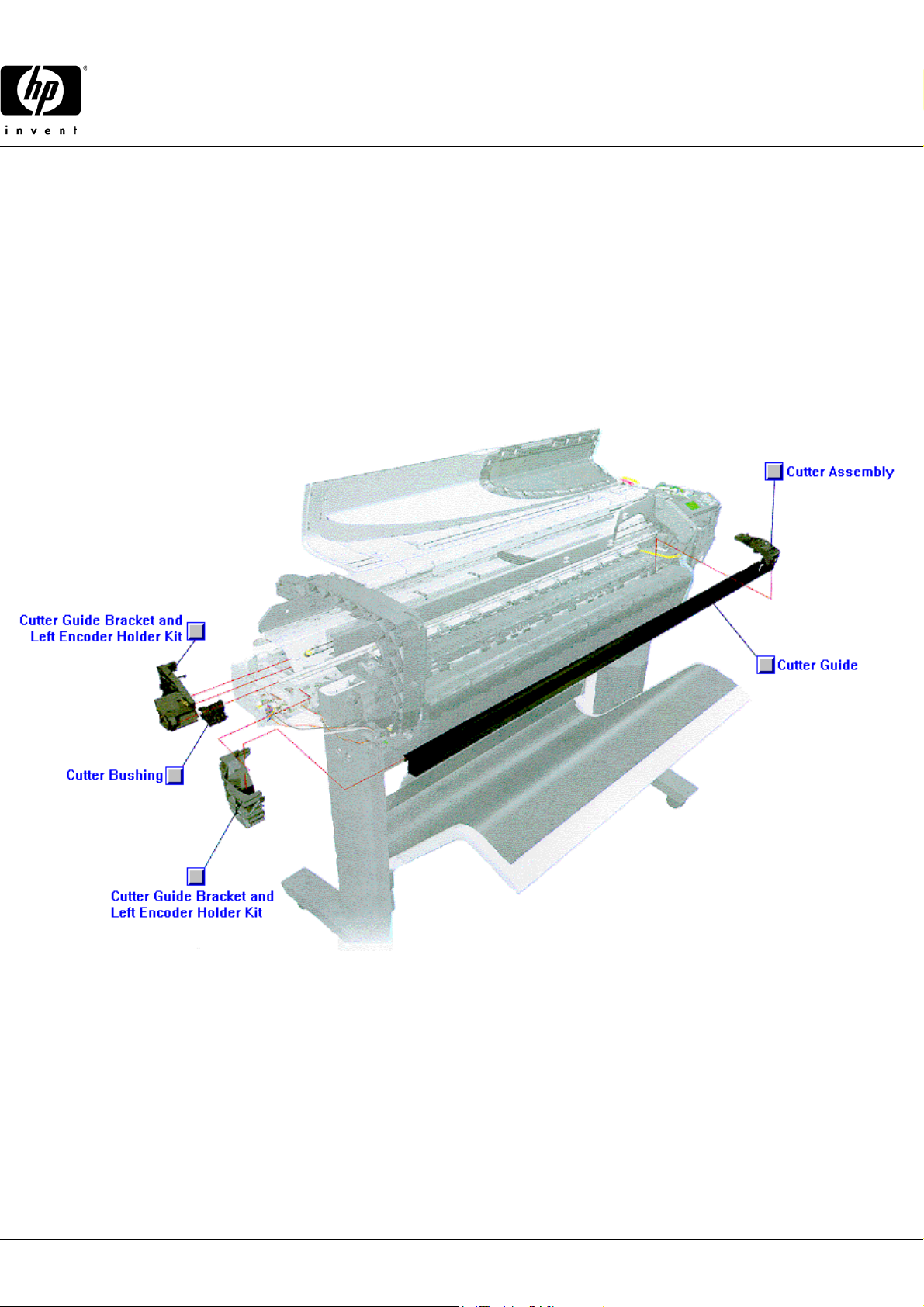

Cutter Assembly Parts

Bracket/Guide

C7769-60170 Left cutter guide bracket and left encoder holder kit

Bushing

C7769-60169 Cutter bushing

Cutter

C7769-60163 Cutter assembly

Guide

C7770-60017 Cutter guide - Long Rail Installed Near the Pinch-Wheels

Electronic Accessories

Cable (Interface)

8120-8485 Universal Serial Bus (USB) interface cable - Type 'A' connector to type 'B' connector, 1.8m (6.0 ft) long C2392A Universal serial bus (USB) interface cable - Type 'A' connector to type 'B' connector - 5.0m (16ft) long

Interface (Product)

J3110A Ethernet 10Base-T (RJ-45) EIO network internal print server PC board

J3111A Ethernet 10Base-T/10Base2 and LocalTalk (RJ-45, BNC, LocalTalk) EIO network PCA

J3112A JetDirect 600N token ring LAN interface board - DB-9 and RJ-45 connectors

NO LONGER SUPPLIED

J3113A JetDirect 600N internal print server (10Base-T and 100Base-TX) LAN interface board - Plugs into peripheral EIO slot

J4167A JetDirect 610N token ring LAN interface board - DB-9 and RJ-45 connectors

J4169A JetDirect 610N internal print server (10Base-T and 100Base-TX) LAN interface board - Plugs into peripheral EIO slot -

Has a RJ-45 connector - Comes with software on CD-ROM and manual

J6057A JetDirect 615N internal print server (10Base-T and 100Base-TX) LAN interface board - Plugs into peripheral EIO slot -

Has a RJ-45 connector - Comes with software on CD-ROM and manual

J6057AR JetDirect 615N internal print server (10Base-T and 100Base-TX) LAN interface board - Plugs into peripheral EIO slot -

Has a RJ-45 connector - Comes with software on CD-ROM and manual

Memory (Product)

C2387A 64MB SO-DIMM memory module

C2388A 128MB SO-DIMM memory module

DesignJet 500 (42-inch)

HP Parts Reference Guide™

www.hp.com/go/hpparts

Electronic Accessories

PC Board (Interface)

J3110-69001 JetDirect 600N EIO internal print server 10Base-T LAN interface board - Has one RJ-45 connector - (J3110A) - NOTE:

EIO Interface Boards are NOT Interchangeable with MIO Boards

J6057-69001 New Part for J3110-69001

J3111-69001 JetDirect 600N EIO internal print server 10Base-T, 10BASE-2, and LocalTalk LAN interface board - Has one RJ-45,

BNC, and 8-pin DIN connector - (J3111A) - NOTE: EIO interface boards are NOT interchangeable with MIO boards REQUIRES RETURN OF DEFECTIVE PART

J3111-61001 New Part for J3111-69001

J3112-69001 JetDirect 600N EIO internal print server token ring LAN interface board - Has one RJ-45 and DB-9 connector

J4167-69001 New Part for J3112-69001

J3113-69001 JetDirect 600N EIO internal print server 10Base-T and 100Base-T LAN interface board - Has one RJ-45 connector

J4169-69001 JetDirect 610N internal print server 10Base-T and 100Base-T LAN interface board - Has one RJ-45 connector

J6057-69001 New Part for J4169-69001

Upgrade Kit

C7772A Formatter upgrade kit - Adds HP-GL/2 and RTL support and a slot for an additional memory module - Plugs into an EIO

card slot

Electronics/Power Supply

Cable Kit

C7770-60267 Ribbon cable kit - Includes installation instructions and ribbon cable with ferrite - Cable has 40 pin (F) connectors - 2.0m

(6.5ft) long

Control Panel

C7769-60161 Control panel assembly - Includes ribbon cable and english overlay marked with 'Menu', 'Back', 'Enter', 'Cancel', and

'Form feed and cut'

Fan

C7769-60150 Vacuum fan assembly - Installed under the main printer chassis

Memory (DIMM)

C7769-60244 64MB SO-DIMM memory module - Can be Installed ONLY into the Formatter Board

C7769-60245 128MB SO-DIMM memory module - Can be Installed ONLY into the Formatter Board

Module

C7779-69144 Electronics module - Contains main logic board, connectors for plug-in cards, connector for parallel interface cable,

connector for USB cable, and cooling fan REQUIRES RETURN OF DEFECTIVE PART

C7779-60144 New Part for C7779-69144

PC Board

C7769-60173 Interconnect PC board - Installed in right-side of printer

C7769-69260 HP-GL/2 and RTL formatter PC board

REQUIRES RETURN OF DEFECTIVE PART

C7769-60260 New Part for C7769-69260

PC Board (Interface)

J3113-69001 JetDirect 600N EIO internal print server 10Base-T and 100Base-T LAN interface board - Has one RJ-45 connector

Power Cord

8120-0698 Power cord (Black) - 18 AWG, 2.3m (7.5ft) long - Has straight (F) receptacle (For 220V/240V in the USA and Canada) 8120-1351 Power cord (Mint Gray) - 17 AWG, 2.3m (7.5ft) long - Has straight (F) receptacle (For 240V in the UK, Hong Kong,

Singapore, Malaysia, and Brunei)

8120-1369 Power cord (Mint Gray) - 17 AWG, 2.0m (6.6ft) long - Has straight (F) receptacle (For 240V in Australia, New Zealand,

and China)

8120-1378 Power cord (Jade Gray) - 18 AWG, 2.3m (7.5ft) long - Has straight (F) receptacle (For 120V in USA, Canada, Latin

America, Korea, Taiwan, Thailand, Spain, Brazil, and Vietnam)

DesignJet 500 (42-inch)

HP Parts Reference Guide™

www.hp.com/go/hpparts

Electronics/Power Supply

Power Cord

8120-1689 Power cord (Mint Gray) - 17 AWG, 2.0m (6.6ft) long - Has straight (F) receptacle (For 220V in Europe, Bangladesh,

Indonesia, Pakistan, Burma, Sri Lanka, and Vietnam) 8120-2104 Power cord (Mint Gray) - 2.0m (6.6ft) long - Has straight (F) receptacle (For 220V in Switzerland) 8120-2956 Power cord (Mint Gray) - 2.0m (6.6ft) long - Has straight (F) receptacle (For 220V in Denmark) 8120-4211 Power cord (Mint Gray) - 17 AWG, 2.0m (6.6ft) long - Has straight (F) receptacle (For 240V in South Africa and India)

Power Supply

C7769-60145 Power supply assembly - Includes power switch

Sensor

C7769-60168 Media sensor - Installed in the front of the rear platen

C7769-60172 Drive roller encoder sensor - Installed on left end of paper drive roller C7769-60194 Pincharm sensor - Installed in right front of print chassis

Service Station

C7769-60149 Service station - Includes wipers, pen caps, and the right hand spittoon - Installed in Right Side of Printer

Optional Interfaces

Power Cord

8120-1351 Power cord (Mint Gray) - 17 AWG, 2.3m (7.5ft) long - Has straight (F) receptacle (For 240V in the UK, Hong Kong,

Singapore, Malaysia, and Brunei) 8120-1369 Power cord (Mint Gray) - 17 AWG, 2.0m (6.6ft) long - Has straight (F) receptacle (For 240V in Australia, New Zealand,

and China) 8120-1378 Power cord (Jade Gray) - 18 AWG, 2.3m (7.5ft) long - Has straight (F) receptacle (For 120V in USA, Canada, Latin

America, Korea, Taiwan, Thailand, Spain, Brazil, and Vietnam) 8120-1689 Power cord (Mint Gray) - 17 AWG, 2.0m (6.6ft) long - Has straight (F) receptacle (For 220V in Europe, Bangladesh,

Other Accessories

CD-ROM (Support)

C7769-90066 DesignJet support CD ROM - Version A.04.01 - Has product information, user's manuals, service manuals, diagnostic

software, test drawings, newsletters, and service notes C7769-90221 DesignJet 500/800 series interactive support CD-ROM

Cartridge

C4844-60053 No. 10 High Capacity Black Ink Cartridge (Holds 69ml of Ink) C4844A No. 10 high capacity Black ink cartridge (holds 69ml of ink) - Prints approximately 1400 pages at 5% printing density

(USA) C4844AA No.10 high capacity Black ink cartridge (holds 69ml of ink) - Prints approximately 1400 pages at 5% printing density (for

Asia/Pacific) C4844AE No.10 high capacity Black ink cartridge (holds 69ml of ink) - Prints approximately 1400 pages at 5% printing density (for

Europe) C4844AL No.10 high capacity Black ink cartridge (holds 69ml of ink) - Prints approximately 1400 pages at 5% printing density (for

Latin America) C4911-61002 No.82 standard capacity cyan ink cartridge (69ml) C4911A No.82 standard capacity cyan ink cartridge (69ml ink) C4912-61003 No.82 standard capacity magenta ink cartridge (69ml) C4912A No.82 standard capacity magenta ink cartridge (69ml ink) C4913-61003 No.82 standard capacity yellow ink cartridge (69ml) C4913A No.82 standard capacity yellow ink cartridge (69ml)

DesignJet 500 (42-inch)

HP Parts Reference Guide™

www.hp.com/go/hpparts

Other Accessories

Lubricant

6040-0854 Synthetic Oil (1/2oz Plastic Bottle - for lubricating the front and rear slider rods

Printhead

C4810-60066 No. 11 Black Ink Printhead C4810A No. 11 Black ink printhead C4810-60067 No.11 cyan ink printhead C4811A No. 11 Cyan ink printhead C4812-60005 No.11 magenta ink printhead C4812A No. 11 Magenta ink printhead C4813-60004 No.11 yellow ink printhead C4813A No. 11 Yellow ink printhead

Return Kit

5183-5269 Return kit with box and instructions - For returning defective TIJ 3.0 printheads covered under the CREW program

Other External Parts

Cover

C7769-60158 Left end cover and EIO cover (Gray) C7769-60159 Right end cover (Gray) C7770-60154 Top cover assembly (Gray)

Deflector Kit

C7769-60283 Media deflector kit - Kit includes 3 deflectors - Installed in front of pinch-wheels - Kit Includes 3 Deflectors

Overlay

C7769-60111 Front panel overlay (English) C7769-60112 Front panel overlay (Korean) C7769-60113 Front panel overlay (Taiwanese) C7769-60114 Front panel overlay (German) C7769-60115 Front panel overlay (French) C7769-60116 Front panel overlay (Spanish) C7769-60117 Front panel overlay (Italian) C7769-60118 Front panel overlay (Japanese) C7769-60119 Front panel overlay (Portuguese) C7769-60120 Front panel overlay (Chinese)

Platen

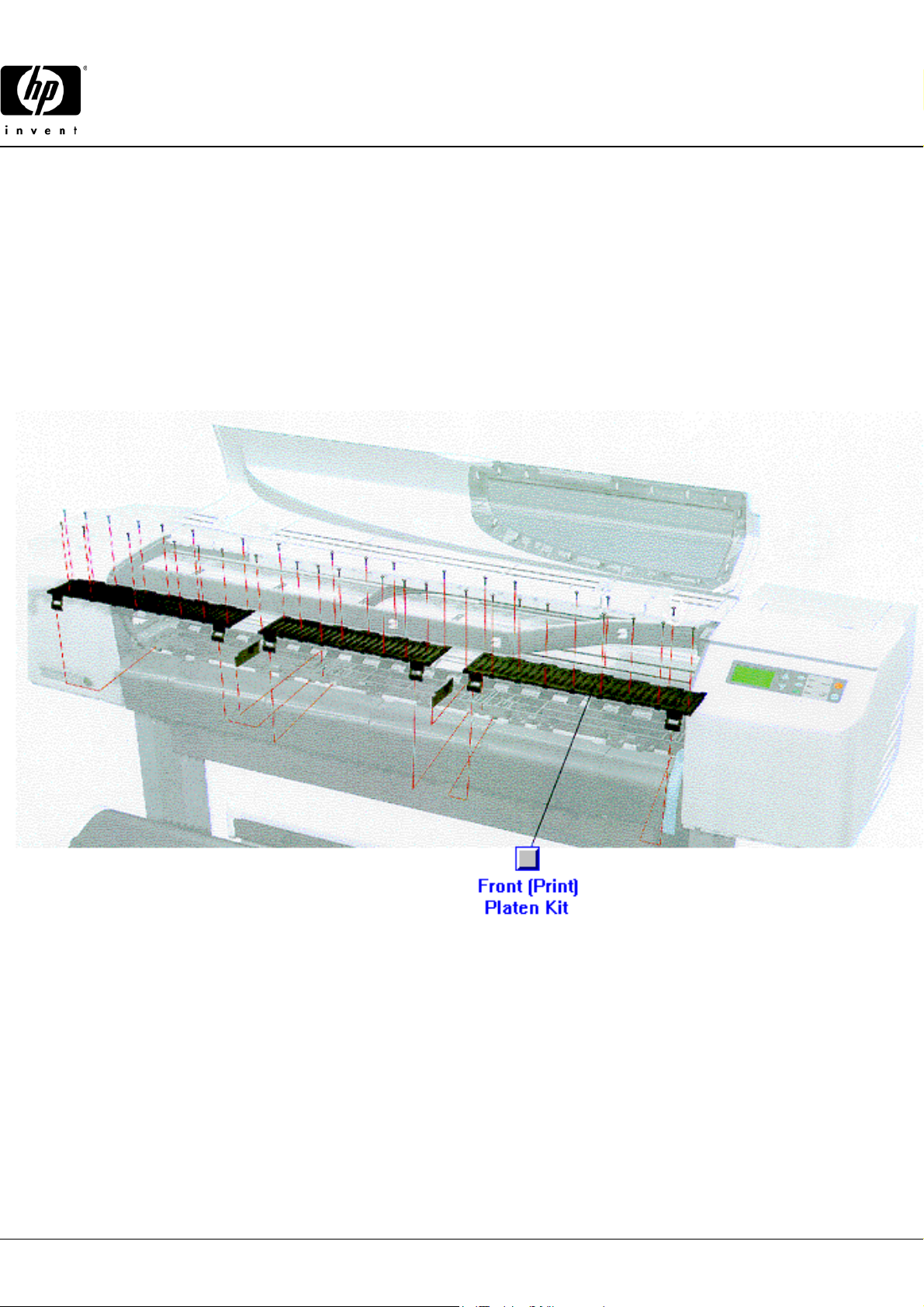

C7769-60174 Front Platen Kit - Includes platens for both the 24 inch and the 42 inch models

C7770-60155 Back Platen Assembly - Curved cover/guide that is installed below the paper drive roller (42-inch)

Trim Kit

C7769-60160 Trim kit - Installed between the main printer chassis and the left or right end covers (4 items in kit)

Other Internal Parts

Bracket

C7769-60156 Service Station Bracket - Installed on right-side of service station

Cover

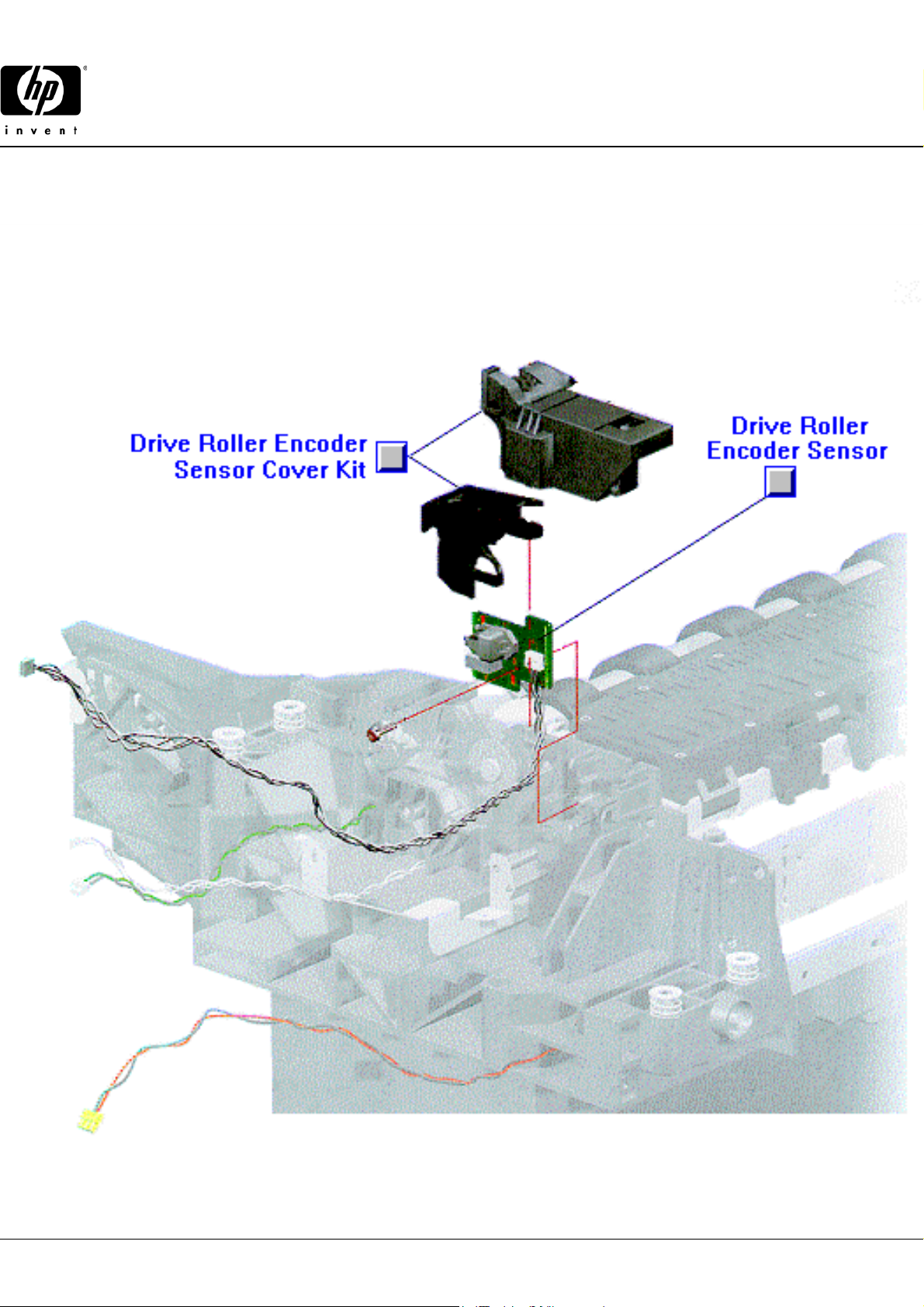

C7769-60171 Cover kit for drive roller encoder sensor

Ink Supply Station

C7769-60148 Ink Supply Station (ISS) - Includes ink pump motor, pump sensor, and out-of-ink sensors

DesignJet 500 (42-inch)

HP Parts Reference Guide™

www.hp.com/go/hpparts

Other Internal Parts

Ink Tubes Assembly

C7770-60251 Ink tubes assembly - Includes 4 ink tubes complete with hardware assemblies at both ends (Carriage crane and ink

supply station crane), and 4 setup pens

Printhead

C7769-60164 Setup Printhead kit - Used to prime the ink tubes - Includes 4 setup printheads

Service Station

C7769-60149 Service station - Includes wipers, pen caps, and the right hand spittoon - Installed in Right Side of Printer

Spittoon

C7769-60165 Left spittoon assembly - Contains absorbers which hold excess ink from printheads

Paper Drive Parts

Gear Assembly

175

C7769-60177 Paper drive transmission gear kit - Includes 2 gears used to drive the paper drive roller

Lifter

C7770-60015 Pincharm lift mechanism - Includes cam (a long bar) , cam bushings, pinch arm lever, pinch arm lever bushing

Motor

C7769-60152 Paper axis motor assembly - Includes cables

Pincharm

C7769-60175 Pincharm assembly with wheels

Roller

179

C7770-60260 Paper drive roller kit - Includes roller assembly, bushings, gear on roller, transmission gear kit, encoder disc, end thrust

(Axial) spring, lint free cloth, rubber glove, and instruction sheets - For 42-inch model

Paper and Other Media

Canvas

Q1718A Canvas Paper (140 gsm) - 91.4cm (36in) x 10.7m (35ft) (USA) Q1724A Canvas Paper (180 gsm) - 91.4cm (36in) x 10.7m (35ft) (USA) C6771A Studio canvas (368 gsm) - 91.4cm (36in) x 10.7m (35ft) roll - For regular ink or UV resistant ink

Film (Clear)

C3876A Clear film (4 mil) - 61cm (24in) x 22.9m (75ft) roll C3875A Clear film (4 mil) - 91.4cm (36in) x 22.9m (75ft) roll

Film (Matte)

Q1736A Polyester Film White Matte - 91.4cm (36in) x 15.2m (50ft) (USA) 51642A Polyester matte film - 61cm (24in) x 36.6m (120ft) roll 51642B Polyester matte film - 91.4cm (36in) x 36.6m (120ft) roll

Paper

C7923A Basic Heavyweight Paper - 61cm (24in) x 30.5m (100ft) (USA and Asia/Pacific) C7924A Basic Heavyweight Paper - 91.4cm (36in) x 30.5m (100ft) (USA and Asia/Pacific) C7925A Basic Heavyweight Paper - 106.7cm (42in) x 30.5m (100ft) (USA and Asia/Pacific) C7929A Super Heavyweight Paper - 61cm (24in) x 22.9m (75ft) (USA and Asia/Pacific) C7930A Super Heavyweight Paper - 91.4cm (36in) x 22.9m (75ft) (USA and Asia/Pacific) C7931A Super Heavyweight Paper - 106.7cm (42in) x 22.9m (75ft) (USA) Q1703A Fine Art Aquarella paper - 91.4cm (36in) x 10.7m (35ft) roll (USA) Q1706A Fine Art Vanilla paper - 91.4cm (36in) x 10.7m (35ft) (USA) Q1709A Fine Art Cream paper - 91.4cm (36in) x 10.7m (35ft) roll (USA) Q1712A Fine Art Ice Blue paper - 91.4cm (36in) x 10.7m (35ft) (USA) Q1715A Fine Art Sahara paper - 91.4cm (36in) x 10.7m (35ft) roll (USA)
