Hellwig 6911 User Manual

559-734-7451 800-367-5480 FAX [phone]

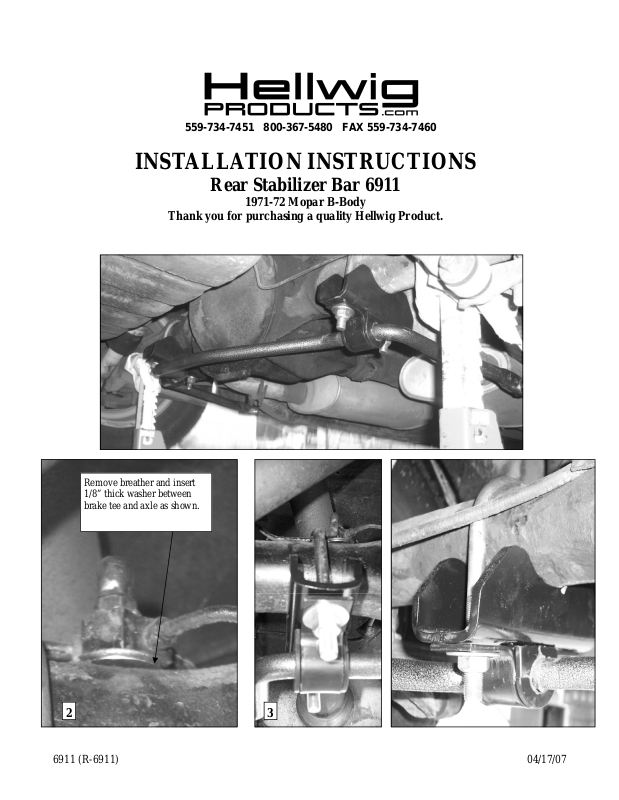

INSTALLATION INSTRUCTIONS

Rear Stabilizer Bar 6911

1971-72 Mopar B-Body

Thank you for purchasing a quality Hellwig Product.

Remove breather and insert
1/8” thick washer between
brake tee and axle as shown.

2

6911 (R-6911) 04/17/07

3

559-734-7451 800-367-5480 FAX [phone]

Spacer for brake line clearance

Bottom of sway bar arm to be even with bot­tom of subframe.

4

TORQUE TABLE
Bolt Size 3/8”— 35 ft lbs * Bolt Size 7/16”— 45 ft lbs* Bolt Size 1/2”—75 ft lbs *Bolt Size 9/16”— 90 ft lbs

Driver’s Side shown

5

SAFETY: BEFORE BEGINNING INSTALLATION BE SURE TO SET THE PARKING BRAKE AND
CHOCK THE WHEELS.

NOTE: TO EASE INSTALLATION AND PROPERLY ADJUST THE BAR, THE WEIGHT OF THE VEHI­CLE MUST BE ON THE SUSPENSION AS IF DRIVING DOWN THE ROAD. DO NOT RAISE THE VEHI­CLE BY THE FRAME.

NOTE: THIS KIT REQUIRES DRILLING THE FRAME RAIL AND POSSIBLE RELOCATION OF FUEL
AND BRAKE LINES. INSTALLER MUST ENSURE THAT THE SWAY BAR KIT WILL NOT INTER­FERE WITH ANY FUEL OR BRAKE LINES OR HOSES.

IMPORTANT NOTE: SWAY BAR END LINKS MUST BE ATTACHED ON OUTER
HOLE PRIOR TO INITIAL USE. SEE PHOTO 12.

1. Lubricate the D shaped bushings and place them onto the straight areas of the bar on each side of the
center hump as close to the outside bend as possible.

2. 1970 models only. Remove the breather vent bolt from axle. Place spacer washer under brake line tee
and re attach vent bolt as shown in PHOTO 2. This will provide adequate room for the axle u-bolts to
be placed under the brake lines.

3. Hold bar up to the axle and locate the position on the axle tubes to mount the u-bolts. Be sure to put the
U-Bolts Under Any Brake Lines, Wires or Hoses on the Axle to Avoid Any Possible Damage. The

threads of the U-Bolts will point down. See PHOTO 3.

6911 (R-6911) 04/17/07

559-734-7451 800-367-5480 FAX [phone]

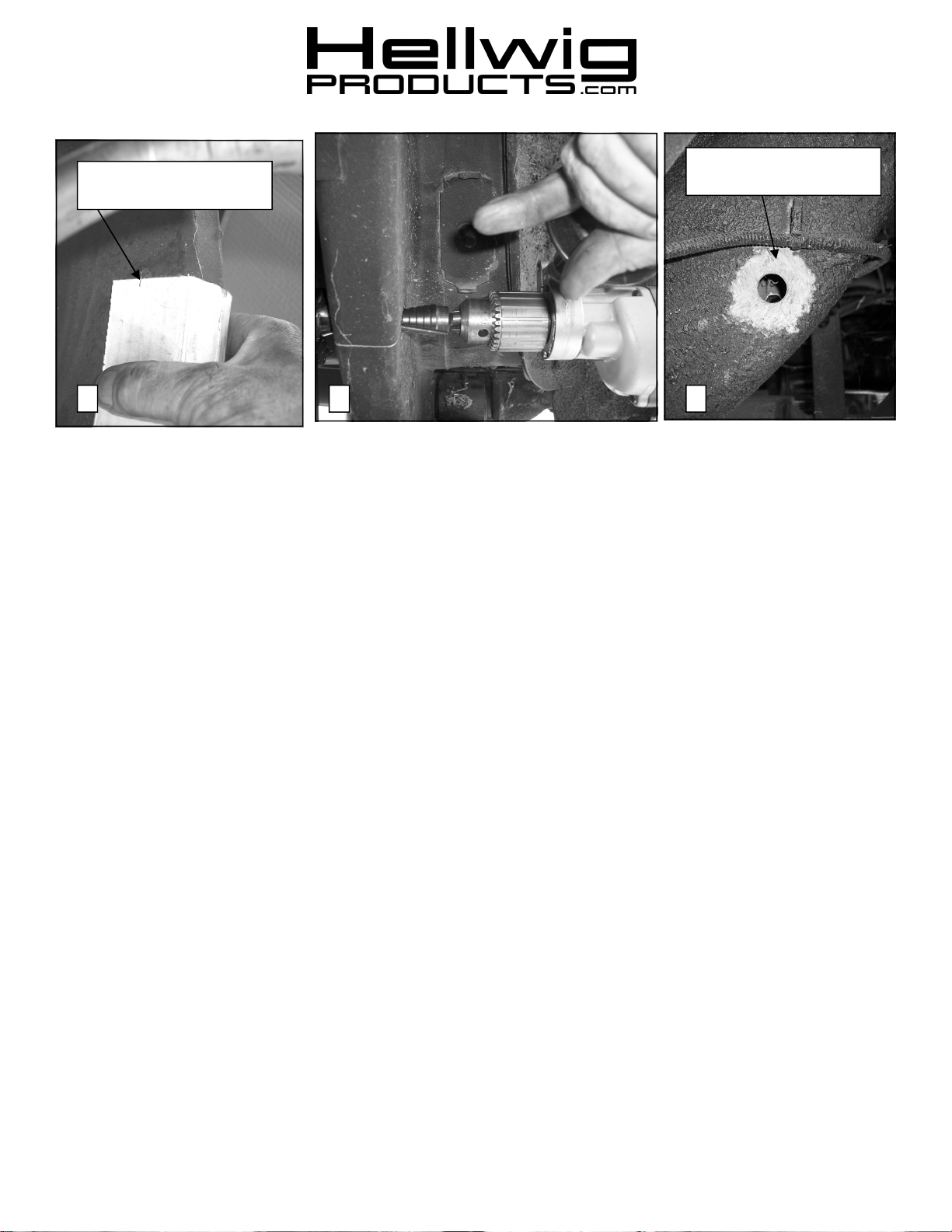

Mark hole location and trans­fer to outer rail..

6

7 8

Remove undercoating where
large washer contacts frame.

4. Place the saddle brackets onto the U-Bolts on the axle tubes. Place the U-Plates over the D shaped
bushings on the bar and attach the bar to the U-Bolts and saddle brackets with the flat washers and
nuts provided. LEAVE LOOSE AT THIS TIME to allow for adjustment later. See PHOTO 3.

6. Position sway bar on axle so that it clears all frame mounted components including fuel tanks, brake
lines, fuel lines, etc. Sway bar can be rotated back and forth on axle to maximize clearance.

7. Assemble end links by inserting hourglass bushings and then inner sleeves into end link loops.
Fully lubricate bushings and sleeves before installation.

8. Attach end links to the center hole of the sway bar as shown in photo 4 using a 7/16-20 X 2-3/4”
bolt and washers. The thick spacer is used on driver’s side end link only to provide brake cable
clearance. Align end links for best fit as shown in PHOTO 4. IMPORTANT NOTE – Center

hole position is only for determining hole location. The end link must be moved to the outer
hole prior to initial use.

9. The end links should be located as shown in PHOTO 4 and 5 so that the arms of the sway bar are
even with the bottom of the subframe. When satisfied with location of sway bar and end links, mark
hole location for end links on subframe.

10. Prepare to jack up vehicle by placing wheel chocks on the front wheels. After the rear of the vehi­cle has been raised, support frame on jack stands and remove rear wheels. Make sure end link

hole location has been marked before raising vehicle as hole location must be determined with
the full weight of the vehicle on the suspension.

11. Transfer hole location to outer edge of subframe rail. A piece of card board can be used by marking
the location of the hole on the cardboard and transferring the location to the outer rail. Drawing a
line on the subframe square to the subframe rails will keep the hole location square. See PHOTO
6,7,&8.

12. Review end link mounting detail before drilling holes. BEFORE DRILLING ANY HOLES IN

THE RAIL—RELOCATE AND PROTECT ANY FUEL OR BRAKE LINES THAT MAY
INTERFERE WITH THE DRILL BIT OR SWAY BAR INSTALLATION.

13. Drill a 15/32 (.468) hole through BOTH walls of the subframe. Make sure holes are square to one
another when drilling holes. It is easiest to drill through the outer wall first and use a transfer punch
to mark location on inner wall of subframe.

14. Drill an 11/16 (.688) hole through OUTER wall of subframe ONLY. See photo 7. A step drill
works wellfor this application. Do not use a hole saw as the hole must be a close fit to the spacer
tube.

6911 (R-6911) 04/17/07

559-734-7451 800-367-5480 FAX [phone]

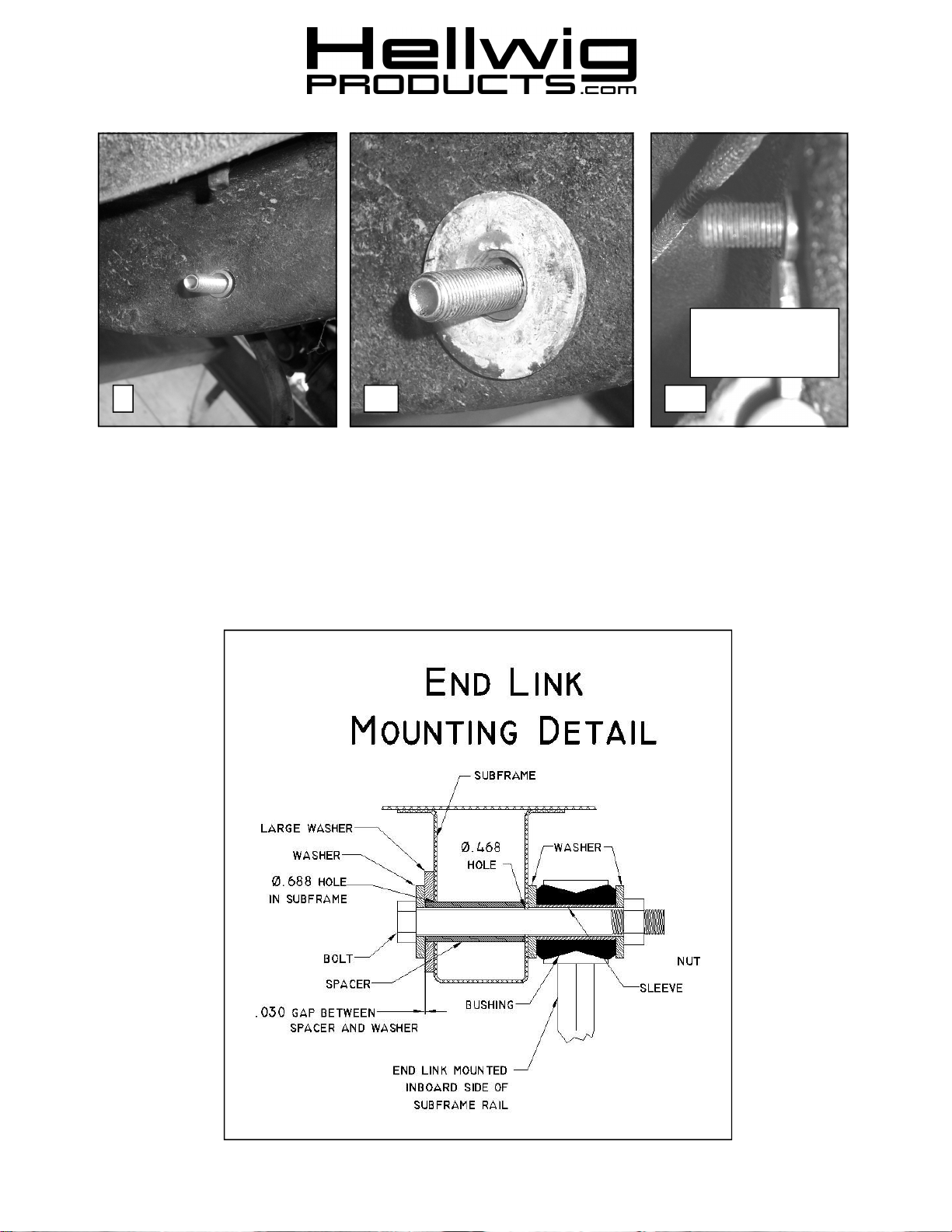

Spacer tube must be
1/32” shorter than
edge of large washer.

9 10

15. Insert 7/16 X 6” bolt through driver’s side rail as shown in PHOTO 9. Insert 7/16 X 5” bolt in
same manner through passenger side rail. Insert 2-3/4” long spacer sleeve into hole so that it is
flush with the inboard wall of subframe.

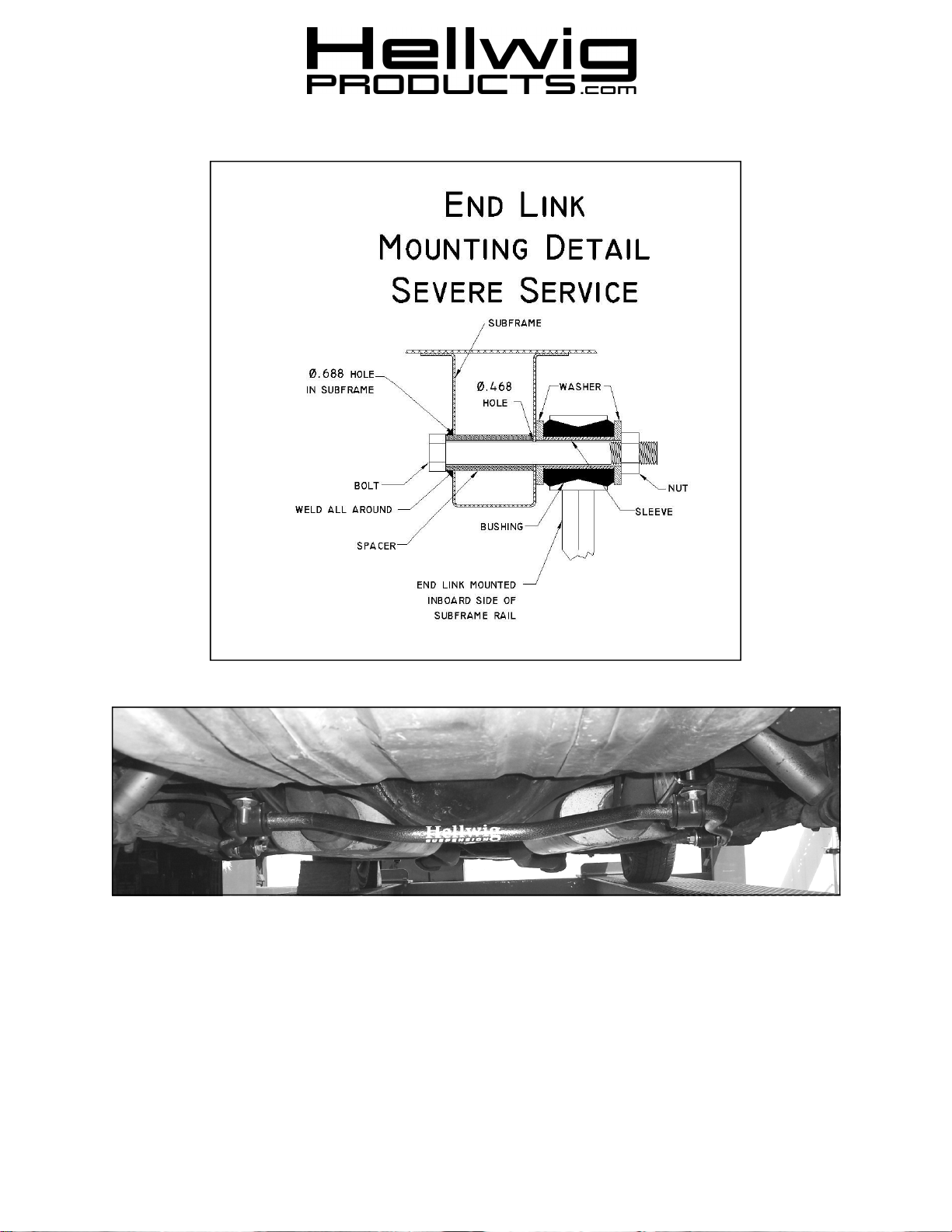

16. For severe duty it is recommended that the spacer tube be welded to the outer subframe wall. If the
spacer is to be welded, review severe service end link detail on page 4 and skip to line 19. If any

10a

welding is to be done, the installer must ensure that all hazards (fuel, electrical, etc) are eliminated
and that fuel tanks, fuel lines, brake lines, wiring, etc. are not affected by the welding operation.

6911 (R-6911) 04/17/07

559-734-7451 800-367-5480 FAX [phone]

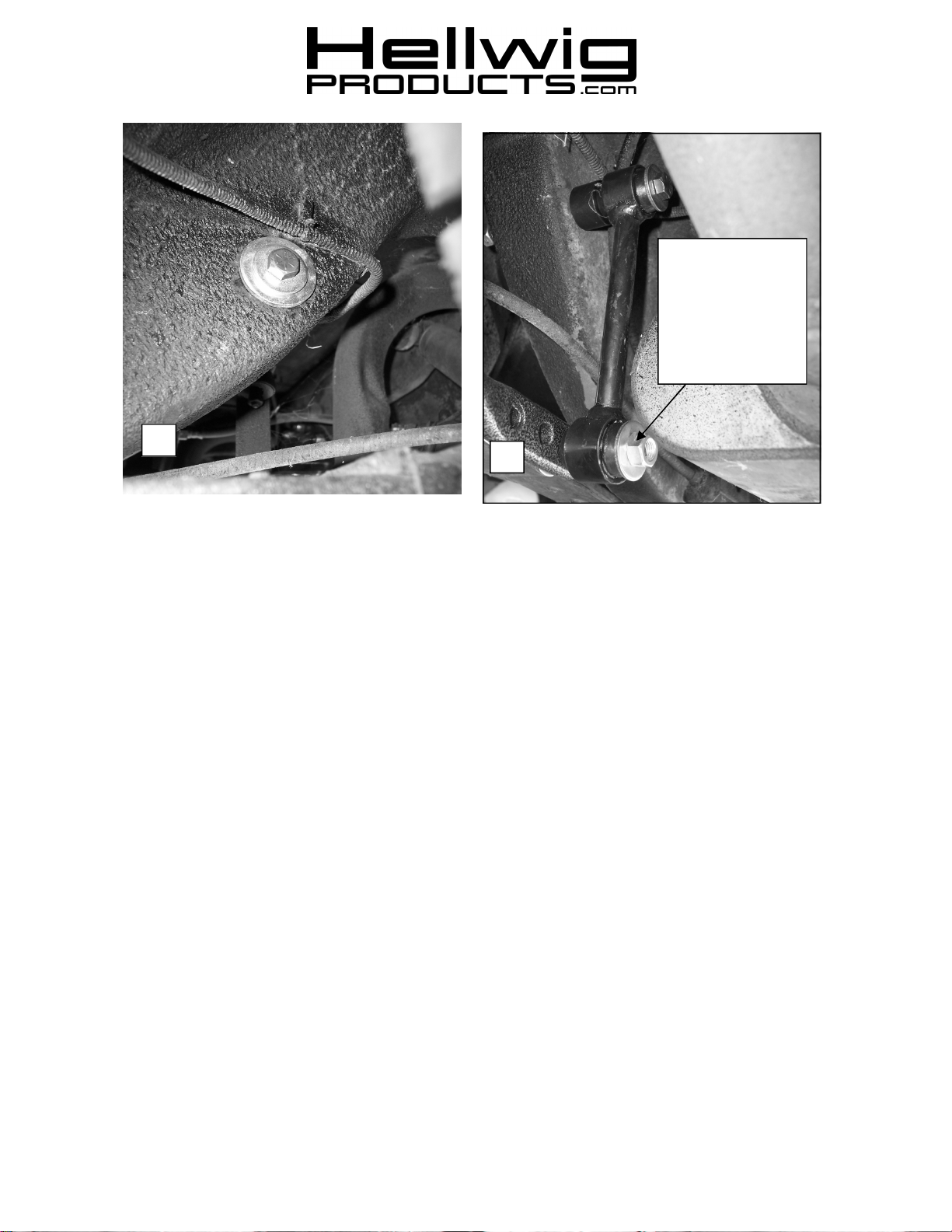

Attach end link to
outer hole as shown
before driving. DO
NOT use inner holes
until first driving ve­hicle with end link in
outer position.

11

12

17. The spacer tube is extra long to allow for subframe variation and subframe repair caps. If spacer
tube is not welded to outer wall, it must be fitted to the vehicle as described in step 18.

18. Review end link detail and install Large washer over spacer tube. Check that spacer tube is at least
1/32” below the surface of large washer. Failure to do this will result in insufficient preload and
noise. Cut, file or grind end of spacer tube to achieve proper length. SEE PHOTO 10.& 10a.

19. Install Large washer over spacer tube and check that spacer tube is at least 1/32” below the surface
of large washer. Failure to do this will result in insufficient preload and noise. File or grind end of
spacer tube to achieve proper length. SEE PHOTO 10.& 10a.Remove bolt and spacer and attach
end link to subframe as shown in detail and PHOTO 11. Applications with welded spacer do not
require the washers on the outboard side of subframe. Torque end link bolts to 35-40 ft-lb.

20. Replace rear wheels and torque lug nuts to factory specification. Lower vehicle so that the full
weight of the vehicle is on the suspension.

21. Tighten axle u-bolts to 50 ft-lb.

22. Bounce the vehicle checking for clearance on all under carriage components: fuel tank, shocks,
exhaust, differential, brake and fuel lines, etc. Test drive the vehicle and recheck all clearances
and the installation alignment. Adjust as needed. Re-check your installation after one week of driv­ing and periodically on a regular basis.

23. The sway bar has three end link mounting holes. The end link MUST be

mounted on the outer hole for initial use. SEE PHOTO 12. For a firmer setting,
use the inner holes. You must use the outer mounting hole as shown in photo 12
until you are accustomed to the vehicles new handling characteristics. After driv­ing vehicle, a firmer setting may be selected if desired. It is recommended that
the outer hole be used for street driving.

ATTENTION INSTALLER: BE SURE THAT THE CUSTOMER RECEIVES
THIS INSTRUCTION SHEET, ALL IMORTANT NOTE CARDS AND THE
WARRANTY FORM
