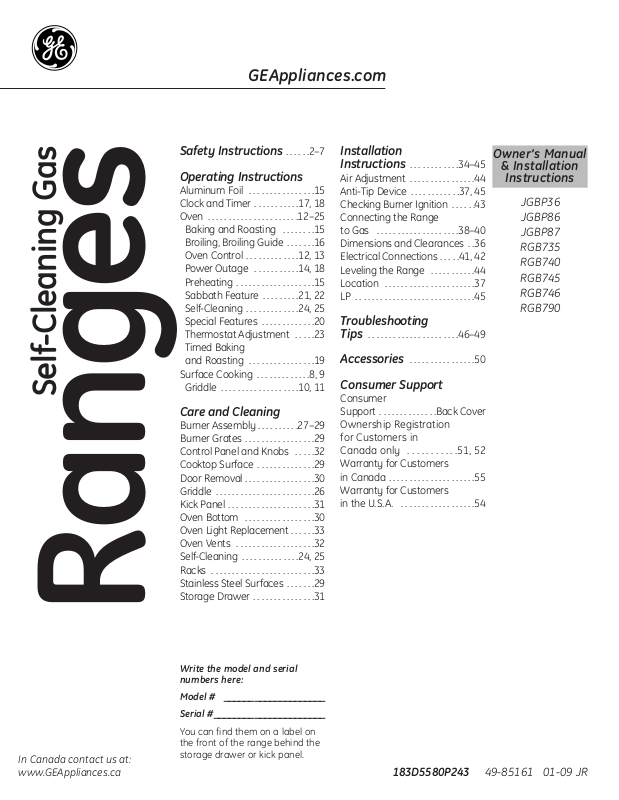

RangesSelf-Cleaning Gas
In Canada contact us at: www.GEAppliances.ca
GEAppliances.com
Safety Instructions . . . . . .2–7
Operating Instructions
Aluminum Foil . . . . . . . . . . . . . . . .15
Clock and Timer . . . . . . . . . . .17, 18
Oven . . . . . . . . . . . . . . . . . . . . . .12–25
Baking and Roasting . . . . . . . .15
Broiling, Broiling Guide . . . . . . .16
Oven Control . . . . . . . . . . . . .12, 13
Power Outage . . . . . . . . . . .14, 18
Preheating . . . . . . . . . . . . . . . . . . .15
Sabbath Feature . . . . . . . . .21, 22
Self-Cleaning . . . . . . . . . . . . .24, 25
Special Features . . . . . . . . . . . . .20
Thermostat Adjustment . . . . .23
Timed Baking
and Roasting . . . . . . . . . . . . . . . .19
Surface Cooking . . . . . . . . . . . . .8, 9
Griddle . . . . . . . . . . . . . . . . . . .10, 11
Care and Cleaning
Burner Assembly . . . . . . . . . .27–29
Burner Grates . . . . . . . . . . . . . . . . .29
Control Panel and Knobs . . . . .32
Cooktop Surface . . . . . . . . . . . . . .29
Door Removal . . . . . . . . . . . . . . . . .30
Griddle . . . . . . . . . . . . . . . . . . . . . . . .26
Kick Panel . . . . . . . . . . . . . . . . . . . . .31
Oven Bottom . . . . . . . . . . . . . . . . .30
Oven Light Replacement . . . . . .33
Oven Vents . . . . . . . . . . . . . . . . . . .32
Self-Cleaning . . . . . . . . . . . . . .24, 25
Racks . . . . . . . . . . . . . . . . . . . . . . . . .33
Stainless Steel Surfaces . . . . . . .29
Storage Drawer . . . . . . . . . . . . . . .31
Installation
Instructions . . . . . . . . . . . .34–45 Air Adjustment . . . . . . . . . . . . . . . .44 Anti-Tip Device . . . . . . . . . . . .37, 45 Checking Burner Ignition . . . . . .43 Connecting the Range
to Gas . . . . . . . . . . . . . . . . . . . .38–40 Dimensions and Clearances . .36 Electrical Connections . . . . .41, 42 Leveling the Range . . . . . . . . . . .44 Location . . . . . . . . . . . . . . . . . . . . . .37 LP . . . . . . . . . . . . . . . . . . . . . . . . . . . . .45
Troubleshooting
Tips . . . . . . . . . . . . . . . . . . . . . .46–49
Accessories . . . . . . . . . . . . . . . .50
Consumer Support
Consumer
Support . . . . . . . . . . . . . .Back Cover Ownership Registration
for Customers in
Canada only . . . . . . . . . . .51, 52 Warranty for Customers
in Canada . . . . . . . . . . . . . . . . . . . . .55 Warranty for Customers
in the U.S.A. . . . . . . . . . . . . . . . . . .54
Owner’s Manual
& Installation
Instructions
JGBP36
JGBP86
JGBP87
RGB735
RGB740
RGB745
RGB746
RGB790
Write the model and serial numbers here:
Model # ____________________
Serial #______________________
You can find them on a label on the front of the range behind the storage drawer or kick panel.
183D5580P243 49-85161 01-09 JR
Operating Instructions Safety Instructions
Installation |
Instructions |
|
|
Consumer Support Troubleshooting Tips
IMPORTANT SAFETY INFORMATION.
READ ALL INSTRUCTIONS BEFORE USING.
WARNING!
For your safety, the information in this manual must be followed to minimize the risk of fire or explosion, electric shock, or to prevent property damage, personal injury, or loss of life.
|
WARNING: If the information |
|
in this manual is not followed exactly, |
|
a fire or explosion may result causing |
|
property damage, personal injury |
® |
or death. |
|
— Do not store or use gasoline or other |
|
flammable vapors and liquids in the |
|
vicinity of this or any other appliance. |
— WHAT TO DO IF YOU SMELL GAS
■ Do not try to light any appliance.
■ Do not touch any electrical switch; do not use any phone in your building.
■ Immediately call your gas supplier from a neighbor’s phone. Follow the gas supplier’s instructions.
■ If you cannot reach your gas supplier, call the fire department.
— Installation and service must be performed by a qualified installer, service agency or the gas supplier.
ANTI-TIP DEVICE

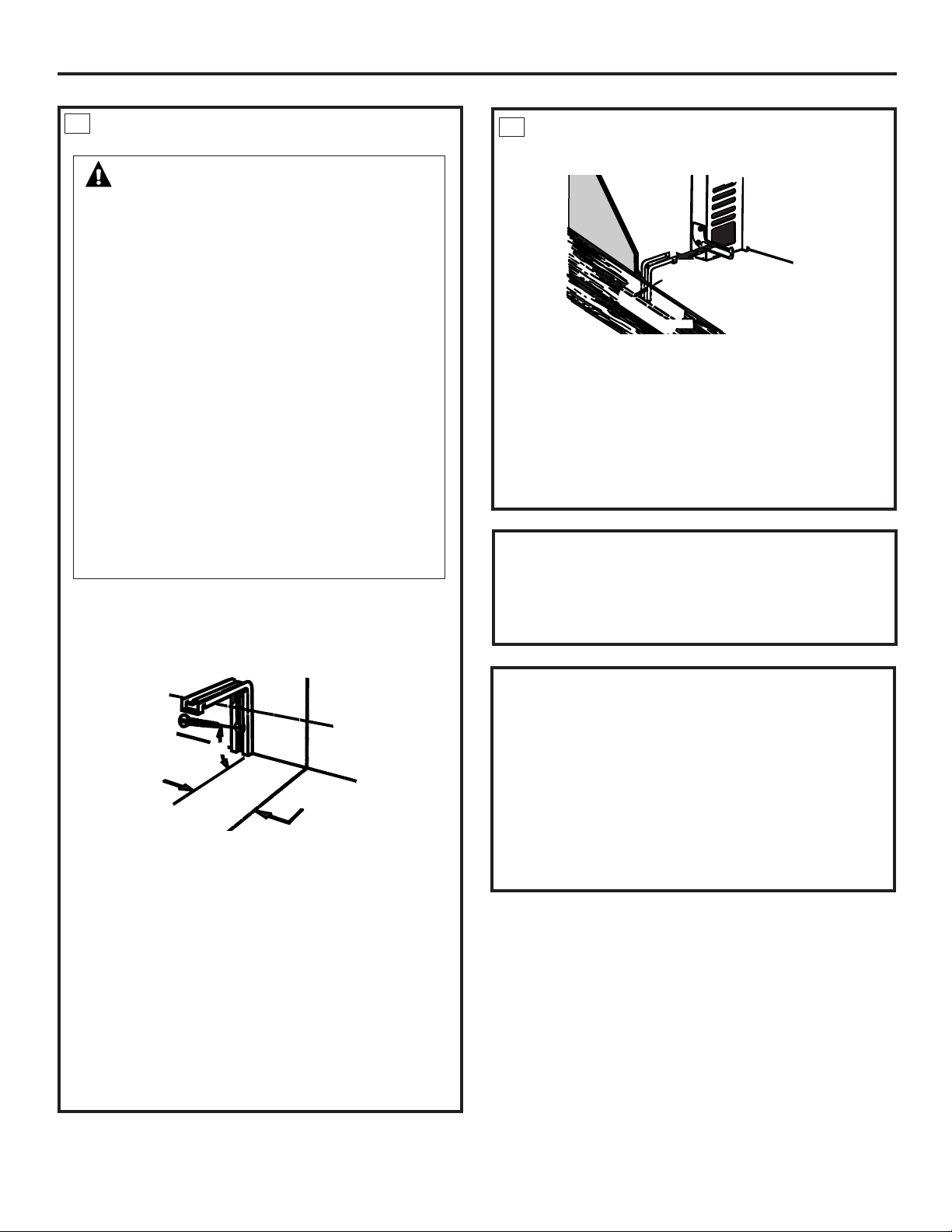

To reduce the risk of tipping the range, the range must be secured by a properly installed anti-tip bracket. See installation instructions shipped with the bracket for complete details before attempting to install.
To check if the bracket is installed and engaged properly, carefully tip the range forward. The bracket should stop the range within 4 inches. If it does not, the bracket must be reinstalled. If the range is pulled from the wall for any reason, always repeat this procedure to verify the range is properly secured by the anti-tip bracket.
|
|
|
|
For free-standing or slide-in ranges, never completely remove |
|
|
|
|
the leveling legs or the range will not be secured to the anti-tip |
|
|
|
|
device properly. |
|
|
|
|
If you did not receive an anti-tip bracket with your |
|
|
|
|
purchase, call 1.800.626.8774 to receive one at no |
|
|
|
|
cost (in Canada, call 1.800.561.3344). For installation |
2 |
|
|
instructions of the bracket, visit GEAppliances.com |
|
|
|
(in Canada, GEAppliances.ca). |
||
GEAppliances.com
WARNING!
IMPORTANT SAFETY NOTICE
The California Safe Drinking Water and Toxic Enforcement Act requires the Governor of California to publish a list of substances known to the state to cause birth defects or other reproductive harm, and requires businesses to warn customers of potential exposure to such substances.
Gas appliances can cause minor exposure to four of these substances, namely benzene, carbon monoxide, formaldehyde and soot, caused primarily by the incomplete combustion of natural gas or LP fuels. Properly adjusted burners, indicated by a bluish rather than a yellow flame, will minimize incomplete combustion. Exposure to these substances can be minimized by venting with an open window or using a ventilation fan or hood.
SAFETY PRECAUTIONS
Have the installer show you the location of the range gas shut-off valve and how to shut it off if necessary.
■Have your range installed and properly grounded by a qualified installer, in accordance with the Installation Instructions. Any adjustment and service should be performed only by qualified gas range installers or service technicians.
■Do not attempt to repair or replace any part of your range unless it is specifically
recommended in this manual. All other service should be referred to a qualified technician.
■Plug your range into a 120-volt grounded outlet only. Do not remove the round grounding prong from the plug. If in doubt about the grounding of the home electrical system, it is your personal responsibility and obligation to have an ungrounded outlet replaced with a properly grounded, three-prong outlet in accordance with
the National Electrical Code. Do not use an extension cord with this appliance.
3
Instructions Operating Instructions Safety
Instructions |
Installation |
|
|
Support Consumer Tips Troubleshooting
Operating Instructions Safety Instructions
Installation |
Instructions |
|
|
Consumer Support Troubleshooting Tips
IMPORTANT SAFETY INFORMATION. READ ALL INSTRUCTIONS BEFORE USING.
SAFETY PRECAUTIONS
■ Locate the range out of kitchen traffic path and out of drafty locations to prevent poor air circulation.
■Be sure all packaging materials are removed from the range before operating it to prevent fire or smoke damage should the packaging material ignite.
■Be sure your range is correctly adjusted by a qualified service technician or installer for the type of gas (natural or LP) that is to be used. Your range can be converted for use with either type of gas. See the Installation of the range section.
■
WARNING: These adjustments must be made by a qualified service technician in accordance with the manufacturer’s instructions and all codes and requirements of the authority having jurisdiction. Failure to follow these instructions could result in serious injury or property damage. The qualified agency performing this work assumes responsibility for the conversion.
■After prolonged use of a range, high floor temperatures may result and many floor coverings will not withstand this kind of use. Never install the range over vinyl tile or linoleum that cannot withstand such type of use. Never install it directly over interior kitchen carpeting.
■Do not leave children alone or unattended where a range is hot or in operation. They could be seriously burned.
■Do not allow anyone to climb, stand or hang on the oven door, storage drawer, warming drawer or cooktop. They could damage the range and even tip it over, causing severe personal injury.
■
CAUTION: Items of interest
to children should not be stored in cabinets above a range or on the backsplash of
a range—children climbing on the range to reach items could be seriously injured.
|
|
|
WARNING: NEVER use this |
|
|
|
|
|
appliance as a space heater to heat or |
||
|
warm the room. Doing so may result |
||
4 |
in carbon monoxide poisoning and |
||
overheating of the oven. |
|||
|
|
|
|
■Never wear loose fitting or hanging garments while using the appliance. Be careful when reaching for items stored in cabinets over the range. Flammable material could be ignited if brought in contact with flame or hot oven surfaces and may cause severe burns.
■Do not store flammable materials in an oven, a range storage drawer, a warming drawer or near a cooktop.
■Do not store or use combustible materials, gasoline or other flammable vapors and liquids in the vicinity of this or any other appliance.
■Do not let cooking grease or other flammable materials accumulate in or near the range.
■Do not use water on grease fires. Never pick up a flaming pan. Turn the controls off. Smother a flaming pan on a surface burner by covering the pan completely with a wellfitting lid, cookie sheet or flat tray. Use a multi-purpose dry chemical or foam-type fire extinguisher.
■Flaming grease outside a pan can be put out by covering it with baking soda or,
if available, by using a multi-purpose dry chemical or foam-type fire extinguisher.
■Flame in the oven can be smothered completely by closing the oven door and turning the control to off or by using a multipurpose dry chemical or foam-type
fire extinguisher.
■Let the burner grates and other surfaces cool before touching them or leaving them where children can reach them.
■Never block the vents (air openings) of the range. They provide the air inlet and outlet that are necessary for the range to operate properly with correct combustion. Air openings are located at the rear of the cooktop, at the top and bottom of the oven door, and at the bottom of the range under the kick panel or storage drawer.
■Large scratches or impacts to glass doors can lead to broken or shattered glass.
GEAppliances.com
WARNING!
SURFACE BURNERS
Use proper pan size—avoid pans that are unstable or easily tipped. Select cookware having flat bottoms large enough to cover burner grates. To avoid spillovers, make sure cookware is large enough to contain the food properly. This will both save cleaning time and prevent hazardous accumulations of food, since heavy spattering or spillovers left on range can ignite. Use pans with handles that can be easily grasped and remain cool.
■Always use the Lite position when igniting the top burners and make sure the burners have ignited.
■Never leave the surface burners unattended at high flame settings. Boilovers cause smoking and greasy spillovers that may catch on fire.
■Adjust the top burner flame size so it does not extend beyond the edge of the cookware. Excessive flame is hazardous.
■Use only dry pot holders—moist or damp pot holders on hot surfaces may result in burns from steam. Do not let pot holders come near open flames when lifting cookware. Do not use a towel or other bulky cloth in place
of a pot holder.
■When using glass cookware, make sure it is designed for top-of-range cooking.
■To minimize the possibility of burns, ignition of flammable materials and spillage, turn cookware handles toward the side or back of the range without extending over adjacent burners.
■Carefully watch foods being fried at a high flame setting.
■Always heat fat slowly, and watch as it heats.
■Do not leave any items on the cooktop. The hot air from the vent may ignite flammable items and will increase pressure in closed containers, which may cause them to burst.
■If a combination of oils or fats will be used in frying, stir together before heating or as fats melt slowly.
■Use a deep fat thermometer whenever possible to prevent overheating fat beyond the smoking point.
■Use the least possible amount of fat for effective shallow or deep-fat frying. Filling the pan too full of fat can cause spillovers when food is added.
■Do not flame foods on the cooktop. If you do flame foods under the hood, turn the fan on.
■Do not use a wok on the cooking surface if the wok has a round metal ring that is placed over the burner grate to support the wok. This ring acts as a heat trap, which may damage the burner grate and burner head. Also, it may cause the burner to work improperly. This may cause a carbon monoxide level above that allowed by current standards, resulting in a health hazard.
■Foods for frying should be as dry as possible. Frost on frozen foods or moisture on fresh foods can cause hot fat to bubble up and over the sides of the pan.
■Never try to move a pan of hot fat, especially a deep fat fryer. Wait until the fat is cool.
■Do not leave plastic items on the cooktop— they may melt if left too close to the vent.
■Keep all plastics away from the surface burners.
■To avoid the possibility of a burn, always be certain that the controls for all burners are at the Off position and all grates are cool before attempting to remove them.
■If range is located near a window, do not hang long curtains that could blow over the surface burners and create a fire hazard.
■If you smell gas, turn off the gas to the range and call a qualified service technician. Never use an open flame to locate a leak.
■Always turn the surface burner controls off before removing cookware.
■Do not lift the cooktop on sealed burner models. Lifting the cooktop can lead to damage and improper operation of the range.
5
Instructions Operating Instructions Safety
Instructions |
Installation |
|
|
Support Consumer Tips Troubleshooting
Operating Instructions Safety Instructions
Installation |
Instructions |
|
|
Consumer Support Troubleshooting Tips
IMPORTANT SAFETY INFORMATION.
READ ALL INSTRUCTIONS BEFORE USING.
COOK MEAT AND POULTRY THOROUGHLY…
Cook meat and poultry thoroughly—meat to at least an INTERNAL temperature of 160°F and poultry to at least an INTERNAL temperature of 180°F. Cooking to these temperatures usually protects against foodborne illness.
OVEN
Stand away from the range when opening the door of a hot oven. The hot air and steam that escape can cause burns to hands, face and eyes.
■Do not use the oven for a storage area. Items stored in the oven can ignite.
■Keep the oven free from grease buildup.
■Place the oven racks in the desired position while the oven is cool.
■Pulling out the rack to the stop-lock is a convenience in lifting heavy foods. It is also
a precaution against burns from touching hot surfaces of the door or oven walls. The lowest position is not designed to slide.
■Do not heat unopened food containers. Pressure could build up and the container could burst, causing an injury.
WARNING: NEVER cover
any slots, holes or passages in the oven bottom or cover an entire rack with materials such as aluminum foil. Doing so blocks air flow through the oven and may cause carbon monoxide poisoning. Aluminum foil linings may also trap heat, causing a fire hazard.
■Do not use aluminum foil anywhere in the oven except as described in this manual. Misuse could result in a fire hazard or damage to the range.
■When using cooking or roasting bags in the oven, follow the manufacturer’s directions.
■Do not use your oven to dry newspapers. If overheated, they can catch fire.
■Use only glass cookware that is recommended for use in gas ovens.
■Always remove any broiler pan from range as soon as you finish broiling. Grease left in the pan can catch fire if oven is used without removing the grease from the broiler pan.
■When broiling, if meat is too close to the flame, the fat may ignite. Trim excess fat to prevent excessive flare-ups.
■Make sure any broiler pan is in place correctly to reduce the possibility of grease fires.
■If you should have a grease fire in a broiler pan, touch the Clear/Off pad, and keep the oven door closed to contain fire until it burns out.
■For safety and proper cooking performance, always bake and broil with the oven door closed.
6
GEAppliances.com
SELF-CLEANING OVEN
■Be sure to wipe off excess spillage before self-cleaning operation.
■Before self-cleaning the oven, remove the racks, any broiler pan, grid and other cookware.
■Do not clean the door gasket. The door gasket is essential for a good seal. Care should be taken not to rub, damage or
move the gasket.
■Clean only parts listed in this Owner’s Manual.
■If the self-cleaning mode malfunctions, turn the oven off and disconnect the power supply. Have it serviced by a qualified technician.
■Do not use oven cleaners. No commercial oven cleaner or oven liner of any kind should be used in or around any part of the oven. Residue from oven cleaners will damage the inside of the oven when the self-clean cycle is used.
READ AND FOLLOW THIS SAFETY INFORMATION CAREFULLY.
SAVE THESE INSTRUCTIONS
7
Instructions Operating Instructions Safety
Instructions |
Installation |
|
|
Support Consumer Tips Troubleshooting
Operating Instructions Safety Instructions
Installation |
Instructions |
|
|
Consumer Support Troubleshooting Tips
Using the gas surface burners.
Throughout this manual, features and appearance may vary from your model.
Before Lighting a Gas Burner
■Make sure all burners are in place.
■Make sure all grates on the range are properly placed before using any burner.
After Lighting a Gas Burner
■Do not operate the burner for an extended period of time without cookware on the grate. The finish on the grate may chip without cookware to absorb the heat.
■Be sure the burners and grates are cool before you place your hand, a pot holder, cleaning cloths or other materials on them.
How to Light a Gas Surface Burner

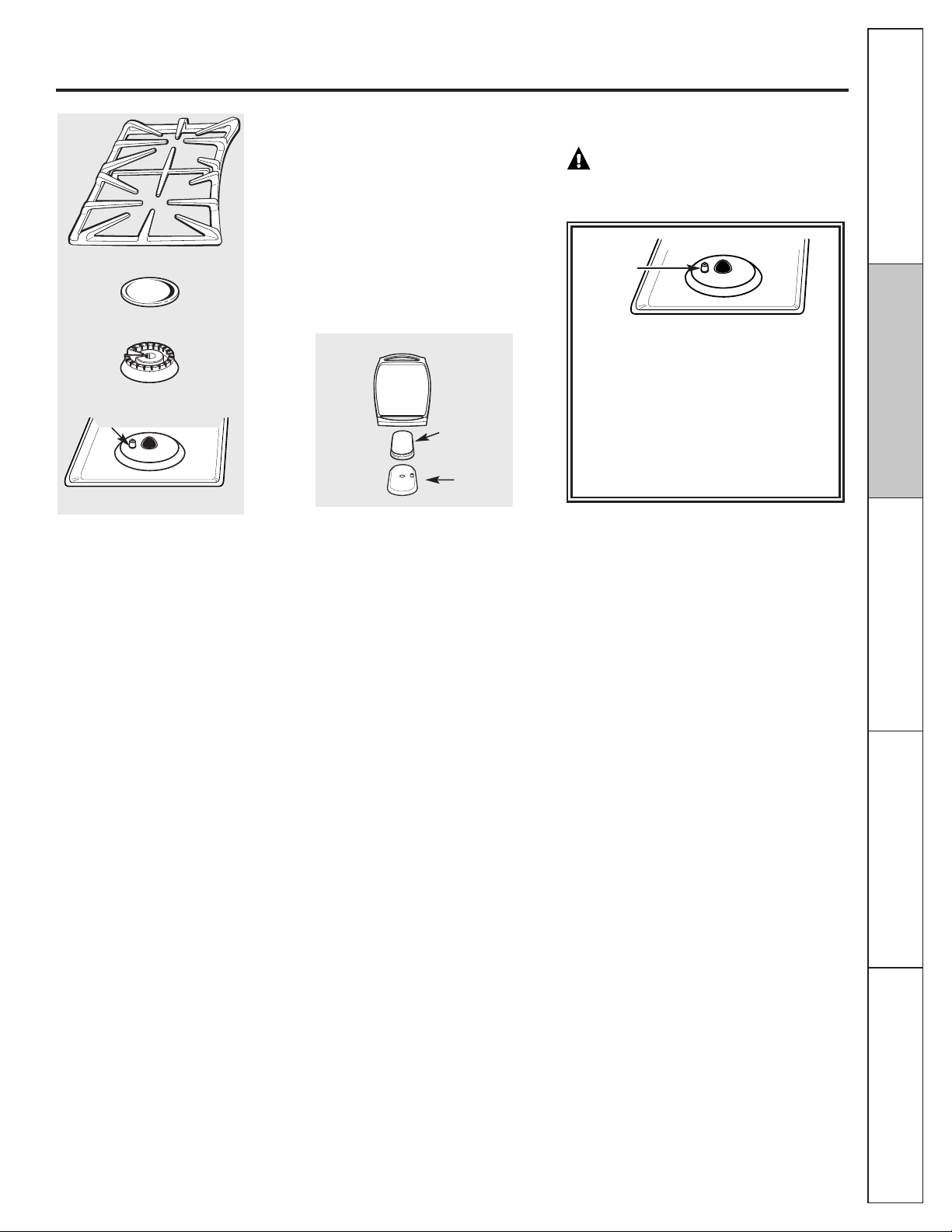

Push the control knob in and turn it to the Lite position.
Make sure all the surface burners are placed in their respective positions.
Push the control knob in and turn it to the Lite position.
You will hear a little clicking noise—the sound of the electric spark igniting the burner.
Turn the knob to adjust the flame size. If the knob stays at Lite, it will continue to click.
When one burner is turned to Lite, all the burners spark. Do not attempt to disassemble or clean around any burner while another burner is on. An electric shock may result, which could cause you to knock over hot cookware.
On some models
Medium |
|
Small |
|||||||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Large |
Center (oval) |
|
|
Extra |
||||||||||||
|
|
|
|
|
|
|
(on some |
|
|
Large |
||||||
|
|
|
|
|
|
|
models) |
|
|
|
|
|
|
|
||
|
|
|
|
|
|
|
On some models |
|||||||||
Medium |
Small |
|||||||||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Sealed Gas Burners
Your gas range cooktop, depending on model, has either four or five sealed gas burners. They offer convenience, cleanability and flexibility to be used in a wide range of cooking applications.
The smallest burner in the right rear position is the simmer burner. This burner can be turned down to Lo for a very low simmer setting. It provides precise cooking performance for delicate foods such as sauces or foods that require low heat for a long cooking time.
The medium (left rear and, on some models, left front) and the large (left front and, on some models, right front) burners are the primary burners for most cooking. These generalpurpose burners can be turned down from
Hi to Lo to suit a wide range of cooking needs.
The extra large burner (right front, on some models) is the maximum output burner. Like the other four burners, it can be turned down from Hi to Lo for a wide range of cooking applications; however, this burner is designed to quickly bring large amounts of liquid to
a boil. It has a special Power Boil™ setting designed to be used with cookware
10 inches or larger in diameter.
Extra-large burner only
On some models
The center oval burner (on some models) is for large pots/pans or for use with the griddle.
Medium |
Large |
|
How to Select Flame Size |
|
For safe handling of cookware, never let the |
|
flames extend up the sides of the cookware. |
|
Watch the flame, not the knob, as you reduce |
|
heat. When fast heating is desired, the flame |
8 |
size on a gas burner should match the |
|
cookware you are using. |
Flames larger than the bottom of the cookware will not result in faster heating of the cookware and could be hazardous.
GEAppliances.com
Top-of-Range Cookware
Aluminum: Medium-weight cookware is recommended because it heats quickly and evenly. Most foods brown evenly in an aluminum skillet. Use saucepans with tightfitting lids when cooking with minimum amounts of water.
Cast-Iron: If heated slowly, most skillets will give satisfactory results.
Enamelware: Under some conditions, the enamel of some cookware may melt. Follow cookware manufacturer’s recommendations for cooking methods.
Glass: There are two types of glass cookware—those for oven use only and those for top-of-range cooking (saucepans, coffee and teapots). Glass conducts heat very slowly.
Heatproof Glass Ceramic: Can be used for either surface or oven cooking. It conducts heat very slowly and cools very slowly. Check cookware manufacturer’s directions to be sure it can be used on gas ranges.
Stainless Steel: This metal alone has poor heating properties and is usually combined with copper, aluminum or other metals for improved heat distribution. Combination metal skillets usually work satisfactorily if they are used with medium heat as the manufacturer recommends.

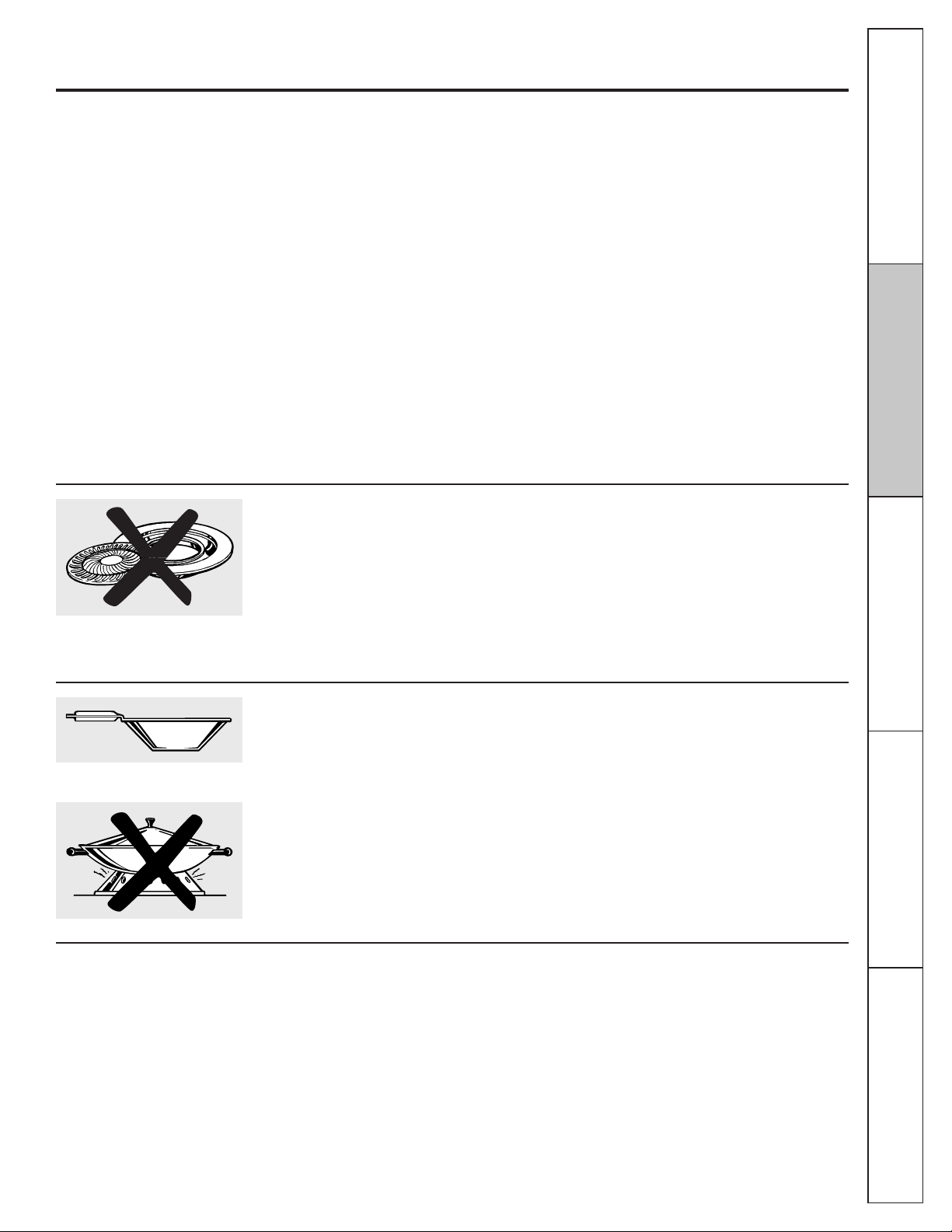

Stove Top Grills (on models with sealed burners)
Do not use stove top grills on your sealed gas burners. If you use the stove top grill on the sealed gas burner, it will cause incomplete combustion and can result in exposure to carbon monoxide levels above allowable current standards.
This can be hazardous to your health.
|
Wok This Way (on models with sealed burners) |
||
|
We recommend that you use a 14" or smaller |
Do not use a flat-bottomed wok on a support |
|
|
flat-bottomed wok. Make sure the wok bottom |
ring. Placing the ring over the burner or grate |
|
Use a flat-bottomed wok. |
sits flat on the grate. They are available at |
may cause the burner to work improperly, |
|
your local retail store. |
resulting in carbon monoxide levels above |
||
|
|||
|
Only a flat-bottomed wok should be used. |
allowable standards. This could be dangerous |
|
||
|
to your health. |
|
|
|
|
|
|
|
|
|
|
In Case of Power Failure
In case of a power failure, you can light the gas surface burners on your range with a match. Hold a lit match to the burner, then push in and turn the control knob to the Lite position. Use extreme caution when lighting burners this way.
Surface burners in use when an electrical power failure occurs will continue to operate normally.
9
Instructions Operating Instructions Safety
Instructions |
Installation |
|
|
Support Consumer Tips Troubleshooting
Operating Instructions Safety Instructions
Installation |
Instructions |
|
|
Consumer Support Troubleshooting Tips
Using the griddle. (on some models)
|
Your non-stick coated griddle provides |
NOTE: Your griddle will discolor over time as it |
|
an extra-large cooking surface for meats, |
becomes seasoned with use. |
|
pancakes or other food usually prepared |
|
|
in a frying pan or skillet. |
|
|
|
|
|
|
|
How to Insert the Griddle
CAUTION:Place and remove the griddle only when all grates and griddle are cool and all surface units are turned OFF.
The griddle can only be used with the center burner. To insert the griddle, remove the center grate and replace with the griddle.
10
GEAppliances.com
Using the Griddle
Most griddled foods require cooking on a preheated surface. Preheat griddle according to the guide below, then switch to the desired cook setting.
Type of Food |
Preheat |
Cook |
|
Conditions |
Setting |
Warming |
none |
3 (MED-LOW) |
Tortillas |
|
|
Pancakes |
7 (MED-HI) |
7 (MED-HI) |
|
3 min. |
|
|
|
|
Hamburgers |
7 (MED-HI) |
7 (MED-HI) |
|
5 min. |
|
|
|
|
Fried Eggs |
HI |
4 (MED) |
|
5 min. |
|
Bacon |
none |
5 (MED) |
|
|
|
Breakfast |
HI |
5 (MED) |
Sausage Links |
5 min. |
|
|
|
|
Hot Sandwiches |
HI |
HI |
(such as |
4 min. |
|
Grilled Cheese) |
|
|
|
|
|
NOTE: Griddle settings may need to be adjusted if the griddle is used for an extended time.
IMPORTANT NOTES:
■Avoid cooking extremely greasy foods and be careful of grease spill-over while cooking.
■Do not use oil on the griddle for extended lengths of time. Permanent staining and/or craze lines on the surface could result.
■Never place or store any items on the griddle, even when it is not in use. The griddle can become heated when using the surrounding burners.
■Do not overheat the griddle. Leaving the griddle burner on at HI for an extended amount of time without food can damage the non-stick coating.
■Avoid using metal utensils with sharp points or rough sharp edges which might damage the griddle surface.
■Do not cut foods on the griddle.
11
Instructions Operating Instructions Safety
Instructions |
Installation |
|
|
Support Consumer Tips Troubleshooting
Operating Instructions Safety Instructions
Installation |
Instructions |
|
|
Consumer Support Troubleshooting Tips
Using the oven controls.
Throughout this manual, features and appearance may vary from your model.
Oven Control, Clock and Timer Features and Settings (on some models)
Bake/Temp Recall Pad |
Kitchen Timer On/Off Pad |
Touch this pad to select the bake function. |
Touch this pad to select the timer feature. Then |
Bake Light |
press the + and – pads to adjust the timer. |
|
Flashes while in edit mode—you can change the oven temperature at this point. Glows when the oven is in bake mode.
Start/On Pad
Must be touched to start any cooking or cleaning function.
Display
Shows the time of day, oven temperature, whether the oven is in the bake, broil or selfcleaning mode and the times set for the timer or automatic oven operations. The display will show PRE while preheating. When the oven reaches the selected temperature, the oven control will beep and the display will show the oven temperature.
|
If “F– and a number or letter” flash in the display and |
|
the oven control signals, this indicates a function error |
|
code. |
|
If your oven was set for a timed oven operation and a |
|
power outage occurred, the clock and all programmed |
|
functions must be reset. |
|
The time of day will flash in the display when there has |
|
been a power outage. Reset the clock. |
|
On models with an oven door latch, if the function error |
|
code appears during the self-cleaning cycle, check the |
|
oven door latch. The latch handle may have been moved, |
|
even if only slightly, from the latched position. Make sure |
|
the latch is moved to the right as far as it will go. |
|
Touch the Clear/Off pad. Allow the oven to cool |
|
for one hour. Put the oven back into operation. If the |
12 |
function error code repeats, disconnect the power |
to the range and call for service. |
Kitchen Timer Light
Flashes while in edit mode—you can change the set time at this point. Glows when the timer has been activated. Flashes again when the time has run out until the control is reset.
Clock Pad
To set the clock, press this pad twice and then press the + and – pads. The time of day will flash in the display when the oven is first turned on.
Start Time Pad
Use along with the Cooking Time or Self Clean pads to set the oven to start and stop automatically at a time you set.
Start Time Light
Flashes while in edit mode—you can change the start time at this point. Glows when the function has been activated.
Cooking Time Pad
Touch this pad and then touch the + or – pads to set the amount of time you want your food to cook. The oven will shut off when the cooking time has run out.
Cooking Time Light
Flashes while in edit mode—you can change the set time at this point. Glows when the function has been activated. Flashes again when the time has run out until the control is reset.
GEAppliances.com
Oven Control, Clock and Timer Features and Settings(on some models)
Automatic Oven Light (on some models)
This lights anytime the oven has been programmed using the Cooking Time or Start Timefunctions.
Oven Light On/Off Pad
Touch this pad to turn the oven light on or off.
– Pad
Short taps to this pad will decrease the time or temperature by small amounts. Touch and hold the pad to decrease the time or temperature by larger amounts.
+ Pad
Short taps to this pad will increase the time or temperature by small amounts. Touch and hold the pad to increase the time or temperature by larger amounts.
Self Clean Pad
Touch this pad to select the self-cleaning function. See the Using the self-cleaning oven section.
Clean Light
Flashes while in edit mode—you can change the length of time for the self-clean cycle at this point. Glows when the oven is in the self-clean cycle. After the self-clean cycle, the light will turn off. When the light is off, slide the latch handle to the left as far as it will go and open the door. If your range does not have a latch, the door will unlock automatically.
Clear/Off Pad
Touch this pad to cancel ALL oven operations except the clock and timer.
Broil Hi/Lo Pad
Touch this pad to select the broil function.
Broil Light
Flashes while in edit mode—you can switch from Hi to Lo Broil at this point. Glows when the oven is in broil mode.
Indicator Lights (on some pads)
Editmode lasts several seconds after the last pad press. Start Time and Cooking Time will be the only pads lit if either of these options is selected. (Example: Start Timeis selected with Bake—the Start Timepad will remain lit until the clock reaches the programmed time, at which point it will turn off and the Bake/Temp Recall pad light will light up).
13
Instructions Operating Instructions Safety
Instructions |
Installation |
|
|
Support Consumer Tips Troubleshooting
Operating Instructions Safety Instructions
Installation |
Instructions |
|
|
Consumer Support Troubleshooting Tips
Using the oven.
To avoid possible burns, place the racks in the desired position before you turn the oven on.
The oven has 5 rack positions.
It also has a special low rack position (R) for extra large items, such as a large turkey.
Before you begin…
The racks have stop-locks, so that when placed correctly on the rack supports
(A through E), they will stop before coming completely out, and will not tilt.
When placing and removing cookware, pull the rack out to the bump on the rack support.
To remove a rack, pull it toward you, tilt the front end up and pull it out.
To replace, place the end of the rack (stoplocks) on the support, tilt up the front and push the rack in.
NOTE: The rack is not designed to slide out at the special low rack (R) position.
Plastic items on the cooktop may melt if left too close to the vent.
Vent appearance and location vary.
Oven Vent
Your oven is vented through ducts at the rear of the range. Do not block these ducts when cooking in the oven—it is important that the flow of hot air from the oven and fresh air
to the oven burner be uninterrupted. Avoid touching the vent openings or nearby surfaces during oven or broiler operation— they may become hot.
■Handles of pots and pans on the cooktop may become hot if left too close to the vent.
■Do not leave plastic or flammable items on the cooktop—they may melt or ignite if left too close to the vent.
■Do not leave closed containers on the cooktop. The pressure in closed containers may increase, which may cause them to burst.
■Metal items will become very hot if they are left on the cooktop, and could cause burns.
Power Outage
CAUTION: Do not make any attempt to operate the electric ignition oven during an electrical power failure.
The oven or broiler cannot be lit during a power failure. Gas will not flow unless the glow bar is hot.
If the oven is in use when a power failure occurs, the oven burner shuts off and cannot be re-lit until power is restored. This is because the flow of gas is automatically stopped and will not resume when power
is restored until the glow bar has reached operating temperature.
Oven Light
Touch the Oven Lightpad on the upper control panel to turn the light on or off.
14
GEAppliances.com
If your model has a door latch, do not lock the oven door with the latch during baking or roasting. The latch is used for self-cleaning only.
The oven has a special low rack (R) position just above the oven bottom. Use it when extra cooking space
is needed, for example, when cooking a large turkey. The rack is not designed to slide out at this position.
How to Set the Oven for Baking or Roasting
Your oven is not designed for open-door cooking.
Touch the Bake pad.
Touch the + or – pads until the desired temperature is displayed.
Touch the Start/On pad.
The oven will start automatically. The display will show PRE while preheating. When the oven reaches the selected temperature, the oven control will beep several times and the display will show the oven temperature.
To change the oven temperature during Bake cycle, touch the Bake pad and then the + or – pads to get the new temperature.
Check food for doneness at minimum time on recipe. Cook longer if necessary.
Touch the Clear/Off pad when baking is finished and then remove the food from the oven.
Type of Food |
Rack Position |
Frozen pies (on cookie sheet) |
B or C |
|
|
Angel food cake, |
B |
bundt or pound cakes |
|
|
|
Biscuits, muffins, brownies, |
C |
cookies, cupcakes, layer |
|
cakes, pies |
|
|
|
Casseroles |
B or C |
|
|
Roasting |
R or A |
|
|
Preheating and Pan Placement
Preheat the oven if the recipe calls for it. To preheat, set the oven at the correct temperature. Preheating is necessary for good results when baking cakes, cookies, pastry and breads.
For ovens without a preheat indicator light or tone, preheat 10 minutes.
Baking results will be better if baking pans are centered in the oven as much as possible. Pans should not touch each other or the walls of the oven. If you need to use two racks, stagger the pans so one is not directly above the other, and leave approximately 11⁄ 2" between pans, from the front, back and sides of the wall.
Aluminum Foil
Do not use aluminum foil on the bottom of the oven.
Never entirely cover a rack with aluminum foil. This will disturb the heat circulation and result in poor baking.
A smaller sheet of foil may be used to catch a spillover by placing it on a lower rack several inches below the food.
Oven Moisture
As your oven heats up, the temperature change of the air in the oven may cause water droplets to form on the door glass.
These droplets are harmless and will
evaporate as the oven continues to heat up.
15
Instructions Operating Instructions Safety
Instructions |
Installation |
|
|
Support Consumer Tips Troubleshooting
Operating Instructions Safety Instructions
Installation |
Instructions |
|
|
Consumer Support Troubleshooting Tips
Using the oven.
If your model has a door latch, do not lock the oven door with the latch during broiling. The latch is used for self-cleaning only.
Close the door. Always broil with the door closed.
How to Set the Oven for Broiling
NOTE: On models with an Oven Temp knob, turn it to Broil.
Place the meat or fish on a broiler grid in a broiler pan.
Follow suggested rack positions in the
Broiling Guide.
The oven door must be closed during broiling.
Touch the Broil Hi/Lo pad once for
Hi Broil.
To change to Lo Broil, touch the
Broil Hi/Lo pad again.
Touch the Start/On pad.
When broiling is finished, touch the
Clear/Off pad.
Serve the food immediately, and leave the pan outside the oven to cool during the meal for easiest cleaning.
Use Lo Broil to cook foods such as poultry or thick cuts of meat thoroughly without over-browning them.
The size, weight, thickness, starting temperature and your preference of doneness will affect broiling times. This guide is based on meats at refrigerator temperature.
†The U.S. Department of Agriculture says “Rare beef is popular, but you should know that cooking it to only 140°F means some food poisoning organisms may survive.” (Source: Safe Food Book, Your Kitchen Guide, USDA Rev. June 1985.)
The oven has 5 rack positions.
Broiling Guide
|
Quantity and/ |
Rack* |
First Side |
Second Side |
|
Food |
or Thickness |
Position |
Time (min.) |
Time (min.) |
Comments |
|
|
|
|
|
|
Bacon |
1/2 lb. |
C |
4 |
3 |
Arrange in single layer. |
|
(about 8 thin slices) |
|
|
|
|
Ground Beef |
1 lb. (4 patties) |
C |
10 |
7–10 |
Space evenly. Up to |
Well Done |
1/2" to 3/4" thick |
|
|
|
8 patties take about |
|
|
|
|
|
the same time. |
Beef Steaks |
|
|
|
|
|
Rare† |
1" thick |
C |
9 |
7 |
Steaks less than 1" thick |
Medium |
1 to 11⁄ 2 lbs. |
C |
12 |
5–6 |
cook through before |
Well Done |
|
C |
13 |
8–9 |
browning. Pan frying is |
|
|
|
|
|
recommended. |
Rare† |
11⁄ 2" thick |
C |
10 |
6–7 |
Slash fat. |
Medium |
2 to 21⁄ 2 lbs. |
C |
12–15 |
10–12 |
|
Well Done |
|
C |
25 |
16–18 |
|
Chicken |
1 whole |
B |
30–35 |
15–20 |
Brush each side with |
|
2 to 21⁄ 2 lbs., |
|
|
|
melted butter. Broil |
|
split lengthwise |
|
|
|
skin-side-down first. |
|
4 bone-in breasts |
B |
25–30 |
10–15 |
|
Lobster Tails |
2–4 |
C |
13–16 |
Do not |
Cut through back of |
|
6 to 8 oz. each |
|
|
turn |
shell. Spread open. Brush |
|
|
|
|
over. |
withmelted butter before |
|
|
|
|
|
broiling and after half |
|
|
|
|
|
of broiling time. |
Fish Fillets |
1/4" to 1/2" thick |
D |
6 |
6 |
Handle and turn very |
|
|
|
|
|
carefully. Brush with |
|
|
|
|
|
lemon butter before |
|
|
|
|
|
and during cooking, if |
|
|
|
|
|
desired. Preheat broiler |
|
|
|
|
|
to increase browning. |
Ham Slices |
1" thick |
C |
8 |
8 |
|
(precooked) |
1/2" thick |
D |
6 |
6 |
|
|
|
||||
Pork Chops |
2 (1/2" thick) |
D |
10 |
8 |
Slash fat. |
Well Done |
2 (1" thick) about 1 lb. |
D |
15 |
8 |
|
*See illustration for description of rack positions.
16
Using the clock and timer. |
GEAppliances.com |
Not all features are on all models.
Make sure the clock is set to the correct time of day.
To Set the Clock
The clock must be set to the correct time of day for the automatic oven timing functions to work properly. The time of day cannot be changed during a delayed cooking or a delayed self-cleaning cycle.
Touch the Clock pad twice.
Touch the + or – pads.
If the + or – pads are not touched within one minute after you touch the Clock pad, the display reverts to the original setting. If this happens, touch the Clock pad twice and reenter the time of day.
Touch the Start/On pad until the time of day shows in the display. This enters the time and starts the clock.
To check the time of day when the display is showing other information, simply touch the Clock pad. The time of day shows until another pad is touched.
To Turn Off the Clock Display
If you have several clocks in your kitchen, |
Touch the Clockpad twice to recall the |
you may wish to turn off the time of day |
clock display. |
clock display on your range. |
|
Touch the Clock pad once to turn off the |
|
time of day display. Although you will |
|
not be able to see it, the clock maintains |
|
the correct time of day. |
|
The timer is a minute timer only.
The Clear/Off pad does not affect the timer.
To Set the Timer
The timer does not control oven operations. The maximum setting on the timer is 9 hours and 59 minutes.
Touch the Kitchen Timer On/Off pad.
Touch the + or – pads until the amount of time you want shows in the display. The maximum time that can be entered in minutes is 59. Times more than
59 minutes should be changed to hours and minutes.
If you make a mistake, touch the Kitchen Timer On/Off pad and begin again.
Touch the Start/On pad. The time will start counting down, although the display does not change until one minute has passed.
When the timer reaches :00, the control will beep 3 times followed by one beep every 6 seconds until the Kitchen Timer On/Off pad is touched.
17
Instructions Operating Instructions Safety
Instructions |
Installation |
Support Consumer Tips Troubleshooting
Loading...
