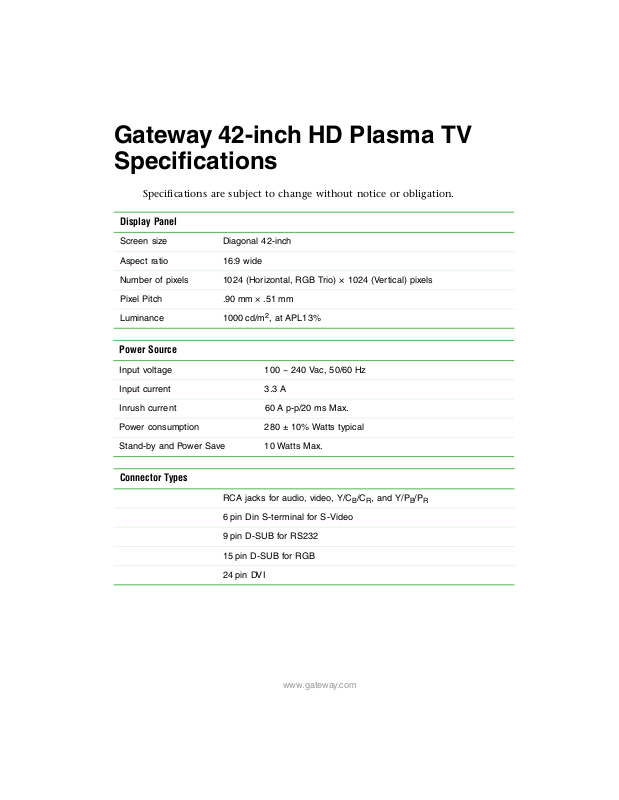

Gateway 42-inch HD Plasma TV
Specifications

Specifications are subject to change without notice or obligation.

Display Panel

Screen size Diagonal 42-inch

Aspect ratio 16:9 wide

Number of pixels 1024 (Horizontal, RGB Trio) × 1024 (Vertical) pixels

Pixel Pitch .90 mm × .51 mm

2

Luminance 1000 cd/m

Power Source

Input voltage 100 ~ 240 Vac, 50/60 Hz

Input current 3.3 A

Inrush current 60 A p-p/20 ms Max.

Power consumption 280 ± 10% Watts typical

, at APL13%

Stand-by and Power Save 10 Watts Max.

Connector Types

RCA jacks for audio, video, Y/CB/CR, and Y/PB/P

6 pin Din S-terminal for S-Video

9pin D-SUB for RS232

15 pin D-SUB for RGB

24 pin DVI

www.gateway.com

R

Gateway 42-inch HD Plasma TV Specifications

Video/S-Video Signal

Type Analog

Polari ty Positive

Amplitude Video 1Vp-p, (priority S-Video) Y=1Vp-p C=0.286Vp-p

Frequency H: 15.734 KHz V: 60 Hz (NTSC)

H: 15.625 KHz V: 50 Hz (PAL)

Input impedance 75 ohms

Y/CB/CR or Y/PB/PR Signal (Component 1 and 2)

Type Analog

Polari ty Positive

Amplitude AV: 1Vp-p (with sync)

S-Video: Y: 1Vp-p,C: 0.286Vp-p

Frequency

Y/CB/CR

Y/PB/PR: HDTV

H: 15.734 KHz V: 60 Hz (NTSC)

H: 15.625 KHz V: 50 Hz (PAL)

H: 31 KHz V: 60 Hz (480p)

H: 45 KHz V: 60 Hz (720p)

H: 33 KHz V: 60 Hz (1080i)

RGB Signal

Type Analog

Polari ty Po sitive or Negative

Amplitude RGB: 0.7 Vp-p

Frequency H: support to 31 K~91 KHz

V: support to 50~85 Hz

2

www.gateway.com

DVI Signal

Type Digital

Polari ty Po sitive or Negative

Frequency H: support to 31 K~63 KHz

V: support to 50~85 Hz

Audio Signal

Analog 500 mV rms /more than 22 Kohm

Pin Assignments for D-SUB Connector (In/Loop Out)

Pin Signal Assignment Pin Signal Assignment Pin Signal Assignment

1 RED 6 RED GND 11 GND

2 GREEN 7 GREEN GND 12 SDA

3 BLUE 8 BLUE GND 13 H-SYNC

4 GND 9 NC 14 V-SYNC

5 GND 10 GND 15 SCL

Pin Assignments for 24 Pin DVI Connector (Digital Only)

Pin Signal Assignment Pin Signal Assignment Pin Signal Assignment

1 TMDS Data 2- 9 TMDS Data 1- 17 TMDS Data 0-

2 TMDS Data 2+ 10 TMDS Data 1+ 18 TMDS Data 0+

3 TMDS Data 2/4 Shield 11 TMDS Data 1/3 Shield 19 TMDS Data 0/5 Shield

4 TMDS Data 4- 12 TMDS Data 3- 20 TMDS Data 5-

5 TMDS Data 4+ 13 TMDS Data 3+ 21 TMDS Data 5+

6 DDC Clock 14 +5V Power 22 TMDS Clock Shield

7 DDC Data 15 Ground (For +5V) 23 TMDS Clock +

8 No Connect 16 Hot Plug Detect 24 TMDS Clock -
