T o s et up your monitor, first unpack t h e bo x, un wrap the components, attach the base, t hen make
your cable connections.
Attachi ng the bas e
To attach the base:
•Place the monitor base on a t able top, then slide th e mon itor neck down onto the base until
it clicks into place. You may need to press the button on the base to let the monitor slide
on smoothly.
2
Connec ting video inputs
To connect video sources to your monitor:
1Position your computer and your monitor so you can reach the back of each.
2If your computer has a digital video connector (DVI), connect a DVI video cable (not included)
to the white connector on the display.
www.gateway.com
- OR Connect the blue VGA video cable to the blue VGA video connector on the display.
3Make sure that your computer is turned off, then connect the other end of the video cable
to the matching video port on the back of your computer.
3
Connec ting pow er
To connect power:
1Position your monitor so you can reach the back, then connect the power cord to the po w er
Using Your Gateway Flat-Pan el Monitor
connector under the back of your monitor.
2Plug the power cord into a correctly grounded power outlet. We recommend using a surge
protector to protect your monitor from voltage spikes.
Connec ting a sec urity c able
Y ou can sec ure y our monit or t o y our computer de sk (or t o another hea vy objec t) with a cable lock.
To connect a cable lock, follow the cable lock’s instructions to connect it to the Kensington lock
slot on the back of your monitor (cable lock not included).
Kensington lock slot
4
Starting y our monitor
To s t a rt y ou r m o ni t or :
1Press the Power button on the side of your monitor. The power LED on the power button
turns on.
2Turn on your computer. After your computer is running, the power LED on your monitor’s
power button should be blue. Allow about 10 seconds for the display image to appear. If
the power LED is not blue or you do not see a display image, check the connections. For
more troubleshooting information, see “Troubleshooting” on page 10.
3Adjust the tilt of your monitor for the best viewing angle.
4Use the on-screen display (OSD) to adjust other monitor settings. For more information, see
“Adjusting monitor settings” on page 6.
www.gateway.com

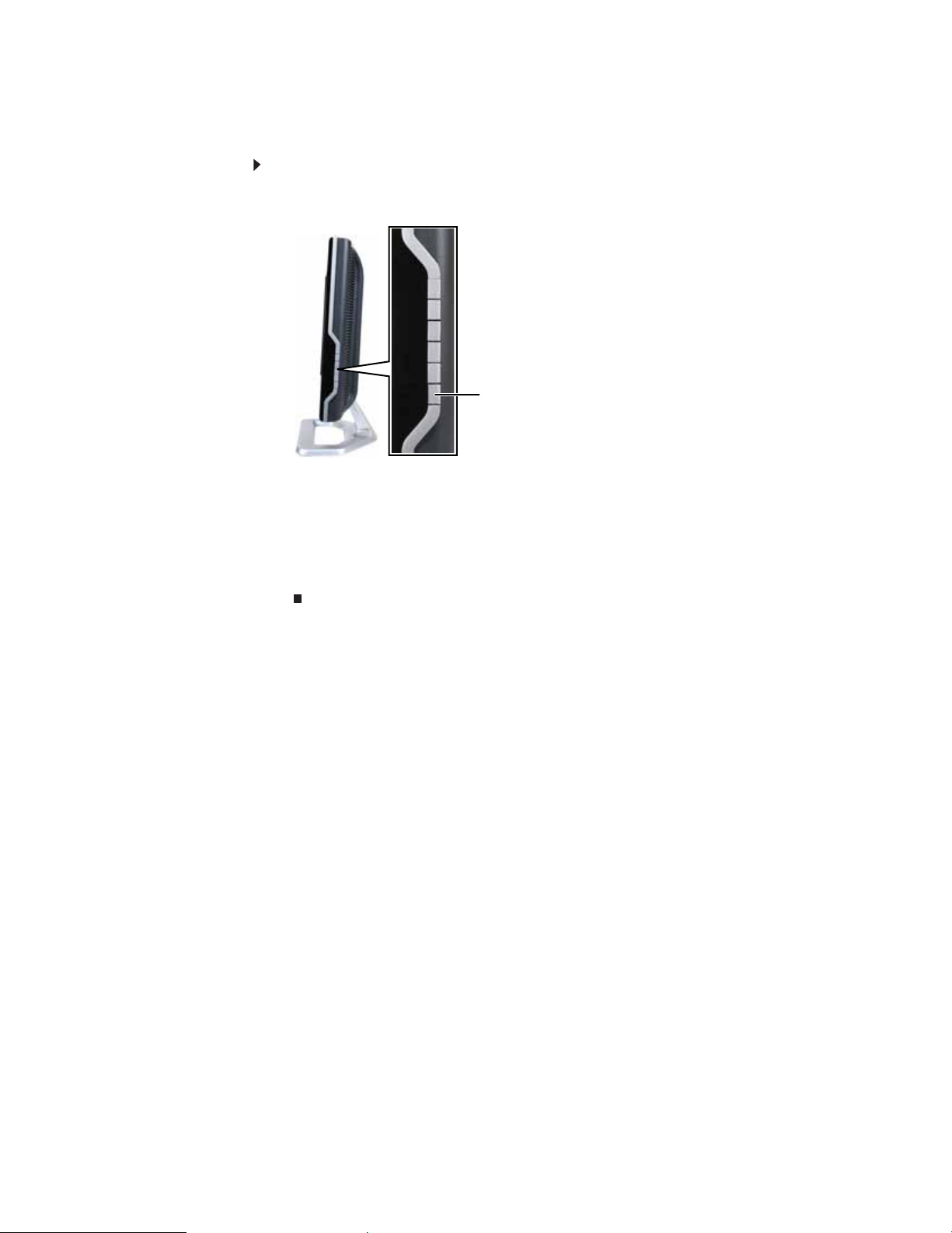

Power b u tton
5
Using Your Gateway Flat-Pan el Monitor
Adjusting monit or set tings
Use your monitor controls (located on your monitor itself) and computer controls (accessible
through Window s) t o adjust t he display image . For mor e inf ormation about comput er controls, see
“Changing Windows screen settings” on page 9.
Using the m onitor but tons
This monitor f eatures an on-screen display (OSD) that lets you adju st contrast, brightnes s, and other
setti ng s for you r m o ni to r. Your m on i tor s aves ch a ng es yo u m ake to the sett i n gs , even if yo u t u rn
off your monitor.
Input button
Auto b utton
Brightness button
Contrast button
Menu button
•Input
OSD active: Press to move to the previous menu.
OSD inactive: Press to select the video source.
•Auto
OSD active: Press to open a menu or setting.
OSD inacti v e : Pre s s t o automatically optimize the monitor’s image position, clock, andphase.
•/ (brightness)
OSD active: Press to move up through menus and adjust OSD options.
OSD in active : Pr ess to ad jus t th e bri ght ness .
•/ (contrast)
OSD active: Press to move down through menus and adjust OSD options.
OSD i nacti ve: Pr ess to a dju st th e co ntr ast.
•Menu
Press to open or close the OSD.
6
On-scr een display optio ns
Adjusti ng OSD settin gs
To adjust the OSD settings:
Tip
While the OSD is active, on-screen labels appear next to the buttons to help
you identify them.
1Press the Auto button. The display image is automatically adjusted to the ideal settings for
your current screen resolutio n.
2Press the Menu button. The OSD opens.
3Press th e / (b rig htn ess) or / (c ont rast ) bu tton to high li ght a setti ng , the n pres s
the Auto button to open the selected menu or setting.
4Press th e / (b rig htn ess) or / (c ont rast ) bu tton to adj ust th e sett ing or ch ang e
the option.
5Press the Input button to retu rn to a previ ou s me nu .
6When you have finished making all adjustments, press the Menu button at the Main Menu
to exi t.
www.gateway.com
OSD menus
OSD MenuDescription
Main menu
Main Menu
Auto
Geometry
Advanced
Reset
Auto—Automaticall y adjusts your mo nitor to its optim um
settings.
Picture—Opens the Picture menu, where you can adjust
brightness, contrast, gamma, and video scaling.
Geometry—Opens the Geometry menu, where you can
adjust image size and minimize distortions.
Advanced—Ope ns the Advanced menu, where you can
adjust color balance, change the OSD language, and
display information about current monitor settings.
Reset—Resets the monitor to its factory settings.
7
Using Your Gateway Flat-Pan el Monitor
OSD MenuDescription
Picture menu
Brightness
Contrast
Gamma
Video Scaling
Geometry menu
Geometry
H-Position
V-Position
Brightness— Adjusts th e amount of lig ht in the darkest
portion of the picture. Use the lowest brightness setting
you are comfortable with to maximize the life of the
monitor backlights.
You may need to readjust brightness after the mo nitor
warm s up .
Contrast—Adjusts the lev el of wh ite b etw een t he l ight est
and darkest portions of an image.
Gamma—Customizes the gamma level. High gamma
levels increase white levels and low gamma levels
increase contrast.
Video S cal ing —Toggles the video aspect ratio between
Wide and 4:3.
H-Position—Moves the display image left and right. You
can also press the Auto button t o configure the horiz ontal
position automatically.
V-Position—Moves the dis play image up and down. You
can also press the Auto button to configure the vertical
position automatically.
Clock—Minimizes any vertical bars or stripes visible on
the screen background. The horizontal screen size will
also change.
Phase—Minimize s an y h or izontal distortion and c le ars or
sharpens the displayed characters.
Clock
Phase
Adva nced menu
Advanced
Color
Language
LED Brightness
Resolution Reminder
Information
Color—Customizes the color levels.
Language—Changes the language of the OSD.
LED Brightness—Changes t he bri ghtn es s of t he Standby
and Power LED to Day Mode or Nite Mode.
Resolu tio n Rem ind er—If the computer display input is
not set to 1440 × 900, displays a reminder that you
should change your computer’s settings to use the
optimum 1440× 900 resolution. If you prefer using your
monitor at a resolu ti on l ess tha n tha t, use thi s op tio n to
turn off the Resolution Reminder. For information on
changing your computer’s display resolution, see
“Changing Windows screen settings” on page 9.
Information—Displays the current screen resolution.
8
www.gateway.com
Changing W indow s sc reen set tings
Adjusting the color depth and screen area ar e two of t he most basic display se tting s you ma y need
to change. You can also adjust settings such as the screen background and screen saver.
Changing color dept h and sc reen re solution
Color depth is the number of colors your computer uses to display images on your monitor. Most
images look best displayed with the maximum number of colors available. If the color in your
images seems “false” or “jump y,” espec iall y af ter you have play ed a game or run a video-intensi v e
program, check the color depth setting and return it to the highest color setting, if necessary.
Screen resol uti on is the number of pixels (individual colored dots) your computer uses to display
images on your monitor. The higher the resolution, the more inf or mati on and screen components
(such as icons and menu bars) can be displayed on your monitor.
Help
For more information about adjusting the screen, click Start, then click Help and
Support. Type adjusting monito r settings in the Search Help box, then press E
To change the color depth or screen resolution in Windows Vista:
1Click (Start), Contro l Panel, then under Appearanc e and P ersonalization, c lick Adjust
Screen Resolution. The Display Settings dialog box opens.
2To change the color depth, click the Colors list, then click the color depth you want.
•Low (8-bit) = 256 colors
•Medium (16-bit) = 65,500 colors
•Highest (24-bit) = 16,700,000 colors
3To change the screen resolution, drag the Resolution slider to the size you prefer.
4Click Apply. If the new settings do not look right, click No. If the new settings make the sc reen
illegible and you cannot click No, the sett ing s r etu rn to th eir pr evio us va lu es after seve ral
seconds.
5Click OK, then click Yes to save yo ur cha ng es.
NTER.
To change the color depth or screen resolution in Windows XP:
1Right-click any empty space on the desktop, then click Properties. The Display P ropert ies
dialog box opens.
2Click the Settings tab.
3To change the color depth, click the arrow button to open the Colo r qu ali ty list, then click
the color depth you want.
•Low (8-bit) = 256 colors
•Medium (16-bit) = 65,500 colors
•Highest (24-bit) = 16,700,000 colors
4To change the screen resolution, drag the Resolution slider to the size you prefer.
5Click OK, then click Yes.
9
Using Your Gateway Flat-Pan el Monitor
P ower man agement
Energy declar ation
When connected to a computer that supports the VESA Display Power Management Signaling
(DPMS) Protocol, your monitor can conserve significant energy by reducing power consumption
during periods of non-use. When your computer goes into the energy saving mode, your monitor
will then enter the Active Off mode (sleep) . In the ActiveOff mode the Power LED will still show
orange.
Use these conventions and the power can be reduced to the following levels:
VESA St ateLED IndicatorPower Consumption
OnBlue<20 W
StandbyOrange<2 W
OffOff<1 W
To “wake” your monitor when it is in Stand by/Active Off mode, move the mouse or press any
keyb oa rd key.
Y ou can c hange y our monit or’ s po wer management settings using the Windows C ontrol Panel. For
more information, see your computer’s User Gu ide.
Maintaining
To keep your monitor in optimal working order:
•Do not block the ventilation holes.
•Do not expose your monitor to rain or use near water.
•Keep your monitor away from radiators or heat vents.
•Keep your monitor out of direct sunlight.
Caution
Do not use any type of abrasive pad or glass cleaner. You will permanently
scratch the screen.
•T o c l ean your monitor, use a soft cloth slightly moistened with water only. Wipe the cabinet,
screen, and controls.
Troubleshooting
Important
Make sure that your monitor has warmed up for approximately 30 minutes before
making any judgments about the picture quality.
If you have problems with your monitor, the information in this troubleshooting section may help
you solve them.
No power
10
Make s ure th at the p owe r c ord is co nne cted co rre ctly to bo th t he bac k o f you r m on ito r a nd the
power outlet. For more information about connecting the power cord, see “Connecting your
monitor” on page 2.
No picture
www.gateway.com
•Make sure that the power cord is connected correctly to both the back of your monitor and
the power outlet. For more information about connecting the power cord, see “Connecting
power” on page 4.
•Make sure that the video cable is connected securely to the back of your monitor and
computer. For more information about connecting the video cable, see “Connecting video
inputs” on page 3.
•Make sure that your monitor is turned on.
•If you have the monitor connected to your notebook’s video port, you have two options:
•If your notebook supports dual displays, you can use both your notebook’s display and
this monitor in extended desktop multi-monitor mode. See Windows Help to learn how
to enable multiple monitors.
•You can also use this monitor as your primary monitor and not use the notebook’s
screen. Notebook computers typically have an F
between your notebook’s display, an externally attached display, and both at the same
time. See your notebook’s user guide for more information.
N key combination that lets you toggle
•If the power LED is orange :
•Make sure that your computer is turned on.
•Move the mouse or press any key on the keyboard to bring your monitor out of sleep
mode.
•Restart your computer with your monitor turned on.
•Make sure that the video cable is not damaged.
•Check the end of the video cable for any pins that might be bent or pushed in.
•Turn off your monitor and unplug the video cable from the back of your computer. Turn
your monitor back on and wait for ten seconds. If your monitor is functioning correctly, a
“No Signal” message appears. For more information about connecting the video cable, see
“Connecting video inputs” on page3.
Display colors ar e wrong
•Press the Menu button, then press the Auto button to automatically adjust the display image
to the ideal settings.
•Restart your computer with your monitor turned on.
•Make sure that the video cable is connected securely to the back of your monitor and your
computer. For more information about connecting the video cable, see “Connecting video
inputs” on page 3.
•Make sure that the video cable is not damaged.
•Check the end of the video cable for any pins that might be bent or pushed in.
Pic ture has shado ws or “ gho sts”
•Press the Menu button, then press the Auto button to automatically adjust the display image
to the ideal settings.
•Remove any extens ion cab les o r switchb oxes.
•Make sure that the video cable is connected securely to the back of your monitor and your
computer. For more information about connecting the video cable, see “Connecting video
inputs” on page 3.
•Make sure that the video cable is not damaged.
•Check the end of the video cable for any pins that might be bent or pushed in.
•If you are using a VGA connection, make sure that you use the VGA cable that came with
you r mo ni tor.
11
Using Your Gateway Flat-Pan el Monitor
Color is not unif or m
•Press the Menu button, then press the Auto button to automatically adjust the display image
to the id ea l sett in gs .
•Make sure that your monitor warms up for at least 30minutes before making a final
judgment about color uniformity or brightness.
Image is not siz ed or cent ered correc tly
•Press the Menu button, then press the Auto button to automatically adjust the display image
to the id ea l sett in gs .
•Use the position controls to adjust the image. For instructions on how to adjust the display
image position, see “Adjusting monitor settings” on page6.
•If the image looks stret che d or fuzzy , you mu st adjust the oper ating sy st em’ s displa y se ttings
to match the m oni tor ’s op tim al ( native) 1440 × 900 setting. For information on adjusting
settings, see “Changing Windows screen settings” on page9.
•If you are trying to select 1440 × 900 but it is not available in the Windows display
controlpanel:
•Make sure that your video card can display at 1440× 900 resolution.
•This may be caused by older video drivers on your computer. See the Gateway support
Web site (www.gateway.com) for updated video driv ers f or y our computer. Y ou can als o
go directly to your video card’s support Web site for the most up-to-d ate video drivers.
The Web sites for the major video card manufacturers are:
•If your games do not have support for widescreen displays:
•Newer games are adding support for widescreen displays as the widescreen format
becomes more popular. Check the game’s Web site for updates. You can also consult
the following Web site for specific settings and options to configure older games to
support widescreen: www.widescreengamingforum.com
•Some adjustments may require you to make changes to the Windows System Registry.
We recommend making a complete system backup before changing the System Registry.
.
Y our monitor has pixels that are alwa ys dark or too bright
•This condition is normal and inherent in the TFT technology used in active-matrix LCD
screens. Gateway’s inspection standards keep these to a minimum. If you feel these pixels
are unacceptably numerous or dense on your display, contact Gateway Customer Care to
identify whether a repair or replacement is justified based on the number of pixels affected.
Connec ting a game consol e
•If you want to connect your game console to this monit or , use optional video cables (avai lable
at www.gateway.com if ordering from the United States). To determine the type of cable
you need, see your gaming console’s documentation.
12
Specif ications
Specificatio ns are subject to change without notice or obligation. Many produc ts for Gatew ay and
its subsidiaries are custom engineered by our suppliers to Gateway specifications and may vary
from similarly marketed products.
www.gateway.com
Pane l s ize
Panel type
Pixel re solut ion
Pixel pitc h
Aspect rati o
Brightness and contrast ratio
Viewing angles
Response time
Lamp type/life
Colors
OSD lang uages
Connections and inputs
Alway s follow these instruc tion s t o help gu ar d aga inst pe rsonal i njury and da mage t o you r Gat e w a y product.
Warning
Do not use Gat e w ay products in ar ea s c la s si fie d a s ha zar do u s locat ions. Suc h ar ea s include patient care ar ea s
of medical and dental facilities, oxygen-laden environments, or industrial facilities.
Your Gate wa y product is designed and tested t o meet the latest standards for safety of information technology equipment. However,
to ensure safe use of this product, it is important that the safety instructions marked on the product and in the documentation are
followed.
Setting up your syst em
■
Read and follow all instructions marked on the pr oduct and in the documentation before y ou operate your sy st em. Retain all saf ety
and operating instructions for future use.
■
Do not us e th is pr odu ct ne ar w at er o r a heat sou rce suc h as a ra diat or.
■
Set up the system on a stable work surfa ce.
■
The product should only be operated from the type of power source indicated on the rating label.
■
If your product has a voltage select or swit ch, mak e sure that the sw itc h is in the proper position for y our area. The voltage selector
switch is set at the factory to the correct voltage.
■
Openings in the monitor case are provided f or ventilation. Do not block or cover t hese openings. Make sure y ou prov ide adequate
space, at least 6 inches (15cm), around the system for ventilation when you set up your work area. Nev er insert objects of any kind
into the monitor ventilation openings.
■
Some products are equipped with a three-wire power cord to make sure that the product is properly grounded when in use. The
plug on this cord will only fit into a grounding-type outlet. This is a saf ety f eature. If y ou are unable to insert t he plug into an outlet,
contact an elec tric ia n to instal l t he appr opr iat e out let.
■
If you use an extension cord with this system, make sure that the total ampere rating on the products plugged into the extension
cord does not exceed the extension cord ampere rating.
Care during use
Warning
To pr e v ent elec tric shoc k, ne ver r emo v e the cov er. No user serv iceable pa rts inside . R ef er serv ic ing t o qual ified
service personnel.
■
Do not walk on the power cord or allow anything to rest on it.
■
Do not spill anything on the system. Th e best wa y to av oid spills is to a v oid eating and drinking near your system.
■
Do not ex pos e t he mon it or t o r ain or us e ne ar w at er. If the mo nit or do es g et e xp ose d t o mois tur e , un plug it and allo w it t o d ry for
24 hours. Call Gateway Customer Care for advice on whether the monitor is safe to turn back on.
■
When the monitor is turned off, a small amount of electrical curr ent still flow s through the monitor. To av oid electrical shock,
always unplug all power cables and modem cables from the wall outlets before cleaning the system.
■
Unplug the system fr om the wall outlet and ref er servic ing to qualified personnel if:
■
The power cord or plug is damaged.
■
Liquid has been spilled into the system.
■
The system does not operate pr operly when the operating instructions are follo wed.
■
The system wa s dropped or the cabinet is damaged.
■
The system performance changes.
Replacement parts and accessories
Use only replacement parts and accessories recommended by Gateway.
16
www.gateway.com
Env ironmental inf ormation
EP A ENERG Y STAR
press the power button to “wak e” it up.
For more information about the power management features of your Gateway deskt op computer , see “Changing power -sa ving
settings” in the online User Guide.
For more information about the power management features of your Gatew ay notebook, see “Managing Po wer” in the online
Reference Guide.
Help
For more information about Sleep mode in Windows Vista, click Start, then click Help and Support. Type
sleep in the Search Help box, then press E
Recycling
Mercury Warning
The lamp(s) in this display contain mercury. Dispose according to local, state and federal law.
Hg
The product you have purchased contains extract ed natural resources t hat have been used in the manufacturing process. This product
may contain substances known to be hazardous to the environment or to human health.
To pre vent release s of harmful substances into the environment and to maximize the use of our natural resources, Gate wa y provides
the following information on how you can responsibly recycle or reu se most of the materials in your “end of lif e” product.
Waste Electrical and Electronic Equipment (commonly known as WEEE) should never be disposed of in the municipal waste
stream (residential garbage collection). The “Crossed-Out Waste Bin” label affix ed to this pr oduct is y our reminder to
dispose of your “end of life” product properl y .
Substances such as glass, plastics, and certain chemical compounds are highly recoverable , recy clable, and reus able. You
can do y our p art f or t he e nv i ronm ent b y followin g t hes e si mple st ep s:
■
When your electrical or electronic equipment is no longer useful to you, “take it back” t o your local or r egional wast e collection
administration for recycling.
■
In some cases, your “end of life” pr oduct may be “traded in” for cr edit towa rds the purchase of ne w Gatewa y equipment. Call
Gateway t o see if this pr ogram is a vailable in your ar ea.
■
If you need further assistance in recycling, reusing, or trading in your “end of life” product, you may contact us at the Customer
Care number listed in your product’s us er guide and we will be glad to help you with y our eff ort.
Finally, we suggest that you practice other environmentally friendl y actions by understanding and using the energy-saving features of
this product (where applicable), recycling the inner and outer packaging (including shipping containers) this product was delivered in,
and by dispos ing of or recy c ling u sed ba tt erie s pr operl y .
With your help, we can reduce the amount of natural resources needed to produce electrical and electronic equipment, minimize the
use of landfills for the disposal of “end of life” products, and generally improv e our quality of life by ensuring that potentially
hazardous substances are not released into the en vironment and are disposed of properly .
For additional recycling inf ormation specific t o your area, pleas e go to www.gateway.com/recycle.html
®
As an ENERGY STAR Partner , Gat ew a y has det ermined that t his prod uct meets or e xceeds th e ENERG Y STAR 4.1
performance guidelines for computer energy efficiency and power management.
ENERGY ST AR P ower Management (standard in the Windows operating system) places inactive components (CPU,
hard drives, and other components except memory) into a low-power Sleep mode. Sleep mode uses less energy t o
run your computer, sa ves on y our energy costs, and helps protect the en vironment by reducing greenhouse gas
emissions.
Your computer was shipped with Sleep mode enabled. While your computer is in Sleep mode, the power indicator
flashes. To u se your computer aft er it has entered Sleep mode, move the mouse , pre ss a ke y on the ke yboard, or
NTER.
.
17
Safety, Regulato ry, and Legal Informat ion
Re gulatory compliance statements
United State s of America
Federal Communications Commission (FCC) Unint entional emitter per FCC Part15
This device has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC rules. The se
limits are designed to provide rea sonable protec tion against harmful interfer ence in a residential installation. This equipment
generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may caus e
harmful interference to r adio or telev ision reception. Howe ver, there is no guarantee that interf erence will not occur in a particular
installation. If this equipment does cause interference t o radio and tele vision reception, which can be det ermined by turning the
equipment off and on, the user is encouraged to try to correct the interference by one or more of the f ollowing measures:
■
Reorient or relocate the r eceiv ing ante nna
■
Increase the separation between the equipment and receiver
■
Connect the equipment to an outlet on a different circuit from that to which the receiver is connected
■
Consult the dealer or an experienced radio/TV technician for help.
Compliance Accessories: The accessories ass ociat ed with this equipment are: shielded video cable. These accesso ries are required t o
be used in order to ensure compliance with FCC rules.
FCC declar ation of conf ormity
Model: HD1700
Canada
Caution
Changes or m odifi cations not e xpressly approved by Gateway could void the FCC com plianc e and negate
your authority to operate the product.
California Prop osition 65 Warning
This product contains chemicals known to the State of California to cause cancer, birth defects, and/or other
reproductive harm. For additional information regarding this product warning, go to www.gateway.com/prop65
Responsible party:
Gateway, Inc.
7565 Irvine Center Drive
Irvine, CA 9261 8USA
This device complies with Part15 of the FCC Rules. Operation of this de vice is subject t o the f ollowing two conditions: ( 1 ) this de v i ce
may not caus e harmfu l inter fe rence , and (2) t his de vice mu st accept an y interf erence recei ved, including inter ference that ma y cause
undesired operation.
.
Industry Canada (IC) Unintentional emitter per ICES-003
This digital apparatus does not exceed the Clas sB limits for radio noise emissions from digital apparatus as set out in the radio
interference regulations of Industry Canada.
Le pré se nt appa re il numé riqu e n’é met pa s de br uits ra dioé lec tri que s dé pa ssa nt le s l imit es appl icabl es a ux appar ei ls nu mér ique s de
ClasseB prescrites dans le règlement sur le brouillage radioélectrique édicté par Industrie Canada.
Gateway, Inc.
7565 Irvine Center Drive
Irvine, CA 9261 8 US A
All Rights Reserved
This publication is protected b y copyr ight and all rights are reserved. No part of it may be r eproduced or transmitte d by any means or
in any form, without prior consent in wr iting from Gat ew ay .
The information in this manual has been carefully check ed and is believ ed to be accur ate . Howe ver, changes are made periodically.
These changes are incorporated in new er publication editions. Gatewa y may impro ve and/ or change products des cribed in this
publication at any time. Due to continuing system impro vements, Gate way is not re sponsible for inaccur ate inf ormation which may
appear in this manual. For the latest product updates, consult the Gateway Web site at www.gateway.com
be liable for direct, indirec t, special, exemplary , inc idental, or consequential damages resulting from any defec t or omission in this
manual, even if advised of t he possibility of such damages.
In the interest of continued product development, Gateway reserv es the right to mak e improvements in this manual and the products
it describes at an y time, wit hout notices or obligation.
T rademark acknow ledgments
Gatew a y and eM achin es are tr adema rks or r egist er ed tr ademark s of Gat e w ay, Inc. in the Unit ed Stat e s and ot her co untri es. A ll ot her
brands and product names are trademarks or registered trademarks of their respective companies.
www.gateway.com
. In no event will Gateway
19
Safety, Regulato ry, and Legal Informat ion
20
MAN HD1700 USR GDE R0 1/08
Loading...
+ hidden pages
You need points to download manuals.
1 point = 1 manual.
You can buy points or you can get point for every manual you upload.
