Using Your Gateway Flat-PanelMonitor

Connecting the monitor

Ergonomic guidelines

Starting the monitor

Adjusting monitor settings

Changing Windows screen settings

Using the speaker bar

Power management

Maintaining

Troubleshooting

FAQs

Specifications

1

Using Your Gateway Flat-PanelMonitor

Connecting the monitor

To set up the monitor, first attach the base, then make your cable connections.

Attaching the base

To attach the base:

1Place the monitor base on a table top.

2Slide the monitor neck down onto the base until it clicks into place. You may need to press the button on the base to let your monitor slide on smoothly.

Connecting video inputs

To connect video sources to your monitor:

1Position your computer and the monitor so you can reach the back of each.

2Make sure that you computer is turned off.

2

www.gateway.com

3If your computer has an HDMI digital audio/video connector, connect an HDMI cable to the HDMI connector under the back of the display.

Important

An HDMI cable has not been included with your monitor. A cable can be purchased from www.gateway.com (available in the U.S. only) or from various Internet retailers and electronic retail stores.

- OR -

If your computer has a digital video connector (DVI), connect the DVI video cable to the white connector under the back of the display.

- OR -

If your computer has only an analog VGA (blue) port, connect the VGA video cable to the VGA video connector under the back of the display.

4Connect the other end of the video cable to the matching video port on the back of your computer.

3

Using Your Gateway Flat-PanelMonitor

5Connect other video sources (such as a DVD player, video camera, or receiver) to the appropriate video jacks on the back of the monitor.



HDMI port

DVI port

VGA port









Setting up the optional speaker bar

An optional speaker bar is available for mounting underneath your monitor. In the United States, you can order a speaker bar from www.gateway.com.

To install the speaker bar:

1 Turn off the monitor.

Important

If you connect the speaker bar to the monitor while the monitor is turned on, the speaker bar will not initialize and will not work correctly. If this happens, turn the monitor off, then back on to enable the speaker bar.

2Tilt the screen back, then match the mounting clips on each side of the speaker bar with the mounting slots underneath the monitor.

Mounting slot







Mounting clip





3Slide the speaker bar forward onto the bottom of your monitor until it snaps into place. Make sure that it is secure by pulling it downward.

4

www.gateway.com

4Plug the speaker bar’s power and audio plugs into the appropriate connectors underneath the monitor.

Power

Audio jack

connector



5Plug the speaker bar’s pink and green 3.5 audio plugs into the appropriate speaker and microphone connectors on the computer.

Important

For best audio performance use an HDMI connection. The digital audio is conveyed along the same cable as the digital video, and no additional audio connection is required. You may need to set your video source’s audio mode to PCM orANALOG to hear the audio. See your source device’s user guide for more information.

For information on using the speaker bar, see “Using the speaker bar” on page 14.

To remove the speaker bar:

1Disconnect all audio and power cables from the speaker bar.

2Press the two clips on the back of your monitor, then slide the speaker bar back.

Mounting clip

5

Using Your Gateway Flat-PanelMonitor

Connecting power

To connect power:

1Position your monitor so you can reach the back, then connect the power cord to the power connector under the back of the monitor.

2Plug the power cord into a correctly grounded power outlet. We recommend using a surge protector (not included) to protect your monitor from voltage spikes.

3To make sure that the monitor’s power is correctly connected, check the power button on the front button panel. The power icon on the power button should be glowing purple. If the power icon is not visible, power is not connected.

Connecting a security cable

You can secure your monitor to your computer desk (or to another heavy object) with a cable lock. To connect a cable lock, follow the cable lock’s instructions to connect it to the Kensington lock slot on the back of your monitor (cable lock not included).

Kensington lock slot

6

www.gateway.com

Ergonomic guidelines

The recommended screen positioning is based upon the following guidelines. These guidelines are based on available scientific literature and published standards.

Screen height

The recommended screen height for displays (except in special circumstances, such as for bifocal use) is that the top of the display should be set at or slightly below (about 1 inch or 25 mm) your eye level while you are sitting in a comfortable working posture. This guideline places the center of the screen at an ideal 15° to 20° viewing angle for most desktop displays.

Screen tilt

The screen should be tilted so your line of sight is perpendicular to the screen. This angle creates the most consistent viewing distance when scanning from the top of the screen to the bottom. You may need to adjust lighting to avoid screen glare when the screen is tilted upward.

Screen distance from user

The screen should first be placed at arm’s length from the user, then adjusted back and forth to suit individual preference.

Starting the monitor

Turning on the monitor

To start the monitor:

1Touch the power button on the front of monitor. The power LED on the power button changes from purple (off) to blue (on), then turns amber/orange (standby) if no video source is detected.

Tip

For more information on EzTouch buttons, see “Using the EzTouch menu buttons” on page 8.

Power button

7

Using Your Gateway Flat-PanelMonitor

2Turn on your computer. After your computer is running, the power LED on the monitor’s power button should turn blue, indicating that the monitor has detected a video source. Allow about 10 seconds for the display image to appear.

If you do not see an image after waiting 10 seconds, check the color of the power button light.

No light—Themonitor is not receiving power. Make sure that the monitor is plugged into an AC outlet.

Purple—Themonitor is turned off. Touch the power button to turn it on.

Amber—Themonitor is not detecting a video source. Check the video input connections and make sure that the computer is turned on and connected correctly to the monitor.

Blue—Themonitor is detecting a video source. Check the brightness setting.

For more troubleshooting information, see “Troubleshooting” on page 15.

3The first prompt you see is the language selection menu settings. You must select a default language for the OSD before you can proceed.

Tip

To modify the language you select at a future time, use the Advanced menu. If you cannot access theAdvanced menu because you chose a language you cannot read, do the following:

Unplug the monitor from the power outlet for ten or more seconds.

Plug the monitor back into the power outlet.

You will be prompted for the language selection menu settings again.

4Adjust the tilt of the monitor for the best viewing angle.

5For VGA input only: After you see the Windows desktop, touch(Menu) on the front of your monitor, then touch(Auto) to automatically adjust your display image to the ideal settings.

6Use the on-screendisplay (OSD) to adjust other monitor settings. For more information, see“Adjusting monitor settings” on page 8.

Adjusting monitor settings

Use the monitor controls (located on the monitor itself) and computer controls (accessible through Windows) to adjust the display image. For more information about computer controls, see “Changing Windows screen settings” on page 13.

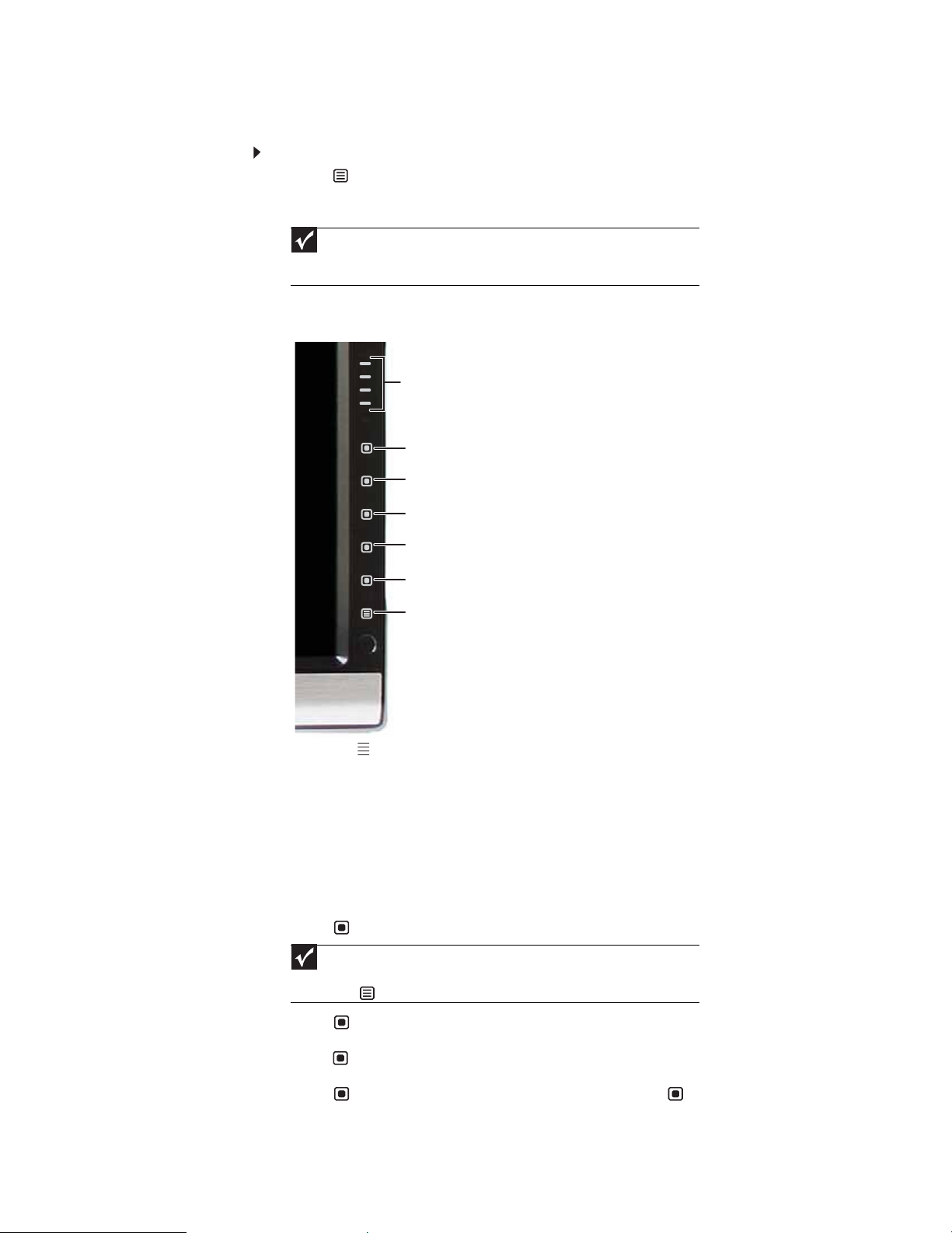

Using the EzTouch menu buttons

This monitor features an on-screendisplay (OSD) and EzTouch menu buttons that let you adjust contrast, brightness, and other settings for the monitor. The monitor saves changes you make to the settings, even if you turn off the monitor. Your monitor has two levels of menus, and the functionality of the touch buttons depends on the menu that is currently open:

The shortcut menu (the first menu that appears) lets you quickly change some of the most commonly accessed settings.

The main menu lets you precisely adjust all levels of settings.

8

www.gateway.com

Using the shortcut menu

To use the shortcut menu:

1Touch (Menu) on the front of your monitor. The rest of the button icons light up and the shortcut menu opens. (The menu’s appearance and choices vary, depending on the currently active video input and whether the speaker bar is attached.)

Important

The buttons are very sensitive, and may be “pressed” by holding your finger just above its surface. To completely “release” a touch button, make sure that you lift your finger well away from the button.

2To use an EzTouch menu button, lightly touch its icon. For adjusting a setting’s values, you can press and hold touch buttons as you would conventional buttons.

Theme Select (Volume Adjust when optional speaker bar is connected)

Input Select (Mute when optional speaker bar is connected)

Auto (Input Select when optional speaker bar is connected)

PIP On

PIP Settings

Cancel

Main Menu

Touch the (Theme Select) buttons to cycle through the preset videothemes (brightness, contrast, and temperature configurations):

User

Movie

Game


Web

Warm

Cool

Touch (Input Select) to cycle through the available video sources.

Important

If, after the monitor is turned on, it does not find an active video input, the monitor enters into standby and the power LED turns orange. To manually switch inputs, touch (Menu), then select the input from theon-screenlist.

Touch (Mute) to mute the optional speaker bar. This option is only available when the optional speaker bar is connected.

Touch (Auto) to automatically adjust your display image to the ideal settings. This option is only available when the video input is VGA.

Touch (PIP On) to turn onPicture-in-Picture,and touch(PIP Settings) to adjust the PIP position, size, and other advanced PIP settings.

9

Using Your Gateway Flat-PanelMonitor

Touch (Cancel) to exit the shortcut menu.

Touch (Main Menu) to open the main menu.

To turn off the button icons and close the menu, wait about ten seconds without pressing a button.

Using the main menu

To use the main menu:

1Touch (Menu) on the front of your monitor. The rest of the button icons light up and the shortcut menu opens.

Important

The EzTouch menu buttons are very sensitive, and may be “pressed” by holding your finger just above its surface. To completely “release” a touch button, make sure that you lift your finger well away from the button.

Tip

To use a button, lightly touch its icon. For adjusting a setting’s values, you can press and hold touch buttons as you would conventional buttons.

2 Touch(Main Menu). The main menu opens.

Choose option or mode, Adjust setting

Select

Back

Menu or Menu Off

Tip

While the OSD is active, on-screenlabels appear next to the buttons to help you identify them.

3Touch the (Choose Option) buttons to highlight a setting, then touch(Select) to open the selected menu or setting.

4Touch the (Adjust) buttons to adjust the setting or change the option.

5Touch (Back) to return to a previous menu.

6When you have finished making all adjustments, touch (Menu Off) to exit.

10



www.gateway.com















OSD Menu

Description

Main menu













Auto—Automaticallyadjusts your monitor to its optimum settings. (VGA input only)



Picture—Opensthe Picture menu, where you can adjust brightness, contrast, and gamma.



PIP Settings—Opensthe PIP Settings menu, where you can adjust the source, position, size, and



transparency of the Picture-in-Pictureimage.



Video adjust—Opensthe Video Adjust menu, where you can adjust the sharpness of the picture and the



video aspect ratio.



Geometry—Opensthe Geometry menu, where you can adjust image size and minimize distortions. (VGA



input only)



Audio—Opensthe Audio menu, where you can adjust volume, bass, treble, 3D audio, audio source, and



audio switching. (Speaker bar must be connected.)



Advanced—Opensthe Advanced menu, where you can adjust color balance, change the OSD language,



and display information about current monitor settings.



Reset—Resetsthe monitor to its factory settings for the currently displayed input.

Picture menu

Brightness—Adjuststhe amount of light in the darkest portion of the picture. Use the lowest brightness



setting you are comfortable with to maximize the life of the monitor backlights. You may need to readjust



brightness after the monitor warms up.



Contrast—Adjuststhe level of white between the lightest and darkest portions of an image.



Gamma—Customizesthe gamma level. High gamma levels increase white levels and low gamma levels



increase contrast. (VGA input only)



Saturation—Adjuststhe intensity of a hue. High saturation results in very bright, vivid colors. Low



saturation results in grayish colors. (HDMI/DVI input only)



Tint/Hue—Adjuststhe color spectrum of the display. (HDMI/DVI input only)















PIP Settings menu

PIP Display—Togglesthe display of the PIP window.



Source—Setsthe source of the video used in the PIP window.



Position—Setsthe position of the PIP window on the main screen.



Size—Setsthe size of the PIP window.



Transparency—Setsthe transparency of the PIP window. The PIP window can be from almost transparent



to completely opaque. When the PIP window is transparent, you are able to see through the PIP video



display to your Windows desktop, which makes it easier to access your computer programs while watching



video.



Swap—Switchesthe PIP image to the main image, and the main image to the PIP image.



PIP Picture—Opensa menu where you can set the PIP brightness, contrast, saturation, and tint/hue.

Video Adjust menu

Unless otherwise indicated, these settings apply only to SD (standard definition) video at 480i and below.



Where “PC input” is indicated, the resolutions that apply are from 800 × 600 to 1920 × 1200.



Sharpness—Adjustssharpness for video images.



Video Scaling—Setsvideo aspect ratios and scaling between Wide, Zoom, 1:1, and Panoramic modes.



PC input: Sets resolution aspect ratios and scaling between Wide, Zoom, and 1:1.



Wide mode stretches a standard broadcast orfull-frameimage to fill the entire





















screen. Widescreen (1.76:1) images fill the entire screen without distortion, while











widescreen (1.85:1 and 2.35:1) images appear without distortion but with black











bars at the top and bottom. PC input: Stretches the image to fit the entire screen.

























Zoom mode crops off a portion of a widescreen image in order to fill the entire

















screen with a distortion-freeand blackbar-freeimage. PC input: Zooms the









image to fill the screen from top to bottom with black bars on the left and right









sides of the image.





















1:1 mode preserves the movie’s original aspect ratio, so a standard broadcast or













full-framemovie appears with black bars on the left and right of the image. PC input:







Preserves the original aspect ratio of the resolution by using black bars on the left and







right sides and variable sizes of black bars on the top and bottom of the image







(depends on resolution).







Panoramic mode uses selective distortion to stretch a standard broadcast or





















full-frameimage to fill the entire screen. Unlike Wide mode, Panoramic mode









stretches only the left and right sides of the image, and leaves the center of the









image distortion free.



















Overscan—Avideo signal is often displayed slightly cut off at all edges. If Overscan is turned off, you may



notice strange video anomalies on the edges of the video being displayed. This is normal and is part of



the data embedded in any video signal. To avoid seeing these anomalies, turn Overscan on.















11



Using Your Gateway Flat-PanelMonitor





OSD Menu

Description





Geometry menu

H Position—Movesthe display image left and right. You can also touchAuto to configure the vertical and

(VGA input only)

horizontal position automatically.



V Position—Movesthe display image up and down. You can also touchAuto to configure the vertical and



horizontal position automatically.



Clock—Minimizesany vertical bars or stripes visible on the screen background. The horizontal screen size



will also change.



Phase—Minimizesany horizontal distortion and clears or sharpens the displayed characters.

Audio menu

Volume—Adjustsvolume.

(available when

Bass—Adjustsbass tones.

optional speaker

Treble—Adjuststreble tones.

bar is connected)

3D Audio—Enablessimulated surround sound.



Audio Source—Selectsthe audio source. Allows the audio source to be set to the main or PIP window.



When set to PIP window and the PIP is displayed on screen, the audio being played switches from the main



to the PIP window. When the PIP window is closed, the main audio is heard. When set to main, PIP audio



is only heard when the PIP is set to full screen.



Audio Configuration—Mapsthe PC audio and RCA audio inputs to specific video inputs. The HDMI audio



is fixed to the HDMI video signal and cannot be mapped.





Advanced menu

Color—Customizesthe color levels.



Language—Changesthe language of the OSD.



LED Mode—Changesthe brightness of the Standby and Power LED to Day Mode or Nite Mode. When



watching movies in a darkened room, you may want to change the LED mode to Nite Mode to avoid an



over-bright,distracting power LED indicator.



DVI Video mode—Changesthe DVI video mode by enabling either RGB Color Space (used for digital input)



and YUV Color Space (used for analog TV input such as NTSC, PAL, and SECAM).



Information—Displayscurrent screen resolution and input source for the main display.



Resolution reminder—Ifthe computer display input (VGA, DVI, and HDMI) is not set to 1920 × 1200,



displays a reminder that you should change your computer’s settings to use the optimum 1920 × 1200



resolution. If you prefer using your monitor at a resolution less than 1920 × 1200, use this option to turn



off the Resolution Reminder. For information on changing your computer’s display resolution, see “Changing



Windows screen settings” on page 13.



UltraResponse—Enablesthe monitor to work at a faster refresh rate. If you experience video quality issues



with shadows in fast moving images, you can disable this function to go back to the native LCD panel



response time.



UltraContrast—Adjuststhe backlight to enhance the contrast.



Reset All—Resetsall values to the factory settings.





Using Picture-in-Picture(PIP)

Picture-in-Picture(PIP) is a convenient way to view video from multiple video sources at the same time. Refer to the following chart to determine which combinations of video sources can be used as a PIP display.





Main display



PIP display

D-Sub/VGA

Digital/DVI

HDMI









D-Sub/VGA

OK

OK









Digital/DVI

OK









HDMI

OK









Important

For some video resolutions, refresh rates, and video scaling modes, PIP may not be allowed. If you receive a message that PIP is not available, try the following:

Adjust the refresh rate in Windows to 60 Hz. See Windows online Help for more information.

Adjust the video scaling mode to Wide on the monitor.

Change the resolution of the Windows desktop to match the monitor’s full resolution of 1920 × 1200. For more information see “Changing color depth and screen resolution” on page 13.

12

www.gateway.com

Changing Windows screen settings

Adjusting the color depth and screen area are two of the most basic display settings you may need to change. You can also adjust settings such as the screen background and screen saver.

Changing color depth and screen resolution

Color depth and screen resolution are two of the most basic monitor settings you may need to change to suit your needs.

Color depth is the number of colors your computer uses to display images on your monitor. Most images look best displayed with the maximum number of colors available. If the color in your images seems “false” or “jumpy,” especially after you have played a game or run avideo-intensiveprogram, check the color depth setting and return it to the highest color setting, if necessary.

Screen resolution is the number of pixels (individual colored dots) your computer uses to display images on your monitor. The higher the resolution, the more information and screen components (such as icons and menu bars) can be displayed on the monitor.

Help

For more information about adjusting the screen, click Start, then clickHelp and

Support. Typeadjusting monitor settings in theSearch Help box, then pressENTER.

To change the color depth or screen resolution in Windows Vista®:

1Click (Start), Control Panel, then under Appearance and Personalization, click Adjust Screen Resolution. The Display Settings dialog box opens.

2To change the color depth, click the Colors list, then click the color depth you want.

Low (8-bit)= 256 colors

Medium (16-bit)= 65,500 colors

Highest (32-bit) = 16,700,000 colors

3To change the screen resolution, drag the Resolution slider to the size you prefer.

4Click Apply. If the new settings do not look right, clickNo. If the new settings make the screen illegible and you cannot clickNo, the settings return to their previous values after several seconds.

5Click OK, then clickYes to save your changes.

To change the color depth or screen resolution in Windows XP:

1Click Start, then clickControl Panel. TheControl Panel opens. If your Control Panel is in Category View, clickAppearance and Themes.

2Click Display. TheDisplay Properties dialog box opens.

3Click the Settings tab.

4To change the color depth, click the arrow button to open the Color quality list, then click the color depth you want.

Low (8-bit)= 256 colors

Medium (16-bit)= 65,500 colors

Highest (32-bit) = 16,700,000 colors

5To change the screen resolution, drag the Screen resolution slider to the size you prefer.

6Click Apply. If the new settings do not look right, clickNo. If the new settings make the screen illegible and you cannot clickNo, the settings return to their previous values after several seconds.

7Click OK.

13

Using Your Gateway Flat-PanelMonitor

EzTune software

When installed onto your computer, EzTune™ software lets you control many of the monitor settings from your computer. With EzTune, you can:

Change the orientation of the image (landscape to portrait) by just rotating the screen (requires the optional height-adjustablestand available in the U.S. atwww.gateway.com)

Change brightness, contrast, and color balance

Change screen geometry

Set the display position and resolution

For more information, see the program’s CD or the installed program’s online help.

Using the speaker bar

Important

If you connect the speaker bar to the monitor while the monitor is turned on, the speaker bar will not initialize and will not work correctly. If this happens, turn the monitor off, then back on to enable the speaker bar.

To turn on the speaker bar:

The speaker bar is always on. If you connected the speaker bar by following the instructions in “Setting up the optional speaker bar” on page 4, the speaker bar receives power constantly from the monitor’s speaker bar power connector.

To use headphones:

Plug headphones into either of the speaker bar’s headphone jacks. The speaker bar’s volume is muted, and sound is played through the connected headphones. You can connect headphones to both headphone jacks, and sound plays out of both sets of headphones.

Power management

Energy declaration

When connected to a computer that supports the VESA Display Power Management Signaling (DPMS) Protocol, the monitor can conserve significant energy by reducing power consumption during periods of non-use.When your computer goes into the energy saving mode, the monitor will then enter the Active Off mode (sleep). In the Active Off mode the Power LED will still show orange.

14

www.gateway.com

Use these conventions and the power can be reduced to the following levels:

VESA State

LED Indicator

Power Consumption







On

Blue

<150 W







Standby

Orange

<2 W







Off

Purple

<1 W







To “wake” the monitor when it is in Standby/Active Off mode, move the mouse or press any keyboard key. You can change the monitor’s power management settings using the Windows Control Panel. For more information, see your computer’s User Guide.

Maintaining

To keep the monitor in optimal working order:

Do not block the ventilation holes.

Do not expose the monitor to rain or use near water.

Keep the monitor away from radiators or heat vents.

Keep the monitor out of direct sunlight.

Caution

Do not use any type of abrasive pad or glass cleaner. You will permanently scratch the screen.

To clean the monitor, use a soft cloth slightly moistened with water only. Wipe the cabinet, screen, and controls.

Troubleshooting

If you have problems with the monitor, the information in this chapter may help you solve them without needing to call Customer Care.

Make sure that the monitor has warmed up for about 30 minutes before making any judgments about the picture quality.

Troubleshooting symptoms

No power

Make sure that the power cord is connected correctly to both the back of the monitor and the wall outlet. For more information about connecting the power cord, see “Connecting the monitor” on page 2.

Important

If the power LED is on, the monitor is receiving power.

15

Using Your Gateway Flat-PanelMonitor

No picture

Touch (Menu), then(Input Select) to make sure that you have selected the correct video source.

Make sure that the power cord is connected correctly to both the back of the monitor and the wall outlet. For more information about connecting the power cord, see “Connecting the monitor” on page 2.

Make sure that the video cable is connected securely to the back of the monitor and computer. For more information about connecting the video cable, see “Connecting the monitor” on page 2.

Make sure that the monitor is turned on.

Reset the monitor to the factory settings. For more information, see “Advanced menu” on page 12.

If the power LED is orange, it means that the monitor is not detecting a video source or input detection is disabled. Complete the following steps:

Move the mouse or press any key on the keyboard to bring the monitor out of sleep mode.

Touch (Menu), then touch(Input Select) to choose another input.

Make sure that your computer is turned on.

Restart your computer with the monitor turned on.

Make sure that the video cable is not damaged.

Check the end of the video cable for any pins that might be bent or pushed in.

Reset the OSD. For more information, see “Advanced menu” on page 12.

Turn off the monitor and unplug the video cable from the back of your computer. Turn the monitor back on and wait for ten seconds. If the monitor is functioning correctly, a “No Signal” message appears. For more information about connecting the video cable, see “Connecting the monitor” on page 2.

You have the monitor connected to your notebook’s VGA port but see no image on the screen.

If your notebook supports dual displays, you can use both your notebook’s display and this monitor in extended desktop multi-monitormode. See Windows Help to learn how to enable multiple monitors.

You can also use this monitor as your primary monitor and not use the notebook’s screen. Notebook computers typically have an FN key combination that lets you toggle between your notebook’s display and an externally attached display. On Gateway notebooks, this key combination isFN+F4. TheF4 key is located along the top row of keys. See your notebook user guide for more information.

Display colors are wrong

Touch (Menu),(Main Menu), then(Auto) to automatically adjust the display image to the ideal settings. (VGA input only.)

Restart your computer with the monitor turned on.

Make sure that the video cable is connected securely to the back of the monitor and your computer. For more information about connecting the video cable, see “Connecting the monitor” on page 2.

Make sure that the video cable is not damaged.

Check the end of the video cable for any pins that might be bent or pushed in.

16

www.gateway.com

Picture has shadows or “ghosts”

Touch (Menu),(Main Menu), then(Auto) to automatically adjust the display image to the ideal settings. (VGA input only.)

Remove any extension cables or switchboxes.

Make sure that the video cable is connected securely to the back of the monitor and your computer. For more information about connecting the video cable, see “Connecting the monitor” on page 2.

Make sure that the video cable is not damaged.

Check the end of the video cable for any pins that might be bent or pushed in.

If you are using VGA or DVI video, make sure that your monitor connection is using the cable that came with your monitor.

Color is not uniform

Touch (Menu),(Main Menu), then(Auto) to automatically adjust the display image to the ideal settings. (VGA input only.)

Make sure that the monitor warms up for at least 30 minutes before making a final judgment about color uniformity or brightness.

Image is not sized or centered correctly

Touch (Menu),(Main Menu), then(Auto) to automatically adjust the display image to the ideal settings. (VGA input only.)

Use the position controls to adjust the image. For instructions on how to adjust the display image position, see “Adjusting monitor settings” on page 8.

The monitor has pixels that are always dark or too bright

This condition is normal and inherent in the TFT technology used in active-matrixLCD screens. Gateway’s inspection standards keep these to a minimum. If you feel these pixels are unacceptably numerous or dense on your display, contact Gateway Customer Care to identify whether a repair or replacement is justified based on the number of pixels affected.

Speaker bar does not work

I installed the speaker bar, but no sound is coming out of the speakers.

Make sure that the speaker bar power cord is plugged into the power connector on the back of your monitor, and that the monitor is plugged into an AC power outlet.

If you are not using HDMI audio, make sure that the speaker bar’s headphone plug (green) is plugged into the headphone jack on your computer.

If you are using HDMI audio, you must set your device to output audio in PCM mode. See the user guide that came with your device for more information.

If you just finished installing and connecting the speaker bar, restart your monitor so that it can recognize the new speaker bar.

Make sure that the volume is turned up.

Make sure that headphones are not plugged into the headphone jacks on the sides of the speaker bar. When headphones are connected, no sound comes out of the speaker bar’s speakers.

17

Using Your Gateway Flat-PanelMonitor

Your headphone/speaker jack may have been muted using Windows sound controls. To check your headphone/speaker mute settings, click the speaker icon in the Windows taskbar,

or to check the settings in Windows Vista, click (Start),Control Panel,Sounds and Audio Devices, theVolume tab, then clickAdvanced. For optimum volume control using the speaker bar, we recommend that you set the Windows volumemid-waybetween the lowest and highest setting.

If you are not using HDMI audio, make sure that the audio input and video input match. Touch (Menu),(Audio), then(Audio Switching) to match the inputs.

I want to plug in my headphones, but there is a headphone jack on both sides of the speaker bar. Which should I use?

You can use either jack or both jacks at the same time. When headphones are connected, no sound comes out of the speaker bar’s speakers.

I do not get sound from my headphones.

Make sure that your speaker bar is connected to an audio source by unplugging your headphones and adjusting the speaker bar volume.

After you make sure that your speaker bar can play sounds, make sure that your headphones are plugged into one of the headphone jacks on the sides of the speaker bar, and not into the microphone jack.

The sound coming from the speakers sounds distorted.

Turn down the volume until the distortion disappears.

Check the audio output volume of the sound device the speaker bar is connected to. If the audio device’s output volume is set too high, the speaker bar’s sound may always be distorted. To adjust the audio device’s output volume, see the device’s user guide. To adjust the volume in Windows, click the speaker icon in the Windows taskbar, or to adjust the

volume in Windows Vista, click (Start),Control Panel,Sounds and Audio Devices, the

Volume tab, then clickAdvanced. For optimum volume control using the speaker bar, we recommend that you set the Windows volumemid-waybetween the lowest and highest setting.

I plugged my microphone into the speaker bar’s microphone jack, but my computer cannot record any sound.

Make sure that the speaker bar’s microphone plug (pink) is connected to the microphone jack on your computer.

Your microphone jack may have been muted using Windows sound controls. To check your microphone’s mute settings, click the speaker icon in the Windows taskbar, or to check your

microphone’s mute settings in Windows Vista, click (Start),Control Panel,Sounds and Audio Devices, theVolume tab, then clickAdvanced.

18

www.gateway.com

FAQs

This section contains answers to frequently asked questions.

General

I have the monitor connected to my notebook’s VGA port and I see no image on the screen.

You have two options:

If your notebook supports dual displays, you can use both your notebook’s display and this monitor in extended desktop multi-monitormode. See Windows Help to learn how to enable multiple monitors.

You can also use this monitor as your primary monitor and not use the notebook’s screen. Notebook computers typically have an FN key combination that lets you toggle between your notebook’s display and an externally attached display. On Gateway notebooks, this key combination isFN+F4. TheF4 key is located along the top row of keys. See your notebook user guide for more information.

How To

Setup

Why does the image looks stretched or fuzzy when I connect the monitor to my computer?

You must adjust the operating system’s display settings to match the monitor’s optimal (native) 1920 × 1200 setting. For information on adjusting settings in Windows XP, see“Changing color depth and screen resolution” on page 13.

I do not see 1920 × 1200 available in the Windows display control panel.

Make sure that your video card can display at 1920 × 1200 resolution.

This may be caused by older video drivers on your computer. See the Gateway support Web site (support.gateway.com) for updated video drivers for your computer. You can also go directly to your video card’s support Web site for the mostup-to-datevideo drivers. The Web sites for the major video card manufacturers are:

ATI®: http://www.amd.com Intel®: http://www.intel.com Nvidia®: http://www.nvidia.com

When I run my games, I do not see support for widescreen displays. What can I do?

Newer games are adding support for widescreen displays as the widescreen format becomes more popular. Check the game’s Web site for updates. You can also consult the following Web site for specific settings and options to configure older games to support widescreen: http://www.widescreengamingforum.com.

Some adjustments may require you to make changes to the Windows System Registry. We recommend making a complete system backup before changing the System Registry.

Technical

Why do I see “noise” or “trash” on the screen?

When your display’s digital capabilities exceed a digital broadcast signal, the signal is increased (up-converted)to match the display capabilities.Up-convertingcan cause “noise” or “trash.” The signal onDVI-Dis HDCP encoded. Stop and restart the source to allow renegotiation.

19

Using Your Gateway Flat-PanelMonitor

What is HDCP and how do I troubleshoot it?

High-bandwidthDigital Content Protection (HDCP) is a specification developed by the Intel® Corporation to protect digital entertainment content that uses a digital visual interface (DVI).

HDCP encrypts the transmission of digital content (signal) between the video source (computer, DVD player, or set-topbox) and the digital display (monitor, digital television/DTV, or projector). HDCP is not designed to prevent copying or recording of digital content, but only to protect the integrity of the content as transmitted.

How does HDCP work?

Implementation of HDCP requires a license obtainable from the Digital Content Protection, LLC, which then issues a set of unique secret device keys to all authorized devices. During authentication, the receiving device only accepts content after it acknowledges the keys. To further prevent stealing of the data or line tapping, the transmitter and receiver generate a shared secret value that is constantly checked throughout the transmission. After authentication is established, the transmitter encrypts the data and sends it to the receiver for decryption.

What happens if I lose the signal to the display while watching a movie on a HDCP-equippedcomponent?

The component must be restarted to establish renegotiation.

For example, while watching a movie on a HDCP-enabledDVD player, you change the receiving device (DTV, monitor, or projector) input to watch broadcast TV, then change the input back to watch the DVD movie. However, you are unable to watch the movie. This is because when the input was changed, the receiver lost the HDCP signal. Restart theHDCP-enabledDVD player to allow renegotiation.

What is the cause if a movie starts and then slowly fades to static?

The receiving device is not HDCP compatible or it is not negotiating correctly. Restart the video source and re-plugall video cables from the source to the TV.

How do I know if a component is HDCP compliant?

If the video source device does not have a DVI or HDMI connection, it is not HDCP compliant.

Video/Display

When I display video from composite, or component, why does the video look overly compressed?

See your video device user manual to adjust the video or TV format output to 16:9. Setting this option to 4:3 results in compressed video. This is done differently on all brands of video devices, so it is important that you read your video device user guide or the help tools within your video device’s software.

I see black bars on the left and right of the video. Can I stretch the video to fit more of the screen?

Touch (Menu),(Video Adjust), then(Video Scaling) to fill more of the screen. ChooseWide,Zoom, orPanoramic modes.

Why when I try to use Picture in Picture (PIP) component video at 480p, 720p, or 1080i, either no video is displayed or I see corrupted video?

This is a normal operation of the monitor. If you want to view component video in PIP, adjust the video output of your external device to 480i.

Can I connect my game console to this monitor?

Yes. Using optional video cables you can connect your game console directly to the monitor. If your game console supports HDMI, this results in the best picture quality.

20

www.gateway.com

Specifications

Specifications are subject to change without notice or obligation. Many products for Gateway and its subsidiaries are custom engineered by our suppliers to Gateway specifications and may vary from similarly marketed products.

Panel size

24 inches (diagonal)





Panel type

24-inchviewable



TFT active matrix TN



Glare





Pixel resolution

1920 × 1200 (native) (60 Hz)





Pixel pitch

0.0106 × 0.0106 inches (0.270 mm × 0.270 mm)





Aspect ratio

16:10





Brightness

400 cd/m2

Contrast ratio

UltraContrast Disabled: 1000:1 (typical)



UltraContrast Enabled: 2000:1

Viewing angles

160° horizontal, 160° vertical





Response time

UltraResponse Enabled: 2 ms (average)



UltraResponse Disabled: 5 ms (typical)

Frequency

Horizontal: 74 KHz



Vertical: 60 Hz





Lamp type/life

30,000 hours (minimum)





Colors

16.7 million





Color gamut

92%





OSD languages

English, French, Spanish, Italian, Japanese







Connections and inputs

Analog (VGA): 15-pinminid-subVGA



Digital (DVI-D):24-pinDVD-D(supports 480i, 480p, 720p, 1080i, and





1080p). Includes HDCP (High-bandwidthDigital Content Protection)



HDMI (supports 480i, 480p, 720p, 1080i, and 1080p)



AC power input



12V/2A speaker bar power output

Included cables

15-pinminid-subanalog VGA



DVI cable



Power





Power consumption

Normal operation: <150 W



Standby mode: <2 W



Off: <1 W

Power input

100~240 VAC, 50/60 Hz (built-inpower supply)





Certifications

UL, cUL, FCC Class B, CE, NOM, VCCI





Wall mount bracket

VESA 4 3.937 inches (4 100 mm)





Weight

Net weight (with stand): 17.20 lbs. (7.8 kg)



With stand and optional speaker bar: 19.84 lbs (9.0 kg)

Dimensions

Stand at lowest position: 22.48 × 17.36 × 9.92 inches



(571 × 441 × 252 mm)



Stand at highest position: 22.48 × 22.48 × 9.92 inches



(571 × 571 × 252 mm)







21

Using Your Gateway Flat-PanelMonitor

Temperature Operating: 41~95°F (5~35°C)

Storage: -4~140°F(-20~60°C)

Humidity Operating: 45~85%(non-condensing)

Storage: 5~90% (non-condensing)

Altitude Operating: 12,000 feet (3,658 m)

Storage: 40,000 feet (12,192 m)

Security Kensington lock slot

Video modes

Your monitor supports several video modes. If you do not use the best mode for the monitor, the display image may look slightly “fuzzy.”

Mode

Resolution

Horizontal

Vertical

Available in DVI





frequency (kHz)

frequency (Hz)

mode

1

720 × 400

31.469

70

N











2

640 × 480

31.469

60

Y











3

640 × 480

37.9

72

N











4

640 × 480

37.5

75

N











5

800 × 600

35.1

56

N











6

800 × 600

37.879

60

Y











7

800 × 600

48.1

72

N











8

800 × 600

46.875

75

N











9

1024 × 768

48.363

60

Y











10

1024 × 768

56.5

70

N











11

1024 × 768

60.123

75

N











12

1152 × 864

67.5

75

N











13

1280 × 1024

64

60

Y











14

1280 × 1024

80

75

N











15

1400 × 1050

65.317

60

Y











16

1400 × 1050

82.278

75

N











17

1440 × 900

55.935

60

Y











18

1440 × 900

70.635

75

N











19

1680 × 1050

65.29

60

Y











20

1680 × 1050

74.9

75

N











21

1920 × 1200

74

60

Y











22

1920 × 1200

74.6

60

N











22

Safety, Regulatory, and Legal Notices

Important safety information

Environmental information

Regulatory compliance statements

Notices

23

Safety, Regulatory, and Legal Notices

Important safety information

Warning

Always follow these instructions to help guard against personal injury and damage to your Gateway product.

Warning

Do not use Gateway products in areas classified as hazardous locations. Such areas include patient care areas of medical and dental facilities, oxygen-ladenenvironments, or industrial facilities.

Your Gateway product is designed and tested to meet the latest standards for safety of information technology equipment. However, to ensure safe use of this product, it is important that the safety instructions marked on the product and in the documentation are followed.

Setting up your system

Read and follow all instructions marked on the product and in the documentation before you operate your system. Retain all safety and operating instructions for future use.

Do not use this product near water or a heat source such as a radiator.

Set up the system on a stable work surface.

The product should only be operated from the type of power source indicated on the rating label.

If your product has a voltage selector switch, make sure that the switch is in the proper position for your area. The voltage selector switch is set at the factory to the correct voltage.

Openings in the monitor case are provided for ventilation. Do not block or cover these openings. Make sure you provide adequate space, at least 6 inches (15 cm), around the system for ventilation when you set up your work area. Never insert objects of any kind into the monitor ventilation openings.

Some products are equipped with a three-wirepower cord to make sure that the product is properly grounded when in use. The plug on this cord will only fit into agrounding-typeoutlet. This is a safety feature. If you are unable to insert the plug into an outlet, contact an electrician to install the appropriate outlet.

If you use an extension cord with this system, make sure that the total ampere rating on the products plugged into the extension cord does not exceed the extension cord ampere rating.

Care during use

Warning

To prevent electric shock, never remove the cover. No user serviceable parts inside.

Refer servicing to qualified service personnel.

Do not walk on the power cord or allow anything to rest on it.

Do not spill anything on the system. The best way to avoid spills is to avoid eating and drinking near your system.

Do not expose the monitor to rain or use near water. If the monitor does get exposed to moisture, unplug it and allow it to dry for 24 hours. Call Gateway Customer Care for advice on whether the monitor is safe to turn back on.

When the monitor is turned off, a small amount of electrical current still flows through the monitor. To avoid electrical shock, always unplug all power cables and modem cables from the wall outlets before cleaning the system.

Unplug the system from the wall outlet and refer servicing to qualified personnel if:

The power cord or plug is damaged.

Liquid has been spilled into the system.

The system does not operate properly when the operating instructions are followed.

The system was dropped or the cabinet is damaged.

The system performance changes.

Replacement parts and accessories

Use only replacement parts and accessories recommended by Gateway.

24

www.gateway.com

Environmental information

Recycling

Hg Warning

THE LAMP IN THIS DISPLAY CONTAINS MERCURY. DISPOSE ACCORDING TO LOCAL, STATE, AND

FEDERAL LAW.

The product you have purchased contains extracted natural resources that have been used in the manufacturing process. This product may contain substances known to be hazardous to the environment or to human health.

To prevent releases of harmful substances into the environment and to maximize the use of our natural resources, Gateway provides the following information on how you can responsibly recycle or reuse most of the materials in your “end of life” product.

Waste Electrical and Electronic Equipment (commonly known as WEEE) should never be disposed of in the municipal waste stream (residential garbage collection). The “Crossed-OutWaste Bin” label affixed to this product is your reminder to dispose of your “end of life” product properly.

Substances such as glass, plastics, and certain chemical compounds are highly recoverable, recyclable, and reusable. You can do your part for the environment by following these simple steps:

When your electrical or electronic equipment is no longer useful to you, “take it back” to your local or regional waste collection administration for recycling.

In some cases, your “end of life” product may be “traded in” for credit towards the purchase of new Gateway equipment. Call Gateway to see if this program is available in your area.

If you need further assistance in recycling, reusing, or trading in your “end of life” product, you may contact us at the Customer Care number listed in your product’s user guide and we will be glad to help you with your effort.

Finally, we suggest that you practice other environmentally friendly actions by understanding and using the energy-savingfeatures of this product (where applicable), recycling the inner and outer packaging (including shipping containers) this product was delivered in, and by disposing of or recycling used batteries properly.

With your help, we can reduce the amount of natural resources needed to produce electrical and electronic equipment, minimize the use of landfills for the disposal of “end of life” products, and generally improve our quality of life by ensuring that potentially hazardous substances are not released into the environment and are disposed of properly.

For additional recycling information specific to your area, please go to www.gateway.com/recycle.

EPA ENERGY STAR®

As an ENERGY STAR Partner, Gateway has determined that this product meets or exceeds the ENERGY STAR 4.0 performance guidelines for computer energy efficiency and power management.

ENERGY STAR Power Management (standard in the Windows operating system) places inactive components (CPU, hard drives, and other components except memory) into a low-powerSleep mode. Sleep mode uses less energy to run your computer, saves on your energy costs, and helps protect the environment by reducing greenhouse gas emissions.

Your computer was shipped with Sleep mode enabled. While your computer is in Sleep mode, the power indicator flashes. To use your computer after it has entered Sleep mode, move the mouse, press a key on the keyboard, or

press the power button to “wake” it up.

For more information about the power management features of your Gateway desktop computer, see “Changing power-savingsettings” in the onlineUser Guide.

For more information about the power management features of your Gateway notebook, see “Managing Power” in the online

Reference Guide.

Help

For more information about Sleep mode in Windows Vista, clickStart, then clickHelp and Support. Typesleep in theSearch Help box, then pressENTER.

25

Safety, Regulatory, and Legal Notices

Regulatory compliance statements

United States of America

Federal Communications Commission (FCC) Unintentional emitter per FCC Part 15

This device has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio or television reception. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause interference to radio and television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

Reorient or relocate the receiving antenna

Increase the separation between the equipment and receiver

Connect the equipment to an outlet on a different circuit from that to which the receiver is connected

Consult the dealer or an experienced radio/TV technician for help.

Compliance Accessories: The accessories associated with this equipment are: shielded video cable. These accessories are required to be used in order to ensure compliance with FCC rules.

FCC declaration of conformity

Model:

HD2401 Responsible party:

Gateway, Inc.

7565 Irvine Center Drive

Irvine, CA 92618 USA

This device complies with Part 15 of the FCC Rules. Operation of this device is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Caution

Changes or modifications not expressly approved by Gateway could void the FCC compliance and negate your authority to operate the product.

California Proposition 65 warning

Warning

This product contains chemicals known to the State of California to cause cancer, birth defects, and/or other reproductive harm. For additional information regarding this product warning, go to www.gateway.com/prop65.

Canada

Industry Canada (IC) Unintentional emitter per ICES-003

This digital apparatus does not exceed the Class B limits for radio noise emissions from digital apparatus as set out in the radio interference regulations of Industry Canada.

Le présent appareil numérique n’émet pas de bruits radioélectriques dépassant les limites applicables aux appareils numériques de Classe B prescrites dans le règlement sur le brouillage radioélectrique édicté par Industrie Canada.

26

www.gateway.com

Notices

© 2008 Gateway, Inc. All rights reserved.

Gateway, Inc.

7565 Irvine Center Drive

Irvine, CA 92618 USA

All Rights Reserved

This publication is protected by copyright and all rights are reserved. No part of it may be reproduced or transmitted by any means or in any form, without prior consent in writing from Gateway.

The information in this manual has been carefully checked and is believed to be accurate. However, changes are made periodically. These changes are incorporated in newer publication editions. Gateway may improve and/or change products described in this publication at any time. Due to continuing system improvements, Gateway is not responsible for inaccurate information which may appear in this manual. For the latest product updates, consult the Gateway Web site at www.gateway.com. In no event will Gateway be liable for direct, indirect, special, exemplary, incidental, or consequential damages resulting from any defect or omission in this manual, even if advised of the possibility of such damages.

In the interest of continued product development, Gateway reserves the right to make improvements in this manual and the products it describes at any time, without notices or obligation.

Trademark acknowledgments

Gateway and eMachines are trademarks or registered trademarks of Gateway, Inc. in the United States and other countries. All other brands and product names are trademarks or registered trademarks of their respective companies.

27

Safety, Regulatory, and Legal Notices

28

MAN FHD2401 USR GDE R0 5/08
