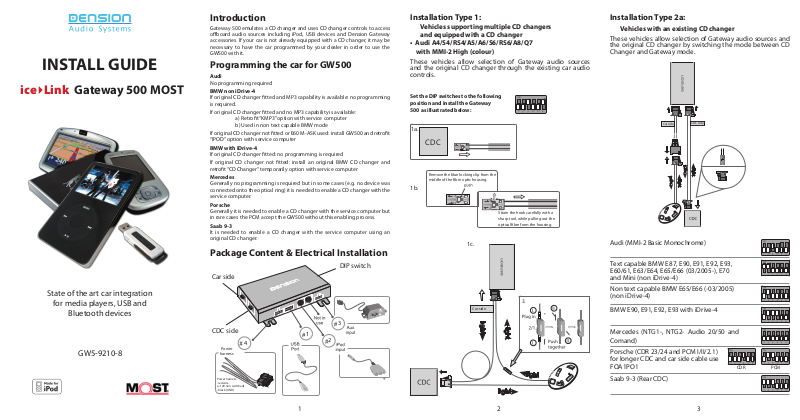

Gateway GW5-9210-8 User Manual

INSTALL GUIDE

ice4Link Gateway 500 MOST

State of the art car integration

for media players, USB and

Bluetooth devices

GW5-9210-8

Set the DIP switches to the following position and install the Gateway 500 as illustrated below:

Car side

CDC

1a.

Remove the blue locking clip from the middle of the bre optic housing.

Strain the hook carefully with a sharp tool, while pulling out the optical bre from the housing.

1b.

1c.

Installation Type 1:

Vehicles supporting multiple CD changers and equipped with a CD changer

• Audi A4/S4/RS4/A5/A6/S6/RS6/A8/Q7 with MMI-2 High (colour)

These vehicles allow selection of Gateway audio sources and the original CD changer through the existing car audio controls.

Introduction

Gateway 500 emulates a CD changer and uses CD changer controls to access oboard audio sources including iPod, USB devices and Dension Gateway accessories. If your car is not already equipped with a CD changer, it may be necessary to have the car programmed by your dealer in order to use the GW500 with it.

Programming the car for GW500

Audi

No programming required

BMW non iDrive-4

If original CD changer tted and MP3 capability is available: no programming is required.

If original CD changer tted and no MP3 capability is available: a) Retrot “KMP3” option with service computer b) Used in non text capable BMW mode

If original CD changer not tted or E60 M-ASK used: install GW500 and retrot “IPOD” option with service computer

BMW with iDrive-4

If original CD changer tted: no programming is required

If original CD changer not tted: install an original BMW CD changer and retrot “CD Changer” temporarily option with service computer

Mercedes

Generally no programming is required but in some cases (e.g. no device was connected onto the optical ring) it is needed to enable a CD changer with the service computer.

Porsche

Generally it is needed to enable a CD changer with the service computer but in rare cases the PCM accept the GW500 without this enabling process.

Saab 9-3

It is needed to enable a CD changer with the service computer using an original CD changer.

Installation Type 2a:

Vehicles with an existing CD changer

These vehicles allow selection of Gateway audio sources and the original CD changer by switching the mode between CD Changer and Gateway mode.

Audi (MMI-2 Basic Monochrome)

Saab 9-3 (Rear CDC)

Porsche (CDR 23/24 and PCM I/II/2.1) for longer CDC and car side cable use

FOA1PO1

Mercedes (NTG1-, NTG2- Audio 20/50 and Comand)

CDR

PCM

Text capable BMW E87, E90, E91, E92, E93, E60/61, E63/E64, E65/E66 (03/2005-), E70

and Mini (non iDrive-4)

Non text capable BMW E65/E66 (-03/2005) (non iDrive-4)

Package Content & Electrical Installation

DIP switch

Car side

CDC side

Power

harness

Power harness:

-red wire (+12V non switched)

-black (GND)

Car side

CDC side

BMW E90, E91, E92, E93 with iDrive-4

You must set the mode selector switch to service mode (bypass, CD Changer) position otherwise the service computer may detect an unknown device in the bre optic system which can lead to errors reported.

Service/CDC mode

When servicing your vehicle

Text Conguration

Saab & Mercedes vehicles require nal conguration of the Gateway as not all of the radios in these vehicles support text display. After Gateway 500 has been installed, toggle the mode selector switch six times (three times on/o) and a conguration menu will appear on the radio display. Select the conguration mode according to your head unit listed in the conguration table. To conrm the selection press and hold

; to discard the selection press

and hold

Track # Cong Mercedes

Command

Saab

Text

# 1

NO TEXT D D

# 2

Timeout - -

# 3

Text - -

# 4

+Cache - -

# 5

+Paging R R

# 6

+Select - R

For detailed information visit:

http://support.dension.com

D: Default, R: Recommended

Car side

Installation Type 3a:

Vehicles with no existing CD changer

Set the DIP switches as shown below.

Text capable BMW E87, E90, E91, E92, E93, E60/61, E63/E64, E65/E66 (03/2005-), E70

and Mini (non iDrive-4)

Audi (MMI-2 Basic Monochrome)

Saab 9-3 (Rear CDC)

Porsche (CDR 23/24 and PCM I/II/2.1)

Mercedes (NTG1-, NTG2- Audio 20/50 and Comand)

If you are connecting Gateway 500 to the back of the head unit, use this diagram:

CDR

PCM

Non text capable BMW E65/E66 (-03/2005) (non iDrive-4)

Car side

Installation Type 3b:

If you are installing to a free bre optic connector in the car (CDC preparation) use this method:

654

Volvo S40/V50 - MY 2004-2007 with Basic and High Performance sound system, without AUX input, with CDC

Installation Type 2b:

ICM

(Display)

Car side

LED

Volvo XC90 - MY 2002-2006, with High Performance and Premium sound system, without AUX input, with CDC

Saab 9-3 (Front CDC)

BMW E90, E91, E92, E93 with iDrive-4 Use a CDC for enabling

Saab 9-3 (Front CDC)

The LED (arrowed) indicates the current operating mode

ò = GW5 (Blue LED Solid) ö = Service/CDC

(Blue LED Flashing)

LED
