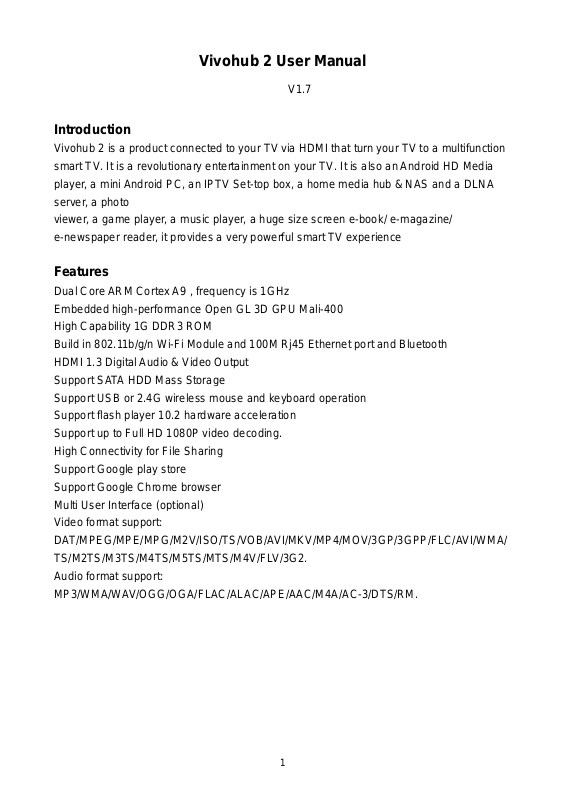

Vivohub 2 User Manual

V1.7

Introduction

Vivohub 2 is a product connected to your TV via HDMI that turn your TV to a multifunction
smart TV. It is a revolutionary entertainment on your TV. It is also an Android HD Media
player, a mini Android PC, an IPTV Set-top box, a home media hub & NAS and a DLNA
server, a photo
viewer, a game player, a music player, a huge size screen e-book/ e-magazine/
e-newspaper reader, it provides a very powerful smart TV experience

Features

Dual Core ARM Cortex A9 , frequency is 1GHz
Embedded high-performance Open GL 3D GPU Mali-400
High Capability 1G DDR3 ROM
Build in 802.11b/g/n Wi-Fi Module and 100M Rj45 Ethernet port and Bluetooth
HDMI 1.3 Digital Audio & Video Output
Support SATA HDD Mass Storage
Support USB or 2.4G wireless mouse and keyboard operation
Support flash player 10.2 hardware acceleration
Support up to Full HD 1080P video decoding.
High Connectivity for File Sharing
Support Google play store
Support Google Chrome browser
Multi User Interface (optional)
Video format support:
DAT/MPEG/MPE/MPG/M2V/ISO/TS/VOB/AVI/MKV/MP4/MOV/3GP/3GPP/FLC/AVI/WMA/
TS/M2TS/M3TS/M4TS/M5TS/MTS/M4V/FLV/3G2.
Audio format support:
MP3/WMA/WAV/OGG/OGA/FLAC/ALAC/APE/AAC/M4A/AC-3/DTS/RM.

1

Start Up

1 Plug in power adapter, and connect Vivohub 2 Box to TV via HDMI cable.
2 There are two screens appear while starting, first screen is robotic logo, second is
android text logo.

2

3 Standard launcher preview

3

Settings

Settings provide individual preference setting functions.

1. Wi-Fi
It will scan ambient Wi-Fi networks automatically while click “ ON” in Wi-Fi setting.

Choose one encrypted Wi-Fi network to connect

4

2. Ethernet
Click “ ON” in Ethernet setting, it will connect to network automatically.

3. Data usage
Show data usage information.

4. More
It includes VPN, Portable hotspot and Proxy settings.

Build and set VPN
Tethering & Portable hotspot
Proxy settings
Setup proxy server

5
