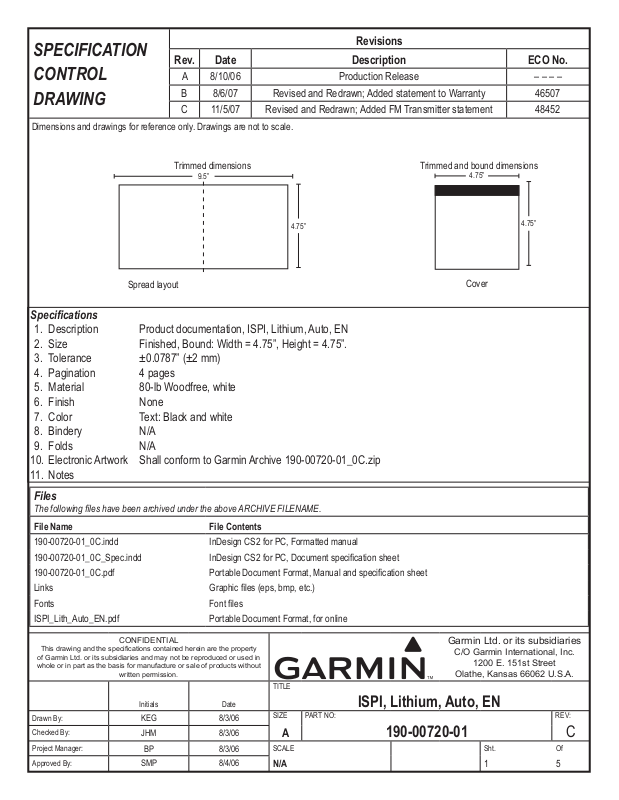

SPECIFICATION
CONTROL
DRAWING
Rev. Date Description ECO No.
A 8/10/06 Production Release – – – –
B 8/6/07 Revised and Redrawn; Added statement to Warranty 46507
C 11/5/07 Revised and Redrawn; Added FM Transmitter statement 48452
Dimensions and drawings for reference only. Drawings are not to scale.
Revisions
Trimmed dimensions Trimmed and bound dimensions
9.5”
4.75”
Spread layout
Specications
1. Description Product documentation, ISPI, Lithium, Auto, EN
2. Size Finished, Bound: Width = 4.75”, Height = 4.75”.
3. Tolerance ±0.0787” (±2 mm)
4. Pagination 4 pages
5. Material 80-lb Woodfree, white
6. Finish None
7. Color Text: Black and white
8. Bindery N/A
9. Folds N/A
10. Electronic Artwork Shall conform to Garmin Archive 190-00720-01_0C.zip
11. Notes
4.75”
4.75”
Cover
Files
The following les have been archived under the above ARCHIVE FILENAME.
File Name File Contents
190-00720-01_0C.indd InDesign CS2 for PC, Formatted manual
190-00720-01_0C_Spec.indd InDesign CS2 for PC, Document specication sheet
190-00720-01_0C.pdf Portable Document Format, Manual and specication sheet
Links Graphic les (eps, bmp, etc.)
Fonts Font les
ISPI_Lith_Auto_EN.pdf Portable Document Format, for online
This drawing and the specications contained herein are the property
of Garmin Ltd. or its subsidiaries and may not be reproduced or used in
whole or in part as the basis for manufacture or sale of products without
Drawn By:
Checked By:
Project Manager:
Approved By:
CONFIDENTIAL
written permission.
TITLE
Initials Date ISPI, Lithium, Auto, EN
KEG 8/3/06
JHM 8/3/06
BP 8/3/06
SMP 8/4/06
SIZE PART NO: REV:
A 190-00720-01 C
SCALE Sht. Of
N/A
Garmin Ltd. or its subsidiaries
C/O Garmin International, Inc.
1200 E. 151st Street
Olathe, Kansas 66062 U.S.A.
1 5
Important Safety and product InformatIon
Warnings
Failure to avoid the following potentially hazardous
situations could result in an accident or collision
resulting in death or serious injury.
• When installing the unit in a vehicle, place the unit
securely so it does not obstruct the driver’s view of the
road or interfere with vehicle operating controls, such
as the steering wheel, foot pedals, or transmission
levers. Do not place in front of or above any airbag.
(See diagram.)
Do not mount
where driver’s
eld of vision
is blocked.
Do not place
unsecured on
the vehicle
dashboard.
Do not mount in front of an
airbag eld of deployment.
• When navigating, carefully compare information
displayed on the unit to all available navigation
sources, including information from street signs,
visual sightings, and maps. For safety, always resolve
any discrepancies or questions before continuing
navigation and defer to posted road signs.
• Always operate the vehicle in a safe manner.
Do not
become distracted by the unit while driving, and
always be fully aware of all driving conditions.
Minimize the amount of time spent viewing the unit’s
screen while driving and use voice prompts when
possible. Do not input destinations, change settings,
or access any functions requiring prolonged use of the
unit’s controls while driving. Pull over in a safe and
legal manner before attempting such operations.
• The unit is designed to provide route suggestions.
It is not designed to replace the need for driver
attentiveness regarding road closures or road
conditions, trafc congestion, weather conditions, or
other factors that may affect safety while driving.
Battery Warnings
If these guidelines are not followed, the internal lithiumion battery may experience a shortened life span or may
present a risk of damage to the GPS unit, re, chemical
burn, electrolyte leak, and/or injury.
• Contact your local waste disposal department to
properly dispose of the unit/battery.
• Do not leave the unit exposed to a heat source or in
a high temperature location, such as in the sun in an
unattended vehicle on a hot day. To prevent damage,
remove the unit from the vehicle or store it out of
direct sunlight, such as in the glove box.
• Do not puncture or incinerate.
190-00720-01_0C.indd 1 11/5/2007 11:11:41 AM
