Fisher & Paykel WH8060J3, WH9060J3 User Manual

Download

FRONT LOADING

CLOTHES WASHER

WH8560F, WH8060F, WH8560P, WH8060P,

WH7560P, WH9060J, WH8560J, WH8060J

& WH7560J models

INSTALLATION GUIDE/USER GUIDE

NZ AU SG ROW

CONTENTS

Introduction 3

Safety and warnings 4

Installation instructions 6

Before your first wash 12

Safety features 13

Control panel 14

Wash cycles 18

Detergent and fabric softener 21

Wash preparation 24

Getting started quickly 25

Wash cycle options 27

Customising a wash cycle 31

Caring for your washer 32

Before you call for service 35

Fault codes 37

Troubleshooting 38

Manufacturer’s warranty 44

Customer care 46

IMPORTANT!

SAVE THESE INSTRUCTIONS

The models shown in this user guide may not be available in all markets and are subject to change at any time. For current details about model and specification availability in your country, please go to our website www.fisherpaykel.com or contact your local Fisher & Paykel dealer.

Registration

To register your product visit our website: www.fisherpaykel.com

INTRODUCTION

Welcome

Thank you for buying a Fisher & Paykel clothes washer. We are proud of this washer and trust it will serve you well for many years.

At Fisher & Paykel we aim to provide innovative products that are simple to use, ergonomic and kind to the environment. Your washer has numerous wash cycles and options so you can perform every wash task with ease and the knowledge your clothes are receiving the best possible care.

Please take the time to read these instructions carefully before you begin using your machine.

Following the advice in this user guide will ensure you get the performance you expect from your machine and that you get the best possible wash results. Keep these instructions for future reference.

We hope you enjoy your new washer. We have certainly enjoyed designing it for you.

Front loading washer models

SAFETY AND WARNINGS

WARNING!

Electrical Shock Hazard

Failure to follow this advice may result in electrical shock or death.

• If you are using an extension cord or a portable electrical outlet device (eg multi-socket outlet box), ensure that it is positioned so that it does not come into contact with water or moisture.

IMPORTANT SAFETY INSTRUCTIONS

WARNING! When using your clothes washer, follow basic precautions, including thefollowing:

General

This product has been designed for personal, family or household use. This product is not designed for any commercial use. Any commercial use will terminate this products manufacturer’s warranty.

A damaged power cord must be replaced by a Fisher & Paykel trained and supported service technician or similarly qualified person in order to avoid a hazard. Do not use the appliance until it has been repaired to avoid a risk of electric shock.

Do not operate this machine if it has been damaged during transport. Contact your Fisher & Paykel dealer or Fisher & Paykel trained and supported service technician.

This clothes washer is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge,unless they are supervised or given instructions on how to use the washerby someone responsible for their safety.

Keep children away from the washer while it is in operation.

Supervise children to ensure they do not play with the washer or climb inside thedrum.

The washer should only be used for washing and rinsing of textiles where this isindicated on the care label.

Do not add petrol, dry-cleaning solvents, or other flammable or explosive substances to the wash water. These substances give off vapours that could ignite or explode.

Do not wash articles that have been previously cleaned in, washed in, soaked in, or spotted with gasoline, dry-cleaning solvents, or other flammable or explosive substances as they give off vapours that could ignite or explode.

The door will be locked from the start of the cycle until the cycle is complete for safety reasons. It is possible to open the door during the cycle under certain conditions. Never force the door open.

Do not touch the door during a cycle as the door can become hot.

When 90°C temperature is selected, the door glass will become hot. Do not touch the glass part of the door. Keep children away from the washer.

Do not touch or operate the machine with wet hands or with bare-feet.

Do not open the detergent dispenser during the cycle as hot water may come outofit.

Ensure the installation provides accessibility to the plug or incorporate a switch in the fixed wiring in accordance with the wiring rules to allow disconnection of the appliance from the supply after installation.

Read and follow the detergent manufacturers’ instructions carefully. Instructions on how to use the detergent will be clearly indicated on the pack. Remember to store your detergents out of the reach of children.

SAFETY AND WARNINGS

Do not overload your washing machine beyond its rated capacity.

MODEL MAX CAPACITY

WH7560P, WH7560J 7.5Kg

WH8060F, WH8060P, WH8060J 8.0Kg

WH8560F, WH8560P, WH8560J 8.5Kg

WH9060J 9.0Kg

Do not wash an electric blanket in your washer unless the care label specifically states it is safe to do so.

Do not wash curtains in this washer, as sunlight makes them brittle and they may disintegrate during washing.

The only user-removable parts of the washer are the inlet hose(s), detergent dispenser and the pump filter. No other parts are designed to be removed by anyone other than a Fisher & Paykel trained and supported service technician.

Installation

For guidance on how to install your product, please refer to installation instructions contained in this document.

Water supply requirements:

Inlet water pressure: Maximum 1MPa (145psi), Minimum 30kPa (4.5psi)

Inlet water flow rate: Minimum 6litres/minute

Note:

Capacity refers to the maximum dry weight of items the washer can wash at any one time.

New hose sets provided with the washer should be used to connect the washer to the water mains. Old hose sets should not be re-used.

We recommend the inlet hose(s) are changed every 5 years. WARNING: Failure to do so may result in a flood and damage to property.

The hot water temperature should not exceed 65°C and the cold water temperature not exceed35°C. Temperatures above these may cause the machine to fault or cause damage to the machine.

Install the machine on a solid and level floor surface ensuring it has at least 20mm clearance on each side. The washer must not be installed on any textured floor coverings (eg carpet, rugs).

Disposal

When disposing of the washer, it is recommended that the door is removed to avoidchildren getting trapped inside, and that the electrical cable is cut off close to thewasher.

INSTALLATION INSTRUCTIONS

Accessories

Please check you received the following accessories with your Fisher & Paykel washer. You will find them inside the drum or attached to the packaging.

2 x Inlet hose(s) (for models WH9060J, WH8560J, WH8060J and WH7560J only 1 x Inlet hose supplied)

1 x Drain hose guide

1 x Installation instructions and user guide

1 x Spanner

1 x Installation leaflet (attached to the top of the washer)

1 x Inlet valve cap (excluding WH9060J, WH8560J, WH8060J and WH7560J models)

Unpacking

To ensure the best performance from your new washer please follow the instructions below.

Removing the packaging

1 Remove the outer packaging (including the polystyrene packer and plastic wrapping).

All packaging must be removed prior to use. Ensure these materials are kept out of reach of children.

Note: A small amount of water may be seen inside the packaging and inside the washer. This is the result of factory testing and is normal.

2 Tilt the machine backwards and ‘walk’ it off the base one foot at a time. Not doing so

may cause damage to your floor and washer.

3 Remove all packaging and accessories from inside the drum.

Removing the transit bolts

The clothes washer is fitted with 4 transit bolts at the rear to avoid damage during transportation.

The 4 transit bolts MUST be removed prior to operation of the machine. Failure to remove these will result in damage to the machine and compromise your manufacturer’s warranty.

To remove the bolts:

1 Use a spanner or socket to unscrew and remove all four transit bolts at the back

of the washer A.

2 Pull the black rubber grommets to remove the bolt, grommet and white plastic spacers

from the machine. Keep the transit bolts in case they are required for future transit of the machine. Never transport the machine without the transit bolts properly fixed in place.

3 Cover the bolt holes with the white plastic plugs which are attached to the machine and

located near each hole B. Push to clip into place.

Removing the transit safety bolts

Product dimensions

INSTALLATION INSTRUCTIONS

TOP VIEWWallFRONT VIEW

WH7560P

WH7560J

WH8060J

PRODUCT DIMENSIONS

WH9060J

WH8560F WH8560P

WH8560J

WH8060F WH8060P

MM MM MM MM

A Overall height

850 850 850 850

of product

B Overall width

600 600 600 600

of product

C Overall depth of

645 645 645 590 product (incl. dial and door whenclosed)

D Depth of door open 1065 1065 1065 1010

E Minimum door

330 330 330 330 clearance to adjacent wall

F Standpipe height min.

800 – 1200

min.

800 – 1200

min.

800 – 1200

min.

800 – 1200

Note: The exact height of your washer is dependent on how far the feet are extended from the base of the machine. The space where you install your washer needs to be at least 40mm wider and 20mm deeper than its dimensions.

Electrical supply: 220 – 240V, 50Hz Sinusoidal, minimum 10A.

Inlet water static pressure: Max. 1MPa (150psi), Min. 30kPa (4.5psi).

Inlet water flow rate at tap: Min. 6litres/min.

INSTALLATION INSTRUCTIONS

Location

This machine must not be installed and operated on a plinth.

Levelling the machine

It is IMPORTANT to level the machine to ensure good spin performance, and to minimise noise, vibrations and wear and tear on the washer.

1 Before positioning the machine in its final position, check that the machine is level,

front to back and side to side.

2 Manoeuvre the product into its final position (we suggest a

minimum clearance of 20mm each side).

3 Use a spirit level to check that the machine is correctly

level. If needed, pull the machine out. Loosen the lock nut using the spanner provided and wind the feet up or down to correctly level the machine.

4 Using the spanner provided, tighten the lock nuts against

the base of the machine to lock the feet in position.

Connecting to the water supply

Inlet hose(s)

1 Connect the straight end(s) of the inlet hose(s) to the

tap(s) and the elbow end(s) to the corresponding machine inlet valve(s). If present, the hot valve is colour coded orange. Tighten the inlet hose end(s) by hand until the hose seal just makes contact with the tap sealing face and then tighten a further half-turn. Make sure there are no kinks in the hose(s).

2 Turn the tap(s) on and check for leaks. Check for leaks

again after 24hours.

Locking the feet

Straight

(tap) end

Inlet hose ends

Elbow

(machine)

end

INSTALLATION INSTRUCTIONS

If you have an uncontrolled water heating source (eg a wet back or solar heating system) please contact a qualified plumber to have a Hot ‘N’ Safe Valve fitted . This will ensure the hot water temperature remains within safe limits.

Water supply requirements:

Inlet water pressure: Maximum 1MPa (150psi), Minimum 30kPa (4.5psi)

Inlet water flow rate: Minimum 6litres/minute

Cold supply only:

If you only have a cold water supply, the inlet valve cap (blanking cap) which came with your washer must be connected to the hot inlet valve (with the exception of WH9060J, WH8560J, WH8060J and WH7560J models). The cap prevents water leaking out of the hot valve. This appliance incorporates backflow protection complying with AS3500.1. No further backflow protection is required for connection to the water supply.

Your washer has an internal heater to heat water. If your model of washer has cold water connection only (WH9060J, WH8560J, WH8060J and WH7560J models), or if you do not connect a hot water inlet hose, your washer will automatically recognise there is no hot water supply and its internal heater will heat the cold water to the selected cycle temperature.

INSTALLATION INSTRUCTIONS

Draining

Drain hose placement in a stand pipe or tub

1 To guide the drain hose over the tub or

standpipe the hose guide must be fitted to the drain hose. The height of the standpipe or tub should be between 800 – 1200mm.

2 Secure the hose guide so it cannot become

dislodged from the standpipe or tub.

If the drain hose is placed on the ground or if the standpipe or tub is less than 800mm high, the washing machine will continuously drain while being filled (siphon).

Regularly check that your standpipe or tub is free from lint or other obstructions, which may affect how your machine works or may cause flooding.

Attaching drain hose to spigot

1 Guide drain hose through hose guide. 2 Secure hose guide to back wall of cupboard

using a screw. The height of the drain hose should be between 500 – 800mm from ground level.

3 Attach drain hose to spigot and secure using

a hose clamp ensuring the blanking insert is cleared from spigot.

4 Check for leaks.

Pull hose through guide

(20mm) maximum

Standpipe

800 – 1200mm

Fitting the drain hose guide

Height 500 – 800mm from ground

The drain hose should be checked from time to time and replaced if any damage (egwear, cuts, bulges, kinks, leaks, etc) is found. Do not bend the drain hose sharply, as this may cause it to split.

In multi-storey apartments or any upper floor, the machine should be installed on a floor equipped with a drain.

Draining must comply with local by-laws.

Attaching drain hose to spigot

INSTALLATION INSTRUCTIONS

Electrical connection

1 This appliance must be connected to a 220V – 240V, 50Hz, sinusoidal, minimum 10A

electricalsupply.

2 Uncoil the power cord, remove and discard the plastic pin cover and plug

into a wallsocket.

3 Connect the appliance to an earthed outlet protected by a fuse of suitable capacity.

Check the power cord for damage and make sure it is not squashed or twisted when installing the washer.

Always remove the power cord from a socket by the plug, not by the cord.

SPARE PARTS* PART NO.

Hose inlet long (2m) 422680P

Hose inlet large bore 426123P

Drain hose extension (not suitable for attaching to a spigot) 425627P

*Available from your Fisher & Paykel dealer or a Fisher & Paykel trained and supported service technician.

Completing the installation

Installation test cycle

Do this before you wash any items in your washer. This is to check that your washer is installed correctly and that it is functioning correctly prior to use.

1 Turn your washer on by pressing ‘Power’. 2 Select the ‘Quick’ or ‘Super Quick’ cycle. Ensure the drum is empty and the door closed. 3 Touch the

Observe the machine for any problems (eg leaking from the hose(s), excess noise orvibrations).

The washer will beep and display any faults on the screen if there are any problems. Refer to ‘Before you call for service’ at the back of this book.

4 Wait until you see water in the bottom of the drum. 5 Touch 6 Press ‘Power’ again, select the ‘Spin’ cycle and touch

Check the drain hose is firmly secured to the standpipe or tub, or spigot.

Observe that the machine pumps out the water, and spins.

button. The machine will start to fill.

to stop the cycle, then press ‘Power’ to turn the machine off.

If there are any problems, you must address these before proceeding with normal use. The washer will automatically turn off at the end of the cycle if there are no problems.

BEFORE YOUR FIRST WASH

Before you start, it is a good idea to go through the following checklist:

1 Have the packaging and transit bolts been removed? 2 Is the drain hose threaded through the ‘Ubend’ (with no more than 20mm extended)

and hooked into your standpipe or tub, or attached to a spigot?

3 Is the hot hose connected to the hot valve (colour-coded orange, if present)? Is the cold

hose connected to the cold valve (colour-coded white)? Have the taps been turned on?

4 Is the machine correctly levelled, feet are locked and cabinet corners clear of the

floor and walls?

5 Has the power cord been connected to an appropriate power supply and the

power turned on?

6 Have you performed the installation test cycle? 7 We recommend you complete your first cycle with a half-load amount of detergent

and without a load in order to remove any residues remaining in the machine from the manufacturing process.

SAFETY FEATURES

Door lock

The door of your washer will lock once you touch the cycle, ensuring safety for you and your family while your machine is operating.

To unlock the door during the cycle

You can open the door to add or remove items during the wash simply by touching the

button. The door will remain locked if the temperature inside the washer is above 60°C and/or the water level is above the bottom of the door seal (a warning will be displayed in these circumstances, refer to ‘Before you call for service’).

Simply touch , the machine will pause and the door will automatically unlock if the conditions inside the washer are safe. The button and time to go will flash on the screen while the washer is paused. Open the door and remove or add garments. Close the door and touch to resume the cycle.

Add a Garment (WH8560F, WH8060F, WH8560P, WH8060P and WH7560P models only)

The ‘Add a Garment’ function can be used to interrupt the cycle to add or remove a garment at any time during the wash part of the cycle (as long as the wash temperature selected is lower than 60°C). Water in the machine will be drained to a level where the door can be opened, if necessary. Refer to ‘Wash cycle options’ for more information.

Opening the door during a power failure

If there is a power failure during a wash cycle your washer will stop and the door will remain locked. You can unlock the washer door to remove your clothes by opening the pump filter cover at the bottom right of your washer. Simply place a coin or key in the slot and tilt it upwards to lever the cover open, then pull the door release tab.

Do not attempt to do this if the water level in the washer is above the level of the door.

When power is restored you will need to restart your machine by simply pressing ‘Power’. The washer will remember where in the cycle it was up to.

until the machine beeps at the end of

Door release tab

Manual door opening

mechanism

Your washer also has the following protective measures:

Flood protection – turns off valves and turns pump on if a flood condition is detected.

Out-of-balance protection – stops and redistributes the load if an unbalanced load condition is sensed, and/or slows the spin speed to compensate.

Excess suds protection – pauses to allow suds to break down before continuing the cycle.

CONTROL PANEL

SmartTouch™ Control Dial

The SmartTouch™ Control Dial provides easy and efficient wash cycle selection. As you rotate the dial, the icon of the wash cycle selected will be illuminated, along with the default settings for that cycle on the right side of the control panel.

SmartTouch™ buttons

The smooth, easy clean buttons enable easy selection of options with lights clearly showing the selections you are making.

Digital display screen

The digital display screen provides feedback on how long the wash cycle has to go. If you have programmed a ‘Delay Start’, the time remaining until the cycle will start will be displayed here, along with any messages to help you with the overall running of your washer (eg user warnings).

Time to go

Your washer displays approximately how many minutes the cycle you are running has remaining, so that you can tell at a glance when your washing will be finished.

Please be aware that a number of factors can influence the overall cycle time, eg the water flow rate, water pressure, whether hot water is being used from the tap or the water is heated by the internal heater, load size, cycle and option selections. Therefore cycle times will vary. Unexpected events in a wash cycle (eg out of balance, oversudsing) can lengthen the cycle time.

Progress lights

The progress lights indicate what part of the cycle the washer is currently on (wash, rinse or spin). All three lights are on at the beginning of the cycle. The light for the current part of the cycle flashes, and each one goes out when that part of the cycle iscomplete.

Keylock mode

Keylock can be used to lock the buttons on your washer. This will avoid accidental button pushes. For more detail please refer to ‘Wash cycle options’.

Drum light (WH8560F, WH8060F models only)

Your machine has a drum light to help assist you when loading and unloading your washing machine. When you press ‘Power’, the LED light in the drum will turn on, after2 minutes it will automatically turn off. At the end of the cycle, the drum light will turn on again for 5 minutes to help facilitate unloading.

WH8560F and WH8060F models

CONTROL PANEL

2 8 9 !0

POWER Press to turn the washer ON/OFF.

Keylock Touch to disable all buttons on the display panel, except the

‘Power’ button. This prevents accidental button presses.

SmartTouch™

Control Dial

Digital display

screen

Rotate to select your desired wash cycle.

Red LED illuminates to indicate the selected wash cycle.

Shows the following:

‘Time to go’ – the remaining time in the cycle that is currently running.

Delayed start time of wash cycle.

Notifications if an error is detected or a warning is necessary.

Progress lights Indicate the current status of the wash cycle.

All lights are illuminated at the start of the wash cycle.

The light of the current status flashes, and then turns off oncecompleted.

Delay Start Touch toincrease or decrease the delay start time.

Time Saver Touch toturn Timer Saver on or off.

Wash Temp Touch to increase or decrease wash water temperature.

Spin Speed Touch to increase or decrease washer spin speed.

Options Touch to select Eco Rinse, Wrinkle Free and/or Soak.

Wash Boost Touch to select Pre Wash or Rinse+.

Add a Garment Touch to interrupt the wash part of the cycle to add or remove

agarment.

START/PAUSE Touch to start or pause the selected wash cycle.

!17!2

CONTROL PANEL

WH8560P, WH8060P and WH7560P models

2 8 9 !0

POWER Press to turn the washer ON/OFF.

Keylock Touch to disable all buttons on the display panel, except the

‘Power’ button. This prevents accidental button presses.

SmartTouch™

Control Dial

Digital display

screen

Rotate to select your desired wash cycle.

Red LED illuminates to indicate the selected wash cycle.

Shows the following:

‘Time to go’ – the remaining time in the cycle that is currently running.

Delayed start time of wash cycle.

Notifications if an error is detected or a warning is necessary.

Progress lights Indicate the current status of the wash cycle.

All lights are illuminated at the start of the wash cycle.

The light of the current status flashes, and then turns off oncecompleted.

Delay Start Touch toincrease or decrease the delay start time.

Wash Temp Touch to increase or decrease wash water temperature.

Spin Speed Touch to increase or decrease washer spin speed.

Soil Level Touch to select the level of soil in your load.

Wash Boost Touch to select Pre Wash or Rinse+.

Options Touch to select Eco and/or Wrinkle Free.

Add a Garment Touch to interrupt the wash part of the cycle to add or remove

agarment.

START/PAUSE Touch to start or pause the selected wash cycle.

!17!2

CONTROL PANEL

WH9060J, WH8560J, WH8060J and WH7560J models

2 8 9 !07

POWER Press to turn the washer ON/OFF.

Keylock Touch to disable all buttons on the display panel, except the

‘Power’ button. This prevents accidental button presses.

SmartTouch™

Control Dial

Digital display

screen

Rotate to select your desired wash cycle.

Red LED illuminates to indicate the selected wash cycle.

Shows the following:

‘Time to go’ – the remaining time in the cycle that is currently running.

Delayed start time of wash cycle.

Notifications if an error is detected or a warning is necessary.

Progress lights Indicate the current status of the wash cycle.

All lights are illuminated at the start of the wash cycle.

The light of the current status flashes, and then turns off oncecompleted.

Delay Start Touch to increase or decrease the delay start time.

Wash Temp Touch to increase or decrease wash water temperature.

Spin Speed Touch to increase or decrease washer spin speed.

Wash Boost Touch to select Pre Wash or Rinse+.

Options Touch to select Eco.

START/PAUSE Touch to start or pause the selected wash cycle.

WASH CYCLES

WH8560F and WH8060F models

Your washer has a number of wash cycles to suit your laundering needs. Selecting the most appropriate cycle for each particular wash load will help ensure you get the best wash result.

MAX.

CYCLE DESIGNED FOR DESCRIPTION

Cottons** Normally soiled everyday

Everyday Mixed everyday items,

Heavy Heavy soiled durable

Delicate Delicate, lightly soiled

Easy Iron Minimising creasing eg

Bulky Washing bulky items. A warm, gentle wash and

Allergy Asthma sufferers

Wool*** Machine washable

Super Quick

Sports Cotton/synthetic

Rinse Items that require

Spin Spinning wet items. Spin only. 8.5 or

Drum Clean

cotton loads, eg whites.

eg towels, sheets, sweatshirts, t-shirts.

garments eg tea towels, rugby shorts.

items, eg tops, blouses.

shirts, trousers.

and people with skin sensitivities.

woollen items.

Freshening up small musty or lightly soiled items.

sports clothing.

rinsing only.

Maintaining the cleanliness of your washer.

A comprehensive cycle specifically designed for cottons.

A cycle designed for mixed loads.

A stronger, hotter wash for more durable items.

Gentler wash with more water to look after delicate items.

Less spinning with ‘Wrinkle Free’ option to help minimise the need for ironing.

slow spin for special care of bulky items.

Hot wash to kill dust mites and extra rinses to remove all traces of detergent.

Extra gentle wash action that complies with Woolmark Apparel Care criteria.

A quick cycle for small lightly soiled loads.

A cycle tailored to washing sports type clothing.

Two rinses followed by a spin.

A hot cycle to remove any residues inside the washer.

LOAD

SIZE

(KG)*

8.5 or

8.0

8.5 or

8.0

8.5 or

8.0

4 40 60 500 800

4 40 60 800 800

4 60 90 800 800

8.5 or

8.0

2 40 40 800 800

2 30 60 800 1400

4 40 40 1100 1400

8.5 or

8.0

n/a 90 90 1400 1400

DEFAULT

WASH TEMP.

(°C)

40 90 1400 1400

60 90 1400 1400

Cold Cold 1400 1400

n/a n/a 1400 1400

MAX.

WASH

TEMP.

(°C)

SPIN

SPEED

(RPM)

MAX.

SPIN

SPEED

(RPM)

*Depends on your model of washer (8.5kg or 8.0kg capacity). **‘Cottons’, ‘40°C’, ‘1400rpm’, ‘Eco Rinse’ selected is the recommended water and energy saving

cycle for normally soiled, everyday washing.

***Woolmark Apparel Care – The wool wash cycle of this machine has been approved by The Woolmark Company for the washing of machinewashable wool products provided that the products are washed according to the instructions on the garment label and those issued by the manufacturer of these washing machines M1528. Only the WH8560Fand WH8060F models comply with Woolmark Apparel Care requirements.

WASH CYCLES

WH8560P, WH8060P and WH7560P models

Your washer has a number of wash cycles to suit your laundering needs. Selecting the most appropriate cycle for each particular wash load will help ensure you get the best wash result.

MAX.

CYCLE DESIGNED FOR DESCRIPTION

Cottons** Normally soiled everyday

Everyday Mixed everyday items,

Heavy Heavy soiled durable

Delicate Delicate, lightly soiled

Easy Iron Minimising creasing eg

Bulky Washing bulky items. A warm, gentle wash and

Allergy Asthma sufferers

Handwash Very delicate lightly

Quick Lightly soiled garments. A quick cycle for lightly

Super Quick

Rinse Items that require

Spin Spinning wet items. Spin only. 8.5, 8.0

Drum Clean

cotton loads, eg whites.

eg towels, sheets, sweatshirts, t-shirts.

garments eg tea towels, rugby shorts.

items, eg tops, blouses.

shirts, trousers.

and people with skin sensitivities.

soiled garments, eg woollens.

Freshening up small musty or lightly soiled items.

rinsing only.

Maintaining the cleanliness of your washer.

A comprehensive cycle specifically designed for cottons.

A cycle designed for mixed loads.

A stronger, hotter wash for more durable items.

Gentler wash with more water to look after delicate items.

Less spinning with ‘Wrinkle Free’ option to help minimise the need for ironing.

slow spin for special care of bulky items.

Hot wash to kill dust mites and extra rinses to remove all traces of detergent.

Very gentle wash action for extra special items. 2 30 40 500 500

soiled loads.

A quick cycle for small lightly soiled loads. 2 30 60 800 1400

Two rinses followed by a spin.

A hot cycle to remove any residues inside the washer.

LOAD

SIZE

(KG)*

8.5, 8.0 or 7.5

4 40 60 500 800

4 40 60 800 800

4 60 90 800 800

8.5, 8.0 or 7.5

4 40 60 800 1400

8.5, 8.0 or 7.5

or 7.5

n/a 90 90 1400 1400

DEFAULT

WASH TEMP.

(°C)

40 90 1400 1400

60 90 1400 1400

Cold Cold 1400 1400

n/a n /a 1400 1400

MAX. WASH TEMP.

(°C)

SPIN

SPEED

(RPM)

MAX.

SPIN

SPEED

(RPM)

*Depends on your model of washer (8.5kg, 8.0kg or 7.5kg capacity). **‘Cottons’, ‘40°C’, ‘1400rpm’, ‘Eco’ selected is the recommended water and energy saving cycle

for normally soiled, everyday washing.

WASH CYCLES

WH9060J, WH8560J, WH8060J and WH7560J models

Your washer has a number of wash cycles to suit your laundering needs. Selecting the most appropriate cycle for each particular wash load will help ensure you get the best wash result.

MAX.

CYCLE DESIGNED FOR DESCRIPTION

Cottons** Normally soiled everyday

Everyday Mixed everyday items,

Heavy Heavy soiled durable

Delicate Delicate, lightly soiled

Easy Iron Minimising creasing

Quick Lightly soiled garments. A quick cycle for lightly

Rinse Items that require

Spin Spinning out wet items. Spin only. 9.0 or

Drum Clean

cotton loads, eg whites.

eg towels, sheets, sweatshirts, t-shirts.

garments eg tea towels, rugby shorts.

items, eg tops, blouses.

eg shirts, trousers.

rinsing only.

Maintaining the cleanliness of your washer.

A comprehensive cycle specifically designed for cottons.

A cycle designed for mixed loads.

A stronger, hotter wash for difficult stains on durables.

Gentler wash with more water to look after delicate items.

Less spinning to help minimise the need for ironing.

soiled loads.

Two rinses followed by a spin.

A hot cycle to remove any residues inside the washer.

LOAD

SIZE

(KG)*

9.0 or

8.5 or

8.0 or

7.5

9.0 or

8.5 or

8.0 or

7.5

9.0 or

8.5 or

8.0 or

7.5

4 40 60 500 800

4 40 60 800 800

4 40 60 800 1200

9.0 or

8.5 or

8.0 or

7.5

8.5 or

8.0 or

7.5

n/a 90 90 1200 1200

DEFAULT

WASH

TEMP.

(°C)

40 90 1200 1200

60 90 1200 1200

Cold Cold 1200 1200

n/a n/a 1200 1200

MAX. WASH TEMP.

(°C)

SPIN SPEED (RPM)

MAX.

SPIN

SPEED

(RPM)

*Depends on your model of washer (9.0kg or 8.5kg or 8.0kg or 7.5kg capacity). **’Cottons’, ‘40°C’, ‘1200rpm’, ‘Eco’ selected is the recommended water and energy saving cycle

for normally soiled, everyday washing.

DETERGENT AND FABRIC SOFTENER

Detergent type

Your washer requires low sudsing detergent to prevent oversudsing problems. Low sudsing detergent comes in powder, liquid or pod form and is labelled ‘Front Loading’, ‘Low Suds’, ‘High Efficiency’ or ‘HE’.

Using top loading detergent in your front loader washer may lead to excessive suds formation, which will lengthen the cycle time as the machine waits for the suds to dissolve.

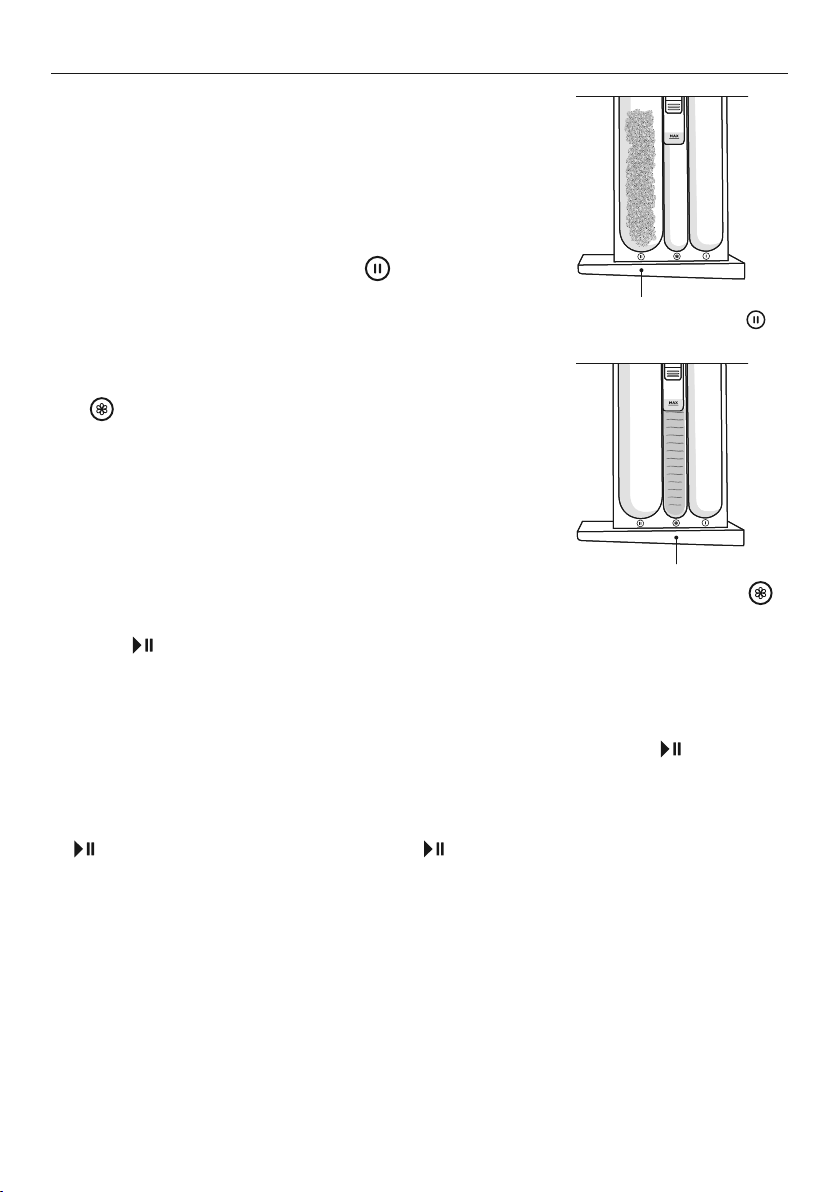

Where do I put my detergent?

WH8560F, WH8060F, WH8560P, WH8060P and WH7560P models only

Liquid detergent

Is added to the main wash compartment on the left side of the dispenser drawer marked with a the detergent, the detergent solution is then delivered into the drum. There may be a small volume of water left in the liquid detergent dispenser at the end of the cycle. This is normal.

Powdered detergent

If you wish to use powdered detergent, the liquid detergent compartment MUSTbe removed from the dispenser drawer. To do this firmly grasp and twist the left hand side of the internal compartment and pull upwards B. To replace the liquid detergent compartment slide it back into the drawer marked

A. As the machine fills, water is flushed into this compartment and is mixed with

C. Press down in the middle untilit clicks D.

A B

Detergent dispenser drawer

If using liquid detergent ensure the liquid detergent compartment is installed.

If using powder ensure the liquid detergent compartment has been removed.

Ensure the detergent drawer is completely closed before starting the cycle.

Removing the liquid detergent compartment

Replacing the liquid detergent compartment

Clicking in the liquid detergent compartment

DETERGENT AND FABRIC SOFTENER

WH9060J, WH8560J, WH8060J and WH7560J models only

Powdered or liquid detergent

Is added to the main wash detergent compartment on the left side of the dispensing drawer marked with a machine fills, water is flushed through this compartment to deliver a detergent solution into the drum.

Ensure the detergent drawer is completely closed before starting the cycle.

If you select the ‘Pre Wash’ option, you must use a powdered detergent in the main wash detergent compartment.

Pods

Detergent pods are a ‘no mess’ alternative to powdered or liquid detergent. They must be placed at the back of the drum prior to loading your clothes. This will ensure they are activated quickly in the wash. Do not place pods in the detergent dispenser drawer or on top of your clothes.

Pre Wash

If you wish to use the ‘Pre Wash’ option, liquid or powdered detergent only must be placed in the prewash detergent compartment on the right side of the drawer, marked with a

. When you select ‘Pre Wash’, the pre wash compartment is flushed at the start

of the cycle. For more information refer to ‘Wash cycle options’.

. As the

Detergent in the detergent compartment marked

‘Pre Wash’ option

Detergent in the prewash compartment marked

WH9060J, WH8560J, WH8060J and WH7560J models: If using ‘Delay Start’ we recommend you use powdered detergent for the main wash.

DETERGENT AND FABRIC SOFTENER

How much detergent?

The correct detergent dosage varies depending on the amount of soil in your load, the size of the load and the water quality, so getting the correct dose takes some trial and error. Use the instructions stated on the detergent package as a guide, then alter the dosage according to the results.

If you overdose, you will get over foaming issues, but if you under-dose you will get poor performance and over time your washer will start to smell as scum builds up inside it.

Detergent advice

1 If your washer smells you are probably not using enough detergent for the soil level

in your loads. Run a ‘Drum Clean’ cycle and either buy a better quality detergent or use a higher dose. If you are using an ‘Eco’ detergent, alternate the use of this with a mainstream detergent.

2 Add the detergent BEFORE starting the cycle, close the dispenser and do not open it

while the cycle is running.

3 If you find foam leaking from your washer, check you are using a low sudsing or front

loader type detergent and check the quantity you are using against the detergent manufacturers recommendation. You may need to reduce the amount you are using.

Fabric softener

Add fabric softener to the middle compartment of the dispenser marked with a washer will automatically flush the fabric softener during the rinse part of the cycle.

If you wish to use fabric softener we recommend to:

1 Use it sparingly. Measure it carefully and do not use more than 25ml (1/2cap), some

thicker varieties may need diluting.

2 Clean your dispenser regularly. 3 Clean your machine regularly using the ‘Drum Clean’ cycle. 4 Complete wash cycles at a wash temperature of 40°C or above at regular intervals

(eg every 5thwash) as washing in cold water increases the chance of scrud occurring (see below).

. The

If you fill beyond the MAX mark, the fabric softener will be dispensed into the bowl prematurely and contribute to scrud.

Scrud

Scrud is the name of the waxy build-up that can occur within any washer when fabric softener comes in contact with detergent. This build-up is not brought about by a fault in the machine. If scrud is allowed to build up in the machine it can result in stains on clothes and an unpleasant smell in your washer.

If you wash a particularly dirty load, we recommend putting the washer through a ‘Rinse’ cycle once the cycle has finished and the load has been removed, to clean outany remnants from that cycle.

WASH PREPARATION

Sorting

Sort items according to colour, fabric type, and soil type. Wash fine, delicate fabrics separately from thick, heavy fabrics. Always separate coloured items from whites, especially when they are new. Colour run could be an issue if you wash items at higher temperatures. Some soils, like mud and blood are best washed in cold water. Oily soils (eg some foods and marks on shirt collars) are best washed in warm water. The following are recommendations for what cycles and settings you may wish to wash different items on, and suggestions for special wash requirements.

ITEMS/WASH REQUIREMENTS

Towels, Sheets, pillowcases Everyday, 1400 or 1200 rpm spin 30°C or 40°C

Bulky items – doonas, duvets, sleeping bags

Shirts, pants, other creasables Easy Iron, 800 rpm 30°C or 40°C

Woollens, silks Wool, Handwash, 500 rpm 30°C or 40°C

Delicates, fine fabrics Delicate, Wool or Handwash 30°C

Jeans Everyday or Heavy Cold or 30°C

Highly coloured items Everyday Cold or 30°C

Whites, cotton items Cottons, 1400 or 1200 rpm spin 40°C or 60°C

Have sensitive skin or require extra rinsing?

Asthma/allergies Allergy, Rinse+ 60°C

Lightly soiled items Quick, Super Quick or TimeSaver 30°C

Muddy, sandy or linty items Everyday, Pre Wash and Rinse+ Cold

Smelly washer Drum Clean 90°C

SUGGESTED CYCLE AND OPTIONS*

Bulky 30°C or 40°C

Allergy, Rinse+, 1400 or 1200 rpm spin

SUGGESTED TEMPERATURE

40°C

*Cycles and spin speeds available will depend on your washer model.

Before you load

Check pockets for items that could damage your clothes or get caught in the washer.

Close zippers, hooks and eyes, and other fastenings (ie fasten the opening of duvet/ doona covers), and remove loose bra wires. All these can damage both your washer and your clothes.

Place delicate items, such as lingerie, in a mesh laundry bag before placing in the machine.

Pre-treat any stains, taking care not to spray pre-treaters on your washer as they can cause damage to the plastic surfaces.

Your washer will be more efficient when washing larger loads, so try to collect enough items to loosely fill the drum when the items are dry.

GETTING STARTED QUICKLY

WH8560F/P, WH8060F/P and WH7560P models

Sort your washing carefully. Separate white/light colours from dark colours. Wash new, highly coloured and dark coloured items separately to prevent dye transfer. Refer to ‘Wash preparation’.

Load your clothes individually into the wash drum. Close the door.

Use ‘Low Sudsing’ or ‘Front Loader’ liquid, powder or pods. Place liquid detergent into the correct compartment in the dispenser drawer marked . Ifyou wish to use powdered detergent you MUST remove the liquid detergent insert by firmly grasping and twisting the left hand side of the internal compartment and pulling upwards. If you are using detergent pods place them at the back of the drum before you load your clothing. For more information on detergent refer to ‘Detergent and fabric softener’.

If you wish to use fabric softener, place it in the compartment marked with a . For more information on fabric softener refer to ‘Detergent and fabric softener’.

Fabric softener should not be used if you have selected the ‘Quick’ or ‘Super Quick’ cycle.

Liquid detergent in compartment marked

Fabric softener in compartment marked

1 Press ‘Power’ to activate your washer. 2 Select your wash cycle by turning the SmartTouch™ Control Dial. 3 Choose your wash options, if you wish to select options different from the default

options for the cycle.

4 Touch

If you make an invalid selection the washer will beep to alert you.

When the cycle finishes, your washer will perform end of cycle beeps and then turn

to start the cycle.

offautomatically.

If you wish to stop your washer at any point during a cycle simply touch to pause the cycle. There may be a slight delay while the drum comes to a stop, then the door will unlock. Under certain conditions however the door will remain locked for safety reasons (refer to the ‘Safety features’).

If you wish to cancel or change the wash cycle once a cycle has started, simply touch the

button then select the new cycle. Touch to restart the washer.

For the best fabric and colour care, remove your clothes as soon as the cycle has finished.

Failure to follow the advice in this guide may result in damage to your garments and your expectations of wash performance may not be met.

GETTING STARTED QUICKLY

WH9060J, WH8560J, WH8060J and WH7560J models

Sort your washing carefully. Separate white/light colours from dark colours. Wash new, highly coloured and dark coloured items separately to prevent dye transfer. Refer to ‘Wash preparation’.

Load your clothes individually into the wash drum. Close the door.

Place detergent in the correct compartment in the detergent dispenser drawer marked . Use Low Sudsing or ‘Front Loader’ liquid or powder detergents. Alternatively use detergent pods. Place the pod at the back of the drum before you load in any clothing. For more information on detergent refer to ‘Detergent and fabric softener’.

Place fabric softener in the compartment marked with a . For more information on fabric softener refer to ‘Detergent and fabric softener’.

Fabric softener must not be used if you have selected the ‘Quick’ cycle.

1 Press ‘Power’ to activate your washer. 2 Select your wash cycle by turning the SmartTouch™

Control Dial.

3 Choose your wash options, if you wish to select

options different from the default options for thecycle.

4 Touch to start the cycle.

Detergent in compartment marked

Fabric softener in compartment marked

If you make an invalid selection the washer will beep at you.

When the cycle finishes, your washer will perform end of cycle beeps to alert you and then turn off automatically.

If you wish to stop your washer at any point during a cycle, simply touch to pause the cycle. There may be a slight delay while the drum comes to a stop, then the door will unlock. Under certain conditions however the door will remain locked for safety reasons (refer to ‘Safety features’).

If you wish to cancel or change the wash cycle once a cycle has started, simply touch the

button then select the new cycle. Touch to restart the washer.

For the best fabric and colour care, remove your clothes as soon as the cycle has finished.

Failure to follow the advice in this guide may result in damage to your garments and your expectations of wash performance may not be met.

WASH CYCLE OPTIONS

Wash cycle options

All wash cycles default to the recommended options for that cycle based on the average expected load to be washed. You can vary the options (eg ‘Wash Temp’, ‘Spin Speed’) to create your desired cycle. Some options are not available on some cycles, for clothes care reasons, or because the option is not appropriate for the cycle.

To change a wash option or options you have selected after a cycle has started

Touch and select your new setting, then touch again to resume the cycle with the new setting or settings.

Note: Some options may not be available for selection under certain conditions and after particular stages of the cycle have passed.

Wash Temp

Your washer offers five wash temperatures:

Cold 30°C 40°C 60°C 90°C

Simply touch the ‘Wash Temp’ button to increase or decrease the wash temperature.

The washer will fill with both hot and cold water (if possible) to achieve the selected wash temperature. If required, ie for cold supply or cold connection only, the washer will heat the water to the selected temperature.

Some temperatures are not available on some cycles as a safeguard for your clothes (eg90°C on the ‘Delicate’ cycle).

Note: If the wash temperature is set to cold the washing machine will heat the water to 20°C using the internal heater. This is to ensure that the detergent is fully dissolved during the wash cycle.

Time Saver (WH8560F and WH8060F models only)

Your washer offers a ‘Time Saver’ feature that when selected adjusts the cycle programming, by combining special temperature profiling and a unique tumble sequence. The result – excellent wash performance combined with time savings.

This option can be selected on the ‘Everyday’, ‘Cottons’, ‘Heavy’, ‘Easy Iron’, ‘Allergy’ and ‘Sports’ cycles.

Please be aware that a number of factors can influence the amount of time saved on a cycle, including the load size, cycle chosen, water flow rate and load distribution during spin.

WASH CYCLE OPTIONS

Spin Speed

Your WH8560F, WH8060F, WH8560P, WH8060P or WH7560P model of washer offersfour spin speeds: 500rpm, 800rpm, 1100rpm and 1400rpm, plus an additional ‘No Spin’ option.

Your WH9060J, WH8560J, WH8060J or WH7560J model of washer offers three spin speeds: 500rpm, 800rpm, 1200rpm, plus an additional ‘No Spin’ option.

Simply increase or decrease the spin speed by touching the ‘Spin Speed’ button.

Selecting ‘No Spin’ will end the cycle after the rinse, allowing you to remove items you wish to drip dry. The washer will complete the default wash and rinse spins for the cycle; only the final spin will not be completed. If you have removed the items you wish to drip dry and there are items remaining that you would like to proceed to spin, press ‘Power’ and select the ‘Spin’ cycle. If necessary, modify the spin speed to best care for your load (ie spin delicate items at 500rpm for best garment care).

Soil Level (WH8560P, WH8060P and WH7560P models only)

The ‘Soil Level’ option lets you adjust the wash to suit the amount of soil in your load. For example, select ‘Heavy’ for dirty clothes; for items that are only lightly soiled, select ‘Light’. This adjusts the wash time accordingly to give the load the right amount of agitation to remove the soil.

Wash Boost

Pre Wash

For extra dirty loads you can perform a ‘Pre Wash’. Your washer will start the wash with a short wash in cool water to remove excess soil. After this the machine will drain and then fill at the selected temperature for the main wash.

Simply touch the ‘Wash Boost’ button and select ‘Pre Wash’ when choosing your wash options. ‘Pre Wash’ cannot be selected after a wash cycle has been started, ie if you touch

and try to select ‘Pre Wash’ it will be unavailable. ‘Pre Wash’ must be selected at the

start of the cycle.

If you use the ‘Pre Wash’ option, liquid or powdered detergent needs to be placed in the correct detergent compartment. The pre wash compartment is on the right hand side of the drawer, marked the cycle.

. When you select ‘Pre Wash’, the compartment is flushed at the start of

WH8560F, WH8060F, WH8560P, WH8060P and WH7560P models only

The detergent for the main wash can either be a powder or a liquid. Place this in the compartment marked

. If using liquid, ensure the internal compartment is installed.

WH9060J, WH8560J, WH8060J and WH7560J models only

The detergent for the main wash MUST be a powder, and should be placed in the compartment marked

Rinse+

If you have a particularly dirty load, or you have sensitive skin and wish to give your clothes an extra rinse, select ‘Rinse+’ from the ‘Wash Boost’ options. Your load will undergo an extra rinse to get rid of any residual detergent or soil in the items.

Note: ‘Rinse+’ will not be available if the ‘Eco’/’Eco Rinse’ option has been selected.

WASH CYCLE OPTIONS

Options

Soak (WH8560F and WH8060F models only)

A soak option is available on selected wash cycles. When this option is chosen the machine will add a one hour soak sequence, which combines periods of tumbling with soaking to help lift stubborn stains.

If ‘Soak’ and ‘Time Saver’ are selected in the same cycle, the soak duration will be reduced to 30 minutes.

‘Soak’ is not available on ‘Wool’, ‘Drum Clean’, or ‘Super Quick’ cycles.

Wrinkle Free (WH8560F, WH8060F, WH8560P WH8060P and WH7560P models only)

We recommend you remove the clothes from the washer immediately after the completion of the cycle to minimise wrinkling and creasing of items and to prevent dye run. However, if you will not be present at the end of the wash you can select ‘Wrinkle Free’.

When ‘Wrinkle Free’ is selected, the washer will tumble the clothes once every 15minutes for up to 12 hours after the cycle has finished. The ‘Wrinkle Free’ light and flash, and the washer will beep at regular intervals to remind you to remove your load. To remove the load during this phase, simply press the button.

Eco/Eco Rinse

Use the ‘Eco’/’Eco Rinse’ option to save water and energy. Selecting ‘Eco’/’Eco Rinse’ will reduce the wash temperature slightly and alter the wash and rinse programming.

This option will not be available if ‘Pre Wash’ has been selected.

If you wish to, you can select both the ‘Pre Wash’ and ‘Rinse+’ ‘Wash Boost’ options to perform on the same cycle. Likewise, you can select ‘Eco’/’Eco Rinse’ and ‘Wrinkle Free’ to perform on the same cycle. Touch the appropriate button until both options are selected. Repeat to deselect an option.

For clothes care and performance reasons not all options may be available on some cycles.

button will

Add a Garment (WH8560F, WH8060F, WH8560P, WH8060P and WH7560P models only)

The ‘Add a Garment’ option enables you to add or remove items during the wash stage of the cycle, under certain conditions. Once the ‘Add a Garment’ button is touched, the button and time to go will flash. Wait until you hear the door unlock. Open the door and add or remove items. Close the door and touch to restart the cycle.

The ‘Add a Garment’ button will only operate during the wash part of the cycle and when the temperature selected is lower than 60°C. ‘Add a Garment’ can be used when the total wash volume has been reached, as your washer will drain the water to a lower level if necessary, so the door can be opened.

WASH CYCLE OPTIONS

Keylock

This option enables you to deactivate the buttons on the display panel, except for the ‘Power’ and ‘Keylock’ buttons. This prevents accidental button presses.

To turn Keylock mode ON or OFF when the washer is powered on:

Touch and hold the button for 2 seconds. When activated, the light above the button is illuminated.

If Keylock mode is activated and the machine is powered off:

To turn your washer on, press the ‘Power’ button, then touch and hold the button for twoseconds. Select your wash cycle, options and then touch to start the cycle.

To turn the washer off at anytime when keylock is activated simply press the ‘Power’ button.

Delay Start

The ‘Delay Start’ option enables you to delay the start of the wash cycle from between 5minutes and 12hours. Times you can select are 5min, 15min, 30min, 1hour, then hourly up to 12hours. This can be useful to time your washing to finish when you arrive home from work, or to start once you have finished in the shower. Some stain removers also require you to spray them on then leave for several minutes, before washing. Your washer will wait for the selected time then start without you having to wait or remember to start your machine.

To programme a ‘Delay Start’ time, simply touch the ‘More’ time and ‘Less’ button to decrease the time or turn ‘Delay Start’ off. Touch to confirm your selection and start the countdown. Once started, the time will count down on the digital display screen in 1 minute increments, the ‘Delay Start’ light will flash and the light will stop flashing and turn on solid.

If you hold the ‘More’

button down, the time displayed on the screen will increase after

every half a second (more convenient than touching the button repetitively).

To remove a ‘Delay Start’ time once it is counting down, simply touch ‘Less’ button to decrease the time to zero. Touch to start the cycle immediately.

Avoid using ‘Delay Start’ for damp, non-colourfast items as this may cause dye run to occur. We also recommend you use powder detergent when you use the ‘Delay Start’ function (WH9060J, WH8560J, WH8060J and WH7560J models only).

button to increase the delay

, then touch the

CUSTOMISING A WASH CYCLE

After using your washer a few times you may discover there are some wash options you prefer for some cycles.

You can programme your washer to remember the wash options you prefer for each wash cycle. For instance, you may want to set the ‘Easy Iron’ cycle to cold wash temperature or set the ‘Everyday’ cycle so it gives you Rinse+ every cycle.

To customise a cycle:

1 Press ‘Power’ to turn the machine on. 2 Turn the dial to select the cycle you wish to customise. 3 Touch and hold any of the wash option buttons for 3seconds. The cycle icon will

flash on and off to indicate that the product is in cycle adjustment mode. The display will show

4 Select the wash options you prefer by touching the relevant option button. 5 Touch

Your washer will automatically remember your changes for all future washes you do on this cycle.

Factory Reset

You can reset your washer to the default settings it left the factory with:

1 Turn the dial to select ‘Spin’. 2 Touch and hold the ‘Delay Start’ ‘More’

buttons together for 3seconds will appear on the screen and the machine will beep.

3 Your washer will now be reset to the default settings.

to save the selected settings.

, the ‘Delay Start’ ‘Less’ and ‘Options’

CARING FOR YOUR WASHER

When you have finished using your washer

Unplug the machine from the power socket.

Wipe around the door and in the rubber gasket to remove any remaining water and foreign matter.

Turn off the taps to prevent the chance of flooding should a hose burst.

Cleaning your washer

Before you start cleaning your washer, ensure that it is disconnected from the power (ieunplug the machine from the power socket).

Cleaning the control panel and outer surfaces of the washer

Use a soft damp cloth to wipe all surfaces, then wipe dry. Avoid using chemical or scouring cleaners, as these will damage the paint and plastic surfaces of your washer.

Cleaning the detergent dispenser drawer

Wipe out the detergent dispenser drawer with a damp cloth. Clean it regularly, especially if you use fabric softener. To remove the drawer, pull it open, push down on the tab in the fabric softener compartment and pull out. Rinse it out under warm water and re-insert into the machine.

Removing the dispenser drawer for cleaning

Cleaning the inside of your washer

It is important that you regularly clean the inside of your machine using the ‘Drum Clean’ cycle. After 100cycles

icon will flash every time you turn your washer on to remind you to do this. If your washer starts to smell this is a sign that you should complete a ‘Drum Clean’ cycle. We recommend that you do not have any items in the washer when you run this cycle.

‘Drum Clean’

cycle

Cleaning steps

1 We recommend the use of commercial washing machine cleaners only. 2 Add the washing machine cleaner directly into the main wash detergent compartment

of the dispenser drawer (marked

), follow manufacturer’s instructions.

3 Press ‘Power’ to turn your machine on and select the ‘DrumClean’ cycle. 4 Touch

to start the cycle.

CARING FOR YOUR WASHER

Cleaning the drum and the door

Use a soft damp cloth to wipe the door, cleaning any water marks or residue off it.

Wipe the rubber seal around the door. Remove any items or lint accumulating in the bottom of the seal catchment and wipe out any water accumulated here. If this is not cleaned out, unpleasant odours will develop.

If the drum has any residual dirt or lint stuck to it, remove this and wipe the drum clean. Do not leave any metal objects in the drum as these may rust and cause staining.

WH8560F and WH8060F models also have a self cleaning door flush that directs a portion of the rinse water over the door during various stages of the cycle to help to clean hair and insolubles from the inside of the door and surrounding parts. We still recommend that you manually clean it with a soft cloth periodically as per the instructions above.

Cleaning the pump filter

The pump has a filter to trap foreign objects that enter the washer along with clothing. The pump filter can be accessed from the front of the washer.

To clean the filter:

This should be cleaned out approximately once a month.

1 Turn the power off and unplug the machine. 2 Use a coin to open the filter cover. Place the edge of the coin

into the slot and tilt upwards whilst levering the cover open.

3 Unhook the pump outlet hose and pull it out (about 150mm).

Remove the plug and allow any water (approximately 250ml) to drain into a shallow dish.

4 After the draining process is complete, replace the plug

intothe hose and refit the hose back into the housing.

5 Remove the filter by turning anti-clockwise. Clean and

rinseunder a tap. Check the pump filter cavity for any further obstruction.

6 Replace the filter by turning clockwise until the white mark

on the filter is in line with the white line on the pump housing.

White marks are in line

White marks are not in line

Correct

Incorrect

Drain residual water

Replacing filter

7 Close the filter cover.

CARING FOR YOUR WASHER

Cleaning the hose(s)

Each hose has a filter in it, preventing any solid contaminants in the water entering your washing machine. Occasionally you should disconnect the water inlet hose(s) where they connect to the tap(s), check these for any build up of dirt and wash this out.

Nappy sanitisers/bleach

Nappy sanitisers and bleach are very corrosive to metal surfaces. DO NOT tip the contents of a nappy bucket into your machine. Rinse and wring items out thoroughly before placing them in the machine.

Moving your washer

If you need to move your washer a considerable distance (eg moving house), remember to replace the transit bolts before moving it. These will protect internal components of the washer from damage.

To replace the transit bolts, pull out the bolt-hole covers in the back of the machine. Push the transit bolt rubber grommets and plastic spaces into the hole left and tighten it with the spanner provided with the product.

Make sure any water in the washer is drained out. This can be done by cleaning out the pump filter, refer to ‘Caring for your washer’ ‘Cleaning the pump filter’.

Leave the door to your washer open when it is not in use to allow the washer to dry out, otherwise it will develop unpleasant odours. When leaving the door open like this, it is extremely important that children and pets are kept away from the washer so they cannot be accidentally trapped inside it.

Aside from the detergent dispenser, water hose(s), and the pump filter, no other parts are designed to be removed from the machine for cleaning. Do not attempt to remove any other part of the machine.

BEFORE YOU CALL FOR SERVICE

User warnings

Your washer is capable of diagnosing a number of its own problems. In most cases, your washer will sound a continuous series of beeps and display a code when it has a problem that you can correct yourself. All control panel lights will turn off and the code will be displayed to inform you what the problem is. To stop the beeps, press any button on the control panel. Do not try to continue washing once you stop the noise. You must address the problem the washer is alerting you to.

Check this chart before you call for service.

PROBLEM DISPLAYED AS WHAT TO DO

Keylock is activated

Pump filter is blocked

Water is not getting to the machine

Touch and hold the ‘Keylock’ button for 2seconds.

Clear the pump filter, refer to ‘Cleaning the pump filter’.

Check the taps have been turned on.

If there is no hot water connection the machine will heat the water itself, but there must be a cold water connection to the cold valve.

Check the hose connections. If the cold water supply is connected to the hot valve and there is no connection to the cold valve the machine will not fill.

Check the inlet hose filters are not blocked, the hose(s) are not kinked and are attached correctly.

Check that the drain hose is not too low or pushed into the standpipe too far. This will cause the water to siphon out of the machine.

Check the cold water temperature does not exceed the 35°C temperature requirement.

Check the water flow rate. It maybe too low.

BEFORE YOU CALL SERVICE

PROBLEM DISPLAYED AS WHAT TO DO

Wash load is out of balance

Too many suds

Door is locked

Touch to try the spin again.

If the out of balance persists, pause the cycle, manually redistribute the load and touch spin again. If necessary, stop the cycle, select ‘Spin’ and touch .

If the problem persists, check the machine is correctly levelled.

Machine will stop and flash for 10minutes while waiting for suds to dissipate. The machine will not beep during this time. After 10 minutes the machine will automatically restart. At any point during that 10 minutes you can touch to restart the machine, but it is recommended that the machine be left to restart automatically.

Check you are using a suitable detergent.

Check you are not overdosing the detergent.

Check the standpipe height for the drain does not exceed 1200mm.

The temperature in the drum is over 60°C therefore it is not safe to open the door. Wait until the temperature drops below 60°C.

Check the water level in the drum. If the level is above the bottom of the door seal, the door cannot be opened. Use the ‘Add a Garment’ button if you wish to add or remove items (WH8560F, WH8060F WH8560P, WH8060P and WH7560P models only).

Door is open

If the drum is still moving, wait for it to stop before attempting to open the door.

Close the door fully and touch .

Try opening and closing the door again.

Reposition the load, make sure the load is correctly in the drum and that protruding items are not stopping the door from closing.

FAULT CODES

When a continuous series of beeps is sounded, all the lights turn off on the control panel and a number appears on the display, a fault has occurred. The washer will automatically

enter this mode if a fault occurs. The fault code will be displayed as followed by a number on the digital display. To stop the sound, touch any button and perform the following steps:

1 Turn your machine off at the power point. 2 Wait one minute and turn it back on. 3 Check your machine is correctly levelled, refer to ‘Levelling the machine’ 4 Remove your wash load. 5 Perform a ‘Rinse’ cycle. 6 If the fault re-occurs repeat steps 1 and 2. 7 If the machine still will not work you will be required to call a Fisher & Paykel trained and

supported service technician to arrange service (refer to ‘Customer Care’). Record the fault code number displayed and the serial number of your washer (located on the rear of the machine, and/or above the drum opening when the door is open) before calling. The fault code will indicate to the Repairer what the problem could potentially be.

If a fault code is being displayed, you can still turn your washer off by pressing ‘Power’.

TROUBLESHOOTING

The following is a list of problems you may encounter when using this appliance and some suggestions that may help to correct the problem. If you still have problems, please contact your Fisher & Paykel trained and supported service technician.

Operating problems

PROBLEM POSSIBLE CAUSES WHAT TO DO

Washer does not work Power not switched on at

the wall.

Household power supply not working.

Keylock may be activated. Touch and hold the ‘Keylock’ button for

Touching start the fill

does not

Washer door not closed properly.

The washer is waiting for a command from you.

The washer has detected a fault. Check if a code is being displayed on

Hot and cold taps not turned on. Check that both hot and cold taps

Hot and cold taps not connected to the corresponding valve on the machine.

Blocked hose filters. Check the tap end of the inlet hose(s)

Inlet hose leaking, twisted or damaged.

Faulty water supply. Check taps that aren’t connected to

Delay start may be set. Refer to ‘Delay Start’

Switch the power on at the wall. Then press

Try plugging in another electrical appliance.

2 seconds.

Open and reclose door.

If waiting for a command from you.

the panel, refer to ‘Before you call for service’.

are turned on (if using cold inlet only ensure inlet valve cap is installed on the hot valve on the machine, if present).

Check the cold tap is connected to the cold valve on the machine and the hot tap is connected to the hot valve (if present).

for blockages.

Check the inlet hose for leaks or damage. Check that the inlet hose is not twisted.

the machine are working.

‘Power ’.

is flashing then the washer is

TROUBLESHOOTING

Operating problems

PROBLEM POSSIBLE CAUSES WHAT TO DO

Washer stops working mid cycle

Washer drains while filling Drain hose too low. Ensure the height of the drain hose is

Washer is not draining Drain hose blocked. Clear the drain hose.

Filling continuously Drain hose not connected to

Poor rinsing Incorrect detergent used. Use low sudsing, front loader detergent

Not spinning properly Load has gone out of balance. Open door and redistribute load, then

The washer has detected a fault. Refer to ‘Fault Codes’

Power or water failure. Check the power and/or water is

working correctly.

Washer has been paused.

Too many suds. Washer is waiting for suds to dissolve

Drain hose sitting in water. Clear the drain.

Pump filter blocked. Clear the pump filter, refer to ‘Cleaning the

Drain hose higher than 1200mm above floor level.

standpipe or tub.

Machine siphoning. Ensure standpipe or tub is at least

Too much detergent used. Ensure the correct dose of detergent

Machine is not level. Ensure machine is correctly levelled,

Suds build up. Check the amount of detergent used,

Touch the

before continuing the cycle.

at least 800mm from the floor level, refer to ‘Draining’.

pump filter’.

Lower the level of the drain hose, refer to ‘Drainage’.

Connect drain hose correctly, refer to ‘Drainage’.

800mm from the floor level.

only, refer to ‘Detergent and Fabric Softener’.

is used for the load size and soil level, refer to ‘Detergent and Fabric Softener

restart the washer.

refer to ‘Levelling the machine’

reduce if necessary.

button to continue.

TROUBLESHOOTING

Operating problems

PROBLEM POSSIBLE CAUSES WHAT TO DO

Too many soap suds Incorrect type of detergent used. Use low sudsing, front loader detergent

only, refer to ‘Detergent and Fabric Softener’.

Too much detergent used. Ensure the correct dose of detergent

is used for the load size and soil level. refer to ‘Detergent and Fabric Softener’.

Small puddle of water from under the machine

Cycle time longer than usual/Inaccurate time reading/Adjustment of time remaining during cycle

Inlet hose or drain hose leaking. Check inlet hose(s) and the drain

hose are correctly attached and not damaged.

Lots of suds. Suds may have leaked and

then dissolved.

Detergent dispenser blocked. Clean detergent dispenser drawer, refer

to ‘Cleaning the detergent dispenser drawer’.

Detergent dispenser drawer not fully closed.

Damage to door seal. Check seal inside door for damage. If

Wash time is approximate. Wash time may be influenced by a

Low water pressure or flow rate. Ensure that inlet hose filters are

Out of balance or oversudsing. Recovery from out of balance or

Washing a large load. Be aware that it will take longer for the

Selecting various options. Be aware that some options will extend

Close detergent dispenser drawer fully and ensure it remains closed during the cycle.

it sustains any damage it will need to be replaced.

number of factors, refer to ‘Time to go’.

not blocked.

oversudsing will extend cycle time, refer to ‘Before you call for Service’

machine to fill.

cycle time.

TROUBLESHOOTING

Operating problems

PROBLEM POSSIBLE CAUSES WHAT TO DO

Detergent or fabric softener remaining in detergent dispenser at the end of the cycle

Washing very wet at the end of the cycle

Vibrating Transit bolts left in place. Ensure transit bolts are removed prior to

Detergent drawer not properly closed or was opened part way through the cycle.

Dirty or blocked detergent dispenser.

Liquid sitting at the ‘Max’ level at the end of the cycle indicates a blockage.

Dispenser over loaded with detergent.

Cycle selected not appropriate. Particularly short or delicate cycles have

Incorrect spin speed for load selected.

An out of balance load has occurred.

Washer may not be level. Ensure washer is installed on an

Load is out of balance. Wash an average sized load rather than

Ensure the detergent dispenser drawer is fully closed at the start of the cycle and remains closed throughout the cycle.

Clean the detergent dispenser, refer to ‘Cleaning the detergent dispenser drawer’.

Clean the fabric softener dispenser, refer to ‘Cleaning your dispenser drawer’.

Clean out remaining detergent and refer to ‘Detergent and Fabric Softener’ for dosing information.

shorter spins which can result in wetter washing at the end of the cycle.

Select a faster spin speed.

The washer compensates for the out of balance by using a lower spin speed, to reduce noise and potential damage to itself.

use of the machine, refer to ‘Removing your transit bolts’.

appropriate surface and levelled correctly, refer to ‘Levelling your machine’.

a smaller load or a single item. Washing one item at a time is not recommended as it is difficult for the washer to balance a single item during spin.

TROUBLESHOOTING

Wash problems

PROBLEM POSSIBLE CAUSES WHAT TO DO

Poor soil Removal Incorrect wash cycle selected. Select a wash cycle that is appropriate for the

amount of dirt, refer to ‘Wash cycle options’.

Insufficient detergent. Ensure the correct dose of detergent is

used for the load size and soil level, refer to ‘Detergent and fabric softener’.

Washer overloaded. Ensure the washer is not overloaded in

terms of its capacity or the cycle selected, , refer to ‘Wash cycle options’.

Items require a longer wash time. Select a higher soil level option if available

(WH8560P, WH8060P and WH7560P models only).

Load was particularly dirty. Select ‘Pre Wash’ for particularly dirty loads,

refer to ‘Pre Wash’.

Items not sorted correctly. Wash heavily and lightly soiled

garments separately.

Washer dirty from previous wash. After washing particularly dirty clothing,

we recommend putting the washer through a ‘Rinse’ cycle after the load has been removed, to wash away any remnants of dirt and to prevent it contaminating future washes.

Dye transfer

Incorrect wash temperature selected in relation to the type of soil.

Coloured items not washed separately from white/light coloured items.

New or non-colourfast items not washed separately.

Wet items have been left sitting for too long.

Wash temperature. Consider the wash temperature you

Select a wash temperature suitable for the type of soil, eg warm for greasy soils, cold for muddy soils. Increasing the wash temperature generally improves soil removal and overall wash performance.

Remember to separate whites and colours.

Wash non-colourfast items separately and select ‘Cold’ wash temperature.

Remove items from washer as soon as the cycle is finished, or if items are not to be removed from the washer immediately select ‘Wrinkle Free’ (WH8560F, WH8060F, WH8560P, WH8060P and WH7560P models only).

select for your coloured items. Lower the temperature if you are concerned.

TROUBLESHOOTING

Wash problems

PROBLEM POSSIBLE CAUSES WHAT TO DO

Black or grey marks on clothes

Tangling Items not sorted correctly. Separate larger items from smaller items.

Creasing Washer overloaded. Do not overload washer.

Correct amount of detergent. Ensure the correct dose of detergent is

used for the load size and soil level, refer to ‘Detergent and fabric softener’.

Washer needs to be cleaned. Empty the machine and complete a ‘Drum

Clean’ cycle

Washer loaded incorrectly. Load items loosely and individually into the

washer (ie not folded).

Incorrect cycle for load type selected.

Washer overloaded in terms of its capacity or the cycle selected.

Delicate items. Wash pantyhose, bras and any other

Incorrect cycle for load type. Use the ‘Easy Iron’ or ‘Handwash’ cycle for

Spin speed too fast. Select a slower spin speed.

Wet clothes left in washer or laundry basket.

Wash temperature too hot for load type.

Items not sorted correctly. Sort load so that items of similar weight are

Use the ‘Easy Iron’ cycle to wash shirts.

Reduce the load size.

delicate items prone to tangling in a mesh laundry bag.

creasable items.

Laundry left sitting wet is more likely to crease. If not removing clothes from washer immediately at end of cycle, select the ‘Wrinkle Free’ option (WH8560F, WH8060F, WH8560P, WH8060P and WH7560P models only). Do not leave wet washing sitting in a washing basket.

Select a lower wash temperature. Check items care label for correct care.

washed together, refer to ‘Sorting’.

Contact a Fisher & Paykel trained and supported service technician if a problem persists.

MANUFACTURER’S WARRANTY

For New Zealand and Australia only. You automatically receive a two-year Manufacturer’s Warranty with the purchase of this clothes washer covering parts and labour for servicing within the country ofpurchase.

Fisher & Paykel undertakes to:

Repair or, at its option, replace without cost to the owner either for material or labour any part of the product, the serial number of which appears on the product, which is found to be defective within two years of the date of purchase.

You also receive an additional eight-year parts only Manufacturer’s Warranty on your Direct Drive motor. This additional eight-year Manufacturer’s Warranty commences on the day following the expiry of the two-year Manufacturer’s Warranty and excludes the motor controller and labour. Fisher&Paykel will repair (as to parts) or, at its option, replace any Direct Drive motor (but not the motor controller) which is found to be defective within this additional Manufacturer’s Warranty period. You will be responsible for any labour costs.

Note: These Manufacturer’s Warranties are an extra benefit and do not affect your legalrights.

These Manufacturer’s Warranties DO NOT cover

A Service calls which are not related to any defect in the product. The cost of a

servicecallwill be charged if the problem is not found to be a product fault. Forexample:

1 Correcting the installation, eg removal of bottom packer and transit bolts

(frontloading washers), levelling the washer, adjustment of the drain to correct siphoning, noises, crossed, kinked or leaking inlet hose connections, turning on water,noises caused by the waterhammer or power supplies.

Providing instruction on use of the product or changing the set-up of the product, eginstruction on correct use of detergents and fabric softeners.

3 Replacing fuses in, or correcting house wiring or correcting house plumbing,

egunblockingdrains.

4 Correcting fault(s) caused by the user. 5 Noise or vibration that is considered normal, eg spin sounds, user warning beeps. 6 Correcting damage caused by pests, eg rats, cockroaches, etc. 7 Water on the floor due to incorrect loading or excessive suds. 8 Blocked pumps, removal of foreign objects/substances from the washer, including the

pump and inlet hose filters, eg bra wires, bread tags, nails, grit, scrud, etc.

9 Correcting corrosion or discolouration due to chemical attack.

B Defects caused by factors other than:

1 Normal domestic use; or

2 Use in accordance with the product’s User guide. C Defects to the product caused by accident, neglect, misuse or ‘act of God’. D The cost of repairs carried out other than by a Fisher & Paykel trained and supported

service technician or the cost of correcting such repairs.

MANUFACTURER’S WARRANTY

E Normal recommended maintenance as set out in the product’s User guide. F Repairs when the appliance has been dismantled, repaired or serviced by other than

aFisher&Paykel trained and supported service technician or the selling dealer.

G Pick-up and delivery. H Transportation or travelling costs involved in the repair when the product is installed

outside the Fisher&Paykel trained and supported service technician’s normal

servicearea.

Nothing in this manufacturer’s warranty is intended to, nor limits, any rights you mayhave under law to recover the costs of inspecting or returning the goods to us.

This product has been designed for personal, family or household use. This product is not designed for any commercial use. Any commercial use will terminate this products manufacturer’s warranty.

Service under these manufacturer’s warranties must be provided by a Fisher&Paykel trained and supported service technician (refer to ‘Customer care’). Suchservice shall be provided during normal business hours. ThisManufacturer’s Warranty certificate should be shown when making any claim.

For Australian customers

This manufacturer’s warranty is an extra benefit and does not affect your legal rights. Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure.

Keep this User guide in a safe place.

CUSTOMER CARE

Before you call for service or assistance

Check the things you can do yourself. Refer to your user guide and check:

1 Your product is correctly installed. 2 You are familiar with its normal operation. 3 You have read the ‘Before you call for service’, ‘Fault codes’ and ‘Troubleshooting’ at the

back of this book.

If after checking these points you still need assistance or parts, please refer to your nearest Fisher&Paykel trained and supported service technician, Customer Care, or contact us through our website www.fisherpaykel.com.

If you call, write or contact us via our website please provide: your name and address, model number, serial number, date of purchase and a complete description of the problem. This information is needed in order to better respond to your request for assistance.

New Zealand*

Call the Fisher & Paykel Customer Care Centre and talk to one of our Customer CareConsultants.

Toll Free: 0800 FP CARE or 0800 372 273 Fax: (09) 273 0656 Website: www.fisherpaykel.com Postal address: Fisher & Paykel Appliances Ltd, PO Box 58550, Botany, Auckland 2163

Australia*

Call the Fisher & Paykel Customer Care Centre and talk to one of our Customer CareConsultants.

Toll Free: 1300 650 590 Fax: (07) 3826 9298 Website: www.fisherpaykel.com Postal address: Fisher & Paykel Appliances Australia Pty Ltd, PO Box 798, Cleveland

QLD4163

Singapore*

Call the Fisher & Paykel Customer Care Centre and talk to one of our Customer CareConsultants.

Phone: 6741 0777 Fax: 6547 0123 Website: www.fisherpaykel.com Postal address: 150 Ubi Avenue 4, Sunlight Building #03-01A, Singapore 408825

*If you need assistance or service

Fisher & Paykel has a network of Fisher & Paykel trained and supported service technicians that can carry out any service necessary on your appliance. Our Customer Care Centre can recommend a Fisher & Paykel trained and supported service technician in your area.

CUSTOMER CARE

Product details can be found on the rear of the machine, and/or above the drum opening (when the door is open).

Registration

Register your product with us so we can provide you with the best service possible. To register your product visit our website: www.fisherpaykel.com

Complete and keep for safe reference:

Model

Serial No.

Purchase Date

Purchaser

Dealer

Suburb

Town

Country

FISHERPAYKEL.COM

© Fisher & Paykel Appliances 2019. All rights reserved. The product specifications in this document apply to the specific products and models described at the date of issue. Under our policy of continuous product improvement, these specifications may change at any time. You should therefore check with your Dealer to ensure this

document correctly describes the product currently available.

NZ AU SG ROW

42944E 10.19

Fisher & Paykel WH8060J3, WH9060J3 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

INTRODUCTION

SAFETY AND WARNINGS

INSTALLATION INSTRUCTIONS

BEFORE YOUR FIRST WASH

SAFETY FEATURES

CONTROL PANEL

WASH CYCLES

DETERGENT AND FABRIC SOFTENER

WASH PREPARATION

GETTING STARTED QUICKLY

WASH CYCLE OPTIONS

CUSTOMISING A WASH CYCLE

CARING FOR YOUR WASHER

BEFORE YOU CALL FOR SERVICE

FAULT CODES

TROUBLESHOOTING

MANUFACTURER’S WARRANTY

CUSTOMER CARE
