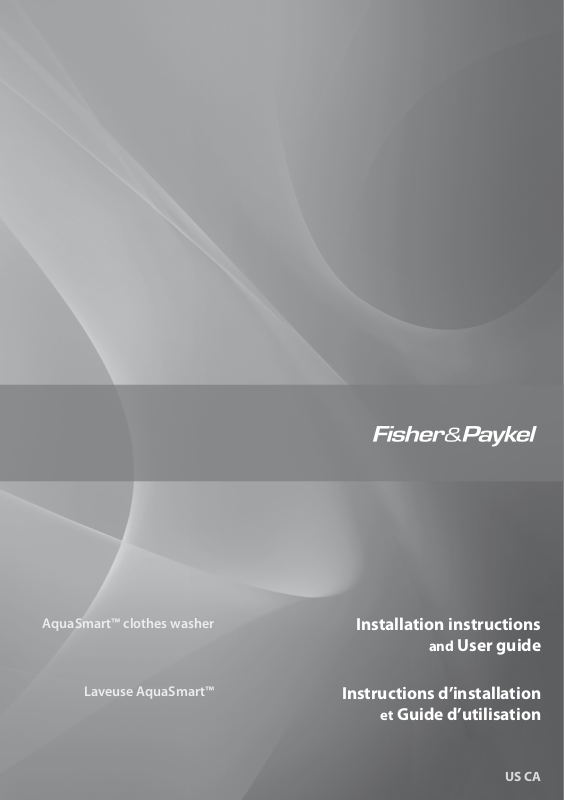

Fisher Paykel WL4027P1 User Guide
AquaSmart™ clothes washer
Installation instructions
and User guide
Laveuse AquaSmart™
Instructions d’installation
et Guide d’utilisation
US CA
WARNING!
Electric Shock Hazard
Read and follow the IMPORTANT SAFETY INSTRUCTIONS outlined in this
UserGuide before operating this appliance, pages 3 – 5.
Failure to do so can result in death, electric shock, fire or injury to persons.
Please Note: to obtain maximum efficiency, your AquaSmart™ washer has the ability to learn and
adapt to the local environment. This may take several wash cycles, therefore maximum energy
efficiency may not be achieved until a number of wash cycles have been completed.
This usually takes about 5 cycles.
English Page 1 – 52
Français Page 55 – 106
As an ENERGY STAR® Partner Fisher & Paykel has determined
that this product meets ENERGY STAR® guidelines for energy efficiency.
Contents
Introduction 2
Important safety instructions 3
Installation instructions 6
Water supply 7
Leveling 10
Before you do your first wash 14
Getting started quickly 16
AquaSmart™ controls 18
AquaSmart™ safety features 19
The unique AquaSmart™ wash 20
Sorting and loading 21
Detergent 24
Fabric softener 25
Bleach 26
Wash cycles 27
Regular, Heavy 27
Delicate, Sheets, Easy Iron 28
Bulky, Allergy 29
Whites, Basket Clean, Towels 30
Rinse & Spin, Rinse, Spin 31
Wash cycle options 32
Customizing wash cycles 35
Changing pre-set options 36
Caring for your AquaSmart™ washer 42
Before you call for service 44
Solving operating problems 46
Solving wash problems 48
Limited warranty 50
How to get service 52
US
1
CA
Important!
SAVE THESE INSTRUCTIONS
The models shown in this User Guide may not be available in all markets and are
subject to change at any time. For current details about model and specification
availability in your country, please visit our local website listed on the back cover
or contact your local Fisher & Paykel dealer.
US
2
Introduction
CA
Welcome to AquaSmart™
Thank you for buying a Fisher & Paykel AquaSmart™ clothes washer. We are proud of this washer
and trust it will serve you well for many years.
At Fisher & Paykel we aim to provide innovative products that are simple to use, ergonomic and
kind to the environment. Thousands of tonnes of washing and over 75 years of laundry experience
have been programmed into your clothes washer to help give you the best possible performance.
Your AquaSmart™ washer has an extra large capacity, numerous wash cycles and options, and
an ergonomic design so you can efficiently perform every wash task with ease. Your washer is a
‘HighEfficiency’ machine utilizing innovative technology to wash in less water while taking great
care of your clothes. Similarly, taking extra care in the way you use your high efficiency washer
will help ensure you make the most of its capabilities.
The revolutionary water and energy efficient wash action of your AquaSmart™ washer means
that it is no longer necessary to wash using a full bowl of water. This innovative wash action
relies on rolling the clothes through a small volume of water to ensure optimal wash results.
Please be aware that the water level for this washer is fully automatic, meaning that there is no
option to manually select your water level.
Please take the time to read these instructions carefully before you begin using your washer. Like
with all High Efficiency washers, a little extra care in how you sort your clothes and in choosing
your wash cycle and detergent, will ensure that you get the best possible performance from your
washer.
We hope you enjoy your new washer. We have certainly enjoyed designing it for you.
Fig.1 AquaSmart™ washers
Important!
It is important that this User Guide should be retained with your AquaSmart™ clothes washer
for future reference. Should the appliance be sold or transferred to another owner, please ensure
that the User Guide is left with the appliance. This will ensure that the new owner can familiarize
themselves with the information and warnings contained within the Guide.
Important safety instructions
Read all safety information before using
Many washers are located near a gas dryer or a water heater in the home.
WARNING!
Risk of Fire Hazard
For your safety the information in this manual must be followed to minimize
the risk of fire or explosion or to prevent property damage, personal injury
or loss of life.
Do not store or use gasoline or other flammable vapors and liquids in the
vicinity of this or any other appliance.
Installation and service must be performed by a qualified installer, service
agency or the gas supplier.
What to do if you smell gas
DO NOT try to light any appliance.
DO NOT touch an electrical switch; do not use any phone in your building.
Clear the room, building or area of all occupants.
Immediately call your gas supplier from your neighbor’s phone.
Follow the gas supplier’s instructions.
If you cannot reach your gas supplier, call the fire department.
US
3
CA
Water heater safety
Under certain conditions Hydrogen gas may be produced in a water heater that has not been
used for two weeks or more.
HYDROGEN GAS CAN BE EXPLOSIVE UNDER THESE CIRCUMSTANCES.
If the hot water has not been used for two weeks or more, prevent the possibility of damage or
injury by turning on all hot water faucets and allowing them to run for several minutes before
using any electrical appliance which is connected to the hot water system. This will allow any
hydrogen gas to escape. Since the gas is flammable, do not smoke or use an open flame or
appliance during this process.
SAVE THESE INSTRUCTIONS
US
4
Important safety instructions
CA
WARNING!
Risk of Fire, Electric Shock and Injury to Persons Hazards
Follow the safety precautions outlined in this User Guide.
Failure to do so can result in death, electric shock, fire or injury to persons.
Important safety precautions
Read all instructions before using the appliance.
Use this appliance only for its intended purpose as described in this User Guide.
This washer must be properly installed and located in accordance with the Installation
Instructions before it is used.
This washer must be properly grounded to conform with all governing codes and ordinances.
Follow details in the Installation Instructions.
Do not install or store washer where it will be exposed to temperatures below freezing or exposed
to the weather.
Connect to a properly rated, protected and sized power supply circuit to avoid electrical overload.
Connect to adequate plumbing and drain facilities as described in the Installation Instructions.
Turn off water faucets when the washer is not in use to relieve pressure on hoses and valves and
to minimize leakages if a hose or valve should break or rupture.
Do not repair or replace any part of the appliance or attempt any servicing unless specifically
recommended in this User Guide or in published user repair instructions that you understand, and
have skills to carry out.
When disconnecting the appliance pull by the plug rather than the cord or junction of cord to
avoid damage to the cord or junction of the cord and plug.
Make sure that the cord is located so that it will not be stepped on, tripped over or otherwise
subject to damage or stress.
Keep all laundry aids (such as detergents, bleach, fabric softener, etc.) out of the reach of children,
preferably in a locked cabinet. Observe all warnings on container labels to avoid personal injury.
Do not tamper with the controls.
Keep the area around/underneath your appliance free from the accumulation of combustible
materials, such as lint, paper, rags, chemicals, etc.
Keep the floor around your appliance clean and dry to reduce the possibility of slipping.
Never reach into the washer if the tub or agitator is moving.
Before loading, unloading or adding clothes, press START/PAUSE and wait until the washer has
completely stopped before opening the lid.
SAVE THESE INSTRUCTIONS
Important safety instructions
Close supervision is necessary if this appliance is used by or near children. Do not allow children
to play inside, or on, or with this appliance or any discarded appliance.
Dispose of discarded appliances and shipping/packing materials properly. Before discarding a
washer, or removing from service, remove the washer lid.
Do not leave the washer lid up during the cycle. The washer will not function. To start, close lid
and press START/PAUSE.
Do not wash or dry articles that have been cleaned in, washed in, soaked in, or spotted with
combustible or explosive substances (such as wax, oil, paint, gasoline, degreasers, dry-cleaning
solvents, kerosene, etc.) which give off vapors that could ignite or explode. Do not add these
substances to the wash water. Do not use these substances around your washer and/or dryer
during operation, as they give off vapors that could ignite or explode.
The laundry process can reduce the flame retardancy of fabrics. To avoid such a result, the
garment manufacturer’s care instructions should be followed very carefully.
Do not mix chlorine bleach with ammonia or acid such as vinegar and/or rust remover. Mixing
can produce a toxic gas which may cause death.
Never climb on or stand on the washer top or lid.
Do not wash fibreglass articles in your washer. Skin irritation could result from the remaining
particles that may be picked up by clothing during subsequent washer use.
To minimize the possibility of electric shock, unplug this appliance from the power supply or
disconnect the washer at the household distribution panel by removing the fuse or switching off
the circuit breaker before attempting any maintenance or cleaning.
Note: pressing the POWER button does NOT disconnect the appliance from the power supply,
even though the lights are out.
Do not operate this appliance if it is damaged, malfunctioning, partially disassembled or has
missing or broken parts, including a damaged cord or plug.
Do not operate this appliance if the lid has been incorrectly fitted.
If you are using an extension cord or a portable electrical outlet device (eg multi-socket outlet
box), ensure that it is positioned so that it does not come into contact with water or moisture.
For grounding instructions and warnings related to this appliance please refer to the relevant
sections of pages 6 and 13 of this User Guide.
US
5
CA
SAVE THESE INSTRUCTIONS
US
6
CA
Installation instructions
Before you begin – read these instructions completely and carefully.
WARNING!
Electric Shock Hazard
Read and follow the IMPORTANT SAFETY INSTRUCTIONS outlined in this
User Guide before operating this appliance, pages 3 – 5.
Improper connection of an equipment-grounding conductor can result in a
risk of electric shock. Check with a qualified electrician or serviceman if you
are in doubt as to whether the appliance is properly grounded.
Do not modify the plug provided with the appliance – if it will not fit the
outlet, have a proper outlet installed by a qualified electrician.
Failure to do so can result in death, electric shock, fire or injury to persons.
Important!
Observe all governing codes and ordinances.
Installation Requirements
Location
Your washer must be installed on firm flooring to minimize vibration during spin cycles. Concrete
flooring is best, but wood base is sufficient providing the floor support meets FHA standards.
Your washer should not be installed on rugs, carpet or exposed to the weather.
Plumbing
Water Temperature
Your cold water should not exceed 95˚F (35˚C) or your hot water exceed 149˚F (65˚C).
Temperatures above this may damage your washer.
Shut Off Valves
Both hot and cold shut-off valves (faucets) should be available in the laundry area.
Drain
Water may be drained into a standpipe or tub / sink. The standpipe must be 1 ½” (38 mm)
minimum interior diameter and must be open to the atmosphere.
Electrical
This appliance must be supplied with 110V – 120V, 60Hz electrical supply and connected to an
individual, properly grounded branch circuit, protected by a 15 or 20 amp circuit breaker or time
delay fuse.
Installation instructions
Water supply
This washer must be plumbed into both a hot and cold water supply or it will not work correctly.
Please ensure that both hot and cold water are connected to the washer.
If you have an uncontrolled water-heating source (eg a wet back or solar heating) you should
have a tempering device fitted. This will ensure the hot water temperature remains within
safe limits. For the most suitable type of tempering device we recommend you contact a local
plumber or plumbing supply merchant.
Inlet Water Static Pressure: Min. 5psi (34kPa) to Max. 150psi (1MPa) is required.
Minimum flow rate from the faucet supplying the clothes washer should be greater than
1 ½ gallons/min (6 liters/min) (assumes ½” (12.7 mm) diameter pipes).
Draining
Regularly check that your standpipe or tub / sink is free from lint or other obstructions, which
may affect how your washer works or may cause flooding.
In multi-storey apartments or any upper floor, the washer should be installed on floor equipped
with a drain.
Draining must comply with local by-laws.
Clothes washer safety
This clothes washer is not intended for use by young children or infirm persons without
supervision.
Please supervise young children to ensure they do not play with this clothes washer.
US
7
CA
Important!
If you are using an extension cord or a portable electrical outlet device (eg multi-socket outlet
box), ensure that it is positioned so that it does not come into contact with water or moisture.
Accessories and spare parts
Available from your Fisher & Paykel Dealer or Authorized Service Center.
Drain Hose Extension Part No. 425627p
Power Cord If the Power Cord of your clothes washer is damaged it must be
replaced by a Fisher & Paykel Authorized Service Agent, as it
is not a standard power cord.
US
8
Installation instructions
CA
Unpacking
To ensure the best performance from your new AquaSmart™
clothes washer please follow the instructions below.
Removing the packaging
1
Remove the outer packaging.
2
Tilt the washer backwards and walk it off the base packer
one foot at a time (ensure the lid remains taped down).
3
Remove the base packer from under the washer by pulling
it out from the front.
Fig.2 Tilt washer backwards
to remove base packer
Important!
Operating the washer when the base packer is in place can result in damage to the washer.
Ensure the base packer has been removed BEFORE OPERATING your washer.
4
Remove the tape, lift the lid and remove the basket packer from the basket.
5
Remove the hoses and accessories.
6
Keep the base packer and basket packer in case they are required for future transit.
Installation
In your clothes washer you will find:
1 hose guide.
2 inlet hoses.
4 rubber foot inserts (if not already inserted into the feet of your washer).
1 User Guide.
Installation instructions
Drain hose
1
Carefully pull the drain hose out from the back of
the washer by pulling the exposed part of the hose
downwards and outwards.
2
To guide the drain hose over the tub / sink or
standpipe the hose guide MUST be fitted to the
drain hose.
Important!
To prevent siphoning the drain hose should not
extend more than ¾”(20mm) from the end of the
guide. The height of the standpipe or tub / sink
should be between 33 ½” to 95”(850–2413 mm).
The drain hose can be trimmed to length.
3
Place the drain hose in the tub / sink or standpipe. Do
not fit the hose to a drain spigot. Drainage must not
be airtight in order to prevent siphoning.
Important!
In multi-storey apartments or any upper floor installation, the washer should be installed on a
floor that is equipped with a drain.
Check that the tub or standpipe is free from lint or other obstructions before operating the washer.
In a basement installation do not exceed a standpipe height of 96” (2438 mm).
Pull hose
through guide
Flex hose
guide apart

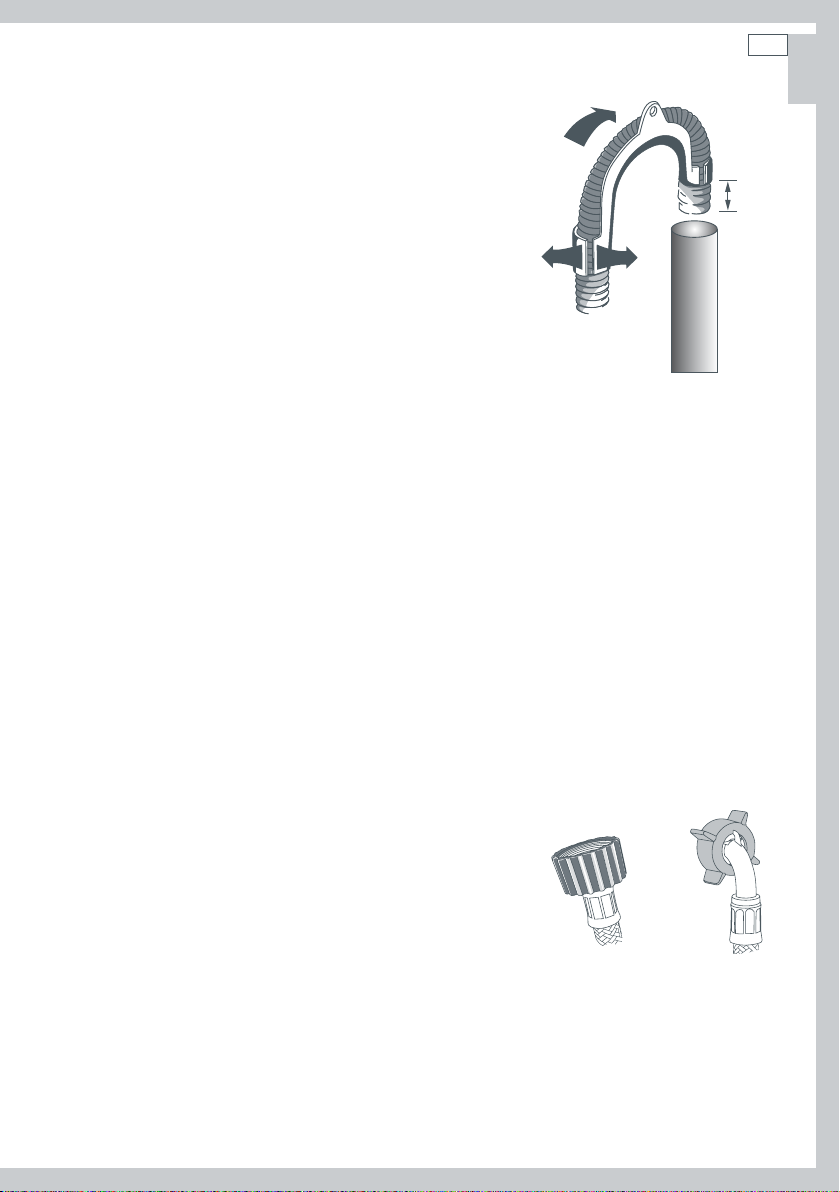

Fig.3 Fitting the drain hose guide
(850 – 2400 mm)
Standpipe 33 ½” to 95”
9
¾” (20 mm)
maximum
US
CA
Inlet hoses
Important!
New hose sets provided with the washer shall be used to connect the washer to the water mains.
Old hose sets should not be re-used.
1
Install hoses with the straight end (with filters) fitted
to the faucets (refer to Fig.4).
2
Install elbow ends onto clothes washer (inlet valves
are marked on the back of the washer H=hot, C=cold)
(refer to Fig.5). Ensure the hot valve is connected to
the hot faucet and the cold valve is connected to the
cold faucet.
Fig.4 Faucet end of
hose (straight end)
Inlet hose replacement
We recommend the inlet hoses are changed every 5 years. Hoses should also be checked from
time to time and replaced if any wear, cuts, bulges, kinks or leaks are found. WARNING!: Failure to
do so may result in a flood and damage to property.
Fig.5 Washer end of
hose (elbow end)
US
10
Installation instructions
CA
Leveling instructions
It is IMPORTANT to level the machine to ensure good spin performance and effective
detergent and fabric softener dispensing.
A spirit level is provided with your machine. Use this to level your machine, placing it bottom
side down in the locations specified below (ensure the surfaces are clean). The machine is
level when the bubble sits in the center, within the two lines.
Your washer is equipped with self-locking feet to ensure they do not move once you have
leveled your machine. To adjust the feet, tip the washer back or forward to locate the foot you
wish to adjust, pull down gently and then twist to move it up or down to the required level.
Repeat if necessary.
Important!
After leveling, the corners of the washer
should be clear of the floor (by at least
⁄”(10 mm) and the machine must not rock
in any direction.
1
If not already installed, fit the rubber inserts
into all 4 feet on the base of the machine.
2
Extend all 4 feet by three full turns before
moving the machine to its final position.
3
Move the machine to its final position using
the top corners to manoeuvre the product
into place (do not push against the center
front of the machine). We recommend a
minimum clearance of ¾”(20mm) each
side and 2”(50mm) at the rear of the
machine.
4
With the lid closed, place the spirit level at
the center back of the lid (near the control
panel). If not level, pull the machine out
and adjust the rear feet until the machine is
level side to side when in position.
5
Open the lid. Place spirit level on the flat
surface on the left side, inline with the
center of the bowl. If necessary, adjust the
front left foot until the machine is level.
Spirit level
Spirit level
Adjustable feet
Rubber insert
Fig.6 Leveling – Step 1 & 2
Fig.7 Leveling – Step 4
Fig.8 Leveling – Step 5
6
Move the spirit level to the right side, in line
with the center of the bowl. If necessary,
adjust the front right foot until the machine
is level, and does not rock. There should
be equal weight on both front feet so that
neither can be turned by hand when the
machine is in position.
7
Place the spirit level at the center front of
the topdeck, forward of the lid lock slot.
Check the machine is level. Adjust the front
feet again if necessary. Move the spirit level
around to all positions once more, checking
the machine is level in all areas. Check the
machine does not rock side to side, front to
back, or corner to corner.
Important!
Keep your spirit level for the next time you
move or reposition your washer.
If moving or transporting your washer in
the future, ensure you tape the lid down
beforehand.
Installation instructions
Spirit level
Fig.9 Leveling – Step 6
Spirit level
Fig.10 Leveling – Step 7
11
US
CA
US
12
Installation instructions
CA
Completing your installation
Turn on the water and check all hose connections for leaks. Make sure there are no kinks in the
hoses. Check the hose connections for leaks again after 24 hours.
Uncoil the power cord, remove and discard the plastic pin cover, and plug into wall socket and
turn the power on.
Installation test cycle
Your washer must be correctly installed before use. Check the machine’s installation and
operation using the following procedure:
1
Touch POWER to activate your washer.
2
Touch both the KEYLOCK and OPTIONS buttons at the same time, and hold for three seconds.
3
Touch START / PAUSE to start the installation test cycle.
4
The machine will beep to signal the end of the installation test cycle. Any faults will be displayed
on the screen (refer to the back of this User Guide to help identify faults). If you need further
assistance, please contact a Fisher & Paykel Customer Care Representative. Refer to page 52 for
contact details.
Note: if there are no faults found, the washer will automatically turn off at the end of the
installation test cycle.
Clothes washer safety
This clothes washer is not intended for use by persons (including children) with reduced
physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have
been given supervision or instruction concerning use of the appliance by a person responsible
for their safety.
The lid will be locked from the start of the cycle until the cycle is complete for safety reasons. To
open the lid during operation, you must touch START /PAUSE.
Supervise children at all times to ensure they do not play with the washer.
The only user-removable parts of the washer are the inlet hoses and dispenser funnels. No other
parts are designed to be removed by anyone other than a Fisher & Paykel Authorized Service
Agent.
Important!
If you are using an extension cord or a portable electrical outlet device (eg multi-socket outlet
box), ensure that it is positioned so that it does not come into contact with water or moisture.
Installation instructions
Special requirements for alcove or closet installation
The minimum ventilation clearance between the washer and adjacent walls or other surfaces is:
1” (25 mm) minimum either side and front
3” (75 mm) minimum rear
13
US
CA
Consideration must be given to providing adequate
clearance for installation and servicing.
The minimum vertical space required from floor
to overhead shelves, cabinets, ceilings etc is
58”(1470 mm).
Closet doors must be louvered or otherwise
ventilated and have at least 60 square inches open
area for a washer only, or if the closet contains both
a washer and dryer, doors must contain at least
120square inches of open area equally distributed.
Fig.11 Louvered door Washer & Dryer
60 Sq. In
(388 Sq. cm)
60 Sq. In
(388 Sq. cm)
Caution!
Do not install this appliance in a closet with a solid door.
Mobile home installation
Installation must conform to the STANDARD FOR MOBILE HOMES, ANSI A119.1 and NATIONAL
MOBILE HOME CONSTRUCTION & SAFETY STANDARDS ACT OF 1974 (PL93-383).
Grounding instructions
This appliance must be grounded. In the event of malfunction or break down, grounding will
reduce the risk of electric shock by providing a path of least resistance for electric current. This
appliance is equipped with a cord that has an equipment-grounding conductor and a grounding
plug. The plug must be plugged into an appropriate outlet that is properly installed and
grounded in accordance with all local codes and ordinances.
Specification subject to change without notice.
Additional instructions
Cleaning your washer
Due to the water and energy efficient nature of your machine, regular cleaning of the inside of
your washer is necessary and important. Please refer to page 42 for more information.
US
14
CA
Before you do your first wash
You owe it to yourself and your AquaSmart™ to have it installed correctly by an authorized
service agent.
Before you start, it is a good idea to go through the following checklist:
1
Has the base packer been removed?
2
Is the drain hose threaded through the ‘U bend’ hose guide (with no
more than ¾” extended) and hooked on to your standpipe or tub / sink?
3
Is the hot hose connected to the hot valve marked ‘H’?
Is the cold hose connected to the cold valve marked ‘C’?
4
Is the washer leveled correctly, with the feet extended and cabinet
corners clear of the floor? Refer to pages 10 and 11.
5
Have you performed the installation test cycle? Refer to page12.
WARNING!
Electric Shock Hazard
Read and follow the IMPORTANT SAFETY INSTRUCTIONS outlined in this
User Guide before operating this appliance, pages 3 – 5.
Failure to do so can result in death, electric shock, fire or injury to
persons.
Before you do your first wash
AquaSmart™ capacity
AquaSmart™ offers a generous 22 lb (10 kg) load capacity. The large capacity also means other
large, bulky items can be washed with ease.
We recommend for everyday use that you separate out your bed sheets and wash them on
the specially designed SHEETS cycle. Likewise, for best wash results, wash your towels on the
TOWELS cycle.
AquaSmart™ water consumption
Load Size Regular High Efficiency*
22 lb (10 kg) 26 G (97 L)
15.5 lb (7 kg) 20 G (77 L)
11 lb (5 kg) 17 G (64 L)
7 lb (3 kg) 15 G (56 L)
2 lb (1 kg) 13 G (49 L)
*Regular cycle, High Efficiency ON is the default wash cycle for AquaSmart™.
Note: water consumptions are based on the AquaSmart™ default settings.
15
US
CA
US
16
Getting started quickly
CA
It is important to sort your clothes, particularly separating white / light colors from dark colors, as
well as separating out bed sheets and washing them on the SHEETS cycle and washing towels on
the TOWELS cycle. Refer to pages 21 – 23 for more details on sorting and loading.
Close bra clasps, do up zippers and check pockets.
Don’t wrap sheets around the basket like a snake, place them in as loose parcels to the side of
the low profile agitator, and in layers around the basket.
Place your clothes directly into the wash basket.

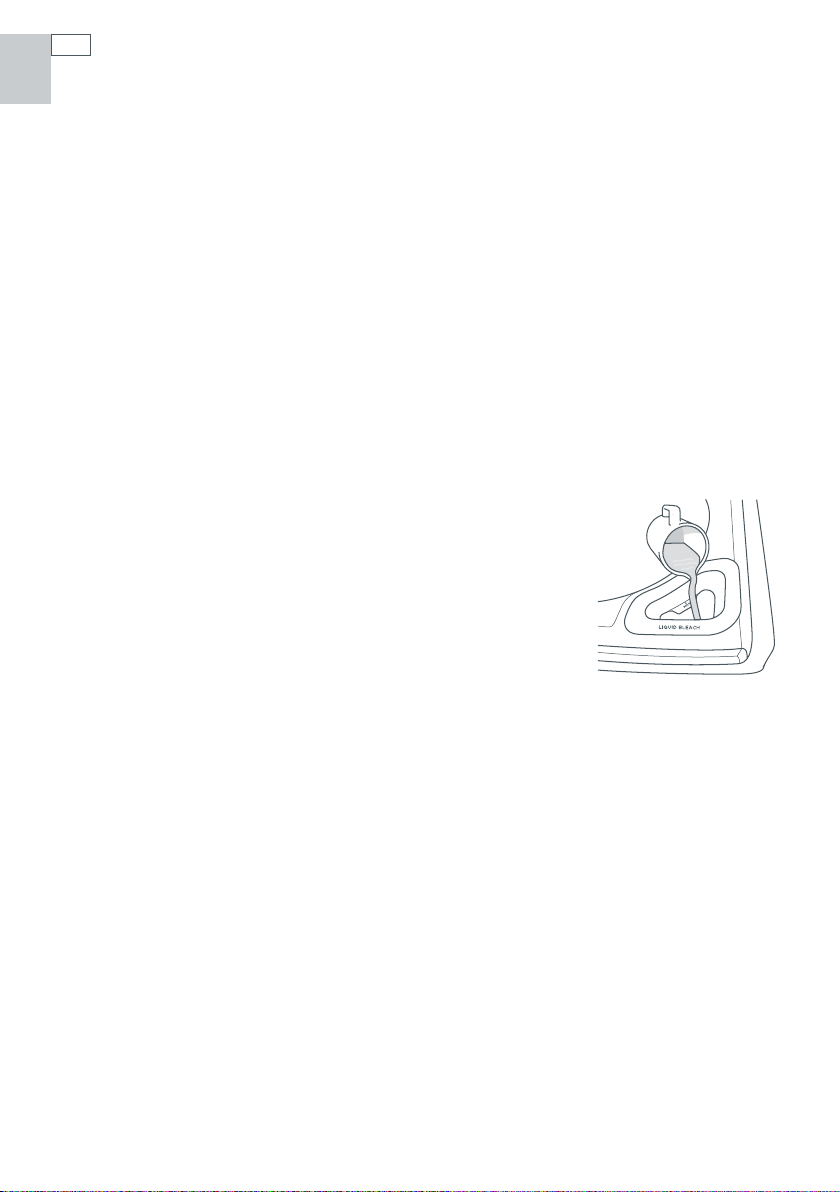

Detergent
Your AquaSmart™ has been designed for use with High Efficiency (HE) detergent only.
AquaSmart™ offers a detergent dispenser for your convenience, located on the front, left hand
side of the top deck.
For the correct detergent dose, please follow the manufacturer’s directions, outlined on the
detergent package.

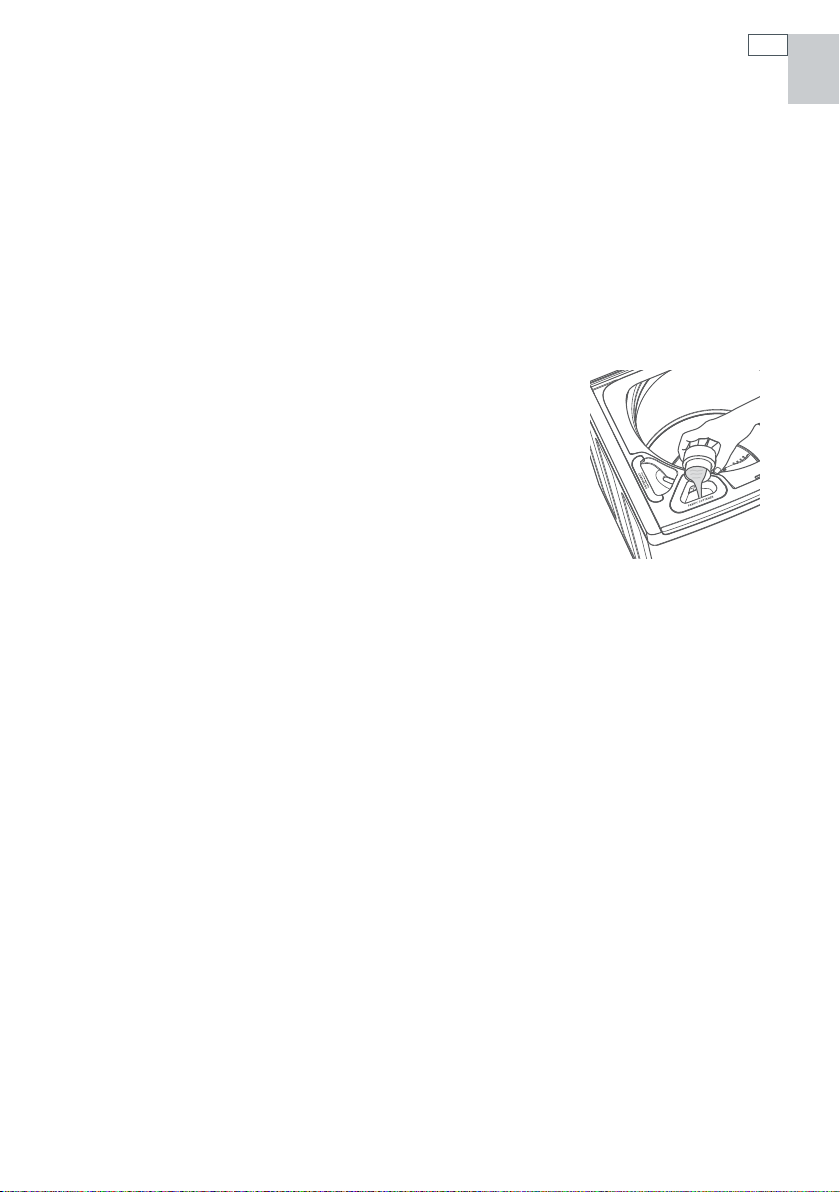

Pour the detergent into the detergent dispenser.
For more information on detergent, fabric softener or bleach please refer to pages 24 – 26.
21 6
Fig.12 AquaSmart™ control panel (models may vary)
Note: the control panel of your washer may differ depending on what model you have.
Getting started quickly
17
Using your washer
These buttons require only a gentle touch to activate.
1
Touch POWER to activate your AquaSmart™ washer.
2
Select your desired wash cycle by turning the SmartTouch Control Dial. The wash cycle icons will
illuminate as you turn the dial, showing which cycle is selected (refer to pages 27 – 31 for details
about the wash cycles).
3
High Efficiency - this allows you to select either a high efficiency (High Efficiency On – to save
water) or conventional cycle (High Efficiency Off – to use more water when needed) (refer to
page 20). Note: only one mode is available for some cycles.
4
Choose your wash options. For example, if you would like a hot wash temperature, touch the
WASH TEMP button until the light next to “Hot” is lit. If you wish to use fabric softener, ensure
SOFTENER is selected in OPTIONS (refer to page 33).
5
Touch START / PAUSE to start the cycle and let AquaSmart™ do the rest for you. The washer will start
to fill with water and automatically select the correct water level and wash action for your load.
Please note: constant interruptions to the cycle, such as touching START / PAUSE will increase the
time taken to complete the cycle and may result in poorer washperformance.
6
Use KEYLOCK to lock the buttons on the control panel, preventing them from being activated
accidently (refer to page 18).
7

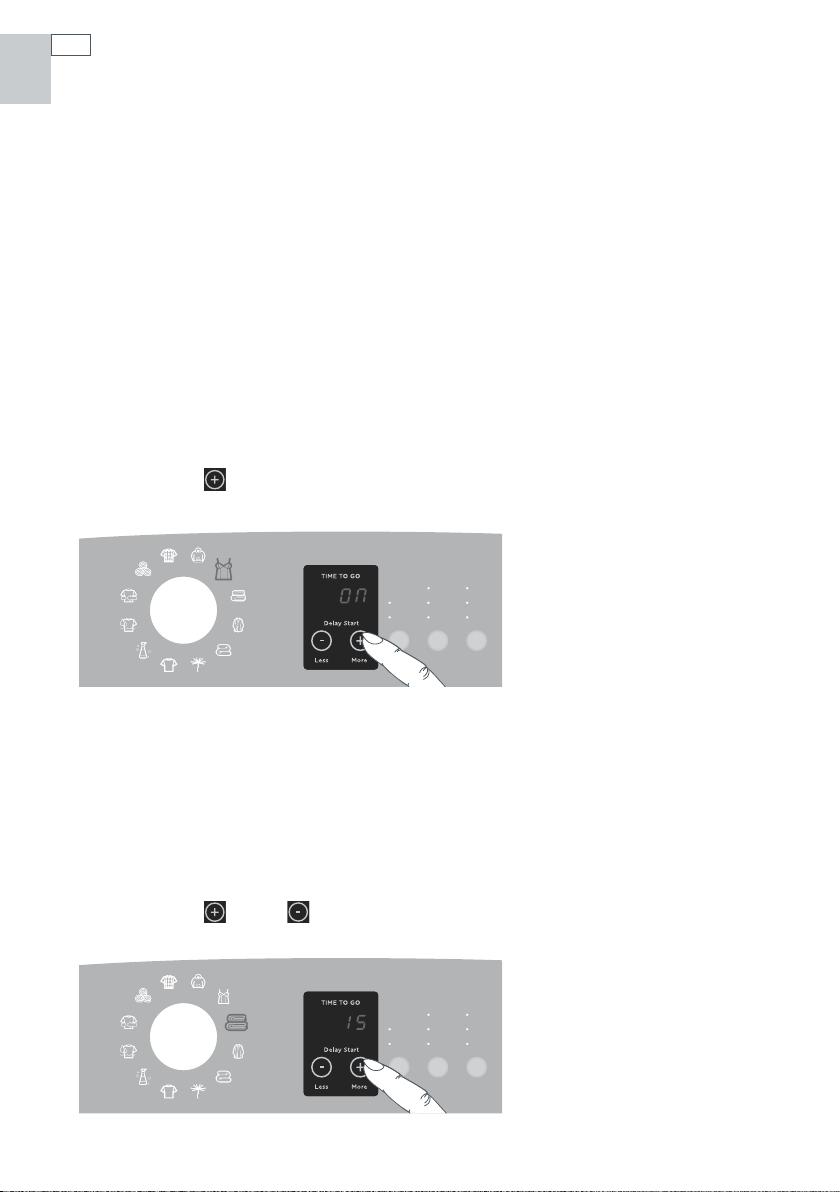

DELAY START (available on selected models) allows you to delay the start of your wash by 5 mins
up to 18 hours (refer to page 34).
US
CA
For best fabric and color care, remove your clothes as soon as the cycle has finished.
53 47
Important!
Failure to follow the advice in this User Guide may result in damage to your garments, and your
expectations of wash performance may not be met.
Note: selected wash cycles and options may not be available depending on the model of your
washer.
US
18
AquaSmart™ controls
CA
SmartTouch Control Dial
The SmartTouch Control Dial provides easy and efficient cycle selection. As you rotate the dial,
the cycle selected will be illuminated, as will the default settings for that cycle on the right of
the control panel.
SmartTouch buttons
The smooth, easy clean buttons require only a gentle touch to activate. Use these to power
your washer on and off, start and pause your washer, select your wash options, activate
keylock and programme a delay start.
Digital display screen
The digital display screen provides feedback on how long the wash cycle has to go to keep
you informed throughout the cycle. The screen also displays your DELAY START selection,
should you choose one. The delayed time remaining will show on the screen until the
machine starts. The screen will also display messages to help you with the overall running of
your washer.
Time to go
Your AquaSmart™ washer displays approximately how many minutes the cycle has remaining,
so that you can tell at a glance when your washing will be finished. Once you have selected
your wash cycle and options, the time the cycle will take to complete will be displayed. Please
be aware that a number of factors influence the overall cycle time, eg the water flow rate, load
size and wash cycle selection, therefore times will vary.

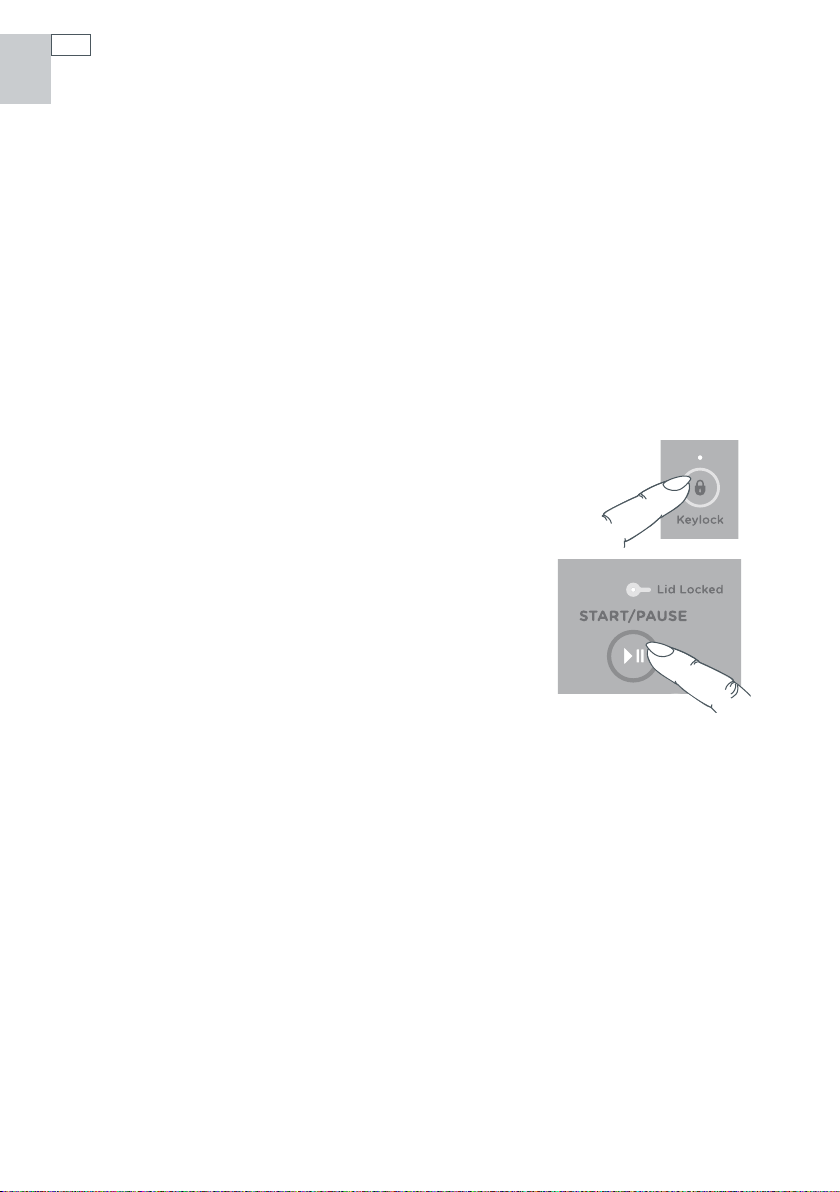

Keylock mode
Keylock can be used to lock the buttons on your AquaSmart™ when not in use. This will avoid
accidental button pushes from items left on the lid of the washer (eg washing baskets) as well
as touches from any little fingers.
To turn Keylock mode ON or OFF:
Touch and hold the KEYLOCK button for 2 seconds
Note: when activated, the light above the KEYLOCK button is illuminated.
If Keylock mode is activated:
To turn your washer on, touch and hold the POWER button for 2 seconds. This will activate
the display panel. Keylock will remain activated but let you select your wash cycle options and
start the cycle.
To PAUSE your washer at any time during the cycle, touch and hold the START / PAUSE button
for 2seconds or touch the START / PAUSE button twice in quick succession.
To STOP your washer and power off, simply touch the POWER button.
AquaSmart™ safety features
Lid lock
The lid of your AquaSmart™ washer is locked during the
wash cycle, ensuring safety for you and your family while it
is operating.
The ‘Lid locked’ light (above the START / PAUSE button) is
illuminated when the lid lock is activated, letting you know
at a glance if you can open the lid or not.
19
US
CA
To unlock the lid at any time during the cycle touch
Fig.13 Lid lock
START / PAUSE.
The lid will be locked from the start of the wash to the end, unless START / PAUSE is pressed.
Note: constant interruptions to the wash cycle may affect wash performance.
If the lid is left open, your AquaSmart™ washer will be unable to lock the lid, and the cycle will
be halted. The washer will beep to alert you and display a warning message on the screen. If this
occurs, ensure that the lid is closed and touch START / PAUSE.
Important!
Do not put anything down the lid lock slot in the top deck of your machine.
Do not try to disable the lid lock.
Auto drain
Unsupervized clothes washers filled with water can present a drowning hazard to small children.
In order to minimize any risk of this type of accident, your AquaSmart™ has been
pre-programmed to know when this potential hazard is created and drain the wash water to a
safe level.
If you pause your AquaSmart™ at any time during the wash cycle when there is water in the
basket, the machine will activate the AUTO DRAIN function after 3 minutes. This will drain the
water in the wash basket to an acceptable level, minimizing any potential hazard.
A message (“Adr”) will be displayed on the digital display while AUTO DRAIN is in operation. The
cycle can be restarted at any time by touching START / PAUSE.
US
20
The unique AquaSmart™ wash
CA
The AquaSmart™ washer has two modes of washing, HE ‘On’ (High Efficiency) and
HE ‘Off’ (Conventional). Both modes start the same way, with a Detergent Activating wash.
Detergent Activating wash
AquaSmart™ fills the basket at the selected water temperature,
with just enough water so the clothes are saturated. This small
amount of sudsy water flows through the clothes, up a specially
designed portal and back onto the clothes in a waterfall effect. This
thoroughly dissolves and activates the detergent.
High Efficiency On (High Efficiency mode)
In the High Efficiency mode the AquaSmart™ then fills with just
enough cool water to lift the clothes off the low-profile agitator so
that when it rotates, the clothes gently roll over each other. This
wash gives you the benefit of water savings, using similar quantities
of water to most front loaders. Select High Efficiency ON.

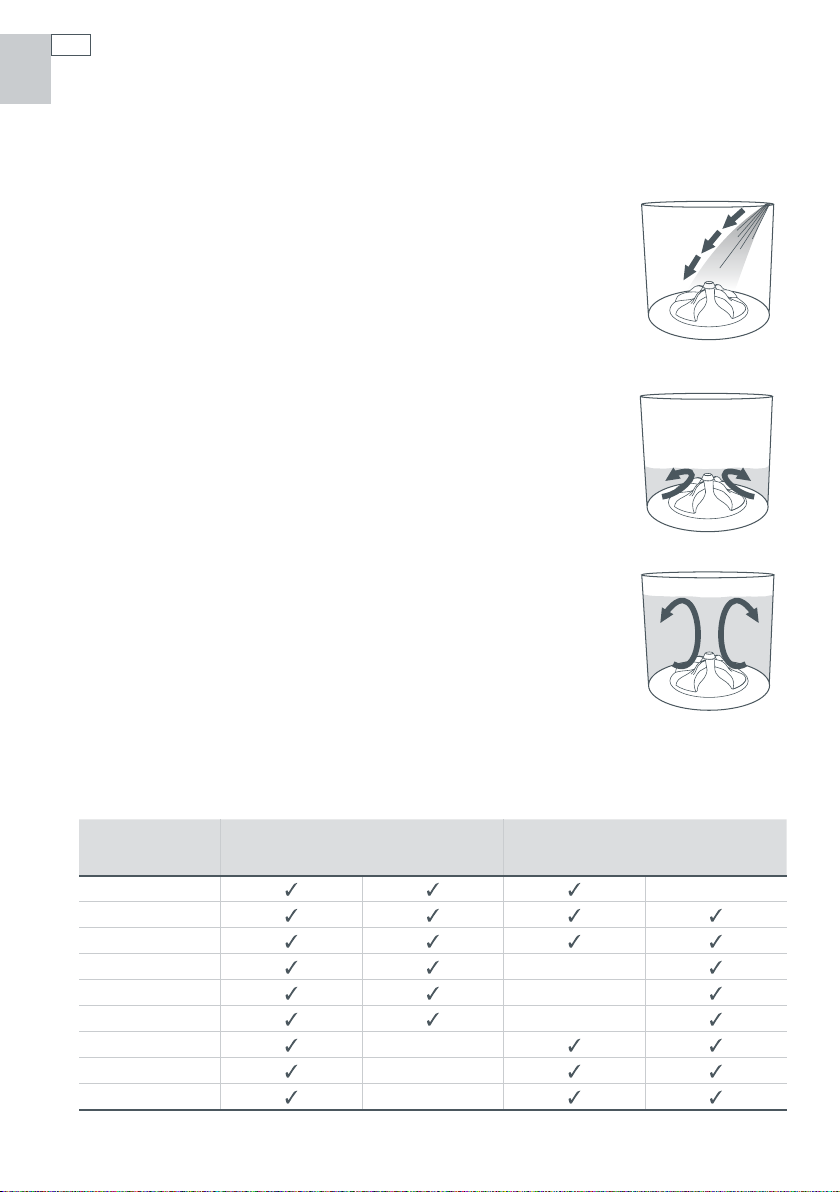

Fig.14 Detergent Activating wash
High Efficiency Off (Conventional mode)
The Conventional mode is the immersion wash all top-load washer
users are familiar with. However, this mode still uses less water than
that of other top loaders which utilise the immersion wash. After
the Detergent Activating wash the AquaSmart™ fills with cold water
until the clothes are submerged, and gently turns the clothes over.
We recommend this mode when the dilution effect of water can
solve or prevent common wash problems. For example, when dye or
color run can be a problem (ie new, dark-colored garments), or when
washing sandy towels. Select High Efficiency OFF.
Some cycles can be used in both modes, whilst others are available in only one.
Fig.15 High Efficiency wash
Fig.16 Conventional wash
Model Mode
WL4227P WL4227J HE On HE Off
Regular
Heavy
Delicate
Sheets –
Easy Iron –
Bulky –
Allergy
Whites
Towels
–
The two wash modes mean that your AquaSmart™ washer gives you the best of both worlds,
accommodating any laundry situation.
Sorting and loading
21
Fully automatic water level
You may notice that your AquaSmart™ clothes washer behaves differently from your previous washer.
Your AquaSmart™, like all High Efficiency washers, has a fully automatic water level. This means
that the selection of the water level is left entirely up to the washer. This ensures optimum wash
performance and water savings.
Should you wish to use more water, simply select High Efficiency OFF where available (refer to
page 20).
Sorting and loading explained
You have bought a High Efficiency washer, so like Front Loaders your AquaSmart™ uses much less
water and energy than traditional top loading clothes washers. It is important to sort your wash
load to ensure optimum wash performance.
Sheets
Separate out sheets and comforter covers and use the SHEETS cycle which has been especially
designed for these items. Ensure that comforter covers are buttoned or domed closed before
placing in the washer. To get the best possible wash, load these items individually as ‘parcels’
toward the outer edge of the bowl (ie to the side of, not directly across the low profile agitator)
and in layers (two items per layer).
Colored items
Dye or color run can be a problem with High Efficiency washers, so separate highly colored
garments especially when they are new and have not been washed many times. Choose the EASY
IRON cycle, High Efficiency OFF and COLD wash temp options. Most dye transfer occurs when
clothes are left too long in the machine at the completion of the cycle so try not to leave your
colored clothes lingering in the washer.
Bulky items
Comforters, sleeping bags, water-proof items, ski jackets, blankets and throws are all items which
tend to behave unusually in a clothes washer. The lighter items tend to float, while a large blanket
can get very heavy and make spinning difficult. Your AquaSmart™ has a specific BULKY cycle
option designed to help take care of these washing challenges.
Creasables
When you are concerned about creasing or wrinkling of items we recommend you use the
EASY IRON or DELICATE cycles. Alternatively, select one of the Conventional cycles (ie where
High Efficiency mode is OFF). The extra water used by these cycles will help to reduce creasing.
Reducing the SPIN SPEED may also help (refer to page 33).
Jeans
These heavy items can be responsible for damaging other items in the wash and require special
attention when it comes to washing them. We feel that they should be washed separately using
the EASY IRON cycle, High Efficiency OFF and COLD wash temp options, or using the BULKY cycle
(with COLD wash temp).
Hint:turn your jeans inside-out before washing to help maintain their appearance.
US
CA
US
22
Sorting and loading
CA
Soil
Very dirty, sandy or linty loads are best washed separately to prevent transfer onto other
garments. It may be that you have new towels that create lots of lint, or very sandy beach gear.
We suggest using High Efficiency OFF in these circumstances or selecting the fabric softener
rinse as this will give an extra deep rinse (ie ensure the SOFTENER option is selected).
Note: there is no need to add fabric softener to the dispenser in this instance.
Very dirty loads should be washed separately. The HEAVY soil level option (where available) can
be selected to provide some extra agitation (refer to page 32).
Delicates
To take extra special care of delicate items, we suggest using the DELICATE cycle.
Sorting
Care Labels
Care labels will tell you about the fabric of the garment and how it should be washed.
Soil
Sort clothes according to the type and amount of soil. Some soils suit warmer washes eg oily
soils, while others are best washed in cold water eg mud, blood.
Color
Sort white fabrics from colored fabrics.
Lint
Wash lint givers and lint collectors separately. Where possible, turn lint collectors inside out.
Lint givers Lint collectors
Towels Synthetics
Chenille Corduroy
Nappies Polyester cottons
Flannelette Socks
Sorting and loading
Before you load
Check pockets
Loose items can damage both your AquaSmart™ and your clothes.
Close zippers, hooks and eyes
This is to make sure that these items do not snag on other clothes. We recommend putting
lingerie in a lingerie bag prior to washing for best care of these items. Fasten the opening of
comforter covers.
Mend any torn garments or loose buttons
Tears or holes may become larger during washing. Remove any loose bra wires as they can
damage your washing machine and/or dryer.
Pretreat any stains
Use an appropriate surface to apply treatments. Take care to not spray or wipe pre-treaters
around or directly on your washer. These may damage the washer.
For a balanced load
Place items directly into the washer. For the best wash, only fill the machine to the top of the
stainless steel basket.
Do not wrap large items, such as bed sheets, around the low profile agitator, or spread them
over the low profile agitator. Load these items in as loose parcels, to the side of the low profile
agitator and in layers around the basket.
A mixture of small and large items will wash the best (remember to wash bed sheets and towels
on their specially designed cycles).
When washing a single large item, add a large beach towel to the wash to ensure that the load is
balanced for an effective spin.
23
US
CA
Important!
Please do not, under any circumstances, attempt to wash an electric blanket in your AquaSmart™
washer. We do not recommend washing curtains in your washer. Sunlight makes them brittle so
they may disintegrate during washing.
US
24
Detergent
CA
Choosing the right detergent
Your AquaSmart™ is a High Efficiency clothes washer and needs low sudsing detergent to
prevent oversudsing problems. This is the same type of detergent front loaders use and is
labelled “High Efficiency” (HE). There are both liquid and powdered low sudsing detergents
available.
When washing woollens use a wool detergent but use it sparingly as these are usually very high
foaming. Do not use soap flakes or soap powders.
How much detergent?
Use the manufacturer’s instructions on the detergent packet as a
guide to the correct amount to use. The correct amount of detergent
will vary depending on the amount of soil in your clothes and the
size of your load. For example, jeans may need more and towels less.
As a starting point:
Use one scoop or cap full for a large load and reduce or increase the
dosage as required.
For a small load (eg 4 – 5 t-shirts) use ¼ of a scoop or cap full.
If you have oversudsing problems reduce your dosage.
If your clothes are not clean enough, try using a bit more.
Fig.17 Adding detergent to
the detergent dispenser
Where do I put my detergent?
Pour your detergent into the detergent dispenser, located on the left side of the washer.
We recommend that you measure your detergent first according to the manufacturer’s
recommended dosage.
You will notice that most of the detergent placed in the dispenser will fall into the washer. It will
remain in an area separated from your clothes until the machine begins to fill. As the washer
fills, the dispenser will be flushed of any residue. The detergent is then mixed with water at the
bottom of the outer tub, dissolving and activating it to ensure optimum wash performance.
When washing in very cold water or on the quicker cycles (eg DELICATE) dissolving the detergent
in warm water before pouring it down the dispenser will improve wash performance.
Important!
We do not recommend you use nappy sanitizers or bleach to soak items in your AquaSmart™
washer. These products are very corrosive to metal surfaces and may seriously damage your
washer.
Fabric softener
25
Choosing the right cycle
If you wish to use fabric softener you will need to select the SOFTENER option by using the
OPTIONS button which will give you a deep rinse. If SOFTENER is not selected, the fabric softener
will not be dispensed correctly.
Note: a small volume of water remaining in the dispenser at the end of the cycle is normal.
Adding the fabric softener
Always refer to the fabric softener package for the manufacturer’s
recommended dosage.
Measure the fabric softener out into the cap and pour into the
fabric softener dispenser (next to the detergent dispenser). The
fabric softener will remain in the top of the dispenser until the
deep rinse when water flushes it into the tub.
Note: if you fill above the MAX level mark, the fabric softener will
dispense into the basket prematurely and may stain clothes, and
also contribute to scrud (described below).
Fig.18 Adding softener into
the fabric softener dispenser
Cleaning the dispenser
US
CA
The dispenser may need cleaning periodically. Please refer to page 42 for advice about cleaning
the dispenser.
Scrud
Scrud is the name of the waxy build-up that can occur within any washer when fabric softener
comes into contact with detergent. This build-up is not brought about by a fault in the washer. If
scrud is allowed to build-up in the washer it can result in stains on the clothes or an unpleasant
smell in your washer.
If you wish to use fabric softener we recommend you:
Use it sparingly.
Use one that is of a thinner consistency.
Measure it carefully to ensure you do not fill above the MAX level of the dispenser.
Clean the dispenser as soon as the cycle has finished.
Clean your washer regularly using the BASKET CLEAN cycle (refer to page 43).
Cold water washing increases the chance of this build-up occurring. We recommend a warm or
hot wash at regular intervals, eg every 5th wash.
US
26
Bleach
CA
Choosing the right cycle
Remember to check clothing labels before you begin to ensure that garments are bleach
compatible.
If you wish to use bleach please select the BLEACH option by using the OPTIONS button. The
bleach will be diluted and automatically released into the wash at the correct stage in the cycle.
This ensures maximum bleach efficiency and optimum clothes care. If the BLEACH option is not
selected, bleach will not be dispensed into the wash and will drain safely away prior to the end
of the cycle.
When washing white items, select the WHITES cycle for best performance with bleach. When
washing colors, use color-safe bleach and select the EASY IRON cycle, and High Efficiency OFF.
How much bleach do I use and where do I put it?
Liquid Bleach
Your AquaSmart™ washer requires less bleach than traditional
top loading washers. Always follow the manufacturer’s
recommended dosage. Pour the recommended dosage of
bleach into a measuring cup with a spout, then carefully pour
this into the bleach dispenser ensuring that it does not fill
higher than the MAX level. Adjust the amount of bleach you
use to the load size, eg for smaller loads use less bleach.
Fig.19 Adding bleach into
the bleach dispenser
Important!
Do not fill the bleach dispenser above the MAX fill mark.
Do not pour undiluted, liquid chlorine bleach directly onto clothes.
Use only liquid chlorine bleach in this dispenser.
To avoid splashing and spills we recommend the use of a cup with a pouring spout.
Note: both liquid and powdered color-safe bleach can be used in your AquaSmart™ washer.
If you use a powdered detergent, use a powdered color-safe bleach (however add this to the
detergent dispenser NOT the bleach dispenser. Follow the manufacturer’s instructions).
If you are using liquid detergent, use a liquid color-safe bleach (add the bleach to the bleach
dispenser. Follow the manufacturer’s instructions).
Failure to follow the instructions above could result in damage to clothing.
Wash cycles
Your AquaSmart™ washer has a number of wash cycles to suit your laundering needs. Selecting
the most appropriate cycle for each particular wash load will help ensure you get the best
possible wash result.
Note: not all cycles may be available on your model of washer.
Wash cycles explained
Regular – High Efficiency On
For normally soiled everyday cotton loads, eg t-shirts, shorts, casual shirts.
Regular – High Efficiency Off
Not available.
Regular
High Efficiency ON
(Default mode)
Agitate time* 11 – 15 mins n / a
Wash action Regular High Efficiency
Wash temp Warm
Rinse sequence Spray
Spin Fast
High Efficiency OFF
27
US
CA
Heavy – High Efficiency On
Recommended cycle for heavily soiled durable garments, eg tea towels,
overalls, children’s clothes.
Heavy – High Efficiency Off
Heavy
Agitate time* 13 – 17 mins 13 – 17 mins
Wash action Heavy High Efficiency Heavy Conventional
Wash temp Warm Warm
Rinse sequence Spray / HE Deep Spray / Deep
Spin Fast Fast
For heavily soiled durable garments when you want to use more water.
High Efficiency ON
(Default mode)
High Efficiency OFF
US
CA
28
Wash cycles
Delicate – High Efficiency On
For delicate lightly soiled clothes.
Delicate – High Efficiency mode Off
For when you want to wash your delicates in more water. Also
Delicate
Agitate time* 6 mins 6 mins
Wash action Delicate High Efficiency Delicate Conventional
Wash temp Warm / Cold Warm / Cold
Rinse sequence Spray / HE Deep Spray / Deep
Spin Slow Slow
Sheets
Agitate time* n / a 15 mins
Wash action Sheets Conventional
Wash temp Warm
Rinse sequence Spray / Deep
Spin Fast
recommended for machine and hand washable woollen items.
High Efficiency ON High Efficiency OFF
(Default mode)
Sheets – High Efficiency On
Not available.
Sheets – High Efficiency Off
Recommended cycle for bed sheets, tablecloths, comforter covers.
High Efficiency ON High Efficiency OFF
(Default mode)
Easy Iron – High Efficiency On
Not available.
Easy Iron – High Efficiency Off
Recommended cycle for minimizing creasing.
Easy Iron
High Efficiency ON High Efficiency OFF
(Default mode)
Agitate time* n / a 11 – 13 mins
Wash action Regular Conventional
Wash temp Warm / Cold
Rinse sequence Spray / Deep
Spin Slow
Loading...
