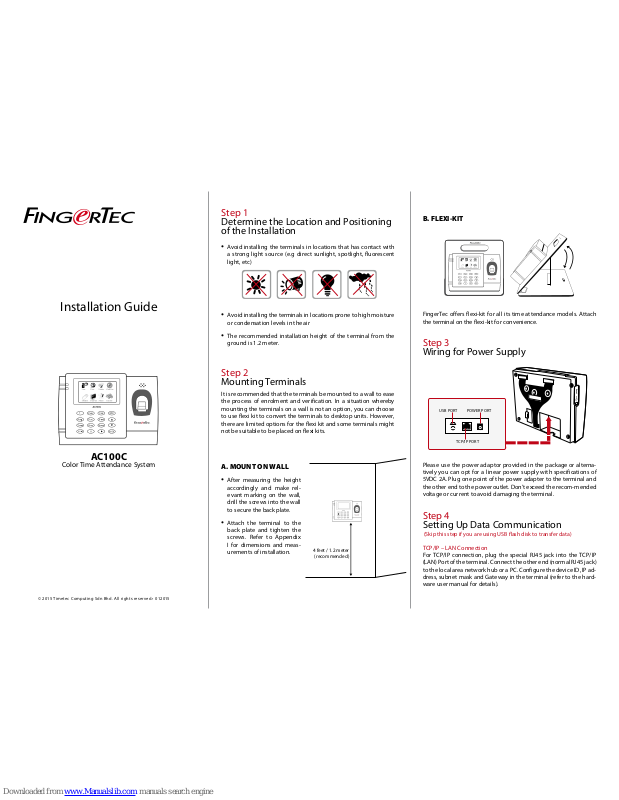

Installation Guide
AC100C
Color Time Attendance System
Step 1
Determine the Location and Positioning
of the Installation
• Avoid installing the terminals in locations that has contact with
a strong light source (e.g direct sunlight, spotlight, fluorescent
light, etc)
• Avoid installing the terminals in locations prone to high moisture
or condensation levels in the air
• The recommended installation height of the terminal from the
ground is 1.2 meter.
Step 2
Mounting Terminals
It is recommended that the terminals be mounted to a wall to ease
the process of enrolment and verification. In a situation whereby
mounting the terminals on a wall is not an option, you can choose
to use flexi kit to convert the terminals to desktop units. However,
there are limited options for the flexi kit and some terminals might
not be suitable to be placed on flexi kits.
A. MOUNT ON WALL
• After measuring the height
accordingly and make relevant marking on the wall,
drill the screws into the wall
to secure the back plate.
• Attach the terminal to the
back plate and tighten the
screws. Refer to Appendix
I for dimensions and measurements of installation.
B. FLEXI-KIT
FingerTec offers flexi-kit for all its time attendance models. Attach
the terminal on the flexi-kit for convenience.
Step 3
Wiring for Power Supply
Please use the power adaptor provided in the package or alternatively you can opt for a linear power supply with specifications of
5VDC 2A. Plug one point of the power adapter to the terminal and
the other end to the power outlet. Don’t exceed the recom-mended
voltage or current to avoid damaging the terminal.
Step 4
Setting Up Data Communication
(Skip this step if you are using USB ash disk to transfer data)
TCP/IP – LAN Connection
For TCP/IP connection, plug the special RJ45 jack into the TCP/IP
(LAN) Port of the terminal. Connect the other end (normal RJ45 jack)
to the local area network hub or a PC. Configure the device ID, IP address, subnet mask and Gateway in the terminal (refer to the hardware user manual for details).
4 feet / 1.2 meter
(recommended)
© 20 15 T imet ec C omput ing Sdn Bhd. All righ ts r eser ved. • 012 015
USB PORT POWER PORT
TCP/IP PORT
D
O
O
R
L
O
C
K
T
I
M
E
R
Step 5
Finalizing the Installation
1. Check that all cable connections are done correctly.
2. Attach the terminal to the corresponding back plates and
tighten the screws to secure the terminal on the wall.
3. Switch on the power to the terminal.
4. Start using the terminal.
Other Accessories
FingerTec offers complementing accessories which can be used with
your terminals. These optional accessories are available at
http://accessory.fingertec.com
AdapTec TA
The AdapTec TA is a 5VDC power
supply inclusive of a 110~240VAC
switching linear power. The AdapTec
provides 5VDC power to the FingerTec
terminal and charges a 12VDC 7.0Ah
backup battery simultaneously. During an
event of a power failure, the back up battery will automatically
provides power to the terminal.
Mini UPS
Mini UPS 5VDC is a mini portable backup power
supply with 5VDC output, supplying 5VDC power
for FingerTec Time Attendance terminals.meddled with by unauthorized persons.
Enclosures
An acrylic-made enclosure that protects your terminal from the risk of
meddling by unauthorized individuals. Our custom made enclosure
are specially designed to fit your terminal perfectly with specific openings for fingerprint scanner and buttons. Our enclosure can be used to
mitigate surrounding mild environmental hazards and help lengthen
the lifespan of the terminals. However, do note that the enclosure is
not dust-resistant and waterproof if subjected to extreme weather
conditions.
Flexi Kit
A simple stand which can be used to support your terminal. You can
use Flexi-Kit and convert your terminal into a desktop unit. By installing the terminals onto a Flexi-Kit, you do not need to go through the
process of mounting your terminals on a wall. The simplicity of the
Flexi-Kit’s design ensures that it is portable and easy to set up, making
it ideal as a demonstration prop too.
Appendix I
Terminal Dimensions and Measurements
Front View of Back Plate
