EXFO FTB-200 User Manual

FTB-200 v2

Compact Modular Platform

User Guide

Copyright © 2010–2014 EXFO Inc. All rights reserved. No part of this publication may be reproduced, stored in a retrieval system or transmitted in any form, be it electronically, mechanically, or by any other means such as photocopying, recording or otherwise, without the prior written permission of EXFO Inc. (EXFO).

Information provided by EXFO is believed to be accurate and reliable. However, no responsibility is assumed by EXFO for its use nor for any infringements of patents or other rights of third parties that may result from its use. No license is granted by implication or otherwise under any patent rights of EXFO.

EXFO’s Commerce And Government Entities (CAGE) code under the North Atlantic Treaty Organization (NATO) is 0L8C3.

The information contained in this publication is subject to change without notice.

Trademarks

EXFO’s trademarks have been identified as such. However, the presence or absence of such identification does not affect the legal status of any trademark.

Units of Measurement

Units of measurement in this publication conform to SI standards and practices.

Version number: 18.0.3

ii FTB-200 v2

End-User License Agreement

You have acquired a device ("DEVICE") that includes software licensed by EXFO Inc. (EXFO) from an affiliate of Microsoft Corporation ("MS"). Those installed software products of MS origin, as well as associated media, printed materials, and "online" or electronic documentation ("SOFTWARE") are protected by international intellectual property laws and treaties. Manufacturer, MS and its suppliers (including Microsoft Corporation) own the title, copyright, and other intellectual property rights in the SOFTWARE. The SOFTWARE is licensed, not sold. All rights reserved.

This EULA is valid and grants the end-user rights ONLY if the SOFTWARE is genuine and a genuine Certificate of Authenticity for the SOFTWARE is included. For more information on identifying whether your sof tware is genuine, please see http://www.microsoft.com/piracy/howtotell.

IF YOU DO NOT AGREE TO THIS END USER LICENSE AGREEMENT ("EULA"), DO NOT USE THE DEVICE OR COPY THE SOFTWARE. INSTEAD, PROMPTLY CONTACT EXFO FOR INSTRUCTIONS ON RETURN OF THE UNUSED DEVICE(S) FOR A REFUND. ANY USE OF THE SOFTWARE, INCLUDING BUT NOT LIMITED TO USE ON THE DEVICE, WILL CONSTITUTE

YOUR AGREEMENT TO THIS EULA (OR RATIFICATION OF ANY PREVIOUS CONSENT).

GRANT OF SOFTWARE LICENSE. This EULA grants you the following license:

 You may use the SOFTWARE only on the DEVICE.

 Restricted Functionality. You are licensed to use the SOFTWARE to provide only the limited functionality (specific tasks

or processes) for which the DEVICE has been designed and marketed by EXFO. This license specifically prohibits any other use of the software programs or functions, or inclusion of additional software programs or functions that do not directly support the limited functionality on the DEVICE. Notwithstanding the foregoing, you may install or enable on a DEVICE, systems utilities, resource management or similar software solely for the purpose of administration, performance enhancement and/or preventive maintenance of the DEVICE.

 If you use the DEVICE to access or utilize the services or functionality of Microsoft Windows Server products (such as

Microsoft Windows Server 2003), or use the DEVICE to permit workstation or computing devices to access or utilize the services or functionality of Microsoft Windows Server products, you may be required to obtain a Client Access License for the DEVICE and/or each such workstation or computing device. Please refer to the end user license agreement for your Microsoft Windows Server product for additional information.

 NOT FAULT TOLERANT. THE SOFTWARE IS NOT FAULT TOLERANT. EXFO HAS INDEPENDENTLY DETERMINED HOW TO

USE THE SOFTWARE IN THE DEVICE, AND MS HAS RELIED UPON EXFO TO CONDUCT SUFFICIENT TESTING TO DETERMINE THAT THE SOFTWARE IS SUITABLE FOR SUCH USE.

 NO WARRANTIES FOR THE SOFTWARE. THE SOFTWARE is provided "AS IS" and with all faults. THE ENTIRE RISK AS TO

SATISFACTORY QUALITY, PERFORMANCE, ACCURACY, AND EFFORT (INCLUDING LACK OF NEGLIGENCE) IS WITH YOU. ALSO, THERE IS NO WARRANTY AGAINST INTERFERENCE WITH YOUR ENJOYMENT OF THE SOFTWARE OR AGAINST INFRINGEMENT. IF YOU HAVE RECEIVED ANY WARRANTIES REGARDING THE DEVICE OR THE SOFTWARE, THOSE WARRANTIES DO NOT ORIGINATE FROM, AND ARE NOT BINDING ON, MS.

 No Liability for Certain Damages. EXCEPT AS PROHIBITED BY LAW, MS SHALL HAVE NO LIABILITY FOR ANY

INDIRECT, SPECIAL, CONSEQUENTIAL OR INCIDENTAL DAMAGES ARISING FROM OR IN CONNECTION WITH THE USE OR PERFORMANCE OF THE SOFTWARE. THIS LIMITATION SHALL APPLY EVEN IF ANY REMEDY FAILS OF ITS ESSENTIAL PURPOSE. IN NO EVENT SHALL MS BE LIABLE FOR ANY AMOUNT IN EXCESS OF U.S. TWO HUNDRED FIFTY DOLLARS (U.S.$250.00).

 Restricted Uses. The SOFTWARE is not designed or intended for use or resale in hazardous environments requiring

fail-safe performance, such as in the operation of nuclear facilities, aircraft navigation or communication systems, air traffic control, or other devices or systems in which a malfunction of the SOFTWARE would result in foreseeable risk of injury or death to the operator of the device or system, or to others.

 Limitations on Reverse Engineering, Decompilation, and Disassembly. You may not reverse engineer, decompile, or

disassemble the SOFTWARE, except and only to the extent that such activity is expressly permitted by applicable law notwithstanding this limitation.

 SOFTWARE as a Component of the DEVICE - Transfer. This license may not be shared, transferred to or used

concurrently on different computers. The SOFTWARE is licensed with the DEVICE as a single integrated product and may only be used with the DEVICE. If the SOFTWARE is not accompanied by a DEVICE, you may not use the SOFTWARE. You may permanently transfer all of your rights under this EULA only as part of a permanent sale or transfer of the DEVICE, provided you retain no copies of the SOFTWARE. If the SOF TWARE is an upgrade, any transfer must also include all prior versions of the SOFTWARE. This transfer must also include the Certificate of Authenticity label. The transfer may not be an indirect transfer, such as a consignment. Prior to the transfer, the end user receiving the SOFTWARE must agree to all the EULA terms.

 Consent to Use of Data. You agree that MS, Microsoft Corporation and their affiliates may collect and use technical

information gathered in any manner as part of product support services related to the SOFTWARE. MS, Microsoft Corporation and their affiliates may use this information solely to improve their products or to provide customized services or technologies to you. MS, Microsoft Corporation and their affiliates may disclose this information to others, but not in a form that personally identifies you.

Compact Modular Platform iii

 Internet Gaming/Update Features. If the SOFTWARE provides, and you choose to utilize, the Internet gaming or update

features within the SOFTWARE, it is necessary to use certain computer system, hardware, and software information to implement the features. By using these features, you explicitly authorize MS, Microsoft Corporation and/or their designated agent to use this information solely to improve their products or to provide customized services or technologies to you. MS or Microsoft Corporation may disclose this information to others, but not in a form that personally identifies you.

 Internet-Based Services Components. The SOFTWARE may contain components that enable and facilitate the use of

certain Internet-based services. You acknowledge and agree that MS, Microsoft Corporation or their affiliates may automatically check the version of the SOFTWARE and/or its components that you are utilizing and may provide upgrades or supplements to the SOFTWARE that may be automatically downloaded to your DEVICE. Microsoft Corporation or their affiliates do not use these features to collect any information that will be used to identify you or contact you. For more information about these features, please see the privacy statement at

http://go.microsoft.com/fwlink/?LinkId=25243.

 Links to Third Party Sites. You may link to third party sites through the use of the SOFTWARE. The third party sites are

not under the control of MS or Microsoft Corporation, and MS or Microsoft are not responsible for the contents of any third party sites, any links contained in third party sites, or any changes or updates to third party sites. MS or Microsoft Corporation is not responsible for webcasting or any other form of transmission received from any third party sites. MS or Microsoft Corporation are providing these links to third party sites to you only as a convenience, and the inclusion of any link does not imply an endorsement by MS or Microsoft Corporation of the third party site.

 Notice Regarding Security. To help protect against breaches of security and malicious software, periodically back up

your data and system information, use security features such as firewalls, and install and use security updates.

 No Rental/Commercial Hosting. You may not rent, lease, lend or provide commercial hosting services with the

SOFTWARE to others.

 Separation of Components. The SOFTWARE is licensed as a single product. Its component parts may not be separated

for use on more than one computer.

 Additional Software/Services. This EULA applies to updates, supplements, add-on components, product support

services, or Internet-based ser vices components ("Supplemental Components"), of the SOFTWARE that you may obtain from EXFO, MS, Microsoft Corporation or their subsidiaries after the date you obtain your initial copy of the SOFTWARE, unless you accept updated terms or another agreement governs. If other terms are not provided along with such Supplemental Components and the Supplemental Components are provided to you by MS, Microsoft Corporation or their subsidiaries then you will be licensed by such entity under the same terms and conditions of this EULA, except that (i) MS, Microsoft Corporation or their subsidiaries providing the Supplemental Components will be the licensor with respect to such Supplemental Components in lieu of the "COMPANY" for the purposes of the EULA, and (ii) TO THE MAXIMUM EXTENT PERMITTED BY APPLICABLE LAW, THE SUPPLEMENTAL COMPONENTS AND ANY (IF ANY) SUPPORT SERVICES RELATED TO THE SUPPLEMENTAL COMPONENTS ARE PROVIDED AS IS AND WITH ALL FAULTS. ALL OTHER DISCLAIMERS, LIMITATION OF DAMAGES, AND SPECIAL PROVISIONS PROVIDED BELOW AND/OR OTHERWISE WITH THE SOFTWARE SHALL APPLY TO SUCH SUPPLEMENTAL COMPONENTS. MS, Microsoft Corporation or their subsidiaries reserve the right to discontinue any Internet-based services provided to you or made available to you through the use of the SOFTWARE.

 Recovery Media. If SOFTWARE is provided by EXFO on separate media and labeled "Recovery Media" you may use the

Recovery Media solely to restore or reinstall the SOFTWARE originally installed on the DEVICE.

 Backup Copy. You may make one (1) backup copy of the SOFTWARE. You may use this backup copy solely for your

archival purposes and to reinstall the SOFTWARE on the DEVICE. Except as expressly provided in this EULA or by local law, you may not otherwise make copies of the SOFTWARE, including the printed materials accompanying the SOFTWARE. You may not loan, rent, lend or otherwise transfer the backup copy to another user.

 End User Proof of License. If you acquired the SOFTWARE on a DEVICE, or on a compact disc or other media, a genuine

Microsoft "Proof of License"/Certificate of Authenticity label with a genuine copy of the SOFTWARE identifies a licensed copy of the SOFTWARE. To be valid, the label must be affixed to the DEVICE, or appear on [COMPANY's] software packaging. If you receive the label separately other than from EXFO, it is invalid. You should keep the label on the DEVICE or packaging to prove that you are licensed to use the SOFTWARE.

 Product Support. Product support for the SOFTWARE is not provided by MS, Microsoft Corporation, or their affiliates or

subsidiaries. For product support, please refer to EXFO support number provided in the documentation for the DEVICE. Should you have any questions concerning this EUL A, or if you desire to contact EXFO for any other reason, please refer to the address provided in the documentation for the DEVICE.

 Ter m in at io n. Without prejudice to any other rights, EXFO may terminate this EULA if you fail to comply with the terms

and conditions of this EULA. In such event, you must destroy all copies of the SOFTWARE and all of its component parts.

 EXPORT RESTRICTIONS. You acknowledge that SOFTWARE is subject to U.S. and European Union export jurisdiction.

You agree to comply with all applicable international and national laws that apply to the SOFTWARE, including the U.S. Export Administration Regulations, as well as end-user, end-use and destination restrictions issued by U.S. and other governments. For additional information see http://www.microsoft.com/exporting/.

iv FTB-200 v2

Contents

Certification Information ..................................................................................................... viii

1 Introducing the FTB-200 v2 Compact Modular Platform ........................... 1

Main Features .........................................................................................................................1

LED Panel Description .............................................................................................................4

Keypad Description .................................................................................................................6

Ports .......................................................................................................................................7

Power Sources ........................................................................................................................8

Optional Software Package .....................................................................................................8

Conventions ............................................................................................................................9

2 Safety Information ..................................................................................... 11

Other Safety Symbols on Your Unit .......................................................................................12

Laser Safety Information .......................................................................................................13

Electrical Safety Information .................................................................................................14

3 Getting Started with Your Unit ................................................................. 19

Inserting and Removing Test Modules ..................................................................................19

Using a Keyboard, Mouse or Other USB Devices ...................................................................25

Using the On-Screen (Virtual) Keyboard ................................................................................27

Right-Clicking with the Touchscreen .....................................................................................27

Turning On or Off the Unit ....................................................................................................28

Installing or Upgrading the Applications ..............................................................................32

Activating Software Options .................................................................................................37

Starting Module Applications ...............................................................................................42

Compact Modular Platform v

Contents

4 Setting Up Your Unit ...................................................................................43

Adjusting Brightness .............................................................................................................43

Adjusting Microphone and Speaker Volume .........................................................................44

Recalibrating the Touchscreen ..............................................................................................48

Enabling or Disabling the Touchscreen Right-Click Feature ...................................................52

Customizing the On-Screen Keyboard ..................................................................................55

Enabling or Disabling the Automatic Logon .........................................................................56

Configuring the Shortcut Buttons .........................................................................................59

Selecting the Startup Application .........................................................................................61

Selecting the FIP Startup Application ....................................................................................63

Configuring Network Printers ...............................................................................................65

Selecting the Language of Operation ...................................................................................68

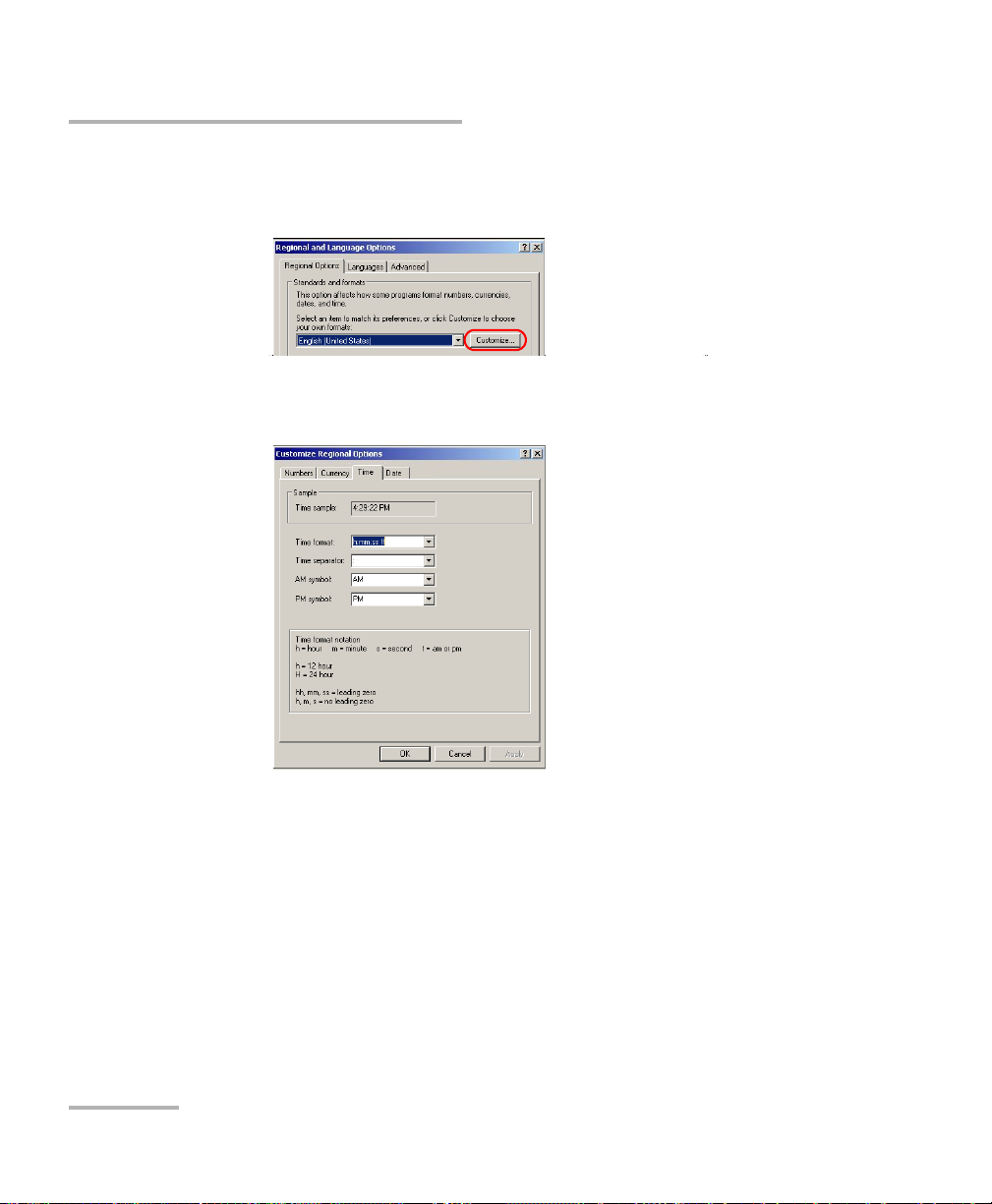

Setting Date and Time Formats .............................................................................................73

Adjusting the Date, Time and Time Zone ..............................................................................75

Configuring the Power Management Options ......................................................................78

Configuring the Internet Options .........................................................................................82

Setting Other Parameters ......................................................................................................82

5 Working with Your Unit ..............................................................................83

Printing Documents ..............................................................................................................83

Viewing PDF Files ..................................................................................................................86

Taking Screen Captures ........................................................................................................87

Setting Storage Parameters for Screen Captures ..................................................................90

Reading Audio and Video Files .............................................................................................94

Installing Adobe Flash Player on Your Unit ............................................................................96

Browsing the Web ................................................................................................................98

Accessing the Internet with a 3G USB Modem Key .............................................................100

Retrieving the GPS Location of Your Unit ............................................................................106

Using the Calculator ...........................................................................................................110

Using the Text Editor ...........................................................................................................110

Accessing Other Tools .........................................................................................................110

6 Using the Optional Built-In Power Meter and VFL ..................................111

7 Inspecting Fibers with a Probe ................................................................113

8 Managing Data .........................................................................................115

Transferring Data via Bluetooth ..........................................................................................118

Connecting to a Wireless Network ......................................................................................126

Using the USB to RS-232 Adapter .......................................................................................131

Enabling or Disabling the Bluetooth and Wi-Fi Devices .......................................................137

Transferring Files with the USB Data Mover Application .....................................................139

Connecting to a VPN from Your Unit ..................................................................................145

vi FTB-200 v2

Contents

9 Accessing Your Unit Remotely ................................................................. 153

Working with Remote Desktop ...........................................................................................154

Working With TightVNC .....................................................................................................161

Adding Exceptions to the Firewall ......................................................................................167

10 Testing Network Connections ................................................................. 169

Performing a Ping Test ........................................................................................................169

Performing a Trace Route Test .............................................................................................172

Exporting the Results ..........................................................................................................174

11 Maintenance ............................................................................................. 175

Cleaning Detector Ports ......................................................................................................176

Cleaning the Touchscreen of Your FTB-200 v2 Unit .............................................................177

Recharging the Main Battery ..............................................................................................177

Recalibrating the Battery ....................................................................................................179

Replacing Batteries .............................................................................................................182

Recalibrating the Unit .........................................................................................................183

Recycling and Disposal (Applies to European Union Only) ..................................................184

12 Troubleshooting ....................................................................................... 185

Solving Common Problems .................................................................................................185

Restoring Your Unit to Normal Operation ...........................................................................191

Contacting the Technical Support Group ............................................................................200

Transportation ....................................................................................................................200

13 Warranty ................................................................................................... 201

General Information ...........................................................................................................201

Liability ...............................................................................................................................202

Exclusions ...........................................................................................................................202

Certification ........................................................................................................................202

Service and Repairs .............................................................................................................203

EXFO Service Centers Worldwide ........................................................................................204

A Technical Specifications ........................................................................... 205

Index .............................................................................................................. 207

Compact Modular Platform vii

Certification Information

North America Regulatory Statement

This unit was certified by an agency approved in both Canada and the United States of America. It has been evaluated according to applicable North American approved standards for product safety for use in Canada and the United States.

Electronic test and measurement equipment is exempt from FCC part 15, subpart B compliance in the United States of America and from ICES-003 compliance in Canada. However, EXFO Inc. makes reasonable efforts to ensure compliance to the applicable standards.

The limits set by these standards are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the user guide, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense.

Modifications not expressly approved by the manufacturer could void the user's authority to operate the equipment.

viii FTB-200 v2

Certification Information

If you purchased the Wi-Fi and Bluetooth option, your unit comes with an internal wireless module and antenna for which the following information applies:

 This equipment has been tested and found to comply with the limits

for a Class A digital device, pursuant to Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

 FCC Radiation Exposure Statement: This equipment complies with

FCC radiation exposure limits set forth for an uncontrolled environment.

 This device complies with Industry Canada license-exempt RSS

standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device.

European Community Declaration of Conformity

An electronic version of the declaration of conformity for your product is available on our website at www.exfo.com. Refer to the product’s page on the Web site for details.

Compact Modular Platform ix

1 Introducing the FTB-200 v2

Compact Modular Platform

Optimized for all phases of the network lifecycle, the FTB-200 v2 Compact Modular Platform houses any of EXFO’s FTB one- or two-slot modules to meet your evolving needs. You can configure your platform by combining optical, transport and datacom modules to cover a wide range of applications.

Note: In this documentation, the words “tap” and “double-tap” (related to the

use of a touchscreen) replace the words “click” and “double-click”.

Main Features

Your unit has the following characteristics:

 Two-slot platform

 Multitasking possibilities

 Touchscreen (LCD and touchscreen optimized for outdoor use

available as an option)

 USB 2.0 ports (host)

 Ethernet port (10/100/1000 Base-T)

 Fiber inspection probe port

 Headset/microphone port (for any commercially available headset

equipped with a microphone, and having a 2.5 mm connector)

 Optional internal Wi-Fi and Bluetooth devices

 Optional GPS USB key

 Optional 3G USB modem key

 VPN capability

 Autonomy (8 hours)

 Windows Embedded Standard operating system

 Ruggedness (GR-196-CORE)

Compact Modular Platform 1

Introducing the FTB-200 v2 Compact Modular Platform

LEDs

Keypad

Brightness button

Knob with ENTER button

On/Off button

To uc h s cr e e n

Keypad

Front panel

Main Features

 Optional built-in power meter and VFL

 Direct Web access from your unit

 Possibility to take screen captures

 PDF file generator and viewer available from your unit

 Easy transfer of files and folders to a USB storage device

 Easy updates for applications via Update Manager

2 FTB-200 v2

Introducing the FTB-200 v2 Compact Modular Platform

USB host port

AC adapter/charger connector

Fiber inspection

probe port

RJ-45 port

Headset/microphone port (for 2.5 mm connector)

Left panel Right panel

USB host ports

Built-in power meter

VFL

Battery

compartment

Module slots

Top p a nel

Main Features

Compact Modular Platform 3

Introducing the FTB-200 v2 Compact Modular Platform

Bottom panel

Retaining screws

LED Panel Description

The LED panel located on the front of the unit provides you with the status of your unit.

Note: The function of certain LEDs vary with the applications.

4 FTB-200 v2

LED Status Meaning

Green Unit is on.

Green, blinking Unit is in Standby mode.

Off Unit is off or in Hibernation mode.

Green Battery is fully charged.

Green, blinking Battery is charging.

Yellow Unit is not powered by AC and battery is low.

Red No battery in the unit or battery error.

Off Unit is off or unit is not powered by AC and battery

level is above the “low-battery threshold”.

Introducing the FTB-200 v2 Compact Modular Platform

LED Status Meaning

Laser status LED

Red, blinking

At least one module emits an optical signal.

Off No modules emit signal.

Result status from application currently displayed.

Green

Pass (result does not exceed the defined threshold).

Green, blinking Result statuses from two or more applications.

Pass (no results exceed the defined threshold).

Red Result status from application currently displayed.

Fail (result exceeds the defined threshold).

Red, blinking Result statuses from two or more applications.

 Fail (all results exceed the defined threshold).

 Mixed statuses (some are Pass and some are Fail).

LED Panel Description

Compact Modular Platform 5

Introducing the FTB-200 v2 Compact Modular Platform

Keypad Description

The keypad of your unit gives you access to various functions at all times. The table below shows an overview of their purpose.

Note: The function of certain buttons vary with the applications.

Button Meaning

First shortcut button. Starts the associated application or the on-screen (virtual) keyboard (see Configuring the Shortcut Buttons on page 59).

Second shortcut button. Starts the associated application, the on-screen keyboard or the built-in power meter application (see Configuring the Shortcut Buttons on page 59).

Starts the fiber probe application.

 Enables you to switch from one task to another.

 Displays shortcuts to the on-screen keyboard and to the tool to

take screen captures.

Turns on and off your unit.

For more information, see Turning On or Off the Unit on page 28.

Adjusts screen brightness.

Lock/Start acquisition/F1 button (depends on application).

Mute/Move markers/F2 button (depends on application).

Report/Next  or trace/F3 button (depends on application).

Save/F4 button (depends on application).

6 FTB-200 v2

Introducing the FTB-200 v2 Compact Modular Platform

Ports

Your unit is equipped with several communication ports (for probe, mouse, keyboard, hub, etc.). It can also be equipped with internal Wi-Fi and Bluetooth devices for wireless information transfer. These two devices are optional.

 There are two USB 2.0 host ports located on the left panel of the unit.

 All the other ports are located on the right panel of the unit:

 8-pin (mini-DIN) connector to connect the fiber inspection probe.

 USB 2.0 host port (type A connector) to connect USB memory

drives, keyboards, mouse devices, etc.

 RJ-45 (10/100/1000 Base-T) port to connect your unit to an Ethernet

network.

 Headset/microphone port (for 2.5 mm connector).

Por ts

Compact Modular Platform 7

Introducing the FTB-200 v2 Compact Modular Platform

Pow er Sou rces

Power Sources

The unit operates with the following power sources:

 AC adapter/charger (connected to a standard power outlet–indoor use

only).

 Rechargeable Lithium-Ion battery (automatically takes over if you

disconnect the AC adapter/charger).

Note: When it is connected with the AC adapter/charger, the unit will function

even if the battery is not present.

CAUTION

EXFO guarantees the specifications and viability of the products ONLY if they are used with chargers and batteries provided by EXFO.

 Possible to switch from AC adapter/charger to battery power or

vice versa without affecting operation.

 Automatic recharge when AC adapter/charger is connected.

 Rechargeable battery (for clock). This battery can keep the date and

time for weeks even if AC power and the Lithium-Ion battery (main battery) are not connected.

Optional Software Package

An optional software package (IPT package) is offered with the application. With this package, you can perform ping and trace route tests. For more information on how to activate software options, see Activating Software Options on page 37.

8 FTB-200 v2

Introducing the FTB-200 v2 Compact Modular Platform

Conventions

Before using the product described in this guide, you should understand the following conventions:

WARNING

Indicates a potentially hazardous situation which, if not avoided, could result in death or serious injury. Do not proceed unless you understand and meet the required conditions.

CAUTION

Indicates a potentially hazardous situation which, if not avoided, may result in minor or moderate injury. Do not proceed unless you understand and meet the required conditions.

CAUTION

Indicates a potentially hazardous situation which, if not avoided, may result in component damage. Do not proceed unless you understand and meet the required conditions.

Conventions

IMPORTANT

Refers to information about this product you should not overlook.

Compact Modular Platform 9

2 Safety Information

WARNING

Do not install or terminate fibers while a light source is active. Never look directly into a live fiber and ensure that your eyes are protected at all times.

WARNING

The use of controls, adjustments and procedures, namely for operation and maintenance, other than those specified herein may result in hazardous radiation exposure or impair the protection provided by this unit.

IMPORTANT

When you see the following symbol on your unit , make sure that you refer to the instructions provided in your user documentation. Ensure that you understand and meet the required conditions before using your product.

IMPORTANT

Other safety instructions relevant for your product are located throughout this documentation, depending on the action to perform. Make sure to read them carefully when they apply to your situation.

Compact Modular Platform 11

Safety Information

Other Safety Symbols on Your Unit

One or more of the following symbols may also appear on your unit.

Symbol Meaning

Direct current

Alternating current

Both direct and alternating current

The unit is equipped with an earth (ground) terminal.

The unit is equipped with a protective conductor terminal.

The unit is equipped with a frame or chassis terminal.

On (Power)

Off (Power)

12 FTB-200 v2

Safety Information

Affixed to back of unit

(under the stand).

Laser Safety Information

Units with Built-In VFL

Your instrument is a Class 3R laser product in compliance with standards IEC 60825-1: 2007 and 21 CFR 1040.10, except for deviations pursuant to Laser Notice No. 50, dated June 24, 2007. Laser radiation is emitted at the output port. It is potentially harmful in direct intrabeam viewing.

The following label(s) indicate that the product contains a Class 3R source:

When the VFL laser is active, the LED on the front of the unit blinks,

and the symbol is displayed in the power meter and VFL application.

Units without Built-In VFL

If your unit is not equipped with a VFL, the laser class of your unit depends on the modules that you use. Refer to the user guide or the online help of the different modules for the exact information.

Compact Modular Platform 13

Safety Information

Electrical Safety Information

If you need to ensure that the unit is completely turned off, disconnect the power cable and remove the battery.

 Use the external power supply indoors only.

 Position the unit so that the air can circulate freely around it.

 Operation of any electrical instrument around flammable gases

or fumes constitutes a major safety hazard.

 To avoid electrical shock, do not operate the unit if any part of

the outer surface (covers, panels, etc.) is damaged.

 Only authorized personnel should carry out adjustments,

maintenance or repair of opened units under voltage. A person qualified in first aid must also be present. Do not replace any components while power cable and battery are connected.

WARNING

 Unless otherwise specified, all interfaces are intended for

connection to Safety Extra Low Voltage (SELV) circuits only.

 Capacitors inside the unit may be charged even if the unit has

been disconnected from its electrical supply.

14 FTB-200 v2

Safety Information

Electrical Safety Information

WARNING

 Use only the listed and certified AC adapter/charger provided by

EXFO with your unit. It provides reinforced insulation between primary and secondary, and is suitably rated for the country where the unit is sold.

 Use only accessories (such as the car outlet adapter, batteries,

and fiber inspection probe) designed for your unit and approved by EXFO. For a complete list of accessories available for your unit, refer to its technical specifications.

 When you use the unit outdoors, ensure that it is protected

from liquids, dust, direct sunlight, precipitation, and full wind pressure.

Compact Modular Platform 15

Safety Information

Electrical Safety Information

Equipment Ratings

Tem pe rat ur e

 Operation  unit powered by battery: 0 °C to 50 °C

(32 °F to 122 °F)

 unit connected to AC adapter: 5 °C to 40 °C

(41 °F to 104 °F)

 Storage  unit without battery: –40 °C to 70 °C

(–40 °F to 158 °F)

 unit with battery: –20 °C to 60 °C (–4 °F to 140 °F)

 AC adapter: –20 °C to 60 °C (–4 °F to 140 °F)

Relative humidity

Maximum operation altitude

 unit:  95 % non-condensing

 AC adapter: 10 % to 80 % non-condensing

 2000 m (6562 ft) (unit connected to external power

supply)

 5000 m (16405 ft) (unit operated from battery)

Pollution degree

 2 (unit connected to external power supply)

 3 (unit operated from battery)

Overvoltage category  unit: I

 AC adapter: II

Measurement category Not rated for measurement categories II, III, or IV

Input power

unit: 24 V;4 A

a. With FTB-8XXX modules, the maximum operation temperature is 40 °C (104 °F).

b. With FTB-8XXX modules, the maximum storage temperature is 50 °C (122 °F).

c. Measured in 0 °C to 31 °C (32 °F to 87.8 °F) range, decreasing linearly to 50 % at 40 °C (104 °F).

d. Equipment must be normally protected against exposure to direct sunlight, precipitation and full wind

pressure.

e. Not exceeding ± 10 % of the nominal voltage.

16 FTB-200 v2

Safety Information

Electrical Safety Information

IMPORTANT

The operation and storage temperatures of some modules may differ from the temperatures specified for your platform. In this case, always ensure that you comply with the most restrictive conditions (either module or platform).

Compact Modular Platform 17

3 Getting Started with Your Unit

Inserting and Removing Test Modules

CAUTION

Never insert or remove a module while the Compact Modular Platform is turned on. This will result in immediate and irreparable damage to both the module and unit.

CAUTION

To avoid damaging your unit, use it only with modules approved by EXFO.

WARNING

When the laser safety LED is flashing, at least one of your modules is emitting an optical signal. Please check all modules, as it might not be the one you are currently using.

Compact Modular Platform 19

Getting Started with Your Unit

Inserting and Removing Test Modules

To insert a module into the Compact Modular Platform:

1. Turn off your unit.

2. Position the unit so that its front panel is facing you.

20 FTB-200 v2

Getting Started with Your Unit

Inserting and Removing Test Modules

3. Take the module and place it vertically so that the retaining screw hole is at the left of the connector pins.

CAUTION

Inserting a module upside down could result in permanent damage to the module, as the connector pins might be bent.

4. Insert the protruding edges of the module into the grooves of the unit’s module slot.

5. Push the module all the way to the bottom of the slot, until the retaining screw makes contact with the unit casing.

6. Place the unit so that its bottom panel is facing you.

Compact Modular Platform 21

Getting Started with Your Unit

Turn retaining screws

clockwise

Bottom panel

Inserting and Removing Test Modules

7. While applying slight pressure to the module, lift the mobile part of the retaining screw and use it to turn the retaining screw clockwise until it is tightened.

This will secure the module into its “seated” position.

When you turn on the unit, the startup sequence will automatically detect the module.

22 FTB-200 v2

Getting Started with Your Unit

Turn retaining screws

counterclockwise

Bottom panel

Inserting and Removing Test Modules

To remove a module from the Compact Modular Platform:

1. Turn off your unit.

2. Position the unit so that the bottom panel is facing you.

3. Lift the mobile part of the retaining screw and use it to turn the

retaining screw counterclockwise until it stops.

The module will be slowly released from the slot.

4. Place the unit so that the top panel is facing you.

Compact Modular Platform 23

Getting Started with Your Unit

Inserting and Removing Test Modules

5. Hold the module by its sides or by the handle (NOT by the connector) and pull it out.

CAUTION

Pulling out a module by a connector could seriously damage both the module and connector. Always pull out a module by its casing.

6. Cover empty slots with the supplied protective covers.

24 FTB-200 v2

Getting Started with Your Unit

Using a Keyboard, Mouse or Other USB Devices

Your unit supports many USB devices. The table below lists the supported USB devices.

Device Details

Memory key For data transfer between your unit and a computer

when you do not have access to a network. If you need information on how to transfer data using a memory key, see Managing Data on page 115.

Keyboard When you are required to enter alphanumeric data,

an on-screen (virtual) keyboard is displayed. However, if you prefer, you can use a hardware keyboard.

Note: Even if a keyboard is connected, the

on-screen keyboard will still be displayed when you work in Compact Toolbox.

Mouse If your prefer to use a mouse instead of the

touchscreen, you can connect one.

Composite device You can use composite devices, that is devices that

input information to your unit using more than one mean (for example, combinations of keyboard and mouse).

Hub This device will be particularly useful to you if you

need extra USB ports.

USB to RS-232 adapter (purchased from EXFO)

Compact Modular Platform 25

To be able to transfer data between your unit and a device only equipped with RS-232 (serial) ports. For more information, see Using the USB to RS-232 Adapter on page 131.

Getting Started with Your Unit

Using a Keyboard, Mouse or Other USB Devices

Device Details

GPS USB key (purchased from EXFO)

3G USB modem key (purchased from EXFO)

You can connect several devices at the same time.

To be able to know the position of your unit (latitude and longitude coordinates). For more information, see Retrieving the GPS Location of Your Unit on page 106.

To access the Internet without having to connect to a Wi-Fi or an Ethernet network. For more information, see Accessing the Internet with a 3G USB Modem Key on page 100.

IMPORTANT

Your unit does not support USB printers. If you want to print documents, you must use PDFCreator or a network printer (see Printing Documents on page 83), or transfer your files to a computer (see Managing Data on page 115) that has access to a network printer.

To use a USB device with your unit:

Connect the USB device to any of the USB ports (located on the left or right side of the unit).

Note: It is not necessary to turn off the unit before connecting the USB device. The

software will automatically detect its presence.

You r de v ice is a uto mat ically recognized and immediately usable (provided that it uses the drivers already available on your unit).

26 FTB-200 v2

Getting Started with Your Unit

Using the On-Screen (Virtual) Keyboard

Your unit is equipped with an on-screen keyboard that supports multilingual features. This keyboard functions according to the keyboard settings of Windows.

To use the on-screen keyboard:

1. From Compact Toolbox, tap the on-screen keyboard icon on the

lower-right part of the screen (under the clock).

2. Select the location where you want to enter text.

3. Enter the data as required.

4. Exit the location when you have finished entering data.

Right-Clicking with the Touchscreen

If you are used to work with a mouse, you may find it useful to be able to perform a right-click on your touchscreen.

To right-click with the touchscreen:

From the location where you want to right-click, using the stylus or any blunt pointing device, press the screen for a few seconds until the shortcut menu appears.

If you want to hide the shortcut menu without performing any action, simply tap anywhere outside the menu.

Compact Modular Platform 27

Getting Started with Your Unit

Turning On or Off the Unit

There are several ways to turn off the unit, including the following:

 Standby: keeps the unit’s status information in memory (RAM). The

next time you turn your unit on, you will quickly return to your work environment (running applications will still be running). This mode will take more battery power while the unit is off.

 Hibernation: saves the unit’s status information that was in memory

(RAM) to a special file on the disk. The next time you turn your unit on, this file will be used to ensure that you return to your work environment (running applications will still be running). The unit will take longer to start up than in Standby mode, but it requires less battery power when the unit is off. You can configure your unit to switch automatically from Standby to Hibernation mode after the specified delay.

 Shutdown: completely cuts power to the test modules and platform;

the unit will perform a complete restart routine the next time you use it. You should perform a shutdown if you do not intend to use your unit for a week or more.

After a shutdown, the unit will start in Compact Toolbox or in the application you defined as the startup application.

Note: Should the unit ever stop responding, you can force a hardware reset by

pressing and holding down the power button for more than 10 seconds.

By default, your unit will display the standard shutdown window from which you can select the desired shutdown mode. However, you can configure your unit to perform a different action when the power button is pressed.

You can also configure your unit to automatically restart when AC power comes back after the unit has turned off (emergency shutdown, standby, or hibernation modes) when battery level is too low.

28 FTB-200 v2

Getting Started with Your Unit

Turning On or Off the Unit

To turn on the unit:

Press the On/Off button.

To turn off the unit:

1. Press the On/Off button.

On the Windows taskbar, tap Start.

This will display the standard shutdown window, from which you have a choice of actions or shutdown modes.

2. Select Shutdown.

To define the behavior of the power button:

1. From the Main Menu, tap Setup.

2. Double-tap Power Options.

3. Select the Advanced tab.

Compact Modular Platform 29

Getting Started with Your Unit

Turning On or Off the Unit

4. From the When I press the power button on my computer list, select the desired behavior (Ask me what to do option is selected by default).

5. Ta p Apply to confirm the changes, and then OK to return to Control Panel.

30 FTB-200 v2

Getting Started with Your Unit

Turning On or Off the Unit

To configure your unit to automatically restart after AC power comes back:

1. From the Main Menu, tap Setup.

2. Double-tap Application Startup.

3. Select the Power on the unit when AC outlet is connected or after

power outage box to enable the corresponding option.

Clear the box if you prefer that your unit does not restart automatically after AC power comes back.

4. Ta p OK to confirm the changes and return to the Control Panel

window.

Compact Modular Platform 31

Getting Started with Your Unit

Installing or Upgrading the Applications

All the necessary applications have been preinstalled and configured at the factory. However, you may have to upgrade some applications when new versions become available or to reinstall them.

Note: Only administrator-level users can install software under Windows

Embedded Standard.

From the DVD that came with your unit, you can create an installation USB key in case you ever need to reinstall Compact ToolBox (the software that comes with your platform) and the module applications as well as Update Manager. All the necessary files will be copied to the USB key.

Each time you purchase a new module, you will also receive a DVD with which you could create a new installation USB key. It could be a good idea to verify that the most recent Update Manager application is installed on your unit.

When updates are available for an application, you will need to download them from Internet, either directly on your unit or on a computer. In the latter case, you will need to transfer the update files to your unit (see Managing Data on page 115). The update files must be copied to the location that has been specified for the deployment packages in Update Manager.

32 FTB-200 v2

Getting Started with Your Unit

Installing or Upgrading the Applications

IMPORTANT

If you ever need to reinstall Update Manager on your unit, ensure that:

 The installation files for Update Manager remain on your unit.

Otherwise, it will not be possible to install new versions of this application later.

 You choose the folder containing the Update Manager

installation files carefully. If you move or rename this folder, you will have to manually browse for the modified folder when you want to install new versions of this application.

For the creation of an installation USB key, you will need:

 the installation DVD

 a computer equipped with a USB port; Windows must be installed on

the computer

 a USB memory key

For the upgrades, you will need:

 an FTB-200 v2 Compact Modular Platform unit

 a computer equipped with a USB port; Windows must be installed on

the computer

 a USB memory key

Note: For the upgrades, the computer and USB key are only necessary if you do

not wish to download the files directly on your unit.

Note: For more information on the installation, refer to the Update Manager

online help.

Compact Modular Platform 33

Getting Started with Your Unit

Installing or Upgrading the Applications

To update or reinstall Update Manager:

1. If necessary, retrieve the desired installation files from the Internet.

If you do not intend to download files directly on your unit, connect a USB memory key to one of the USB ports of the computer and copy the installation files to this USB key.

2. If it is not already done, turn on your unit.

3. Exit Compact Toolbox and the modules’ applications.

4. If you want to install Update Manager using the USB key, disconnect it

from the computer and connect it to one of the USB ports of your unit.

5. On your unit, create a folder on the Windows desktop.

6. Copy the installation files (from the USB key) to the newly created

folder.

7. From the newly created folder, tap the Setup.exe file to start the installation.

8. Follow the on-screen instructions.

9. When the installation is complete, simply disconnect the USB memory

key.

34 FTB-200 v2

Getting Started with Your Unit

Installing or Upgrading the Applications

To install or upgrade the applications:

1. If necessary, retrieve the desired installation files from the Internet.

If you do not intend to download files directly on your unit, connect a USB memory key to one of the USB ports of the computer and copy the installation files to this USB key.

2. If it is not already done, turn on your unit. If necessary, exit the modules’ applications.

3. If you want to install or update applications using the USB key, disconnect it from the computer and connect it to one of the USB ports of your unit.

4. Copy the installation files (from the USB key) to the folder containing the update and installation packages on your unit. By default, Update Manager will search for files at the root of the USB key. For more information, refer to the Update Manager online help.

5. From Compact ToolBox, on your unit, select the Utilities tab.

6. Double-tap Update Manager to start the corresponding application.

For more information on how to install or upgrade applications, refer to the Update Manager online help.

7. When installation is complete, simply disconnect the USB memory key.

Compact Modular Platform 35

Getting Started with Your Unit

Installing or Upgrading the Applications

To create an installation USB key:

1. Turn on the computer and insert the installation DVD in the CD/DVD

drive.

2. Connect a USB memory key to one of the USB ports of the computer.

3. From the Welcome window on the installation DVD, click Compact

Tool box a nd To o ls.

4. Select the Compact Toolbox check box and click Next.

5. Follow the on-screen instructions. All the necessary components will

be copied to your USB key.

6. When the operation is complete, click Close, and then Exit to close the

installation DVD window.

7. Disconnect the USB memory key from the computer.

Your new installation USB key is now ready.

36 FTB-200 v2

Getting Started with Your Unit

Activating Software Options

The software options purchased at the same time as your unit have been activated for you already. However, if you purchase options afterwards, you will have to activate them yourself.

IMPORTANT

If you want to activate software options for modules of the FTB-81xx Series or the FTB-85xx Series, refer to the user guide of

your product for the specific activation instructions.

In all other cases, you can follow the instructions presented in this section.

Before being able to activate options, you need to contact EXFO with the following information:

 Purchase order number of the newly purchased options

 Module or platform serial number (depending on whether the software

options were purchased for a module or the platform)

 Customer's name

 Customer’s company name

 Customer’s phone number

 Customer’s e-mail address

 Module or platform on which the option will be installed

You will receive a single key (.key) file with which you will be able to unlock all the new options that you have purchased.

Compact Modular Platform 37

Getting Started with Your Unit

Activating Software Options

To activate the options for your unit:

1. Connect a USB memory key to one of the USB ports of your computer.

2. Copy the key file to the USB memory key.

3. Disconnect the USB key from the computer and connect it to your unit.

4. From Compact ToolBox, select the Utilities tab, then double-tap

Options Activation.

38 FTB-200 v2

Getting Started with Your Unit

Activating Software Options

5. In the Platform Options tab, use the Browse button to locate the key file that you want to use.

6. Press Activate.

The option indicator will turn into a green check mark to confirm that the option is now active.

7. Close to exit

Note: At this point, if you have used a USB key to copy your key file, you can

remove it as it is not required to use your new options.

Compact Modular Platform 39

Getting Started with Your Unit

Activating Software Options

To activate software options for your module:

1. Connect a USB memory key to one of the USB ports of your computer.

2. Copy the key file to the USB memory key.

3. Disconnect the USB key from the computer and connect it to your unit.

4. From Compact ToolBox, select the Utilities tab, then double-tap

Options Activation.

40 FTB-200 v2

Getting Started with Your Unit

Activating Software Options

5. In the Module Options tab, use the Browse button to locate the key file that you want to use.

6. Press Activate.

The option indicator will turn into a green check mark to confirm that the option is now active.

Note: You can see the supported options for the module in the Options list.

7. Press Close to exit the Option Activation window.

Note: At this point, if you have used a USB key to copy your key file, you can

remove it as it is not required to use your new options.

Compact Modular Platform 41

Getting Started with Your Unit

in the platform

Applications

specific to

selected module

Selected module

Starting Module Applications

Your modules can be configured and controlled from their dedicated applications in Compact Toolbox.

To start a module application:

1. From Compact Toolbox, select the module to use.

It will turn blue to indicate that it is highlighted.

42 FTB-200 v2

2. Under Applications, select an application, then press Start.

To start the Power Meter or Probe application:

From Main Menu, press Power Meter or Probe.

4 Setting Up Your Unit

Adjusting Brightness

To fit your work environment, you may adjust the LCD brightness. Values are kept in memory even when you turn the unit off.

Note: These settings do not apply to a fiber inspection probe display.

To adjust the display brightness:

Press the key repeatedly to switch between brightness levels.

1. From the Main Menu, tap Setup.

2. Double-tap Brightness.

3. Move the slider until the screen appearance is to your liking.

If you select the lowest brightness setting, the backlight will be completely deactivated. Press the button to reactivate it.

4. Ta p OK to return to the Control Panel window.

Compact Modular Platform 43

Setting Up Your Unit

Adjusting Microphone and Speaker Volume

To fit your work environment, you may adjust the microphone and speaker volume. Values are kept in memory even when you turn the unit off.

To adjust the microphone volume:

1. From the Main Menu, tap Setup.

2. Double-tap Sounds and Audio Devices.

3. Select the Voice tab.

44 FTB-200 v2

Setting Up Your Unit

Adjusting Microphone and Speaker Volume

4. Under Voice recording, tap Volume.

5. Under Microphone, use the slider to adjust the sound of your

microphone. Close the window when your settings are complete.

6. Ta p OK to return to the Control Panel window.

Compact Modular Platform 45

Setting Up Your Unit

Adjusting Microphone and Speaker Volume

To adjust the speaker volume:

1. From the Main Menu, tap Setup.

2. Double-tap Sounds and Audio Devices.

3. Select the Volume tab.

46 FTB-200 v2

Setting Up Your Unit

Adjusting Microphone and Speaker Volume

4. Under Device volume, use the slider to adjust the sound of your speaker.

Note: You can also select the Mute check box if you want to quickly turn off the

sound.

Note: You c an tap th e Advanced button if you want to refine the volume

according to the source of the sound (Master Volume and Wave controls).

5. Ta p OK to return to the Control Panel window.

Compact Modular Platform 47

Setting Up Your Unit

Recalibrating the Touchscreen

If you notice the touchscreen does not behave in the way it used to (for example, it is now difficult to select items) it probably needs a recalibration.

The default calibration method is performed using four points, but you can also perform a 25-point calibration (linearization) if you need more accuracy.

You can stop the calibration process at any time, but the touchscreen will still need calibration. The parameters are taken into account only when the process is complete.

To recalibrate the touchscreen with a 4-point calibration:

1. From the Main Menu, tap Setup, then double-tap Touch Screen

Calibration.

2. Ta p Calibrate.

48 FTB-200 v2

Setting Up Your Unit

New parameters taken into account

Percentage of completion

Recalibrating the Touchscreen

3. Using the stylus (or any blunt pointing device), simply press the center of the different targets that appear on the screen. Keep pressing until the application displays OK to indicate that the new parameters have been taken into account.

Note: If you want to stop the calibration process, stop pressing the screen. The

application will close automatically after a few seconds and you will return to the Touchscreen Calibration window.

4. When the calibration is complete, tap to close the

Touchscreen Calibration window.

Compact Modular Platform 49

Setting Up Your Unit

Recalibrating the Touchscreen

To recalibrate the touchscreen with a 25-point linearization:

1. From the Main Menu, tap Setup, then double-tap Touch Screen

Calibration.

2. Ta p Advanced.

3. Select the To ol s tab.

4. Ta p Linearization.

50 FTB-200 v2

Setting Up Your Unit

New parameters taken into account

Percentage of completion

Recalibrating the Touchscreen

5. Using the stylus (or any blunt pointing device), simply press the center of the different targets that appear on the screen. Keep pressing until the application displays OK to indicate that the new parameters have been taken into account.

Note: If you want to stop the calibration process, stop pressing the screen. The

application will close automatically after a few seconds and you will return to the Touchscreen Calibration window.

6. When the calibration is complete, tap to close the

Touchscreen Calibration window.

Compact Modular Platform 51

Setting Up Your Unit

Enabling or Disabling the Touchscreen Right-Click Feature

By default, you can right-click with your touchscreen (see Right-Clicking with the Touchscreen on page 27). However, you can disable this feature if

you prefer.

To enable or disable the right-click of the touchscreen:

1. From the Main Menu, tap Setup.

2. Double-tap Touch Screen Calibration.

3. Ta p Advanced.

52 FTB-200 v2

Enabling or Disabling the Touchscreen Right-Click Feature

4. Select the Setting tab.

5. Ta p the Option button.

Setting Up Your Unit

Compact Modular Platform 53

Setting Up Your Unit

Enabling or Disabling the Touchscreen Right-Click Feature

6. From the Option tab, select the Enable Auto Right Click check box to

enable the option.

Clear the check box if you prefer to disable the right-click.

7. Ta p Apply to confirm the changes, and then OK to return to the Control Panel window.

8. Ta p OK once again to close the touchscreen parameters window.

9. Tap to close the Touchscreen Calibration window.

54 FTB-200 v2

Setting Up Your Unit

Customizing the On-Screen Keyboard

You can customize the appearance and behavior of the on-screen keyboard. For more information on the various parameters that you can set, refer to the on-screen keyboard online help.

For information on how to switch from one of the available languages to another, see Selecting the Language of Operation on page 68.

To customize the appearance and behavior of the on-screen keyboard:

1. Minimize the Compact Toolbox window.

2. On the Windows taskbar, tap Start, then select All Programs >

Touch-It Virtual Keyboard >Setup.

3. Configure the keyboard according to your needs.

Note: You can access the online help related to the keyboard options by tapping

the Help button.

4. When you have finished, tap Close.

Compact Modular Platform 55

Setting Up Your Unit

Enabling or Disabling the Automatic Logon

Note: Only administrator-level users can enable or disable the automatic logon

feature.

You can configure your unit to automatically log on to Windows at startup (no need to select a user and enter a password). You can also disable this feature if you prefer to define separate user accounts with different user access rights and passwords.

Note: For security reasons, when the unit comes back from standby or hibernate

modes, the application will prompt you to select a user and enter a password, even if you have enabled the automatic logon feature.

By default, the automatic logon is enabled for the Operator user account, with an empty password. If you want to create (or modify) a password for the user account for which the automatic logon is enabled, you will have to disable the feature first, and then enable it again once the new password is defined.

If you want to modify the account used for the automatic logon, you will also have to disable the feature first, and then enable it again for the new account.

To enable (or modify) the automatic logon:

1. From the Main Menu, tap Setup.

2. Double-tap AutoLogon.

56 FTB-200 v2

Setting Up Your Unit

Enabling or Disabling the Automatic Logon

3. Enter the desired user name (account) and the corresponding password.

IMPORTANT

You cannot create user accounts or modify passwords from the Automatic Logon window.

The user name and password that you specify must correspond to those of an account that has been defined from User Accounts in Control Panel.

4. Ta p Enable Auto Logon.

5. Tap to return to the Control Panel window.

At next startup, you will no longer need to specify a user name and password (except if the unit comes back from standby or hibernate modes).

Compact Modular Platform 57

Setting Up Your Unit

Enabling or Disabling the Automatic Logon

To disable the automatic logon:

1. From the Main Menu, tap Setup.

2. Double-tap AutoLogon.

3. Ta p Disable Auto Logon.

4. When the application prompts you, confirm with Yes.

5. Tap to return to the Control Panel window.

At next startup, you will have to specify the user name and password.

58 FTB-200 v2

Setting Up Your Unit

Configuring the Shortcut Buttons

You can start a particular application directly by pressing one of the shortcut buttons. You can determine which application each of these shortcut buttons will start.

There are two shortcut buttons:

 one to start an application related to the module in slot 0 or the

on-screen (virtual) keyboard.

 another to start either the built-in power meter application (if your unit

is equipped with this option), the on-screen keyboard, or an application related to the module in slot 1.

Compact Modular Platform 59

Setting Up Your Unit

Configuring the Shortcut Buttons

To configure the shortcut buttons:

1. From the Main Menu, tap Setup.

2. Double-tap Application Startup.

3. Under Shortcut buttons, associate the application to each button.

4. Ta p Apply to confirm the changes, and then OK to return to the

Control Panel window.

60 FTB-200 v2

Setting Up Your Unit

Selecting the Startup Application

The first time you start your unit, Compact Toolbox is displayed. However, you can configure your unit to automatically start in any of the available applications.

The selected application or applications will start automatically the next time you turn on your unit after a shutdown (not in standby mode). For more information, see Turning On or Off the Unit on page 28.

If the specified application cannot be started (for example, the required module is not present in the unit or is not inserted in the same slot), the startup application setting is automatically reset to None. You will have to select the application again when the module is inserted into the unit.

To select a startup application:

1. From the Main Menu, tap Setup.

2. Double-tap Application Startup.

Compact Modular Platform 61

Setting Up Your Unit

Selecting the Startup Application

3. Under Automatic launch on start up, select the application or

applications you want to start automatically when you turn on your unit.

Note: The Power Meter application is only available if you purchased this option

with your unit.

4. Ta p Apply to confirm the changes, and then OK to return to the Control Panel window.

62 FTB-200 v2

Setting Up Your Unit

Selecting the FIP Startup Application

Your unit supports both the fiber inspection probes (FIP) of the FIP-400 and FIP-400B series. By default, the unit prompts you to select the application corresponding to the FIP with which you want to work (FIP-400 or FIP-400B). If you prefer, you can configure the unit to always start your favorite application directly instead.

To select the FIP startup application:

1. From the Main Menu, tap Setup.

2. Double-tap Application Startup.

Compact Modular Platform 63

Setting Up Your Unit

Selecting the FIP Startup Application

3. From the When I press the Probe button list, select the desired behavior. If you want to be prompted each time to confirm the application to use, select the Ask me what to do option.

Note: If the list is not available, it means that the ConnectorMax2 application is

not installed on your unit. In this case, the ConnectorMax application will start automatically, enabling you to work with the probes of the FIP-400 series. If you also wish to work with probes of the FIP-400B series, you will need to install the most recent ConnectorMax kit.

4. Ta p Apply to confirm the changes, and then OK to return to the Control Panel window.

64 FTB-200 v2

Setting Up Your Unit

Configuring Network Printers

To print documents and images on a network printer, you must configure the printer first.You must know the IP address of the network printer that you want to configure (contact your network administrator).

IMPORTANT

 Your unit does not support USB printers.

 Your unit only supports network printers compatible with PCL 6

(which is a “Printer Control Language”). If you are not sure whether a specific printer is compatible or not, contact your network administrator.

For more information on printing, see Printing Documents on page 83.

To configure the printer:

1. On your unit, from the Main Menu, tap Setup.

2. Double-tap Printers and Faxes.

Compact Modular Platform 65

Setting Up Your Unit

Configuring Network Printers

3. Select the HP Universal Printing PCL 6 item.

4. From the menu, select File > Printing Preferences.

5. Under Find a Printer, select Enter a Printer Address.

6. Enter the IP address of the printer that you want to configure, and then

tap OK.

66 FTB-200 v2

Setting Up Your Unit

Configuring Network Printers

7. Select the Add this printer to my Printers and Faxes folder check

box.

8. Ta p OK to confirm. The operation can take several minutes to

complete.

9. When the application prompts you, click OK to acknowledge the

message.

10. If desired, modify the printer preferences to your liking. You can save the whole set of preferences for future use with the

Save As button or press the unit’s knob to save the parameters for the current work session.

11. Close the Printing Preferences window, and then close the Printers and Faxes window to return to Compact Toolbox.

The printer is now ready to use.

Compact Modular Platform 67

Setting Up Your Unit

Selecting the Language of Operation

You may display the user interface in one of the available languages (default is English).

When you change the interface language, the corresponding keyboard is not automatically added to the list of available keyboards. You must add the desired keyboard separately if you want to enter text in a specific language (both on-screen or “real” keyboards). Once the keyboards are added, you can switch easily from one input language to another.

The keyboards that you add will not be available from the logon window.

To avoid problems, when you define or modify passwords, EXFO recommends that you always use the keyboard corresponding to the language of the unit at time of purchase. Otherwise, you might not be able to log on to your user account (unsupported characters, different keyboard layout, etc.)

IMPORTANT

Values are kept in memory even when you turn the unit off.

IMPORTANT

The language setting of the VLC media player is independent of the language setting of Compact Toolbox. You must configure both separately.

68 FTB-200 v2

Selecting the Language of Operation

To select a new interface language:

1. From the Main Menu, tap Setup.

2. Double-tap Regional and Language Options.

3. Select the Languages tab.

Setting Up Your Unit

4. From the Language used in menus and dialogs list, select the desired language.

5. Ta p Apply to confirm the changes, and then OK to return to the Control Panel window.

The new interface language will become available at the next startup.

Compact Modular Platform 69

Setting Up Your Unit

Selecting the Language of Operation

To add new input languages:

1. From the Main Menu, tap Setup.

2. Double-tap Regional and Language Options.

3. Select the Languages tab.

4. Under Text services and input languages, tap Details.

70 FTB-200 v2

Setting Up Your Unit

Selecting the Language of Operation

5. Under Installed services, tap Add.

6. From the Input language list, select the desired language.

7. If necessary, from the Keyboard layout/IME list, select the desired

option.

8. Ta p OK to confirm.

9. Repeat steps 5 to 8 for all the languages that you want to add.

10. Tap Apply to confirm the changes, and then OK to return to the

Control Panel window.

The added keyboards are available immediately. You can now switch from one input language to another.

Compact Modular Platform 71

Setting Up Your Unit

Selecting the Language of Operation

To switch from one of the available input languages to another:

1. From the unit’s keypad, press the button to display the

shortcut to the on-screen keyboard.

2. Tap to display the on-screen keyboard.

3. From the on-screen keyboard, tap to display the list of available

input languages.

4. From the list of languages, select the desired one.

You are now ready to start entering text in the selected input language.

Note: Modifying the input language does not modify the language of the

interface.

To modify the language of the VLC media player:

1. Minimize the Compact Toolbox window.

2. On the Windows taskbar, tap Start, then select All Programs >

VideoLAN > VLC media player.

3. From the menu, select Too ls > Preferences.

4. Under Language, select the desired language from the list.

By default, the language is set to Auto, to follow the Standards and formats setting of Windows, but you can select any other language.

5. Ta p Save to confirm and close the application.

Note: This operation has no impact on the date and time formats in Windows

Embedded Standard and in the Compact Toolbox applications.

72 FTB-200 v2

Setting Up Your Unit

Setting Date and Time Formats

The current date and time are displayed at the bottom of the Main Menu.

You can modify the format in which the date and time are displayed.

For information on how to adjust the date, the time, and the time zone, see Adjusting the Date, Time and Time Zone on page 75.

Note: Modifying location, date and time settings will affect some of the

Windows Embedded Standard settings.

To set date and time formats:

1. From the Main Menu, tap Setup.

2. Double-tap Regional and Language Options.

3. Select the Regional Options tab.

4. Under Standards and formats, select the desired language. This will

determine the date formats available for the time as well as the short and long dates.

Compact Modular Platform 73

Setting Up Your Unit

Setting Date and Time Formats

5. If necessary, refine the settings as follows:

5a. Tap Customize to display the detailed settings.

5b. Select either the Time or Date tab, depending on the settings that

you want to modify.

6. Modify the settings.

7. Ta p Apply to confirm the changes, and then OK to return to the

Control Panel window.

74 FTB-200 v2

Setting Up Your Unit

Adjusting the Date, Time and Time Zone

Note: Only administrator-level users can adjust the date, time and time zone.

The current date and time are displayed at the bottom of the Main Menu. When saving results, the unit also saves the corresponding date and time.

Note: A dedicated clock battery keeps the date and time accurate. For details,

see Replacing Batteries on page 182.

For information on how to modify the format in which the date and time are displayed, see Setting Date and Time Formats on page 73.

Note: Modifying date and time settings will affect some of the

Windows Embedded Standard settings.

Compact Modular Platform 75

Setting Up Your Unit

Adjusting the Date, Time and Time Zone

To adjust the date and time:

1. From the Main Menu, tap Setup.

2. Double-tap Date and Time.

3. Select the Date & Time tab.

4. Modify the settings according to your needs.

5. Ta p Apply to confirm the changes, and then OK to return to the

Control Panel window.

76 FTB-200 v2

To change the time zone:

1. From the Main Menu, tap Setup.

2. Double-tap Date and Time.

3. Select the Time Zone tab.

Setting Up Your Unit

Adjusting the Date, Time and Time Zone

4. Modify the settings according to your needs.

5. Ta p Apply to confirm the changes, and then OK to return to the

Control Panel window.

Compact Modular Platform 77

Setting Up Your Unit

Configuring the Power Management Options

Note: Only administrator-level users can configure the power management

options. These options can only be modified for administrator-level accounts.

To get the optimum performance out of your Compact Modular Platform, your unit comes with three predefined sets of parameters (schemes) to manage power.

When you do not use the unit for a while, the display may be turned off to save power. You can also configure the unit to go into standby or hibernation mode after the specified duration has expired (see Turning On or Off the Unit on page 28).

For all of these actions, you can set idle durations for AC adapter/charger and battery operation. The values that you set are kept in memory even when you turn the unit off.

Note: When the backlight is turned off, the unit operation is not interrupted. Press

any key or touch anywhere on the screen to return to normal operation.

78 FTB-200 v2

Setting Up Your Unit

Configuring the Power Management Options

The table below indicates the default values that are included in each of the predefined power schemes.

Power Scheme Action

Standard (selected by default)

Always On Turn off monitor Never Never

Max Battery Turn off monitor After 15 minutes After 5 minutes

Note: The Turn off hard disks setting is not taken into account (not applicable).

You can either modify one of the existing power schemes or create one (based on an existing power scheme).

Turn off monitor Never After 5 minutes

System standby Never After 15 minutes

System hibernates Never After 30 minutes

System standby Never Never

System hibernates Never Never

System standby After 30 minutes After 15 minutes

System hibernates After 45 minutes After 30 minutes

When AC is

connected

Running on

batteries

CAUTION

Your unit has been designed to manage power as well as battery alarms automatically. Never modify the parameters that appear on the Alarms tab. Doing so WILL prevent the unit from working properly.

Compact Modular Platform 79

Setting Up Your Unit

Configuring the Power Management Options

To select a power scheme:

1. From the Main Menu, tap Setup.

2. Double-tap Power Options.

3. From the Power Schemes list, select the desired predefined set of

parameters.

4. Ta p Apply to confirm the changes, and then OK to return to the Control Panel window.

80 FTB-200 v2

Setting Up Your Unit

Configuring the Power Management Options

To modify a power scheme:

1. From the Main Menu, tap Setup.

2. Double-tap Power Options.

3. From the Power Schemes list, select the predefined set of parameters

that you want to modify or on which you want to base your new scheme.

4. Modify the parameters to your needs.

5. Ta p Save As.

 If you want to modify the existing power scheme, keep the name

as is, and then tap OK.

 If you prefer to create a new power scheme, enter a new name,

and then tap OK.

6. Ta p Apply to confirm the changes, and then OK to return to the Control Panel window.

Compact Modular Platform 81

Setting Up Your Unit

Configuring the Internet Options

You can browse the Web directly from your unit, provided that you have access to an Internet connection and that the Internet options are configured properly.

If you are not sure about how you should configure your Internet access, contact your network administrator.

To configure the Internet options:

1. From the Main Menu, tap Setup.

2. Double-tap Internet Options.

3. Go to the Connections tab.

4. Modify the settings using the information provided by your network

administrator.

5. Ta p OK to return to the Control Panel window.

Setting Other Parameters

You can also configure other parameters via the Control Panel window. Refer to Microsoft Windows Embedded Standard documentation for details.

82 FTB-200 v2

5Working with Your Unit

Printing Documents

You can print documents and images directly from your unit by using either the PDFCreator (for PDF files) or a network printer (for printing on paper).

You can view the PDF files from your unit, using the SumatraPDF reader. For more information, see Viewing PDF Files on page 86.

To print on a network printer, your unit must be accessible from this network by Wi-Fi or standard Ethernet. You must also define the printer on your unit before attempting to access it (see Configuring Network Printers on page 65).

If you cannot connect your unit to a network, you can use a USB memory key to transfer the files that you want to print to a computer connected to the network.

If you need more flexibility and a greater choice of report types, you can also transfer result files to a computer onto which applications such as EXFO FastReporter 2 are installed.

Note: Some applications may not offer print functions.

Compact Modular Platform 83

Working with Your Unit

Printing Documents

To print documents:

1. Open a Web browser as follows:

1a. From Compact Toolbox, select the Utilities tab.

1b. Double-tap the Internet Explorer icon to open the browser.

2. Select the document that you want to print as follows:

2a. From the menu, select File > Open.

2b. Tap Browse to locate the file that you want to open.

2c. Tap Open to load the file in Internet Explorer.

2d. Tap OK to confirm.

3. From the menu, select File > Print.

4. From the General tab, select the desired printer (PDFCreator by

default).

84 FTB-200 v2

Working with Your Unit

To view the PDF

file immediately

after its creation

Printing Documents

5. If necessary, tap Preferences to adjust the parameters to your needs.

Note: If you selected a network printer, you can save the whole set of preferences

for future use with the Save As button or simply press the unit’s knob to save the parameters for the current work session.

6. Ta p Print to start the printing process.

7. If you selected PDFCreator, proceed as follows:

7a. Enter the desired information.

Compact Modular Platform 85

7b. Tap Save.

7c. Specify a location and a file name and tap Save.

If you have selected the option to view the PDF file after its creation, the SumatraPDF reader will display the new file.

7d. If necessary, tap to close the SumatraPDF window.

8. Tap to close Internet Explorer and return to the Utilities tab.

Working with Your Unit

Viewing PDF Files

You can view PDF files directly from your unit using the SumatraPDF reader. For more information on the available features for this reader, refer to the SumatraPDF online help.

To v ie w PD F f il e s:

1. From Main Menu, select File Manager.

2. Browse through the folders to find the desired PDF file.

3. Double-tap the file.

4. The file opens automatically in the SumatraPDF application.

Note: You can access the online help directly from the Help menu of the

SumatraPDF application. You will need a connection to the Internet to view the online help.

86 FTB-200 v2

Working with Your Unit

Taking Screen Captures

You can take captures of what is displayed on your screen, directly from your unit. This could be useful for troubleshooting when you need another person to have a look at a specific configuration or problem. You could also use this tool for training purposes.

If you want to capture images of the fibers that you examine with the fiber inspection probe, you can use the capture feature of the probe instead.

For more information on how to modify the default file format and destination folder, see Setting Storage Parameters for Screen Captures on page 90.

 Images are saved using the defined file format. By default, images are

created in .bmp format, but you can modify this parameter. By default, they are kept in the following folder:

D:\Documents and Settings\User_currently_logged _on\My Documents\Screen Snapshot

where User_currently_logged_ on corresponds to the user name of the person that is currently logged on the unit.

It is possible to modify the folder in which images are automatically saved.

Compact Modular Platform 87

Working with Your Unit

Taki n g Sc re en Ca pture s

 By default, the application generates file names as follows:

IMG_[YEAR]_[MONTH]_[DAY]_[HOUR]_[MINUTE]_ [SEQUENTIAL NUMBER].bmp

Example:

For a screen capture taken on August 20, 2010, the file name could be:

IMG_2010_08_20_13_23_01.bmp.

Note: The HOUR value will appear in a 24-hour format, regardless of your unit's

time settings.

Note: The SEQUENTIAL NUMBER value is used to differentiate two captures that

would have been taken at the same date and time.

 There are two ways to capture images: a quick mode (the screen

capture tool is automatically closed as soon as the capture is made) and a multiple-capture mode (the screen capture button is part of a floating toolbar that remains available until you close it). By default, this toolbar is located in the lower-right corner of the screen. However, you can move it to a location that better suits your needs.

88 FTB-200 v2

Working with Your Unit

Taking Screen Captures

To take only one screen capture:

1. From the unit's keypad, press the button.

2. Tap the button.

The screen capture is automatically taken (a sound and visual effect typical of a camera taking a picture indicate that the capture is complete).

Note: If a keyboard is connected to your unit, you can also press the

PRINT SCREEN key.

To take several screen captures:

1. If you have configured one of the shortcut buttons to automatically

display the virtual keyboard, press the appropriate button.

From Compact Toolbox, tap the on-screen keyboard icon on the lower-right part of the screen (under the clock).

2. Once the on-screen keyboard is displayed, tap the button.

3. From the floating toolbar, tap the button.

The screen capture is automatically taken (a sound and visual effect typical of a camera taking a pictureindicate that the capture is complete).

Compact Modular Platform 89

Working with Your Unit

Setting Storage Parameters for Screen Captures

You can modify the file format of the screen captures as well as the destination folder, that is the folder to which the captures will be sent.

 By default, images are saved in .bmp format, but you can configure the

application to save them in .jpg or .png format.

 By default, images are kept in the following folder:

D:\Documents and Settings\User_currently_logged _on\My Documents\Screen Snapshot

where User_currently_logged _on corresponds to the user name of the person that is currently logged on the unit.

You can select any other folder as the destination either locally on your unit, on a USB memory key.

Note: If the specified folder is no longer available (folder name has been

modified, folder has been deleted), the screen captures will be sent to the default folder. Similarly, if you have defined a destination folder on a USB key and this key is not connected to your unit when you take screen captures, the latter will be sent to the default folder.
