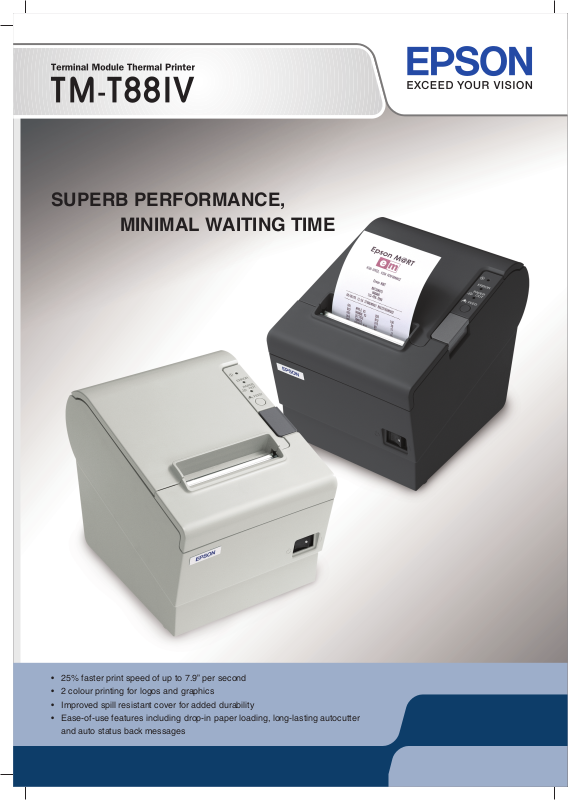

Epson TM-T88IV User Manual

SUPERB PERFORMANCE,

MINIMAL WAITING TIME

• 25% faster print speed of up to 7.9” per second

• 2 colour printing for logos and graphics

• Improved spill resistant cover for added durability

• Ease-of-use features including drop-in paper loading, long-lasting autocutter
and auto status back messages

Weight – approx. 1.8 kg

SPECIFICATIONS

145mm

195mm

148mm

PRINT METHOD Thermal Line Printing

PRINT FONT FONT 9 x 17 / 12 x 24

COLUMN CAPACITY (COLUMNS) 56 / 42
CHARACTER SIZE (MM) 0.99 (W) x 2.4 (H) / 1.41 (W) x 3.39 (H)
CHARACTER SET 95 Alphanumeric, 37 International, 128 x 11

Graphic, Traditional / Simple Chinese,
Japanese, Korean, Thai

BARCODE UPC-A/E, CODE 39 / 93 / 128, EAN 8 / 13,

ITF, CODABAR

TWO-DIMENSIONAL CODE PDF 417, QRCode

CHARACTER PER INCH 20.0 cpi / 15.0 cpi

INTERFACE STANDARD RS-232, Bi-Directional Parallel

DEALER OPTION RS-485; USB; 10/100 Base T Ethernet I/F

DATA BUFFER 4KB or 45 Bytes

PRINTER SPEED 7.9"/ Sec (200mm) Graphics and Text

3.9"/ Sec in 2 Colour Print Mode

PAPER DIMENSIONS (MM) ROLL PAPER 79.5 ± 0.5 (W) x Diameter 83.0

THICKNESS (MM) 0.06 to 0.07

POWER 24 VDC ± 7%

POWER CONSUMPTION Approx. 1.8 A (Mean)

D.K.D. FUNCTION 2 Drivers

RELIABILITY MTBF 360,000 Hours

MCBF 52,000,000 Lines
AUTO CUTTER 1.5 Million Cuts

DIMENSIONS (D X W X H) 195 x 145 x 148 mm

WEIGHT Approx. 1.8 kg

CASE COLOUR (ECW) Epson Cool White

(EDG) Epson Dark Grey

POWER SUPPLY PS-180

OPTION Wall-Hanging Bracket WH-10

SAFETY STANDARDS UL1950 / CSA / C22.2 No. 950

Epson is the registered trademark of SEIKO EPSON
CORPORATION.

All other product names and other company names
used herein are for identification purpose only and
may be the trademarks or registered trademarks of
their respective owners. Epson disclaims any and
all rights in those marks. Scan/Print samples shown
herein are simulations. Specifications are subject to
change without notice.
