Micropilot FMR53, FMR54

Free space radar

Level measurement in liquids

Application

• Continuous, non-contact level measurement of liquids, pastes and slurries

• Rod antenna (FMR53); horn or planar antenna (FMR54)

• Maximum measuring range: 20 m (66 ft); for FMR54 with planar antenna in stilling well: 38 m (125 ft)

• Process temperature: –196 to +400 °C (–321 to +752 °F)

• Process pressure: –1 to +160 bar (–14.5 to +2 320 psi)

• Accuracy: ± 6 mm

• International explosion protection certificates; WHG; marine approvals

• Linearity protocol (3-point, 5-point)

Your benefits

• Reliable measurement even for changing product and process conditions

• HistoROM data management for easy commissioning, maintenance and diagnostics

• Highest reliability due to Multi-Echo Tracking

• SIL2 according to IEC 61508, SIL3 in case of homogeneous or heterogeneous redundancy

• Seamless integration into control or asset management systems

• Intuitive user interface in national languages

• Bluetooth® wireless technology for commissioning, operation and maintenance via free iOS / Android app SmartBlue

• Easy proof test for SIL and WHG

• Heartbeat Technology™

Micropilot FMR53, FMR54

Wichtige Hinweise zum Dokument .............. 4

Symbols .................................... 4

Terms and abbreviations ........................ 6

Registered trademarks .......................... 7

Function and system design ................... 8

Measuring principle ............................ 8

Input .................................... 10

Measured variable ............................ 10

Measuring range ............................. 10

Operating frequency .......................... 13

Transmitting power ........................... 13

Output .................................. 14

Output signal ............................... 14

Signal on alarm .............................. 15

Linearization ............................... 15

Galvanic isolation ............................ 15

Protocol-specific data .......................... 15

Power supply ............................. 20

Terminal assignment .......................... 20

Device plug connectors ......................... 28

Supply voltage .............................. 29

Power consumption ........................... 31

Current consumption .......................... 31

Power supply failure .......................... 32

Potential equalization ......................... 32

Terminals ................................. 32

Cable entries ............................... 32

Cable specification ............................ 32

Overvoltage protection ......................... 33

Performance characteristics .................. 34

Reference operating conditions ................... 34

Maximum measured error ....................... 34

Measured value resolution ...................... 34

Reaction time ............................... 34

Influence of ambient temperature ................. 34

Influence of gas layer .......................... 34

Gas phase compensation with external pressure sensor

(PROFIBUS PA, FOUNDATION Fieldbus) ............. 35

Installation ............................... 36

Installation conditions ......................... 36

Measuring conditions .......................... 39

Mounting cladded flanges ....................... 40

Installation in vessel (free space) .................. 41

Installation in stilling well ....................... 44

Installation in bypass .......................... 47

Container with heat insulation .................... 49

Environment .............................. 50

Ambient temperature range ..................... 50

Ambient temperature limits ..................... 50

Storage temperature .......................... 59

Climate class ............................... 59

Altitude according to IEC61010-1 Ed.3 .............. 60

Degree of protection .......................... 60

Vibration resistance ........................... 60

Cleaning the antenna .......................... 60

Electromagnetic compatibility (EMC) ............... 60

Process .................................. 61

Process temperature, Process pressure .............. 61

Dielectric constant ............................ 63

Mechanical construction .................... 64

Dimensions ................................ 64

Weight ................................... 71

Materials: GT18 housing (stainless steel, corrosion-

resistant) .................................. 72

Materials: GT19 housing (plastic) .................. 73

Materials: GT20 housing (die-cast aluminum, powder-

coated) ................................... 74

Materials: Antenna and process connection ........... 75

Materials: Weather protection cover ................ 78

Operability ............................... 79

Operating concept ............................ 79

Local operation .............................. 80

Operation with remote display and operating module

FHX50 ................................... 80

Operation via Bluetooth® wireless technology .......... 81

Remote operation ............................ 82

Integration in tank gauging system ................. 85

SupplyCare inventory management software .......... 86

Certificates and approvals ................... 89

CE mark ................................... 89

RoHS ..................................... 89

RCM-Tick marking ............................ 89

Ex approval ................................ 89

Dual seal according to ANSI/ISA 12.27.01 ............ 89

Functional safety ............................. 89

WHG ..................................... 89

Sanitary compatibility ......................... 89

NACE MR 0175 / ISO 15156 ..................... 89

NACE MR 0103 ............................. 90

Pressure equipment with allowable pressure

≤ 200 bar (2 900 psi) .......................... 90

Marine certificate ............................ 90

Radio standard EN302372-1/2 ................... 90

FCC / Industry Canada ......................... 90

Japanese radio approval ........................ 90

CRN approval ............................... 90

Track record ................................ 91

Test, Certificate .............................. 92

Hard-copy product documentation ................. 92

Other standards and guidelines ................... 93

Ordering information ....................... 94

Ordering information .......................... 94

3-point linearity protocol ....................... 95

2 Endress+Hauser

Micropilot FMR53, FMR54

5-point linearity protocol ....................... 96

Customized parametrization ..................... 97

Tagging (TAG) .............................. 97

Services ................................... 97

Application Packages ....................... 98

Heartbeat Diagnostics ......................... 98

Heartbeat Verification ......................... 99

Heartbeat Monitoring ......................... 100

Accessories .............................. 101

Device-specific accessories ...................... 101

Communication-specific accessories ............... 106

Service-specific accessories ..................... 107

System components .......................... 107

Documentation ........................... 108

Standard documentation ....................... 108

Supplementary documentation ................... 108

Safety Instructions (XA) ....................... 108

Endress+Hauser 3

Wichtige Hinweise zum Dokument

DANGER

WARNING

CAUTION

NOTICE

Symbols Safety symbols

Symbol Meaning

Electrical symbols

Micropilot FMR53, FMR54

DANGER!

This symbol alerts you to a dangerous situation. Failure to avoid this situation will result in serious or fatal injury.

WARNING!

This symbol alerts you to a dangerous situation. Failure to avoid this situation can result in serious or fatal injury.

CAUTION!

This symbol alerts you to a dangerous situation. Failure to avoid this situation can result in minor or medium injury.

NOTE!

This symbol contains information on procedures and other facts which do not result in personal injury.

Symbol Meaning

Direct current

Alternating current

Direct current and alternating current

Ground connection

A grounded terminal which, as far as the operator is concerned, is grounded via a grounding system.

Protective Earth (PE)

A terminal which must be connected to ground prior to establishing any other connections.

The ground terminals are situated inside and outside the device:

• Inner ground terminal: Connects the protectiv earth to the mains supply.

• Outer ground terminal: Connects the device to the plant grounding system.

Symbols for certain types of information

Symbol Meaning

Permitted

Procedures, processes or actions that are permitted.

Preferred

Procedures, processes or actions that are preferred.

Forbidden

Procedures, processes or actions that are forbidden.

Tip

Indicates additional information.

Reference to documentation.

Reference to page.

Reference to graphic.

Visual inspection.

4 Endress+Hauser

Micropilot FMR53, FMR54

Symbols in graphics

Symbol Meaning

1, 2, 3 ... Item numbers

, 2., 3.… Series of steps

A, B, C, ... Views

A-A, B-B, C-C, ... Sections

Hazardous area

Indicates a hazardous area.

Safe area (non-hazardous area)

Indicates the non-hazardous area.

Symbols at the device

Symbol Meaning

Safety instructions

Observe the safety instructions contained in the associated Operating Instructions.

Temperature resistance of the connection cables

Specifies the minimum value of the temperature resistance of the connection cables.

Endress+Hauser 5

Micropilot FMR53, FMR54

Terms and abbreviations

Term/abbreviation Explanation

BA Document type "Operating Instructions"

KA Document type "Brief Operating Instructions"

TI Document type "Technical Information"

SD Document type "Special Documentation"

XA Document type "Safety Instructions"

PN Nominal pressure

MWP Maximum Working Pressure

The MWP can also be found on the nameplate.

ToF Time of Flight

FieldCare Scalable software tool for device configuration and integrated plant asset management

solutions

DeviceCare Universal configuration software for Endress+Hauser HART, PROFIBUS,

FOUNDATION Fieldbus and Ethernet field devices

DTM Device Type Manager

DD Device Description for HART communication protocol

εr (DC value) Relative dielectric constant

Operating tool The term "operating tool" is used in place of the following operating software:

• FieldCare / DeviceCare, for operation via HART communication and PC

• SmartBlue (app), for operation using an Android or iOS smartphone or tablet.

BD Blocking Distance; no signals are analyzed within the BD.

PLC Programmable Logic Controller

CDI Common Data Interface

PFS Pulse Frequence Status (Switching output)

MBP Manchester Bus Powered

PDU Protocol Data Unit

6 Endress+Hauser

Micropilot FMR53, FMR54

Registered trademarks

HART

Registered trademark of the FieldComm Group, Austin, USA

PROFIBUS

Registered trademark of the PROFIBUS User Organization, Karlsruhe, Germany

FOUNDATIONTM Fieldbus

Registered trademark of the FieldComm Group, Austin, Texas, USA

Bluetooth®

The Bluetooth® word mark and logos are registered trademarks owned by the Bluetooth SIG, Inc. and any use of such marks by Endress+Hauser is under license. Other trademarks and trade names are those of their respective owners.

Apple®

Apple, the Apple logo, iPhone, and iPod touch are trademarks of Apple Inc., registered in the U.S.and other countries. App Store is a service mark of Apple Inc.

Android®

Android, Google Play and the Google Play logo are trademarks of Google Inc.

KALREZ®, VITON

Registered trademark of DuPont Performance Elastomers L.L.C., Wilmington, USA

TEFLON

Registered trademark of E.I. DuPont de Nemours & Co., Wilmington, USA

TRI CLAMP

Registered trademark of Alfa Laval Inc., Kenosha, USA

Endress+Hauser 7

Function and system design

100%

Micropilot FMR53, FMR54

Measuring principle

The Micropilot is a "downward-looking" measuring system, operating based on the time-of-flight method (ToF). It measures the distance from the reference point (process connection) to the product surface. Radar impulses are emitted by an antenna, reflected off the product surface and received again by the radar system.

A0017871

 1 Setup parameters of the Micropilot

R Reference point of the measurement (lower edge of the flange or threaded connection) E Empty calibration ( = zero) F Full calibration (= span) D Measured distance L Level (L = E - D)

Input

The reflected radar impulses are received by the antenna and transmitted into the electronics. A microprocessor evaluates the signal and identifies the level echo caused by the reflection of the radar impulse at the product surface. The unambiguous signal identification is accomplished by the PulseMaster® eXact software together with the Multi-echo tracking algorithms, based on many years of experience with time-of-flight technology.

The distance D to the product surface is proportional to the time of flight t of the impulse:

D = c · t/2,

with c being the speed of light.

Based on the known empty distance E, the level L is calculated:

L = E – D

The reference point R of the measurement is located at the process connection. For details see the dimensional drawing:

• FMR53: →  65

• FMR54: →  68 The Micropilot is equipped with functions to suppress interference echoes. The user can activate

these functions. Together with the multi-echo tracking algorithms they ensure that interference echoes (i.e. from edges and weld seams) are not interpreted as level echo.

8 Endress+Hauser

Micropilot FMR53, FMR54

Output

The Micropilot is commissioned by entering an empty distance "E" (=zero), a full distance "F" (=span) and application parameters which automatically adapt the instrument to the process conditions. For models with a current output, the factory adjustment for zero point "E" and span "F" is 4 mA and 20 mA. For digital outputs and the display module, the factory adjustment for zero point "E" and span "F" is 0 % and 100 %.

A linearization with max. 32 points, based on a table entered either manually or semi-automatically, can be activated locally or remotely. This function provides a measurement in engineering units and a linear output signal for spheres, horizontal cylindrical tanks and vessels with conical outlet.

Life cycle of the product

Engineering

• Universal measuring principle

• Measurement unaffected by medium properties

• Hardware and software developed according to SIL IEC 61508

Procurement

• Endress+Hauser being the world market leader in level measurement guarantees asset protection

• Worldwide support and service

Installation

• Special tools are not required

• Reverse polarity protection

• Modern, detachable terminals

• Main electronics protected by a separate connection compartment

Commissioning

• Fast, menu-guided commissioning in only a few steps on site or from the control room

• Plain text display in national languages reduces the risk of error or confusion

• Direct local access of all parameters

• Short instruction manual at the device

Operation

• Multi-echo tracking: Reliable measurement through self-learning echo-search algorithms taking into account the short-term and long-term history in order to check the found echoes for plausibility and to suppress interference echoes.

• Diagnostics in accordance with NAMUR NE107

Maintenance

• HistoROM: Data backup for instrument settings and measured values

• Exact instrument and process diagnosis to assist fast decisions with clear details concerning remedies

• Intuitive, menu-guided operating concept in national languages saves costs for training, maintenance and operation

• Cover of the electronics compartment can be opened in hazardous areas

Retirement

• Order code translation for subsequent models

• RoHS-conforming (Restriction of certain Hazardous Substances), unleaded soldering of electronic components

• Environmentally sound recycling concept

Endress+Hauser 9

Input

Micropilot FMR53, FMR54

Measured variable

The measured variable is the distance between the reference point and the product surface.

The level is calculated from this distance, taking into account the empty distance "E" entered by the user.

If required, the level can be converted into other variables (volume, mass) by means of a linearization (up to 32 points).

Measuring range Maximum measuring range

Device Maximum measuring range

FMR53 20 m (66 ft)

FMR54 - horn antenna 20 m (66 ft)

FMR54 - planar antenna in stilling well 38 m (125 ft)

Usable measuring range

The usable measuring range depends on the size of the antenna, the reflectivity of the medium, the mounting location and eventual interference reflections.

The following tables describe the groups of media as well as the achievable measuring range as a function of application and media group. If the dielectric constant of a medium is unknown, it is recommended to assume media group B to ensure a reliable measurement.

Media groups

Media groups DC (εr) Example

A 1.4 to 1.9 non-conducting liquids, e.g. liquefied gas

B 1.9 to 4 non-conducting liquids, e.g. benzene, oil, toluene, …

C 4 to 10 e.g. concentrated acids, organic solvents, esters, aniline, alcohol, acetone, …

D > 10 conducting liquids, e.g. aqueous solutions, dilute acids and alkalis

1) Treat Ammonia NH3 as a medium of group A.

For dielectric constants (DC values) of many media commonly used in various industries refer to:

• the Endress+Hauser DC manual (CP01076F)

• the Endress+Hauser "DC Values App" (available for Android and iOS)

10 Endress+Hauser

Micropilot FMR53, FMR54

(33)

(66)

(49)

CC DD

(66)

(49)

CC DD

(33)

7.5 (25)

(16)

CC DD

12.5 (41)

7.5

(25)

(33)

CC DD

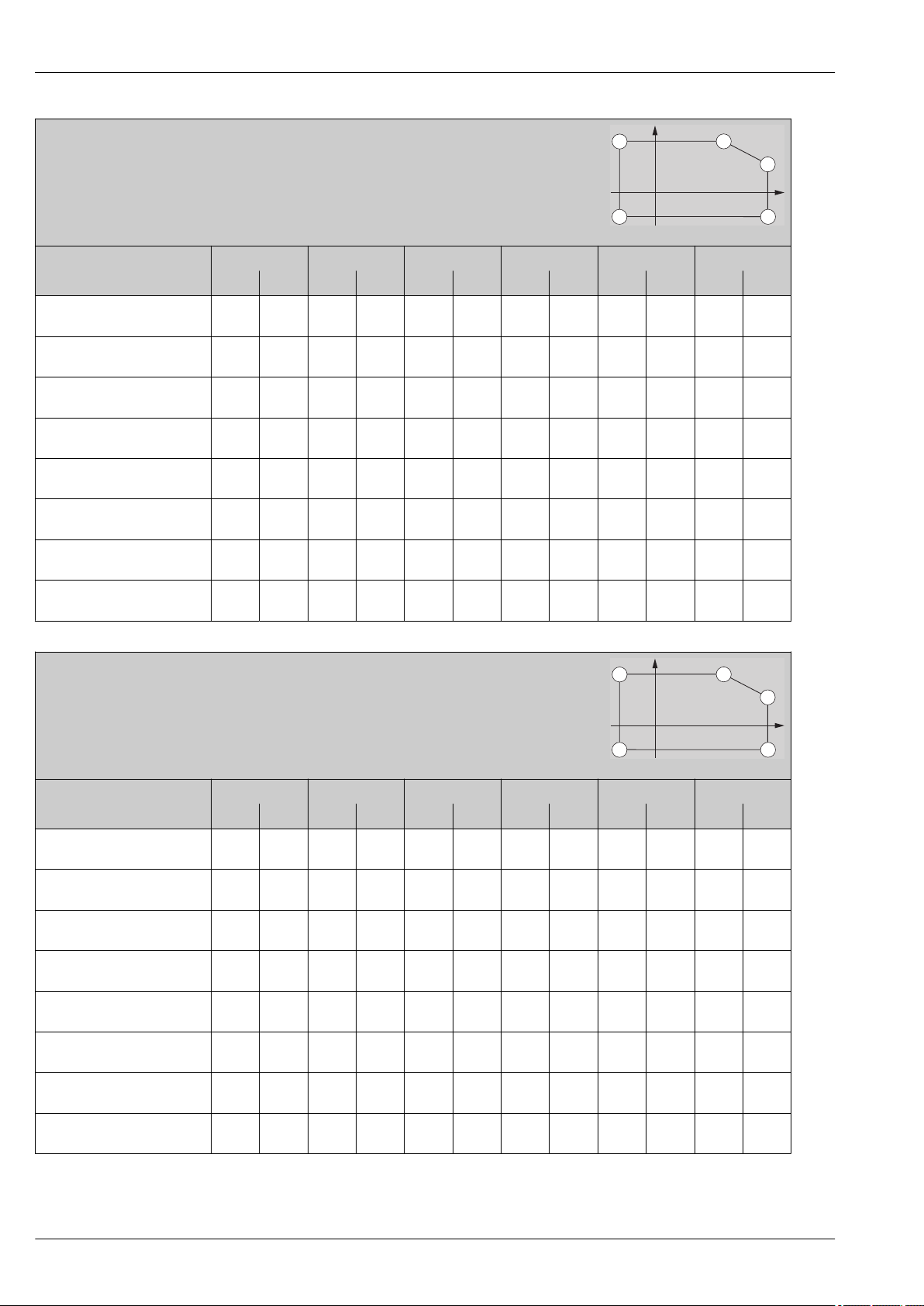

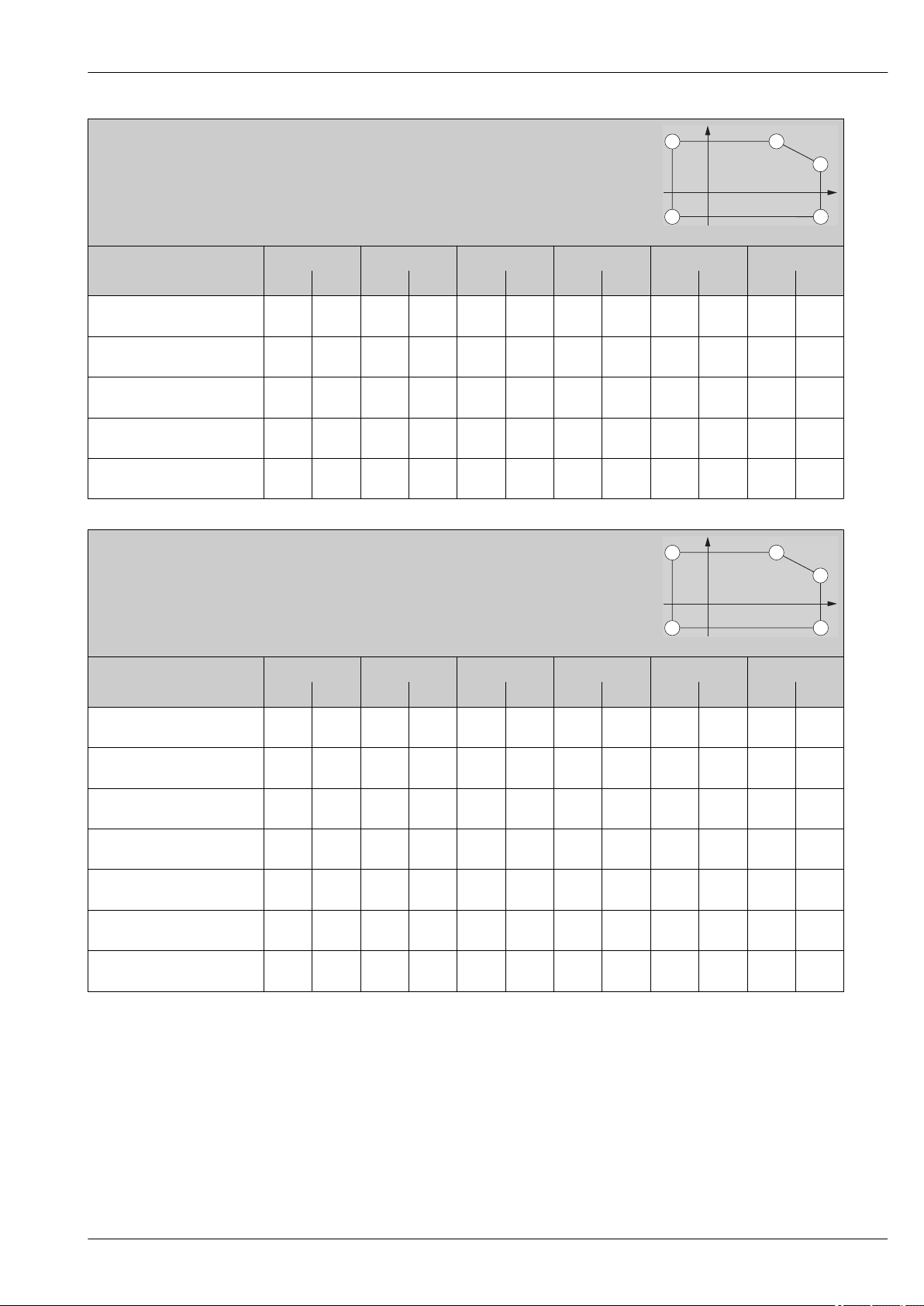

Device Storage tank Buffer tank

Calm product surface (e.g. intermittent filling, filling from bottom,

FMR53 Rod 390 mm (15 in)

Rod 540 mm (21 in)

FMR54

Horn 150 mm (6 in) Horn 200 mm (8 in)

A0018833

immersion tubes)

Antenna type and size Antenna type and size

- Rod 390 mm (15 in)

Horn 250 mm (10 in)

A0018844

A0018845

Measuring range [m (ft)]

Moving surfaces (e.g. continuous filling, from above, mixing

jets)

Rod 540 mm (21 in)

Horn 150 mm (6 in) Horn 200 mm (8 in)

Horn 250 mm (10 in)

A0018846

A0018835

A0018847

1) FMR54 with the antenna version BC (80mm/3") and BD: (100mm/4") should not be mounted directly in the tank. They are only suited for bypasses or stilling wells.

Endress+Hauser 11

Micropilot FMR53, FMR54

(26)

(13)

(20)

CC DD

(33)

(20)

(26)

CC DD

(66)

A, B, C, D

(125)

A, B, C, D

(66)

C, D

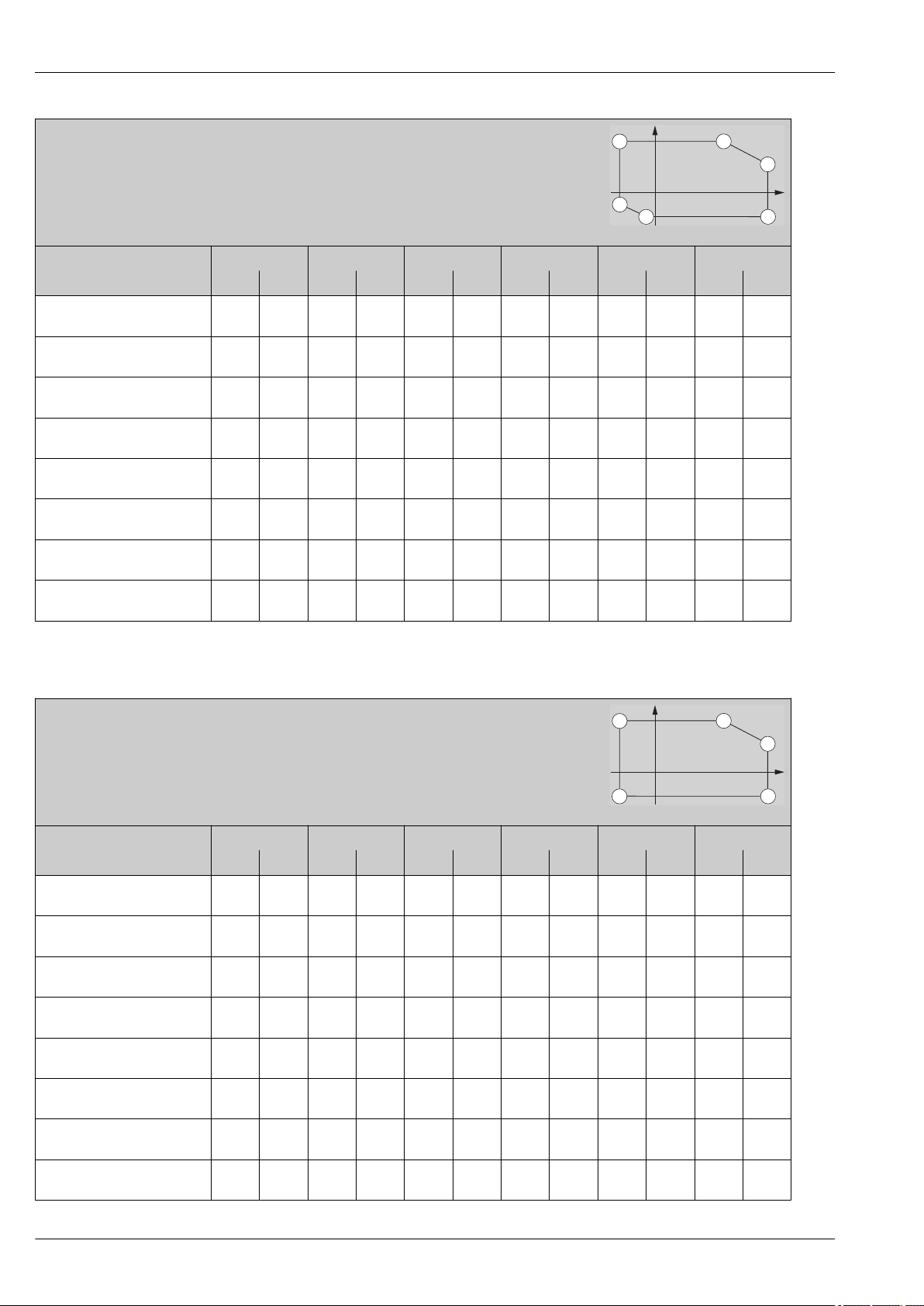

Device Process tank with agitator Stilling well Bypass

A0018837

Turbulent surface (e.g. filling from above, agitators,

baffles)

Antenna type and size

FMR53 Rod 390 mm (15 in)

- - - -

Rod 540 mm (21 in)

FMR54 Horn 150 mm (6 in) Horn 200 mm (8 in)

Horn 250 mm (10 in)

Horn

80 to 250 mm

(3 to 10 in)

Antenna type and size

Planar

150 to 300 mm

(6 to 12 in)

A0018839

Horn

80 to 250 mm

(3 to 10 in)

A0018840

A0018848

A0018850

Measuring range [m (ft)]

A0018851

A0018852

A0018854

12 Endress+Hauser

Micropilot FMR53, FMR54

Operating frequency

Transmitting power

C-band (~ 6 GHz)

Up to 8 Micropilot transmitters can be installed in the same tank because the transmitter pulses are statistically coded.

Distance Average energy density in beam direction

1 m (3.3 ft) < 12 nW/cm

5 m (16 ft) < 0.4 nW/cm

Endress+Hauser 13

Output

Output signal HART

Signal coding FSK ±0.5 mA over current signal

Data transmission rate 1 200 Bit/s

Galvanic isolation Yes

Bluetooth® wireless technology

Device version Ordering feature 610 "Accessory mounted", option NF "Bluetooth"

Operation / configuration By the SmartBlue app.

Range under reference conditions > 10 m (33 ft)

Encryption Encrypted communication and password encryption prevent incorrect

PROFIBUS PA

Micropilot FMR53, FMR54

operation by unauthorized persons.

Signal coding Manchester Bus Powered (MBP)

Data transmission rate 31.25 kBit/s, voltage mode

Galvanic isolation Yes

FOUNDATION Fieldbus

Signal coding Manchester Bus Powered (MBP)

Data transmission rate 31.25 kBit/s, voltage mode

Galvanic isolation Yes

Switch output

For HART devices, the switch output is available as an option. See product structure, feature 20: "Power Supply, Output", option B: "2-wire; 4-20mA HART, switch output"

Devices with PROFIBUS PA and FOUNDATION Fieldbus always have a switch output.

14 Endress+Hauser

Micropilot FMR53, FMR54

Switch output

Function Open collector switching output

Switching behavior Binary (conductive or non-conductive), switches when the programmable switch

point is reached

Failure mode non-conductive

Electrical connection values U = 16 to 35 VDC, I = 0 to 40 mA

Internal resistance RI < 880 Ω

The voltage drop at this internal resistance has to be taken into account on planning the configuration. For example, the resulting voltage at a connected relay must be sufficient to switch the relay.

Insulation voltage floating, Insulation voltage 1 350 VDC to power supply aund 500 VAC to ground

Switch point freely programmable, separately for switch-on and switch-off point

Switching delay freely programmable from 0 to 100 s, separately for switch-on and switch-off

point

Number of switching cycles corresponds to the measuring cycle

Signal source device variables

Number of switching cycles unlimited

• Level linearized

• Distance

• Terminal voltage

• Electronic temperature

• Relative echo amplitude

• Diagnostic values, Advanced diagnostics

Signal on alarm

Depending on the interface, failure information is displayed as follows:

• Current output (for HART devices) – Failsafe mode selectable (in accordance with NAMUR Recommendation NE 43):

– Failsafe mode with user-selectable value: 3.59 to 22.5 mA

• Local display – Status signal (in accordance with NAMUR Recommendation NE 107) – Plain text display

• Operating tool via digital communication (HART, PROFIBUS PA, FOUNDATION Fieldbus) or service interface (CDI) – Status signal (in accordance with NAMUR Recommendation NE 107) – Plain text display

Linearization

The linearization function of the device allows the conversion of the measured value into any unit of length or volume. Linearization tables for calculating the volume in cylindrical tanks are preprogrammed. Other linearization tables of up to 32 value pairs can be entered manually or semiautomatically.

Galvanic isolation

All circuits for the outputs are galvanically isolated from each other.

Protocol-specific data HART

Manufacturer ID 17 (0x11)

Device type ID 0x1128

HART specification 7.0

Device description files (DTM, DD) Information and files under:

HART load min. 250 Ω

Minimum alarm: 3.6 mA Maximum alarm (= factory setting): 22 mA

• www.endress.com

• www.fieldcommgroup.org

Endress+Hauser 15

Micropilot FMR53, FMR54

HART device variables The measured values can be freely assigned to the device variables.

Measured values for PV (primary variable)

• Level linearized

• Distance

• Electronic temperature

• Relative echo amplitude

• Area of incoupling

• Analog output adv. diagnostics 1

• Analog output adv. diagnostics 2

Measured values for SV, TV, FV (second, third and fourth variable)

• Level linearized

• Distance

• Electronic temperature

• Terminal voltage

• Relative echo amplitude

• Absolute echo amplitude

• Area of incoupling

• Analog output adv. diagnostics 1

• Analog output adv. diagnostics 2

Supported functions • Burst mode

• Additional transmitter status

Wireless HART data

Minimum start-up voltage 16 V

Start-up current 3.6 mA

Start-up time 65 s

Minimum operating voltage 14.0 V

Multidrop current 4.0 mA

Set-up time 15 s

PROFIBUS PA

Manufacturer ID 17 (0x11)

Ident number 0x1559

Profile version 3.02

GSD file Information and files under:

GSD file version

Output values Analog Input:

• www.endress.com

• www.profibus.org

• Level linearized

• Distance

• Terminal voltage

• Electronic temperature

• Absolute echo amplitude

• Relative echo amplitude

• Analog output adv. diagnostics 1

• Analog output adv. diagnostics 2

Digital Input:

• Digital output AD 1

• Digital output AD 2

• Switch output

16 Endress+Hauser

Micropilot FMR53, FMR54

Input values Analog Output:

• Analog value from PLC (for sensor block external pressure to compensate gas phase effects)

• Analog value from PLC to be indicated on the display

Digital Output:

• Extended diagnostic block

• Level limiter

• Sensor block measurement on

• Sensor block save history on

• Status output

Supported functions • Identification & Maintenance

Einfachste Geräteidentifizierung seitens des Leitsystems und des Typenschildes

• Automatic Ident Number Adoption GSD compatibility mode with respect to the preceding product Micropilot M FMR2xx

• Physical Layer Diagnostics Installation check of the PRFIBUS segment and the Micropilot FMR5x via the terminal voltage and telegram surveillance.

• PROFIBUS Up-/Download Up to 10 times faster writing and reading of parameters via PROFIBUS up-/download

• Condensed Status Simple and self-explanatory diagnostic information by categorization of occurring diagnostic messages.

FOUNDATION Fieldbus

Manufacturer ID 0x452B48

Device type 0x1028

Device Revision 0x01

DD Revision Information and files can be found:

CFF Revision

Device Tester Version (ITK Version) 6.0.1

ITK Test Campaign Number IT085300

Link Master (LAS) capable yes

Link Master / Basic Device selectable yes; default: Basic Device

Node address Default: 247 (0xF7)

Features supported Following methods are supported:

Virtual Communication Relationships (VCRs)

Number of VCRs 44

Number of Link Objects in VFD 50

Permanent entries 1

Client VCRs 0

Server VCRs 10

Source VCRs 43

Sink VCRs 0

Subscriber VCRs 43

Publisher VCRs 43

Device Link Capabilities

Slot time 4

• www.endress.com

• www.fieldcommgroup.org

• Restart

• ENP Restart

• Setup

• Linearization

• Self Check

Endress+Hauser 17

Micropilot FMR53, FMR54

Min. inter PDU delay 8

Max. response delay 20

Transducer Blocks

Block Content Output values

Setup Transducer Block Contains all parameters for a standard commissioning

procedure

Advanced Setup Transducer Block

Display Transducer Block Contains all parameters for the configuration of the

Diagnostic Transducer Block

Advanced Diagnostic Transducer Block

Expert Configuration Transducer Block

Expert Information Transducer Block

Service Sensor Transducer Block

Service Information Transducer Block

Data Transfer Transducer Block

Contains all parameters for a more detailed configuration of the device

display module

Contains diagnostic information no output values

Contains parameters for the Advanced Diagnostic no output values

Contains parameters which require detailed knowledge of the functionalities of the device

Contains information about the state of the device no output values

Contains parameters which can only be operated by Endress+Hauser service personnel

Contains information on the state of device which is relevant for service operations

Contains parameters which allow to backup the device configuration in the display module and to restore it into the device. Access to these parameters is restricted to the Endress+Hauser service.

• Level or volume (Channel 1)

• Distance (Channel 2)

no output values

1) depending on the configuration of the block

Function Blocks

Block Content Number of

permanent blocks

Resource Block The Resource Block contains all the

data that uniquely identifies the field device. It is an electronic version of a nameplate of the device.

Analog Input Block

Discrete Input Block

Mutiple Analog Output Block

Mutiple Discrete Output Block

The AI block takes the manufacturer's input data, selected by channel number, and makes it available to other function blocks at its output.

The DI block takes a discrete input value (e.g. indication of an level limit), and makes it available to other function blocks at its output.

This block is used to transfer analog data from the bus into the device

This block is used to transfer discrete data from the bus to the device.

1 0 - enhanced

2 3 25 ms enhanced

1 2 20 ms standard

1 0 20 ms standard

Number of instantiable blocks

Execution time

Functionality

18 Endress+Hauser

Micropilot FMR53, FMR54

Block Content Number of

permanent blocks

PID Block The PID block serves as

proportional-integralderivative controller and is used almost universally to do closed-loopcontrol in the field including cascade and feedforward.

Arithmetic Block

Signal Characterizer Block

Input Selector Block

Integrator Block

Analog Alarm Block

This block is designed to permit simple use of popular measurement math functions. The user does not have to know how to write equations. The math algorithm is selected by name, chosen by the user for the function to be done.

The signal characterizer block has two sections, each with an output that is a non-linear function of the respective input. The non-linear function is determined by a single look-up table with 21 arbitrary x-y pairs.

The input selector block provides selection of up to four inputs and generates an output based on the configured action. This block normally receives its inputs from AI blocks. The block performs maximum, minimum, middle, average and ‘first good’ signal selection.

The Integrator Function Block integrates a variable as a function of the time or accumulates the counts from a Pulse Input block. The block may be used as a totalizer that counts up until reset or as a batch totalizer that has a setpoint, where the integrated or accumulated value is compared to pre-trip and trip settings, generating discrete signals when these settings are reached.

1 1 25 ms standard

Number of instantiable blocks

Execution time

Functionality

Up to 20 blocks can be instantiated in the device altogether, including the blocks already instantiated on delivery.

Endress+Hauser 19

Terminal assignment

Micropilot FMR53, FMR54

Power supply

Terminal assignment 2-wire: 4-20 mA HART

 2 Terminal assignment 2-wire: 4-20 mA HART

Block diagram 2-wire: 4-20 mA HART

 3 Block diagram 2-wire: 4-20 mA HART

1 Active barrier with power supply (e.g. RN221N); observe terminal voltage 2 HART communication resistor (≥ 250 Ω); observe maximum load 3 Connection for Commubox FXA195 or FieldXpert SFX350/SFX370 (via VIATOR Bluetooth modem) 4 Analog display device; observe maximum load 5 Cable screen; observe cable specification 6 Measuring device

A0036498

A0036499

20 Endress+Hauser

Micropilot FMR53, FMR54

Terminal assignment 2-wire: 4-20 mA HART, switch output

 4 Terminal assignment 2-wire: 4-20 mA HART, switch output

A Without integrated overvoltage protection B With integrated overvoltage protection 1 Connection 4-20 mA HART passive: terminals 1 and 2, without integrated overvoltage protection 2 Connection switch output (Open Collector): terminals 3 and 4, without integrated overvoltage protection 3 Connection switch output (Open Collector): terminals 3 and 4, with integrated overvoltage protection 4 Connection 4-20 mA HART passive: terminals 1 and 2, with integrated overvoltage protection 5 Terminal for cable screen

Block diagram 2-wire: 4-20 mA HART, switch output

 5 Block diagram 2-wire: 4-20 mA HART, switch output

A0036500

A0036501

Endress+Hauser 21

Terminal assignment 2-wire: 4-20 mA HART, 4-20 mA

7 8

Micropilot FMR53, FMR54

A0036500

 6 Terminal assignment 2-wire: 4-20 mA HART, 4-20 mA

A Without integrated overvoltage protection B With integrated overvoltage protection 1 Connection current output 1, 4-20 mA HART passive: terminals 1 and 2, without integrated overvoltage

protection 2 Connection current output 2, 4-20 mA: terminals 3 and 4, without integrated overvoltage protection 3 Connection current output 2, 4-20 mA: terminals 3 and 4, with integrated overvoltage protection 4 Connection current output 1, 4-20 mA HART passive: terminals 1 and 2, with integrated overvoltage

protection 5 Terminal for cable screen

Block diagram 2-wire: 4-20 mA HART, 4-20 mA

A0036502

 7 Block diagram 2-wire: 4-20 mA HART, 4-20 mA

22 Endress+Hauser

Micropilot FMR53, FMR54

L+

L-

L+

L-

1 2

Terminal assignment 4-wire: 4-20 mA HART (10.4 to 48 VDC)

 8 Terminal assignment 4-wire: 4-20 mA HART (10.4 to 48 VDC)

1 Connection 4-20 mA HART (active): terminals 3 and 4 2 Connection supply voltage: terminals 1 and 2 3 Terminal for cable screen

Block diagram 4-wire: 4-20 mA HART (10.4 to 48 VDC)

 9 Block diagram 4-wire: 4-20 mA HART (10.4 to 48 VDC)

1 Evaluation unit, e.g. PLC 2 HART communication resistor (≥ 250 Ω); observe maximum load 3 Connection for Commubox FXA195 or FieldXpert SFX350/SFX370 (via VIATOR Bluetooth modem) 4 Analog display device; observe maximum load 5 Cable screen; observe cable specification 6 Measuring device 7 Supply voltage; observe terminal voltage, observe cable specification

A0036516

A0036526

Endress+Hauser 23

Terminal assignment 4-wire: 4-20 mA HART (90 to 253 VAC)

Micropilot FMR53, FMR54

 10 Terminal assignment 4-wire: 4-20 mA HART (90 to 253 VAC)

1 Connection 4-20 mA HART (active): terminals 3 and 4 2 Connection supply voltage: terminals 1 and 2 3 Terminal for cable screen

CAUTION

To ensure electrical safety:

Do not disconnect the protective connection.

‣

Disconnect the supply voltage before disconnecting the protective earth.

‣

Connect protective earth to the internal ground terminal (3) before connecting the supply voltage. If necessary, connect the potential matching line to the external ground terminal.

In order to ensure electromagnetic compatibility (EMC): Do not only ground the device via the protective earth conductor of the supply cable. Instead, the functional grounding must also be connected to the process connection (flange or threaded connection) or to the external ground terminal.

An easily accessible power switch must be installed in the proximity of the device. The power switch must be marked as a disconnector for the device (IEC/EN61010).

A0036519

24 Endress+Hauser

Micropilot FMR53, FMR54

Block diagram 4-wire: 4-20 mA HART (90 to 253 VAC)

A0036527

 11 Block diagram 4-wire: 4-20 mA HART (90 to 253 VAC)

1 Evaluation unit, e.g. PLC 2 HART communication resistor (≥ 250 Ω); observe maximum load 3 Connection for Commubox FXA195 or FieldXpert SFX350/SFX370 (via VIATOR Bluetooth modem) 4 Analog display device; observe maximum load 5 Cable scree; observe cable specification 6 Measuring device 7 Supply voltage; observe terminal voltage, observe cable specification

Terminal assignment PROFIBUS PA / FOUNDATION Fieldbus

A0036500

 12 Terminal assignment PROFIBUS PA / FOUNDATION Fieldbus

A Without integrated overvoltage protection B With integrated overvoltage protection 1 Connection PROFIBUS PA / FOUNDATION Fieldbus: terminals 1 and 2, without integrated overvoltage

protection 2 Connection switch output (Open Collector): terminals 3 and 4, without integrated overvoltage protection 3 Connection switch output (Open Collector): terminals 3 and 4, with integrated overvoltage protection 4 Connection PROFIBUS PA / FOUNDATION Fieldbus: terminals 1 and 2, with integrated overvoltage protection 5 Terminal for cable screen

Endress+Hauser 25

Block diagram PROFIBUS PA / FOUNDATION Fieldbus

3 4

 13 Block diagram PROFIBUS PA / FOUNDATION Fieldbus

1 Cable screen; observe cable specifications 2 Connection PROFIBUS PA / FOUNDATION Fieldbus 3 Measuring device 4 Switch output (open collector)

Micropilot FMR53, FMR54

A0036530

26 Endress+Hauser

Micropilot FMR53, FMR54

Connection examples for the switch output

For HART devices, the switch output is available as an option. See product structure, feature 20: "Power Supply, Output", option B: "2-wire; 4-20 mA HART, switch output"

Devices with PROFIBUS PA and FOUNDATION Fieldbus always have a switch output.

A0015909

 14 Connection of a relay

Suitable relays (examples):

• Solid-state relay: Phoenix Contact OV-24DC/480AC/5 with mounting rail connector UMK-1 OM-R/AMS

• Electromechanical relay: Phoenix Contact PLC-RSC-12DC/21

 15 Connection of a digital input

1 Pull-up resistor 2 Digital input

For optimum interference immunity we recommend to connect an external resistor (internal resistance of the relay or Pull-up resistor) of < 1 000 Ω.

A0015910

Endress+Hauser 27

Micropilot FMR53, FMR54

Device plug connectors

For the versions with fieldbus plug connector (M12 or 7/8"), the signal line can be connected without opening the housing.

Pin assignment of the M12 plug connector

Pin Meaning

1 Signal +

2 not connected

3 Signal -

4 Ground

A0011175

Pin assignment of the 7/8" plug connector

Pin Meaning

1 Signal -

2 Signal +

3 Not connected

4 Screen

A0011176

28 Endress+Hauser

Micropilot FMR53, FMR54

R [ ]?

U0[V]

10.4 21.4

20 30 35

500

U0[V]

13 24

20 30 35

500

R [ ]Ω

Supply voltage

"Power Supply,

Output"

A: 2-wire; 4-20mA

HART

An external power supply is required.

Various supply units can be ordered from Endress+Hauser: see "Accessories" section→  107

2-wire, 4-20mA HART, passive

"Approval"

• Non-Ex

• Ex nA

• Ex ic

• CSA GP

Ex ia / IS 10.4 to 30 V

• Ex d(ia) / XP

• Ex ic(ia)

• Ex nA(ia)

• Ex ta / DIP

Ex ia + Ex d(ia) / IS + XP 13 to 30 V

Terminal voltage U at the device

10.4 to 35 V

13 to 35 V

Maximum load R, depending on the supply voltage U0 at the supply unit

3) 4) 5)

A0017140

5) 6)

A0034771

1) Feature 020 of the product structure

2) Feature 010 of the product structure

3) For ambient temperatures Ta≤ -20 °C (-4 °F) a minimum voltage of 15 V is required for the sartup of the device at the minimum error current (3,6 mA). The startup current can be parametrized. If the device is operated with a fixed current I ≥ 5,5 mA (HART multidrop mode), a voltage of U ≥

10,4 V is sufficient throughout the entire range of ambient temperatures.

4) In the current simulation mode a voltage U ≥ 12.5 V is required.

5) If the Bluetooth modem is used, the minimum supply voltage increases by 3 V.

6) For ambient temperatures Ta≤ -20 °C (-4 °F) a minimum voltage of 16 V is required for the startup of the device at the minimum error current (3.6 mA).

Endress+Hauser 29

Micropilot FMR53, FMR54

U0[V]

13 24

20 30 35

500

R [ ]Ω

R [ ]W

U0[V]

13 24

20 28

500

"Power Supply,

Output"

B: 2-wire; 4-20 mA

HART, switch output

"Approval"

• Non-Ex

• Ex nA

Terminal voltage

Maximum load R, depending on the supply voltage U0 at the supply unit

U at the device

13 to 35 V

3) 4)

• Ex nA(ia)

• Ex ic

• Ex ic(ia)

• Ex d(ia) / XP

• Ex ta / DIP

• CSA GP

• Ex ia / IS

13 to 30 V

3) 4)

• Ex ia + Ex d(ia) / IS + XP

A0034771

1) Feature 020 of the product structure

2) Feature 010 of the product structure

3) For ambient temperatures Ta≤ -30 °C (-22 °F) a minimum voltage of 16 V is required for the startup of the device at the minimum error current (3.6 mA).

4) If the Bluetooth modem is used, the minimum supply voltage increases by 3 V.

"Power Supply, Output"

"Approval"

Terminal voltage U at the

Maximum load R, depending on the supply voltage U0 at the supply unit

device

C: 2-wire; 4-20mA HART,

any 13 to 28 V

3) 4)

4-20mA

1) Feature 020 of the product structure

2) Feature 010 of the product structure

3) For ambient temperatures Ta≤ -30 °C (-22 °F) a minimum voltage of 16 V is required for the startup of the device at the minimum error current (3.6 mA).

4) If the Bluetooth modem is used, the minimum supply voltage increases by 3 V.

Polarity reversal

Yes

protection

Admissible residual ripple

USS < 1 V

at f = 0 to 100 Hz

Admissible residual ripple

USS < 10 mV

at f = 100 to 10000 Hz

A0034841

30 Endress+Hauser

+ 82 hidden pages

Endress+Hauser FMR53 Specifications

Table of contents

Wichtige Hinweise zum Dokument

Symbols Safety symbols

Terms and abbreviations

Registered trademarks

Function and system design

Measuring principle

Input

Measured variable

Measuring range Maximum measuring range

Operating frequency

Transmitting power

Output

Output signal HART

Signal on alarm

Linearization

Galvanic isolation

Protocol-specific data HART

Terminal assignment

Power supply

Device plug connectors

Supply voltage
