Endress Hauser F 300 Operating Instructions
K
e
e
p
c
o
v
e
r
h
t
i
g
t
w
h
i
l
e
S
p
a
n
n
u
n
g
ö
f
f
n
e
n
BA01485D/06/EN/04.21
71505932
2021-01-01
Valid as of version
01.05.zz (Device firmware)
Products Solutions Services

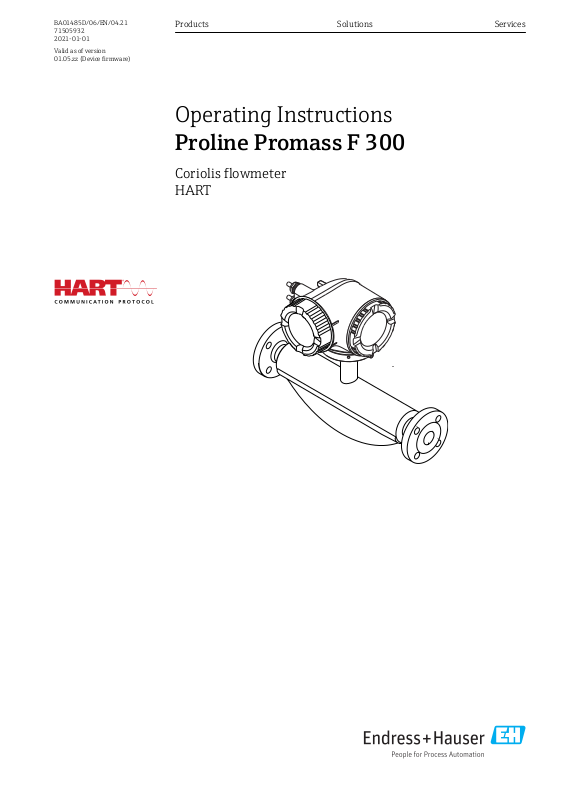

Operating Instructions
Proline Promass F 300
Coriolis flowmeter
HART
Proline Promass F 300 HART
• Make sure the document is stored in a safe place such that it is always available when
working on or with the device.
• To avoid danger to individuals or the facility, read the "Basic safety instructions" section
carefully, as well as all other safety instructions in the document that are specific to
working procedures.
• The manufacturer reserves the right to modify technical data without prior notice. Your
Endress+Hauser Sales Center will supply you with current information and updates to
these instructions.
2 Endress+Hauser
Proline Promass F 300 HART Table of contents
Table of contents
1 About this document ................ 6
1.1 Document function ..................... 6
1.2 Symbols .............................. 6
1.2.1 Safety symbols .................. 6
1.2.2 Electrical symbols ................ 6
1.2.3 Communication symbols ........... 6
1.2.4 Tool symbols .................... 7
1.2.5 Symbols for
certain types of information ......... 7
1.2.6 Symbols in graphics ............... 7
1.3 Documentation ........................ 8
1.3.1 Standard documentation ........... 8
1.3.2 Supplementary device-dependent
documentation .................. 8
1.4 Registered trademarks ................... 8
2 Safety instructions ................ 10
2.1 Requirements for the personnel ........... 10
2.2 Designated use ....................... 10
2.3 Workplace safety ...................... 11
2.4 Operational safety ..................... 11
2.5 Product safety ........................ 12
2.6 IT security ........................... 12
2.7 Device-specific IT security ................ 12
2.7.1 Protecting access via hardware write
protection ..................... 12
2.7.2 Protecting access via a password .... 13
2.7.3 Access via Web server ............ 13
2.7.4 Access via OPC-UA .............. 14
2.7.5 Access via service interface (CDI-
RJ45) ........................ 14
3 Product description ................ 15
3.1 Product design ........................ 15
4 Incoming acceptance and product
identification ..................... 16
4.1 Incoming acceptance ................... 16
4.2 Product identification ................... 16
4.2.1 Transmitter nameplate ........... 17
4.2.2 Sensor nameplate ............... 18
4.2.3 Symbols on measuring device ...... 19
5 Storage and transport ............. 20
5.1 Storage conditions ..................... 20
5.2 Transporting the product ................ 20
5.2.1 Measuring devices without lifting
lugs ......................... 20
5.2.2 Measuring devices with lifting lugs .. 21
5.2.3 Transporting with a fork lift ........ 21
5.3 Packaging disposal ..................... 21
6 Installation ....................... 22
6.1 Installation conditions .................. 22
6.1.1 Mounting position ............... 22
6.1.2 Environmental and process
requirements .................. 24
6.1.3 Special mounting instructions ...... 26
6.2 Mounting the measuring device ........... 28
6.2.1 Required tools .................. 28
6.2.2 Preparing the measuring device ..... 29
6.2.3 Mounting the measuring device ..... 29
6.2.4 Turning the transmitter housing .... 29
6.2.5 Turning the display module ........ 30
6.3 Post-installation check .................. 30
7 Electrical connection .............. 31
7.1 Connection conditions .................. 31
7.1.1 Required tools .................. 31
7.1.2 Requirements for connecting cable ... 31
7.1.3 Terminal assignment ............. 34
7.1.4 Preparing the measuring device ..... 34
7.2 Connecting the measuring device .......... 34
7.2.1 Connecting the transmitter ........ 34
7.2.2 Connecting the remote display and
operating module DKX001 ........ 37
7.3 Ensuring potential equalization ........... 37
7.3.1 Requirements .................. 37
7.4 Special connection instructions ............ 38
7.4.1 Connection examples ............. 38
7.5 Ensuring the degree of protection .......... 42
7.6 Post-connection check .................. 42
8 Operation options ................. 43
8.1 Overview of operation options ............ 43
8.2 Structure and function of the operating
menu .............................. 44
8.2.1 Structure of the operating menu .... 44
8.2.2 Operating philosophy ............ 45
8.3 Access to the operating menu via the local
display ............................. 46
8.3.1 Operational display .............. 46
8.3.2 Navigation view ................ 48
8.3.3 Editing view ................... 50
8.3.4 Operating elements .............. 52
8.3.5 Opening the context menu ......... 52
8.3.6 Navigating and selecting from list ... 54
8.3.7 Calling the parameter directly ...... 54
8.3.8 Calling up help text .............. 55
8.3.9 Changing the parameters ......... 55
8.3.10 User roles and related access
authorization .................. 56
8.3.11 Disabling write protection via access
code ......................... 56
8.3.12 Enabling and disabling the keypad
lock ......................... 57
Endress+Hauser 3
Table of contents Proline Promass F 300 HART
8.4 Access to the operating menu via the Web
browser ............................. 57
8.4.1 Function range ................. 57
8.4.2 Prerequisites ................... 58
8.4.3 Establishing a connection ......... 59
8.4.4 Logging on .................... 61
8.4.5 User interface .................. 62
8.4.6 Disabling the Web server .......... 63
8.4.7 Logging out .................... 63
8.5 Access to the operating menu via the
operating tool ........................ 64
8.5.1 Connecting the operating tool ...... 64
8.5.2 Field Xpert SFX350, SFX370 ....... 67
8.5.3 FieldCare ..................... 67
8.5.4 DeviceCare .................... 69
8.5.5 AMS Device Manager ............ 69
8.5.6 SIMATIC PDM .................. 70
8.5.7 Field Communicator 475 .......... 70
9 System integration ................ 71
9.1 Overview of device description files ......... 71
9.1.1 Current version data for the device ... 71
9.1.2 Operating tools ................. 71
9.2 Measured variables via HART protocol ...... 72
9.2.1 Device variables ................. 74
9.3 Other settings ........................ 76
10 Commissioning .................... 79
10.1 Function check ....................... 79
10.2 Switching on the measuring device ......... 79
10.3 Setting the operating language ............ 79
10.4 Configuring the measuring device .......... 79
10.4.1 Defining the tag name ............ 81
10.4.2 Setting the system units .......... 81
10.4.3 Selecting and setting the medium ... 84
10.4.4 Displaying the I/O configuration .... 85
10.4.5 Configuring the current input ...... 86
10.4.6 Configuring the status input ....... 87
10.4.7 Configuring the current output ..... 88
10.4.8 Configuring the pulse/frequency/
switch output .................. 92
10.4.9 Configuring the relay output ...... 101
10.4.10 Configuring the double pulse output 104
10.4.11 Configuring the local display ...... 105
10.4.12 Configuring the low flow cut off .... 110
10.4.13 Configuring the partial filled pipe
detection .................... 111
10.5 Advanced settings .................... 112
10.5.1 Using the parameter to enter the
access code ................... 113
10.5.2 Calculated values ............... 113
10.5.3 Carrying out a sensor adjustment ... 114
10.5.4 Configuring the totalizer ......... 115
10.5.5 Carrying out additional display
configurations ................. 118
10.5.6 WLAN configuration ............ 122
10.5.7 Configuration management ....... 124
10.5.8 Using parameters for device
administration ................ 125
10.6 Simulation .......................... 126
10.7 Protecting settings from unauthorized access 129
10.7.1 Write protection via access code ... 130
10.7.2 Write protection via write protection
switch ....................... 131
11 Operation ....................... 133
11.1 Reading the device locking status ......... 133
11.2 Adjusting the operating language ......... 133
11.3 Configuring the display ................ 133
11.4 Reading measured values ............... 133
11.4.1 "Measured variables" submenu ..... 134
11.4.2 "Totalizer" submenu ............. 135
11.4.3 "Input values" submenu .......... 136
11.4.4 Output values ................. 137
11.5 Adapting the measuring device to the process
conditions .......................... 139
11.6 Performing a totalizer reset ............. 139
11.6.1 Function scope of the "Control
Totalizer" parameter ............ 140
11.6.2 Function scope of the "Reset all
totalizers" parameter ............ 140
11.7 Showing data logging ................. 141
12 Diagnostics and troubleshooting .. 145
12.1 General troubleshooting ................ 145
12.2 Diagnostic information via light emitting
diodes ............................. 147
12.2.1 Transmitter ................... 147
12.3 Diagnostic information on local display ..... 149
12.3.1 Diagnostic message ............. 149
12.3.2 Calling up remedial measures ..... 151
12.4 Diagnostic information in the Web browser . 151
12.4.1 Diagnostic options .............. 151
12.4.2 Calling up remedy information .... 152
12.5 Diagnostic information in FieldCare or
DeviceCare ......................... 153
12.5.1 Diagnostic options .............. 153
12.5.2 Calling up remedy information .... 154
12.6 Adapting the diagnostic information ...... 154
12.6.1 Adapting the diagnostic behavior ... 154
12.6.2 Adapting the status signal ........ 154
12.7 Overview of diagnostic information ....... 155
12.8 Pending diagnostic events .............. 159
12.9 Diagnostic list ....................... 160
12.10 Event logbook ....................... 161
12.10.1 Reading out the event logbook ..... 161
12.10.2 Filtering the event logbook ....... 162
12.10.3 Overview of information events .... 162
12.11 Resetting the measuring device .......... 163
12.11.1 Function scope of the "Device reset"
parameter .................... 164
12.12 Device information ................... 164
12.13 Firmware history ..................... 166
12.14 Device history and compatibility .......... 168
4 Endress+Hauser
Proline Promass F 300 HART Table of contents
13 Maintenance .................... 169
13.1 Maintenance tasks .................... 169
13.1.1 Exterior cleaning ............... 169
13.1.2 Interior cleaning ............... 169
13.2 Measuring and test equipment ........... 169
13.3 Endress+Hauser services ............... 169
14 Repair ........................... 170
14.1 General notes ....................... 170
14.1.1 Repair and conversion concept ..... 170
14.1.2 Notes for repair and conversion .... 170
14.2 Spare parts ......................... 170
14.3 Endress+Hauser services ............... 170
14.4 Return ............................. 170
14.5 Disposal ........................... 171
14.5.1 Removing the measuring device .... 171
14.5.2 Disposing of the measuring device .. 171
15 Accessories ...................... 172
15.1 Device-specific accessories .............. 172
15.1.1 For the transmitter ............. 172
15.1.2 For the sensor ................. 173
15.2 Communication-specific accessories ....... 173
15.3 Service-specific accessories .............. 174
15.4 System components ................... 174
16 Technical data ................... 175
16.1 Application ......................... 175
16.2 Function and system design ............. 175
16.3 Input .............................. 176
16.4 Output ............................ 179
16.5 Power supply ........................ 185
16.6 Performance characteristics ............. 186
16.7 Installation ......................... 191
16.8 Environment ........................ 192
16.9 Process ............................ 192
16.10 Mechanical construction ............... 196
16.11 Human interface ..................... 200
16.12 Certificates and approvals .............. 204
16.13 Application packages .................. 207
16.14 Accessories ......................... 209
16.15 Supplementary documentation ........... 209
Index ................................. 212
Endress+Hauser 5
About this document Proline Promass F 300 HART
DANGER
WARNING
CAUTION
NOTICE
1 About this document
1.1 Document function
These Operating Instructions contain all the information that is required in various phases
of the life cycle of the device: from product identification, incoming acceptance and
storage, to mounting, connection, operation and commissioning through to
troubleshooting, maintenance and disposal.
1.2 Symbols
1.2.1 Safety symbols
This symbol alerts you to a dangerous situation. Failure to avoid this situation will result in
serious or fatal injury.
This symbol alerts you to a dangerous situation. Failure to avoid this situation can result in
serious or fatal injury.
This symbol alerts you to a dangerous situation. Failure to avoid this situation can result in
minor or medium injury.
This symbol contains information on procedures and other facts which do not result in
personal injury.
1.2.2 Electrical symbols
Symbol Meaning
Direct current
Alternating current
Direct current and alternating current
Ground connection
A grounded terminal which, as far as the operator is concerned, is grounded via a
grounding system.
Protective Earth (PE)
A terminal which must be connected to ground prior to establishing any other
connections.
The ground terminals are situated inside and outside the device:
• Inner ground terminal: Connects the protectiv earth to the mains supply.
• Outer ground terminal: Connects the device to the plant grounding system.
1.2.3 Communication symbols
Symbol Meaning
Wireless Local Area Network (WLAN)
Communication via a wireless, local network.
LED
Light emitting diode is off.
6 Endress+Hauser
Proline Promass F 300 HART About this document
A
1.
1.
-
Symbol Meaning
LED
Light emitting diode is on.
LED
Light emitting diode is flashing.
1.2.4 Tool symbols
Symbol Meaning
Flat blade screwdriver
Allen key
Open-ended wrench
1.2.5 Symbols for certain types of information
Symbol Meaning
Permitted
Procedures, processes or actions that are permitted.
Preferred
Procedures, processes or actions that are preferred.
Forbidden
Procedures, processes or actions that are forbidden.
Tip
Indicates additional information.
Reference to documentation.
Reference to page.
Reference to graphic.
Notice or individual step to be observed.
, 2., 3.… Series of steps.
Result of a step.
Help in the event of a problem.
Visual inspection.
1.2.6 Symbols in graphics
Symbol Meaning
1, 2, 3, ... Item numbers
, 2., 3., … Series of steps
A, B, C, ... Views
A-A, B-B, C-C, ... Sections
Hazardous area
Endress+Hauser 7
About this document Proline Promass F 300 HART
.
Symbol Meaning
Safe area (non-hazardous area)
Flow direction
1.3 Documentation
For an overview of the scope of the associated Technical Documentation, refer to the
following:
• W@M Device Viewer (www.endress.com/deviceviewer): Enter the serial number
from nameplate
• Endress+Hauser Operations App: Enter the serial number from the nameplate or
scan the 2D matrix code (QR code) on the nameplate
Detailed list of the individual documents along with the documentation code
→ 209
1.3.1 Standard documentation
Document type Purpose and content of the document
Technical Information Planning aid for your device
The document contains all the technical data on the device and provides
an overview of the accessories and other products that can be ordered for
the device.
Sensor Brief Operating Instructions Guides you quickly to the 1st measured value - Part 1
The Sensor Brief Operating Instructions are aimed at specialists with
responsibility for installing the measuring device.
• Incoming acceptance and product identification
• Storage and transport
• Installation
Transmitter Brief Operating
Instructions
Description of Device Parameters Reference for your parameters
Guides you quickly to the 1st measured value - Part 2
The Transmitter Brief Operating Instructions are aimed at specialists with
responsibility for commissioning, configuring and parameterizing the
measuring device (until the first measured value).
• Product description
• Installation
• Electrical connection
• Operation options
• System integration
• Commissioning
• Diagnostic information
The document provides a detailed explanation of each individual
parameter in the Expert operating menu. The description is aimed at
those who work with the device over the entire life cycle and perform
specific configurations.
1.3.2 Supplementary device-dependent documentation
Additional documents are supplied depending on the device version ordered: Always
comply strictly with the instructions in the supplementary documentation. The
supplementary documentation is an integral part of the device documentation.
1.4 Registered trademarks
HART®
Registered trademark of the FieldComm Group, Austin, Texas, USA
8 Endress+Hauser
Proline Promass F 300 HART About this document
TRI-CLAMP®
Registered trademark of Ladish & Co., Inc., Kenosha, USA
Endress+Hauser 9
Safety instructions Proline Promass F 300 HART
2 Safety instructions
2.1 Requirements for the personnel
The personnel for installation, commissioning, diagnostics and maintenance must fulfill
the following requirements:
Trained, qualified specialists must have a relevant qualification for this specific function
‣
and task.
Are authorized by the plant owner/operator.
‣
Are familiar with federal/national regulations.
‣
Before starting work, read and understand the instructions in the manual and
‣
supplementary documentation as well as the certificates (depending on the
application).
Follow instructions and comply with basic conditions.
‣
The operating personnel must fulfill the following requirements:
Are instructed and authorized according to the requirements of the task by the facility's
‣
owner-operator.
Follow the instructions in this manual.
‣
2.2 Designated use
Application and media
The measuring device described in this manual is intended only for the flow measurement
of liquids and gases.
Depending on the version ordered, the measuring device can also measure potentially
explosive, flammable, poisonous and oxidizing media.
Measuring devices for use in hazardous areas, in hygienic applications or where there is an
increased risk due to process pressure, are labeled accordingly on the nameplate.
To ensure that the measuring device remains in proper condition for the operation time:
Keep within the specified pressure and temperature range.
‣
Only use the measuring device in full compliance with the data on the nameplate and
‣
the general conditions listed in the Operating Instructions and supplementary
documentation.
Based on the nameplate, check whether the ordered device is permitted for the
‣
intended use in the hazardous area (e.g. explosion protection, pressure vessel safety).
Use the measuring device only for media to which the process-wetted materials are
‣
sufficiently resistant.
If the ambient temperature of the measuring device is outside the atmospheric
‣
temperature, it is absolutely essential to comply with the relevant basic conditions as
specified in the device documentation→ 8.
Protect the measuring device permanently against corrosion from environmental
‣
influences.
Incorrect use
Non-designated use can compromise safety. The manufacturer is not liable for damage
caused by improper or non-designated use.
WARNING
L
Danger of breakage due to corrosive or abrasive fluids and ambient conditions!
Verify the compatibility of the process fluid with the sensor material.
‣
Ensure the resistance of all fluid-wetted materials in the process.
‣
Keep within the specified pressure and temperature range.
‣
10 Endress+Hauser
Proline Promass F 300 HART Safety instructions
NOTICE
Verification for borderline cases:
For special fluids and fluids for cleaning, Endress+Hauser is glad to provide assistance
‣
in verifying the corrosion resistance of fluid-wetted materials, but does not accept any
warranty or liability as minute changes in the temperature, concentration or level of
contamination in the process can alter the corrosion resistance properties.
Residual risks
WARNING
L
The electronics and the medium may cause the surfaces to heat up. This presents a
burn hazard!
For elevated fluid temperatures, ensure protection against contact to prevent burns.
‣
WARNING
L
Danger of housing breaking due to measuring tube breakage!
If a measuring tube ruptures, the pressure inside the sensor housing will rise according to
the operating process pressure.
Use a rupture disk.
‣
WARNING
L
Danger from medium escaping!
For device versions with a rupture disk: medium escaping under pressure can cause injury
or material damage.
Take precautions to prevent injury and material damage if the rupture disk is actuated.
‣
2.3 Workplace safety
For work on and with the device:
Wear the required personal protective equipment according to federal/national
‣
regulations.
For welding work on the piping:
Do not ground the welding unit via the measuring device.
‣
If working on and with the device with wet hands:
Due to the increased risk of electric shock, gloves must be worn.
‣
2.4 Operational safety
Risk of injury.
Operate the device in proper technical condition and fail-safe condition only.
‣
The operator is responsible for interference-free operation of the device.
‣
Conversions to the device
Unauthorized modifications to the device are not permitted and can lead to unforeseeable
dangers.
If, despite this, modifications are required, consult with Endress+Hauser.
‣
Repair
To ensure continued operational safety and reliability,
Carry out repairs on the device only if they are expressly permitted.
‣
Observe federal/national regulations pertaining to repair of an electrical device.
‣
Use original spare parts and accessories from Endress+Hauser only.
‣
Endress+Hauser 11
Safety instructions Proline Promass F 300 HART
2.5 Product safety
This measuring device is designed in accordance with good engineering practice to meet
state-of-the-art safety requirements, has been tested, and left the factory in a condition in
which it is safe to operate.
It meets general safety standards and legal requirements. It also complies with the EU
directives listed in the device-specific EU Declaration of Conformity. Endress+Hauser
confirms this by affixing the CE mark to the device.
2.6 IT security
Our warranty is valid only if the device is installed and used as described in the Operating
Instructions. The device is equipped with security mechanisms to protect it against any
inadvertent changes to the settings.
IT security measures, which provide additional protection for the device and associated
data transfer, must be implemented by the operators themselves in line with their security
standards.
2.7 Device-specific IT security
The device offers a range of specific functions to support protective measures on the
operator's side. These functions can be configured by the user and guarantee greater inoperation safety if used correctly. An overview of the most important functions is provided
in the following section.
Function/interface Factory setting Recommendation
Write protection via hardware write
protection switch → 12
Access code
(also applies for Web server login or
FieldCare connection) → 13
WLAN
(order option in display module)
WLAN security mode Enabled (WPA2-
WLAN passphrase
(password) → 13
WLAN mode Access Point On an individual basis following risk
Web server→ 13 Enabled. On an individual basis following risk
CDI-RJ45 service interface → 14 – On an individual basis following risk
Not enabled. On an individual basis following risk
assessment.
Not enabled
(0000).
Enabled. On an individual basis following risk
PSK)
Serial number Assign an individual WLAN passphrase during
Assign a customized access code during
commissioning.
assessment.
Do not change.
commissioning.
assessment.
assessment.
assessment.
2.7.1 Protecting access via hardware write protection
Write access to the device parameters via the local display, Web browser or operating tool
(e.g. FieldCare, DeviceCare) can be disabled via a write protection switch (DIP switch on
the motherboard). When hardware write protection is enabled, only read access to the
parameters is possible.
Hardware write protection is disabled when the device is delivered → 131.
12 Endress+Hauser
Proline Promass F 300 HART Safety instructions
2.7.2 Protecting access via a password
Different passwords are available to protect write access to the device parameters or access
to the device via the WLAN interface.
• User-specific access code
Protect write access to the device parameters via the local display, Web browser or
operating tool (e.g. FieldCare, DeviceCare). Access authorization is clearly regulated
through the use of a user-specific access code.
• WLAN passphrase
The network key protects a connection between an operating unit (e.g. notebook or
tablet) and the device via the WLAN interface which can be ordered as an option.
• Infrastructure mode
When the device is operated in infrastructure mode, the WLAN passphrase corresponds
to the WLAN passphrase configured on the operator side.
User-specific access code
Write access to the device parameters via the local display, Web browser or operating tool
(e.g. FieldCare, DeviceCare) can be protected by the modifiable, user-specific access code
(→ 130).
When the device is delivered, the device does not have an access code and is equivalent to
0000 (open).
WLAN passphrase: Operation as WLAN access point
A connection between an operating unit (e.g. notebook or tablet) and the device via the
WLAN interface (→ 66), which can be ordered as an optional extra, is protected by
the network key. The WLAN authentication of the network key complies with the
IEEE 802.11 standard.
When the device is delivered, the network key is pre-defined depending on the device. It
can be changed via the WLAN settings submenu in the WLAN passphrase parameter
(→ 123).
Infrastructure mode
A connection between the device and WLAN access point is protected by means of an SSID
and passphrase on the system side. Please contact the relevant system administrator for
access.
General notes on the use of passwords
• The access code and network key supplied with the device should be changed during
commissioning.
• Follow the general rules for generating a secure password when defining and managing
the access code or network key.
• The user is responsible for the management and careful handling of the access code and
network key.
• For information on configuring the access code or on what to do if you lose the
password, see the "Write protection via access code" section → 130
2.7.3 Access via Web server
The device can be operated and configured via a Web browser with the integrated Web
server (→ 57). The connection is via the service interface (CDI-RJ45) or the WLAN
interface.
The Web server is enabled when the device is delivered. The Web server can be disabled if
necessary (e.g. after commissioning) via the Web server functionality parameter.
Endress+Hauser 13
Safety instructions Proline Promass F 300 HART
The device and status information can be hidden on the login page. This prevents
unauthorized access to the information.
For detailed information on device parameters, see:
The "Description of Device Parameters" document → 209.
2.7.4 Access via OPC-UA
The device can communicate with OPC UA clients using the "OPC UA Server" application
package.
The OPC UA server integrated in the device can be accessed via the WLAN access point
using the WLAN interface - which can be ordered as an optional extra - or the service
interface (CDI- RJ45) via Ethernet network. Access rights and authorization as per
separate configuration.
The following Security Modes are supported as per the OPC UA Specification (IEC 62541):
• None
• Basic128Rsa15 – signed
• Basic128Rsa15 – signed and encrypted
2.7.5 Access via service interface (CDI-RJ45)
The device can be connected to a network via the service interface (CDI-RJ45). Devicespecific functions guarantee the secure operation of the device in a network.
The use of relevant industrial standards and guidelines that have been defined by national
and international safety committees, such as IEC/ISA62443 or the IEEE, is recommended.
This includes organizational security measures such as the assignment of access
authorization as well as technical measures such as network segmentation.
Transmitters with an Ex de approval may not be connected via the service interface
(CDI-RJ45)!
Order code for "Approval transmitter + sensor", options (Ex de): BA, BB, C1, C2, GA,
GB, MA, MB, NA, NB
14 Endress+Hauser
Proline Promass F 300 HART Product description
5
4
Nicht unter
Spannung öffnen
Do not open when
energized
Ne pas ouvrir
sous tension
Power
I/O
N
i
c
h
t
u
n
t
e
r
a
r
e
ö
f
f
n
e
n
D
i
s
p
l
a
y
+
E
ESC
–
1
2
3
3 Product description
The device consists of a transmitter and a sensor.
The device is available as a compact version:
The transmitter and sensor form a mechanical unit.
3.1 Product design
A0029586
1 Important components of a measuring device
1 Connection compartment cover
2 Display module
3 Transmitter housing
4 Electronics compartment cover
5 Sensor
Endress+Hauser 15
Incoming acceptance and product identification Proline Promass F 300 HART
1
2
1
2
Order code:
Ser. no.:
Ext. ord. cd.:
i
i
Date:
4 Incoming acceptance and product
identification
4.1 Incoming acceptance
Are the order codes on the
delivery note (1) and the
product sticker (2) identical?
Are the goods undamaged?
Do the nameplate data
match the ordering
information on the delivery
note?
Is the envelope present with
accompanying documents?
• If one of the conditions is not satisfied, contact your Endress+Hauser Sales Center.
• Depending on the device version, the CD-ROM might not be part of the delivery!
The Technical Documentation is available via the Internet or via the Endress+Hauser
Operations App, see the "Product identification" section → 17.
4.2 Product identification
The following options are available for identification of the device:
• Nameplate specifications
• Order code with breakdown of the device features on the delivery note
• Enter serial numbers from nameplates in the W@M Device Viewer
(www.endress.com/deviceviewer): All information about the device is displayed.
• Enter the serial number from nameplates in the Endress+Hauser Operations App or scan
the 2-D matrix code (QR code) on the nameplate using the Endress+Hauser Operations
App: All information about the device is displayed.
16 Endress+Hauser
Proline Promass F 300 HART Incoming acceptance and product identification
Order code:
Ser. no.:
Ext. ord. cd.:
i
i
Date:
1 2 3 4 5
20
19
6
7
8
9
13 12 1011
18
17
16
14
15
For an overview of the scope of the associated Technical Documentation, refer to the
following:
• The "Additional standard documentation on the device"→ 8 and "Supplementary
device-dependent documentation"→ 8 sections
• The W@M Device Viewer: enter the serial number from the nameplate
(www.endress.com/deviceviewer)
• The Endress+Hauser Operations App: Enter the serial number from the nameplate or
scan the 2-D matrix code (QR code) on the nameplate.
4.2.1 Transmitter nameplate
A0029192
2 Example of a transmitter nameplate
1 Manufacturing location
2 Name of the transmitter
3 Order code
4 Serial number (ser. no.)
5 Extended order code (Ext. ord. cd.)
6 Degree of protection
7 Space for approvals: use in hazardous areas
8 Electrical connection data: available inputs and outputs
9 2-D matrix code
10 Manufacturing date: year-month
11 Document number of safety-related supplementary documentation
12 Space for approvals and certificates: e.g. CE mark, C-Tick
13 Space for degree of protection of connection and electronics compartment when used in hazardous areas
14 Firmware version (FW) and device revision (Dev.Rev.) from the factory
15 Space for additional information in the case of special products
16 Permitted temperature range for cable
17 Permitted ambient temperature (Ta)
18 Information on cable gland
19 Available inputs and outputs, supply voltage
20 Electrical connection data: supply voltage
Endress+Hauser 17
Incoming acceptance and product identification Proline Promass F 300 HART
Order code:
Ser. no.:
Ext. ord. cd.:
i
i
Date:
1
3
4
5
6
7
8
9
2
10
1112
4.2.2 Sensor nameplate
A0029199
3 Example of a sensor nameplate
1 Name of the sensor
2 Manufacturing location
3 Order code
4 Serial number (ser. no.)
5 Extended order code (Ext. ord. cd.)
6 Nominal diameter of the sensor; flange nominal diameter/nominal pressure; sensor test pressure; medium
temperature range; material of measuring tube and manifold; sensor-specific information: e.g. pressure range
of sensor housing, wide-range density specification (special density calibration)
7 Approval information for explosion protection, Pressure Equipment Directive and degree of protection
8 Flow direction
9 Manufacturing date: year-month
10 2-D matrix code
11 Document number of safety-related supplementary documentation
12 CE mark, C-Tick
13 Surface roughness
14 Permitted ambient temperature (Ta)
Order code
The measuring device is reordered using the order code.
Extended order code
• The device type (product root) and basic specifications (mandatory features) are
always listed.
• Of the optional specifications (optional features), only the safety and approvalrelated specifications are listed (e.g. LA). If other optional specifications are also
ordered, these are indicated collectively using the # placeholder symbol (e.g. #LA#).
• If the ordered optional specifications do not include any safety and approval-related
specifications, they are indicated by the + placeholder symbol (e.g. XXXXXX-ABCDE
+).
18 Endress+Hauser
Proline Promass F 300 HART Incoming acceptance and product identification
4.2.3 Symbols on measuring device
Symbol Meaning
WARNING!
This symbol alerts you to a dangerous situation. Failure to avoid this situation can result in serious
or fatal injury.
Reference to documentation
Refers to the corresponding device documentation.
Protective ground connection
A terminal which must be connected to ground prior to establishing any other connections.
Endress+Hauser 19
Storage and transport Proline Promass F 300 HART
5 Storage and transport
5.1 Storage conditions
Observe the following notes for storage:
Store in the original packaging to ensure protection from shock.
‣
Do not remove protective covers or protective caps installed on process connections.
‣
They prevent mechanical damage to the sealing surfaces and contamination in the
measuring tube.
Protect from direct sunlight to avoid unacceptably high surface temperatures.
‣
Store in a dry and dust-free place.
‣
Do not store outdoors.
‣
Storage temperature→ 192
5.2 Transporting the product
Transport the measuring device to the measuring point in the original packaging.
A0029252
Do not remove protective covers or caps installed on process connections. They
prevent mechanical damage to the sealing surfaces and contamination in the
measuring tube.
5.2.1 Measuring devices without lifting lugs
WARNING
L
Center of gravity of the measuring device is higher than the suspension points of the
webbing slings.
Risk of injury if the measuring device slips.
Secure the measuring device against slipping or turning.
‣
Observe the weight specified on the packaging (stick-on label).
‣
A0029214
20 Endress+Hauser
Proline Promass F 300 HART Storage and transport
5.2.2 Measuring devices with lifting lugs
CAUTION
L
Special transportation instructions for devices with lifting lugs
Only use the lifting lugs fitted on the device or flanges to transport the device.
‣
The device must always be secured at two lifting lugs at least.
‣
5.2.3 Transporting with a fork lift
If transporting in wood crates, the floor structure enables the crates to be lifted lengthwise
or at both sides using a forklift.
5.3 Packaging disposal
All packaging materials are environmentally friendly and 100 % recyclable:
• Outer packaging of device
Polymer stretch wrap that complies with EU Directive 2002/95/EC (RoHS)
• Packaging
• Wooden crate treated in accordance with ISPM 15 standard, confirmed by IPPC logo
• Cardboard box in accordance with European packaging guideline 94/62EC,
recyclability confirmed by Resy symbol
• Carrying and securing materials
• Disposable plastic pallet
• Plastic straps
• Plastic adhesive strips
• Filler material
Paper pads
Endress+Hauser 21
Installation Proline Promass F 300 HART
1
2
3
4
5
6 Installation
6.1 Installation conditions
6.1.1 Mounting position
Mounting location
To prevent measuring errors arising from accumulation of gas bubbles in the measuring
tube, avoid the following mounting locations in the pipe:
• Highest point of a pipeline.
• Directly upstream of a free pipe outlet in a down pipe.
Installation in down pipes
However, the following installation suggestion allows for installation in an open vertical
pipeline. Pipe restrictions or the use of an orifice with a smaller cross-section than the
nominal diameter prevent the sensor running empty while measurement is in progress.
A0028772
4 Installation in a down pipe (e.g. for batching applications)
1 Supply tank
2 Sensor
3 Orifice plate, pipe restriction
4 Valve
5 Batching tank
22 Endress+Hauser
A0028773
Proline Promass F 300 HART Installation
DN Ø orifice plate, pipe restriction
[mm] [in] [mm] [in]
8 ³⁄₈ 6 0.24
15 ½ 10 0.40
25 1 14 0.55
40 1½ 22 0.87
50 2 28 1.10
80 3 50 1.97
100 4 65 2.60
150 6 90 3.54
250 10 150 5.91
Orientation
The direction of the arrow on the sensor nameplate helps you to install the sensor
according to the flow direction (direction of medium flow through the piping).
Orientation Recommendation
A Vertical orientation
A0015591
B Horizontal orientation, transmitter at
top
1)
2)
Exceptions:
→ 5, 24
A0015589
C Horizontal orientation, transmitter at
bottom
3)
Exceptions:
→ 5, 24
A0015590
D Horizontal orientation, transmitter at
side
A0015592
1) This orientation is recommended to ensure self-draining.
2) Applications with low process temperatures may decrease the ambient temperature. To maintain the
minimum ambient temperature for the transmitter, this orientation is recommended.
3) Applications with high process temperatures may increase the ambient temperature. To maintain the
maximum ambient temperature for the transmitter, this orientation is recommended.
If a sensor is installed horizontally with a curved measuring tube, match the position of the
sensor to the fluid properties.
Endress+Hauser 23
Installation Proline Promass F 300 HART
1 2
A0028774
5 Orientation of sensor with curved measuring tube
1 Avoid this orientation for fluids with entrained solids: Risk of solids accumulating.
2 Avoid this orientation for outgassing fluids: Risk of gas accumulating.
Inlet and outlet runs
No special precautions need to be taken for fittings that create turbulence, such as valves,
elbows or T-pieces, as long as no cavitation occurs→ 24.
A0029322 A0029323
Installation dimensions
For the dimensions and installation lengths of the device, see the "Technical
Information" document, "Mechanical construction" section .
6.1.2 Environmental and process requirements
Ambient temperature range
Measuring device • –40 to +60 °C (–40 to +140 °F)
• Order code for "Test, certificate", option JP:
–50 to +60 °C (–58 to +140 °F)
Readability of the local
display
Dependency of ambient temperature on medium temperature→ 192
If operating outdoors:
‣
Avoid direct sunlight, particularly in warm climatic regions.
–20 to +60 °C (–4 to +140 °F)
The readability of the display may be impaired at temperatures outside the
temperature range.
You can order a weather protection cover from Endress+Hauser. → 172.
System pressure
It is important that cavitation does not occur, or that gases entrained in the liquids do not
outgas.
24 Endress+Hauser
Proline Promass F 300 HART Installation
Cavitation is caused if the pressure drops below the vapor pressure:
• In liquids that have a low boiling point (e.g. hydrocarbons, solvents, liquefied gases)
• In suction lines
Ensure the system pressure is sufficiently high to prevent cavitation and outgassing.
‣
For this reason, the following mounting locations are recommended:
• At the lowest point in a vertical pipe
• Downstream from pumps (no danger of vacuum)
A0028777
Thermal insulation
In the case of some fluids, it is important to keep the heat radiated from the sensor to the
transmitter to a low level. A wide range of materials can be used for the required
insulation.
The following device versions are recommended for versions with thermal insulation:
• Version with extended neck for insulation:
Order code for "Sensor option", option CG with an extended neck length of
105 mm (4.13 in).
• Extended temperature version:
Order code for "Measuring tube material", option SD, SE, SF or TH with an extended neck
length of 105 mm (4.13 in).
• High-temperature version:
Order code for "Measuring tube material", option TS, TT or TU with an extended neck
length of 142 mm (5.59 in).
NOTICE
Electronics overheating on account of thermal insulation!
Recommended orientation: horizontal orientation, transmitter housing pointing
‣
downwards.
Do not insulate the transmitter housing .
‣
Maximum permissible temperature at the lower end of the transmitter housing:
‣
80 °C (176 °F)
Thermal insulation with extended neck free: We recommend that you do not insulate
‣
the extended neck in order to ensure optimum dissipation of heat.
6 Thermal insulation with extended neck free
Low-temperature version: It is generally not necessary to insulate the transmitter
housing . If insulation is provided, the rules that apply are the same as those for
thermal insulation.
A0034391
Endress+Hauser 25
Installation Proline Promass F 300 HART
Heating
NOTICE
Electronics can overheat due to elevated ambient temperature!
Observe maximum permitted ambient temperature for the transmitter .
‣
Depending on the fluid temperature, take the device orientation requirements into
‣
account .
NOTICE
Danger of overheating when heating
Ensure that the temperature at the lower end of the transmitter housing does not
‣
exceed 80 °C (176 °F).
Ensure that sufficient convection takes place at the transmitter neck.
‣
Ensure that a sufficiently large area of the transmitter neck remains exposed. The
‣
uncovered part serves as a radiator and protects the electronics from overheating and
excessive cooling.
When using in potentially explosive atmospheres, observe the information in the
‣
device-specific Ex documentation. For detailed information on the temperature tables,
see the separate document entitled "Safety Instructions" (XA) for the device.
Heating options
If a fluid requires that no heat loss should occur at the sensor, users can avail of the
following heating options:
• Electrical heating, e.g. with electric band heaters
• Via pipes carrying hot water or steam
• Via heating jackets
Vibrations
The high oscillation frequency of the measuring tubes ensures that the correct operation of
the measuring system is not influenced by plant vibrations.
6.1.3 Special mounting instructions
Drainability
The measuring tubes can be completely drained and protected against solids build-up in
vertical orientation.
Sanitary compatibility
• When installing in hygienic applications, please refer to the information in the
"Certificates and approvals/hygienic compatibility" section → 205
• In the case of measuring devices with the order code for "Housing", option B
"Stainless, hygienic", to seal the connection compartment cover, screw it closed
finger-tight and then tighten it by another 45° (corresponds to 15 Nm).
Rupture disk
Information that is relevant to the process: → 195.
26 Endress+Hauser
Proline Promass F 300 HART Installation
RUPTURE DISK
i
2
3
1
DN 8 ( ")...150 (6")!⁄# DN 250 (10")
2
3
WARNING
L
Danger from medium escaping!
Medium escaping under pressure can cause injury or material damage.
Take precautions to prevent danger to persons and damage if the rupture disk is
‣
actuated.
Observe information on the rupture disk sticker.
‣
Make sure that the function and operation of the rupture disk is not impeded through
‣
the installation of the device.
Do not use a heating jacket.
‣
Do not remove or damage the rupture disk.
‣
The position of the rupture disk is indicated by a sticker beside it.
The transportation guard must be removed.
The existing connecting nozzles are not intended for the purpose of rinsing or pressure
monitoring, but instead serve as the mounting location for the rupture disk.
In the event of a failure of the rupture disk, a drain device can be screwed onto the female
thread of the rupture disk in order to drain off any escaping medium.
1 Rupture disk label
2 Rupture disk with 1/2" NPT female thread and 1" width across flat
3 Transportation guard
For information on the dimensions: see the "Mechanical construction" section of the
"Technical Information" document
Zero point adjustment
All measuring devices are calibrated in accordance with state-of-the-art technology.
Calibration takes place under reference conditions→ 186. Therefore, a zero point
adjustment in the field is generally not required.
Experience shows that zero point adjustment is advisable only in special cases:
• To achieve maximum measuring accuracy even with low flow rates.
• Under extreme process or operating conditions (e.g. very high process temperatures or
very high-viscosity fluids).
A0028903
Endress+Hauser 27
Installation Proline Promass F 300 HART
146 (5.75)
48 (1.9)
12 (0.47)
280 (11.0) 255 (10.0)
134 (5.3)
30 (1.18)
1
1
2
2
1
5 (0.2) min. 15 (0.6)
SW 2.5
M3
Protective cover
A0029553
7 Engineering unit mm (in)
Cover locking
NOTICE
Order code for "Housing", option L "Cast, stainless": The covers of the transmitter
housing are provided with a borehole to lock the cover.
The cover can be locked using screws and a chain or cable provided by the customer.
It is recommended to use stainless steel cables or chains.
‣
If a protective coating is applied, it is recommended to use a heat shrink tube to protect
‣
the housing paint.
1 Cover borehole for the securing screw
2 Securing screw to lock the cover
6.2 Mounting the measuring device
6.2.1 Required tools
For sensor
For flanges and other process connections: Corresponding mounting tools
28 Endress+Hauser
A0029800
Proline Promass F 300 HART Installation
N
i
c
h
t
u
n
t
e
r
a
r
e
ö
f
f
n
e
n
+
E
ESC
–
1.
2.
N
i
c
h
t
u
n
t
e
r
a
r
e
ö
f
f
n
e
n
+
E
ESC
–
3.
3 mm 4 mm
4.
6.2.2 Preparing the measuring device
1. Remove all remaining transport packaging.
2. Remove any protective covers or protective caps present from the sensor.
3. Remove stick-on label on the electronics compartment cover.
6.2.3 Mounting the measuring device
WARNING
L
Danger due to improper process sealing!
Ensure that the inside diameters of the gaskets are greater than or equal to that of the
‣
process connections and piping.
Ensure that the seals are clean and undamaged.
‣
Secure the seals correctly.
‣
1. Ensure that the direction of the arrow on the nameplate of the sensor matches the
flow direction of the fluid.
2. Install the measuring device or turn the transmitter housing so that the cable entries
do not point upwards.
A0029263
6.2.4 Turning the transmitter housing
To provide easier access to the connection compartment or display module, the transmitter
housing can be turned.
A0029993
1. Depending on the device version: Loosen the securing clamp of the connection
compartment cover.
2. Unscrew the connection compartment cover.
3. Release the fixing screw.
4. Turn the housing to the desired position.
5. Firmly tighten the securing screw.
6. Screw on the connection compartment cover.
Endress+Hauser 29
Installation Proline Promass F 300 HART
N
i
c
h
t
u
n
t
e
r
a
r
e
ö
f
f
n
e
n
+
E
ESC
–
1.
2.
N
i
c
h
t
u
n
t
e
r
a
r
e
ö
f
f
n
e
n
+
E
ESC
–
3.
3 mm
+
E
ESC
–
7. Depending on the device version: Attach the securing clamp of the connection
compartment cover.
6.2.5 Turning the display module
The display module can be turned to optimize display readability and operability.
A0030035
1. Depending on the device version: Loosen the securing clamp of the connection
compartment cover.
2. Unscrew the connection compartment cover.
3. Turn the display module to the desired position: max. 8 × 45° in each direction.
4. Screw on the connection compartment cover.
5. Depending on the device version: Attach the securing clamp of the connection
compartment cover.
6.3 Post-installation check
Is the device undamaged (visual inspection)?
Does the measuring device conform to the measuring point specifications?
For example:
• Process temperature → 192
• Process pressure (refer to the section on "Pressure-temperature ratings" in the "Technical
Information" document)
• Ambient temperature
• Measuring range
Has the correct orientation for the sensor been selected ?
• According to sensor type
• According to medium temperature
• According to medium properties (outgassing, with entrained solids)
Does the arrow on the sensor nameplate match the direction of flow of the fluid through the
piping → 23?
Are the measuring point identification and labeling correct (visual inspection)?
Is the device adequately protected from precipitation and direct sunlight?
Are the securing screw and securing clamp tightened securely?
30 Endress+Hauser
