Instruction Manual

D100394X012

Fisher™ EHD, EHS, and EHT Valves NPS 1-1/2x1 through NPS 8x6

EH (1-1/2x1 through 8x6)

July 2017

Contents

Introduction 1.................................

Scope of Manual 1.............................

Description 2.................................

Specifications 3...............................

Educational Services 3.........................

Installation 4..................................

Maintenance 6.................................

Packing Lubrication 7..........................

Packing Maintenance 7.........................

Replacing Packing 8........................

Trim Removal 12..............................

Valve Plug Maintenance 14.....................

Lapping Seats 15..............................

Trim Replacement 16..........................

Retrofit: Installing C‐seal Trim 21................

Replacement of Installed C‐seal Trim 24...........

Trim Removal (C‐seal Constructions) 24.......

Lapping Metal Seats (C‐seal Constructions) 26..

Remachining Metal Seats

(C‐seal Constructions) 26.................

Trim Replacement (C‐seal Constructions) 26...

Parts Ordering 28...............................

Parts Kits 28...................................

Parts List 29...................................

Figure 1. Fisher EH Valve with 657 Actuator

W3387

Introduction

Scope of Manual

This instruction manual includes installation, maintenance, and parts information for the Fisher EHD, EHS, and EHT control valves in NPS 1-1/2 x 1 through NPS 8x6. Refer to separate manuals for instructions covering the actuator, positioner, ENVIRO‐SEAL

Do not install, operate, or maintain EHD, EHS, or EHT valves without being fully trained and qualified in valve, actuator, and accessory installation, operation, and maintenance. To avoid personal injury or property damage, it is important to carefully read, understand, and follow all the contents of this manual, including all safety cautions and warnings. If you have any questions about these instructions, contact your Emerson sales office proceeding.

Unless otherwise noted, all NACE references are to NACE MR0175‐2002.

www.Fisher.com

™

packing, HIGH‐SEAL packing, and accessories.

or Local Business Partner before

EH (1-1/2x1 through 8x6)

July 2017

Table 1. Specifications

Instruction Manual

D100394X012

End Connection Styles

Buttwelding: All available ASME B16.25 schedules that are compatible with ASME B16.34 pressure/temperature ratings

Flow Characteristic

Standard Cage: J Equal percentage, J modified equal percentage

Cavitrol

™

III or Whisper Trim™ III Cage: Linear

Flanged: CL2500 J ring‐type joint (RTJ) or

J raised‐face (RF) flanges according to ASME B16.5

Socket Welding: Consistent with ASME B16.11

Flow Direction

EHD or EHT: Flow down, except with either a Whisper

Maximum Inlet Pressure

(1)

Buttwelding: Consistent with CL2500 pressure‐temperature ratings per ASME B16.34

Trim III cage or a valve plug with diverter cone, both of which are flow up

EHS: Flow up, except flow down with Cavitrol III cage

Flanged: Consistent with CL2500

pressure‐temperature ratings per ASME B16.34 Socket Welding: Consistent with CL2500 pressure‐temperature ratings per ASME B16.34

Approximate Weights (Valve Body and Bonnet Assemblies)

See table 6

Shutoff Classifications

See table 2 C‐seal trim: High‐temperature, Class V. See table 3 TSO (Tight Shutoff) trim: See tables 4 and 5

1. The pressure or temperature limits in this manual and any applicable standard limitations should not be exceeded.

2. Modified equal percentage characteristic is equal‐percentage for the first 90% of travel, then quick‐opening for additional capacity.

Additional Specifications

For specifications such as materials, valve plug travels, and port, yoke boss, and stem diameters, see the Parts List section

Table 2. Shutoff Classifications per ANSI/FCI 70‐2 and IEC 60534‐4

Valve

EHD

EHS w/Cavitrol III, or

EHT w/Cavitrol III

EHS, EHT,

EHS w/Micro‐Form or

EHS w/Micro Flute

EHT w/ PEEK Anti‐Extrusion

Rings

1. O‐ring seat ring construction recommended for this shutoff classification; for temperatures below 232_C (450_F) only.

Valve Size,

NPS

3x2 II

3, 4x3,

4, 6x4

6, 8x6

All V

All

3 to 6 V to 600_F (316_C)

ANSI/FCI Leakage Class

II—Standard

III—Optional

III—Standard

IV—Optional

IV—Standard

V—Optional

(1)

(2)

, J or linear

(1)

Description

The EHD, EHS, and EHT high‐pressure globe valves (figure 1) have metal seats, cage guiding, and push‐down‐to‐close valve plug action. The EHD and EHT valves use balanced valve plugs.

The EHS valve uses an unbalanced valve plug. To provide a seal between the cage and a balanced valve plug, the EHD valve plug uses piston rings; the EHT valve plug uses a pressure‐assisted seal ring. A Whisper Trim cage can be used with an EHD, EHS, or EHT valve plug. A Cavitrol III cage can be used with an EHS or EHT valve plug.

C‐seal trim is available for EHD valves, CL2500, in sizes 4, 6, 6x4, and 8x6.

With C‐seal trim, a balanced valve can achieve high‐temperature, Class V shutoff. Because the C‐seal plug seal is formed from metal (N07718 nickel alloy) rather than an elastomer, a valve equipped with the C‐seal trim can be

Instruction Manual

D100394X012

EH (1-1/2x1 through 8x6)

applied in processes with a fluid temperature of up to 593_C (1100_F), provided other material limits are not exceeded. Contact your Emerson sales office

or Local Business Partner for information.

Specifications

Specifications for the EHD, EHS, and EHT valves are shown in table 1.

Educational Services

For information on available courses for the Fisher EH valve, as well as a variety of other products, contact:

Emerson Automation Solutions Educational Services - Registration Phone: 1-641-754-3771 or 1-800-338-8158 E-mail: education@emerson.com emerson.com/fishervalvetraining

Table 3. Additional Shutoff Classification per ANSI/FCI 70‐2 and IEC 60534‐4

Valve (Class) Valve Size, NPS Port Diameter, Inches Cage Style

EHD

(CL2500)

6x4

8x6

Equal Percentage, Modified Equal Percentage,

2.875

Equal Percentage, Modified Equal Percentage,

4.375

4.375 Linear (Cavitrol III, 2‐ and 3‐stage)

Linear (std. cage),

Linear (Whisper III, A1, B3, C3)

Linear (Cavitrol III, 2‐stage)

Linear (std. cage),

Linear (Whisper III, A1, B3, C3, D3)

ANSI/FCI Leakage

V (for port

diameters from 2.875

through 7‐inch with optional C‐seal trim)

July 2017

Class

Table 4. TSO (Tight Shutoff) Leakage Class per ANSI/FCI 70‐2 and IEC 60534‐4

Leakage Class Maximum Leakage Test Medium Test Pressure ANSI/FCI Leakage Class

Valves with TSO trim are factory tested to

TSO (Tight Shutoff)

1. Specify service ΔP when ordering.

a more stringent Emerson Automation

Solutions test requirement of no leakage

Water Service ΔP

at time of shipment.

(1)

Table 5. TSO Shutoff Availability

VALVE CONSTRUCTION

EHS, EHT Cavitrol III trim. Replaceable, protected soft seat TSO ‐ ‐ ‐

LEAKAGE CLASS

Standard Optional

Table 6. Approximate Weights (Valve Body and Bonnet Assemblies)

CL2500

VALVE

SIZE,

NPS

1-1/2 x 1 ‐ ‐ ‐ 46 ‐ ‐ ‐ 101

2x1 78 47 173 104

3x2 161 94 355 207

3 223 163 492 359

4x3 265 162 585 357

4 338 243 745 536

6x4 526 257 1160 567

6 785 544 1731 1199

8x6 955 558 2106 1231

Flg

Kilograms Pounds

SWE

BWE

Flg

SWE

BWE

EH (1-1/2x1 through 8x6)

July 2017

Instruction Manual

D100394X012

Installation

WARNING

Always wear protective gloves, clothing, and eyewear when performing any installation operations to avoid personal injury.

To avoid personal injury or property damage resulting from the sudden release of pressure, do not install the valve assembly where service conditions could exceed the limits given in this manual or on the appropriate nameplates. Use pressure‐relieving devices as required by government or accepted industry codes and good engineering practices.

Check with your process or safety engineer for any additional measures that must be taken to protect against process media.

If installing into an existing application, also refer to the WARNING at the beginning of the Maintenance section in this instruction manual.

CAUTION

Responsibility for the safety of process media and compatibility of valve materials with process media rests solely with the purchaser and end‐user. The valve configuration and construction materials meet particular pressure, temperature, pressure drop, and controlled fluid conditions specified in the customer's order. Because some body/trim material combinations are limited in their pressure drop and temperature range capabilities (especially due to differences in thermal expansion rates), do not apply any other conditions to the valve without first contacting your Emerson sales office or Local Business Partner.

CAUTION

If hoisting the valve, use a nylon sling to protect the painted surfaces. Carefully position the sling to prevent damage to the tubing or any accessories. Use adequately sized hoists and chains or slings to handle the valve and take precautions to prevent personnel from being injured in case the hoist or rigging slips unexpectedly. Refer to table 6 for valve assembly weights.

WARNING

Personal injury could result from packing leakage. Valve packing was tightened prior to shipment; however some readjustment will be required to meet specific service conditions. Check with your process or safety engineer for any additional measures that must be taken to protect against process media.

1. Before installing the valve, inspect it to ensure that the valve body cavity is free of foreign material.

2. Clean out all pipelines to remove scale, welding slag, and other foreign materials before installing the valve.

Note

If the valve being installed has small internal flow passages, such as with Whisper Trim III or Cavitrol III cages, consideration should be given to installing an upstream strainer to prevent the lodging of particles in these passages. This is especially important if the pipeline cannot be thoroughly cleaned or if the flowing medium is not clean.

Instruction Manual

D100394X012

EH (1-1/2x1 through 8x6)

3. The control valve must be installed with the actuator vertical above the valve body for proper operation. Flow through the valve must be in the direction indicated by the flow arrow (key 15, figure 18, 19, or 20) on the valve body.

4. Use accepted piping and welding practices when installing the valve in the line. For welding end valve bodies, completely disassemble the valve removing all trim parts before welding the valve body in the line. For flanged valve bodies, use suitable gaskets between the valve body flanges and pipeline flanges.

Figure 2. Lubricator and Lubricator/Isolating Valve

LUBRICATOR

July 2017

10A9421‐A AJ5428‐D A0832‐2

LUBRICATOR/ISOLATING VALVE

CAUTION

Depending on valve body materials used, post‐weld heat treating might be needed. Post‐weld heat treatment can damage internal elastomeric, plastic, and metal parts. Shrunk‐fit pieces and threaded connections might loosen.

If post‐weld heat treating is needed, remove all trim parts to avoid any damage to internal elastomeric, plastic, and metal parts. Contact your Emerson sales office

5. Install a three‐valve bypass around the valve if continuous operation is required during maintenance.

6. If the actuator and valve body are shipped separately, refer to the actuator mounting procedure in the appropriate actuator instruction manual.

7. If the valve was shipped without packing installed in the packing box, install the packing before putting the valve into service. Refer to instructions given in the Packing Maintenance procedure.

Valves with ENVIRO‐SEAL live‐loaded packing or HIGH‐SEAL Heavy‐Duty live‐loaded packing will not require this initial re‐adjustment. See the Fisher instruction manuals titled ENVIRO‐SEAL Packing System for Sliding‐Stem Valves

(

D101642X012) or HIGH‐SEAL Live‐Loaded Packing System (D101453X012) (as appropriate) for packing instructions.

If you wish to convert your present packing arrangement to ENVIRO‐SEAL packing, refer to the retrofit kits listed in the parts kit sub‐section near the end of this manual.

or Local Business Partner for additional information.

EH (1-1/2x1 through 8x6)

July 2017

Instruction Manual

D100394X012

Maintenance

Valve parts are subject to normal wear and must be inspected and replaced as necessary. Inspection and maintenance frequency depends on the severity of service conditions. This section includes instructions for packing lubrication, packing maintenance, adding packing rings, replacing packing, trim removal, valve plug maintenance, lapping seats, and trim replacement. All maintenance operations can be performed with the valve in the line.

WARNING

Avoid personal injury from sudden release of process pressure. Before performing any maintenance operations:

D Do not remove the actuator from the valve while the valve is still pressurized. D Always wear protective gloves, clothing, and eyewear when performing any maintenance operations to avoid personal

injury.

D Disconnect any operating lines providing air pressure, electric power, or a control signal to the actuator. Be sure the

actuator cannot suddenly open or close the valve.

D Use bypass valves or completely shut off the process to isolate the valve from process pressure. Relieve process pressure

on both sides of the valve. Drain the process media from both sides of the valve.

D Vent the power actuator loading pressure and relieve any actuator spring precompression. D Use lock‐out procedures to be sure that the above measures stay in effect while you work on the equipment. D The valve packing box may contain process fluids that are pressurized, even when the valve has been removed from the

pipeline. Process fluids may spray out under pressure when removing the packing hardware or packing rings, or when loosening the packing box pipe plug.

D Check with your process or safety engineer for any additional measures that must be taken to protect against process

media.

Table 7. Recommended Torque for Packing Flange Nuts

STEM

DIAMETER

mm Inches Min Max Min Max

12.7 1/2

19.1 3/4

25.4 1

31.8 1‐1/4

1. Includes intermediate class ratings.

VALVE BODY

RATING(1)

CL1500 15 22 11 16 CL2500 18 24 13 18 CL1500 34 50 25 37 CL2500 41 61 30 45 CL1500 52 77 38 57 CL2500 61 91 45 67 CL1500 68 102 50 75 CL2500 81 122 60 90

NSm LbfSFt

Note

Whenever a gasket seal is disturbed by removing or shifting gasketed parts, a new gasket should be installed upon reassembly. This is necessary to ensure a good gasket seal.

Note

If the valve has ENVIRO‐SEAL live‐loaded packing installed (figure 3), see the Fisher instruction manual entitled ENVIRO‐SEAL Packing System for Sliding‐Stem Valves (D101642X012

) for packing instructions.

If the valve has HIGH‐SEAL heavy‐duty live‐loaded packing installed, see Fisher instruction manual entitled HIGH‐SEAL Live‐Loaded Packing System (D101453X012

) for packing instructions.

TORQUE

Instruction Manual

D100394X012

EH (1-1/2x1 through 8x6)

WARNING

Packing Lubrication

CAUTION

Do not lubricate graphite packing. Graphite packing is self-lubricated. Additional lubrication may result in slip-stick movement of the valve.

WARNING

To avoid personal injury or property damage resulting from fire or explosion, do not lubricate packing used in oxygen service or in processes with temperatures over 260_C (500_F).

July 2017

A lubricator or lubricator/isolating valve (figure 2) is recommended for PTFE‐composition packing. The lubricator or lubricator/isolating valve is installed in place of the pipe plug (key 14, figure 16). It is recommended that a good quality silicon‐base lubricant be used. To operate the lubricator, simply turn the cap screw clockwise to force lubricant into the packing box. The lubricator/isolating valve operates the same way except the isolating valve must first be opened and then closed after lubrication is completed.

Packing Maintenance

If there is undesirable packing leakage in spring‐loaded PTFE V‐ring packing (figure 4), tighten the packing flange nuts (key 5, figure 16) until the shoulder on the packing follower (key 13, figure 16) contacts the bonnet (key 1, figure 16). If leakage continues, replace the packing by following the numbered steps presented in the Replacing Packing procedure.

CAUTION

When tightening packing flange nuts, do not exceed the maximum recommended torque in table 7 or excessive friction may result, resulting in keeping the valve from stroking fully and not attaining proper seat load.

If there is undesirable packing leakage with other than spring‐loaded PTFE V‐ring packing, first try to limit the leakage and establish a stem seal by tightening the packing flange nuts (key 5, figure 16) to at least the minimum recommended torque in table 7. However, do not exceed the maximum recommended torque in table 7 or excessive friction may result. If leakage continues, replace the packing by following the numbered steps presented in the Replacing Packing procedure.

If the packing is relatively new and tight on the valve plug stem, and if tightening the packing flange nuts does not stop the leakage, it is possible that the stem is worn or nicked so that a seal cannot be made. The surface finish of a stem is critical for making a good packing seal. If the leakage comes from the outside diameter of the packing, it is possible that the leakage is caused by nicks or scratches around the packing box wall. While replacing the packing according to the Replacing Packing procedure, inspect the valve plug stem and packing box wall for nicks or scratches.

EH (1-1/2x1 through 8x6)

July 2017

Instruction Manual

D100394X012

Replacing Packing

Key numbers referred to in this procedure are shown in figure 16 unless otherwise indicated.

1. Isolate the control valve from the line pressure, release pressure from both sides of the valve body, and drain the

process media from both sides of the valve.

Remove the cap screws in the stem connector, and separate the two halves of the stem connector. Then exhaust all actuator pressure, if any was applied, and disconnect the actuator supply and any leakoff piping.

2. Remove either the yoke locknut (key 15) or the hex nuts (key 26), and remove the actuator from the bonnet (key 1).

3. Loosen the packing flange nuts (key 5) so that the packing is not tight on the valve plug stem (key 4, figure 18, 19,

or 20). Remove any travel indicator disk and stem locknuts from the valve plug stem threads.

Table 8. Torque for Body‐to‐Bonnet Bolting Using Anti‐Seize Lubricant(1)

VALVE

SIZE,

NPS

1, 1-1/2 x 1, 2x1

2, 3x2

3, 4x3

4, 6x4

6, 8x6

1. For other materials, contact your Emerson sales office or Local Business Partner for torques.

VALVE

BODY

RATING

CL1500 163 122 120 90 CL2500 258 195 190 140 CL1500 258 195 190 140 CL2500 380 285 280 210 CL1500 556 420 410 310 CL2500 786 597 580 440 CL1500 786 597 580 440 CL2500 1058 800 780 590 CL1500 1383 1044 1020 770 CL2500 2807 2102 2070 1550

B7, B16, BD and 660 Studs B8 and B8M Studs B7, B16, BD and 660 Studs B8 and B8M Studs

NSm LbfSFt

TORQUE

CAUTION

When lifting the bonnet (key 1), be sure that the valve plug and stem assembly (keys 3 and 4, figure 18, 19, or 20) remains on the seat ring (key 6, figure 18, 19, or 20). This avoids damage to the seating surfaces as a result of the assembly dropping from the bonnet after being lifted part way out. The parts are also easier to handle separately.

Use care to avoid damaging gasket sealing surfaces.

The EHD piston rings (key 8, figure 18) are brittle and in two halves. Avoid damaging the piston rings by dropping or rough handling.

WARNING

If the cage adheres to the bonnet as the bonnet is lifted, secure the cage to the bonnet so that it will not cause personal injury or equipment damage should it fall unexpectedly.

4. Unscrew the hex nuts (key 14, figure 18, 19, or 20) and carefully lift the bonnet off the valve stem. If present,

remove the Belleville washers (key 33, figure 17) and flat washers (key 29, figure 18, 19, 17, or 20). If the valve plug and stem assembly starts to lift with the bonnet, use a brass or lead hammer on the end of the stem and tap it back down. Set the bonnet on a cardboard or wooden surface to prevent damage to the bonnet gasket surface.

5. Remove the valve plug (key 3, figure 18, 19, or 20), the cage (key 2, figure 18, 19, or 20), and the top and bottom

cage gaskets (key 11, figure 18, 19, or 20).

Instruction Manual

D100394X012

Figure 3. Live‐Loaded Packing

39B4153‐A

EH (1-1/2x1 through 8x6)

July 2017

Typical HIGH‐SEAL ULF Packing System

39B4612/A

A6297‐1

200

212

201

215

216

207

209 211

A6722

Typical ENVIRO‐SEAL Packing System

with PTFE Packing

213

217

207

214

207

Typical ENVIRO‐SEAL Packing System

with Graphite ULF Packing

Typical ENVIRO‐SEAL Packing System

with Duplex Packing

EH (1-1/2x1 through 8x6)

July 2017

Figure 4. Packing Arrangements

Instruction Manual

D100394X012

UPPER WIPER (KEY 12)

12A8160‐A

PTFE V‐RING

SINGLE PACKING

UPPER WIPER (KEY 12)

PACKING FOLLOWER (KEY 13)

FEMALE ADAPTOR (KEY 32)

V‐RING (KEY 7)

MALE ADAPTOR (KEY 31)

LANTERN RING (KEY 8)

PACKING FOLLOWER (KEY 13)

FEMALE ADAPTOR (KEY 32)

V‐RING (KEY 7)

MALE ADAPTOR (KEY 31)

WASHER (KEY 10)

SPRING (KEY 8)

PACKING BOX RING (KEY 11)

LOWER WIPER (KEY 30)

KEY 6

14A3412‐C

GRAPHITE RIBBON AND FILAMENT

SINGLE PACKING

PACKING FOLLOWER (KEY 13)

GRAPHITE RIBBON PACKING RING (KEY 7)

GRAPHITE FILAMENT PACKING RING (KEY 7)

LANTERN RING (KEY 8)

PACKING FOLLOWER (KEY 13)

GRAPHITE RIBBON PACKING RING (KEY 7)

GRAPHITE FILAMENT PACKING RING (KEY 7)

LANTERN RING (KEY 8)

PACKING BOX RING (KEY 11)

UPPER WIPER (KEY 12)

PACKING FOLLOWER (KEY 13)

PACKING RING (KEY 7)

LANTERN RING (KEY 8)

PACKING BOX RING (KEY 11)

12A7839‐A Sht 1

PTFE V‐RING

LOWER WIPER (KEY 30)

DOUBLE PACKING

NOTES:

0.102 mm (0.004 INCH) THICK SACRIFICIAL ZINC WASHERS. USE ONLY ONE BELOW EACH GRAPHITE RIBBON RING.

C0637‐1

14A3414‐C

GRAPHITE RIBBON AND FILAMENT

DOUBLE PACKING

PACKING BOX RING (KEY 11)

12A8163‐A

PTFE/COMPOSITION

DOUBLE PACKING

HAS THE APPEARANCE OF A WOVEN OR BRAIDED RING. INCLUDED IN KEY 6 PACKING SET.

PACKING BOX RING (KEY 11)

CAUTION

All residual gasket material must be removed from the cage gasket surfaces. If the gasket surfaces are scored or damaged during this process, smooth them by hand sanding with 360 grit paper using long, sweeping strokes. Failure to remove all residual gasket material and/or burrs from the gasket surfaces will result in leakage.

6. Clean all gasket surfaces with a good quality degreaser. Remove all residual tin or silver from all gasket surfaces.

7. Cover the opening in the valve body to protect the gasket surface and to prevent foreign material from getting into

the valve body cavity.

8. Remove the packing flange nuts (key 5), packing flange (key 3), upper wiper (key 12), and packing follower (key 13,

figures 4 and 16). Carefully push out all the remaining packing parts from the valve side of the bonnet using a

Instruction Manual

D100394X012

EH (1-1/2x1 through 8x6)

July 2017

rounded rod or other tool that will not scratch the packing box wall. For extension bonnets, also remove the baffle (key 2) and retaining ring (key 35).

9. Clean the packing box and the following metal packing parts: packing follower (key 13), packing box ring (key 11),

spring or lantern ring (key 8, figures 4 and 16), and, for single arrangements of PTFE V‐ring packing only, special washer (key 10, figures 4 and 16).

10. Inspect the valve stem threads for any sharp edges that might cut the packing. A whetstone or emery cloth may

be used to smooth the threads if necessary.

11. Remove the protective covering from the valve body cavity. Using new top and bottom cage gaskets (key 11,

figure 18, 19, or 20), place the cage into the valve body. Be sure the cage lugs are engaged in the corresponding recesses of the seat ring retainer. Turn the cage clockwise until the lugs contact the seat ring retainer. Install the plug, then slide the bonnet over the stem and onto the studs (key 13, figure 18, 19, or 20).

Note

The prelubricated hex nuts (key 14, figure 18, 19, or 20) referred to in step 12 can be identified by a black film coating on the nut threads.

The proper bolting procedures in step 12 include‐‐but are not limited to‐‐ensuring that the bonnet stud threads are clean, Belleville washers (if present) are installed in the correct orientation, and that the hex nuts are evenly tightened to the specified torque values.

CAUTION

Failure to comply with good bonnet‐to‐body bolting practices and the torque values shown in table 8 may result in cage crushing, cage diameter reduction, and/or bonnet deformation. Cheater bars or slug wrenches should not be used for this procedure.

Hot torquing is not recommended.

Note

Stud(s) and nut(s) should be installed such that the manufacturer's trademark and material grade marking is visible, allowing easy comparison to the materials selected and documented in the Emerson/Fisher serial card provided with this product.

WARNING

Personal injury or damage to equipment could occur if improper stud and nut materials or parts are used. Do not operate or assemble this product with stud(s) and nut(s) that are not approved by Emerson/Fisher engineering and/or listed on the serial card provided with this product. Use of unapproved materials and parts could lead to stresses exceeding the design or code limits intended for this particular service. Install studs with the material grade and manufacturer's identification mark visible. Contact your Emerson sales office and approved parts is suspected.

12. Lubricate the stud threads and the faces of the hex nuts (key 14, figure 18, 19, or 20) with anti‐seize lubricant (not

necessary if new factory prelubricated hex nuts are used). Replace the flat washers (key 29, figure 18, 19, 17, or 20)

if present. If the valve assembly includes Belleville washers (key 33, figure 17) install these onto the studs (key 14, figure 17) with the concave side facing towards the valve body. Replace the hex nuts but do not tighten them.

Torque the nuts in a crisscross pattern to no more than one fourth of the nominal torque value specified in table 8.

or Local Business Partner immediately if a discrepancy between actual parts

EH (1-1/2x1 through 8x6)

July 2017

Instruction Manual

D100394X012

When all nuts are tightened to that torque value, increase the torque by one fourth of the specified nominal torque and repeat the crisscross pattern. Repeat this procedure until all nuts are tightened to the specified nominal value. Apply the final torque value again and, if any nut still turns, tighten every nut again.

Figure 5. Installing Graphite Ribbon/Filament Packing Rings One at a Time

VALVE STEM

PACKING FOLLOWER

BONNET

TOP OF PACKING RING EVEN WITH BOTTOM OF ENTRANCE CHAMFER

A2207‐2

INSTALLING

FIRST PACKING RING

Note

If graphite ribbon/filament packing rings are used, special procedures must be observed to prevent entrapping air between the rings. Add the rings one at a time without forcing them below the chamfer of the packing box entrance chamber. As each successive ring is added, the stack should not be pushed down more than the thickness of the added ring (figure 5).

INSTALLING

SECOND PACKING RING

13. Install new packing and the metal packing box parts according to the appropriate arrangement in figure 4. If

desired, packing parts may be pre‐lubricated with a silicon base grease for easier installation. Slip a smooth‐edged pipe over the valve stem, and gently tamp each soft packing part into the packing box, being sure that air is not trapped between adjacent soft parts. For a valve with extension bonnet, also install the baffle and retaining rings (keys 2 and 35).

14. Slide the packing follower, wiper, and packing flange into position. Lubricate the packing flange studs (key 4) and

the faces of the packing flange nuts (key 5). Replace the packing flange nuts.

For spring‐loaded PTFE V‐ring packing, tighten the packing flange nuts until the shoulder on the packing follower (key

13) contacts the bonnet.

For other packing types, tighten the packing flange nuts to the maximum recommended torque shown in table 7. Then, loosen the packing flange nuts, and retighten them to the recommended minimum torque shown in table 7.

For ENVIRO‐SEAL or HIGH‐SEAL live‐loaded packing, refer to the note at the beginning of the Maintenance section.

15. Mount the actuator on the valve body assembly, and reconnect the actuator and valve plug stems according to

the procedures in the appropriate actuator instruction manual.

Trim Removal

For C‐seal construction, see the appropriate C‐seal sections in this instruction manual.

Trim removal and replacement requires the use of a seat ring retainer tool (key 25). If specifically ordered, a tool is supplied with a valve; but, the tool can also be ordered separately by referencing the tool part number in the Parts List. If desired, a tool can also be machined for a valve of specific size and valve class using the dimensions shown in figure

9. Machine the tool from a material listed in figure 9 or from a material with a yield strength of at least 827 MPa (120,000 psi). Using a tool of lower strength material may result in damage to the seat ring retainer or valve body threads.

Instruction Manual

D100394X012

EH (1-1/2x1 through 8x6)

July 2017

Key numbers referenced in this procedure are shown in figure 18 for the EHD valve, figure 19 for the EHS valve, and figure 20 for the EHT valve except where indicated.

1. Remove the actuator and bonnet by following steps 1 through 4 of the Replacing Packing procedure. Observe all

warnings and cautions.

2. Lift the valve stem and attached valve plug out of the valve body. If the valve plug is to be reused, tape or otherwise

protect the valve plug stem and the valve plug seating surface to prevent scratches.

3. Lift out the cage (key 2) and the top and bottom cage gaskets (key 11). For a valve with Cavitrol III two‐or

three‐stage cage, also remove the O‐ring (key 26, figure 21) that fits between the cage and the seat ring (key 6).

Constructions other than TSO trim

1. Use the seat ring retainer tool (figure 9) to remove the seat ring retainer (key 7) as follows:

a. Insert the tool into the valve body. Be certain the tool lugs are engaged in the corresponding recesses in the

retainer.

b. Use a power torque wrench or driver having torque capabilities equal to or greater than those shown in table 9.

Connect the torque wrench to an extension if necessary. The tool or extension must snugly fit the square hole in the seat ring retainer tool. Refer to figure 9 for square hole sizes.

c. Insert the tool or extension into the square hole in the seat ring retainer tool.

d. Use the bonnet studs (key 13) to prevent a power torque wrench from rotating.

CAUTION

Hold the torque wrench or driver at right angles to the seat ring retainer when applying torque. Tilting the tool or extension while applying torque may cause the lugs on the seat ring retainer tool to suddenly disengage from the recesses in the retainer, damaging the retainer and seat ring.

e. Unscrew and remove the seat ring retainer.

2. Remove the seat ring (key 6) and the seat ring gasket or O‐ring (key 12).

3. Refer to the Valve Plug Maintenance procedure or to the Lapping Seats procedure.

TSO Trim

Refer to figure 7.

1. Remove the retainer, backup ring, anti‐extrusion rings, and piston ring.

2. Remove the set screws that lock the outer plug to the inner plug.

3. Using a strap wrench or similar tool, unscrew the outer plug from the inner plug. Do not damage the outer plug

guide surfaces.

4. Remove the protected soft seat seal (see figure 5).

5. Inspect the parts for damage and replace if needed.

6. Refer to the Valve Plug Maintenance procedure or to the Lapping Seats procedure.

EH (1-1/2x1 through 8x6)

July 2017

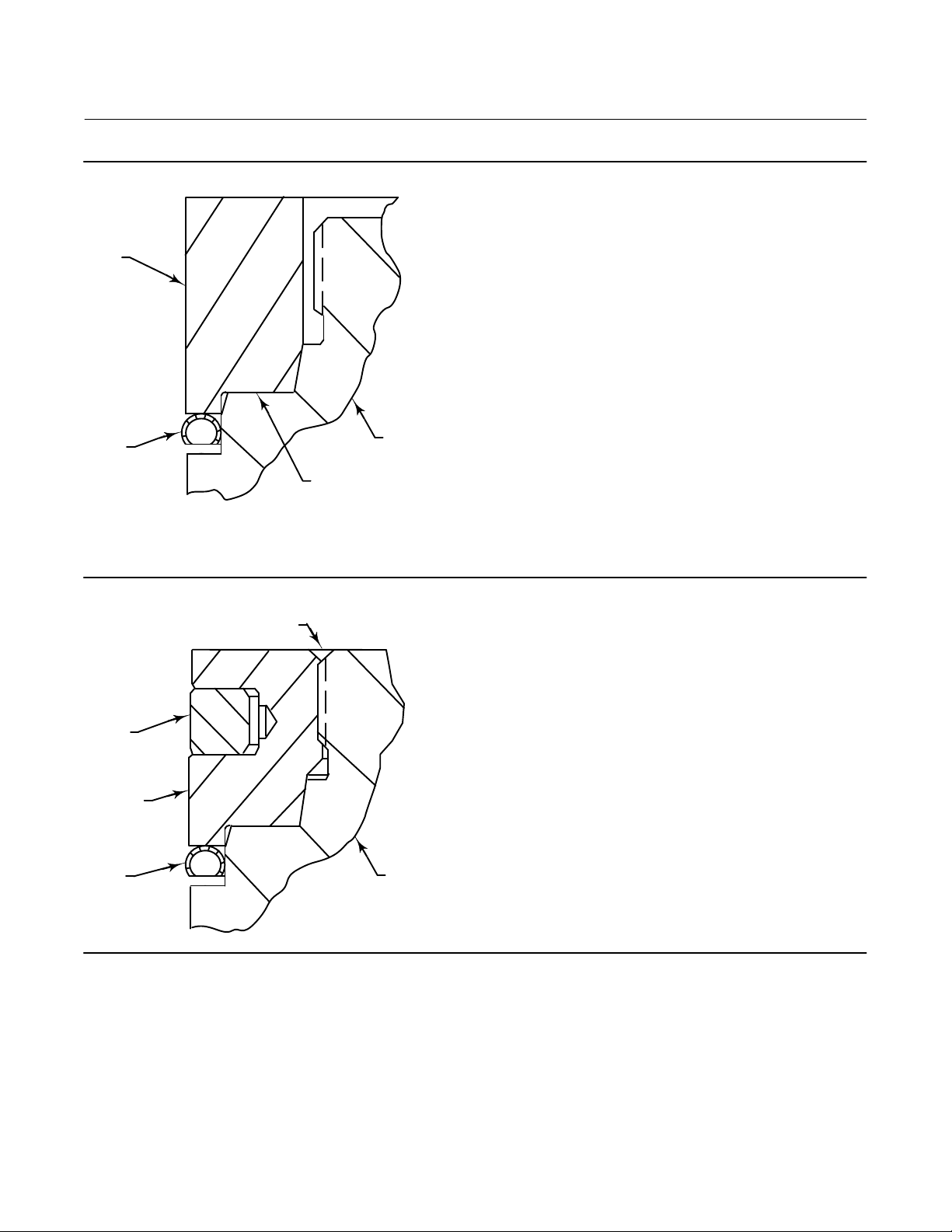

Figure 6. Detail of Protected Soft Seat

INNER PLUG

PROTECTED SOFT SEAT

SEAT RING

Instruction Manual

D100394X012

OUTER PLUG

CAGE

A7088

Figure 7. Typical Balanced TSO Trim

A7096

VALVE PLUG SEAL

PROTECTED SOFT SEAT

Valve Plug Maintenance

Key numbers used in this procedure are shown in figure 18 for the EHD valve, in figure 19 for the EHS valve, and in figure 20 for the EHT valve.

Instruction Manual

D100394X012

EH (1-1/2x1 through 8x6)

July 2017

1. With the valve plug (key 3) removed according to the Trim Removal procedure, proceed as appropriate: For the EHD valve, the piston rings (key 8) are each in two sections; remove the sections from the grooves in the valve

plug.

For the EHS valve, proceed to step 2.

For the EHT valve, work the retaining ring (key 10) off the valve plug with a screwdriver. Carefully slide the backup ring

and seal ring (keys 9 and 8) off the valve plug. For an NPS 6 valve with a level D Whisper Trim III cage, also remove the piston ring (key 30) from the grooves in the valve plug.

2. To replace the valve plug stem (key 4), drive out the pin (key 5), and unscrew the stem from the valve plug.

CAUTION

Never reuse an old stem with a new valve plug or reinstall a valve stem after it has been removed. Using an old stem with a new plug requires drilling a new pin hole in the stem. This weakens the stem and may cause the stem to fail in service. If a new valve plug is required, always order a valve plug, stem, and pin as an assembly. Specify the correct part number of each of the three parts, but state that the parts are being ordered as an assembly.

A used valve plug may be reused with a new stem. An exception is the Cavitrol III plug/stem assembly which must be ordered and replaced as a unit.

3. Thread the new stem into the valve plug and tighten it to the appropriate torque value given in table 10. Using the

valve plug pin hole as a guide, drill the pin hole through the stem. Refer to table 10 for drill sizes.

4. Drive in the pin to lock the assembly.

5. If it is necessary to lap the seating surfaces, complete the Lapping Seats procedure before installing the EHD piston

rings or the EHT seal ring. The Trim Replacement procedure provides piston ring and seal ring installation instructions and valve reassembly instructions.

Lapping Seats

Key numbers referenced in this procedure are shown in figure 18 for the EHD valve, in figure 19 for the EHS valve, and in figure 20 for the EHT valve unless otherwise indicated.

Seating surfaces of the valve plug (key 3) and the seat ring (key 6) can be lapped for improved shutoff. Use a good quality lapping compound with a mixture that contains 280 to 600 grit. Apply the compound to the bottom of the valve plug. Use the following procedure to lap the seating surfaces.

1. Install the following parts according to the instructions presented in the Trim Replacement procedure: seat ring

gasket or O‐ring (key 12), seat ring (key 6), seat ring retainer (key 7), cage (key 2), cage gaskets (key 11), and if used, the O‐ring (key 26, figure 21).

2. Proceed as appropriate: For an EHD or EHT valve, install the valve plug and stem assembly (keys 3 and 4)—without piston rings or seal ring (keys

8 and 30)—into the cage.

For an EHS valve, install the valve plug and stem assembly (keys 3 and 4) into the cage.

3. Install the bonnet (key 1, figure 16) over the valve stem, and secure the bonnet with four of the hex nuts (key 14).

4. Attach a handle, such as a piece of strap iron secured by stem locknuts, to the valve stem. Rotate the handle

alternately in each direction to lap the seats.

Note

To preserve the effects of lapping, do not change either the position of the seat ring in the valve body cavity or the position of the cage on the seat ring after lapping the seating surfaces. If possible, clean the parts without disturbing their positions. If the parts must be removed for cleaning, return them to the original positions.

EH (1-1/2x1 through 8x6)

July 2017

Instruction Manual

D100394X012

5. After lapping, again disassemble as necessary, clean the seating surfaces, reassemble, and test for shutoff. Repeat

the lapping procedure if necessary.

Trim Replacement

After all trim maintenance has been completed, reassemble the valve by following the numbered steps below. Be certain that all gasketed surfaces have been well cleaned. Key numbers referenced in this procedure are shown in figure 18 for the EHD valve, in figure 19 for the EHS valve, and in figure 20 for the EHT valve.

Figure 8. Trim Surfaces Requiring Lubrication

SEAT RING RETAINER

SEAT RING GASKET OR O‐RING

SEAT RING

VALVE BODY

LUBRICATION REQUIRED

A3583

CAUTION

Thoroughly clean the seat ring (key 6), seat ring retainer (key 7), and the retainer threads in the valve body with a good‐quality degreaser. Also clean all cage gasket surfaces. All residual gasket material must be removed from the cage gasket surfaces and, in gasketed seat ring constructions, from the serrated valve body and seat ring gasket surfaces. If the serrations are scored or damaged during this process, smooth them by hand sanding with 360 grit paper using long, sweeping strokes. Failure to remove all residual gasket material and/or burrs from the seat ring, cage, and valve body gasket surfaces will result in leakage.

Thoroughly lubricate the surfaces indicated in figure 8 with the appropriate lubricant shown in table 11. Be certain to lubricate the mating surfaces of both parts involved (i.e., lubricate the threads on the seat ring retainer and the threads in the valve body; lubricate the mating surfaces of the seat ring retainer and seat ring).

Failure to lubricate as described may cause galling and improper gasket or O‐ring (key 12) loading that may result in leakage.

Instruction Manual

D100394X012

EH (1-1/2x1 through 8x6)

July 2017

VALVE

SIZE,

RATING

NPS/

RATING

1-1/2 x 1

CL1500 57.2 31.8 41.1

CL2500 50.8 31.8 34.1

CL1500 57.2 31.8 41.1

2 x 1

CL2500 50.8 31.8 34.1

CL1500 79.2 53.8 63.5

3 x 2

CL2500 69.9 50.8 53.0

3, 4 x 3 CL2500 90.5 65.0 74.6

4, 6 x 4 CL2500 117.3 88.9 91.9

6, 8 x 6 CL2500 177.8 130.0 134.9

1. D and J dimensions list maximum and minimum values.

A B C D

108.3

107.8

156.0

155.4

mm Inches

(1)

E F G H J

54.4

120.7 11.2 7.9 11.2

51.9

46.4

111.3 11.2 7.9 11.2

45.9

54.4

120.7 11.2 7.9 11.2

51.9

46.4

111.3 11.2 7.9 11.2

45.9

76.6

157.2 12.7 9.7 12.7

76.1

67.1

150.9 12.7 9.7 12.7

66.5

86.1

185.7 12.7 9.7 12.7

85.6

195.3 14.2 10.4 14.2

254.0 14.2 10.4 14.2

TOOL DIMENSIONS

(1)

K A B C D

12.4

19.1 2.25 1.25 1.62

12.2

12.4

19.1 2.00 1.25 1.34

12.2

12.4

19.1 2.25 1.25 1.62

12.2

12.4

19.1 2.00 1.25 1.34

12.2

12.4

19.1 3.12 2.12 2.50

12.2

12.4

19.1 2.75 2.00 2.12

12.2

18.8

25.4 3.56 2.36 2.94

18.5

25.1

25.4 4.62 3.50 3.62

24.9

25.1

38.1 7.00 5.12 5.31

24.9

Figure 9. Information for Machining and Use of Seat Ring Retainer Tool

DIM E

0.75 MIN

1.625 MAX

DIM G DIM F

(1)

E F G H J

2.140

4.75 0.44 0.31 0.44

2.120

1.827

4.38 0.44 0.31 0.44

1.807

2.140

4.75 0.44 0.31 0.44

2.120

1.827

4.38 0.44 0.31 0.44

1.807

3.015

6.19 0.50 0.38 0.50

2.995

2.640

5.94 0.50 0.38 0.50

2.620

3.390

7.31 0.50 0.38 0.50

3.370

4.265

7.69 0.56 0.41 0.56

4.245

6.140

10.00 0.56 0.41 0.56

6.120

(1)

0.49

0.48

0.49

0.48

0.49

0.48

0.49

0.48

0.49

0.48

0.49

0.48

0.74

0.73

0.99

0.98

0.99

0.96

0.75

1.00

1.50

3MC2169‐E 35A1086‐A 26A5130‐A B1465‐2

DIA A

DIA B

CHAM

SEAT RING

SEAT RING RETAINER

DIM H

DIA C

0.0625 R

DIA D

125

DIM J 2 LUGS EQUALLY SPACED

DIM K

STUD BOLT

SEAT RING RETAINER TOOL

TOOL LUG

Materials for Machining Tool

Recommended

Materials

416 stainless steel

17‐4PH stainless steel

TOOL INSTALLATIONSEAT RING RETAINER TOOL

4100 Series heat‐treated steel

Minimum

Rockwell Hardness

28 36 31

EH (1-1/2x1 through 8x6)

July 2017

Table 9. Recommended Torque for Installing Seat Ring Retainer

VALVE

SIZE,

NPS

1, 1-1/2x1, 2x1

2, 3x2

3, 4x3

4, 6x4

6, 8x6

1. Includes valves with Cavitrol III trim.

VALVE

BODY

RATING

CL1500 509 375 68 50 339 250 ‐ ‐ ‐ ‐ ‐ ‐ CL2500 373 275 68 50 203 150 ‐ ‐ ‐ ‐ ‐ ‐ CL1500 1187 875 136 100 881 650 678 500 CL2500 848 625 102 75 542 400 407 300 CL1500 2203 1625 271 200 1491 1100 1356 1000 CL2500 1593 1175 203 150 949 700 678 500 CL1500 3118 2300 373 275 2712 2000 2373 1750 CL2500 2373 1750 271 200 2373 1750 1695 1250 CL1500 6780 5000 780 575 6101 4500 5423 4000 CL2500 5017 3700 576 425 4745 3500 4745 3500

For All Valves with Gasketed Seat Ring

Construction Except

Those with

Cavitrol III Cage

NSm LbfSFt NSm LbfSFt NSm LbfSFt NSm LbfSFt

For All Valves with

O‐Ring Seat Ring

Construction

Sour Gas Service

(1)

Table 10. Valve Stem Connection Torque and Drill Size for Pin Hole

VALVE SIZE,

NPS

1, 1-1/2x1, 2x1

2, 3x2

3, 4x3

4, 6x4

6, 8x6

VALVE STEM

DIAMETER

mm Inches NSm LbfSFt Inches

12.7 1/2 CL1500, CL2500 EHS 81 ‐ 115 60 ‐ 85 1/8

19.1 3/4 CL1500 EHS 237 - 339 175 - 250 3/16

12.7 1/2 CL1500, CL2500 EHD, EHS, EHT 81 ‐ 115 60 ‐ 85 1/8

19.1 3/4 CL1500, CL2500

25.4 1 CL1500, CL2500 EHS 420 ‐ 481 310 ‐ 355 1/4

12.7 1/2 CL1500, CL2500 EHD, EHS, EHT 81 ‐ 115 60 ‐ 85 1/8

19.1 3/4 CL1500, CL2500 EHD, EHS, EHT 237 ‐ 339 175 ‐ 250 3/16

25.4 1

19.1 3/4 CL1500, CL2500 EHD, EHS, EHT 237 ‐ 339 175 ‐ 250 3/16

25.4 1 CL1500, CL2500 EHD, EHS, EHT 420 ‐ 481 310 ‐ 355 1/4

19.1 3/4 CL1500, CL2500 EHD, EHS, EHT 237 ‐ 339 175 ‐ 250 3/16

25.4 1 CL1500, CL2500 EHD, EHS, EHT 420 ‐ 481 310 ‐ 355 1/4

31.8 1‐1/4 CL1500, CL2500 EHD, EHS, EHT 827 ‐ 908 610 ‐ 670 1/4

50.8 2 CL1500, CL2500 EHD, EHT

VALVE BODY

RATING

CL1500, CL2500 EHS 420 ‐ 481 310 ‐ 355 1/4

CL1500 EHD, EHT 420 - 481 310 - 355 1/4 CL2500 EHD, EHT 420 ‐ 481 310 ‐ 355 3/16

VALVE

EHS 237 ‐ 339 175 ‐ 250 3/16

EHD, EHT 237 ‐ 339 175 ‐ 250 1/8

or for

TORQUE

For Valve with 2‐Stage

Cavitrol III Cage and

Gasketed Seat Ring

Construction

CONNECTION TORQUE

(MINIMUM ‐ MAXIMUM)

installation procedure

VALVE STEM

Contact factory for

torque values and

Instruction Manual

D100394X012

For Valve with 3‐Stage

Cavitrol III Cage and

Gasketed Seat Ring

Construction

DRILL SIZE

FOR PIN

3/8

Table 11. Seat Ring and Seat Ring Retainer Lubricants

VALVE BODY

MATERIAL

WCC, WC9, C5, or LCC steel

CF8M (316 stainless steel) R30006 Dry film lubricant or anti‐seize lubricant

SEAT RING MATERIAL

S41600 (416 stainless steel) Lithium grease, dry film lubricant, or anti‐seize lubricant

R30006 (Alloy 6) Anti‐seize lubricant

LUBRICANT

1. For gasketed seat ring constructions, install the seat ring gasket (key 12) into the valve body. For O‐ring seat ring

constructions, install the O‐ring (key 12) into the groove on the underside of the seat ring (key 6). Install the seat ring (key 6). Screw in the seat ring retainer (key 7). Use the seat ring retainer tool (figure 9) to tighten the seat ring retainer as follows:

a. Insert the tool into the valve body. Be certain the tool lugs are engaged in the corresponding recesses in the

retainer.

Instruction Manual

D100394X012

EH (1-1/2x1 through 8x6)

July 2017

b. Use a power torque wrench or driver having torque capabilities equal to or greater than those shown in table 9.

Connect the torque tool to an extension if necessary. The tool or extension must snugly fit the square hole in the seat ring retainer tool. Refer to figure 9 for square hole sizes.

c. Insert the tool or extension into the square hole in the seat ring retainer tool.

d. Use the stud bolts (key 13) to prevent a power torque wrench from rotating.

CAUTION

Hold the torque wrench at right angles to the seat ring retainer when applying torque. Tilting the tool and extension while applying torque may cause the lugs on the seat ring retainer tool to suddenly disengage from the recesses in the retainer, damaging the retainer and seat ring.

e. Tighten the seat ring retainer to the torque shown in table 9.

Note

Some cages have one large window and several small windows. In step 2, install a cage that has different size windows so that the largest window faces toward the process outlet for a flow‐down and toward the process inlet for a flow‐up valve. Though it may not be possible to align the large window directly opposite the inlet or outlet, orient the window in the appropriate direction as much as possible. Incorrect orientation of cage windows causes a reduction of capacity.

2. Proceed as appropriate:

For a valve with a Cavitrol III cage, slide the O‐ring (key 26, figure 21) over the seat ring (key 6) and against the shoulder in the outer diameter of the seat ring. Install the lower gasket (key 11) between the valve body and cage (key

2), and install the cage. Be certain the lugs on the bottom of the cage engage the corresponding slots in the seat ring retainer.

For all other valves, install the lower gasket (key 11) between the valve body and cage (key 2), and install the cage. Be certain the lugs on the bottom of the cage engage the corresponding slots in the seat ring retainer.

Note

Rotate the cage clockwise by hand as much as possible once the cage lugs engage the slots in the seat ring retainer. Failure to do so may result in leakage at the seat ring to valve body seal.

Constructions other than TSO trim

1. To install the piston rings and seal rings (keys 8 and 30), proceed as appropriate:

For an EHD valve (figure 18), if it is necessary to install new piston rings, the replacement piston rings will arrive in one piece. Use a vise with smooth or taped jaws to break a replacement piston ring into halves. Place the new ring in the vise so that the jaws compress the ring into an oval. Compress the ring slowly until the ring snaps on both sides. If one side snaps first, do not try to tear or cut the other side. Instead, keep compressing until the other side snaps. The piston ring can also be fractured by scoring and snapping over a hard surface such as a table edge. Sawing or cutting is not recommended.

EH (1-1/2x1 through 8x6)

July 2017

Instruction Manual

D100394X012

Remove any protective tape or covering from the valve plug and stem assembly, and set it on a protective surface. Then, place the piston ring in the piston ring groove with the fractured ends matched.

For an EHT valve (figure 20), install the seal ring (key 8) onto the valve plug (key 3). Install the ring with the open side facing the seat ring end of the valve plug for flow‐down applications (view A of figure 20) or with the open side facing the valve plug stem end of the valve plug for flow‐up applications. Slide the backup ring (key 9) onto the valve plug. Secure with the retaining ring (key 10). For an NPS 6 valve with a level D Whisper Trim III cage, reinstall the piston ring (key 30) following the instructions given in the paragraph immediately preceding.

2. Install the valve plug into the cage.

TSO Trim

Refer to figure 7.

1. Thread the outer plug onto the inner plug until the parts seat metal to metal, using a strap wrench or similar tool

that will not damage the outer plug guide surfaces.

2. Mark the top of the inner plug and outer plug with alignment marks in the assembled position.

3. Disassemble the outer plug from the inner plug and install the seal over the inner plug, so that the seal rests below

the threaded area.

4. Thread the outer plug onto the inner plug and tighten with a strap wrench or similar tool until the alignment marks

line up. This will ensure that the plug parts are metal to metal and the seal is compressed properly. Do not damage the outer plug guide surfaces.

5. Install set screws centering the inner plug in the outer plug and torque to 11 NSm (8 lbfSft).

6. Assemble the piston ring, anti‐extrusion rings, backup ring, and retainer.

All Constructions

1. Install the top cage gasket (key 11) on the cage.

2. Install the bonnet over the valve stem and onto the valve body.

Note

The prelubricated hex nuts (key 14, figure 18, 19, or 20) referred to in step 3 can be identified by a black film coating on the nut threads.

The proper bolting procedures in step 3 include‐‐but are not limited to‐‐ensuring that the bonnet stud threads are clean, Belleville washers (if present) are installed in the correct orientation, and that the hex nuts are evenly tightened to the specified torque values.

CAUTION

Hot torquing is not recommended.

Note

Instruction Manual

D100394X012

EH (1-1/2x1 through 8x6)

July 2017

WARNING

3. Lubricate the stud threads and the faces of the hex nuts (key 14, figure 18, 19, or 20) with anti‐seize lubricant (not

necessary if new factory prelubricated hex nuts are used). Replace the flat washers (key 29, figure 18, 19, 17, or 20)

Torque the nuts in a crisscross pattern to no more than one fourth of the nominal torque value specified in table 8. When all nuts are tightened to that torque value, increase the torque by one fourth of the specified nominal torque and repeat the crisscross pattern. Repeat this procedure until all nuts are tightened to the specified nominal value. Apply the final torque value again and, if any nut still turns, tighten every nut again.

4. Install new packing and packing box parts per steps 13 and 14 of the Replacing Packing procedure. Be certain to

observe the note given prior to step 13 of that procedure.

5. Mount the actuator by following the procedures in the actuator instruction manual. Check for packing leakage as

the valve is being put into service. Retorque the packing flange nuts as required (see table 7).

or Local Business Partner immediately if a discrepancy between actual parts

Retrofit: Installing C‐seal Trim

Note

Additional actuator thrust is required for a valve with C‐seal trim. When installing C‐seal trim in an existing valve, contact your

Emerson sales office

Figure 10. Fisher EHD with C‐seal Trim

FLOW DOWN FLOW UP

or Local Business Partner for assistance in determining new actuator thrust requirements.

VIEW A

37B1047‐A

EH (1-1/2x1 through 8x6)

July 2017

Instruction Manual

D100394X012

Assemble the new valve plug/retainer assembly (with C‐seal plug seal) using the following instructions:

CAUTION

To avoid leakage when the valve is returned to service, use appropriate methods and materials to protect all sealing surfaces of the new trim parts while assembling the individual parts and during installation in the valve body.

1. Apply a suitable high‐temperature lubricant to the inside diameter of the C‐seal plug seal. Also, lubricate the

outside diameter of the valve plug where the C‐seal plug seal must be pressed into the proper sealing position (figure 10).

2. Orient the C‐seal plug seal for correct sealing action based on the process fluid flow direction through the valve.

D The open interior of the C‐seal plug seal must face up in a valve with flow‐up construction (figure 10).

D The open interior of the C‐seal plug seal must face down in a valve with flow‐down construction (figure 10).

Note

An installation tool must be used to properly position the C‐seal plug seal on the valve plug. A tool is available as a spare part from your Emerson sales office

or Local Business Partner or a tool could be manufactured following the dimensions given in figure 11.

3. Place the C‐seal plug seal over the top of the valve plug and press the C‐seal plug seal onto the plug using the C‐seal

installation tool. Carefully press the C‐seal plug seal onto the plug until the installation tool contacts the horizontal reference surface of the valve plug (figure 12).

4. Apply a suitable high‐temperature lubricant to the threads on the plug. Then, place the C‐seal retainer onto the

plug and tighten the retainer using an appropriate tool such as a strap wrench.

5. Using an appropriate tool such as a center punch, stake the threads on top of the plug in one place (figure 13) to

secure the C‐seal retainer.

6. Install the new plug/retainer assembly with C‐seal plug seal on the new stem following the appropriate instructions

in the Trim Replacement section of this manual.

7. Install piston rings by following instructions in the Trim Replacement section of this manual.

8. Remove the existing valve actuator and bonnet following the appropriate instructions in the Replacing Packing

section of this manual.

CAUTION

Do not remove the existing valve stem from the valve plug unless you are planning to replace the valve stem. Never reuse an old valve stem with a new plug or reinstall a valve stem after it has been removed. Replacing a valve stem

requires drilling a new pin hole in the stem. This drilling weakens the stem and may cause failure in service.

However, a used valve plug may be reused with a new valve stem. An exception is the Cavitrol III plug/stem assembly which must be ordered and replaced as a unit.

9. Remove the existing valve stem and plug, cage, and seat ring from the valve body following the appropriate

instructions in the Trim Removal section of this manual.

10. Replace all gaskets according to appropriate instructions in the Trim Replacement section of this manual.

Instruction Manual

D100394X012

EH (1-1/2x1 through 8x6)

July 2017

FOR VALVE

PLUGS

FITTING

PORT SIZE

(Inches)

2.875 82.55

3.4375 101.6

3.625 104.394

4.375 125.984

5.375 142.748

7 184.15

8 209.55

FOR VALVE

PLUGS

FITTING

PORT SIZE

(Inches)

A B C D E F G H

52.324 ‐

52.578

58.674 ‐

58.928

65.024 ‐

65.278

83.439 ‐

83.693

100.076 ‐

100.33

141.376 ‐

141.630

166.776 ‐

167.030

4.978 ‐ 5.029 3.708 ‐ 3.759 41.148

4.978 ‐ 5.029 3.708 ‐ 3.759 50.8

4.978 ‐ 5.029 3.708 ‐ 3.759 45.974

4.978 ‐ 5.029 3.708 ‐ 3.759 60.198

4.978 ‐ 5.029 3.708 ‐ 3.759 55.88

A B C D E F G H

DIMENSIONS, mm

(See Drawing Below)

Dimensions, Inches

(See Drawing Below)

52.680 ‐

52.781

61.011 ‐

61.112

68.936 ‐

69.037

87.351 ‐

87.452

103.835 ‐

103.937

145.136 ‐

145.237

170.536 ‐

170.637

55.118 ‐

55.626

63.449 ‐

63.957

71.374 ‐

71.882

89.789 ‐

90.297

106.274 ‐

106.782

147.574 ‐

148.082

172.974 ‐

173.482

Part Number

(To Order

A Tool)

70.891 ‐ 71.044 24B9816X012

85.166 ‐ 85.319 24B5612X012

89.941 ‐ 90.094 24B3630X012

108.991 ‐ 109.144 24B3635X012

128.219 ‐ 128.372 23B9193X012

169.520 ‐ 169.672 23B9180X012

194.920 ‐ 195.072 24B9856X012

Part Number

(To Order

A Tool)

2.875 3.25 2.060 ‐ 2.070 0.196 ‐ 0.198 0.146 ‐ 0.148 1.62 2.074 ‐ 2.078 2.170 ‐ 2.190 2.791 ‐ 2.797 24B9816X012

3.4375 4.00 2.310 ‐ 2.320 0.196 ‐ 0.198 0.146 ‐ 0.148 2.00 2.402 ‐ 2.406 2.498 ‐ 2.518 3.353 ‐ 3.359 24B5612X012

3.625 4.11 2.560 ‐ 2.570 0.196 ‐ 0.198 0.146 ‐ 0.148 2.00 2.714 ‐ 2.718 2.810 ‐ 2.830 3.541 ‐ 3.547 24B3630X012

4.375 4.96 3.285 ‐ 3.295 0.196 ‐ 0.198 0.146 ‐ 0.148 2.00 3.439 ‐ 3.443 3.535 ‐ 3.555 4.291 ‐ 4.297 24B3635X012

5.375 5.62 3.940 ‐ 3.950 0.196 ‐ 0.198 0.146 ‐ 0.148 1.81 4.088 ‐ 4.092 4.184 ‐ 4.204 5.048 ‐ 5.054 23B9193X012 7 7.25 5.566 ‐ 5.576 0.196 ‐ 0.198 0.146 ‐ 0.148 2.37 5.714 ‐ 5.718 5.810 ‐ 5.830 6.674 ‐ 6.680 23B9180X012 8 8.25 6.566 ‐ 6.576 0.196 ‐ 0.198 0.146 ‐ 0.148 2.20 6.714 ‐ 6.718 6.810 ‐ 6.830 7.674 ‐ 7.680 24B9856X012

Figure 11. C‐seal Plug Seal Installation Tool

45° X 1.524 (0.06)

8° ‐ 9°

mm (inch)

A6777

∅A

∅B

∅F

∅G

∅H

45° X 0.508 (0.02)

BREAK SHARP CORNER 45° X 0.254 (0.01) MAX

EH (1-1/2x1 through 8x6)

July 2017

Instruction Manual

D100394X012

11. Install the new seat ring, cage, valve plug/retainer assembly, and stem into the valve body and completely reassemble the valve package following the appropriate instructions in the Trim Replacement section of this manual.

CAUTION

To avoid excessive leakage and seat erosion, the valve plug must be initially seated with sufficient force to overcome the resistance of the C‐seal plug seal and contact the seat ring. You can correctly seat the valve plug by using the same force calculated for full load when sizing your actuator. With no pressure drop through the valve, this force will adequately drive the valve plug to the seat ring, thus giving the C‐seal plug seal a predetermined permanent set. Once this is done, the plug/retainer assembly, the cage, and the seat ring become a matched set.

12. With full actuator force applied and the valve plug fully seated, align the actuator travel indicator scale with the lower end of valve travel. Refer to the appropriate actuator instruction manual for information on this procedure.

Replacement of Installed C‐seal Trim

Trim Removal (C‐seal Constructions)

1. Remove the valve actuator and bonnet following the appropriate instructions in the Replacing Packing section of this manual.

CAUTION

To avoid leakage when the valve is returned to service, use appropriate methods and materials to protect all sealing surfaces of the trim parts during maintenance.

Use caution when removing piston ring(s) and C‐seal plug seal to avoid scratching any sealing surface.

CAUTION

Do not remove the valve stem from the plug/retainer assembly unless you are planning to replace the valve stem.

Never reuse an old valve stem with a new plug or reinstall a valve stem after it has been removed. Replacing a valve stem requires drilling a new pin hole in the stem. This drilling weakens the stem and may cause failure in service.

However, a used valve plug may be reused with a new valve stem. An exception is the Cavitrol III plug/stem assembly which must be ordered and replaced as a unit.

2. Remove the plug/retainer assembly (with C‐seal plug seal), cage, and seat ring from the valve body following the appropriate instructions in the Trim Removal section of this manual.

3. Locate the staked thread on top of the valve plug (figure 13). The staked thread secures the retainer. Use a drill with a 1/8‐inch bit to drill out the staked area of the thread. Drill approximately 1/8‐inch into the metal to remove the staking.

4. Locate the break between sections of the piston ring(s). Using an appropriate tool such as a flat‐blade screwdriver, carefully pry out the piston ring(s) from the groove(s) in the C‐seal retainer.

5. After removing the piston ring(s), locate the 1/4‐inch diameter hole in the groove. In a retainer with two piston ring grooves, the hole will be found in the upper groove.

Instruction Manual

D100394X012

Figure 12. Installing the C‐seal Plug Seal Using the Installation Tool

INSTALLATION TOOL

C‐seal METAL PLUG SEAL

HORIZONTAL REFERENCE SURFACE

VALVE PLUG

EH (1-1/2x1 through 8x6)

July 2017

NOTE: PRESS INSTALLATION TOOL OVER VALVE PLUG UNTIL THE TOOL CONTACTS THE HORIZONTAL REFERENCE SURFACE OF THE VALVE PLUG.

A6778

Figure 13. Stake the Threads of the C‐seal Retainer

DEFORM THREAD TO STAKE C‐seal RETAINER

PISTON RING

RETAINER

C‐seal

FLOW DOWN

METAL PLUG SEAL

A6779

FLOW DOWN

VALVE PLUG

6. Select an appropriate tool such as a punch and place the tip of the tool into the hole with the body of the tool held tangent to the outside diameter of the retainer. Strike the tool with a hammer to rotate the retainer and free it from the valve plug. Remove the retainer from the plug.

7. Use an appropriate tool such as a flat‐blade screwdriver to pry the C‐seal plug seal off the plug. Use caution to avoid scratches or other damage to the sealing surfaces where the C‐seal plug seal makes contact with the valve plug (figure 14).

8. Inspect the lower seating surface where the valve plug contacts the seat ring for wear or damage which would prevent proper operation of the valve. Also, inspect the upper seating surface inside the cage where the C‐seal plug

EH (1-1/2x1 through 8x6)

July 2017

Instruction Manual

D100394X012

seal contacts the cage, and inspect the sealing surface where the C‐seal plug seal makes contact with the plug (figure 14).

9. Replace or repair trim parts according to the following procedure for lapping metal seats, remachining metal seats, or other valve plug maintenance procedures as appropriate.

Lapping Metal Seats (C‐seal Constructions)

Before installing a new C‐seal plug seal, lap the lower seating surface (valve plug to seat ring, figure 14) following appropriate procedures in the Lapping Seats section of this manual.

Remachining Metal Seats (C‐seal Constructions)

See figure 15. A valve plug with a C‐seal metal plug seal features two seating surfaces. One seating surface is found where the valve plug contacts the seat ring. The second seating surface is found where the C‐seal plug seal contacts the upper seating surface in the cage. If you machine the seats on the seat ring and/or plug, you must machine an equal dimension from the seating area in the cage.

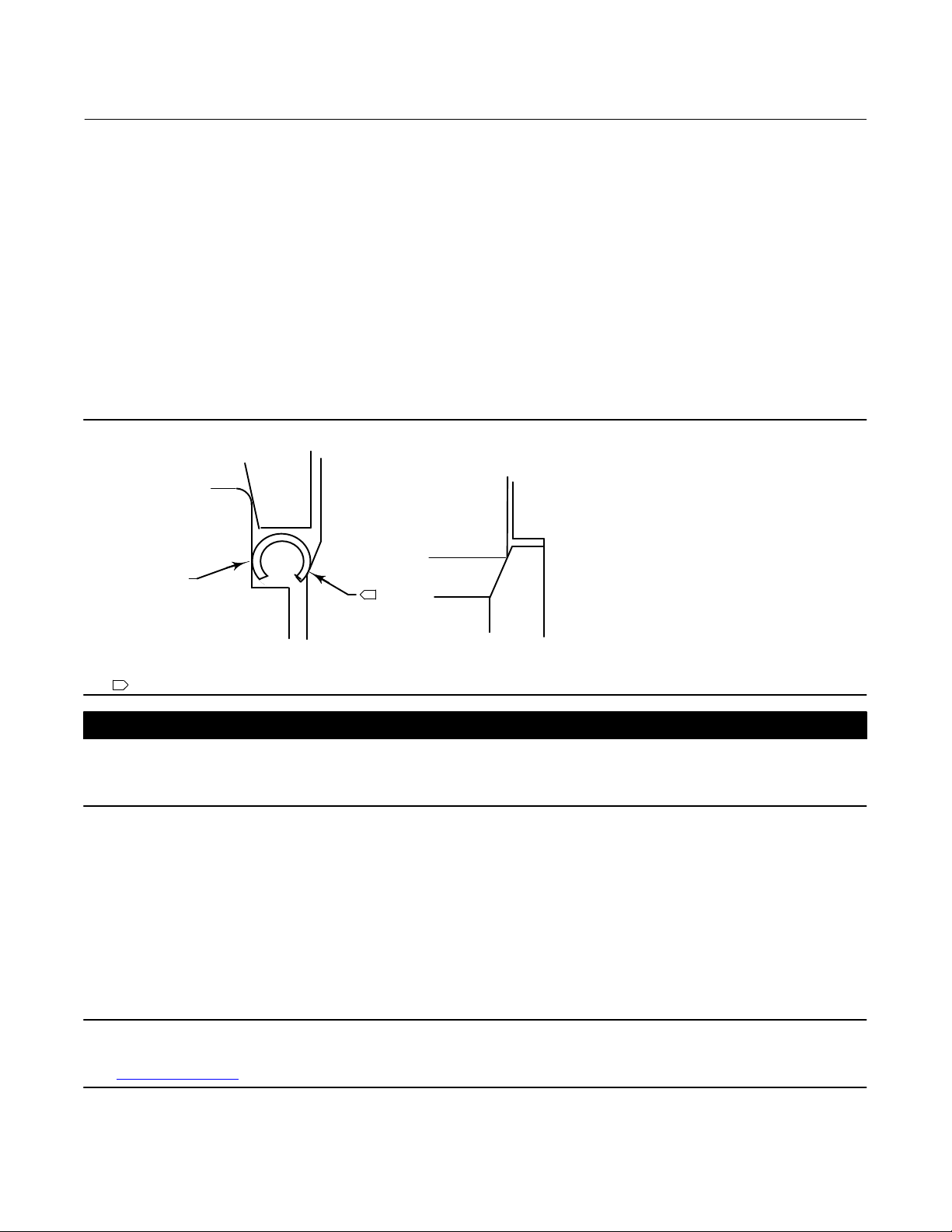

Figure 14. Lower (Valve Plug to Seat Ring) and Upper (C‐seal Plug Seal to Cage) Seating Surfaces

RETAINER

CAGE

PLUG

C-seal METAL PLUG SEAL

VALVE PLUG

A6780

NOTE:

UPPER SEATING SURFACE IS THE AREA OF CONTACT BETWEEN THE C‐seal METAL PLUG SEAL AND THE CAGE.

UPPER SEATING SURFACE

CAGE

SEAT RING

LOWER SEATING SURFACE

CAUTION

If metal is removed from the seat ring and plug and a corresponding amount is not removed from the cage seating area, the C‐seal plug seal will be crushed as the valve closes and the C‐seal retainer will strike the seating area of the cage, preventing the valve from closing.

Trim Replacement (C‐seal Constructions)

1. Apply a suitable high‐temperature lubricant to the inside diameter of the C‐seal plug seal. Also, lubricate the outside diameter of the valve plug where the C‐seal plug seal must be pressed into the proper sealing position (figure 10).

2. Orient the C‐seal plug seal for correct sealing action based on the process fluid flow direction through the valve.

D The open interior of the C‐seal plug seal must face up in a valve with flow‐up construction (figure 10).

D The open interior of the C‐seal plug seal must face down in a valve with flow‐down construction (figure 10).

Note

An installation tool must be used to properly position the C‐seal plug seal on the valve plug. A tool is available as a spare part from your Emerson sales office

or Local Business Partner or a tool could be manufactured following the dimensions given in figure 11.

Instruction Manual

D100394X012

EH (1-1/2x1 through 8x6)

July 2017

3. Place the C‐seal plug seal over the top of the valve plug and press it onto the plug using the installation tool. Carefully press the C‐seal plug seal onto the plug until the installation tool contacts the horizontal reference surface of the valve plug (figure 12).

4. Apply a suitable high‐temperature lubricant to the threads on the plug. Then, place the C‐seal retainer onto the plug and tighten the retainer using an appropriate tool such as a strap wrench.

5. Using an appropriate tool such as a center punch, stake the threads on top of the plug in one place (figure 13) to secure the C‐seal retainer.

6. Replace the piston ring(s) following instructions in the Trim Replacement section of this manual.

7. Return the seat ring, cage, plug/retainer assembly, and stem to the valve body and completely reassemble the valve package following the appropriate instructions in the Trim Replacement section of this manual.

CAUTION

8. With full actuator force applied and the valve plug fully seated, align the actuator travel indicator scale with the lower end of valve travel. Refer to the appropriate actuator instruction manual for information on this procedure.

Figure 15. Example of Machining the Lower (Valve Plug to Seat Ring) and Upper (C‐seal Plug Seal to Cage) Seating Surfaces

NOTE:

PLUS

MUST EQUAL

A6781 / IL

REMOVAL OF 0.254 mm (0.010 inch) FROM THE VALVE PLUG

REMOVAL OF 0.254 mm (0.010 inch) FROM THE SEAT RING

2 3

REMOVAL OF 0.508 mm (0.020 inch) FROM THE

UPPER SEATING SURFACE IN THE CAGE

4. THESE VALUES ARE FOR EXAMPLE ONLY. REMOVE ONLY THE MINIMUM AMOUNT OF MATERIAL REQUIRED TO REFURBISH THE SEATS.

C‐seal RETAINER

0.508 (0.020)

MACHINING OF THE UPPER SEATING SURFACE MUST EQUAL THE TOTAL MACHINING OF THE LOWER SEATING SURFACE (PLUG PLUS SEAT RING). IF NOT, THE RETAINER MAY STRIKE THE UPPER SEATING SURFACE BEFORE THE VALVE PLUG PROPERLY SEATS ON THE LOWER SEATING SURFACE.

PLUG

(4)

0.254 (0.010)

CAGE

SEAT RING

0.254 (0.010)

(4)

LOWER SEATING SURFACE

UPPER SEATING SURFACE

(4)

mm (inch)

EH (1-1/2x1 through 8x6)

July 2017

Instruction Manual

D100394X012

Parts Ordering

Each body‐bonnet assembly is assigned a serial number, which can be found on the valve body. This same number also appears on the actuator nameplate when the valve body is shipped from the factory as part of a control valve assembly. Refer to the number when contacting your Emerson sales office assistance or when ordering replacement parts.

When ordering replacement parts, also be sure to include the 11‐character part number for each part required from the following parts list.

WARNING

Use only genuine Fisher replacement parts. Components that are not supplied by Emerson Automation Solutions should not, under any circumstances, be used in any Fisher valve, because they may void your warranty, might adversely affect the performance of the valve, and could cause personal injury and property damage.

or Local Business Partner for technical

Parts Kits

Standard Packing Repair Kits (Non Live‐Loaded)

Stem Diameter, mm (Inches)

Yoke Boss Diameter, mm (Inches)

PTFE (Contains keys 6, 8, 10, 11, and 12) RPACKX00022 RPACKX00032 RPACKX00342 RPACKX00352

Double PTFE (Contains keys 6, 8, 11, and 12) RPACKX00052 RPACKX00062 RPACKX00362 RPACKX00372

PTFE/Composition (Contains keys 7, 8, 11, and 12) RPACKX00082 RPACKX00092 - - - - - -

Single Graphite Ribbon/Filament (Contains keys 7 [ribbon ring], 7 [filament ring], 8, and 11)

Single Graphite Ribbon/Filament (Contains keys 7 [ribbon ring], 7 [filament ring], and 11)

Single Graphite Ribbon/Filament (Contains keys 7 [ribbon ring], 7 [filament ring])

Double Graphite Ribbon/Filament (Contains keys 7 [ribbon ring], 7 [filament ring], 8, and 11)

Repair Kits (ENVIRO‐SEAL)

Stem Diameter, mm (Inches)

Yoke Boss Diameter, mm (Inches)

Double PTFE (Contains keys 214, 215, 218) RPACKX00202 RPACKX00212 RPACKX00222 RPACKX00232

Single Graphite ULF (Contains keys 207, 208, 209, 210, 214) RPACKX00602 RPACKX00612 RPACKX00622 RPACKX00632

Duplex (Contains keys 207, 209, 214, 215) RPACKX00302 RPACKX00312 RPACKX00322 RPACKX00332

Retrofit Kits (ENVIRO‐SEAL)

Stem Diameter, mm (Inches)

Yoke Boss Diameter, mm (Inches)

Double PTFE (Contains keys 200, 201, 211, 212,

214, 215, 216, 217, 218, tag, cable tie)

Single Graphite ULF (Contains keys 200, 201, 207, 208, 209,

210, 211, 212, 214, 217, tag, cable tie)

Duplex (Contains keys 200, 201, 207, 209, 211, 212, 214, 215,

216, 217, tag, cable tie)

12.7 (1/2)

71 (2‐13/16)

RPACKX00112 RPACKX00122 - - - - - -

- - - - - - RPACKX00532 RPACKX00542

RPACKX00142 RPACKX00152 - - - - - -

RPACKX00172 RPACKX00182 - - - - - -

12.7 (1/2)

71 (2‐13/16)

12.7 (1/2)

71 (2‐13/16)

RPACKXRT022 RPACKXRT032 RPACKXRT042 RPACKXRT052

RPACKXRT272 RPACKXRT282 RPACKXRT292 RPACKXRT302

RPACKXRT222 RPACKXRT232 RPACKXRT242 RPACKXRT252

19.1 (3/4)

90 (3‐9/16)

19.1 (3/4)

90 (3‐9/16)

19.1 (3/4)

90 (3‐9/16)

25.4 (1) 127 (5)

31.8 (1-1/4) 127 (5, 5H)

31.8 (1‐1/4) 127 (5, 5H)

Instruction Manual

D100394X012

EH (1-1/2x1 through 8x6)

July 2017

Parts List

Note

Contact your Emerson sales office Ordering information.

Bonnet Assembly (figure 16)

Key Description

1 Bonnet

If you need a bonnet as a replacement part, order by valve size and stem diameter,

serial number, and desired material. 2 Baffle, for use with extension bonnet only 3 Packing Flange 4 Packing Flange Stud (2 req'd) 5 Packing Flange Nut (2 req'd) 6* Packing Set or Arrangement 7* Packing Ring, low chloride graphite 8 Packing Spring, 316 stainless steel 8 Lantern Ring, 316 stainless steel 10 Special Washer, 316 stainless steel 11* Packing Box Ring, 316 stainless steel 12* Upper Wiper, felt 13 Packing Follower, 316 stainless steel 14 Pipe Plug 14 Lubricator 14 Lubricator/Isolating Valve 15 Yoke Locknut 25 Actuator Mounting Stud (8 req'd) 26 Hex Nut (8 req'd) 35 Retaining Ring, for use with extension bonnet only

or Local Business Partner for Part

Key Description

8* Piston Ring or Seal Ring 9* Backup Ring 10* Retaining Ring 10* Retaining Ring (for EHT valve body only) 11* Cage Gasket (2 req'd) 12* Seat Ring O‐Ring or Gasket 13 Bonnet Stud (8 req'd) 14 Hex Nut (8 req'd) 15 Flow Arrow 16 Drive Screw (4 req'd) 24 Anti‐seize Lubricant 25 Seat Ring Retainer Tool (see figure 9)

416 stainless steel

26* O‐Ring (for valve with Cavitrol III

trim only), ethylene/propylene 27 Nameplate 28 Nameplate Wire 29 Bonnet Washer 29 Flat Washer (8 req'd) 30* Piston Ring (for EHT with Level D Whisper Trim III cage only) 33 Belleville Washer, N07718 (8 req'd) 63* Anti‐Extrusion Ring

C‐seal Trim (figure 10)

2* Cage 3* Valve Plug/Retainer 4* Valve Plug Stem, S20910 6* Seat Ring 8* Piston Ring, graphite (2 req'd) 64* C‐seal, N07718

Valve Body (figures 18‐21)

1 Valve Body, order by valve size, serial

number, and desired material 2* Cage 3* Valve Plug 4* Valve Plug Stem 5* Pin 6* Seat Ring 7* Seat Ring Retainer

*Recommended spare parts

TSO Trim (figure 7)

2* Cage 4* Seat Ring 5* Plug/Stem Assembly 8* Seal Ring 63* Anti‐Extrusion Ring 9* Back Up Ring 10* Retaining Ring

EH (1-1/2x1 through 8x6)

July 2017

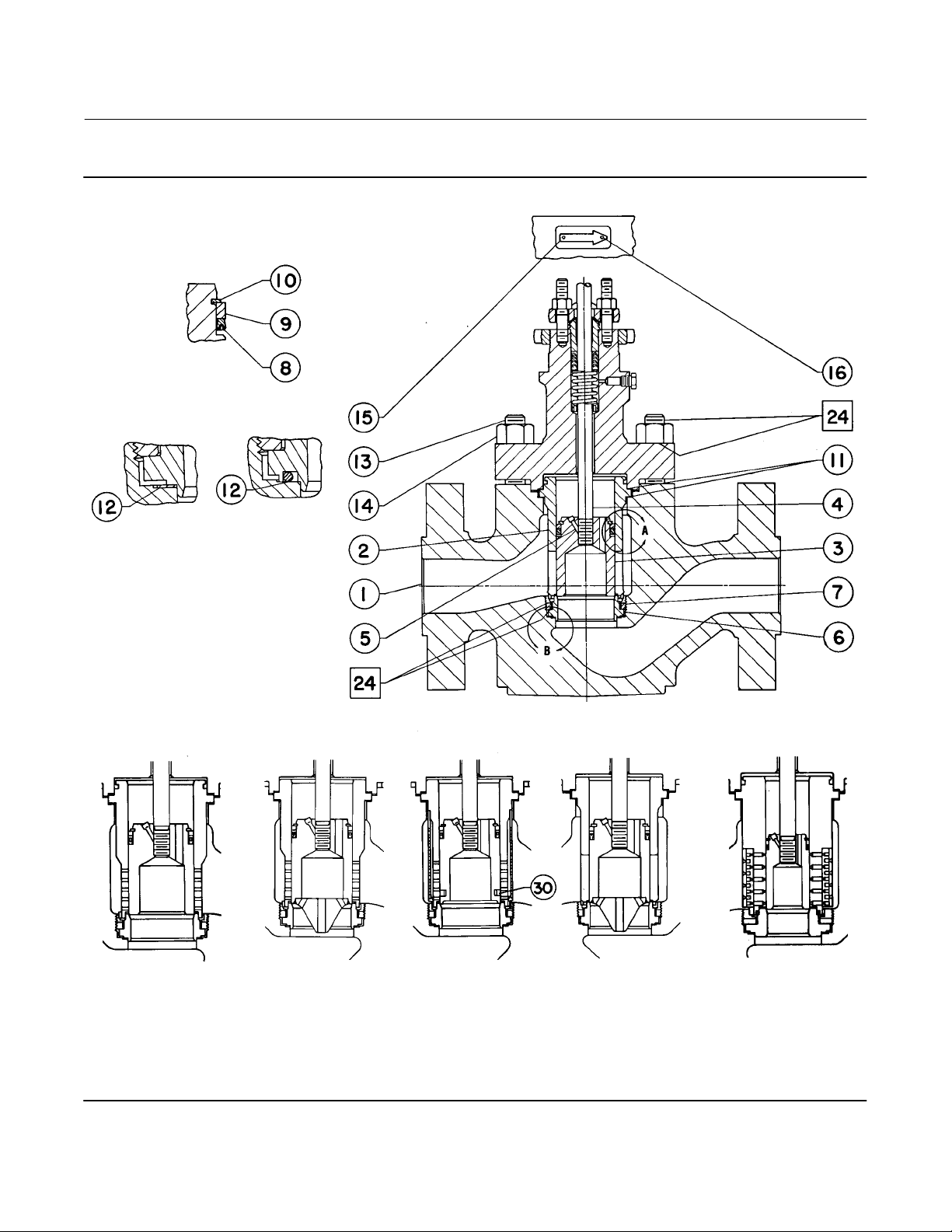

Figure 16. Fisher EH Bonnet Assembly

Instruction Manual

D100394X012

71 mm (2‐3/16 INCH) YOKE BOSS BONNET

WITH SINGLE ARRANGEMENT PTFE PACKING

18A8557‐A

56A5372‐E A2699‐2

DETAIL OF BAFFLE AND RETAINING RING

USED IN EXTENSION BONNET

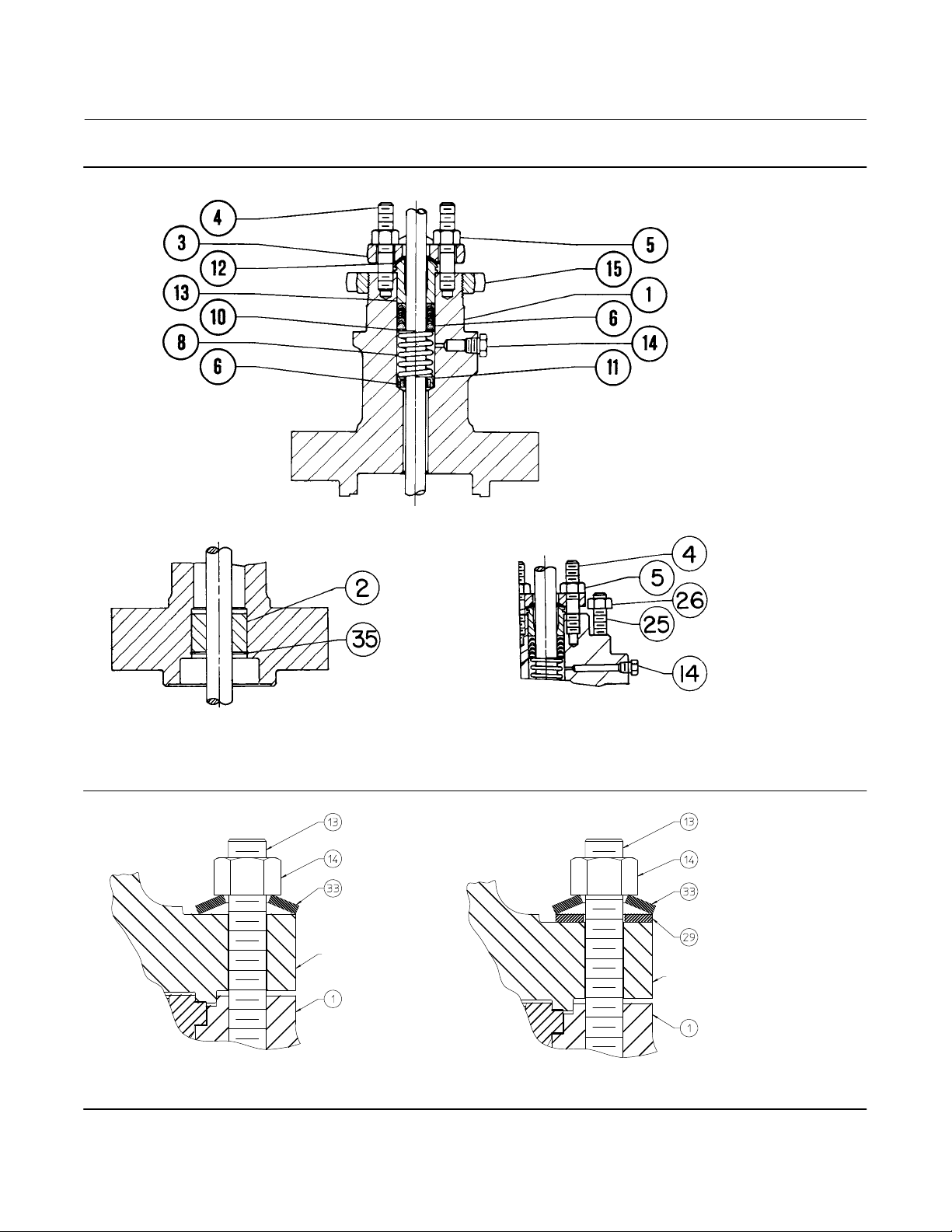

Figure 17. Belleville Washer Body-to-Bonnet Bolting

SHOWN IN UNCOMPRESSED “FREE” POSITION

BONNET

35A3976‐A

DETAIL OF 127 mm (5‐INCH) YOKE BOSS ACTUATOR BOLTING

(OPTIONAL FOR NPS 3, 4, & 6 EH SERIES VALVE BODIES)

SHOWN IN UNCOMPRESSED “FREE” POSITION

BONNET

NPS 1-1/2 THROUGH NPS 4 ALL ASME CLASSES

NPS 6 ALL ASME CLASSES EXCEPT CL2500

GE60624-C

NPS 8 AND LARGER ALL ASME CLASSES

NPS 6 CL2500

Instruction Manual

D100394X012

Figure 18. Fisher EHD Valve

VIEW A

GASKETED SEAT RING

CONSTRUCTION

EH (1-1/2x1 through 8x6)

July 2017

FLOW DIRECTION FOR ALL TRIMS EXCEPT WITH A WHISPER

TRIM III CAGE OR A VALVE PLUG WITH DIVERTER CONE

O‐RING SEAT RING

CONSTRUCTION

j APPLY LUB

56A5372‐F

PARTS NOT SHOWN: KEY 29 FLAT WASHER

59A9166‐A

DETAIL OF PLUG WITH

DIVERTER CONE, FOR

NPS 6 BODY ONLY

57A2887‐A

NPS 3 THROUGH 4 BODIES

REFERENCE STANDARD TRIM KEY NUMBERS EXCEPT AS SHOWN

DETAIL OF WHISPER

TRIM III CAGE FOR

ALTERNATE CONFIGURATIONS

EHD BODY WITH STANDARD TRIM

59A9188‐A

DETAIL OF LEVEL A, B, OR C WHISPER TRIM III CAGE

AND VALVE PLUG WITH

DIVERTER CONE, FOR

NPS 6 BODY ONLY

59A9190‐A

DETAIL OF LEVEL D

WHISPER TRIM III CAGE

AND VALVE PLUG, FOR

NPS 6 BODY ONLY

EH (1-1/2x1 through 8x6)

July 2017

Figure 19. Fisher EHS Valve

VIEW A

GASKETED SEAT RING

CONSTRUCTION

Instruction Manual

D100394X012

FLOW DIRECTION FOR ALL TRIMS EXCEPT THOSE WITH A CAVITROL III CAGE

O‐RING SEAT RING

CONSTRUCTION

j APPLY LUB

56A5494‐E

PARTS NOT SHOWN: KEY 29 FLAT WASHER

REFERENCE STANDARD TRIM KEY NUMBERS EXCEPT AS SHOWN

EHS BODY WITH STANDARD TRIM

57A2891‐B

DETAIL OF WHISPER TRIM III CAGE,

FOR NPS 2 THROUGH 6 BODIES

ALTERNATE CONFIGURATIONS

Instruction Manual

D100394X012

EH (1-1/2x1 through 8x6)

July 2017

Figure 20. Fisher EHT Valve

VIEW A

VIEW B

GASKETED SEAT RING

CONSTRUCTION

O‐RING SEAT RING

CONSTRUCTION

FLOW DIRECTION FOR ALL TRIMS EXCEPT WITH A WHISPER

TRIM III CAGE OR A VALVE PLUG WITH DIVERTER CONE

j APPLY LUB

56A5487‐E

PARTS NOT SHOWN: KEY 29 FLAT WASHER

57A2889‐A

DETAIL OF WHISPER

TRIM III CAGE FOR

NPS 3 THROUGH 4 BODIES

59A9192‐A

DETAIL OF LEVEL A, B, OR C

WHISPER TRIM III CAGE AND

VALVE PLUG WITH DIVERTER

CONE, FOR NPS 6

BODY ONLY

EHT BODY WITH STANDARD TRIM

59A9194‐A

DETAIL OF LEVEL D

WHISPER TRIM III CAGE

AND VALVE PLUG, FOR NPS

6 BODY ONLY

59A9168‐A

DETAIL OF VALVE PLUG

WITH DIVERTER CONE, FOR

NPS 6 BODY ONLY

ALTERNATE CONFIGURATIONS

REFERENCE STANDARD TRIM KEY NUMBERS EXCEPT AS SHOWN

57A2883‐B

DETAIL OF 3‐STAGE

CAVITROL III CAGE, FOR

ALL BODIES EXCEPT NPS 1

AND CL2500 NPS 2

BODIES (2‐STAGE CAGE

IS AVAILABLE FOR NPS 3

THROUGH 6 BODIES)

EH (1-1/2x1 through 8x6)

July 2017

Figure 21. Typical Cavitrol III Constructions

Instruction Manual

D100394X012

GASKETED SEAT RING

CONSTRUCTION

57A2883‐B

VIEW A

O‐RING SEAT RING

CONSTRUCTION

57A2881‐B

DETAIL OF EHT BODY WITH 3‐STAGE

CAVITROL III CAGE

VIEW B

O‐RING SEAL BETWEEN

CAGE AND SEAT RING

DETAIL OF EHS BODY WITH 2‐STAGE CAVITROL III CAGE

Instruction Manual

EH (1-1/2x1 through 8x6)

D100394X012

Table 12. Valve Plug Diameters and Operating Temperatures

CAGE MATERIAL STEM MATERIAL

S31600 (316 Stainless Steel)

Chrome-coated

S31600 ENC (NACE) S20910 -40 to +232 -40 to +450 A EHD, EHS

S17400 (17‐4PH Stainless Steel)

H1150 (NACE)

S17400 H1150 (NACE) S20910 -40 to +232 -40 to +450 B EHD

S31600 Chrome-coated

S31600 ENC (NACE) S20910 -40 to +232 -40 to +450 B EHS

S42200 (422 Stainless Steel)

Ion Nitride

S42200 Ion Nitride S31600 Chrome-coated 427 to 510 +800 to 950 D EHD, EHS

S31600 Chrome-coated

S31600 ENC (NACE) S20910 -40 to +232 -40 to +450 D EHD, EHS

S42200 Ion Nitride S31600 Chrome-coated 427 to 510 +800 to 950 E EHD, EHS

S42200 Ion Nitride S31600 Chrome-coated 510 to 566 +950 to 1050 F EHD, EHS

S31600 Chrome-coated

S31600 ENC (NACE) S20910 -40 to +232 -40 to +450 K EHD

S31600 -198 to +427 -325 to +800

S31600 Chrome-coated -29 to +593 -20 to +1100

S20910 -40 to +232 -40 to +450 A EHS

S31600 -198 to +427 -325 to +800

S31600 Chrome-coated -29 to +593 -20 to +1100

S31600 Chrome-coated 427 to 566 +800 to 1050 C EHD, EHS

S31600 -198 to +427 -325 to +800

S31600 Chrome-coated -29 to +593 -20 to +1100

S31600 -198 to +427 -325 to +800

S31600 Chrome-coated -29 to +593 -20 to +1100

OPERATING TEMPERATURE RANGE

_C _F

DIAMETER

CODE

A EHD, EHS

B EHS

D EHD, EHS

K EHD

July 2017

VALVE BODY

DESIGN

Figure 22. NPS 3 to 6 Fisher EHT Valve Using PEEK Anti‐Extrusion Rings

21B2120‐A A7132

FLOW UP FLOW DOWN

EH (1-1/2x1 through 8x6)

July 2017

Actuator Groups by Type Number

Group 1

54 mm (2‐1/8 Inch),

71 mm (2‐13/16 Inch),

or 90 mm (3‐9/16 Inch) Yoke Boss

472 & 473

585C, 585CR (50.8 mm [2 inch] maximum

travel)

1B & 655

657 & 667—76.2 mm (3 Inch) maximum

travel

657‐4, 667‐4 (76.2 mm [3 inch] travel)

1008—Except 90 mm (3‐9/16 Inch) yoke

boss with 50.8 mm (2 inch) travel

3024C, 3025

685SE, 685SR (76.2 mm [3 inch] maximum

travel)

Group 100

127 mm (5 Inch, 5H) Yoke Boss

472, 473

585C, 585C MO

657, 657 MO

1008 PDTC

Group 101

127 mm (5 Inch) Yoke Boss

667, 667 MO 667, 667‐4

Group 401

90.5 mm (3‐9/16 Inch) Yoke Boss

88.9 to 101.6 mm (3.25 to 4 inch) Travel

657, 657 MO

667, 667 MO 657‐4, 657‐4 MO 667‐4, 667‐4 MO

3025

685SE, 685SR

Group 402

90.5 mm (3‐9/16 Inch) Yoke Boss

101.6 mm (4 Inch) Maximum Travel

585C MO Size 60

Group 403

90.5 mm (3‐9/16 Inch) Yoke Boss

101.6 mm (4 Inch) Maximum Travel

585C Size 60 1008 Size 50

Instruction Manual

127 mm (5 Inch, 5H) Yoke Boss

101.6 mm (4 Inch) Maximum

127 mm (5 Inch, 5H) Yoke Boss

101.6 mm (4 Inch) Maximum

127 mm (5 Inch, 5H) Yoke Boss

101.6 mm (4 Inch) Maximum

127 mm (5 Inch, 5H) Yoke Boss

101.6 mm (4 Inch) Maximum

Group 404

Travel

3025 (ATO)

Group 405

Travel

657 MO, 657‐4 MO 667 Size 100

Group 406

Travel

667 MO, 667‐4 MO 585C, 585C MO Size 60

Group 407

Travel

585C, 585C MO

657

3025 (ATC)

685SE, 685SR

101.6 mm (4 Inch) Maximum

203.2 mm (8 Inch) Maximum

Group 408

177.8 mm (5H, 7 Inch) Yoke

657 Size 100

1008 Size 100

3025 (ATC)

Group 409

177.8 mm (5H, 7 Inch) Yoke

3025 (ATO)

Group 801

90.5 mm (3‐9/16 Inch) Yoke Boss

685SE, 685SR

Group 802

127 mm (5 Inch, 5H)

Yoke Boss

585C, 585C MO

685SE, 685SR

D100394X012

Boss

Travel

Boss

Travel

*Recommended spare parts

Neither Emerson, Emerson Automation Solutions, nor any of their affiliated entities assumes responsibility for the selection, use or maintenance of any product. Responsibility for proper selection, use, and maintenance of any product remains solely with the purchaser and end user.

Fisher, Cavitrol, ENVIRO-SEAL, and Whisper Trim are marks owned by one of the companies in the Emerson Automation Solutions business unit of Emerson Electric Co. Emerson Automation Solutions, Emerson, and the Emerson logo are trademarks and service marks of Emerson Electric Co. All other marks are the property of their respective owners.

The contents of this publication are presented for informational purposes only, and while every effort has been made to ensure their accuracy, they are not to be construed as warranties or guarantees, express or implied, regarding the products or services described herein or their use or applicability. All sales are governed by our terms and conditions, which are available upon request. We reserve the right to modify or improve the designs or specifications of such products at any time without notice.

Emerson Automation Solutions

Marshalltown, Iowa 50158 USA Sorocaba, 18087 Brazil Cernay 68700 France Dubai, United Arab Emirates Singapore 128461 Singapore

www.Fisher.com

Emerson Fisher EHD, Fisher EHS, Fisher EHT Instruction Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
