Emerson Fisher 627, Fisher 627R, Fisher 627LR, Fisher 627M, Fisher 627HM Instruction Manual
...
Instruction Manual
Form 5252
May 2013
627 Series
627 Series Pressure Reducing Regulators
WARNING
!
Failure to follow these instructions or
to properly install and maintain this
equipment could result in an explosion
and/or re causing property damage and
personal injury or death.
Fisher® regulators must be installed,
operated, and maintained in accordance
with federal, state, and local codes, rules
and regulations, and Emerson Process
Management Regulator T echnologies, Inc.
(Regulator T echnologies) instructions.
If the regulator vents gas or a leak
develops in the system, service to the unit
may be required. Failure to correct trouble
could result in a hazardous condition.
Call a gas service person to service the
unit. Only a qualied person must install
or service the regulator.
Introduction
Scope of the Manual
This manual provides instructions for the installation,
adjustment, maintenance, and parts ordering information
for the 627 Series regulators. These regulators are
usually shipped separate for line installation, although
sometimes they are shipped installed on other
equipment. Refer to the Instruction Manual of the other
equipment for installation and operating instructions.
Description
The 627 Series direct-operated pressure reducing
regulators (Figure 1) are for high and low pressure
systems. These regulators can be used with natural
gas, air, or a variety of other gases. Performance
characteristics vary according to construction.
W4793
Figure 1. Typical 627 Direct-Operated
Pressure Reducing Regulator
WARNING
!
Personal injury, property damage,
equipment damage, or leakage due to
escaping gas or bursting of pressurecontaining parts may result if this
regulator is overpressured or is installed
where service conditions could exceed
the limits given in the Specications
section, Tables 1, 2, 3, and 4, or where
conditions exceed any ratings of the
adjacent piping or piping connections.
To avoid such injury or damage, provide
pressure-relieving or pressure-limiting
devices (as required by the appropriate
code, regulation, or standard) to prevent
service conditions from exceeding
D101328X012
www.fisherregulators.com
627 Series
Specications
The Specications section gives some general specications for the 627 Series regulators. The nameplates give
detailed information for a particular regulator as it comes from the factory.
Available Constructions
Type 627: Direct-operated pressure reducing
regulator equipped with a pitot tube for greater
regulated capacities (Figure 7).
Type 627R: Type 627 with internal relief and with
an open throat (Figure 8).
T ype 627LR: T ype 627R with light rate relief spring
(Figure 9).
Type 627M: Type 627 with a stem seal between
the body outlet pressure and diaphragm case.
Pressure is measured under the diaphragm
through the 1/4 NPT downstream control line
connection (Figure 10).
T ype 627MR: Type 627M with internal relief
Maximum Body outlet Pressure
(Types 627M, 627MR, and 627HM only)
NPT Steel: 2000 psig / 138 bar
Flanged Steel: 1500 psig / 103 bar
Ductile Iron: 1000 psig / 69.0 bar
Orice Sizes
See Table 1
Internal Relief Performance
Type 627R: See Table 3
Type 627LR: See Table 4
Type 627MR: Limited by eld-installed control
line piping
Elastomer Temperature Capabilities
(Figure 11).
Type 627H: Type 627 with a diaphragm limiter to
deliver a higher outlet pressure (Figure 12).
Type 627HM: Type 627H with a stem seal
between the body outlet pressure and diaphragm
case. Pressure is measured under the diaphragm
through the 1/4 NPT downstream control line
connection (Figure 13).
MATERIAL
Nitrile (NBR)
Fluorocarbon (FKM)
Nylon (PA) Disk -40 to 180 -40 to 82
Neoprene (CR) for
Types 627H and 627HM only
Body Sizes and End Connection Styles
BoDy SIzE
NPS DN
3/4 - - - - NPT
1 25
2 50
END CoNNECTIoN STyLE
NPT, CL150 RF, CL300 RF,
CL600 RF, and Long Body
NPT, CL150 RF, CL300 RF,
CL600 RF, and Long Body
Maximum Inlet Pressure
(1)
(Body Rating)
CoNSTRuCTIoN
AvAILABLE
All
NPT Stainless Steel: 2000 psig / 138 bar
Flanged Stainless Steel: 1440 psig / 99.3 bar
NPT Steel: 2000 psig / 138 bar
Flanged Steel: 1500 psig / 103 bar
Ductile Iron: 1000 psig / 69.0 bar
Maximum valve Disk Inlet Pressure Rating
(1)
Nylon (PA) Disk: 2000 psig / 138 bar
Nitrile (NBR) Disk: 1000 psig / 69.0 bar
Fluorocarbon (FKM) Disk: 300 psig / 20.7 bar
Maximum operating Inlet Pressure, Pressure
Differential, and outlet Pressure Ranges
(1)
See Table 1 for pressures by orice size and
spring range
Maximum Spring and Diaphragm Casing Pressure
Flow Coefcients
See Table 5
IEC Sizing Coefcients
See Table 6
Pressure Registration
Type 627, 627H, 627R, or 627LR: Internal
Type 627M, 627HM, or 627MR: External through
1/4 NPT control line connection in the
diaphragm casing
De-Icer System
See Figure 3 and Type 627M Regulator De-Icer
System Application section
Relief Indicator
For T ypes 627R, 627LR, and 627MR
(see Figures 8, 9, and 1 1)
Spring Case vent Connection
3/4 NPT with removable screened vent assembly
Approximate Weights
Ductile Iron, Steel, or Stainless Steel Casings:
10 pounds / 4 kg
(1)
Aluminum Casings: 6.3 pounds / 3 kg
See Table 2
1. The pressure/temperature limits in this Instruction Manual or any applicable standard limitation should not be exceeded.
2. Types 627, 627H, 627R, and 627LR are limited by maximum diaphragm casing pressure.
3. Stainless steel body is rated to -40°F / -40°C. Steel and Ductile Iron bodies are rated to -20°F / -29°C.
(1)(2)
(1)(3)
DISK/
DIAPHRAGM
Disk
Diaphragm
Disk
Diaphragm
Diaphragm -40 to 180 -40 to 82
TEMPERATuRE
°F °C
-40 to 180 -40 to 82
0 to 180 -18 to 82
2
627 Series
INLET PRESSuRE
ouTLET PRESSuRE
ATMoSPHERIC PRESSuRE
ADjuSTING SCREW
A6557
INLET PRESSuRE
ouTLET PRESSuRE
ATMoSPHERIC PRESSuRE
DIAPHRAGM
PuSHER PoST
LEvER
CoNTRoL SPRING
STEM
vALvE DISK
oRIFICE
Figure 2. Type 627 Operational Schematic
those limits. The Type 627R, 627LR,
or 627MR regulator with internal relief
will provide downstream overpressure
protection within the limits given in
the Specications section, Tables 1, 2,
3, and 4. If these limits are exceeded,
additional downstream overpressure
protection must be provided by the user.
Additionally, physical damage to the
regulator could cause personal injury or
property damage due to escaping gas.
To avoid such injury or damage, install
the regulator in a safe location.
Principle of operation
Refer to Figure 2. When downstream demand
decreases, the pressure under the diaphragm
increases. This pressure overcomes the regulator
setting (which is set by a spring). Through the action
of the pusher post assembly, lever, and valve stem
the valve disk moves closer to the orice and reduces
gas ow. If demand downstream increases, pressure
under the diaphragm decreases. Spring force pushes
the pusher post assembly downward and the valve
disk moves away from the orice.
Product Description
Types 627 and 627H Direct-operated Pressure
Reducing Regulators—The Types 627 and 627H
regulators provide economical pressure reducing
control for a variety of residential, commercial, and
industrial applications. The regulator pitot tube located
in a high velocity stream provides dynamic boost that
compensates for outlet pressure drop.
Type 627 Long Body—The Type 627 Long Body
regulator can be used as a drop-in replacement for
existing Type 630 installations without the need to
modify piping.
Internal Relief for Type 627R, 627LR, or
627MR Regulator—The Type 627R internal relief
performance values were obtained by removing the
disk assembly from the regulator. For the Type 627R,
627LR, or 627MR regulator, the internal relief across
the diaphragm provides overpressure protection in
many applications. As outlet pressures build up above
the start-to-discharge point, the diaphragm moves off
the relief valve seat allowing the excess pressure to
bleed out through the screened vent.
For extra protection, should failure conditions exist
which would prevent normal operation of the regulator
3
627 Series
Table 1. Maximum Inlet Pressures and Outlet Pressure Ranges
ouTLET PRESSuRE
TyPE
RANGE, SPRING PART
NuMBER, AND
CoLoR CoDE
(2)
5
to 20 psig /
0.34 to 1.4 bar
10B3076X012
Yellow
15 to 40 psig /
1.0 to 2.8 bar
10B3077X012
627
and
627M
(3)
Green
35 to 80 psig /
2.4 to 5.5 bar
10B3078X012
Blue
70 to 150 psig /
4.8 to 10.3 bar
10B3079X012
Red
(2)
5
to 20 psig /
0.34 to 1.4 bar
10B3076X012
Yellow
15 to 40 psig /
1.0 to 2.8 bar
10B3077X012
627R
Green
and
627MR
35 to 80 psig /
2.4 to 5.5 bar
10B3078X012
Blue
70 to 150 psig /
4.8 to 10.3 bar
10B3079X012
Red
15 to 40 psig /
1.0 to 2.8 bar
627LR
10B3077X012
Green
140 to 250 psig /
9.7 to 17.2 bar
10B3078X012
627H
and
627HM
(3)
Blue
240 to 500 psig /
16.5 to 34.5 bar
10B3079X012
Red
1. For inlet pressure in excess of 1000 psig / 69.0 bar, refer to the maximum body and disk pressure ratings in the Specications section.
2. For pressure settings under 10 psig / 0.69 bar, inlet pressure should be limited to approximately 100 psig / 6.9 bar so the setpoint adjustment can be obtained.
3. The unbalance forces change from the wide-open monitor mode to an active regulator mode such that the Type 627M or 627HM should have a 3/8 inch / 9.5 mm or larger orice.
- Shaded areas indicate that Fluorocarbon (FKM) and Nylon (PA) disk material are not available.
oRIFICE SIzE
Nylon (PA) Disk Nitrile (NBR) Disk Fluorocarbon (FKM) Disk
Inches mm psig bar psig bar psig bar
3/32
1/8
3/16
1/4
3/8
1/2
3/32
1/8
3/16
1/4
3/8
1/2
3/32
1/8
3/16
1/4
3/8
1/2
3/32
1/8
3/16
1/4
3/8
1/2
3/32
1/8
3/16
1/4
3/8
1/2
3/32
1/8
3/16
1/4
3/8
1/2
3/32
1/8
3/16
1/4
3/8
1/2
3/32
1/8
3/16
1/4
3/8
1/2
3/32
1/8
3/16
1/4
3/32
1/8
3/16
1/4
3/8
1/2
3/32
1/8
3/16
1/4
3/8
1/2
2.4
3.2
4.8
6.4
9.5
13
2.4
3.2
4.8
6.4
9.5
13
2.4
3.2
4.8
6.4
9.5
13
2.4
3.2
4.8
6.4
9.5
13
2.4
3.2
4.8
6.4
9.5
13
2.4
3.2
4.8
6.4
9.5
13
2.4
3.2
4.8
6.4
9.5
13
2.4
3.2
4.8
6.4
9.5
13
2.4
3.2
4.8
6.4
2.4
3.2
4.8
6.4
9.5
13
2.4
3.2
4.8
6.4
9.5
13
2000
1000
750
500
300
250
2000
1500
1000
750
500
300
2000
2000
1750
1500
1000
750
2000
2000
2000
1750
1250
750
2000
1000
750
500
300
200
2000
1500
1000
750
300
200
2000
1750
1000
750
300
200
2000
1000
500
300
200
200
2000
2000
1750
1500
1000
750
2000
2000
1750
1500
1000
750
MAxIMuM INLET PRESSuRE
138
69.0
51.7
34.5
20.7
17.2
138
103
69.0
51.7
34.5
20.7
138
138
121
103
69.0
51.7
138
138
138
121
86.2
51.7
138
69.0
51.7
34.5
20.7
13.8
138
103
69.0
51.7
20.7
13.8
138
121
69.0
51.7
20.7
13.8
138
69.0
34.5
20.7
13.8
13.8
1000
1000
750
500
300
250
1000
1000
1000
750
500
300
1000
1000
1000
1000
1000
750
1000
1000
1000
1000
1000
750
1000
1000
750
500
300
200
1000
1000
1000
750
300
200
1000
1000
1000
750
300
200
1000
1000
500
300
200
200
1000
1000
750
500
138
138
121
103
69.0
51.7
138
138
121
103
69.0
51.7
1000
1000
1000
1000
750
500
1000
1000
1000
1000
1000
750
69.0
69.0
51.7
34.5
20.7
17.2
69.0
69.0
69.0
51.7
34.5
20.7
69.0
69.0
69.0
69.0
69.0
51.7
69.0
69.0
69.0
69.0
69.0
51.7
69.0
69.0
51.7
34.5
20.7
13.8
69.0
69.0
69.0
51.7
20.7
13.8
69.0
69.0
69.0
51.7
20.7
13.8
69.0
69.0
34.5
20.7
13.8
13.8
69.0
69.0
51.7
34.5
69.0
69.0
69.0
69.0
51.7
34.5
69.0
69.0
69.0
69.0
69.0
51.7
(1)
300
300
300
300
300
250
300
300
300
300
300
300
300
300
300
300
300
300
300
300
300
300
300
300
300
300
300
300
300
200
300
300
300
300
300
200
300
300
300
300
300
200
300
300
300
300
200
200
300
300
300
300
20.7
20.7
20.7
20.7
20.7
17.2
20.7
20.7
20.7
20.7
20.7
20.7
20.7
20.7
20.7
20.7
20.7
20.7
20.7
20.7
20.7
20.7
20.7
20.7
20.7
20.7
20.7
20.7
20.7
13.8
20.7
20.7
20.7
20.7
20.7
13.8
20.7
20.7
20.7
20.7
20.7
13.8
20.7
20.7
20.7
20.7
13.8
13.8
20.7
20.7
20.7
20.7
4
627 Series
Table 2. Maximum Spring and Diaphragm Casing Pressure
MAxIMuM PRESSuRE DESCRIPTIoN
Maximum pressure to spring and diaphragm
casings to prevent leak to atmosphere other than
relief action (internal parts damage may occur)
Maximum pressure to spring and diaphragm
casings to prevent burst of casings during
abnormal operation (leak to atmosphere and
internal parts damage may occur)
Maximum diaphragm casing overpressure (above
setpoint) to prevent damage to internal parts
1. If the spring case is pressurized, a metal adjusting screw cap is required. Contact your local Sales Ofce for details.
DIAPHRAGM
CASING MATERIAL
Die cast aluminum
Ductile iron
Steel or Stainless steel 250 17.2 800 55.2
Die cast aluminum 375 25.9 375 25.9 Not Available Not Available
Ductile iron 465 32.1 465 32.1 465 32.1 465 32.1
Steel or Stainless steel 1500 103 1500 103 1500 103 1500 103 1500 103
All materials 60 4.1 120 8.3 60 4.1 120 8.3 120 8.3
(for example, disk broken off or disk erosion), the
pusher post contacts the lever retainer causing the
relief valve assembly to open. Since the diaphragm
TyPE 627
psig bar psig bar psig bar psig bar psig bar
250 17.2 250 17.2
Perform steps 1 through 6 for all types of regulators:
1. Only personnel qualied through training and
continues to rise as downstream pressure builds, it
opens the relief valve; thereby, opening the valve.
This internal relief may be adequate for the application.
2. For a regulator that is shipped separately, make
Downstream Control Line for Type 627M, 627HM,
or 627MR Regulator—A Type 627M, 627HM, or
627MR regulator has a blocking throat stem seal
3. Ensure that all tubing and piping have been blown
with O-rings and a 1/4 NPT control line connection in
TyPES 627R
AND 627LR
experience should install, operate, or maintain
this regulator.
sure that there is no damage to or foreign material
in the regulator.
free of foreign debris.
the diaphragm case. A regulator with a downstream
control line is used for monitoring applications or
other applications where other equipment is installed
between the regulator and the pressure control point.
The stem seal separates the body outlet pressure
from the diaphragm case.
4. The regulator may be installed in any position as
long as the ow through the body is in the direction
indicated by the arrow cast on the body.
5. If continuous operation is required during
inspection or maintenance, install a three-valve
bypass around the regulator.
(1)
TyPE 627M TyPE 627MR
Not Available
250 17.2
Not Available Not Available
TyPES 627H
AND 627HM
Not Available
Installation
Regulator operation within ratings does not preclude
the possibility of damage from debris in the lines
or from external sources. A regulator should be
inspected for damage periodically and after any

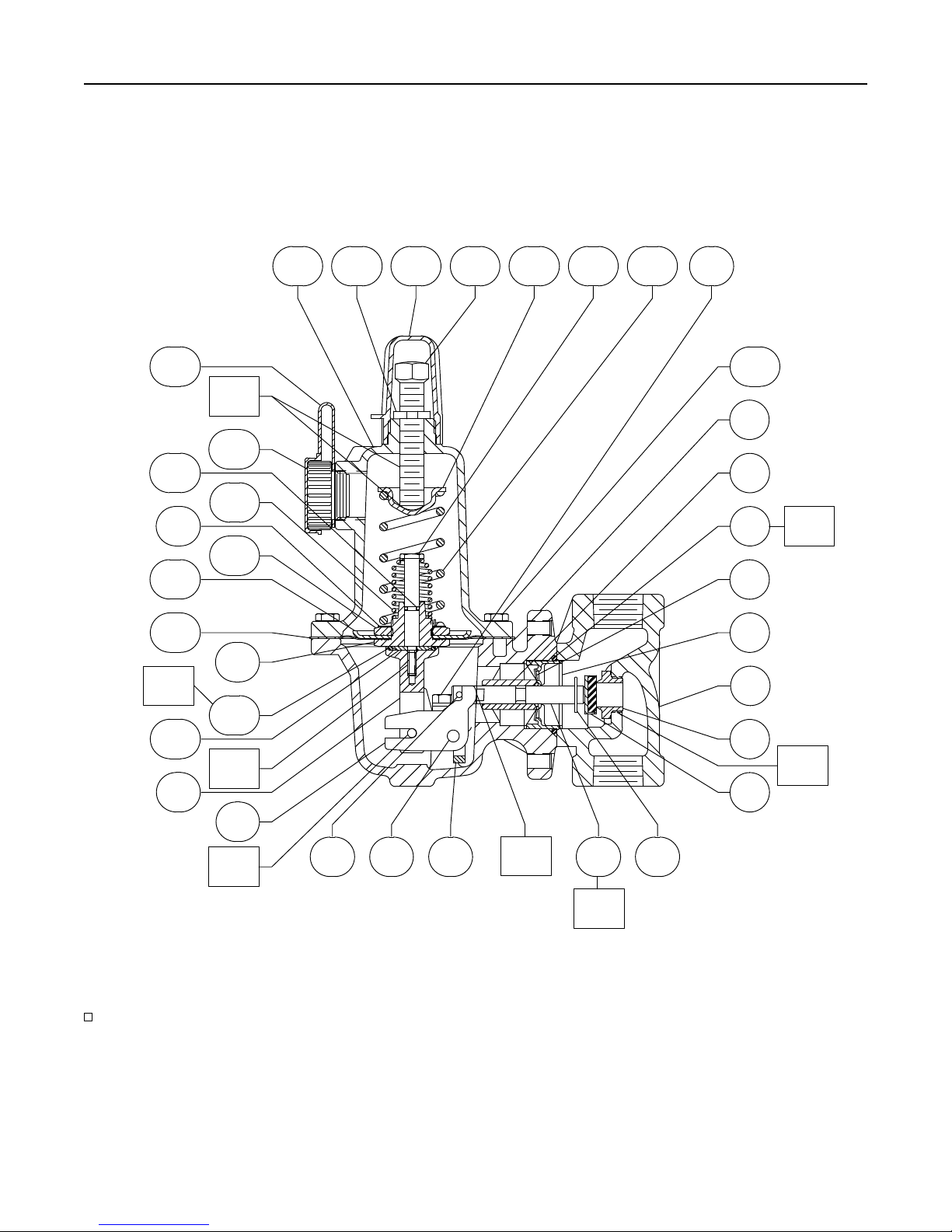

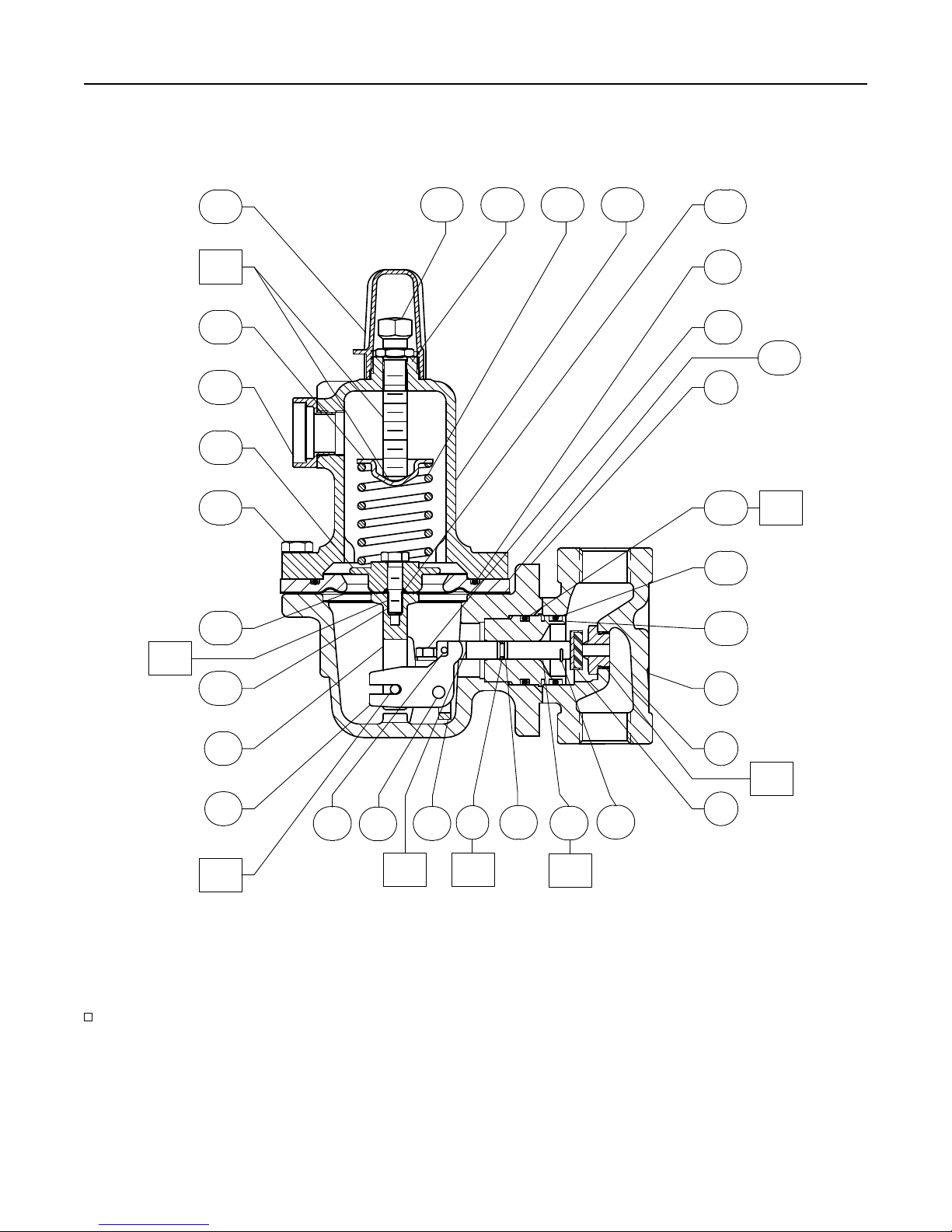

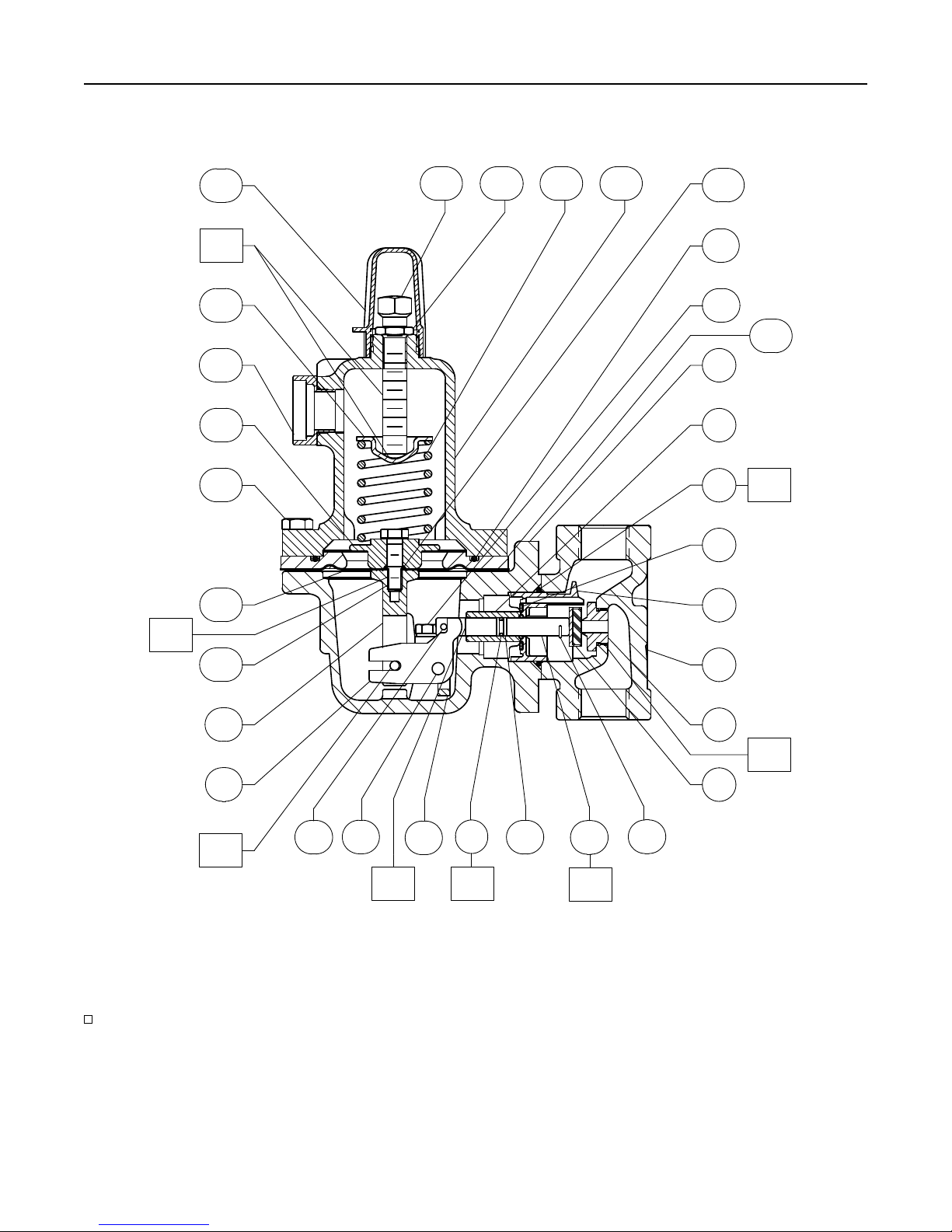

overpressure condition. Key numbers referenced
in this section are shown in Figures 7 through 13.
Ensure that the operating temperature capabilities
listed in Specications section are not exceeded.
Note
If the regulator is shipped mounted on
another unit, install that unit according
to the appropriate Instruction Manual.
WARNING
!
A regulator may vent some gas to the
atmosphere. In hazardous or ammable
gas service, vented gas may accumulate
and cause personal injury , death, or
property damage due to re or explosion.
vent a regulator in hazardous gas service
to a remote, safe location away from air
intakes or any hazardous area. The vent
line or stack opening must be protected
against condensation or clogging.
6. Position the body (key 1) and/or diaphragm spring
case (key 29) so it will not collect moisture or
debris into the screened vent. If the regulator
requires repositioning, refer to the Body Area
Maintenance Procedures and/or the Diaphragm
and Spring Case Area Maintenance Procedures
in the Maintenance section to reposition the
screened vent for the application.
5
627 Series
EquALIzING LINE
vENT vALvE
GRAvITy FEED
ALCoHoL DRIP PoT
TyPE 627M SET LoWER
THAN WoRKING REGuLAToR
CoNTRoL LINE
NEEDLE
vALvE
INLET
A3725
Figure 3. De-Icer System Operational Schematic
Perform steps 7 through 9 for Types 627M, 627HM,
and 627MR regulators only:
7. A Type 627M, 627HM, or 627MR regulator requires
a downstream control line. Install the control line
before putting the regulator into operation.
8. Ensure that the downstream control line piping
is at least 3/8 inch / 9.5 mm or larger outside
diameter tubing and connected to a straight
section of outlet piping 10 diameters downstream
of the regulator.
9. A hand valve should be installed in the control line.
This hand valve can be used to throttle down and
dampen outlet pulsations in control pressure which
may cause instability or cycling of the regulator.
Remote vent Line Installation
All 627 Series regulators have a vent assembly
installed in the 3/4 NPT spring case vent opening.
The vent assembly can be removed to install a
remote vent line if necessary. Remote vent lines
must have the largest practical diameter. It should be
as short as possible with minimum number of bends
or elbows.
HAND
vALvE
WoRKING REGuLAToR
the vent or vent line and prevent proper operation of
the regulator. Periodically check the vent opening to
be sure it is not plugged with foreign debris.
Type 627M or 627HM Regulator
De-Icer System Application
For the Type 627M or 627HM regulator de-icer
system, refer to the application shown in Figure 3.
With a large pressure drop across the working
regulator, ice can form within this regulator. The
formation of ice decreases the size of the orice, so
the regulator is unable to supply enough ow to satisfy
the downstream demand. When the downstream
pressure falls below the outlet pressure setting of the
Type 627M or 627HM regulator, the disk assembly
of the Type 627M or 627HM regulator moves off its
orice, permitting alcohol to ow into the main gas
line. The alcohol carried to the main regulator by the
owstream prevents additional ice from forming on the
orice. When normal ow resumes, and as pressure
in the downstream system is restored, the Type 627M
or 627HM regulator shuts off.
overpressure Protection
Protect the remote vent opening against entrance of
rain, snow, or any other foreign material that may plug
6
627 Series regulators have outlet pressure ratings that
are lower than their inlet pressure ratings. A pressure-
627 Series
22.1
42.7
57.2
75.8
89.6
110
17.9
42.1
55.8
75.8
89.6
110
14.5
41.4
55.2
75.8
89.6
110
14.5
40.7
55.2
75.8
89.6
66.2
10.3
37.9
52.4
75.8
89.6
66.2
31.1
46.2
69.0
82.7
110
22.8
38.6
69.0
82.7
110
(1)
190
13.1
26.9
33.1
46.2
53.1
66.2
11.7
25.5
33.1
46.2
53.1
66.2
9.0
24.8
33.1
46.2
53.1
66.2
9.0
24.1
32.4
44.1
53.8
66.2
6.9
22.8
31.1
43.4
53.1
66.2
17.9
27.6
42.1
52.4
66.9
13.8
23.4
37.9
50.3
66.9
95
180
220
320
360
450
90
170
220
320
360
450
80
170
220
320
360
450
80
170
220
320
370
450
70
160
210
320
360
460
140
190
300
360
460
120
180
290
350
460
390
480
670
770
960
170
370
480
670
770
960
130
360
480
670
770
960
130
350
470
640
780
960
100
330
450
630
770
960
260
400
610
760
970
200
340
550
730
970
Table 3. Type 627R Internal Relief Performance
ouTLET
PRESSuRE RANGE,
SPRING PART
NuMBER, AND
CoLoR CoDE
(3)
to 20 psig /
5
0.34 to 1.4 bar
10B3076X012
Yellow
15 to 40 psig /
1.0 to 2.8 bar
10B3077X012
Green
1. The internal relief performance values are obtained by removing the disk assembly.
2. For inlet pressures in excess of 1000 psig / 69.0 bar, refer to the maximum body and disk pressure ratings in the Specications section.
3. For pressure settings under 10 psig / 0.69 bar, inlet pressure should be limited to approximately 100 psig / 6.9 bar so the setpoint adjustment can be obtained.
- Shaded areas indicate maximum inlet pressures allowed during system malfunction only. Table 1 gives the maximum inlet pressure for normal regulator operation.
ouTLET
PRESSuRE
SETTING
psig bar psig bar psig bar psig bar psig bar psig bar psig bar psig bar
10 0.69
15 1.0
20 1.4
15 1.0
1.4
20
30 2.1
40 2.8
MAxIMuM
ALLoWABLE
DoWNSTREAM
SySTEM
PRESSuRE
60
100
125
175
200
250
60
100
125
175
200
250
60
100
125
175
200
250
60
100
125
175
200
250
60
100
125
175
200
250
100
125
175
200
250
100
125
175
200
250
4.1
6.9
8.6
12.1
13.8
17.2
4.1
6.9
8.6
12.1
13.8
17.2
4.1
6.9
8.6
12.1
13.8
17.2
4.1
6.9
8.6
12.1
13.8
17.2
4.1
6.9
8.6
12.1
13.8
17.2
6.9
8.6
12.1
13.8
17.2
6.9
8.6
12.1
13.8
17.2
MAxIMuM INLET PRESSuRE To KEEP MAxIMuM ALLoWABLE DoWNSTREAM
3/32 / 2.4 1/8 / 3.2 3/16 / 4.8 1/4 / 6.4 3/8 / 9.5 1/2 / 13
1250
86.2
2000
138
2000
138
2000
138
2000
138
2000
138
1000
69.0
2000
138
2000
138
2000
138
2000
138
2000
138
850
58.6
2000
138
2000
138
2000
138
2000
138
2000
138
1000
69.0
2000
138
2000
138
2000
138
2000
138
2000
138
630
43.4
2000
138
2000
138
2000
138
2000
138
2000
138
2000
138
2000
138
2000
138
2000
138
2000
138
1500
103
2000
138
2000
138
2000
138
2000
138
SySTEM PRESSuRE FRoM BEING ExCEEDED
Orice Size, Inches / mm
740
51.0
103
131
138
138
138
42.7
96.5
131
138
138
138
33.8
89.6
124
138
138
138
26.2
89.6
124
138
138
138
13.8
82.7
117
138
138
138
65.5
103
138
138
138
48.3
89.6
124
138
138
320
620
830
1100
1300
1600
260
610
810
1100
1300
1600
210
600
800
1100
1300
1600
210
590
800
1
100
1300
1600
150
550
760
1100
1300
1600
450
670
1000
1200
1600
330
560
1000
1200
1600
1500
1900
2000
2000
2000
620
1400
1900
2000
2000
2000
490
1300
1800
2000
2000
2000
380
1300
1800
2000
2000
2000
200
1200
1700
2000
2000
2000
950
1500
2000
2000
2000
700
1300
1800
2000
2000
(2)
6.6
75
130
160
220
260
320
70
130
160
220
260
320
65
120
160
220
260
320
65
120
160
220
260
320
65
120
160
220
260
320
110
150
220
260
320
108
140
220
250
320
5.2
9.0
11.0
15.2
17.9
22.1
4.8
9.0
11.0
15.2
17.9
22.1
4.5
8.3
11.0
15.2
17.9
22.1
4.5
8.3
11.0
15.2
17.9
22.1
4.5
8.3
11.0
15.2
17.9
22.1
7.6
10.3
15.2
17.9
22.1
7.4
9.7
15.2
17.2
22.1
12.4
15.2
22.1
24.8
31.0
6.2
11.7
15.2
22.1
24.8
31.0
5.5
11.7
15.2
22.1
24.8
31.0
5.5
11.7
15.2
22.1
25.5
31.0
4.8
11.0
14.5
22.1
24.8
31.7
9.7
13.1
20.7
24.8
31.7
8.3
12.4
20.0
24.1
31.7
relieving or pressure-limiting device must be provided
by the user for the Types 627, 627H, 627M, and
627HM regulators if the inlet pressure can exceed the
outlet pressure rating, since these regulators do not
have internal relief.
Types 627R and 627LR regulators provide internal
relief which limits the total outlet pressure buildup over
setpoint. Use Tables 3 and 4 to determine the total
outlet pressure. This internal relief may be adequate
for the application, if not, provide additional pressure
relief or a pressure-limiting device downstream.
- continued -
Startup and Adjustment
Startup
WARNING
!
To avoid personal injury or property
damage due to explosion or damage to
regulator or downstream components
during startup, release downstream
7
627 Series
Table 3. Type 627R Internal Relief Performance
ouTLET PRESSuRE RANGE,
SPRING PART NuMBER,
AND CoLoR CoDE
35 to 80 psig /
2.4 to 5.5 bar
10B3078X012
Blue
70 to 150 psig /
4.8 to 10.3 bar
10B3079X012
Red
1. The internal relief performance values are obtained by removing the disk assembly.
2. For inlet pressures in excess of 1000 psig / 69.0 bar, refer to the maximum body and disk pressure ratings in the Specications section.
3. For pressure settings under 10 psig / 0.69 bar, inlet pressure should be limited to approximately 100 psig / 6.9 bar so the setpoint adjustment can be obtained.
- Shaded areas indicate maximum inlet pressures allowed during system malfunction only. Table 1 gives the maximum inlet pressure for normal regulator operation.
ouTLET
PRESSuRE
SETTING
psig bar psig bar psig bar psig bar psig bar psig bar psig bar psig bar
40 2.8
50 3.4
60 4.1
70 4.8
80 5.5
70 4.8
80 5.5
100 6.9
125 8.6 250 17.2 2000 138 1000 69.0 500 34.5 390 26.9 290 20.0 260 17.9
150 10.3 250 17.2 1200 82.7 260 17.9 260 17.9 260 17.9 260 17.9 260 17.9
MAxIMuM
ALLoWABLE
DoWNSTREAM
SySTEM
PRESSuRE
125
150
175
200
250
125
150
175
200
250
125
150
175
200
250
150
175
200
250
150
175
200
250
175
200
250
175
200
250
200
250
MAxIMuM INLET PRESSuRE To KEEP MAxIMuM ALLoWABLE DoWNSTREAM
3/32 / 2.4 1/8 / 3.2 3/16 / 4.8 1/4 / 6.4 3/8 / 9.5 1/2 / 13
8.6
2000
10.3
2000
12.1
2000
13.8
2000
17.2
2000
8.6
1400
10.3
2000
12.1
2000
13.8
2000
17.2
2000
8.6
10.3
12.1
13.8
17.2
10.3
12.1
13.8
17.2
10.3
12.1
13.8
17.2
12.1
13.8
17.2
12.1
13.8
17.2
13.8
17.2
900
1700
2000
2000
2000
1200
2000
2000
2000
800
1500
2000
2000
1900
2000
2000
1400
2000
2000
1500
2000
SySTEM PRESSuRE FRoM BEING ExCEEDED
138
1100
138
1600
138
2000
138
2000
138
2000
96.5
820
138
1400
138
1900
138
2000
138
2000
62.1
450
117
1100
138
1700
138
2000
138
2000
82.7
850
138
1400
138
2000
138
2000
55.2
500
103
1200
138
1700
138
2000
131
600
138
1200
138
2000
96.5
250
138
960
138
2000
103
250
138
1600
(1)
(continued)
Orice Size, Inches / mm
75.8
500
750
980
1200
1600
400
650
700
1100
1500
270
540
780
1000
1400
430
670
920
1300
300
550
800
1200
400
630
1100
240
520
1000
240
770
34.5
51.7
67.6
82.7
110
27.6
44.8
48.3
75.8
103
18.6
37.2
53.8
69.0
96.5
29.6
46.2
63.4
89.6
20.7
37.9
55.2
82.7
27.6
43.4
75.8
16.5
35.9
69.0
16.5
53.1
110
138
138
138
56.5
96.5
131
138
138
31.0
75.8
117
138
138
58.6
96.5
138
138
34.5
82.7
17
1
138
41.4
82.7
138
17.2
66.2
138
17.2
110
300
440
580
720
940
230
370
530
670
920
190
300
470
610
880
250
400
550
830
200
330
480
770
260
380
680
200
330
620
230
520
20.7
30.3
40.0
49.6
64.8
15.9
25.5
36.5
46.2
63.4
13.1
20.7
32.4
42.1
60.7
17.2
27.6
37.9
57.2
13.8
22.8
33.1
53.1
17.9
26.2
46.9
13.8
22.8
42.7
15.9
35.9
140
170
230
290
340
450
150
210
270
330
430
190
250
310
420
170
230
280
400
160
210
270
390
200
250
360
190
240
350
210
320
(2)(3)
11.7
15.9
20.0
23.4
31.0
10.3
14.5
18.6
22.8
29.6
9.7
13.1
17.2
21.4
29.0
11.7
15.9
19.3
27.6
11.0
14.5
18.6
26.9
13.8
17.2
24.8
13.1
16.5
24.1
14.5
22.1
140
180
220
250
320
140
170
210
240
320
130
160
200
230
310
160
190
230
310
150
190
220
300
175
210
290
175
210
280
210
270
9.7
12.4
15.2
17.2
22.1
9.7
11.7
14.5
16.5
22.1
9.0
11.0
13.8
15.9
21.4
11.0
13.1
15.9
21.4
10.3
13.1
15.2
20.7
12.1
14.5
20.0
12.1
14.5
19.3
14.5
18.6
ouTLET PRESSuRE RANGE,
SPRING PART NuMBER,
AND CoLoR CoDE
15 to 40 psig /
1.03 to 2.8 bar
10B3077X012
Green
1. The internal relief performance values are obtained by removing the disk assembly.
2. For inlet pressures in excess of 1000 psig / 69.0 bar, refer to the maximum body and disk pressure ratings in the Specications section.
ouTLET
PRESSuRE
SETTING
psig bar psig bar psig bar psig bar psig bar psig bar
30 2.1
40 2.8
MAxIMuM ALLoWABLE
8
Table 4. Type 627LR Internal Relief Performance
MAxIMuM INLET PRESSuRE To KEEP MAxIMuM ALLoWABLE
DoWNSTREAM
SySTEM PRESSuRE
55 3.8 500 34.5 270 18.6 110 7.6 80 5.5
60 4.1 850 58.6 480 33.1 200 13.8 120 8.3
66 4.5 1000 69.0 660 45.5 290 20.0 175 12.1
66 4.5 380 26.2 190 13.1 85 5.9 80 5.5
70 4.8 700 48.3 370 25.5 150 10.3 115 7.9
75 5.2 1000 69.0 560 38.6 240 16.5 160 11.0
DoWNSTREAM SySTEM PRESSuRE FRoM BEING ExCEEDED
3/32 / 2.4 1/8 / 3.2 3/16 / 4.8 1/4 / 6.4
(1)
Orice Size, Inches / mm
(2)
627 Series
Table 5. Flow Coefcients
oRIFICE 3/4 NPT NPS 1 / DN 25 BoDy NPS 2 / DN 50 BoDy
Wide-open
C
for
Inch mm
3/32 2.4 6.9 0.24 29.2 6.9 0.24 28.5 6.9 0.23 29.7
1/8 3.2 12.5 0.43 29.1 12.5 0.43 29.4 12.5 0.42 29.5
3/16 4.8 29 1.01 28.6 29 0.93 31.2 29 1.02 28.5
1/4 6.4 50 1.63 30.6 50 1.71 29.3 52 1.66 31.3
3/8 9.5 108 2.99 36.1 108 3.42 31.6 115 3.39 33.9
1/2 13 190 4.87 39.0 190 5.29 35.9 200 5.01 39.9
g
External
Relief Sizing
Wide-open
Cv for
External
Relief Sizing
Wide-open
C
1
Cg for
External
Relief Sizing
Wide-open
Cv for
External
Relief Sizing
Table 6. IEC Sizing Coefcients
Wide-open
C
1
Cg for
External
Relief Sizing
Wide-open
Cv for
External
Relief Sizing
C
1
oRIFICE SIzE x
Inch mm 3/4 NPT Body NPS 1 / DN 25 Body NPS 2 / DN 50 Body
3/32 2.4 0.539 0.514 0.558
1/8 3.2 0.536 0.547 0.539 0.79
3/16 4.8 0.517 0.616 0.514 0.85
1/4 6.4 0.592 0.543 0.620 0.87
3/8 9.5 0.824 0.632 0.727 0.89
1/2 13 0.962 0.815 1.01 0.86
T
F
0.50
D
Table 7. Maximum Torque Values
KEy NuMBER
1. Refer to Figures 7 through 13 for key number locations.
(1)
2 Orice 25 34
3
18 Lever cap screw 7 9.5
22 Diaphragm connector nut 17 23
26 Guide retainer (for Types 627R, 627LR, and 627MR only) 3 4.1
37
46
Cap screw (with ductile iron or steel/stainless steel diaphragm casing) 25 34
Spring case cap screw (with aluminum or ductile iron diaphragm casing) 7 9.5
Spring case cap screw (with steel/stainless steel diaphragm casing) 35 47
pressure to prevent an overpressure
DESCRIPTIoN
Cap screw (with aluminum diaphragm casing) 16 22
Diaphragm cap screw (with Type 627 or 627M) 7 9.5
Diaphragm cap screw (with Type 627H or 627HM) 14 19
FooT-PouNDS N•m
Adjustment
MAxIMuM ToRquE
condition on the diaphragm of
the regulator.
In order to avoid an overpressure
condition and possible equipment
damage, pressure gauges should
always be used to monitor pressures
during startup.
1. Slowly open the upstream shut-off valve.
The range of allowable pressure settings is marked on
the nameplate. If a pressure setting beyond this range
is necessary, substitute the appropriate regulator
control spring. Change the nameplate to indicate the
new pressure range.
Before increasing the setting, refer to Table 1, 2, 3, or 4.
Review the pressure limits for the control spring range
being used and be certain that the new pressure setting
2. Slowly open the downstream shut-off valve.
will not result in an overpressure condition.
F
0.85
L
3. Check all connections for leaks.
4. Make nal control spring adjustments
according to the adjustment procedures.
Note
Always use a pressure gauge to monitor
pressure when making adjustments.
9
627 Series
Refer to Figures 7 through 13 for key number locations.
1. Remove the adjusting screw cap (key 36).
2. Loosen the locknut (key 34).
3. Increase the outlet pressure setting by turning the
adjusting screw (key 35) clockwise. Decrease the
outlet pressure setting by turning the adjusting
screw counterclockwise.
4. When the desired pressure is obtained, hold the
adjusting screw (key 35) in place and tighten the
locknut (key 34).
RELIEF
INDICAToR
CAP (KEy 49)
Shutdown
WARNING
!
To avoid personal injury or property
damage due to explosion or damage to
regulator or downstream components
during shutdown, release downstream
pressure to prevent an overpressure
condition on the diaphragm of
the regulator.
1. Close the nearest upstream shut-off valve.
2. Close the nearest downstream shut-off valve.
3. Open the vent valve between the regulator and
the downstream shut-off valve nearest to it.
4. For a Type 627, 627H, 627R, or 627LR regulator,
the regulator will open to release pressure between
the upstream shut-off valve and the regulator .
5. A Type 627M, 627HM, or 627MR regulator requires
venting the control line and downstream pressure
from the regulator before maintenance. The
pressure between these shut-off valves is released
through the open regulator because the disk
assembly remains open in response to the decrease
in control line pressure.
W4665
Figure 4. Relief Indicator
be inspected periodically and replaced as necessary
to ensure correct performance. The frequency of
inspection and replacement depends upon the severity
of conditions and the requirements of state and federal
laws. Normal wear of the orice and disk assembly is
accelerated with high pressure drops and with large
amounts of impurities in the owstream. Instructions
are given below for replacing the disk assembly,
orice, diaphragm, and O-rings. These procedures
may also be used for disassembly required for
inspection and replacement of other parts.
Problem Indication for Types 627R,
627LR, and 627MR Regulators
WARNING
!
Isolate the regulator from all pressure
to avoid personal injury and equipment
damage due to explosion or sudden
release of process pressure. Cautiously
release pressure from the regulator
before attempting disassembly.
Maintenance
Unless otherwise specied, the following maintenance
procedures apply to all types of regulators. For a
summary of maximum torque values required for all
types of regulators, refer to Table 7.
Due to normal wear, damage from external sources,
or debris in the air or gas line, regulator parts such
as the disk assembly, orice, and diaphragm must
10
The vent assembly is equipped with a relief indicator
(key 49, Figure 4). The cap for the relief indicator
snaps over the vent assembly opening. If the
relief valve opens wide, exhaust gas pops the cap
off the screen vent assembly opening indicating a
problem with the regulator. If the cap pops off, refer
to the shutdown and to the Body Area Maintenance
Procedures to inspect the disk assembly and orice.
If the disk assembly and orice are not damaged, refer
to the Diaphragm and Spring Case Area Maintenance
Procedures in this section.
LEvER
(KEy 15)
DIAPHRAGM
CASING (KEy 5)
W4792
STEM (KEy 10)
STEM BACK-uP
RINGS
(KEy 12)
STEM o-RING
(KEy 11)
DIAPHRAGM CASING
o-RING (KEy 4)
STEM GuIDE
(KEy 8)
STABILIzER
(KEy 7)
TyPES 627, 627H, 627R, AND 627LR
BLoCKED THRoAT
BACK-uP RINGS (KEy 45)
BLoCKED THRoAT
(KEy 43)
BooST BoDy
(KEy 6)
HAIR PIN CLIP
(KEy 13)
DISK
ASSEMBLy
(KEy 9)
PIToT TuBE
AND TAB FoR
TyPE 627 oNLy
627 Series
BoDy
(KEy 1)
CAP
SCREW
(KEy 3)
oRIFICE
(KEy 2)
W4791
TyPES 627M, 627HM, AND 627MR
Figure 5. Stem Assemblies
The disk assembly and orice can be inspected,
removed, and replaced without removing the regulator
body from the line connections. Refer to the Body
Area Maintenance Procedures.
Body Area Maintenance Procedures
These procedures are for gaining access to the disk
assembly, orice, diaphragm casing O-ring, and stem
assembly. All pressure must be released from the
diaphragm casing before performing these steps.
While using the following procedures, refer to
Figures 7 through 13 for key number locations.
Replacing the Disk Assembly or Orice
1. To inspect and replace the disk assembly (key 9)
or orice (key 2), remove the cap screws (key 3,
Figure 5), and separate the diaphragm casing
(key 5) from the body (key 1).
2. Inspect and, if necessary, remove the orifice
(key 2). If removed, coat the threads of the
replacement orifice with lubricant and torque to
25 foot-pounds / 34 N•m.
BLoCKED THRoAT
o-RINGS (KEy 44)
3. Inspect the disk assembly (key 9) and, if necessary,
remove the hair pin clip (key 13) that holds the disk
assembly (key 9) in place. If replacing the disk
assembly is the only maintenance required, skip to
step 16.
Replacing the Stem Assembly
If it is necessary to perform maintenance on the stem
assembly, continue with steps 4 through 8 and 15
through 19 for Types 627, 627H, 627R, and 627LR
regulators, or steps 9 through 19 for Types 627M,
627HM, and 627MR regulators.
Perform steps 4 through 8 for Types 627, 627H,
627R, and 627LR Regulators only:
4. Use steps 5 through 8 to remove and replace the
stem assembly .
5. Remove the boost body (key 6), stabilizer (key 7),
and stem guide (key 8) from the diaphragm casing
(key 5). Unhook and remove the stem (key 10)
from the diaphragm casing (key 5).
6. Remove and inspect the diaphragm casing
O-ring (key 4, Figure 7, 8, 9, or 12) and replace
it if necessary.
11
627 Series
DIAPHRAGM
(KEy 23)
W4668
W5433-1
RELIEF vALvE o-RING
(KEy 28)
PuSHER PoST
(KEy 19)
RELIEF SEAL
RETAINER (KEy 47)
PuSHER PoST
(KEy 19)
PuSHER PoST
o-RING (KEy 52)
DIAPHRAGM CoNNECToR
ASSEMBLy (KEy 21)
TyPE 627, 627R, 627LR, 627M, oR 627MR
DIAPHRAGM
(KEy 23)
DIAPHRAGM
LIMITER (KEy 50)
DIAPHRAGM
HEAD (KEy 24)
DIAPHRAGM
HEAD CAP
SCREW (KEy 46)
DIAPHRAGM
HEAD (KEy 24)
DIAPHRAGM CoNNECToR
NuT (KEy 22)
LoWER SPRING
SEAT (KEy 31)
RELIEF vALvE
SPRING (KEy 27)
RELIEF SPRING
SEAT (KEy 25)
DIAPHRAGM LIMITER
o-RING (KEy 51)
GuIDE RETAINER
o-RING (KEy 48)
GuIDE RETAINER
(KEy 26)
TyPES 627H AND 627HM
Figure 6. Diaphragm Assemblies
7. Apply lubricant to a replacement diaphragm casing
O-ring (key 4, Figure 7, 8, 9, or 12) and install it onto
the boost body (key 6). Skip to step 14.
8. For the Type 627 or 627H regulators, be sure to
insert the pitot tube (tab) into the outlet side of the
body (see Figure 7 or 12). Skip to step 14.
Perform steps 9 through 19 for Types 627M,
627HM, and 627MR Regulators only:
9. Use steps 10 through 14 to remove and replace
the stem assembly.
10. To remove the blocked throat (key 43), insert a
screw driver blade into the groove provided in the
throat and pry it out of the diaphragm casing
(key 5). Inspect and replace parts as necessary.
11. Inspect and, if necessary, replace the blocked
throat O-rings (key 44, Figure 5) and back-up rings
(key 45, Figure 5).
12. Apply lubricant to replacement blocked throat
O-rings (key 44) and back-up rings (key 45).
13. Apply lubricant to the replacement stem O-ring
(key 11) and stem back-up rings (key 12) and
install them on the stem (key 10).
14. For assembly, lubricate the stem (key 10) and
insert the diaphragm casing (key 5) and hook it
on the lever (key 15).
15. Lubricate the contact points of the lever (key 15).
16. Insert parts into the diaphragm casing (key 5)
that were removed in steps 5 and 6 or step 10
(see Figure 5).
17. Install the disk assembly (key 9), line up the hole
in the disk assembly and stem (key 10) and insert
the hair pin clip (key 13).
18. Position the diaphragm casing (key 5) plus
attached parts in relation to the body (key 1) so
that they are correct for the application.
12
627 Series
19. Secure the diaphragm casing (key 5) to the body
with the cap screws (key 3, Figure 5). For an
aluminum diaphragm casing, torque the cap screws
(key 3) to 16 foot-pounds / 22 N•m. For ductile iron
or steel diaphragm casings, torque the cap screws
(key 3) to 25 foot-pounds / 34 N•m.
20. It may be necessary to reposition the diaphragm
spring case to prevent rain, ice, and foreign
debris from entering the spring case. Refer to the
Diaphragm and Spring Case Area Maintenance
Procedures, steps 1, 2, and 21 through 25.
Diaphragm and Spring Case Area
Maintenance Procedures
These procedures are for gaining access to the control
spring, diaphragm assembly, and lever assembly. All
spring pressure must be released from the diaphragm
casing before these steps can be performed.
While using the following procedures, refer to
Figures 7 through 13 for key number locations.
1. Remove the adjusting screw cap (key 36), loosen
the lock nut (key 34), and turn the adjusting screw
(key 35) counterclockwise until all compression is
removed from the control spring (key 32).
2. Remove the spring case cap screws (key 37), the
nameplates, and lift off the spring case (key 29). If
changing the control spring (key 32) or repositioning
the spring case (key 29) is the only maintenance
required, install the replacement control spring
or rotate the spring case so it is correct for the
application. Skip to step 21. For diaphragm area
maintenance, continue with step 3.
3. Remove the diaphragm limiter O-ring and
diaphragm limiter (keys 51 and 50, on the
Type 627H or 627HM only). Remove the
diaphragm assembly by tilting it so that the pusher
post (key 19) slips off the lever (key 15).
4. If it is necessary to replace the lever assembly,
remove the lever cap screws (key 18).
5. Install the replacement lever (key 15) into the lever
retainer (key 16) by inserting the lever pin (key 17).
Secure the lever assembly into the diaphragm casing
with the cap screws (key 18) and torque the cap
screws to 7 foot-pounds / 9.5 N•m.
If it is necessary to perform maintenance on
the diaphragm assembly, continue with steps 6
through 11 and step 20 for Types 627, 627H,
627M, and 627HM regulators, or steps 12 through
19 for Types 627R, 627LR, and 627MR regulators.
Perform steps 6 through 11 for Types 627, 627H,
627M, and 627HM Regulators only:
6. For Types 627, 627H, 627M, and 627HM
regulators (Figures 5 and 6), use steps 7
through 11 to disassemble and reassemble the
diaphragm assembly.
7. Remove the diaphragm head cap screw (key 46),
lower spring seat (key 31, Type 627 or 627M only),
and diaphragm head (key 24). On the Type 627H
or 627HM, remove the pusher post O-rings
(key 52). Separate the diaphragm (key 23) from
the pusher post (key 19).
8. Install the diaphragm (key 23), in reverse order
in step 7, on the pusher post (key 19), insert and
nger tighten the diaphragm head cap screw
(key 46).
9. Hook the pusher post on the lever (key 15), then
turn the diaphragm (key 23) to match the holes in
the diaphragm with the holes in the spring casing.
10. Unhook the pusher post from the lever (key 15)
and torque the diaphragm head cap screw
(key 46) to 7 foot-pounds / 9.5 N•m for the
Type 627 or 627M. On the Type 627H or 627HM,
torque the diaphragm head cap screw to
14 foot-pounds / 19 N•m.
11. Hook the pusher post on the lever (key 15) and
check the hole alignment. If necessary, loosen the
cap screw (key 46) and reposition the diaphragm
(key 23) on the pusher post (key 19). Retorque
the screw (see step 10). Skip to step 20.
Perform steps 12 through 19 for Types 627R,
627LR, and 627MR Regulators only:
12. For Types 627R, 627LR, and 627MR
regulators (Figure 6), use steps 13 through
19 to disassemble and reassemble the
diaphragm assembly.
13. Remove the guide retainer (key 26) and separate
the diaphragm parts. Refer to Figure 6 for the
sequence of parts.
14. To remove the diaphragm (key 23), remove the
diaphragm connector nut (key 22) and lift off the
diaphragm head (key 24) and diaphragm (key 23)
from the connector assembly (key 21). Do not
attempt to disassemble the connector assembly
(key 21).
13
627 Series
15. Position the replacement diaphragm (key 23)
on the connector assembly (key 21), install the
diaphragm head (key 24) and connector nut
(key 22), then torque to 17 foot-pounds / 23 N•m.
16. If necessary, replace the guide retainer O-ring
(key 48) and, set the guide retainer (key 26) aside,
ready for assembly.
17. On the pusher post (key 19) install the relief
seal O-ring (key 28) and apply lubricant. Also,
install the relief seal retainer (key 47), diaphragm
connector assembly (key 21, with attached parts)
relief spring (key 27), upper relief spring seat
(key 33), and guide retainer (key 26). Torque the
guide retainer (key 26) to 3 foot-pounds / 4.1 N•m.
18. Hook the pusher post (key 19) (with attached
parts) on the lever (key 15) to check the
alignment of the holes in the diaphragm with the
holes in the spring casing. If the holes do not
line up, unhook the pusher post from the lever,
hold the pusher post, and rotate the diaphragm
to the correct position.
19. Install the lower spring seat (key 31) over the relief
spring so it rests at on the connector nut (key 22).
20. Insert the diaphragm assembly into the diaphragm
casing (key 5) and hook the pusher post on the
lever (key 15).
21. Install the control spring (key 32) and upper spring
seat (key 33), and apply lubricant to the upper
spring seat (key 33).
22. Install the spring case (key 29) so that the
screened vent assembly (key 30) is in the correct
position for the application. Place the nameplates
over the screw holes, insert the spring case cap
screws (key 37), and nger tighten.
23. Screw in the adjusting screw (key 35) to put slack
into the diaphragm (key 23).
24. Using a crisscross pattern, nish tightening the
spring case cap screws (key 37) to 7 foot-pounds /
9.5 N•m of torque.
25. If necessary, refer to the installation and/or the
Startup and Adjustment procedures.
26. Install the adjusting locknut (key 34) after
regulator adjustment.
Parts ordering
When corresponding with your local Sales Ofce about
this equipment, always reference the equipment serial
number or FS number that can be found on
the nameplate.
When ordering replacement parts, reference the key
number of each needed part as found in the following
parts list. Separate kits containing all recommended
spare parts are available.
Parts List
Note
In this parts list, parts marked NACE are
intended for corrosion-resistant service
as detailed in the NACE International
Standard MR0175.
Key Description Part Number
Type 627 Parts Kit with Aluminum/Nitrile (NBR) trim
(include keys 4, 9, 11, 12, and 23) R627X000A12
Type 627 Parts Kit with Stainless steel/
Nitrile (NBR) trim
(include keys 4, 9, 11, 12, and 23) R627X000S12
Type 627H Parts Kit with SST/Nylon (PA) trim R627HX00S12
Type 627R Parts Kit with Aluminum/
Nitrile (NBR) trim
(include keys 4, 9, 11, 12, 23, 28, and 48) R627RX00A12
Type 627R Parts Kit with Stainless steel/
Nitrile (NBR) trim
(include keys 4, 9, 11, 12, 23, 28, and 48) R627RX00S12
1 Body
Ductile iron
1000 psig / 69.0 bar maximum inlet pressure
3/4 NPT 30B3046X012
1 NPT 30B3048X012
2 NPT 30B3096X012
Ductile iron (Long Body)
1000 psig / 69.0 bar maximum inlet pressure
1 NPT 39B2451X012
2 NPT 39B0414X012
Steel
2000 psig / 138 bar maximum inlet pressure
3/4 NPT 30B3050X012
1 NPT 30B3051X012
2 NPT 30B7452X012
Steel (Long Body)
2000 psig / 138 bar maximum inlet pressure
1 NPT 39B0412X012
2 NPT 39B0415X012
Steel, CL600 RF anged
1500 psig / 103 bar maximum inlet pressure
NPS 1 / DN 25 40B6754X012
NPS 2 / DN 50 40B6756X012
Steel, CL300 RF anged
750 psig / 51.7 bar maximum inlet pressure
NPS 1 / DN 25 41B8978X012
NPS 2 / DN 50 41B8080X012
(1)
14
1. Bodies can be used for both standard and NACE constructions.
627 Series
Key Description Part Number
1 Body
(1)
(continued)
Steel, CL150 RF anged
290 psig / 20.0 bar maximum inlet pressure
NPS 1 / DN 25 43B8656X022
NPS 2 / DN 50 44B0666X012
Steel, BWE
1000 psig / 69.0 bar maximum inlet pressure
NPS 1 / DN 25 33B6723X012
NPS 2 / DN 50 38B1688X012
Steel, PN 16/25/40 RF
580 psig / 40.0 bar maximum inlet pressure
NPS 1 / DN 25 44B0386X012
NPS 2 / DN 50 44B3342X012
Stainless Steel
(2)
, NPT
2000 psig / 138 bar maximum inlet pressure
3/4 NPT 30B3050X062
1 NPT 30B3051X092
2 NPT 30B7452X052
Stainless Steel
(2)
, CL150 RF anged
275 psig / 18.9 bar maximum inlet pressure
NPS 1 / DN 25 43B8656X052
NPS 2 / DN 50 44B0666X022
Stainless Steel
(2)
, CL300 RF anged
720 psig / 49.6 bar maximum inlet pressure
NPS 1 / DN 25 41B8978X072
NPS 2 / DN 50 41B8080X072
Stainless Steel
(2)
, CL600 RF anged
1440 psig / 99.2 bar maximum inlet pressure
NPS 1 / DN 25 40B6754X102
NPS 2 / DN 50 40B6756X062
Stainless Steel
(2)
, PN 16/25/40 RF
580 psig / 40.0 bar maximum inlet pressure
NPS 1 / DN 25 44B0386X032
NPS 2 / DN 50 44B3342X032
2* Orice
Aluminum
3/32 inch / 2.4 mm 0R044109022
1/8 inch / 3.2 mm 1A936709012
3/16 inch / 4.8 mm 00991209012
1/4 inch / 6.4 mm 0B042009012
3/8 inch / 9.5 mm 0B042209012
1/2 inch / 13 mm 1A928809012
303 Stainless steel
3/32 inch / 2.4 mm 0R044135032
1/8 inch / 3.2 mm 1A936735032
3/16 inch / 4.8 mm 00991235032
1/4 inch / 6.4 mm 0B042035032
3/8 inch / 9.5 mm 0B042235032
1/2 inch / 13 mm 1A928835032
316 Stainless steel, NACE construction only
3/32 inch / 2.4 mm 0R0441X0012
1/8 inch / 3.2 mm 1A9367X0022
3/16 inch / 4.8 mm 009912X0012
1/4 inch / 6.4 mm 0B0420X0012
3/8 inch / 9.5 mm 0B0422X0012
1/2 inch / 13 mm 1A9288X0012
3 Cap Screw (not shown), (2 required)
627 Series
For Ductile iron/Steel diaphragm case 1A560724052
For Aluminum diaphragm case
(not applicable for Types 627H and 627HM) 1A352524052
Type 627 Only
For Ductile iron/Steel diaphragm case 1A5607X0052
For Aluminum case with Steel diaphragm case 10A3869X012
For SST Case and body 1A5607X0052
For Aluminum Case and SST body 10A3869X022
Key Description Part Number
4* Diaphragm Case O-ring
Nitrile (NBR)
For Type 627, 627H, or 627R only 17A2325X022
Fluorocarbon (FKM)
For Types 627, 627R, and 627LR only 10A0037X012
5 Diaphragm Case
For Type 627, 627R, or 627LR
Aluminum without 1/8-inch / 3.2 mm gauge tap 40B3084X012
Aluminum with 1/8-inch / 3.2 mm gauge tap
for 627 Series (except Types 627H and 627HM) 11B5380X012
Ductile iron without 1/8-inch / 3.2 mm gauge tap 30B3053X012
Ductile iron with 1/8-inch / 3.2 mm gauge tap
for 627 Series (except Types 627H and 627HM) 31B0641X012
For Type 627, 627R, or 627LR
Steel 30B3104X012
Ductile iron with 1/4 NPT gauge tap for
627 Series (except Types 627H and 627HM) 39A5987X012
Steel with 1/4 NPT gauge tap for 627 Series
(except Type 627H) 30B8734X012
For Type 627M or 627MR
Ductile iron 39A5987X012
Steel 30B8734X012
For Type 627H, Steel 30B3104X012
For Type 627, Stainless steel 30B3104X082
For Type 627HM, Steel 30B8734X012
6 Boost Body (not for Type 627M, 627HM,
or 627MR), Delrin
®
For Type 627 or 627H 30B3056X012
For Type 627R or 627LR 30B3057X012
7 Stabilizer
Nitrile (NBR)
For Types 627, 627H, 627R, and 627LR only 10B3060X012
Fluorocarbon (FKM)
For Types 627, 627R, and 627LR only 10B3060X022
8 Stem Guide (for Types 627, 627H, 627R, and
627LR only), Powdered metal 20B3061X012
9* Disk Assembly (for all Orice Size)
Aluminum holder and Nitrile (NBR) disk 1C4248X0212
303 Stainless steel holder and Nitrile (NBR) disk 1C4248X0202
Aluminum holder and Nylon (PA) disk 1C4248X00A2
303 Stainless steel holder and Nylon (PA) disk 1C4248X0062
316 Stainless steel holder and Nylon (PA) disk 1C4248X0262
316 Stainless steel holder and Nitrile (NBR) disk 1C4248X0252
303 Stainless steel holder and
Fluorocarbon (FKM) disk 1C4248X0052
Aluminum holder and Fluorocarbon (FKM) disk 1C4248X0182
316 Stainless steel holder and
Fluorocarbon (FKM) disk 1C4248X0192
10 Stem
303 Stainless steel 10B3059X012
316 Stainless steel (NACE) 10B3059X022
11* Stem O-ring
Nitrile (NBR) 1D687506992
Fluorocarbon (FKM) For Types 627, 627R,
627LR, 627M, and 627MR only 1N430406382
12* Stem Back-up Ring,
Polytetrauoroethylene (PTFE) (2 required) 1K786806992
13 Hair Pin Clip, Stainless steel 10B3058X012
14 Drive Pin, Plated steel 1H3671X0012
15 Lever, Plated steel 20B3063X012
16 Lever Retainer, Plated steel 30B3097X012
17 Lever Pin
Stainless steel 10B3083X012
316 Stainless steel (NACE) 10B3083X022
*Recommended spare part.
1. Bodies can be used for both standard and NACE constructions.
2. Stainless steel body material can be used for applications in temperature ranges down to -40°F / -40°C and are only available for Types 627, 627R, and 627H.
Delrin® is a mark owned by E.I. du Pont de Nemours and Co.
15
627 Series
Key Description Part Number
18 Lever Cap Screw (2 required)
Plated steel 10B7454X012
316 Stainless steel (NACE) 1B2905X0012
19 Pusher Post, Aluminum
For Type 627 or 627M 10B3098X012
For Type 627R, 627LR, or 627MR 10B3098X022
For Type 627H or 627HM,
416 Stainless steel 10B3098X032
Stainless steel (NACE) 10B3098X102
21 Diaphragm Connector (for Type 627R, 627LR,
or 627MR only), Stainless steel 28B8832X012
22 Diaphragm Connector Nut (for Type 627R, 627LR,
or 627MR only), Stainless steel 10B7449X012
23* Diaphragm
Nitrile (NBR)
For Type 627 or 627M with Aluminum or
Ductile iron diaphragm case 10B3069X012
For Type 627 or 627M with
Steel diaphragm case 10B8735X012
For Type 627R, 627LR, or 627MR with
Aluminum or Ductile iron diaphragm case 10B3068X012
For Type 627R, 627LR, or 627MR with
Steel diaphragm case 10B8736X012
For Type 627H or 627HM with Steel
diaphragm case (diaphragm is Neoprene (CR)
with Nylon (PA) fabric) 12B0178X012
Fluorocarbon (FKM)
For Types 627R, 627LR, and 627MR
with Steel case 10B8736X022
For Types 627 and 627M with Steel case 10B8735X042
For Types 627R, 627LR, and 627MR
with Ductile Iron and Aluminum Casing 10B3068X022
For Types 627 and 627M
with Ductile Iron and Aluminum Casing 10B3069X032
24 Diaphragm Head, Plated steel
For Type 627 or 627M, Plated steel 1D666428982
For Type 627R, 627LR, or 627MR, Plated steel 10B3071X012
For Type 627H or 627HM, 416 Stainless steel 12B0175X012
25 Relief Spring Seat (For Type 627R or
627MR only), Steel 10B7446X012
26 Guide Retainer (For Type 627R, 627LR, or
627MR only), Stainless steel 10B7450X012
27 Relief Spring (For Type 627R or 627MR only),
Plated steel 10B6757X012
For Type 627LR 1B541327022
28* Relief Seal O-ring
Nitrile (NBR)
For Type 627R, 627LR, or 627MR only 1J108506992
Fluorocarbon (FKM)
For Types 627R, 627LR, and 627MR only 1J1085X0042
29 Spring Case
For Type 627, 627R, or 627LR
Aluminum 40B3086X012
Ductile iron 30B3055X012
Steel 30B3102X012
Stainless steel (Types 627 and 627R only) 30B3102X092
29 Spring Case (continued)
For Type 627M or 627MR
Ductile iron 30B3055X012
Steel 30B3102X012
For Type 627H or 627HM
Steel 30B3102X012
Stainless steel (Type 627H only) 30B3102X092
Key Description Part Number
30 Screened Vent Assembly, Plastic 10B3093X012
31 Lower Spring Seat, Plated steel
For Type 627 or 627M 1D666625072
For Type 627R, 627LR, or 627MR 20B3073X012
32 Control Spring, Plated steel
5 to 20 psig / 0.34 to 1.4 bar, Yellow 10B3076X012
15 to 40 psig / 1.0 to 2.8 bar, Green 10B3077X012
35 to 80 psig / 2.4 to 5.5 bar, Blue 10B3078X012
70 to 150 psig / 4.8 to 10.3 bar, Red 10B3079X012
140 to 250 psig range / 9.7 to 17.2 bar, Blue,
used for Type 627H or 627HM 10B3078X012
240 to 500 psig range / 16.5 to 34.5 bar, Red,
used for Type 627H or 627HM 10B3079X012
33 Upper Spring Seat, Plated steel 1D667125072
34 Locknut, Plated steel 1D667728982
35 Adjusting Screw, Plated steel
For Type 627, 627M, 627H, or 627HM 10B3081X012
For Type 627R, 627LR, or 627MR 10B3080X012
36 Adjusting Screw Cap, Plastic 20B3082X012
37 Spring Case Cap Screw, Plated steel
(8 required)
For Aluminum or ductile iron diaphragm case 1A391724052
For Steel diaphragm case 1A368324052
For Stainless steel case and body 1A3683X0062
For Aluminum case and SST body 1A3917X0062
For Type 627H/HM, steel diaphragm case 1A346424052
For Type 627H, Stainless steel case and body 1A3464X0022
43 Blocked Throat (For Type 627M, 627HM, or
627MR only), Stainless steel 10B3085X012
44* Blocked Throat O-ring
Nitrile (NBR) For Type 627M, 627HM, or
627MR only (2 required) 1E264306992
Fluorocarbon (FKM)
For Types 627M and 627MR only 1E2643X0022
45* Blocked Throat Back-up Ring (For Type 627M,
627HM, or 627MR only), PTFE (2 required) 10B3106X012
46 Diaphragm Head Cap Screw, Steel
For Type 627 or 627M 1B290524052
For Type 627H or 627HM 1C379124052
47 Relief Seal Retainer (For Type 627R, 627LR, or
627MR only), Stainless steel 10B7445X012
48* Guide Retainer O-ring
Nitrile (NBR)
For Type 627R, 627LR, or 627MR only 1D682506992
Fluorocarbon (FKM)
For Types 627R, 627LR, and 627MR only 1N423906382
49 Relief Indicator (For Type 627R, 627LR, or
627MR only), Rubber (not shown) 30B3100X012
50 Diaphragm Limiter
(For Types 627H and 627HM only) 22B0176X012
51* Diaphragm Limiter O-ring
For Types 627H and 627HM only 1K877606992
52* Pusher Post O-ring (2 required)
For Types 627H and 627HM only 1C853806992
58 Pipe Plug, Zinc 1D8293T0022
67 Drive Screw, 18-8 Stainless steel 1A368228982
72 Pipe Plug, Zinc-plated steel 1A767524662
*Recommended spare part.
16
627 Series
L1
36
L1
33
30
31
24
23
35
34
32
29
18
37
5
8
4
7
6
L2
46
19
15
L2
14
17
16
L2 L2
30B3092_G
APPLy LuBRICANT
L1 = MuLTI-PuRPoSE LITHIuM PoLyMER TyPE GREASE
L2 = ExTREME LoW-TEMPERATuRE BEARING GREASE
PARTS NoT SHoWN: 3
1. Lubricants must be selected such that they meet the temperature requirements.
(1)
Figure 7. Type 627 Regulator Assembly
11
12
10
L2
1
2
L1
9
13
17
627 Series
49
25
48
31
24
23
L2
L1
30
27
22
21
29
34
36
35
33
26
32
18
37
5
8
4
7
6
1
L2
28
47
L1
19
15
14 17
16
L2 L2 L2
30B3089_G
APPLy LuBRICANT
L1 = MuLTI-PuRPoSE LITHIuM PoLyMER TyPE GREASE
L2 = ExTREME LoW-TEMPERATuRE BEARING GREASE
PARTS NoT SHoWN: 3
1. Lubricants must be selected such that they meet the temperature requirements.
(1)
Figure 8. Type 627R Regulator Assembly
11
12
10
L2
2
L1
9
13
18
627 Series
49
48
31
24
23
L2
47
L1
30
27
22
21
28
29
34
36
35
33
26
32 18
37
5
8
4
7
6
1
2
L2
L1
19
15
L2
38B4843_C
APPLy LuBRICANT
L1 = MuLTI-PuRPoSE LITHIuM PoLyMER TyPE GREASE
L2 = ExTREME LoW-TEMPERATuRE BEARING GREASE
PARTS NoT SHoWN: 3
1. Lubricants must be selected such that they meet the temperature requirements.
(1)
14
17
16
L2
10
L2
Figure 9. Type 627LR Regulator Assembly
L1
9
13
19
627 Series
36
L1
33
30
31
24
23
35
3234
29
18
37
5
44
L2
45
43
L1
46
19
15
14
L2
30B6433_E
APPLy LuBRICANT
L1 = MuLTI-PuRPoSE LITHIuM PoLyMER TyPE GREASE
L2 = ExTREME LoW-TEMPERATuRE BEARING GREASE
PARTS NoT SHoWN: 3
1. Lubricants must be selected such that they meet the temperature requirements.
(1)
17
16
L2
Figure 10. Type 627M Regulator Assembly
11
L2
12
10
L2
1
2
L1
9
13
20
627 Series
49
25
48
31
24
23
L2
L1
30
27
22
21
29
34 36
35
33
26
32
18
37
5
44
45
43
1
L2
28
47
L1
19
15
14
L2
30B6434_E
APPLy LuBRICANT
L1 = MuLTI-PuRPoSE LITHIuM PoLyMER TyPE GREASE
L2 = ExTREME LoW-TEMPERATuRE BEARING GREASE
PARTS NoT SHoWN: 3
1. Lubricants must be selected such that they meet the temperature requirements.
(1)
Figure 11. Type 627MR Regulator Assembly
1617
L2 L2
11
12
2
L1
9
1310
L2
21
627 Series
36
L1
33
30
24
37
23
35
34
32
29
52
51
18
5
8
4
7
6
50
L2
L1
46
19
15
14
17
16
L2
L2 L2
31B5374_D
APPLy LuBRICANT
L1 = MuLTI-PuRPoSE LITHIuM PoLyMER TyPE GREASE
L2 = ExTREME LoW-TEMPERATuRE BEARING GREASE
PARTS NoT SHoWN: 3
1. Lubricants must be selected such that they meet the temperature requirements.
(1)
11
12
10
L2
1
2
L1
9
13
22
Figure 12. Type 627H Regulator Assembly
627 Series
36
L1
33
30
24
37
23
35
34
32
29
52
51
18
5
44
45
43
50
L2
L1
46
19
15
14
17
L2
31B9872_D
APPLy LuBRICANT
L1 = MuLTI-PuRPoSE LITHIuM PoLyMER TyPE GREASE
L2 = ExTREME LoW-TEMPERATuRE BEARING GREASE
PARTS NoT SHoWN: 3
1. Lubricants must be selected such that they meet the temperature requirements.
(1)
L2 L2 L2
16
11
12
10
1
2
L1
9
13
Figure 13. Type 627HM Regulator Assembly
23
627 Series
Industrial Regulators
Emerson Process Management
Regulator Technologies, Inc.
USA - Headquarters
McKinney, Texas 75069-1872, USA
Tel: +1 800 558 5853
Outside U.S. +1 972 548 3574
Asia-Pacic
Shanghai 201206, China
Tel: +86 21 2892 9000
Europe
Bologna 40013, Italy
Tel: +39 051 419 0611
Middle East and Africa
Dubai, United Arab Emirates
Tel: +971 4811 8100
For further information visit www.fisherregulators.com
The Emerson logo is a trademark and service mark of Emerson Electric Co. All other marks are the property of their prospective owners. Fisher is a mark owned by Fisher Controls International LLC,
a business of Emerson Process Management.
The contents of this publication are presented for informational purposes only, and while every effort has been made to ensure their accuracy, they are not to be construed as warranties or
guarantees, express or implied, regarding the products or services described herein or their use or applicability. We reserve the right to modify or improve the designs or specications of such
products at any time without notice.
Emerson Process Management Regulator Technologies, Inc., does not assume responsibility for the selection, use or maintenance of any product. Responsibility for proper selection, use and
maintenance of any Emerson Process Management Regulator Technologies, Inc. product remains solely with the purchaser.
Natural Gas Technologies
Emerson Process Management
Regulator Technologies, Inc.
USA - Headquarters
McKinney, Texas 75069-1872, USA
Tel: +1 800 558 5853
Outside U.S. +1 972 548 3574
Asia-Pacic
Singapore 128461, Singapore
Tel: +65 6770 8337
Europe
Bologna 40013, Italy
Tel: +39 051 419 0611
Chartres 28008, France
Tel: +33 2 37 33 47 00
TESCoM
Emerson Process Management
Tescom Corporation
USA - Headquarters
Elk River, Minnesota 55330-2445, USA
Tels: +1 763 241 3238
+1 800 447 1250
Europe
Selmsdorf 23923, Germany
Tel: +49 38823 31 287
Asia-Pacic
Shanghai 201206, China
Tel: +86 21 2892 9499
©Emerson Process Management Regulator Technologies, Inc., 1986, 2013; All Rights Reserved
Loading...
