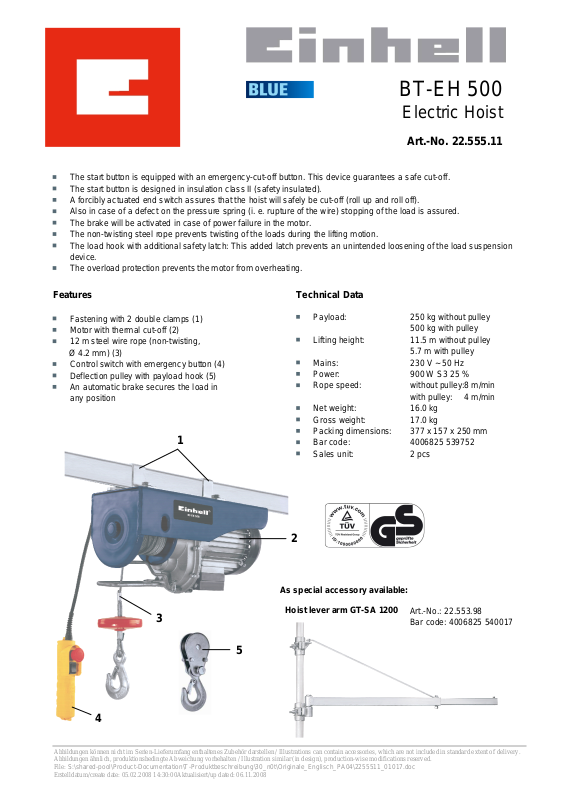

Einhell BT-EH 500 DATASHEET

As special accessory available

:

Features

Technical Data

4

1

BT-EH 500

The start button is equipped with an emergency-cut-off button. This device guarantees a safe cut-off.
The start button is designed in insulation class II (safety insulated).
A forcibly actuated end switch assures that the hoist will safely be cut-off (roll up and roll off).
Also in case of a defect on the pressure spring (i. e. rupture of the wire) stopping of the load is assured.
The brake will be activated in case of power failure in the motor.
The non-twisting steel rope prevents twisting of the loads during the lifting motion.
The load hook with additional safety latch: This added latch prevents an unintended loosening of the load suspension

device.

The overload protection prevents the motor from overheating.

Fastening with 2 double clamps (1)
Motor with thermal cut-off (2)
12 m steel wire rope (non-twisting,

Ø 4.2 mm) (3)

Control switch with emergency button (4)
Deflection pulley with payload hook (5)
An automatic brake secures the load in

any position

3

5

Payload: 250 kg without pulley

500 kg with pulley

Lifting height: 11.5 m without pulley

5.7 m with pulley
Mains: 230 V ~ 50 Hz
Power: 900 W S3 25 %
Rope speed: without pulley:8 m/min

with pulley: 4 m/min

Net weight: 16.0 kg
Gross weight: 17.0 kg
Packing dimensions: 377 x 157 x 250 mm
Bar code: 4006825 539752
Sales unit: 2 pcs

2

Hoist lever arm GT-SA 1200

Electric Hoist

Art.-No. 22.555.11

Art.-No.: 22.553.98
Bar code: 4006825 540017

Abbildungen können nicht im Serien-Lieferumfang enthaltenes Zubehör darstellen / Illustrations can contain accessories, which are not included in standard extent of delivery.
Abbildungen ähnlich, produktionsbedingte Abweichung vorbehalten / Illustration similar (in design), production-wise modifications reserved.
