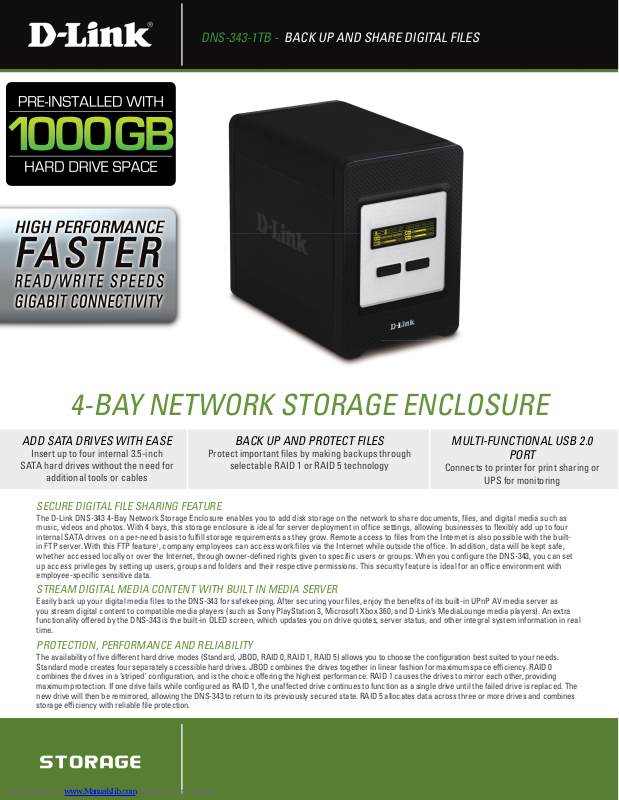

D-Link DNS-343-1TB Specifications

DNS-343-1TB - BACK UP AND SHARE DIGITAL FILES

4-BAY NETWORK STORAGE ENCLOSURE

ADD SATA DRIVES WITH EASE

Insert up to four internal 3.5-inch

SATA hard drives without the need for

additional tools or cables

BACK UP AND PROTECT FILES

Protect important fi les by making backups through

selectable RAID 1 or RAID 5 technology

SECURE DIGITAL FILE SHARING FEATURE

The D-Link DNS-343 4-Bay Network Storage Enclosure enables you to add disk storage on the network to share documents, fi les, and digital media such as
music, videos and photos. With 4 bays, this storage enclosure is ideal for server deployment in offi ce settings, allowing businesses to fl exibly add up to four
internal SATA drives on a per-need basis to fulfi ll storage requirements as they grow. Remote access to fi les from the Internet is also possible with the built­in FTP server. With this FTP feature
whether accessed locally or over the Internet, through owner-defi ned rights given to specifi c users or groups. When you confi gure the DNS-343, you can set
up access privileges by setting up users, groups and folders and their respective permissions. This security feature is ideal for an offi ce environment with
employee-specifi c sensitive data.

1

, company employees can access work fi les via the Internet while outside the offi ce. In addition, data will be kept safe,

STREAM DIGITAL MEDIA CONTENT WITH BUILT IN MEDIA SERVER

Easily back up your digital media fi les to the DNS-343 for safekeeping. After securing your fi les, enjoy the benefi ts of its built-in UPnP AV media server as
you stream digital content to compatible media players (such as Sony PlayStation 3, Microsoft Xbox 360, and D-Link’s MediaLounge media players). An extra
functionality offered by the DNS-343 is the built-in OLED screen, which updates you on drive quotes, server status, and other integral system information in real
time.

PROTECTION, PERFORMANCE AND RELIABILITY

The availability of fi ve different hard drive modes (Standard, JBOD, RAID 0, RAID 1, RAID 5) allows you to choose the confi guration best suited to your needs.
Standard mode creates four separately accessible hard drives. JBOD combines the drives together in linear fashion for maximum space effi ciency. RAID 0
combines the drives in a ‘striped’ confi guration, and is the choice offering the highest performance. RAID 1 causes the drives to mirror each other, providing
maximum protection. If one drive fails while confi gured as RAID 1, the unaffected drive continues to function as a single drive until the failed drive is replaced. The
new drive will then be remirrored, allowing the DNS-343 to return to its previously secured state. RAID 5 allocates data across three or more drives and combines
storage effi ciency with reliable fi le protection.

MULTI-FUNCTIONAL USB 2.0

PORT

Connects to printer for print sharing or

UPS for monitoring

DNS-343-1TB - BACK UP AND SHARE DIGITAL FILES

loss of precious fi les.

WHAT THIS PRODUCT DOES

The D-Link DNS-343 4-Bay Network Storage

Enclosure, with its internal SATA drives

2

, enables you

to share your documents, music, photos and videos

across the network and on the internet where they’ll

be accessible to employees and offi ce users. This

enclosure allows you to create a central network

point for backing up valuable fi les and protects these

fi les from drive failure using selectable RAID 1/RAID

5 technology. You can also use this device to stream

digital media to UPnP AV compatible network media

players. Overheating can be kept to a minimum with

its aluminum chassis and built-in Smart Fans.

ROBUST SOFTWARE INCLUDED

The included CD contains D-Link’s Easy Search

Utility. This utility allows you to easily locate the

DNS-343 anywhere on the network. Once it is

located, use the utility to map the hard drive(s) so

they will appear in My Computer on your PC. Backup

software is also included on the CD. This will allow

the back up of valuable fi les from a computer to the

DNS-343 manually, per a schedule or in real-time.

Real-time backups are a great way to safeguard

against unfortunate accidents that may result in the

loss of precious fi les.

PREVENT HARD DRIVE FAILURE
WITH RAID 1/RAID 5 TECHNOLOGY

Backing data up to a regular hard drive offers a basic

level of protection, but there is always the chance of a

hard drive failure. Using the DNS-343 with its four internal

SATA drives and selectable RAID 1/RAID 5 backup modes,

you can choose to mirror between the two drives (i.e.

duplicate data on both drives) or spread your data among

three or more drives for maximum protection of valuable

data. If one drive fails, the others continue to function as a

single unit until the failed drive is replaced.

1

D-Link does not guarantee fi le access security when FTP is used on the Internet

2

2x 500GB SATA drives are included with the DNS-343-1TB

TECHNICAL SPECIFICATIONS

STANDARDS

+ IEEE 802.3 + IEEE 802.3ab
+ IEEE 802.3u + TCP/IP
+ CIFS/SMB + DHCP Server/Client
+ DDNS + NTP
+ HTTP/HTTPS + Jumbo Frame
+ USB 2.0 + LLTD
+ PnP-X + UPnP and UPnP AV
+ FTP over SSL/TLS

SUPPORTED HARD DRIVE

+ Hard drive type: SATA I/II 3.5-inch internal
+ Hard drive capacity: up to 1TB or larger,

pending availability of future SATA HD
technology support

PORT

+ 1 10/100/1000 Gigabit Ethernet Port
+ 1 USB 2.0 Port
+ Power

DISPLAY

256 x 64 OLED Display Screen

DISK MANAGEMENT

+ Multiple Hard Drive Confi gurations:

RAID 0, RAID 1, RAID 5, JBoD, Standard

+ Scandisk

USER MANAGEMENT

+ Windows Active Directory service

support
+ User account management
+ Group account management
+ User/Group Quota management

DRIVE MANAGEMENT

+ Multiple Hard Drive Confi gurations:

RAID 0, RAID 1, RAID 5, JBoD, Standard
+ Scandisk
+ User/Group Quota management

DEVICE MANAGEMENT

+ Internet Explorer v6 and later or other

Java-enabled browser
+ Easy Search Utility
+ UPS Monitoring
+ E-Mail Alerts
+ Power Management
+ Auto Power Recovery

FILE SHARING

+ Max. User Account: 64 users / 4000

(ADS)
+ Max. Group: 10 groups / 1700 (ADS)
+ Max. Shared Folder: 45 folders
+ Max. Con-current Connection: 64

(Samba) / 10 (FTP)

POWER SUPPLY

+ External Power Supply
+ DC 19V/7.89A Switching

POWER CONSUMPTION

+ Normal mode: 37.314W
+ Sleep mode: 13.298W

TEMPERATURE

+ Operating: 0˚ to 55˚ C (32˚ to 131˚ F)
+ Storage: -20˚ to 70˚ C (-4˚ to 158˚ F)

OPERATING HUMIDITY

5% ~ 90% (Non-condensing)

DIMENSIONS

+ Item (W x D x H):
128 x 200 x 178 mm (5” x 7.9” x 7”)
+ Packaging (W x D x H):
270 x 320 x 260 mm (10.6” x 12.6” x 0.2”)

WEIGHT

+ Item: 2.7kg (6.0 lbs)
+ Packaging: 4.5kg (10.0 lbs)

MULTILINGUAL SUPPORT

Samba: Unicode
FTP Client: Unicode, Croatian, Cyrillic

(Kyrgyz Republic), Czech, Danish,
Dutch, English, Finnish, French, German,
Greek, Hungarian, Italian, Japanese,
Korean, Norwegian, Polish, Portuguese,
Romanian, Russian, Simplifi ed Chinese,
Slovenian, Spanish, Swedish, Traditional
Chinese, Turkish

No. 289 Xinhu 3rd Road, Neihu, Taipei 114, Taiwan

D-Link is a registered trademark of D-Link Corporation and its overseas subsidiaries.

Specifi cations are subject to change without notice.

All other trademarks belong to their respective owners.

©2008 D-Link Corporation. All rights reserved.

D-Link Corporation

Release 02 (Mar 2009)
