D Link DGL4500A2 User Manual

Section 3 - Configuration

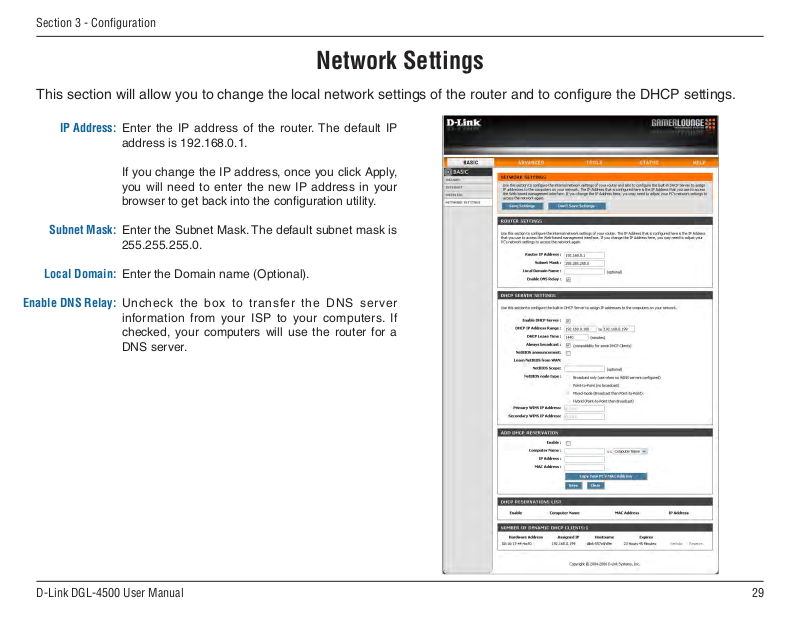

Network Settings

This section will allow you to change the local network settings of the router and to configure the DHCP settings.

IP Address:

Subnet Mask:

Local Domain:

Enable DNS Relay:

Enter the IP address of the router. The default IP
address is 192.168.0.1.

If you change the IP address, once you click Apply,
you will need to enter the new IP address in your
browser to get back into the configuration utility.

Enter the Subnet Mask. The default subnet mask is

255.255.255.0.

Enter the Domain name (Optional).

Uncheck the box to transfer the DNS server
information from your ISP to your computers. If
checked, your computers will use the router for a
DNS server.

29D-Link DGL-4500 User Manual

Section 3 - Configuration

DHCP Server Settings

DHCP stands for Dynamic Host Control Protocol. The router has a built-in DHCP server. The DHCP Server will automatically assign an IP
address to the computers on the LAN/private network. Be sure to set your computers to be DHCP clients by setting their TCP/IP settings
to “Obtain an IP Address Automatically.” When you turn your computers on, they will automatically load the proper TCP/IP settings provided
by the DGL-4500. The DHCP Server will automatically allocate an unused IP address from the IP address pool to the requesting computer.
You must specify the starting and ending address of the IP address pool.

Enable DHCP

Server:

DHCP IP Address

Range:

DHCP Lease Time:

Always Broadcast:

NetBIOS

Announcement:

Learn NetBIOS

from WAN:

Check this box to enable the DHCP server on your router. Uncheck to
disable this function.

Enter the starting and ending IP addresses for the DHCP server’s IP
assignment.

Note: If you statically (manually) assign IP addresses to your computers
or devices, make sure the IP addresses are outside of this range or you
may have an IP conflict.

The length of time for the IP address lease. Enter the Lease time in
minutes.

Enable this feature to broadcast your networks DHCP server to LAN/
WLAN clients.

NetBIOS allows LAN hosts to discover all other computers within the
network, enable this feature to allow the DHCP Server to offer NetBIOS
configuration settings.

Enable this feature to allow WINS information to be learned from the WAN side, disable to allow manual configuration.

NetBIOS Scope:

NetBIOS Node:

WINS IP Address:

This feature allows the configuration of a NetBIOS ‘domain’ name under which network hosts operates. This setting has no
effect if the ‘Learn NetBIOS information from WAN’ is activated.

Select the different type of NetBIOS node; Broadcast only, Point-to-Point, Mixed-mode, and Hybrid.

Enter your WINS IP address

30D-Link DGL-4500 User Manual

Section 3 - Configuration

DHCP Reservation

If you want a computer or device to always have the same IP address assigned, you can create a DHCP reservation.
The router will assign the IP address only to that computer or device.

Note: This IP address must be within the DHCP IP Address Range.

Enable:

Computer Name:

IP Address:

MAC Address:

Copy Your PC’s

MAC Address:

Save:

Check this box to enable the reservation.

Enter the computer name or select from the
drop-down menu and click <<.

Enter the IP address you want to assign to the
computer or device. This IP Address must be
within the DHCP IP Address Range.

Enter the MAC address of the computer or
device.

If you want to assign an IP address to the
computer you are currently on, click this button
to populate the fields.

Click Save to save your entry. You must click
Save Settings at the top to activate your
reservations.

31D-Link DGL-4500 User Manual

Section 3 - Configuration

Virtual Server

The DGL-4500 can be configured as a virtual server so that remote users accessing Web or FTP services via the public
IP address can be automatically redirected to local servers in the LAN (Local Area Network).

The DGL-4500 firewall feature filters out unrecognized packets to protect your LAN network so all computers networked
with the DGL-4500 are invisible to the outside world. If you wish, you can make some of the LAN computers accessible
from the Internet by enabling Virtual Server. Depending on the requested service, the DGL-4500 redirects the external
service request to the appropriate server within the LAN network.

The DGL-4500 is also capable of port-redirection meaning incoming traffic to a particular port may be redirected to a
different port on the server computer.

Each virtual service that is created will be listed at the bottom of the screen in the Virtual Servers List. There are
pre-defined virtual services already in the table. You may use them by enabling them and assigning the server IP to
use that particular virtual service.

For a list of ports for common applications, please visit http://support.dlink.com/faq/view.asp?prod_id=1191.

32D-Link DGL-4500 User Manual

Section 3 - Configuration

This will allow you to open a single port. If you would like to open a range of ports, refer to page 35.

Enable:

Name:

IP Address:

Protocol Type:

Private Port/

Public Port:

Check this box to enable the rule.

Enter a name for the rule or select an application
from the drop-down menu. Select an application
and click << to populate the fields.

Enter the IP address of the computer on your
local network that you want to allow the incoming
service to. If your computer is receiving an IP
address automatically from the router (DHCP),
you computer will be listed in the “Computer
Name” drop-down menu. Select your computer
and click <<.

Select TCP, UDP, or Both from the drop-down
menu.

Enter the port that you want to open next to Private
Port and Public Port. The private and public ports
are usually the same. The public port is the port
seen from the Internet side, and the private port
is the port being used by the application on the
computer within your local network.

Schedule:

Inbound Filter:

The schedule of time when the Virtual Server
Rule will be enabled. The schedule may be set to
Always, which will allow the particular service to
always be enabled. You can create your own times
in the Tools > Schedules section.

Select Allow All (most common) or a created
Inbound filter. You may create your own inbound
filters in the Advanced > Inbound Filter page.

33D-Link DGL-4500 User Manual

Section 3 - Configuration

Application Rules

Some applications require multiple connections, such as Internet gaming, video conferencing, Internet telephony and
others. These applications have difficulties working through NAT (Network Address Translation). Special Applications
makes some of these applications work with the DGL-4500. If you need to run applications that require multiple
connections, specify the port normally associated with an application in the “Trigger Port” field, select the protocol type
as TCP or UDP, then enter the firewall (public) ports associated with the trigger port to open them for inbound traffic.

The DGL-4500 provides some predefined applications in the table on the bottom of the web page. Select the application
you want to use and enable it.

Enable:

Name:

Trigger:

Traffic Type:

Firewall:

Traffic Type:

Schedule:

Check this box to enable the rule.

Enter a name for the rule. You may select a
pre-defined application from the drop-down
menu and click <<.

This is the port used to trigger the application. It
can be either a single port or a range of ports.

Select the protocol of the trigger port (TCP, UDP,
or Both).

This is the port number on the Internet side
that will be used to access the application. You
may define a single port or a range of ports.
You can use a comma to add multiple ports or
port ranges.

Select the protocol of the firewall port (TCP, UDP, or Both).

The schedule of time when the Application Rule will be enabled. The schedule may be set to Always, which will allow the
particular service to always be enabled. You can create your own times in the Tools > Schedules section.

34D-Link DGL-4500 User Manual

Section 3 - Configuration

Gaming

This will allow you to open a single port or a range of ports.

Enable:

Name:

IP Address:

TCP/UDP:

Schedule:

Check this box to enable the rule.

Enter a name for the rule or select an application
from the drop-down menu. Select an application
and click << to populate the fields.

Enter the IP address of the computer on your local
network that you want to allow the incoming service
to. If your computer is receiving an IP address
automatically from the router (DHCP), you computer
will be listed in the “Computer Name” drop-down
menu. Select your computer and click <<.

Enter the TCP and/or UDP port or ports that you
want to open. You can enter a single port or a range
of ports. Separate ports with a common.

Example: 24,1009,3000-4000

The schedule of time when the Virtual Server Rule
will be enabled. The schedule may be set to Always,
which will allow the particular service to always be
enabled. You can create your own times in the Tools
> Schedules section.

Inbound Filter:

Select Allow All (most common) or a created
Inbound filter. You may create your own inbound
filters in the Advanced > Inbound Filter page.

35D-Link DGL-4500 User Manual

Section 3 - Configuration

GameFuel

The GameFuel option helps improve your network gaming performance by prioritizing applications. By default the
GameFuel settings are disabled and application priority is not classified automatically.

Enable GameFuel:

Automatic

Classification:

Dynamic

Fragmentation:

Automatic Uplink

Speed:

Measured Uplink

Speed:

Manual Uplink

Speed:

This option is disabled by default. Enable this option for better
performance and experience with online games and other
interactive applications, such as VoIP.

This option is enabled by default. This will allow your router
to automatically determine the network priority of running
programs.

This option should be enabled when you have a slow Internet
uplink. It helps to reduce the impact that large low priority
network packets can have on more urgent ones.

This option is enabled by default when the GameFuel option
is enabled. This option will allow your router to automatically
determine the uplink speed of your Internet connection.

This displays the detected uplink speed.

The speed at which data can be transferred from the router
to your ISP. This is determined by your ISP. ISP’s often speed
as a download/upload pair. For example, 1.5Mbits/284Kbits.
Using this example, you would enter 284. Alternatively you can
test your uplink speed with a service such as www.dslreports.
com.

Connection Type:

By default, the router automatically determines whether the underlying connection is an xDSL/Frame-relay network or some
other connection type (such as cable modem or Ethernet), and it displays the result as Detected xDSL or Frame Relay Network.

36D-Link DGL-4500 User Manual

Section 3 - Configuration

If you have an unusual network connection in which you are actually connected via xDSL but for which you configure either
“Static” or “DHCP” in the Internet settings, setting this option to xDSL or Other Frame Relay Network ensures that the router
will recognize that it needs to shape traffic slightly differently in order to give the best performance. Choosing xDSL or Other
Frame Relay Network causes the measured uplink speed to be reported slightly lower than before on such connections, but
gives much better results.

Detected xDSL:

When Connection Type is set to automatic, the automatically detected connection type is displayed here.

37D-Link DGL-4500 User Manual

Section 3 - Configuration

Routing

Use the routing option to define fixed routes to specific destinations.

Enable:

Name:

Destination IP:

Netmask:

Gateway:

Metric:

Interface:

Check this box to enable the rule.

Enter a name for the rule.

Enter the destination IP address or network address.

Enter the destination subnet mask.

Enter the destination’s gateway IP address.

Enter the route’s priority. The higher the number the lower
the priority.

Select LAN or WAN from the drop-down menu.

38D-Link DGL-4500 User Manual

Section 3 - Configuration

Access Control

The Access Control section allows you to control access in and out of your network. Use this feature as Parental Controls
to only grant access to approved sites, limit web access based on time or dates, and/or block access from applications
like P2P utilities or games.

Add Policy:

Click Next to continue with the wizard.

Click the Add Policy button to start the Access
Control Wizard.

Access Control Wizard

39D-Link DGL-4500 User Manual

Section 3 - Configuration

Access Control Wizard (continued)

Enter a name for the policy and then click Next to continue.

Select a schedule (I.E. Always) from the drop-down menu
and then click Next to continue.

Enter the following information and then click Next to
continue.

• Address Type - Select IP address, MAC address, or
Other Machines.

• IP Address - Enter the IP address of the computer
you want to apply the rule to.

40D-Link DGL-4500 User Manual

Section 3 - Configuration

Access Control Wizard (continued)

Select the filtering method and then click Next to continue.

Enter the rule:

Enable - Check to enable the rule.
Name - Enter a name for your rule.
Dest IP Start - Enter the starting IP address.
Dest IP End - Enter the ending IP address.
Protocol - Select the protocol.
Dest Port Start - Enter the starting port number.
Dest Port End - Enter the ending port number.

To enable web logging, click Enable.

Click Save to save the access control rule.

41D-Link DGL-4500 User Manual

Section 3 - Configuration

Website Filters

Website Filters are used to allow you to set up a list of allowed Web sites that can be used by multiple users through
the network. To use this feature select to Allow or Deny, enter the domain or website and click Add, and then click
Save Settings. You must also select Apply Web Filter under the Access Control section (page 39).

Add Website

Filtering Rule:

Website Filtering

List:

Select Allow or Deny.

Enter the keywords or URLs that you want to
allow or deny and then click Add.

42D-Link DGL-4500 User Manual
