D-link DCS-855L User Manual [ru]
Version 1.0 | 12/2/14
User Guide
Wi-Fi Baby Camera
Pan & Tilt HD Cloud Camera
DCS-855L
Preface
D-Link reserves the right to revise this publication and to make changes in the content hereof without obligation to notify any person or organization
of such revisions or changes. Information in this document may become obsolete as our services and websites develop and change. Please refer to
the www.mydlink.com website for the most current information.
Manual Revisions
Revision Date Description
1.0 December 2, 2014 • Initial release
Trademarks
© 2014 D-Link. All Rights Reserved. D-Link and the D-Link logo are trademarks or registered trademarks of D-Link Corporation or its subsidiaries. All
other third-party marks mentioned herein may be trademarks of their respective owners. This publication may not be reproduced, in whole or in part,
without prior express written permission from D-Link Systems, Inc.
2D-Link DCS-855L User Manual
Table of Contents
Preface .............................................................................................. 2
Manual Revisions .................................................................. 2
Trademarks.............................................................................. 2
Product Overview ......................................................................... 4
Package Contents ................................................................. 4
Minimum Requirements .................................................... 5
Introduction ............................................................................ 6
Important Safety Information .......................................... 7
Hardware Overview ............................................................. 9
Front View ............................................................................ 9
Rear View ...........................................................................10
Installation ....................................................................................11
Wireless Installation Considerations ............................11
Camera Setup .......................................................................12
Mounting the Camera .......................................................13
Download the mydlink Baby App .................................15
Set Up a New Camera with the mydlink Baby App 19

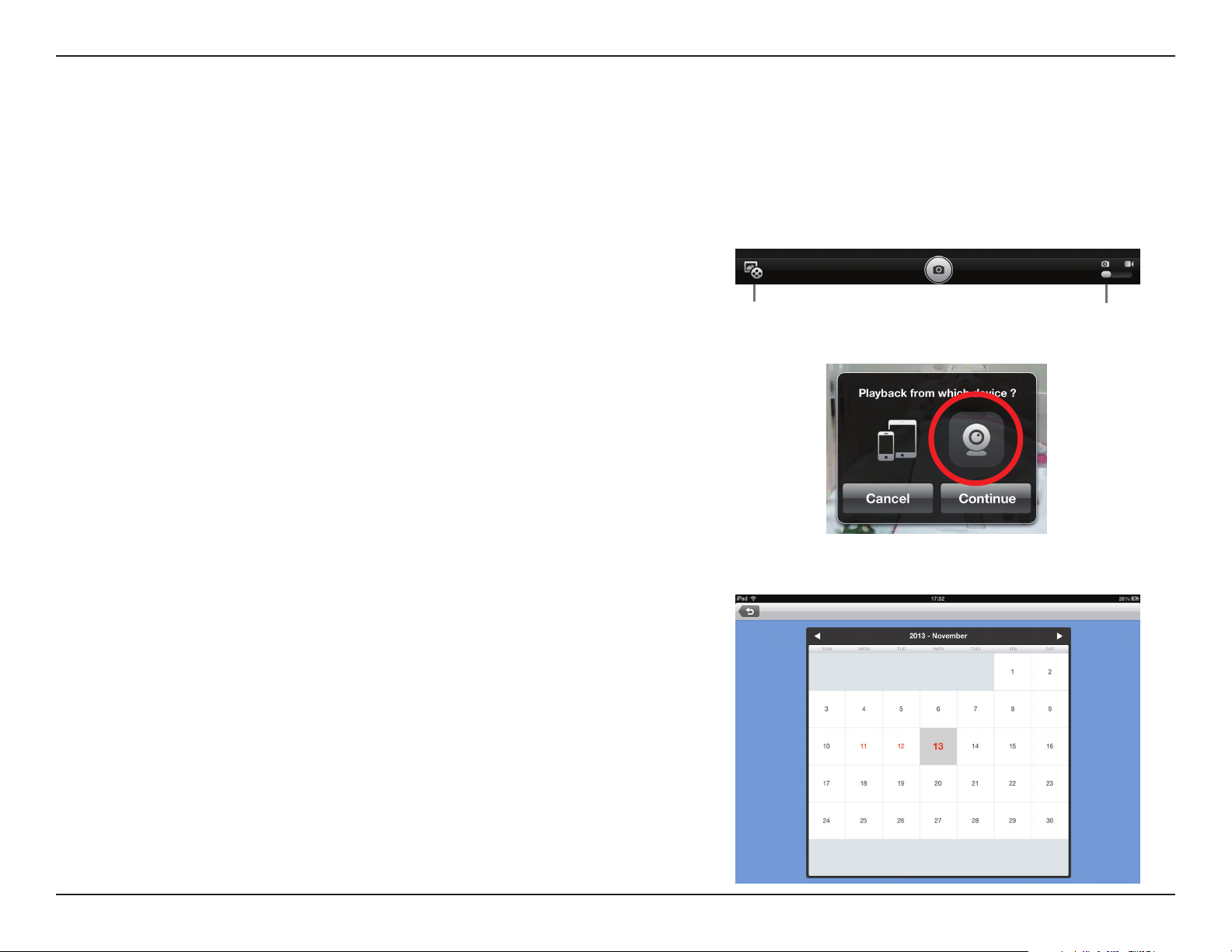

Playing Back Event-Triggered Videos ..........................28
Creating a mydlink Account ...................................................29
Advanced Features ...................................................................30
Enabling Direct Connect ..................................................30
Storing Custom Lullabies .................................................32
Troubleshooting .........................................................................33
Technical Specications ...........................................................36
Contacting Technical Support ...............................................38
Warranty ........................................................................................39
Registration ..................................................................................46
Monitoring ....................................................................................20

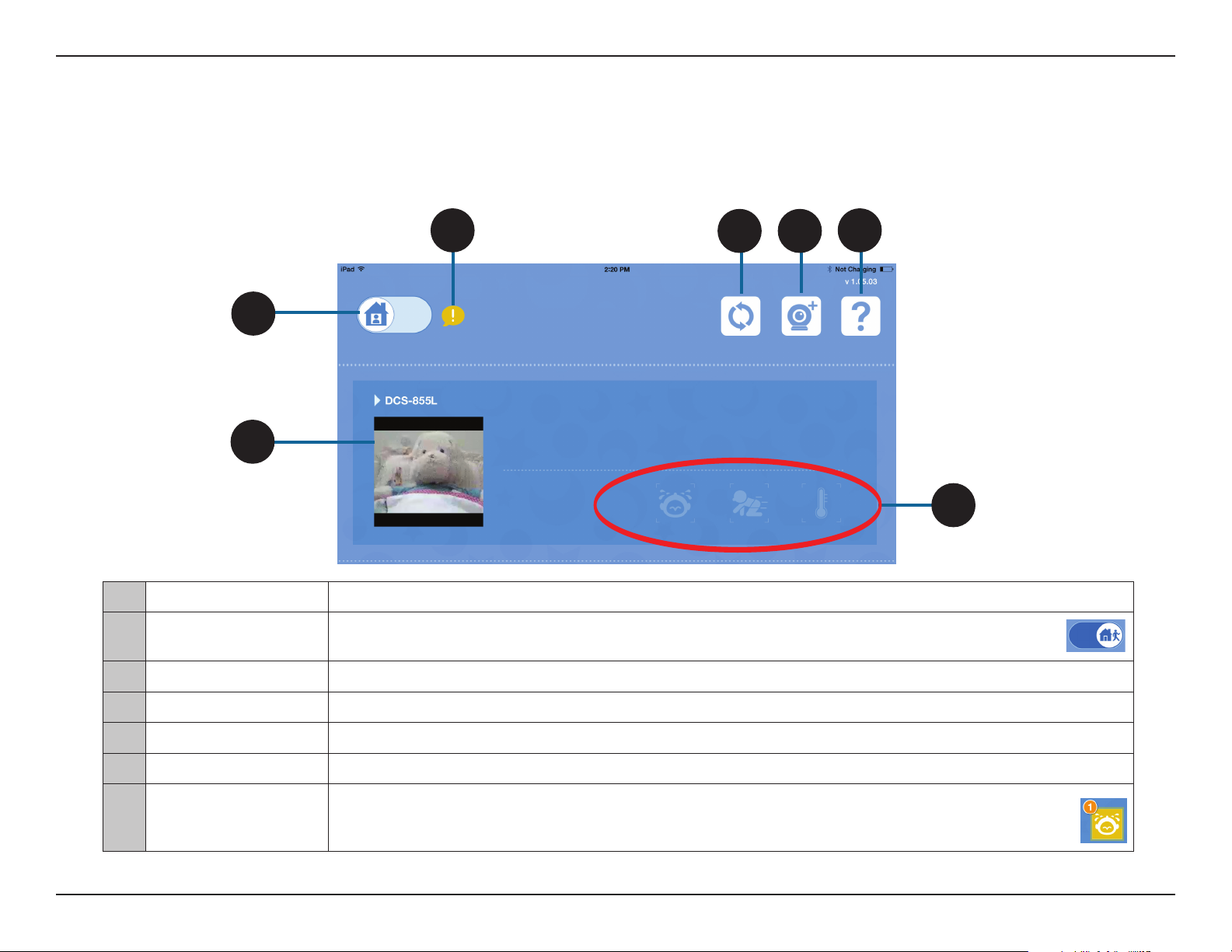

mydlink Baby App Home Screen ..................................20
mydlink Baby App Live View ...........................................21
Conguration ...............................................................................22
mydlink Baby App Conguration .................................22
mydlink Baby App Settings .............................................25
mydlink Baby App Pan Settings ....................................26
Video Recording and Playback ..............................................27
Taking Snapshots or Recording Videos ......................27
3D-Link DCS-855L User Manual
Section 1: Product Overview
DCS-855L Wi-Fi Baby Camera
Additional Accent Rings
Focus Ring Adjustment Tool
Wall Mount Kit
Product Overview
Package Contents
Mounting Bracket
Power adapter
Quick Install Guide
If any of the above items are missing, please contact your reseller.
4D-Link DCS-855L User Manual
Section 1: Product Overview
Minimum Requirements
Mobile Requirements
Computer Requirements
Network Requirements
Remote Viewing Requirements* • Internet access required for remote viewing
mydlink Requirements
• For mobile requirements refer to the Compatibility List on mydlink Baby app page on the
App Store and Google Play
• Computer with 1.3GHz processor or above and at least 128 MB RAM
• Microsoft Windows® 8, 7, Vista®, or Mac OS® X (10.6 or higher)
• Internet Explorer® 7, Firefox® 12, Safari® 6, or Chrome™ 20 or higher with Java installed and enabled
• 802.11g/n Wi-Fi network
(Wireless N network recommended for optimal performance)
• For mydlink requirements refer to:
http://www.mydlink.com
*Note: Direct Connection requires no Internet connection and no router. Refer to "Advanced Features" on page 30.
5D-Link DCS-855L User Manual
Section 1: Product Overview
Introduction
Keep an eye on your little one with the DCS-855L Wi-Fi Baby Camera. This portable camera transforms your mobile device into a versatile, yet easy-to-use baby
monitor. The pan/tilt feature lets you move the camera remotely, so you can monitor the entire playroom from your mobile device.
Connect to the camera wirelessly at home, or through the Internet when you are at work, so you can check on your infant no matter where you are. You can even
take the DCS-855L with you when you travel with your baby. All you need is a mobile device to connect directly to the Wi-Fi Baby Camera.
The DCS-855L is packed with features including motion, sound, and temperature monitoring, as well as night vision. It will take snapshots, record videos, and can
even play gentle lullabies to help ease your baby to sleep!
6D-Link DCS-855L User Manual
Section 1: Product Overview
The DCS-855L is designed to meet the highest safety standards. Please make sure that it is set up and used correctly. It is very important that you follow the
safety guidelines below:
Strangulation Hazard: Keep the DCS-855L and any attached cords at least three feet out of reach of any children or babies.
Make sure you keep any attached cords out of your baby’s crib or child's sleeping area.
Important Safety Information
Make sure the DCS-855L and cord are out of baby’s reach. In general,
this means the Wi-Fi Baby Camera and cord should be placed at least
three feet away from baby’s crib.
Don’t place the DCS-855L on the crib rail. Even if you think your baby
would not touch the Wi-Fi Baby Camera, it’s too risky to leave it within
easy reach of your baby. Even baby camera cords that are secured to the
rail could be yanked or twisted by a curious child.
Mounting the DCS-855L on tabletops. Place the Wi-Fi Baby Camera on
a tabletop no less than three feet away from your baby’s crib. Feed the
power cord down the back of the table or use wall clips to secure the cord
away so your baby cannot reach the cord. Plug in the power cord, check
your smartphone or tablet to ensure that you are getting a good view of
your child and that there are no obstructions.
Watch out for other cord hazards. While you’re securing the Wi-Fi Baby
Camera cord, take a moment to look around for any other strangulation
hazards as well. One common culprit is window blind cords that are within
baby’s reach. Cords for other electronics and nursery decor with ribbons
or decorative cords may also be a risk.
Use caution if you wall-mount the DCS-855L. Be careful not to allow the
Wi-Fi Baby Camera cord to dangle between the crib and a wall. You should
use the three foot minimum spacing between baby and the cord in this
case, too.
As your baby reaches toddlerhood, you should re-evaluate placement
of the DCS-855L. When little arms get longer and toddlers learn to climb
and reach for things, you may need to move the Wi-Fi Baby Camera to
prevent access to the cord.
You can use the DCS-855L in other places besides the nursery, if it's
indoors. When considering alternative locations, avoid placement where
the camera may come in contact with water. Don’t forget to also check to
make sure you can place the Wi-Fi Baby Camera out of baby’s reach.
Do not place the DCS-855L close to water or heat. Do not use the Wi-Fi
Baby Camera near bathtubs, showers or sinks. Keep the baby camera away
from heat sources such as stoves, radiators, etc.
7D-Link DCS-855L User Manual
Section 1: Product Overview
Make sure there is proper ventilation around the DCS-855L. Make sure
you do not place the Wi-Fi Baby Camera on sofas, cushions, beds, etc. in a
way that may block ventilation. DO NOT cover the camera with a blanket.
Most Important: Remember that the DCS-855L is not a babysitter. The Wi-Fi Baby Camera should only be used as a parenting aid for monitoring your
baby or child. While it does give you the ability to remotely view your baby or child, there should always be an adult in the same house. The Wi-Fi Baby
Camera should not be considered a replacement for responsible adult supervision. In addition to monitoring your baby or child with the Wi-Fi Baby
Camera, make sure you check on your child or baby regularly.
Remember the DCS-855L is not a toy. Do not allow babies or children
to play with the Wi-Fi Baby Camera. You should never attempt to open or
disassemble the camera.
How to Ensure your DCS-855L is Secure
The rst step is to make sure you turn on security features during the installation process. Follow the instructions, and make sure you set up
a strong password at least eight characters long, with a mix of symbols and upper and lower case letters. Make sure you keep the Wi-Fi Baby
Camera software and mydlink Baby app up-to-date.
How to Clean Your DCS-855L
Clean the camera with a dry cloth only; never allow the camera to get wet.
8D-Link DCS-855L User Manual
Section 1: Product Overview
Hardware Overview
Front View
1
7
2
3
4
8
5
6
1 Microphone Allows you to record or listen to audio from the surrounding area.
2 Light Sensor Sensor for ambient (surrounding) light.
3 Focus Ring Used to adjust the focus.
4 Camera Lens Allows you to record or view video of the surrounding area.
5 Accent Ring Decorative switchable front accent ring.
6 Cloud/Direct Mode LED The LED will be solid blue when the camera is connected to the mydlink server.
7
8 Night Vision (IR) LEDs Infrared LEDs illuminate the camera's eld of view at night.
microSD Card Slot
(Under the Cover)
Insert a microSD card into the microSD card slot to store event-triggered videos, snapshots, and custom lullabies.
Refer to "Storing Custom Lullabies" on page 32.
9
9 Power LED The LED will be red when the power is on or during the factory reset process.
9D-Link DCS-855L User Manual
Section 1: Product Overview
Rear View
5
1
2
1 Temperature Sensor Senses the current temperature level, which is displayed on the Live Video screen.
2 Reset Button Press and hold the reset button for 10 seconds to reset the camera back to the factory default settings.

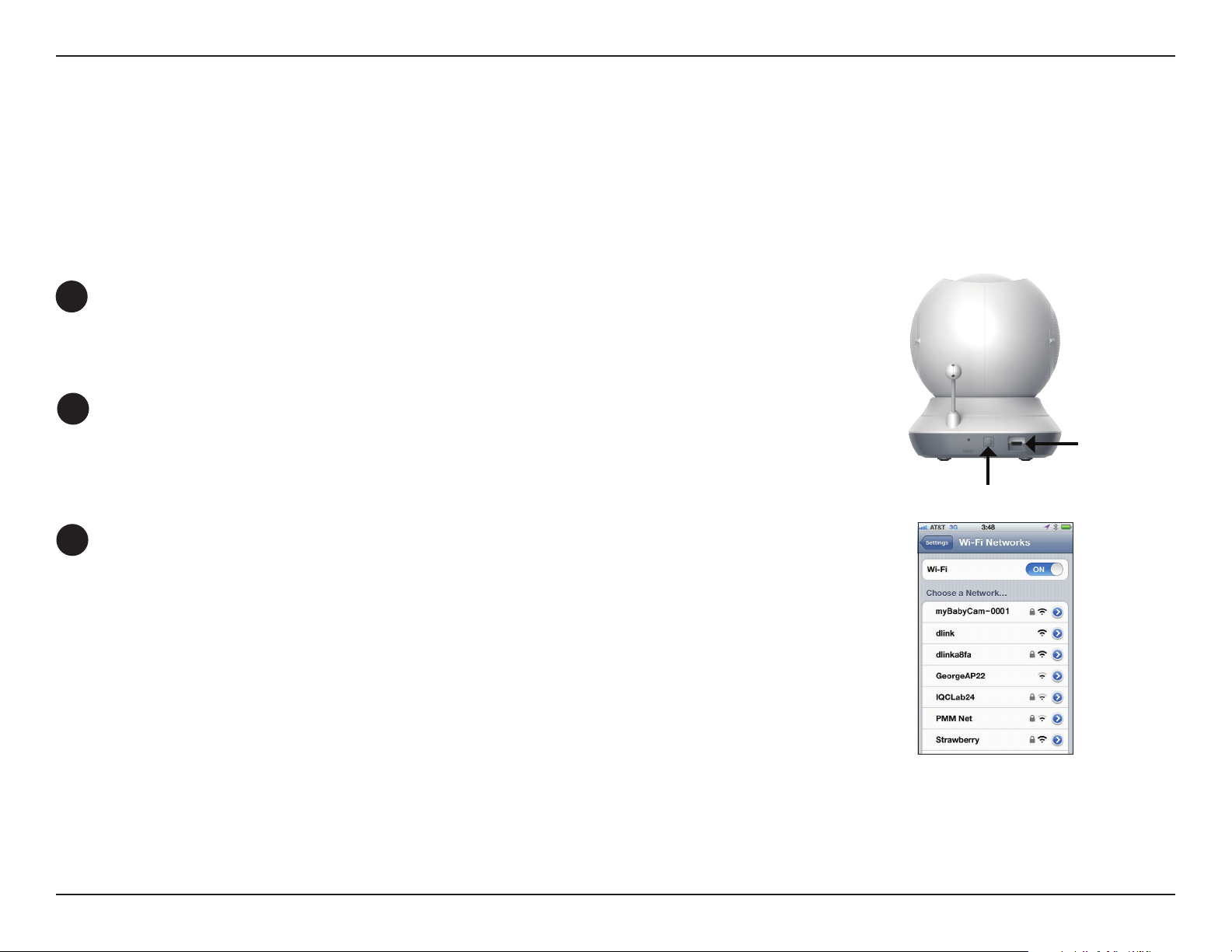

3 Direct Connect Button
4 Power Port (Micro-USB) Micro-USB connector for the supplied power adapter or USB battery pack*.
5 Speaker (Under the Cover) The speaker allows you to talk to your baby and to play lullabies.
*Note: USB battery not included. Only 5V /2A battery pack is supported.
Press to allow your mobile device to directly connect to your DCS-855L wirelessly, so there is no need for a
router. (Please refer to "Advanced Features" on page 30.)
3
4
10D-Link DCS-855L User Manual
Section 2: Installation
Installation
Wireless Installation Considerations
This D-Link camera can connect to your wireless network from anywhere within the operating range of your wireless network. However, the
number, thickness, and location of walls, ceilings, or other objects that the wireless signals must pass through may limit the range. Typical ranges
vary depending on the types of materials and background RF (radio frequency) noise in your home or business. The key to maximizing wireless
range is to follow these basic guidelines:
1. Minimize the number of walls and ceilings between your camera and other network devices - each wall or ceiling can reduce your camera’s
range from 3-90 feet (1-30 meters).
2. Be aware of the direct line between network devices. A wall that is 1.5 feet thick (0.5 meters), at a 45-degree angle appears to be almost 3
feet (1 meter) thick. At a 2-degree angle, it looks over 42 feet (14 meters) thick. Position your devices so that the signal will travel straight
through a wall or ceiling (instead of at an angle) for better reception.
3. Building Materials make a dierence. A solid metal door or aluminum studs may weaken the wireless signal. Try to position your access points,
wireless routers, and other networking devices where the signal passes through drywall or open doorways. Materials and objects such as
glass, steel, metal, walls with insulation, water (sh tanks), mirrors, le cabinets, brick, and concrete will degrade your wireless signal.
4. Keep your camera at least 3-6 feet or 1-2 meters away from electrical devices or appliances that generate RF noise.
5. If you are using 2.4GHz cordless phones or other radio frequency sources (such as microwave ovens), your wireless connection may degrade
dramatically or drop completely. Make sure your 2.4GHz phone base is as far away from your wireless devices as possible. The base transmits
a signal even if the phone is not in use.
11D-Link DCS-855L User Manual
Section 2: Installation
There are several ways to set up your DCS-855L:
1. At Home...
Connect to your DCS-855L through your home wireless network.
Camera Setup
2. Remotely...
Connect to your DCS-855L using the Internet.
Note: You can also connect directly to your DCS-855L wirelessly, so there is no need for an Internet connection or a router.
Refer to "Advanced Features" on page 30 for details.
12D-Link DCS-855L User Manual
Section 2: Installation
Mounting the Camera
WARNING - STRANGULATION HAZARD
Children have STRANGLED in cords. Keep adapter cord out of reach of children (minimum of three feet away). NEVER place the camera or adapter cord inside
the crib or child's sleeping area. Do not use extension cords. This product is NOT intended to replace proper adult supervision of children.
Refer to the steps below for mounting the camera. The DCS-855L is for indoor use only. Do not mount it in a location where it may be in contact
with water as this may damage the product and/or cause injury.
We suggest you congure the camera before mounting it.
1.
Place the mounting bracket where you want to position the camera and use a pencil
to mark the points where you will drill the holes.
1
2. Use a 6mm drill bit to drill two holes where you marked that are at least 25mm deep
(about 1 in deep). Insert the screws into the holes.
Note: If the wall is made out of concrete, before inserting the screws, insert the provided
plastic anchors to support the screws.
3. If you prefer, you can conceal the cable behind the mounting bracket. Run the cable
through the back of the mounting bracket, securing it with the built-in guides. Make sure
you leave enough cable protruding to allow you to connect it to the camera.
4. Fasten the mounting bracket to the wall using the screws provided.
Note: Do not overtighten the screws as this may damage the mounting bracket.
2
3
4
13D-Link DCS-855L User Manual
Section 2: Installation
5. Using the supplied thumbscrew, fasten the camera to the mounting bracket. Connect the
power cable to the camera.
6. Adjust the angle of the arm on the mounting bracket as desired. Tighten the thumbscrew
to lock the arm into place.
5
6
14D-Link DCS-855L User Manual
Loading...
