User Manual
HD Outdoor Fixed Dome Camera with Color Night Vision
DCS-6315
Preface
D-Link reserves the right to revise this publication and to make changes in the content hereof without obligation to notify any person or organization of such revisions or changes. Information in this document may become obsolete as our services and websites develop and change.
Manual Revisions
1.00 January 6, 2014 DCS-6315 Revision A1 with rmware version 1.00
Trademarks
D-Link and the D-Link logo are trademarks or registered trademarks of D-Link Corporation or its subsidiaries in the United States or other countries. All other company or product names mentioned herein are trademarks or registered trademarks of their respective companies.
Copyright © 2014 D-Link Corporation.
All rights reserved. This publication may not be reproduced, in whole or in part, without prior express written permission from D-Link Corporation.
2D-Link DCS-6315 User Manual
Table of Contents
Product Overview ......................................................................... 4
Package Contents ................................................................. 4
Introduction ............................................................................5
System Requirements ......................................................... 5
Features ....................................................................................6
Hardware Overview ............................................................. 7
Front ...................................................................................... 7
Top.......................................................................................... 8
Cable Harness..................................................................... 9
Internal ...............................................................................10
Assembly and Installation .......................................................11
Installing a microSD Card.................................................11
Deploying the Camera ..................................................13
Mounting the Camera .......................................................15
Attaching the Camera to the Pendant Mount ......18
Attaching the Camera to the Bent Mount .............20
Orienting the Camera ....................................................22
Network Setup .................................................................37
Dynamic DNS ...................................................................40
Image Setup .....................................................................41
Audio and Video ..............................................................43
Preset ...................................................................................45
Motion Detection ...........................................................47
Time and Date ..................................................................48
Event Setup .......................................................................49
SD Card ...............................................................................57
Advanced ...............................................................................58
Digital Input/Output ......................................................58
ICR and IR ...........................................................................59

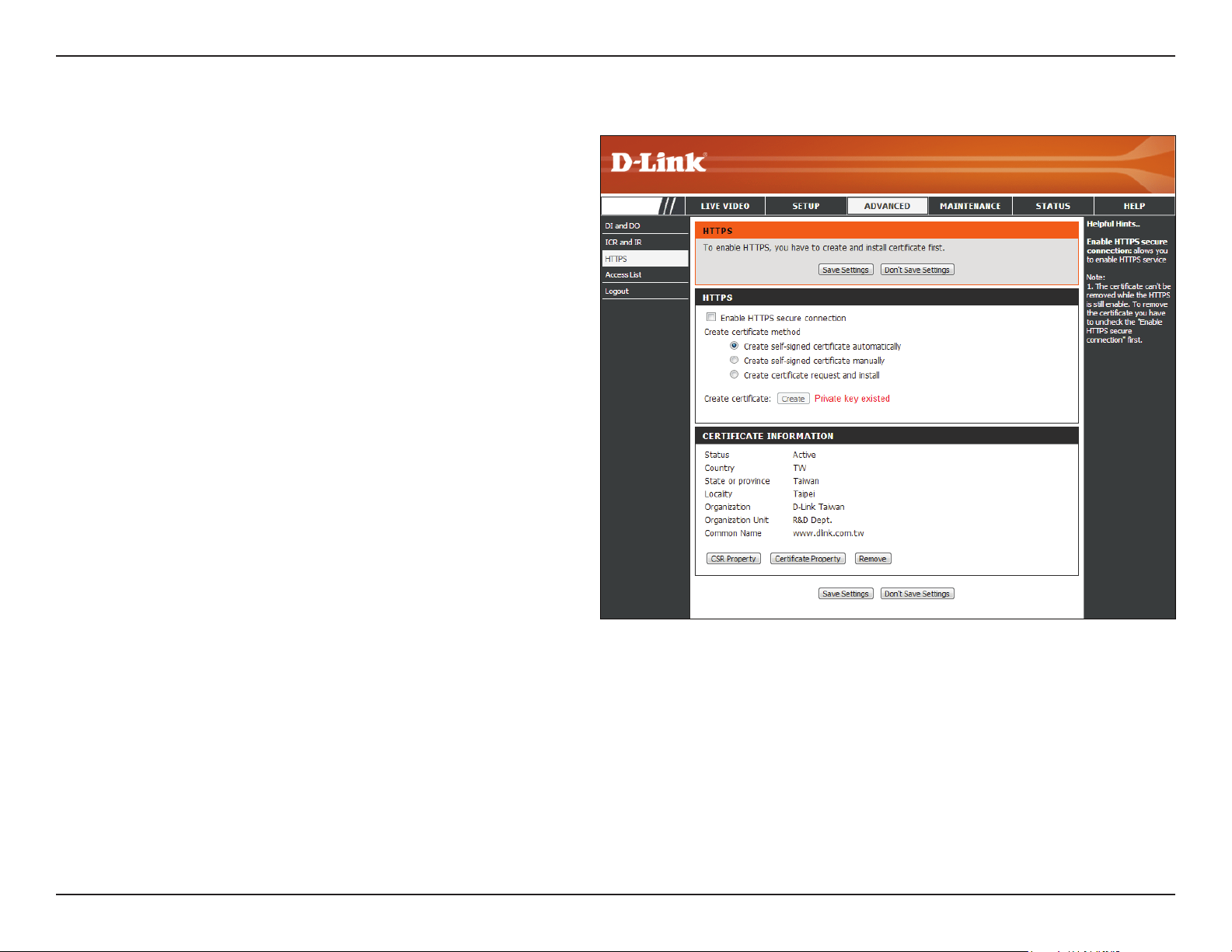

HTTPS ..................................................................................60
Access List ..........................................................................61
Maintenance .........................................................................62
Device Management .....................................................62
System ................................................................................63
Camera Installation Wizard .............................................23
General Connection Using 12 V DC Power
Adapter ...............................................................................23
Connection Using Power over Ethernet (PoE) ......24
Software Installation ......................................................25
Conguration ...............................................................................28
Using the Conguration Interface ................................28
Live Video ..............................................................................29
Setup .......................................................................................31
Setup Wizard ....................................................................31
Firmware Upgrade ..........................................................64
Status ......................................................................................65
Device Info ........................................................................65
Logs .....................................................................................66
Help......................................................................................67
DI/DO Specications .................................................................68
Technical Specications ...........................................................69
3D-Link DCS-6315 User Manual
Section 1: Product Overview
Product Overview

Package Contents

DCS-6315 HD Outdoor Fixed Dome Camera
CD-ROM with User Manual and Software
Quick Install Guide
Power Adapter
Security Wrench
CAT5 Ethernet cable
Screws and Wall Socket
Weather Shield
4-Pin Terminal Block
If any of the above items are missing, please contact your reseller.
Note: Using a power supply with a dierent voltage than the one included with your product will cause damage and void the warranty for this product.
Safety Notice:
Installation and servicing should be done by certied technicians so as to conform to all local codes and prevent voiding your warranty.
4D-Link DCS-6315 User Manual
Section 1: Product Overview

Introduction

The DCS-6315 HD Outdoor Fixed Dome Camera with Color Night Vision is a professional surveillance and security solution for small, medium, and large enterprises. The DCS-6315 uses a 1.3 megapixel progressive scan CMOS sensor which produces high quality images with low noise. This makes it ideal for surveillance applications. Since the DCS-6315 has Wide Dynamic Range (WDR) enhancement, users can identify image details in both extremely bright and dark conditions.
The DCS-6315 has an IP68 certied weatherproof housing, designed for both indoor and outdoor use. The built-in removable IR-cut lter and IR LEDs give the DCS-6315 the ability to view up to 15 meters (49 feet) at night. The camera supports Power over Ethernet (PoE), allowing for easy installation, without the need for supplemental power cabling. This combination of features makes the DCS-6315 a high-performance, reliable and cost-eective 24-hour megapixel surveillance solution.

System Requirements

• Computer with Microsoft Windows® 8, 7, Vista®, or XP (for CD-ROM Setup Wizard), Mac OS® X or Linux
• PC with 1.3GHz processor or above, and at least 128MB RAM
• Internet Explorer® 7 or above , Firefox® 3.5 or above, Safari® 4 and Chrome™ 8.0 or above
• Existing 10/100 Ethernet-based network
• A microSD memory card (optional) is required for recording to onboard storage. SDHC Class 6 or above is recommended.
• Broadband Internet connection
5D-Link DCS-6315 User Manual
Section 1: Product Overview

Features

Wide Dynamic Range
Wide Dynamic Range technology corrects imperfect lighting conditions, providing clear images with the right amount of contrast even when a subject is backlit
Remote Monitoring Utility
The D-ViewCam application adds enhanced features and functionality for the DCS-6315 and allows administrators to congure and access the Network Camera from a remote site via Intranet or Internet. Other features include image monitoring, recording images to a hard drive, viewing up to 32 cameras on one screen, and taking snapshots.
IR LED for Day and Night Functionality
The built-in infrared LEDs enables night time viewing of up to 15 meters (49 feet).
IP68 Weatherproof Housing
The DCS-6315 uses an IP68 weatherproof housing, which means you to rest assured that even under the toughest conditions, your camera will continue to provide round-the-clock surveillance.
PoE (Power over Ethernet) for Streamlined Installation
The DCS-6315 can get all the power it needs from a PoE switch or PoE injector, for a simple and clutter-free installation.
All-Day Surveillance with low light color image capability
The built-in Sony sensor allows you to monitor an area during the night with full color images.
6D-Link DCS-6315 User Manual
Section 1: Product Overview

Hardware Overview

Front

1 Light Sensor
2 Camera Lens
3 IR LEDs
4 Power/Status LED
1
2
The light sensor measures the lighting conditions and switches between color and infrared accordingly
Vari-focal lens records video of the surrounding area
Infrared LEDs illuminate the camera's eld of view at night
Status LED indicates the camera's current status
4
3
7D-Link DCS-6315 User Manual
Section 1: Product Overview
Top
1
2
3
1 Weather Shield Shields the camera sensor from direct sunlight.
2 Adjustment Screw
3 Bottom Camera Shoe Used to attach to the optional mounting accessories.
Note: When the weather shield is attached, you may see reections in the video if the IR LEDs are turned on and the camera is at a high angle. If you experience this, you should lower the angle of the camera or turn o the IR LEDs. For details on how to adjust the camera angle, refer to "Orienting the Camera" on
page 22. For details on how to turn the IR LEDs on/o, refer to "ICR and IR" on page 59.
Used to secure the weather shield to the camera.
8D-Link DCS-6315 User Manual
Section 1: Product Overview

Cable Harness

1
2
3
4
5 6
1 DI/DO Connector
2 Audio Out (Green)
3 Audio In (Red) Connects to a microphone.
4 Power Connector Power connector for the provided 12V DC power adapter.
5 Ethernet Jack
6 Reset Button
I/O connectors for external devices. (12V DC output.)
Connects to a speaker.
Connects to an RJ45 Ethernet port. Can be used with PoE to provide power to the camera.
Press and hold the recessed button for 10 seconds to reset the camera.
9D-Link DCS-6315 User Manual
Section 1: Product Overview

Internal

1
1 microSD Card Slot
Note: For step-by-step instructions on how to insert a microSD card, skip to "Installing a microSD Card" on page 11. This camera currently supports SDXC (Secure Digital eXtended Capacity) cards up to 64GB, in FAT32 format only.
Insert a microSD card for storing recorded images and video
10D-Link DCS-6315 User Manual
Section 2: Assembly and Installation

Assembly and Installation

Installing a microSD Card

Step 1
Place the camera base-down on a non-slip at surface.
Step 2
Remove the three retaining screws, which will allow you to remove the adjustable top part of the camera housing.
Step 3
Remove the base of the camera by holding the camera rmly and rotating the base in a counter clockwise direction.
11D-Link DCS-6315 User Manual
Section 2: Assembly and Installation
Step 4
Insert your microSD memory card into the slot, making sure the notch is oriented toward the front of the camera.
Step 5
Replace the base of the camera by holding the camera rmly and rotating the base in a clockwise direction ensuring a tight t.
Note: Make sure that the weatherproof seals are secured rmly in place.
12D-Link DCS-6315 User Manual
Section 2: Assembly and Installation

Deploying the Camera

Note: Before deploying the camera to a xed location, you should take a photo from the intended location to make sure the camera will have an adequate eld-of-view.
Step 1
Place the Alignment Sticker in the intended location for your camera, making sure you allow sucient space for both the DCS-6315 and the wire-in bracket. You can refer to the diagrams for "Dimensions" on page 71.
Step 2
Use a 6mm drill bit to make required holes approximately 30mm deep.
Step 3
Remove the Alignment Sticker.
Step 4
Insert wall anchors and attach the mounting plate, using the screws provided.
13D-Link DCS-6315 User Manual
Section 2: Assembly and Installation
Step 5
Fasten the camera rmly to the mounting plate using the screw provided. Make sure the cables are routed through the cable channel or via the mounting plate cut-out.
14D-Link DCS-6315 User Manual
Section 2: Assembly and Installation

Mounting the Camera

There are several methods for mounting the DCS-6315 to a wall or ceiling:
Mount Camera Directly to a Wall or Ceiling
Attach Camera to Pendant Mount
Attach Camera to Bent Mount
Step 1
Use the included security wrench to unscrew the three retaining screws, and then remove the top part of the camera housing.
Step 2
Next you must use a screwdriver to remove the bottom mounting plate from the lower half of the camera housing. The mounting plate is secured with three screws positioned around the outer edge of the lower part of the camera housing.
If you will be mounting the camera directly to a wall or ceiling, please continue to the next page.
If you will be mounting the camera using the pendant mount, please refer to "Attaching the Camera to the Pendant Mount"
on page 18.
If you will be mounting the camera using the bent mount, please refer to "Attaching the Camera to the Bent Mount" on
page 20.
15D-Link DCS-6315 User Manual
Section 2: Assembly and Installation
Step 3
After remove the mounting plate from the lower half of the camera housing, the DCS-6315 can be attached to a wall or ceiling using the Alignment Sticker. Refer to "Deploying the
Camera" on page 13.
If you will be installing the camera onto a surface that cannot house the cable, the cable access part can be removed so that the cable can exit the camera housing easily. Once the mounting plate has been removed, you will be able to remove the cable access panel.
If you will be routing the connection cables through a wall or ceiling, you should leave the cable access part attached, as it will help protect the cable from vandalism.
Step 4
Slide the lower half of the camera housing onto the mounting plate and re-secure it. Make sure that the cable sheath extends out of the base in a way that ensures the cable is not kinked or twisted.
16D-Link DCS-6315 User Manual
Section 2: Assembly and Installation
Step 5
Reattach the top part of the camera housing, and secure it by tightening the three retaining screws.
Step 6
If needed, the included weather shield may now be attached to the camera.
17D-Link DCS-6315 User Manual
Section 2: Assembly and Installation

Attaching the Camera to the Pendant Mount

Step 1
The mounting plate that you removed from the lower part of the camera housing must be attached to the bracket cap, using the three screws as shown in the diagram.
Bracket Cap
Step 2
Use the included Alignment Sticker for marking the mounting holes on the ceiling. Drill the corresponding holes. For more details, see "Deploying the Camera" on page 13.
Step 3
Place the rubber seal onto the mounting part of the pendant bracket. Securely mount the rubber seal and pendant bracket to the ceiling.
Step 4
Attach the bracket cap, by screwing it onto the pendant bracket.
Mounting Plate
Rubber Seal
Pendant Bracket
Bracket Cap
18D-Link DCS-6315 User Manual
Section 2: Assembly and Installation
Step 5
Reattach the bottom part of the camera housing, by rst pushing the cable sheath up through the pendant mount. Once the cable has been pushed through, you can then rmly reattach the bottom part of the camera housing, and secure it by tightening the three retaining screws.
Dome Camera
Step 6
Reattach the top part of the camera housing, and secure it by tightening the three retaining screws.
If needed, the included weather shield may now be attached to the camera. See the diagram in Step 6 of "Mounting the
Camera" on page 15.
19D-Link DCS-6315 User Manual
Section 2: Assembly and Installation

Attaching the Camera to the Bent Mount

Step 1
The mounting plate that you removed from the lower part of the camera housing must be attached to the bracket cap, using the three screws as shown in the diagram.
Step 2
Use the included Alignment Sticker for marking the mounting holes on the ceiling. Drill the corresponding holes. For details, see "Deploying the Camera" on page 13.
Step 3
Place the rubber seal onto the mounting part of the bent bracket. Securely mount the rubber seal between the bent bracket and the ceiling.
Bracket Cap
Mounting Plate
Bent Bracket
Step 4
Attach the bracket cap, by screwing it onto the bent bracket.
Bracket Cap
20D-Link DCS-6315 User Manual
Section 2: Assembly and Installation
Step 5
Reattach the bottom part of the camera housing, by rst pushing the cable sheath up through the bent mount. Once the cable has been pushed through, you can then rmly reattach the bottom part of the camera housing. Secure it by tightening the three retaining screws.
Dome Camera
Step 6
Reattach the top part of the camera housing, and secure it by tightening the three retaining screws.
If needed, the included weather shield may now be attached to the camera. See the diagram in Step 6 of "Mounting the
Camera" on page 15.
21D-Link DCS-6315 User Manual
Section 2: Assembly and Installation

Orienting the Camera

The DCS-6315 can be adjusted to maintain the optimum view when mounted to a wall by following the steps below:
Step 1
Turn the lens module to the left and to the right until you nd the preferred position.
Step 2
Loosen the tilt screws on both sides of the camera, and tilt the lens module up and down until you nd the preferred position.
Step 3
Turn the lens to adjust the IP camera’s image until the desired orientation is achieved.
22D-Link DCS-6315 User Manual
Section 2: Assembly and Installation

Camera Installation Wizard

General Connection Using 12 V DC Power Adapter

Step 1
Use an Ethernet cable to connect the network camera to a switch.
Step 2
Connect the supplied power adapter from the power connector on the camera to a power outlet.
2
1
23D-Link DCS-6315 User Manual
Section 2: Assembly and Installation

Connection Using Power over Ethernet (PoE)

Step 1
If you are using a PoE switch, use an Ethernet cable to connect the Ethernet Jack on the IP camera to the switch. This will enable the transmission of both power and data over a single cable.
1
24D-Link DCS-6315 User Manual
Section 2: Assembly and Installation

Software Installation

Step 1
Insert the Installation CD-ROM into your computer’s CD drive to start the autorun program. This will launch the Camera Installation Wizard. The Setup Wizard will guide you through the installation process of conguring your camera.
Note: If the autorun program does not automatically start on your computer, go to Windows, click Start > Run. In the Run command box type D:\setup.exe, where D: represents your CD-ROM drive.
Step 2
You must accept the End User Licence Agreement and follow the on-screen prompts to install the Camera Installation Wizard.
Step 3
Select your camera from the list, then click Wizard. If you have multiple cameras, you can identify them using the MAC ID that is printed on the label attached to the back of your camera.
25D-Link DCS-6315 User Manual
Section 2: Assembly and Installation
Step 4
By default the Admin ID is admin and the password eld is blank. It is recommended that you create and conrm a Password for your camera.
Click Next to continue.
Step 5
Select Static IP if you want to manually enter the network settings supplied by your Internet Service Provider (ISP). Select DHCP (Dynamic IP) if you want your router or DHCP server to automatically assign the camera it's network settings.
Note: You may select DHCP if you are unsure of which method to choose.
Click Next to continue.
26D-Link DCS-6315 User Manual
Section 2: Assembly and Installation
Step 6
Conrm your camera's login details and settings, and then click Restart.
The LED on the front of the DCS-6315 will blink, then turn solid green once it successfully connects to your network.
Step 7
Your camera setup is complete. Click Exit to exit the wizard. You can skip to "Conguration" on page 28 for advanced conguration of your camera.
27D-Link DCS-6315 User Manual
Section 3: Conguration
Conguration
Using the Conguration Interface
When you complete the Camera Installation Wizard, you are ready to begin using your camera. The camera’s built-in Web conguration utility is designed to allow you to easily access and congure your DCS-6315.
Step 1
Click the Link button at the end of the Camera Installation Wizard.* The wizard will automatically open your web
browser to the IP address of the camera.
*Note: You can also enter the IP address of your camera into
a web browser, such as Mozilla Firefox.
Step 2
Enter your User name (admin) and the Password you created with the Installation Wizard to access the conguration interface. If you did not create a password, the default password is blank.
Click OK.
2
28D-Link DCS-6315 User Manual
Section 3: Conguration

Live Video

This section explains your camera’s Live Video. You may select any of the available icons listed below to operate the camera.
You can zoom in and out on the Live Video image using your mouse.
• Right-click to zoom out
• Left-click to zoom in
DCS-6315
SD Status:
IO Status:
ePTZ Speed:
Global View:
Select
Language:
This option displays the status of the microSD card. If no microSD card has been inserted, this screen will display the message, Card Invalid.
This eld displays the status of your I/O device if a device has been connected. Otherwise, it says None.
You may select a value between zero and 10 for ePTZ (electronically Pan, Tilt, and Zoom). Zero is the slowest and 10 is the fastest.
This window indicates the total eld of view (FOV) of the camera. The red box indicates the visible region of interest (ROI). This option will only be present if the view window size is set to be smaller than the current frame size. You can nd more information on how to set the frame size and view window area in "Audio
and Video" on page 43.
You may select a dierent language for the UI using this drop-down menu.
Go To:
(-Preset List-)
If any presets have been dened, selecting a preset from this list will display it.
29D-Link DCS-6315 User Manual
Section 3: Conguration
Digital Input Indicator
Motion Trigger Indicator
Recording Indicator
Control Pad This control pad can be used to electronically Pan, Tilt, and Zoom
Auto Pan This button starts the automatic panning function. The ROI will pan
Stop This button stops the camera's ePTZ motion.
Preset Path This button starts the camera's motion along the predened path.
Video Prole 1 Click to select a predened setting (prole). Refer to page 43 for
Video Prole 2 Click to select an alternate predened setting (prole). Refer to
Full Screen Mode
Take a Snapshot Click to record a snapshot of the current image.
Record Video Clip
Set up Storage
This indicator will change color when a digital input signal is detected.
This indicator will change color when a trigger event occurs. Note: The video motion feature must be enabled.
This indicator will change color when a recording is in progress.
(ePTZ) within the camera's predened view area, if one has been dened.
from back and forth within the FOV (eld of view).
conguration.
page 43 for conguration.
Click to enlarge the video stream to full-screen.
Click to record a video clip, using predened settings.
Click to select a folder on your computer to save to.
DCS-6315
Listen/Stop Listening
Talk/Stop Talking
Start/Stop Digital Output
Click to enable or disable the ability to listen through the built-in microphone.
Click to enable or disable the ability to speak through the built-in speaker.
Click to enable or disable the ability to use the built-in digital in/out port.
30D-Link DCS-6315 User Manual
Section 3: Conguration

Setup Wizard

To congure your IP Camera, click Internet Connection Setup Wizard. To manually congure your camera, you may click Manual Internet Connection Setup, and skip to "Network Setup" on page 37.
To congure your IP Camera’s motion detection settings, click Motion Detection Setup Wizard. If you want to enter your settings manually, click Manual Motion Detection Setup, and skip to
"Motion Detection" on page 47.

Setup

DCS-6315
31D-Link DCS-6315 User Manual
Section 3: Conguration
Internet Connection Setup Wizard
This Setup Wizard will guide you through a step-by-step process to congure your new D-Link camera and connect the camera to the Internet.
Click Next to continue.
Select DHCP (Dynamic IP) if you want your router or DHCP server to automatically assign the camera it's network settings, or if you are unsure of which method to choose.
Select Static IP Client if you want to manually enter the network settings supplied by your Internet Service Provider (ISP), or if you wish to set a static IP address within your home network. Enter the correct conguration information and click Next to continue.
If you are using PPPoE, check the box to Enable PPPoE and enter your User Name and Password.
Click Next to continue.
32D-Link DCS-6315 User Manual
Section 3: Conguration
If you have a Dynamic DNS account and would like the IP camera to update your IP address automatically, check the box to Enable DDNS, and enter your host information.
Click Next to continue.
Enter a name for your IP camera and click Next to continue.
33D-Link DCS-6315 User Manual
Section 3: Conguration
Select the applicable Time Zone to ensure that all events will be triggered as scheduled.
Click Next to continue.
Conrm the IP camera settings are correct and click Apply to save your settings, or click Back to modify settings.
When you save your settings, the camera will restart.
34D-Link DCS-6315 User Manual
Section 3: Conguration
Motion Detection Setup Wizard
This Setup Wizard will guide you through a step-by-step process to congure your IP camera's motion detection functions.
Click Next to continue.
Step 1
This step will allow you to enable or disable motion detection, and adjust the sensitivity of your camera’s ability to detect movement.
Check the box by Enable Video Motion to enable motion detection. Click on the radio button to indicate if the camera should capture a Snapshot or a Video Clip whenever motion is detected.
Refer to "Motion Detection" on page 47 for details about how to congure motion detection.
Step 2
This step allows you to enable motion detection based on a customized schedule. Click on Always to make sure your camera always records whenever motion is detected. Or click on From and specify the day and hours you want motion detection enabled.
Click on Next to continue.
35D-Link DCS-6315 User Manual
Section 3: Conguration
Step 3
This step allows you to specify how you would like to receive event notications of events captured by your camera.
Choose Do not notify me if you do not want to receive notications, or select a method for receiving notications. If you select E-mail or FTP, enter required elds for your e-mail or FTP accounts.
Click Next to continue.
Step 4
Your setup is complete. Conrm the IP camera settings are correct and click Apply to save your settings, or click Back to modify settings.
When you save your settings, the camera will restart.
36D-Link DCS-6315 User Manual
Section 3: Conguration

Network Setup

Use this section to congure the network connections for your camera. All relevant information must be entered accurately.
DCS-6315
LAN Settings:
DHCP:
Static IP Client:
IP Address:
Subnet Mask:
Default Router:
Primary DNS:
Secondary
DNS:
This section lets you congure settings for your local area network (LAN).
Select this connection if you have a DHCP server running on your network and would like your camera to obtain an IP address automatically.
You may obtain a static or xed IP address and other network information from your network administrator for your camera.
Enter the xed IP address in this eld.
This number is used to determine if the destination is in the same subnet. The default value is 255.255.255.0.
The gateway (router) used to forward frames to destinations in a dierent subnet. Invalid gateway settings may cause the failure of transmissions.
The primary domain name server (DNS) that translates names into IP addresses.
The secondary DNS that acts as a backup to the primary server.
Enable UPnP
Presentation:
Enable
UPnP Port
Forwarding:
Enabling this setting allows your IP camera to be congured as a UPnP device on your network.
Enabling this setting allows the camera to add port forwarding entries into the router automatically on a UPnP capable network.
37D-Link DCS-6315 User Manual
Section 3: Conguration
Enable PPPoE:
User Name/
Password:
HTTP Port:
Access Name
for Stream 1~2:
HTTPS Port:
Authentication:
RTSP Port:
Access Name
for Stream 1~2:
Click to Enable if your network uses PPPoE.
Enter the User Name and Password for your PPPoE account. Re-enter your password in the Conrm Password eld. You can obtain this information from your ISP.
The default HTTP Port number is 80.
The default name is video#.mjpg, where # is the number of the stream.
You may use a PC with a secure browser to connect to the HTTPS Port of the camera. The default port number is 443.
You may choose to Enable or Disable RTSP (Real Time Streaming Protocol) digest encryption. Digest encryption uses MD5 hashes.
The port number that you use for RTSP streaming to mobile devices, such as mobile phones or PDAs. The default port number is 554.
You may specify the address of a particular stream. For instance, live1.sdp can be accessed at rtsp://x.x.x.x/ video1.sdp where the x.x.x.x represents the ip address of your camera.
Enable CoS:
Enable QoS:
Check the box to Enable CoS (Class of Service), for classication of network trac. This setting implements a best-eort policy without making any bandwidth reservations. Select a number to specify trac priority.
Check the box to Enable QoS (Quality of Service), which establishes a reservation control mechanism for setting trac priority. This will help improve performance during busy periods. Select a number to specify trac priority. If the Network Camera is connected to a router that itself implements QoS, the router's settings will override the QoS settings of the camera.
38D-Link DCS-6315 User Manual
Section 3: Conguration
Enable IPv6:
IPv6
Information:
Enable
Multicast for
stream:
If your network environment and equipment support IPv6, check the box and click Save to Enable IPv6 protocol.
Click the IPv6 Information button to obtain the IPv6 information. Or check the box to Manually set up the
IP address. Then enter an Optional IP address, an Optional default router, and an Optional primary DNS.
The DCS-6315 allows you to multicast each of the available streams via Multicast group address and specify the TTL (Time to Live) value for each stream. Enter the port and TTL settings you wish to use if you do not want to use the defaults.
Click Save Settings to save your changes.
39D-Link DCS-6315 User Manual
Section 3: Conguration

Dynamic DNS

DDNS (Dynamic Domain Name Server) will hold a DNS host name and synchronize the public IP address of the modem when it has been modied. A user name and password are required when using the DDNS service.
DCS-6315
Enable DDNS:
Server Address:
Host Name:
User Name:
Password:
Timeout:
Status:
Check the box to Enable the DDNS function.
Enter the Server Address manually or select your Dynamic DNS provider from the drop-down menu.
Enter the Host Name of the DDNS server.
Enter the User Name or e-mail used to connect to your DDNS account.
Enter the Password used to connect to your DDNS server account and verify your password.
Enter the DNS Timeout value (in hours) that you wish to use.
Displays the connection status, which is automatically determined by the system.
Click Save Settings to save your changes.
40D-Link DCS-6315 User Manual
Section 3: Conguration

Image Setup

In this section, you may congure the video image settings for your camera. A preview of the image will be shown under Live Video.
Enable Privacy
Mask Setting:
Check the box to Enable Privacy Mask Setting. This allows you to specify up to three rectangular areas on the image from the camera that you want hidden. These areas will be blocked or excluded from recordings and snapshots. You can click and drag the mouse cursor over the camera image to draw a mask area.
Right clicking on the camera image brings up the following menu options:
Disable All: Disables all mask areas
Enable All: Enables all mask areas
Reset All: Clears all mask areas.
DCS-6315
Mirror:
Flip:
Power Line:
White Balance:
Select On to mirror the image horizontally.
Select On to ip the image vertically. When you enable Flip, you may want to consider enabling Mirror on as well.
Select the frequency used by your power lines to avoid interference or distortion.
Use the drop-down menu to change White Balance settings to help balance colors for dierent environments. You can choose from
Auto, Outdoor, Indoor, Fluorescent, and Push Hold.
41D-Link DCS-6315 User Manual
Section 3: Conguration
Exposure
Mode:
Shutter:
Denoise:
Brightness:
Contrast:
Use the drop-down menu to change the Exposure Mode. Set the camera for Indoor, Outdoor, or Night environments. Select Moving to capture
moving objects. The Low Noise option will create a high-quality picture without noise. You can also create three dierent custom exposure modes. The Max Gain setting will allow you to control the maximum amount of gain to apply to brighten the picture.
Select a minimum and maximum value from the drop-down menu.
This setting allows you to control the amount of noise reduction that will be applied to the picture. Select a value from the drop-down menu.
Adjust this setting to compensate for backlit subjects.
Adjust this setting to alter the color intensity/ strength.
Saturation:
Sharpness:
WDR Level:
3D lter:
Reset Default:
This setting controls the amount of coloration, from grayscale to fully saturated.
Specify a value from zero to 128 to specify how much sharpening to apply to the image.
Specify a value from zero to 10 to specify how much WDR (Wide Dynamic Range) to apply to the image, or select None.
Setting this option to Low, Medium, or High will help to reduce image artifacts, and result in images with less blur when viewing the camera during the night or in areas where there are low levels of light.
Click this button to reset the image to factory default settings.
42D-Link DCS-6315 User Manual
Section 3: Conguration

Audio and Video

You may congure up to three video proles with dierent settings for your camera. This allows you to set up a prole for your computer that is dierent from your mobile display. You can also congure the two-way audio settings for your camera.
DCS-6315
Number of
Active Proles:
Aspect ratio:
Mode:
Frame size /
View window
area:
Select the number of proles from the drop-down list. (Maximum is three.)
Set the aspect ratio of the video to 4:3 for standard or 16:9 for widescreen.
Set the video codec to be used to either JPEG, MPEG-4, or H.264.
The Frame size is the total capture resolution. The View window area determines the live video viewing window size. The ePTZ function requires that the frame size is larger than the view window area in order to allow the user to pan, tilt, and zoom within the image area. In order to always be able to use the ePTZ on the Live View page, you should make sure you set the frame size larger than the view window size whenever you are setting video proles.
16:9 1280 x 720, 800 x 450, 640 x 360, 480 x
270, 320 x 176 up to 30 fps
4:3 1024 x 768, 800 x 600, 640 x 480, 320 x
240 up to 30 fps
Note: If your View window area is the same as your Frame size, you will not be able to use the ePTZ function.
43D-Link DCS-6315 User Manual
Section 3: Conguration
Maximum
frame rate:
Video Quality:
Constant bit
rate:
Fixed quality:
Select a number that represents video frames per second. A higher frame rate means motion appears to be smoother, and requires more bandwidth. A lower frame rate will generally result in a stuttering motion, and requires less bandwidth.
Your selection limits the Maximum frame rate, which can be combined with the Fixed quality option to optimize the bandwidth utilization and Video quality. If xed bandwidth utilization is your highest priority, regardless of video quality, you can choose Constant bit rate and select the desired bandwidth from the drop-down menu.
Select the number of bps (bits per second), which is the amount of data recorded by the camera at any given second. Recording at a higher bit rate results in higher video quality.
Select the image quality level for the camera to maintain. High quality levels will result in increased bit rates.
Audio in o:
Audio in gain
level:
Audio out o:
Audio out
volume level:
Check the box to mute incoming audio.
This setting controls the amount of gain applied to incoming audio to increase its volume.
Check the box to mute outgoing audio.
This setting controls the amount of gain applied to outgoing audio to increase its volume.
Click Save Settings to save your changes.
44D-Link DCS-6315 User Manual
Section 3: Conguration
This screen allows you to set Preset points for the ePTZ (Pan, Tilt, Zoom) function of your camera. Presets allow you to quickly go to and view a specic part of the viewing area your camera is covering. You can create Preset Sequences, which will automatically change the camera's view between the various presets according to a pre­dened order and speed.
Note: If your View window area is the same as your Frame size, you will not be able to use the ePTZ function.

Preset

DCS-6315
Video Prole:
ePTZ Speed:
Arrow Buttons
and Home
Button:
Input Preset
Name:
Preset List:
Select a number from the drop-down menu that represents which Video Prole you would like to use for presets.
You may select an ePTZ Speed value between zero and 10. Zero is the slowest and 10 is the fastest.
Use the Arrow buttons to move to a specic part of the viewing area, which you can then set as a Preset. Click the Home button to return to the center of the viewing area.
Enter the name of the Preset you want to create, then click the Add button to make a new Preset. If an existing preset has been selected from the Preset List, you can change its name by typing in a new Preset Name, and clicking Rename.
Click this drop-down manu to view a list of all the Presets that have been created. You can select one, then click the GoTo button to change the camera view to the Preset view. Clicking the Remove button will delete the currently selected Preset.
45D-Link DCS-6315 User Manual
Section 3: Conguration
Preset
Sequence:
Delete:
Update:
This section allows you to create a Preset Sequence, which automatically moves the camera's view between a set of Preset views. To add a Preset to the sequence, select it from the Preset List drop­down menu, set the Dwell time to determine how long the camera view will stay at that Preset, then click Add. The Preset Name will appear in the list, followed by the specied Dwell time.
You can rearrange your Presets in the sequence by selecting a Preset in the sequence, and clicking the corresponding Arrow button to move it higher or lower in the current Preset Sequence.
Clicking the Trash icon will remove the currently selected preset from the sequence.
If you want to change the Dwell time for a Preset, select it from the list, enter a new Dwell time, then click Update.
46D-Link DCS-6315 User Manual
Section 3: Conguration

Motion Detection

Enable Video Motion to allow your camera to use the motion
detection feature. You may dene a specic area that the camera will use for monitoring.
Enable Video
Motion:
Check the box to Enable the motion detection feature of your camera.
DCS-6315
Sensitivity:
Percentage:
Draw Motion
Area:
Erase Motion
Area:
Species the measurable dierence between two sequential images that indicates motion. Enter a value between zero and 100.
Species the amount of motion in the window being monitored that is required to initiate an alert. If this is set to 100%, any motion detected within the entire window triggers an alert.
Draw the motion detection area by dragging your mouse within the window (indicated by a red square).
To erase a motion detection area, simply click on the red square that you wish to remove.
Right clicking on the camera image brings up the following menu options:
Select All: Draws a motion detection area over the entire screen. Clear All: Clears any motion detection areas that have been drawn. Restore: Restores the previously specied motion detection areas.
Click Save Settings to save your changes.
47D-Link DCS-6315 User Manual
Section 3: Conguration

Time and Date

This section allows you to automatically or manually congure, update, and maintain the internal system clock for your camera.
Time Zone:
Enable Daylight
Saving:
Auto Daylight
Saving:
Set Date and Time
Manually:
Oset:
Start Time:
End Time:
Synchronize with
NTP Server:
Select your Time Zone from the drop-down menu.
Check the box to Enable Daylight Saving Time.
Click Auto Daylight Saving to allow your camera's clock to automatically adjust according to the Daylight Saving Time of the selected Time Zone.
Click Set date and time manually to set the Daylight Saving Date and Time manually.
Select the amount of time to be added or removed when Daylight Saving is enabled.
Select Daylignt Saving Start Time.
Select Daylignt Saving End Time.
Check the box to obtain the time automatically from an NTP (Network Time Protocol) server.
DCS-6315
NTP Server:
Set the Date and
Time Manually:
Copy Your
Computer's Time
Settings:
Select the NTP server that is closest to your location.
Click this option to set the Time and Date for the internal system clock manually.
Click to synchronize the Time and Date from your PC.
Click Save Settings to save your changes.
48D-Link DCS-6315 User Manual
Section 3: Conguration
ex. Motion detection, Periodically, Digital input, System reboot
Event Condition
ex. Snapshot, Video Clips
ex. Email, FTP
Media
(what to send)
Server
(where to send)
Action

Event Setup

Typically, when motion is detected, the DCS-6315 sends images to a FTP server or sends e-mail notications. As shown in the illustration below, an event can be triggered by various conditions, such as motion detection or system reboot. When an event is triggered, a specied action will be performed. You can congure the Network Camera to send snapshots or videos to your e-mail address or FTP site.
Instructions for setting an Event begin on the next page. Proper setup enables your DCS-6315 to perform as expected when a trigger is activated.
49D-Link DCS-6315 User Manual
Section 3: Conguration
The Event Setup page includes four dierent sections.
• Server
• Media
• Event
• Recording
1. To add a new item select a Server, Media, or Event and click Add. A screen will open allowing you to update elds and add the item.
2. To remove a selected item from the drop-down menu, click Delete.
3. Click on the item name from the drop-down menu to open up a window for modifying the item.
The pages that follow provide instructions on how to Add a Server, Add Media, Add Event, and Add Recording.
DCS-6315
50D-Link DCS-6315 User Manual
Section 3: Conguration
Add a Server
You can congure up to ve servers for saving snapshots and videos to. Select a server type, Email, FTP, or Network Storage, and ll-in the corresponding elds below. Or simply select SD Card.
DCS-6315
Server Name:
Email:
FTP:
Network
Storage:
SD Card:
Enter the unique name of your server.
Click Email and enter the conguration for the target e-mail server account.
Click FTP and enter the conguration for the target FTP server account.
Click Network storage and specify a Network storage location for uploading the media. Only one network storage device is supported.
Select SD Card to use the camera's onboard SD card storage.
Click Save Settings.
51D-Link DCS-6315 User Manual
Section 3: Conguration
Add Media
You can congure up to ve instances of Media using the three types, Snapshot, Video Clip, and System log.
Media Name:
Snapshot:
Source:
Send pre-event
image(s) [0~4]:
Send post-event
image(s) [0~7]:
File name prex:
Enter a unique name for Media Type you want to create.
Click to set Media Type to Snapshot.
Select a Video Prole to use as the media source. Refer to "Audio and Video" on page 43 for more information.
Select the number of pre-event images to send. Pre-event images are images taken before the main event snapshot is taken. You can set up to four pre-event images.
Select the number of post-event images to send. Post-event images are images taken after the main event snapshot is taken. You can set up to seven post-event images to be taken.
Enter the prex name to be added onto the le name.
DCS-6315
SNAPSHOTS20080104_100341
File name prefix
Date and time suffix
The format is: YYYYMMDD_HHMMSS
52D-Link DCS-6315 User Manual
Section 3: Conguration
Add date and time
sux to le name:
Video Clip:
Source:
Pre-event
recording:
Maximum
duration:
Maximum le size:
File Name Prex:
System log:
Check this box to Add date and time as le name sux. Refer to the previous page for an example of how the le name will be displayed when this option is enabled.
Click to set the Media Type to Video Clip.
Select a Video Prole to use as the Media Source. Refer to "Audio and Video" on page 43 for more information.
Select the number of seconds to record before the main event video clip starts. You can record up to four seconds of pre-event video.
Set the maximum length of time (in seconds) to record video for your video clips.
Set the maximum le size (in Kbytes) to record for video for your video clips.
Enter the prex name to be added onto the le name.
Click to set the Media Type to System log. This will save the event to the camera's System log, but no snapshots or video will be recorded.
Click Save Settings.
53D-Link DCS-6315 User Manual
Section 3: Conguration
You can create and schedule up to three Events.
Add Event
Event name:
Enable this event:
Priority:
Delay:
Video Motion
Detection:
Periodic:
Digital Input:
System Boot:
Enter a Name for the Event.
DCS-6315
Check the box to Enable this event.
Select the Priority level for this Event. The one with the higher priority will be executed rst.
Enter the Delay (time in seconds) before checking for the next event. The delay time is used for both motion detection and digital input triggers.
Click to set the Trigger to Video motion detected during live video monitoring.
Click to trigger an Event at specied intervals, and enter a value in minutes.
Click to trigger an Event when DI status changes.
Click to trigger an Event when the system boots up.
Network Lost:
Time:
Trigger D/O:
Click to trigger an Event whenever the network connection is lost.
Select days of the week the Event should be performed or click Always for every day, or click From and specify a time range.
Check the box to trigger Digital Output for a specied number of seconds and enter a value.
Click Save Settings.
54D-Link DCS-6315 User Manual
Section 3: Conguration
Add Recording
You can set up a schedule for recording video to network storage.
Recording entry
name:
Enable this
recording:
Priority:
Source:
Time:
Destination:
Enter a unique Name for the Recording.
Check the box to Enable the recording function if you would like to upload the recording to a shared folder on the network.
Set the Priority for this entry. The entry with a higher priority value will be executed rst.
Select the Prole to use as the Source of the stream.
Select days of the week the video should be recorded or click Always if you would like the IP camera to record video clips continuously. Click From if you want to specify a time range.
Select the folder where you want the recording le to be stored.
DCS-6315
Total cycling
recording size:
Enter a storage size between 1MB and 2TB for video recordings. The new recordings will replace the oldest when the total recording size exceeds this value. For example, if each recording le is 6MB, and the total cyclical recording size is 600MB, then the camera will record 100 les in the specied location (folder) and then will delete the oldest le and create new le for cyclical recording.
55D-Link DCS-6315 User Manual
Section 3: Conguration
Size of each le for
recording:
Time of each le for
recording:
File Name Prex:
Click Size of each le for recording if you want the le size to be based on the number of megabytes you specify.
Click Time of each le for recording if you want the length of the video clip to be based on the maximum length of time (in seconds) that you specify.
Enter the prex name to be added onto the le name of the recording le(s).
Click Save Settings.
56D-Link DCS-6315 User Manual
Section 3: Conguration

SD Card

You can manage the video les that are stored on the SD card. Organize and view pictures and recorded video.
Files per Page:
Select a number of les to view at once from the drop-down menu.
DCS-6315
Refresh:
Delete:
Format SD Card:
View Recorded
Picture:
Playback
Recorded Video:
Click on the Refresh link to reload the le and folder information from the SD card.
Check the box by the link(s) to the le(s) you would like to remove and click OK.
Click this button to automatically format the SD card and create Picture and Video folders.
If the picture les are stored on the SD card, click on the Picture link and choose the le(s) you would like to view.
If video les are stored on the SD card, click on the Video link and choose the le(s) you would like to view.
57D-Link DCS-6315 User Manual
Section 3: Conguration

Advanced

Digital Input/Output

This screen allows you to control the behavior of digital input (DI) and digital output (DO) devices. The I/O connector provides the physical interface for DO and DI that is used for connecting a variety of external alarm devices, like IR-Sensors and alarm relays. Once the alarm is triggered, images are recorded and sent by e-mail.
DCS-6315
D/I or D/O
Active State:
The camera will send a signal when an event is triggered, depending upon the type of device connected and the Active State selected.
N.C. stands for Normally Closed. Select this option when the normal state of the circuit is closed. Therefore events are triggered when the device status changes to Open.
N.O. stands for Normally Open. Select this option when the normal state of the circuit is open. Therefore events are triggered when the device status changes to Closed.
Click Save Settings.
58D-Link DCS-6315 User Manual
Section 3: Conguration

ICR and IR

You can congure the ICR (Removable IR-Cut Filter) and IR (Infrared Light Control) settings. When the ICR lter is switched on, it
blocks infrared light and allows only visible light to pass through. The ICR lter is disengaged for increased sensitivity in low-light environments.
DCS-6315
Automatic:
Day Mode:
Night Mode:
Schedule
Mode:
IR Light
Control:
O:
Click Automatic if you want the Day/Night mode to be set automatically. Generally, the camera will use Day mode and switch to Night mode when it gets dark.
Click Day mode to enable the IR Cut Filter.
Click Night mode to disable the IR Cut Filter.
Click Schedule mode to set up the Day/Night mode using a schedule. Select a starting time for the camera to enter Day mode, and an ending time for the camera to change to Night mode.
The camera can enable or disable the IR (infrared) light control according to the light conditions. Click on Automatic and make a selection from the drop-down menu.
Click O so the IR light control is always disabled.
On:
Sync with ICR:
Schedule:
Click On so the IR light control is always enabled.
The IR light will turn on when the ICR sensor is on.
Click Schedule so the IR light control will turn on or o according to the schedule that you specify.
Click Save Settings.
59D-Link DCS-6315 User Manual
Section 3: Conguration
You can create and activate an HTTPS (Hypertext Transfer Protocol Secure) certicate for secure access to your camera.
Enable
HTTPS Secure
Connection:
Check the box to Enable the HTTPS service, for secure communication over computer networks.

HTTPS

DCS-6315
Create Certicate
Method:
Create:
Certicate
Information:
Choose the way the certicate should be created. Select one of the three methods:
Create a self-signed certicate automatically
Create a self-signed certicate manually
Create a certicate request and install
Click to Create certicate.
Displays the certicate Status, location of origin, and the Organization responsible for creation of the certicate.
Click Save Settings.
Note: The certicate cannot be removed while the HTTPS is still enabled. To remove the certicate, you must rst uncheck Enable HTTPS secure connection.
60D-Link DCS-6315 User Manual
Section 3: Conguration

Access List

Here you can set permissions to access video from your IP camera.
Allow List/Start IP
address:
End IP address:
Delete:
Deny list/Start IP
address:
End IP address:
The starting IP Address of the device(s), like a computer, that has access to the video from the camera. Click Add to save.
The ending IP Address of the device(s) that has access to the video from the camera. Click Add to save.
Note: A total of seven lists can be congured for each column.
Remove the IP Address from the Allow List.
The starting IP Address of the device(s), like a computer, that DOES NOT have access to the video from the camera. Click Add to save.
The ending IP Address of the device(s), like a computer, that DOES NOT have access to the video from the camera. Click Add to save.
DCS-6315
Delete:
Remove the IP Address from the Deny List.
For example:
When the range of the Allow List is set from 1.1.1.0 to 192.255.255.255 and the range of the Deny List is set from 1.1.1.0 to 170.255.255.255. Only users with IPs located between 171.0.0.0 and
192.255.255.255 can access the Network Camera.
61D-Link DCS-6315 User Manual
Section 3: Conguration

Maintenance

Device Management

Here you may change settings for the administration of the camera. You can add or delete user accounts, as well as enable or disable certain functions like the on-screen display (OSD) or camera LEDs.
Admin/New
Password:
Enter a New Password for the administrator’s account, retype to verify password, and click Save.
DCS-6315
User Name:
User/New
Password:
User List:
IP Camera
Name:
Enable OSD:
Label:
Show Time:
Enter a User Name for a new User Account.
Enter a New Password for the new User Account, retype to verify password, and click Add.
All the existing user accounts will be displayed in the User List. Select a user and click on Delete to remove an account from the list. You may want to reserve at least one as a guest account.
Create a unique name for your camera that will be added to the le name prex when creating a snapshot or a video clip.
Check the box to Enable OSD (On-Screen Display) feature for your camera.
Enter a Label for the camera, which will be shown on the OSD when it is enabled.
Check the box to enable the time-stamp display on the video screen. Or, leave unchecked and click Save to save device settings.
Click On to to turn the camera LED on, or click O.
LED:
Then click Save to save the LED setting.
62D-Link DCS-6315 User Manual
Section 3: Conguration
In this section, you may backup, restore and reboot your camera.

System

Save To Local
Hard Drive:
Load From
Local Hard
Drive:
Restore
to Factory
Default:
Reboot Device:
Click Save Conguration to save your current camera conguration as a le on your computer.
Click Choose File to locate a pre-existing conguration on your local hard drive. Restore the pre-dened settings to your camera by clicking Load Conguration.
Click Restore Factory Defaults to reset your camera and restore the factory default settings.
Note: If you reset to factory default settings, you can use the Camera Installation Wizard to recongure your DCS-6315. Refer to "Software Installation" on
page 25.
Click Reboot Device to restart your camera.
DCS-6315
63D-Link DCS-6315 User Manual
Section 3: Conguration

Firmware Upgrade

The camera's current rmware version will be displayed on this screen. Visit the D-Link Support Website to check for the latest available rmware version.
To upgrade the rmware on your DCS-6315, download and save the latest rmware version from the D-Link Support Page to your local hard drive and then upload the rmware.
DCS-6315
Current
Firmware
Version:
Current
Product Name:
File Path:
Upload:
Displays the detected Firmware Version.
Displays your camera's model name, which is also the Product Name.
Locate the le (upgraded rmware) on your hard drive by clicking Choose File.
Click Upload to upgrade the rmware on your camera.
64D-Link DCS-6315 User Manual
Section 3: Conguration

Device Info

This page displays detailed information about your DCS-6315 and your network connection.

Status

DCS-6315
DCS-6315
65D-Link DCS-6315 User Manual
Section 3: Conguration
This page displays the system log information of your DCS-6315.

Logs

First Page:
Previous 20:
Next 20:
Clear:
Download:
Click on First Page to go to the rst page of the system logs.
Click Previous 20, to view the previous 20 events that have occurred.
Click Next 20, to view the next 20 events that have occurred.
Click Clear to delete the saved log information.
Click Download to download the log information.
DCS-6315
66D-Link DCS-6315 User Manual
Section 3: Conguration
This page provides helpful information regarding camera operation.

Help

DCS-6315
67D-Link DCS-6315 User Manual
Appendix A: DI/DO Specications
DI/DO Specications
68D-Link DCS-6315 User Manual
Appendix A: Technical Specications
Technical Specications
Camera Camera Hardware
Prole
Camera Housing
Image Features
Video Compression
Video Resolution
Audio Support
External Device Interface
Network Network Protocols
• 1/3" Megapixel progressive CMOS sensor
• 15 meter IR illumination distance
• Minimum illumination 0.1 Lux / F1.4 Color mode
• Minimum illumination 0.02 Lux / F1.4 Black and White mode
• Minimum illumination 0 Lux Black and White mode with IR LED on
• Removable (ICR) Filter module
• IP68 compliant weatherproof housing
• IK-10 compliant vandal-proof housing
• Configurable image size, quality, frame rate, and bit rate
• Time stamp and text overlays
• Configurable motion detection windows
• Simultaneous H.264/MPEG-4/MJPEG format compression
• H.264/MPEG-4 multicast streaming
• 16:9 - 1280 x 720, 800 x 450, 640 x 360, 480 x 270, 320 x 176 up to 30 fps • 4:3 - 1024 x 768, 800 x 600, 640 x 480, 320 x 240 up to 30 fps
• G.726 • G.711
• 10/100 BASE-TX Ethernet port with PoE
• 1 DI / 1 DO
• DC12 V, 100 mA Output
• IPv6
• IPv4
• TCP/IP
• UDP
• ICMP
• DHCP client
• NTP client (D-Link)
• DNS client
• DDNS client (D-Link)
• SMTP client
• FTP client
• 2.8 to 12mm variable focal lens
• Aperture F1.4
• Angle of view (16:9)
• (H) 90° ~ 28°
• (V) 58.8° ~ 16°
• (D) 103° ~ 33°
• Minimum object distance 0.2 M
• Included weather shield
• Configurable privacy mask zones
• Configurable exposure time, brightness, saturation, contrast, sharpness.
• JPEG for still images
• micro SD/SDHC/SDXC card Slot, accepts cards up to 64 GB
• Audio input / output
• HTTP / HTTPS
• Samba client
• PPPoE
• UPnP port forwarding
• RTP / RTSP/ RTCP
• IP filtering
• QoS
• CoS
• Multicast
• ONVIF compliant
• SNMP
Security
• Administrator and user group protection
• Password authentication
• HTTP and RTSP authentication
69D-Link DCS-6315 User Manual
Appendix A: Technical Specications
System Management
System Requirements for Web Interface
• Browser: Internet Explorer, Firefox, Chrome, Safari
Event Management
Remote Management
OS Support
D-ViewCam™ System Requirements
D-ViewCam™ Software Functions
General Weight
External Power Adapter
Power Consumption
Temperature
• Motion detection
• Event notification and uploading of snapshots/video clips via e-mail or FTP
• Take snapshots/video clips and save to local hard drive • Configuration interface accessible via web browser
• Windows 2000/XP/Vista/Windows 7/8
• Operating System: Microsoft Windows 7/Vista/XP
• Web Browser: Internet Explorer 7 or higher
• Remote management/control of up to 32 cameras
• Viewing of up to 32 cameras on one screen
• Supports multiple SMTP and FTP servers
• Multiple event notifications
• Multiple recording methods for easy backup
• Protocol: Standard TCP/IP
• Supports all management functions provided in web interface
• Scheduled motion triggered, or manual recording options
• 1112g (with weathershield)
• Input: 100~240 V AC , 50/60 Hz • Output: 12 V DC 1.5 A
• 12.24 +-5% Watt
• Operating: -30 to 50 °C (-22 to 122 °F) • Storage: -20° to 70° C (-4° to 158° F)
Humidity
Certications
• Operating: 20% to 80% non-condensing • Storage: 5% to 95% non-condensing
• CE
• CE LVD
• FCC
• C-Tick
70D-Link DCS-6315 User Manual
Appendix A: Technical Specications
Dimensions
O128mm
Order Information
Optional Accessories
113.7mm
123.2mm
Part Number Description
DCS-6315 HD Outdoor Fixed Dome Camera with Color Night Vision
DCS-34-2
DCS-34-3
Pendant Mount 201 x 150 mm (7.9 x 5.9 inches), 665 grams (1.45 lbs)
Bent Arm Mount 253 x 150 mm (9.96 x 5.9 inches), 770 grams (1.7 lbs)
71D-Link DCS-6315 User Manual
Loading...
