Section 1: Product Overview
DCS-6010L Wireless N 360° Home Network Camera
CAT5 Ethernet cable
Power adapter
CD-ROM with User Manual and software
Product Overview

Package Contents

Quick Installation Guide
Mounting Bracket
If any of the above items are missing, please contact your reseller.
Note: Using a power supply with a dierent voltage than the one included with your product will cause damage and void the warranty for this product.
4D-Link DCS-6010L User Manual
Section 1: Product Overview

Introduction

Congratulations on your purchase of the DCS-6010L Wireless N 360° Home Network Camera. The DCS-6010L is a versatile and unique solution for your small oce or home. Unlike a standard webcam, the DCS-6010L is a complete system with a built-in CPU and web server that transmits high quality video images for security and surveillance. The DCS-6010L can be accessed remotely, and controlled from any PC/Notebook over your local network or through the Internet via a web browser. The simple installation and intuitive web-based interface oers easy integration with your Ethernet/Fast Ethernet or 802.11n/g wireless network. The DCS-6010L also comes with remote monitoring and motion detection features for a complete and cost-eective home security solution.

System Requirements

• Computer with Microsoft Windows® 7/8/Vista/XP, or Mac with OS X 10.6 or higher
• PC with 1.3GHz or above; at least 128MB RAM
• Internet Explorer 7, Firefox 12, Safari 4, or Chrome 20 or higher version with Java installed and enabled
• Existing 10/100 Ethernet-based network or 802.11n wireless network
• A MicroSD memory card (optional) is required for recording to onboard storage. SDHC Class 6 or above is recommended.
• Broadband Internet connection
5D-Link DCS-6010L User Manual
Section 1: Product Overview

Features

360 Degree Surveillance
The built-in sheye lens gives you a full 360 degrees of coverage, allowing it to monitor an entire room with ease. It can also be placed on a wall for 180 degree coverage of a hallway. Distortion correction gives you a panoramic view or a normal corrected image that you can pan across easily.
Simple to Use
The DCS-6010L is a stand-alone system with a built-in CPU, requiring no special hardware or software. The DCS-6010L supports both ActiveX mode for Internet Explorer and Java mode for other browsers such as Firefox® and Safari®.
Supports a Variety of Platforms
Supporting TCP/IP networking, HTTP, and other Internet related protocols. The DCS-6010L can also be integrated easily into other Internet/Intranet applications because of its standards-based features.
802.11n Wireless or Ethernet/Fast Ethernet Support
The DCS-6010L oers wireless 802.11n and Ethernet/Fast Ethernet connectivity, making the DCS-6010L easy to integrate into your existing network environment. The DCS-6010L works with a 10Mbps Ethernet based network or 100Mbps Fast Ethernet based network for traditional wired environments, and works with 802.11n routers or access points for added exibility. The Site Survey feature also allows you to view and connect to any available wireless networks.
Web Conguration
Using a standard Web browser, administrators can congure and manage the Network Camera directly from its own Web page via Intranet or Internet. This means you can access your DCS-6010L anytime, anywhere in the world.
Broad Range of Applications
With today’s high-speed Internet services, the Network Camera can provide the ideal solution for delivering live video images over the Intranet and Internet for remote monitoring. The Network Camera allows remote access using a Web browser for live image viewing, and allows the administrator to manage and control the Network Camera anytime, anywhere in the world. Many applications exist, including industrial and public monitoring of homes, oces, banks, hospitals, child-care centers, and amusement parks.
Remote Monitoring Utility
The D-ViewCam application adds enhanced features and functionality for the Network Camera and allows administrators to congure and access the Network Camera from a remote site via Intranet or Internet. Other features include image monitoring, recording images to a hard drive, viewing up to 32 cameras on one screen, and taking snapshots.
6D-Link DCS-6010L User Manual
Section 1: Product Overview
1
2

Hardware Overview

Outside

5
6
3
4
1 Camera Lens
2 Camera Cover
3 Microphone
4 MicroSD Card Slot
5 WPS Status LED
6 Status LED
7 WPS Button
7
8
Records video of the surrounding area
Rotate the cover counter-clockwise to remove it and access the Ethernet port and power connecter
Caution: When removing the cover, remove it slowly to avoid disconnecting the microphone.
Records audio from the surrounding area
Insert a MicroSD card for Local storage for storing recorded image and video
Indicates the WPS connection status of the camera Indicates the camera's
current status
Indicates the camera's current power and connectivity status.
Press this button, then press the WPS button for 5 seconds on your router to set up a wireless connection automatically
8 Reset Button
Press and hold this button for 10 seconds to reset the camera
7D-Link DCS-6010L User Manual
Section 1: Product Overview

Internal Ports

4
3
You can access the inside of the DCS-6010L by rotating the camera cover counter-clockwise, then lifting it o of the camera.
Caution: When re-attaching the cover, ensure that the cables are seated in the cable channel.
1 Power Receptor Power receptor for the provided power cable or PoE cable to connect to your network
2 Ethernet Port
3 Cable Channel
4 Cable Channel Guide
Connects to an RJ45 Ethernet
Channel for Ethernet and Power cables
Guide to assist correct casing alignment with the cable channel.
2
1
8D-Link DCS-6010L User Manual
Section 2: Installation

Installation

Wireless Installation Considerations

This D-Link device can connect to your wireless network from anywhere within the operating range of your wireless network. However, the number, thickness and location of walls, ceilings, or other objects that the wireless signals must pass through, may limit the range. Typical ranges vary depending on the types of materials and background RF (radio frequency) noise in your home or business. The key to maximizing wireless range
is to follow these basic guidelines:
1. Minimize the number of walls and ceilings between your adapter and other network devices (such as your Network Camera) - each wall or ceiling can reduce your adapter’s range from 3-90 feet (1-30 meters).
2. Be aware of the direct line between network devices. A wall that is 1.5 feet thick (.5 meters), at a 45-degree angle appears to be almost 3 feet (1 meter) thick. At a 2-degree angle, it looks over 42 feet (14 meters) thick. Position your devices so that the signal will travel straight through a wall or ceiling (instead of at an angle) for better reception.
3. Building Materials make a dierence. A solid metal door or aluminum studs may weaken the wireless signal. Try to position your access points, wireless routers, and other networking devices where the signal passes through drywall or open doorways. Materials and objects such as glass, steel, metal, walls with insulation, water (sh tanks), mirrors, le cabinets, brick, and concrete will degrade your wireless signal.
4. Keep your product at least 3-6 feet or 1-2 meters away from electrical devices or appliances that generate RF noise.
5. If you are using 2.4GHz cordless phones or other radio frequency sources (such as microwave ovens), your wireless connection may degrade dramatically or drop completely. Make sure your 2.4GHz phone base is as far away from your wireless devices as possible. The base transmits a signal even if the phone in not in use.
Note: The DCS-6010L has a metal underside and mounting bracket.
The metal underside and mounting bracket will aect directional WiFi signal strength adversely if not positioned correctly
9D-Link DCS-6010L User Manual
Section 2: Installation
Installation Zero Conguration Setup
If you have a mydlink-enabled Cloud Router, you can take advantage of Zero Conguration. Zero Conguration automatically congures your camera's settings for you, and adds it to your mydlink account automatically. This type of setup allows you to set up your camera by simply plugging it in and connecting it to your router.
Connect your camera to your mydlink-enabled Cloud Router and Zero Conguration will automatically congure your DCS-6010L and automatically add the camera to your mydlink account. After the short time it takes to do this you can remotely access your camera from the www.mydlink.com website to manage and monitor your DCS-6010L.
Connect the Ethernet Cable
Using the provided Ethernet cable connect one end to your camera and the other-end to your network.
1
To install the provided Ethernet cable see "Internal Ports" on page 8 for detailed instructions.
Attach the External Power Supply
Attach the external power supply to the power receptor and to your wall outlet or power strip.
To install the provided power supply see "Internal Ports" on page 8 for detailed instructions.
1 Ethernet Cable
2 Power Cable Power cable for the provided power adapter
Use an RJ45 Ethernet cable or PoE cable to connect to your network
2
10D-Link DCS-6010L User Manual
Section 2: Installation
Optional: WPS Wireless Connection
Alternatively, if your router supports WPS, you can use the WPS button on the camera to easily create a secure wireless connection to your network.
To create a WPS connection:
Step 1
Press and hold the WPS button for approximately 5-6 seconds. The WPS LED will blink.
Step 2
Within 60 seconds press the WPS button on your router. On some routers, you may need to log in to the web interface and click on an on-screen button to activate the WPS feature. If you are not sure where the WPS button is on your router, please refer to your router’s User Manual.
WPS ButtonWPS LED
The DCS-6010L will automatically create a wireless connection to your router. While connecting, the status LED will ash. When the connection process is complete, the status LED will turn solid.
You can now remove the Ethernet cable by removing the camera cover and disconnecting the Ethernet cable. See "Internal Ports" on page 8 for more details.
Note: If your router does not support WPS, you can still use the wired connection method on the previous page. After Zero Conguration setup is complete, your router's wireless settings will be automatically transferred to the camera.
11D-Link DCS-6010L User Manual
Section 2: Installation
Check Your mydlink Account
From any computer, open a web browser, go to http://www.mydlink.com and log into your account. Once mydlink detects your camera, a New Device Found! notice will appear in the bottom-left corner. Click on the device name to continue.
A summary and conrmation notication will appear with the automatically congured details. Make a note of the details and click OK to add the camera to your account.
12D-Link DCS-6010L User Manual
Section 2: Installation
Zero Conguration is now complete and your camera has been added to your mydlink account. You can now view your camera on the mydlink Live View tab.
If you wish to connect your camera to your router wirelessly, you can simply disconnect the Ethernet cable and move the camera to its intended location; your router's wireless settings have been automatically transferred to the camera, and no further conguration is required.
Your camera is now set up, and you can skip to "mydlink" on page 20 to learn more about the mydlink features of this camera, or to "Conguration" on page 21 for advanced conguration of your camera.
13D-Link DCS-6010L User Manual
Section 2: Installation

Camera Installation Wizard

Windows Users
Insert the Installation CD-ROM into your computer’s optical drive to start the autorun program.
Simply click Set up your Cloud Camera to go through the Setup Wizard, which will guide you step-by-step through the installation process from connecting your hardware to conguring your camera and registering it with your mydlink account.
Note: If the autorun program does not open, go to My Computer, browse to your CD drive, and double-click on the autorun.exe le.
14D-Link DCS-6010L User Manual
Section 2: Installation

Mac Users

Insert the Installation CD-ROM into your computer’s CD drive. On the desktop, open your CD drive and double-click on the SetupWizard le.
Within 20-30 seconds, the Setup Wizard will open, which will guide you step-by-step through the installation process from connecting your hardware to conguring your camera and registering it with your mydlink account.
Note: mydlink portal requires JavaTM to function correctly. For more guidelines, please refer to mydlink FAQ pages at https://eu.mydlink.com/faq/mydlink
15D-Link DCS-6010L User Manual
Section 2: Installation

Manual Hardware Installation

If you wish to set up your camera without using the Camera Setup Wizard, please follow these steps.
Note: In order to use the mydlink features of this product, you will need to go through the Camera Setup Wizard.
Connect the Ethernet Cable
Using the provided Ethernet cable connect one end to your camera and the other-end to your network.
1
To install the provided Ethernet cable see "Internal Ports" on page 8 for detailed instructions.
Attach the External Power Supply
Attach the external power supply to the power receptor and to your wall outlet or power strip.
To install the provided power supply see "Internal Ports" on page 8 for detailed instructions.
1 Ethernet Cable
2 Power Cable Power cable for the provided power adapter
Use an RJ45 Ethernet cable or PoE cable to connect to your network
2
16D-Link DCS-6010L User Manual
Section 2: Installation

Focusing the Camera

The DCS-6010L can be focused by adjusting the lens.
Step 1
Place the camera on a non-slip surface.
Step 2
Remove the cover by following the steps outlined in "Internal Ports" on page 8.
Step 3
Adjust the focus by rotating the lens in a clockwise or counter clockwise direction until satised.
3
Step 4
Ensure the cables are seated in the cable channel.
Step 5
Seat the cover and rotate to align the cable channel guide over the cable channel.
5
4
17D-Link DCS-6010L User Manual
Section 2: Installation

Mounting the Camera

The DCS-6010L is suitable for mounting to a ceiling, wall or desktop using the bracket provided.
Note: In order to use the mydlink features of this product, you will need to go through the Camera Setup Wizard.
Step 1
Unclip the wall bracket from the DCS-6010L by sliding the base down.
Step 2
Position the mounting bracket in the desired location and mark the surface behind it holes using the bracket as a stencil / in pencil
Step 3
Use a 6mm drill bit to make required holes approximately 25mm deep.
Step 4
Insert wall anchors.
Step 5
Ax bracket using the screws provided.
Step 6
Clip the DCS-6010L to the bracket ensuring a tight t
Note: if mounting on a wall ensure the camera is oriented with the cables positioned to the bottom of the device.
1
18D-Link DCS-6010L User Manual
Section 2: Installation

WPS - Push Button Setup

If your router supports WPS, you can use the WPS button on the camera to easily create a secure wireless connection to your network.
To create a WPS connection:
Step 1
Press and hold the WPS button for approximately 5-6 seconds. The WPS LED will blink.
Step 2
Within 60 seconds press the WPS button on your router. On some routers, you may need to log in to the web interface and click on an on-screen button to activate the WPS feature. If you are not sure where the WPS button is on your router, please refer to your router’s User Manual.
WPS ButtonWPS LED
The DCS-6010L will automatically create a wireless connection to your router. While connecting, the status LED will ash. When the connection process is complete, the status LED will turn solid.
Note: If your router does not support WPS, you can still use the wired connection method on the previous page.
19D-Link DCS-6010L User Manual
Section 3: mydlink

mydlink

After registering your DCS-6010L camera with a mydlink account in the Camera Installation Wizard, you will be able to remotely access your camera from the www.mydlink.com website. After signing in to your mydlink account, you will see a screen similar to the following:
For more details on using your camera with mydlink, go to the Support section of the mydlink website and check the User Manual section for your product to nd the latest instruction guide for your camera's mydlink features.
20D-Link DCS-6010L User Manual
Section 4: Conguration
Conguration
Using the Conguration Interface
After completing the Camera Installation Wizard, you are ready to use your camera. The camera’s built-in Web conguration utility is designed to allow you to easily access and congure your DCS-6010L. At the end of the wizard, enter the IP address of your camera into a web browser, such as Mozilla Firefox. To log in, use the User name admin and the password you created in the Installation Wizard. If you did not create a password, the default password is blank. After entering your password, click OK.
21D-Link DCS-6010L User Manual
Section 4: Conguration

Live Video

This section shows your camera’s live video. You may select any of the available icons listed below to operate the camera. You may also select your language using the drop-down menu on the left side of the screen.
You can zoom in and out on the live video image using your mouse. Right-click to zoom out or left-click to zoom in on the image.
SD Status:
Motion Trigger Indicator
Recording Indicator
Control Pad
Auto Pan
Stop
Preset Path
This option displays the status of the SD card. If no SD card has been inserted, this screen will display the message "Card Invalid."
This indicator will change color when a trigger event occurs.
Note: The video motion feature for your camera must be enabled.
When a recording is in progress, this indicator will change color.
This control pad can be used to electronically pan, tilt, and zoom (ePTZ) within the camera's predened view area, if one has been dened.
Click this button to start the automated circular rotation through a regional view (360* continuous rotation). Note: This function does not apply in a Panoramic view because a panoramic view already shows the full coverage.
Click this button to stop the Auto Pan and Auto Rotate functions.
Once you have determined a list of preset PTZ positions, click this button to consecutively display views of these positions. The DCS-6010L will display these views continuously. For more information please refer to "Preset" on page 39
22D-Link DCS-6010L User Manual
Section 4: Conguration
Display Mode Here, you can select between the dierent display modes:
Fisheye Mode: shows the full camera view
Normal Mode: shows a corrected view similar to a
standard camera view that you can move using the control pad.
Panoramic Mode: This shows a corrected, full 180
view across 2 video panels.
Multi-View with Fisheye: This shows a multiple
window view, with a full Fisheye view in the top­right panel.
Multi-View: This shows a multiple window view.
Pan/Tilt/Zoom/
Panoramic/
Sequence
Speed:
Language:
Video Prole 1
Video Prole 2
Video Prole 3
Full screen mode
Take a Snapshot
Go To:
(Preset List)
You can set the speed of pan/tilt/zoom/panoramic/sequence movement by using the dropdown menus.
You may select the interface language using this menu.
Record a Video Clip
Set a Storage Folder
Listen/Stop Audio In (from microphone)
Start/Stop Audio Out (to speaker)
If any presets have been dened, selecting a preset from this list will display it.
23D-Link DCS-6010L User Manual
Section 4: Conguration

Setup

Setup Wizard

To congure your Network Camera, click Internet Connection Setup Wizard. Alternatively, you may click Manual Internet Connection Setup to manually congure your Network Camera and skip to "Network Setup" on page 30.
To quickly congure your Network Camera’s motion detection settings, click Motion
Detection Setup Wizard. If you want to enter your settings without running the wizard, click Manual Motion Detection Setup and skip to"Motion Detection" on page 41.
24D-Link DCS-6010L User Manual
Section 4: Conguration
Internet Connection Setup Wizard
This wizard will guide you through a step-by-step process to congure your new D-Link Camera and connect the camera to the internet. Click Next to continue.
Note: Select DHCP if you are unsure of which settings to choose.
Click Next to continue.
25D-Link DCS-6010L User Manual
Section 4: Conguration
Select Static IP if your Internet Service Provider has provided you with connection settings, or if you wish to set a static address within your home network. Enter the correct conguration information and click Next to continue.
If you are using PPPoE, select Enable PPPoE and enter your user name and password, otherwise click Next to continue.
If you have a Dynamic DNS account and would like the camera to update your IP address automatically, Select Enable DDNS and enter your host information. Click Next to continue.
Enter a name for your camera and click Next to continue.
26D-Link DCS-6010L User Manual
Section 4: Conguration
Congure the correct time to ensure that all events will be triggered as scheduled. Click Next to continue.
Conrm the settings are correct and click Apply to save them..
The settings will be saved to the DCS-6010L and the camera will restart.
27D-Link DCS-6010L User Manual
Section 4: Conguration
Motion Detection Setup Wizard
This wizard will guide you through a step-by-step process to congure your camera's motion detection functions.
Click Next to continue.
Step 1
This step will allow you to enable or disable motion detection, specify the detection sensitivity, and adjust the camera’s ability to detect movement.
You may specify whether the camera should capture a snapshot or a video clip when motion is detected.
Please see the Motion Detection section on "Motion Detection" on page 41for information about how to congure motion detection.
Step 2
This step allows you to enable motion detection based on a customized schedule. Specify the day and hours. You may also choose to always record whenever motion is detected.
28D-Link DCS-6010L User Manual
Section 4: Conguration
Step 3
This step allows you to specify how you will receive event notications from your camera. You may choose not to receive notications, or to receive notications via e-mail or FTP.
Please enter the relevant information for your e-mail or FTP account.
Click Next to continue.
Step 4
You have completed the Motion Detection Wizard.
Please verify your settings and click Apply to save them.
Please wait a few moments while the camera saves your settings and restarts.
29D-Link DCS-6010L User Manual
Section 4: Conguration

Network Setup

Use this section to congure the network connections for your camera. All relevant information must be entered accurately. After making any changes, click the Save Settings button to save your changes.
LAN Settings:
DHCP:
Static IP Client:
IP Address:
Subnet Mask:
Default Gateway:
This section lets you congure settings for your local area network.
Select this connection if you have a DHCP server running on your network and would like your camera to obtain an IP address automatically.
If you choose DHCP, you do not need to ll out the IP address settings.
You may obtain a static or xed IP address and other network information from your network administrator for your camera. A static IP address may simplify access to your camera in the future.
Enter the xed IP address in this eld.
This number is used to determine if the destination is in the same subnet. The default value is 255.255.255.0.
The gateway used to forward frames to destinations in a dierent subnet. Invalid gateway settings may cause the failure of transmissions to a dierent subnet.
Primary DNS:
Secondary DNS:
The primary domain name server translates names to IP addresses.
The secondary DNS acts as a backup to the primary DNS.
30D-Link DCS-6010L User Manual
Section 4: Conguration
Enable UPnP Presentation:
Enable UPnP Port Forwarding:
Enable PPPoE:
User Name / Password:
HTTP Port:
Access Name for Stream 1~3:
HTTPS Port:
Enabling this setting allows your camera to be congured as a UPnP device on your network.
Enabling this setting allows the camera to add port forwarding entries into the router automatically on a UPnP capable network.
Enable this setting if your network uses PPPoE.
Enter the username and password for your PPPoE account. Re-enter your password in the Conrm Password eld. You may obtain this information from your ISP.
The default port number is 80.
The default name is video#.mjpg, where # is the number of the stream.
You may use a PC with a secure browser to connect to the HTTPS port of the camera. The default port number is 443.
RTSP Port:
The port number that you use for RTSP streaming to mobile devices, such as mobile phones or PDAs. The default port number is 554. You may specify the address of a particular stream. For instance, live1.sdp can be accessed at rtsp://x.x.x.x/video1.sdp where the x.x.x.x represents the ip address of your camera.
31D-Link DCS-6010L User Manual
Section 4: Conguration
Enable CoS:
Enable QoS:
Enable IPV6:
Enable Multicast for stream
Enabling the Class of Service setting implements a best-eort policy without making any bandwidth reservations.
Enabling QoS allows you to specify a trac priority policy to ensure a consistent Quality of Service during busy periods. If the Network Camera is connected to a router that itself implements QoS, the router's settings will override the QoS settings of the camera.
Enable the IPV6 setting to use the IPV6 protocol. Enabling the option allows you to manually set up the address, specify an optional IP address, specify an optional router and an optional primary DNS.
The DCS-6010L allows you to multicast each of the available streams via group address and specify the TTL value for each stream. Enter the port and TTL settings you wish to use if you do not want to use the defaults.
32D-Link DCS-6010L User Manual
Section 4: Conguration

Wireless Setup

This section allows you to set up and congure the wireless settings on your camera. After making any changes, click the Save Settings button to save your changes.
Site Survey:
SSID:
Wireless Mode:
Channel:
Authentication:
Click the Rescan button to scan for available wireless networks. After scanning, you can use the drop-down box to select an available wireless network. The related information (SSID, Wireless Mode, Channel, Authentication, Encryption) will be automatically lled in for you.
Enter the SSID of the wireless access point you wish to use.
Use the drop-down box to select the mode of the wireless network you wish to connect to. Infrastructure is normally used to connect to an access point or router. Ad-Hoc is usually used to connect directly to another computer.
If you are using Ad Hoc mode, select the channel of the wireless network you wish to connect to, or select Auto.
Select the authentication you use on your wireless network - Open, Shared, WPA-PSK, or WPA2-PSK.
Encryption:
Key:
If you use WPA-PSK or WPA2-PSK authentication, you will need to specify whether your wireless network uses TKIP or AES encryption. If you use Open or Shared authentication, WEP encryption should be the setting.
If you use WEP, WPA-PSK, or WPA2-PSK authentication, enter the Key (also known as password) used for your wireless network.
33D-Link DCS-6010L User Manual
Section 4: Conguration

Dynamic DNS

DDNS (Dynamic Domain Name Server) will hold a DNS host name and synchronize the public IP address of the modem when it has been modied. A user name and password are required when using the DDNS service. After making any changes, click the Save Settings button to save your changes.
Enable DDNS:
Server Address:
Host Name:
User Name:
Password:
Timeout:
Status:
Select this checkbox to enable the DDNS function.
Select your Dynamic DNS provider from the pull down menu or enter the server address manually.
Enter the host name of the DDNS server.
Enter the user name or e-mail used to connect to your DDNS account.
Enter the password used to connect to your DDNS server account.
Enter the DNS timeout values you wish to use.
Indicates the connection status, which is automatically determined by the system.
34D-Link DCS-6010L User Manual
Section 4: Conguration

Image Setup

In this section, you may congure the video image settings for your camera. A preview of the image will be shown in Live Video.
Mirror:
Flip:
Power Line:
White Balance:
Exposure Mode:
This will mirror the image horizontally.
This will ip the image vertically. When turning Flip on, you may want to consider turning Mirror on as well.
Select the frequency used by your power lines to avoid interference or distortion.
Use the drop-down box to change white balance settings to help balance colors for dierent environments. You can choose from Auto, Outdoor, Indoor, Fluorescent, and Push Hold.
Changes the exposure mode. Use the drop-down box to set the camera for Indoor, Outdoor, or Night environments, or to Moving to capture moving objects. The Low Noise option will focus on creating a high­quality picture without noise. You can also create 3 dierent custom exposure modes. The Max Gain setting will allow you to control the maximum amount of gain to apply to brighten the picture.
Denoise:
Brightness:
This setting controls the amount of noise reduction that will be applied to the picture.
Adjust this setting to compensate for backlit subjects.
35D-Link DCS-6010L User Manual
Section 4: Conguration
Contrast:
Saturation:
Sharpness:
Reset Default
Mounting:
Adjust this setting to alter the color intensity/strength.
This setting controls the amount of coloration, from grayscale to fully saturated.
Specify a value from 0 to 8 to specify how much sharpening to apply to the image.
Click this button to reset the image to factory default settings.
Select the correct mounting type from either Ceiling, Wall, or Desktop to ensure the PTZ controls respond accurately.
36D-Link DCS-6010L User Manual
Section 4: Conguration

Audio and Video

You may congure up to 3 video proles with dierent settings for your camera. Hence, you may set up dierent proles for your computer and mobile display. In addition, you may also congure the two-way audio settings for your camera. After making any changes, click the Save Settings button to save your changes.
Mode:
Frame size:
Maximum frame rate:
Video Quality:
Constant bit rate:
Set the video codec to be used to JPEG, MPEG-4, or H.264.
This sets the resolution of the video stream. (1600 x 1200, 1200 x 900, 800 x 600, 400 x 300)
A higher frame rate provides smoother motion for videos, and requires more bandwidth. Lower frame rates will result in stuttering motion, and requires less bandwidth.
This limits the maximum frame rate, which can be combined with the "Fixed quality" option to optimize the bandwidth utilization and video quality. If xed bandwidth utilization is desired regardless of the video quality, choose "Constant bit rate" and select the desired bandwidth.
The bps will aect the bit rate of the video recorded by the camera. Higher bit rates result in higher video quality.
Fixed quality:
Encoding
Select the image quality level for the camera to try to maintain. High quality levels will result in increased bit rates.
Choose between G.726 or G.711
37D-Link DCS-6010L User Manual
Section 4: Conguration
Audio in o:
Audio in gain level:
Audio out o:
Audio out volume level:
Selecting this checkbox will mute incoming audio.
This setting controls the amount of gain applied to incoming audio to increase its volume.
Selecting this checkbox will mute outgoing audio.
This setting controls the amount of gain applied to outgoing audio to increase its volume.
38D-Link DCS-6010L User Manual
Section 4: Conguration

Preset

This screen allows you to set preset points for the ePTZ function of the camera, which allows you to look around the camera's viewable area by using a zoomed view. Presets allow you to quickly go to and view a specic part of the area your camera is covering, and you can create preset sequences, which will automatically change the camera's view between the dierent presets according to a dened order and timing you can set.
Arrow Buttons and Home Button:
Input Preset Name:
Preset List:
Use these buttons to move to a specic part of the viewing area, which you can then set as a preset. Click the Home button to return to the center of the viewing area.
Enter the name of the preset you want to create, then click the Add button to make a new preset. If an existing preset has been selected from the Preset List, you can change its name by typing in a new name, then clicking the Rename button.
Click this drop-down box to see a list of all the presets that have been created. You can select one, then click the GoTo button to change the displayed camera view to the preset. Clicking the Remove button will delete the currently selected preset.
39D-Link DCS-6010L User Manual
Section 4: Conguration
Preset Sequence:
Preset List:
This section allows you to create a preset sequence, which automatically moves the camera's view between a set of preset views.
To add a preset to the sequence, select it from the drop­down box at the bottom of this window, set the Dwell time to determine how long the camera view will stay at that preset, then click the Add button. The preset name will appear in the list, followed by the dwell time to view that preset for.
You can rearrange your presets in the sequence by selecting a preset in the sequence, then clicking the arrow buttons to move it higher or lower in the current sequence.
Clicking the trash can button will remove the currently selected preset from the sequence.
If you want to change the dwell time for a preset, select it from the list, enter a new dwell time, then click the Update button.
40D-Link DCS-6010L User Manual
Section 4: Conguration

Motion Detection

Enabling Video Motion will allow your camera to use the motion detection feature. You may draw a nite motion area that will be used for monitoring. After making any changes, click the Save Settings button to save your changes.
Enable Video Motion:
Sensitivity:
Percentage:
Draw Motion Area:
Erase Motion Area:
Select this box to enable the motion detection feature of your camera.
Species the measurable dierence between two sequential images that would indicate motion. Please enter a value between 0 and 100.
Species the amount of motion in the window being monitored that is required to initiate an alert. If this is set to 100%, motion is detected within the whole window will trigger a snapshot.
Draw the motion detection area by dragging your mouse in the window (indicated by the red square).
To erase a motion detection area, simply click on the red square that you wish to remove.
Right clicking on the camera image brings up the following menu options:
Select All: Draws a motion detection area over the entire screen. Clear All: Clears any motion detection areas that have been drawn. Restore: Restores the previously specied motion detection areas.
41D-Link DCS-6010L User Manual
Section 4: Conguration

Time and Date

This section allows you to automatically or manually congure, update, and maintain the internal system clock for your camera. After making any changes, click the Save Settings button to save your changes.
Time Zone:
Enable Daylight Saving:
Auto Daylight Saving:
Set Date and Time Manually:
Oset:
Synchronize with NTP Server:
NTP Server:
Set the Date and Time Manually:
Select your time zone from the drop-down menu.
Select this to enable Daylight Saving Time.
Select this option to allow your camera to congure the Daylight Saving settings automatically.
Selecting this option allows you to congure the Daylight Saving date and time manually.
Sets the amount of time to be added or removed when Daylight Saving is enabled.
Enable this feature to obtain time automatically from an NTP server.
Network Time Protocol (NTP) synchronizes the DCS-6010L with an Internet time server. Choose the one that is closest to your location.
This option allows you to set the time and date manually.
Copy Your Computer's Time
Settings:
This will synchronize the time information from your PC.
42D-Link DCS-6010L User Manual
Section 4: Conguration

Event Setup

In a typical application, when motion is detected, the DCS-6010L sends images to a FTP server or via e-mail as notications. As shown in the illustration below, an event can be triggered by many sources, such as motion detection. When an event is triggered, a specied action will be performed. You can congure the Network Camera to send snapshots or videos to your e-mail address or FTP site.
To start plotting an event, it is suggested to congure server and media columns rst so that the Network Camera will know what action shall be performed when a trigger is activated.
43D-Link DCS-6010L User Manual
Section 4: Conguration

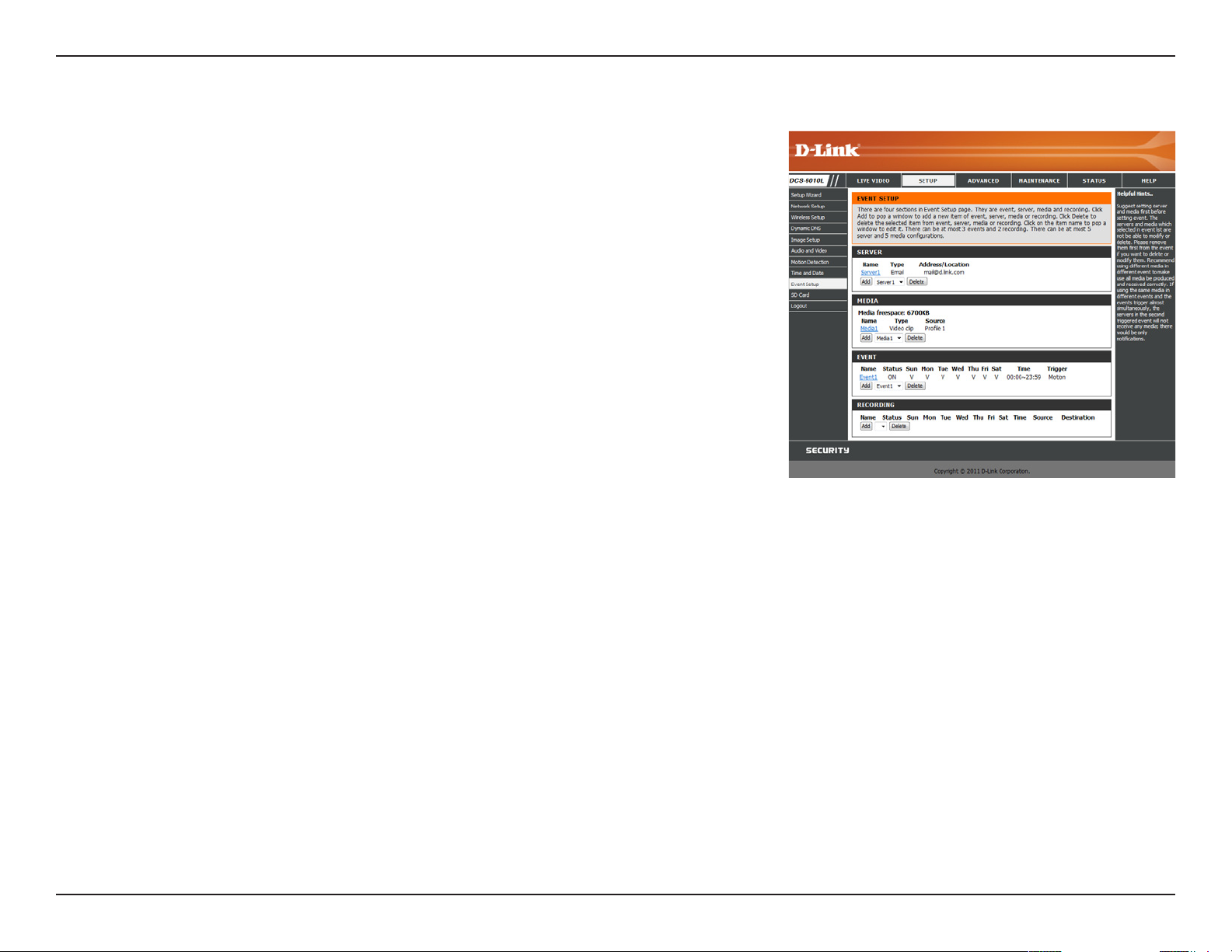

The Event Setup page includes 4 dierent sections.
• Event
• Server
• Media
• Recording
1. To add a new item - "event, server or media," click Add. A screen will appear and allow you to update the elds accordingly.
2. To delete the selected item from the pull-down menu of event, server or media, click Delete.
3. Click on the item name to pop up a window for modifying.
44D-Link DCS-6010L User Manual
Section 4: Conguration
Add Server
You can congure up to 5 servers to save snapshots and/or video to. After making any changes, click the Save Settings button to save your changes.
Server Name:
E-mail:
FTP:
Network Storage:
SD Card:
Enter the unique name of your server.
Enter the conguration for the target e-mail server account.
Enter the conguration for the target FTP server account.
Specify a network storage device. Only one network storage device is supported.
Use the camera's onboard SD card storage.
45D-Link DCS-6010L User Manual
Section 4: Conguration
Add Media
There are three types of media, Snapshot, Video Clip, and System Log. After making any changes, click the Save Settings button to save your changes.
Media Name:
Snapshot:
Source:
Send pre-event image(s) [0~4]:
Send post-event image(s) [0~7]:
File name prex:
Add date and time sux to le
name:
Enter a unique name for media type you want to create.
Select this option to set the media type to snapshots.
Set the video prole to use as the media source. Refer to Audio and Video on "Audio and Video" on page 37 for more information on video proles.
Set the number of pre-event images to take. Pre-event images are images taken before the main event snapshot is taken.
Set the number of post-event images to take. Post-event images are images taken after the main event snapshot is taken. You can set up to 7 post-event images to be taken.
The prex name will be added on the le name.
Check it to add timing information as le name sux.
46D-Link DCS-6010L User Manual
Section 4: Conguration
Video clip:
Source:
Pre-event recording:
Maximum duration:
Maximum le size:
File name prex:
System log:
Select this option to set the media type to video clips.
Set the video prole to use as the media source. Refer to "Audio and Video" on page 37 for more information on video proles.
This sets how many seconds to record before the main event video clip starts. You can record up to 4 seconds of pre-event video.
Set the maximum length of video to record for your video clips.
Set the maximum le size to record for your video clips.
This is the prex that will be added to the lename of saved video clips.
Select this option to set the media type to system logs. This will save the event to the camera system log, but will not record any snapshots or video.
47D-Link DCS-6010L User Manual
Section 4: Conguration
Add Event
Create and schedule up to 2 events with their own settings here. After making any changes, click the Save Settings button to save your changes.
Event name:
Enable this event:
Priority:
Delay:
Trigger:
Video Motion Detection:
Periodic:
System Boot:
Network Lost:
Enter a name for the event.
Select this box to activate this event.
Set the priority for this event. The event with higher priority will be executed rst.
Select the delay time before checking the next event. It is used for motion detection events.
Specify the input type that triggers the event.
Motion is detected during live video monitoring. Select the windows that need to be monitored.
The event is triggered in specied intervals. The trigger interval unit is in minutes.
Triggers an event when the system boots up.
Triggers an event when the network connection is lost.
Passive Infrared Sensor:
Time:
Server:
Triggers an event when the PIR sensor is activated by moving infrared objects even in dark environment.
Select Always or enter the time interval.
Specify the location where the event information should be saved to.
48D-Link DCS-6010L User Manual
Section 4: Conguration
Add Recording
Here you can congure and schedule the recording settings. After making any changes, click the Save Settings button to save your changes.
Recording entry name:
Enable this recording:
Priority:
Source:
Recording schedule:
Recording settings:
Destination:
Total cycling recording size:
The unique name of the entry.
Select this to enable the recording function.
Set the priority for this entry. The entry with a higher priority value will be executed rst.
The source of the stream.
Scheduling the recording entry.
Conguring the setting for the recording.
Select the folder where the recording le will be stored.
Please input a HDD volume between 1MB and 2TB for recording space. The recording data will replace the oldest record when the total recording size exceeds this value. For example, if each recording le is 6MB, and the total cyclical recording size is 600MB, then the camera will record 100 les in the specied location (folder) and then will delete the oldest le and create new le for cyclical recording.
Please note that if the free HDD space is not enough, the recording will stop. Before you set up this option please make sure your HDD has enough space, and it is better to not save other les in the same folder as recording les.
49D-Link DCS-6010L User Manual
Section 4: Conguration
Size of each le for recording:
Time of each le for recording:
File Name Prex:
If this is selected, les will be separated based on the le size you specify.
If this is selected, les will be separated based on the maximum length you specify.
The prex name will be added on the le name of the recording le(s).
50D-Link DCS-6010L User Manual
Section 4: Conguration

SD Card

Here you may browse and manage the recorded les which are stored on the SD card.
Format SD Card:
View Recorded Picture:
Playback Recorded Video:
Refresh:
Click this icon to automatically format the SD card and create "Picture" & "Video" folders.
If the picture les are stored on the SD card, click on the picture folder and choose the picture le you would like to view.
If video les are stored on the SD card, click on the video folder and choose the video le you would like to view.
Reloads the le and folder information from the SD card.
51D-Link DCS-6010L User Manual
Section 4: Conguration

Advanced

HTTPS

This page allows you to install and activate an HTTPS certicate for secure access to your camera. After making any changes, click the Save Settings button to save your changes.
Enable HTTPS Secure Connection:
Create Certicate Method:
Status:
Note:
Enable the HTTPS service.
Choose the way the certicate should be created. Three options are available:
Create a self-signed certicate automatically Create a self-signed certicate manually Create a certicate request and install
Displays the status of the certicate.
The certicate cannot be removed while the HTTPS is still enabled. To remove the certicate, you must rst uncheck Enable HTTPS secure connection.
52D-Link DCS-6010L User Manual
Section 4: Conguration

Access List

Here you can set access permissions for users to view your DCS-6010L.
Allow list:
Start IP address:
End IP address:
Delete allow list:
Deny list:
Delete deny list:
The list of IP addresses that have the access right to the camera.
The starting IP Address of the devices (such as a computer) that have permission to access the video of the camera. Click Add to save the changes made.
Note: A total of seven lists can be congured for both columns.
The ending IP Address of the devices (such as a computer) that have permission to access the video of the camera.
Remove the customized setting from the Allow List.
The list of IP addresses that have no access rights to the camera.
Remove the customized setting from the Delete List.
For example:
When the range of the Allowed List is set from 1.1.1.0 to 192.255.255.255 and the range of the Denied List is set from 1.1.1.0 to 170.255.255.255. Only users with IPs located between 171.0.0.0 and 192.255.255.255 can access the Network Camera.
Alowed
List
Denied
List
53D-Link DCS-6010L User Manual
Section 4: Conguration

Maintenance

Device Management

You may modify the name and administrator’s password of your camera, as well as add and manage the user accounts for accessing the camera. You may also use this section to create a unique name and congure the OSD settings for your camera.
Admin Password Setting:
Add User Account:
User Name:
Password:
User List:
Camera Name:
Enable OSD:
Label:
Set a new password for the administrator’s account.
Add new user account.
The user name for the new account.
The password for the new account.
All the existing user accounts will be displayed here. You may delete accounts included in the list, but you may want to reserve at least one as a guest account.
Create a unique name for your camera that will be added to the le name prex when creating a snapshot or a video clip.
Select this option to enable the On-Screen Display feature for your camera.
Enter a label for the camera, which will be shown on the OSD when it is enabled.
Show Time:
Select this option to enable the time-stamp display on the video screen.
54D-Link DCS-6010L User Manual
Section 4: Conguration

System

In this section, you may backup, restore and reset the camera conguration, or reboot the camera.
Save To Local Hard Drive:
Local From Local Hard Drive:
Restore to Factory Default:
Reboot Device:
You may save your current camera conguration as a le on your computer.
Locate a pre-saved conguration by clicking Browse and then restore the pre-dened settings to your camera by clicking Load Conguration.
You may reset your camera and restore the factory settings by clicking Restore Factory Defaults.
This will restart your camera.
55D-Link DCS-6010L User Manual
Section 4: Conguration

Firmware Upgrade

The camera's current rmware version will be displayed on this screen. You may visit the D-Link Support Website to check for the latest available rmware version.
To upgrade the rmware on your DCS-6010L, please download and save the latest rmware version from the D-Link Support Page to your local hard drive. Locate the le on your local hard drive by clicking the Browse button. Select the le and click the Upload button to start upgrading the rmware.
Current Firmware Version:
Current Product Name:
File Path:
Upload:
Displays the detected rmware version.
Displays the camera model name.
Locate the le (upgraded rmware) on your hard drive by clicking Browse.
Uploads the new rmware to your camera.
56D-Link DCS-6010L User Manual
Section 4: Conguration

Status

Device Info

This page displays detailed information about your device and network connection.
57D-Link DCS-6010L User Manual
Section 4: Conguration

Logs

This page displays the log information of your camera. You may download the information by clicking Download. You may also click Clear to delete the saved log information.
58D-Link DCS-6010L User Manual
Section 4: Conguration
This page provides helpful information regarding camera operation.

Help

59D-Link DCS-6010L User Manual
Appendix A: Technical Specications
Technical Specications
Camera Camera Hardware
Prole
Image Features Congurable image size, quality, frame rate, and bit rate
Video Compression Simultaneous H.264/MPEG-4/MJPEG format compression
Video Resolution 1600 x 1200, 1200 x 900, 800 x 600, 400 x 300
Audio Support G.726, G.711
External Device Interface
Network Network Protocols
Security
1/3.2” 2 megapixel progressive CMOS sensor Minimum illumination: 2.0 lux Built-in microphone and speaker 10x digital zoom Focal length: 1.25 mm Aperture: F2.0
Fisheye distortion correction Time stamp and text overlays
H.264/MPEG-4 multicast streaming
10/100 BASE-TX Fast Ethernet port IEEE 802.11n 2.4GHz single band wireless
IPv6 IPv4 TCP/IP UDP ICMP DHCP client NTP client (D-Link) DNS client DDNS client (D-Link) SMTP client FTP client
Administrator and user group protection Password authentication
Angle of view:
(H) 180° (V) 180° (D) 180°
Congurable privacy mask zones Congurable shutter speed, brightness, saturation, contrast,
and sharpness
Congurable motion detection windows
JPEG for still images
MicroSD/SDHC card slot
HTTP / HTTPS Samba Client PPPoE UPnP port forwarding RTP / RTSP/ RTCP IP ltering QoS CoS Multicast IGMP ONVIF compliant
HTTP and RTSP digest encryption
60D-Link DCS-6010L User Manual
Appendix A: Technical Specications
System Management
General Weight
System Requirements for Web Interface
Event Management Motion detection
Remote Management
Mobile Support Windows 7/Vista/XP system, Pocket PC, or mobile phone mydlink mobile app for iOS and Android mobile devices
D-ViewCam™ System Requirements
D-ViewCam™ Software Functions
External Power Adaptor
Power Consumption
Temperature
Browser: Internet Explorer, Firefox, Chrome, Safari
Supports multiple SMTP and FTP servers
Event notication and uploading of snapshots/video clips via
e-mail or FTP
Take snapshots/video clips and save to local hard drive or NAS
via web browser
Operating System: Microsoft Windows 7/Vista/XP Web Browser: Internet Explorer 7 or higher
Remote management/control of up to 32 cameras Viewing of up to 32 cameras on one screen
267 g +-5%
Input: 100 to 240 V AC, 50/60 Hz Output: 5 V DC, 1.2 A
3.9 watts +-5%
Operating: 0 to 40 °C (32 to 104 °F) Storage: -20 to 70 °C (-4 to 158 °F)
Multiple event notications Multiple recording methods for easy backup
Conguration interface accessible via web browser
Protocol: Standard TCP/IP
Supports all management functions provided in web interface Scheduled motion triggered, or manual recording options
Humidity Operating: 20% to 80% non-condensing Storage: 5% to 95% non-condensing
Certications
CE CE LVD
FCC C-Tick
61D-Link DCS-6010L User Manual
Appendix A: Technical Specications
Dimensions
62D-Link DCS-6010L User Manual
Loading...
