RT80Q

Operator’s Manual

CMW

Issue 1.0

053-2528

RT80Q Operator’s Manual Overview - 1

Overview

Chapter Contents

Serial Number Location . . . . . . . . . . . . . . . . . . . . . . 2

Intended Use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

Equipment Modification . . . . . . . . . . . . . . . . . . . . . . 3

Unit Components . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

Operator Orientation. . . . . . . . . . . . . . . . . . . . . . . . . 5

About This Manual . . . . . . . . . . . . . . . . . . . . . . . . . . 5

• Bulleted Lists. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

• Numbered Lists. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

CMW

Overview - 2 RT80Q Operator’s Manual

Serial Number Location

Record serial numbers and date of purchase in spaces provided. RT80Q (1) and engine serial numbers (2) are located as shown.

CMW

t33om083w.eps

Date of manufacture Date of purchase RT80Q serial number Front attachment serial number Rear attachment serial number Trailer serial number Engine serial number

RT80Q Operator’s Manual Overview - 3

Intended Use

The RT80Q is a riding trencher designed to install buried service lines of various sizes using a variety of Ditch Witch attachments.

Attachment Max. width/diameter Max. depth

H810 trencher 24” (610 mm) 93” (2.4 m) H813 trencher 12” (305 mm) 58.4” (1.5 m) H832 plow n/a 36” (915 mm) RC80 reel carrier 84” (2.1 m) reel diameter n/a H853 combo 12” (305 mm) 69” (1.8 m) A820 backhoe 18” (460 mm) bucket 89” (2.2 m) HD630 saw See manufacturer’s specifications

This unit is designed for operation in temperatures typically experienced in earth moving and construction work environments. Provisions may be required to operate in extreme temperatures. Contact your Ditch

Witch dealer.

Use in any other way is considered contrary to the intended use.

The RT80Q should be used with genuine Ditch Witch chain, teeth, and sprockets. It should be operated, serviced, and repaired only by persons familiar with their particular characteristics and acquainted with the relevant safety procedures.

Equipment Modification

This equipment was designed and built in accordance with applicable standards and regulations. Modification of equipment could mean that it will no longer meet regulations and may not function properly or in accordance with the operating instructions. Modification of equipment should only be made by competent personnel possessing knowledge of applicable standards, regulations, equipment design functionality/requirements and any required specialized testing.

The protection offered by the Rollover Protective System (ROPS) will be imparied if it has been subjected to any modification, structural damage, or has been involved in an overturn accident. The ROPS must be replaced after a roll-over.

CMW

Overview - 4 RT80Q Operator’s Manual

Unit Components

t33om026w.eps

1. Rollover Protective Structure (ROPS)

2. Operator station

3. Control console

NOTICE: The protection offered by the Rollover Protective System (ROPS) will be imparied if it has been subjected to any modification, structural damage, or has been involved in an overturn accident. The ROPS must be replaced after a roll-over.

4. Engine compartment

5. Backfill blade (optional)

CMW

RT80Q Operator’s Manual Overview - 5

Operator Orientation

1. Front of unit

2. Right of unit

Right and left sides of machine are determined by facing front of unit while seated at the controls.

3. Rear of unit

4. Left of unit

About This Manual

This manual contains information for the proper use of this machine. See Operation Overview for basic operating procedures. Cross references such as “See page 50” will direct you to detailed procedures.

Bulleted Lists

Bulleted lists provide helpful or important information or contain procedures that do not have to be performed in a specific order.

t26om005h.eps

Numbered Lists

Numbered lists contain illustration callouts or list steps that must be performed in order.

CMW

Overview - 6 RT80Q Operator’s Manual

About This Manual

CMW

RT80Q Operator’s Manual Foreword - 7

Foreword

This manual is an important part of your equipment. It provides safety information and operation instructions to help you use and maintain your Ditch Witch equipment.

Read this manual before using your equipment. Keep it with the equipment at all times for future reference. If you sell your equipment, be sure to give this manual to the new owner.

If you need a replacement copy, contact your Ditch Witch dealer. If you need assistance in locating a dealer, visit our website at www.ditchwitch.com or write to the following address:

The Charles Machine Works, Inc. Attn: Marketing Department PO Box 66 Perry, OK 73077-0066 USA

The descriptions and specifications in this manual are subject to change without notice. The Charles Machine Works, Inc. reserves the right to improve equipment. Some product improvements may have taken place after this manual was published. For the latest information on Ditch Witch equipment, see your Ditch Witch dealer.

Thank you for buying and using Ditch Witch equipment.

CMW

Foreword - 8 RT80Q Operator’s Manual

RT80 Quad-Track

Operator’s Manual

Issue number 1.0/OM-06/12

Part number 053-2528

by The Charles Machine Works, Inc.

, Ditch Witch, CMW, Roto Witch, and The Underground Authority, are registered

trademarks of The Charles Machine Works, Inc. This product is covered by one or more of the following patents: U.S. D640290, D640291, and D640292

with other U.S. and foreign patents pending.

CMW

RT80Q Hydrostat Operator’s Manual Contents - 9

Overview

machine serial number, information about the type of work this machine is designed to perform, basic machine components, and how to use this manual

Foreword

part number, revision level, and publication date of this manual, and factory contact information

Safety

machine safety alerts and emergency procedures

Controls

machine controls, gauges, and indicators and how to use them

Operation Overview

an overview for completing a job with this machine: planning, setting up, installing product, and restoring the jobsite; with cross references to detailed procedures

Prepare

procedures for inspecting and classifying the jobsite, planning the installation path, and preparing the jobsite for work

Drive

procedures for startup, cold start, driving, and shutdown

Transport

procedures for lifting, hauling, and towing

Trench

procedures for trenching

Plow

procedures for plowing

Reel Carrier

procedures for using reel carrier/winder

Saw

procedures for sawing

101

109

113

CMW

Contents - 10 RT80Q Hydrostat Operator’s Manual

Backhoe

procedures for digging with backhoe

Drill

procedures for drilling

Systems and Equipment

chain, teeth, sprockets, and optional equipment

Complete the Job

procedures for backfilling and restoring the jobsite and rinsing and storing equipment

Service

service intervals and instructions for this machine including lubrication, replacement of wear items, and basic maintenance

Specifications

machine specifications including weights, measurements, power ratings, and fluid capacities

Support

the warranty policy for this machine, and procedures for obtaining warranty consideration and training

117

123

131

139

141

187

203

Service Record

a record of major service performed on the machine

209

CMW

RT80Q Operator’s Manual Safety - 11

Safety

Chapter Contents

Guidelines . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Safety Alert Classifications . . . . . . . . . . . . . . . . . . 13

Safety Alerts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

Emergency Procedures . . . . . . . . . . . . . . . . . . . . . 17

• Electric Strike Description. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

• If an Electric Line is Damaged . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

• If a Gas Line is Damaged . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

• If a Fiber Optic Cable is Damaged . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

• If Machine Catches on Fire. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

CMW

Safety - 12 RT80Q Operator’s Manual

Guidelines

Follow these guidelines before operating any jobsite equipment:

• Complete proper training and read operator’s manual before using equipment.

• Contact your local One-Call (811 in USA) or the One-Call referral number (888-258-0808 in USA and Canada) to have underground utilities located before digging. Also contact any utilities that do not participate in the One-Call service.

• Classify jobsite based on its hazards and use correct tools and machinery, safety equipment, and work methods for jobsite.

• Mark jobsite clearly and keep spectators away.

• Wear personal protective equipment.

• Review jobsite hazards, safety and emergency procedures, and individual responsibilities with all personnel before work begins. Safety videos are available from your Ditch Witch dealer.

• Replace missing or damaged safety shields and safety signs.

• Use equipment carefully. Stop operation and investigate anything that does not look or feel right.

• Do not operate unit where flammable gas may be present.

• Contact your Ditch Witch dealer if you have any question about operation, maintenance, or equipment use.

CMW

RT80Q Operator’s Manual Safety - 13

Safety Alert Classifications

These classifications and the icons defined on the following pages work together to alert you to situations which could be harmful to you, jobsite bystanders or your equipment. When you see these words and icons in the book or on the machine, carefully read and follow all instructions. YOUR SAFETY IS AT STAKE.

Watch for the three safety alert levels: DANGER, WARNING and CAUTION. Learn what each level means.

indicates a hazardous situation that, if not avoided, will result in death or serious injury.

This signal word is to be limited to the most extreme situations.

indicates a hazardous situation that, if not avoided, could result in death or serious injury.

indicates a hazardous situation that, if not avoided, could result in minor or moderate

injury.

Watch for two other words: NOTICE and IMPORTANT. NOTICE indicates information considered important, but not hazard-related (e.g., messages relating to

property damage).

IMPORTANT can help you do a better job or make your job easier in some way.

CMW

Safety - 14 RT80Q Operator’s Manual

Safety Alerts

Moving digging teeth will kill you or cut off arm or leg. Stay

away.

Turning shaft will kill you or crush arm or leg. Stay away.

Electric shock. Contacting electric lines will cause death or serious injury.

Know location of lines and stay away.

correct equipment and work methods. Use and maintain proper safety equipment.

proper procedures and equipment or stay away.

Explosion possible. Serious injury or equipment damage could occur.

Follow directions carefully.

Jobsite hazards could cause death or serious injury. Use

Crushing weight could cause death or serious injury. Use

Moving parts could cut off hand or foot. Stay away.

CMW

Incorrect procedures could result in death, injury, or property damage.

Learn to use equipment correctly.

RT80Q Operator’s Manual Safety - 15

Safety Alerts

Fall possible. Riders can fall from machine and be injured or killed. Only

operator is allowed on machine.

Rollover possible. If machine rolls over, you could be thrown from seat and

killed or crushed. Wear seat belt.

Improper control function could cause death or serious injury. If control does

not work as described in instructions, stop machine and have it serviced.

Looking into fiber optic cable could result in permanent vision damage. Do

not look into ends of fiber optic or unidentified cable.

Pressurized fluid or air could pierce skin and cause injury or

death. Stay away.

Runaway possible. Machine could run over you or others. Learn how to use

all controls. Start and operate only from operator’s position.

Fire or explosion possible. Fumes could ignite and cause burns. No

smoking, no flame, no spark.

CMW

Safety - 16 RT80Q Operator’s Manual

Safety Alerts

Moving traffic - hazardous situation. Death or serious injury could result.

Avoid moving vehicles, wear high visibility clothing, post appropriate warning signs.

Hot pressurized cooling system fluid could cause serious burns. Allow to

cool before servicing.

Flying objects may cause injury. Wear hard hat and safety glasses.

Hot parts may cause burns. Do not touch until cool.

Exposure to high noise levels may cause hearing loss. Wear hearing

protection.

Fall possible. Slips or trips may result in injury. Keep area clean.

Battery acid may cause burns. Avoid contact.

Improper handling or use of chemicals may result in illness, injury, or equipment damage. Follow instructions on labels and in material safety data sheets (MSDS).

Breathing crystalline silica dust may cause lung disease. Cutting, drilling, or working materials such as concrete, sand, or rock containing quartz may result in exposure to silica dust. Use dust control methods or appropriate breathing protection when exposed to silica dust.

CMW

RT80Q Operator’s Manual Safety - 17

Emergency Procedures

Jobsite hazards could cause death or serious injury. Use correct equipment and work methods. Use and maintain proper safety equipment.

Before operating any equipment, review emergency procedures and check that all safety precautions have been taken.

EMERGENCY SHUTDOWN - Turn ignition switch to stop position or push remote engine stop button (if equipped).

Electric Strike Description

Electric shock. Contacting electric lines will cause death or serious injury.

Know location of lines and stay away.

When working near electric cables, remember the following:

• Electricity follows all paths to ground, not just path of least resistance.

• Pipes, hoses, and cables will conduct electricity back to all equipment.

• Low voltage current can injure or kill. Many work-related electrocutions result from contact with less than 440 volts.

Most electric strikes are not noticeable, but indications of a strike include:

• power outage

• smoke

• explosion

• popping noises

• arcing electricity

If any of these occur, assume an electric strike has occurred.

CMW

Safety - 18 RT80Q Operator’s Manual

Emergency Procedures

If an Electric Line is Damaged

If you suspect an electric line has been damaged and you are on tractor, DO NOT MOVE. Remain on tractor and take the following actions. The order and degree of action will depend upon the situation.

• Warn people nearby that an electric strike has occurred. Instruct them to leave the area and contact utility.

• Raise attachments and drive from immediate area.

• Contact utility company to shut off power.

• Do not return to jobsite or allow anyone into area until given permission by utility company.

If you suspect an electric line has been damaged and you are off tractor, DO NOT TOUCH TRACTOR. Take the following actions. The order and degree of action will depend upon the situation.

• LEAVE AREA. The ground surface may be electrified, so take small steps with feet close together to reduce the hazard of being shocked from one foot to the other. For more information, contact your Ditch Witch dealer.

• Contact utility company to shut off power.

• Do not return to jobsite or allow anyone into area until given permission by utility company.

CMW

RT80Q Operator’s Manual Safety - 19

Emergency Procedures

If a Gas Line is Damaged

Fire or explosion possible. Fumes could ignite and cause burns. No

smoking, no flame, no spark.

Explosion possible. Serious injury or equipment damage could occur.

Follow directions carefully.

If you suspect a gas line has been damaged, take the following actions. The order and degree of action will depend on the situation.

• Immediately shut off engine(s), if this can be done safely and quickly.

• Remove any ignition source(s), if this can be done safely and quickly.

• Warn others that a gas line has been cut and that they should leave the area.

• Leave jobsite as quickly as possible.

• Immediately call your local emergency phone number and utility company.

• If jobsite is along street, stop traffic from driving near jobsite.

• Do not return to jobsite until given permission by emergency personnel and utility company.

CMW

Safety - 20 RT80Q Operator’s Manual

Emergency Procedures

If a Fiber Optic Cable is Damaged

Do not look into cut ends of fiber optic or unidentified cable. Vision damage can occur.

If Machine Catches on Fire

Perform emergency shutdown procedure and then take the following actions. The order and degree of action will depend on the situation.

• Immediately move battery disconnect switch (if equipped and accessible) to disconnect position.

• If fire is small and fire extinguisher is available, attempt to extinguish fire.

• If fire cannot be extinguished, leave area as quickly as possible and contact emergency personnel.

CMW

RT80Q Operator’s Manual Controls - 21

Controls

Chapter Contents

Center Console . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

Graphic Display. . . . . . . . . . . . . . . . . . . . . . . . . . . . 26

• Interlock screen. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

• Menu screen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31

• Gauge screens . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40

Right Console . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44

Seat Console. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47

Seat Deck. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49

Trencher Controls. . . . . . . . . . . . . . . . . . . . . . . . . . 51

Plow Controls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53

Combo Controls . . . . . . . . . . . . . . . . . . . . . . . . . . . 55

Saw Controls. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58

Backhoe Console . . . . . . . . . . . . . . . . . . . . . . . . . . 60

Drill Controls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 64

Battery Disconnect . . . . . . . . . . . . . . . . . . . . . . . . . 65

CMW

Controls - 22 RT80Q Operator’s Manual

t33om001w.eps

Center Console

t33om001w.eps

1. Parking brake control

2. Auxiliary power outlet

3. Horn switch

4. Axle lock switch

5. Graphic display

6. Work light switch*

Item Description Notes

1. Parking brake control To set brake, push handle

down. To release brake, pull handle

up.

7. Reel carrier switch*

8. Reel winder mode selector switch*

9. Flasher switch*

10. Ground drive speed switch

11. Ignition key switch

12. Ground drive foot control * option

Engaged parking brake disables ground drive.

CMW

RT80Q Operator’s Manual Controls - 23

Center Console

Item Description Notes

2. Auxiliary outlet Provides power for other

equipment.

c00ic179h.eps

3. Horn To sound horn, press.

c00ic044h.eps

4. Axle lock switch To lock rear axle, press top. To unlock rear axle, press

bottom.

Power output is 12V, 10A.

NOTICE: To prevent mechanical damage, stop tractor before operating axle lock switch.

IMPORTANT: After pressing switch to unlock axle, it may be necessary to move tractor 6’ (2 m) in reverse to fully unlock.

5. Graphic display Graphic symbols are displayed for indicators and conditions previously shown with gauges.

c00ic604w.eps

See more information in “Graphic Display” on page 26.

CMW

Controls - 24 RT80Q Operator’s Manual

Center Console

Item Description Notes

6. Work light switch To activate lights, press top.

To deactivate, press bottom.

c00ic601w.eps

7. Reel carrier switch To raise, press top. To lower, press bottom.

c00ic205h.eps

8. Reel winder selector

switch

To change backfill blade joystick to reel winder control mode, press top.

Optional.

To return to backfill blade mode, press bottom.

c00ic642w.eps

9. Flasher switch To activate flashers, press top.

To deactivate, press bottom.

c00ic600w.eps

Optional.

CMW

RT80Q Operator’s Manual Controls - 25

Center Console

Item Description Notes

10. Ground drive speed

switch

To select High (3), Medium (2) or Low (1), press appropriate switch position.

c00ic602w.eps

11. Ignition switch To start engine, insert key and turn clockwise.

To stop engine, turn counterclockwise.

c00ic217h.eps

12. Ground drive foot

control

To move tractor forward, push top of pedal.

Screen icon displays High, Medium or Low selection.

IMPORTANT: If engine does not start on first attempt, check that all interlock requirements have been met, return switch to STOP, and try again.

Pedal should automatically return to neutral when released.

c00ic072c.eps

To move tractor backward, push bottom of pedal.

To increase speed in either direction, push pedal farther from center.

To reduce speed in either direction, release pedal.

CMW

Controls - 26 RT80Q Operator’s Manual

Graphic Display

3000

0 % 100

rpm

t33om062w.eps

The graphic display module allows the operator to use keys to toggle between various screens and functions. The operator can toggle between gauge functions, faults and alerts, setup, and hourmeter

functions.

V8 18

Item Description Notes Interlock screen icon Screen icon is displayed if

interlock conditions are met.

c00ic599w.eps

Operator alert screen icon Screen icon is displayed

when non-critical engine faults are detected.

c00ic605w.eps

CMW

RT80Q Operator’s Manual Controls - 27

Graphic Display

Item Description Notes Ground drive speed screen

icon

Screen icon displays High, Medium or Low selection.

c00ic602w.eps

Cruise control screen icon Screen icon displays when

cruise control is in operation.

Trip/Hourmeter screen icon Engine operating time and job

time displayed above screen icon.

Control decal shows 1, 2, or 3.

c00ic606w.eps

Engine RPM screen icon Engine RPM displayed below

screen icon.

c00ic618w.eps

CMW

Controls - 28 RT80Q Operator’s Manual

Graphic Display

Item Description Notes Interlock key function Press to display interlock

screen.

c00ic599w.eps

Menu key function Press to display menu

screen.

c00ic612w.eps

Gauge key function Press to display upper right

screen gauge functions.

c00ic613w.eps

Gauge key function Press to display lower right

screen gauge functions.

c00ic614w.eps

CMW

RT80Q Operator’s Manual Controls - 29

Graphic Display

Interlock Screen

Operator

Ground

Attachment

t33om070w.eps

Item Description Notes Operator presence screen

icon

Icon flashes when operator is not in seat.

Drive

Neutral

IMPORTANT: This function is part of the start interlock system. All three start interlock icons must be on steady (not flashing) to start engine.

Ground drive neutral screen icon

c00ic523w.eps

Icon flashes when ground drive hand or foot control is not in neutral.

IMPORTANT: This function is part of the start interlock system. All three start interlock icons must be on steady (not flashing) to start engine.

CMW

Controls - 30 RT80Q Operator’s Manual

Graphic Display

Item Description Notes Attachment neutral screen

icon

Icon flashes when attachment speed/direction control is not in neutral.

c00ic524w.eps

Exit screen key function To exit selected screen,

press.

c00ic608w.eps

IMPORTANT: This function is part of the start interlock system. All three start interlock icons must be on steady (not flashing) to start engine.

CMW

RT80Q Operator’s Manual Controls - 31

Graphic Display

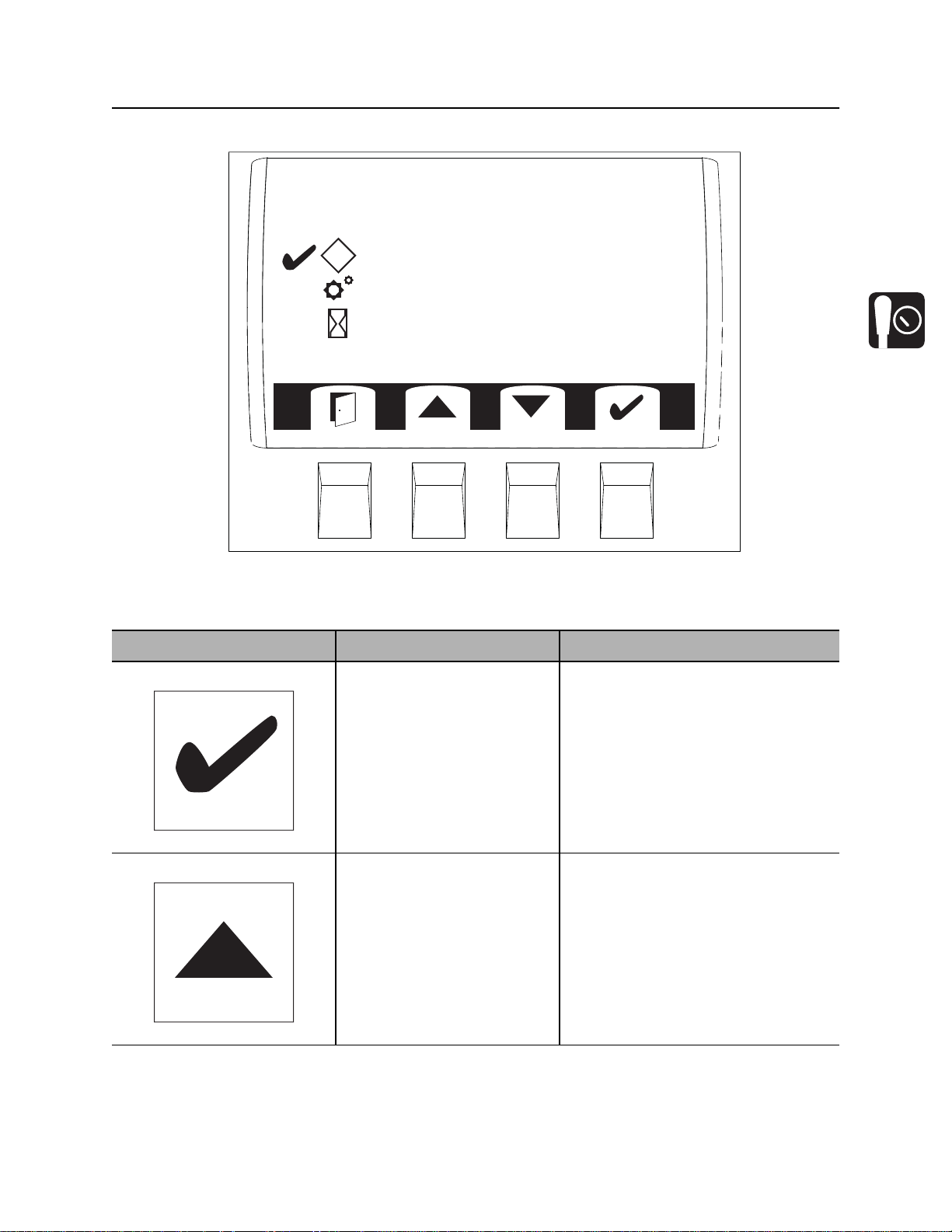

Menu Screen

Faults and Alerts

Setup Trip Hour Meter

t33om066w.eps

Item Description Notes Selection screen icon Indicates menu choice. Use up and down keys to toggle

between menu items.

c00ic611w.eps

Up key function To move up the menu, press.

c00ic609w.eps

CMW

Controls - 32 RT80Q Operator’s Manual

Graphic Display

Item Description Notes Down key function To move down the menu,

press.

c00ic610w.eps

Check key function To select a menu item, press.

c00ic611w.eps

CMW

RT80Q Operator’s Manual Controls - 33

Graphic Display

Faults and Alerts

Setup Trip Hour Meter

t33om066w.eps

Alerts Menu

Alerts

Active

Stored

Machine

t33om067w.eps

CMW

Controls - 34 RT80Q Operator’s Manual

Graphic Display

Active Machine Alerts

Active Faults

SPN:

Machine

Faults

00of

Unknown Parameter

FMI:

Data Above (Most Severe)

Normal

t33om068w.eps

Item Description Notes Clear display key function To clear the display (but not

the codes), press.

For a list of diagnostic trouble codes, see “Diagnostic Trouble Codes” on page 136.

CMW

c00ic633w.eps

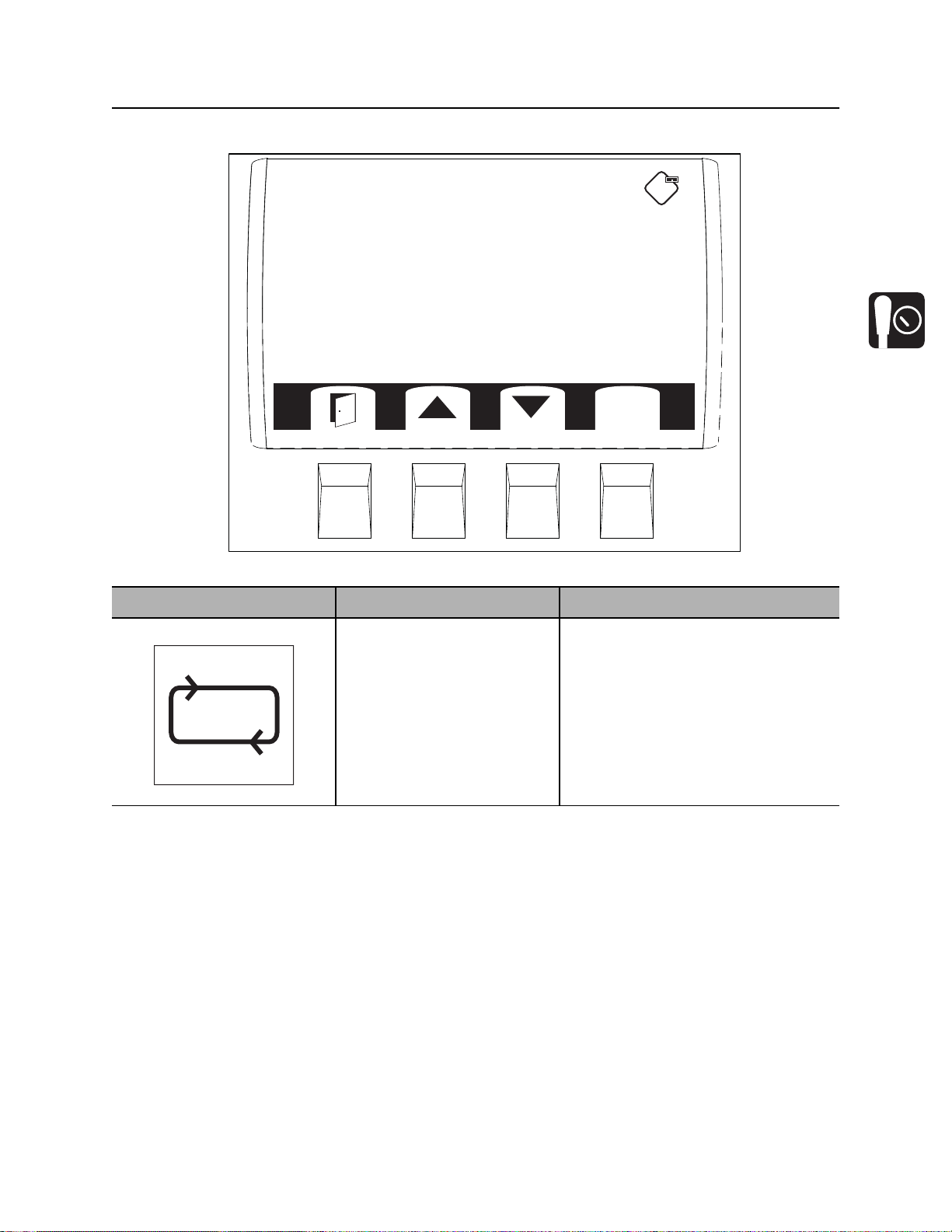

RT80Q Operator’s Manual Controls - 35

Graphic Display

Stored Machine Alerts

Stored Faults

SPN:

Machine

00of

Faults

Unknown Parameter

FMI:

Data Above (Most Severe)

Normal

t33om069w.eps

Item Description Notes Clear display key function To clear the display (but not

the codes), press.

For a list of diagnostic trouble codes, see “Diagnostic Trouble Codes” on page 136.

c00ic633w.eps

CMW

Controls - 36 RT80Q Operator’s Manual

Graphic Display

Setup Menu

Units

txt

Text/Symbols Brightness/Contrast

t33om071w.eps

Units

English Metric

Select Units

t33om072w.eps

CMW

RT80Q Operator’s Manual Controls - 37

t x t

Graphic Display

Text/Symbols

t33om073w.eps

txt

Select Units

Text No

Text

txt

CMW

Controls - 38 RT80Q Operator’s Manual

Graphic Display

Brightness/Contrast

t33om075w.eps

Item Description Notes Brightness screen icon Keys used to adjust

brightness when check is

Bar graph displays screen brightness level.

above brightness icon.

c00ic615w.eps

Contrast screen icon Keys used to adjust contrast

when check is above contrast

Bar graph displays screen contrast level.

icon.

CMW

c00ic640w.eps

RT80Q Operator’s Manual Controls - 39

Graphic Display

Trip/Hour Menu

Eng0Hours

0.0

Job

t33om074w.eps

Item Description Notes Hours/Job Clock screen

icon

Records engine operating time and job time.

Clock [Hrs]

Use engine operating times to schedule service. Job time can be reset.

c00ic635w.eps

CMW

Controls - 40 RT80Q Operator’s Manual

Graphic Display

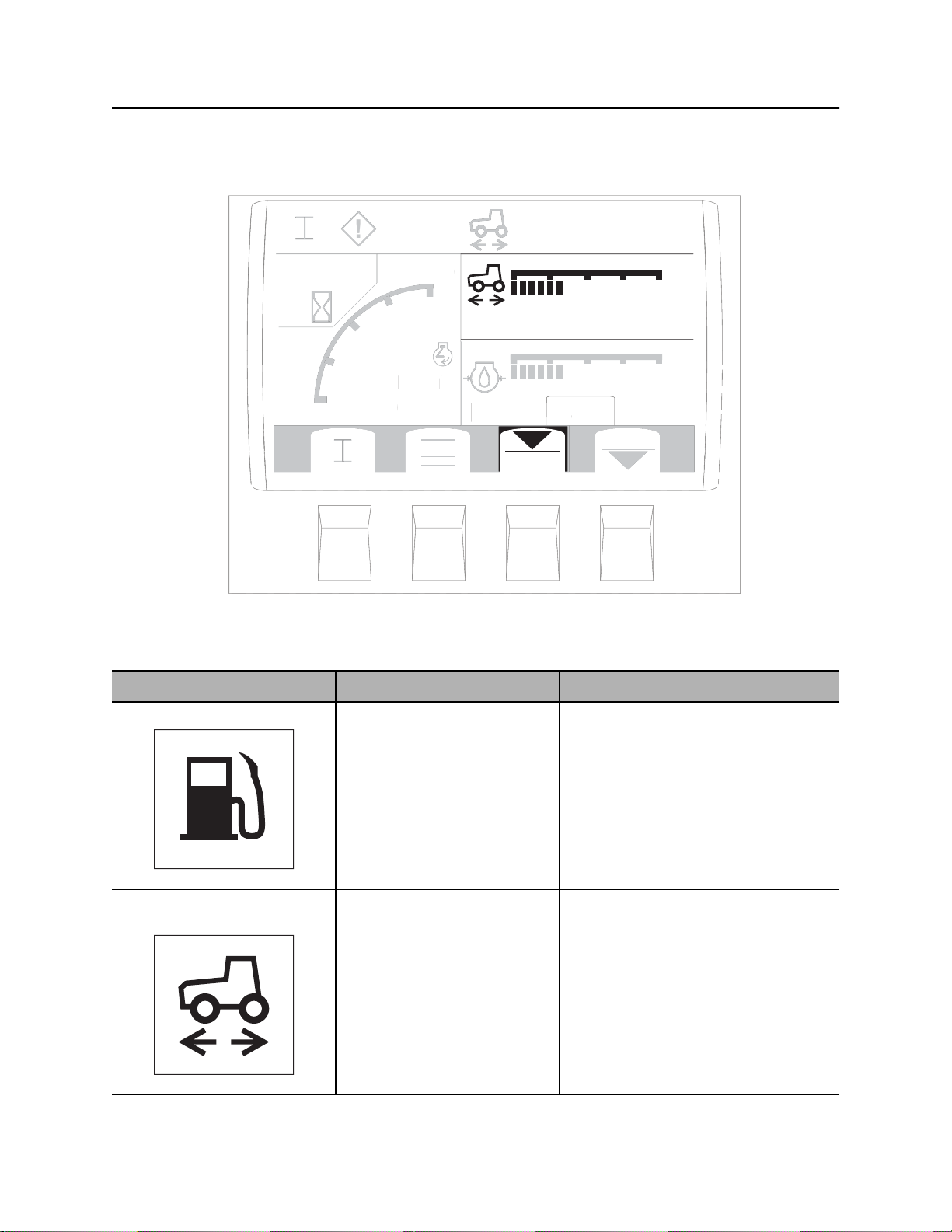

Gauge Screens

Upper Pane

3000

0 % 100

rpm

t33om085w.eps

Use arrow keys to toggle gauge functions and upper or lower pane.

Item Description Notes Fuel level screen icon Bar graph displays fuel level

as percent full.

psi

0 1004

RT80Q fuel tank holds 30 gal (114 L).

c00ic622w.eps

Ground drive speed screen icon

c00ic523w.eps

CMW

Bar graph displays ground drive as percent of full speed.

RT80Q Operator’s Manual Controls - 41

Graphic Display

Item Description Notes Attachment speed screen

icon

c00ic524w.eps

Bar graph displays attachment speed as percent of full speed.

CMW

Controls - 42 RT80Q Operator’s Manual

Graphic Display

Lower Pane

3000

0 % 100

rpm

t33om086w.eps

Use arrow keys to toggle gauge functions and upper or lower pane.

Item Description Notes

psi

0 1004

Volts screen icon Bar graph displays system

voltage.

c00ic619w.eps

Engine oil pressure screen icon

c00ic620w.eps

Bar graph displays engine oil pressure.

Indicator will light if pressure is too low.

Should show 12-14V with engine running.

Normal operating pressure is 15-80 psi (1.03 - 5.5 bar).

If pressure is low:

• Check oil level.

• If pressure is still low, consult engine manual.

CMW

RT80Q Operator’s Manual Controls - 43

Graphic Display

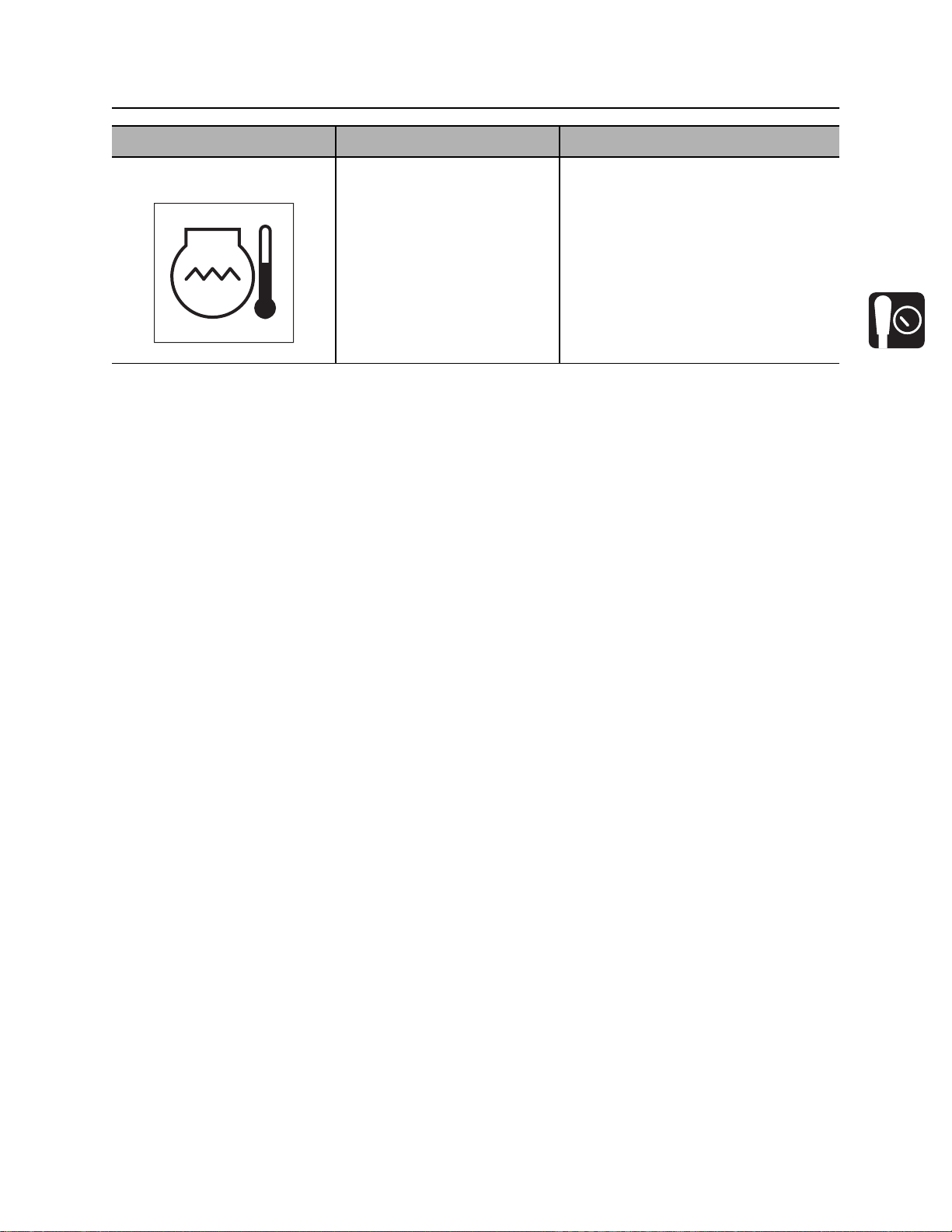

Item Description Notes Engine coolant temperature

screen icon

c00ic621w.eps

Bar graph displays engine coolant temperature.

Engine temperature indicator will light if temperature is too high.

Normal temperature is 180°-220° F (82°-104° C).

If temperature is high:

• Turn off engine and let it cool.

• Check cooling system for low fluid level, seal damage, or leaks.

CMW

Controls - 44 RT80Q Operator’s Manual

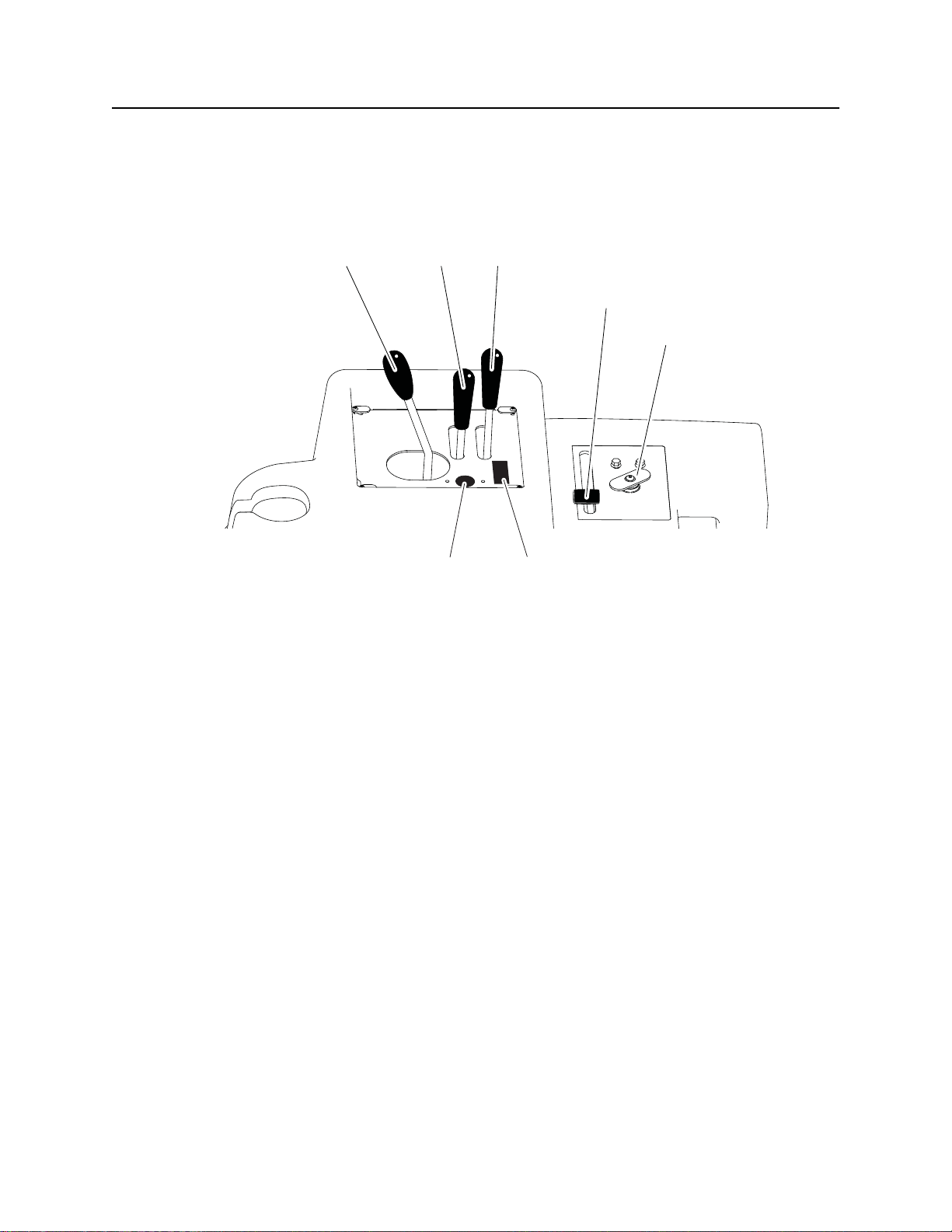

Right Console

123

t33om004w.eps

1. Backfill blade lift/tilt or reel winder control

2. Backfill blade angle control

3. Rear steer control

4. Throttle

5. Rear steer indicator

6. Cruise control switch

7. Cruise control rpm dial control

CMW

RT80Q Operator’s Manual Controls - 45

Right Console

Item Description Notes

1. Backfill blade lift/tilt function control

c00ic625w.eps

Reel winder function control

c00ic207h.eps

Backfill blade mode:

• To lower, move forward.

• To float, move forward to end.

• To raise, move backward.

• To tilt right side down, move right.

• To tilt left side down, move left.

Reel winder mode:

• To unwind, move forward.

• To wind, move backward.

• To lower reel winder arm, move right.

• To raise reel winder arm, move left.

Reel winder mode selector switch on center console changes function to control reel winder arm lift and winder direction.

2. Backfill blade angle

Backfill blade:

control

• To angle right, move right.

• To angle left, move left.

c00ic626w.eps

3. Rear steer control To move rear tracks left, move right.

To center tracks, move to center position.

To move rear tracks right, move left.

c00ic627w.eps

NOTICE:

• Tracks move when you move control. To stop movement, release control.

• Visually verify track position

CMW

Controls - 46 RT80Q Operator’s Manual

&2

Right Console

Item Description Notes

4. Throttle To increase speed, move left.

To decrease speed, move right.

5. Rear steer indicator Displays position of rear wheels.

c00ic628w.eps

6. Cruise control selector To turn on, press top. Switch indicator and display should indicate that cruise mode is activated.

To turn off, press top again. Switch indicator and display should indicate that cruise

c00ic630w.eps

7. Cruise control rpm dial

control

RPM

mode is deactivated.

To decrease engine load while using cruise control, turn clockwise.

To increase engine load while using cruise control, turn counterclockwise.

&2

c00ic629w.eps

Turn on cruise control only when:

• ground drive motor control is in low (1)

• ground drive is in neutral

Hand and foot controls must be in neutral or cruise control switch input will be ignored.

This typically decreases engine load temporarily.

This typically increases engine load temporarily.

CMW

RT80Q Operator’s Manual Controls - 47

t33om002w.eps

Seat Console

t33om002w.eps

1. Ground drive speed control 2. Attachment speed/direction control

Item Description Notes

1. Ground drive speed control

c00ic631w.eps

To go faster in either direction, move farther from neutral.

To stop, return to center.

NOTICE: Control does not automatically return to neutral.

IMPORTANT: This control is disabled in high gear.

CMW

Controls - 48 RT80Q Operator’s Manual

Seat Console

Item Description Notes

2. Attachment speed/ direction control

c00ic632w.eps

To go faster in either direction, move farther from neutral.

To stop, return to center.

NOTICE: Control does not automatically return to neutral.

CMW

RT80Q Operator’s Manual Controls - 49

t33om003w.eps

Seat Deck

t33om003w.eps

1. Seat belt

2. Armrest adjustment control

3. Seat slide control

Item Description Notes

1. Seat belt To fasten, insert latch into

2. Armrest adjustment control

buckle. Adjust until seat belt is low and tight.

To release, lift top of buckle. To raise or lower armrests:

• Remove knob.

4. Seat height adjustment lock

5. Seat pivot control

• Adjust armrest to desired position.

• Replace knob.

CMW

Controls - 50 RT80Q Operator’s Manual

Seat Deck

Item Description Notes

3. Seat slide control To slide seat forward or

backward, pull, then adjust seat.

To lock seat in place, release.

4. Seat height adjustment lock

5. Seat pivot control To pivot seat to the right, pull.

To lock seat height, turn clockwise.

To unlock seat height, turn counterclockwise.

To lock seat in position, release.

To return seat to front-facing position, swing seat left.

Seat pivots only to the right and can be locked in any position from 0-90°.

IMPORTANT: Drive tractor with operator’s seat facing front. If desired, operate rear attachments with seat pivoted.

CMW

RT80Q Operator’s Manual Controls - 51

Trencher Controls

t33om008w.eps

1. Trencher slide control* 2. Boom lift control

*optional

Item Description Notes

1. Trencher slide control (H813 only)

c00ic198h.eps

To slide trencher right, push. To slide trencher left, pull.

IMPORTANT: If slide sticks:

• Lower trencher to ground.

• Operate trencher slide until trencher moves slightly.

• Raise trencher and slide it into position.

CMW

Controls - 52 RT80Q Operator’s Manual

Trencher Controls

Item Description Notes

2. Boom lift control To lower, push.

To raise, pull.

CMW

RT80Q Operator’s Manual Controls - 53

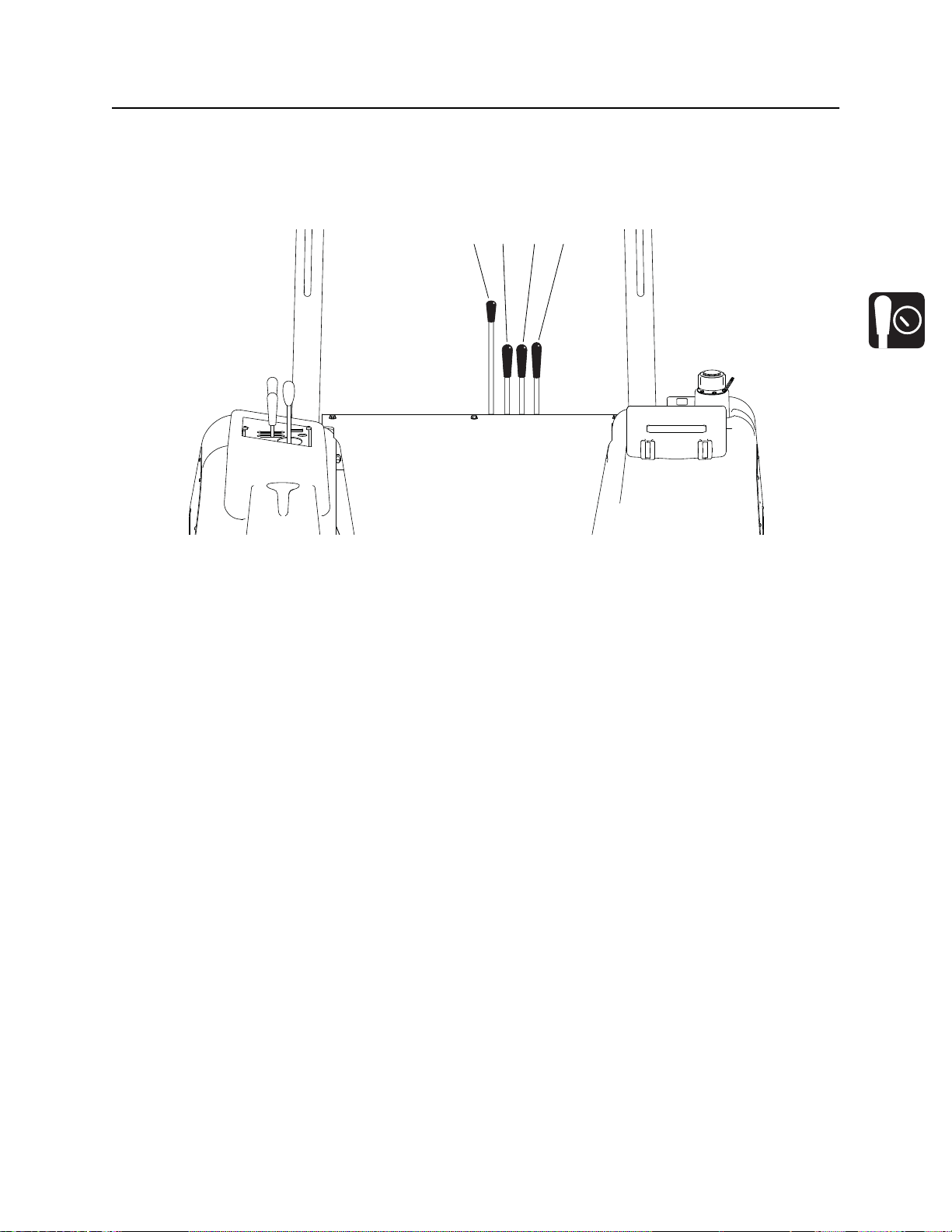

Plow Controls

t33om009w.eps

1. Plow stow lock control

2. Plow swing control

3. Blade steer control

4. Plow lift control

CMW

Controls - 54 RT80Q Operator’s Manual

Plow Controls

Item Description Notes

1. Stow lock control To lock:

• Raise plow fully.

• Pull stow lock handle.

• Lower plow slightly to engage lock.

c00ic643w.eps

To unlock:

• Raise plow slightly.

• Push stow lock handle to release lock.

2. Plow swing control To swing left, pull. To swing right, push. To float, push to end.

c00ic202h.eps

Use this control to lock plow in the up position.

NOTICE:

• If soil conditions allow, operate in float position.

• Lower plow into ground before moving control to float position.

• Do not raise plow with control in float position.

3. Blade steer control To steer right, push. To steer left, pull.

c00ic203h.eps

4. Plow lift control To raise, pull. To lower, push. To float, push to end.

c00ic204h.eps

NOTICE:

• If soil conditions allow, operate in float position.

• Lower plow into ground before moving control to float position.

CMW

RT80Q Operator’s Manual Controls - 55

Combo Controls

t33om010w.eps

1. Plow stow lock control

2. Plow swing control

3. Blade steer control

4. Plow lift control

5. Boom lift control

6. Trench/Plow selector control

CMW

Controls - 56 RT80Q Operator’s Manual

Combo Controls

Item Description Notes

1. Stow lock control To lock:

• Raise plow fully.

• Pull stow lock handle.

• Lower plow slightly to engage lock.

c00ic643w.eps

To unlock:

• Raise plow slightly.

• Push stow lock handle to release lock.

2. Plow swing control To swing left, pull. To swing right, push. To float, push to end.

c00ic202h.eps

Use this control to lock plow in the up position.

NOTICE:

• If soil conditions allow, operate in float position.

• Lower plow into ground before moving control to float position.

• Do not raise plow with control in float position.

3. Blade steer control To steer right, push. To steer left, pull.

c00ic203h.eps

4. Plow lift control To raise, pull. To lower, push. To float, push to end.

c00ic204h.eps

NOTICE:

• If soil conditions allow, operate in float position.

• Lower plow into ground before moving control to float position.

CMW

RT80Q Operator’s Manual Controls - 57

Combo Controls

Item Description Notes

5. Boom lift control To lower, push.

To raise, pull.

6. Trench/Plow selector control

c00ic657w.eps

To trench, move forward. To plow, move backward.

CMW

Controls - 58 RT80Q Operator’s Manual

Saw Controls

t33om008w.eps

1. Saw slide control 2. Saw lift control

Item Description Notes

1. Saw slide control To slide saw right, push.

To slide saw to center, pull.

EMERGENCY SHUTDOWN:

Release all controls and turn ignition switch to STOP.

CMW

RT80Q Operator’s Manual Controls - 59

Saw Controls

Item Description Notes

2. Saw lift control To lower, push.

To raise, pull.

EMERGENCY SHUTDOWN:

Release all controls and turn ignition switch to STOP.

c00ic209h.eps

CMW

Controls - 60 RT80Q Operator’s Manual

Backhoe Console

45678

a44in001w.eps

1. Stabilizer lock release pedals

2. Left stabilizer control

3. Boom/Swing control

4. Remote engine stop switch

5. Remote backfill blade switch

6. Work light switch*

7. Ground drive switch

8. Remote throttle

9. Boom stow lock

10. Bucket/dipper control

11. Right stabilizer control

12. Swing stow lock

*optional

CMW

RT80Q Operator’s Manual Controls - 61

Backhoe Console

Item Description Notes

1. Stabilizer lock Step on pedal to release.

Locks automatically as stabilizer is fully raised.

c00ic646w.eps

2. Left stabilizer control switch

3. Boom/Swing control To swing boom left, move left.

4. Remote engine stop switch

To lower, press left. To raise, press right.

To swing boom right, move right.

To raise boom, pull. To lower boom, push.

To stop engine immediately, press

Control can perform more than one action at a time. By “feathering” the control, operator can combine backhoe operations.

NOTICE: Do not operate with backhoe in the stowed (upright) position.

IMPORTANT: For normal engine shutdown, use ignition switch.

CMW

Controls - 62 RT80Q Operator’s Manual

Backhoe Console

Item Description Notes

5. Remote backfill blade

To lower, press top.

control switch

To raise, press bottom.

6. Work light switch To turn on, press right.

To turn off, press left.

7. Remote ground drive control

To move tractor forward, push.

To move tractor backward, pull.

Optional

NOTICE:

• This control is disabled if tractor seat is occupied.

• Ground drive must be in low (1) position.

c00ic216h.eps

8. Remote throttle To increase engine speed, turn counterclockwise.

To decrease engine speed, turn clockwise.

To lock, push button, pull up, then release button.

To unlock, push button, then push down.

• Ensure that backfill blade, if equipped, and stabilizers are raised before operating this control.

• Do not move more than 30’ (10 m) at a time.

CMW

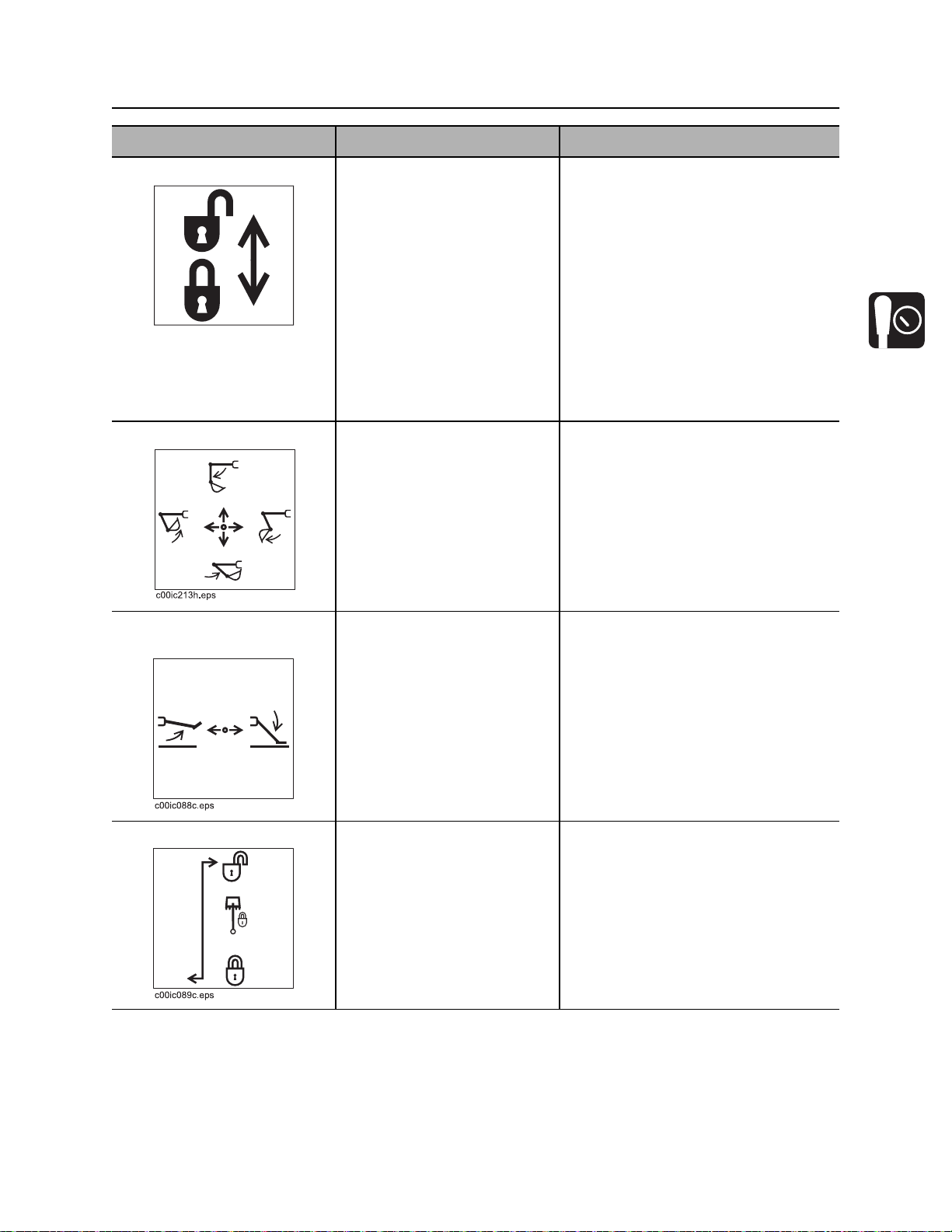

RT80Q Operator’s Manual Controls - 63

Backhoe Console

Item Description Notes

9. Boom stow lock To lock:

• Raise boom fully.

• Pull stow lock handle.

• Lower boom slightly to engage lock.

c00ic646w.eps

10. Bucket/dipper control To open bucket, move right.

To unlock:

• Raise boom slightly.

• Push stow lock handle to release lock.

To close bucket, move left. To move dipper in, pull. To move dipper out, push.

Use this control to lock boom in the up position.

NOTICE: Always lock boom during transport.

Control can perform more than one action at a time. By “feathering” the control, operator can combine backhoe operations.

11. Right stabilizer control switch

12. Boom swing lock To lock, push down and into

To lower, press right. To raise, press left.

hook. To unlock, pull up and into

hook.

Backhoe can be locked in several swing positions. If lock will not engage, swing backhoe slightly left or right until lock engages.

NOTICE: Always lock boom during transport.

CMW

Controls - 64 RT80Q Operator’s Manual

Drill Controls

t33om063w.eps

1. Drilling attachment control 2. Drilling attachment

Item Description Notes

1. Drilling attachment control

c00ic655w.eps

To rotate clockwise, press bore.

To rotate counterclockwise, press reverse.

EMERGENCY SHUTDOWN:

Release all controls and turn ignition switch to STOP.

IMPORTANT: Always rotate clockwise during drilling and backreaming. Rotate counterclockwise only to dislodge a dry bore bit or reamer that has seized in the bore hole.

Switch should return to neutral position when released.

CMW

RT80Q Operator’s Manual Controls - 65

Battery Disconnect

t33om012w.eps

1. Battery disconnect switch

Item Description Notes

1. Battery disconnect switch

c00ic654w.eps

To connect, move left. To disconnect, move right.

NOTICE: Do not operate battery switch with engine operating.

CMW

Controls - 66 RT80Q Operator’s Manual

CMW

RT80Q Operator’s Manual Operation Overview - 67

Operation Overview

Chapter Contents

Planning. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 68

Trenching. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 68

Plowing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 68

Sawing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 69

Digging with Backhoe . . . . . . . . . . . . . . . . . . . . . . 69

Drilling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 69

Leaving Jobsite. . . . . . . . . . . . . . . . . . . . . . . . . . . . 69

CMW

Operation Overview - 68 RT80Q Operator’s Manual

Planning

1. Gather information about jobsite. See 72.

2. Inspect jobsite. See page 73.

3. Classify jobsite. See page 74.

4. Select chain and teeth to match your soil type, if necessary. See page 135.

5. Check supplies and prepare equipment. See page 76.

6. Haul equipment to jobsite. See page 83.

Trenching

1. Start unit. See 78.

2. Position tractor and controls. See page 96.

3. Begin trenching. See page 96 .

4. Engage cruise control if desired. See page 132.

5. Engage optional Trench Depth Meter, if equipped.

6. Complete the installation. See page 139.

7. Shut down tractor. See page 81.

Plowing

1. Start unit. See page 78.

2. Position tractor and controls. See page 103.

• offset plowing - page 107

• coordinated plowing - page 107

• crabbing - page 107

3. Attach product. See page 103.

4. Begin plowing. See page 106.

5. Engage cruise control if desired. See page 132.

6. Complete the installation. See page 139.

7. Shut down tractor. See page 81.

CMW

RT80Q Operator’s Manual Operation Overview - 69

Sawing

1. Start unit. See page 78.

2. Position tractor and controls. See page 114.

3. Begin sawing. See page 114.

4. Complete the installation. See page 139.

5. Backfill the trench. See page 140.

6. Shut down tractor. See page 81.

Digging with Backhoe

1. Start unit. See page 78.

2. Set stabilizers and unstow backhoe. See page 118.

3. Excavate. See page 119.

4. Stow backhoe properly. See page 120.

5. Shut down tractor. See page 81.

Drilling

1. Start unit. See page 78.

2. Dig approach trench and target trench. See page 125.

3. Assemble drill string and position tractor. See page 126.

4. Begin drilling. See page 127.

5. Use drill string guide as needed. See page 127.

6. Add rod. See page 128.

7. Backream. See page 128.

8. Shut down tractor. See page 81.

9. Disassemble joints. See page 129.

Leaving Jobsite

1. Backfill if necessary. See page 140.

2. Rinse equipment. See page 140.

3. Stow tools. See page 140.

4. Haul equipment from jobsite. See page 90.

CMW

Operation Overview - 70 RT80Q Operator’s Manual

CMW

RT80Q Operator’s Manual Prepare - 71

Prepare

Chapter Contents

Gather Information . . . . . . . . . . . . . . . . . . . . . . . . . 72

• Review Job Plan . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 72

• Notify One-Call Services. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 72

• Arrange for Traffic Control. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 72

• Plan for Emergency Services . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 72

Inspect Site . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 73

• Identify Hazards . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 73

Classify Jobsite. . . . . . . . . . . . . . . . . . . . . . . . . . . . 74

• Inspect Jobsite . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 74

• Select a Classification. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 74

• Apply Precautions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 75

Check Supplies and Prepare Equipment . . . . . . . 76

• Supplies . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 76

• Fluid Levels. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 76

• Condition and Function. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 76

• Accessories. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 76

CMW

Prepare - 72 RT80Q Operator’s Manual

Gather Information

A successful job begins before you dig. The first step in planning is reviewing information already available about the job and jobsite.

Review Job Plan

Review blueprints or other plans. Check for information about existing or planned structures, elevations, or proposed work that may be taking place at the same time.

Notify One-Call Services

Contact your local One-Call (811 in USA) or the One-Call referral number (888-258-0808 in USA and Canada) to have underground utilities located before digging. Also contact any utilities that do not participate in the One-Call service.

Arrange for Traffic Control

If working near a road or other traffic area, contact local authorities about safety procedures and regulations.

Plan for Emergency Services

Have the telephone numbers for local emergency and medical facilities on hand. Check that you will have access to a telephone.

CMW

RT80Q Operator’s Manual Prepare - 73

Inspect Site

Inspect jobsite before transporting equipment. Check for the following:

• changes in elevation such as hills or other open trenches

• obstacles such as buildings, railroad crossings, or streams

• signs of utilities (“Inspect Jobsite” on page 74)

• traffic

• access

• soil type and condition

Identify Hazards

Identify safety hazards and classify jobsite. See “Classify Jobsite” on page 74.

Jobsite hazards could cause death or serious injury. Use correct equipment and work methods. Use and maintain proper safety equipment.

To help avoid injury:

• Wear personal protective equipment including hard hat, safety eye wear, and hearing protection.

• Do not wear jewelry or loose clothing.

• Notify One-Call and companies which do not subscribe to One-Call.

• Comply with all utility notification regulations before digging or drilling.

• Verify location of previously marked underground hazards.

• Mark jobsite clearly and keep spectators away.

Remember, jobsite is classified by hazards in place -- not by line being installed.

CMW

Prepare - 74 RT80Q Operator’s Manual

Classify Jobsite

Inspect Jobsite

• Follow U.S. Department of Labor regulations on excavating and trenching (Part 1926, Subpart P) and other similar regulations.

• Inspect jobsite and perimeter for evidence of underground hazards, such as: – “buried utility” notices

– utility facilities without overhead lines – gas or water meters – junction boxes – drop boxes – light poles – manhole covers – sunken ground

• Have an experienced locating equipment operator sweep area within 20’ (6 m) to each side of trench path. Verify previously marked line and cable locations.

• Mark location of all buried utilities and obstructions.

• Classify jobsite.

Select a Classification

Jobsites are classified according to underground hazards present.

If working . . . then classify jobsite as . . .

within 10’ (3 m) of a buried electric line electric within 10’ (3 m) of a natural gas line natural gas in sand, granite, or concrete which is capable of producing

crystalline silica (quartz) dust within 10’ (3 m) of any other hazard other

NOTICE: If you have any doubt about jobsite classification, or if jobsite might contain unmarked hazards, take steps outlined previously to identify hazards and classify jobsite before working.

crystalline silica (quartz) dust

CMW

RT80Q Operator’s Manual Prepare - 75

Classify Jobsite

Apply Precautions

Once classified, precautions appropriate for jobsite must be taken.

Electric Jobsite Precautions

Use one or both of these methods.

• Expose line by careful hand digging or soft excavation.

• Have service shut down while work is in progress. Have electric company test lines before returning them to service.

Natural Gas Jobsite Precautions

In addition to positioning equipment upwind from gas lines, use one or both of these methods.

• Expose lines by careful hand digging or soft excavation.

• Have gas shut off while work is in progress. Have gas company test lines before returning them to service.

Crystalline Silica (Quartz) Dust Precautions

Crystalline silica dust is a naturally occuring substance found in soil, sand, concrete, granite, and quartz. Breathing silica dust particles while cutting, drilling, or working materials may cause lung disease or cancer. To reduce exposure:

• Use water spray or other means to control dust.

• Refer to U.S. Department of Labor Occupational Safety and Health Administration guidelines to learn more about appropriate breathing protection and permissible exposure limits.

Other Jobsite Precautions

You may need to use different methods to safely avoid other underground hazards. Talk with those knowledgeable about hazards present at each site to determine which precautions should be taken or if job should be attempted.

CMW

Prepare - 76 RT80Q Operator’s Manual

Check Supplies and Prepare Equipment

Supplies

• fuel

• keys

• personal protective equipment, such as hard hat and safety glasses

Fluid Levels

• fuel

• hydraulic fluid

• battery charge

• engine oil

Condition and Function

• digging chain and teeth

• brake pads and disc

• fan belts

• light bulbs

• filters (air, oil, hydraulic)

• tracks

• pumps and motors

• hoses and valves

• signs, guards, and shields

Accessories

Fire Extinguisher

If required, mount a fire extinguisher near the power unit but away from possible points of ignition. The fire extinguisher should always be classified for both oil and electric fires. It should meet legal and regulatory requirements.

CMW

RT80Q Operator’s Manual Drive - 77

Drive

Chapter Contents

Start Unit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 78

Drive. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 80

Safe Slope Operation . . . . . . . . . . . . . . . . . . . . . . . 81

Shut Down . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 82

CMW

Drive - 78 RT80Q Operator’s Manual

Start Unit

Before operating tractor, read engine manufacturer’s starting and operating instructions. Follow instructions for new engine break-in.

Incorrect procedures could result in death, injury, or property damage.

Learn to use equipment correctly.

To help avoid injury:

• Read operator’s manual before operating equipment. Follow instructions carefully. Contact Ditch Witch dealership for operation information or demonstration.

• Wear hard hat, safety glasses, and other protective equipment required by job. Do not wear jewelry or loose clothing that can catch on controls.

Runaway possible. Machine could run over you or others. Learn how to

use all controls. Start and operate only from operator’s position.

Rollover possible. If machine rolls over, you could be thrown from seat

and killed or crushed. Wear seat belt.

CMW

RT80Q Operator’s Manual Drive - 79

Start Unit

1. Fasten and adjust seat belt.

2. Check that ground drive control and attachment speed/direction control are in neutral.

3. Move throttle to idle.

4. Verify that parking brake is engaged.

5. Turn ignition switch to the run position (key on, engine off). Cold start wait indicator will light (if equipped).

Explosion possible. Serious injury or equipment damage could

occur. Follow directions carefully.

To help avoid injury: Do not use ether or any other type of aerosol starting fluid when unit is equipped with cold start option.

6. When cold start wait indicator goes off, turn ignition switch all the way clockwise to start tractor. Warning alarm will sound. Indicators will light.

• If engine does not crank, check start interlock display. See page 26 for start interlock information.

• If engine turns but does not start within 10 seconds, allow starter to cool before trying to start

again.

Improper control function could cause death or serious injury.

To help avoid injury: Stop machine and have it serviced if control does not work as described in instructions.

IMPORTANT: Machine will not start if start interlock requirements are not met. See page 26 for start interlock information.

7. Run engine at half-throttle or less for five minutes before operating tractor. During warmup, check that all controls work properly.

CMW

Drive - 80 RT80Q Operator’s Manual

Drive

Moving traffic – hazardous situation. Death or serious injury could result.

Avoid moving vehicles, wear high visibility clothing, post appropriate warning signs.

To help avoid injury:

• Survey your field of vision when operating the machine.

• Drive carefully in congested areas. Know machine’s clearance and turning radius.

• Keep attachments low when operating on slope. Drive slowly and cautiously.

EMERGENCY SHUTDOWN: Turn ignition switch to STOP.

1. Turn on lights as needed.

2. Raise backfill blade and all attachments.

3. Release parking brake.

4. Adjust throttle.

5. When operating in low or medium:

• if using the hand control, the foot control will only increase speed.

• any opposing signal from controls causes ground drive to stop.

6. When operating in high, ground drive stops if hand control is moved out of neutral position.

CMW

RT80Q Operator’s Manual Drive - 81

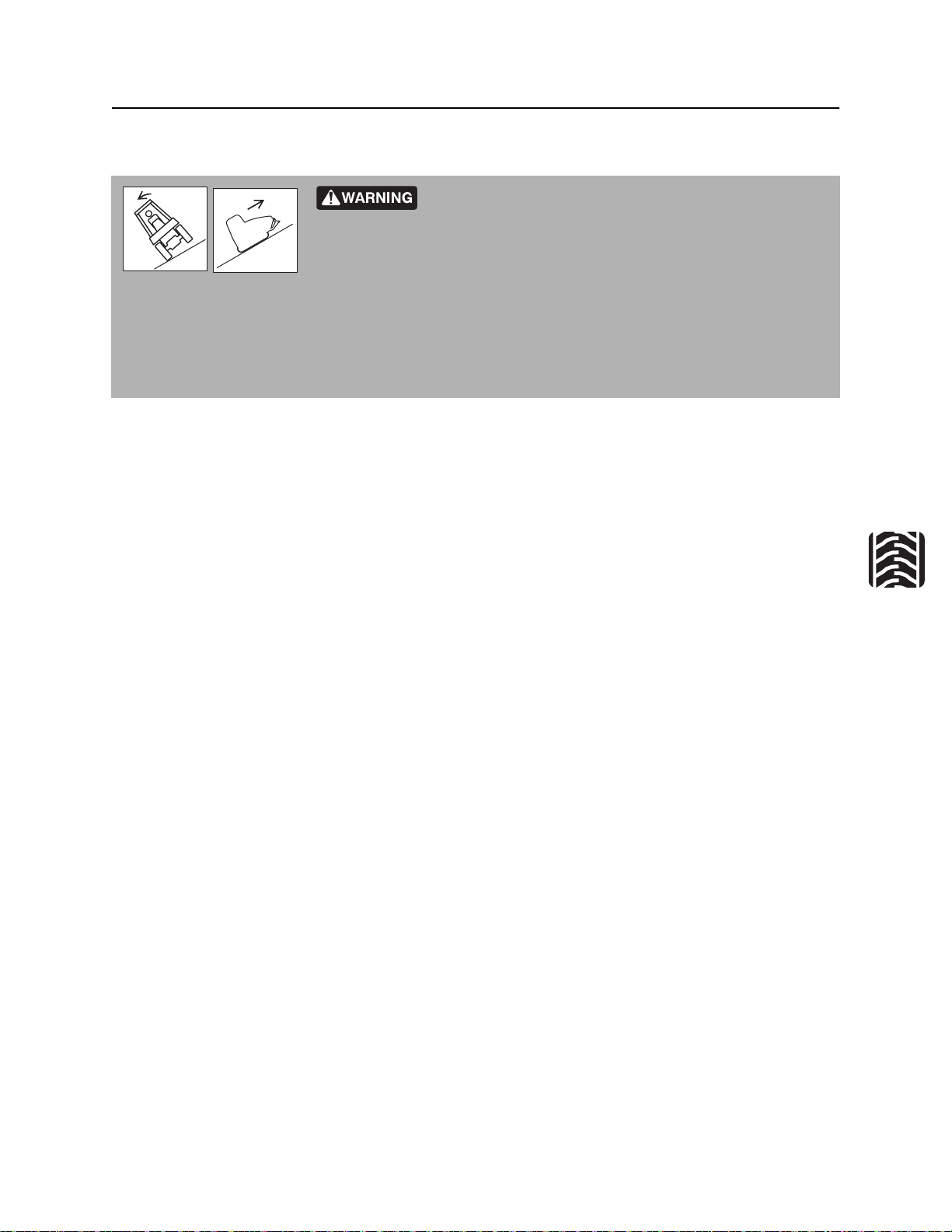

Safe Slope Operation

Tipover possible. Machine can tip over and crush you.

To help avoid injury:

• Always operate with heavy end uphill.

• Drive cautiously at all times.

• Never jerk control levers. Use a steady even motion.

• Do not park unit on slope without lowering digging attachment to the

ground, returning all controls to neutral position, shutting down unit, and applying parking brake.

Operating safely on a slope depends upon many factors including:

• Distribution of machine weight, including front loading and absence of load

• Height of load

• Even or rough ground conditions

• Potential for ground giving way causing unplanned tilt forward, reverse or sideways

• Nearness of ditches, ruts, stumps or other obstructions and sudden changes in slope

• Speed

• Turning

• Braking performance

• Operator skill

These varying factors make it impractical to specify a maximum safe operating angle in this manual. It is therefore important for the operator to be aware of these conditions and adjust operation accordingly. Maximum engine angle and braking performance are two absolute limits which must never be exceeded. These maximums are stated below since they are design limits. These design limits usually exceed the operating limits and must never be used alone to establish safe operating angle for variable conditions.

Maximum engine lubrication angle – 30° Maximum service brake retarding force – equal to traction of both tracks. Maximum secondary brake retarding force – equal to traction of one track. Maximum park brake holding force – equal to traction of both tracks.

CMW

Drive - 82 RT80Q Operator’s Manual

Shut Down

1. When job is complete, move ground drive control to neutral.

2. Set parking brake.

3. Lower all attachments to ground.

4. Move throttle to idle for 3 minutes to cool engine.

5. Turn ignition switch to STOP. If leaving machine unattended, remove key.

6. For maintenance or long-term storage, turn battery disconnect switch, if equipped, to the disconnect position.

CMW

RT80Q Operator’s Manual Transport - 83

Transport

Chapter Contents

Lift . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 84

Tie Down . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 87

Haul . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 90

Tow . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 93

CMW

Transport - 84 RT80Q Operator’s Manual

Lift

Crushing weight. If load falls or moves it could kill or crush you. Use

proper procedures and equipment or stay away.

Incorrect procedures could result in death, injury, or property damage.

Learn to use equipment correctly.

Tractor

This machine is not configured for lifting. If the machine must be lifted, load machine into a container or onto a platform appropriate for lifting. See “Specifications” for weight of machine.

Centerline Trencher

Lift points shown with arrows. Use crane capable of supporting the equipment's size and weight. See “Specifications” or measure and weigh equipment before lifting.

CMW

RT80Q Operator’s Manual Transport - 85

Lift

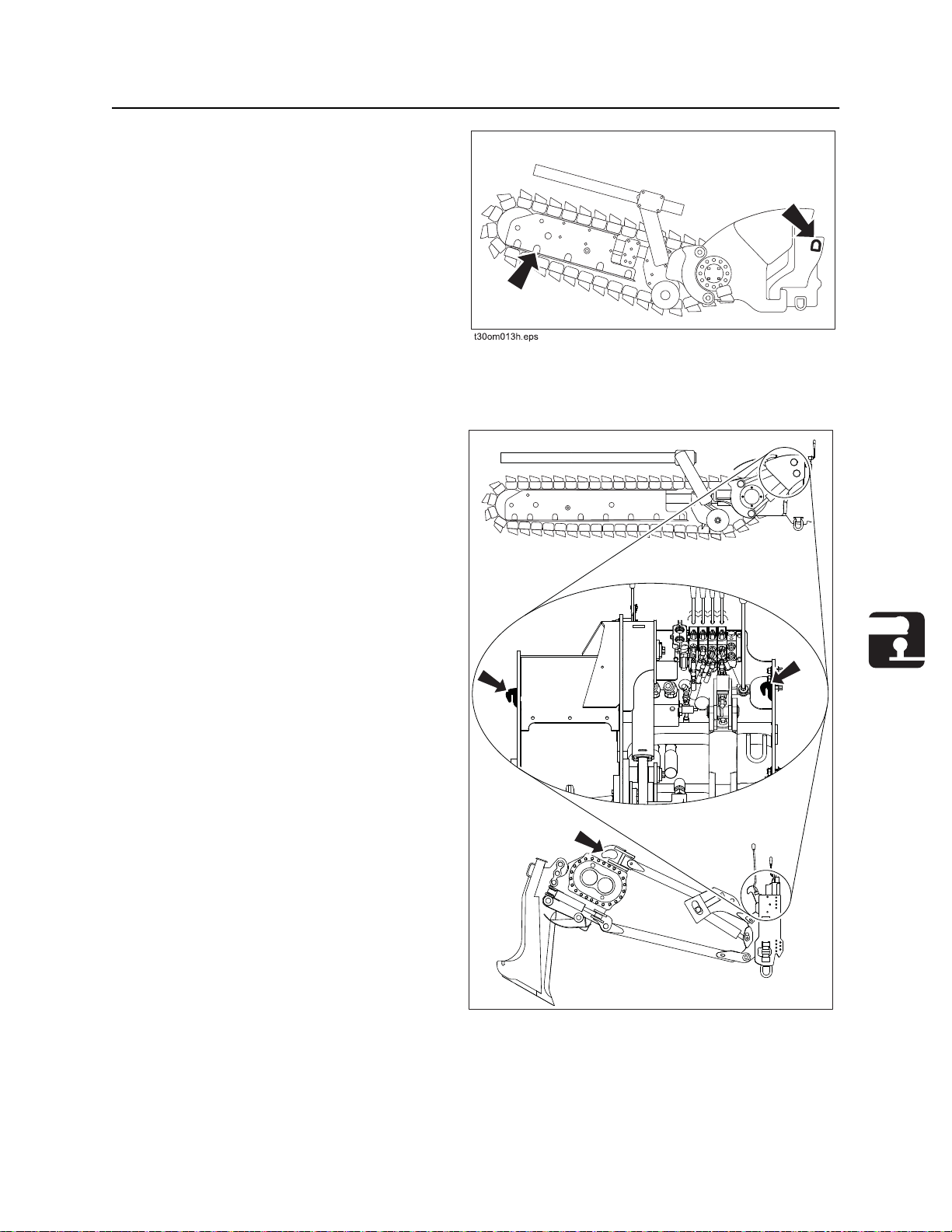

Traversing Trencher

Lift points shown with arrows. Use crane capable of supporting the equipment's size and weight. See “Specifications” or measure and weigh equipment before lifting.

Combo

Lift points shown with arrows. Use crane capable of supporting the equipment's size and weight. See “Specifications” or measure and weigh equipment before lifting.

Plow linkage has some movement and may require better support in some situations.

t33om022w.eps

CMW

Transport - 86 RT80Q Operator’s Manual

Lift

Plow

Lift points shown with arrows. Use crane capable of supporting the equipment's size and weight. See “Specifications” or measure and weigh equipment before lifting.

t33om018w.eps

Reel Carrier

Lift points shown with arrows. Use crane capable of supporting the equipment's size and weight. See “Specifications” or measure and weigh equipment before lifting.

CMW

RT80Q Operator’s Manual Transport - 87

Tie Down

Incorrect procedures could result in death, injury, or property damage.

Learn to use equipment correctly.

Points

Tiedown points are identified by tiedown decals. Securing to trailer at other points is unsafe and can damage machinery.

Tractor

Attach chains at front and rear tiedown points. Make sure chains are tight before transporting unit.

Centerline Trencher

Lower trencher to trailer deck and chain at attachment frame and through boom. Make

sure chains are tight before transporting.

IMPORTANT: If trencher is equipped with a trench cleaner, ensure that trench cleaner shoe is fully up and extra bolt (found in operator’s manual compartment) is installed in center hole for additional support.

t33om014w.eps

t33om087w.eps

CMW

Transport - 88 RT80Q Operator’s Manual

Tie Down

Traversing Trencher

Lower trencher to trailer deck and chain at attachment frame and through boom. Make

sure chains are tight before transporting.

t33om088w.eps

support.

Combo

Lower attachment to trailer deck and chain at attachment frame and vibrator box. Make sure chains are tight before transporting.

NOTICE:

• Engage attachment stow lock and swing lock devices in addition to securing at tiedowns.

• Unsecured plow can swing outside the trailer and become a traffic hazzard. Lower plow and chain to trailer deck before hauling.

• If trencher is equipped with a trench cleaner, ensure that trench cleaner shoe is fully up and extra bolt (found in operator’s manual compartment) is installed in center hole for additional support.

t33om027w.eps

CMW

RT80Q Operator’s Manual Transport - 89

Tie Down

Plow

Lower plow to trailer deck and chain at attachment frame and vibrator box. Make sure

chains are tight before transporting.

NOTICE:

• Engage attachment stow lock and swing lock devices in addition to securing at tiedowns.

• Unsecured plow can swing outside the trailer and become a traffic hazard. Lower plow and chain to trailer deck before hauling.

Reel Carrier

Lower reel carrier to lowest position and tie down at attachment arms. Make sure chains are tight before transporting.

t33om019w.eps

CMW

Transport - 90 RT80Q Operator’s Manual

Haul

Incorrect procedures could result in death, injury, or property damage.

Learn to use equipment correctly.

To help avoid injury:

• Read trailer operator’s manual before loading or transporting your machine. Incorrectly loaded machine can slip or cause trailer sway.

• Ensure that tow vehicle has proper tow capacity rating.

• Attach trailer to tow vehicle before loading or unloading.

• Park, load, and unload trailer on level ground.

• Check that unit and trailer do not exceed size or weight regulations.

• Load trailer correctly to avoid trailer swaying. Ten to fifteen percent of total vehicle weight (equipment plus trailer) must be on tongue to help prevent trailer sway.

• Connect safety chains to tow vehicle. Attach left chain to right side of tow vehicle and vice versa to cradle hitch. Do not connect to pintle hook or hitch ball.

• Connect breakaway switch cable to tow vehicle. Do not connect to pintle hook or hitch ball.

Procedure

Inspect Trailer

1. Check hitch for wear and cracks. Lubricate if needed.

2. Check battery for 12V charge.

3. Inspect lights for cleanliness and correct operation. Inspect reflectors and replace if needed.

4. Check trailer tire pressure. Check lug nut torque with a torque wrench. Adjust if needed.

5. Ensure trailer brakes are adjusted to come on with tow vehicle brakes.

6. Check ramps and trailer bed for cracks.

CMW

RT80Q Operator’s Manual Transport - 91

Haul

Load

Crushing weight. If load falls or moves it could kill or crush you. Use

proper procedures and equipment or stay away.

To help avoid injury:

• Attach trailer to tow vehicle before loading or unloading.

• Load and unload trailer on level ground.

• Block trailer wheels.

Rollover possible. If machine rolls over, you could be thrown from seat

and killed or crushed. Wear seat belt.

1. Fasten and adjust seat belt.

2. Start tractor. See page 78 for proper start-up procedures.

3. Raise attachments, but keep them low and centered. Check that they are not in float.

4. Release parking brake and verify that parking brake indicator is off.

5. Move ground drive switch to low.

6. Slow engine to low throttle and slowly drive tractor onto trailer.

7. Position tractor on trailer deck for proper weight distribution.

8. Engage parking brake and verify that parking brake indicator is on.

9. Lower attachments to trailer bed and turn tractor off. See page 81 for proper shutdown procedures.

10. Attach chains to tractor and attachments where tiedown decals are located. See page 87.

CMW

Transport - 92 RT80Q Operator’s Manual

Haul

Unload

Crushing weight. If load falls or moves it could kill or crush you. Use

proper procedures and equipment or stay away.

To help avoid injury:

• Attach trailer to tow vehicle before loading or unloading.

• Load and unload trailer on level ground.

• Block trailer wheels.

Rollover possible. If machine rolls over, you could be thrown from seat

and killed or crushed. Wear seat belt.

1. Lower trailer or ramps.

2. Check that parking brake is engaged and verify that parking brake indicator is on.

3. Check that ground drive controls are in neutral.

4. Remove chains from tiedowns.

5. Fasten and adjust seat belt.

6. Start tractor. See page 78 for proper start-up procedures.

7. Raise attachments, but keep them low and centered. Check that they are not in float.

8. Release parking brake and verify that parking brake indicator is off.

9. Slow engine to low throttle and slowly back unit down trailer or ramps.

CMW

RT80Q Operator’s Manual Transport - 93

Tow

Incorrect procedures could result in death, injury, or property damage.

Learn to use equipment correctly.

Under normal conditions, tractor should not be towed. If tractor becomes disabled and towing is necessary:

• Do not tow for more than 200 yd (180 m).

• Tow at less than 1 mph (1.6 km/h).

• Steering will be very difficult.

Procedure

1. Engage parking brake.

2. Block front and rear tracks to prevent unit from rolling.

3. Attach tow line to all available tie-down points facing towing vehicle.

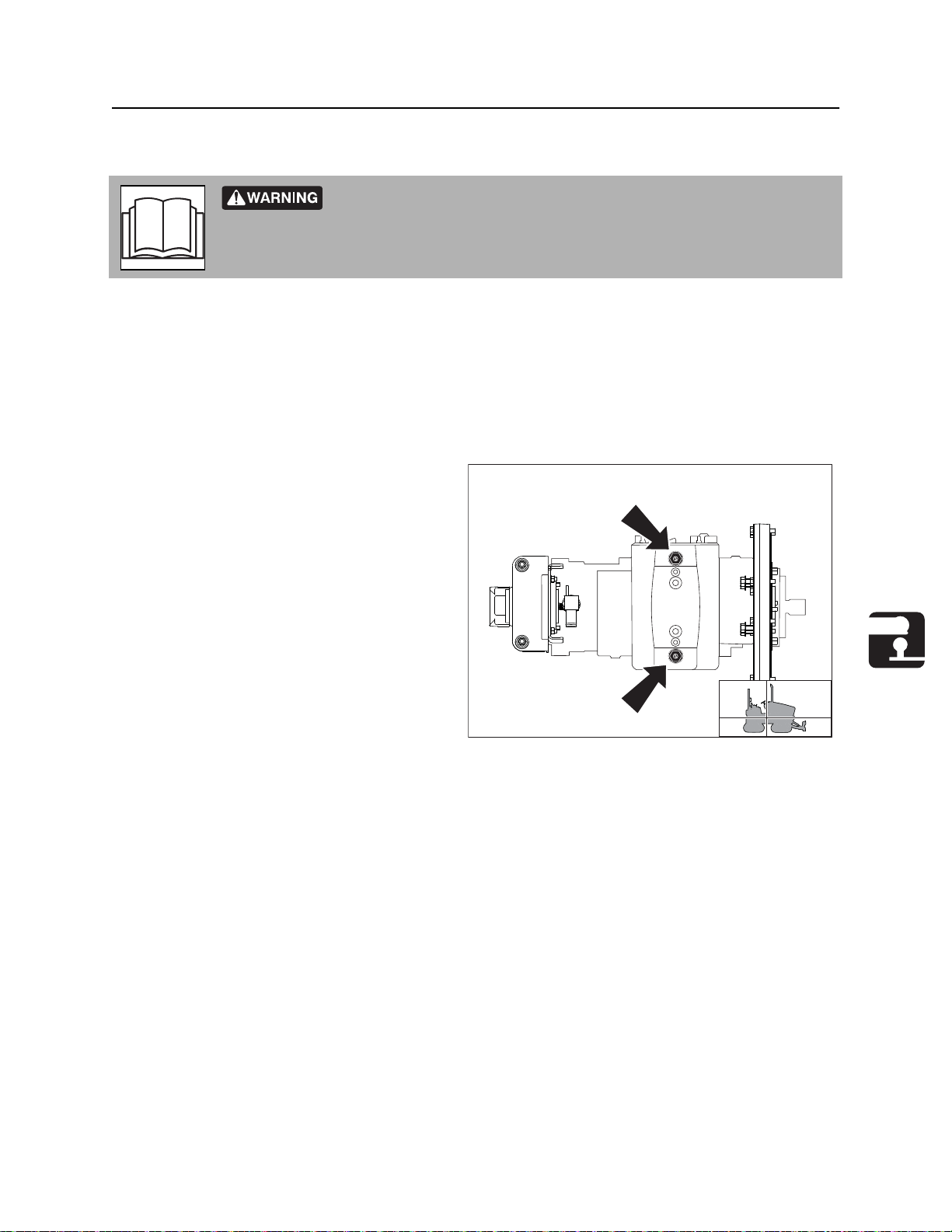

4. Activate the tow valve (shown).

• Under tractor, locate two screws on

bottom of pump housing.

• Use flat blade screwdriver to turn

each screw 90° counterclockwise until they contact relief check valves.

5. Remove blocks.

6. Fasten seatbelt and adjust seatbelt.

7. Disengage parking brake.

8. After towing, turn tow screws clockwise 90°.

t33om076w.eps

CMW

Transport - 94 RT80Q Operator’s Manual

CMW

RT80Q Operator’s Manual Trench - 95

Trench

Chapter Contents

Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 96

Operation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 97

CMW

Trench - 96 RT80Q Operator’s Manual

Setup

EMERGENCY SHUTDOWN - Turn ignition switch to STOP.

Crushing weight could cause death or serious injury. Use proper

procedures and equipment or stay away.

To help avoid injury: Use attachments or counterweights to make front and rear loads balance when all attachments are raised. Contact your Ditch Witch dealer about counterweighting for your equipment.

Jobsite hazards could cause death or serious injury. Use correct equipment and work methods. Use and maintain proper safety equipment.

To help avoid injury: Comply with all utility notification regulations before digging or drilling.

Incorrect procedures can result in death, injury, or property damage.

Learn to use equipment correctly.

Before Using Trencher

NOTICE: If trencher is equipped with trench cleaner, check to ensure that shipping bolt has been removed, as shown.

1. Fasten and adjust seat belt.

2. Start tractor. See page 78 for start-up procedures.

3. Drive to starting point. Move in line with planned trench.

CMW

t33om080w.eps

RT80Q Operator’s Manual Trench - 97

Operation

IMPORTANT:

• When cutting asphalt, start trench in soil at edge of road and use shortest possible boom at full depth.

• Sight along center of hood to a stake driven beyond end of trench line for straight trench.

• For optimal spoils delivery, adjust the auger positions forward or backward to accommodate terrain and digging depth.

4. Lower backfill blade.

5. Engage parking brake.

6. Lower boom to just above ground.

7. Check that attachment speed/direction control and ground drive controls are in neutral.

8. If equipped with combo, select trenching control position.

Operation

Electrical shock. Contacting electrical lines will cause death or serious

injury. Know location of lines and stay away.

To help avoid injury: Expose lines by hand before digging. Cutting high voltage cable can cause electrocution.

Incorrect procedures could result in death, injury, or property damage. Learn to use equipment correctly.

To help avoid injury:

• Comply with all utility notification regulations before digging or drilling.

• Notify companies that do not subscribe to One-Call.

CMW

Trench - 98 RT80Q Operator’s Manual

Operation

Flying objects thrown by machine may strike people. Wear hard hat and safety glasses.

Moving digging teeth will cause death or serious injury. Stay away.

To help avoid injury:

• Ensure parking brake is engaged.

• Allow 3’ (1 m) between digging teeth and obstacle. Machine might jerk when digging starts.

• Keep everyone at least 6’ (2 m) from machine, attachments, and their range of movement.

1. Lower backfill blade to reduce shock when trenching begins.

2. If necessary, adjust throttle to low idle.

3. Move attachment speed/direction control to desired speed. DIGGING CHAIN WILL MOVE.

NOTICE: Always start trenching with attachment speed set at low. If soil conditions permit optimum digging at higher speeds, select high.

4. Increase engine speed to full throttle.

5. Slowly lower digging boom to depth.

6. Raise backfill blade and release parking brake.

7. Move ground drive control to desired speed.

8. If using optional mechanical trench cleaner:

• Stop tractor and turn ignition switch to STOP.

• Lower trench cleaner, if equipped.

• Restart tractor, fasten seat belt, and continue trenching.

NOTICE:

• Make sure that shipping bolt is removed before attempting to use trench cleaner.

• Do not have trench cleaner in working position when starting a trench.

• Do not back up with trench cleaner in working position.

• Do not use trench cleaner in conditions where large rocks can get between chain and cleaner.

CMW

RT80Q Operator’s Manual Trench - 99

Operation

9. If using optional hydraulic trench cleaner:

• Trench forward a short distance.

• Move hydraulic control lever to lower trench cleaner, and continue trenching.

10. Push ground drive control forward to trenching speed.

NOTICE:

• Do not make sharp turns. Lower boom to full depth when turning.

• If an object becomes lodged in chain, move attachment speed/direction control to neutral and raise boom slightly. Reverse chain direction. If object must be removed manually, turn engine off and engage parking brake.

11. When trench is complete, move ground drive control to neutral.

12. Adjust throttle to low idle.

13. Raise boom.

14. As boom clears top of trench, move attachment speed/direction control to neutral.

15. Drive a short distance away from work site.

16. Shut down tractor. See page 81 for proper shutdown procedures.

17. Return optional trench cleaner to the stowed position.

CMW

Ditch Witch RT80Q Operator's Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

Overview

Serial Number Location

Intended Use

Equipment Modification

Unit Components

Operator Orientation

About This Manual

Bulleted Lists

Numbered Lists

Foreword

Contents

Safety

Guidelines

Safety Alert Classifications

Safety Alerts

Emergency Procedures

Electric Strike Description

If an Electric Line is Damaged

If a Gas Line is Damaged

If a Fiber Optic Cable is Damaged

If Machine Catches on Fire

Controls

Center Console

Graphic Display

Interlock Screen

Menu Screen

Gauge Screens

Right Console

Seat Console

Seat Deck

Trencher Controls

Plow Controls

Combo Controls

Saw Controls

Backhoe Console

Drill Controls

Battery Disconnect

Operation Overview

Planning

Trenching

Plowing

Sawing

Digging with Backhoe

Drilling

Leaving Jobsite

Prepare

Gather Information

Review Job Plan

Notify One-Call Services

Arrange for Traffic Control

Plan for Emergency Services

Inspect Site

Identify Hazards

Classify Jobsite

Inspect Jobsite

Select a Classification

Apply Precautions

Check Supplies and Prepare Equipment

Supplies

Fluid Levels

Condition and Function

Accessories

Drive

Start Unit

Drive

Safe Slope Operation

Shut Down

Transport

Lift

Tractor

Centerline Trencher

Traversing Trencher

Combo

Plow

Reel Carrier

Tie Down
