Ditch Witch RT120 Q User Manual

Download
RT120Q
Operator’s Manual
CMW
®
Issue 1.1
Original Translation
053-2634

Overview

Chapter Contents
Serial Number Location . . . . . . . . . . . . . . . . . . . . . . 2
Intended Use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Equipment Modification . . . . . . . . . . . . . . . . . . . . . . 3
Unit Components . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Operator Orientation. . . . . . . . . . . . . . . . . . . . . . . . . 5
About This Manual . . . . . . . . . . . . . . . . . . . . . . . . . . 5
• Bulleted Lists. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
• Numbered Lists. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
CMW
Overview - 2 RT120Q Operator’s Manual

Serial Number Location

Serial Number Location
Record serial numbers and date of purchase in spaces provided. RT120Q (1) and engine serial numbers (2) are located as shown.
12
t37om002w.eps
Date of manufacture Date of purchase RT120Q serial number Front attachment serial number Rear attachment serial number Trailer serial number Engine serial number
CMW

Intended Use

Intended Use
The RT120Q is a riding trencher designed to install buried service lines of various sizes using a variety of Ditch Witch attachments.
Attachment Max. width/diameter Max. depth
H910 trencher 24” (610 mm) 96” (2.4 m) H911 trencher 24” (610 mm) 92” (2.3 m) H1032 plow 3” (80 mm) 42” (1.07 m) H1052 combo n/a 70” (1.78 m) H1140 saw 103” (1.03 m) 40.5” (1.03 m) RC120 reel carrier 84” (2.13 m) reel dia n/a A920 backhoe 24” (610 mm) 105” (2.7 m)
This unit is designed for operation in temperatures typically experienced in earth moving and construction work environments. Provisions may be required to operate in extreme temperatures. Contact your Ditch
Witch dealer.
Use in any other way is considered contrary to the intended use.
The RT120Q should be used with genuine Ditch Witch chain, teeth, and sprockets. It should be operated, serviced, and repaired only by persons familiar with their particular characteristics and acquainted with the relevant safety procedures.

Equipment Modification

This equipment was designed and built in accordance with applicable standards and regulations. Modification of equipment could mean that it will no longer meet regulations and may not function properly or in accordance with the operating instructions. Modification of equipment should only be made by competent personnel possessing knowledge of applicable standards, regulations, equipment design functionality/requirements and any required specialized testing.
The protection offered by the Rollover Protective System (ROPS) will be impaired if it has been subjected to any modification, structural damage, or has been involved in an overturn accident. The ROPS must be replaced after a roll-over.
CMW
Overview - 4 RT120Q Operator’s Manual

Unit Components

Unit Components
23 4
1
5
t37om003w.eps
1. Rollover Protective Structure (ROPS)
2. Operator station
3. Control console
WARNING: The protection offered by the Rollover Protective System (ROPS) will be impaired if it has been subjected to any modification, structural damage, or has been involved in an overturn accident. The ROPS must be replaced after a roll-over.
4. Engine compartment
5. Backfill blade (optional)
CMW

Operator Orientation

Operator Orientation
1. Front of unit
2. Right of unit
Right and left sides of machine are determined by facing front of unit while seated at the controls.
3. Rear of unit
4. Left of unit
1
4
2
3
t37om004w.eps

About This Manual

This manual contains information for the proper use of this machine. See Operation Overview for basic operating procedures. Cross references such as “See page 50” will direct you to detailed procedures.

Bulleted Lists

Bulleted lists provide helpful or important information or contain procedures that do not have to be performed in a specific order.

Numbered Lists

Numbered lists contain illustration callouts or list steps that must be performed in order.
CMW
Overview - 6 RT120Q Operator’s Manual
About This Manual
CMW

Foreword

This manual is an important part of your equipment. It provides safety information and operation instructions to help you use and maintain your Ditch Witch equipment.
Read this manual before using your equipment. Keep it with the equipment at all times for future reference. If you sell your equipment, be sure to give this manual to the new owner.
If you need a replacement copy, contact your Ditch Witch dealer. If you need assistance in locating a dealer, visit our website at www.ditchwitch.com or write to the following address:
The Charles Machine Works, Inc. Attn: Marketing Department PO Box 66 Perry, OK 73077-0066 USA
The descriptions and specifications in this manual are subject to change without notice. The Charles Machine Works, Inc. reserves the right to improve equipment. Some product improvements may have taken place after this manual was published. For the latest information on Ditch Witch equipment, see your Ditch Witch dealer.
Thank you for buying and using Ditch Witch equipment.
CMW
Foreword - 8 RT120Q Operator’s Manual
RT120 T4i
Operator’s Manual
Machine Works, Inc.
Issue number 1.0/OM-05/13
Part number 053-2634
Copyright 2013
by The Charles Machine Works, Inc.
, Ditch Witch, CMW, and Roto Witch are registered trademarks of The Charles
CMW

Contents

Overview
machine serial number, information about the type of work this machine is designed to perform, basic machine components, and how to use this manual
Foreword
part number, revision level, and publication date of this manual, and factory contact information
Safety
machine safety alerts and emergency procedures
Controls
machine controls, gauges, and indicators and how to use them
Operation Overview
an overview for completing a job with this machine: planning, setting up, installing product, and restoring the jobsite; with cross references to detailed procedures
Prepare
procedures for inspecting and classifying the jobsite, planning the installation path, and preparing the jobsite for work
Drive
procedures for startup, cold start, driving, and shutdown
1
7
11
21
65
69
75
Transport
procedures for lifting, hauling, and towing
Trench
procedures for trenching
Plow
procedures for plowing
Reel Carrier
procedures for using reel carrier
Backhoe
procedures for digging with backhoe
81
93
101
111
115
CMW
Contents - 10 RT120Q Operator’s Manual
Drill
procedures for drilling
Saw
procedures for sawing
Systems and Equipment
chain, teeth, sprockets, and optional equipment
Complete the Job
procedures for backfilling and restoring the jobsite and rinsing and storing equipment
Service
service intervals and instructions for this machine including lubrication, replacement of wear items, and basic maintenance
Specifications
machine specifications including weights, measurements, power ratings, and fluid capacities
Support
the warranty policy for this machine, and procedures for obtaining warranty consideration and training
121
129
137
143
145
187
205
Service Record
a record of major service performed on the machine
209
CMW
RT120Q Operator’s Manual Safety - 11

Safety

Chapter Contents
Guidelines . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Safety Alert Classifications . . . . . . . . . . . . . . . . . . 13
Safety Alerts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Emergency Procedures . . . . . . . . . . . . . . . . . . . . . 17
• Electric Strike Description. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
• If an Electric Line is Damaged . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
• If a Gas Line is Damaged . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
• If a Fiber Optic Cable is Damaged . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
• If Machine Catches on Fire. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
CMW®
Safety - 12 RT120Q Operator’s Manual

Guidelines

Guidelines
Follow these guidelines before operating any jobsite equipment:
• Complete proper training and read operator’s manual before using equipment.
• Contact your local One-Call (811 in USA) or the One-Call referral number (888-258-0808 in USA and Canada) to have underground utilities located before digging. Also contact any utilities that do not participate in the One-Call service. Mark proposed path with white paint prior to contacting One-Call or utilities.
• Classify jobsite based on its hazards and use correct tools and machinery, safety equipment, and work methods for jobsite.
• Mark jobsite clearly and keep spectators away.
• Wear personal protective equipment.
• Review jobsite hazards, safety and emergency procedures, and individual responsibilities with all personnel before work begins. Safety videos are available from your Ditch Witch
• Replace missing or damaged safety shields and safety signs.
• Use equipment carefully. Stop operation and investigate anything that does not look or feel right.
®
dealer.
• Do not operate unit where flammable gas may be present.
• Contact your Ditch Witch dealer if you have any question about operation, maintenance, or equipment use.
• Complete the equipment checklist located at www.ditchwitch.com/resources/safety.
CMW®

Safety Alert Classifications

Safety Alert Classifications
These classifications and the icons defined on the following pages work together to alert you to situations which could be harmful to you, jobsite bystanders or your equipment. When you see these words and icons in the book or on the machine, carefully read and follow all instructions. YOUR SAFETY IS AT STAKE.
Watch for the three safety alert levels: DANGER, WARNING and CAUTION. Learn what each level means.
indicates a hazardous situation that, if not avoided, will result in death or serious injury.
This signal word is to be limited to the most extreme situations.
indicates a hazardous situation that, if not avoided, could result in death or serious injury.
indicates a hazardous situation that, if not avoided, could result in minor or moderate
injury.
Watch for two other words: NOTICE and IMPORTANT. NOTICE indicates information considered important, but not hazard-related (e.g., messages relating to
property damage).
IMPORTANT can help you do a better job or make your job easier in some way.
CMW®
Safety - 14 RT120Q Operator’s Manual

Safety Alerts

Safety Alerts
Moving digging teeth will cause death or serious injury. Trench cave-in can cause you to fall. Stay away.
Turning shaft will kill you or crush arm or leg. Stay away.
Electric shock. Contacting electric lines will cause death or serious injury.
Know location of lines and stay away.
correct equipment and work methods. Use and maintain proper safety equipment.
proper procedures and equipment or stay away.
Explosion possible. Serious injury or equipment damage could occur.
Follow directions carefully.
Jobsite hazards could cause death or serious injury. Use
Crushing weight could cause death or serious injury. Use
Moving parts could cut off hand or foot. Stay away.
CMW®
Incorrect procedures could result in death, injury, or property damage.
Learn to use equipment correctly.
Safety Alerts
Fall possible. Riders can fall from machine and be injured or killed. Only
operator is allowed on machine.
Rollover possible. If machine rolls over, you could be thrown from seat and
killed or crushed. Wear seat belt.
Improper control function could cause death or serious injury. If control does
not work as described in instructions, stop machine and have it serviced.
Looking into fiber optic cable could result in permanent vision damage. Do
not look into ends of fiber optic or unidentified cable.
Pressurized fluid or air could pierce skin and cause injury or
death. Stay away.
Runaway possible. Machine could run over you or others. Learn how to use
all controls. Start and operate only from operator’s position.
Fire or explosion possible. Fumes could ignite and cause burns. No
smoking, no flame, no spark.
Avoid static electricity when fueling. Ultra Low Sulfur Diesel (ULSD) poses a greater static ignition hazard than earlier diesel formulations. Avoid death or serious injury from fire or explosion. Consult with your fuel system supplier to ensure the delivery system is in compliance with fueling standards for proper grounding and bonding practices.
CMW®
Safety - 16 RT120Q Operator’s Manual
Safety Alerts
Moving traffic - hazardous situation. Death or serious injury could result. Avoid moving vehicles, wear high visibility clothing, post appropriate warning signs.
Hot pressurized cooling system fluid could cause serious burns. Allow to cool before servicing.
Flying objects may cause injury. Wear hard hat and safety glasses.
Hot parts may cause burns. Do not touch until cool.
Exposure to high noise levels may cause hearing loss. Wear hearing protection.
Fall possible. Slips or trips may result in injury. Keep area clean.
Battery acid may cause burns. Avoid contact.
Improper handling or use of chemicals may result in illness, injury, or equipment damage. Follow instructions on labels and in material safety data sheets (MSDS).
Breathing crystalline silica dust may cause lung disease. Cutting, drilling, or working materials such as concrete, sand, or rock containing quartz may result in exposure to silica dust. Use dust control methods or appropriate breathing protection when exposed to silica dust.
CMW®

Emergency Procedures

Emergency Procedures
Jobsite hazards could cause death or serious injury. Use correct equipment and work methods. Use and maintain proper safety equipment.
Before operating any equipment, review emergency procedures and check that all safety precautions have been taken.
EMERGENCY SHUTDOWN - Turn ignition switch to stop position or push remote engine stop button (if equipped).

Electric Strike Description

Electric shock. Contacting electric lines will cause death or serious injury.
Know location of lines and stay away.
When working near electric cables, remember the following:
• Electricity follows all paths to ground, not just path of least resistance.
• Pipes, hoses, and cables will conduct electricity back to all equipment.
• Low voltage current can injure or kill. Many work-related electrocutions result from contact with less than 440 volts.
Most electric strikes are not noticeable, but indications of a strike include:
• power outage
• smoke
• explosion
• popping noises
• arcing electricity
If any of these occur, assume an electric strike has occurred.
CMW®
Safety - 18 RT120Q Operator’s Manual
Emergency Procedures

If an Electric Line is Damaged

If you suspect an electric line has been damaged and you are on tractor, DO NOT MOVE. Remain on tractor and take the following actions. The order and degree of action will depend upon the situation.
• Warn people nearby that an electric strike has occurred. Instruct them to leave the area and contact utility.
• Raise attachments and drive from immediate area.
• Contact utility company to shut off power.
• Do not return to jobsite or allow anyone into area until given permission by utility company.
If you suspect an electric line has been damaged and you are off tractor, DO NOT TOUCH TRACTOR. Take the following actions. The order and degree of action will depend upon the situation.
• LEAVE AREA. The ground surface may be electrified, so take small steps with feet close together to reduce the hazard of being shocked from one foot to the other. For more information, contact your Ditch Witch dealer.
• Contact utility company to shut off power.
• Do not return to jobsite or allow anyone into area until given permission by utility company.
CMW®
Emergency Procedures

If a Gas Line is Damaged

Fire or explosion possible. Fumes could ignite and cause burns. No
smoking, no flame, no spark.
Explosion possible. Serious injury or equipment damage could occur.
Follow directions carefully.
If you suspect a gas line has been damaged, take the following actions. The order and degree of action will depend on the situation.
• Immediately shut off engine(s), if this can be done safely and quickly.
• Remove any ignition source(s), if this can be done safely and quickly.
• Warn others that a gas line has been cut and that they should leave the area.
• Leave jobsite as quickly as possible.
• Immediately call your local emergency phone number and utility company.
• If jobsite is along street, stop traffic from driving near jobsite.
• Do not return to jobsite until given permission by emergency personnel and utility company.
CMW®
Safety - 20 RT120Q Operator’s Manual
Emergency Procedures

If a Fiber Optic Cable is Damaged

Do not look into cut ends of fiber optic or unidentified cable. Vision damage can occur.

If Machine Catches on Fire

Perform emergency shutdown procedure and then take the following actions. The order and degree of action will depend on the situation.
• Immediately move battery disconnect switch (if equipped and accessible) to disconnect position.
• If fire is small and fire extinguisher is available, attempt to extinguish fire.
• If fire cannot be extinguished, leave area as quickly as possible and contact emergency personnel.
CMW®

Controls

Chapter Contents
Center Console . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Graphic Display. . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Right Console . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39
Left Console . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42
Seat Console. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45
Seat Deck. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47
Trencher Controls. . . . . . . . . . . . . . . . . . . . . . . . . . 49
Plow Controls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51
Combo Controls . . . . . . . . . . . . . . . . . . . . . . . . . . . 53
Backhoe Console . . . . . . . . . . . . . . . . . . . . . . . . . . 56
Saw Controls. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60
Drill Controls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 61
Battery Disconnect . . . . . . . . . . . . . . . . . . . . . . . . . 63
CMW
Controls - 22 RT120Q Operator’s Manual

Center Console

Center Console
456 7
3
2
1
t37om001w.eps
1. Auxiliary power outlet
2. Horn switch
8
9
10
11
7. Reel carrier switch*
8. Reel winder mode selector switch*
3. Engine override switch
4. Axle lock switch
5. Graphic display
6. Ground drive speed switch
CMW
9. Ignition key switch
10. Ground drive foot control
11. Steering column tilt control * option
Center Console
Item Description Notes
1. Auxiliary outlet Provides power for other
equipment.
c00ic179h.eps
2. Horn To sound horn, press.
c00ic044h.eps
3. Engine override switch For engine override, press.
Power output is 12V, 10A.
c00ic024w.eps
4. Axle lock switch To lock rear axle, press top. To unlock rear axle, press
bottom.
NOTICE: To prevent mechanical damage, stop tractor before operating axle lock switch.
IMPORTANT: After pressing switch to unlock axle, it may be necessary to move tractor 6’ (2 m) in reverse to fully unlock.
CMW
Controls - 24 RT120Q Operator’s Manual
Center Console
Item Description Notes
5. Graphic display Graphic symbols are
displayed for indicators and conditions previously shown with gauges.
!
c00ic604w.eps
6. Ground drive speed
switch
To select High (3), Medium (2) or Low (1), press appropriate switch position.
3
2
1
c00ic602w.eps
7. Reel carrier switch To raise, press top.
See more information in “Graphic Display” on page 26.
Screen icon displays High, Medium or Low selection.
Optional.
c00ic205h.eps
8. Reel winder selector
switch
c00ic642w.eps
To lower, press bottom.
To change backfill blade joystick to reel winder control mode, press top.
To return to backfill blade mode, press bottom.
Optional.
CMW
Center Console
Item Description Notes
9. Ignition switch To start engine, insert key and
turn clockwise. To stop engine, turn
counterclockwise.
c00ic027w.eps
10. Ground drive foot
control
To move tractor forward, push top of pedal.
To move tractor backward, push bottom of pedal.
To increase speed in either direction, push pedal farther from center.
c00ic072c.eps
To reduce speed in either direction, release pedal.
IMPORTANT: If engine does not start on first attempt, check that all interlock requirements have been met, return switch to STOP, and try again.
Pedal should automatically return to neutral when released.
11. Steering column tilt
control
c00ic037w.eps
To adjust tilt, pull. To secure steering column in
position, release.
CMW
Controls - 26 RT120Q Operator’s Manual

Graphic Display

Graphic Display
t37om048w.eps
0% 0%
RPM0
3
0 00 AM/PM:00:
15
10 20
0%
525
RPM x100
0
30
0
v
0.0
0F
0 PSI
0.0 H
The graphic display module shows engine RPM and has icons for other functions. Soft keys allow the operator to toggle between various screens and functions.
Item Description Notes Attachment speed Displays precentage of
attachment speed, and plow or trencher/saw mode.
c00ic028w.eps
Note: Screen icons change according to attachment being operated.
CMW
Graphic Display
Item Description Notes Operator presence Idicates operator presence
and start interlock condition.
c00ic001w.eps
Fuel level Displays fuel level and
percentage.
c00ic003w.eps
Batery voltage Displays battery voltage.
c00ic008w.eps

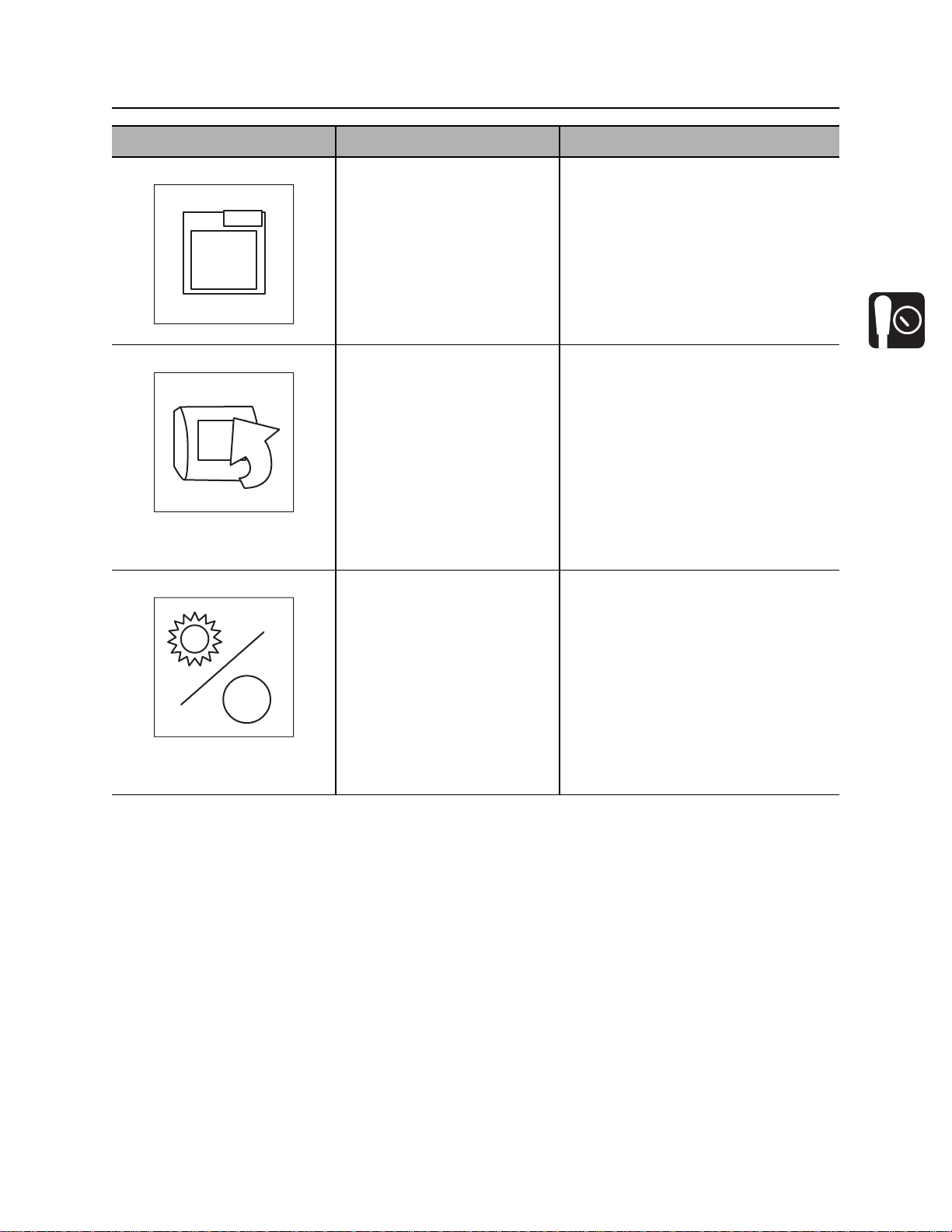

Day/Night mode Indicates selected mode.
c00ic010w.eps
CMW
Controls - 28 RT120Q Operator’s Manual
Graphic Display
Item Description Notes Engine hours Displays engine hours.
0.0 H
c00ic020w.eps
Engine oil pressure Displays engine oil pressure.
c00ic005w.eps
Engine coolant temperature Displays coolant temperature.
c00ic004w.eps
Axle lock Displays status of axle
differential lock.
c00ic002w.eps
CMW
Graphic Display
Item Description Notes Ground drive speed/
direction
Displays ground drive direction of travel, and speed as a percentage.
c00ic006w.eps
Ground drive gear indicator Displays selected gear in
center of icon.
c00ic009w.eps
Cruise control indicator Displays cruise mode status.
c00ic032w.eps
Parking brake indicator Displays parking brake
status.
c00ic055t.eps
CMW
Controls - 30 RT120Q Operator’s Manual
Graphic Display
Item Description Notes Hydraulic filter restriction
Displays restriction status.
indicator
Hydraulic fluid high
Displays hot fluid status.
temperature indicator
c00ic037t.eps
Menu indicator Displays menu icon over key
3.
CMW
c00ic031w.eps
Graphic Display

Main Menu

SYSTEM
SETTINGS
t33om093w.eps
USER
SETTINGS
GAUGE
DISPLAY
DIGNOSTICS
Press the center soft key to display the main menu screen, which has icons for other functions. Soft keys below on screen icons allow the operator to toggle between various screens and functions.
Item Description Notes System Settings This is an information display.
c00ic015w.eps
CMW
Controls - 32 RT120Q Operator’s Manual
Graphic Display
Item Description Notes User Settings Allows operator to customize
settings.
c00ic016w.eps
Gauge Display Press the soft key below this
on screen icon to select.
c00ic017w.eps
Diagnostics Displays interlock icons and
diagnostic codes, if any. Press soft key below on
screen icons to return to main menu or gauge display.
c00ic018w.eps
Note: If diagnostic codes are displayed, contact your Ditch Witch dealer.
CMW
Graphic Display

System Settings

SYSTEM
Component
Application
OS
Bootloader Configuration
SETTINGS
VERSION Part No.
10155
10081
10146
Release
Release
Release Beta
3
2
3
2
3
2
0 0
1 1
78333159
78333166
78333156
RT120QT4i
Back
t37om043w.eps
Copyright
Item Description Notes
2012 The Charles Machine Works
Back Press soft key below this icon
to return to previous screen.
c00ic011w.eps
Press center soft key to display gauge screen.
CMW
Controls - 34 RT120Q Operator’s Manual
Graphic Display

User Settings

SETTINGS
USER
1
Ambient Light
Language English
Day
100%Brightness
USA Standard Units
2
Back Save Reset
3
4
t33om092w.eps
Item Description Notes Back Press soft key below this icon
to return to previous screen.
c00ic011w.eps
Down Press soft key below this icon
to toggle through selections
Press center soft key to display gauge screen.
Press center soft key to display gauge screen.
1-4.
c00ic012w.eps
CMW
Graphic Display
Item Description Notes Save Press soft key below this icon
to save settings.
c00ic013w.eps
Reset Press soft key below this icon
to return to default settings.
c00ic014w.eps
Day/Night Press soft key below this icon
to select day or night mode.
c00ic010w.eps
CMW
Controls - 36 RT120Q Operator’s Manual
Graphic Display

Diagnostics

t37om044w.eps
N
MAIN
MENU
GAUGE
DISPLAY
N
Note: If diagnostic codes are displayed, contact your Ditch Witch dealer.
Item Description Notes Attachment Neutral Indicates attachment controls
in neutral position.
N
c00ic021w.eps
CMW
Graphic Display
Item Description Notes Operator Presence Indicates operator presence
for start interlock status.
c00ic001w.eps
Ground Drive Neutral Indicates ground drive
controls in neutral position.
N
c00ic022w.eps
Main Menu Press soft key below this icon
to return to previous screen.
c00ic019w.eps
Gauge Display Press the soft key below this
on screen icon to select.
c00ic017w.eps
Press center soft key to display gauge screen.
CMW
Controls - 38 RT120Q Operator’s Manual
Graphic Display
Item Description Notes Engine stop Press to stop engine from
backhoe operator’s station.
c00ic649w.eps
Switch must be raised (reset) to allow engine starting.
CMW

Right Console

Right Console
12345
t37om005w.eps
1. Backfill blade lift/tilt or reel winder control
2. Rear steer control*
3. Rear steer manual/auto control*
4. Frame tilt control
5. Throttle *option
CMW
Controls - 40 RT120Q Operator’s Manual
Right Console
Item Description Notes
1. Backfill blade lift/tilt
function control
c00ic625w.eps
Reel winder function control
c00ic207h.eps
Backfill blade mode:
• To lower, move forward.
• To float, move forward to
end.
• To raise, move backward.
• To tilt right side down,
move right.
• To tilt left side down,
move left.
Reel winder mode:
• To unwind, move forward.
• To wind, move backward.
• To lower reel winder arm,
move right.
• To raise reel winder arm,
move left.
Reel winder mode selector switch on center console changes function to control reel winder arm lift and winder direction.
2. Rear steer switch To move rear tracks left, press left.
To move rear tracks right, press right.
3. Rear steer manual/auto
To center tracks, press right.
switch
To manually steer rear tracks, press left.
NOTICE:
• Tracks move when you press the switch. To stop movement, release switch.
• Visually verify track position
Use manual mode and the manual rear steer switch to bypass auto mode.
CMW
Item Description Notes
4. Frame tilt control To tilt left, press left.
To tilt right, press right.
c00ic626w.eps
5. Throttle To increase speed, move forward.
To decrease speed, move rearward.
CMW
Controls - 42 RT120Q Operator’s Manual

Left Console

Left Console
1
t37om006w.eps

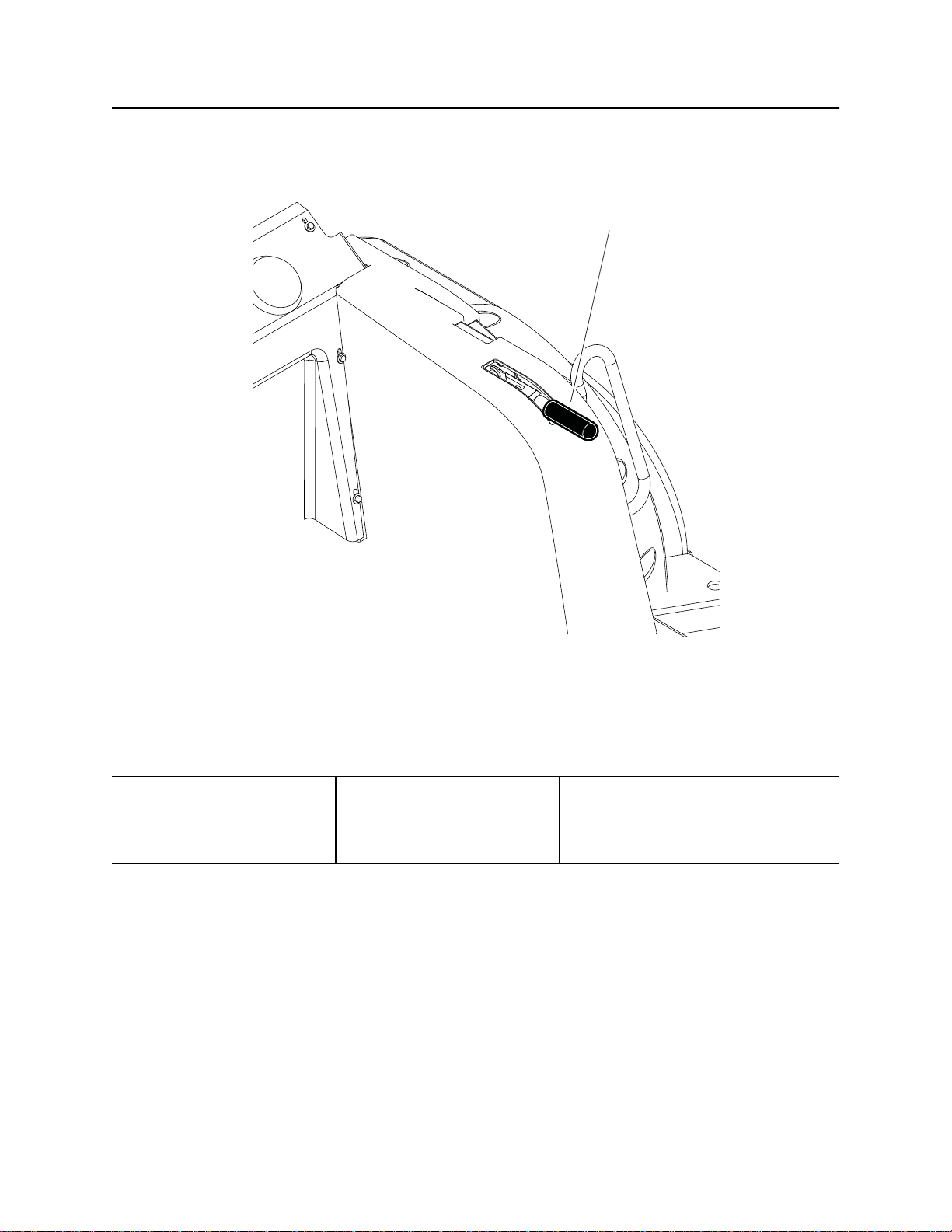

1. Parking brake control
1. Parking brake control To set brake, pull handle up. To release brake, push
handle down.
Engaged parking brake disables ground drive.
CMW

Rear Console

Rear Console
12
t37om007w.eps
1. Cruise control selector switch 2. Cruise control rpm dial control
1. Cruise control selector To turn on, press top. Switch indicator and display should indicate that cruise mode is activated.
To turn off, press top again. Switch indicator and display should indicate that cruise
c00ic630w.eps
mode is deactivated.
Turn on cruise control only when:
• ground drive motor control is in low
• ground drive is in neutral
Hand and foot controls must be in neutral or cruise control switch input will be ignored.
CMW
Controls - 44 RT120Q Operator’s Manual
&2
2. Cruise control rpm dial control
RPM
&2
c00ic629w.eps
To decrease engine load while using cruise control, turn clockwise.
To increase engine load while using cruise control, turn counterclockwise.
This typically decreases engine load temporarily.
This typically increases engine load temporarily.
CMW
1
2
t33om002w.eps

Seat Console

Seat Console
2
1
t33om002w.eps
1. Ground drive speed control 2. Attachment speed/direction control
Item Description Notes
1. Ground drive speed control
c00ic631w.eps
To go faster in either direction, move farther from neutral.
To stop, return to center.
NOTICE: Control does not automatically return to neutral.
IMPORTANT: This control is disabled in high gear.
CMW
Controls - 46 RT120Q Operator’s Manual
Seat Console
Item Description Notes
2. Attachment speed/ direction control
c00ic632w.eps
To go faster in either direction, move farther from neutral.
To stop, return to center.
NOTICE: Control does not automatically return to neutral.
CMW
1
2
2
1
3
4
t33om003w.eps

Seat Deck

Seat Deck
1
2
1
2
3
t33om003w.eps
1. Seat belt
2. Armrest adjustment control
3. Seat slide control
Item Description Notes
1. Seat belt To fasten, insert latch into
2. Armrest adjustment control
buckle. Adjust until seat belt is low and tight.
To release, lift top of buckle. To raise or lower armrests:
• Remove knob.
4. Seat height adjustment lock
5. Seat pivot control
4
5
• Adjust armrest to desired position.
• Replace knob.
CMW
Controls - 48 RT120Q Operator’s Manual
Seat Deck
Item Description Notes
3. Seat slide control To slide seat forward or
backward, pull, then adjust seat.
To lock seat in place, release.
4. Seat height adjustment lock
5. Seat pivot control To pivot seat to the right, pull.
To lock seat height, turn clockwise.
To unlock seat height, turn counterclockwise.
To lock seat in position, release.
To return seat to front-facing position, swing seat left.
Seat pivots only to the right and can be locked in any position from 0-90°.
IMPORTANT: Drive tractor with operator’s seat facing front. If desired, operate rear attachments with seat pivoted.
CMW

Trencher Controls

Trencher Controls
123
t37om008w.eps
1. Trencher slide control*
2. Trench cleaner lift control*
Item Description Notes
1. Trencher slide control (H911 only)
c00ic198h.eps
To slide trencher right, push. To slide trencher left, pull.
3. Boom lift control
*optional
CMW
Controls - 50 RT120Q Operator’s Manual
Trencher Controls
Item Description Notes
2. Trench cleaner lift control
3. Boom lift control To lower, push.
To lower, push. To raise, pull.
To raise, pull.
CMW

Plow Controls

Plow Controls
123 4
t37om009w.eps
1. Plow swing control
2. Blade steer control
Item Description Notes
1. Plow swing control To swing left, pull.
To swing right, push. To float, push to end.
c00ic202h.eps
3. Plow lift control
4. Stow lock control
NOTICE:
• If soil conditions allow, operate in float position.
• Lower plow into ground before moving control to float position.
• Do not raise plow with control in float position.
CMW
Controls - 52 RT120Q Operator’s Manual
Plow Controls
Item Description Notes
2. Blade steer control To steer right, push.
To steer left, pull.
c00ic203h.eps
3. Plow lift control To raise, pull. To lower, push. To float, push to end.
c00ic204h.eps
4. Stow lock control To lock:
• Raise plow fully.
• Pull stow lock handle.
• Lower plow slightly to
engage lock.
c00ic643w.eps
To unlock:
• Raise plow slightly.
• Push stow lock handle to
release lock.
NOTICE:
• If soil conditions allow, operate in float position.
• Lower plow into ground before moving control to float position.
Use this control to lock plow in the up position.
CMW

Combo Controls

Combo Controls
1234 5 6
t37om010w.eps
1. Plow swing control
2. Blade steer control
3. Plow lift control
Item Description Notes
1. Plow swing control To swing left, pull.
To swing right, push. To float, push to end.
c00ic202h.eps
4. Boom lift control
5. Plow stow lock control
6. Trench / Plow switch
NOTICE:
• If soil conditions allow, operate in float position.
• Lower plow into ground before moving control to float position.
• Do not raise plow with control in float position.
CMW
Controls - 54 RT120Q Operator’s Manual
Combo Controls
2. Blade steer control To steer right, push. To steer left, pull.
c00ic203h.eps
3. Plow lift control To raise, pull. To lower, push. To float, push to end.
c00ic204h.eps
4. Boom lift control To lower, push. To raise, pull.
5. Plow stow lock control To lock:
• Raise plow fully.
• Pull stow lock handle.
NOTICE:
• If soil conditions allow, operate in float position.
• Lower plow into ground before moving control to float position.
Use this control to lock plow in the up position.
CMW
c00ic643w.eps
• Lower plow slightly to engage lock.
To unlock:
• Raise plow slightly.
• Push stow lock handle to release lock.
Combo Controls
6. Trench / Plow switch To trench, set switch to trench position.
To plow, set switch to plow position.
CMW
Controls - 56 RT120Q Operator’s Manual

Backhoe Console

Backhoe Console
t37om046w.eps
1. Remote backfill blade control*
2. Left stabilizer control
3. Boom/Swing control
4. Remote throttle control switch
5. Remote throttle enable switch
6. Work light switch*
7. Swing lock pin
8. Ground drive switch
9. Remote engine stop switch
10. Bucket/Dipper control
11. Stow lock control
12. Right stabilizer control
*optional
CMW
Backhoe Console
Item Description Notes
1. Remote backfill blade
control
2. Left stabilizer control To lower, push out.
3. Boom/Swing control To swing boom left, move left.
To lower, push. To raise, pull.
To raise, pull in.
To swing boom right, move right.
Control can perform more than one action at a time. By “feathering” the control, operator can combine
backhoe operations. To raise boom, pull. To lower boom, push.
4. Remote throttle To increase engine speed, press top.
To decrease engine speed, press bottom.
c00ic029w.eps
NOTICE: Do not operate with backhoe in the stowed (upright) position.
CMW
Controls - 58 RT120Q Operator’s Manual
Backhoe Console
Item Description Notes
5. Remote throttle enable To enable remote throttle
control, press top. To disable remote throttle
control, press bottom.
c00ic030w.eps
6. Work light switch To turn on, press right. To turn off, press left.
7. Swing lock pin To lock:
• Engage stow lock.
• Insert swing lock pin into
hole (1).
Note: This switch must be returned to the OFF position for normal throttle control at tractor.
This pin locks boom from swinging during transport.
8. Remote ground drive
control
c00ic216h.eps
To release:
• Remove pin and store in
hole (2).
• Release stow lock. To move tractor forward,
push. To move tractor backward,
pull.
NOTICE: Do not store pin in holes marked with an “X.” Backhoe could swing and destroy pin.
NOTICE:
• This control is disabled if tractor seat is occupied.
• Tractor must be in low speed for remote ground drive to function.
• Ensure that backfill blade, if equipped, and stabilizers are raised before operating this control.
• Do not move more than 30’ (10 m) at a time.
CMW
Backhoe Console
Item Description Notes
9. Remote engine stop switch
10. Bucket/Dipper control To open bucket, move right.
11. Stow lock control To lock:
Press to stop engine immediately.
To close bucket, move left. To move dipper in, pull. To move dipper out, push.
• Raise boom fully.
• Pull stow lock handle.
• Lower boom slightly to engage lock.
For normal engine shutdown, use ignition switch.
Note: This switch must be returned to the UP position to allow engine restarting.
Control can perform more than one action at a time. By “feathering” the control, operator can combine backhoe operations.
Use this control to lock boom in the up position.
NOTICE: Always use stow lock and install swing lock pin during transport.
• Insert swing lock pin.
To unlock:
• Remove swing lock pin.
• Raise boom slightly.
• Push stow lock handle to release lock.
12. Right stabilizer control To lower, push out. To raise, pull in.
When unlocked, store swing lock pin in holder located on left stabilizer support.
CMW
Controls - 60 RT120Q Operator’s Manual

Saw Controls

Saw Controls
12
t37om045w.eps
1. Saw slide control 2. Saw lift control
Item Description Notes
1. Saw slide control To slide saw right, push.
To slide saw to center, pull.
CMW
Item Description Notes
2. Saw lift control To lower, push.
To raise, pull.
c00ic209h.eps
CMW
Controls - 62 RT120Q Operator’s Manual

Drill Controls

Drill Controls
1
t33om063w.eps
1. Drilling attachment control 2. Drilling attachment
Item Description Notes
1. Drilling attachment
control
c00ic655w.eps
To rotate clockwise, press bore.
To rotate counterclockwise, press reverse.
IMPORTANT: Always rotate clockwise during drilling and backreaming. Rotate counterclockwise only to dislodge a dry bore bit or reamer that has seized in the bore hole.
Switch should return to neutral position when released.
2
CMW

Battery Disconnect

Battery Disconnect
1
t37om011w.eps
1. Battery disconnect switch
Item Description Notes
1. Battery disconnect
switch
c00ic654w.eps
To connect, move left. To disconnect, move right.
NOTICE: Do not operate battery switch with engine running.
CMW
Controls - 64 RT120Q Operator’s Manual
CMW

Operation Overview

Chapter Contents
Planning. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 66
Trenching. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 66
Plowing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 66
Drilling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 66
Digging with Backhoe . . . . . . . . . . . . . . . . . . . . . . 67
Sawing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 67
Leaving Jobsite. . . . . . . . . . . . . . . . . . . . . . . . . . . . 67
CMW
Operation Overview - 66 RT120Q Operator’s Manual

Planning

Planning
1. Gather information about jobsite. See page 70.
2. Inspect jobsite. See page 71.
3. Classify jobsite. See page 72.
4. Select chain and teeth to match your soil type, if necessary. See page 140
5. Check supplies and prepare equipment. See page 74.
6. Haul equipment to jobsite. See page 88.

Trenching

1. Start unit. See page 76.
2. Position tractor and controls. See page 94.
3. Begin trenching. See page 96.
4. Engage cruise control if desired. See page 138.
5. Complete the installation. See page 99.
6. Shut down tractor. See page 80.

Plowing

1. Start unit. See page 76.
2. Position tractor and controls. See page 102.
• offset plowing - page 109
• coordinated plowing - page 109
• crabbing - page 109
3. Attach product. See page 103.
4. Begin plowing. See page 105.
5. Engage cruise control if desired. See page 138.
6. Complete the installation. See page 108.
7. Shut down tractor. See page 80.

Drilling

1. Start unit. See page 76.
2. Dig approach trench and target trench. See page 123.
3. Assemble drill string and position tractor. See page 124.
CMW

Digging with Backhoe

4. Begin drilling. See page 125.
5. Use drill string guide as needed. See page 126.
6. Add rod. See page 127.
7. Backream. See page 127.
8. Shut down tractor. See page 80.
9. Disassemble joints. See page 128.
Digging with Backhoe
1. Start unit. See page 76.
2. Set stabilizers and unstow backhoe. See page 116.
3. Excavate. See page 117.
4. Stow backhoe properly. See page 118.
5. Shut down tractor. See page 80.

Sawing

1. Start unit. See page 76.
2. Position tractor and controls. See page 130.
3. Begin sawing. See page 132.
4. Complete the installation. See page 134.
5. Backfill the trench. See page 144.
6. Shut down tractor. See page 80.

Leaving Jobsite

1. Backfill if necessary. See page 144.
2. Rinse equipment. See page 144.
3. Stow tools. See page 144.
4. Haul equipment from jobsite. See page 88.
CMW
Operation Overview - 68 RT120Q Operator’s Manual
Leaving Jobsite
CMW

Prepare

Chapter Contents
Gather Information . . . . . . . . . . . . . . . . . . . . . . . . . 70
• Review Job Plan . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 70
• Notify One-Call Services. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 70
• Arrange for Traffic Control. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 70
• Plan for Emergency Services . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 70
Inspect Site . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 71
• Identify Hazards . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 71
Classify Jobsite. . . . . . . . . . . . . . . . . . . . . . . . . . . . 72
• Inspect Jobsite . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 72
• Select a Classification. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 72
• Apply Precautions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 73
Check Supplies and Prepare Equipment . . . . . . . 74
• Supplies . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 74
• Fluid Levels. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 74
• Condition and Function. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 74
• Accessories. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 74
CMW
Prepare - 70 RT120Q Operator’s Manual

Gather Information

Gather Information
A successful job begins before you dig. The first step in planning is reviewing information already available about the job and jobsite.

Review Job Plan

Review blueprints or other plans. Check for information about existing or planned structures, elevations, or proposed work that may be taking place at the same time.

Notify One-Call Services

Contact your local One-Call (811 in USA) or the One-Call referral number (888-258-0808 in USA and Canada) to have underground utilities located before digging. Also contact any utilities that do not participate in the One-Call service.

Arrange for Traffic Control

If working near a road or other traffic area, contact local authorities about safety procedures and regulations.

Plan for Emergency Services

Have the telephone numbers for local emergency and medical facilities on hand. Check that you will have access to a telephone.
CMW

Inspect Site

Inspect Site
Inspect jobsite before transporting equipment. Check for the following:
• changes in elevation such as hills or other open trenches
• obstacles such as buildings, railroad crossings, or streams
• signs of utilities
• traffic
• access
• soil type and condition

Identify Hazards

Identify safety hazards and classify jobsite. See “Classify Jobsite” on page 72.
Jobsite hazards could cause death or serious injury. Use correct equipment and work methods. Use and maintain proper safety equipment.
To Help Avoid Injury:
• Wear personal protective equipment including hard hat, safety eye wear, and hearing protection.
• Do not wear jewelry or loose clothing.
• Notify One-Call and companies which do not subscribe to One-Call.
• Comply with all utility notification regulations before digging or drilling.
• Verify location of previously marked underground hazards.
• Mark jobsite clearly and keep spectators away.
Remember, jobsite is classified by hazards in place -- not by line being installed.
CMW
Prepare - 72 RT120Q Operator’s Manual

Classify Jobsite

Classify Jobsite

Inspect Jobsite

• Follow U.S. Department of Labor regulations on excavating and trenching (Part 1926, Subpart P) and other similar regulations.
• Contact your local One-Call (811 in USA) or the One-Call referral number (888-258-0808 in USA and Canada) to have underground utilities located before digging. Also contact any utilities that do not participate in the One-Call service.
• Inspect jobsite and perimeter for evidence of underground hazards, such as: – “buried utility” notices
– utility facilities without overhead lines – gas or water meters – junction boxes – drop boxes – light poles – manhole covers – sunken ground
• Have an experienced locating equipment operator sweep area within 20’ (6 m) to each side of trench path. Verify previously marked line and cable locations.
• Mark location of all buried utilities and obstructions.
• Classify jobsite.

Select a Classification

Jobsites are classified according to underground hazards present.
If working . . . then classify jobsite as . . .
within 10’ (3 m) of a buried electric line electric within 10’ (3 m) of a natural gas line natural gas in sand, granite, or concrete which is capable of producing
crystalline silica (quartz) dust within 10’ (3 m) of any other hazard other
NOTICE: If you have any doubt about jobsite classification, or if jobsite might contain unmarked hazards, take steps outlined previously to identify hazards and classify jobsite before working.
crystalline silica (quartz) dust
CMW
Classify Jobsite

Apply Precautions

Once classified, precautions appropriate for jobsite must be taken.
Electric Jobsite Precautions
Use one or both of these methods.
• Expose line by careful hand digging or soft excavation.
• Have service shut down while work is in progress. Have electric company test lines before returning them to service.
Natural Gas Jobsite Precautions
In addition to positioning equipment upwind from gas lines, use one or both of these methods.
• Expose lines by careful hand digging or soft excavation.
• Have gas shut off while work is in progress. Have gas company test lines before returning them to service.
Crystalline Silica (Quartz) Dust Precautions
Crystalline silica dust is a naturally occurring substance found in soil, sand, concrete, granite, and quartz. Breathing silica dust particles while cutting, drilling, or working materials may cause lung disease or cancer. To reduce exposure:
• Use water spray or other means to control dust.
• Refer to U.S. Department of Labor Occupational Safety and Health Administration guidelines to learn more about appropriate breathing protection and permissible exposure limits.
Other Jobsite Precautions
You may need to use different methods to safely avoid other underground hazards. Talk with those knowledgeable about hazards present at each site to determine which precautions should be taken or if job should be attempted.
CMW
Prepare - 74 RT120Q Operator’s Manual

Check Supplies and Prepare Equipment

Check Supplies and Prepare Equipment

Supplies

• fuel
• keys
• personal protective equipment, such as hard hat and safety glasses

Fluid Levels

• fuel
• hydraulic fluid
• battery charge
• engine oil

Condition and Function

• digging chain and teeth
• brake pads and disc
• fan belts
• light bulbs
• filters (air, oil, hydraulic)
• tracks
• pumps and motors
• hoses and valves
• signs, guards, and shields

Accessories

Fire Extinguisher
If required, mount a fire extinguisher near the power unit but away from possible points of ignition. The fire extinguisher should always be classified for both oil and electric fires. It should meet legal and regulatory requirements.
CMW

Drive

Chapter Contents
Start Unit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 76
Drive. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 78
Safe Slope Operation . . . . . . . . . . . . . . . . . . . . . . . 79
Shut Down . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 80
CMW
Drive - 76 RT120Q Operator’s Manual

Start Unit

Start Unit
Before operating tractor, read engine manufacturer’s starting and operating instructions. Follow instructions for new engine break-in.
Incorrect procedures could result in death, injury, or property damage.
Learn to use equipment correctly.
To help avoid injury:
• Read operator’s manual before operating equipment. Follow instructions carefully. Contact Ditch Witch dealership for operation information or demonstration.
• Wear hard hat, safety glasses, and other protective equipment required by job. Do not wear jewelry or loose clothing that can catch on controls.
Runaway possible. Machine could run over you or others. Learn how to
use all controls. Start and operate only from operator’s position.
Rollover possible. If machine rolls over, you could be thrown from seat
and killed or crushed. Wear seat belt.
CMW
Start Unit
1. Fasten and adjust seat belt.
2. Check that ground drive control and attachment speed/direction control are in neutral.
3. Move throttle to idle.
4. Verify that parking brake is engaged.
5. Turn ignition switch to the run position (key on, engine off). Cold start wait indicator will light (if equipped).
Explosion possible. Serious injury or equipment damage could
occur. Follow directions carefully.
To help avoid injury: Do not use ether or any other type of aerosol starting fluid when unit is equipped with cold start option.
6. When cold start wait indicator goes off, turn ignition switch all the way clockwise to start tractor. Warning alarm will sound. Indicators will light.
• If engine does not crank, check start interlock display.
• If engine turns but does not start within 10 seconds, allow starter to cool before trying to start
again.
Improper control function could cause death or serious injury.
To help avoid injury: Stop machine and have it serviced if control does not work as described in instructions.
IMPORTANT: Machine will not start if start interlock requirements are not met. See page 26 for start interlock information.
7. Run engine at half-throttle or less for five minutes before operating tractor. During warmup, check that all controls work properly.
CMW
Drive - 78 RT120Q Operator’s Manual

Drive

Drive

General Operation

Moving traffic – hazardous situation. Death or serious injury could result.
Avoid moving vehicles, wear high visibility clothing, post appropriate warning signs.
To help avoid injury:
• Drive carefully in congested areas. Know machine’s clearance and turning radius.
• Keep attachments low when operating on slope. Drive slowly and cautiously.
EMERGENCY SHUTDOWN: Turn ignition switch to STOP.
1. Turn on lights as needed.
2. Raise backfill blade and all attachments.
3. Release parking brake.
4. Adjust throttle.
5. When operating in low or medium:
• if using the hand control, the foot control will only increase speed.
• any opposing signal from controls causes ground drive to stop.
6. When operating in high, ground drive stops if hand control is moved out of neutral position.
CMW
Drive

Safe Slope Operation

Tipover possible. Machine can tip over and crush you.
To help avoid injury:
• Always operate with heavy end uphill.
• Drive cautiously at all times.
• Never jerk control levers. Use a steady even motion.
• Do not park unit on slope without lowering digging attachment to the ground, returning all controls to neutral position, shutting down unit, and applying parking brake.
Operating safely on a slope depends upon many factors including:
• Distribution of machine weight, including front loading and absence of load
• Height of load
• Even or rough ground conditions
• Potential for ground giving way causing unplanned tilt forward, reverse or sideways
• Nearness of ditches, ruts, stumps or other obstructions and sudden changes in slope
• Speed
• Turning
• Braking performance
• Operator skill
These varying factors make it impractical to specify a maximum safe operating angle in this manual. It is therefore important for the operator to be aware of these conditions and adjust operation accordingly. Maximum engine angle and braking performance are two absolute limits which must never be exceeded. These maximums are stated below since they are design limits. These design limits usually exceed the operating limits and must never be used alone to establish safe operating angle for variable conditions.
Maximum engine lubrication angle – 30° Maximum service brake retarding force – equal to traction of both tracks. Maximum secondary brake retarding force – equal to traction of one track. Maximum park brake holding force – equal to traction of both tracks.
CMW
Drive - 80 RT120Q Operator’s Manual

Shut Down

Shut Down
1. When job is complete, move ground drive control to neutral.
2. Engage parking brake and verify parking brake indicator is on.
3. Lower all attachments to ground and let machine idle for three minutes to cool.
4. Turn ignition switch to STOP. If leaving machine unattended, remove key.
5. For maintenance or long-term storage, turn battery disconnect switch to disconnect position.
CMW

Transport

Chapter Contents
Lift . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 82
• Points . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 82
• Procedure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 82
Tie Down . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 85
• Points . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 85
• Procedure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 85
Haul . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 88
• Procedure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 88
Tow . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 91
• Procedure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 91
CMW
Transport - 82 RT120Q Operator’s Manual

Lift

Lift
Crushing weight. If load falls or moves it could kill or crush you. Use
proper procedures and equipment or stay away.
Incorrect procedures could result in death, injury, or property damage.
Learn to use equipment correctly.

Points

Lifting points are identified by lifting decals. Lifting at other points is unsafe and can damage machinery.

Procedure

Tractor
This machine is not configured for lifting. If the machine must be lifted, load machine into a container or onto a platform appropriate for lifting. See “Specifications” on page 187 for size and weight of machine.
CMW
Lift
Centerline Trencher
Use crane capable of supporting the equipment's size and weight. See “Specifications” on page 187 or measure and weigh equipment before lifting.
Traversing Trencher
Use crane capable of supporting the equipment's size and weight. See “Specifications” on page 187 or measure and weigh equipment before lifting.
Combo
Use crane capable of supporting the equipment’s size and weight. See “Specifications” on page 187 or measure and weigh equipment before lifting.
CMW
Transport - 84 RT120Q Operator’s Manual
Lift
Plow
Use crane capable of supporting the equipment's size and weight. See “Specifications” on page 187 or measure and weigh equipment before lifting.
Reel Carrier
Use crane capable of supporting the equipment's size and weight. See page 187 or measure and weigh equipment before lifting.
CMW

Tie Down

Tie Down
Incorrect procedures could result in death, injury, or property damage.
Learn to use equipment correctly.

Points

Tiedown points are identified by tiedown decals. Securing to trailer at other points is unsafe and can damage machinery.

Procedure

Tractor
Attach chains at front and rear tiedown points. Make sure chains are tight before transporting unit.
Centerline Trencher
Lower trencher to trailer deck and chain at attachment frame and through boom. Make
sure chains are tight before transporting.
IMPORTANT: If trencher is equipped with a trench cleaner, ensure that trench cleaner shoe is fully up and extra bolt (found in operator’s manual compartment) is installed in appropriate hole for additional support.
t37om012w.eps
CMW
Transport - 86 RT120Q Operator’s Manual
Tie Down
Traversing Trencher
Lower trencher to trailer deck and chain at attachment frame and through boom. Make
sure chains are tight before transporting.
IMPORTANT: If trencher is equipped with a trench cleaner, ensure that trench cleaner shoe is fully up and extra bolt (found in operator’s manual compartment) is installed in appropriate hole for additional support.
Combo
Lower attachment to trailer deck and chain at attachment frame and vibrator box. Make sure chains are tight before transporting.
NOTICE:
• Engage attachment stow lock and swing lock devices in addition to securing at tiedowns.
• Unsecured plow can swing outside the trailer and become a traffic hazard. Lower plow and chain to trailer deck before hauling.
• If trencher is equipped with a trench cleaner, ensure that trench cleaner shoe is fully up and extra bolt (found in operator’s manual compartment) is installed in appropriate hole for additional support.
CMW
Tie Down
Plow
Lower plow to trailer deck and chain at attachment frame and vibrator box. Make sure
chains are tight before transporting.
NOTICE:
• Engage attachment stow lock and swing lock devices in addition to securing at tiedowns.
• Unsecured plow can swing outside the trailer and become a traffic hazard. Lower plow and chain to trailer deck before hauling.
Reel Carrier
Lower reel carrier to lowest position and tie down at attachment arms. Make sure chains are tight before transporting.
CMW
Transport - 88 RT120Q Operator’s Manual

Haul

Haul
Incorrect procedures could result in death, injury, or property damage.
Learn to use equipment correctly.
To help avoid injury:
• Read trailer operator’s manual before loading or transporting your machine. Incorrectly loaded machine can slip or cause trailer sway.
• Ensure that tow vehicle has proper tow capacity rating.
• Attach trailer to tow vehicle before loading or unloading.
• Park, load, and unload trailer on level ground.
• Check that unit and trailer do not exceed size or weight regulations.
• Load trailer correctly to avoid trailer sway. Ten to fifteen percent of total vehicle weight (equipment plus trailer) must be on tongue to help prevent trailer sway.
• Connect safety chains to tow vehicle. Attach left chain to right side of tow vehicle and vice versa to cradle hitch. Do not connect to pintle hook or hitch ball.
• Connect breakaway switch cable to tow vehicle. Do not connect to pintle hook or hitch ball.

Procedure

Inspect Trailer
1. Check hitch for wear and cracks. Lubricate if needed.
2. Check battery for 12V charge.
3. Inspect lights for cleanliness and correct operation. Inspect reflectors and replace if needed.
4. Check trailer tire pressure. Check lug nut torque with a torque wrench. Adjust if needed.
5. Ensure trailer brakes are adjusted to come on in synchronization with tow vehicle brakes.
6. Check ramps and trailer bed for cracks.
CMW
Haul
Load
Crushing weight. If load falls or moves it could kill or crush you. Use
proper procedures and equipment or stay away.
To help avoid injury:
• Attach trailer to tow vehicle before loading or unloading.
• Load and unload trailer on level ground.
• Block trailer wheels.
• Put ground drive control into neutral. Turn off ignition. Set parking brake.
Rollover possible. If machine rolls over, you could be thrown from seat
and killed or crushed. Wear seat belt.
1. Fasten and adjust seat belt.
2. Tilt steering column down.
3. Start tractor. See page 76 for proper start-up procedures.
4. Raise attachments, but keep them low and centered. Check that they are not in float.
5. Release parking brake and verify that parking brake indicator is off.
6. Move ground drive switch to low.
7. Slow engine to low throttle and slowly drive tractor onto trailer.
8. Position tractor on trailer deck for proper weight distribution.
9. Engage parking brake and verify that parking brake indicator is on.
10. Lower attachments to trailer bed and turn tractor off. See page 80 for proper shutdown procedures.
11. Attach chains to tractor and attachments where tiedown decals are located. See page 85.
CMW
Transport - 90 RT120Q Operator’s Manual
Haul
Unload
Crushing weight. If load falls or moves it could kill or crush you. Use
proper procedures and equipment or stay away.
NOTICE:
• Attach trailer to tow vehicle before loading or unloading.
• Load and unload trailer on level ground.
• Block trailer wheels.
Rollover possible. If machine rolls over, you could be thrown from seat
and killed or crushed. Wear seat belt.
1. Lower trailer or ramps.
2. Check that parking brake is engaged and verify that parking brake indicator is on.
3. Check that ground drive controls are in neutral.
4. Remove chains from tiedowns.
5. Fasten and adjust seat belt.
6. Tilt steering column down.
7. Start tractor. See page 76 for proper start-up procedures.
8. Raise attachments, but keep them low and centered. Check that they are not in float.
9. Release parking brake and verify that parking brake indicator is off.
10. Slow engine to low throttle and slowly back unit down trailer or ramps.
CMW
Tow
Tow
Incorrect procedures could result in death, injury, or property damage.
Learn to use equipment correctly.
Under normal conditions, tractor should not be towed. If tractor becomes disabled and towing is necessary:
• Do not tow for more than 200 yd (180 m).
• Tow at less than 1 mph (1.6 km/h).
• Steering will be very difficult.

Procedure

1. Engage parking brake.
2. Block front and rear tracks to prevent unit from rolling.
3. Attach tow line to all available tie-down points facing towing vehicle.
4. Activate the tow valve (shown).
• Remove floor plate.
• Locate two hex-shaped relief valves.
• Turn each valve (whole hex)
counterclockwise three complete revolutions.
NOTICE: Do not turn tow valve more than three revolutions.
• Replace floor plate.
5. Remove blocks.
6. Fasten seat belt and adjust seat belt.
7. Disengage parking brake.
Warning: While towing, unit will not have brakes.
t37om013w.eps
8. After towing, turn tow valve clockwise three complete revolutions.
CMW
Transport - 92 RT120Q Operator’s Manual
Tow
CMW

Trench

Chapter Contents
Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 94
Operation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 96
CMW
Trench - 94 RT120Q Operator’s Manual

Setup

Setup
EMERGENCY SHUTDOWN - Turn ignition switch to STOP.
Crushing weight could cause death or serious injury. Use proper
procedures and equipment or stay away.
To help avoid injury: Use attachments or counterweights to make front and rear loads balance when all attachments are raised. Contact your Ditch Witch dealer about counterweighting for your equipment.
Jobsite hazards could cause death or serious injury. Use correct equipment and work methods. Use and maintain proper safety equipment.
To help avoid injury: Comply with all utility notification regulations before digging or drilling.
Incorrect procedures can result in death, injury, or property damage.
Learn to use equipment correctly.
NOTICE: The RT120Q is programmed to operate with the original attachment (trencher or plow) configuration. If you change attachments, contact your Ditch Witch dealer to make sure the electronic programming is updated. If you change attachments without updating the electronic programming, your attachment may not function correctly.
CMW
Setup
1. If using optional trench cleaner, remove bolt installed for transport.
2. Fasten and adjust seat belt.
3. Start tractor. See page 76 for start-up procedures.
4. Drive to starting point. Move in line with planned trench. See page 78 for driving procedures.
5. Engage parking brake and verify parking brake indicator is on.
6. Move ground drive switch to low.
7. Turn seat to the desired position.
8. Engage axle lock.
9. Lower boom to just above ground.
10. Check that attachment speed/direction control is in neutral.
11. Check that boom is in line with planned trench.
CMW
Trench - 96 RT120Q Operator’s Manual

Operation

Operation
Incorrect procedures could result in death, injury, or property damage.
Learn to use equipment correctly.
To help avoid injury:
• Comply with all utility notification regulations before digging or drilling.
• Notify companies that do not subscribe to One-Call.
Breathing crystalline silica dust may cause lung disease. Cutting, drilling, or working materials such as concrete, sand, or rock containing quarts may result in exposure to silica dust. Use dust control methods or appropriate breathing protection when exposed to silica dust.
Electrical shock. Contacting electrical lines will cause death or serious
injury. Know location of lines and stay away. To help avoid injury: Expose lines by hand before digging. Cutting high voltage cable can
cause electrocution.
Flying objects thrown by machine may strike people. Wear hard hat and safety glasses.
CMW
Operation
Start Trench
1. Lower backfill blade, if equipped, to reduce shock when trenching begins.
2. If equipped with combo, set trench/plow switch to the trench position.
3. Move attachment speed/direction control to desired speed. DIGGING CHAIN WILL MOVE.
Moving digging teeth will cause death or serious injury. Stay away.
To help avoid injury:
• Machine might jerk when digging starts. Allow 3’ (1 m) between digging teeth and obstacle.
• Keep everyone at least 6’ (2 m) from machine, attachments, and their range of movement.
4. Set throttle to full engine speed.
5. Lift trench cleaner, if equipped.
6. Slowly lower digging boom to desired trench depth.
CMW
Trench - 98 RT120Q Operator’s Manual
Operation
Move Forward
1. Raise backfill blade, if equipped.
2. Release parking brake, if set, and verify parking brake indicator is off.
3. If using trench cleaner:
• Use ground drive foot control to move forward about 1 foot (30 cm), or until there is enough room for trench cleaner to enter trench.
• Return ground drive control to neutral to stop forward movement.
• Raise boom slightly, then fully lower trench cleaner to lock it in place.
• Lower boom to desired trench depth.
NOTICE:
• Do not have trench cleaner in working position when starting a trench.
• Do not back up with trench cleaner in working position.
• Do not use trench cleaner in working position in conditions where large rocks can get between chain and cleaner.
4. Move ground drive hand control to desired speed. Always start trenching with ground drive speed set at low. Increase ground drive speed only as soil conditions permit.
IMPORTANT:
• Ground drive speed/direction can be controlled with foot pedal or hand lever. When trenching, set ground drive speed with hand lever. Use foot pedal to temporarily adjust speed if digging conditions change for a short distance.
• For cruise control operation, see page 138.
5. Operate engine at full throttle when working.
NOTICE:
• Do not make sharp turns. Lower boom to full depth when turning.
• If an object becomes lodged in chain, move attachment speed/direction control to neutral and raise boom slightly. Reverse chain direction. If object must be removed manually, turn engine off and engage parking brake.
CMW
Operation
Finish Trenching
1. When trench is complete, move ground drive hand control to neutral.
2. Adjust throttle to low idle.
3. Raise boom.
4. As boom clears top of trench, move attachment speed/direction control to neutral.
5. Raise trench cleaner.
6. Swivel seat to the drive position.
7. Disengage axle lock.
IMPORTANT: Drive tractor in reverse 6’ (2 m) while turning steering wheel left to right to fully disengage axle lock.
8. Drive a short distance away from work site. See page 78 for driving procedures.
9. Shut down tractor. See page 80 for proper shutdown procedures.
10. Stow trench cleaner.
CMW
Loading...
Buy Points How it Works FAQ Contact Us Questions and Suggestions Privacy Policy Cookie Policy Terms of Use
