Ditch Witch ht25 Service Manual

HT25 - SERVICE

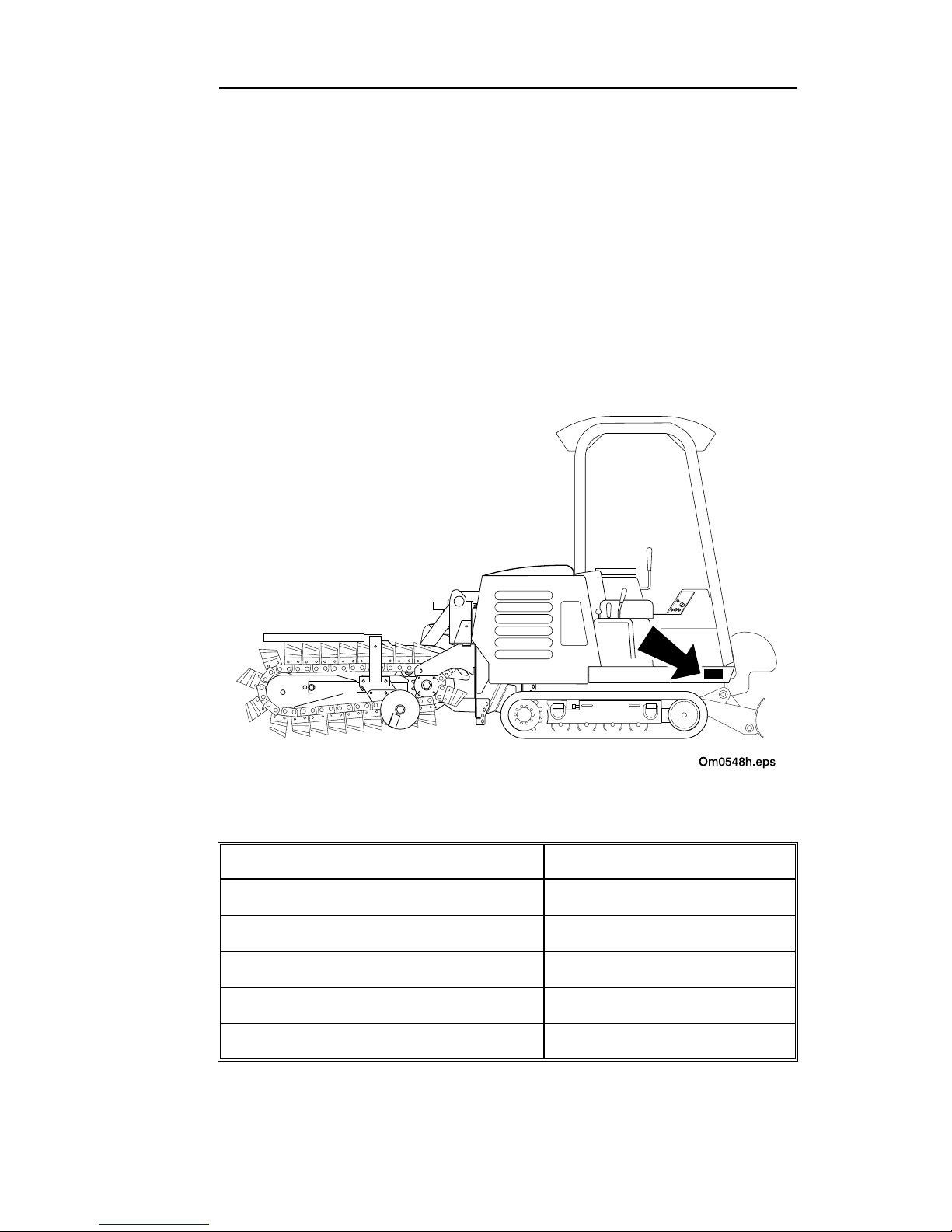

SERIAL NUMBER RECORD

SERVICE

SERIAL NUMBER RECORD

Record serial number and date of purchase in spaces provided. Tractor serial number is located as shown.

Date of Manufacture: Date of Purchase: Tractor Serial Number: Front Attachment Serial Number: Engine Serial Number: Trailer Serial Number:

HT25 - SERVICE

SUPPORT PROCEDURE

Notify your dealer immediately of any malfunction or failure of Ditch Witch equipment.

Always give model, serial number, and approximate date of equipment purchase. This information should be recorded and placed on file by owner at time of purchase.

Return damaged parts to dealer for inspection and Warranty consideration.

Order genuine Ditch Witch replacement or repair parts from your authorized Ditch Witch dealer. Use of another manufacturer's parts may void warranty.

RESOURCES

Publications

Contact your Ditch Witch dealer for publications covering operation, service, and repair of your equipment.

Ditch Witch Training

Fo r inf ormati on about on-s ite, indivi duali z ed tr ainin g, conta ct y our Ditch Witch dealer.

HT25 - FOREWORD

FOREWORD

This manual is an important part of your equipment. It provides safety information and operation instructions to help you use and maintain your Ditch Witch equipment.

Read this manual before using your equipment. Keep it with the equipment at all times for future reference. If you sell your equipment, be sure to give this manual to the new owner.

If you need a replacement copy, contact your Ditch Witch dealer. If you need assistance in locating a dealer, visit our website at

www.ditchwitch.com

or write to the following address:

The Charles Machine Wor ks, Inc. Attn: Marketing Department PO Box 66 Perry, OK 73077-0066 USA

The descript ion s and sp eci fi ca tions in this manual are subject to change. The Charles Machine Works, Inc. reserves the right to improve equipment. Some product improvements may hav e taken place after this manual was published. For the latest information on Ditch Witch equipment, see your Ditch Witch dealer.

Thank you for buying and using Ditch Witch equipment.

HT25 - FOREWORD

Operator's Manual

Issue Number 1.0/OP-4/00

Part Number 054-062

by The Charles Machine Works, Inc.,

Perry, Oklahoma

, Ditch Witch, Jet Trac, Pro Tech, Fluid Miser, P erma-Soil, Modularmatic, Roto Witch, AutoCrowd, and Subsite are registered trademarks of The Charles Machine Works, Inc.

CMW is a trademark of The Charles Machine Works, Inc.

Pierce Airrow is a registered trademark of Oklahoma Airrow, Inc.

HT25 - CONTENTS

CONTENTS

SERVICE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1

Serial Number Record. . . . . . . . . . . . . . . . . . . . . . . . . . 1

Support Procedure . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

Resources. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2

FOREWORD. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

OVERVIEW. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

CONTROLS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11

Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11

Descriptions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12

SAFETY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

Accessories. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20

Underground Hazards. . . . . . . . . . . . . . . . . . . . . . . . .20

Emergency Procedures. . . . . . . . . . . . . . . . . . . . . . . . 21

Jobsite Classification. . . . . . . . . . . . . . . . . . . . . . . . . . 24

Safety Alert Classifications . . . . . . . . . . . . . . . . . . . . .28

Safety Alerts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .29

HT25 - CONTENTS

TRACTOR . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35

Daily Inspection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35

Startup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36

Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38

Shutdown . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38

TRANSPORTATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39

Lift . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39

Tiedown . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40

Haul . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41

Tow . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44

TRENCHING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45

Control Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45

Control Descriptions. . . . . . . . . . . . . . . . . . . . . . . . . . 46

Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47

Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49

Operating Tips . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51

Optional Equipment . . . . . . . . . . . . . . . . . . . . . . . . . . 51

BACKHOE. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53

Control Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53

Control Descriptions. . . . . . . . . . . . . . . . . . . . . . . . . . 54

Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56

Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57

HT25 - CONTENTS

LUBRICATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .59

Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .60

Schedule . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .61

Engine. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .62

Ground Drive. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .64

Hydraulics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .66

Trencher . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .68

Backfill Blade. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .71

MAINTENANCE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .73

Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .74

Engine. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .75

Ground Drive. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .80

Hydraulics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .83

Electrical . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 84

Trencher . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .85

SPECIFICATIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .93

HT25 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .93

A225 Backhoe. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .97

HT25 - CONTENTS

HT25 - OVERVIEW

OVERVIEW

The HT25 is a 25 hp (18.6 kW) riding tractor that can be fitted with a centerline, wide centerline, or offset digging boom. Optional cab, backfill blade, backhoe, drilling attachment, and mechanical trench cleaner are available. The HT25 is designed to cut trenches up to 36 in (91 cm) deep and 16 in (40 cm) wide.

1. Digging boom

2. Lift/tiedown point

3. Engine compartment

4. Rollover Protective Structure

5. Operator’s position

6. Control console

7. Lift/tiedown point

8. Backfill blade* *optional

HT25 - OVERVIEW

HT25 - CONTROLS

OVERVIEW

CONTROLS

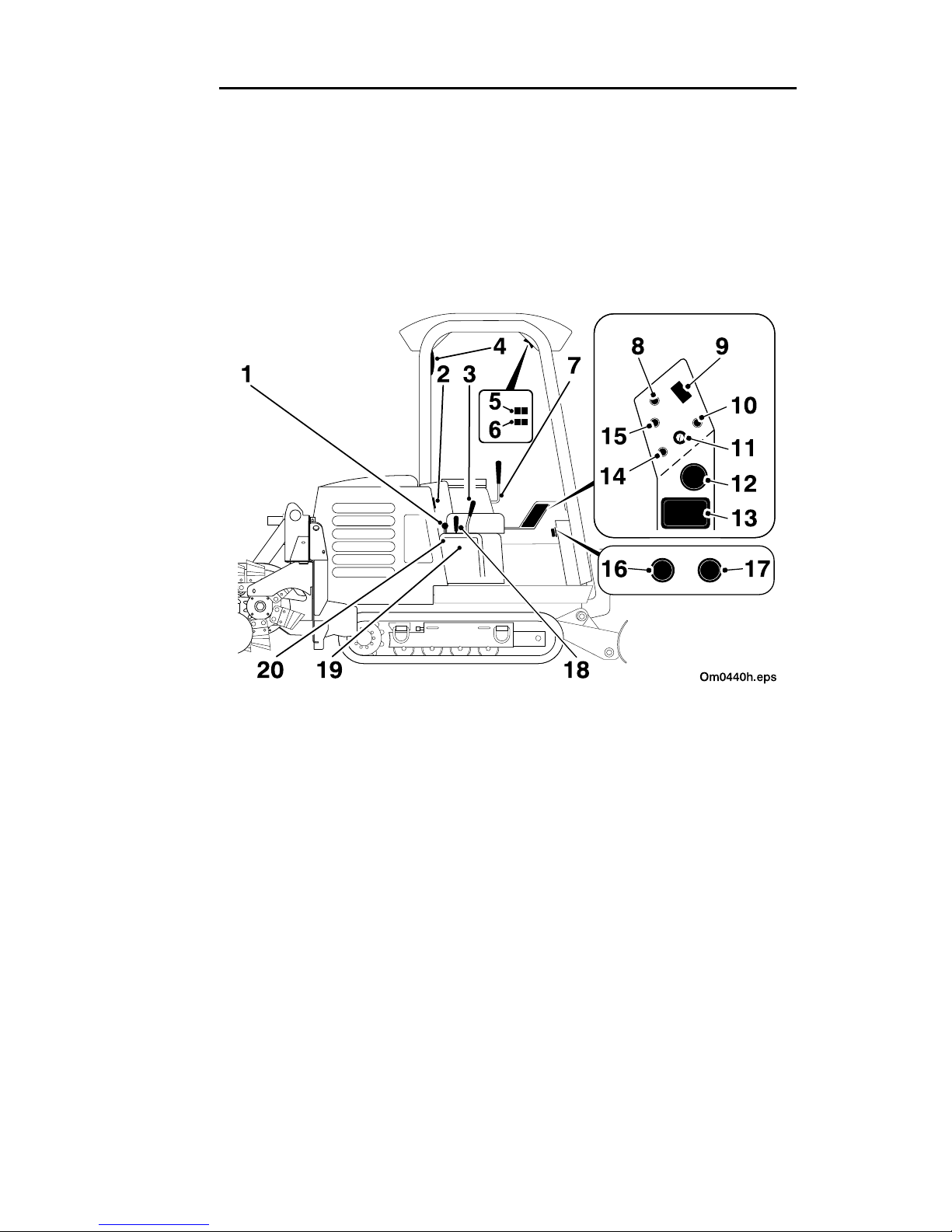

OVERVIEW

1. Throttle

2. Accessory socket*

3. Backfill blade control*

4. Dome light switch*

5. Windshield wiper switch*

6. Work light switch*

7. Track controls

8. Horn button

9. Digging chain control**

10. Glow plug control

11. Ignition switch

12. Fuel gauge

13. Start interlock indicators

14. Engine water temperature indicator

15. Engine oil pressure indicator

16. Heater fan control*

17. Heater temperature control*

18. Boom lift control**

19. Battery disconnect*

20. Hourmeter

* Optional **See

TRENCHING

for a description of

this control.

HT25 - CONTROLS

DESCRIPTIONS

Throttle

This lever controls engine speed.

• Push to increase speed.

• Pull to reduce speed.

Accessory Socket

This optional outlet can be used to provide power for work lights or other equipment.

ic0128h.eps

HT25 - CONTROLS

DESCRIPTIONS

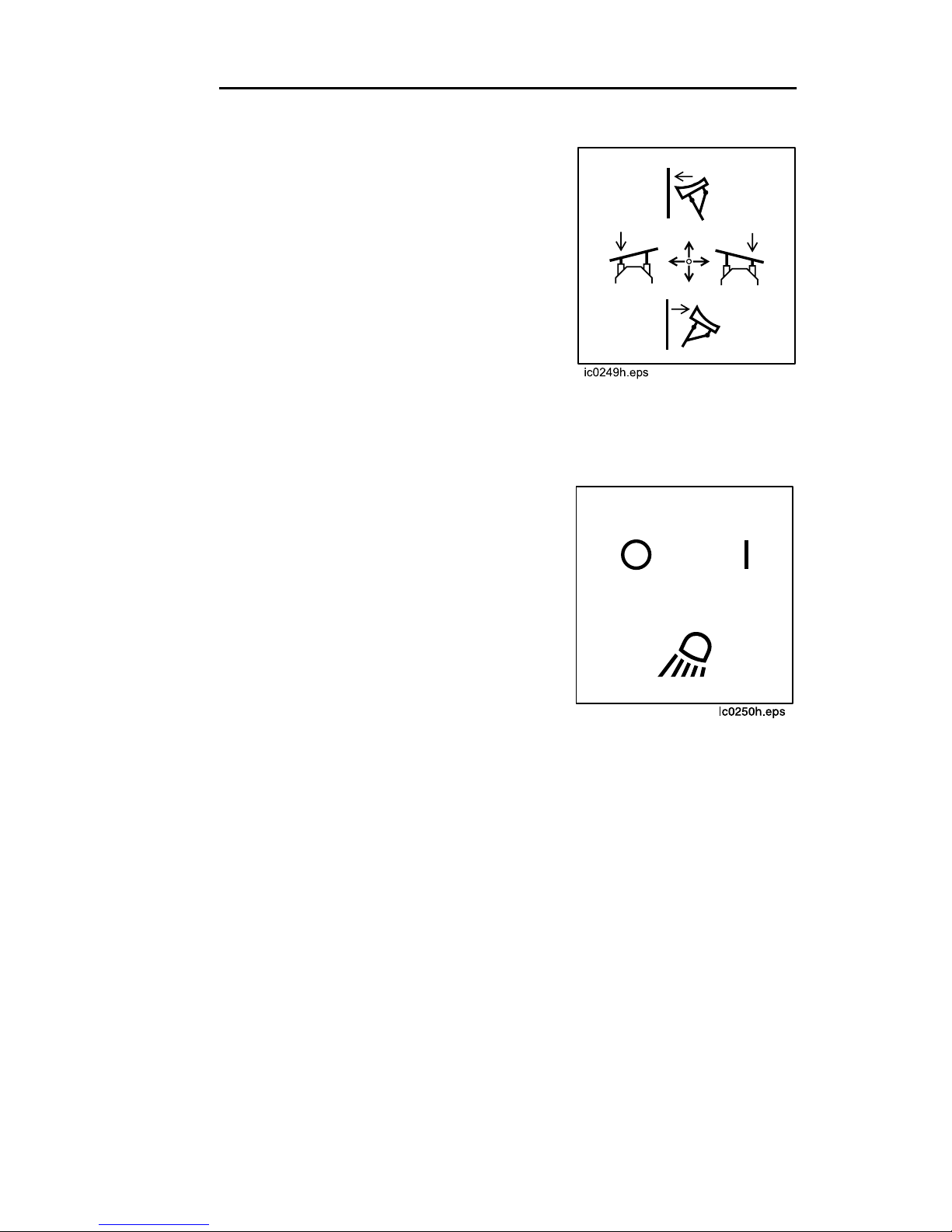

Backfill Blade Control

This optional lever raises, lowers, and swings backfill blade.

• Push to lower blade.

• Pull to raise blade.

• Move right to swing blade

right.

• Move left to swing blade left.

Work Light Switch

This optional switch controls front and rear work lights.

• Press right to turn on.

• Press left to turn off.

Dome Light Switch

This optional button controls interior dome light.

• Press top to turn on.

• Press bottom to turn off.

HT25 - CONTROLS

DESCRIPTIONS

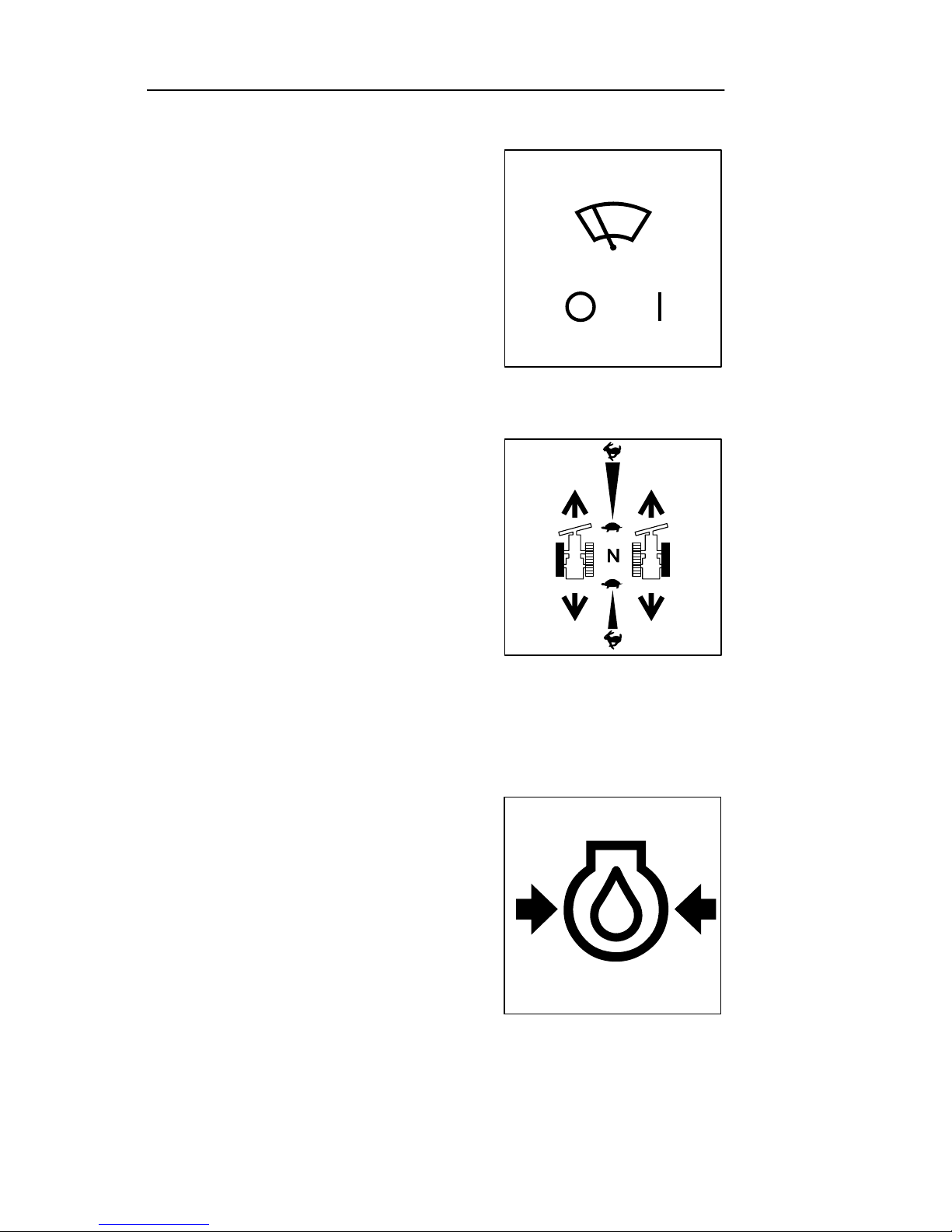

Windshield Wiper Switch

This option al swit ch controls windshield wipers.

• Press right to turn on.

• Press left to turn off.

Track Controls

These levers, used together, control left and right track speed and direction.

• Push to go forward.

• Pull to go backward.

• Return to neutral to stop.

• Use together to steer.

Engine Oil Pressure Indicator

This indicator lights when oil pressure is low. Light will come on briefly when engine is started.

If light remains on:

• Turn off engine.

• Check oil level.

• Check for leaks before starting

engine.

Ic0225h.eps

Ic0227h.eps

ic1294.eps

HT25 - CONTROLS

DESCRIPTIONS

Start Interlock Indicators

To start machine, these must be lit, indicating the following conditions have been met:

• Operator is in seat.

• Track controls are in neutral.

• Digging chain clutch is not

engaged.

Horn Button

Press button to sound horn.

ic0138x.eps

HT25 - CONTROLS

DESCRIPTIONS

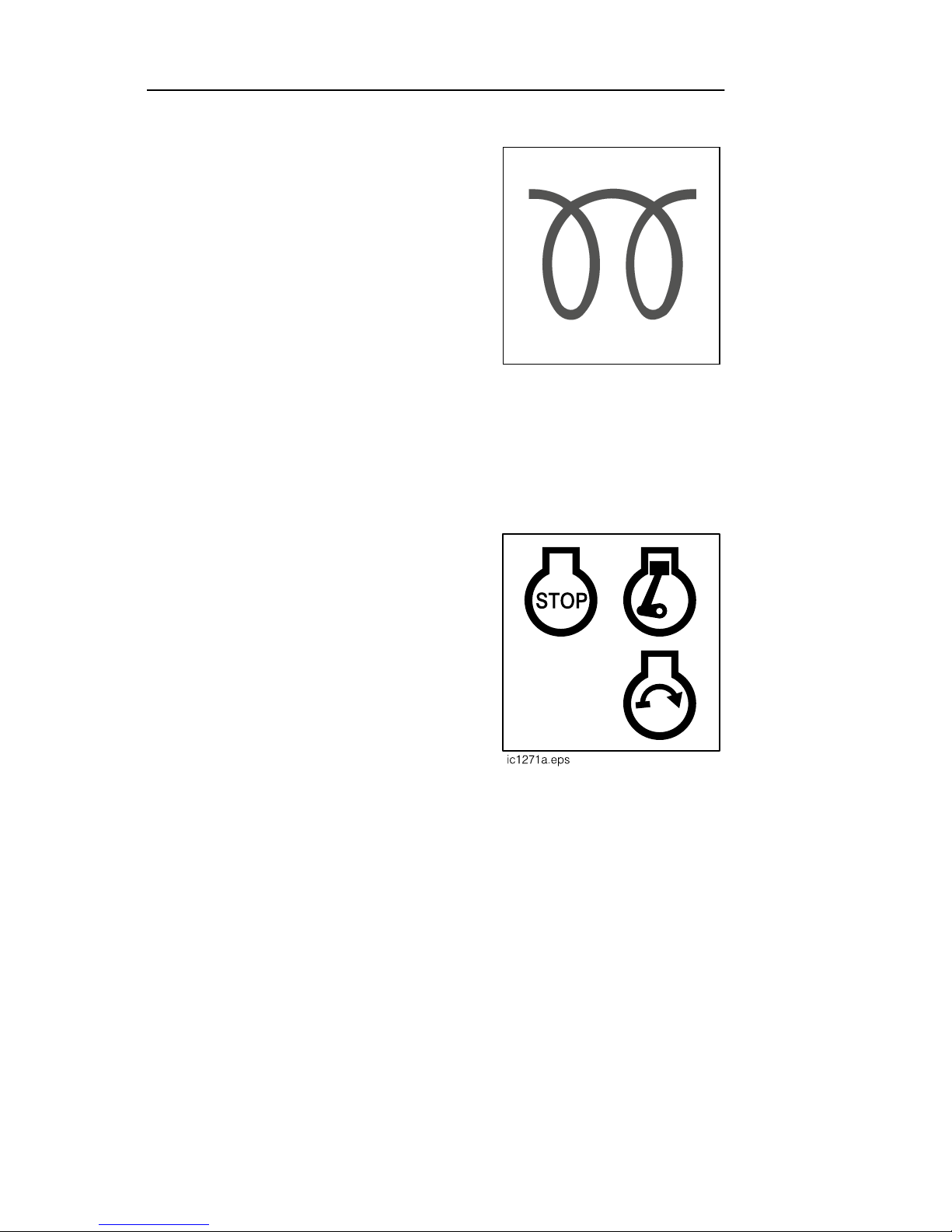

Glow Plug Button

This button helps start cold engine. To operate, first turn ignition switch to first position.

• If ambient temperature is below 40° F (4° C), press and hold button for 15 seconds.

• If ambient temperature is below 20° F (-7° C), press and hold button for 30 seconds.

Release button, then turn ignition switch all the way clockwise.

Ignition Switch

This three-position switch starts or stops engine.

• Insert key and turn clockwise to first position.

• Press glow plug button to warm cold engine if necessary. See instructions for glow plug button.

• Turn switch all the way clockwise.

• Release when engine starts. Key will return to first position.

• Turn counterclockwise to stop engine.

If engine does not start on first attempt, check that all interlock requirements have been met, return switch to STOP position, and try agai n.

ic0219h.eps

HT25 - CONTROLS

DESCRIPTIONS

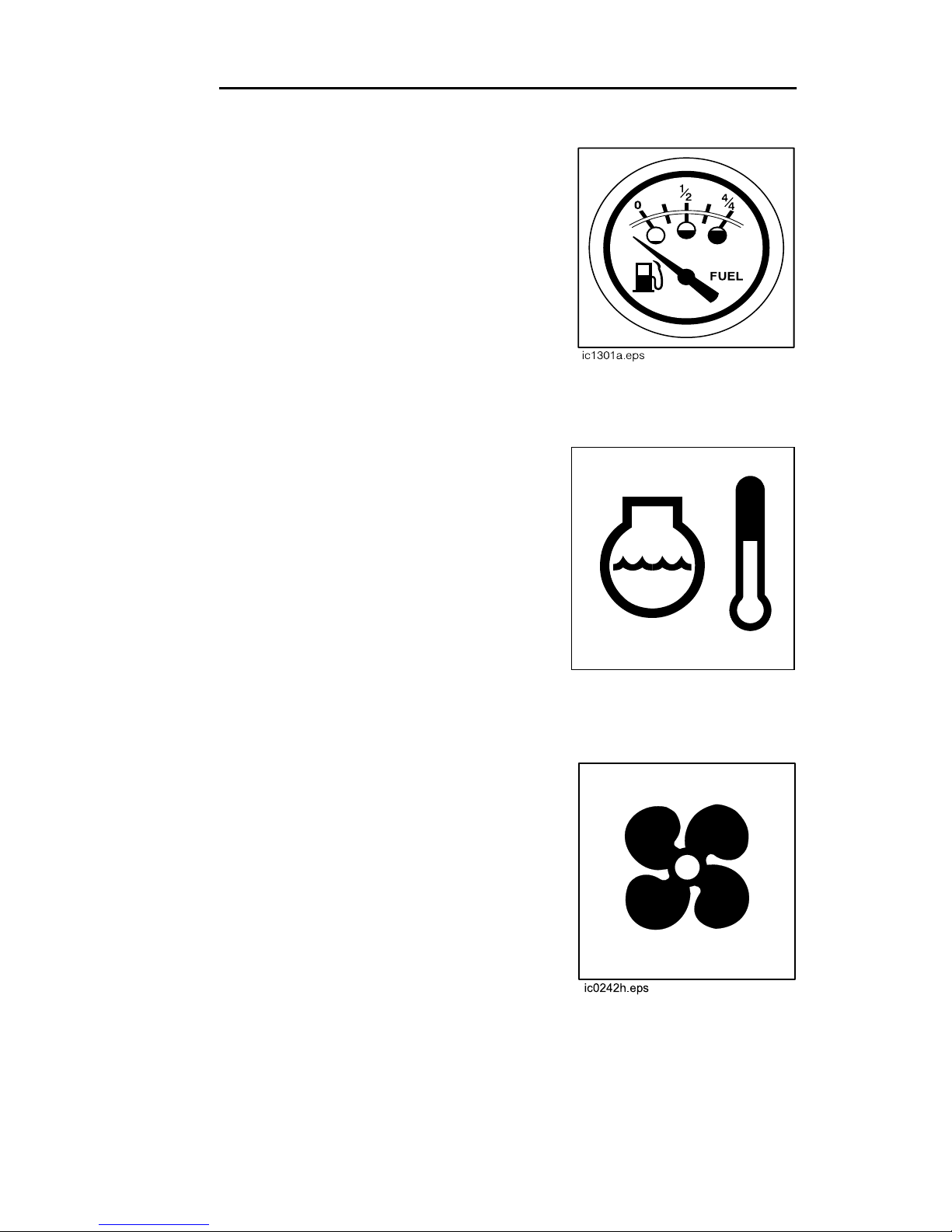

Fuel Gauge

This gauge indicates fuel level in tank. Use only #2 diesel fuel.

Engine Temperature Indicator

This indica tor lights if cooling system water overheats.

• Turn off engine and let cool.

• Check cooling system fluid

level.

Heater Fan Control

This optional knob adjusts heater fan speed.

• Turn clockwise for faster.

• Turn counterclockwise for

slower.

ic1274.eps

HT25 - CONTROLS

DESCRIPTIONS

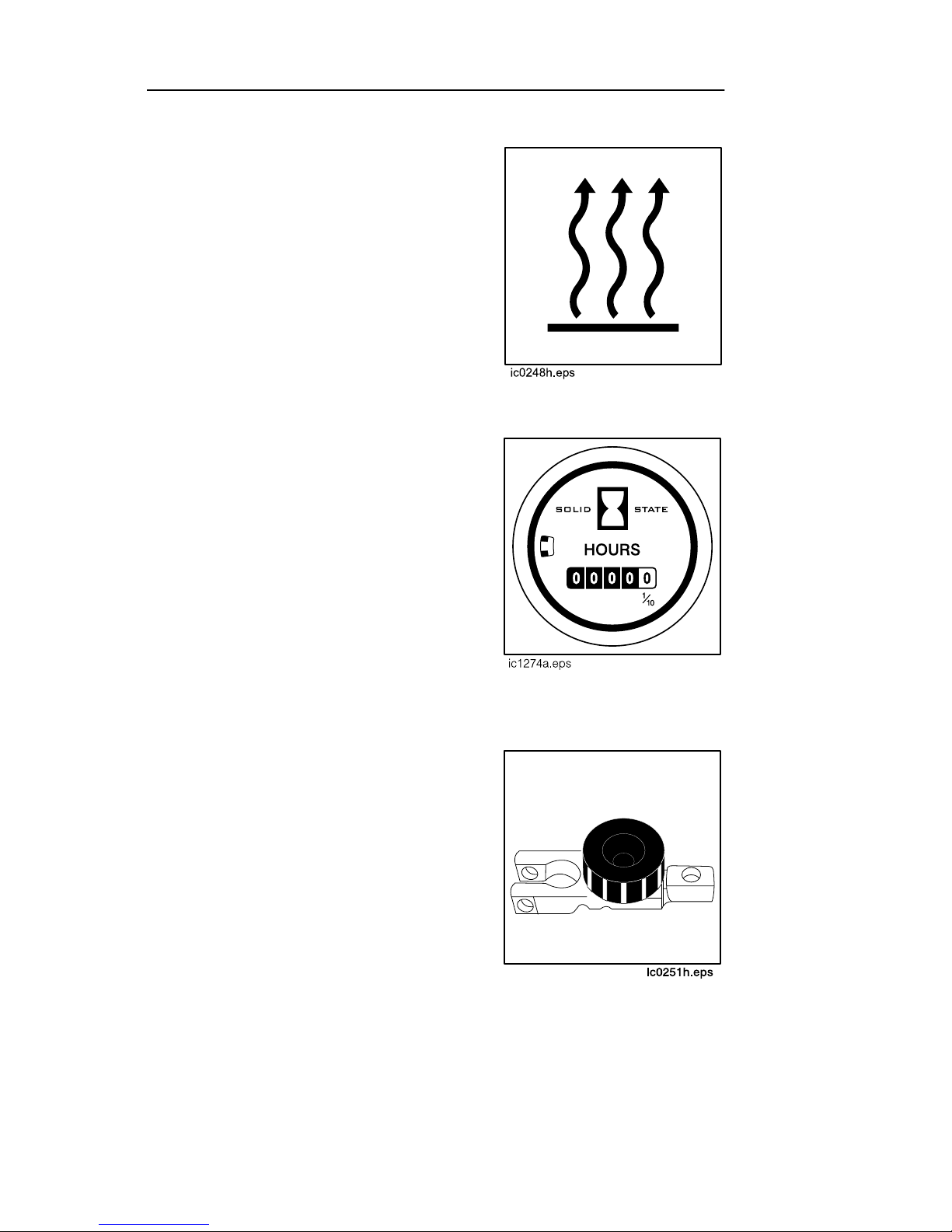

Heater Temperature Control

This optional knob adjusts heater temperature.

• Turn clockwise for warmer.

• Turn counterclockwise for

cooler.

Hourmeter

This gauge, located under seat, records engine operating time. Use these times to schedule lubrication and maintenance.

Battery Disconnect

Use this optional knob, located under seat, to disconnect battery when servicing unit or during longterm storage.

• Turn clockwise to connect batter y power.

• Turn counterclockwise to disconnect battery power.

HT25 - SAFETY

SAFETY

Follow these guidelines before operating any jobsite equipment:

• Complete proper training and read operator’s manual before using equipment.

• Contact One-Call (888-258-0808) and any utility companies which do not subscribe to One-Call. Have all underground pipes and cables located and marked before operating equipment. If you damage a utility, contact utility company.

• Classify jobsite based on its hazards and use correct tools and machinery, safety equipment, and work methods for jobsite.

• Mark jobsite clearly and keep spectators away.

• Wear personal protective equipment.

• Review jobsite hazards, safety and emergency procedures,

and individual responsibilities with all personnel before work begins. Safety videos are available from your Ditch Witch dealer.

• Replace missing or damaged safety shields and safety signs.

• Use equipment carefully. Stop operation and investigate

anything that does not look or feel right.

• Do not operate unit where flammable gas is present.

• Contact your Ditch Witch dealer if you have any question

about operation, maintenance, or equipment use.

HT25 - SAFETY

ACCESSORIES

Fire Extinguisher

If required, a fire extinguisher should be mounted near the power unit but away from possible points of ignition. The fire extinguisher should always be classified for both oil and electric fires. It should meet legal and regulatory requirements.

Lighting Kit

If you need additional light, plug lighting kit into provided outlet. Contact your Ditch Witch dealer for further information.

UNDERGROUND HAZARDS

Striking underground hazards can cause explosion, electrocution, fire, and exposure to hazardous materials.

Hazards include:

• Electric lines

• Natural gas lines

• Fiber optic cables

• Water lines

• Sewer lines

• Pipes carrying other chemicals, liquids, or gases

• Storage tanks

HT25 - SAFETY

EMERGENCY PROCEDURES

Before operating any equipment, review emergency procedures and check that all safety precautions have been taken.

EMERGENCY SHUTDOWN

- Turn ignition switch to stop position

or push remote engine stop button.

Electric Strike Description

When working near electric cables, remember the following:

• Electricity follows all paths to ground, not just path of least resistance.

• Pipes, hoses, and cables will conduct electricity back to all equipment.

• Low voltage current can injure or kill. Almost one-third of work-related electrocutions result from contact with less than 440 volts.

Most electric strikes are not noticeable, but indications of a strike include:

• Power outage

• Smoke

• Explosion

• Popping noises

• Arcing electricity

If any of these occur, assume an electric strike has occurred.

HT25 - SAFETY

EMERGENCY PROCEDURES

If an Electric Line is Damaged

On Tractor

1. DO NOT MOVE. Remain on tractor.

2. Warn people nearby that an electric strike has occurred. Instruct them to leave the area and contact utility.

3. Raise attachments and drive from immediate area.

4. Contact utility company to shut off power.

5. Do not return to area or allow anyone into area until given permission by utility company.

Off Tractor

1. DO NOT TOUCH ANY EQUIPMENT.

2. LEAVE AREA.

3. Contact utility company to shut off power.

4. Do not return to area or allow anyone into area until given permission by utility company.

HT25 - SAFETY

EMERGENCY PROCEDURES

If a Gas Line is Damaged

1. Immediately shut off engine(s) and remove any ignition sources.

2. LEAVE AREA as quickly as possible.

3. Warn others that a gas line has been cut and that they should leave area.

4. Contact emergency personnel.

5. Contact utility company.

6. Do not return to area until given permission by uti li ty company.

If a Fiber Optic Cable is Damaged

Do not look into cut ends of fiber optic or unidentified cable. Vision damage can occur.

HT25 - SAFETY

JOBSITE CLASSIFICATION

Inspecting Jobsite

• Follow U.S. Department of Labor regulations on excavating and trenching (Part 1926, Subpart P) and other similar regulations.

• Contact One-Call (888-258-0808) and any utility companies which do not subscribe to One-Call.

• Inspect jobsite and perimeter for evidence of underground hazards, such as:

– “Buried utility” notices – Utility facilities without overhead lines – Gas or water meters – Junction boxes – Drop boxes – Light poles – Manhole covers – Sunken ground

• Have an experienced locating equipment operator sweep

area within 20 feet (6 m) to each side of trench path. Verify previously marked line and cable locations.

• Mark location of all buried utilities and obstructions.

• Classify jobsite.

HT25 - SAFETY

JOBSITE CLASSIFICATION

Selecting a Classification

Jobsites are classified according to underground hazards present.

NOTICE:

If you have any doubt about jobsite classification, or if jobsite might contain unmarked hazards, take steps outlined previously to identify hazards and classify jobsite before working.

If working . . . then classify jobsite as . . .

within 10 ft (3 m) of a buried electric line

electric

within 10 ft (3 m) of a natural gas line

natural gas

in sand or granite which is capable of producing crystalline silica (quartz) dust

crystalline silica (quartz) dust

within 10 ft (3 m) of any other hazard

other

HT25 - SAFETY

JOBSITE CLASSIFICATION

Applying Precautions

Once classified, precautions appropriate for jobsite must be taken.

Electric Jobsite Precautions

Use one or both of these methods.

• Expose line by careful hand digging or soft excavation.

• Have service shut down while work is in progress. Have

electric company test lines before returning them to service.

Natural Gas Jobsite Precautions

In addition to positioning equipment upwind from gas lines, use one or both of these methods.

• Expose lines by careful hand digging or soft excavation.

• Have gas shut off while work is in progress. Have gas

company test lines before returning them to service.

HT25 - SAFETY

JOBSITE CLASSIFICATION

Crystalline Silica (Quartz) Dust

Follow these guidelines when trenching, sawing or drilling through material that might produce dust containing crystalline silica (quartz) dust.

1. Know the work operations where exposure to crystalline silica

may occur. Be aware of health effects of crystallline silica and that smoking adds to the damage.

2. Follow OSHA (or other) guidelines for exposure to airborne

crystalline silica. Participate in air monitoring or training programs offered by employer.

3. Be aware of and use available engineering controls such as

water sprays, local exhaust ventilation, and enclosed cabs with positive pressure air conditioning.

4. Where respirators are required, wear one approved for

protection against crystalline silica-containing dust. Do not alter respirator in any way. Workers using tight-fitting respirators cannot have beards/mustaches which interfere with respirator’s seal to the face.

5. If possible, change into disposable or washable work clothes

at jobsite; shower and change into clean clothing before leaving jobsite.

6. Do not eat, drink, use tobacco products, or apply cosmetics in

areas where there is dust containing crystalline silica. Wash hands and face before eating, drinking, smoking, or applying cosmetics outside exposure area.

7. Store food, drink, and personal belongings away from work

area.

Other Jobsite Precautions

You may need to use different methods to safely avoid other underground hazards. Talk with those responsible for hazards to determine which precautions should be taken or if job should be attempted.

HT25 - SAFETY

SAFETY ALERT CLASSIFICATIONS

These classifications and the icons defined on the following pages work together to alert you to situations which could be harmful to you, jobsite bystanders or your equipment. When you see these words and icons in the book or on the machine, carefully read and follow all instructions. YOUR SAFETY IS AT STAKE.

Watch for the three safety alert levels:

DANGER, WARNING

and

CAUTION

. Learn what each level means.

indicates an immin entl y hazar do us situa tio n

which, if not avoided, will result in death or serious injury.

indicates a potentially hazardous situation which,

if not avoided, could result in death or serious injury.

indicates a potentially hazardous situation which,

if not avoided, may result in minor or moderate injury.

Watch for two other words:

NOTICE

and

IMPORTANT

NOTICE

can keep you from doing something that might damage the machine or someone's property. It can also alert you against unsafe practices.

IMPORTANT

can help you do a better job or make your job

easier in some way.

HT25 - SAFETY

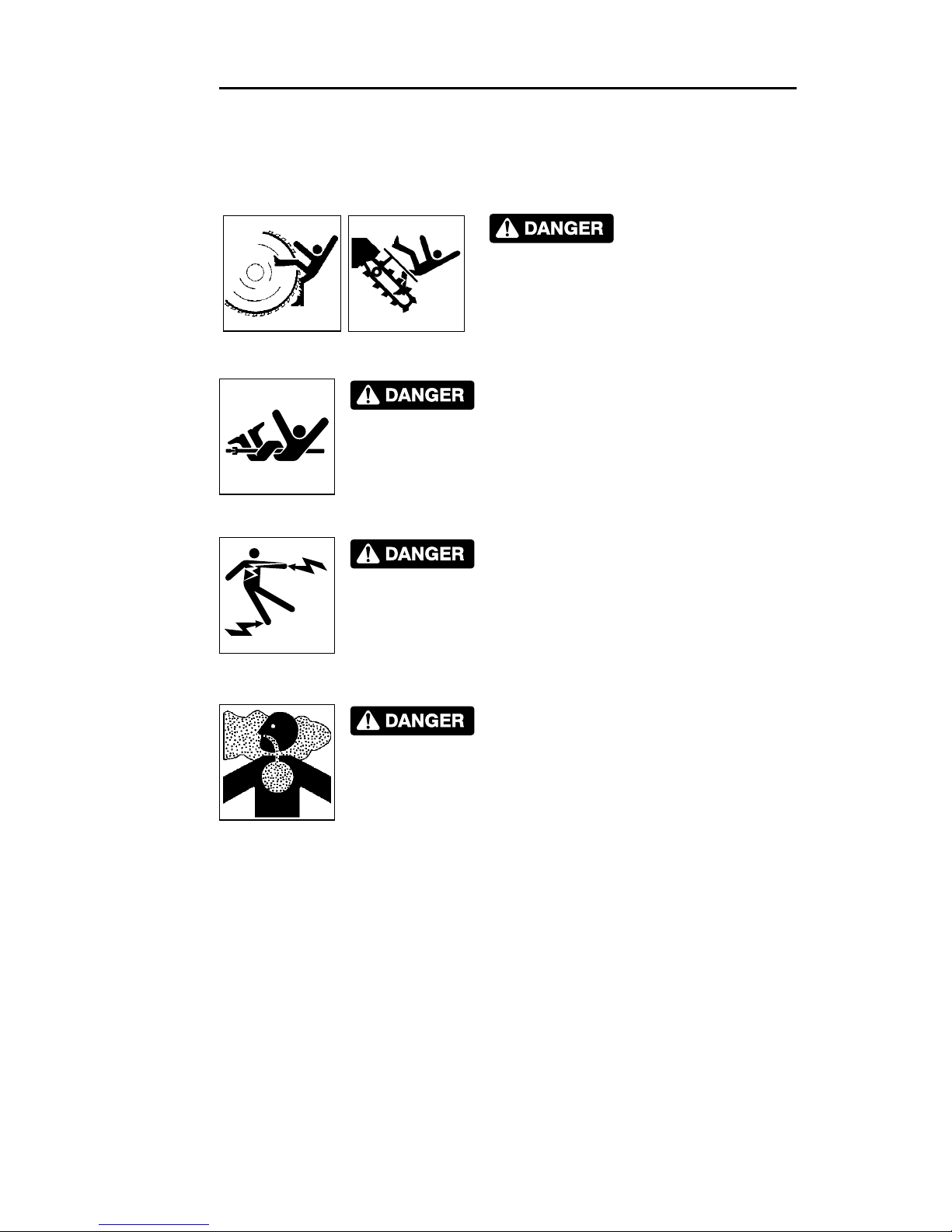

SAFETY ALERTS

Moving digging teeth will kill you or cut off arm or leg. Stay away.

Turning shaft will kill you or crush

arm or leg. Stay away.

Electric shock. Contacting electric lines will cause death or serious injury. Know location of lines and stay away.

Deadly gases. Lack of oxygen or presence of gas will cause sickness or death. Provide ventilation.

HT25 - SAFETY

SAFETY ALER TS

Jobsite hazards could cause death or serious injury. Use correct equipment and work methods. Use and maintain proper safety equipment.

Crushing weight could cause death or serious injury . Use proper procedures and equipment or stay away.

Moving parts could cut off hand or foot. Stay away.

Rollover possible. If machine rolls over, you could be thrown from seat and killed or crushed. Wear seat belt.

HT25 - SAFETY

SAFETY ALERTS

Explosion possible. Serious injury or equipment damage could occur. Follow directions carefully.

Incorrect procedures could result in death, injury, or property damage. Learn to use equipment correctly.

Looking into fiber optic cable could result in permanent vision damage. Do not look into ends of fiber optic or unidentified cable.

Fluid or air pressure could pierce skin and cause injury or death. Stay away.

Runaway po ssib le. Ma chin e coul d run over you or others. Learn how to use all controls. Start and operate only from operator’s position.

HT25 - SAFETY

SAFETY ALER TS

Fire or explosion possible. Fumes could ignite and cause burns. No smoking, no flame, no spark.

Moving traffic - hazardous situation. Death or serious injury could result. Avoid moving vehicles, wear high visibility clothing, post appropriate warning signs.

Hot pressurized cooling system fluid could cause serious burns. Allow to cool before servicing.

Improper control function could cause death or serious injury. If control does not work as described in instructions, stop machine and have it serviced.

HT25 - SAFETY

SAFETY ALERTS

Flying objects may cause injury.

Wear hard hat and safety glasses.

Hot parts may cause burns. Do not

touch until cool.

Exposure to high noise levels may

cause hearing loss. Wear hearing protection.

Fall possib le. Slips or t rips may

result in injury. Keep area clean.

Battery acid may cause burns.

Avoid contact.

Improper handling or use of chemicals may result in illness, injury, or equipment damage. Follow instructions on labels and in material safety data sheets (MSDS).

HT25 - SAFETY

SAFETY ALER TS

HT25 - TRACTOR

DAILY INSPECTION

TRACTOR

DAILY INSPECTION

For efficient use of your machine, do the following before each day's work.

• Check general appearance of tractor and attachments. Look for loose, worn, or damaged parts and fluid leaks.

• Check condition of all wear items such as fan belts, etc. Check condition of attachment wear items.

• Check fuel level.

• Check that all signs, guards, and shields are in place and

readable.

Service machine according to schedules in

LUBRICATION

and

MAINTENANCE

and in engine manufacturer's guide.

Incorrect procedures could result in death, injury, or property damage. Learn to use equipment correctly.

NOTICES:

• Read operator's manual before operating equipment. Follow instructions carefully. Contact your Ditch Witch dealer for operation information or demonstration.

• Wear hard hat, safety glasses, and other protective gear required by job. Do not wear jewelry or loose clothing that can catch on controls.

sf1027

HT25 - TRACTOR

STARTUP

Before operating tractor, read engine manufacturer’s starting and operating instructions. Follow instructions for new engine breakin.

1. F asten seatbelt.

2. Check that track controls and digging chain control are in neutral position.

3. Move hand throttle to 1/2 open.

Runaway possible. Machine could run over you or others. Learn how to use all controls. Start and operate only from operator’s position.

4. If starting in cold weather, press glow plug button for appropriate length of time. See

CONTROLS

for more

information.

sf1008

HT25 - TRACTOR

STARTUP

5. Turn key. Indicators will light. If engine does not turn, check start interlock display. See

CONTROLS. If engine turns but does not start within 10 seconds, allow starter to cool before trying to start again.

6. After engine is started, run engine at half-throttle or less for five minutes before operating tractor.

During warm up, check that all controls work properly.

Improper control function could cause death or serious injury. If control does not work as described in instructions, stop machine and have it serviced.

sf1020

HT25 - TRACTOR

OPERATION

1. Raise backfill blade and digging boom.

2. Adjust throttle.

3. Move track controls to forward or reverse.

Moving traffic – hazardous situation. Death or serious injury could result. Av oid moving v ehicles, wear high visibility clothing, post appropriate warning signs.

SHUTDOWN

1. When job is complete, move track controls to neutral.

2. Lower attachments to ground or stowed position.

3. Move throttle to idle and let machine idle for 3 minutes to cool engine.

4. Turn key to stop position. If leaving machine unattended, remove key.

5. For maintenance or long-term storage, turn optional battery disconnect switch to disconnect position.

sf1001

HT25 - TRANSPORTATION

LIFT

TRANSPORTATION

LIFT

Lifting Points

Lifting points are identified by lifting decals. Lifting at any other point can be unsafe and can damage machinery.

Lifting Unit

Before lifting, check

SPECIFICATIONS

. Use a hoist capable of supporting equipment’s size and

weight.

Crushing weight could cause death or serious injury . Use proper procedures and equipment or stay away.

sf1026

HT25 - TRANSPORTATION

TIEDOWN

Tiedown Points

Tiedown points are identified by tiedown decals. Securing unit to trailer at any other points may be unsafe and can damage machinery.

Tie Down Unit

Attach tiedowns at front and rear tiedown points. Make sure tiedowns are tight before transporting unit.

HT25 - TRANSPORTATION

HAUL

Crushing weight could cause death or serious injury . Use proper procedures and equipment or stay away.

NOTICES:

• Read trailer operator’s manual before loading or transporting your machine. Incorrectly loaded machine can slip or cause trailer sway.

• Park, load, and unload trailer on a level part of jobsite. Check that unit and trailer do not exceed size or weight regulations.

Rollover possible. If machine rolls over, you could be thrown from seat and killed or crushed. Wear seat belt.

sf1014

sf1011

HT25 - TRANSPORTATION

HAUL

1. Fasten seatbelt and start engine. See

TRACTOR

for startup

procedures.

2. Raise backfill blade and digging boom, but keep them low.

NOTICE

: Stability is reduced if digging boom is offset.

3. Slowly drive tractor onto trailer until tiedown position is reached.

4. Lower backfill blade and digging boom to trailer bed and turn off engine.

5. Securely chain tractor and digging boom to trailer using tiedowns.

NOTICE

: Check that unit and trailer do not exceed size or

weight regulations.

HT25 - TRANSPORTATION

HAUL

Unloading

1. Check that track drive controls are in neutral.

2. Remove tiedowns.

3. Fasten seatbelt and sta rt engine .

Rollover possible. If machine rolls over, you could be thrown from seat and killed or crushed. Wear seat belt.

4. Raise backfill blade and digging boom, but keep them low.

5. Slowly drive tractor off trailer.

sf1011

HT25 - TRANSPORTATION

TOW

Incorrect procedures could result in death, injury, or property damage. Learn to use equipment correctly.

Under normal conditions, unit should not be towed. If unit becomes disabled and towing is necessary:

• tow for short distances at less than 1 mph (1.6 km/h),

• do not tow for more than 200 yd (183 m),

• steering will be through tow vehicle only.

1. Attach tow line to tiedown points nearest the towing vehicle.

2. Fasten seat belt and begin towing.

IMPORTANT:

Tracks will not move.

3. Use tow vehicle or other lifting device to load unit onto trailer.

sf1027

HT25 - TRENCHING

CONTROL OVERVIEW

TRENCHING

CONTROL OVERVIEW

1. Boom lift control

2. Digging chain control

HT25 - TRENCHING

CONTROL DESCRIPTIONS

Boom Lift Control

This lever raises or lowers digging boom.

• Push to lower.

• Pull to raise.

Digging Chain Control

This switch starts the digging chain.

• Slide orange tab down and press top of switch to start digging chain.

• Press bottom of switch to stop digging chain.

ic0127h.eps

ic1035.eps

HT25 - TRENCHING

SETUP

Jobsite hazards could cause death or serious injury. Use correct equipment and work methods. Use and maintain proper safety equipment.

NOTICE

: Know and comply with regulations covering One-Call

service and utility notification before digging or drilling.

Electrical shock. Contacting electrical lines will cause death or serious injury. Know location of lines and stay away.

NOTICE

: Cutting high voltage cable can cause electrocution.

Expose lines by hand before digging.

Incorrect procedures can result in death, injury, or property damage. Learn to use equipment correctly.

NOTICE:

Cutting or drilling through concrete and rock that contain sand or quartz may result in exposure to silica dust that can cause lung disease. Use respirator, water spray, or other means to control dust. Silica dust is known to the state of California to cause cancer.

HT25 - TRENCHING

SETUP

1. Fasten and adjust seat belt.

2. Start tractor and adjust throttle.

3. Raise boom and backfill blade.

4. Adjust throttle and dr ive to starting point. Move in line with planned trench.

5. Lower backfill blade.

6. Lower boom to just above the ground.

7. Check that digging chain control and track controls are in neutral.

8. Check that boom is in line with planned trench.

HT25 - TRENCHING

OPERATION

1. Lower backfill blade to reduce shock when trenching begins.

2. Adjust throttle.

3. Engage digging chain control. DIGGING CHAIN WILL MO VE.

Moving digging teeth will cause

death or serious injury. Stay away.

NOTICES:

• Machine might lunge when digging starts. Allow 3 feet (1 m) between digging teeth and obstacle.

• Keep everyone at least 6 feet (2 m) from machine, attachments, and their range of movement.

Flying objects thrown by machine may strike people. Wear hard hat and safety glasses.

sf1023

HT25 - TRENCHING

OPERATION

4. Increase engine speed to full throttle.

5. Slowly lower digging boom to desired trench depth.

6. Raise backfill blade.

7. Push track controls forward to trenching speed.

8. When trench is complete, move track controls to neutral.

9. Move throttle to half open.

10. Raise boom. As boom clears top of trench, move digging chain control to neutral.

11. Drive forward, lower backfill blade and boom.

12. Move throttle to idle and let machine idle for three minutes to cool engine.

13. Turn ignition switch to stop position.

HT25 - TRENCHING

OPERATING TIPS

• Av oid using badly worn teeth. When replacing teeth, maintain original pattern. Use Ditch Witch replacement teeth.

• Operate engine at full throttle.

• Do not make sharp turns. Lower boom to full depth when

turning.

• While trenching, steering is best accomplished by feathering

one

track control at a time, rather than both together.

• If an object becomes lodged in chain, move digging chain clutch to neutral and raise boom slightly. If object must be removed manually, turn engine off.

• Before operating with rock chains, check bits for free rotation. Tap bits lightly with a hammer and turn by hand. If bits are stuck, remove and clean packed soil from bit block.

• Carbide bits are recommended for cutting abrasive material, such as sandstone or frozen sands or gravels.

OPTIONAL EQUIPMENT

Chain

A variety of chains, teeth, and tooth patterns are available to provide efficient digging at any jobsite. For more information, contact your Ditch Witch dealer.

Trench Cleaner

Trench cleaners remove spoils from the trench floor. For more information about the mechanical trench cleaner av ailable f or use on the HT25, contact your Ditch Witch dealer .

HT25 - TRENCHING

HT25 - BACKHOE

CONTROL OVERVIEW

BACKHOE

CONTROL OVERVIEW

1. Bucket/dipper control

2. Boom/swing control

3. Position adjustment sleeves

4. Stow lock

HT25 - BACKHOE

CONTROL DESCRIPTIONS

Position Adjustment Sleeves

These sleeves allow movement of boom/swing control and bucket/ dipper control between stowed position and operating position.

• Lift sleeve (1) and pull control (2) to operating position. Release sleeve before operating.

• Lift sleeve and push control to stowed position. Release sleeve.

NOTICE:

Do not operate backhoe with control in the stowed (upright) position. Component failure could occur. Return control to stowed position when finished operating.

Bucket/Dipper Control

This control opens or closes bucket and moves dipper in or out.

• Move right to open bucket

• Move left to close bucket.

• Pull to move dipper in.

• Push to move dipper out.

Control can perform more than one action at a time. Using them together, operator can “feather,” or combine backhoe operations.

ic0043c.eps

HT25 - BACKHOE

CONTROL DESCRIPTIONS

Boom/Swing Control

This control moves boom left or right and raises or lowers boom.

• Move left to swing left.

• Move right to swing right.

• Pull to raise.

• Push to lower.

Control can perform more than one action at a time. Using them together, operator can “feather,” or combine, backhoe operations.

Stow Lock

This control locks boom during transport. To lock:

• Turn handle counterclockwise.

• Raise boom fully.

• Release handle. Boom will settle into latch.

To release:

• Lift boom slightly.

• Turn handle counterclockwise to release latch.

• Lower boom slightly.

• Release handle.

ic0042c.eps

HT25 - BACKHOE

SETUP

1. Move track controls to neutral position.

2. Lower rear attachment to 6 in (152 mm) above ground.

3. Check that backfill blade is straight and lower it to ground.

4. Adjust throttle.

NOTICE:

Engine speed affects speed of backhoe operation.

5. Raise boom to release tension on stow lock.

6. Release stow lock.

HT25 - BACKHOE

OPERATION

1. Use boom/swing control and buck et/dipper control to dig hole or trench.

• Keep dipper and boom at right angles as much as possible for maximum power.

• Keep bucket in line with dipper as much as possible.

• Positio n bucket so teeth cut soil. As soil is cut, curl bucket under dipper.

• Move dipper and bucket together. Increasing engine speed will not increase backhoe force.

2. When hole or trench is complete, lift boom while keeping dipper pointed at ground.

3. Curl bucket closed and move dipper fully toward boom.

4. Lift boom to highest position and latch stow lock.

om1761x

om1762

HT25 - BACKHOE

HT25 - LUBRICATION

LUBRICATION

Proper lubrication and maintenance protects Ditch Witch equipment from damage and failure. In extreme conditions, lubricate more frequently.

Use only recommended lubricants. Fill to capacities listed in

SPECIFICATIONS

Incorrect procedures could result in death, injury, or property damage. Learn to use equipment correctly.

NOTICES:

• Unless otherwise instructed, all service should be performed with engine off.

• Refer to engine manufacturer’s manual for engine maintenance instructions.

• Before servicing equipment, lower unstowed attachments to ground.

Recommended Lubricants

DEO Diesel engine oil (SAE 10W40) meeting API engine service classification SF/CD or CE EPG Extreme pressure grease MPL Multipurpose gear oil (SAE 80W90) meeting API service classification GL-5 THF Tractor hydraulic fluid, similar to Phillips 66 HG, Mobilfluid 423, Chevron Tractor

Hydraulic Fluid, Texaco TDH Oil, or equivalent

sf1027

HT25 - LUBRICATION

OVERVIEW

(DEO) 10W40 diesel engine oil (THF) Tractor hydraulic fluid

(MPL) 80W90 Multipurpose lubricant (EPG) Extreme pressure grease

Filter Check

HT25 - LUBRICATION

SCHEDULE

Interval Task Page

10 hours Check engine oil 63

Check hydrauli c oil 67 Lube trencher pivot 69 Lube trencher tail roller 69 Lube trencher outboard bearing (centerline

attachments only)

Lube backfill blade pivot 71

50 hours Change engine oil and filter (initial) 63

Change hydraulic oil filter (initial) 67 Check trencher gearbox oil 70 Change trencher gearbox oil (initial) 70

100 hours Check track planetary oil 65

Change track planetary oil (initial) 65 150 hours Change engine oil and filter 63 250 hours Change hydraulic oil filter 67 500 hours Change trencher gearbox oil 70 1000 hours Change track planetary oil 65

Change hydraulic oil 67

HT25 - LUBRICATION

ENGINE

Ref. Task Hours Lubricant

2 Check engine oil 10 DEO 1,3,4 Change engine oil and filter (initial) 50 DEO 1,3,4 Change engine oil and filter 150 DEO

HT25 - LUBRICATION

ENGINE

Engine Oil and Filter

Check

Check engine oil at dipstick (1) before operation and every 10 hours thereafter.

Add DEO at fill (2) as necessary to keep oil level at highest line on dipstick.

Change

Change oil and filter after first 50 hours of operation and every 150 hours thereafter. Change oil more frequently if working in dusty conditions.

• Drain crankcase through drain (2) while oil is warm.

• Replace filter (1) each time oil is changed.

• Refill with DEO at fill neck.

om0448h.eps

HT25 - LUBRICATION

GROUND DRIVE

Task Hours Lubricant

Check track planetary oil 100 MPL Change track planetary oil (initial) 100 MPL Change track planetary oil 1000 MPL

HT25 - LUBRICATION

GROUND DRIVE

Track Planetary Oil

Check

Check oil level every 100 hours. Position gearbox as shown. Oil should be level with plugs. Fill at one plug and use the other to check oil level.

Change

Change oil after first 100 hours of operation and every 1000 hours thereafter. To change:

• Position gearbox as shown.

• Remove both plugs and drain

the oil.

• Position gearbox with plugs aligned horizontal ly.

• Fill at one plug and use the other to check oil level.

om0450h.eps

om0456h.eps

HT25 - LUBRICATION

HYDRAULICS

Ref. Task Hours Lubricant

2 Check hydraulic oil 10 THF 4 Change hydraulic oil filter (initial) 50 4 Change hydraulic oil filter 250 1,3,4 Change hydraulic oil 1000 THF

HT25 - LUBRICATION

HYDRAULICS

Hydraulic Oil

Check

With frame level and digging boom fully raised, check oil at sight glass (2) every 10 hours.

Add THF at fill (3) as necessary. Clean dust from cap by blowing with low-pressure air.

Change

Change oil filter at 50 hours and every 250 hours thereafter. Drain hydraulic oil (1), change filter (4), and refill with THF every

1000 hours. Change oil and filter every 500 hours if jobsite temperature exceeds 100°F (38°C) more than 50% of the time.

HT25 - LUBRICATION

TRENCHER

Ref. Task Hours Lubricant

1 Lube tail roller 10 EPG 2 Lube pivot 10 EPG 3 Lube outboard bearing (centerline

attachments only)

10 EPG

4 Check trencher gearbox oil 50 MPL 4 Change trencher gearbox oil (initial) 50 MPL 4 Change trencher gearbox oil 500 MPL

HT25 - LUBRICATION

TRENCHER

Pivot

Wipe zerk clean and lube every 10 hours with EPG.

Tail Roller

Wipe zerk clean and lube every 10 hours with EPG.

Outboard Bearing

On centerline attachments, wipe zerk clean and lube every 10 hours with EPG. Offset attachment bearing does not need greasing.

HT25 - LUBRICATION

TRENCHER

Gearbox

Check

Check oil at fill plug (1) every 50 hours. Keep oil level at plug. If necessary, add MPL at fill plug.

Change

Change oil after 50 hours and ev ery 500 hours thereafter. Drain at drain plug (2). Replace drain plug and add MPL at fill plug until oil is level with plug.

HT25 - LUBRICATION

BACKFILL BLADE

Pivot

Wipe zerk clean and lube every 10 hours with EPG.

HT25 - LUBRICATION

HT25 - MAINTENANCE

MAINTENANCE

Incorrect procedures could result in death, injury, or property damage. Learn to use equipment correctly.

NOTICES:

• Unless otherwise instructed, all service should be performed with engine shut off.

• Refer to engine manufacturer’s manual for engine maintenance instructions.

• Before servicing equipment, lower unstowed attachments to ground.

HT25 - MAINTENANCE

OVERVIEW

Interval Task Page

10 hours Check coolant level 78

Check track tension 81 Check hydraulic hoses 83 Check fuel filter 76 Check digging chain teeth 86 Check digging chain 86 Check/adjust digging chain tension 87 Check boom mounting bolts 88 Check attachment mounting bolts 88 Check personnel restraint bar bolts 88

50 hours Check fan belt 77

Check air filter 79 Check track sprocket bolts (initial) 82

100 hours Change fuel filter 76

Change in-line fuel filter 76 Check track sprocket bolts 82

Check front idler roller 82 250 hours Change air filter 79 500 hours Replace fan belt 77 2000 hours Change coolant 78 As needed Adjust track tension 81

Check battery 84

Check fuses 84

Replace digging chain 89

HT25 - MAINTENANCE

ENGINE

Ref. Task Hours

4 Check coolant level 10 3 Check fan belt 50 2 Check air filter 50 1 Change fuel filter 100 5 Change in-line fuel filter 100 2 Change air filter 250 3 Replace fan belt 500 4 Change coolant 2000

HT25 - MAINTENANCE

ENGINE

Fuel Filters

To access fuel filters, remove rear engine access panel.

Change

Change fuel filter and inline fuel filter every 100 hours. To change:

• Remove filter.

• Install new filter. Apply fuel oil

thinly over the gasket and hand-tighten.

• Air-bleed the injection pump.

HT25 - MAINTENANCE

ENGINE

Fan Belt

Check

Check belt every 50 hours for damage or wear. Replace worn belt.

Adjust

• Turn off engine and remove key.

• Apply moderate thumb pressure to belt between pulleys, as shown.

• Belt is properly tensioned when deflection is about 0.28 to 0.35 in (7 to 9 mm).

• If needed, loosen alternator bolts (shown) and pull alternator out until correct tension is reached.

Replace

Replace belt every 500 hours.

om0466h.eps

HT25 - MAINTENANCE

ENGINE

Cooling System

Check

Check coolant level in overflow tank every 10 hours. Coolant should be between LOW and FULL marks on tank.

Fill as needed with

only Ditch

Witch approved coolant (p/n 255-

006), or other fully formulated ethylene-glycol-based heavy duty engine coolant meeting ASTM specification D6210, TMC RP329, or John Deere specification JDM H24A2. Do not fill over FULL mark on tank.

Check clamps and hoses for looseness or wear. Tighten loose clamps. Replace swollen, hardened, or cracked hoses.

Change

Change coolant every 2000 hours.

• Allow engine to cool.

• Open two drains (3, 4) and

radiator cap and drain coolant.

• Drain overflow tank.

• Close drains and fill (1, 2) with

a 50-50 mix of anti-freeze and water.

om0462h.eps

HT25 - MAINTENANCE

ENGINE

Air Filter

To better access air filter, slide out overflow tank.

Check

Check filter and suction hose every 50 hours for wear or holes. Check more often if working in dusty conditions.

Change

Change air filter every 250 hours or when yellow band in air filter service indicator reaches red line.

1. Open air filter housing.

2. Remove primary (2) and safety (1) elements.

3. Wipe inside of housing and wash end cup.

4. Insert new primary and safety elements.

5. Close air filter case.

6. Reset air filter service indicator.

om0465h.eps

1 2

HT25 - MAINTENANCE

GROUND DRIVE

Ref. Task Hours

3 Check track tension 10 1 Check sprocket bolts (initial) 50 1 Check sprocket bolts 100 4 Check front idler roller 100 2, 3 Adjust track tension As needed

HT25 - MAINTENANCE

GROUND DRIVE

Track Tension

Check

Check track tension every 10 hours. Measure length of spring as shown. When tracks are correctly tensioned, spring should measure 9 1/2 in (241 mm).

Adjust

To increase track tension, turn screw clockwise. To reduce track tension, turn screw counterclockwise.

HT25 - MAINTENANCE

GROUND DRIVE

Track Sprocket Bolts

Check sprocket bolts after first 50 hours and every 100 hours thereafter. Torque bolts to 70 ft•lb (95 N•m).

Front Idler Roller

Check front idler roller for wear every 100 hours. Replace if needed.

HT25 - MAINTENANCE

HYDRAULICS

NOTICE:

Before disconnecting any hydraulic line, turn engine off and operate all controls to relieve pressure. Lower, block or support any raised component. Cover connection with heavy cloth and loosen connector nut slightly to relieve residual pressure. Catch all fluid in container.

Hoses

Check hoses every 10 hours for wear or damage. Replace as needed.

HT25 - MAINTENANCE

ELECTRICAL

Battery and fuses are located under seat.

Battery

Check battery connections for wear or corrosion. Keep connections clean and tight. Batteries supplied by factory are maintenance-free. Service replacement batteries according to manufacturer’s instructions.

Fuses

Change fuses as needed. Replace blown fuses with spares in fuse box.

om0464h.eps

HT25 - MAINTENANCE

TRENCHER

Ref. Task Hours

1 Check digging chain teeth 10 2 Check digging chain 10 3 Check/adjust digging chain tension 10 4 Check boom mounting bolts 10 6 Check attachment mounting bolts 10 5 Check personnel restraint bar bolts 10 2 Replace digging chain As needed

HT25 - MAINTENANCE

TRENCHER

Teeth and Bits

Check teeth for wear every 10 hours. Replace worn teeth, using Ditch Witch replacement parts and maintaining original tooth pattern.

For more efficient digging, contact your Ditch Witch dealer for information about the tooth pattern best suited to your jobsite.

If using rock chain bits, check that bits rotate freely. Clean chain and check bits after each use. Replace bit when tungsten cap or insert is worn, or adapter can be damaged.

Chain

Check chain every 10 hours. Replace worn or broken chains. If sidebars are bent or loose on chain pins, chain spacers should be used to join sidebars.

HT25 - MAINTENANCE

TRENCHER

Chain Tension

Adjust digging chain tension every 10 hours.

With boom horizontal, pull up on chain until it is taut. Measure distance (2) from top of boom to chain. Correct distance is 1.5 to 2 in (40 to 50 mm).

To tighten chain, pump MPG into cylinder at check valve zerk (1).

NOTICE:

not

overtension chain. Premature chain failure

could result. To relieve digging chain tension, stand on opposite side of boom

and unscrew check valve zerk (1) to release grease.

Fluid pressure could pierce skin

and cause injury or death. Stay away.

NOTICE:

Service digging boom grease cylinder only while standing on opposite side of boom. Wear gloves and safety glasses and cover fitting with cloth when relieving pressure in cylinder.

HT25 - MAINTENANCE

TRENCHER

Boom Mounting Bolts

Check 4 bolts every 10 hours for looseness or wear. Torque as necessary to keep bolts and nuts tight.

Attachment Mounting Bolts

Check two upper and two lower bolts every 10 hours for looseness or wear. Torque as necessary to keep bolts and nuts tight.

Personnel Restraint Bar

Check one bolt every 10 hours for looseness or wear. Torque as necessary to keep bolt and nut tight.

HT25 - MAINTENANCE

TRENCHER

Chain Replac eme n t

Visually check digging chains for wear on rollers and sidebars. Check pins and bushing wear by measuring distance between chain pins and comparing it with a new chain.

Replace sprockets when a new chain is installed.

To remove chain:

1. Start unit, following directions in

OPERATION

2. Turn digging chain until connector pin is on top of boom.

3. Lower boom to ground.

4. Stop engine.

5. Secure chain by clamping

links on either side of connector pin with chain jaws. Squeeze jaws to reduce pressure on connector pin.

6. Loop cable through links

nearest connector pin.

om1752x

om1744x

HT25 - MAINTENANCE

TRENCHER

Fluid pressure could pierce skin

and cause injury or death. Stay aw ay.

NOTICE: Service digging boom grease cylinder only while standing on opposite side of boom. Wear gloves and safety glasses and cover fitting with cloth when relieving pressure in cylinder.

7. Loosen plug on grease cylinder to relieve chain tension.

8. Stand clear of chain and remove lock key from connector pin. Drive connector pin out of link.

Crushing weight could cause death or serious injury. Use proper procedures and equipment or stay away.

9. Unclamp links. Slowly release cable and lower chain to ground.

10. Lay chain on ground with teeth down.

sf1014

sf1026

HT25 - MAINTENANCE

TRENCHER

To install chain:

1. Lay chain on ground with teeth down and pointed toward unit.

2. Start unit.

3. Back unit up until chain extends past head shaft about 1 ft (30.5 cm).

4. Lower backfill blade to ground.

5. Lower boom to horizontal position.

6. Stop engine.

7. Pull rear end of chain over and about 10 in (26 cm) past tail roller.

8. Use hoist to pull front end of chain over head shaft sprocket.

9. Move chain down boom until chain connector pin and lock key can be installed. Install connector pin and lock key.

10. Tighten chain by pumping EPG into grease cylinder.

HT25 - MAINTENANCE

HT25 - SPECIFICATIONS

HT25

SPECIFICATIONS

HT25

*Dimensions are based on unit equipped with 3 ft (.91 m) centerline digging attachment and backfill blade.

DIMENSIONS*: U .S. METRIC

A Max. trench depth 39 in 99 cm A2

Angle of approach 19° 19°

A3 Angle of departure 18° 18° B Max. trench width 16 in 40.6 cm C Boom angle down 53° 53° C1 Boom angle up 50° 50° H1 Height, top of cab 80 in 203 cm

Basic unit length-transport 120 in 304.8 cm

L4 Centerline of track, hub-to-hub 39 in 99 cm W2 Width, transport 35.5 in 90.2 cm

HT25 - SPECIFICATIONS

HT25

Backfill blade: 4-way hydraulic lift angle U.S. METRIC

Blade width 35.5 in 90.2 cm Blade height 9.9 in 25.1 cm Lift lift above ground 30° 30° Blade drop below ground 20° 20° Maximum swing angle (left/right) 28° 28°

Standard left auger:

Diameter 4 in 10 cm Length 13.5 in 34.3 cm

Standard right auger

Diameter 10.5 in 26.7 cm Length 12.2 in 31 cm

Offset auger (optional)

Diameter 10.5 in 26.7 cm Length 16.4 in 41.7 cm

OPERATIONAL: U.S. METRIC

Vehicle speeds

Maximum transit forward < 3 mph < 4.8 km/h

Maximum transit reverse < 2 mph < 3.2 km/h Digging chain speed @ 3000 engine rpm 364 fpm 111 m/min Headshaft speed @ 3000 engine rpm 180 rpm 180 r/min Operating weight (with 3 ft [.9 m] boom, backfill

blade, cab, and A225 backhoe)

4080 lb 1850.7 kg

Operator orientation Facing front of vehicle in full

view of all operations

HT25 - SPECIFICATIONS

HT25

*Exceeding these operating angles will cause engine damage. This DOES NOT IMPLY machine is stable to maximum angle of safe engine operation.

POWER U.S. METRIC

Engine: Kubota D1105-E diesel

Cooling medium 50/50 antifreeze, see

MAINTENANCE

for more

information

Injection

1991 lbw/in

140 kgf/cm

Number of cylinders 3 Displacement

68.53 in

1123 cm

Bore 3.07 in 7.70 cm Stroke 3.09 in 7.86 cm *Maximum tilt angle fore & aft 30° 30° *Maximum tilt angle side 30° 30°

Engine manufacturer's g ross power rating @ 3150

rpm

25 hp 18.6 kW

Maximum governed speed as installed (no load) 3160 rpm 3160 r/min

Flywheel horsepower (full load) 22 hp 16.4 kW

POWER DELIVERY SYSTEM

Ground drive Dual hydrostatic drive

infinitely variable from zero to maximum, hand lever operated speed/direction control

Service brake G round drive speed/direction

controls brake machine hydraulically when moved to neutral position

Parking brake Disc, hydraul ic pressure

released Tracks 230 x 39 x 72 FP Trencher drive

Transmission Belt drive through gearbox

reduction

Clutch Electr ic over hydraulic

HT25 - SPECIFICATIONS

HT25

Specifications are called out according to SAE recommended practices. Specifications are general and subject to change without notice. If exact measurements are required, equipment should be weighed and measured. Due to selected options, delivered equipment may not necessarily match that shown.

HYDRAULIC SY STEM: U.S. METRIC

Ground drive pump

Pump capacity per track @ 3000 rpm

11.8 gpm 44.9 L/min

Pump relief track slip

Auxiliary pump

Pump capacity @ 3000 rpm 6.7 gpm 25.2 L/min Pump relief 2320 psi 160 bar

FLUID CAPACITIES:

Fuel tank 6 gal 22.7 L Engine lubrication oil, including filter 4.5 qt 4.3 L Track drive planetary 1.5 qt 1.4 L Engine cooling system 6.0 qt 5.7 L Hydraulic system 10.1 gal 38.2 L Hydraulic reservoir 8.7 gal 32.9 L

BATTERY:

Group 26/26R/70 SAE cold crank @ 0°F (-18°C) 675 amp

NOISE LEVELS:

Operator 89 dbA sound pressure per ISO 6394, without cab. Operator 91 dbA sound pressure per ISO 6394, with cab.

Exterior 106 dbA sound power per ISO 6393, without cab. Exterior 103 dbA sound power per ISO 6393, with cab.

HT25 - SPECIFICATIONS

A225 BACKHOE

DIMENSIONS: U.S. METRIC

A Transport height 77.25 in 1.96 m C Ground clearance 20 in 50. 8 cm D B ackhoe length, stowed 62 in 1. 58 m F Digging depth, max. 68 in 1.73 m G Digging depth, 2 ft (0.6 m) flat bottom 64 in 1.63 m J Operating height, fully raised 93 in 2.36 m K Loading height 55.75 in 1.42 m L Loading reach 45 in 1.14 m M Reach from swing pivot 103 in 2.62 m P Bucket rotation 176° 176°

HT25 - SPECIFICATIONS

GENERAL: U.S. METRIC

Bucket

Width 12 in 30.5 cm Capacity

1 ft

.027 m

Backhoe weight with bucket 780 lb 353.8 kg Lift capacity, boom over end and swing arc, SAE

at 36 in (.9 m) 154 lb 70 kg at ground level 359 lb 162 .8 kg

Lift capacity, dipperstick over end and swing arc, SAE

at 41 in (1.04 m) 180 lb 81.7 kg at 62 in (1.6 m) 140 lb 63.5 kg

Swing arc 170° 170°

HT25 - WARRANTY

WARRANTY

Ditch Witch Equipment and Parts

Limited Warranty Policy

Subject to the limitations and exclusions herein, free replacement parts will be provided at any authorized Ditch Witch dealership for any Ditch Witch equipment or parts manufactured by The Charles Machine Works, Inc. (CMW) that fail due to a defect in material or workmanship within one (1) year of first commercial use. Free labor will be provided at any authorized Dit ch Witch dealership for inst allation of parts under this warranty during the first year following initial commercial use of the serial-numbered Ditch Witch equipment on which it is installed.

Exclusions from Product Warranty

• Wear-related failure of parts subject to ground contact including, but not limited to, digging teeth, digging chains, sprockets, backhoe buckets, plow blades, drill pipe, drill bits, backreamers, and swivels.

• All incidental or consequential damages.

• All defects, damages, or injuries caused by misuse, abuse, improper

installation, alteration, neglect, or uses other than those for which products were intended.

• All defects, damages, or injuries caused by improper training, operation, or servicing of products in a manner inconsistent with manufacturer’s recommendations.

• All engines and engine accessories (these are covered by original manufacturer’s warranty).

• Tires, belts, and other parts which may be subject to another manufacturer’s warranty (such warranty will be available to purchaser).

• All implied warranties not expressly stated herein, including any warranty of fitness for a particular purpose and merchantability.

IF THE PRODUCTS ARE PURCHASED FOR COMMERCIAL PURPOSES AS DEFINED BY THE UNIFORM COMMERCIAL CODE, THEN THERE ARE NO WARRANTIES WHICH EXTEND BEYOND THE F ACE HEREOF AND THERE ARE NO IMPLIED WARRANTIES OF ANY KIND WHICH EXTEND TO A COMMERCIAL BUYER. ALL OTHER PROVISIONS OF THIS LIMITED WARRANTY APPLY INCLUDI N G T H E DU TIES IMPOSED.

100

HT25 - WARRANTY

Ditch Witch products have been tested to deliver acceptable performance in most conditions. This does not imply they will deliver acceptable performance in all conditions. Therefore, to assure suitability, products should be operated under anticipated working conditions prior to purchase.

Defects will be determined by an inspection within thirty (30) days of the date of failure of the product or part by CMW or its authorized dealer. CMW will provide the location of its inspection facilities or its nearest authorized dealer upon i nquiry. CMW reserves the right to supply remanufactured replacements parts under this warranty as it deems appropriate.

Extended warranties are available upon request from your local Ditch Witch dealer or CMW.

Some states do not allow exclusion or limitation of incidental or consequential damages, so above limitation of exclusion may not apply. Further, some states do not allow exclusion of or limitation of how long an implied warranty lasts, so the above limitation may not apply. This limited warranty gives product owner specific legal rights and the product owner may also have other rights which vary from state to state.

For information regarding this limited warranty, contact CMW’s Product Support department, P.O. Box 66, Perry, OK 73077-0066, or contact your local Ditch Witch dealer.

First version: 1/91; Latest version: 4/00

Ditch Witch ht25 Service Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
