S-100
Section -1 Introduction
DECLARATION OF CONFORMITY
Manufacturer’s Name: Digitech Studio Manufacturer’s Address: 8760 S. Sandy Parkway
Sandy, Utah 84070, USA
declares that the product:
Product Name: S-100 Product Options: All
conforms to the following Product Specifications:
Safety: EN 60065 (1993)
IEC 65 (1985) with Amendments 1, 2 & 3
EMC: EN 55013 (1990)
EN 55020 (1991)
Supplementary Information:
The product herewith complies with the requirements of the Low Voltage Directive 73/23/EEC and EMC Directive 89/336/EEC as amended by Directive 93/68/EEC.
Digitech Studio
President of Digitech Studio 8760 S. Sandy Parkway Sandy, Utah 84070, USA Tel: 801.566.8800 Fax: 801.566.7005
Effective December 1, 1997
European Contact: Your Local Digitech Sales and Service Office or
International Sales Office 3 Overlook Drive #4 Amherst, New Hampshire 03031, USA Tel: 603.672.4244 Fax: 603.672.4246
1
Section -1 Introduction
Table of Contents
Safety Information
Declaration of Conformity ......................................................................................................1
Table of Contents ....................................................................................................................2
Section 1 - Introduction
Congratulations ..................................................................................................................3
Included Items....................................................................................................................3
Product Features ................................................................................................................3
Warranty..............................................................................................................................4
A Quick Tour of the S-100 ....................................................................................................5
The Front Panel ..................................................................................................................5
The Rear Panel....................................................................................................................7
Section 2 - Operation and Editing
Program Mode ..................................................................................................................8
Storing Changes..................................................................................................................8
Selecting Effect Configurations ........................................................................................8
Adjusting Dry Path Global Mix ..........................................................................................9
MIDI Channel Selection and CC Information ..................................................................10
EQ and Noise Gate Adjustments ........................................................................................10
Editing Engine A and B Engines ........................................................................................12
S-100
Section 3 - Effects and Parameters
Modulation Effects..............................................................................................................13
Pitch Shifters ......................................................................................................................14
Delay ..................................................................................................................................14
Reverb ................................................................................................................................16
Other Effects (Vocoder, Ring Modulator and Compressor) ..............................................17
Section 4 - Appendix
Resetting the S-100 ............................................................................................................18
Specifications......................................................................................................................19
Program List........................................................................................................................20
2
User Guide
S-100
Section -1 Introduction
Section-1 Introduction
Congratulations...
... you are now the proud owner of a Digitech Studio S-100 Multi-Processor. The S-100 offers you Dual-Engine processing with five different effect configurations and a full palette of studio-quality effects. In addition, the S-100 has an easy-to-use interface that makes the S-100 an absolute necessity for use in studio or live applications.
This owner's manual is your key to understanding the powerful world of the S-100. Read it carefully. After you've had time to familiarize yourself with the unit, try experimenting with unusual effect combinations. You are certain to achieve sounds never thought possible before. Good luck, and thank you for choosing a Digitech Studio product.
Your S-100 was carefully assembled and packaged at the factory. Before you proceed any further, make sure the following items are included:
• (1) Owner’s Manual
• (1) Digitech S-100 Multi-effects Processor
• (1) Power Supply
• (1) Digitech Studio warranty card
Please save all packing materials. They were designed to protect the unit from damage during shipping. In the unlikely event that the unit requires service, use only the factory supplied carton to return the unit.
S-100 Features:
• Dual-Engine processing power • 5 Effect configurations
• Stereo Inputs and Outputs • Full bandwidth effects (20-20kHz)
• 20-bit A/D and D/A conversion • MIDI program changes
• Footswitch compatible • 96 dB signal-to-noise ratio
• Easy-to-use interface • 99 User Programs
• Studio Quality Reverbs • Vocoder and Ring Modulator Effects
User Guide
3
Section -1 Introduction
We at Digitech Studio are very proud of our products and back-up each one we sell with the following warranty:
1. The warranty registration card must be mailed within ten days after purchase date to validate this warranty.
2. Digitech Studio warrants this product, when used solely within the U.S., to be free from defects in materials and workmanship under normal use and service.
3. Digitech Studio liability under this warranty is limited to repairing or replacing defective materials that show evidence of defect, provided the product is returned to Digitech Studio WITH RETURN AUTHORIZATION, where all parts and labor will be covered up to a period of one year. A Return Authorization number may be obtained from Digitech Studio by telephone. The company shall not be liable for any consequential damage as a result of the product's use in any circuit or assembly.
4. Proof-of-purchase is considered to be the burden of the consumer.
5. Digitech Studio reserves the right to make changes in design, or make additions to, or improvements upon this product without incurring any obligation to install the same on products previously manufactured.
6. The consumer forfeits the benefits of this warranty if the product's main assembly is opened and tampered with by anyone other than a certified Digitech Studio technician or, if the product is used with AC voltages outside of the range suggested by the manufacturer.
7. The foregoing is in lieu of all other warranties, expressed or implied, and Digitech Studio neither assumes nor authorizes any person to assume any obligation or liability in connection with the sale of this product. In no event shall Digitech Studio or its dealers be liable for special or consequential damages or from any delay in the performance of this warranty due to causes beyond their control.
Digitech Studio™ and S-100 are registered trademarks of the Harman Music Group Incorporated.
S-100
NOTE: The information contained in this manual is subject to change at any time without notification. Some information contained in this manual may also be inaccurate due to undocumented changes in the product or operating system since this version of the manual was completed. The information contained in this version of the owner's manual supersedes all previous versions.
4
User Guide
1 2
3 4
5 106 7
8
9 a~g
Other Other
Reverb Reverb
Delay Delay
Predelay
Decay LevelSize
Mod/Pitch
LR
Mod/Pitch
23
C1 C2
C3
C4
C5
S-100
Section -1 Introduction
A Quick Tour of the S-100
The Front Panel
1) Configuration Matrix - This matrix shows the five different effect configurations available in the S-100.

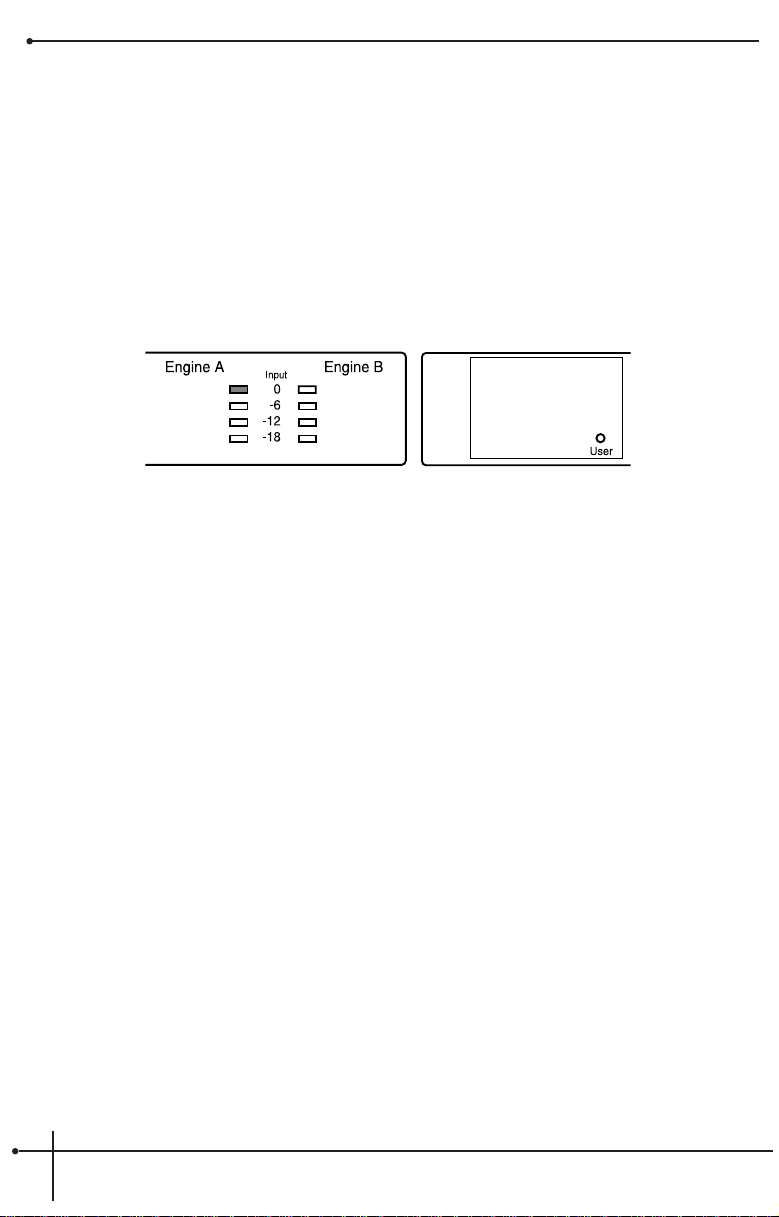

2) Input Meter/ Effect Display - In Program mode, this meter displays the input signal entering the unit. In Edit mode, it
will indicate which effect is being used.
3) Number Display - In Program mode, this number display will indicate program number (decimal point indicates a user
program). In Edit mode, the display will indicate effects and parameter values.
4) Program/Data Wheel - In Program mode, this wheel is used to change programs and when the unit is in Edit mode it is
used to select effects and change parameter.
5) Program Button -This button returns the S-100 to program mode when pressed.
6) Store Button - This button is used to store program modifications in the S-100.
7) Configuration Button - This button is used to select Configuration mode. Once pressed, use the <Program/Data>
wheel to select a different effect configuration for the selected program.
8) Mix/MIDI - This button is used to turn the Dry signal path On and Off and select the MIDI channel that program change
information is received on.
9 a~g) Program Editing buttons - These seven buttons are used to make key editing modifications to the S-100 and their
functions are as follows:
9-a) EQ/Gate - This button (in conjunction with the four parameter buttons) are used to adjust the three band EQ and
Noise gate threshold and release. Press once to select the EQ and press twice to select the noise gate.
9-b) Engine A - This button selects the Engine A effect module. Once this button is pressed, use the <Program/Data>
User Guide
5
Section -1 Introduction
wheel to change the effect used in this module.
9-c) Engine B - This button selects the Engine B effect module. Once this button has been pressed, use the
<Program/Data> wheel to change the effect used in the module.
9-d) Parameter 1 / Predelay - This button selects parameter 1 for editing in conjunction with the <Program/Data>
wheel. It is also the Predelay parameter of the Reverb effect.
9-e) Parameter 2 / Decay - This button selects parameter 2 for editing in conjunction with the <Program/Data>
wheel. It is also the Decay parameter of the Reverb effect.
9-f) Parameter 3 / Damping - This button selects parameter 3 for editing in conjunction with the <Program/Data>
wheel. It is also the Damping parameter of the Reverb effect.
9-g) Parameter 4 / Level - This selects parameter 4 (level) for editing in conjunction with the <Program/Data> wheel.
10) Bypass - This button is used to Bypass all of the digital effects in the S-100 and allow the original dry signal to pass
through the S-100.
S-100
6
User Guide
INPUT LEVEL
LEFT/MONO IN
RIGHT IN
LEFT/MONO OUT
RIGHT OUT
POWER SUPPLY
FOOTSWITCH MIDI IN
1
2 3
4 5
6
7
8
S-100
Section -1 Introduction
The Rear Panel
1) Input Level- This knob controls the level of signal entering the S-100. For optimal performance, set this level so the
Input level indicators (located on the front panel) occasionally light the red LEDs.
2) Left/Mono Input - This Input jack is used for the Left or Mono input. When only the Left input jack is used, the signal is
sent to both Left and Right S-100 inputs.
3) Right Input - This is the Right Input jack for the S-100 that when used with Left input will preserve stereo imaging.
4) Left/Mono Output - This is the S-100’s left audio output. This output must be used if a mono effect
is desired.
5) Right Output - This is the S-100’s right audio output. Use both left and right outputs to take
advantage of stereo effects.
6) AC Line Input - This is the AC adapter receptacle. Use only the included PS 750 power supply.
7) Footswitch Jack - This jack is used for the insertion of the Digitech FS-300 footswitch that will control program changes
and Bypass the digital effects of the S-100.
8) MIDI IN - This MIDI jack is used for receiving MIDI program change and CC information.
User Guide
7
Section -2 Operation and Editing
C1 C2
C3
C4
C5
S-100
Section-2 Operation and Editing
This section will provide you with all of the information necessary to get the most out of your S-100.
Program Mode
When the S-100 is in program mode, you can move from one program to the next by either using the <Program/Data> wheel, the optional Digitech FS-300 footswitch or incoming MIDI program change commands from another device such as a sequencer or keyboard.
When the S-100 is in edit mode and you wish to abort and return to program mode, simply press the <Program> button.
Storing Changes
When a program has been modified, the program number will blink in the number display when the unit is in program mode. To store changes, press the <Store> button once. The display alternates between st and the user program location to be stored to. This simply means that S-100 is now giving you the option to store this modified version of the program as a user program at any number from 1 to 99. At this point, you may use the <Program/Data> wheel to change the storing position to another program number. When the target preset location (shown in the display) is correct, press the <Store> button once again. The display will momentarily read: indicating that the modified program is being stored.
--
Selecting Effect Configurations
The S-100 provides you with five different effect configurations that allow you ultimate flexibility and versatility in effect routing. The five configurations appear on the front panel as follows:
Effect Module Size
Effect Configuration 1 uses one effect module because both processing engines are combined for maximum processing power. This larger module allows you to have longer delay times and more dense sounding reverbs. Effect configurations 2-5 use Half size effect modules which allow you to use two effects per program
8
User Guide
Of
C1
S-100
To select any one of these five different configurations, simply perform the following procedure:
• Press the <Config> button and the display will briefly read: CF indicating that you are in the configuration select mode and now the display will appear something like this:
• Now turn the <Program/Data> wheel until the desired configuration appears (C1-5) in the display.
• To exit the Effect configuration menu, simply press the <Program> button where the display will flash the program
number until the program change is stored or until you change to the next program.
Section -2 Operation and Editing
Adjusting the Dry Path Global Mix
This editing procedure will allow you to globally turn a Dry signal path Off for use with a mixing consoles' effects sends or On for use with single instrument input signals (such as guitar, saxophone and others). The procedure is as follows:
• To edit the Dry signal within the effect configuration of the S-100 (turning it On or Off), press the <Mix/MIDI> button
once and the display will briefly read: dr indicating the dry path mix and then On, indicating that the Dry signal is on. If you wish to turn the dry path off, simply turn the <Program/Data> wheel counter clockwise and the display will now read:
• This now indicates that the Dry signal has been turned Off creating a 100% Wet signal globally in the S-100. To exit this
mode, press the <Program> button.
Note: The Dry path will automatically be turned off when either a Tremolo, Panner, Vocoder, Compressor, Rotary
Speaker or Reverse Reverb effect is used in a program, since the dry signal is already included in these
effects.
User Guide
9
Section -2 Operation and Editing
1
S-100
Selecting the MIDI Channel and MIDI CC Information
• To select the MIDI channel in which the S-100 receives program change information, from Program mode, press the
<Mix/MIDI> button twice and the display will briefly read: ch (this indicates MIDI channel mode), followed by:
• Now turn the <Program/Data> wheel to select the desired MIDI channel. The options for the MIDI channel selection
ranges from: 1-16, All and of (Off).
MIDI program change numbers will be as follows:
1-99 = Programs 100 = Effects Bypass 101 = Exit Effects Bypass 102 = Effect Bypass Toggle 103 = Selects User Program Bank 104 = Selects Factory Program Bank
• To exit the MIDI channel menu, press the <Program> button.
MIDI CC Information
The S-100 will also receive MIDI CC information for parameter control of the following parameter:
Dry Level - is turned On or Off by MIDI CC number - CC 7.
EQ and Noise Gate Adjustments
This editing function allows you to make key EQ and Noise gate modifications to custom tailor your sound for each program. The procedure for both is as follows:
Adjusting the EQ
The S-100 offers a three band EQ with Lo EQ, Parametric Frequency, Parametric Level and Hi EQ parameters. To adjust any one of these four, perform the following procedure:
10
User Guide
ng
e
S-100
• Press the <EQ/Gate> button once and the display will briefly read:
• Now to make adjustments to the four different EQ parameters use the <Parameter 1-4> buttons. Parameter and value range for each is listed below.
Parameter 1 - Lo EQ - Range for the Low EQ is from -12 to +12 dB. Parameter 2 - Parametric Frequency - Range for the Parametric Frequency is from 1 to 26. Parameter 3 - Parametric Level - Range for the Parametric Level is from -12 to +12 dB. Parameter 4 - Hi EQ - Range for the High EQ is from -12 to +12 dB.
• To modify any one these four parameters, simply press the respective <Parameter> button and then turn the <Program/Data> wheel.
• Once the modifications are done, remember to store any changes and press the <Program> button to return to Program mode.
Section -2 Operation and Editing
Adjusting the Noise Gate
The S-100 gives you the ability custom tailor the Noise gate parameters (Threshold and Release) for each program by performing the following procedure:
• Press the <EQ/Gate> button twice. The display will appear something like this, indicating that you are in Noise Gate edit mode:
• Now press the <Parameter 1> button and th will appear prompting you to adjust the Noise gate Threshold by turning the <Program/Data> wheel. The range for the Noise gate Threshold is from Off, 99 to 0.
• To adjust the Noise Gate Release , press the <Parameter 2 > and the display will read: rE, prompting you to use the <Program/Data> wheel to adjust the Noise Gate Release parameter. Release range is from 1 to 10.
• Once all Noise gate modifications have been made, remember to store the changes and press the <Program> button to return to program mode.
User Guide
11
Other Other
Reverb Reverb
Delay Delay
Mod/Pitch
LR
Mod/Pitch
rs
Section -2 Operation and Editing
S-100
Editing Engine A and B Modules
Because of its processing power, the S-100 gives you two Engine modules that are fully programmable. The following section explains the simple procedure for Engine A and B editing.
Selecting and Editing Effects
• From Program mode, press either the <Engine A> or <Engine B> button. The current type of effect will light the corresponding LED in the effect display and it’s two letter abbreviation will appear in the number display looking something like this:
Note- In order to edit Engine B, configurations 2-5 must be used.
• Now turn the <Program/Data> wheel to select the effect to be used. The effect display’s LED and number display’s
abbreviation will change as the new effects are selected.
• Once the effect to be used has been selected, you can use the <Parameter 1-4> edit buttons to modify the parameters of the selected effect.
For a complete list of the effects available and their respective names, please see Section 3 on pages 13-16.
• Once all of the edits have been made to the selected program, make sure to store any changes and then press the <Program> button to return to the Program mode.
12
User Guide
Modulation Effects
Effect Name
Parameter 1
Parameter 2 Parameter 3
Parameter 4
Chorus - CH Flange - FL
Phaser - PH Tremolo - tr Panner - Pn
Rotary Speaker - RS
Speed - SP Speed - SP Speed - SP Speed - SP Speed - Sp
Type - Ty
Depth - de Depth - de
Depth - de
Depth - de Depth - de
Speed - SP
X-over Freq - CF
Delay - dL Feedback - Fb Feedback - Fb
N/A
N/A
Level - L Level - L Level - L Level - L Level - L
Level - L
S-100
Section -3 Effects and Parameters
Section - 3 Effects and Parameters
This section provides you with a detailed description of the Digital effects in the S-100 and their parameters and values. A complete list of these effects is also printed on the top of the S-100.
The Modulation effects menu offers a vast list of modulating effects ranging from Chorus to a Rotary Speaker simulator.
These modulation effects are ideal producing lush sounding effects that can add dimension to any signal. The parameters
and values for the modulation effects are as follows:
Speed The Speed parameter controls the speed of the modulation in the effect.
Range is from 0 to 99 or Slow to Fast.
Depth This parameter controls the amount of depth of the modulation effect.
Delay This parameter controls the delay time within the modulation effect.
Feedback This parameter controls the amount of regeneration feedback in the
Type This parameter selects between six different modulation extremes.
Cross-over Frequency This parameter selects the frequency where the signal is split between
Level This parameter allows you to set the overall level of the selected effect.
User Guide
Range is from 0 to 40.
Range is from 0 to 40 milliseconds.
modulation effect. Range is from 0 to 97%.
the Rotor and the Horn. Settings are 1 - 4
Range is from 0 to 99.
13
Section -3 Effects and Parameters
Delay
Effect Name
Parameter 1
Parameter 2 Parameter 3
Parameter 4
Mono Delay - d1 Stereo Delay - d2
Ping Pong - d3
Delay Fine - df Delay Fine - df
Delay Fine - df
Feedback - FB Feedback - Fb Feedback - Fb
Level - L Level - L Level - L
Karaoke - d4
Delay Time - dt
Delay Coarse -dC Delay Coarse -dC Delay Coarse -dC
N/A
Repeats - rP
Level - L
Pitch Shifters
Effect Name
Parameter 1
Parameter 2 Parameter 3
Parameter 4
Pitch Shift - PS Detuner - dn
Shift - Sh
Detune Amt - dA
Tracking - tr
N/A
N/A N/A
Level - L Level - L
The Pitch Shifting effects menu includes a Pitch Shifting effect that allows you to shift the original signal to help produce
Harmony effects, while the Detuner effect will help you thicken up any signal to add dimension to your sound. Parameters
for the Pitch Shifting Effects are as follows:
Shift This parameter sets how far the signal is shifted. Range is from -12 to
+24 semi-tones.
Tracking This lets you select the tracking level of the Pitch shifter effects. Range is
from 1 to 3.
Detune Amount This parameter sets the amount of Detune in the effect. Range is from -
12 to +12 cents.
S-100
Level This parameter allows you to set the overall level of the selected effect.
Range is from 0 to 99.
The S-100 offers three different Delay effects including: Mono, Stereo and Ping Pong, offering ultimate flexibility in digital
delay applications. The S-100 also offers a Karaoke delay effect. The parameters and their values are as follows:
14
Note: When Delay effects are used in Effect Configuration 1 (which is a Whole effect module), longer delay times
are available. These Delay time differences are marked W (Whole) and H(Half) in the Maximum delay time
chart on the following page.
User Guide
S-100
D-1 (Half=1000 milliseconds and Whole=2000 milliseconds)
D-2 (Half=700 milliseconds and Whole=1000 milliseconds)
D-3 (Half=1000 milliseconds and Whole=2000 milliseconds)
Delay Coarse This parameter controls the length of the Delay Coarse time Range is
Delay Fine This parameter controls the length of the Delay Fine time. Range is from
Delay Time This parameter controls the length of the Delay Time that is offered in
Feedback This parameter controls the amount of delay repeats in the delay effect.
Section -3 Effects and Parameters
Maximum Delay times
from .1 (which equals 100 milliseconds) to 2. 0 (which equals 2
seconds).
0 to 99 milliseconds.
the Karaoke. Delay Time settings are 1-5.
Range is from 0 to 99% and repeat-hold (rh).
Repeat This parameter controls the amount of delay repeats in the D-4 Karaoke
effect. Range is from 1 to 10.
Level This parameter allows you to set the overall level of the selected effect.
Range is from 0 to 99.
User Guide
15
Reverb
Effect Name
Parameter 1
Parameter 2 Parameter 3
Parameter 4
Stage - St
Room - ro
Hall - HA Plate - PL Chamber - Ch Cathedral - Ca
Predelay - Pd
Decay - dC
Damping - Da
Level - L
Predelay - Pd
Decay - dC
Damping - Da
Level - L
Predelay - Pd
Decay - dC
Damping - DA
Level - L
Predelay - Pd
Decay - dC
Damping - da
Level - L
Predelay - Pd
Decay - dC
Damping - da
Level - L
Predelay - Pd Predelay - Pd
Predelay - Pd
Decay - dC
Damping - da
Diffusion - di Diffusion - di
Level - L
Decay - dC Level - L
Decay - dC Level - L
Predelay - Pd
Decay - dC
Damping - dA
Level - L
Arena - Ar Gated - Ga Reverse - rE
Section -3 Effects and Parameters
Reverb is the perfect effect for adding dimension to any recording or live application where you need to emulate the size and
shapes of different types of rooms. The following explains the parameters that are available in the Reverb effects.
Note: When Reverb effects are used in Effect Configuration 1 (which is a Whole effect module) larger and more
dense sounding Reverbs can be attained.
Pre Delay This parameter controls the length of time before the reverb reflections
are heard. Range is from 0 to 99 ms.
S-100
Decay This parameter controls the decay length (reverb time) of the reverbera-
Damping This parameter controls the high frequency decay of the reverb effect
Diffusion This parameter controls the reverb smoothness and ranges from 1 to 10.
16
Level This parameter allows you to set the overall level of the selected effect.
tion. Range is from 1 to 10.
and ranges from 1 to 10.
Range is from 0 to 99.
User Guide
Other Effects
Effect Name
Parameter 1
Parameter 2 Parameter 3
Parameter 4
Vocoder - Cd
Ring Modulator- Rg
Frequency - Fr
Sibliance - si
Type - Tp
N/A
N/A
N/A
Level - L
Level - L
Compressor - Co
Threshold - Th Ratio - Rt Attack - At
Gain - gA
S-100
The S-100 also offers an additional menu of hard to find effects including: a Vocoder effect which takes a vocal signal (using
the Left input) and superimposes it onto another input signal such as a keyboard (using the Right input) to produce a vocal
effect that sounds more robotic than human. This menu also provides you with a Ring modulator that can produce mathe-
matically-based harmonic effects. And last but not least, we have also included a state-of-the-art Compressor that is ideal for
making any signal stand out with the right amount of compression. The parameters for these effects are as follows:
Frequency This parameter sets the modulation frequency of the Ring Modulator
Threshold This parameter sets threshold level of the compressor. Range is 60 to 0.
Ratio This parameter sets the compressor ratio. Range is from 1 to 19
Section - 3 Effects and Parameters
effect. Range is from 1 to 99.
and ∞.
Attack This parameter controls the attack time of the compressor. Range is
Gain This parameter allows you to set the overall gain of the selected effect.
Type This parameter allows you to select the different types of Vocoder effect
Sibilance This parameter allows you to set the amount of Essing that is passed
Level This parameter allows you to set the overall level of the selected effect.
User Guide
from 1 to 10.
Range is from -19 to 20.
setting in the S-100. Types include: 1-5.
through the Vocoder effect. Range is from 0 to 99.
Range is from 0 to 100.
17
Fr
Section - 4 Appendix
S-100
Section - 4 Appendix
This section provides you with information to Factory Reset the S-100, a Specification page and a Program list
Resetting the S-100
This procedure will allow you to perform a complete factory reset on the S-100.
Warning- All previous program information will be deleted when the reset is performed
• To perform a factory reset on the S-100, simply press and hold the <Program> button while applying power to the unit and the display will briefly read: --and then appear like this:
18
• Now release the <Program> button and immediately press the <Config> button and the S-100 will proceed to reset. In the process of resetting, the S-100 will briefly display the current software version number and then return to program mode.
User Guide
S-100
Section - 4 Appendix
Specifications
Frequency Response: 20-20kHz +/-0.5dB
Signal-to-Noise Ratio: 96dB (A-Weighted ref=Max signal 22kHz measurement bandwidth)
THD: Less than 0.008%
Memory Allocations: 99 User - 99 Factory Programs
Sampling Rate: 46.875kHz
A/D Converter: 20 bit, 128 oversampled
D/A Converter: 20 bit, 128 oversampled
External Signal Path Width: 24 bits
Internal Signal Path Width: 24 bits
Multiplier Size: 24 bits x 24 bits
Inputs: Stereo (2) 1/4” Unbalanced - Max In + 18 dBu
Outputs: Stereo (2) 1/4” Impedance Balanced - Max + 18 dBu
MIDI: MIDI In Program Changes
Power Consumption: 5 watts
Power Requirements: Included external power supply (PS 750)
Net Weight: 4.2lbs (1.91kg)
User Guide
19
Section -4 Appendix
Program List
The following is a list of all the factory Programs in the S-100
S-100
Showcase
1 Stereo Large Hall 2 Deep Phaser and Delay 3 Deep Chorus and Reverb Parallel 4 Gold Foil Plate 5 Octave Down Pitch & Parallel Detune 6 4 Voice Chorus 7 Stereo Karaoke Delay 8 Panning Detune 9 Deep Space
Reverbs
10 Bright Mid-Size Hall 11 Stereo Dark Hall 12 Extra Thick Hall 13 Large Empty Arena 14 Sold Out Arena 15 Forever In Reverb 16 High Vaulted Cathedral 17 Vocal Cathedral 18 Small Bright Room 19 Split Vocal Room 20 Wood Recording Studio 21 Thick Studio with Slow Modulation 22 Sparse Vocal Chamber 23 Warm Chamber 24 Percussion Plate 25 Industrial Plate 26 100ms Gated Reverb 27 300ms Gated Reverb 28 600ms Gated Reverb 29 Stereo Reverse Reverb 400ms
Delays
30 Stereo Doubling Delay 31 Stereo Slapback Delay 32 Stereo Slap Right/Left Delay 33 Stereo 300ms Echo 34 Stereo 400ms 30% Feedback 35 2 Second 2 Tap Delay 36 Stereo 500ms 25% Feedback Delay 37 Stereo 800ms 20% Feedback Delay 38 Ping-Pong 1500ms 20% Feedback Delay 39 Mono 2 Second Delay Loop
Modulation
40 Medium Chorus 41 Deep Chorus 42 4 Voice Medium Chorus 43 Deep Depth Chorus 44 Shimmery Chorus 45 Flange Hi Sweep 40% 46 Flange Hi Sweep 70% 47 Slow Shallow Phaser 48 Medium Phaser 49 Deep Phaser
50 Deep Slow Tremolo 51 Fast Shallow Tremolo 52 Wide Mid-Speed Panner 53 Slow Wide PAnner 54 Leslie Slow to Fast 55 5th Up Pitch Shift 56 4th Down Pitch Shift 57 Octave Down Pitch Shift 58 Octave Up Pitch Shift 59 Mild Detune 60 Heavy Detune 61 Vocoder 1 62 Vocoder 2 63 Compressor 64 Ring Modulator
Multi-Effects
65 Medium Chorus and Arena Reverb 66 Shallow Chorus with Delay 67 Deep Chorus Hall 68 Bright Panning Chorus 69 Panning Shimmery Chorus 70 Warm Flanger and Hall Reverb 71 Deep Flange and 1 Second Echo 72 Shallow Phaser and Plate 73 Deep Phase and Pong Delay 74 Tremolo and Chamber 75 Tremolo and Echo 76 Panner and Cathedral 77 Panning Arena 78 Panning Delay 79 Pitch 5th Up and Plate Reverb 80 Pitch Octave Down and Ping Pong Delay 81 Detune and Room Reverb 82 Deep Detune and Echo 83 1/2 Sec Delay and Hall Reverb 84 Delay and Plate Reverb 85 Delayed Reverb 86 Compressed Hall Reverb 87 Compressed Delay 88 Compressed Chorus 89 Ping Pong Gated Reverb
Split Effects
90 Chorus Left - Reverb Right Summed 91 Phaser Left - Pitch Right Split 92 Delay Left - Gated Reverb Right Summed 93 2 Tap Room Delay 94 Short Plate Left - Hall Right Summed 95 Panner Left - Compressor Right Summed 96 Reverse Reverb Left - Ring Modulator Right Split 97 Slap Delay Left - Room Reverb Right Split 98 Octave Up Left - Octave Down Right Summed 99 Fast Phase Left - Arena Reverb Right Split
20
User Guide
S-100
User Guide
21
8760 South Sandy Parkway
Sandy, Utah, 84070
Telephone 801.566.8800
FAX 801.566.7005
International Distribution:
3 Overlook Drive, Unit 4
Amherst, New Hampshire 03031 U.S.A.
FAX 603.672.4246
Digitech Studio™, S-100 are registered trademarks
of the Harman Music Group Incorporated
Copyright © 1997
the Harman Music Group Incorporated
Printed In U.S.A. 4/98
Manufactured in the U.S.A.
S-100 18-2208-B
Please Visit Digitech Studio on the World Wide Web at:
http/digitech.com
Loading...
