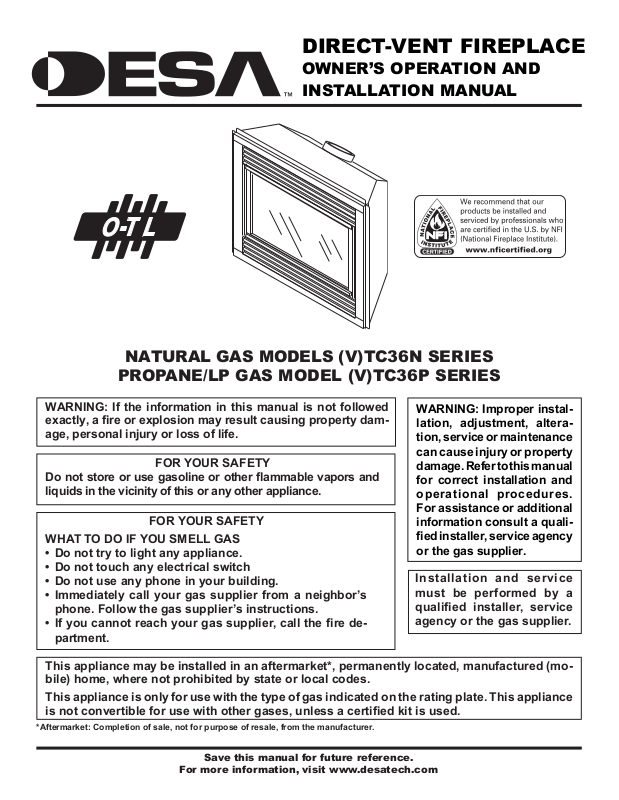

DIRECT-VENT FIREPLACE
OWNER’S OPERATION AND INSTALLATION MANUAL
NATURAL GAS MODELS (V)TC36N SERIES
PROPANE/LP GAS MODEL (V)TC36P SERIES
WARNING: If the information in this manual is not followed exactly, a fire or explosion may result causing property dam­age, personal injury or loss of life.
FOR YOUR SAFETY Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or any other appliance.
FOR YOUR SAFETY
WHAT TO DO IF YOU SMELL GAS
• Do not try to light any appliance.
• Do not touch any electrical switch
• Do not use any phone in your building.
• Immediately call your gas supplier from a neighbor’s
phone. Follow the gas supplier’s instructions.
• If you cannot reach your gas supplier, call the fire de
partment.
WARNING: Improper instal­lation, adjustment, altera tion, service or maintenance can cause injury or property damage. Refer to this manual for correct installation and operational procedures. For assistance or additional information consult a quali fied installer, service agency or the gas supplier.
Installation and service must be performed by a qualified installer, service agency or the gas supplier.
This appliance may be installed in an aftermarket*, permanently located, manufactured (mo­bile) home, where not prohibited by state or local codes.
This appliance is only for use with the type of gas indicated on the rating plate. This appliance is not convertible for use with other gases, unless a certified kit is used.
*Aftermarket: Completion of sale, not for purpose of resale, from the manufacturer.
Save this manual for future reference.
For more information, visit www.desatech.com
TABLE OF CONTENTS
2

SAFETY INFORMATION

TABLE OF CONTENTS
SAFETY INFORMATION ..............................................................2
PRODUCT IDENTIFICATION ......................................................
LOCAL CODES ............................................................................3
PRODUCT FEATURES ................................................................ 4
PRE-INSTALLATION PREPARATION ..........................................
LOCATION OF TERMINATION CAP ............................................6
VENTING INSTALLATION INSTRUCTIONS ................................7
FIREPLACE INSTALLATION .....................................................
OPERATING FIREPLACE ..........................................................
INSPECTING BURNERS ...........................................................26
16
23
CLEANING AN
TROUBLESHOOTING ...............................................................28
3
REPLACEMENT PARTS ............................................................
SPECIFICATIONS ......................................................................
SERVICE HINTS ........................................................................
4
TECHNICAL SERVICE ..............................................................
ILLUSTRATED PARTS BREAKDOWN AND PARTS LIST ........32
ACCESSORIES .........................................................................36
OWNER'S REGISTRATION FORM ...........................................
WARRANTY INFORMATION .......................................
D MAINTENANCE .............................................. 27
31
31
31
31
37
Back Page
SAFETY INFORMATION
WARNING: This product contains and/or generates chemicals known to the State of California to cause cancer or birth defects or other reproductive harm.
IMPORTANT: Read this owner’s manual carefully and completely before trying to assemble, operate or service this fireplace. Improper use of this fireplace can cause serious injury or death from burns, fire, explosions, electrical shock and carbon monoxide poisoning.
DANGER: Carbon monoxide poisoning may lead to death!
This fireplace must be installed by a qualified (certified or licensed) service person. It has a sealed gas combustion chamber that uses a coaxial pipe (pipe within a pipe and having the same center) venting system. It brings in fresh air for combustion through the outer pipe and combustion gases are exhausted through the inner pipe. If the glass door assembly and venting pipe are not properly seated, connected and sealed, carbon monoxide leakage (spillage) can occur.
Carbon Monoxide Poisoning: Early signs of carbon monoxide
poisoning resemble the flu, with headaches, dizziness or nausea. If you have these signs, the fireplace may not have been installed properly. Get fresh air at once! Have fireplace inspected and ser viced by a qualified service person. Some people are more affected by carbon monoxide than others. These include pregnant women, people with heart or lung disease or anemia, those under the influ­ence of alcohol and those at high altitudes.
Natural and Propane/LP Gas:
Natural and propane/LP gases are
odorless. An odor-making agent is added to the gas. The odor helps you detect a gas leak. However, the odor added to the gas can fade. Gas may be present even though no odor exists.
Make certain you read and understand all warnings. Keep this manual for reference. It is your guide to safe and proper operation of this fireplace.
WARNING: Any change to this fireplace or its
controls can be dangerous.
1. This appliance is only for use with the type of gas indicated on the rating plate. This appliance is not convertible for use with other gases unless a certified kit is used.
2. For propane/LP fireplace, do not place propane/LP supply tank(s) inside any structure. Locate propane/LP supply tank(s) outdoors. To prevent performance problems, do not use pro­pane/LP fuel tank of less than 100 lbs. capacity.
3. If you smell gas
• shut off gas supply
• do not try to light any appliance
• do not touch any electrical switch; do not use any phone in
your building
• immediately call your gas supplier from a neighborʼs phone.
Follow the gas supplier's instructions
• if you cannot reach you gas supplier, call the fire depart-
-
ment.
4. Never install the fireplace
• in a recreational vehicle
• in windy or drafty areas where curtains or other combustible
(flammable) objects can make contact with the fireplace front
• in high traffic areas
www.desatech.com
116192-01B
SAFETY INFORMATION

PRODUCT IDENTIFICATION

LOCAL CODES

3
3
SAFETY INFORMATION
Continued
5. This fireplace reaches high temperatures. Keep children and adults away from hot surfaces to avoid burns or clothing igni­tion. Fireplace will remain hot for a time after shutdown. Allow surfaces to cool before touching.
6. Carefully supervise young children when they are in the room with fireplace.
7. Do not modify this fireplace under any circumstances. Any parts removed for servicing must be replaced prior to operating fireplace.
8. Turn fireplace off and let cool before servicing, installing or repairing. Only a qualified service person should install, service or repair this fireplace. Have fireplace inspected annually by a qualified service person.
9. You must keep control compartments, burners and circulating air passages clean. More frequent cleaning may be needed due to excessive lint and dust from carpeting, bedding mate rial, etc. Turn off the gas valve and pilot light before cleaning fireplace.
10. Have venting system inspected annually by a qualified service person. If needed, have venting system cleaned or repaired. See Cleaning and Maintenance, page 27.
11. Keep the area around your fireplace clear of combustible ma­terials, gasoline and other flammable vapor and liquids. Do not run fireplace where these are used or stored. Do not place items such as clothing or decorations on or around fireplace.
12. Do not use this fireplace to cook food or burn paper or other objects.
13. Do not use any solid fuels (wood, coal, paper, cardboard, etc.) in this fireplace. Use only the gas type indicated on fireplace nameplate.
14. This appliance, when installed, must be electrically grounded in accordance with local codes or, in the absence of local codes, with the National Electrical Code, ANSI/NFPA 70 or the Canadian Electrical Code, CSA C22.1.
15. Do not use fireplace if any part has been exposed to or under water. Immediately call a qualified service person to arrange for replacement of the unit.
16. Do not operate fireplace if any log is broken.
17. Do not use a blower insert, heat exchanger insert or other ac cessory not approved for use with this fireplace.
18. Do not operate fireplace with glass door removed, cracked or broken.
19. Provide adequate clearances around air openings.
PRODUCT IDENTIFICATION
Upper Louver Panel
Nailing Flange
Glass Door Assembly
Flue Collar
-
Lower Louver Panel
Control Valve with Piezo Ignitor
Figure 1 - Direct-Vent Fireplace with Millivolt Ignition
Glowing Embers
Burner Assembly
Switch Bracket for Optional Remote and Blower
LOCAL CODES
Install and use fireplace with care. Follow all local codes. In the absence to local codes, use the current National Fuel Gas Code
ANSI Z223.1/NFPA 54* (USA) or the current CSA-B149.1 Instal­lation Code (Canada).
*Available from:
American National Standards Institute, Inc.
1430 Broadway
New York, NY 10018
National Fire Protection Association, Inc.
Batterymarch Park
-
Quincy, MA 02269
Log Set
Lava Rock
116192-01B
www.desatech.com

PRODUCT FEATURES

D
RW
FW
4

PRE-INSTALLATION PREPARATION

Location and Space Requirements
PRODUCT FEATURES
These are a few facts that can help you understand and enjoy your direct-vent fireplace:
• The venting system may be routed to the outside of your home
in several ways. It may vent through the roof (vertical) or it may vent to an outside/exterior wall (horizontal). The vent pipe instal­lation is very important to allow for proper operation. You must follow the venting instructions very carefully for either vertical or horizontal applications.
• This fireplace may be installed in any room of your house provided
all local codes and these installation instructions are followed.
• This fireplace requires a wall switch, hand-held remote or wall
thermostat (millivolt) for operation (see Accessories, page 36).
• This fireplace does not require electricity to operate.
• Only the blower requires electricity if installed and if you plan to
install the blower at a later date, do not forget to wire the outlet at the bottom of the fireplace when framing.
• A piezo ignitor and ceramic electrode create spark to ignite the
pilot light. It does not require any matches, batteries or any other sources of ignition to light the pilot.
• Each time you turn on your fireplace, you may notice some
amount of condensation on the inside of the fireplace glass. This is normal and will disappear after 10-20 minutes of operation.
• Your direct-vent gas fireplace system (fireplace and venting) is a
balanced and sealed gas operating unit. It requires approximately 10­20 minutes of operating time before the flame pattern stabilizes.
• Your fireplace is designed to be used in zero clearance instal­lations. Wall or framing material can be placed directly against any exterior surface on the back, sides or top of your fireplace, except where standoff spacers are integrally attached. If standoff spacers are attached to your fireplace, these spacers can be placed directly against wall or framing material. See framing details on page 5.
• If you plan on installing a television or entertainment center re­cessed above your fireplace, it is recommended that you maintain a minimum 18" above top of louver opening.
• When locating termination cap, it is important to observe the minimum clearances shown in Figure 7, page 6.
• If recessing into a wall, you can avoid extra framing by position­ing your fireplace against an already existing framing member.
• Do not recess termination cap into a wall or siding.
• You may paint the termination cap with 450ºF (232ºC) heat­resistant paint to coordinate with the exterior finish.
• There must not be any obstruction such as bushes, garden sheds, fences, decks or utility buildings within 24" from the front of the termination cap.
• Do not locate termination cap where excessive snow or ice build up may occur. Be sure to clear vent termination area after snow falls to prevent accidental blockage of venting system. When using snow blowers, do not direct snow towards vent termination area.
PRE-INSTALLATION PREPARATION
LOCATION AND SPACE REQUIREMENTS
Determine the safest and most efficient location for your DESA direct-vent fireplace. Make sure that rafters and wall studs are not in the way of the venting system. Choose a location where the heat output is not affected by drafts, air conditioning ducts, windows or doors. Figure 2 shows some common locations. Be aware of all restrictions and precautions before deciding the exact location for your fireplace and termination cap.
When deciding the location of your fireplace, follow these rules:
• Do not connect this fireplace venting to a chimney flue serving a separate solid-fuel burning fireplace or appliance.
• Due to high temperatures, do not locate this fireplace in high traffic areas, windy or drafty areas or near furniture or draperies.
• Proper clearances must be maintained.
• If your fireplace is to be installed directly on carpeting, vinyl tile or any combustible material other than wood, it must be installed on a metal or wood panel extending the full width and depth of the fireplace. See Figure 3.
www.desatech.com
Figure 2 - Common Fireplace Locations
Figure 3 - Fireplace Bottom Dimensions
Through exterior wall enclosed in a chase
Flush with a wall
Corner installation
29"
21 1/8"
41"
116192-01B
A
B
E
F
G
H
D
C
Nailing Tabs
C
B
A
D
E
F
G
To
p of Louver Opening
3
2
1
4
5
6
7
Wa
ll
PRE-INSTALLATION PREPARATION
Clearances
Framing and Finishing
5
5
PRE-INSTALLATION PREPARATION
Continued
CLEARANCES
Minimum clearances to combustibles for the fireplace are as follows: *Back and sides 0"/mm Perpendicular walls 6" (152mm) Floor 0"/mm Ceiling to louver opening 42" (1067mm) Front 36" (914mm) Top of Standoffs 0"/mm Vent (See venting instructions for
specific venting clearances.) Combustible material with a maximum thickness of 5/8" may be
flush with the top front of fireplace. * For back and sides of fireplace, do not pack with insulation or
other materials. Zero inch clearance to combustible materials are for framing purpose only.
NOTICE: This fireplace is intended for use as supple mental heat. Use this fireplace along with your primary heating system. Do not install this fireplace as your primary heat source. If you have a central heating system, you may run system’s circulating blower while using fireplace. This will help circulate the heat throughout the house. In the event of a power outage, you can use this fireplace as a heat source.
-
For available accessories for this fireplace, see Accessories on page
36. If you are using a separate combustible mantel piece, refer to Figure 6 for proper installation height. You can install noncombus­tible mantels at any height above the fireplace. Note: Noncombustible mantels may discolor!
15"
35 3/4"
Figure 5 - Framing Clearances for Corner Installation
13 3/4"
10 3/8"
41"
41 1/4"
68 1/2"
49 5/8"
FRAMING AND FINISHING
Figure 4 shows typical framing of this fireplace. Figure 5 shows fram­ing for corner installation. All minimum clearances must be met.
Figure 4 - Framing Clearances for Installation Against an Exterior Wall
116192-01B
36 1/8"
41 1/4"
23 1/2"
www.desatech.com
Ref. Mantel Depth Ref. Mantel from Top
of Louver Opening
1 14" (356mm) A 16" (406mm) 2 12" (305mm) B 14" (356mm) 3 10" (254mm) C 12" (305mm) 4 8" (203mm) D 10" (254mm) 5 6" (152mm) E 8" (203mm) 6 4" (101mm) F 6" (152mm) 7 2" (51mm) G 4" (101mm)
Figure 6 - Clearances for Combustible Mantels
Fixed
Closed
Openable
Fixed
Closed
Openable
V
V
V
V
V
V
V
V
X
X
V
X
G
G
J
F
B
B
K
N
H
I
A
N
E
L
D
B
M
A
C
B
V
V
A
G
G
B
TERMINATION CAP
AIR SUPPLY INLET
GAS METER RESTRICTED AREA
(TERMINATION PROHIBITED)
A = clearance above grade, veranda, porch, deck, or balcony [*12 inches (30.5mc) minimum] B = clearance to window or door that may be opened
[12 inches (30.5cm) minimum]
C = clearance to permanently closed window [minimum 12 inches
(30.5cm) recommended to prevent condensation on window] D = vertical clearance to ventilated soffit located above the terminal within a horizontal distance of 24 inches (61cm) from the
center-line of the terminal [18 inches (45.7cm) minimum] E = clearance to unventilated soffit [12 inches (30.5cm) minimum] F = clearance to outside corner (see below) G = clearance to inside corner (see below) H = *not to be installed above a meter/regulator assembly within
36 inches (91.4cm) horizontally from the center-line of the regulator
I = clearance to service regulator vent outlet [*72 inches (182.9cm) minimum] J = clearance to non-mechanical air supply inlet to building or the
combustion air inlet to any other fireplace [*12 inches (30.5cm)
minimum] K = clearance to a mechanical air supply inlet [*72 inches (182.9cm) minimum] L = † clearance above paved side-walk or a paved driveway located on
public property [*84 inches (213.3cm) minimum] M = clearance under veranda, porch, deck [*12 inches (30.5cm) minimum ‡] N = clearance above a roof shall extend a minimum of 24 inches (61cm) above the highest point when it passes through the roof surface and any other obstruction within a horizontal distance of 18 inches (45.7cm)
† vent shall not terminate directly above a side-walk or paved driveway which is located between two single family dwellings and serves both dwellings* ‡ only permitted if veranda, porch, deck or balconey is fully open on a minimum of 2 sides beneath the floor* * as specified in CAN/CSA B149 (.1 or .2) Installation Codes (1991) for Canada and U.S.A. Note: Local codes or regulations may require different clearances
A = 6" (15.2cm)
Inside Corner
V
B
E
V
B = 6" (15.2cm)
C = Maximum depth of 48" (121.9cm) for recessed location D = Minimum width for back wall of recessed location ­ Combustible - 38" (965mm) Noncombustible - 24" (61cm) E = Clearance from corner in recessed location­ Combustible - 6" (15.2cm) Noncombustible - 2" (5.1cm)
Outside Corner Recessed Location
G
H
G = 12" (30.5cm) minimum clearance
Balcony with No Side Wall
V
J
Combustible & Noncombustible H = 24" (61cm) J = 20" (50.8cm)
Balcony with Perpendicular Side Wall
C
D
C
Termination Clearances for Buildings with Combustible and Noncombustible Exteriors

LOCATION OF TERMINATION CAP

6
LOCATION OF TERMINATION CAP
Figure 7 - Minimum Clearances for Termination Cap
www.desatech.com
116192-01B

VENTING INSTALLATION INSTRUCTIONS

Installation Precautions
7
7
VENTING INSTALLATION INSTRUCTIONS
NOTICE: Read these instructions completely before attempting installation.
These models are tested and approved for use with DESA (direct­vent) pipe components and terminations.
The venting system must terminate on the outside of the structure and can not be attached to a chimney or flue system serving a separate solid fuel or gas burning appliance. A direct-vent appliance must have its own venting system. DO NOT common vent this appliance.
These models are approved to be vented either horizontally through an outside wall or vertically through a roof or chase enclosure using the following guidelines:
• When venting system terminates horizontally on an outside wall, you may install a standoff if the termination cap is to be installed directly on a combustible finish such as vinyl, wood, stucco, etc.
• Never run the vent downward as this may cause excessive tem­peratures which could cause a fire.
• Vent pipe air space clearances to combustibles are 1" on all sides except on the horizontal sections, which requires 2" clearance from the top of the pipe. Where the termination cap penetrates a combustible wall, 1" air space clearance is required.
• Snorkel terminations are required when minimum clearance to grade cannot be met (see Figure 16 on page 11).
• Have fireplace and selected vent components on hand to help determine the exact measurements when elbowing or offsetting. Always use wall firestops when penetrating walls and firestops when penetrating ceilings or attic spaces.
• Install horizontal venting with a 1/4" rise for every 12" of run toward the termination.
INSTALLATION PRECAUTIONS
• Wear gloves and safety glasses for protection
• Use extreme caution when using ladders or when on roof tops
• Be aware of electrical wiring locations in walls and ceilings
The following actions will void the warranty on your venting system:
• Installation of any damaged venting component
• Unauthorized modification of the venting system (Do not cut or alter vent components)
• Installation of any component part not manufactured or approved by DESA
• Installation other than as instructed by these instructions
WARNING: This gas fireplace and vent assembly must be vented directly to the outside. The venting system must NEVER be attached to a chimney serv ing a separate solid fuel burning appliance. Each direct-vent gas appliance must use a separate vent system. Do not use common vent systems.
WARNING: Vent pipe air space clearances to com­bustibles are 1" on all sides except on the horizontal sections, which require 2" clearances from the top of the pipe. Where the termination cap penetrates a com bustible wall, 1" air space clearance is required.
-
-
WARNING: Read all instructions completely and thoroughly before attempting installation. Failure to do so could result in serious injury, property damage or loss of life.
NOTICE: Failure to follow these instructions will void the warranty.
NOTICE: Do not seal termination cap to vent pipe. Cap must be removable for vent inspection and maintenance.
116192-01B
www.desatech.com
VENTING INSTALLATION INSTRUCTIONS
(Framing
Detail)
10
3
/4"
(273 mm)
10
3
/
4
" Inside Framing
(273 mm)
10
3
/4"
(273 mm)
8
1
/2"
(216 mm)
Vent Opening
Combustible Wall
Ve
nt Opening
Noncombustible Wall
8
Installation Planning
VENTING INSTALLATION INSTRUCTIONS
Continued
INSTALLATION PLANNING
There are two basic types of direct-vent installation:
• Horizontal Termination
• Vertical Termination
Horizontal Termination Installation
IMPORTANT: Horizontal square terminations require only in- ner portion of wall firestop. Horizontal installations using round termination require exterior portion of wall firestop (see Figure 14, page 10).
1. Set the fireplace in its desired location and determine the route your horizontal venting will take. Do not secure the fireplace until all venting has been installed. Some installations require sliding the fireplace in and out of position to make final venting connections. Figures 14 through 18 on pages 10 through 12 show different configurations for venting with horizontal termination that will help you decide which application best suits your instal­lation. Check to see if wall studs or roof rafters are in the path of your desired venting route. If they are, you may want to adjust the location of the fireplace.
2. Direct vent pipe sections and components are designed with special twist-lock connections.
Twist-Lock Procedure: The female ends of the pipes have
locking lugs (indentations). These lugs will slide straight into matching slots on the male ends of adjacent pipes. Push pipe sections together and twist one section clockwise approxi mately one-quarter turn until the sections are fully locked (see Figure 8). every three feet. Use wall straps for this purpose.
3. Use a 45° elbow to connect venting system to fireplace flue collar. The elbow is designed to be twist-locked onto the flue collar as described in step 2. IMPORTANT: Do not attempt to alter the configuration of the elbow by cutting, twisting, bending, etc.
4. Assemble the desired combination of pipe and elbows to the fireplace flue collar. If there are long portions of venting run, pre-assembled pipe sections may be installed as subassemblies for convenience.
5. Carefully determine the location where the vent pipe assembly will penetrate the outside wall. The center of the hole should line up with the center-line of the horizontal vent pipe. Mark the wall for a 10 hole in the exterior wall where the vent will be terminated. If the wall being penetrated is constructed of noncombustible material, such as masonry block or concrete, a 8 zero clearance is acceptable (see Figure 9).
Note: Horizontal runs of vent must be supported
3
/4" x 10 3/4" square hole. Cut and frame the square
1
/2" hole with
Female Locking Lugs
Figure 8 - Vent Pipe Connections
-
Figure 9 - Vent Opening Requirements
Male Slots
Center of Hole
www.desatech.com
116192-01B
VENTING INSTALLATION
VENTING INSTALLATION INSTRUCTIONS
Installation Planning (Cont.)
9
9
INSTRUCTIONS
Continued
WARNING: Do not recess vent termination into
any wall. This will cause a fire hazard.
6. Noncombustible Exterior Wall: Position the horizontal vent cap in the center of the 8 1/2" round hole and attach to the exterior wall with four wood screws provided. Before attach­ing the vent cap to exterior wall, run a bead of non-hardening mastic (pliable sealant) around the outside edges to make a seal between it and the outside wall. Note: The four wood screws provided should be replaced with appropriate fasteners for stucco, brick, concrete or other types of sidings.
Combustible Exterior Wall: For vinyl siding, stucco or wood
exteriors, a siding standoff may be installed between the vent cap and exterior wall. The siding standoff prevents excessive heat from damaging the siding materials. Siding material must be cut to accommodate standoff. Bolt the vent cap to the standoff. Apply non-hardening mastic around outside edge of standoff. Position the standoff/cap assembly in the center of
3
the 10 screws provided (see Figure 11). The siding standoff must sit flush against the exterior fascia material.
7. Combustible Exterior Wall Only: Slide the wall firestop over the vent pipe before connecting horizontal run to vent cap (see Figure 12).
8. Carefully move fireplace, with vent assembly attached, toward wall and insert vent pipe into horizontal termination. The pipe overlap should be a minimum of 11/4" (see Figure 13, page 10.
/4" square hole and attach to exterior wall with wood
Cut Siding Away to Fit Standoff
Standoff
Wood Screw
Vent Cap
Apply Mastic to All Four Sides
Figure 11 - Installing Siding Standoff (Combustible Exterior Wall)
Interior Wall Surface
Vent Cap (Horizontal Termination)
Screws
Wall Firestop
Horizontal Vent Pipe
Figure 10 - Installing Horizontal Vent Cap (Noncombustible Exterior)
116192-01B
Screw
Figure 12 - Connecting Vent Cap with Horizontal Vent Pipe
Vent Cap
Wood Screw
www.desatech.com
10
VENTING INSTALLATION INSTRUCTIONS
Installation Planning (Cont.)
VENTING INSTALLATION INSTRUCTIONS
Continued
9. Combustible Exterior Wall Only: Slide wall firestop against interior wall surface and attach with screws provided. See Figure 13 for horizontal termination details.
10. Place fireplace into position and shim with noncombustible ma terial if needed. Nail or screw side flanges to framing to secure unit in place. IMPORTANT securing. If fireplace is not level it will not work properly.
Minimum Pipe Overlap 1
Direct Vent Pipe
Wall Firestop
1
/4"
: Make sure fireplace is level before
Siding Standoff
Screws
WARNING: Never run vent downward as this may cause excessive temperatures which could cause a fire. Operation of improperly installed and maintained venting system could result in serious injury, property damage or loss of life.
GROUND FLOOR INSTALLATION
-
Recommended Applications:
• Installation using cabinet surrounds
• Through the wall using round or square termination
(up to 12" horizontal pipe)
• NOT FOR CORNER INSTALLATION
Horizontal High Wind Square Termination
45° Elbow
Adjustable Pipe 12" Max.
Wall Firestop
Maintain 1" Minimum Air Space Around Outer Pipe When Penetrating a Wall
3
10
/4" x 10
3
/4" Framed
Opening
Figure 13 - Typical Horizontal Termination Cap Mounting with Additional Siding Standoff Installed
High Wind Termination
Apply Mastic to Outside Edge of Standoff
Exterior Wall with Vinyl Siding
Horizontal Termination Configurations
Figures 14 through 18 show different configurations and alternatives for venting with horizontal termination. Each figure includes a chart with critical minimum and maximum dimensions which MUST be met. IMPORTANT: Remember that a horizontal run of venting must have a 1/4" rise for every 12" of run toward the termination.
NOTICE: Do not seal termination cap to vent pipe. Cap must be removable for vent inspection and maintenance.
Square Termination
Vertical (V) Horizontal (H)
3
/4" min. 17" max.
32
45° Elbow
Wall Firestop
Figure 14 - Horizontal Termination Configuration for Square or Round Terminations
Exterior Portion of Wall Firestop (Round Termination Only)
Horizontal Round Termination
Round Termination
www.desatech.com
116192-01B
VENTING INSTALLATION INSTRUCTIONS
Continued
VENTING INSTALLATION INSTRUCTIONS
Installation Planning (Cont.)
11
11
CORNER INSTALLATION
Recommended Applications:
• Corner ground floor installation
• Ground floor installation where pipe vents horizontally through wall (over 12" horizontal pipe)
• Basement installation where one foot clearance from ground to termination is possible
Not to Exceed (H) Limits
Square Termination
Wall Firestop
Figure 15 - Horizontal Termination Configuration for Corner Installation Using One 90° Elbow
45° Elbow
90° Elbow
As Required for (V) See Chart for Pipe Section Required
Required Vertical (V)
*43
1
54
1
66
1
78
1
90
* Ground Floor Corner Venting
Vertical Pipe Horizontal (H)
1
/2" min. None 30" max. /2" min. 1 ft. 48" max. /2" min. 2 ft. 60" max. /2" min. 3 ft. 84" max. /2" min. 4 ft. 20' max.
Not to Exceed (H) Limits
90° Elbow
45° Elbow
Wall Firestop
Square Termination
12" Minimum
SNORKEL TERMINATION INSTALLATION
Recommended Applications:
• Installations requiring a vertical rise on building exterior
• Any installation using snorkel termination to achieve one foot above ground
Snorkel terminations are available for installations requiring a vertical rise on the exterior of the building. If install­ing snorkel termination below grade, you must provide proper drainage to prevent water from entering snorkel termination (see Figure 16). Do not back fill around snorkel termination.
Snorkel
Snorkel Termination
12"
Minimum
Figure 16 - Snorkel Termination Configurations for Below Ground Installation
116192-01B
www.desatech.com
Termination
12"
Minimum
Adequate Drainage
90° Elbow
45° Elbow
Wall Firestop
Snorkel Termination
12"
Minimum
VENTING INSTALLATION INSTRUCTIONS
12
Installation Planning (Cont.)
VENTING INSTALLATION INSTRUCTIONS
Continued
HORIZONTAL SYSTEM INSTALLATION USING TWO 90° ELBOWS
The following configurations show the minimum vertical rise re­quirements for a horizontal system using two 90° elbows.
Venting with Two 90° Elbows
Vertical (V) Horizontal (H1) Horizontal (H1) +
Horizontal (H
5' min. 2' max. 6' max. 6' min. 4' max. 12' max. 7' min. 6' max. 18' max. 8' min. 8' max. 20' max.
20' max. 8' max. 20' max.
)
2
45°Elbow
Figure 17 - Horizontal Termination Configuration for Venting Using Two 90° Elbows
Venting with Two 90° Elbows
Vertical (V) Horizontal (H1) +
Horizontal (H2)
5' min. 6' max. 6' min. 12' max. 7' min. 18' max. 8' min. 20' max. 20' max. 20' max.
Figure 18 - Horizontal Termination Configuration for Venting Using Two 90° Elbows with Termination at 90° with Fireplace
45° Elbow
www.desatech.com
116192-01B
Loading...
+ 28 hidden pages
