Desa VP325B, P324, P325B, VP324 User Manual

B-VENT DECORATIVE GAS FIREPLACE

OWNER’S OPERATION AND INSTALLATION MANUAL

For more information, visit www.desatech.com

MODELS P324, VP324, P325(B) AND VP325(B)

NATURAL GAS

WARNING: If the information in these instructions is not followed exactly, a fire or explosion may result causing property damage, personal injury or death.

FOR YOUR SAFETY

— Do not store or use gasoline or any other flam-

mable vapors or liquids in the vicinity of this or any other appliance.

— WHAT TO DO IF YOU SMELL GAS :

• Do not try to light any appliance.

• Do not touch any electrical switch;

• Do not use any phone in your building.

• Immediately call your gas supplier from a neighbor’s phone. Follow the gas supplier’s instructions.

• If you cannot reach your gas supplier, call the fire department.

— Installation and service must be performed by a

qualified installer, service agency, or the gas supplier.

SAVE THIS BOOK

This book is valuable. In addition to instructing you on how to install and maintain your appliance, it also contains information that will enable you to obtain replacement parts or optional accessory items when needed. Keep it with your other important papers.

WARNING: Improper installation, adjustment, alteration, service or maintenance can cause injury or property damage. Refer to this manual. For assistance or additional information consult a qualified installer, service agency, or the gas supplier.

NOT FOR USE WITH SOLID FUEL

CHECK LOCAL CODES PRIOR TO

INSTALLATION

This appliance may be installed in an aftermarket,* permanently located, manufactured (mobile) home, where not prohibited by local codes.

This appliance is only for use with type of gas indicated on the rating plate. This appliance is not convertible for use with other gases.

* Aftermarket: Completion of sale, not for purpose of resale, from the manufacturer

Save this manual for future reference.

TABLE OF CONTENTS

SAFETY INFORMATION

TABLE OF CONTENTS

SAFETY INFORMATION ............................................................ 2

UNPACKING............................................................................... 3

INTRODUCTION......................................................................... 4

PRODUCT SPECIFICATIONS.................................................... 5

SELECTING LOCATION............................................................. 5

PRE-INSTALLATION PREPARATION ........................................ 6

VENTING INSTALLATION .......................................................... 8

INSTALLATION ......................................................................... 10

OPERATING FIREPLACE ........................................................ 16

INSPECTING BURNERS.......................................................... 17

SAFETY INFORMATION

CLEANING AND MAINTENANCE ............................................ 18

SERVICE HINTS....................................................................... 18

TECHNICAL SERVICE ............................................................. 18

REPLACEMENT PARTS .......................................................... 18

TROUBLESHOOTING .............................................................. 19

ILLUSTRATED PARTS BREAKDOWN AND PARTS LIST ....... 22

OWNER’S REGISTRATION FORM.......................................... 27

ACCESSORIES ........................................................................ 29

WIRING DIAGRAM ................................................................... 29

WARRANTY INFORMATION...................................... Back Cover

WARNINGS

WARNING: This product contains and/or generates chemicals known to the State of California to cause cancer or birth defects, or other reproductive harm.

IMPORTANT: Read this owner’s manual carefully and completely before trying to assemble, operate, or service this fireplace. Improper use of this fireplace can cause serious injury or death from burns, fire, explosions, electrical shock, and carbon monoxide poisoning.

DANGER: Carbon monoxide poisoning may lead to death!

This fireplace is a vented product. This fireplace will not produce any gas leakage into your home if properly installed. This fireplace must be properly installed by a qualified service person. If this unit is not properly installed by a qualified service person, gas leakage can occur.

Carbon Monoxide Poisoning: Early signs of carbon monoxide

poisoning resemble the flu, with headaches, dizziness, or nausea. If you have these signs, the fireplace may not have been installed properly. Get fresh air at once! Have fireplace inspected and serviced by a qualified service person. Some people are more affected by carbon monoxide than others. These include pregnant women, people with heart or lung disease or anemia, those under the influence of alcohol, and those at high altitudes.

Propane/LP gas and natural gas are both odorless. An odor-making agent is added to each of these gases. The odor helps you detect a gas leak. However, the odor added to these gases can fade. Gas may be present even though no odor exists.

Make certain you read and understand all warnings. Keep this manual for reference. It is your guide to safe and proper operation of this fireplace.

WARNING: Any change to this fireplace or its

controls can be dangerous.

1. This appliance is only for use with the type of gas indicated on the rating plate. This appliance is not convertible for use with other gases unless a certified kit is used.

2. For propane/LP fireplace, do not place propane/LP supply tank(s) inside any structure. Locate propane/LP supply tank(s) outdoors. To prevent performance problems, do not use propane/LP fuel tank of less than 100 lbs. capacity.

3. If you smell gas

• shut off gas supply

• do not try to light any appliance

• do not touch any electrical switch; do not use any phone in

your building

• immediately call your gas supplier from a neighbor’ s phone.

Follow the gas supplier's instructions

• if you cannot reach you gas supplier , call the fire department.

4. Never install the fireplace

• in a recreational vehicle

• where curtains, furniture, clothing, or other flammable objects

are less than 42" from the front, top, or sides of the fireplace

• in high traffic areas

• in windy or drafty areas

5. This fireplace reaches high temperatures. Keep children and adults away from hot surfaces to avoid burns or clothing ignition. Fireplace will remain hot for a time after shutdown. Allow surfaces to cool before touching.

6. Carefully supervise young children when they are in the room with fireplace.

For more information, visit www.desatech.com

108660-01D

SAFETY INFORMATION

UNPACKING

SAFETY INFORMATION

Continued

7. A hearth extension is not required with this appliance. If one is installed, it is for aesthetic purposes only and does not have to meet the standard requirements.

8. Turn fireplace off and let cool before servicing or repairing. Only a qualified service person should install, service, or repair this fireplace. Have fireplace inspected annually by a qualified service person.

9. You must keep control compartments, burners, and circulating air passages clean. More frequent cleaning may be needed due to excessive lint and dust from carpeting, bedding material, etc. Turn off the gas valve and pilot light before cleaning fireplace.

10. Have venting system inspected annually by a qualified service person. If needed, have venting system cleaned or repaired. See Cleaning and Maintenance, page 18.

11. Keep the area around your fireplace clear of combustible materials, gasoline, and other flammable vapor and liquids. Do not run fireplace where these are used or stored. Do not place items such as clothing or decorations on or around fireplace.

12. Do not use this fireplace to cook food or burn paper or other objects.

13. Do not use any solid fuels (wood, coal, paper , cardboard, etc.) in this fireplace. Use only the gas type indicated on fireplace nameplate.

14. This appliance, when installed, must be electrically grounded in accordance with local codes or, in the absence of local codes, with the National Electrical Code, ANSI/NFPA 70, or the Ca- nadian Electrical Code, CSA C22.1.

15. Do not install fireplace directly on carpeting, vinyl tile, or any combustible material other than wood. The fireplace must set on a metal or wood panel extending the full width and depth of the fireplace.

16. Do not use fireplace if any part has been exposed to or under water. Immediately call a qualified service person to arrange for replacement of the unit.

17. Do not operate fireplace if any log is broken.

18. Do not use a blower insert, heat exchanger insert, or other accessory not approved for use with this fireplace.

UNPACKING

The following items are packed inside the firebox. Remove before positioning firebox into framing.

• Ceramic Log Pack - Shrink-wrapped on cardboard

• Three (3) plastic bags containing lava rock, pan and ember materials

• Rear Log (P325/VP325 Models Only) - Remove the two plastic quick ties from around the burner and grate

• Grate Stand - Lift off of burner pan

Check all items for any shipping damage. If damaged, promptly inform dealer or distributor where you bought the product.

Safely retain these items for later installation.

108660-01D

For more information, visit www.desatech.com

INTRODUCTION

Before You Begin

INTRODUCTION

These fireplace models are vented gas fireplaces that use a millivolt gas control valve with a millivolt ignition system. P325/VP325 models have a 5" B-vent and P324/VP324 models have a 4" B-vent. A properly sized B-Type venting system and listed type vent cap are not supplied but are required for proper operation. See venting instructions on pages 8 and 9.

WARNING: This gas appliance must not be connected to a chimney flue servicing a solid fuel burning appliance.

These models are factory equipped for use with natural gas and must be converted when intended for use with propane/LP gas. Conversion kits PCBM-324 and PCBM-325 may be purchased for simple conversion to propane/LP gas. See Accessories, page 29.

BEFORE YOU BEGIN

Before beginning the installation of your appliance, read these instructions through completely.

This DESA appliance and its approved components are safe when installed according to this installation manual and are operated as recommended by DESA. Unless you use DESA approved components tested for this appliance, YOU MAY CAUSE A FIRE HAZARD!

The DESA warranty will be voided by, and DESA disclaims any responsibility for the following actions :

A) Modification of the appliance or any of the components. B) Use of any component part not approved by DESA in combi-

nation with this appliance.

C) Installation and/or operation in a manner other than instructed

in this manual.

D) The burning of anything other than the type of gas approved

for use in this gas appliance.

The installation must conform with local codes or, in the absence of local codes, with the current National Fuel Gas Code, ANSI Z223.1 or with the current CAN/CSA B149 Installation Codes.

This appliance complies with ANSI Z21.50-2000 and CSA 2.22-

2000 as Vented Gas Fireplaces and is listed and tested by the Canadian Standards Association to the above test standards.

WARNING: Installation of this appliance should be done by a qualified service person well trained in the installation of such appliances. You will also need a building permit from your local Building and Safety Commissioner before installing this appliance; otherwise your insurance co. may not cover this appliance.

NOTICE: This appliance is not intended to be used as a primary source of heat.

CAUTION: Do not connect appliance before pressure testing gas piping. Damage to gas valve may result and an unsafe condition may be caused.

The appliance and it’s individual shutoff valve must be disconnected from the gas supply piping system during any pressure testing of that system at test pressures in excess of 1/2 psig (3.5 kPa).

The appliance must be isolated from the gas supply piping system by closing its individual manual shutoff valve during any pressure testing of the gas supply piping system at test pressures equal to or less than 1/2 psig (3.5 kPa).

For the purpose of input adjustment two pressure taps (for IN and OUT pressures) are provided on the gas control valve for test gauge connections to the appliance.

GAS RATING - NATURAL

P324, VP324 P325(B), VP325(B)

Max. Input Rating: 15,000 Btu/Hr 25,000 Btu/Hr Manifold Pressure: 3.5 in. WC (.87 kPa) 3.5 in. WC (.87 kPa) Minimum Supply Pressure: 4.5 in. WC (1.12 kPa) 4.5 in. WC (1.12 kPa) Maximum Supply Pressure: 10.5 in. WC (2.66 kPa) 10.5 in. WC (2.66 kPa) Orifice Size: # 49 # 40

GAS RATING - PROPANE/LP

Max. Input Rating: 15,000 Btu/Hr 25,000 Btu/Hr Manifold Pressure: 10.0 in. WC (2.49 kPa 10.0 in. WC (2.49 kPa) Minimum Supply Pressure: 11.0 in. WC (2.74 kPa) 11.0 in. WC (2.74 kPa) Maximum Supply Pressure: 13.0 in. WC (3.23 kPa) 13.0 in. WC (3.23 kPa) Orifice Size: # 56 # 54

For more information, visit www.desatech.com

108660-01D

PRODUCT SPECIFICATIONS

22 3/8"

PRODUCT SPECIFICATIONS

SELECTING LOCATION

21 1/2"

* 20 3/8"

5/8"

10 1/2"

8 1/4"

8 3/8"

13 1/4"

Figure 1 - Appliance Dimensions

34 1/2"

8 1/8"

2 1/2"

18 1/4"

11 3/4"

Alternate Gas

Supply Inlet

29 1/2"

35 3/8"

16 3/4"

14 1/2"

* 13 3/4"

32 1/4"

HEARTH AREA

DIMENSIONS

* 27 1/2"

29"

* WITH REFRACTORY

6 7/8"

8 1/4"

2 1/2"

7 5/8"

10 5/8"

16 3/4"

36 1/2"

2 1/4"

SELECTING LOCATION

To determine the safest and most efficient location for your appliance, you must take into consideration the following guidelines:

1. The location must allow for proper clearances (see Clear- ances, page 6).

2. Consider a location where heat output would not be affected by drafts, air conditioning ducts, windows, or doors.

3. A location that avoids the cutting of joists or roof rafters will make installation easier. Figure 2 shows a plan view of a few common locations.

Flush installations are recommended where living space is limited

or at a premium, and since the space required to enclose the appliance would be located beyond an outside wall, this would also reduce the cutting of joists, roof rafters, and such. Check local codes for any restrictions.

Projected installations can extend any distance into the room. A

projection may be ideal for a new addition on an existing, finished wall.

Corner installations make use of space that may not normally be

used and provides a wider and more efficient range for radiant heat transference.

For more information, visit www.desatech.com

108660-01D

Internal wall installations provide a discreet option for room sepa-

ration and can also be ideal as an addition to an existing wall.

CORNER

INTERNAL WALL INSTALLATION

FULL PROJECTION INSTALLATION

Figure 2 - Possible Locations for Installing Appliance

INSTALLATION

FLUSH INSTALLATION

PRE-INSTALLATION PREPARATION

Clearances Mantel Clearances and Wall Details

PRE-INSTALLATION PREPARATION

CLEARANCES

Minimum clearances to combustibles are:

• Top of Spacers........................................................... 0" min.

• Back and Sides of Outer Surround............................ 0" min.

• Drywall to Sides of Front Face (Nailing Flanges) .... 0" min.

• “B” Vent Surfaces ..................................................... 1" min.

• Ceiling to Opening .................................................. 42" min.

• Floor .......................................................................... 0" min.

• Perpendicular Wall ............................................See Figure 6

CAUTION: Do not block required air spaces with insulation or any other material. Do not obstruct effective opening of appliance with any type of facing material.

MANTEL CLEARANCES AND WALL DETAILS

A combustible mantle shelf maybe installed a maximum 12" (229mm) from the wall. Figures 5 and 6 show the minimum allowable distances from various combustible mantle components in relation to the fireplace opening.

12"

(229mm)

6" (152mm)

Combustible Materials

Header

2 x 4 Stud

Nailing Flange

Left Side

Back

0" Clearance

Surround

Front Face

Figure 3 - Minimum Clearances (Top View)

1" (25mm) Min. Clearance to "B" Vent’s Outer Pipe

Ceiling

42" (1067mm) Min. Clearance from Opening to Ceiling

0" Clearance

0" Clearance to Wood or Noncombustible Flooring

DO NOT BLOCK

OR OBSTRUCT

OPENINGS

Drywall

Required Air Spaces are Indicated with

". Do Not

an "

Pack with Insulation or Any Other Material

13"

3" (76mm)

(38mm) Max.

/2"

Spacer

Figure 5 - Mantel Clearances - Side View (Cross Section)

TOP VIEW

Outer Surround

Combustible Material May Be Used

SAFE

12"

ZONE

Perpendicular Wall

1 1/2" (38mm) Max.

3" (76mm) Max.

6" (152mm) Max.

Figure 6 - Side Clearances - Top View (Cross Section)

Figure 4 - Minimum Clearances (Front View)

For more information, visit www.desatech.com

108660-01D

PRE-INSTALLATION PREPARATION

Continued

PRE-INSTALLATION PREPARATION

Framing

FRAMING

1. Frame appliance enclosure as illustrated in Figures 7 and 8.

Note:

If a wall covering is used to line the enclosure, then all

measurements must be from the surface of the covering.

2. Place the appliance into the framing and secure it.

Note:

If appliance is to be raised above floor level, a platform

must be built to support the appliance.

3. Install the supply line to the appliance using a 1/2" NPT black iron gas line terminating 2 5/16" above the bottom of the appliance. The gas line may be installed from either side or from the rear of the appliance (see Figure 19, page 11).

4. Feed flexible gas line through one of three gas line conduit sleeve and repack insulation to cover any openings. Prepare the incoming gas line with teflon tape or pipe joint compound and hook-up incoming gas line to the flexible gas line.

Note:

If 1/2" NPT black iron pipe does not mate with fitting at the end of flexible gas line, remove fitting and replace with a 37 degree flare 3/4"-12, 1/2" NPT (female) fitting.

WARNING: When finishing appliance, do not overlap combustible material onto the black front face. Brick, tile, or other noncombustible materials may be applied to the face provided that any gap is between the material used and the face is caulked with a noncombustible caulking.

These Dimensions Allow for a 3/4" Clearance at Sides and Back of Fireplace. However, 0" Clearance is Permitted

12"

39 3/8"

16 3/4"

55 5/8"

34 1/2"

Figure 8 - Corner Installation Guidelines

16"

3/4" Clearance Not Required at Nailing Flanges

16 1/8"

/4"

Figure 7 - Rough Opening for Installing in Wall

For more information, visit www.desatech.com

108660-01D

/8"

VENTING INSTALLATION

A B-type venting system must be connected to the appliance for venting to the outside of the building.

The following section is provided as a guide to a standard B-type vent installation.

Standing codes requirements concerning B-type vent installations may vary within your state, province or local codes jurisdiction. Therefore, it is recommended that you check with your local building codes for specific requirements or in absence of local codes, follow Section 7.0 of the current National Fuel Gas Code

NFPA No. 54/ANSI Z223.1 and in Canada with CAN/CSA B149 for Category I systems using double wall B-1 vent pipe .

This gas appliance must be vented to the outdoors only and may not be terminated into an attic space or into a chimney flue servicing a solid-fuel burning appliance.

This appliance may be vented through a manufactured chimney system or a masonry chimney using a B-vent adapter or a chimney liner system if all are listed, inspected and approved by local codes and/or building authorities.

The examples shown in Figure 10 are typical of most B-vent installations and codes practices.

Listed Vent Cap

Maintain Listed Clearance

Support Each Lateral At Least Every Six (6) Feet

Position Firestop

12' Min.

Maintain Listed Clearance

Position Firestop

60°

Example 1:

Shows the minimum allowable system height and lateral offset for a 60° degree or greater inclination. Code specifies that offsets at 60° degrees or greater are considered horizontal and must follow the 75% percent rule for lateral to total vertical system height. Codes also allows only one offset in the total system when at 60° degrees or greater. The total vertical height in this example represents the minimum height of 8 feet and therefore the allowable lateral is 6 feet when the 75% percent rule applies. If the lateral length must exceed 75% then the system must be sized in accordance with the Category I venting tables.

Example 2:

Shows a multiple offset each at 45° degrees of inclination. Multiple offsets are permitted if they do not exceed 45° degrees of inclination. The total lengths of the two offsets are not required to meet the 75% percent allowable rule.

Example 3:

Shows a single offset at 45° degrees of inclination and therefore the lateral length at 10 feet of offset does not have to meet the 75% percent rule.

In each case the offsets must be supported and firestops must be positioned wherever the vent must pass through a sub-floor, ceiling joist or an attic overhang. The vent pipe must terminate vertically into a listed type vent cap and extend a sufficient height through an approved roof flashing, roof jack or a roof thimble. At all points the listed clearances must be maintained.

45°

Listed Vent Cap

Maintain Listed Clearance

12' Min.

Position Firestop

Listed Vent Cap

45°

10'

Maintain Listed Clearance

12' Min.

Maintain Listed Clearance

Figure 9 - Typical B-Vent Configuration

For more information, visit www.desatech.com

Maintain Listed Clearance

EXAMPLE 3EXAMPLE 2EXAMPLE 1

108660-01D

VENTING INSTALLATION

Continued

VENTING INSTALLATION

Checking for Proper Venting

Vent terminations must be located in accordance with height and proximity rules of NFPA No. 54 or CAN/CSA B149. These rules apply to vents at 12 in. diameter or less and require a minimum height in accordance with the roof pitch and a minimum of 8 ft. distance from a vertical wall or obstruction (see Figure 11).

If venting horizontally through a side wall becomes necessary, a listed thimble approved for use with B-type vent must be used. Check with your local codes before venting through a side wall.

Some codes areas allow the use of existing B-type vent systems if the system is at or above the recommended diameter of the flue.

The flue connection must be made using listed B-type connectors and the existing system must be code inspected for damage and proper installation.

It is not recommended that this appliance be common vented with an existing gas burning appliance. However, if it becomes necessary to common vent this appliance, the venting system must be sized and configured in accordance with the common venting guides Appendix G of the current National Fuel Gas Code NFPA No. 54/ ANSI Z223.1 and in Canada with CAN/CSA B149.

Lowest Discharge Opening

Listed Gas Vent

H (Min) Height From Roof

Listed Vent Cap

8 Ft. Min.

Roof Pitch x/12 Listed Clearance

H (Min.)

Roof Pitch Ft. m

Flat to 6/12 1.0 0.30 6/12 to 7/12 1.25 0.38 Over 7/12 to 8/12 1.5 0.46 Over 8/12 to 9/12 2.0 0.61 Over 9/12 to 10/12 2.5 0.76 Over 10/12 to 11/12 3.25 0.99 Over 11/12 to 12/12 4.0 1.22 Over 12/12 to 14/12 5.0 1.52 Over 14/12 to 16/12 6.0 1.83 Over 16/12 to 18/12 7.0 2.13 Over 18/12 to 20/12 7.5 2.27 Over 20/12 to 21/12 8.0 2.44

Note:

Before connecting this appliance to an existing vent system or a common venting system consult with your local architect, planner, or building official.

WARNING: This appliance must be properly connected to a system and must not be connected to a chimney flue servicing a separate solid fuel burning appliance.

CHECKING FOR PROPER VENTING

After completing and checking the electrical, gas and vent connections, follow the lighting instructions and allow the main burner to run for approximately 5 minutes. Hold a lighted match or cigarette near the top edge of the fireplace opening and play it along the entire length of the opening (see Figure 11). Proper venting should tend to draw the flame or smoke into the appliance. Improper venting or escaping of spillage of burned gas, is indicated when the match flickers or goes out. Smoke from a cigarette will also tend to disperse away from the appliance.

If the appliance is found to be improperly venting, shut it off and notify your installer or a qualified service agency to inspect the venting system.

NOTICE: This appliance is equipped with a vent safety shutoff switch which will shut down the appliance in the case of a venting problem. Do not bypass the vent safety switch. If the appliance should shut down, contact a qualified installer, service agency, or your gas supplier to have the vent inspected before operating.

Check this area along the entire top edge of the fireplace opening. Smoke or flame should be drawn into the appliance opening.

Figure 10 - B-Vent Terminations

For more information, visit www.desatech.com

108660-01D

Figure 11 - Checking for Spillage

INSTALLATION

Wall Switch Installation Optional Wireless Hand-Held Remote Control Installation

INSTALLATION

WALL SWITCH INSTALLATION

The installation of a wall switch allows you to activate the gas control valve without the normal household electricity since the valve operates on millivolt current supplied by the heat generated by the thermopile. To install the wall switch:

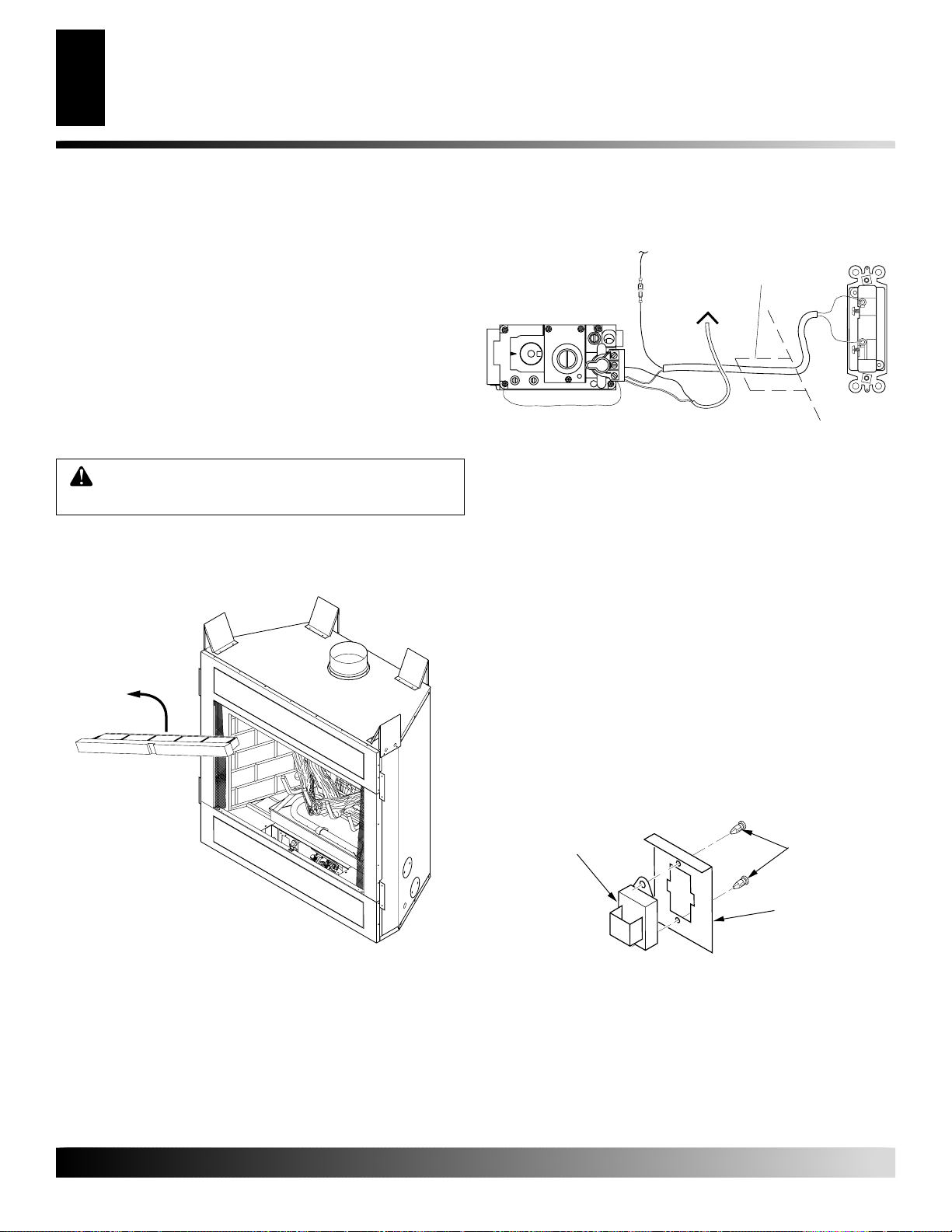

1. Remove the front refractory access panel by lifting up and angling out of the firebox opening (see Figure 13).

2. Use wire and connectors provided. Attach red wire to terminal marked TH/TP on control valve. Attach white wire to blade connector on open end of safety circuit wiring (see Figure 13 and Wiring Diagram, page 29).

Note:

If any of the original wire from the unit control must be replaced,

use the same type or a higher rated wire (25 ft. maximum length).

WARNING: Do not wire remote wall switch to main

power supply (Standard 120v household current).

4. Locate wall switch in a convenient location.

5. After wire connections are complete, replace refractory access panel.

To Safety Circuit

Note:

If any of the original wire as supplied must be replaced, use

H T

P T

P T H T

Route Millivolt Wires (Supplied) Through Gas Line Conduit Sleeve

To Thermopile

Wall Switch

(Back View)

18 AWG TYPE CL2 (UL) 105 C (25 ft. length MAXIMUM) or equivalent.

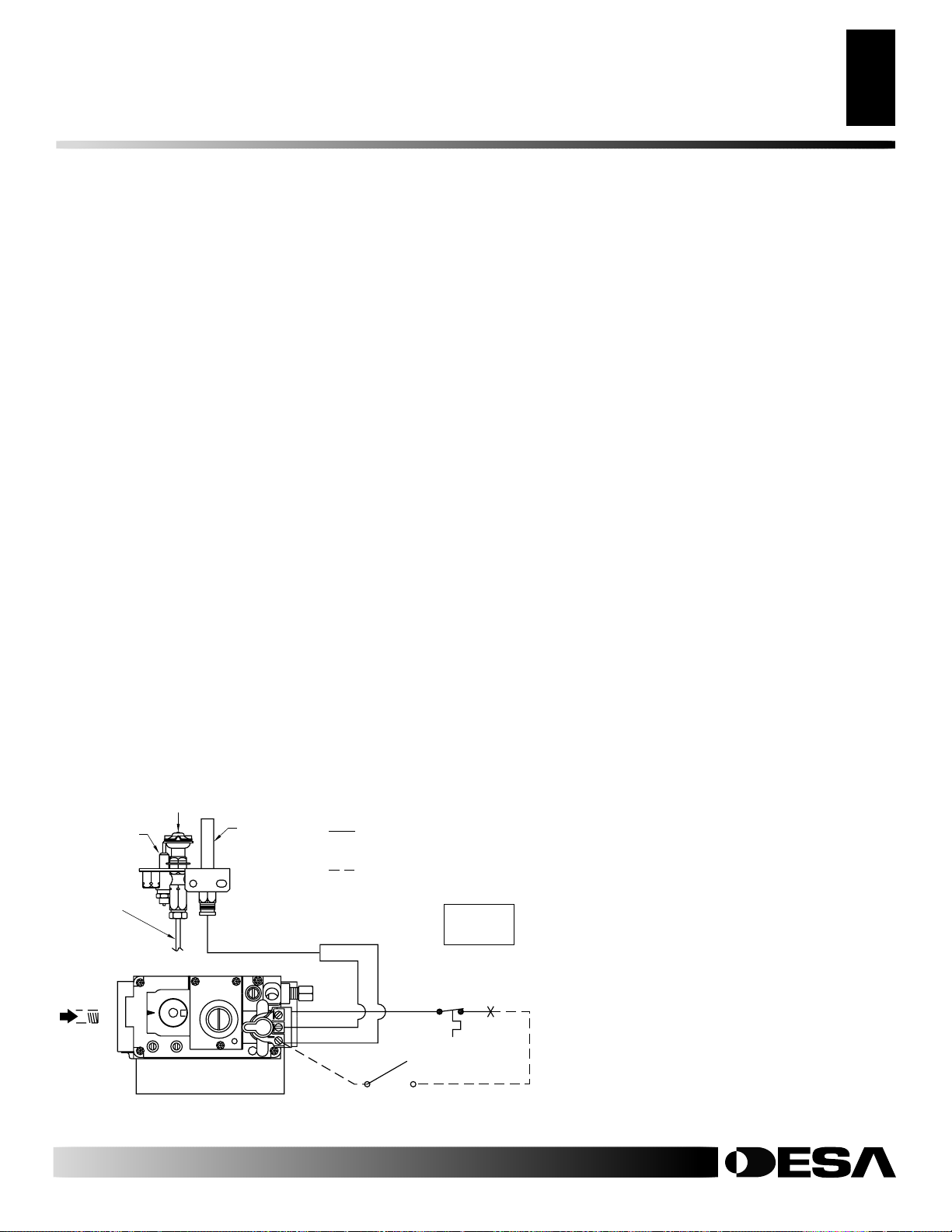

Figure 13 - Wall Switch Wiring Diagram

OPTIONAL WIRELESS HAND-HELD REMOTE CONTROL INSTALLATION

Note:

If using optional wireless hand-held remote control, the wall

switch is no longer operational.

Installing Receiver

1. Remove the front refractory access panel by lifting up and angling out of the firebox opening (see Figure 12) to expose controls.

2. Disconnect wall switch wires from TH/TP terminals on control valve and the blade connector on safety circuit wiring (see Figure 13 and Wiring Diagram on page 29).

3. Install remote receiver unit onto mounting bracket using the two plastic mounting clips (see Figure 14).

Figure 12 - Removing Front Refractory Access Panel (P325B/VP325 Model Shown)

For more information, visit www.desatech.com

Receiver

Plastic Mounting Clips

Mounting Bracket

Figure 14 - Installing Remote Receiver (Shown from Rear of Mounting Bracket)

108660-01D

INSTALLATION

Continued

INSTALLATION

Optional Wireless Hand-Held Remote Control Installation (Cont.)

Gas Line Hook-Up

4. Connect wires to control circuit. Connect white wire to terminal marked TH/TP on control valve. Connect red wire to male blade connector provided at open end of safety circuit wiring (see Wiring Diagram, page 29).

5. Locate the battery clip mounted on the back of the receiver (see Figure 15).

6. Slide 9-volt battery (not included) through the clip.

Note:

Only

use alkaline battery.

7. Attach the terminal wires to the battery (see Figure 15).

8. Replace refractory brick access panel.

9-Volt Battery

Battery Clip

Terminal Wires

Figure 15 - Installing Battery in Receiver

Receiver

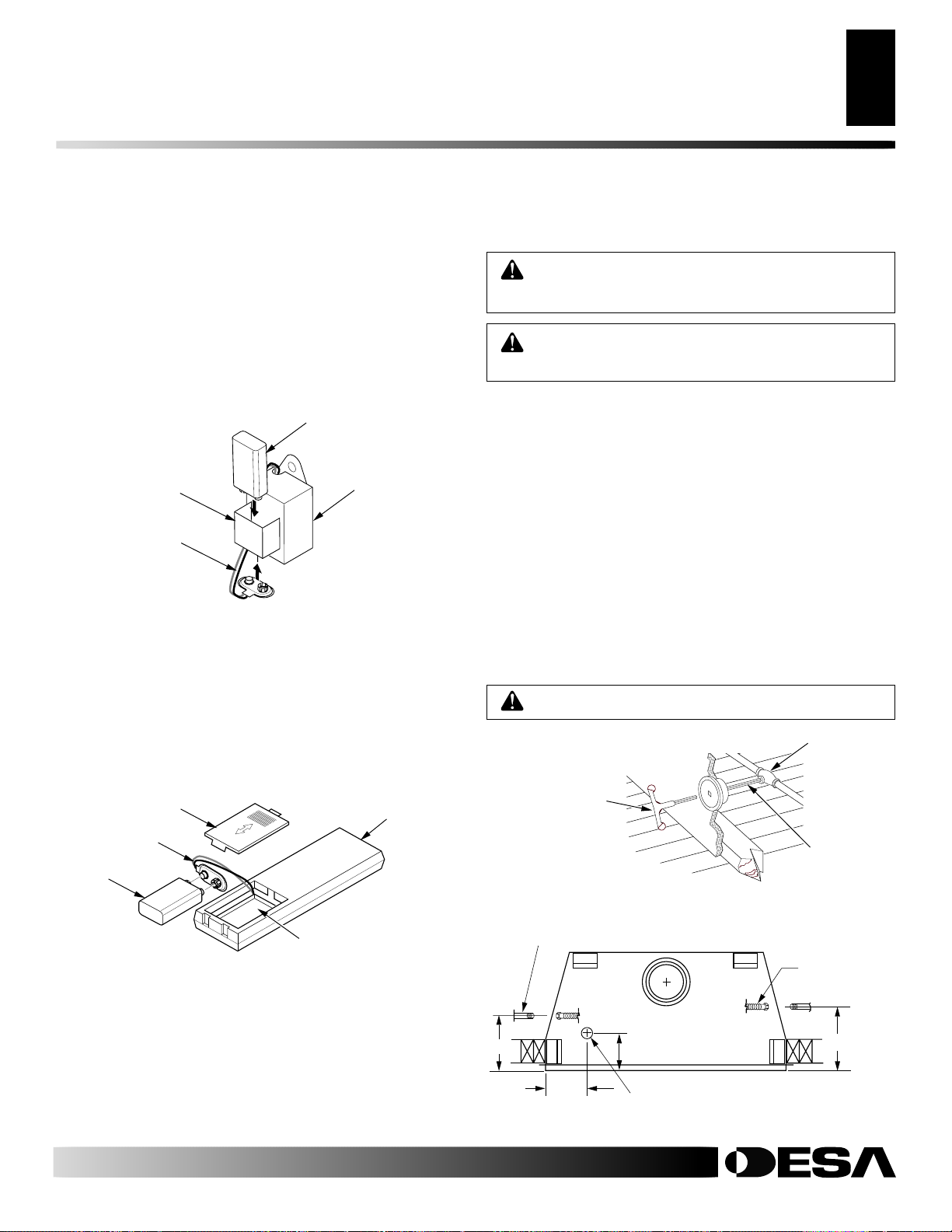

Installing 9-Volt Battery in Hand-Held Remote Control Unit

1. Remove battery cover on back of remote control unit.

2. Attach terminal wires to the battery (not included). Place battery into the battery housing.

3. Replace battery cover onto remote control unit.

Battery Cover

Terminal

Wires 9-Volt Battery

Note:

Only use alkaline battery .

Remote Control Unit

GAS LINE HOOK-UP

WARNING: Gas line hookup should be done by

your gas supplier or a qualified service person.

WARNING: Before you proceed, make sure your

gas supply is OFF.

The appliance and it’s individual shutoff valve must be disconnected from the gas supply piping system during any pressure testing of that system at test pressures in excess of 1/2 psig (3.5 kPa).

A manual shutoff valve has been included in the appliance’s gas supply system. You may consider installing an extra gas shutoff valve outside the appliance’s enclosure (check with local codes) where it can be accessed more conveniently with a key through a wall as shown in Figure 17.

In conformance with local codes, route a 1/2" NPT gas line towards the appliance coming in from any of the 3 directions shown in Figure 18.

CAUTION: Do not kink flexible gas line.

Typical Exterior Wall Gas Shutoff Installation

Key

Figure 17 - Manual Shutoff Valve Installation

Shutoff Valve

Extension

Battery Housing

Figure 16 - Installing Battery in Hand-Held Remote Control Unit

For more information, visit www.desatech.com

108660-01D

1/2" NPT Incoming Black Iron Gas Line

8 3/8"

Figure 18 - Routing Incoming Gas Line

Alternate Gas Supply Through Sub-Floor

Flexible Gas Line (1 Provided) Can Be Extended Out Either Side

10 5/8"

INSTALLATION

Gas Line Hook-Up (Cont.) Grate Placement Ember and Pan Material Placement

INSTALLATION

Continued

DESA recommends that a black iron gas line be routed from the gas source, through a sediment trap (shown in Figure 19), and into the appliance, Once connected through the appliance, a flexible gas line may be used for ease of installation to gas control valve (see Figure 20).

Before connecting the black iron gas line to the inside of the appliance a sediment trap must be included outside the appliance between the gas line and the gas shutoff valve. It must extend down three (3) inches beyond the center of the pipe. Prepare incoming black iron gas line with teflon tape or pipe joint compound (Check with local building codes).

CAUTION: Compounds used on threaded joints of gas piping shall be resistant to the action of Liquefied Petroleum (LP or propane), and should be applied lightly to ensure excess sealant does not enter the gas line.

WARNING: All gas piping and connections must be tested for leaks after the installation is completed.

After ensuring that the gas valve is on, apply a noncorrosive leak detection solution to all connections and joints. If bubbles appear, leaks can be detected and corrected.

Do not use an open flame for leak testing and do not operate any appliance if a leak is detected.

Complete your gas installation by connecting incoming gas line with flexible gas line. Secure tightly with wrench but DO NOT

OVERTIGHTEN.

Incoming 1/2" Gas Line Permitted by Local Codes

Sediment Trap (Not Supplied)

3" Min.

(76mm)

Figure 19 - Sediment Trap

Gas Shutoff Valve

Flexible Gas Line Do NOT Kink

Side Wall

Of Appliance

Red Surface Indicates For Propane/LP Use Only

Pilot Adj

GRATE PLACEMENT

The grate must be placed in the burner pan so that the back grate fingers (P325/VP325) or pins (P324/VP324) fit into the notches on back of burner pan and front legs fit inside burner pan as shown in Figure 21.

Pins

Notches

P324/VP324 (Back)

Back Grate Fingers

Notches

P325/VP325 (Back)

Figure 21 - Placing Grate into Burner Pan

Burner Pan

Front Leg

EMBER AND PAN MATERIAL PLACEMENT

1. Open the bag(s) of vermiculite and fill the entire burner pan until the burner tube is completely covered (see Figure 22).

2. Smooth the pan material just even with edges of the burner pan.

3. Remove the ember material from the bag and flatten small amounts into quarter size pieces and lay on top of the surface of the pan material (see Figure 23, page 13).

4. Place just enough to cover the entire surface and leave about a 1/2 inch gap under the lower grate members to allow air to flow (see Figure 24, page 13).

Grate

Vermiculite (Pan Material)

Burner Pan

OFF

1/2" NPT Incoming Gas Line

Note:

1) Wire Connections Not Shown for Clarity

2) * 1/8" NPT Plugged Tapping

IN OUT

Inlet Pressure Tap

Outlet Pressure Tap

Figure 20 - Connecting Flexible Gas Line to Millivolt Valve

For more information, visit www.desatech.com

Figure 22 - Fill Entire Burner Pan with Vermiculite (P325/VP325 Models Shown)

108660-01D

INSTALLATION

Continued

INSTALLATION

Ember and Pan Material Placement (Cont.)

Log Placement For P324/VP324 Models

Log Placement for P325(B)/VP325(B) Models

Ember Material

Grate

Figure 23 - Ember Material on Surface of Pan Material (Vermiculite) (P325/VP325 Models Shown)

Burner Pan

Figure 24 - Pan and Ember Material Clearances (P325/VP325 Models Shown)

0.5"

Vermiculite (Pan Material)

Grate

0.5"

Burner Pan

Pan and Ember Material

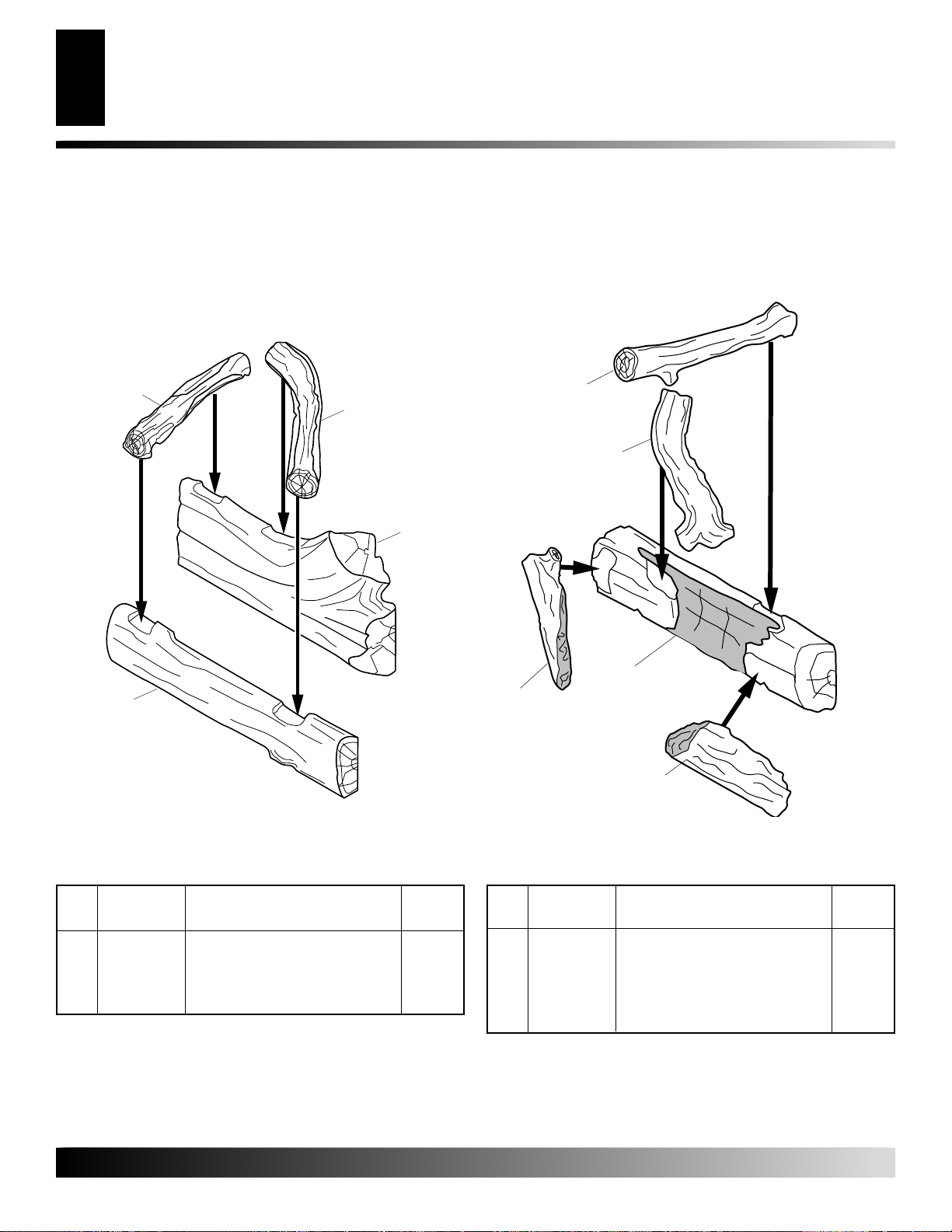

LOG PLACEMENT FOR P324/VP324 MODELS

1. Place front (log 1) onto front of grate sliding log all the way forward against grate fingers (see Figure 25).

2. Insert pegs on bottom of rear log (log 2) into holes in rear of grate (see Figure 25).

3. Place log 3 into notches on left side of logs 1 and 2 (see Figure 26).

4. Place log 4 into notches on right side of logs 1 and 2 (see Figure 26).

To enhance the look of the hearth you may optionally place the lava rock provided around the front and sides of the burner.

NOTICE: Do not put lava rock inside the burner pan or around the air mixer fitting. Placing lava rock inside the burner pan or blocking the openings of the propane/LP air-mixer could cause performance problems.

Log 4

Log 3

Figure 26 - Installing Logs 3 and 4

LOG PLACEMENT FOR P325(B)/VP325(B) MODELS

1. Place large back log (log 1) onto grate making sure notches rest over grate (see Figure 27).

2. Place log 2 onto front right side of grate and back of log 2 into notch on right front of log 1 (see Figure 27).

Log 1

Figure 25 - Installing Logs 1 and 2

For more information, visit www.desatech.com

108660-01D

Log 1

Log 2

Figure 27 - Installing Logs 1 and 2

INSTALLATION

Log Placement For PO325/VP325 Models (Cont,) Combustion Air Kit Model AK4 (Optional) Appliance Enclosure

INSTALLATION

Continued

3. Rest front of log 3 between first two grate fingers on left of grate assembly and rear of log 3 into notch on left front oflog 1(see Figure 28).

4. Place top of log 4 into notch on log 1. Rest log 4 on the center of grate as shown in Figure 29.

5. Place top of log 5 into notch on top right of log 1 (see Figure

29). Rest log 5 between two middle grate fingers as shown in Figure 30.

To enhance the look of the hearth you may optionally place the lava rock provided around the front and sides of the burner.

Log 5

Log 4

Log 1

Log 3

Log 1

COMBUSTION AIR KIT MODEL AK4 (OPTIONAL)

The outside air kit may be installed on the left side of the fireplace only. The vent can be installed through the outside wall or a ventilated crawl space. The handle to operate the damper door for the outside air inlet will be located inside the left “screen pocket” of the firebox (see Figure 31). Pull the handle to open or push to close.

CAUTION: Air inlet ducts are not to terminate in

attic space.

Screen Pocket

Air Kit Handle

Figure 31 - Air Kit Handle Location

APPLIANCE ENCLOSURE

Figure 28 - Installing Log 3

Figure 30 - Logs Installed

Before finishing the enclosure around the appliance, inspect all joints around the outer surround. Any gaps between the nailing flanges and the framing should be sealed with noncombustible insulation or caulking (see Figure 32).

If the appliance is mounted on a raised platform, it must be a continuous surface and not on blocks without a solid surface. This will prevent the entry of cold air by means of conduction through the

Figure 29 - Installing Logs 4 and 5

For more information, visit www.desatech.com

total bottom of the appliance.

Side Framing

Caulk Here

Figure 32 - Sealing Between Appliance and Framing

Side Framing

Pack Insulation

108660-01D

INSTALLATION

Continued

Installing Optional Glass Door Accessory

INSTALLATION

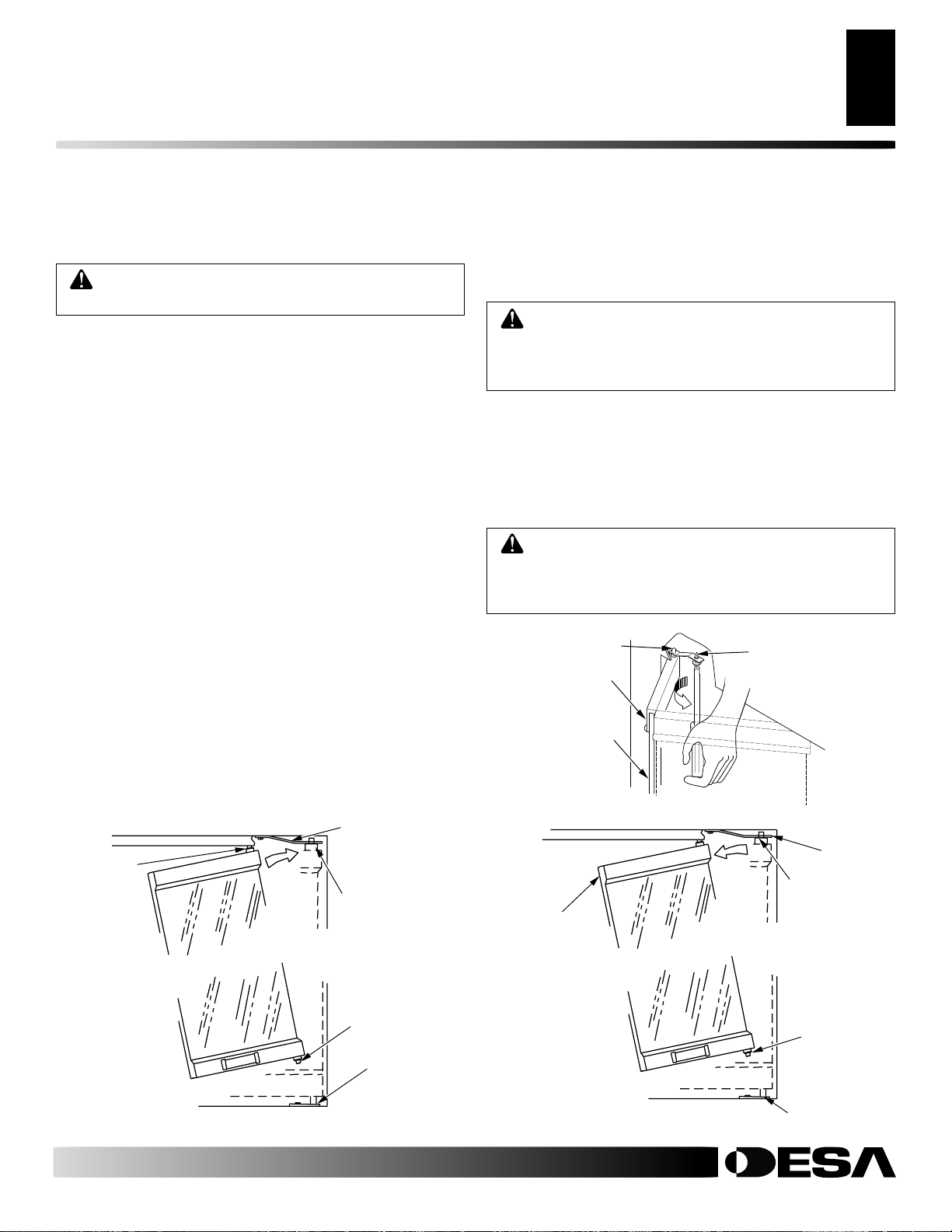

INSTALLING OPTIONAL GLASS DOOR ACCESSORY

CAUTION: Use only glass doors certified for use

with this appliance.

Note:

Glass door may be heavy for some individuals. If this is the

case, please request help from someone else. These B-vent fireplaces are approved for use with optional bi-fold glass

doors (see Accessories, page 29). The glass panels may be ordered and installed anytime after the fireplace installation is complete.

Follow these steps to install left and right panels:

1. With the handle at the bottom, completely fold the panel on its hinges.

2. With the handle facing the center of the firebox opening, insert the lower pivot pin on the glass door panel into the hole in pivot plate on the bottom edge of the fireplace opening (see Figure 33).

3. Keeping the folded door tilted, slide the upper two pins into the guide track found under the upper facial edge of the firebox opening.

4. Tilt the door assembly fully vertical until the outer pivot pin snaps into the mounting hole in the upper spring clip (see Figure 33).

5. Once the top and bottom pins are secured, unfold the door into the closed position.

6. Repeat the process for the opposite door assembly.

7. T o adjust the doors, slide them partially open. Using a screwdriver, loosen the hold-down screws in the spring clip (see Figure 34) and pivot plate.

8. Close both doors until evenly joined at the middle and note the gap at the outer edges of the face.

Spring Clip

Slide Top Pin Into Door Track

Insert Pin Into Spring Clip

Insert Bottom Pivot Pin Into Pivot Plate and Swing Door Into Vertical Position

Pivot Plate

9. Reopen one door at a time and retighten the upper and lower hold-down screws.

10. Repeat the process until both doors are evenly joined, spaced and working freely.

CAUTION: The glass panels become very hot while the appliance is operating. Do not attempt to adjust or clean the glass doors until the appliance has fully cooled.

The doors may be removed for replacement or cleaning as follows:

1. Partially open the door and press up on the upper spring clip with a screw driver until the outer top pivot pin is free of the clip.

2. Fully fold the frame assembly and slide the upper edge towards the center of the firebox opening until the guide pins are free of the frame rail (see Figure 35).

CAUTION: Always operate the appliance with the doors either fully opened or fully closed. Operating the appliance with the doors partially open can result in improper venting of flue products.

Spring Clip

Side Front Face

Partially Opened Door

Figure 34 - Adjusting Glass Doors

Fold Bi-Fold Door After Releasing Spring Clip and Slide Door Out of Upper Track

Hold-Down Screw

Spring Clip

Depress Spring Clip to Release Pivot Pin

Remove Bottom Pin From Pivot Plate While Sliding Door Out of the Upper Track

Figure 33 - Installing Optional Glass Door

For more information, visit www.desatech.com

108660-01D

Figure 35 - Removing Glass Doors

Pivot Plate

Clockwise

C-clockwise

OPERATING FIREPLACE

For Your Safety Read Before Lighting Lighting Instructions To Turn Off Gas to Appliance

OPERATING FIREPLACE

FOR YOUR SAFETY

READ BEFORE LIGHTING

WARNING: If you do not follow these instructions exactly, a fire or explosion may result causing property damage, personal injury or loss of life.

A. This appliance has a pilot which must be lighted by hand.

When lighting the pilot, follow these instructions exactly.

B. BEFORE LIGHTING smell all around the appliance area

for gas. Be sure to smell next to the floor because some gas is heavier than air and will settle on the floor.

WHAT TO DO IF YOU SMELL GAS

• Do not try to light any appliance.

• Do not touch any electric switch; do not use any phone in your building.

• Immediately call your gas supplier from a neighbor’s phone. Follow the gas supplier’s instructions.

• If you cannot reach your gas supplier, call the fire department.

C. Use only your hand to push in or turn the gas control knob.

Never use tools. If the knob will not push in or turn by hand, don’t try to repair it, call a qualified service technician or gas supplier. Force or attempted repair may result in a fire or explosion.

D. Do not use this appliance if any part has been under water.

Immediately call a qualified service technician to inspect the appliance and to replace any part of the control system and any gas control which has been under water.

LIGHTING

INSTRUCTIONS

NOTICE: During initial operation of new heater, burning logs will give off a paper-burning smell. Orange flame will also be present. Open damper or window to vent smell. This will only last a few hours.

1. STOP! Read the safety information, above.

2. Turn wall switch (if installed) to the OFF position.

3. Turn off all electric power to the appliance.

4. Fully open glass doors if installed.

5. Remove front refractory brick access panel.

6. T ur n gas control knob clockwise tion (see Figure 36).

7. Wait five (5) minutes to clear out any gas. Then smell for gas, including near the floor. If you smell gas, STOP! Follow “B” in the safety information, abov e. If you don’t smell gas, go to the next step.

8. T urn control knob counter clockwise position.

to the OFF posi-

to the PILOT

9. Push in the knob all the way and hold in. Immediately light the pilot manually . Continue to hold the contr ol knob in f or about (1) minute after the pilot is lit. Release knob and it will pop back up. Pilot should remain lit. If it goes out, repeat steps 5 through 9.

• If knob does not pop up when released, stop and im-

mediately call your service technician or gas supplier.

• If the pilot will not stay lit after se veral tries, turn the gas

control knob to “OFF” and call your service technician or gas supplier.

10. Turn gas control knob counterclockwise

C-clockwise

to “ON”.

Knob can be turned to “ON” only if the control knob is popped out.

11. Replace front refractory brick access panel.

12. Fully close glass doors if installed.

13. Turn on all electric power to the appliance.

Position Indicator

OFF

IN OUT

Figure 36 - Control Knob in the PILOT position

Gas Control Knob

Pilot Adjustment Screw

TO TURN OFF GAS

TO APPLIANCE

1. Turn off the wall switch (if installed).

2. Turn off all electric power to the appliance if service is to be performed.

3. Fully open glass doors if installed.

4. Remove front hearth brick and control access panel.

5. Turn gas control knob clockwise not force.

6. Replace front refractory brick access panel.

7. Fully close glass doors if installed.

Pilot Burner

Ignitor

Figure 37 - Pilot

Thermopile

to “OFF”. Do

Clockwise

For more information, visit www.desatech.com

108660-01D

OPERATING FIREPLACE

Continued

Optional Hand-Held Remote Operation

OPERATING FIREPLACE

To Turn Off Gas to Appliance

INSPECTING BURNERS

Pilot Assembly

Burner Flame Pattern

OPTIONAL HAND-HELD

REMOTE OPERATION

Note:

The receiver and hand-held remote control kit must be purchased separately (see Accessories , page 29). Follow installation instr u c t i o n s o n p ag e s 10 and 11 of t hi s manual.

1. After lighting, let pilot flame burn for about one minute.

T urn contr ol knob to ON position. Slide the selector switch to the REMOTE position. hand-held remote ON button was on when selector switch was last turned off. You can now turn the burner on and off with the hand-held remote control unit.

IMPORTANT:

position when the pilot is not lit. This will drain the battery.

IMPORTANT:

hand-held remote control unit for up to 3 seconds to assur e proper operation.

2. Press the ON/OFF button to turn the burner on and off.

When turning burner off, the pilot will remain lit.

IMPORTANT:

trol knob on the heater to the OFF position.

Do not leave the selector switch in the REMO TE

Be sure to press the ON/OFF buttons on the

T o tur n the pilot off, manually turn the con-

Note:

The burner may light if

TO TURN OFF GAS

TO APPLIANCE

Thermopile

Pilot Burner

Ignitor

Figure 38 - Correct Pilot Flame Pattern

BURNER FLAME PATTERN

Burner flames will be steady; not lifting or floating. Flames should go up through the middle of logset. Flames should not "spill" to the edges of the pan or sides of the logset.

Figure 39 shows a typical flame pattern. If burner flame pattern differs from that described:

• turn appliance off (see To Turn Off Gas to Appliance)

• see Troubleshooting, pages 19 through 21

Shutting Off Heater

Press in and turn control knob clockwise position.

Clockwise

to the OFF

Shutting Off Burner Only (pilot stays lit)

Turn remote control/wall switch (if installed) to the OFF position.

INSPECTING BURNERS

Check pilot flame pattern and burner flame patterns often.

PILOT ASSEMBLY

The pilot assembly is factory preset for the proper flame height. Alterations may have occurred during shipping and handling. The pilot is located on the back right hand side of the burner.

The height of the thermopile must be 3/8" to 1/2" above the pilot flame. The flame from the pilot burner must extend beyond the thermopile.

If your pilot assembly does not meet these requirements:

• Turn the adjustment screw marked pilot clockwise to decrease

or counterclockwise to increase the flame to proper size (see Figure 36, page 16). Do not remove the adjustment screw.

• see Troubleshooting, pages 19 through 21

P324 and VP324 Models

P325(B) and VP325(B) Models

Figure 39 - Typical Flame Pattern

108660-01D

For more information, visit www.desatech.com

CLEANING AND MAINTENANCE

Pilot and Burner Logs

SERVICE HINTS TECHNICAL SERVICE REPLACEMENT PARTS

CLEANING AND MAINTENANCE

WARNING: Installation and repair should be done by a qualified service person. The appliance should be inspected before each use and at least annually by a qualified service person. More frequent cleaning may be required due to excessive lint from carpeting, bedding material, pet hair, etc. It is imperative that the control compartments, burners, and circulating air system be kept clean.

WARNING: The logs can be hot. Handle only when cool.

WARNING: Turn off gas and electrical power before servicing appliance.

PILOT AND BURNER

• Remove logs and ember material before cleaning burner and replace when cleaning is complete.

• Burner and controls should be cleaned with compressed air to remove dust, dirt, or lint.

• Use a vacuum cleaner or small, soft bristled brush to remove excess dust, dirt, or lint.

LOGS

• If you remove logs for cleaning, refer to log placement information on page 13 to properly replace logs.

• Use a vacuum cleaner to remove any carbon buildup on logs.

• Replace log(s) if broken. See Replacement Parts.

• Replace ember material periodically as needed. See Replace- ment P arts.

TECHNICAL SERVICE

You may have further questions about installation, operation, or troubleshooting. If so, contact DESA’s Technical Service Department at 1-866-672-6040. When calling, please have your model and serial numbers of your heater ready.,

You can also visit DESA’s technical services web site at

www.desatech.com.

REPLACEMENT PARTS

Note:

Use only original replacement parts. This will protect your

warranty coverage for parts replaced under warranty.

PARTS UNDER WARRANTY

Contact authorized dealers of this product. If they can’t supply original replacement part(s) call DESA’s Technical Service Department at 1-866-672-6040 for referral information.

When calling DESA, have ready

• your name

• your address

• model and serial numbers of your fireplace

• how fireplace was malfunctioning

• type of gas used (propane/LP or natural gas)

• purchase date Usually, we will ask you to return the part to the factory.

PARTS NOT UNDER WARRANTY

Contact authorized dealers of this product. If they can’t supply original replacement part(s) call DESA at 1-866-672-6040 for refe r r a l i n f o r mation.

When calling DESA, have ready

• model number of your fireplace

• the replacement part number

SERVICE HINTS

When Gas Pressure Is Too Low

• pilot will not stay lit

• burner will have delayed ignition

• fireplace will not produce specified heat

• propane/LP gas supply may be low if using propane/LP gas

You may feel your gas pressure is too low. If so, contact your local gas supplier.

For more information, visit www.desatech.com

108660-01D

TROUBLESHOOTING

Note:

For additional help, visit DESA’s Technical Service web

site at www.desatech.com.

Note:

Before troubleshooting the system, make sure the gas shutoff

valve is ON.

OBSERVED PROBLEM

Pilot will not light

Pilot will not stay lit

POSSIBLE CAUSE

1. No gas supply, or shutoff valve is OFF

2. Air in gas line

3. Construction debris clogging pilot orifice

4. Low gas pressure

5. Control valve knob is not on the PILOT position

6. Kinked pilot line

7. Bad valve

1. Loose wiring on thermopile to regulator valve. No millivolt current is being sent back to regulator

2. If valve knob and wall switch are in the ON position, probable defective regulator valve

The two most common causes of a malfunctioning gas appliance are:

1. Loose wiring connections

2. Construction debris clogging the pilot and/or gas control valve filter

REMEDY

1. Check to see if you have gas supply

2. Hold regulator control valve in the PILOT position for 2 to 3 minutes to purge air . If you smell gas stop and wait for a few minutes before trying to light the fireplace

3. Remove debris and dirt, inspect and clean any other possible obstructions

4. Contact your gas supplier

5. Refer to section on pilot lighting

6. Have a qualified technician replace pilot line

7. Replace regulator valve (see Accesso- ries, page 29)

1. Check wiring connections. Refer to wiring diagram shown in Wall Switc h In- stallation, page 10

2. Have a qualified technician replace valve

No gas to burner, although wall switch and valve are set to the ON position

Frequent pilot outage

For more information, visit www.desatech.com

108660-01D

1. Wall switch wires defective or too long

2. Thermopile not generating sufficient voltage

1. Pilot flame may be too low, causing safety pilot to “drop out”

2. Improper venting or excessive blockage

1. Check electrical connections

2. See Pilot will not stay lit, above

1. Clean and adjust pilot flame for maximum flame impingement on thermopile

2. Have the vent system inspected, including the termination cap. Remove any restriction or obstruction

TROUBLESHOOTING

Continued

OBSERVED PROBLEM

Pilot goes out when wall switch is ON

Spark ignitor will not light pilot after repeated triggering of red button

POSSIBLE CAUSE

1. Millivolt output on thermopile too high

1. Defective ignitor (no spark at electrode)

2. Defective pilot or misaligned electrode at pilot (spark at electrode)

3. No gas or low gas pressure

4. If using propane/LP gas, no propane/LP gas in tank

REMEDY

1. Replace thermopile

1. Check for spark at the electrode and pilot; if no spark and electrode wire is properly connected, replace ignitor

2. Using a match, light pilot. If pilot lights, turn off pilot and trigger the red button again. If pilot lights, an improper gas/ air mixture caused the improper lighting and a longer purge period is recommended. If pilot will not light, check gap at electrode and pilot. Gap should be 1/ 8" to have a strong spark. If okay, replace pilot

3. A) Check remote shut off valves from fireplace. Usually there is a valve near the fireplace and sometimes there is a valve near the main. There can be more than one (1) valve between the fireplace and main

B) Low pressure can be caused by a variety of situations such as bent line, too narrow diameter of pipe, or even low line pressure. Check for kinked lines. If none, consult with plumber or gas supplier

4. Check propane/LP supply and contact local propane/LP supplier

For more information, visit www.desatech.com

108660-01D

TROUBLESHOOTING

Continued

WARNING: If you smell gas

• Shut off gas supply.

• Do not try to light any appliance.

• Do not touch any electrical switch; do not use any phone in your

building.

• Immediately call your gas supplier from a neighbor’s phone. Follow the gas supplier’s instructions.

• If you cannot reach your gas supplier, call the fire department.

TROUBLESHOOTING

IMPORTANT:

supplies, paint, paint remover, cigarette smoke, cements and glues, new carpet or textiles, etc., create fumes. These fumes may mix with combustion air and create odors.

Operating fireplace where impurities in air exist may create odors. Cleaning

OBSERVED PROBLEM

Fireplace produces a clicking/ticking noise just after burner is lit or shut off

Fireplace produces unwanted odors

Gas odor even when control knob is in OFF position

Gas odor during combustion

POSSIBLE CAUSE

1. Metal expanding while heating or contracting while cooling

1. Fireplace burning vapors from paint, hair spray, glues, etc. (See statement above)

2. For propane/LP gas, low fuel supply

3. Gas leak. See Warning statement at

top of page

1. Gas leak. See Warning statement at top of page

2. Control valve defective

1. Foreign matter between control valve and burner

2. Gas leak. See Warning statement at

top of page

IMPORTANT

REMEDY

1. This is common with most fireplaces. If noise is excessive, contact qualified service person

1. Ventilate room. Stop using odor causing products while fireplace is running

2. Contact local propane/LP supplier

3. Locate and correct all leaks (see Gas Line Hook-Up, pages 11 and 12)

1. Locate and correct all leaks (see Gas Line Hook-Up, pages 11 and 12)

2. Replace control valve

1. Take apart gas tubing and remove foreign matter

2. Locate and correct all leaks (see Gas Line Hook-Up, pages 11 and 12)

Dark residue on logs or inside of fireplace

For more information, visit www.desatech.com

108660-01D

1. Improper log placement

2. Air holes at burner inlet blocked

3. Burner flame holes blocked

4. Improper venting or excessive blockage

5. Excessive amounts of embers and pan material

1. Properly locate logs

2. Clean out air holes at burner inlets. Periodically repeat as needed

3. Remove blockage or replace burner

4. Have the vent system inspected, including the termination cap. Remove any restrictions or obstruction

5. Clear excess embers until a minimum gap of 1/2" remains under the grate

P324 and VP324 Models

ILLUSTRATED PARTS

ILLUSTRATED PARTS BREAKDOWN

BREAKDOWN

P324 AND VP324 MODELS

24-6

24-5

24-1

24-7

24-2

24-3

24-9

24-10

24-11

24-12

24-9

24-8

24-4

For more information, visit www.desatech.com

108660-01D

PARTS LIST

P324 AND VP324 MODELS

This list contains replaceable parts used in your heater. When ordering parts, follow the instructions listed under Replacement Parts on page 18 of this manual.

P324 and VP324 Models

PARTS LIST

KEY PART NO. NUMBER DESCRIPTION QTY.

1 108406-01 Insulation Pan 1 2 108403-02 Fireplace Top Assembly 1 3 108405-01 Fireplace Surround 1 4 108425-01 Air Rod Retainer 1 5 108423-01 Panel Closure 2 6 108409-01 Firebox Bottom 1 7 108410-01 Firebox Surround 1 8 108411-01 Air Separator 1 9 106827-01 4" Gasket 1 10 108416-01 4" Collar 1 11 108769-03 Extension Deflector 1 12 108428-03 Bottom Front Refractory, Std. Brick 1 13 108426-03 Bottom Rear Refractory, Std. Brick 1 14 106683-01 Firebox Support Leg 2 15 24353 Box Assembly 1 16 108701-01 Screen Rod 2 17 108407-02 Firebox Top Assembly 1 18 11165 Screw, #10x5/8 Mod. Tr. Blk. Ox 2 19 106703-02 Damper Door Assembly 1 20 108401-01 Firebox Face 1 21 108412-01 Smoke Deflector 1 22 ** Fireplace Top Insulation 1 23 109797-01 Grate Assembly 1 24 109107-01 Burner Assembly 1 24-1 107742-03 Burner Pan 1 24-2 109794-01 Burner Tube 1 24-3 107748-01 Burner Bracket 1 24-4 107985-01 Pilot Shield 1 24-5 109793-01 Divider Pan 1 24-6 11209 Nut, #10-24 1 24-7 11147 Screw, #10-24x1/2 1 24-8 901066-01 Brass Air Mixer (Natural Gas) 1

901066-02 Brass Air Mixer (Propane/LP) 1

KEY PART NO. NUMBER DESCRIPTION QTY.

24-9 901064-12 Injector (Natural Gas) 1

901065-11 Injector (Propane/LP) 1 24-10 108084-01 Pilot (Natural Gas) 1 24-11 108085-02 Pilot Orifice (Propane/LP) 1 24-12 11102 Screw, #8-32x3/8 2 25 14512 Gas Control Valve (Natural Gas) 1

14513 Gas Control Valve (Propane/LP) 1 26 107741-02 Valve Bracket 1 27 14261 Piezo Ignitor 1 28 108368-01 3/8" Flex Line 1 29 11107 Screw, #10-32 x 1/4 PPH 4 30 108005-04 Wire Harness 1 31 11418 Push-On Nut 2 32 108440-01 Screen 2 33 14123 Strain Relief 1 34 14574 Limit Switch 1 35 22912 Draft Diverter 1 36 14253 Flexible Supply Line w/ Shutoff Valve 1 37 20042 Air Kit Cover 1 38 20088 Door Stop 1 39 20089 Pivot Clip 2 40 20090 Spring Clip 2 41 21171 Gas Knockout Cover 4 42 108652-01 Gas Conduit Assy, Left 1 43 108654-01 Gas Conduit Assy, Right 1 44 20280 Top Spacer 4 45 108415-01 Starter Pipe Collar 1

PARTS AVAILABLE NOT SHOWN

901155-01 Vermiculite Bag 1

901156-01 Pan Material 1

901157-01 Lava Rock 1

22180 Wall Switch Kit 1

**Not a field replaceable part.

108660-01D

For more information, visit www.desatech.com

P325(B) and VP325(B) Models

ILLUSTRATED PARTS BREAKDOWN

P325(B) AND VP325(B) MODELS

ILLUSTRATED PARTS BREAKDOWN

24-1

24-5

24-7

24-6

24-3

24-2

18 24-9

24-11

24-10

24-12

24-9

24-8

24-4

For more information, visit www.desatech.com

108660-01D

PARTS LIST

P325(B) AND VP325(B) MODELS

This list contains replaceable parts used in your heater. When ordering parts, follow the instructions listed under Replacement Parts on page 18 of this manual.

P325(B) and VP325(B) Models

PARTS LIST

KEY PART NO. NUMBER DESCRIPTION QTY.

1 108406-01 Insulation Pan 1 2 108403-01 Fireplace Top Assembly 1 3 108405-01 Fireplace Surround 1 4 108425-01 Air Rod Retainer 1 5 108423-01 Panel Closure 2 6 108409-01 Firebox Bottom 1 7 ** Firebox Surround 1 8 108411-01 Air Separator 1 9 108434-01 Left Refractory, Std. Brick (B Models) 1 10 108432-01 Right Refractory, Std. Brick (B Models) 1 11 108430-01 Rear Refractory, Std. Brick (B Models) 1 12 108428-01 Bottom Front Refractory, Std. Brick 1 13 108426-01 Bottom Rear Refractory, Std. Brick 1 14 106683-01 Firebox Support Leg 2 15 24353 Box Assembly 1 16 108701-01 Screen Rod 2 17 108407-01 Firebox Top Assembly 1 18 11165 Screw, #10x5/8 Mod. Tr. Blk. Ox 2 19 106703-02 Damper Door Assembly 1 20 108401-01 Firebox Face 1 21 108412-01 Smoke Deflector 1 22 ** Fireplace Top Insulation 1 23 109040-01 Grate Assembly 1 24 108712-03 Burner Assembly 1 24-1 107742-03 Burner Pan 1 24-2 109037-01 Burner Tube 1 24-3 107748-01 Burner Bracket 1 24-4 107985-01 Pilot Shield 1 24-5 901681-01 Burner Clamp 1 24-6 11209 Nut, #10-24 1 24-7 11147 Screw, #10-24x1/2 1 24-8 901066-01 Brass Air Mixer (Natural Gas) 1

901066-02 Brass Air Mixer (Propane/LP) 1

24-9 901064-11 Injector (Natural Gas) 1

901065-09 Injector (Propane/LP) 1

KEY PART NO. NUMBER DESCRIPTION QTY.

24-10 108084-01 Pilot (Natural Gas) 1 24-11 108085-02 Pilot Orifice (Propane/LP) 1 24-12 11102 Screw, #8-32x3/8 2 25 14512 Gas Control Valve (Natural Gas) 1

14513 Gas Control Valve (Propane/LP) 1 26 107741-02 Valve Bracket 1 27 14261 Piezo Ignitor 1 28 108368-01 3/8" Flex Line 1 29 11107 Screw, #10-32 x 1/4 PPH 4 30 108005-04 Wire Harness 1 31 11418 Push-On Nut 2 32 108440-01 Screen 2 33 14123 Strain Relief 1 34 14574 Limit Switch 1 35 22912 Draft Diverter 1 36 22084 Brick Liner Retainer 2 37 20042 Air Kit Cover 1 38 20088 Door Stop 1 39 20089 Pivot Clip 2 40 20090 Spring Clip 2 41 21171 Gas Knockout Cover 4 42 108652-01 Gas Conduit Assy, Left 1 43 108654-01 Gas Conduit Assy, Right 1 44 20280 Top Spacer 4 45 108415-01 Starter Pipe Collar 1 46 108417-01 5" Collar 1 47 108769-03 Extension Deflector 2 48 14253 Flexible Supply Line w/ Shutoff Valve 1

PARTS AVAILABLE NOT SHOWN

901155-01 Vermiculite Bag 1

901156-01 Pan Material 1

901157-01 Lava Rock 1

22180 Wall Switch Kit 1

**Not a field replaceable part.

108660-01D

For more information, visit www.desatech.com

ILLUSTRATED PARTS BREAKDOWN

Log Assembly

WIRING DIAGRAM

ILLUSTRATED PARTS BREAKDOWN

LOG ASSEMBLY

P324 and VP324 Models

KEY PART NO. NUMBER DESCRIPTION QTY.

- 109109-01 Log Set 1 105958-05 Front Log 1 2 105960-05 Rear Log 1 3 901100-02 Top Right Log 1 4 901102-02 Top Left Log 1

For more information, visit www.desatech.com

P325(B) and VP325(B) Models

KEY PART NO. NUMBER DESCRIPTION QTY.

- 109100-02 Log Set 1 109421-01 Rear Log 1 2 109420-01 Front Right Log 1 3 108723-01 Front Left Log 1 4 108722-01 Top Y-Log 1 5 108720-01 Top Log 1

108660-01D

OWNER'S REGISTRATION FORM

In order to provide better customer service for this and future purchases, we recommend that you register your product with us. You can register online at www.desatech.com. If access to our website is not available to you, please complete this Owner’s Registration Form and mail to the address on the back of this owner’s manual. Please provide the following product information:

Brand: Model: Date Purchased: Serial Number: First Name: Last Name: Address: City: State: Zip: Country: Home Phone: ( ) - E-Mail:

Please answer the following questions to register your product with DESA:

1. Where will the product be used? ❍ Living/Family Room ❍ Office/Warehouse ❍ Utility Shed/Outbuilding ❍ Garage ❍ Bedroom ❍ Bathroom ❍ Other

2. If you bought this product yourself, did you plan to purchase this type of product before going into the store? ❍ Yes ❍ No

3. Who selected the product? ❍ Male ❍ Female ❍ Both

4. What is the population of your area? ❍ Under 10,000 ❍ 10,000 to 25,000 ❍ 25,000 to 50,000 ❍ 50,000 to 100,000 ❍ 100,000 to 250,000 ❍ Over 250,000

5. What is your primary source of heat? ❍ Propane (LP Gas) ❍ Fuel Oil ❍ Wood ❍ Natural Gas ❍ Electric ❍ Other

6. How was the product installed? ❍ Professional Installer ❍ Self ❍ Other

7. Cost of product excluding sales tax? $___________________

8. Cost to install product? $____________________

9. Type of store where product was purchased? ❍ Hardware ❍ Propane Dealer ❍ Natural Gas/Utility Co. ❍ Home Center/Builder’s Supply ❍ Fireplace or Hearth Shop ❍ Farm Store ❍ Other

10. What motivated you to buy this product? ❍ Sudden Cold Weather ❍ Replace Older Model ❍ D.I.Y. Home Project ❍ Emergency Back-Up Heat ❍ Heater was on Sale ❍ Energy Savings/High Efficiency ❍ Construction Project ❍ Other

11. How did you learn about this product brand? ❍ Advertising ❍ Relative or Friend ❍ Store Display ❍ Other ________________________

12. Level of Education of Purchaser: ❍ Some High School ❍ Completed High School ❍ Completed College ❍ Completed Graduate School

13. Age of Purchaser: ❍ Under 20 ❍ 20 - 29 ❍ 30 - 39 ❍ 40 - 49 ❍ 50 - 59 ❍ 60 or Over

14. Buyer’s total annual household income: ❍ Under $15,000 ❍ $15,000 to $19,999 ❍ $20,000 to $34,999 ❍ $35,000 to $49,999 ❍ $50,000 to $74,999 ❍ $75,000 to $99,999 ❍ $100,000 and Over

15. Store where product was purchased: Name: ______________________________________ City: _______________________ State: __________

16. In choosing this product, how important were the following:

Availability Price Brand Name Overall Quality Heat Output Made in USA Warranty Local Service Value for Price Prior Brand Experience Controls Location Thermostat, Remote, or Manual Operation Ease of Operation Special Features Salesperson’s Recommendation Friend/Relative’s Recommendation

For more information, visit www.desatech.com

Portability Quiet Operation

108660-01D

For more information, visit www.desatech.com

Not Important Somewhat Important Very Important

(Comfort Glow, Vanguard, etc.) (EFP33PR, VTGH33NR, etc.)

Note:

Keep receipt for warranty verification.

7 or 9 digit number located on product or identification tag.

❍ ❍ ❍ ❍ ❍ ❍ ❍ ❍ ❍ ❍ ❍ ❍ ❍ ❍ ❍ ❍ ❍ ❍

TAPE

2701 Industrial Drive P.O. Box 90004 Bowling Green, KY 42102-9004

Postage

Required

For more information, visit www.desatech.com

TAPE

108660-01D

ACCESSORIES

Purchase these firebox accessories from your local dealer. If they can not supply these accessories, call DESA’s Sales Department at 1-866-672-6040 for information. You can also write to the address listed on the back page of this manual.

AIR KIT - AK4

Optional kit helps offset the negative pressure often existing in today's tightly constructed homes.

REMOTE CONTROL KITS

RC - Standard On/Off Millivolt Remote Control Kit GHRC - Hand-Held Remote Control Kit GWMT-1 - Wall Mount Remote Control Kit

PROPANE/LP CONVERSION KITS

PCBM-324 - Propane/LP Conversion Kit for 4" B-Vent Millivolt

Fireplace PCBM-325 - Propane/LP Conversion Kit for 5" B-Vent Millivolt

Fireplace

EXTRUDED ALUMINUM BI-FOLD GLASS DOORS

BD32 - 32" Black Finish BD32B - 32" Brushed Brass Finish BD32P - 32" Platinum Finish

BRICK LINER

BL32 - 32" Refractory Standard Brick Liner Kit

BLOWER KIT

BK - Squirrel Cage Blower With Speed Control

PERIMETER TRIM

PT32 - 32" Perimeter Trim - Black PT32B - 32" Perimeter Trim - Brushed Brass PT32PB - 32" Perimeter Trim - Polished Brass PT32P - 32" Perimeter Trim - Platinum

LOUVER TRIM (Rolled Louvers Only)

LT32B - 32" Louver Trim Kit - Brushed Brass LT32P - 32" Louver Trim Kit - Platinum LT32PB - 32" Louver Trim Kit for VP325(B) - Polished Brass

FACE/LOUVER PANEL KITS

SP32 - Smooth Faced Panel Kit- Black SL32 - Stamped Louver Panel Kit- Black RL32 - Rolled Louver Kit- Black FP32 - Filigree Panel Kit- Black FP32B - Filigree Panel Kit- Brushed Brass FP32P - Filigree Panel Kit- Platinum FP32PB - Filigree Panel Kit- Polished Brass

FIRE CRACKLE - CF6A

Creates the sound of a real burning fire.

WIRING DIAGRAM

PILOT BURNER

IGNITOR

PILOT GAS LINE

INCOMING MAIN GAS SUPPLY

108660-01D

PILOT SAFETY WIRE

THERMOPILE

For more information, visit www.desatech.com

REPLACE FACTORY WIRING WITH 105¡C EQUIVALENT OR HIGHER RATING

EXTERNAL WIRING USE ONLY CLASS 2 THERMOSTAT WIRE 18 GA. RED/WHITE

DO NOT

CONNECT

RED

WHITE

TH TP TH/TP

WALL SWITCH

TO 120V

N.C.SW

(VENT SAFETY SHUTOFF SWITCH)

WARRANTY INFORMATION

KEEP THIS WARRANTY

Model Serial No. Date Purchased

Always specify model and serial numbers when communicating with the factory. We reserve the right to amend these specifications at any time without notice. The only warranty applicable is our standard written

warranty. We make no other warranty, expressed or implied.

LIMITED WARRANTY B-VENT FIREPLACE

DESA warrants this product to be free from defects in materials and components for four (4) years from the date of first purchase, provided that the product has been properly installed, operated and maintained in accordance with all applicable instructions. To make a claim under this warranty the Bill of Sale or cancelled check must be presented.

This warranty is extended only to the original retail purchaser. This warranty covers the cost of part(s) required to restore this heater to proper operating condition and an allowance for labor when provided by a DESA Authorized Service Center. Warranty part(s) MUST be obtained through authorized dealers of this product and/or DESA who will provide original factory replacement parts. Failure to use original factory replacement parts voids this warranty. The heater MUST be installed by a qualified installer in accordance with all local codes and instructions furnished with the unit.

This warranty does not apply to parts that are not in original condition because of normal wear and tear, or parts that fail or become damaged as a result of misuse, accidents, lack of proper maintenance or defects caused by improper installation. Travel, diagnostic cost, labor, transportation and any and all such other costs related to repairing a defective heater will be the responsibility of the owner.

TO THE FULL EXTENT ALLOWED BY THE LAW OF THE JURISDICTION THAT GOVERNS THE SALE OF THE PRODUCT; THIS EXPRESS WARRANTY EXCLUDES ANY AND ALL OTHER EXPRESSED WARRANTIES AND LIMITS THE DURATION OF ANY AND ALL IMPLIED WARRANTIES, INCLUDING WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE TO FOUR (4) YEARS ON ALL COMPONENTS FROM THE DATE OF FIRST PURCHASE; AND DESA’S LIABILITY IS HEREBY LIMITED TO THE PURCHASE PRICE OF THE PRODUCT AND DESA SHALL NOT BE LIABLE FOR ANY OTHER DAMAGES WHATSOEVER INCLUDING INDIRECT, INCIDENTAL OR CONSEQUENTIAL DAMAGES.

Some states do not allow a limitation on how long an implied warranty lasts or an exclusion or limitation of incidental or consequential damages, so the above limitation on implied warranties, or exclusion or limitation on damages may not apply to you.

This warranty gives you specific legal rights, and you may also have other rights that vary from state to state. For information about this warranty write:

2701 Industrial Drive P.O. Box 90004 Bowling Green, KY 42102-9004

www.desatech.com

108660 01

NOT A UPC

For more information, visit www.desatech.com

108660-01 Rev. D 09/03

108660-01D

Desa VP325B, P324, P325B, VP324 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
