DIRECT-VENT FIREPLACE

OWNER’S OPERATION AND INSTALLATION MANUAL

For more information, visit www.desatech.com

NATURAL GAS “VICTORIAN” MODEL (V)V36EN,

(V)V42EN SERIES

PROPANE/LP GAS “VICTORIAN” MODEL (V)V36EP,

(V)V42EP SERIES

WARNING: If the information in this manual is not followed exactly, a fire or explosion may result causing property damage, personal injury, or loss of life.

FOR YOUR SAFETY Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or any other appliance.

FOR YOUR SAFETY WHAT TO DO IF YOU SMELL GAS

• Do not try to light any appliance.

• Do not touch any electrical switch

• Do not use any phone in your building.

• Immediately call your gas supplier from a

neighbor’s phone. Follow the gas supplier’s instructions.

• If you cannot reach your gas supplier, call the fire

department.

WARNING: Improper installation, adjustment, alteration, service, or maintenance can cause injury or property damage. Refer to this manual for correct installation and operational procedures. For assistance or additional information consult a qualified installer, service agency, or the gas supplier.

— Installation and service must be performed by a qualified installer, service agency, or the gas supplier.

— This appliance is only for use with the type of gas indicated on the rating plate. This appliance is not convertible for use with other gases, unless a certified kit is used.

This appliance may be installed in an aftermarket* manufactured (mobile) home, where not prohibited by state or local codes.

*Aftermarket: Completion of sale, not for purpose of resale, from the manufacturer.

Save this manual for future reference.

TABLE OF CONTENTS SAFETY INFORMATION

TABLE OF CONTENTS

SAFETY INFORMATION ............................................................ 2

PRODUCT IDENTIFICATION ..................................................... 3

LOCAL CODES........................................................................... 3

PRODUCT FEATURES .............................................................. 4

PRE-INSTALLATION PREPARATION ........................................ 4

LOCATION OF TERMINATION CAP .......................................... 6

VENTING INSTALLATION INSTRUCTIONS.............................. 7

FIREPLACE INSTALLATION .................................................... 16

WIRING DIAGRAM ................................................................... 24

OPERA TING FIREPLACE ........................................................ 25

SAFETY INFORMATION

WARNINGS

WARNING: This product contains and/or generates chemicals known to the State of California to cause cancer or birth defects, or other reproductive harm.

IMPORTANT: Read this owner’s manual carefully and completely before trying to assemble, operate, or service this fireplace. Improper use of this fireplace can cause serious injury or death from burns, fire, explosions, electrical shock, and carbon monoxide poisoning.

DANGER: Carbon monoxide poisoning may lead

to death!

This fireplace must be installed by a qualified (certified or licensed) service person. It has a sealed gas combustion chamber that uses a coaxial pipe (pipe within a pipe and having the same center) venting system. It brings in fresh air for combustion through the outer pipe and combustion gases are exhausted through the inner pipe. If the glass door assembly and venting pipe are not properly seated, connected, and sealed, carbon monoxide leakage (spillage) can occur.

Carbon Monoxide Poisoning: Early signs of carbon monoxide

poisoning resemble the flu, with headaches, dizziness, or nausea. If you have these signs, the fireplace may not have been installed properly. Get fresh air at once! Have fireplace inspected and serviced by a qualified service person. Some people are more affected by carbon monoxide than others. These include pregnant women, people with heart or lung disease or anemia, those under the influence of alcohol, and those at high altitudes.

INSPECTING BURNERS.......................................................... 26

CLEANING AND MAINTENANCE ............................................ 27

TROUBLESHOOTING .............................................................. 28

REPLACEMENT PARTS .......................................................... 30

SPECIFICATIONS .................................................................... 30

SERVICE HINTS....................................................................... 30

TECHNICAL SERVICE ............................................................. 30

ACCESSORIES ........................................................................ 31

ILLUSTRATED PARTS BREAKDOWN AND PARTS LIST ....... 32

WARRANTY INFORMATION ...................................... Back Cover

Propane/LP gas and natural gas are both odorless. An odor-making agent is added to each of these gases. The odor helps you detect a gas leak. However, the odor added to these gases can fade. Gas may be present even though no odor exists.

Make certain you read and understand all warnings. Keep this manual for reference. It is your guide to safe and proper operation of this fireplace.

WARNING: Any change to this fireplace or its

controls can be dangerous.

1. This appliance is only for use with the type of gas indicated on the rating plate. This appliance is not convertible for use with other gases unless a certified kit is used.

2. For propane/LP fireplace, do not place propane/LP supply tank(s) inside any structure. Locate propane/LP supply tank(s) outdoors. To prevent performance problems, do not use propane/LP fuel tank of less than 100 lbs. capacity.

3. If you smell gas

• shut off gas supply

• do not try to light any appliance

• do not touch any electrical switch; do not use any phone in

your building

• immediately call your gas supplier from a neighbor’ s phone.

Follow the gas supplier's instructions

• if you cannot reach you gas supplier , call the fire department.

4. Never install the fireplace

• in a recreational vehicle

• in windy or drafty areas where curtains or other combustible

(flammable) objects can make contact with the fireplace front

• in high traffic areas

For more information, visit www.desatech.com

108862-01D

SAFETY INFORMATION

PRODUCT IDENTIFICATION

LOCAL CODES

SAFETY INFORMATION

Continued

5. This fireplace reaches high temperatures. Keep children and adults away from hot surfaces to avoid burns or clothing ignition. Fireplace will remain hot for a time after shutdown. Allow surfaces to cool before touching.

6. Carefully supervise young children when they are in the room with fireplace.

7. Do not modify this fireplace under any circumstances. Any parts removed for servicing must be replaced prior to operating fireplace.

8. Turn fireplace off and let cool before servicing, installing, or repairing. Only a qualified service person should install, service, or repair this fireplace. Have fireplace inspected annually by a qualified service person.

9. You must keep control compartments, burners, and circulating air passages clean. More frequent cleaning may be needed due to excessive lint and dust from carpeting, bedding material, etc. Turn of f the gas valve and pilot light before cleaning fireplace.

10. Have venting system inspected annually by a qualified service person. If needed, have venting system cleaned or repaired. See Cleaning and Maintenance, page 27.

11. Keep the area around your fireplace clear of combustible materials, gasoline, and other flammable vapor and liquids. Do not run fireplace where these are used or stored. Do not place items such as clothing or decorations on or around fireplace.

12. Do not use this fireplace to cook food or burn paper or other objects.

13. Do not use any solid fuels (wood, coal, paper , cardboard, etc.) in this fireplace. Use only the gas type indicated on fireplace nameplate.

14. This appliance, when installed, must be electrically grounded in accordance with local codes or, in the absence of local codes, with the National Electrical Code, ANSI/NFPA 70, or the Ca- nadian Electrical Code, CSA C22.1.

15. Do not use fireplace if any part has been exposed to or under water. Immediately call a qualified service person to arrange for replacement of the unit.

16. Do not operate fireplace if any log is broken.

17. Do not use a blower insert, heat exchanger insert, or other accessory not approved for use with this fireplace.

18. Do not operate fireplace with glass door removed, cracked, or broken.

19. Provide adequate clearances around air openings.

PRODUCT IDENTIFICATION

Upper Louver Panel

Nailing Flange

Glass Door Assembly

Control Valve

Lower Louver Panel

Figure 1 - Victorian Direct-Vent Fireplace with Electronic Ignition

Glowing Embers

ON/OFF/REMOTE Switch (Optional Installation)

Flue Collar

Log Set

Lava Rock

Grate Assembly

Blower Switch (Optional Installation)

LOCAL CODES

Install and use fireplace with care. Follow all local codes. In the absence to local codes, use the current National Fuel Gas Code

ANSI Z223.1/NFPA 54* (USA) or the current CSA-B149.1 Installation Code (Canada).

*Available from:

American National Standards Institute, Inc.

1430 Broadway

New York, NY 10018

National Fire Protection Association, Inc.

Batterymarch Park

Quincy, MA 02269

108862-01D

For more information, visit www.desatech.com

PRODUCT FEATURES PRE-INSTALLATION PREPARATION

Location and Space Requirements

PRODUCT FEATURES

These are a few facts that can help you understand and enjoy your direct-vent fireplace:

• The venting system may be routed to the outside of your home

in several ways. It may vent through the roof (vertical) or it may vent to an outside/exterior wall (horizontal). The vent pipe installation is very important to allow for proper operation. You must follow the venting instructions very carefully for either vertical or horizontal applications.

• This fireplace may be installed in any room of your house provided

all local codes and these installation instructions are followed.

• This fireplace does not require electricity to operate.

• Only the blower requires electricity if installed and if you plan

to install the blower at a later date, do not forget to wire the outlet at the bottom of the fireplace when framing.

• A piezo ignitor and ceramic electrode create spark to ignite the

pilot light. It does not require any matches, batteries or any other sources of ignition to light the pilot.

• Each time you turn on your fireplace, you may notice some

amount of condensation on the inside of the fireplace glass. This is normal and will disappear after 10-20 minutes of operation.

• Your direct-vent gas fireplace system (fireplace and venting) is a

balanced and sealed gas operating unit. It requires approximately 10-20 minutes of operating time before the flame pattern stabilizes.

PRE-INSTALLATION

• Your fireplace is designed to be used in zero clearance installations. Wall or framing material can be placed directly against any exterior surface on the back, sides, or top of your fireplace, except where standoff spacers are integrally attached. If standoff spacers are attached to your fireplace, these spacers can be placed directly against wall or framing material. See framing details on page 5.

• If you plan on installing a television or entertainment center recessed above your fireplace, it is recommended that you maintain a minimum 18" above top of louver opening.

• When locating termination cap, it is important to observe the minimum clearances shown in Figure 7, page 6.

• If recessing into a wall, you can avoid extra framing by positioning your fireplace against an already existing framing member.

• Do not recess termination cap into a wall or siding.

• You may paint the termination cap with 450ºF (232ºC) heatresistant paint to coordinate with the exterior finish.

• There must not be any obstruction such as bushes, garden sheds, fences, decks, or utility buildings within 24" from the front of the termination cap.

• Do not locate termination cap where excessive snow or ice build up may occur. Be sure to clear vent termination area after snow falls to prevent accidental blockage of venting system. When using snow blowers, do not direct snow towards vent termination area.

PREPARATION

LOCATION AND SPACE REQUIREMENTS

Determine the safest and most efficient location for your DESA International direct-vent fireplace. Make sure that rafters and wall studs are not in the way of the venting system. Choose a location where the heat output is not affected by drafts, air conditioning ducts, windows or doors. Figure 2 shows some common locations. Be aware of all restrictions and precautions before deciding the exact location for your fireplace and termination cap.

When deciding the location of your fireplace, follow these rules:

• Do not connect this fireplace venting to a chimney flue serving a separate solid-fuel burning fireplace or appliance.

• Due to high temperatures, do not locate this fireplace in high traffic areas, windy or drafty areas, or near furniture or draperies.

• Proper clearances must be maintained.

• If your fireplace is to be installed directly on carpeting, vinyl tile, or any combustible material other than wood, it must be installed on a metal or wood panel extending the full width and depth of the fireplace. See Figure 3.

Flush with a wall

Through exterior wall enclosed in a chase

Figure 2 - Common Fireplace Locations

Fireplace size D x FW x RW

36" 21 1/8" 41" 29" 42" 23

Figure 3 - Fireplace Bottom Dimensions

/4" 48" 36 1/4"

Corner installation

For more information, visit www.desatech.com

108862-01D

PRE-INSTALLATION PREPARATION

Continued

CLEARANCES

Minimum clearances to combustibles for the fireplace are as follows: Back, and sides 0"/mm Perpendicular walls 6" (152mm) Floor 0"/mm Ceiling to louver opening 42" (1067mm) Front 36" (914mm) Top 0"/mm Vent (See venting instructions for

specific venting clearances.)

Combustible material with a maximum thickness of 5/8" may be flush with the top front of fireplace .

NOTICE: This fireplace is intended for use as supplemental heat. Use this fireplace along with your primary heating system. Do not install this fireplace as your primary heat source. If you have a central heating system, you may run system’s circulating blower while using fireplace. This will help circulate the heat throughout the house. In the event of a power outage, you can use this fireplace as a heat source.

PRE-INSTALLATION PREPARATION

Framing and Finishing

F G

Clearances

Nailing T abs

36" Models 42" Models

A 35 3/4" 41 5/8" B 15" 21 C 49 D 10 3/8" 13 1/2" E 13 F 41" 48" G 41 H 68

/8" 58 1/2"

/4" 16 3/4"

/4" 48 1/4"

/2" 81 1/2"

/8"

Figure 5 - Framing Clearances for Corner Installation

FRAMING AND FINISHING

Figure 4 shows typical framing of this fireplace. Figure 5 shows framing for corner installation. All minimum clearances must be met.

For available accessories for this fireplace, see Accessories on page

31. If you are using a separate combustible mantel piece, refer to

Figure 6 for proper installation height. You can install noncombustible mantels at any height above the fireplace. tible mantels may discolor!

36" Models 42" Models

A 36 B 41 C 23

Figure 4 - Framing Clearances for Installation Against an Exterior Wall

Note:

Noncombus-

/8" 40 1/8"

/4" 48 1/4"

/2" 25 5/8"

1 2

Top of Louver Opening

Ref. Mantel Depth Ref. Mantel from Top

1 14" (356mm) A 16" (406mm) 2 12" (305mm) B 14" (356mm) 3 10" (254mm) C 12" (305mm) 4 8" (203mm) D 10" (254mm) 5 6" (152mm) E 8" (203mm) 6 4" (101mm) F 6" (152mm) 7 2" (51mm) G 4" (101mm)

of Louver Opening

5 6 7

Figure 6 - Clearances for Combustible Mantels

Wall

108862-01D

For more information, visit www.desatech.com

LOCATION OF TERMINATION CAP

A = clearance above grade, veranda, porch, deck, or balcony

[*12 inches (305mm) minimum]

B = clearance to window or door that may be opened

[12 inches (305mm) minimum]

C = clearance to permanently closed window [minimum 12 inches

(305mm) recommended to prevent condensation on window]

D = vertical clearance to ventilated soffit located above the terminal

within a horizontal distance of 24 inches (610mm) from the

center-line of the terminal [18 inches (457mm) minimum] E = clearance to unventilated soffit [12 inches (305mm) minimum] F = clearance to outside corner (see below) G = clearance to inside corner (see below) H = *not to be installed above a meter/regulator assembly within

36 inches (914mm) horizontally from the center-line of the regulator

† vent shall not terminate directly above a side-walk or paved driveway which is located between two

single family dwellings and serves both dwellings* ‡ only permitted if veranda, porch, deck or balconey is fully open on a minimum of 2 sides beneath the floor* * as specified in CAN/CSA B149 (.1 or .2) Installation Codes (1991) for Canada and U.S.A.

Note

: Local codes or regulations may require different clearances

Fixed

Closed

Openable

TERMINATION CAP

Openable

AIR SUPPLY INLET

Fixed

Closed

V A

I = clearance to service regulator vent outlet [*72 inches (1829mm) J = clearance to non-mechanical air supply inlet to building or the

K = clearance to a mechanical air supply inlet [*72 inches (1829mm) L = † clearance above paved side-walk or a paved driveway located on M = clearance under veranda, porch, deck [*12 inches (305mm) minimum ‡]

N = clearance above a roof shall extend a minimum of 24 inches (610mm)

minimum] combustion air inlet to any other fireplace [*12 inches (305mm)

minimum] minimum] public property [*84 inches (2133mm) minimum]

above the highest point when it passes through the roof surface and any other obstruction within a horizontal distance of 18 inches (457mm)

GAS METER RESTRICTED AREA

(TERMINATION PROHIBITED)

Termination Clearances for Buildings with Combustible and Noncombustible Exteriors

Inside Corner

Balcony with No Side Wall

G = 12" (305mm) minimum clearance

A = 6" (152mm)

Outside Corner Recessed Location

Balcony with Perpendicular Side Wall

Combustible & Noncombustible H = 24" (610mm) J = 20" (508mm)

Figure 7 - Minimum Clearances for Termination Cap

For more information, visit www.desatech.com

B = 6" (152mm)

C = Maximum depth of 48" (1219mm) for

recessed location

D = Minimum width for back wall of

recessed location Combustible - 38" (965mm) Noncombustible - 24" (610mm)

E = Clearance from corner in

recessed locationCombustible - 6" (152mm) Noncombustible - 2" (51mm)

108862-01D

VENTING INSTALLATION INSTRUCTIONS

Installation Precautions

NOTICE: Read these instructions completely before attempting installation.

These models are tested and approved for use with DESA International (direct-vent) pipe components and terminations.

The venting system must terminate on the outside of the structure and can not be attached to a chimney or flue system serving a separate solid fuel or gas burning appliance. A direct-vent appliance must have its own venting system. DO NOT common vent this appliance.

These models are approved to be vented either horizontally through an outside wall or vertically through a roof or chase enclosure using the following guidelines:

• When venting system terminates horizontally on an outside wall, you must install a standoff if the termination cap is to be installed directly on a combustible finish such as vinyl, wood, stucco, etc.

• Never run the vent downward as this may cause excessive temperatures which could cause a fire.

• V ent pipe air space clearances to combustibles are 1" on all sides except on the horizontal sections, which requires 2" clearance from the top of the pipe. Where the termination cap penetrates a combustible wall, 1" air space clearance is required.

• Snorkel terminations are required when minimum clearance to grade cannot be met (see Figure 16 on page 11).

• Have fireplace and selected vent components on hand to help determine the exact measurements when elbowing or offsetting. Always use wall firestops when penetrating walls and firestops when penetrating ceilings or attic spaces.

• Install horizontal venting with a 1/4" rise for every 12" of run toward the termination.

NOTICE: Failure to follow these instructions will void the warranty.

INSTALLATION PRECAUTIONS

• Wear gloves and safety glasses for protection

• Use extreme caution when using ladders or when on roof tops

• Be aware of electrical wiring locations in walls and ceilings The following actions will void the warranty on your venting

system:

• Installation of any damaged venting component

• Unauthorized modification of the venting system (Do not cut or alter vent components)

• Installation of any component part not manufactured or approved by DESA International

• Installation other than as instructed by these instructions

WARNING: This gas fireplace and vent assembly must be vented directly to the outside. The venting system must NEVER be attached to a chimney serving a separate solid fuel burning appliance. Each direct-vent gas appliance must use a separate vent system. Do not use common vent systems.

WARNING: Vent pipe air space clearances to combustibles are 1" on all sides except on the horizontal sections, which require 2" clearances from the top of the pipe. Where the termination cap penetrates a combustible wall, 1" air space clearance is required.

WARNING: Read all instructions completely and thoroughly before attempting installation. Failure to do so could result in serious injury, property damage or loss of life.

For more information, visit www.desatech.com

108862-01D

VENTING INSTALLATION INSTRUCTIONS

Installation Planning

VENTING INSTALLATION INSTRUCTIONS

Continued

INSTALLATION PLANNING

There are two basic types of direct-vent installation:

• Horizontal T ermination

• Vertical Termination

Horizontal Termination Installation

IMPORTANT:

portion of wall firestop. Horizontal installations using round termination require exterior portion of wall firestop available only in vent kit 01491 (see Figure 14, page 10).

1. Set the fireplace in its desired location and determine the route your horizontal venting will take. Do not secure the fireplace until all venting has been installed. Some installations require sliding the fireplace in and out of position to make final venting connections. Figures 14 through 18 on pages 10 through 12 show different configurations for venting with horizontal termination that will help you decide which application best suits your installation. Check to see if wall studs or roof rafters are in the path of your desired venting route. If they are, you may want to adjust the location of the fireplace.

2. Direct vent pipe sections and components are designed with special twist-lock connections.

Twist-Lock Procedure: The female ends of the pipes have

locking lugs (indentations). These lugs will slide straight into matching slots on the male ends of adjacent pipes. Push pipe sections together and twist one section clockwise approximately one-quarter turn until the sections are fully locked (see Figure 8). ported every three feet. Use wall straps for this purpose.

3. Use a 45° elbow to connect venting system to fireplace flue collar. The elbow is designed to be twist-locked onto the flue collar as described in step 2. configuration of the elbow by cutting, twisting, bending, etc.

4. Assemble the desired combination of pipe and elbows to the fireplace flue collar. If there are long portions of venting run, pre-assembled pipe sections may be installed as subassemblies for convenience.

5. Carefully determine the location where the vent pipe assembly will penetrate the outside wall. The center of the hole should line up with the center-line of the horizontal vent pipe. Mark the wall for a 10 3/4" x 10 3/4" square hole. Cut and frame the square hole in the exterior wall where the vent will be terminated. If the wall being penetrated is constructed of noncombustible material, such as masonry block or concrete, a 8 1/2" hole with zero clearance is acceptable (see Figure 9).

Horizontal square terminations require only inner

Note:

Horizontal runs of vent must be sup-

IMPORTANT:

Do not attempt to alter the

Female Locking Lugs

Figure 8 - Vent Pipe Connections

Vent Opening

Combustible Wall

/4"

(273mm)

/4"

(273mm)

Vent Opening

Noncombustible Wall

8 1/2"

(216mm)

Figure 9 - Vent Opening Requirements

10 3/4" Inside Framing

(273mm)

(Framing

Detail)

Male Slots

Center of Hole

For more information, visit www.desatech.com

108862-01D

VENTING INSTALLATION INSTRUCTIONS

Continued

WARNING: Do not recess vent termination into

any wall. This will cause a fire hazard.

6. Noncombustible Exterior Wall: Position the horizontal vent cap in the center of the 8 1/2" round hole and attach to the exterior wall with four wood screws provided. Before attaching the vent cap to exterior wall, run a bead of non-hardening mastic (pliable sealant) around the outside edges to make a seal between it and the outside wall. provided should be replaced with appropriate fasteners for stucco, brick, concrete, or other types of sidings.

Combustible Exterior W all: For vinyl siding, stucco, or wood

exteriors, a siding standoff must be installed between the vent cap and exterior wall. The siding standoff prevents excessive heat from damaging the siding materials. Siding material must be cut to accommodate standoff. Bolt the vent cap to the standoff. Apply non-hardening mastic around outside edge of standoff. Position the standoff/cap assembly in the center of the 10

/4" square hole and attach to exterior wall with wood screws provided (see Figure 11). The siding standoff must sit flush against the exterior fascia material.

7. Slide the wall firestop over the vent pipe before connecting horizontal run to vent cap (see Figure 12).

8. Carefully move fireplace, with vent assembly attached, toward wall and insert vent pipe into horizontal termination. The pipe overlap should be a minimum of 11/4".

Note:

The four wood screws

VENTING INSTALLATION INSTRUCTIONS

Installation Planning (Cont.)

Cut Siding Away to Fit Standoff

Standoff

Wood Screw

Apply Mastic to All Four Sides

Figure 11 - Installing Siding Standoff

Interior Wall Surface

Vent Cap (Horizontal Termination)

Vent Cap

Screws

Wall Firestop

Horizontal Vent Pipe

Apply Mastic to All Four Sides

Figure 10 - Installing Horizontal Vent Cap

For more information, visit www.desatech.com

108862-01D

Vent Cap

Screw

Figure 12 - Connecting Vent Cap with Horizontal Vent Pipe

Wood Screw

VENTING INSTALLATION INSTRUCTIONS

Installation Planning (Cont.)

VENTING INSTALLATION INSTRUCTIONS

Continued

9. Slide wall firestop against interior wall surface and attach with screws provided. See Figure 13 for horizontal termination details.

10. Place fireplace into position and shim with noncombustible material if needed. Nail or screw side flanges to framing to secure unit in place. securing. If fireplace is not level it will not work properly .

Direct Vent Pipe

IMPORTANT:

Minimum Pipe Overlap 1

Wall Firestop

/4"

Make sure fireplace is level before

Siding Standoff

Screws

WARNING: Never run vent downward as this may cause excessive temperatures which could cause a fire. Operation of improperly installed and maintained venting system could result in serious injury, property damage or loss of life.

GROUND FLOOR INSTALLATION

Recommended Applications:

• Installation using cabinet surrounds

• Through the wall using round or square termination (up to 12" horizontal pipe)

• NOT FOR CORNER INSTALLATION

45° Elbow

Horizontal High Wind Square Termination

Maintain 1" Minimum Air Space Around Outer Pipe When Penetrating a Wall

/4" x 10 3/4"

10 Framed Opening

Figure 13 - Typical Horizontal Termination Cap Mounting with Additional Siding Standoff Installed

High Wind Termination

Apply Mastic to Outside Edge of Standoff

Exterior Wall with Vinyl Siding

Horizontal Termination Configurations

Figures 14 through 18 show different configurations and alternatives for venting with horizontal termination. Each figure includes a chart with critical minimum and maximum dimensions which MUST be met.

IMPORTANT:

have a 1/4" rise for every 12" of run toward the termination.

Remember that a horizontal run of venting must

Adjustable Pipe 12" Max.

Wall Firestop

Square Termination

Vertical (V) Horizontal (H) V36 Series 32 3/4" 17" max. V42 Series 36 3/4" 17" max.

45° Elbow

Wall Firestop

Figure 14 - Horizontal Termination Configuration for Square or Round Termination

Exterior Portion of Wall Firestop (Round Termination Only)

Horizontal Round Termination

Round Termination

(Kit 01491 Shown)

For more information, visit www.desatech.com

108862-01D

VENTING INSTALLATION INSTRUCTIONS

Continued

CORNER INSTALLATION

Recommended Applications:

• Corner ground floor installation

• Ground floor installation where pipe vents horizontally through wall (over 12" horizontal pipe)

• Basement installation where one foot clearance from ground to termination is possible

Not to Exceed (H) Limits

Square Termination

90° Elbow As Required for (V)

See Chart for Pipe Section Required

VENTING INSTALLATION INSTRUCTIONS

Vertical (V) Required

36" 42" Vertical Pipe Horizontal (H) (36"/42")

/2" min. 46 1/4" min. None 30" max.

*43 54 1/2" min. 57 1/4" min. 1 ft. 48" max.

/2" min. 69 1/4" min. 2 ft. 60" max.

/2" min. 81 1/4" min. 3 ft. 84" max.

78 90 1/2" min. 93 1/4" min. 4 ft. 20' max.

* Ground Floor Corner Venting

Installation Planning (Cont.)

Not to Exceed (H) Limits

90° Elbow

Square Termination

Wall Firestop

Figure 15 - Horizontal Termination Configuration for Corner Installation Using One 90° Elbow

45° Elbow

Wall Firestop

45° Elbow

SNORKEL TERMINATION INSTALLATION

Recommended Applications:

• Installations requiring a vertical rise on building exterior

• Any installation using snorkel termination to achieve one foot above ground

Snorkel terminations are available for installations requiring a vertical rise on the exterior of the building. If installing snorkel termination below grade, you must provide proper drainage to prevent water from entering snorkel termination (see Figure 16). Do not back fill around snorkel termination.

Snorkel Termination

12"

Minimum

Snorkel Termination

12"

Minimum

Adequate Drainage

90° Elbow

45° Elbow

Wall Firestop

12" Minimum

Snorkel Termination

12"

Minimum

Figure 16 - Snorkel Termination Configurations for Below Ground Installation

For more information, visit www.desatech.com

108862-01D

VENTING INSTALLATION INSTRUCTIONS

Installation Planning (Cont.)

VENTING INSTALLATION INSTRUCTIONS

Continued

HORIZONTAL SYSTEM INSTALLATION USING TWO 90° ELBOWS

The following configurations show the minimum vertical rise requirements for a horizontal system using two 90° elbows.

Venting with Two 90° Elbows

Vertical (V) Horizontal (H1) Horizontal (H1) +

Horizontal (H2)

5' min. 2' max. 6' max. 6' min. 4' max. 12' max. 7' min. 6' max. 18' max. 8' min. 8' max. 20' max.

20' max. 8' max. 20' max.

45°Elbow

Figure 17 - Horizontal Termination Configuration for Venting Using Two 90° Elbows

Venting with Two 90° Elbows

Vertical (V) Horizontal (H1) +

Horizontal (H2)

5' min. 6' max. 6' min. 12' max. 7' min. 18' max. 8' min. 20' max.

20' max. 20' max.

45° Elbow

Figure 18 - Horizontal Termination Configuration for Venting Using Two 90° Elbows with Termination at 90° with Fireplace

For more information, visit www.desatech.com

108862-01D

VENTING INSTALLATION INSTRUCTIONS

Continued

VENTING INSTALLATION INSTRUCTIONS

Installation for Vertical Termination

INSTALLATION FOR VERTICAL TERMINATION

Note:

Vertical restrictor must be installed in all vertical installations.

1. Determine the route your vertical venting will take. If ceiling

joists, roof rafters, or other framing will obstruct the venting system, consider an offset (see Figure 19) to avoid cutting load bearing members. lation instructions for required clearances (air space) to combustibles when passing through ceilings, walls, roofs, enclosures, attic rafters, etc. Do not pack air spaces with insulation. Also note maximum vertical rise of the venting system and any maximum horizontal offset limitations.

2. Set the fireplace in desired location. Drop a plumb line down

from the ceiling to the position of the fireplace exit flue. Mark the center point where the vent will penetrate the ceiling. Drill a small locating hole at this point.

Drop a plumb line from the inside of the roof to the locating hole in the ceiling. Mark the center point where the vent will penetrate the roof. Drill a small locating hole at this point.

Wall Strap

Figure 19 - Offset with Wall Strap and 45° Elbows

Flat Ceiling Installation

1. Cut a 10 3/4" square hole in the ceiling using the locating hole as

a center point. The opening should be framed to 10 3/4"x10 3/4" (273 mm x 273 mm) inside dimensions, as shown in Figure 9 on page 8 using framing lumber the same size as the ceiling joists. If the area above the ceiling is an insulated ceiling or a room, nail firestop from the top side. This prevents loose insulation from falling into the required clearance space. Otherwise, install firestop below the framed hole. The firestop should be installed with no less than three nails per side (see Figure 20).

Note:

Pay special attention to these instal-

Roof Flashing

45° Elbow

Ceiling Firestop

2. Assemble the desired lengths of pipe and elbows necessary to reach from the fireplace flue up through the firestop. Be sure all pipe and elbow connections are fully twist-locked (see Figure 8, page 8).

3. Cut a hole in the roof using the locating hole as a center point. (Cover any exposed open vent pipes before cutting hole in roof.) The 10 actual length may be larger depending on the pitch of the roof. There must be a 1" clearance from the vent pipe to combustible materials. Frame the opening as shown in Figure 9, page 8.

4. Connect a section of pipe and extend up through the hole.

Note:

support the vent pipe every 3 feet. Use wall straps for this purpose (see Figure 19). Whenever possible, use 45° elbows instead of 90° elbows. The 45° elbow offers less restriction to the flow of the flue gases and intake air.

5. Place the flashing over the pipe section(s) extending through the roof. Secure the base of the flashing to the roof and framing with roofing nails. Be sure roofing material overlaps the top edge of the flashing as shown in Figure 19. There must be a 1" clearance from the vent pipe to combustible materials.

6. Continue to add pipe sections until the height of the vent cap meets the minimum building code requirements described in Figure 7 on page 6. steep roof pitches. Nearby trees, adjoining rooflines, steep pitched roofs, and other similar factors may cause poor draft or down-drafting in high winds. Increasing the vent height may solve this problem.

7. Twist-lock the vent cap onto the last section of vent pipe.

Note:

floor, including storage spaces and closets, you must enclose pipe. You may frame and sheetrock the enclosure with standard construction material. Make sure and meet the minimum allowable clearances to combustibles. Do not fill any of the required air spaces with insulation.

If area above is a room, install firestop above framed hole.

Figure 20 - Installing Firestop

/4"x10 3/4" hole must be measured on the horizontal;

If an offset is needed to avoid obstructions, you must

Note

: You must increase vent height for

If the vent pipe passes through any occupied areas above the first

If area above is not a room, install firestop below framed hole.

108862-01D

For more information, visit www.desatech.com

VENTING INSTALLATION INSTRUCTIONS

Installation for Vertical Termination (Cont.)

VENTING INSTALLATION INSTRUCTIONS

Continued

Vertical Termination Configurations

Figures 21 through 24 show four different configurations for vertical termination.

Venting with Two 90° Elbows

Vertical (V) Horizontal (H1) +

Horizontal (H2)

5' min. 2' max. 6' min. 4' max. 7' min. 6' max. 8' min. 8' max.

20' max. 8' max.

45° Elbow

Note:

Install restrictor into inner collar of fireplace as shown.

Venting with One 90° Elbow

Vertical (V) Horizontal (H)

5' min. 2' max. 6' min. 4' max. 7' min. 6' max. 8' min. 8' max.

20' max. 8' max.

45° Elbow

Figure 22 - Vertical Venting Configuration Using One 90° Elbow (Vertical Round High Wind Termination Shown)

Note:

Install restrictor into inner collar of fireplace as shown.

Figure 21 - Vertical Venting Configuration Using Two 90° Elbows with Two Horizontal Runs (Vertical Round High Wind Termination Shown)

For more information, visit www.desatech.com

Venting with Two 90° E lbows

Vertical (V1) Horizontal (H)

5' min. 6' max. 6' min. 12' max. 7' min. 18' max. 8' min. 20' max.

Note:

Install restrictor into inner collar of fireplace as shown.

45° Elbow

Note:

Vertical (V1) + Vertical (V2) = 40' max.

Figure 23 - Vertical Venting Configuration Using Two 90° Elbows (Vertical Round High Wind Termination Shown)

108862-01D

VENTING INSTALLATION INSTRUCTIONS

Continued

Vertical V enting

V = 40' max.

VENTING INSTALLATION INSTRUCTIONS

Installation for Vertical Termination (Cont.)

High Altitude Installation

HIGH ALTITUDE INSTALLATION

Your DESA International direct-vent fireplace has been CSA tested and approved for elevations from 0-2000 feet (USA) and elevations from 0-4500 feet (Canada) .

When installing this fireplace at an elevation above 2000 feet (in the USA), you may need to decrease the input rating by changing the existing burner orifice to a smaller size. Reduce input 4% for each 1000 feet above sea level. Check with your local gas company for proper orifice size identification.

When installing this fireplace at an elevation above 4500 feet (in Canada), check with local authorities.

Consult your local gas company to help determine the proper orifice for your location.

For assistance with any high altitude installation contact DESA International’s Customer Service Department at 1-866-672-6040.

Note:

Install restrictor into inner collar of fireplace as shown.

45° Elbow

Figure 24 - Vertical Venting Configuration With No Horizontal Run (Vertical Round High Wind Termination Shown)

108862-01D

For more information, visit www.desatech.com

VENTING INSTALLATION INSTRUCTIONS

Parts Lists for Venting Kits and Components

FIREPLACE INSTALLATION

Check Gas Type Installing Optional Blower Accessory

VENTING INSTALLATION INSTRUCTIONS

Continued

PARTS LISTS FOR VENTING KITS AND COMPONENTS

DESA International (5/8") Pipe & Vent Kits

Number Description

01492 Horizontal Square Termination Kit

Includes: 45° Elbow (Through 5" Wall), Wall Firestop, Horizontal Square Termination

01493 Basic Vertical Termination Kit

Includes: Vertical Termination, Adjustable Flashing, Storm Collar

01491 Horizontal Round Termination Kit

Includes: Round Termination, Wall Firestop, and 45° Elbow (Through 5" Wall)

01497 12" Section Coaxial Pipe - Galvanized (4) 01498 18" Section Coaxial Pipe - Galvanized (4)

01499 24" Section Coaxial Pipe - Galvanized (4) 01500 36" Section Coaxial Pipe - Galvanized (4) 01501 48" Section Coaxial Pipe - Galvanized (4) 01513 6" Section Coaxial Pipe - Galvanized (4)

01606 Adjustable 17"-24" Section Coaxial Pipe -

Galvanized (4) F8030 Adjustable 7"-12" Section Coaxial Pipe - Galvanized (6) D1032 Adjustable 7"-12" Section Coaxial Pipe - Galvanized (1)

DESA International Elbows

Number Description

01502 45° Elbow - Galvanized (4) 01503 90° Elbow - Galvanized (4)

DESA International Terminations

Number Description

01494 Vertical Round Termination - Galvanized (1) 01495 Horizontal Round Termination - Galvanized (1) 01496 Horizontal Square Termination - Galvanized (1) 01798 Vertical Round High Wind Termination (1) 01800 Horizontal Square High Wind Termination (1) 01801 14" Snorkel Termination - Galvanized (1) 01802 36" Snorkel Termination - Galvanized (1)

DESA International Venting Accessories

Number Description

01504 Firestop Plate (4) 01505 Adjustable Roof Flashing 0 to 8/12 - Galvanized (6) 01506 Steep Pitch Flashing 9/12 to 12/12 - Galvanized (6) 01507 Storm Collar - Galvanized (4) 01508 Wall Strap (4) 01514 Combustible Siding Standoff - Galvanized (1) 01607 Wall Firestop - Galvanized (4) VR-58 Vertical Restrictor - Galvanized

FIREPLACE INSTALLATION

CHECK GAS TYPE

Use proper gas type for the fireplace unit you are installing. If you have conflicting gas types, do not install fireplace. See retailer where you purchased the fireplace for proper fireplace according to your gas type.

INSTALLING OPTIONAL BLOWER ACCESSORY

NOTICE: If installing blower in an existing fireplace with gas connections, shut off gas supply and disconnect heater from gas supply. Contact a qualified service person to do this.

WARNING: If there is a duplex electrical outlet installed in the right side of the bottom of the fireplace base area, be sure that the electrical power to the outlet is turned off before proceeding with blower installation. Failure to do this may result in serious injury.

Model BK Installation

Follow all instructions provided in the blower accessory kit.

1. Attach the power cord to the blower motor by firmly pushing the two female terminals at the end of the power cord onto the two spade terminals on the blower motor (see Figure 25, page 17).

2. Attach green ground wire from power cord to blower housing using screw provided (see Figure 25, page 17). Tighten screws securely.

3. Place the blower against the lower rear wall of the firebox outer wrapper with the exhaust port directed upward. The blower will fit inside the back opening and be held in position against the back wall by the magnets (see Figure 25, page 17).

For more information, visit www.desatech.com

108862-01D

FIREPLACE INSTALLATION

Continued

Installing Optional Blower Accessory (Cont.)

FIREPLACE INSTALLATION

4. Be certain that all wire terminals are securely attached to terminals on blower motor and that the screw retaining the green ground wire is tight.

5. Mount speed control box to switch bracket by placing the plastic control shaft forward through the opening in the switch bracket (see Figure 26).

6. While supporting speed control, secure control shaft with lock nut by pushing and turning lock nut with pliers clockwise until it is tight against front panel. Place control knob provided on shaft.

7. Turn on power to duplex outlet if previously turned off per the warning in column 2, page 16.

8. Plug in blower power cord. a. If your firebox is installed as a freestanding unit with an

accessory mantel, determine whether the power cord will exit the left side or the right side of the firebox. Route power cord through exit hole and plug the power cord into a wall receptacle near the firebox.

b.If your firebox installation is recessed and/or pre-wired,

plug the power cord into the duplex outlet provided. Refer to your firebox owner’s manual for instructions on wiring the duplex outlet.

CAUTION: Never touch the blower wheel while in

operation.

9. Check to make sure that the power cord is completely clear of the blower wheel and that there are no other foreign objects in blower wheel. Turn blower on and check for operation. Turn blower off by turning knob fully counterclockwise before continuing.

10. Peel off the backing paper and stick the supplied wiring diagram decal on the firebox bottom approximately 12" in front of the blower (see Figure 27).

Switch Bracket

Speed Control

Blower Plug-In

Control Knob

Locknut

Control Shaft

Duplex Outlet (Located underneath firebox floor against lower right outside wall)

Figure 26 - Attaching Speed Control to Firebox

e l

b c t

i r

Blower

Motor

F n O

k c a l

a l B

k c

A .

Wiring Diagram Decal 12" in Front of Blower

Figure 27 - Location of Wiring Diagram Decal (Model May Vary From Illustration)

Lower Firebox Cavity

Side View

Spade Terminals

Green Ground Wire

Figure 25 - Blower Model BK

For more information, visit www.desatech.com

108862-01D

Blower Location

Magnetic Strips

Exhaust Port

Screw

FIREPLACE INSTALLATION

Installing Optional Blower Accessory (Cont.)

FIREPLACE INSTALLATION

Continued

Model BKT Installation

Note:

When installing the BKT thermostatically-controlled blower, you must first secure the thermal switch bracket to the blower if it has not already been factory installed.

1. Place the green ground wire with ring terminal between the

bottom hole on the thermal switch bracket and the top ear hole on the blower assembly. Insert the phillips screw into all three pieces and tighten securely (see Figure 28, page 18).

2. Connect wire harness and power cord terminals. Connect the

blue jumper wire to the blower motor terminal and the right side terminal of the thermal switch. Connect the black wire to the left side of the thermal switch and the white wire to the other remaining blower motor terminal.

Note:

The power cord outer insulation sleeve may have to be stripped slightly to allow enough wire length to reach and make all connections. DO NOT trim excessive length away. Just enable enough to make all connections securely.

3. Place the blower against the lower rear wall of the firebox outer

wrapper with the exhaust port directed upward and the thermodisc positioned up near the fireplace bottom. The thermodisc must be oriented near the fireplace bottom as shown in Figure 28 in order to sense temperature and properly operate. The blower will be held in position against the back wall by the magnets incorporated onto the blower housing (see Figure 28).

4. Be certain that all wire terminals are securely attached to ter-

minals on blower motor and thermal switch, and that the screw for the thermodisc bracket and green ground wire is tight.

Power Cord

Thermal Switch Bracket

Black Wire

Phillips Screw

Thermal Switch

Route BKT Blower Through This Area

Side View Firebox Bottom

Figure 28 - Blower Model BKT

White Wire

Ring Terminal on Green Wire

Thermodisc

Blue Wire

Air Flow Direction

Magnetic Strips

Magnets

Blower Location

5. Mount the speed control box against the mounting plate provided in the lower fireplace cavity by placing the plastic control shaft forward through the round hole (see Figure 26, page 17).

6. While supporting speed control, secure control shaft with lock nut by pushing and turning lock nut with pliers clockwise until it is tight against mounting plate. Place control knob provided on shaft (see Figure 26, page 17).

7. Check to make sure that the power cord is completely clear of the blower wheel and that there are no other foreign objects in blower wheel. Also double check all wire leads and make sure wire routing is not pinched or in a precarious position. Correct accordingly .

8. Turn on power to duplex outlet if previously turned off per the warning in column 2, page 16.

9. Plug in blower power cord to duplex outlet.

10. The blower will only run when the speed control knob is in the ON position and the thermal switch senses temperature after the fireplace begins to heat up. The blower speed can be adjusted by rotating the control knob. T o turn off, turn knob fully counterclockwise until it clicks off. If the blower is ON and has been running with the fireplace operating, the blower will continue to run for a short time after the fireplace has been turned off. As the thermal switch cools down, the blower shuts down automatically.

11. Peel off the backing paper and stick the supplied wiring diagram decal on the firebox bottom approximately 12" in front of the blower (see Figure 27, page 17).

Blower Wiring Diagram

CAUTION: Label all wires prior to disconnection when servicing controls. Wiring errors can cause improper and dangerous operation. Verify proper operation after servicing.

Variable

Fan Switch

Off

110/115

V.A.C.

Black White

Green

Figure 29 - Blower Wiring Diagram for Thermostat-Controlled Models

Black

Fan Switch

(N.O.)

Blue

Blower

Motor

For more information, visit www.desatech.com

108862-01D

FIREPLACE INSTALLATION

Continued

FIREPLACE INSTALLATION

Installing Gas Piping to Fireplace Location

INSTALLING GAS PIPING TO FIREPLACE LOCATION

WARNING: A qualified service person must con-

nect fireplace to gas supply. Follow all local codes.

CAUTION: For propane/LP units, never connect fireplace directly to the propane/LP supply. This heater requires an external regulator (not supplied). Install the external regulator between the fireplace and propane/LP supply.

Installation Items Needed

Before installing fireplace, make sure you have the items listed below.

• external regulator (supplied by installer)

• piping (check local codes)

• sealant (resistant to propane/LP gas)

• equipment shutoff valve *

• test gauge connection *

• sediment trap

• tee joint

• pipe wrench

• approved flexible gas line with gas connector (if allowed by local codes)

* A CSA design-certified equipment shutoff valve with 1/8" NPT tap is an acceptable alternative to test gauge connection. Purchase the CSA design-certified equipment shutoff valve from your retailer.

For propane/LP connection only, the installer must supply an external regulator. The external regulator will reduce incoming gas pressure. You must reduce incoming gas pressure to between 11 and 14 inches of water. If you do not reduce incoming gas pressure, fireplace regulator damage could occur. Install external regulator with the vent pointing down as shown in Figure 31. Pointing the vent down protects it from freezing rain or sleet.

External Regulator

Propane/LP Supply Tank

CAUTION: Use only new, black iron or steel pipe. Internally-tinned copper tubing may be used in certain areas. Check your local codes. Use pipe of 1/2" diameter or greater to allow proper gas volume to fireplace. If pipe is too small, undue loss of volume will occur.

Installation must include an equipment shutoff valve, union, and plugged 1/8" NPT tap. Locate NPT tap within reach for test gauge hook up. NPT tap must be upstream from fireplace (see Figure 31).

IMPORTANT:

Install main gas valve (equipment shutoff valve) in an accessible location. The main gas valve is for turning on or shutting off the gas to the appliance.

Check your building codes for any special requirements for locating equipment shutoff valve to fireplaces.

Apply pipe joint sealant lightly to male NPT threads. This will prevent excess sealant from going into pipe. Excess sealant in pipe could result in clogged fireplace valves.

WARNING: Use pipe joint sealant that is resistant

to liquid petroleum (LP) gas.

We recommend that you install a sediment trap/drip leg in supply line as shown in Figure 31. Locate sediment trap/drip leg where it is within reach for cleaning. Install in piping system between fuel supply and fireplace. Locate sediment trap/drip leg where trapped matter is not likely to freeze. A sediment trap traps moisture and contaminants. This keeps them from going into fireplace gas controls. If sediment trap/drip leg is not installed or is installed wrong, fireplace may not run properly.

CSA Design-Certified Equipment Shutoff Valve with 1/8" NPT Tap*

Natural - From Gas Meter (5.5"

W.C. to 10.5" Approved Flexible Gas Line

3" Minimum

W.C. Pressure)

Propane/LP

From External

Regulator (11"

W.C. to 14"

W.C. Pressure)

Vent Pointing Down

Figure 30 - External Regulator with Vent Pointing Down (Propane/LP Only)

For more information, visit www.desatech.com

108862-01D

Cap Pipe Nipple Tee Joint

Figure 31 - Gas Connection

Sediment Trap/Drip Leg

* The CSA design-certified equipment shutoff valve may be supplied with the appliance or you can purchase it from your retailer.

FIREPLACE INSTALLATION

Connecting Fireplace To Gas Supply Checking Gas Connections

FIREPLACE INSTALLATION

Continued

CONNECTING FIREPLACE TO GAS SUPPLY

Installation Items Needed

• 5/16" hex socket wrench or nut-driver

• sealant (resistant to propane/LP gas, not provided)

1. Open lower louver door panel by gently pulling forward.

2. Route flexible gas line (provided by installer) from equipment shutoff valve to fireplace. Route flexible gas supply line through one of the access holes on side of fireplace.

3. Attach flexible gas line from gas supply to control valve (see Figure 32).

4. Check all gas connections for leaks. See Checking Gas Connections.

Red Surface Indicates

Equipment Shutoff Valve

Flexible Gas Line Do NOT Kink

For Propane/LP Use Only

4. Check all joints of gas supply piping system. Apply noncorrosive leak detection fluid to all joints. Bubbles forming show a leak. Correct all leaks at once.

5. Reconnect fireplace and equipment shutoff valve to gas supply. Check reconnected fittings for leaks.

Test Pressures Equal To or Less Than 1/2 PSIG (3.5 kPa)

1. Close equipment shutoff valve (see Figure 33).

2. Pressurize supply piping system by either opening propane/LP supply tank valve for propane/LP gas fireplace or opening main gas valve located on or near gas meter for natural gas fireplace, or using compressed air.

3. Check all joints from propane/LP supply tank or gas meter to equipment shutoff valve (see Figure 34 for propane/LP or Figure 35 for natural gas). Apply noncorrosive leak detection fluid to all joints. Bubbles forming show a leak. Correct all leaks at once.

Equipment Shutoff Valve

Open

1/2" NPT Incoming Gas Line

Note:

Wire Connections Not Shown for Clarity

Figure 32 - Connecting Flexible Gas Line to Electronic Valve

Inlet Pressure Tap

Outlet Pressure Tap

CHECKING GAS CONNECTIONS

WARNING: Test all gas piping and connections for leaks after installing or servicing. Correct all leaks at once.

WARNING: Never use an open flame to check for a leak. Apply noncorrosive leak detection fluid to all joints. Bubbles forming show a leak. Correct all leaks at once.

Pressure Testing Gas Supply Piping System

Test Pressures In Excess Of 1/2 PSIG (3.5 kPa)

1. Disconnect fireplace and its individual equipment shutoff valve from gas supply piping system. Pressures in excess of 1/2 psig (3.5 kPa) will damage fireplace gas regulator.

2. Cap off open end of gas pipe where equipment shutoff valve was connected.

3. Pressurize supply piping system by either opening propane/LP supply tank valve for propane/LP gas fireplace or opening main gas valve located on or near gas meter for natural gas fireplace, or using compressed air.

Closed

Figure 33 - Equipment Shutoff Valve

Equipment

Propane/LP Supply Tank

Figure 34 - Checking Gas Joints for Propane/LP Gas Fireplace

Gas Meter

Figure 35 - Checking Gas Joints for Natural Gas Fireplace

Shutoff Valve

Gas Valve

Equipment Shutoff Valve

Gas Valve

For more information, visit www.desatech.com

108862-01D

FIREPLACE INSTALLATION

Continued

FIREPLACE INSTALLATION

Checking Gas Connections (Cont.)

Removing/Replacing Glass Door

Pressure Testing Fireplace Gas Connections

1. Open equipment shutoff valve (see Figure 33, page 20).

2. Open propane/LP supply tank valve for propane/LP fireplace or main gas valve located on or near gas meter for natural gas fireplace.

3. Make sure control knob of fireplace is in the OFF position.

4. Check all joints from equipment shutoff valve to gas valve (see Figure 34 for propane/LP or Figure 35 for natural gas, page 20). Apply noncorrosive leak detection fluid to all joints. Bubbles forming show a leak. Correct all leaks at once.

5. Light fireplace (see Operating Fireplace, pages 25 and 26). Check all other internal joints for leaks.

6. Turn off fireplace (see To Turn Off Gas to Appliance, page 25).

REMOVING/REPLACING GLASS DOOR

CAUTION: Do not operate this fireplace with a broken glass door panel or without the glass door panel securely in place. For replacement part information see

CAUTION: Wear gloves and safety glasses while handling or removing broken glass. Do not remove if glass is hot. Keep children and pets away from glass.

Replacement Parts

, page 30.

Removing Glass Door

If replacement of glass is necessary, the entire assembly, glass and frame, must be replaced. If glass is broken, wear gloves and tape the remaining fragments onto the frame.

1. Remove screen assembly by pushing the rod either left or right and then down and forward to remove screen/rod assembly from the firebox. Set assembly aside.

2. Lift up on latches to unlock. There are two on top of firebox and two below firebox that hold glass door in place (see Figure 37).

3. While holding glass door to prevent it from falling and causing injury, remove the five screws from the hinge located on the left side of door frame assembly (see Figure 37).

4. Remount the new frame at the hinge with five new screws before closing door. This will ensure seating of the gasket.

5. Close glass door frame. Lock latches by placing the bar under the tab on door and pushing down and back on latch (see Figure 37).

6. Replace screen/rod assembly by reversing step 1.

7. Replace louvers by reversing procedure under Removing Lou- ver Panels.

Latch

Unlock

Lock

WARNING: If fireplace has been running, turn off and unplug fireplace. Let cool before removing glass door or louvers.

Removing Louver Panels

Remove the top and bottom louver panels by simultaneously pulling both top end spring latches towards the center of the appliance until they are disengaged from the locating holes (see Figure 36). Repeat for bottom spring latches and pull the louvers outward. To install or replace items removed, simply reverse the procedures above.

Spring Latch

Louver Panel

Figure 36 - Removing Louver Panel

Hinge

Screw

Glass Frame Assembly

Figure 37 - Removing/Replacing Glass Door

Cleaning Glass Door

See Cleaning and Maintenance on page 27.

108862-01D

For more information, visit www.desatech.com

FIREPLACE INSTALLATION

Installing Optional Brick Liner Models BL36D(S), BL36DH(S), BL42D(S), BL42DH(S)

FIREPLACE INSTALLATION

Continued

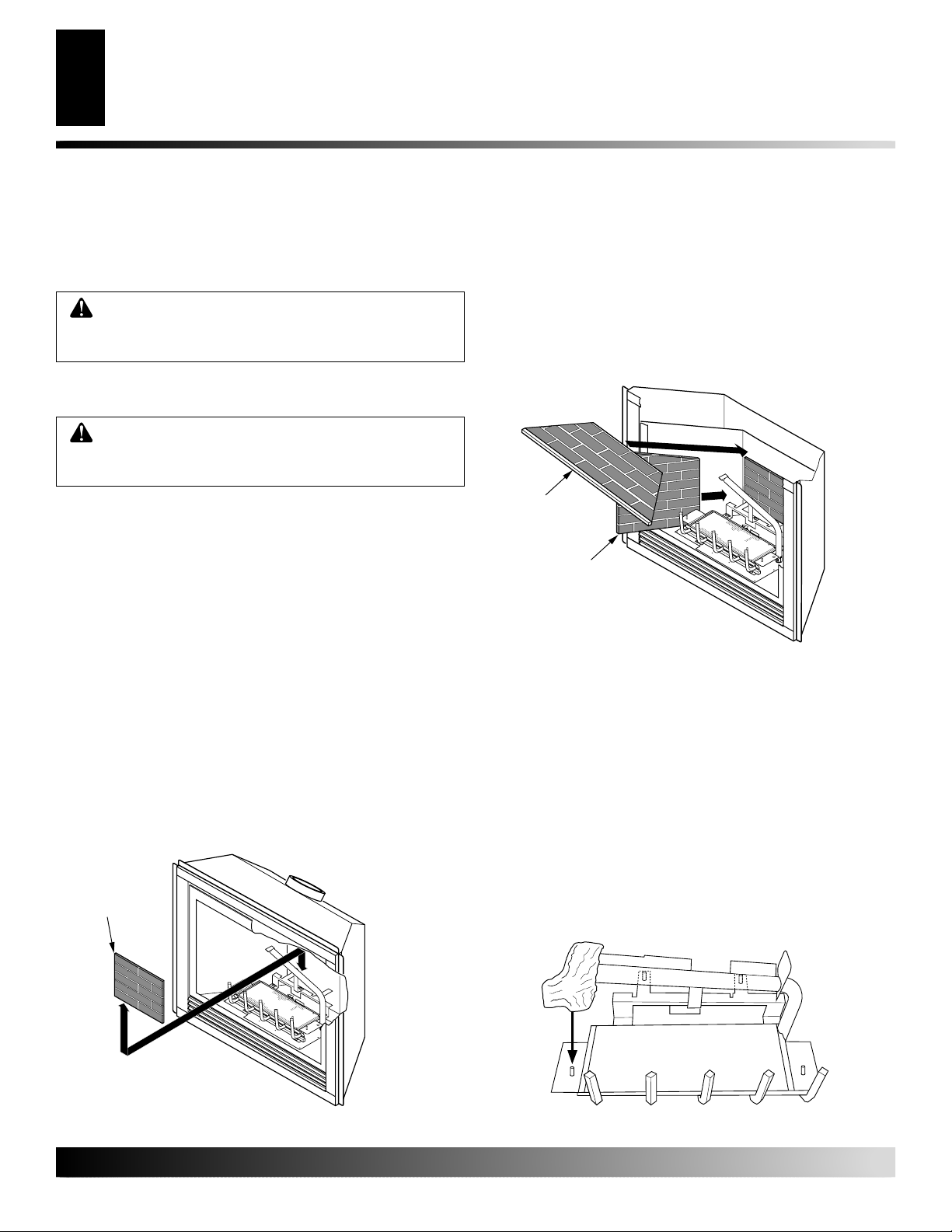

INSTALLING OPTIONAL BRICK LINER MODELS BL36D(S), BL36DH(S), BL42D(S), BL42DH(S)

WARNING: If fireplace has been running, turn off and unplug fireplace. Let cool before installing brick liner.

This brick liner kit is optional. You may purchase brick liner from your local retailer or see Accessories, page 31.

CAUTION: Always handle brick panels with two hands. Do not force brick panels into place. Excessive force will break brick panels.

9. Install logs, lava rock and glowing embers. See Installing Logs, Lava Rock and Glowing Embers, pages 22 and 23.

10. Close glass door and lock latches on top and bottom of door and replace screen. See Removing/Replacing Glass Door, steps 5 and 6, page 21.

11. Close top and bottom louvers.

1. Remove top and bottom louvers to allow access to door latches.

2. Remove screen, unlock door latches and open glass door. See Removing/Replacing Glass Door, steps 1 and 2, page 21.

3. If installing brick liner in new fireplace, go to step 4. If installing brick liner in an existing fireplace, carefully remove logs, lava rock, and ember material.

4. Remove three screws from deflector shield on the inside top of firebox. Set shield and screws aside.

5. Install rear brick panel first. Rest bottom edge of panel on back edge of grate (see Figure 38).

6. Install top brick panel by resting on the top of the rear panel. Hold the top brick panel in place and install left side brick panel by sliding it between the grate and the side of the firebox, securing top panel (see Figure 39).

7. Install the right brick panel using the same method described in step 6 for left brick panel.

8. Replace deflector shield using screws removed in step 4.

Rear Brick Panel

Top Brick Panel

Left Side Brick Panel

Figure 39 - Installing Left Side and Top Brick Panels

INSTALLING LOGS, LAVA ROCK AND GLOWING EMBERS

Each log is marked with a number. These numbers will help you identify the log when installing. It is very important to install these logs exactly as instructed. Do not modify logs. Only use logs supplied with fireplace.

Open louvers, remove screen, unlock door latches, and open glass door. See Removing/Replacing Glass Door, steps 1 and 2, page 21. Install logs according to instructions for fireplace model numbers.

1. Place log #1 (base log) onto pin on left front side of grate as shown in Figure 40.

Figure 38 - Installing Rear Brick Panel

For more information, visit www.desatech.com

Figure 40 - Installing Log No. 1

108862-01D

FIREPLACE INSTALLATION

Continued

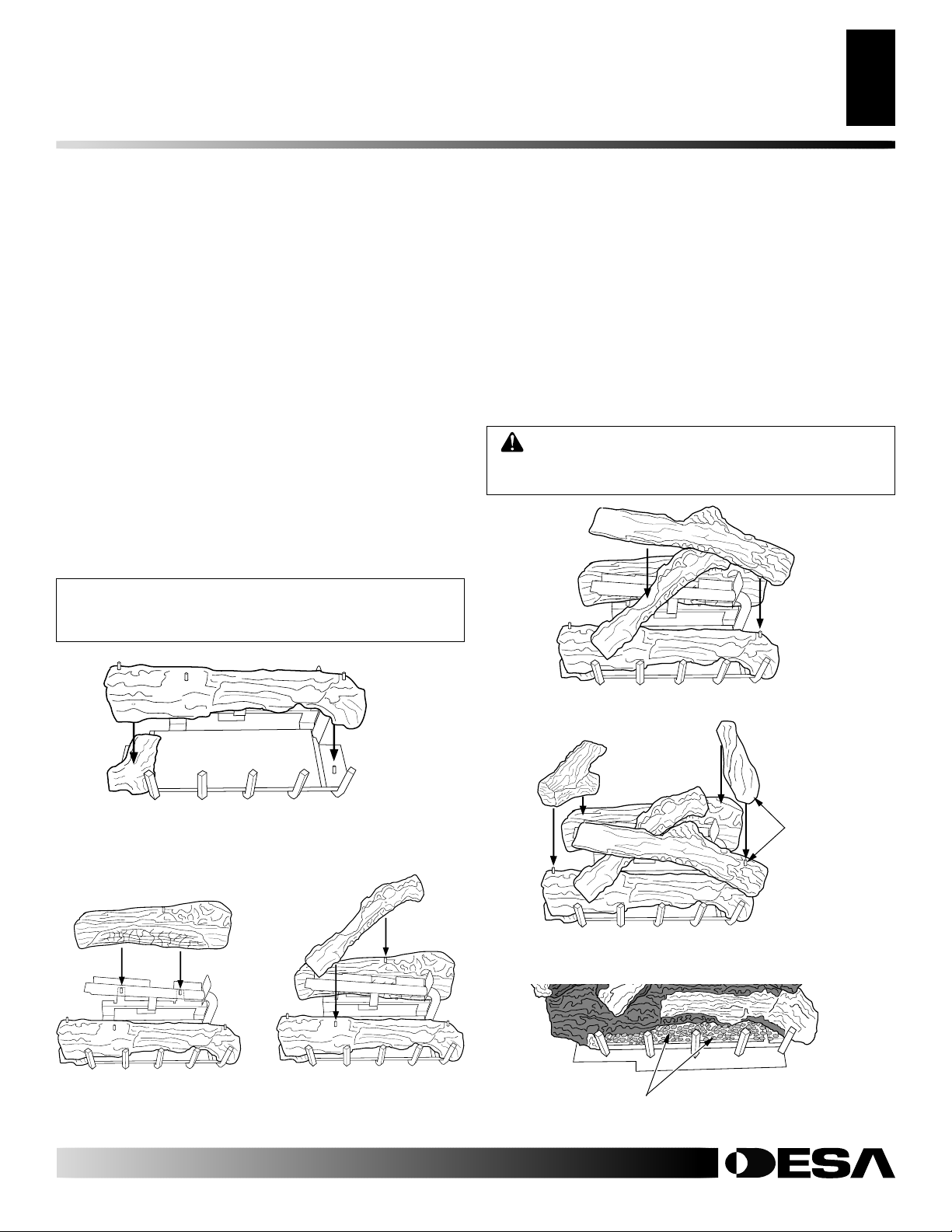

Installing Logs, Lava Rock, and Glowing Embers

FIREPLACE INSTALLATION

2. Rest left side of log #2 (front log) onto top of log #1. Place right side of log onto second pin located on right side of grate (see Figure 41).

3. Place log #3 (rear log) onto pins on rear of grate as shown in Figure 42.

4. Place log #4 (crossover log) onto pins from both logs #2 and #3 as shown in Figure 43.

5. Place log #5 (t op log) onto right pin of front log (#2) and the smooth surface of crossover log (#4) as shown in Figure 44. Make sure it is seated properly.

6. Place log #6 (left log) onto left pin of front log (#2) and the smooth surface of rear log (#3) as shown in Figure 45. Make sure it is seated properly.

7. For (V)V42 series only, place log #7 onto right pin of top log (#5) as shown in Figure 45. Make sure it is seated properly

8. Place lava rock along sides and front of firebox bottom in areas that are visible only. It is not necessary to use all of the lava rock provided.

NOTICE: Do not put lava rock on burner or under burner. Placing lava rock on burner will cause performance problems.

9. Pull ember material apart into pieces no larger than a dime. Place these pieces loosely and sparingly directly onto the exposed section of the front burner and along the space between the burner and grate prongs (see Figure 46). This will create the glowing ember appearance as the flame touches the ember material. Do not block air slots by using too much ember material in one area. It is not necessary to use all of the ember material provided.

10. Close glass door, lock door latches, replace screen, and close louvers (see Removing/Replacing Glass Door, steps 5 through 7, page 21).

WARNING: The glass door must be securely in place before running this fireplace. Do not run this fireplace if glass is missing or broken.

Figure 41- Installing Log No. 2

Figure 42 - Installing Log No. 3

Figure 43 - Installing Log No. 4

Figure 44 - Installing Log No. 5

Figure 45 - Installing Log No. 6 (36" and 42" Series) and Log No. 7 (42" Series Only)

Ember Material

Figure 46 - Placing Ember Material on Burner

42" Series Only

108862-01D

For more information, visit www.desatech.com

FIREPLACE INSTALLATION

Wall Switch Installation Optional Remote Control Installation

WIRING DIAGRAM

FIREPLACE INSTALLATION

Continued

WALL SWITCH INSTALLATION

The installation of a wall switch allows you to activate the gas control valve and turn the fireplace on and off. The wall switch is to be connected to the incoming 120 volt regular household wiring that supplies the electricity to the fireplace. Refer to wiring diagram below.

OPTIONAL REMOTE CONTROL INSTALLATION (Model WRC)

Note:

If using optional wireless hand-held remote control, the wall switch must be in the ON position to be operational. The remote control then becomes the switching mechanism for fireplace operation.

1. Open lower louver panel.

2. The WRC model receiver does not require a battery. The re-

ceiver can be installed by first plugging the short extension cord into the fireplace receptacle. Then plug the receiver unit into the extension cord. Finally plug the ignition module plug into the receiver unit (see Figure 47).

3. Activate the remote handset battery by removing the insulat-

ing tab on the back of the handset (see Figure 48). The battery is included pre-installed.

4. Once the battery is activated the unit is ready to use.

5. Close lower louver panel.

Fireplace Receptacle

Remote Control Receiver

Ignition

Extension Cord

Module Plug

Figure 47 - Installing the WRC Remote Receiver

Battery Cover

12 Volt Battery

Back of Handset

Pull to Remove Insulation Tab

Figure 48 - Installing Battery into Back of Handset

WIRING DIAGRAM

Pilot Burner

INCOMING MAIN

GAS SUPPLY

EV1

EV2

GAS LINE TO

BURNER

Pilot Gas Line

PV/MV

TR GND

IGN

24V AC

120V AC

MODEL SP745 IGNITION CONTROL

Robertshaw

STEP DOWN

TRANSFORMER

WALL SWITCH

(SUPPLIED)

WHITE

GREEN

BLACK

OPTIONAL REMOTE

CONTROL

OFF

BLACK WHITE GREEN

ELECTRICAL RATING: 120v, 60Hz, 0.7A

INCOMING

120V AC

(FUSE BOX

OR BREAKER)

For more information, visit www.desatech.com

108862-01D

OPERATING FIREPLACE

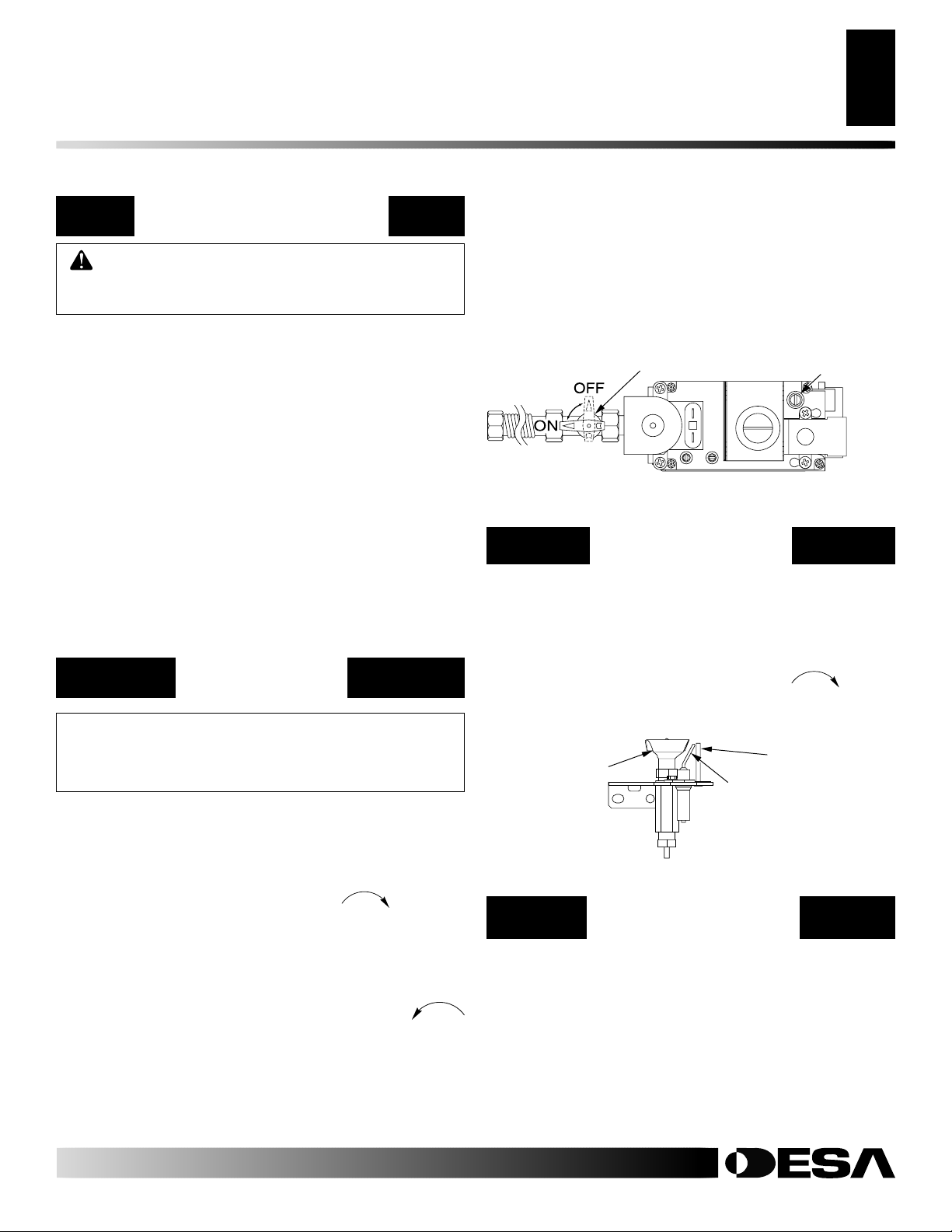

For Your Safety Read Before Lighting

OPERATING FIREPLACE

Lighting Instructions

To Turn Off Gas To Appliance

Optional Remote Operation

FOR YOUR SAFETY

READ BEFORE LIGHTING

WARNING: If you do not follow these instructions exactly, a fire or explosion may result causing property damage, personal injury or loss of life.

A. This appliance is equipped with an ignition device which

automatically lights the pilot. Do not try to light the pilot by hand.

B. BEFORE LIGHTING smell all around the appliance area

for gas. Be sure to smell next to the floor because some gas is heavier than air and will settle on the floor.

WHAT TO DO IF YOU SMELL GAS

• Do not try to light any appliance.

• Do not touch any electric switch.

• Do not use any phone in your building.

• Immediately call your gas supplier from a neighbor’s phone. Follow the gas supplier’s instructions.

• If you cannot reach your gas supplier, call the fire department.

C. Do not use this appliance if any part has been under water.

Immediately call a qualified service technician to inspect the appliance and to replace any part of the control system and any gas control which has been under water.

LIGHTING

INSTRUCTIONS

NOTICE: During initial operation of new heater, burning logs will give off a paper-burning smell. Orange flame will also be present. Open damper or window to vent smell. This will only last a few hours.

11. Visually locate the pilot. The ignitor should begin to spark and the main burner should ignite once flame appears at pilot.

• If lighting the appliance f or the first time each season, it

may take several attempts bef ore the supply gas can reach the pilot and main burners.

• If the appliance will not stay lit after several attempts,

follow the instructions To Turn Off Gas To Appliance, below, and call your service technician or gas supplier.

Equipment Shutoff Valve

Figure 49 - Turning Equipment Shutoff Valve to the OFF Position

Adjustment Screw

TO TURN OFF GAS

TO APPLIANCE

1. Turn off the wall switch.

2. Turn off all electric power to the appliance if service is to be performed.

3. Open lower louver panel.

4. Remove front hearth brick and control access panel.

5. Turn equipment shutoff valve clockwise Do not force.

6. Close lower louver panel.

Pilot Burner

Sensing Rod

Ignitor

Clockwise

to OFF.

1. STOP! Read the safety information, above.

2. Turn off all electric power to the appliance.

3. Turn wall switch to the OFF position.

4. Open lower louver panel.

5. T urn equipment shutoff valve clockwise

Clockwise

to the OFF

position (see Figure 49). Do not force.

6. Wait five (5) minutes to clear out any gas. Then smell for gas, including near the floor. If you smell gas, STOP! Follow “B” in the safety information above. If y ou don’t smell gas, go to the next step.

7. Turn equipment shutoff valve counterclockwise

C-clockwise

to the ON position. Do not force.

8. Close lower louver panel.

9. Turn on all electric power to the appliance.

10. Turn the wall switch to the ON position.

For more information, visit www.desatech.com

108862-01D

Figure 50 - Pilot

OPTIONAL REMOTE

OPERATION

Note:

The WRC receiver and hand-held remote control kit must be purchased separately (see Accessories, page 31). Follow installation instructions on page 24.

1. Turn equipment shutoff valv e to ON position. Y ou can now turn

the burner on and off with the hand-held remote contr ol unit.

IMPORTANT:

hand-held remote control unit for up to 3 seconds to assur e proper operation.

2. Press the ON/OFF button to turn the burner on and off.

Be sure to press the ON/OFF buttons on the

OPERATING FIREPLACE

Operating Optional Blower Accessory

INSPECTING BURNERS

Pilot Assembly Burner Flame Pattern

OPERATING FIREPLACE

Continued

OPERATING OPTIONAL

BLOWER ACCESSORY

Locate the blower controls by opening the lower louver panel on the fireplace. Blower controls are located on the left side of the switch bracket to the left just inside the louver panel.

The BK manual blower and the BKT thermostatically-controlled blower have an ON setting and an OFF setting. The blower will only run when the switch is in the ON position. In the OFF position, the blower will not operate.

Note for BKT Only:

thermostat (wall mounted or remote control) for the fireplace, your fireplace and blower will not turn on and off at the same time. The fireplace may run for several minutes before the blower turns on. After the heater modulates to the pilot position, the blower will continue to run. The blower will shut off after the firebox temperature decreases.

The blower helps distribute heated air from the fireplace. Periodically check the louvers of the firebox and remove any dust, dirt, or other obstructions that will hinder the flow of air.

If you are using BKT blower with optional

INSPECTING BURNERS

Check pilot flame pattern and burner flame patterns often.

PILOT ASSEMBLY

The pilot assembly is factory preset for the proper flame. Alterations may have occurred during shipping and handling. The pilot is located on the back right hand side of the burner.

The flame must envelope 1/4" of top of the ignitor/sensor and grounding stem.

If your pilot assembly does not meet these requirements:

• Turn the adjustment screw marked PILOT clockwise to decrease

or counterclockwise to increase the flame to proper size (see Figure 49, page 25). Do not remove the adjustment screw.

• see Troubleshooting, pages 28 and 29

Pilot Burner

Sensing Rod

Ignitor/Sensor

Figure 51 - Correct Pilot Flame Pattern

BURNER FLAME PATTERN

Burner flames will be steady; not lifting or floating. Flame patterns will be different from unit to unit and will vary depending on installation type and weather conditions.

If the vent configuration is installed incorrectly, the flames will lift or "ghost". This can be dangerous. Inspect the flames after installation to ensure proper installation and performance.

Figure 52 shows a typical flame pattern for (V)V36E and (V)V42E series models.

If burner flame pattern differs from that described:

• turn fireplace off (see To Turn Off Gas to Appliance, page 25)

• see Troubleshooting, pages 28 and 29

Figure 52 - Typical Flame Pattern for (V)V36E and (V)V42E Series Models

For more information, visit www.desatech.com

108862-01D

CLEANING AND MAINTENANCE

Glass Door

Pilot and Burners

Logs

Venting System

WARNING: Turn off fireplace and let cool before

cleaning.

CAUTION: You must keep control areas, burners, and circulating air passageways of fireplace clean. Inspect these areas of fireplace before each use. Have fireplace inspected yearly by a qualified service person. Fireplace may need more frequent cleaning due to excessive lint from carpeting, bedding material, pet hair, etc.

GLASS DOOR

WARNING: Handle glass door panel with care. Do not strike, slam, or otherwise abuse glass. Do not operate fireplace with the glass door removed, cracked, or broken.

WARNING: Do not use abrasive cleaners as this may damage glass. Use a nonabrasive household glass cleaner to clean glass. Do not clean glass when hot.

Glass must be cleaned periodically. During start-up it is normal for condensation to form on the inside of the glass causing lint, dust, and other airborne particles to cling to the glass surface. During initial start-up a slight film may form on the glass due to paint curing. The glass should be cleaned several times with a non-ammonia, nonabrasive household cleaner and warm water after the first two weeks of operation. Thereafter, clean the glass two or three times during each heating season, depending on the usage and circumstances present. Refer to Removing/Replacing Glass Door on page 21 of this manual when removing glass door for cleaning.

WARNING: Only parts supplied by the manufacturer should be used when replacing broken or damaged glass door panel (see

30). This glass door panel is a complete unit. No substitute materials may be used.

CAUTION: Wear gloves and safety glasses while handling or removing broken glass. Do not remove if glass is hot. Keep children and pets away from glass.

If glass has been broken, carefully remove glass door (see Removing/Replacing Glass Door, page 21). Vacuum all glass pieces with

a shop vac.

Replacement Parts

, page

CAUTION: Do not vacuum if pieces are hot.

Use only the tempered glass door replacement intended for this fireplace (see Replacement Parts, page 30 for detail on ordering). No substitutions may be made. See Removing/Replacing Glass Door, page 21 for instructions for replacing glass door.

WARNING: Do not operate fireplace with the glass

door removed, cracked, or broken.

PILOT AND BURNERS

• Remove ember material before cleaning burners and replace when cleaning is complete.

• Burner and controls should be cleaned with compressed air to remove dust, dirt, or lint.

• Use a vacuum cleaner or small, soft bristled brush to remove excess dust, dirt, or lint.

LOGS

• If you remove logs for cleaning, refer to Installing Logs, Lava Rock, and Glowing Embers, pages 22 and 23, to properly re-

place logs.

• Use a vacuum cleaner to remove any carbon buildup on logs.

• Replace log(s) if broken. See Replacement Parts on page 30.

• Replace ember material periodically as needed. See Replace- ment Parts on page 30.

VENTING SYSTEM

Conduct annual inspection of the venting system following these guidelines:

1. Check areas of venting system that are exposed to the weather

for corrosion (rust spots or streaks and, in extreme cases, holes). Have these items replaced immediately by a qualified service person.

2. Remove the vent cap and shine a flashlight into the vent. Re-

move any foreign material.

3. Check for evidence of excessive condensation. Continuous

condensation can cause corrosion of caps, pipes, and fittings and can be caused by having excessive lateral runs, too many elbows, or exterior portions of the system being exposed to cold weather.

4. Inspect joints to verify that no pipe section or fitting has been

disturbed and loosened. Check mechanical supports such as wall straps for rigidity.

108862-01D

For more information, visit www.desatech.com

TROUBLESHOOTING

Note:

For additional help, visit DESA

International’s technical service web site at www.desatech.com.

Note:

Before troubleshooting the system,

make sure the gas shutoff valve is ON.

OBSERVED PROBLEM

Ignitor will not spark or pilot will not light

WARNING: Turn off heater and let cool before servicing. Only a qualified service person should service and repair heater.

The two most common causes of a malfunctioning gas appliance are:

1. Loose wiring connections

2. Construction debris clogging the pilot and/or gas control valve filter

POSSIBLE CAUSE

1. No gas supply, or shutoff valve is OFF

2. Air in gas line

3. Construction debris clogging pilot orifice

4. Low gas pressure

5. Kinked pilot line

6. Control valve knob is not opening

7. No power to unit or the ignition module or power transformer is bad

8. Vent damper not fully open

REMEDY

1. Check to see if you have gas supply and

2. Repeat lighting procedure several times

3. Remove debris and dirt, inspect and

4. Contact your gas supplier to check

5. Have a qualified technician replace pi-

6. Replace control valve (Refer to Replace-

7. Check that main power is on and that all

8. Open vent damper until fully locked in

CAUTION: Never use a wire, needle, or similar object to clean pilot. This can damage pilot unit.

that equipment shutoff valve is opened

to purge all air out of lines. If after repeated attempts appliance does not light, call for qualified service and repair.

clean any other possible obstructions

pressure

lot line

ment Parts, page 30)

wire connections are made correctly to the ignition model (see Wiring Diagram, page 24). Check for 24 VAC at the secondary side of the transformer. If 24 V AC is present, and the module does not oporate, have the module replaced otherwise have the transformer replaced.

OPEN position

Pilot will not stay lit

No gas to burner, although wall switch and valve are set to the ON position

Frequent pilot outage

For more information, visit www.desatech.com

1. Loose wiring on ignitor wire to ignition module and/or poor ground to ignition module

2. Pilot flame too low to sense

1. Wall switch wires defective or too long

1. Pilot flame may be too low, causing safety pilot to “drop out”

2. Improper venting or excessive blockage

1. Check wiring connection. Refer to wiring diagram (see Wiring Diagram, page

24) and/or check ground wire to ignition module

2. Clean and adjust pilot burner and check gas supply and inlet pressure to unit

Note:

Have a qualified technician replace

pilot assembly if broken or corroded

1. Check electrical connections

1. Clean and adjust pilot flame for maximum flame impingement on thermopile

2. Have the vent system inspected, including the termination cap. Remove any restriction or obstruction

108862-01D

TROUBLESHOOTING

Continued

WARNING: If you smell gas

• Shut off gas supply.

• Do not try to light any appliance.

• Do not touch any electrical switch; do not use any phone in your

building.

• Immediately call your gas supplier from a neighbor’s phone. Follow the gas supplier’s instructions.

• If you cannot reach your gas supplier, call the fire department.

TROUBLESHOOTING

OBSERVED PROBLEM

Fireplace produces a clicking/ticking noise just after burner is lit or shut off

Slight smoke or odor during initial operation

Gas odor even when control knob is in OFF position

Gas odor during combustion

Glass soots

Dark residue on logs or inside of fireplace

POSSIBLE CAUSE

1. Metal expanding while heating or contracting while cooling

1. Residues from manufacturing processes and logs curing

1. Gas leak. See Warning statement at

top of page

2. Control valve defective

1. Foreign matter between control valve and burner

2. Gas leak. See Warning statement at

top of page

1. Flame impingement on logs

2. Debris around burner air mixer

1. Improper log placement

2. Air holes at burner inlet blocked

3. Burner flame holes blocked

4. Improper venting or excessive blockage

5. Excessive amounts of embers and pan material

REMEDY

1. This is common with most fireplaces. If noise is excessive, contact qualified service person

1. Problem will stop after a few hours of operation

1. Locate and correct all leaks (see Check- ing Gas Connections, pages 20 and 21)

2. Replace control valve

1. Take apart gas tubing and remove foreign matter

2. Locate and correct all leaks (see Check- ing Gas Connections, pages 20 and 21)

1. Adjust the log set so that the flame does not excessively impinge on it

2. Inspect the opening at the base of the burner to see that it is NOT packed with any type of material

1. Properly locate logs (see log placement sections on pages 22 and 23)

2. Clean out air holes at burner inlets. Periodically repeat as needed

3. Remove blockage

4. Have the vent system inspected, including the termination cap. Remove any restrictions or obstruction

5. Clear excess embers until a minimum gap of 1/2" remains under the grate

108862-01D

For more information, visit www.desatech.com

REPLACEMENT PARTS SPECIFICATIONS SERVICE HINTS TECHNICAL SERVICE

REPLACEMENT PARTS

Note:

Use only original replacement parts. This will protect your

warranty coverage for parts replaced under warranty.

PARTS UNDER WARRANTY

Contact authorized retailers of this product. If they can not supply original replacement part(s), call DESA International’s Customer Service Department at 1-866-672-6040.

When calling DESA International, have ready

• your name

• your address

• model and serial numbers of your fireplace

• how fireplace was malfunctioning

• type of gas used (propane/LP or natural gas)

• purchase date Usually, we will ask you to return the part to the factory.

PARTS NOT UNDER WARRANTY

Contact authorized retailers of this product. If they can not supply original replacement part(s), call DESA International at 1-866-672-6040 for referral information.

When calling DESA International, have ready

• model number of your fireplace

• the replacement part number

SERVICE HINTS

When Gas Pressure Is Too Low

• pilot will not stay lit

• burners will have delayed ignition

• fireplace will not produce specified heat

• propane/LP gas supply might be low (propane/LP units only) You may feel your gas pressure is too low. If so, contact your local

gas supplier.

TECHNICAL SERVICE

You may have further questions about installation, operation, or troubleshooting. If so, contact DESA International’s Customer Service Department at 1-866-672-6040. When calling, please have your model and serial numbers of your heater ready.

You can also visit DESA International’s technical service web site at www.desatech.com.

SPECIFICATIONS

(V)V36EN Series (V)V42EN Series (V)V36EP Series (V)V42EP Series

Btu 22,000/31,000 Btu/hr 25,000/35,000 Btu/hr 21,000/30,000 Btu/hr 23,000/33,000 Btu/hr Gas Type Natural Natural Propane/LP Propane/LP Ignition Electronic Electronic Electronic Electronic Manifold Pressure 3.5" w.c. 3.5" w.c. 10.0" w.c. 10.0" w.c. Minimum Inlet Supply Pressure 5.5" w.c. 5.5" w.c. 11.0" w.c. 11.0" w.c. Dimension, Inches/mm (HxWxD)

Fireplace (Actual size of firebox. Measurements do not 36" x 41" x 21 1/8" 40" x 48" x 23 1/2" 36" x 41" x 21 1/8" 40" x 48" x 23 1/2" include nailing flanges or 914 x 1041 x 537 mm 1016 x 1219 x 599 mm 914 x 1041 x 537 mm 1016 x 1219 x 599 mm standoffs).

Carton 38" x 44" x 22" 41" x 51" x 24" 38" x 44" x 22" 41" x 51" x 24"

965 x 1118 x 559 mm 1041 x 1295 x 610 mm 965 x 1118 x 559 mm 1041 x 1295 x 610 mm

Weight, lbs/kg*

Fireplace 120 lbs/55 kg 145 lbs/55 kg 120 lbs/55 kg 145 lbs/55 kg Shipping 123 lbs/56 kg 148 lbs/56 kg 123 lbs/56 kg 148 lbs/56 kg

*For refractory lined models add 60 pounds for 36" models and 70 pounds for 42" models.

For more information, visit www.desatech.com

108862-01D

ACCESSORIES

Notice:

fireplace models.

Purchase these fireplace accessories from your local retailer. If they can not supply these accessories, call DESA International’s Sales Department at 1-866-672-6040. for information. You can also write to the address listed on the back page of this manual.

All accessories may not be available for all

BRICK LINER

(Not Shown)

BL36D - 36" Textured Refractory Brick Liner Kit BL36DS - 36" Standard Refractory Brick Liner Kit BL36DH - 36" Textured Refractory Herringbone Brick Liner Kit BL36DHS - 36" Standard Refractory Herringbone Brick Liner Kit BL42D - 42" Textured Refractory Brick Liner Kit BL42DS - 42" Standard Refractory Brick Liner Kit BL42DH - 42" Textured Refractory Herringbone Brick Liner Kit BL42DHS - 42" Standard Refractory Herringbone Brick Liner Kit

This brick liner adds a touch of style to your direct-vent fireplace. Complete installation and operation instructions included in this manual.

FLEXIBLE GAS LINE CONNECTOR - GA5081

(Not Shown)

For all models.

PROPANE/NATURAL GAS CONVERSION KIT

(Not Shown)

PCDE-36V - Propane/LP Gas Conversion Kit for 36" Victorian

Direct-Vent Electronic Fireplace PCDE-42V - Propane/LP Gas Conversion Kit for 42" Victorian Direct-Vent Electronic Fireplace NCDE-36V - Natural Gas Conversion Kit for 36" Victorian DirectVent Electronic Fireplace NCDE-42V - Natural Gas Conversion Kit for 42" Victorian DirectVent Electronic Fireplace

FACE/LOUVER PANEL KIT

(Not Shown)

RLD36 - 36" Rolled Louver Panels - Black FPD36 - 36" Filligree Panel Kit - Black FPD36B - 36" Filligree Panel Kit - Brushed Brass FPD36P - 36" Filligree Panel Kit - Platinum FPD36PB - 36" Filligree Panel Kit - Polished Brass RLD42 - 42" Rolled Louver Panels - Black FPD42 - 42" Filligree Panel Kit - Black FPD42B - 42" Filligree Panel Kit - Brushed Brass FPD42P - 42" Filligree Panel Kit - Platinum FPD42PB - 42" Filligree Panel Kit - Polished Brass

LOUVER TRIM KIT (Rolled Louvers Only) (Not Shown)

LT36B - 36" Rolled Louver Trim Kit - Brushed Brass LT36P - 36" Rolled Louver Trim Kit - Platinum LT36PB - 36" Rolled Louver Trim Kit - Polished Brass LT42B - 42" Rolled Louver Trim Kit - Brushed Brass LT42P - 42" Rolled Louver Trim Kit - Platinum LT42PB - 42" Rolled Louver Trim Kit - Polished Brass

DEFLECTION HOODS

(Not Shown)

HD36 - 36" Hood - Black (2" Brow) HD42 - 42" Hood - Black (2" Brow)

PERIMETER TRIM KIT

(Not Shown)

PT36 - 36" Perimeter Trim Kit - Black PT36B - 36" Perimeter Trim Kit - Brushed Brass PT36P - 36" Perimeter Trim Kit - Platinum PT36PB - 36" Perimeter Trim Kit - Polished Brass PT42 - 42" Perimeter Trim Kit - Black PT42B - 42" Perimeter Trim Kit - Brushed Brass PT42P - 42" Perimeter Trim Kit - Platinum PT42PB - 42" Perimeter Trim Kit - Polished Brass

MANUAL BLOWER KIT - BK

Manual variable control blower accessory provides better heat distribution. Complete installation and operation instructions included in this manual.

THERMOSTATICALLYCONTROLLED BLOWER KIT BKT

Provides better heat distribution. Blower turns off and on automatically, as needed. Complete installation and operation instructions included in this manual.

REMOTE CONTROL KIT - WRC SERIES (Not Shown)

Standard ON/OFF electronic remote control kit.

108862-01D

For more information, visit www.desatech.com

ILLUSTRATED PARTS BREAKDOWN

(V)V36EN, (V)V36ENS, (V)V36ENH, (V)V36EP, (V)V36EPS, (V)V36EPH

ILLUSTRATED PARTS BREAKDOWN

(V)V36EN, (V)V36ENS, (V)V36ENH (V)V36EP, (V)V36EPS, (V)V36EPH

23-2

23-5

23-6

10 11

23-4

23-3

23-1

For more information, visit www.desatech.com

108862-01D

(V)V36EN, (V)V36ENS, (V)V36ENH, (V)V36EP, (V)V36EPS, (V)V36EPH

PARTS LIST

This list contains replaceable parts used in your fireplace. When ordering parts, follow the instructions listed under Replacement Parts on page 30 of this manual.

KEY (V)V36EN (V)V36ENS (V)V36ENH NO. (V)V36EP (V)V36EPS (V)V36EPH DESCRIPTION QTY.

1 ** ** ** Firebox Assembly 1 2 ** ** ** Face Weldment 1 3 108010-01 108010-01 108010-01 Door Assembly (V Models Only) 1

108010-02 108010-02 108010-02 Door Assembly (VV Models Only) 4 108011-01 108011-01 108011-01 Top Panel Louver Assy 1 5 108011-02 108011-02 108011-02 Bottom Panel Louver Assy 1 6 ** ** ** Fireplace Top 1 7 ** ** ** Fireplace Top Insulation 1 8 ** ** ** Fireplace Surround 1 9 109082-01 109082-01 109082-01 Heat Shield 1 10 11 12 13 14 108076-01 108076-01 108076-01 Burner Base Gasket 1 15 108719-01 108719-01 108719-01 Screen Rod 1 16 12105 12105 12105 Screen 2 17 11418 11418 11418 Push-On Nut 2 18 14123 14123 14123 Strain Relief 1 19 21171 21171 21171 Gas Knock-Out Cover 2 20 24353 24353 24353 Handy Box Assembly 1 21 24460 24460 24460 Gas Conduit Assembly 1 22 108760-03 108760-03 108760-03 Burner Assembly (Natural Gas) 1

23 108032-01 108032-01 108032-01 Log Set 1 23-1 109128-01 109128-01 109128-01 Front Log (Log 1) 1 23-2 109129-01 109129-01 109129-01 Rear Log (Log 2) 1 23-3 109130-01 109130-01 109130-01 Crossover Log (Log 3) 1 23-4 109131-01 109131-01 109131-01 Top Log (Log 4) 1 23-5 109132-01 109132-01 109132-01 Left Log (Log 5) 1 23-6 109133-01 109133-01 109133-01 Base Log (Log 6) 1

___

108760-04 108760-04 108760-04 Burner Assembly (Propane/LP Gas) 1

25487 25487 25487 Lava Rock/Bag Assy 1

27253 27253 27253 Notice Label 1

55240 55240 55240 Vent Label 1

See Below See Below Top Refractory Brick Panel 1 See Below See Below Left Refractory Brick Panel 1 See Below See Below Rear Refractory Brick Panel 1 See Below See Below Right Refractory Brick Panel 1

PARTS AVAILABLE - NOT SHOWN

PARTS LIST

REFRACTORY BRICK PANELS

V36ENS, V36EPS VV36ENS, VV36EPS V36ENH, V36EPH VV36ENH, VV36EPH DESCRIPTION QTY

108081-02 108081-01 108175-02 108175-01 Top Refractory Brick Panel 1 108083-02 108083-01 108177-02 108177-01 Left Refractory Brick Panel 1 108080-02 108080-01 108174-02 108174-01 Rear Refractory Brick Panel 1 108082-02 108082-01 108176-02 108176-01 Right Refractory Brick Panel 1

** Part not available for field replacement.

For more information, visit www.desatech.com

108862-01D

ILLUSTRATED PARTS BREAKDOWN

Burner Assembly for Models (V)V36EN, (V)V36ENS, (V)V36ENH, (V)V36EP, (V)V36EPS, (V)V36EPH

ILLUSTRATED PARTS BREAKDOWN

BURNER ASSEMBLY FOR MODELS (V)V36EN, (V)V36ENS, (V)V36ENH, (V)V36EP, (V)V36EPS, AND (V)V36EPH

For more information, visit www.desatech.com

108862-01D

Burner Assembly for Models (V)V36EN, (V)V36ENS, (V)V36ENH, (V)V36EP, (V)V36EPS, (V)V36EPH

PARTS LIST

BURNER ASSEMBLY FOR MODELS (V)V36EN, (V)V36ENS, (V)V36ENH, (V)V36EP, (V)V36EPS, AND (V)V36EPH

This list contains replaceable parts used in your fireplace. When ordering parts, follow the instructions listed under Replacement Parts on page 30 of this manual.

KEY PART NO. NUMBER DESCRIPTION QTY.

1 108075-02 Burner Assembly Base 1 2 108759-01 Burner Pan Assembly 1 3 11165 Screw #10 x 5/8 MD TR BLK 12 4 108763-01 Tube Burner 1 5 104506-25 Pan Burner Orifice (Natural Gas) 1

14514 Pan Burner Orifice (Propane/LPGas) 1

6 108866-01 Pilot Assembly (Natural Gas) 1

108866-02 Pilot Assembly (Propane/LP Gas) 1 7 11102 Screw #8-32 x 3/8 PPH Zinc 2 8 108755-01 Pilot Bracket 1 9 14546 Tube Burner Orifice (Natural Gas) 1

14544 Tube Burner Orifice (Propane/LPGas) 1 10 14528 Brass Elbow Fitting 1 11 14554 Tubing Assembly 1 12 14500 Brass Fitting 2 13 14569 Electronic Valve (Natural Gas) 1

14570 Electronic Valve (Propane/LP Gas) 1 14 14253 Flexible Gas Line 1 15 11107 Screw #10-32 x 1/4 PPH Zinc 4 16 26808 Valve Bracket 1 17 26827 Switch Bracket 1 18 11147 Screw #10-24 x 1/2 PPH Zinc 2 19 11186 Screw #8-32 x 1 Zinc 4 20 14115 Spade Tongue Connector 1 21 14120 Spade 1/4 Female Connector 4 22 14126 16 GA Green Wire (Ground) 1 23 14129 Transformer, 24V 1 24 14134 18 GA Black Wire 5 25 14149 Spade 1/4 Right Angle Connector 4 26 14301 Ignition Module SP745 1 27 17223 Magnet 2 28 23416 Electronic Components Board 1 29 108863-01 24" Supply Connect Plug 1 30 11201 Nut #8-32 Hex Zinc 4 31 109144-01 Air Baffle, 36" (Natural Gas Only) 2 32 108761-01 Grate Assembly 1 33 108754-01 Grate Base 1

PARTS LIST

108862-01D

For more information, visit www.desatech.com

ILLUSTRATED PARTS BREAKDOWN

(V)V42EN, (V)V42ENS, (V)V42ENH, (V)V42EP, (V)V42EPS, (V)V42EPH

ILLUSTRATED PARTS BREAKDOWN

(V)V42EN, (V)V42ENS, (V)V42ENH (V)V42EP, (V)V42EPS, (V)V42EPH

23-2

23-5

23-6

23-7

10 11

23-4

23-3

23-1

For more information, visit www.desatech.com

108862-01D

(V)V42EN, (V)V42ENS, (V)V42ENH, (V)V42EP, (V)V42EPS, (V)V42EPH

PARTS LIST

This list contains replaceable parts used in your fireplace. When ordering parts, follow the instructions listed under Replacement Parts on page 30 of this manual.

KEY (V)V42EN (V)V42ENS (V)V42ENH NO. (V)V42EP (V)V42EPS (V)V42EPH DESCRIPTION QTY.

1 ** ** ** Firebox Assembly 1 2 ** ** ** Face Weldment 1 3 108328-01 108328-01 108328-01 Door Assembly (V Models Only) 1

108328-02 108328-02 108328-02 Door Assembly (VV Models Only) 1 4 108331-01 108331-01 108331-01 Top Panel Louver Assy 1 5 108331-02 108331-02 108331-02 Bottom Panel Louver Assy 1 6 ** ** ** Fireplace Top 1 7 ** ** ** Fireplace Top Insulation 1 8 ** ** ** Fireplace Surround 1 9 109082-02 109082-02 109082-02 Heat Shield 1 10 11 12 13 14 108374-01 108374-01 108374-01 Burner Base Gasket 1 15 108455-01 108455-01 108455-01 Screen Rod 1 16 108740-01 108740-01 108740-01 Screen 2 17 11418 11418 11418 Push-On Nut 2 18 14123 14123 14123 Strain Relief 1 19 21171 21171 21171 Gas Knock-Out Cover 2 20 24353 24353 24353 Handy Box Assembly 1 21 24460 24460 24460 Gas Conduit Assembly 1 22 108329-03 108329-03 108329-03 Burner Assembly (Natural Gas) 1

23 108778-01 108778-01 108778-01 Log Set 1 23-1 109396-01 109396-01 109396-01 Front Log (Log 1) 1 23-2 109397-01 109397-01 109397-01 Rear Log (Log 2) 1 23-3 109398-01 109398-01 109398-01 Crossover Log (Log 3) 1 23-4 109399-01 109399-01 109399-01 Top Log (Log 4) 1 23-5 109400-01 109400-01 109400-01 Left Log (Log 5) 1 23-6 109401-02 109401-02 109402-02 Right Log (Log 6) 1 23-7 109401-01 109401-01 109401-01 Base Log (Log 7) 1

___

108329-04 108329-04 108329-04 Burner Assembly (Propane/LP Gas) 1

25487 25487 25487 Lava Rock/Bag Assy 1

27253 27253 27253 Notice Label 1

55240 55240 55240 Vent Label 1

See Below See Below Top Refractory Brick Panel 1 See Below See Below Left Refractory Brick Panel 1 See Below See Below Rear Refractory Brick Panel 1 See Below See Below Right Refractory Brick Panel 1

PARTS AVAILABLE - NOT SHOWN

PARTS LIST

REFRACTORY BRICK PANELS

V42ENS, V42EPS VV42ENS, VV42EPS V42ENH, V42EPH VV42ENH, VV42EPH DESCRIPTION QTY

108352-02 108352-01 108356-02 108356-01 Top Refractory Brick Panel 1 108354-02 108354-01 108358-02 108358-01 Left Refractory Brick Panel 1 108351-02 108351-01 108355-02 108355-01 Rear Refractory Brick Panel 1 108353-02 108353-01 108357-02 108357-01 Right Refractory Brick Panel 1

For more information, visit www.desatech.com

108862-01D

ILLUSTRATED PARTS BREAKDOWN

Burner Assembly for Models (V)V42EN, (V)V42ENS, (V)V42ENH, (V)V42EP, (V)V42EPS, (V)V42EPH

ILLUSTRATED PARTS BREAKDOWN

BURNER ASSEMBLY FOR MODELS (V)V42EN, (V)V42ENS, (V)V42ENH, (V)V42EP, (V)V42EPS, AND (V)V42EPH

For more information, visit www.desatech.com

108862-01D

Burner Assembly for Models (V)V42EN, (V)V42ENS, (V)V42ENH, (V)V42EP, (V)V42EPS, (V)V42EPH

PARTS LIST

BURNER ASSEMBLY FOR MODELS (V)V42EN, (V)V42ENS, (V)V42ENH, (V)V42EP, (V)V42EPS, AND (V)V42EPH

This list contains replaceable parts used in your fireplace. When ordering parts, follow the instructions listed under Replacement Parts on page 30 of this manual.

KEY PART NO. NUMBER DESCRIPTION QTY.

1 108373-01 Burner Assembly Base 1 2 108330-01 Burner Pan Assembly 1 3 11165 Screw #10 x 5/8 MD TR BLK 12 4 108376-01 Tube Burner 1 5 104506-24 Pan Burner Orifice (Natural Gas) 1

104506-20 Pan Burner Orifice (Propane/LPGas) 1

6 108866-01 Pilot Assembly (Natural Gas) 1

108866-02 Pilot Assembly (Propane/LP Gas) 1 7 11102 Screw #8-32 x 3/8 PPH Zinc 2 8 108755-01 Pilot Bracket 1 9 104506-25 Tube Burner Orifice (Natural Gas) 1

104506-20 Tube Burner Orifice (Propane/LPGas) 1 10 14528 Brass Elbow Fitting 1 11 14554 Tubing Assembly 1 12 14500 Brass Fitting 2 13 14569 Electronic Valve (Natural Gas) 1

14570 Electronic Valve (Propane/LP Gas) 1 14 14253 Flexible Gas Line 1 15 11107 Screw #10-32 x 1/4 PPH Zinc 4 16 26808 Valve Bracket 1 17 26827 Switch Bracket 1 18 11147 Screw #10-24 x 1/2 PPH Zinc 2 19 11186 Screw #8-32 x 1 Zinc 4 20 14115 Spade Tongue Connector 1 21 14120 Spade 1/4 Female Connector 4 22 14126 16 GA Green Wire (Ground) 1 23 14129 Transformer, 24V 1 24 14134 18 GA Black Wire 5 25 14149 Spade 1/4 Right Angle Connector 4 26 14301 Ignition Module SP745 1 27 17223 Magnet 2 28 23416 Electronic Components Board 1 29 108863-01 24" Supply Connect Plug 1 30 11201 Nut #8-32 Hex Zinc 4 31 109144-02 Air Baffle, 42" (Natural Gas Only) 2 32 108761-02 Grate Assembly 1 33 108346-01 Grate Base 1 34 11429 Pin 2

PARTS LIST

108862-01D

For more information, visit www.desatech.com

WARRANTY INFORMATION

KEEP THIS WARRANTY

Model Serial No. Date Purchased

Always specify model and serial numbers when communicating with the factory. We reserve the right to amend these specifications at any time without notice. The only warranty applicable is our standard written warranty. We

make no other warranty, expressed or implied.

LIMITED WARRANTY

DIRECT-VENT FIREPLACE

DESA International warrants this product to be free from defects in materials and components for two (2) years from the date of first purchase, provided that the product has been properly installed, operated and maintained in accordance with all applicable instructions. To make a claim under this warranty the Bill of Sale or cancelled check must be presented.

This warranty is extended only to the original retail purchaser. This warranty covers the cost of part(s) required to restore this heater to proper operating condition and an allowance for labor when provided by a DESA Authorized Service Center. Warranty part(s) MUST be obtained through authorized retailers of this product and/or DESA International who will provide original factory replacement parts. Failure to use original factory replacement parts voids this warranty. The heater MUST be installed by a qualified installer in accordance with all local codes and instructions furnished with the unit.

This warranty does not apply to parts that are not in original condition because of normal wear and tear, or parts that fail or become damaged as a result of misuse, accidents, lack of proper maintenance or defects caused by improper installation. Travel, diagnostic cost, labor, transportation and any and all such other costs related to repairing a defective heater will be the responsibility of the owner.

TO THE FULL EXTENT ALLOWED BY THE LAW OF THE JURISDICTION THAT GOVERNS THE SALE OF THE PRODUCT; THIS EXPRESS WARRANTY EXCLUDES ANY AND ALL OTHER EXPRESSED WARRANTIES AND LIMITS THE DURATION OF ANY AND ALL IMPLIED WARRANTIES, INCLUDING WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE TO TWO (2) YEARS ON ALL COMPONENTS FROM THE DATE OF FIRST PURCHASE; AND DESA INTERNATIONAL’S LIABILITY IS HEREBY LIMITED TO THE PURCHASE PRICE OF THE PRODUCT AND DESA INTERNATIONAL SHALL NOT BE LIABLE FOR ANY OTHER DAMAGES WHATSOEVER INCLUDING INDIRECT, INCIDENTAL OR CONSEQUENTIAL DAMAGES.

Some states do not allow a limitation on how long an implied warranty lasts or an exclusion or limitation of incidental or consequential damages, so the above limitation on implied warranties, or exclusion or limitation on damages may not apply to you.

This warranty gives you specific legal rights, and you may also have other rights that vary from state to state. For information about this warranty write:

2701 Industrial Drive P.O. Box 90004 Bowling Green, KY 42102-9004

www.desatech.com

108862 01

NOT A UPC

For more information, visit www.desatech.com

108862-01 Rev. D 08/02

108862-01D

Desa VV42EN, VV36EP, VV42EP User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
