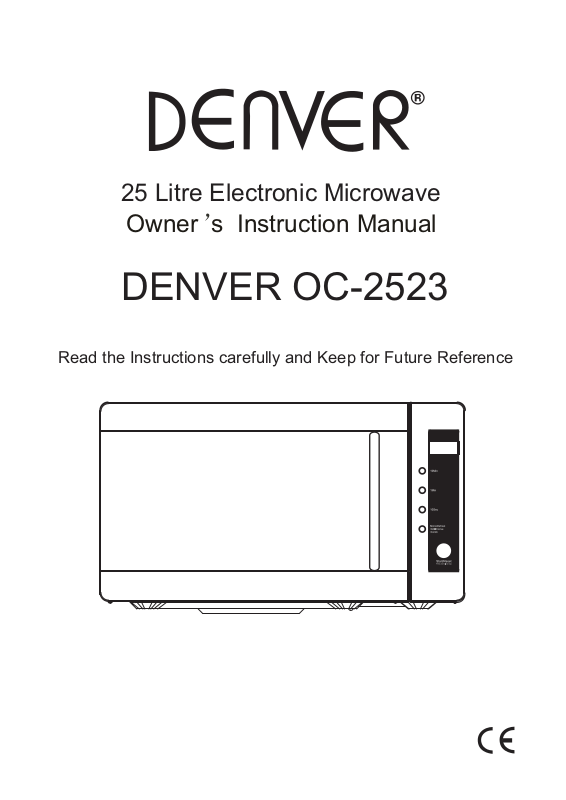

Denver OC-2523 User Manual [de]

25 Litre Electronic Microwave

Owner s Instruction Manual

DENVER OC-2523

Read the Instructions carefully and Keep for Future Reference

SPECIFICATIONS

Power consumption: Output: Grill Heater:

Convection: Operating Frequency:

Outside Dimensions: Oven Cavity Dimensions: Oven Capacity: Uncrated Weight:

230V~50Hz,1400W

900W

1200W

1350W 2,450MHz

510mm(W) X 455mm(D) X 303mm(H)

330mm(W) X 330mm(D) X 212mm(H)

25litres

Approx. 17.8kg

BEFORE YOU CALL FOR SERVICE

1. If the oven will not perform at all, the display does not appear or the display disappears: a) Check to ensure that the oven is plugged in securely. If it is not, remove the plug from the outlet, wait 10 seconds and plug it in again securely. b) Check the premises for a blown circuit fuse or a tripped main circuit breaker. If these seem to be operating properly, test the outlet with another appliance.

2. If the microwave power does not function: a) Check to see whether the timer is set. b) Check to make sure that the door is securely closed to engage the safety interlocks. Otherwise, the microwave energy will not flow into the oven.

IF NONE OF THE ABOVE RECTIFIES THE SITUATION, THEN CONTACT THE AUTHORIZED SERVICE AGENT.

Note:

The appliance is for household use for heating food and beverages using electromagnetic energy and for indoor

use only.

RADIO INTERFERENCE

Microwave oven may cause interference to your radio, TV, or similar equipment. When interference occurs, it may be

eliminated or reduced by the following procedures.

a. Clean the door and sealing surface of the oven.

b. Place the radio, TV, etc. as far away from your microwave oven as possible.

c. Use a properly installed antenna for your radio, TV, etc. to get a strong signal reception.

-2-

INSTALLATION

1. Make sure all the packing materials are removed from the inside of the door.

2. Inspect the oven after unpacking for any visual damage such as: Misaligned Door Damaged Door Dents or Holes in Door Window and Screen Dents in Cavity If any of the above are visible, DO NOT use the oven.

3. This Microwave Oven weighs 19 kg and must be placed on a horizontal surface strong enough to support this weight.

4. The oven must be placed away from high temperature and steam.

5. DO NOT place anything on top of the oven.

6. Keep the oven at least 8 cm away from both sidewalls and 10 cm away from rear wall to ensure the correct ventilation.

7. DO NOT remove the turn -table drive shaft.

8. As with any appliance, close supervision is necessary when used by children.

WARNING-THIS APPLIANCE MUST BE EARTHED.

1. The plug socket should be within easy reach of the power cord

2. This oven requires 1.5 KVA for its input.consultation with service engineer is suggested when installing the oven. CAUTION:This oven is protected internally by a 250V,10 Amp Fuse.

IMPORTANT

The wires in this mains lead are coloured in accordance with the following code:

Green-and-yellow : Earth

Blue : Neutral

Brown : Live

As the colours of the wires in the mains leads of the appliance may not correspond with the coloured markings

identifying the terminals in your plug, proceed as follows:

The wire which is coloured green-and-yellow must be connected to the terminal in the plug which is marked with the

letter E or by the earth symbol coloured green of green-and-yellow.

The wire which is coloured blue must be connected to the terminal which is marked with the letter N or coloured black.

The wire which is coloured brown must be connected to the terminal which is marked with the letter L or coloured red.

-3-

IMPORTANT SAFETY INSTRUCTIONS - READ CAREFULLY AND KEEP FOR FUTURE REFERENCE

-WARNING: When the appliance is operated in the combination mode, children should only use the oven under adult

supervision due to the temperatures generated; (Only for the model with grill function)

-WARNING: If the door or door seals are damaged, the oven must not be operated until it has been repaired by a

competent person;

-WARNING: It is hazardous for anyone other than a competent person to carry out any service or repair operation

that involves the removal of a cover which gives protection against exposure to microwave energy;

-WARNING: liquids and other foods must not be heated in sealed containers since they are liable to explode.

-WARNING: Only allow children to use the oven without supervision when adequate instructions have been given

so that the child is able to use the oven in a safe way and understands the hazards of improper use;

- The oven must have sufficient air flow.Keep 10 cm space at back;15 cm at both sides and 30cms from top of the

oven.Don't remove oven's feet, do not block air events of the oven.

- Only use utensils that are suitable for use in microwave ovens.

- When heating food in plastic or paper containers, keep an eye on the oven due to the possibility of ignition;

- If smoke is observed, switch off or unplug the appliance and keep the door closed in order to stifle any flames;

- Microwave heating of beverages can result in delayed eruptive boiling, therefore care must be taken when handling

the container;

- The contents of feeding bottles and baby food jars shall be stirred or shaken and the temperature checked before

consumption, in order to avoid burns;

- Eggs in their shell and whole hard-boiled eggs should not be heated in microwave ovens since they may explode,

even after microwave heating has ended;

- When cleaning surfaces of door, door seal, cavity of the oven, use only mild, nonabrasive soaps, or detergents

applied with a sponge or soft cloth.

- The oven should be cleaned regularly and any food deposits removed;

- Failure to maintain the oven in a clean condition could lead to deterioration of the surface that could adversely affect

the life of the appliance and possibly result in a hazardous situation;

- If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or

similarly qualified persons in order to avoid a hazard.

- The temperature of accessible surfaces may be high when the appliance is operating.

SAFETY INSTRUCTIONS FOR GENERAL USE

Listed below are, as with all appliances, certain rules to follow and safeguards to assure top performance from

this oven:

1. Always have the glass tray, roller arms, coupling and roller track in place when operating the oven.

2. Do not use the oven for any reason other than food preparation, such as for drying clothes, paper, or any

other nonfood items, or for sterilizing purposes.

3. Do not operate the oven when empty. This could damage the oven.

4. Do not use the oven cavity for any type of storage,such a papers, cookbooks, etc.

5.Do not cook any food surrounded by a membrane,such as egg yolks,potatoes,chicken livers,etc without

first being pierced several times with a fork.

-4-

6. Do not insert any object into the openings on the outer case.

7. Do not at any time remove parts from the oven such a the feet, coupling, screws, etc.

8. Do not cook food directly on the glass tray. Place food in/on proper cooking utensil before placing in the oven.

9. IMPORTANT-COOKWARE NOT TO USE IN YOUR MICROWAVE OVEN Do not use metal pans or dishes with metal handles. Do not use anything with metal trim. Do not use paper covered wire twist-ties on plastic bags. Do not use melamine dishes as they contain a material which will absorb microwave energy. This may cause the dishes to crack or char and will slow down the cooking speed. Do not use Centura Tableware. The glaze is not suitable for microwave use. Corelle Livingware closed handle cups should not be used. Do not cook in a container with a restricted opening,such as a pop bottle or salad oil bottle, as they may explode if heated in a microwave oven. Do not use conventional meat or candy thermometers. There are the thermometers available specifically for microwave cooking. These may be used.

10. Microwave utensils should be used only in accordance with manufacturer's instructions.

11. Do not attempt to deep-fry foods in this oven.

12. Please remember that a microwave oven only heats the liquid in a container rather than the container itself. Therefore, even though the lid of a container is not hot to the touch when removed from the oven, please remember that the food/liquid inside will be releasing the same amount of steam and/or spitting when the lid is removed as in conventional cooking.

13. Always test the temperature of cooked food yourself especially if you are heating or cooking food/liquid for babies. It is advisable never to consume food/liquid straight from the oven but allow it to stand for a few minutes and stir food/liquid to distribute heat evenly.

14. Food containing a mixture of fat and water, e.g.stock,should stand for 30-60 seconds in the oven after it has been turned off. This is to allow the mixture to settle and to prevent bubbling when a spoon is placed in the food/liquid or a stock cube is added.

15. When preparing/cooking food/liquid and remember that there are certain foods, e.g. Christmas puddings, jam and mincemeat, which heat up very quickly. When heating or cooking foods with a high fat or sugar content do not use plastic containers.

16. Cooking utensil may become hot because of heat transferred from the heated food. This is especially true if plastic wrap has been covering the top and handles of the utensil. Potholders may be needed to handle the utensil.

17.To reduce the risk of fire in the oven cavity: (a)Do not overcook food. Carefully attend microwave oven if paper, plastic, or other combustible materials are placed inside the oven to facilitate cooking. (b)Remove wire twist-ties from bags before placing bag in oven. (c)If materials inside the oven should ignite, keep oven door closed, turn the oven off at the wall switch, or shut off power at the fuse or circuit breaker panel.

FEATURE DIAGRAM

(1) Door Safety Lock System

(2) Oven Window

(3) Oven Air Vent

(4) Roller Ring

(5) Glass Tray

(6) Control Panel

(7) Grill rack

-5-

-6-

OPERATION INSTRUCTION

1.SIMPLE COOKING

etc.

milk

b) Press the button "Start/Reset", the microwave oven will work on 100% power for 1 minutes.

completed.

2.MICROWAVE COOKING

(A) Fast cooking method

(For example: Select 100% power to cook foods for 5 minutes.)

a) Set the time "5:00"

b) Press "Start/Reset" button

(B) Control by hand

(For example: Select 70% power to cook foods for 10 minutes)

a) Press "Micro/Grill" button to select 70% power.

b) Press time button to set cooking time "10:00"

c) Press "

Start/Reset" button.

You can press "MICRO/GRILL" button to select power.

Step

1 P10 100%

Display Micro power

70%

50%

30%

10%

3.AUTO DEFROST FUNCTION

You need to press "1Min" (1.0kg) and "10Sec" (0.1kg) according to the weight of the food.The oven can

select defrosting program and auto start defrosting.

For example: defrost 0.4kg frozen foods

1) Press "Micro/Grill" to choose defrost function, display "DEF".

2) Set weight "0.4kg" by pressing "1Min" and "10Sec" buttons.

3).Press "Start/Reset" button.

Remark: the maximum weight is 2kgs.

4. Grill

You may press "Grill" button to select such functions: (the longest cooking time is 59'50'' minutes).

Pattern 1: 85% grill power, display G-1

Example: cooking food with grill for 20 minutes

A) Press "Micro/Grill" until the LED displayed "G-1".

B) Set cooking time "20:00"

C) Press "Start/Reset"

-7-

When grilling, the food isn't heated by microwave, heat is radiated from the metal heater at the top of the oven.

When grill is working, the cooking time has 2 stages, After the 1st half of the cooking, the program will automatically

pause and sound 2 beeps, indicating you to open the oven and turn food over, after turning over, close the door,

press "Start/Reset" button, the cooking will continue for the 2nd half. If you do not want to turn the food over, the oven

will re-start after 1 min pause.

5. Combination Cooking

This appliance offers you a choice of three methods of combination cooking.

Option 1 : Convection + Microwave (200C convection + 50% microwave), display "C-1"

This is ideal for roasting and baking etc.

Option 2 : Grill and Convection (50% grill + 210 C convection, display "C-2" )

For fast crisping etc.

Option 3 : Grill and Microwave (50% grill + 50% microwave), display "C-3"

For fast grilling etc.

Example : Cooking food using option 3 for 30 minutes.

a) Press "Comb" button to select "C-3"

b) Set cooking time for 30 minutes

c) Press "Start/Reset"

6. Convection Cooking

This oven can be used as a convection oven and can be programmed to reach a desired temperature for

pre-heating. you may press "Micro/Conve" button to set the different temperature.

Example:To set the oven to pre-heat to 200

a) Press the "Micro/Conve" button to set 200 C temperature.

b) Press "Start/Reset".

You can press "Micro/Conve" button to select temperature: 230 C,220 C, 200 C, 180 C, 160 C.

When the pre-heating is completed, the appliance will stop work and emit 2 bleeps to remind you to place

the food in the oven. Set the convection cooking temperature and time and start cooking.The longest

pre-heating time will be 30 minutes.)

Example: Convection cooking,To set the pre-heated oven to cook for 20 minutes at 200

a) Press "Micro/Conve" button to choose 200 C temperature.

b) Set cooking time for 20 minutes

c) Press "Start/Reset"

7. Child-safely lock

To activate the child safely lock, press "1Min" and "10Sec" button at the same time for 2 seconds.

Press "1Min" and "10Sec" button, at the same time for 2 seconds again, it will unlock this function.

8. Start/Reset

a) In the course of operation, pressing "Start/Reset" button will stop operation.

b) If any program was set before pressing start, pressing this button will cancel all the set program.

-8-

CARE OF YOUR MICROWAVE OVEN

1.Turn the oven off and remove the power plug from the wall socket before cleaning.

2.Keep the inside of the oven clean.When food splatters or spilled liquids adhere to oven walls,wipe with a

damp cloth.The use of harsh detergent or abrasives is not recommended.

3.The outside oven surface should be cleaned with a damp cloth.To prevent damage to the operating parts

inside the oven,water should not be allowed to seep into the ventilation openings.

4.Do not allow the Control Panel to become wet. Clean with a soft, damp cloth, Do not use detergents,

abrasives or spray-on cleaners on the control Panel.

5.If steam accumulates inside or around the outside of the oven door, wipe with a soft cloth.This may occur

when the microwave oven is operated under high humidity conditions and in no way indicates malfunction of the unit.

6.It is occasionally necessary to remove the glass tray for cleaning.Wash the tray in warm sudsy water or in

a dishwasher.

7.The roller ring and oven cavity floor should be cleaned regularly to avoid excessive noise.Simply wipe the

bottom surface of the oven with mild detergent,water or window cleaner and dry.The roller ring may be washed in mild sudsy water or dish washer.Cooking vapour collect during repeated use but in no way

affect the bottom surface or roller ring wheels.

When removing the roller ring from cavity floor for cleaning,be sure to replace it in the proper position.

8.Remove odors from your oven by combining a cup of water with the juice and skin of one lemon in a deep microwaveable bowl. Microwave for 5 minutes,wipe thoroughly and dry with a soft cloth.

9.When it becomes necessary to replace the oven light,please consult a dealer to have it replaced.

,QVWUXFWLRQVRQHQYLURQPHQWSURWHFWLRQ

'RQRWGLVSRVHRIWKLVSURGXFWLQWKHXVXDOKRXVHKROGJDUEDJHDWWKHHQGRILWVOLIHF\FOH KDQGLWRYHUDWDFROOHFWLRQSRLQWIRUWKHUHF\FOLQJRIHOHFWULFDODQGHOHFWURQLFDSSOLDQFHV 7KHV\PERORQWKHSURGXFWWKHLQVWUXFWLRQVIRUXVHRUWKHSDFNLQJZLOOLQIRUPDERXWWKH PHWKRGVIRUGLVSRVDO 7KHPDWHULDOVDUHUHF\FODEOHDVPHQWLRQHGLQWKLVPDUNLQJ%\UHF\FOLQJPDWHULDO UHF\FOLQJRURWKHUIRUPVRIUHXWLOL]DWLRQRIROGDSSOLDQFHV\RXDUHPDNLQJDQ LPSRUWDQWFRQWULEXWLRQWRSURWHFWRXUHQYLURQPHQW 3OHDVHLQTXLUHDWWKHFRPPXQLW\DGPLQLVWUDWLRQIRUWKHDXWKRUL]HGGLVSRVDOORFDWLRQ

$//5,*+765(6(59('

&23<5,*+7'(19(5(/(&7521,&6$6

ZZZGHQYHUHOHFWURQLFVFRP

-9-

(OHNWURQLVN0LNURE¡OJHRYQ/LWHU

%HWMHQLQJVYHMOHGQLQJ

'(19(52&2523

/VYHMOHGQLQJHQRPK\JJHOLJWRJJHPGHQVnGXNDQVOnRSLGHQVHQHUH

-10-

SPECIFIKATIONER

Strømforbrug: Udgangseffekt: Grill varmelegeme: Konvektion: Driftsfrekvens: Ydre mål: Ovnrummets mål: Ovnens kapacitet: Nettovægt:

230V~50Hz, 1400W 900W 1200W 1350W 2,450MHz 510 mm (B) x 455 mm (D) x 303 mm (H)

330 mm (B) x 330 mm (D) x 212 mm (H) 25 liter

Ca. 17.8 kg

FØR DU BRINGER OVNEN TIL REPARATION

1. Hvis ovnen slet ikke reagerer på kommandoer, og hvis displayet også er slukket, bør du kontrollere følgende: a) Kontrollér, at netledningen er sat sikkert fast i en stikkontakt, og at der er tændt på kontakten. Hvis stikket ikke er trykket helt ind, skal du tage stikket ud, vente 10 sekunder og sætte det i igen. b) Kontrollér, om der skulle være sprunget en sikring et sted i huset, eller om HFI-relæet skulle være slået fra. Hvis disse lader til at være i orden, kan du teste den enkelte stikkontakt ved at tilslutte et andet elektrisk apparat og se, om det virker.

2. Hvis mikrobølgeeffekten ikke fungerer: a) Kontrollér, om timeren er indstillet. b) Kontrollér, om ovnlågen er helt lukket,således at sikkerhedslåsen er aktiveret. Er detikke

tilf

ældet, vil ovnen nægte at fungere.

HVIS INGEN AF OVENNÆVNTE LØSNINGSFORSLAG VIRKER, BØR DU KONTAKTE EN AUTORISERET SERVICETEKNIKER MED HENBLIK PÅ REPARATION.

Bemærk: Denne ovn er udelukkende beregnet til brug i en almindelig husholdning. Ovnen er designet med henblik på opvarmning af mad- og drikkevarer gennem elektromagnetisk energi og er udelukkende beregnet til indendørs brug.

INTERFERENS I RADIO-TV UDSTYR

En mikrobølgeovn kan forårsage interferens i dine elektroniske apparater så som radio, TV eller lignende. Skulle der opstå interferens, kan problemes løses eller minimeres ved at følge nedenstårende retningslinjer. a. Rengør ovnens låge og sikkerhedspakninger. b. Placér radio, TV etc. så langt fra mikrobølgeovnen som muligt. c. Anvend en korrekt monteret og indstillet antenne til dit radio-TV udstyr, således at signalet går klart og tydeligt igennem.

-11-
